Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Component Location

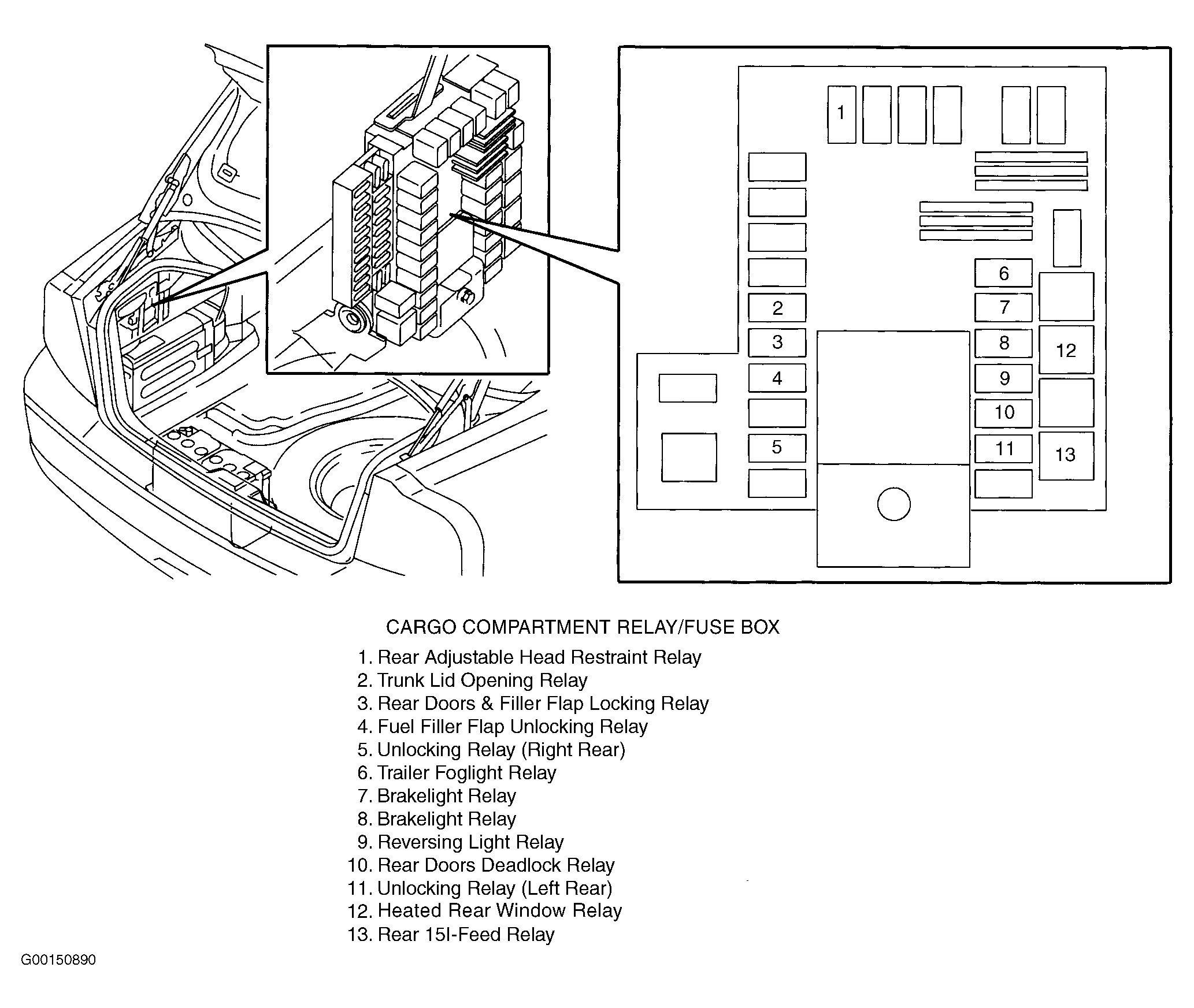

Cargo Compartment Relay/Fuse Box At left side of trunk. See Figure .

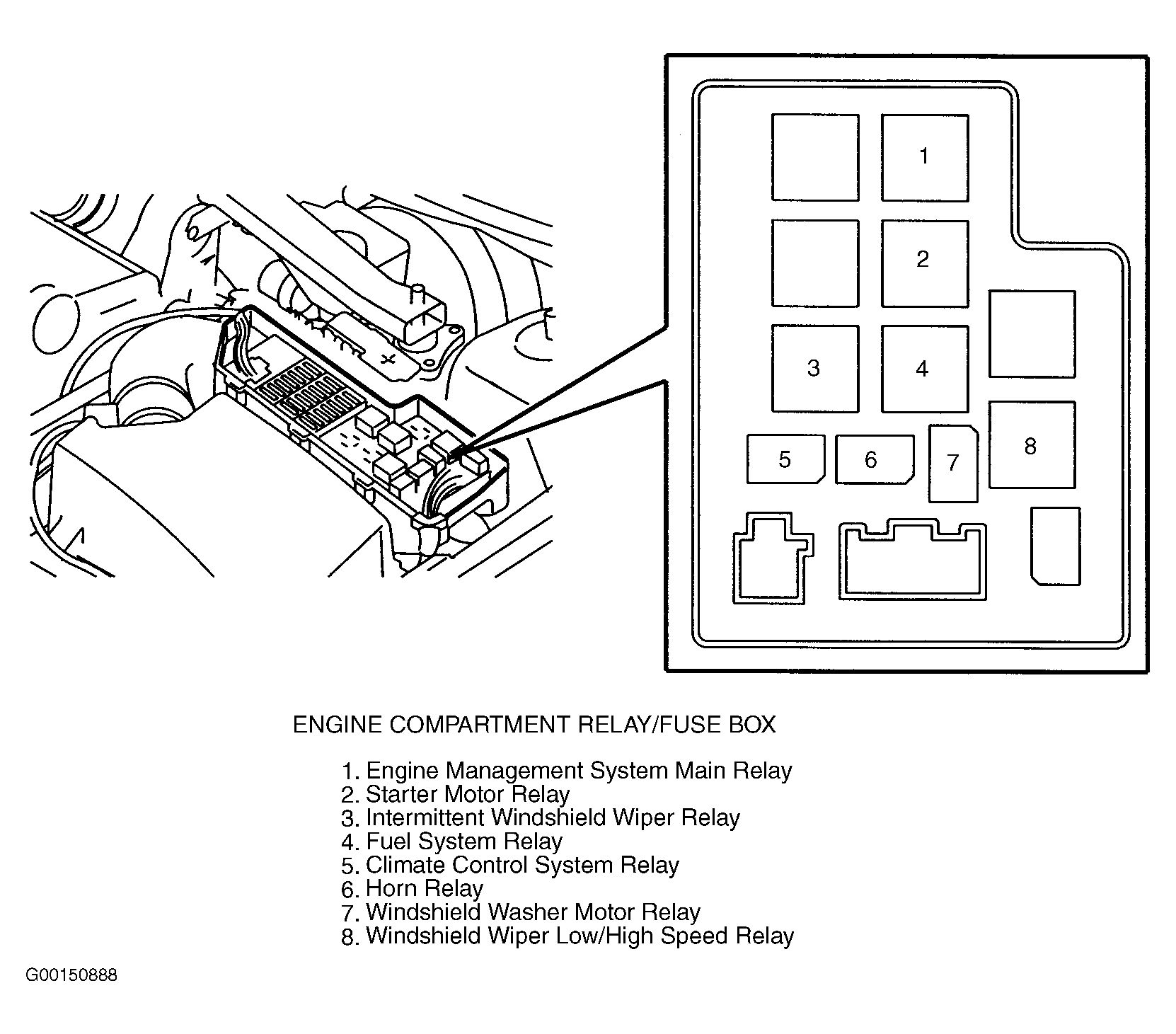

Engine Compartment Relay/Fuse Box At left side of engine compartment, forward of strut tower. See Figure .
Main Fuses Next to battery, in trunk.
Passenger Compartment Fuse Box At left end of dash.

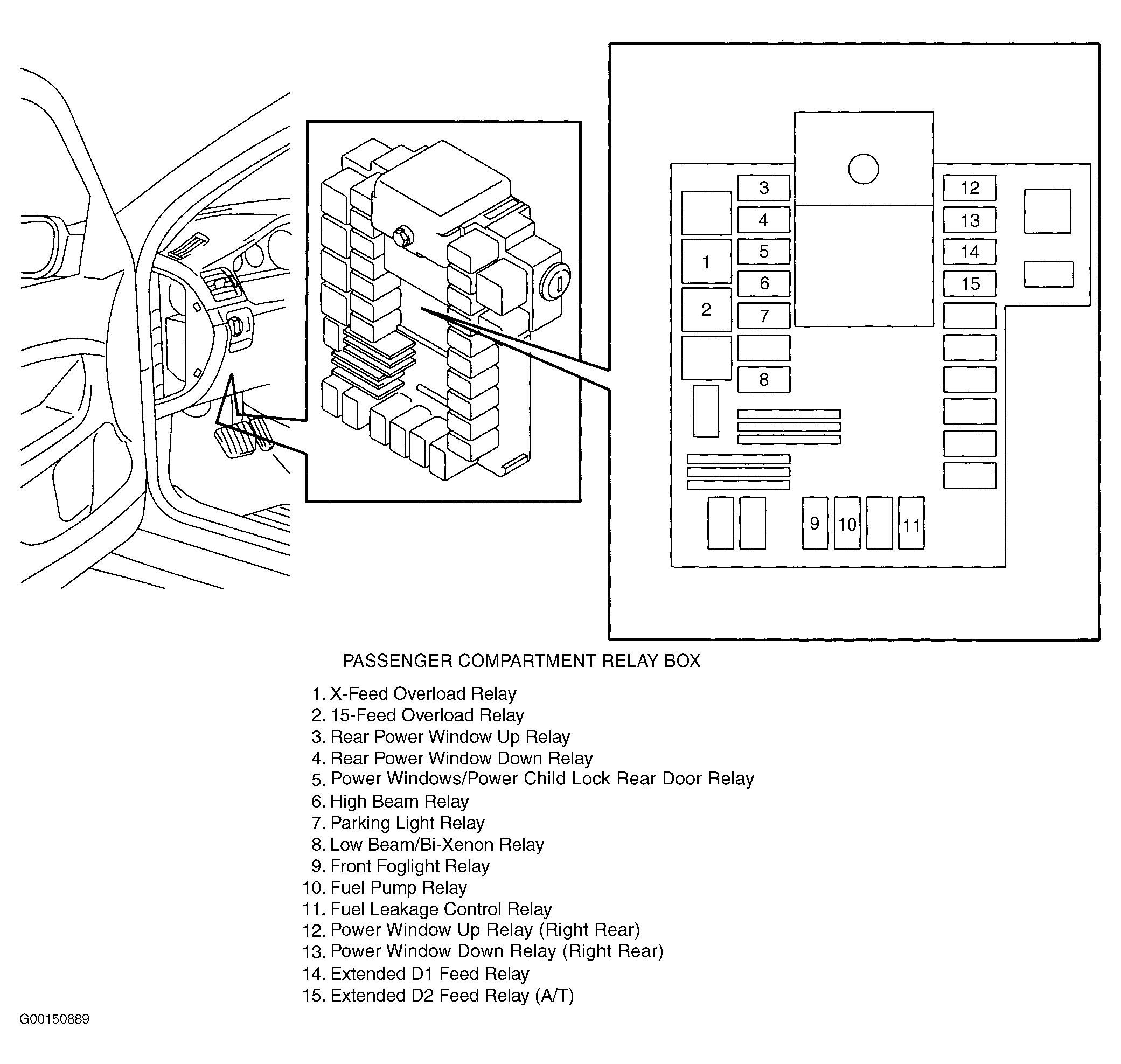

Passenger Compartment Relay Box Behind left side of dash. See Figure .
