Replacement Of Clutch Pedal Vacuum Valve

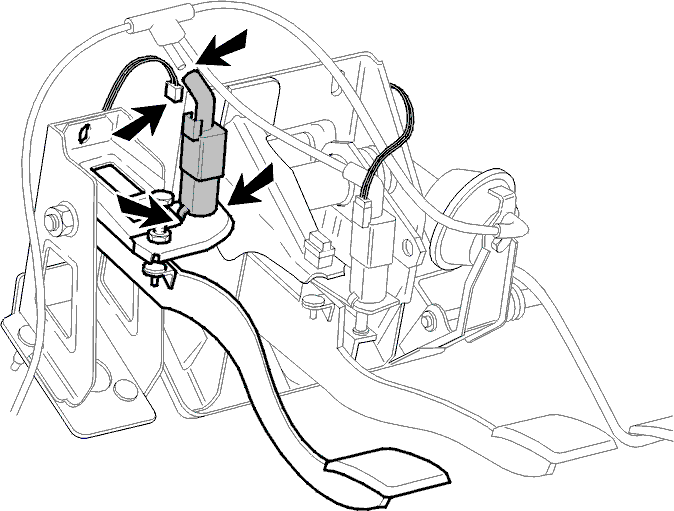

Fig 1: Identifying Clutch Pedal Vacuum Valve

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove connector of vacuum valve.
• Remove hose from vacuum valve.
• Press in both catches and remove vacuum valve from support.

Reinstall in reverse order
