Front Section, Alignment Dimensions

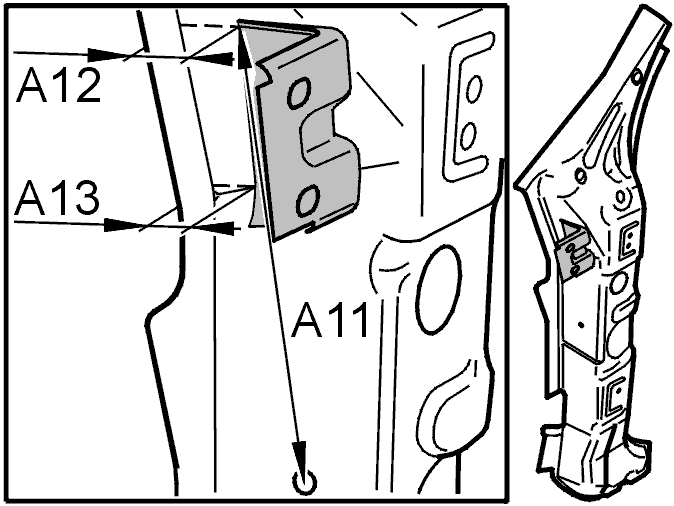

Fig 1: Door Hinge Position Measurement Locations

Courtesy of VOLVO CARS OF NORTH AMERICA.

A11 = 216 mm

A12 = 31 mm

A13 = 23 mm

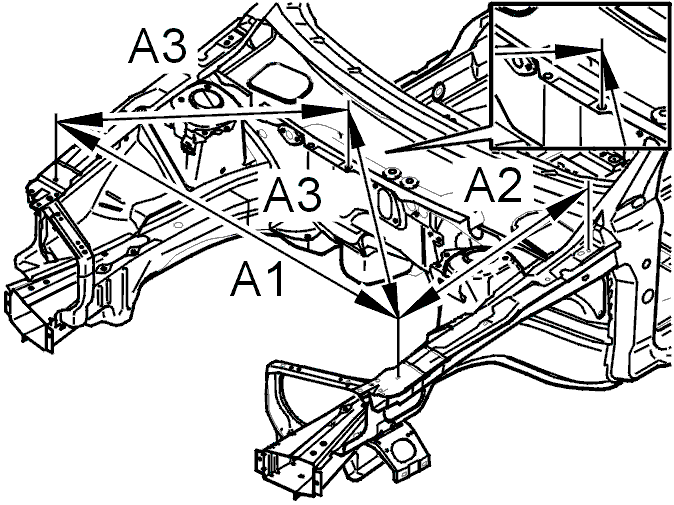

Fig 2: Engine Compartment And Related Bracket Position Measurement Locations (1 Of 6)

Courtesy of VOLVO CARS OF NORTH AMERICA.

A1 = 1490 mm

A2 = 708 mm.

A3 = 868 mm

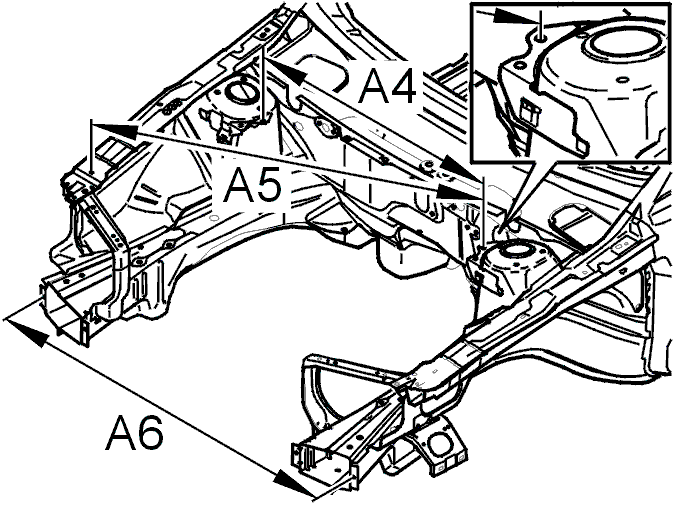

Fig 3: Engine Compartment And Related Bracket Position Measurement Locations (2 Of 6)

Courtesy of VOLVO CARS OF NORTH AMERICA.

A4 = 946 mm

A5 = 1282 mm

A6 = 1350 mm

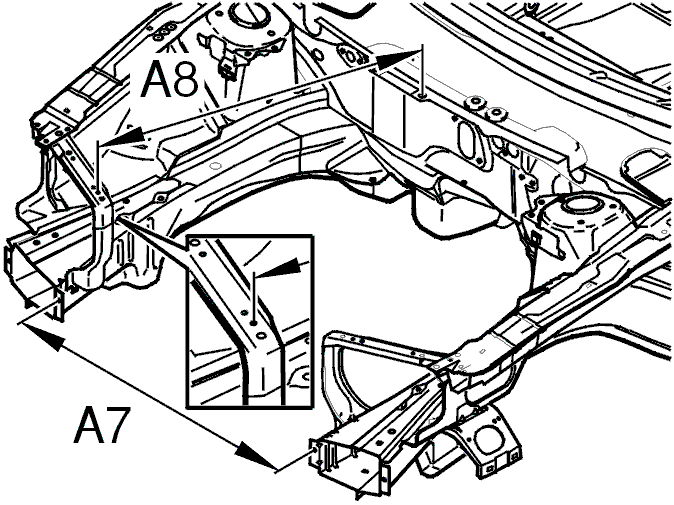

Fig 4: Engine Compartment And Related Bracket Position Measurement Locations (3 Of 6)

Courtesy of VOLVO CARS OF NORTH AMERICA.

A7 = 926 mm

A8 = 812 mm

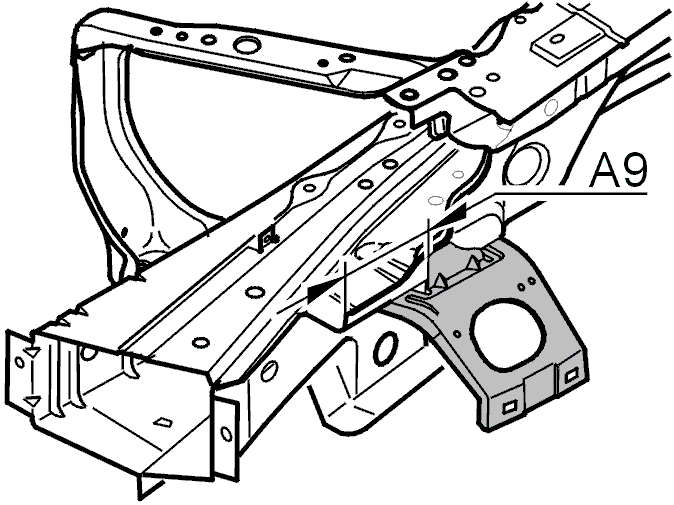

Fig 5: Engine Compartment And Related Bracket Position Measurement Locations (4 Of 6)

Courtesy of VOLVO CARS OF NORTH AMERICA.

A9 = 97 mm

Left side.

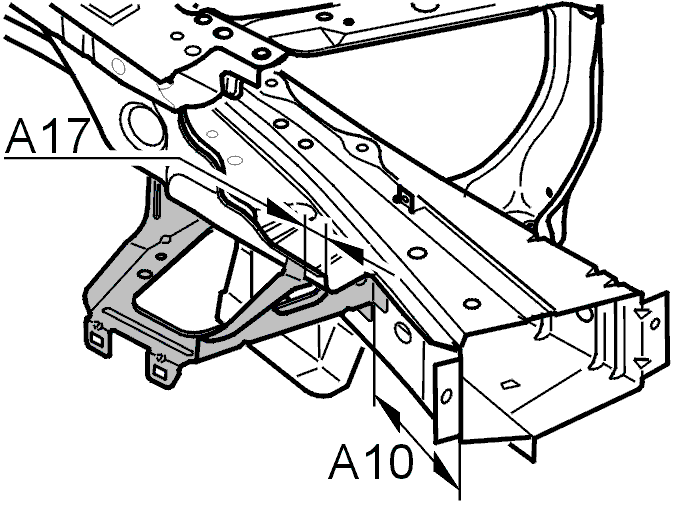

Fig 6: Engine Compartment And Related Bracket Position Measurement Locations (5 Of 6)

Courtesy of VOLVO CARS OF NORTH AMERICA.

A10 = 159 mm

Right-hand side.

A17 = 21 mm

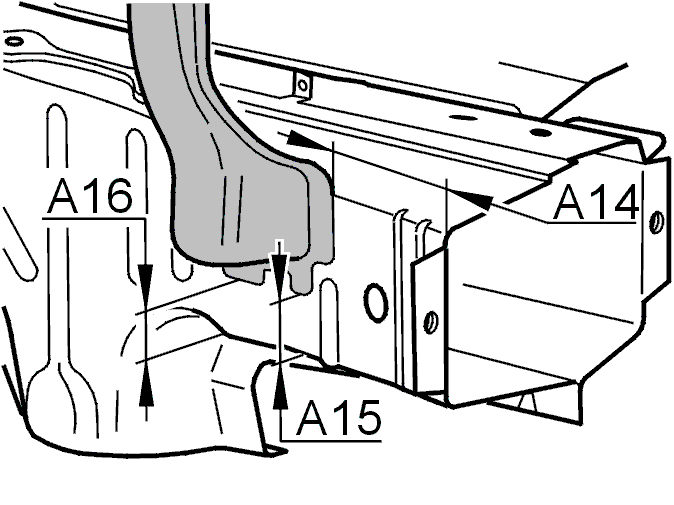

Fig 7: Engine Compartment And Related Bracket Position Measurement Locations (6 Of 6)

Courtesy of VOLVO CARS OF NORTH AMERICA.

A14 = 98 mm

A15 = 40 mm

A16 = 38 mm
