Windshield Frame, Alignment Dimensions

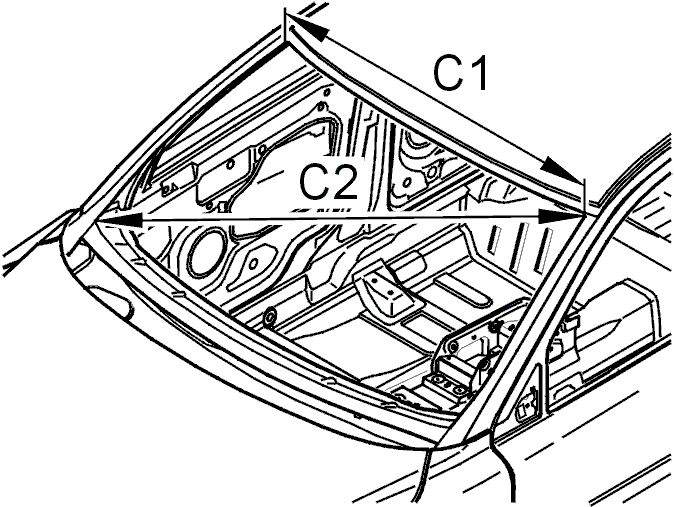

Fig 1: Windshield Frame Opening Measurement Locations (1 Of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.

C1 = 1177 mm.

C2 = 1495 mm.

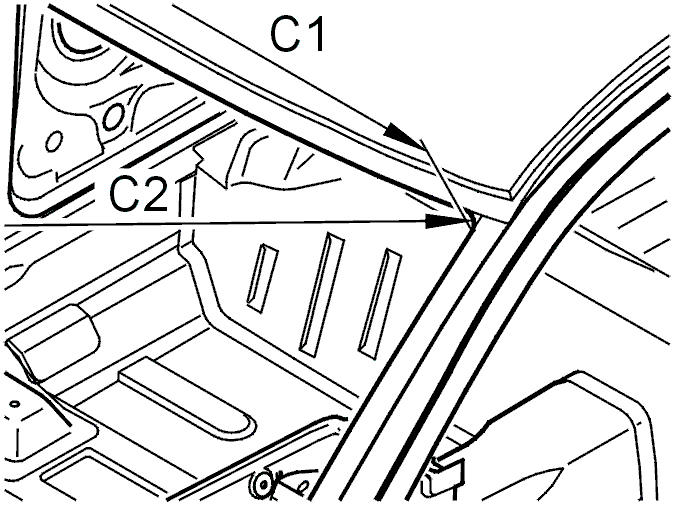

Fig 2: Windshield Frame Opening Measurement Locations (2 Of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.

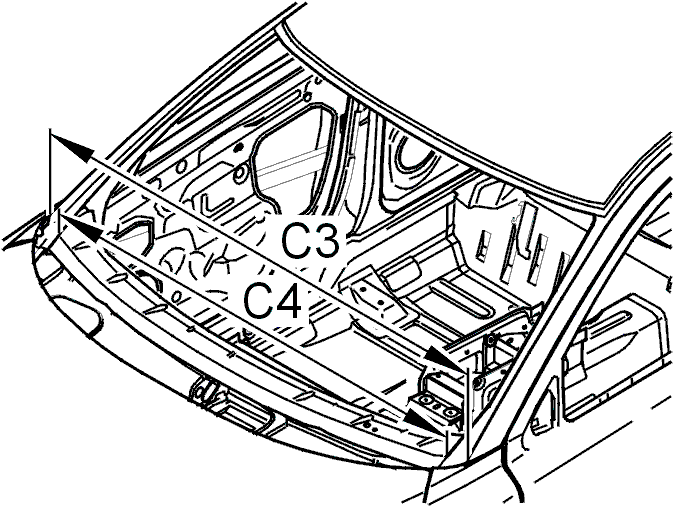

Fig 3: Windshield Frame Opening Measurement Locations (3 Of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.

C3 = 1545 mm.

C4 = 1412 mm.

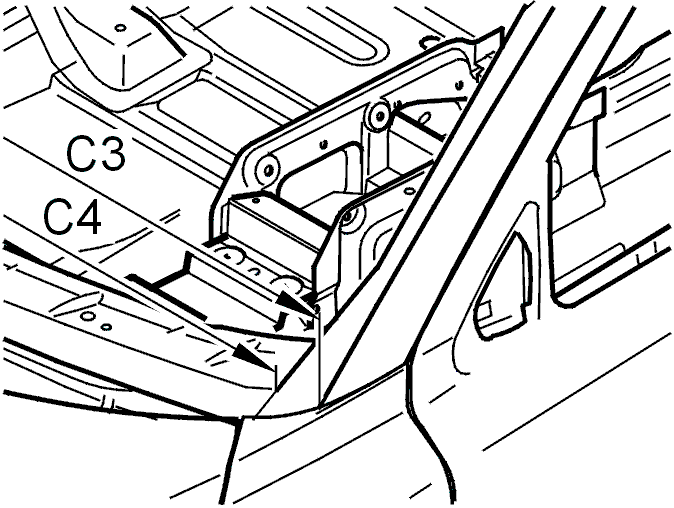

Fig 4: Windshield Frame Opening Measurement Locations (4 Of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.
