Control Module Heater Pad, Replacing

Control module heater pad, replacing

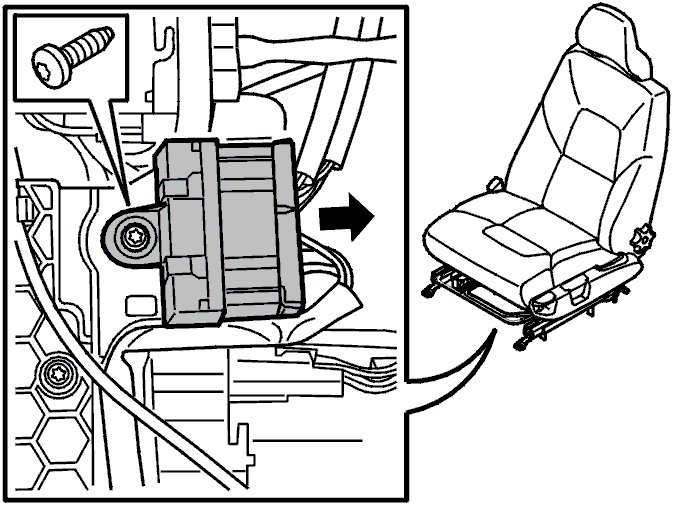

Removing the heater pad control module




Remove the seat from the car. See Removing power seats, tilting Removal and Replacement.
Remove one screw.
Disconnect the connector.
Remove the control module.

Installing the heater pad control module

Install:
- the control module
- the connector
- one screw
- the seat. See Removing power seats, tilting Removal and Replacement.
