Location Of Components In The Brake System (2000-2004)

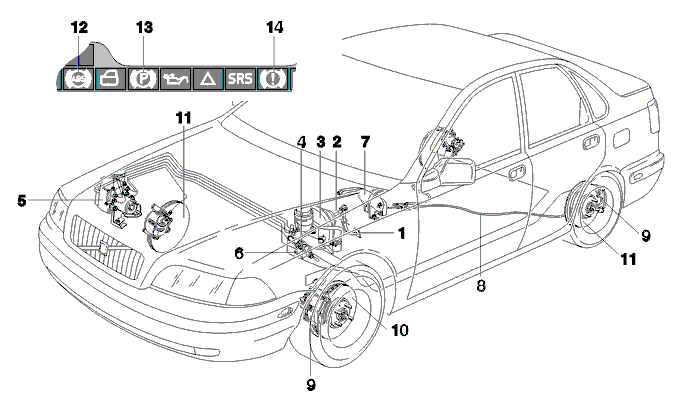

Fig 1: Location Of Components In Brake System

Courtesy of VOLVO CARS OF NORTH AMERICA.

1. Brake pedal
2. Stop (brake) lamp switch
3. Power brake booster
4. Tandem master cylinder
5. ABS control module (electrical unit together with hydraulic system)
6. Brake pressure limiter, rear wheels
7. Parking brake
8. Parking brake cable
9. Brake caliper
10. Sensors
11. Pulse wheel
12. ABS warning lamp
13. Applied parking brake warning lamp
14. Brake fluid warning lamp
