Control Units

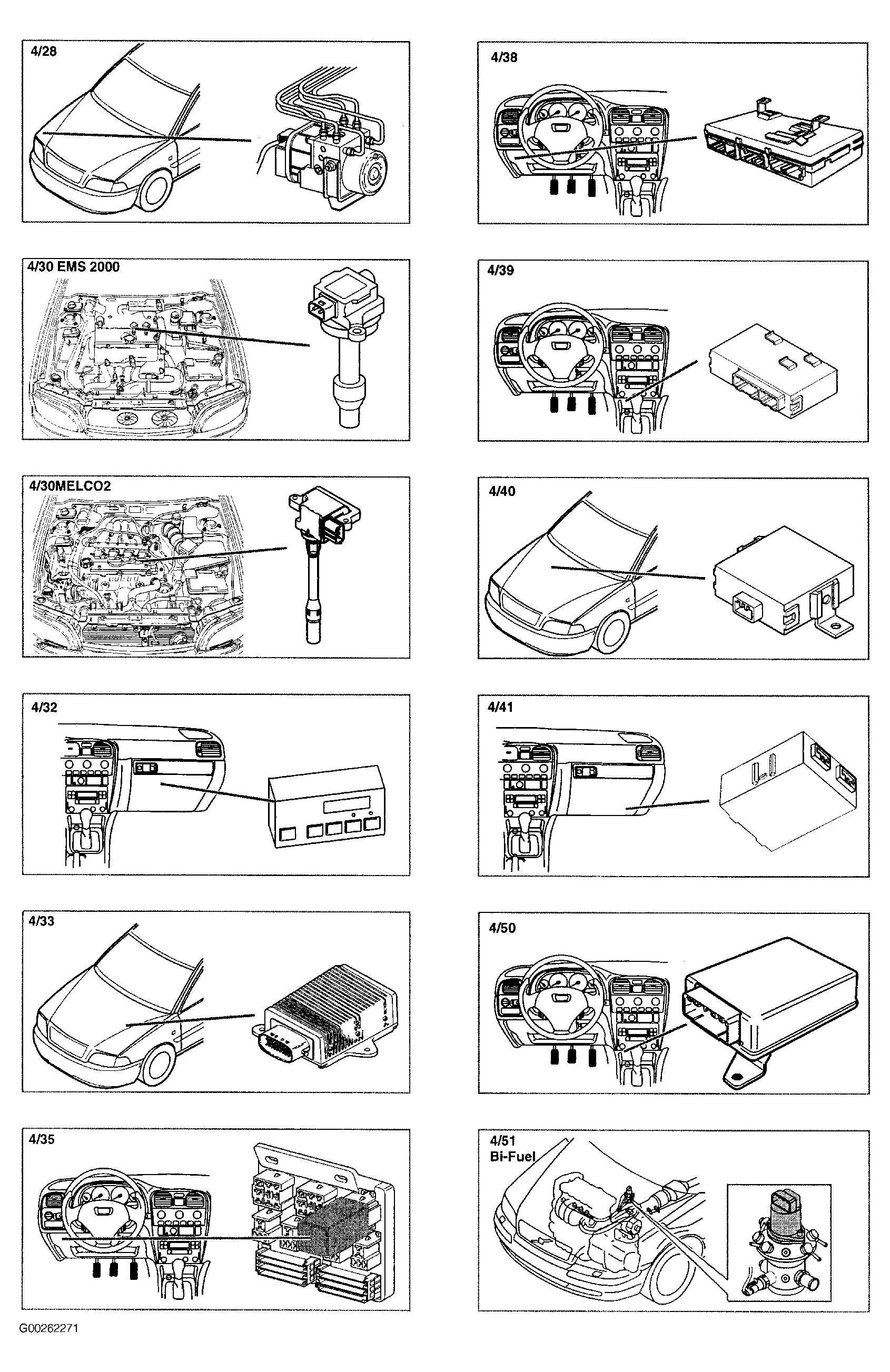

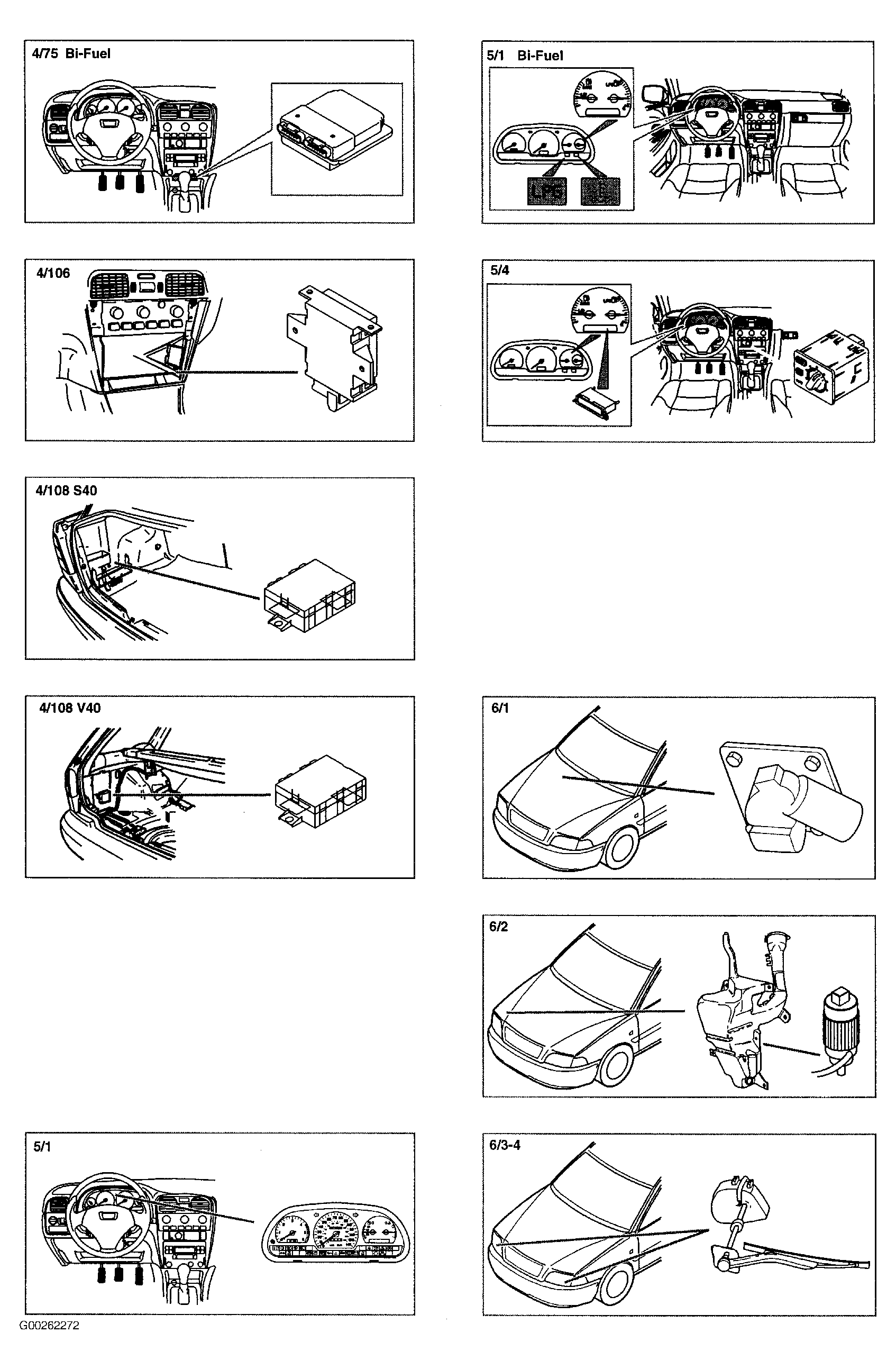

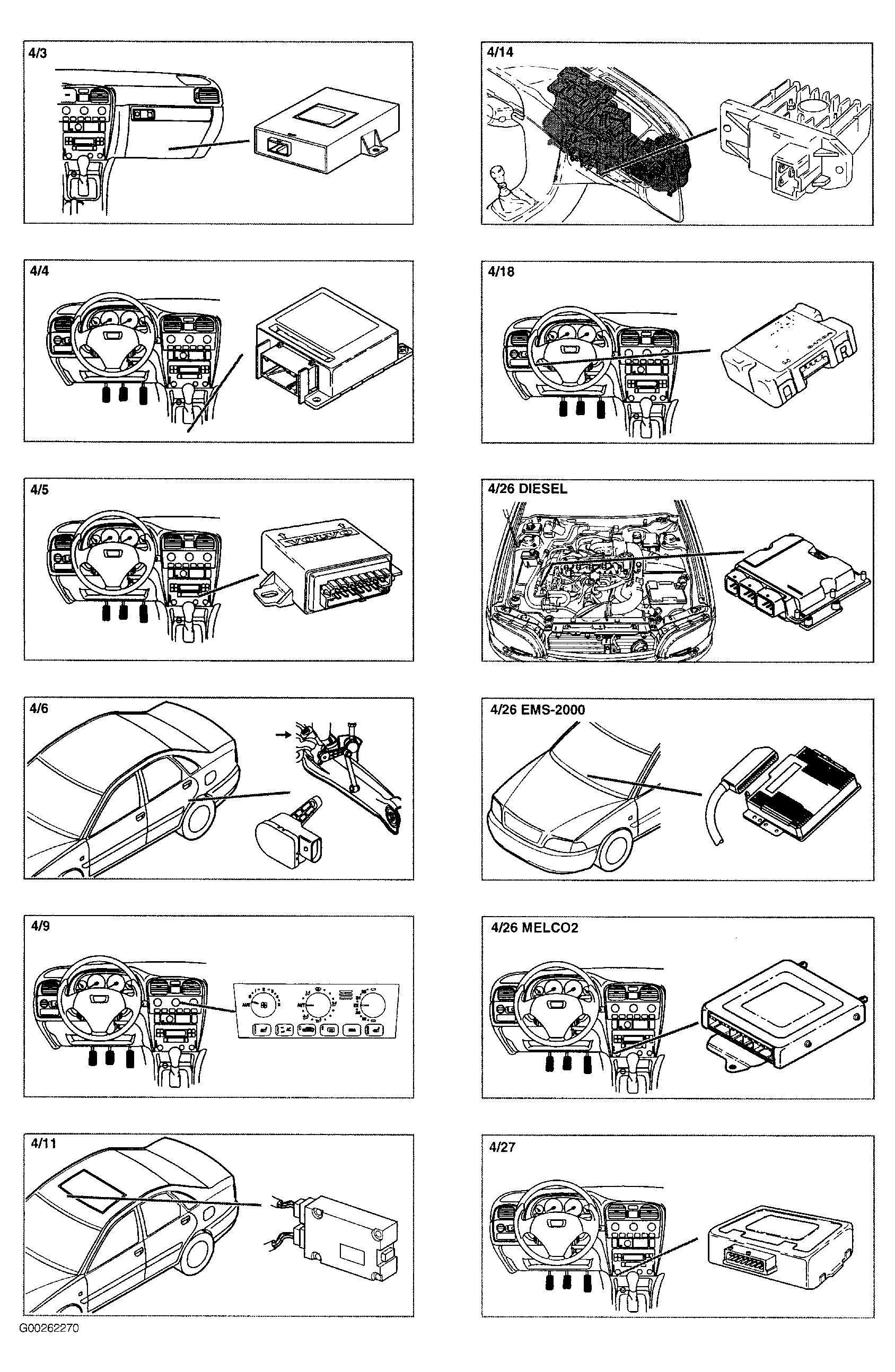

CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module (4/28) | In right front corner of engine compartment.Figure . |
| Central Electronic Module (4/38) | Behind left side of dash.Figure . |
| Climate Control Module (CCM) (4/9) | Integral to A/C controls, in center of dash.Figure . |
| Cruise Control Module (4/5) | Behind lower center of dash.Figure . |
| Dynamic Stability Assistance (DSA) Control Module (4/3) | Behind right side of dash.Figure . |
| Electronic Immobilizer Control Module (4/18) | Behind left side of dash.Figure . |
| Engine Management System (426) | Behind lower center of dash.Figure . |
| Fuel Throttle Body Control Module (4/50) | Behind left side of dash. See Figure . |
| Key-Inserted Warning/Seat Belt Reminder Control Module (4/35) | In passenger compartment fuse & relay box. See Figure . |
| Parking Assistance Module (4/108) | Near left rear lamps. See Figure . |
| Parking Heater Remote Start Control Module (4/106) | Behind center of dash. See Figure . |
| Passenger Compartment Fan Speed Control Module (4/14) | Behind right side of dash, on bottom of HVAC assembly.Figure . |
| Power Sunroof Control Module (4/11) | At front center of roof.Figure . |
| Supplemental Restraint System (SRS) Control Module (4/4) | Below rear of center console, between front seats.Figure . |
| Transmission Control Module (TCM) (4/27) | Behind lower center of dash. See Figure . |
| Ultrasonic Glass Breakage Sensor Control Module (4/41) | Below right side of dash. See Figure . |
| VGLA Control Module (4/39) | Behind lower center of dash.Figure . |
| VGLA Receiver (4/40) | In rear of engine compartment.Figure . |
| Xenon Lamps Control Module (4/6) | Under left rear seat.Figure . |
