Removing carrier plate

Remove the engine speed (RPM) sensor with the bracket. Place it to one side.

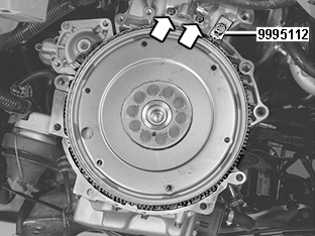

Fig 1: Identifying Carrier Plate And Gear Sector Special Tool 999 5112

Courtesy of VOLVO CARS OF NORTH AMERICA.

Block the carrier plate using gear sector 9995112 .

Remove:

• all screws
• the carrier plate
• gear sector 9995112 .

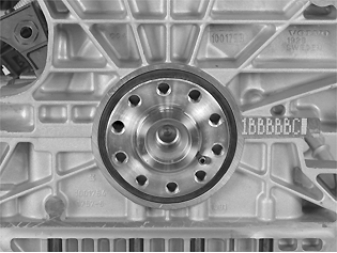

Fig 2: Identifying Crankshaft Seal Checked For Leakage

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check the crankshaft seal for leakage.
