Body Side, Alignment Chart: Interior

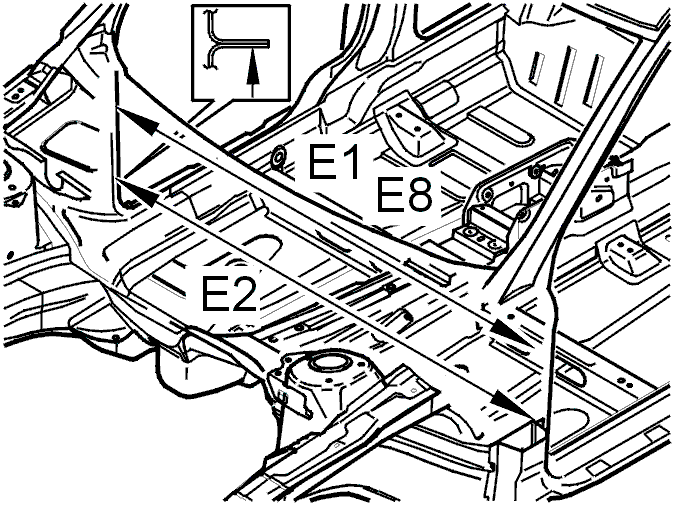

Fig 1: Front Body Position Measurement Locations
GLL106884Courtesy of VOLVO CARS OF NORTH AMERICA.

E1 = 1492 mm

E2 = 1484 mm

E8 = 1421 mm

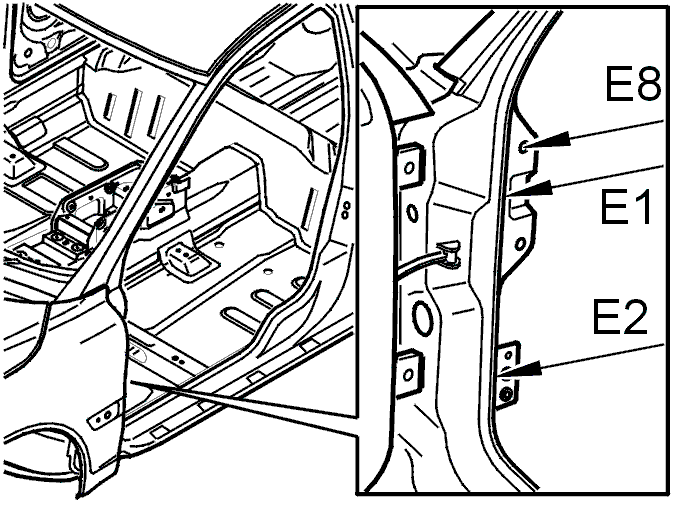

Fig 2: A-Pillar Position Interior Measurement Locations (1 Of 4)
GLL106885Courtesy of VOLVO CARS OF NORTH AMERICA.
