Rear End, Alignment Dimensions

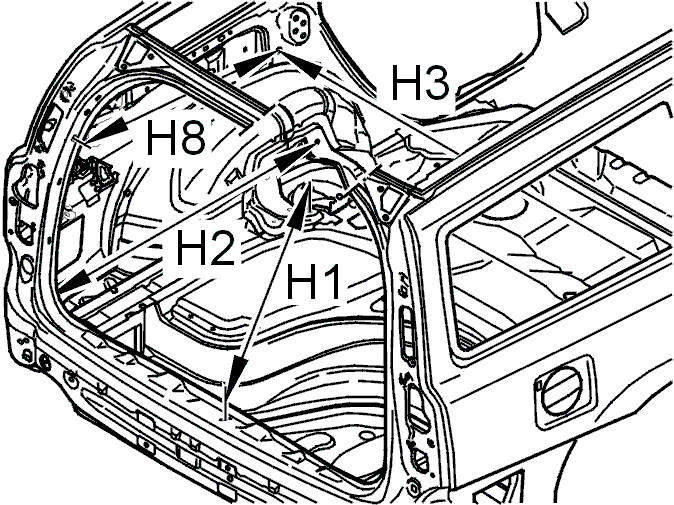

Fig 1: Rear End Position Measurement Locations (1 Of 11)

Courtesy of VOLVO CARS OF NORTH AMERICA.

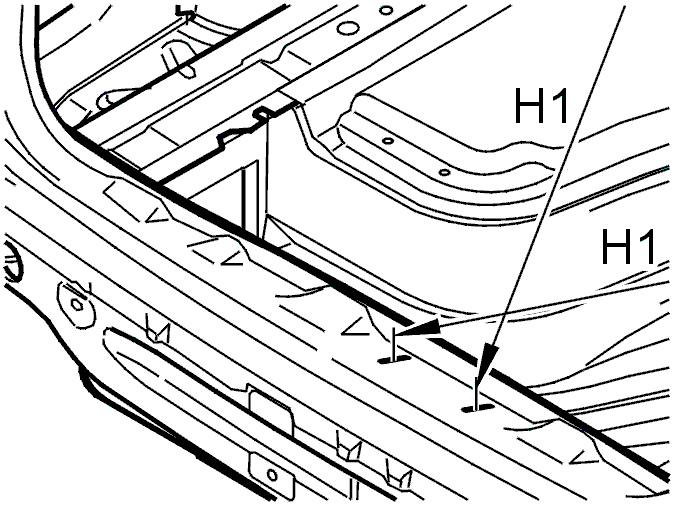

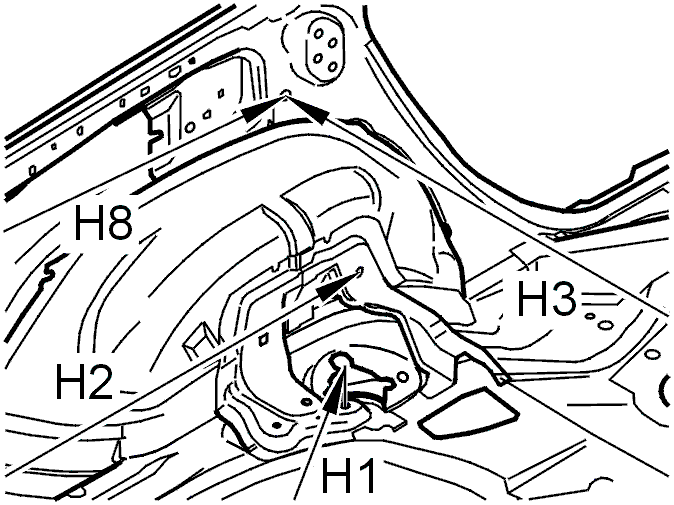

H1 = 981 mm

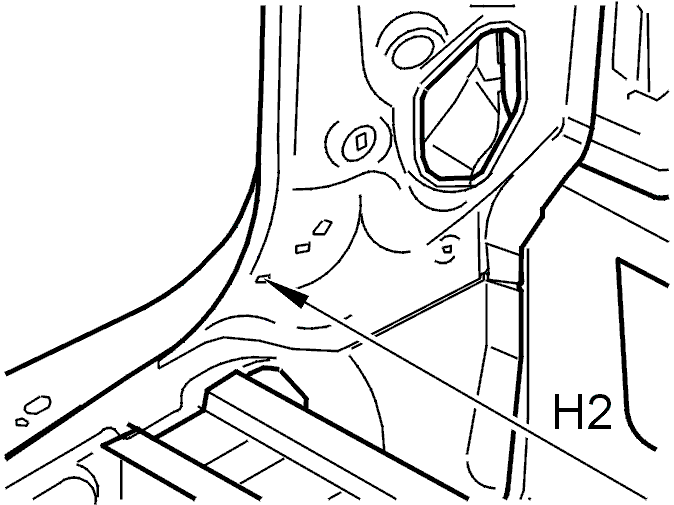

H2 = 937 mm.

H3 = 1472 mm

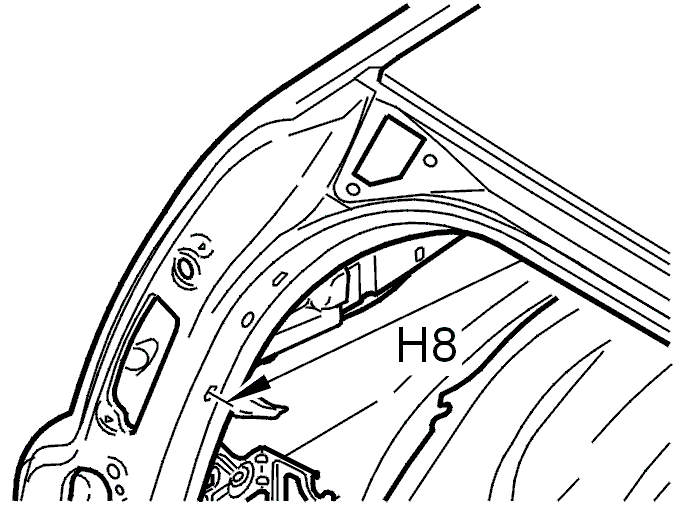

H8 = 963 mm

Fig 2: Rear End Position Measurement Locations (2 Of 11)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Rear End Position Measurement Locations (3 Of 11)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 4: Rear End Position Measurement Locations (4 Of 11)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 5: Rear End Position Measurement Locations (5 Of 11)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 6: Rear End Position Measurement Locations (6 Of 11)

Courtesy of VOLVO CARS OF NORTH AMERICA.

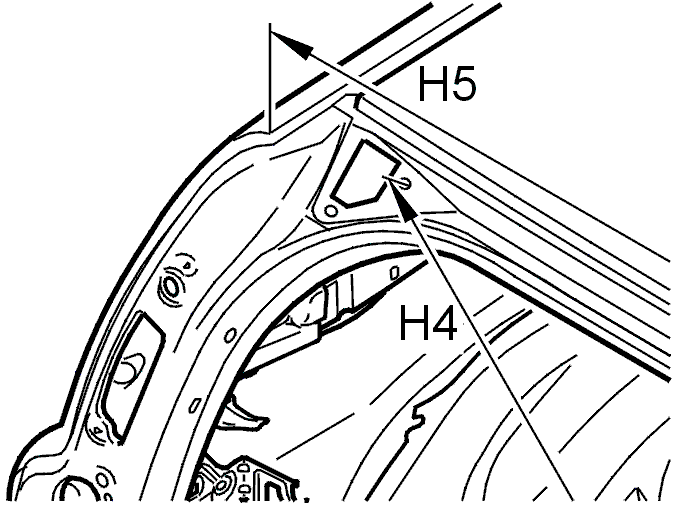

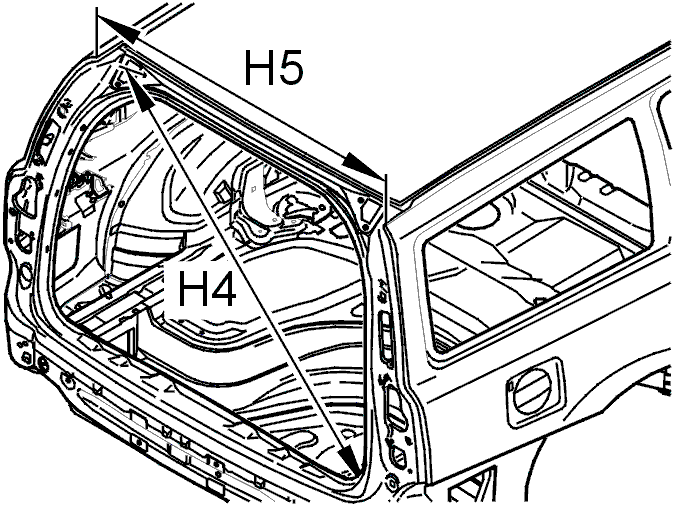

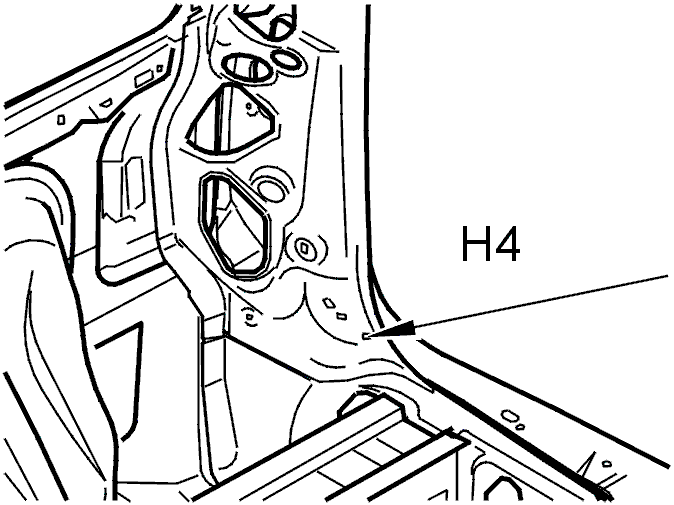

H4 = 1303 mm

H5 = 1139 mm.

Fig 7: Rear End Position Measurement Locations (7 Of 11)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 8: Rear End Position Measurement Locations (8 Of 11)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 9: Rear End Position Measurement Locations (9 Of 11)

Courtesy of VOLVO CARS OF NORTH AMERICA.

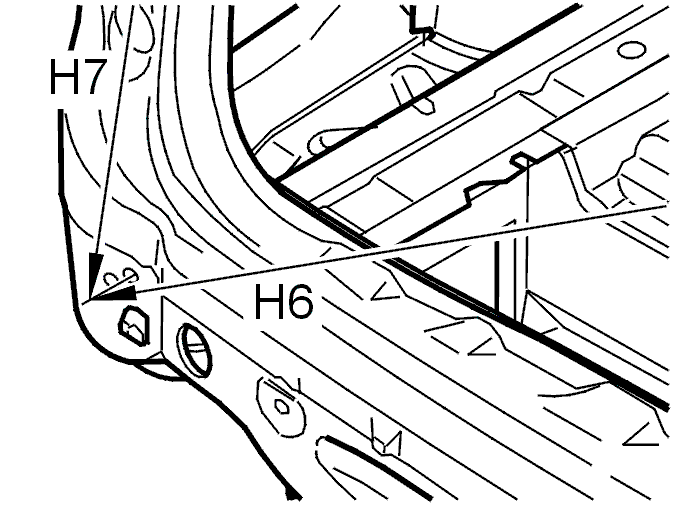

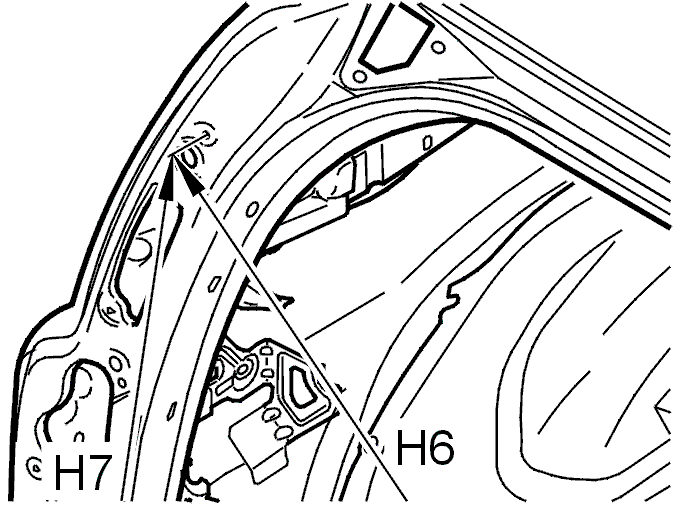

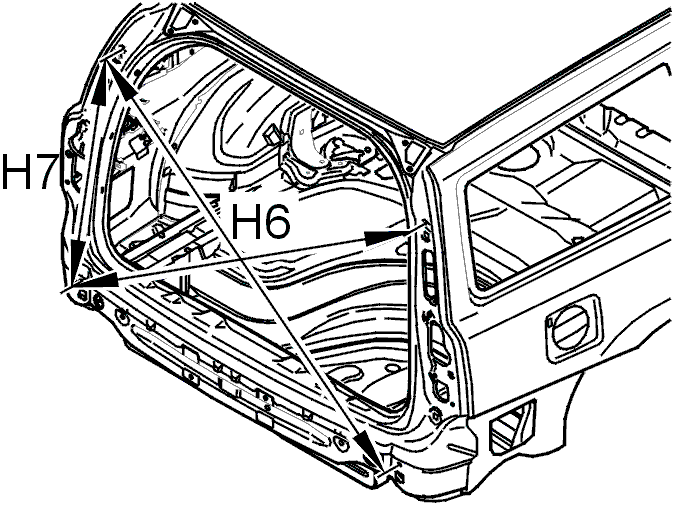

H6 = 1470 mm

H7 = 772 mm.

Fig 10: Rear End Position Measurement Locations (10 Of 11)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 11: Rear End Position Measurement Locations (11 Of 11)

Courtesy of VOLVO CARS OF NORTH AMERICA.

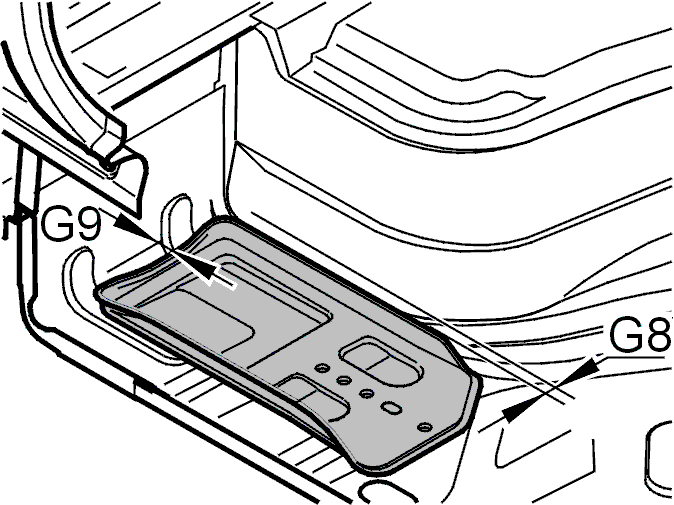

Fig 12: Battery Shelf Position Measurement Locations

Courtesy of VOLVO CARS OF NORTH AMERICA.

G8 = 5 mm

G9 = 22 mm
