Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

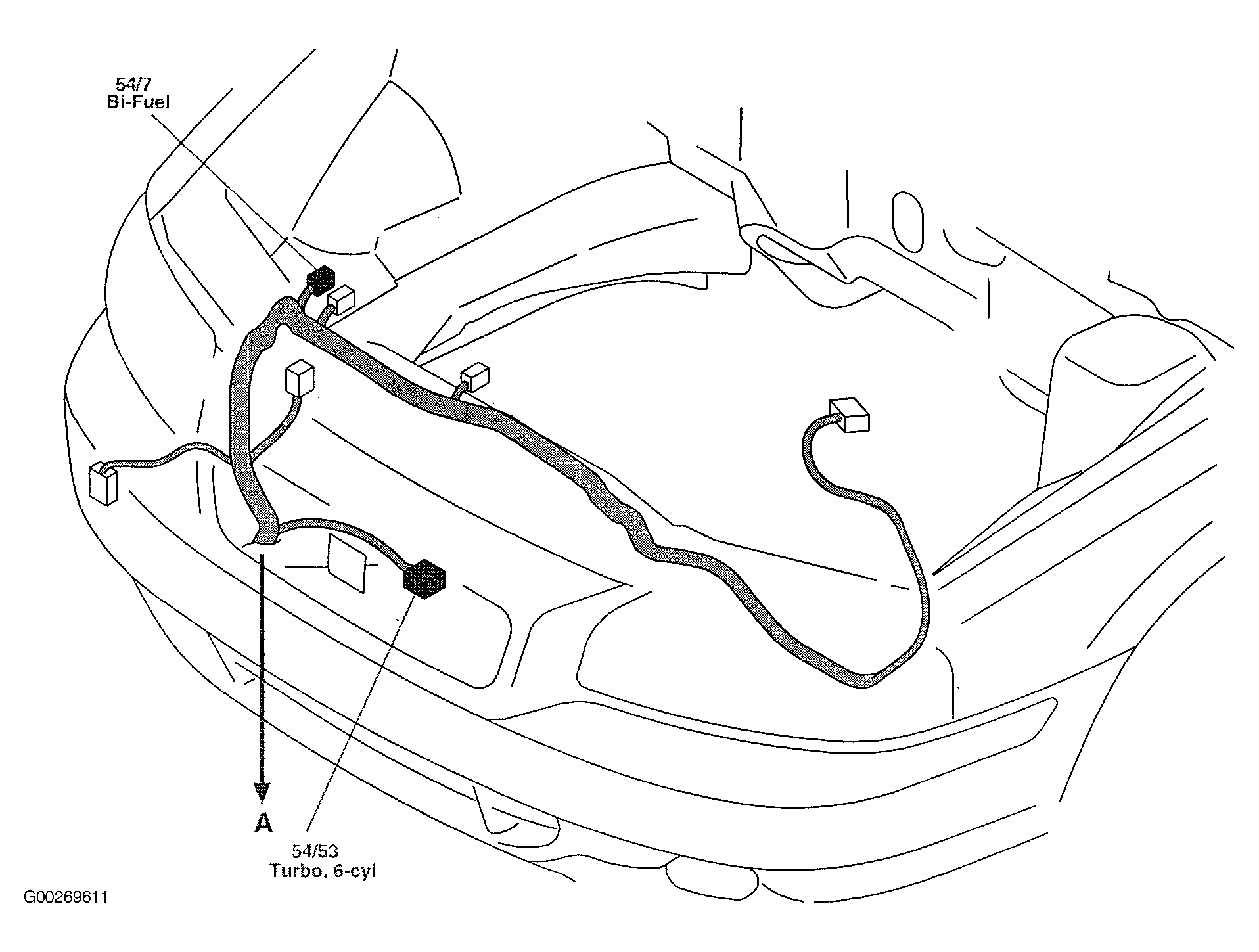

Fig 1: Engine Harness
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 2: Engine Harness
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 3: Transmission Harness
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 4: Engine Compartment Harness
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 5: Engine Compartment Harness (XC90)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 6: Front Passenger Compartment Harness
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 7: Passenger Compartment Harness (XC90)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 8: Rear Passenger Compartment Harness
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 9: Cargo Compartment Harness
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 10: Cargo Compartment Harness (XC90)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 11: Inflatable Curtain Harness (V70)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 12: Tailgate Harness (XC90)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 13: Roof Harness (XC90)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 14: Left Front Door Harness (V70)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 15: Left Rear Door Harness (V70)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 16: Right Rear Door Harness (V70)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 17: Right Front Door Harness (V70)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 18: Left Front Door Harness (XC90)
Courtesy of VOLVO CARS OF NORTH AMERICA.

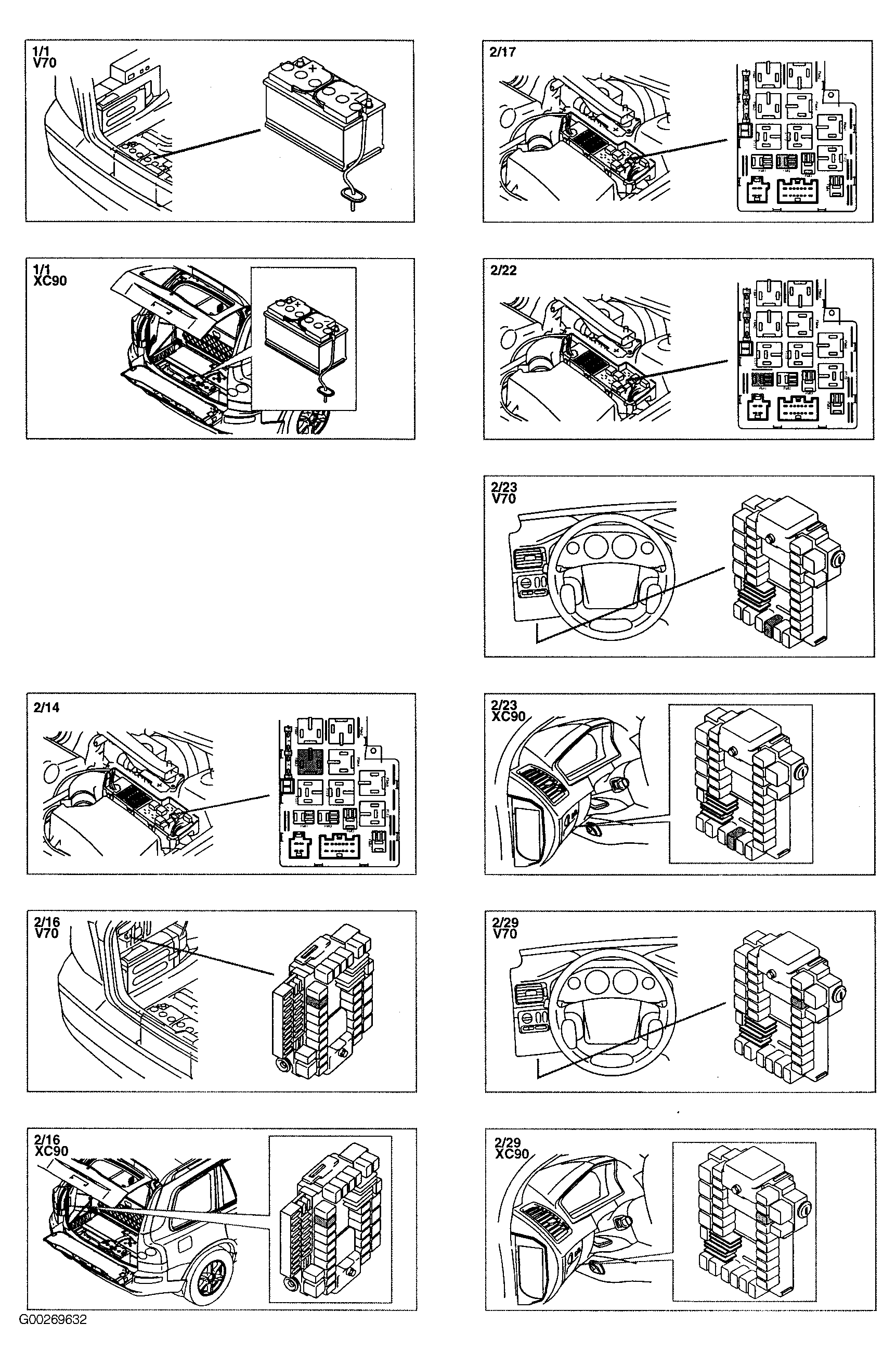

Fig 19: Components 1/1 To 2/29
Courtesy of VOLVO CARS OF NORTH AMERICA.

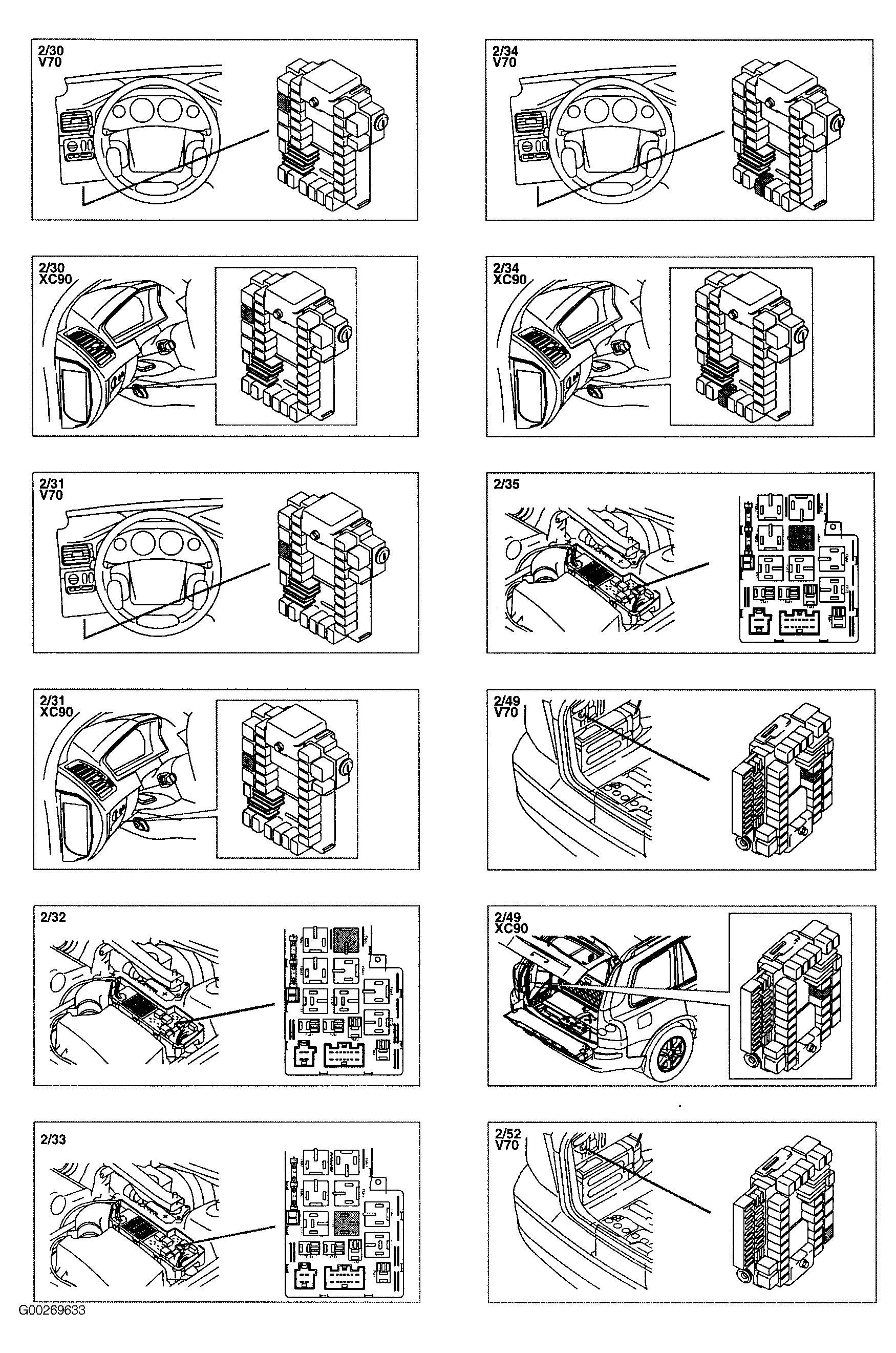

Fig 20: Components 2/30 To 2/52
Courtesy of VOLVO CARS OF NORTH AMERICA.

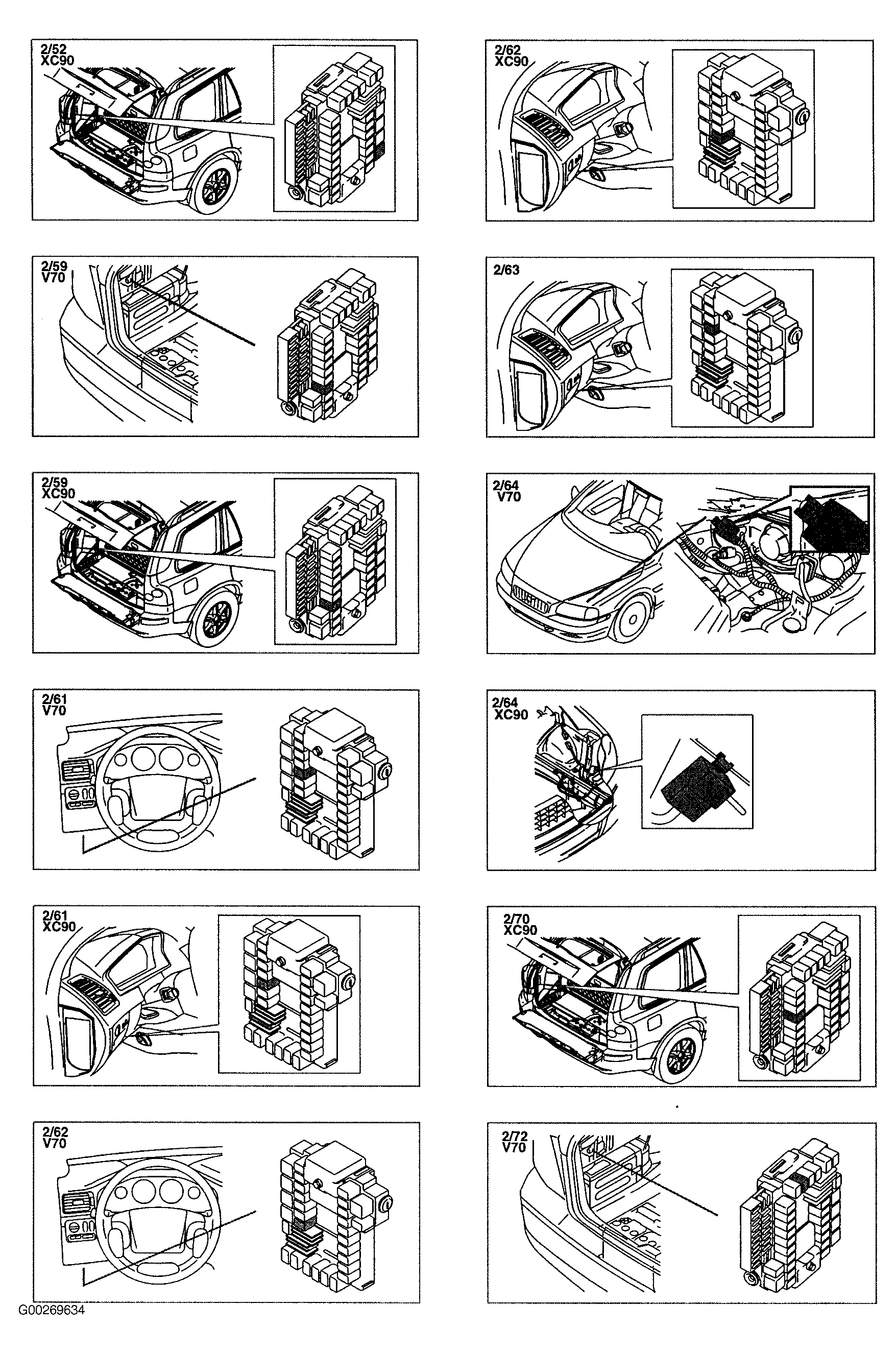

Fig 21: Components 2/52 To 2/72
Courtesy of VOLVO CARS OF NORTH AMERICA.

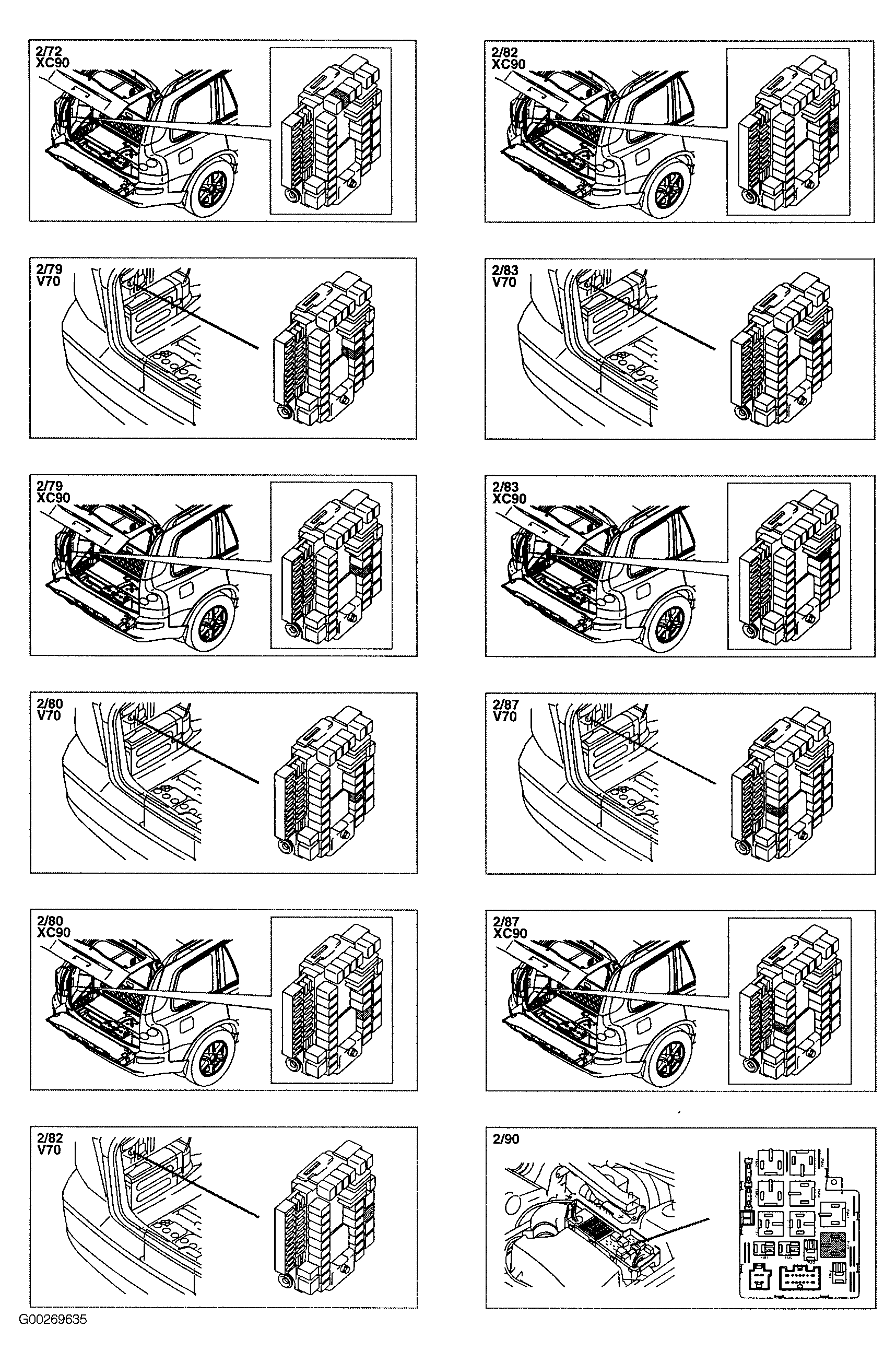

Fig 22: Components 2/72 To 2/90
Courtesy of VOLVO CARS OF NORTH AMERICA.

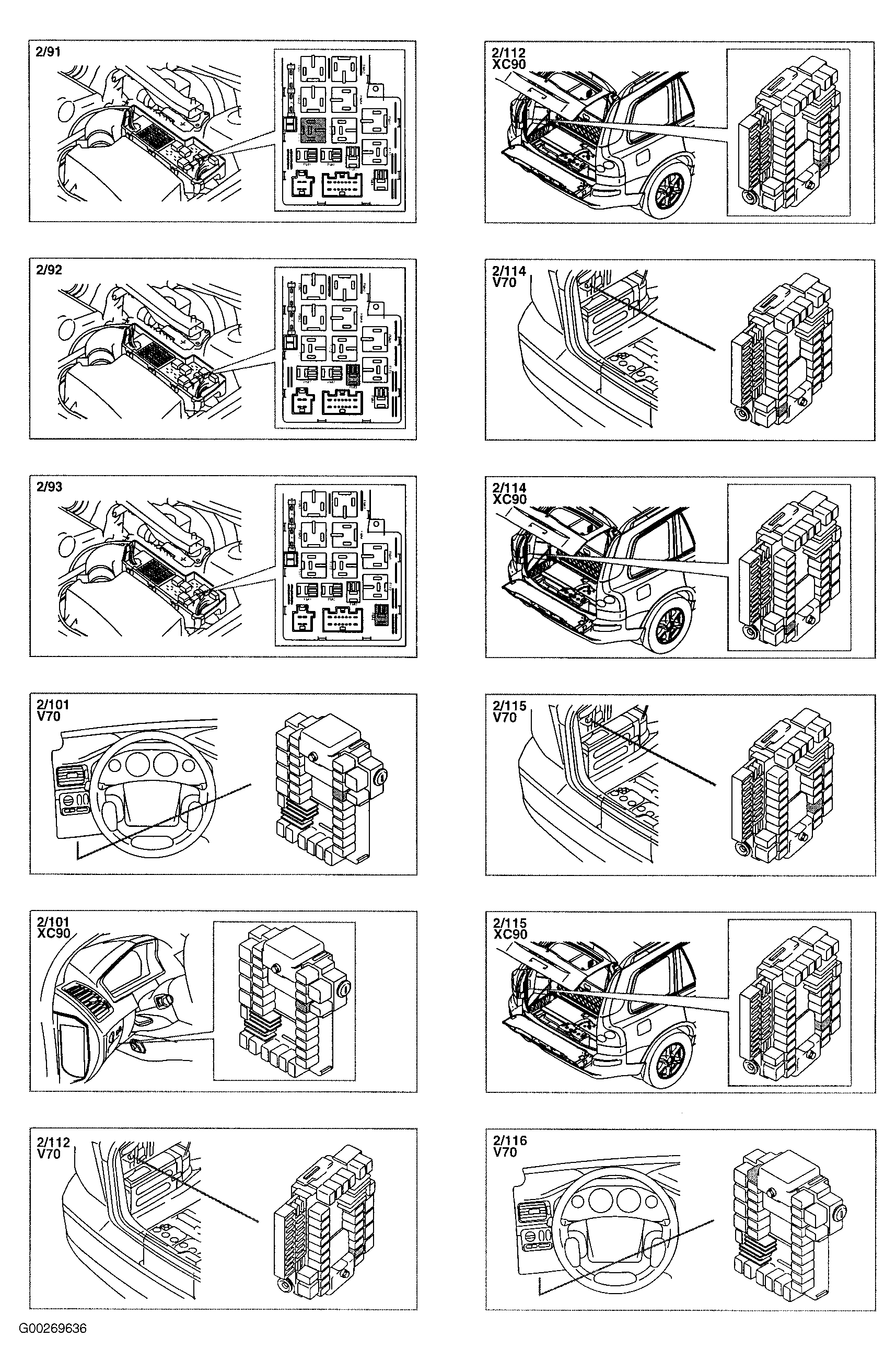

Fig 23: Components 2/91 To 2/116
Courtesy of VOLVO CARS OF NORTH AMERICA.

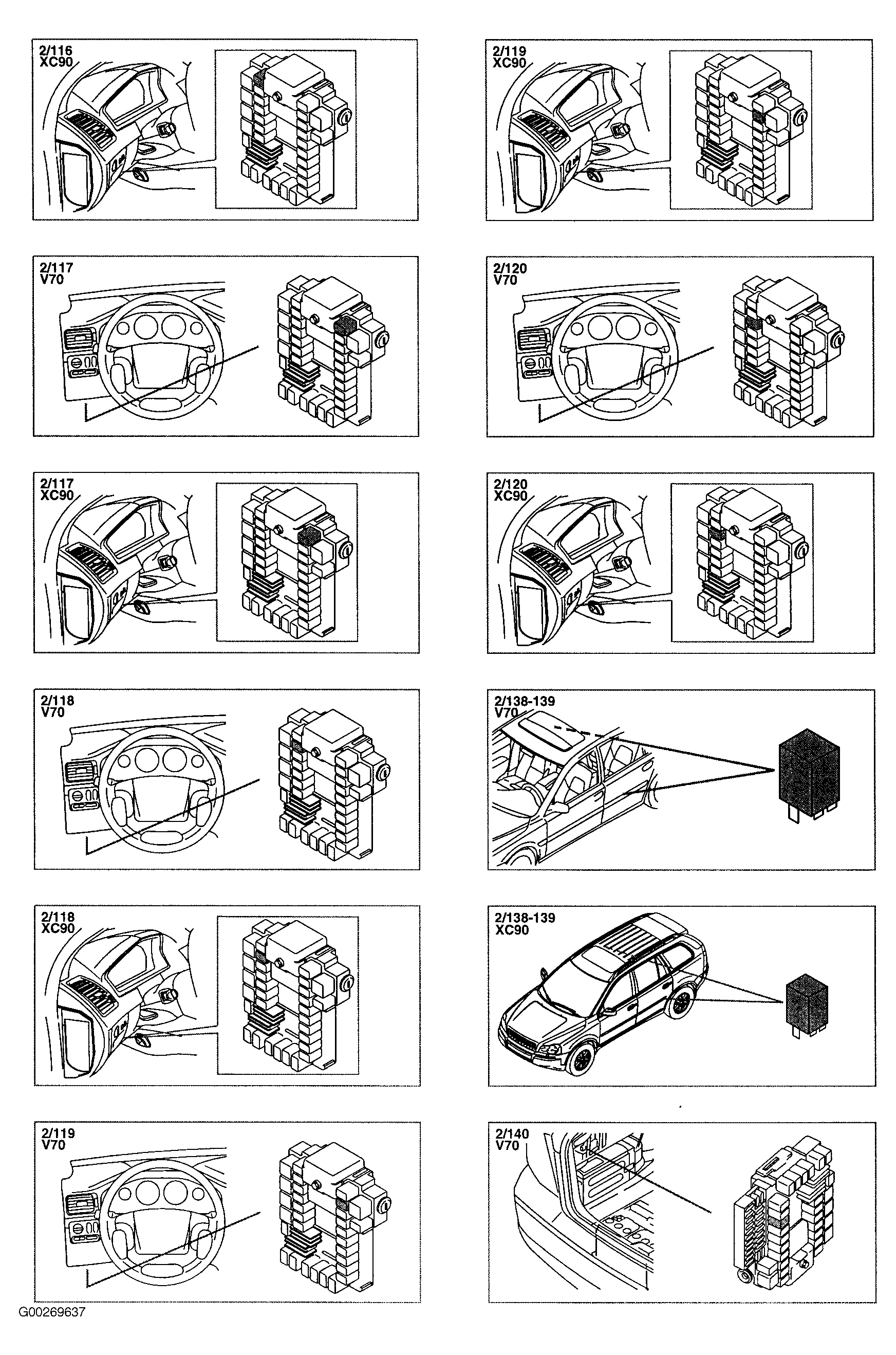

Fig 24: Components 2/116 To 2/140
Courtesy of VOLVO CARS OF NORTH AMERICA.

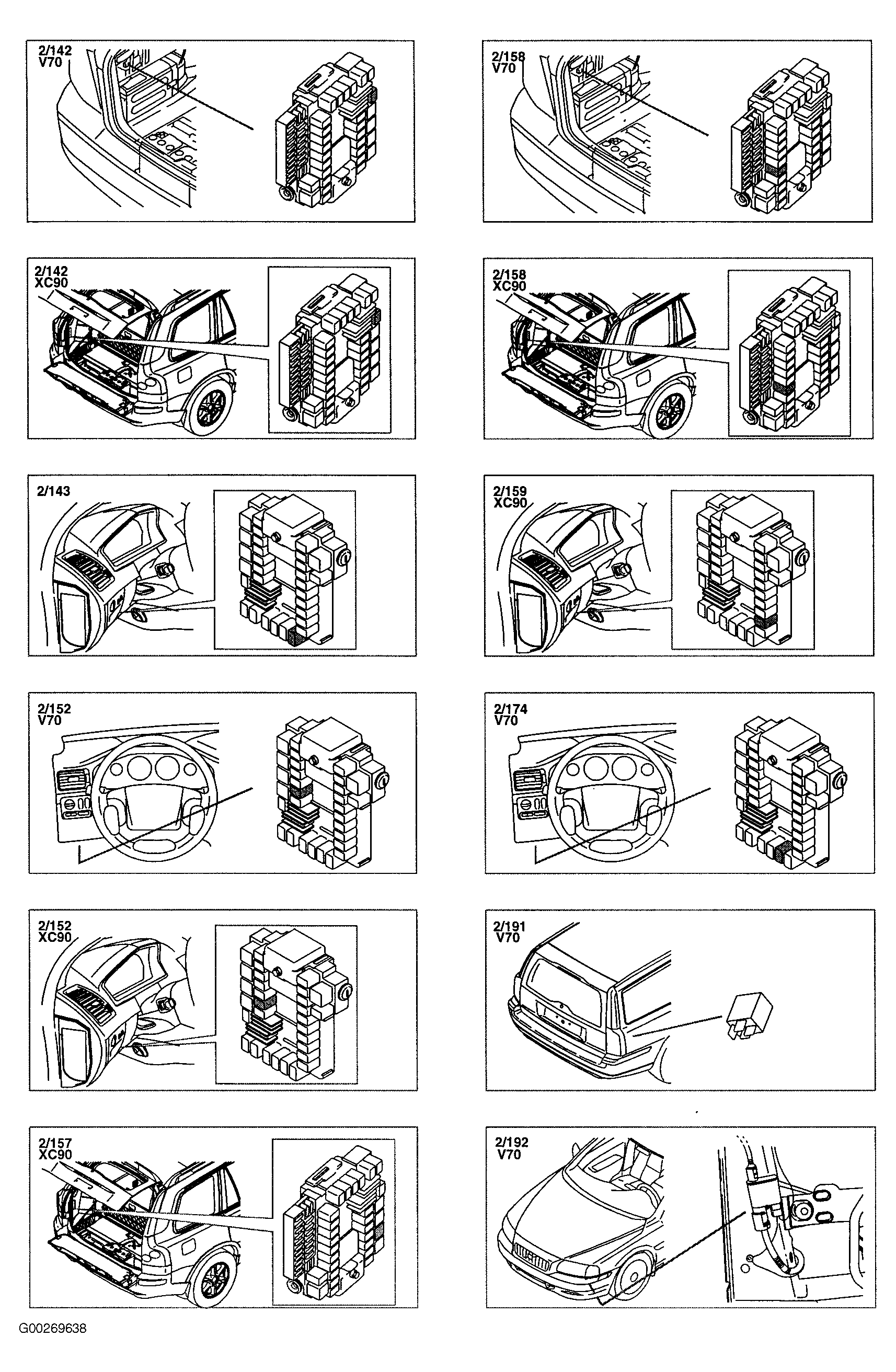

Fig 25: Components 2/142 To 2/192
Courtesy of VOLVO CARS OF NORTH AMERICA.

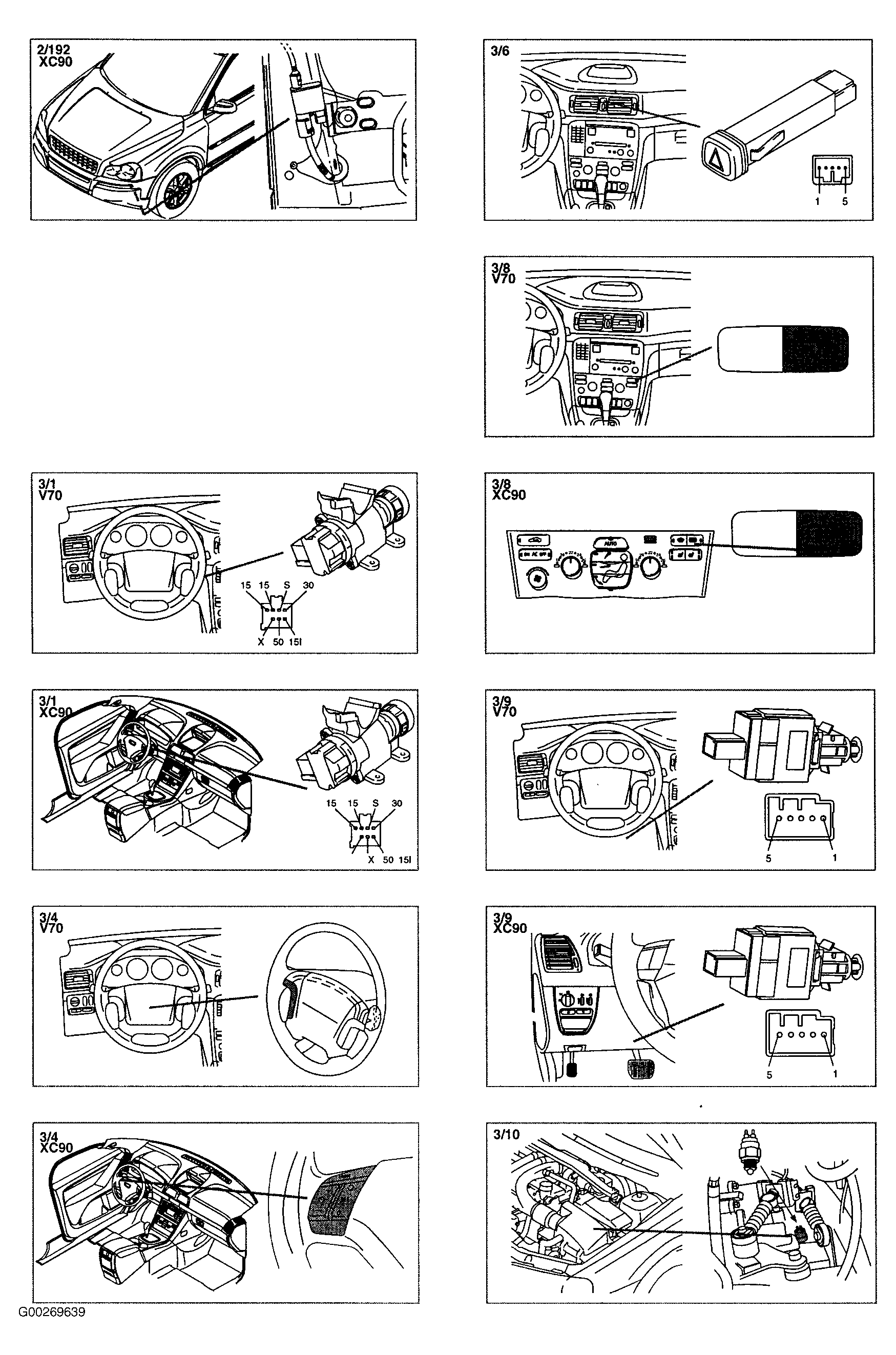

Fig 26: Components 2/192 To 3/10
Courtesy of VOLVO CARS OF NORTH AMERICA.

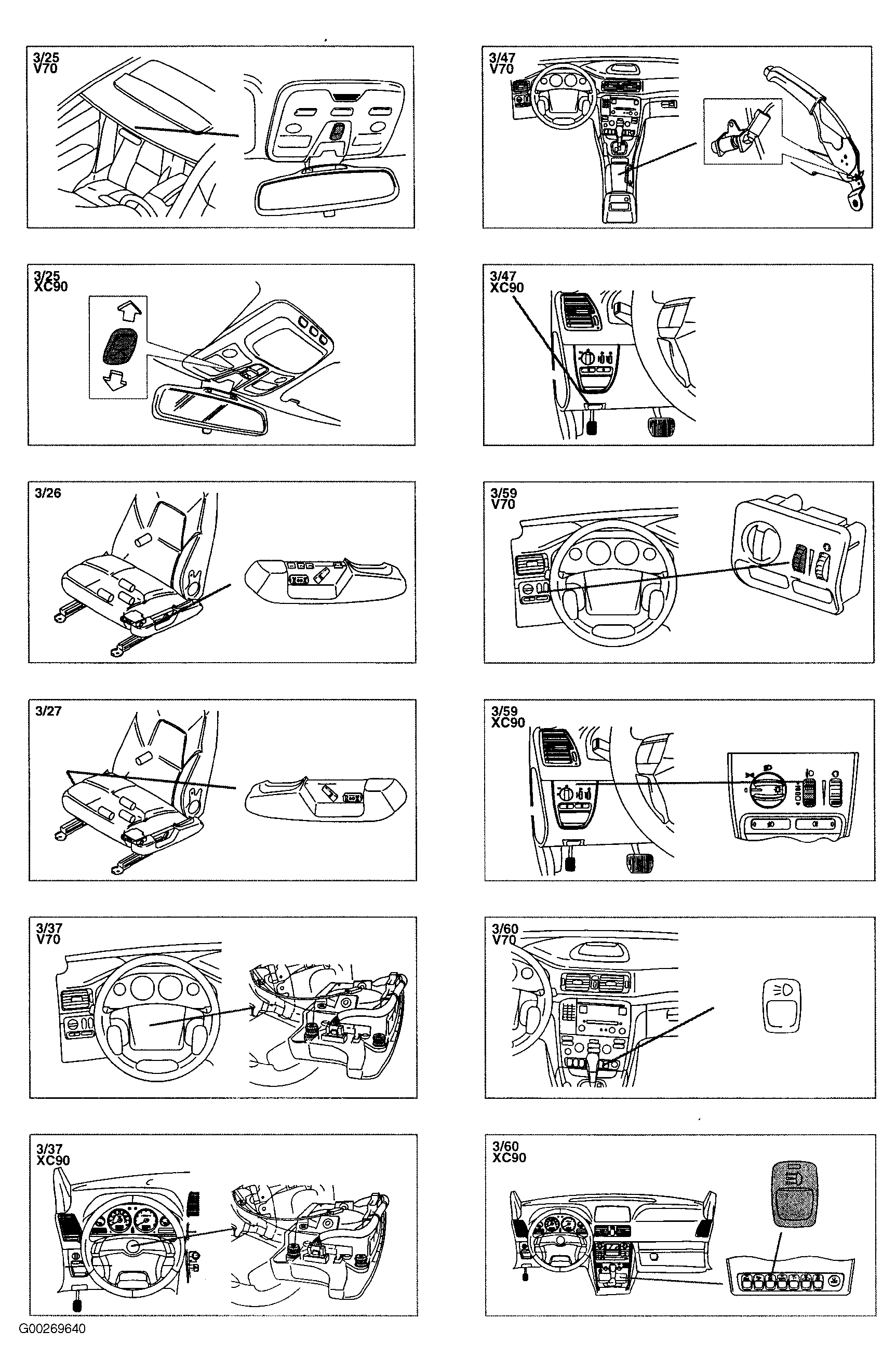

Fig 27: Components 3/25 To 3/60
Courtesy of VOLVO CARS OF NORTH AMERICA.

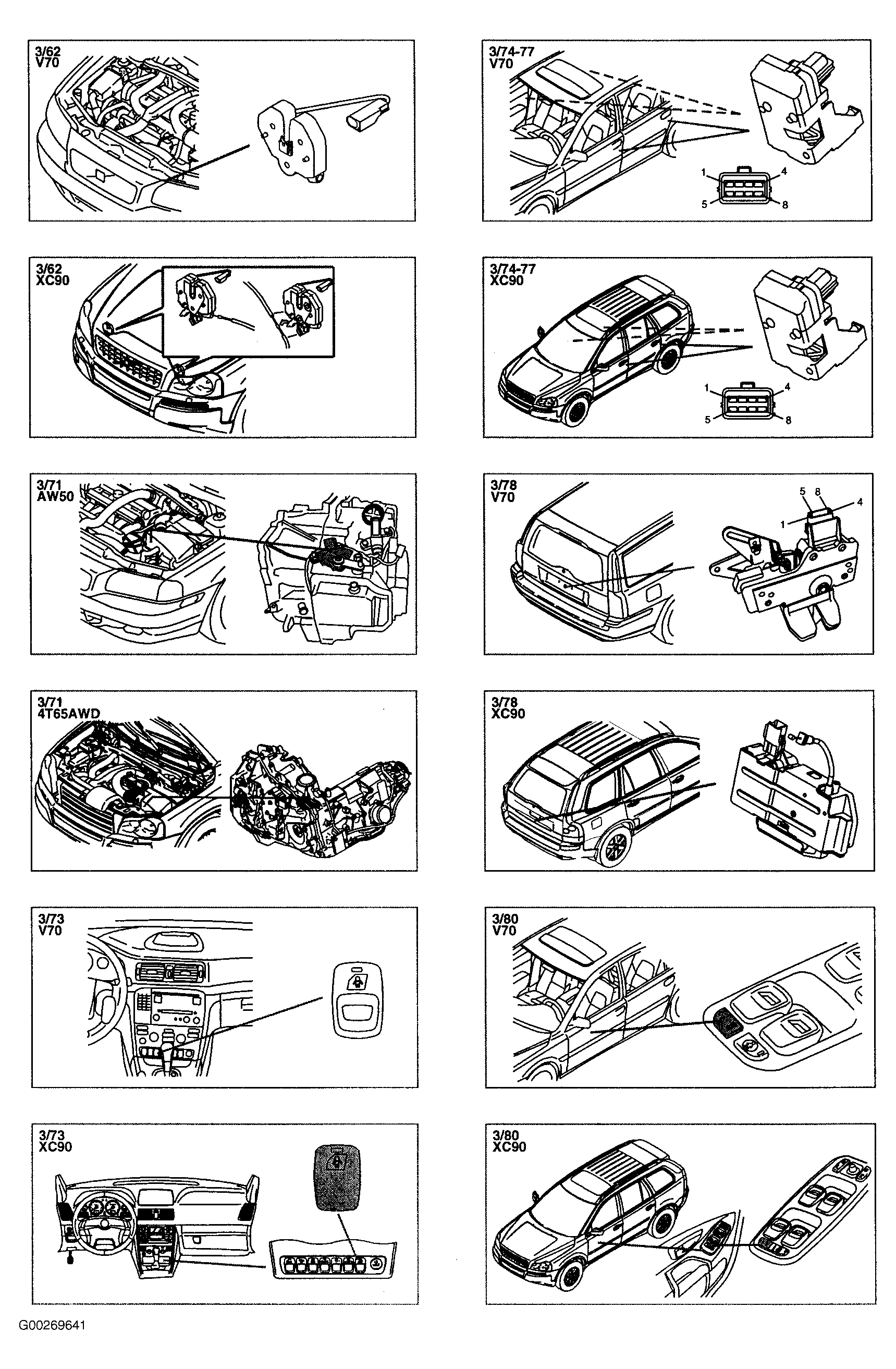

Fig 28: Components 3/62 To 3/80
Courtesy of VOLVO CARS OF NORTH AMERICA.

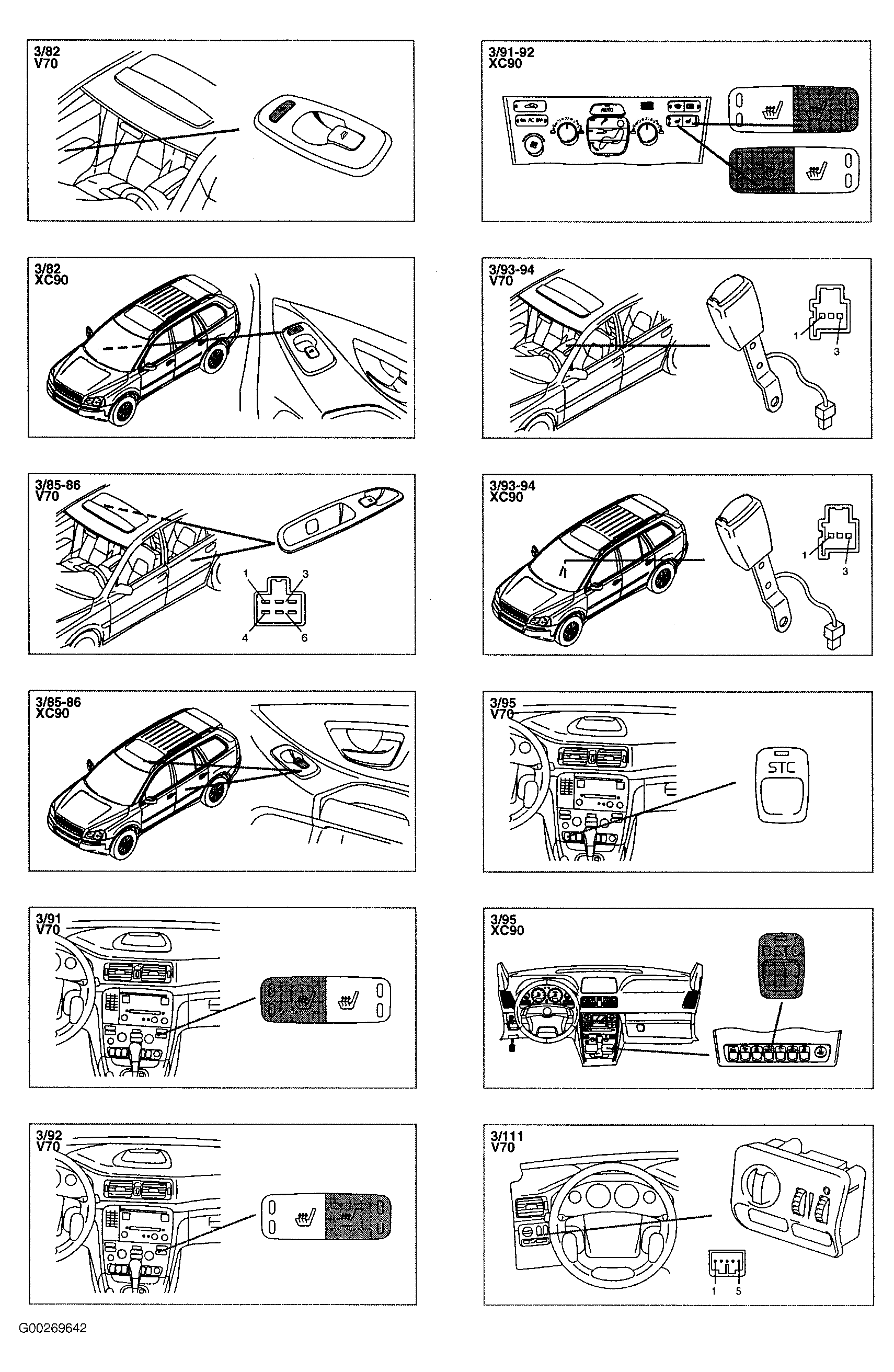

Fig 29: Components 3/82 To 3/111
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 30: Components 3/225 To 4/33
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 31: Components 4/33 To 4/68
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 32: Components 4/70 To 4/84
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 33: Components 4/86 To 6/2
Courtesy of VOLVO CARS OF NORTH AMERICA.

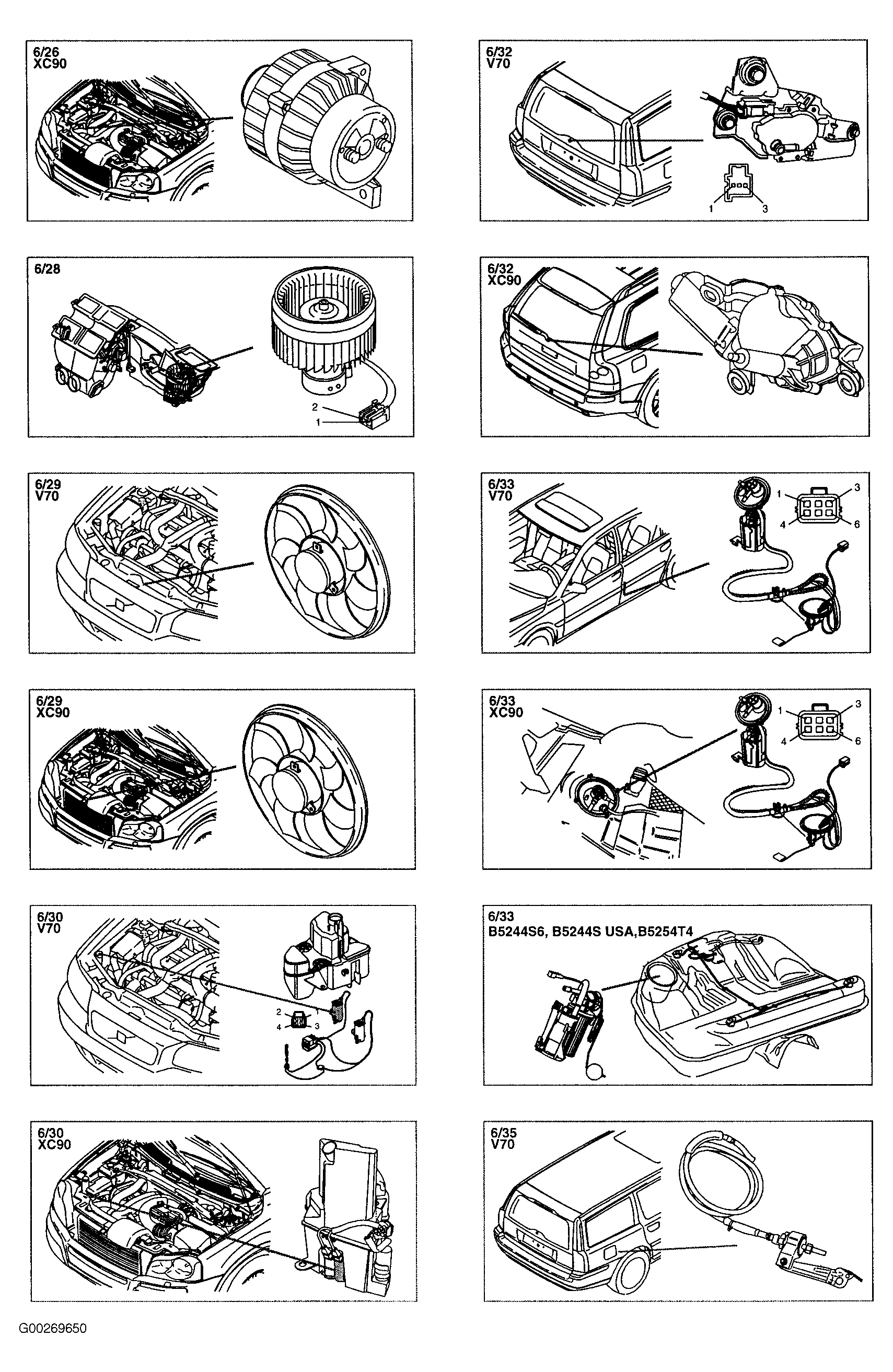

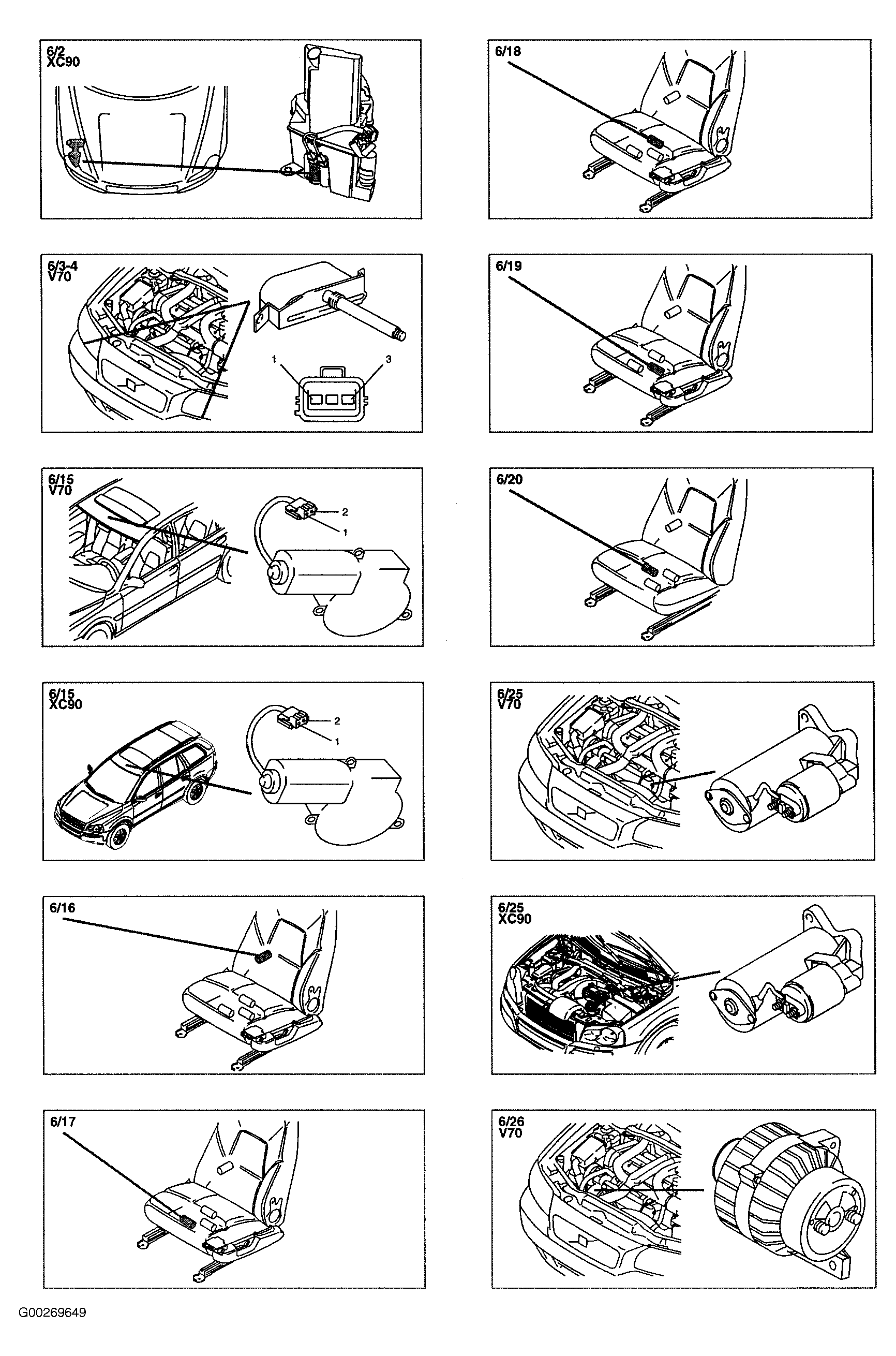

Fig 34: Components 6/2 To 626
Courtesy of VOLVO CARS OF NORTH AMERICA.

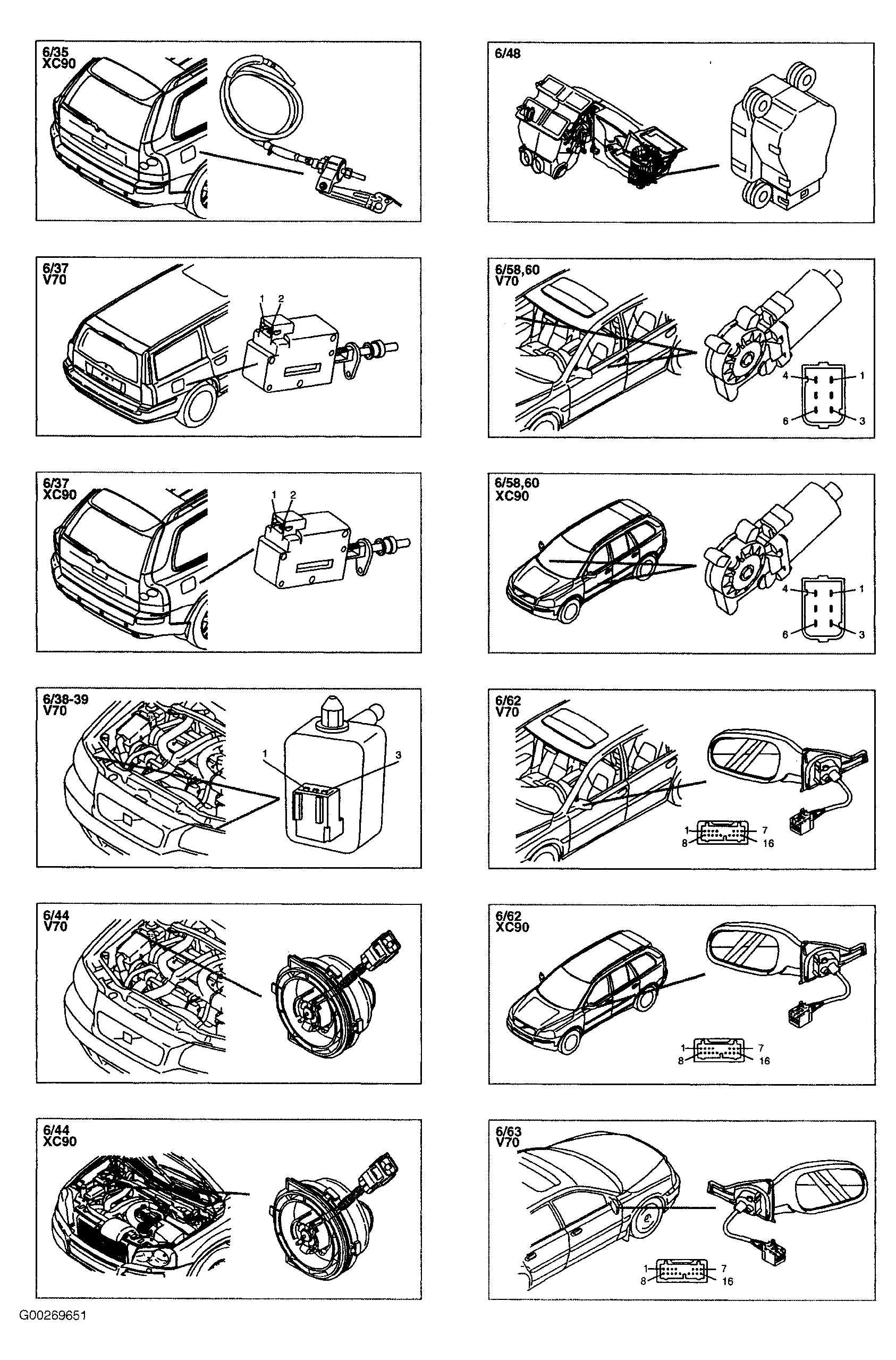

Fig 35: Components 6/26 To 6/35
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 36: Components 6/35 To 6/63
Courtesy of VOLVO CARS OF NORTH AMERICA.

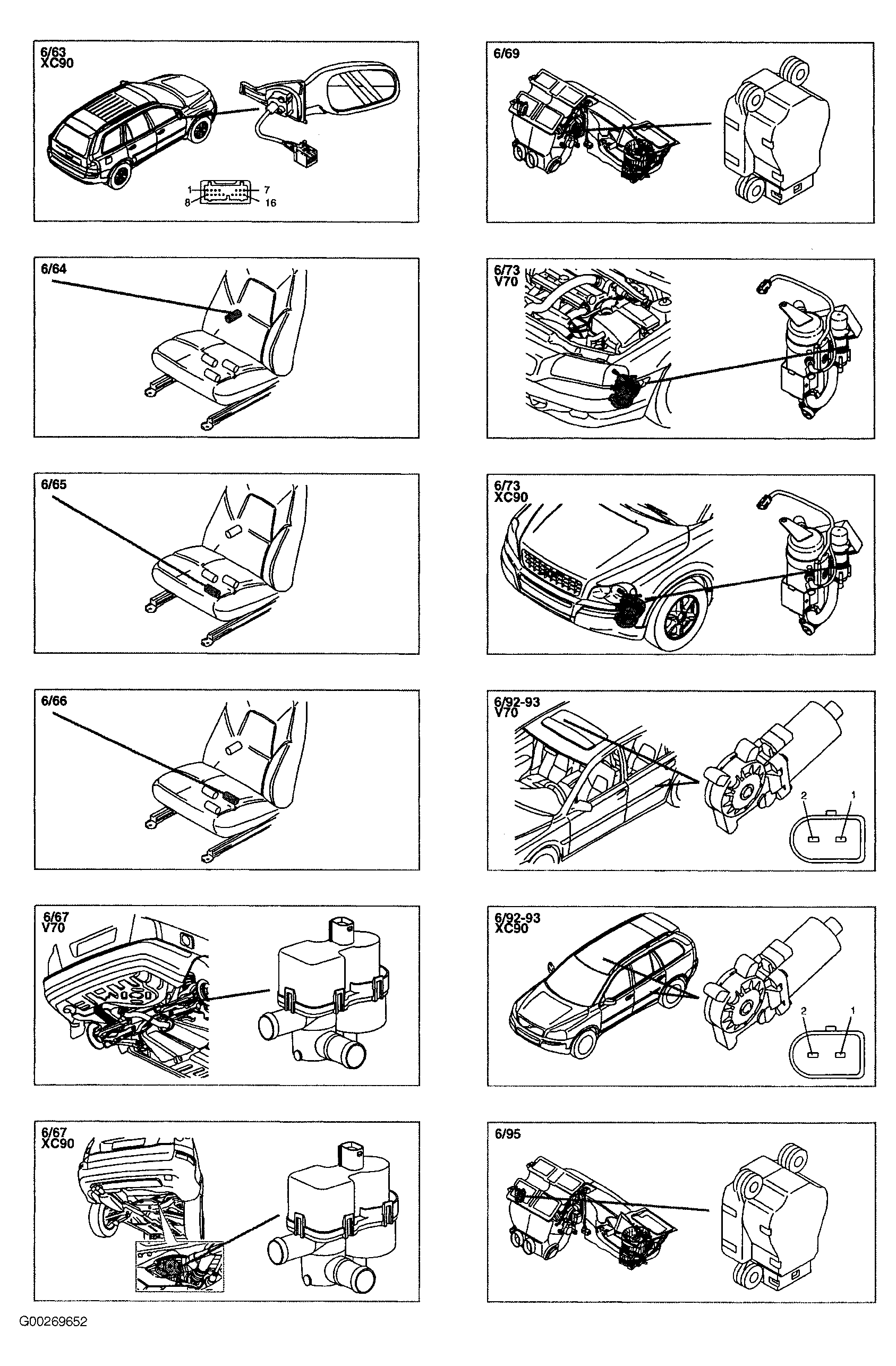

Fig 37: Components 6/63 To 6/95
Courtesy of VOLVO CARS OF NORTH AMERICA.

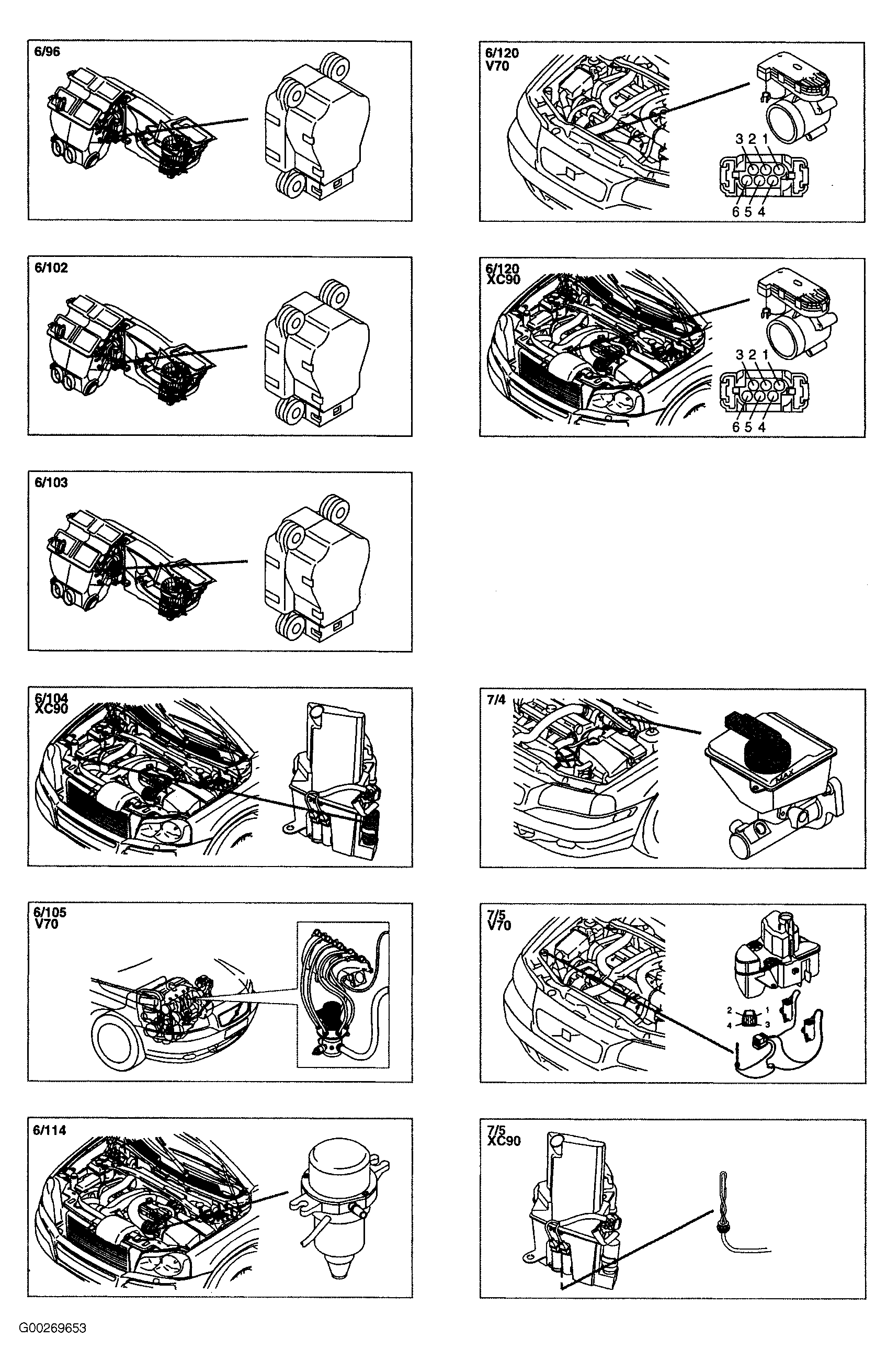

Fig 38: Components 6/96 To 7/5
Courtesy of VOLVO CARS OF NORTH AMERICA.

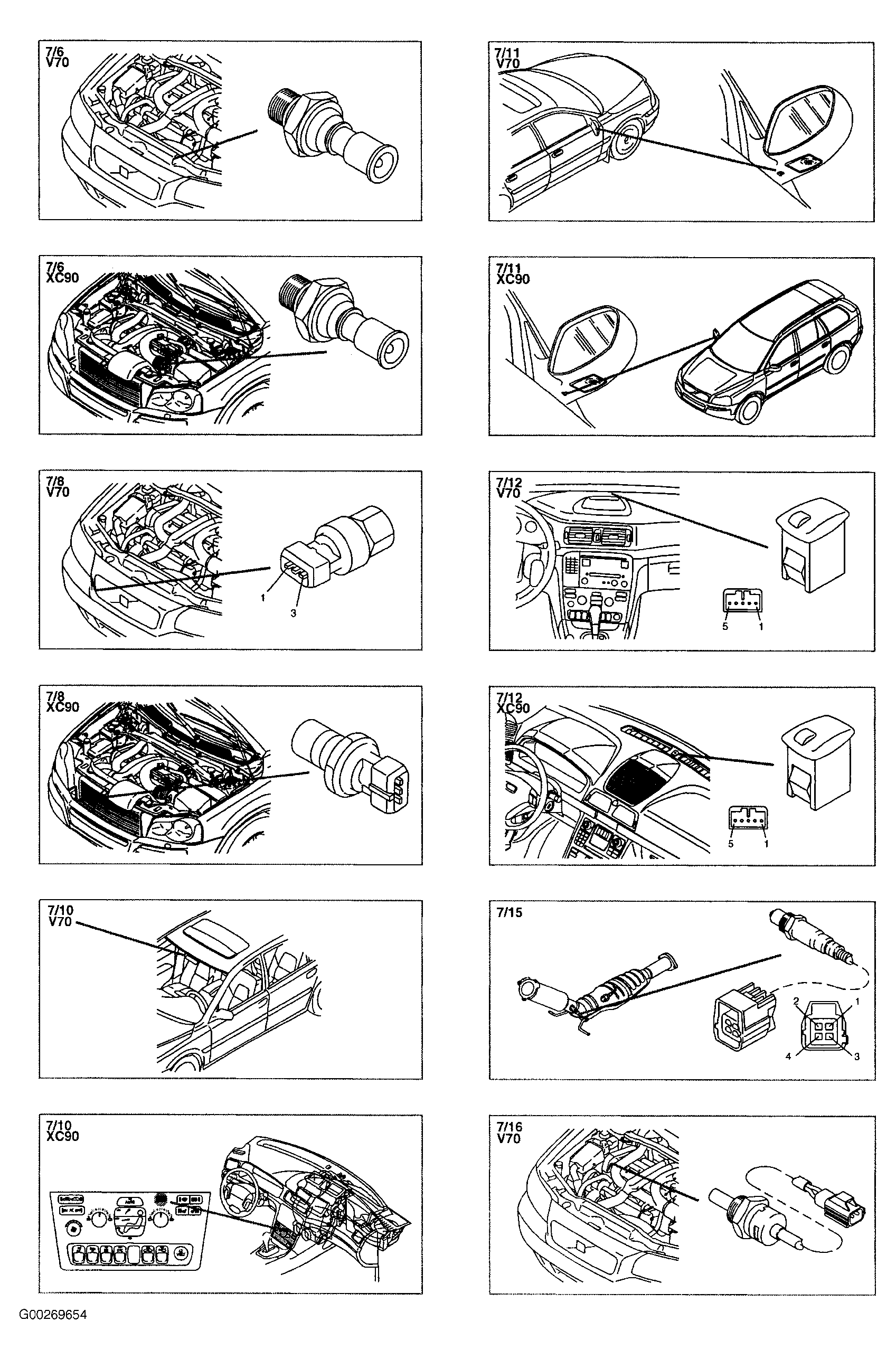

Fig 39: Components 7/6 To 7/16
Courtesy of VOLVO CARS OF NORTH AMERICA.

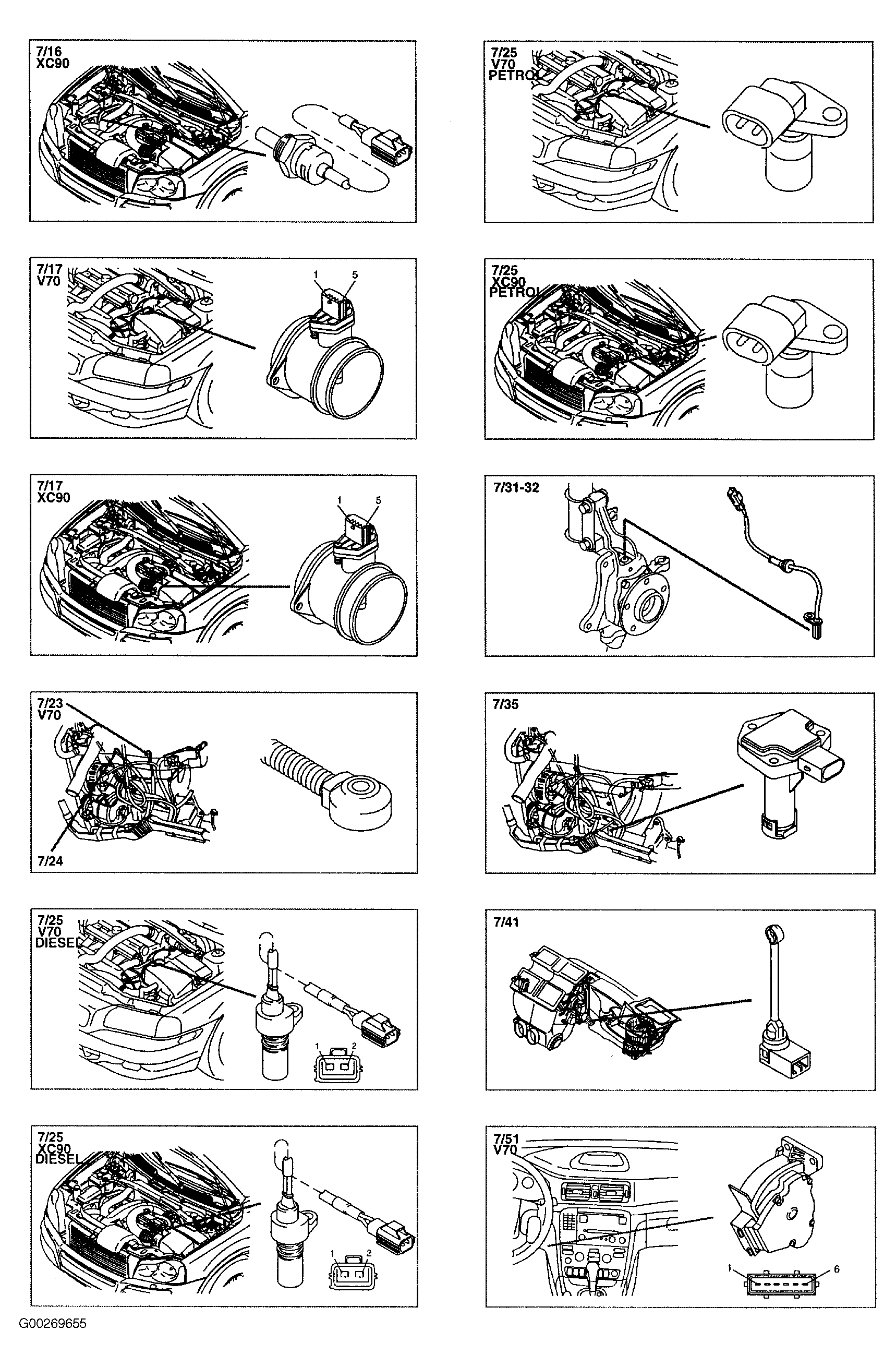

Fig 40: Components 7/16 To 7/51
Courtesy of VOLVO CARS OF NORTH AMERICA.

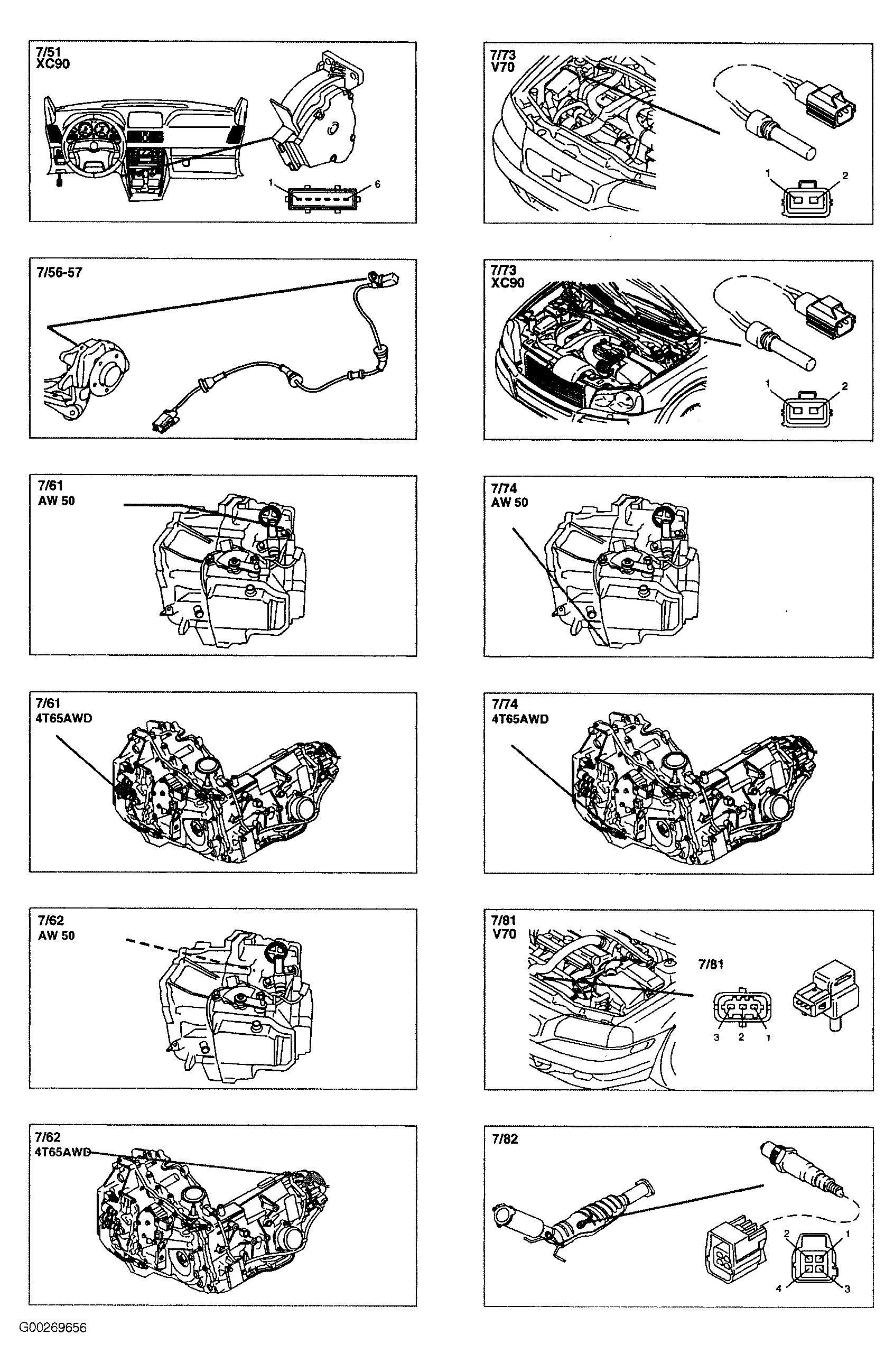

Fig 41: Components 7/51 To 7/82
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 42: Components 7/87 To 7/109
Courtesy of VOLVO CARS OF NORTH AMERICA.

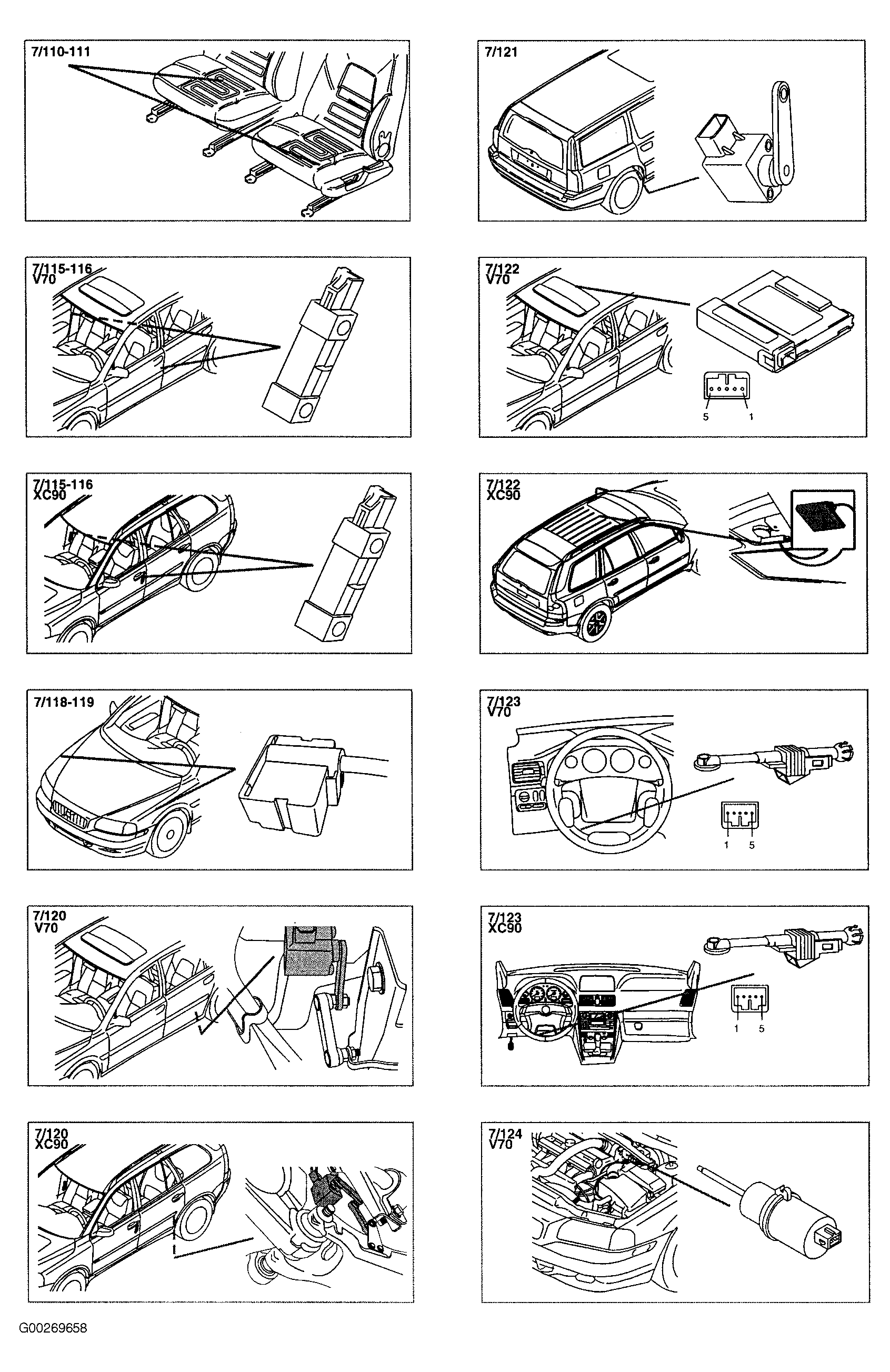

Fig 43: Components 7/110 To 7/124
Courtesy of VOLVO CARS OF NORTH AMERICA.

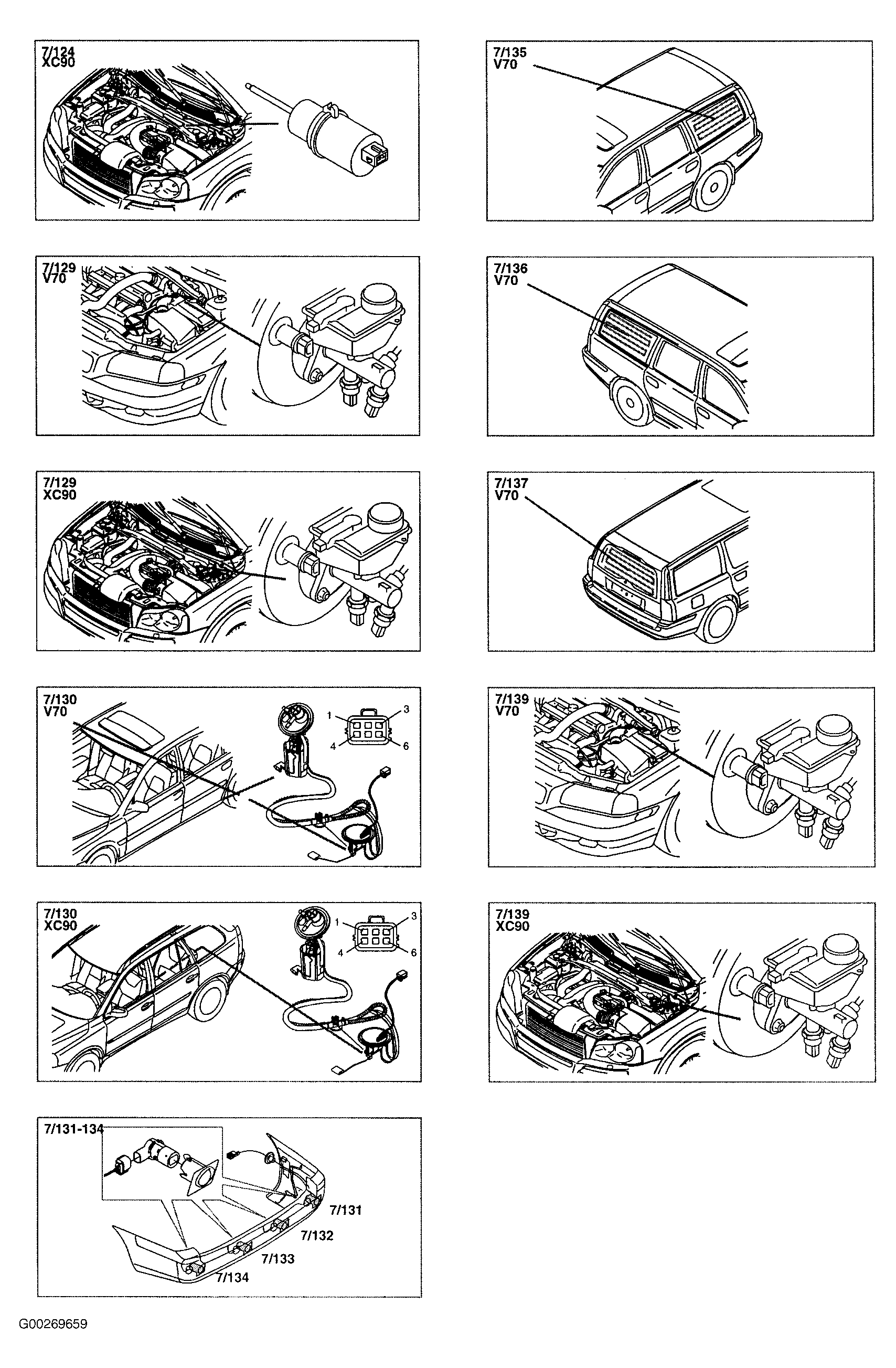

Fig 44: Components 7/124 To 7139
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 45: Components 7/143 To 7/162
Courtesy of VOLVO CARS OF NORTH AMERICA.

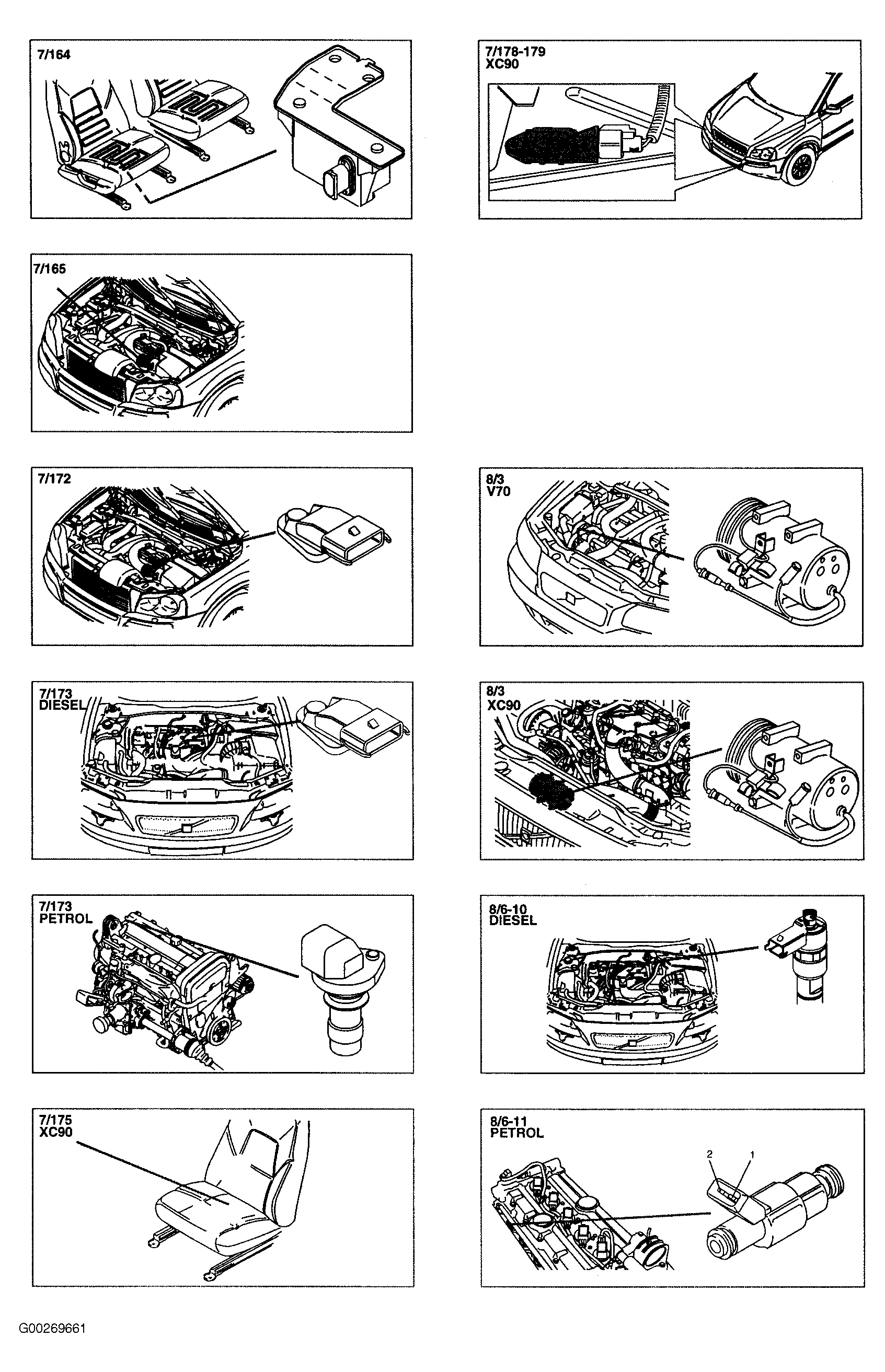

Fig 46: Components 7/164 To 8/11
Courtesy of VOLVO CARS OF NORTH AMERICA.

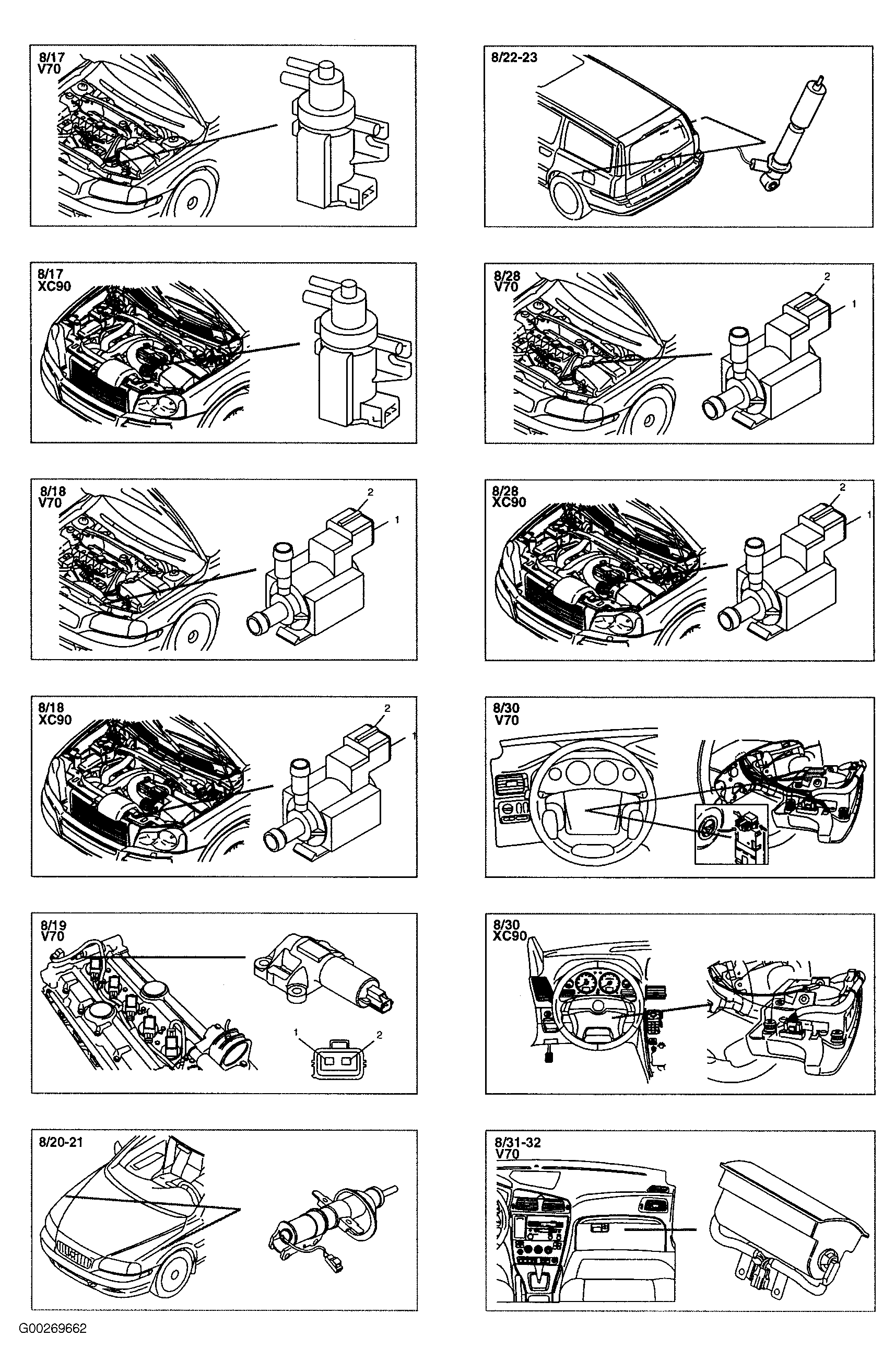

Fig 47: Components 8/17 To 8/32
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 48: Components 8/31 To 8/52
Courtesy of VOLVO CARS OF NORTH AMERICA.

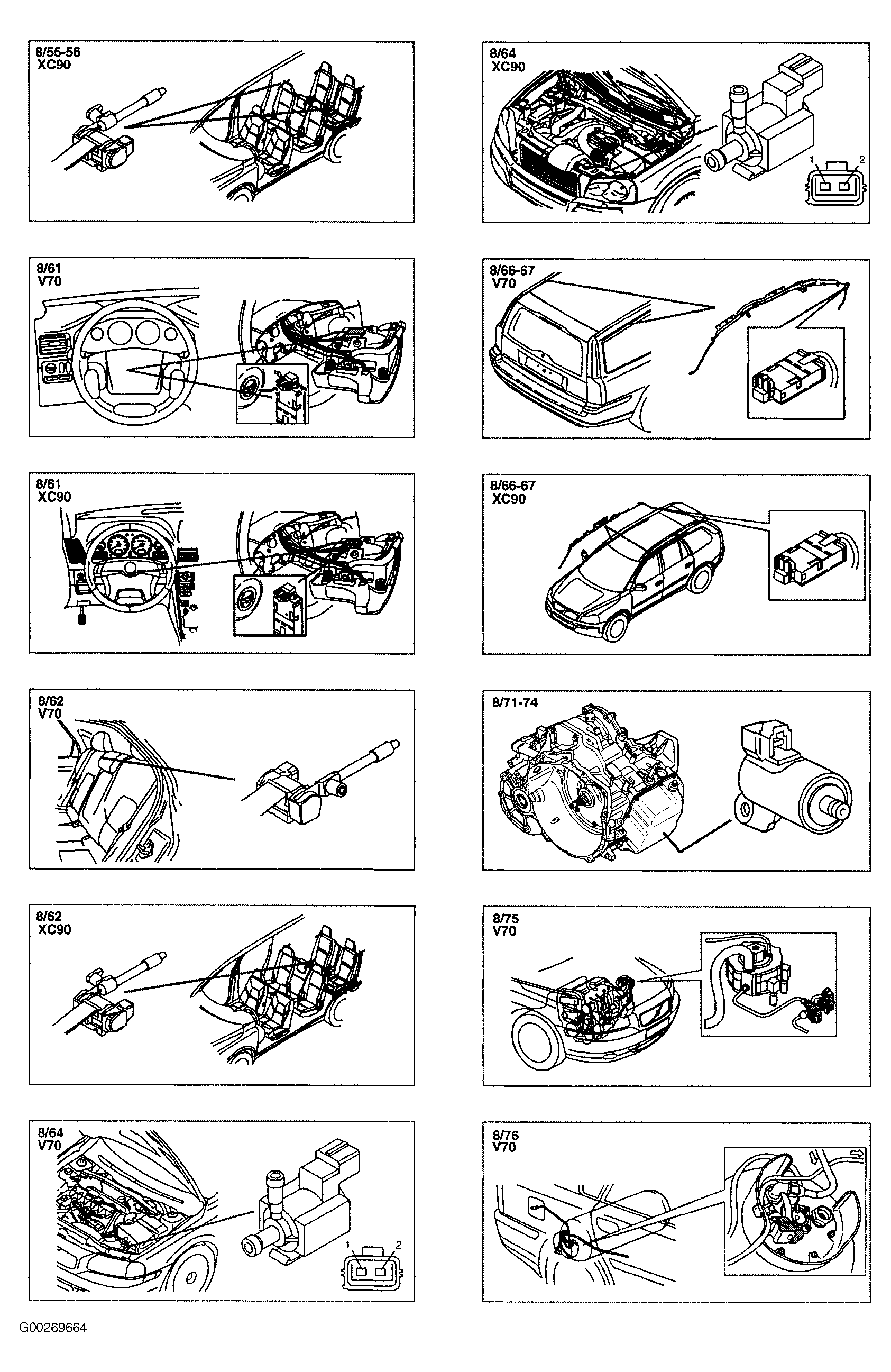

Fig 49: Components 8/55 To 8/76
Courtesy of VOLVO CARS OF NORTH AMERICA.

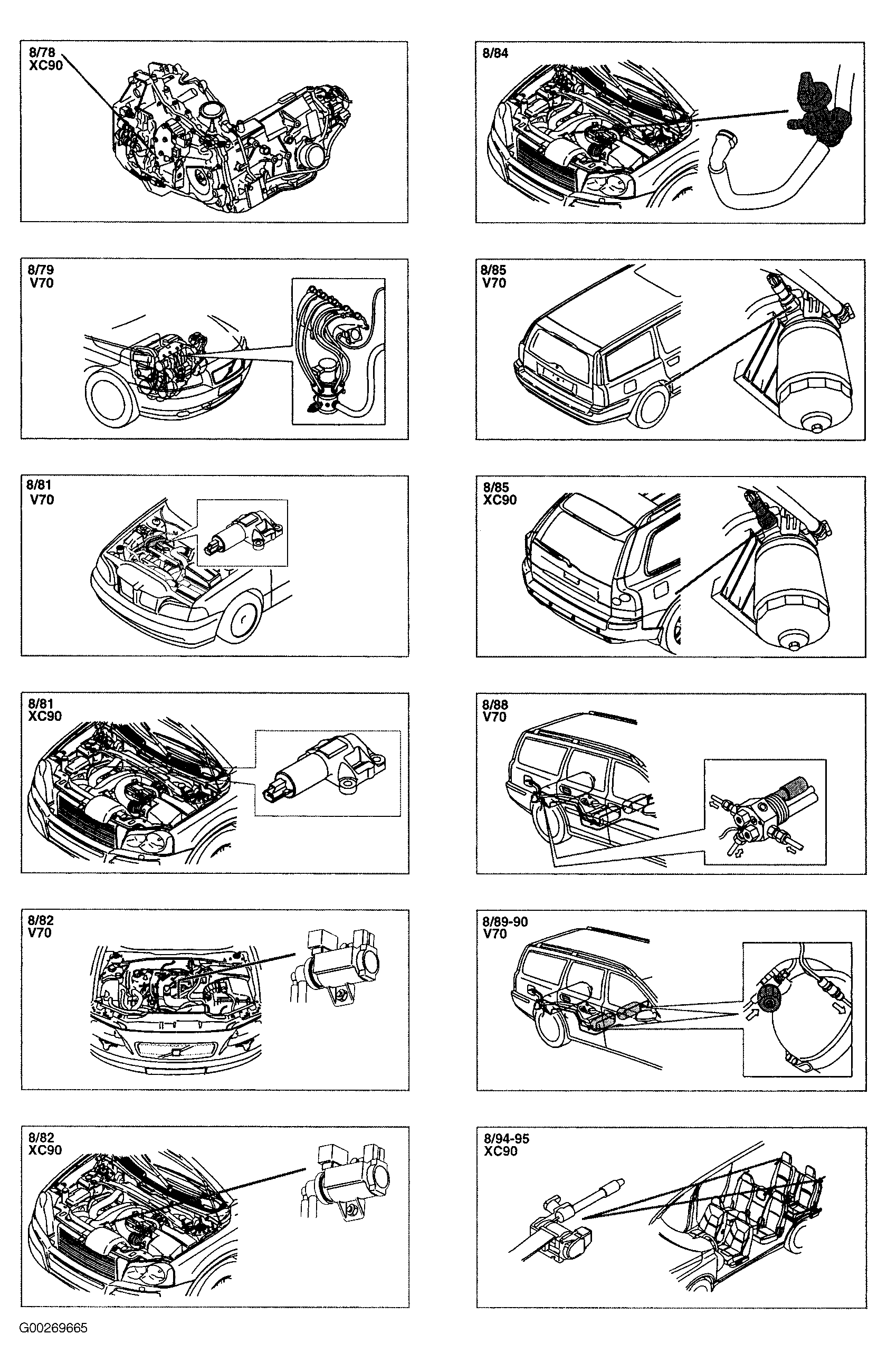

Fig 50: Components 8/78 To 8/95
Courtesy of VOLVO CARS OF NORTH AMERICA.

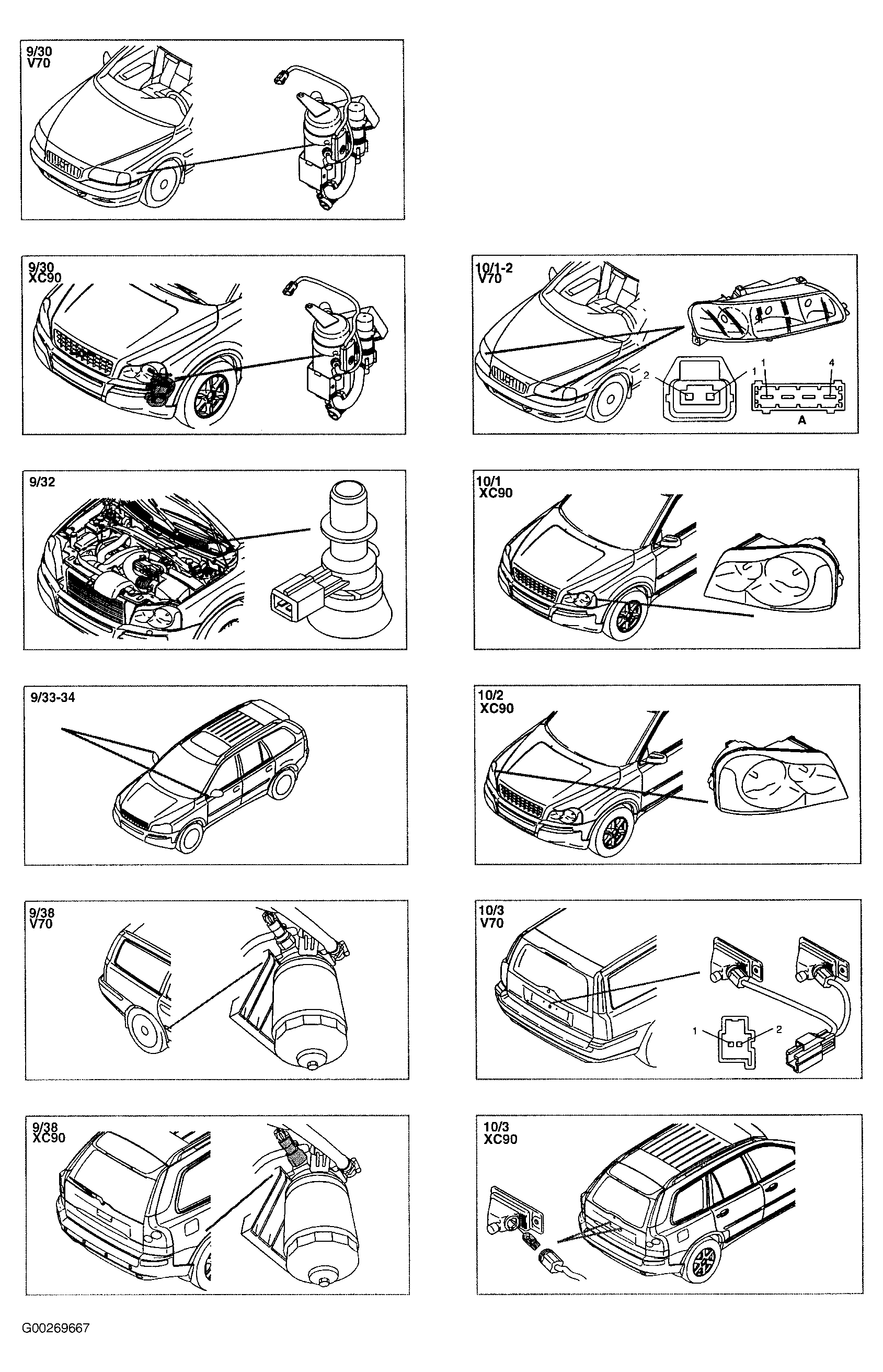

Fig 51: Components 9/30 To 10/3
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 52: Components 10/218 To 11E
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 53: Components 15/30 To 16/4
Courtesy of VOLVO CARS OF NORTH AMERICA.

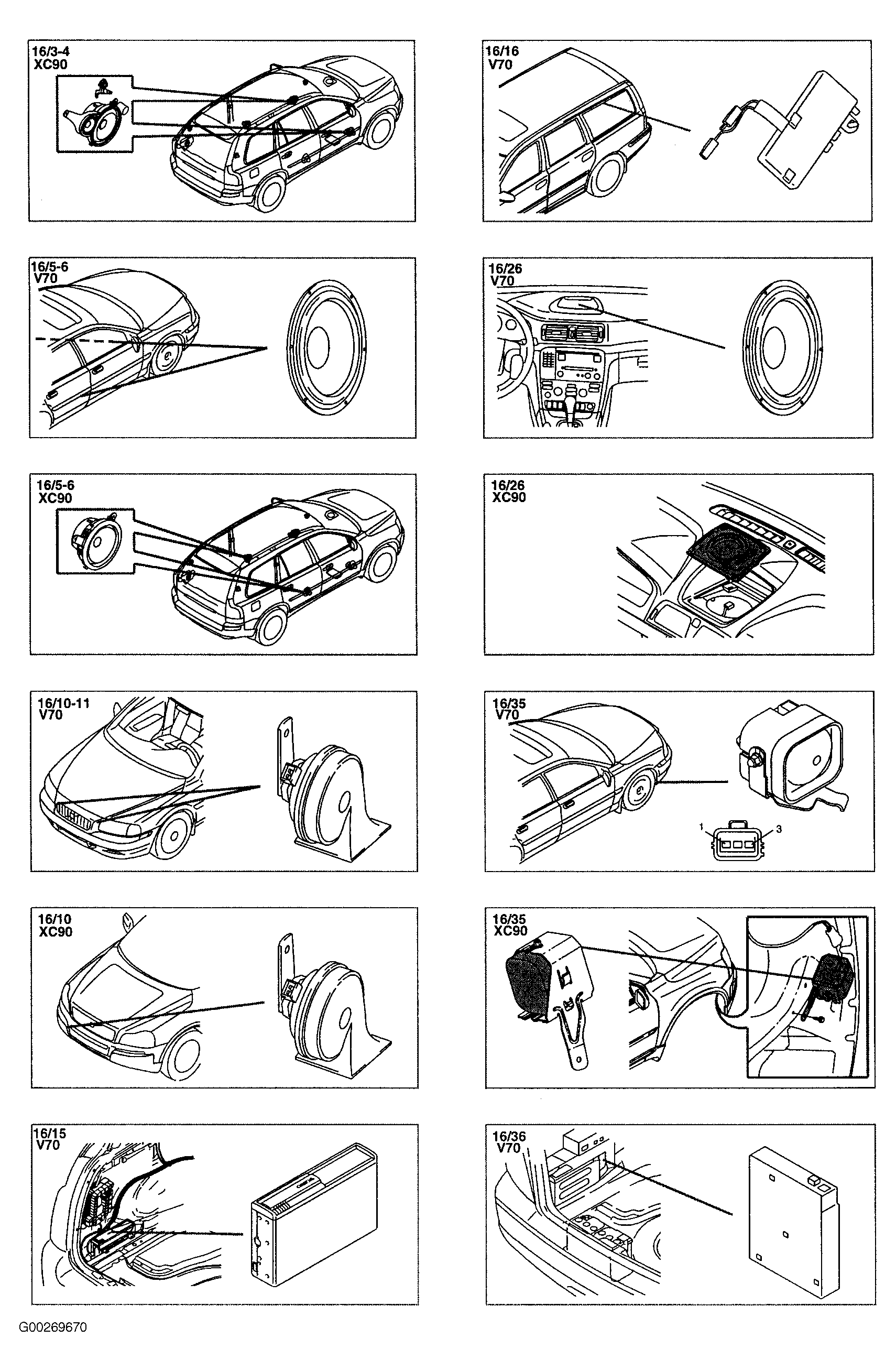

Fig 54: Components 16/3 To 16/36
Courtesy of VOLVO CARS OF NORTH AMERICA.

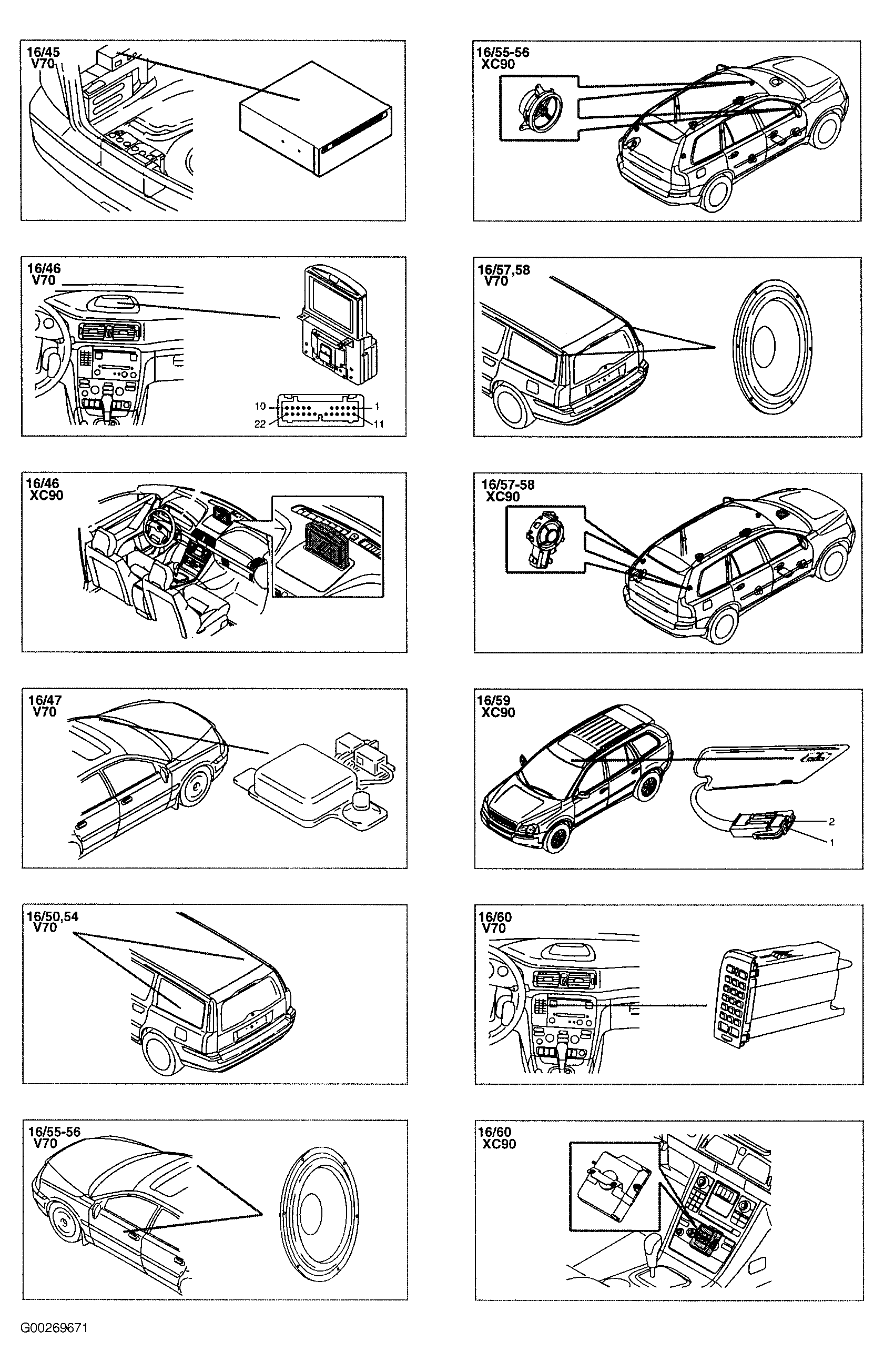

Fig 55: Components 16/45 To 16/60
Courtesy of VOLVO CARS OF NORTH AMERICA.

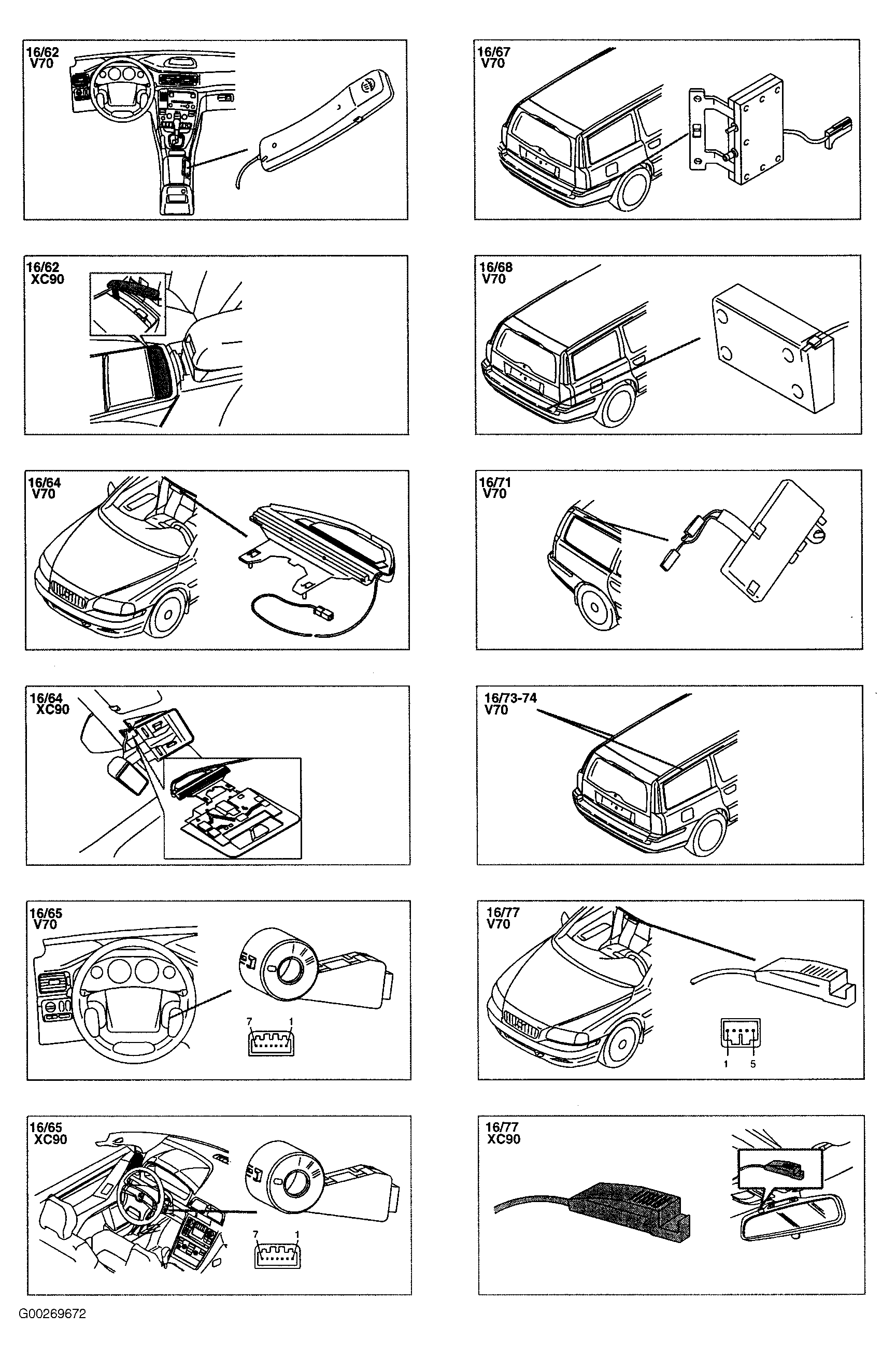

Fig 56: Components 16/62 To 16/77
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 57: Components 16/78 To 16/112
Courtesy of VOLVO CARS OF NORTH AMERICA.

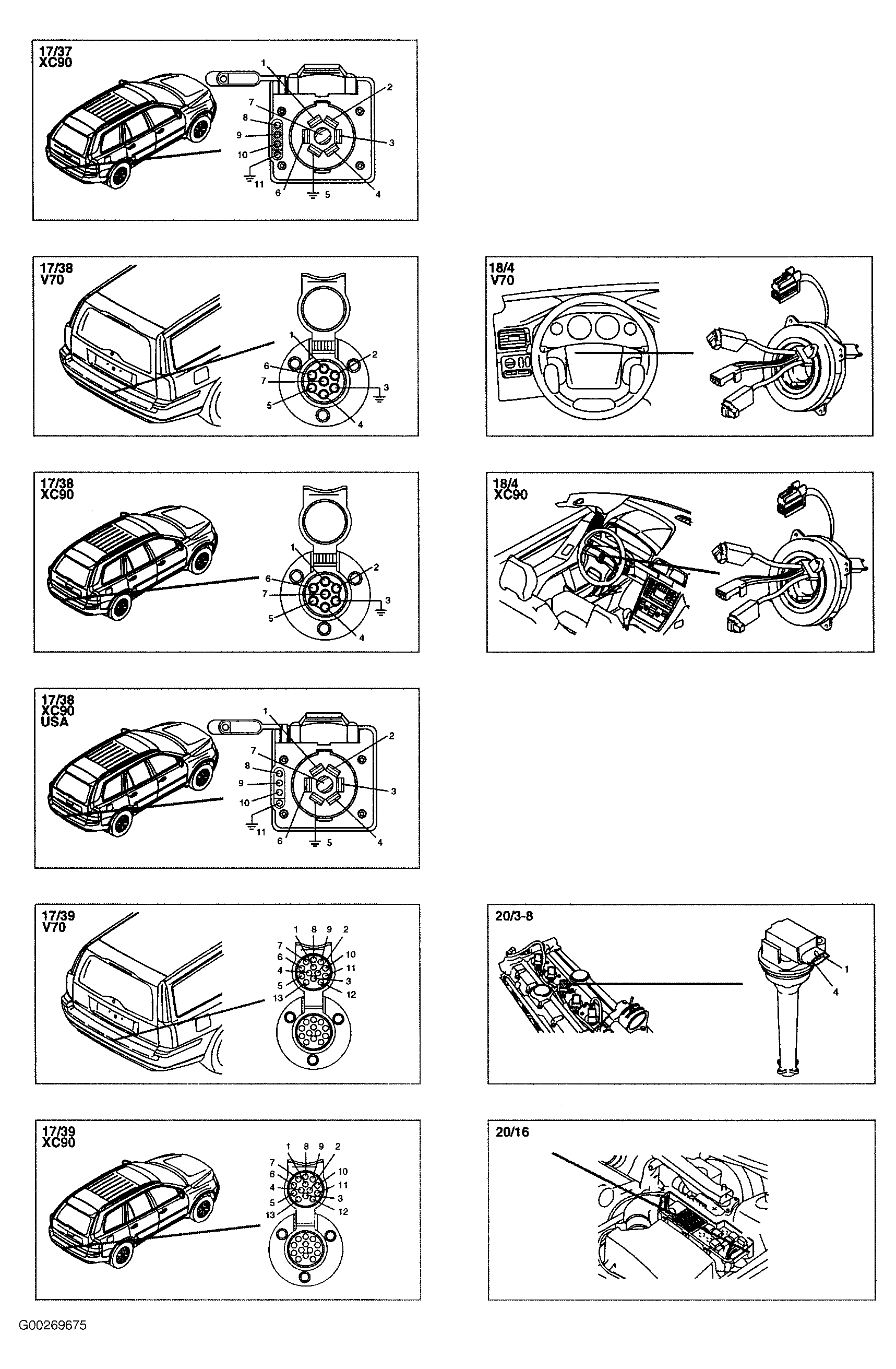

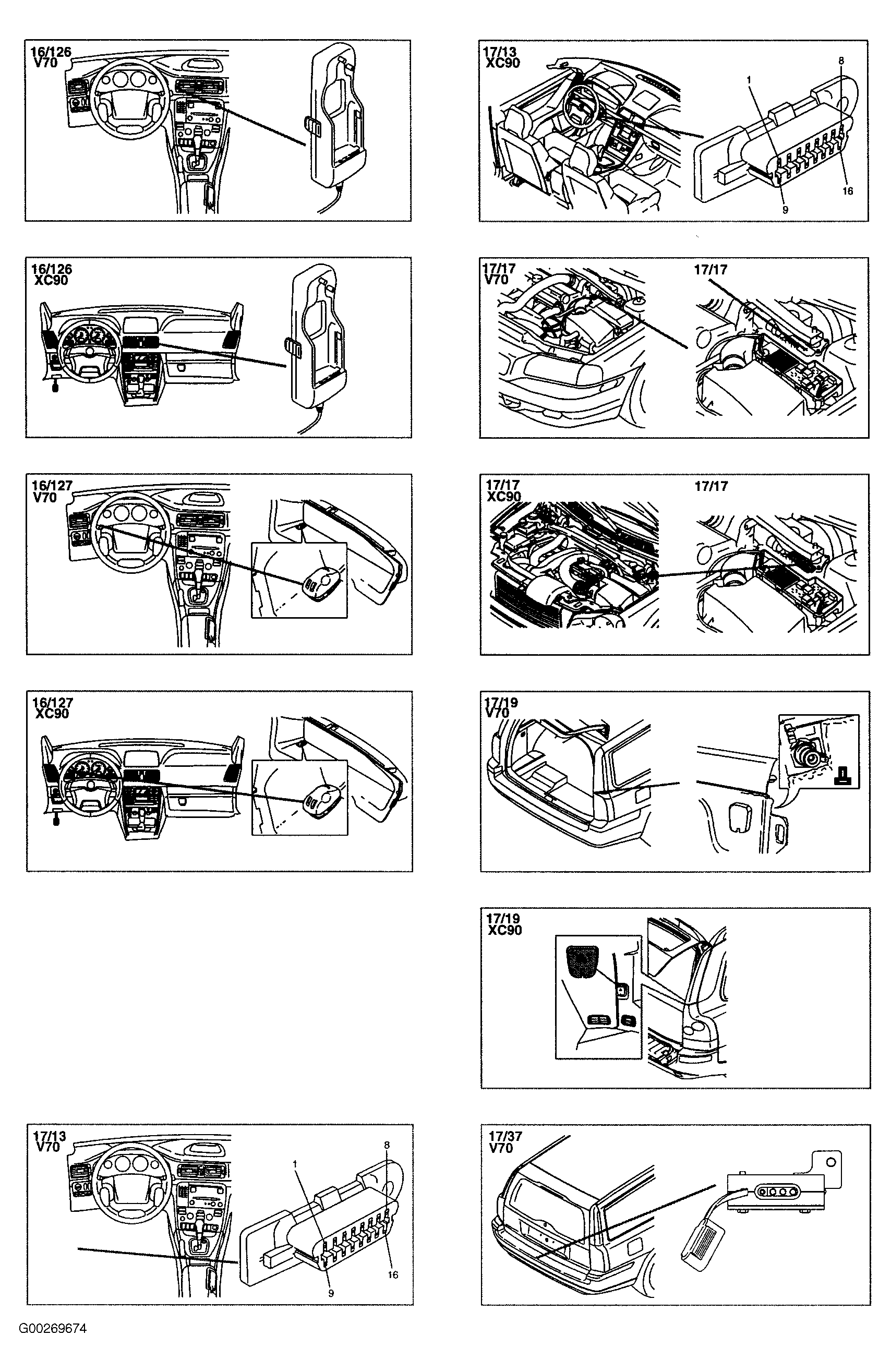

Fig 58: Components 16/126 To 17/37
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 59: Components 17/17 To 20/16
Courtesy of VOLVO CARS OF NORTH AMERICA.

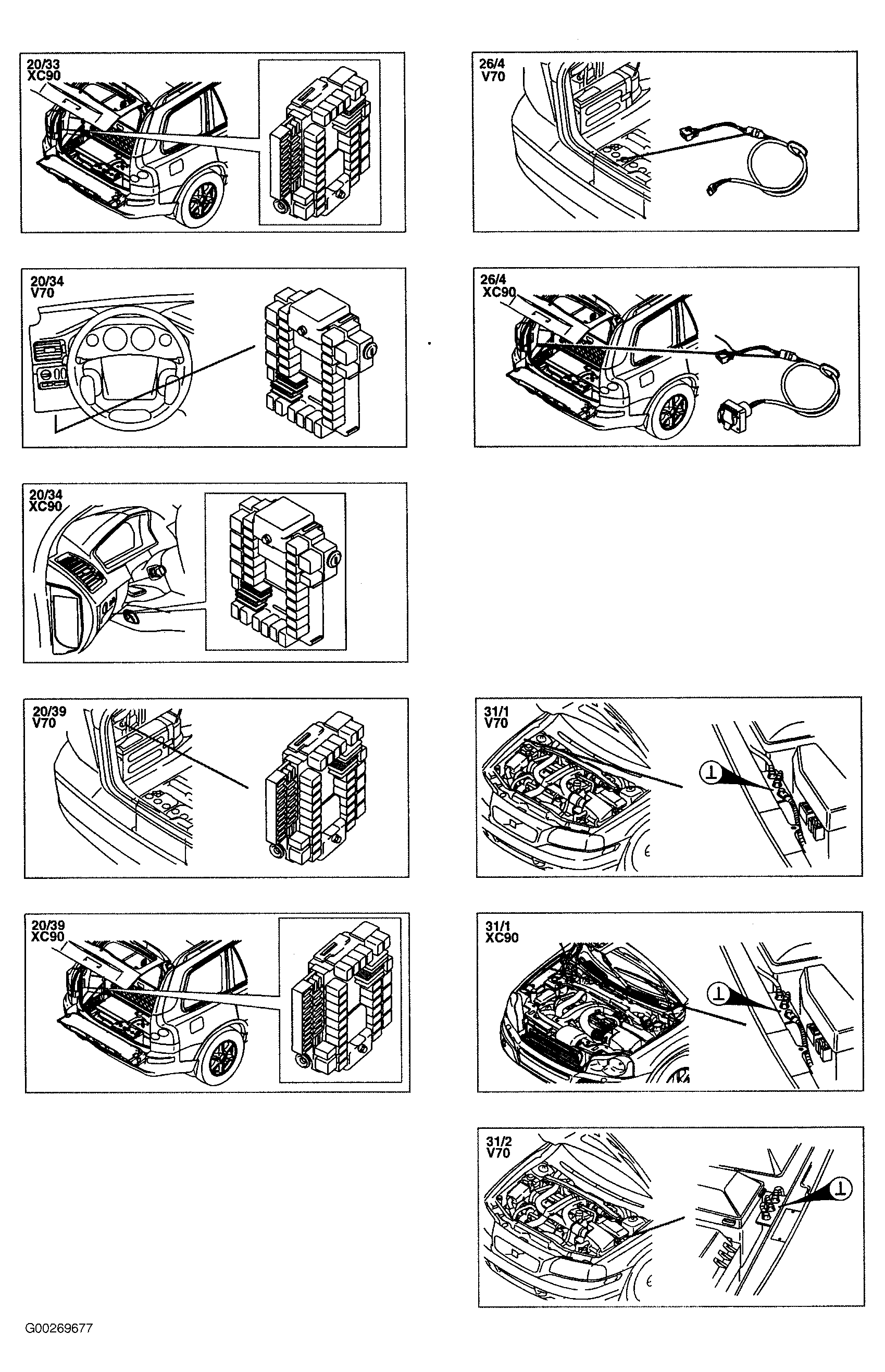

Fig 60: Components 20/33 To 31/2
Courtesy of VOLVO CARS OF NORTH AMERICA.

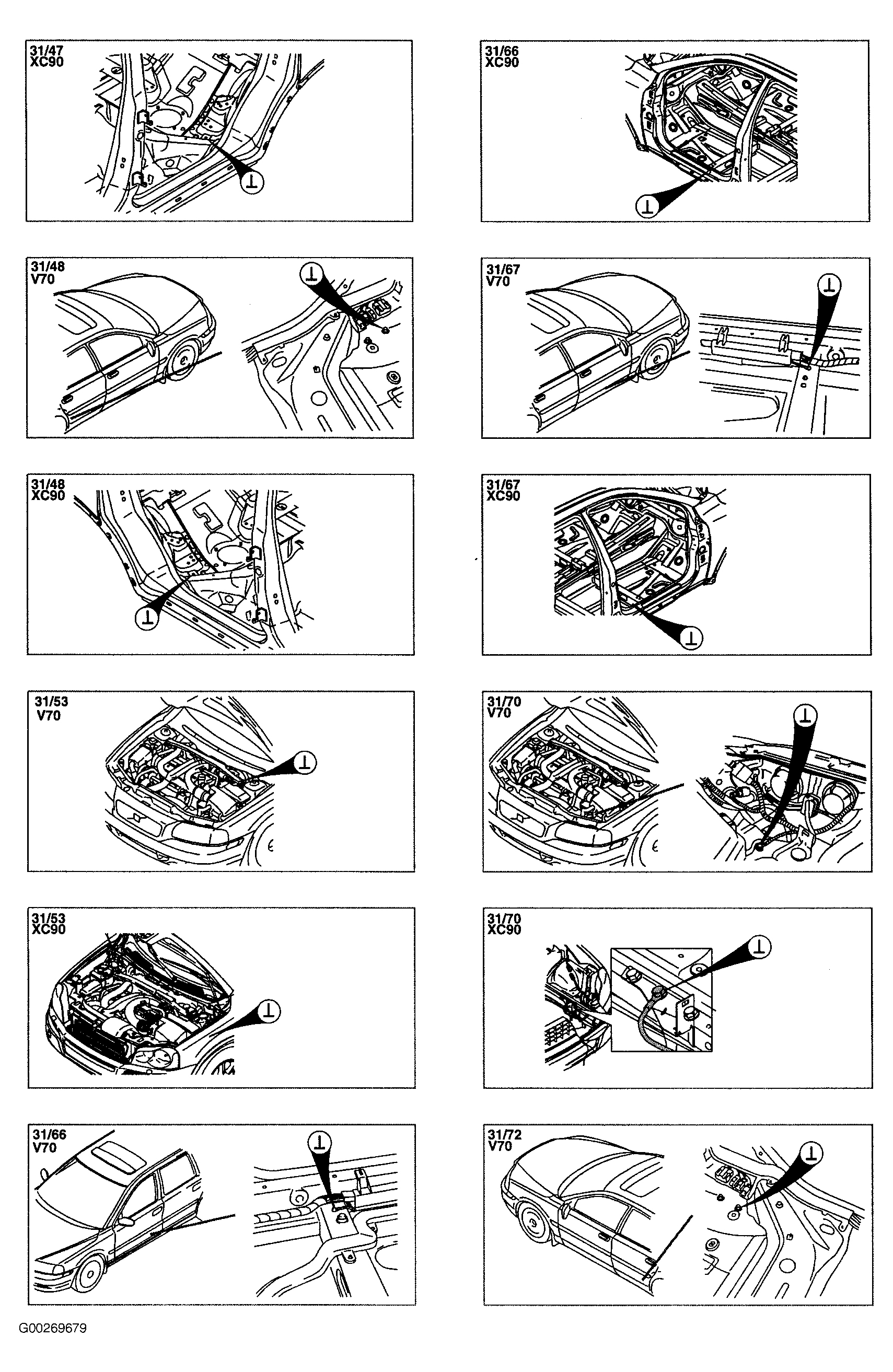

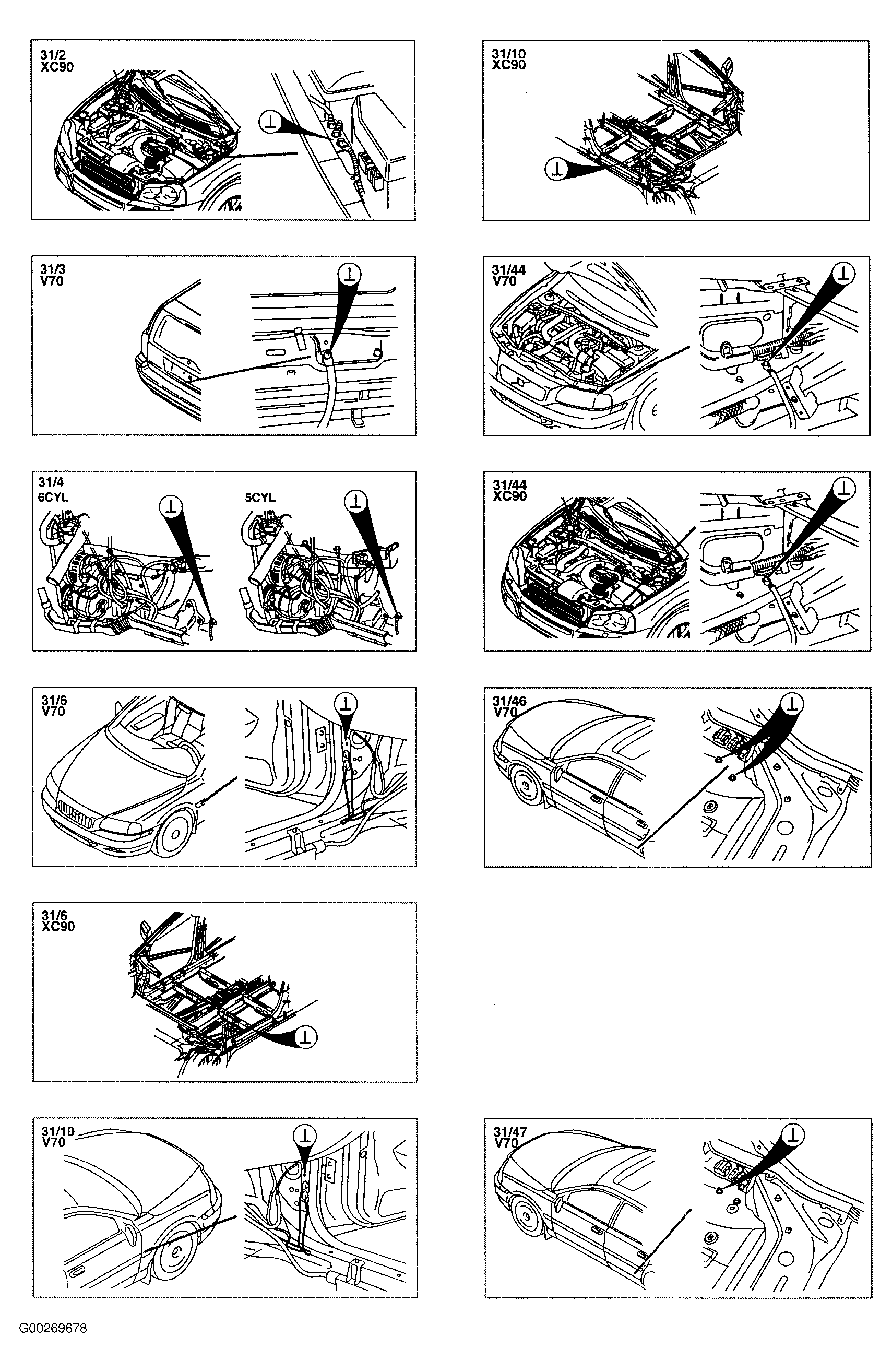

Fig 61: Components 31/2 To 31/47
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 62: Components 31/47 To 31/72
Courtesy of VOLVO CARS OF NORTH AMERICA.

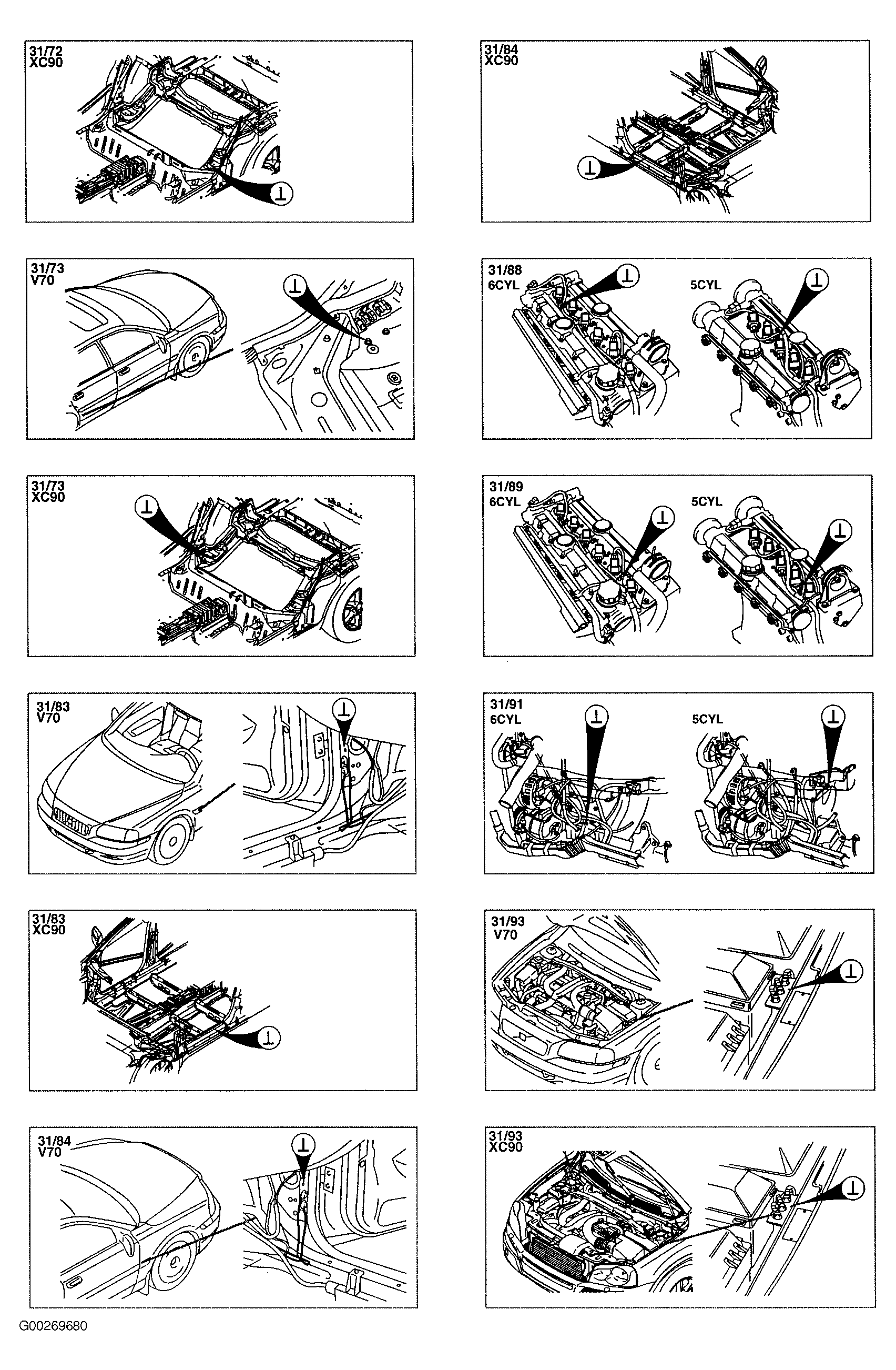

Fig 63: Components 31/72 To 31/93
Courtesy of VOLVO CARS OF NORTH AMERICA.

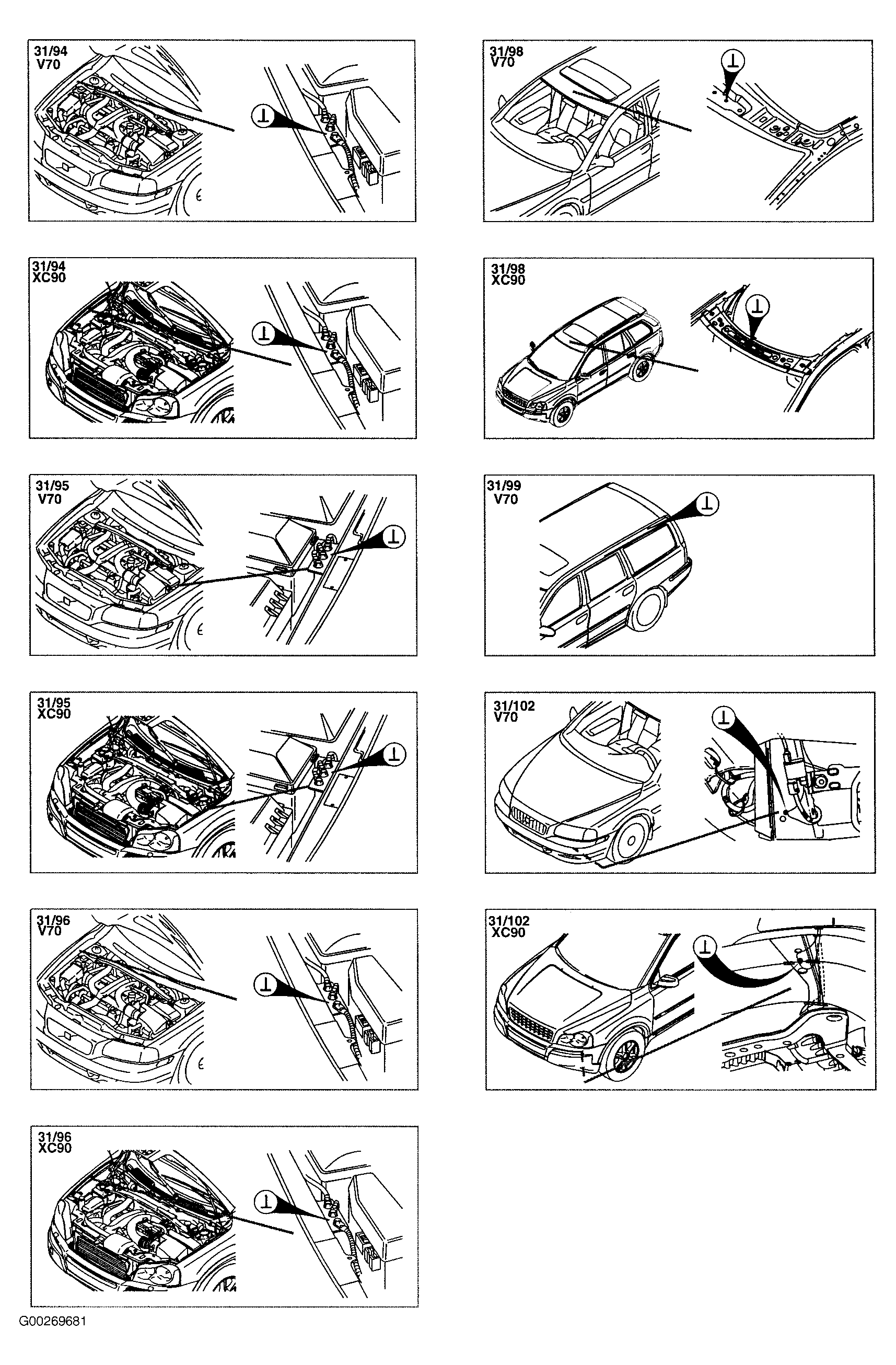

Fig 64: Components 31/94 To 31/102
Courtesy of VOLVO CARS OF NORTH AMERICA.
