Side Members Front, Alignment Dimensions

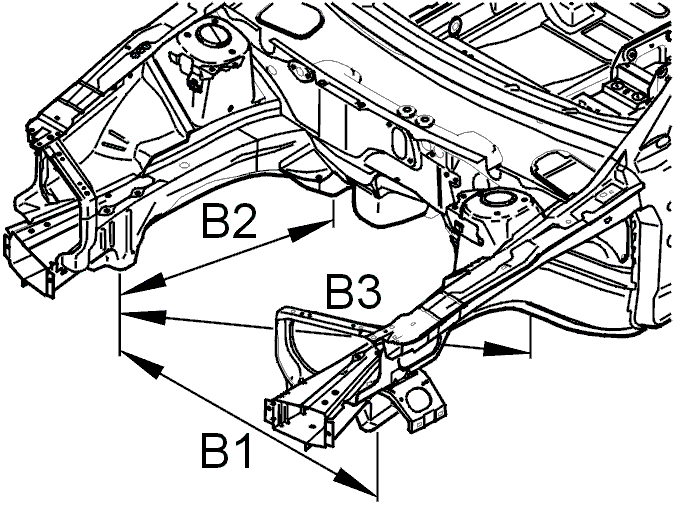

Fig 1: Front Side Member Measurement Locations (1 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

B1 = 1066 mm

B2 = 785 mm

B3 = 1239 mm

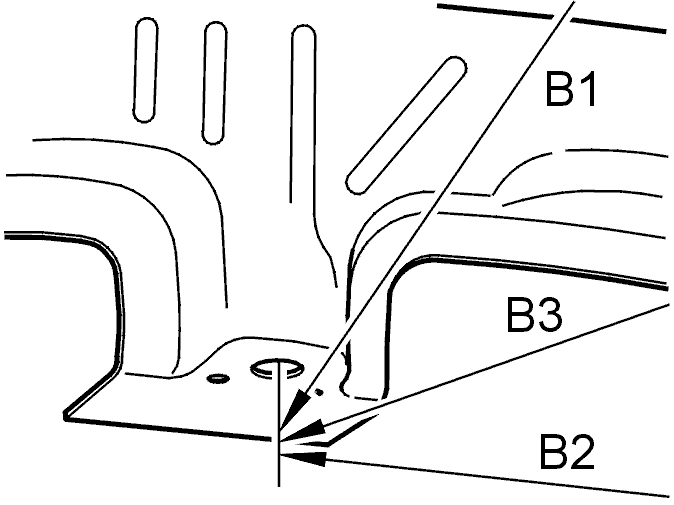

Fig 2: Front Side Member Measurement Locations (2 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

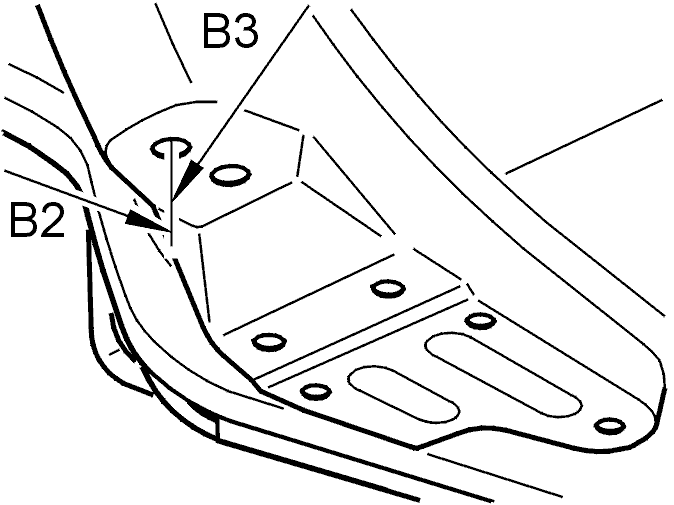

Fig 3: Front Side Member Measurement Locations (3 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.
