Circuit Protection Devices

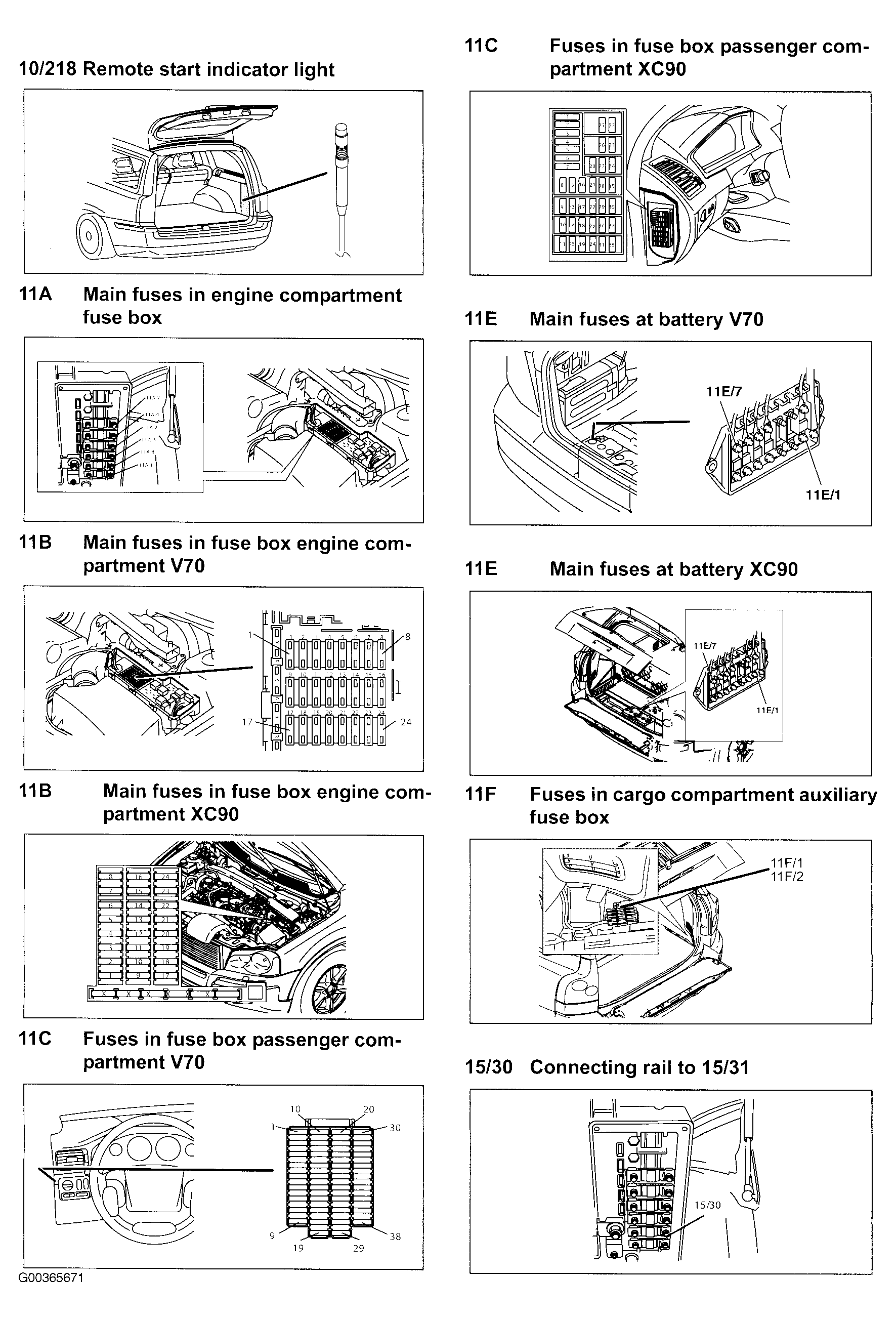

CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Cargo Compartment Auxiliary Fuse Box (11F) | At right side of cargo compartment. See Figure . |
| Engine Compartment Distribution Box (15/31) | Left side of engine compartment. See Figure . |
| Engine Compartment Fuse Box (11A) | At left side of engine compartment, forward of strut tower. See Figure . |
| Main Fuses (11E) | Next to battery, in cargo compartment. See Figure . |
| Passenger Compartment Fuse Box (11C) | At left end of dash. See Figure . |
