Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

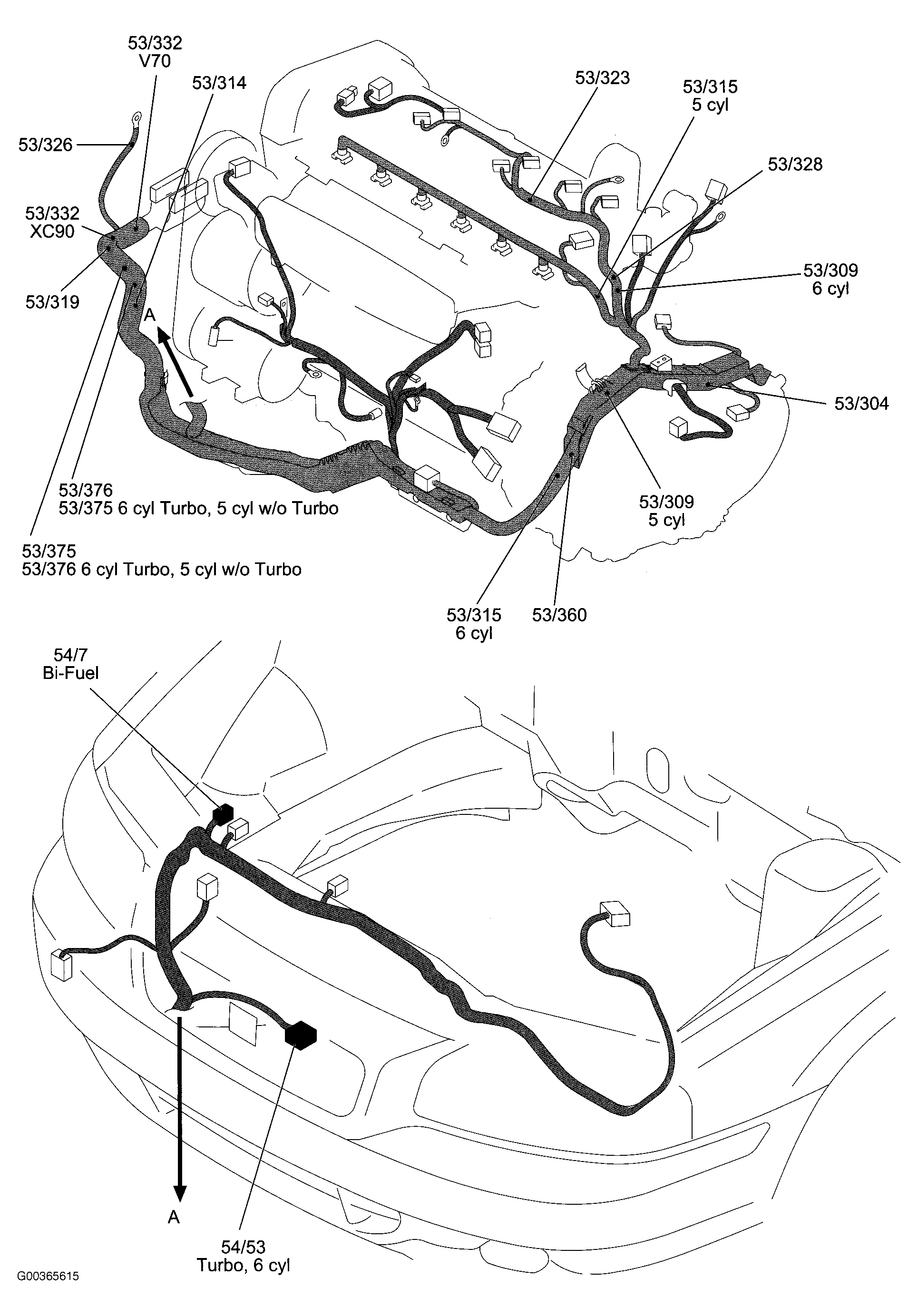

Fig 1: Engine
G00365615Courtesy of VOLVO CARS OF NORTH AMERICA.

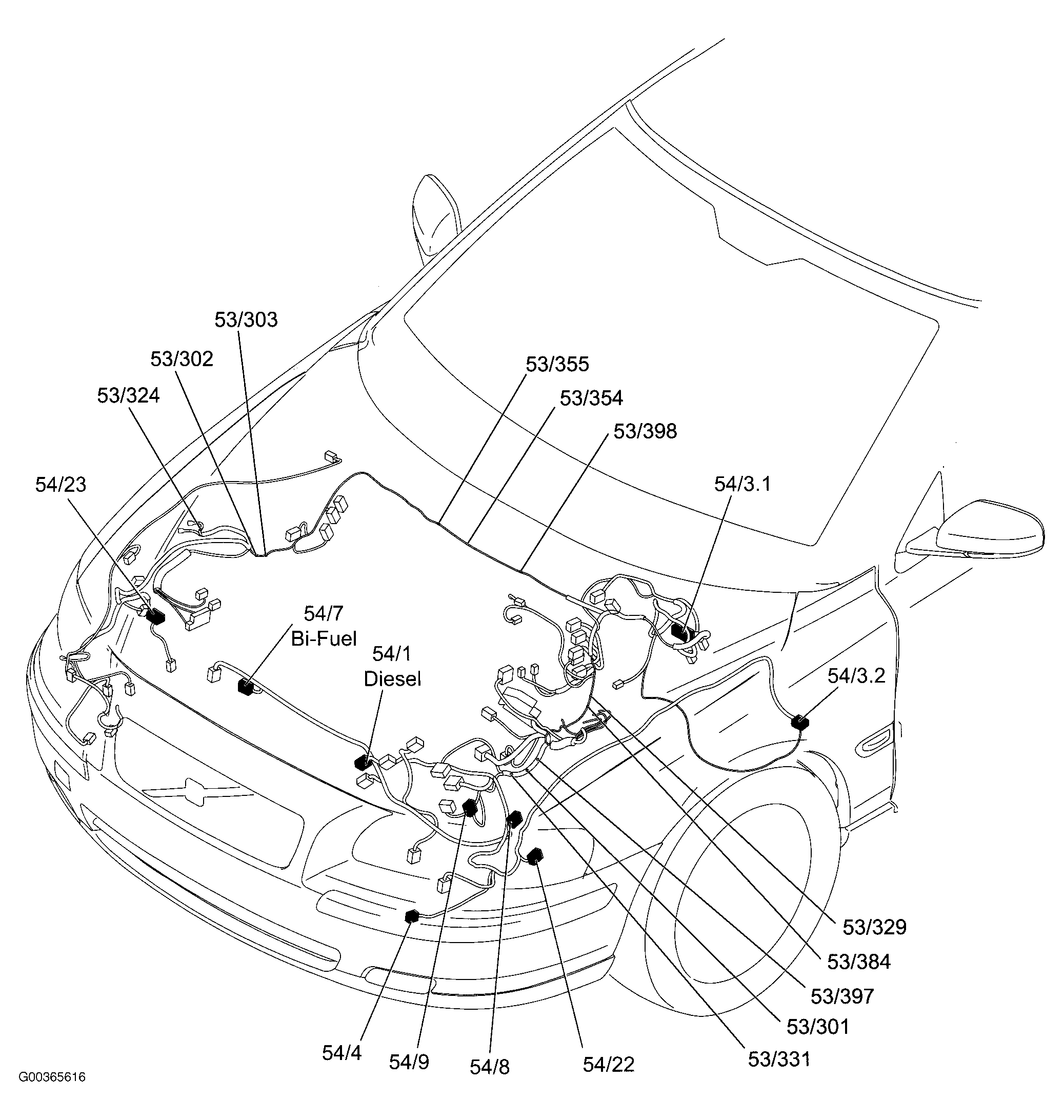

Fig 2: Engine Compartment (V70)
G00365616Courtesy of VOLVO CARS OF NORTH AMERICA.

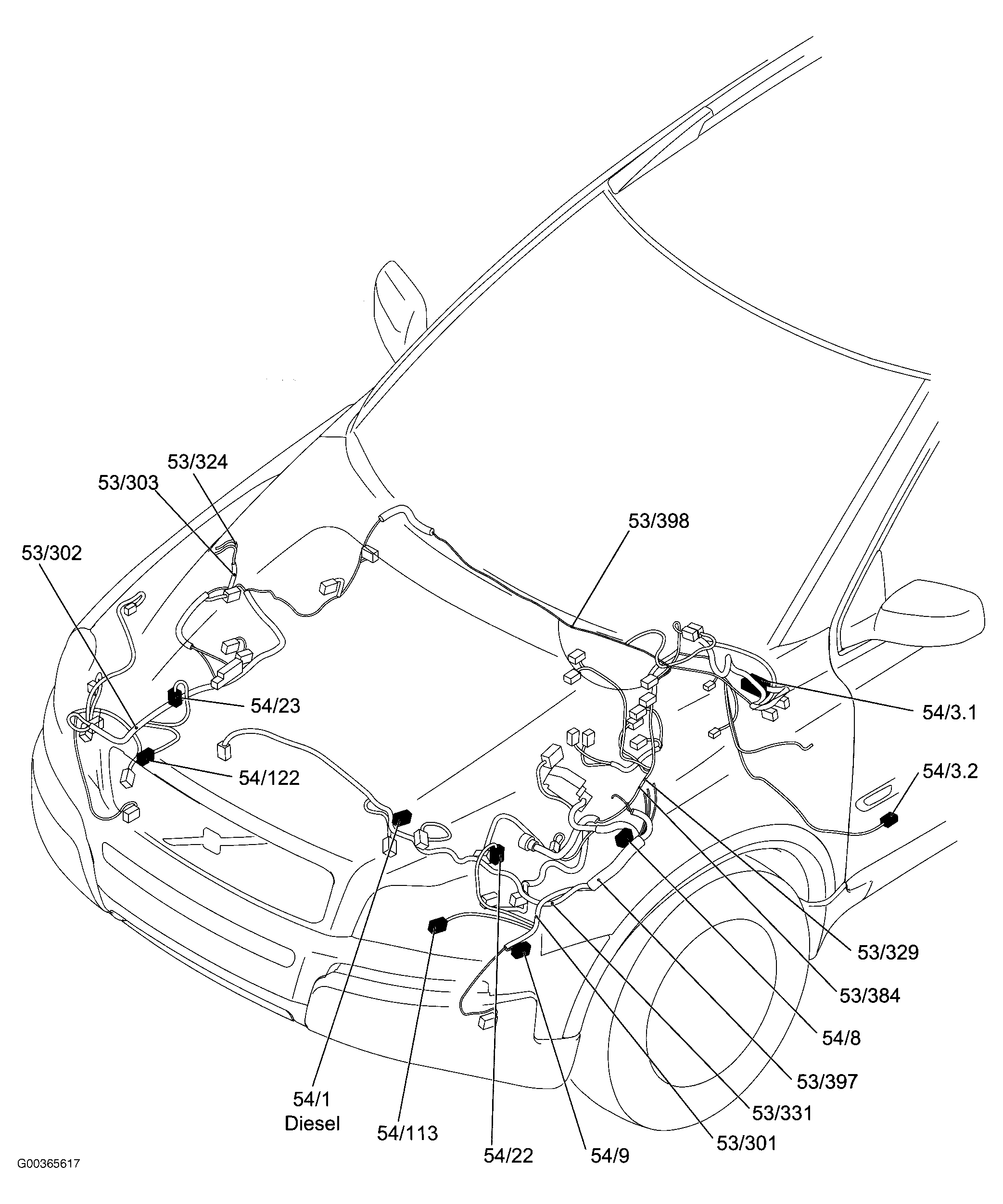

Fig 3: Engine Compartment (XC90)
G00365617Courtesy of VOLVO CARS OF NORTH AMERICA.

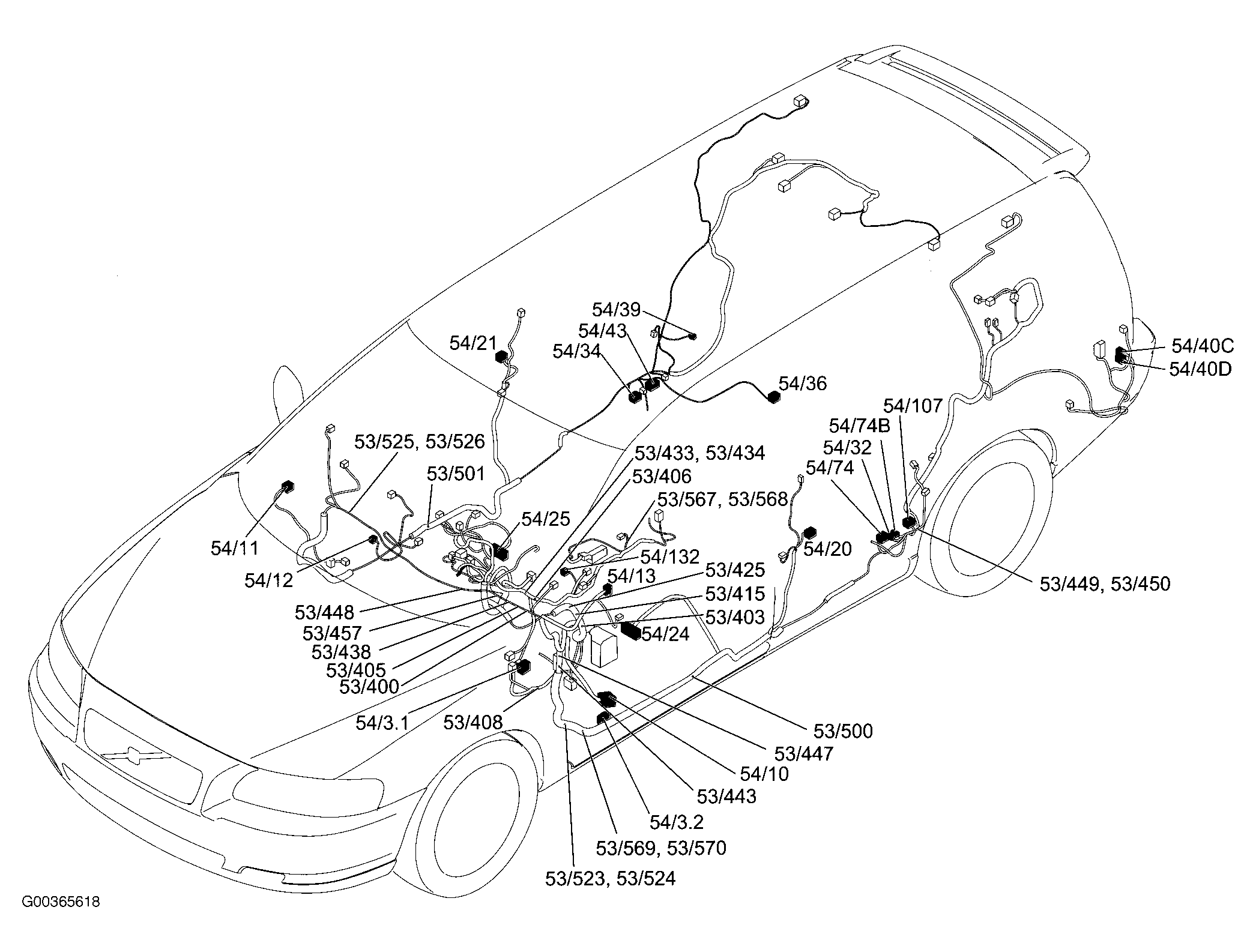

Fig 4: Vehicle Overview (V70)
G00365618Courtesy of VOLVO CARS OF NORTH AMERICA.

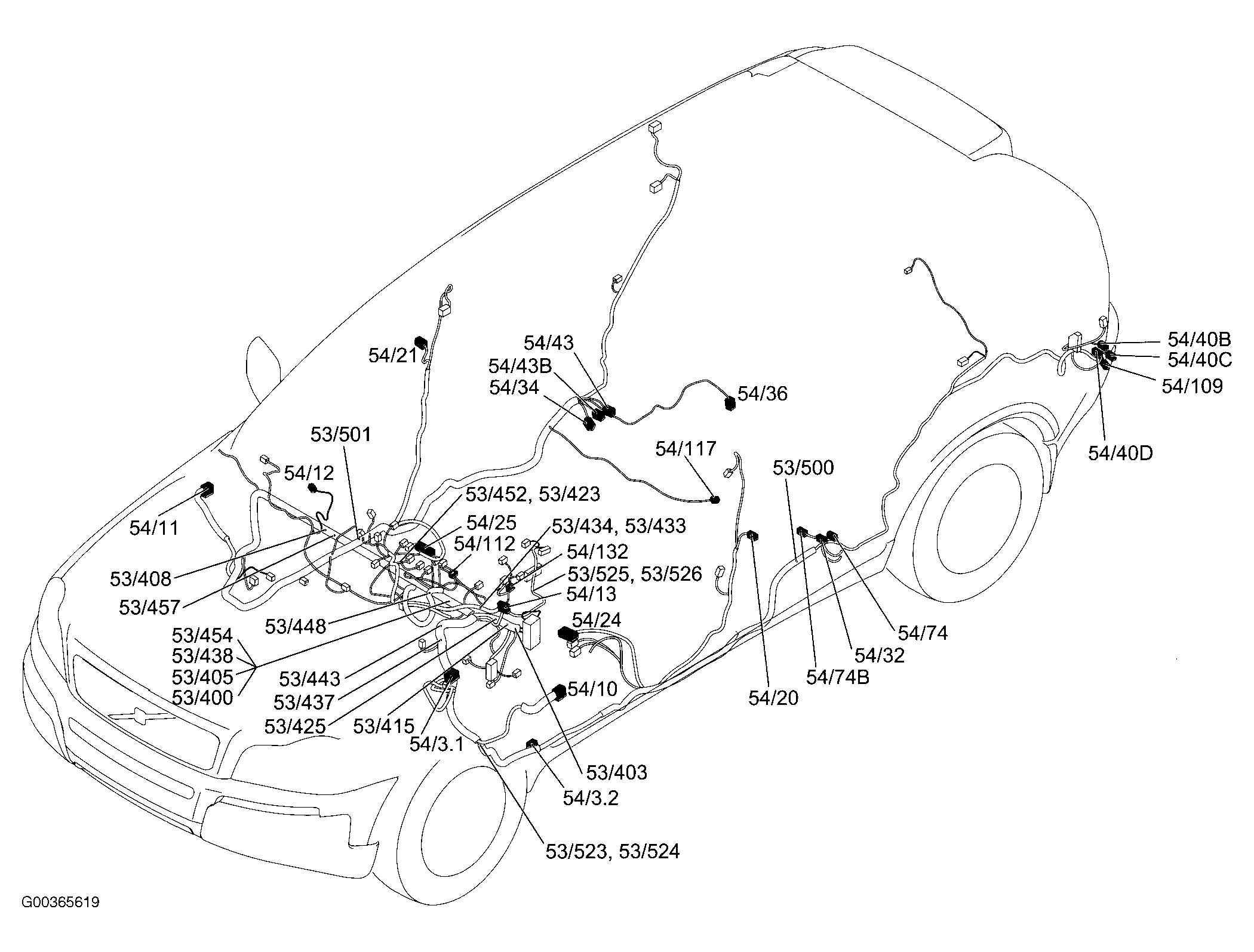

Fig 5: Vehicle Overview (XC90)
G00365619Courtesy of VOLVO CARS OF NORTH AMERICA.

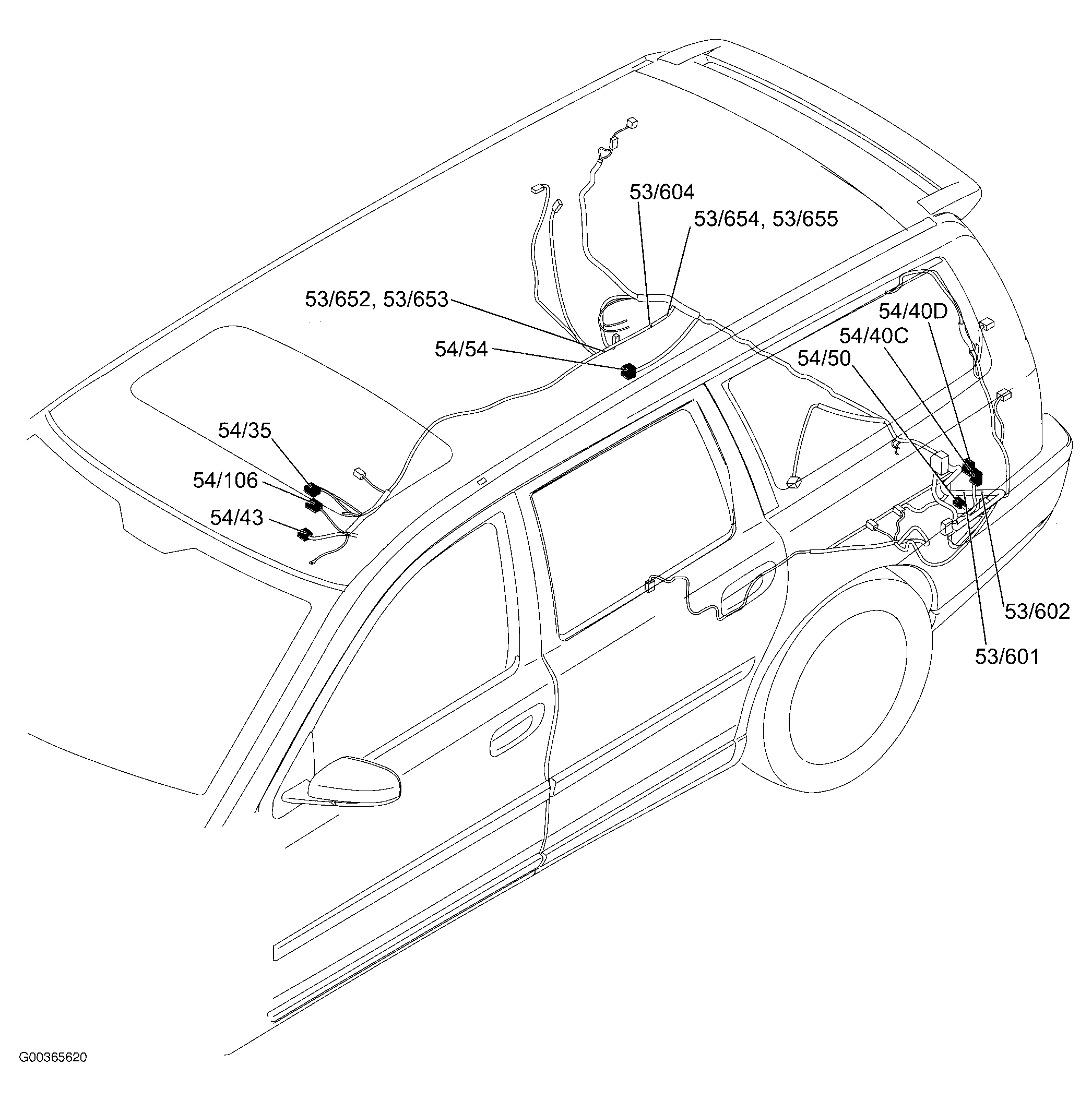

Fig 6: Rear Of Vehicle (V70)
G00365620Courtesy of VOLVO CARS OF NORTH AMERICA.

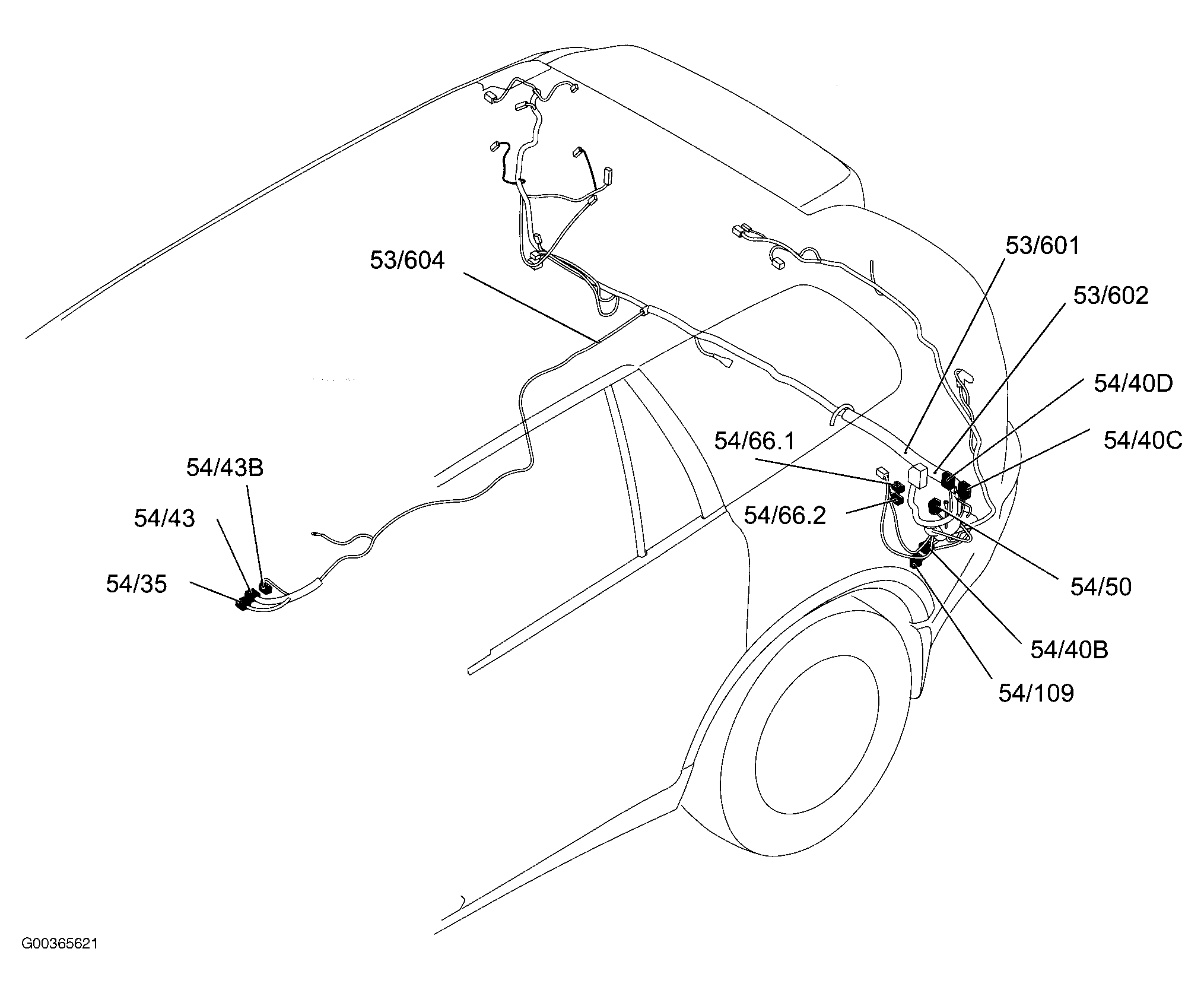

Fig 7: Rear Of Vehicle (XC90)
G00365621Courtesy of VOLVO CARS OF NORTH AMERICA.

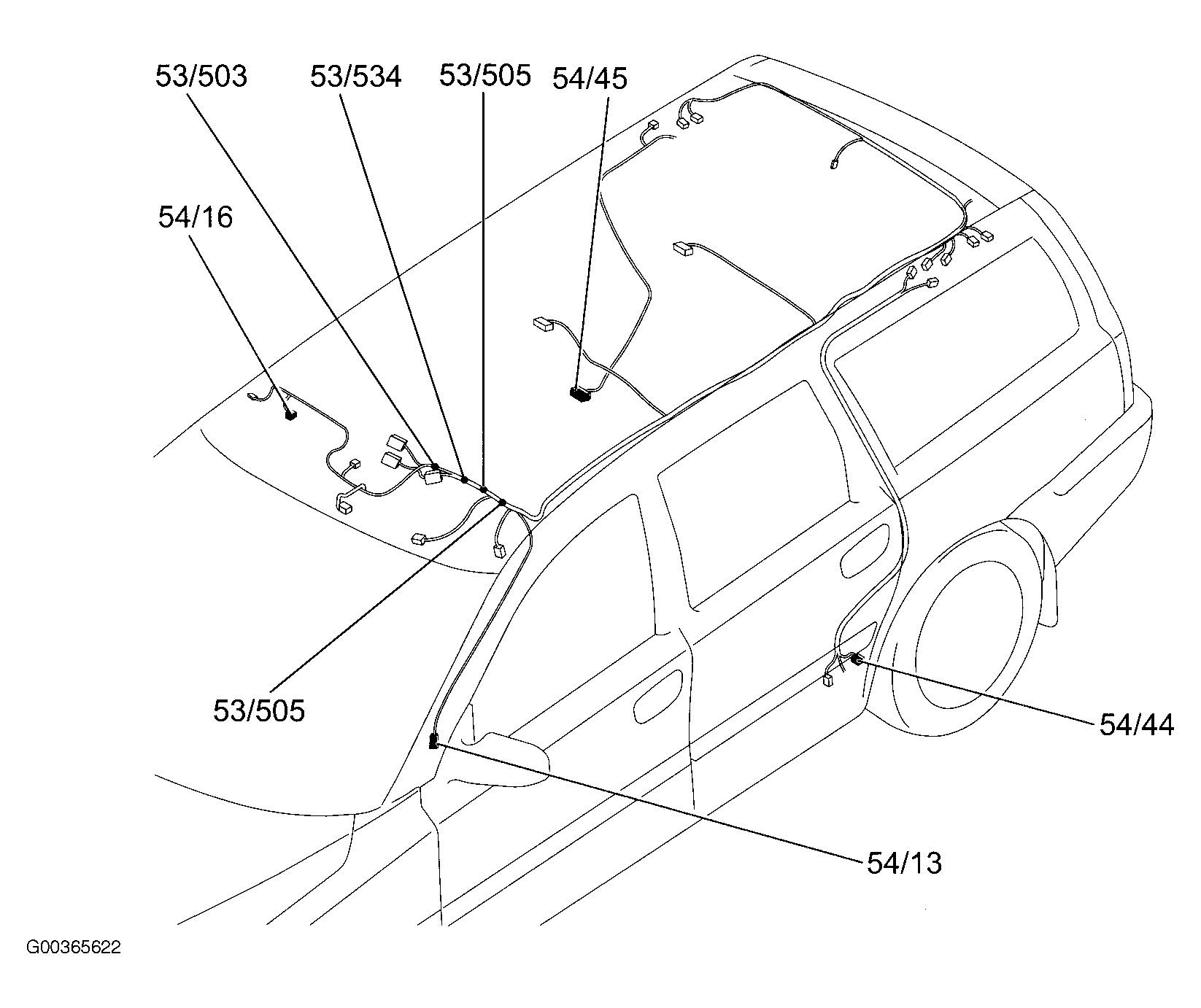

Fig 8: Roof (V70)
G00365622Courtesy of VOLVO CARS OF NORTH AMERICA.

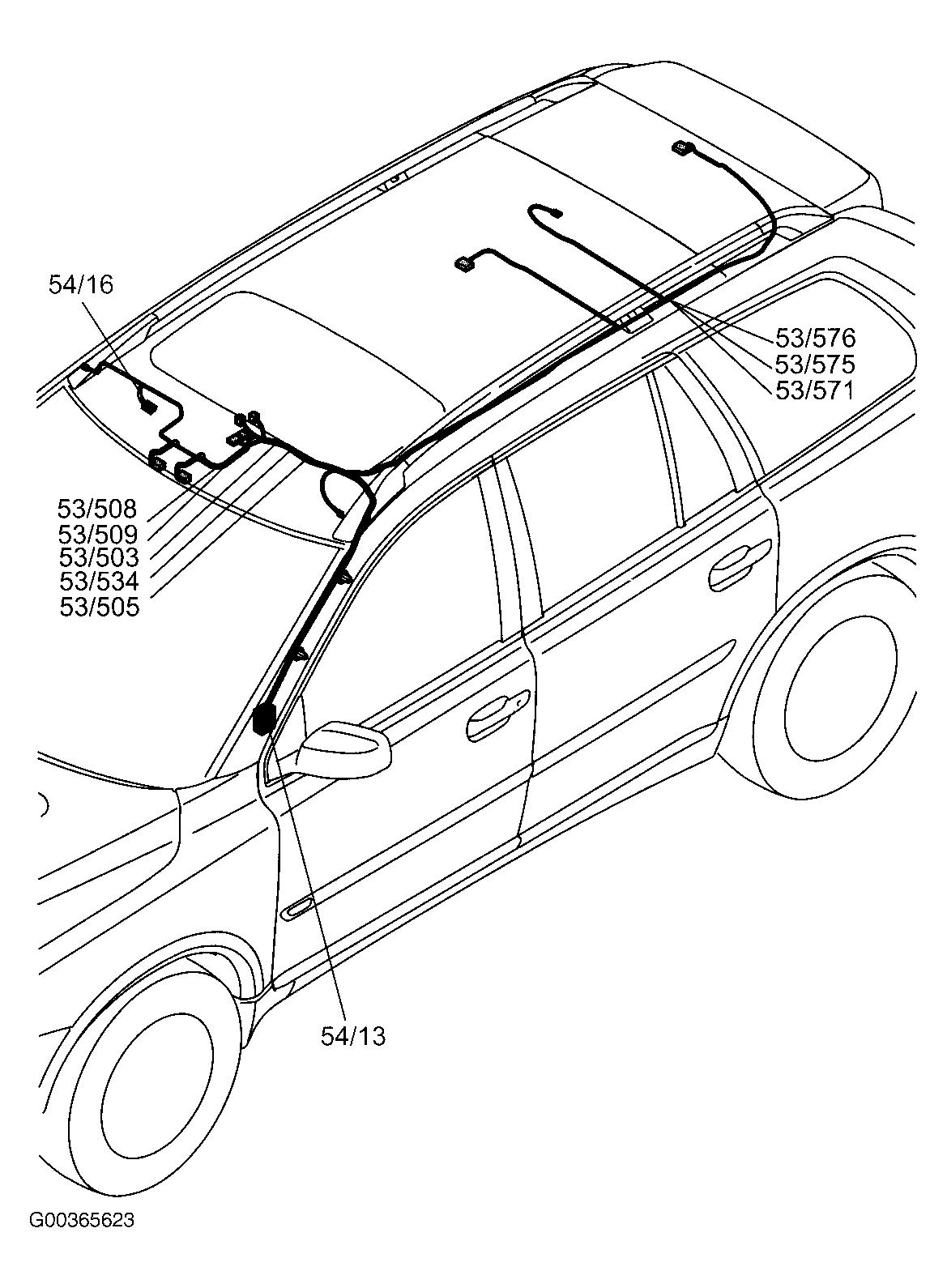

Fig 9: Roof (XC90)
G00365623Courtesy of VOLVO CARS OF NORTH AMERICA.

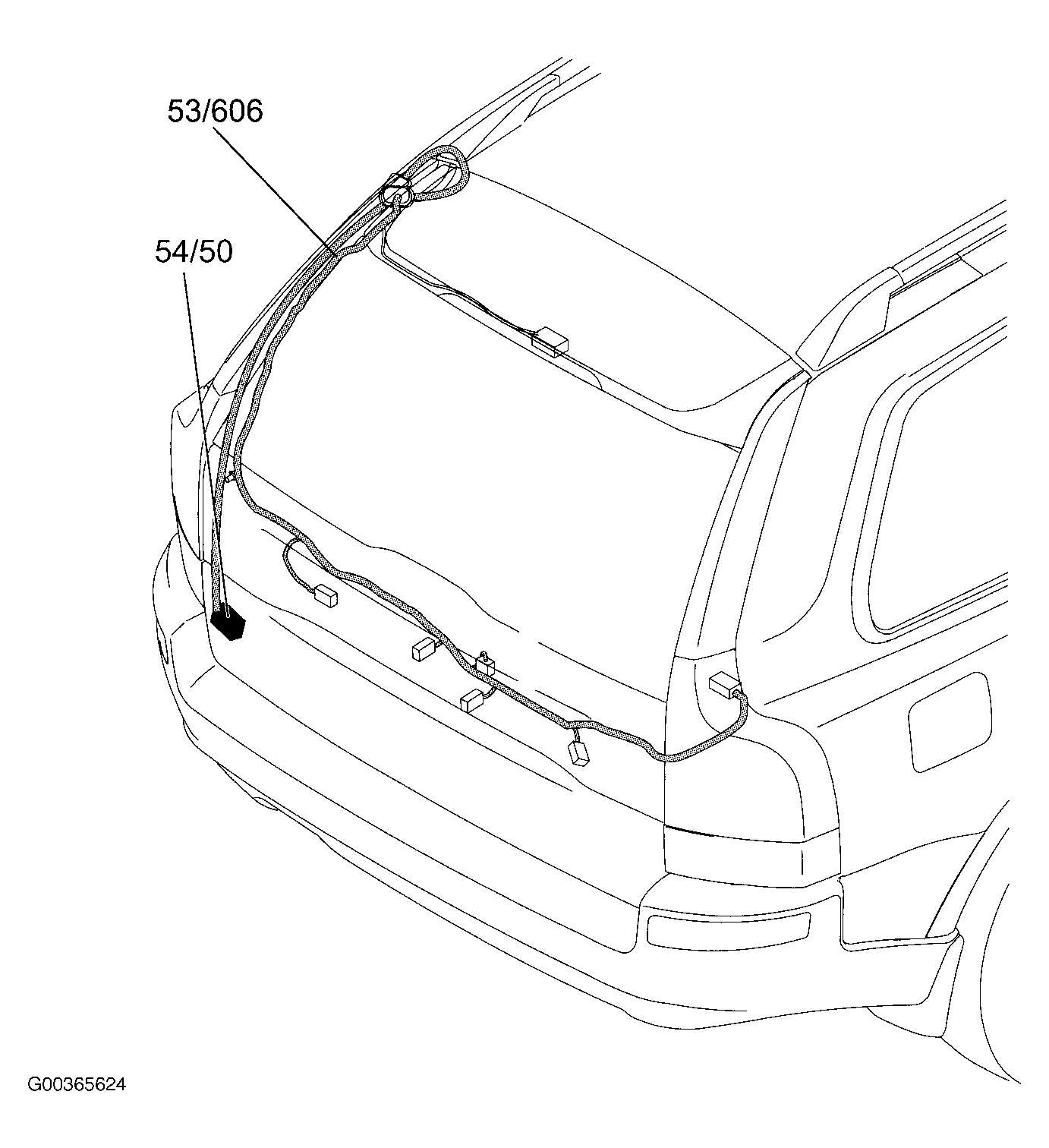

Fig 10: Tailgate (XC90)
G00365624Courtesy of VOLVO CARS OF NORTH AMERICA.

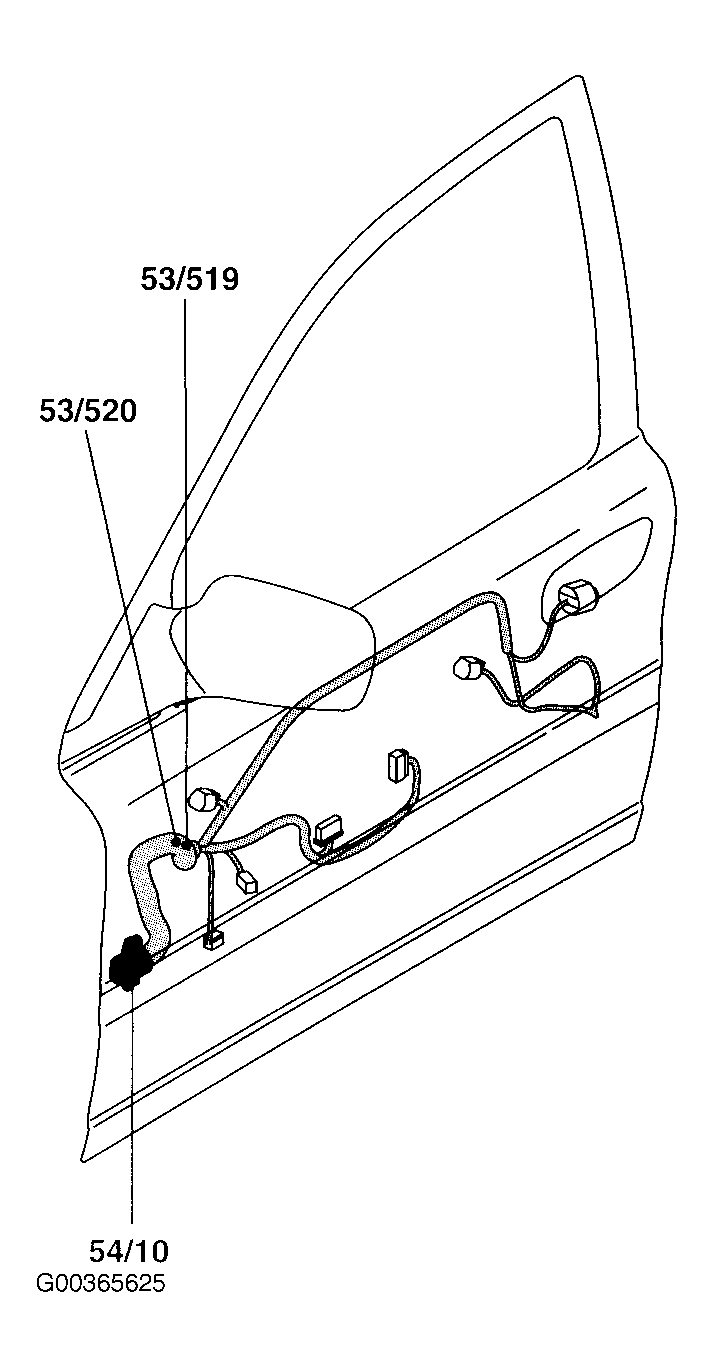

Fig 11: Left Front Door (V70)
G00365625Courtesy of VOLVO CARS OF NORTH AMERICA.

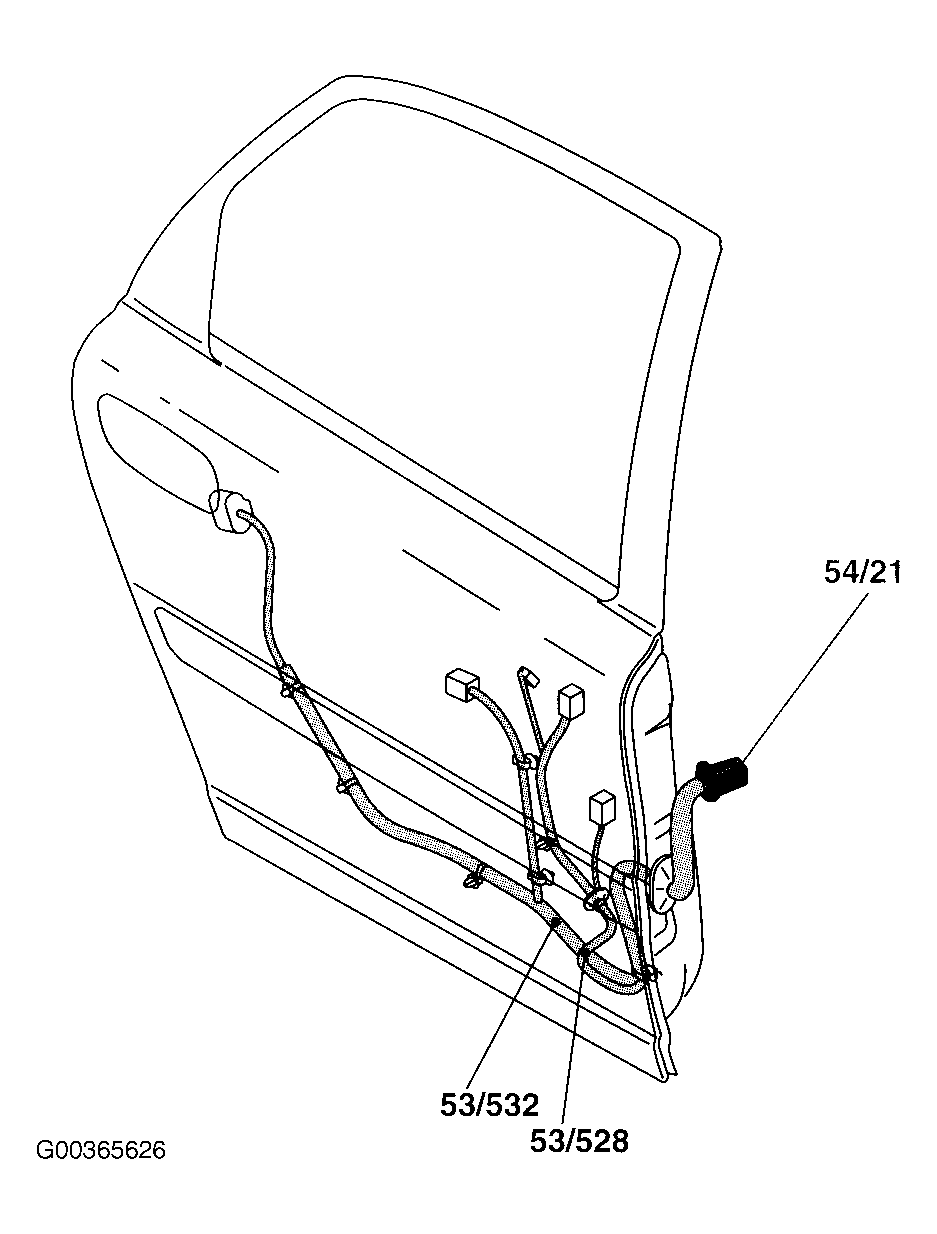

Fig 12: Right Rear Door (V70)
G00365626Courtesy of VOLVO CARS OF NORTH AMERICA.

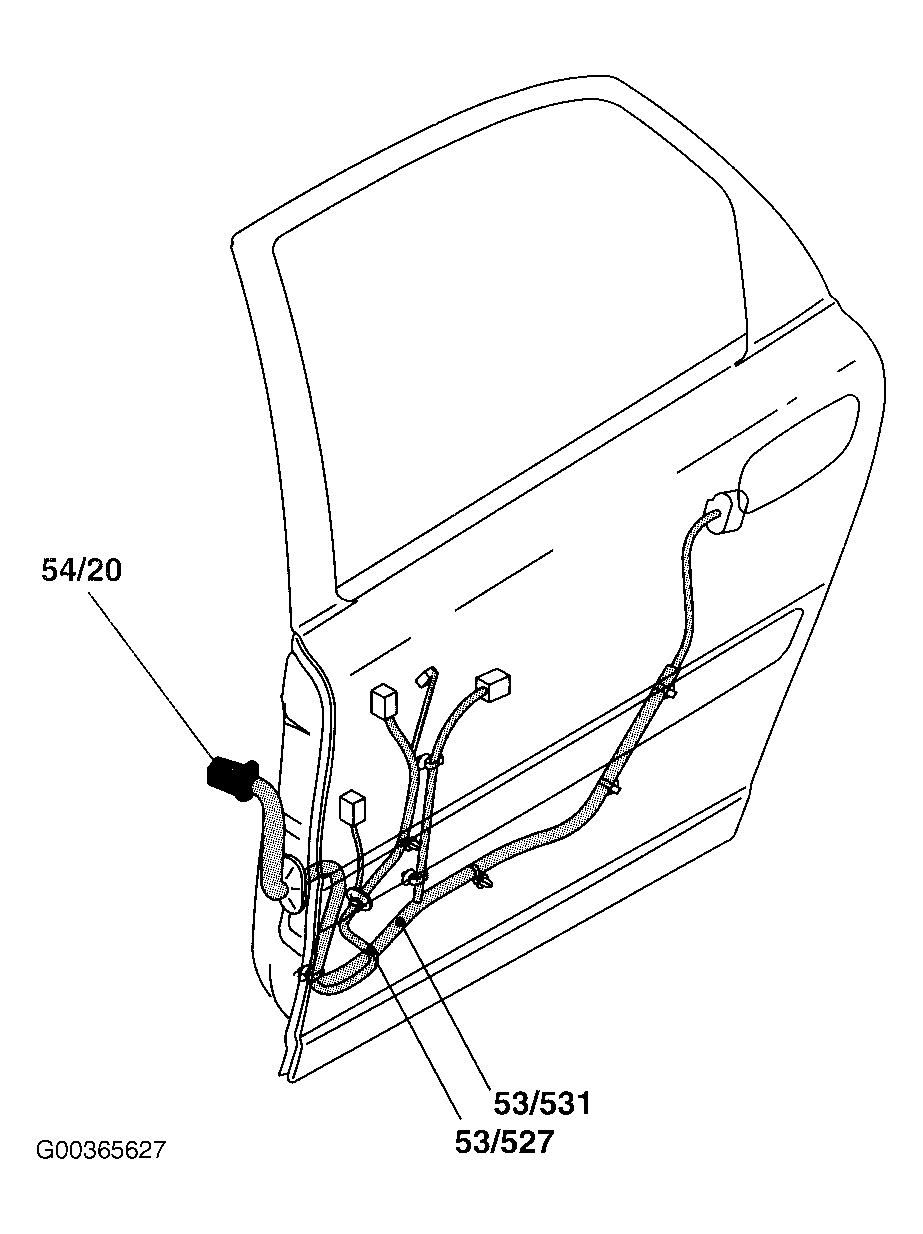

Fig 13: Left Rear Door (V70)
G00365627Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 14: Right Front Door (V70)
G00365628Courtesy of VOLVO CARS OF NORTH AMERICA.

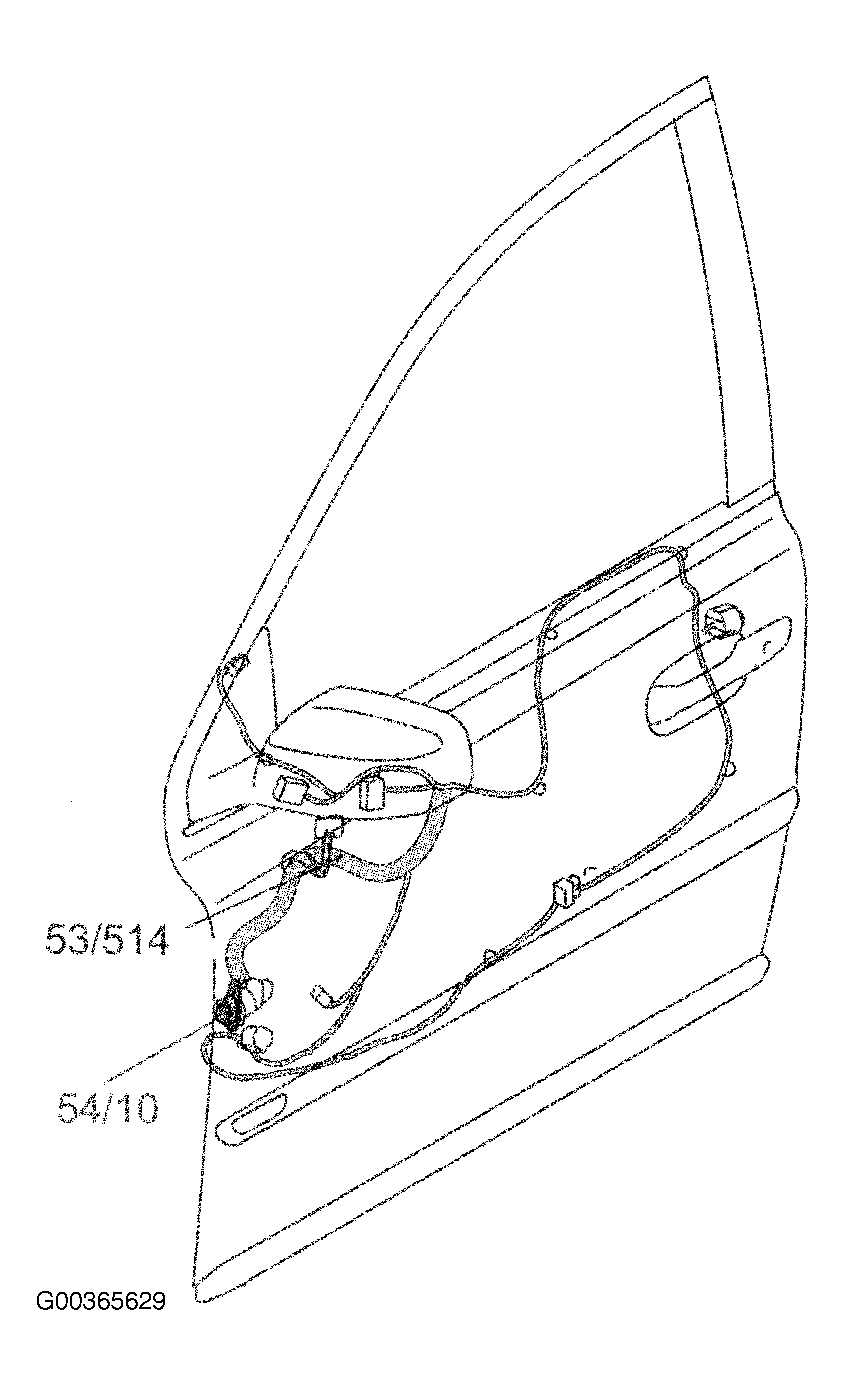

Fig 15: Left Front Door (XC90)
G00365629Courtesy of VOLVO CARS OF NORTH AMERICA.

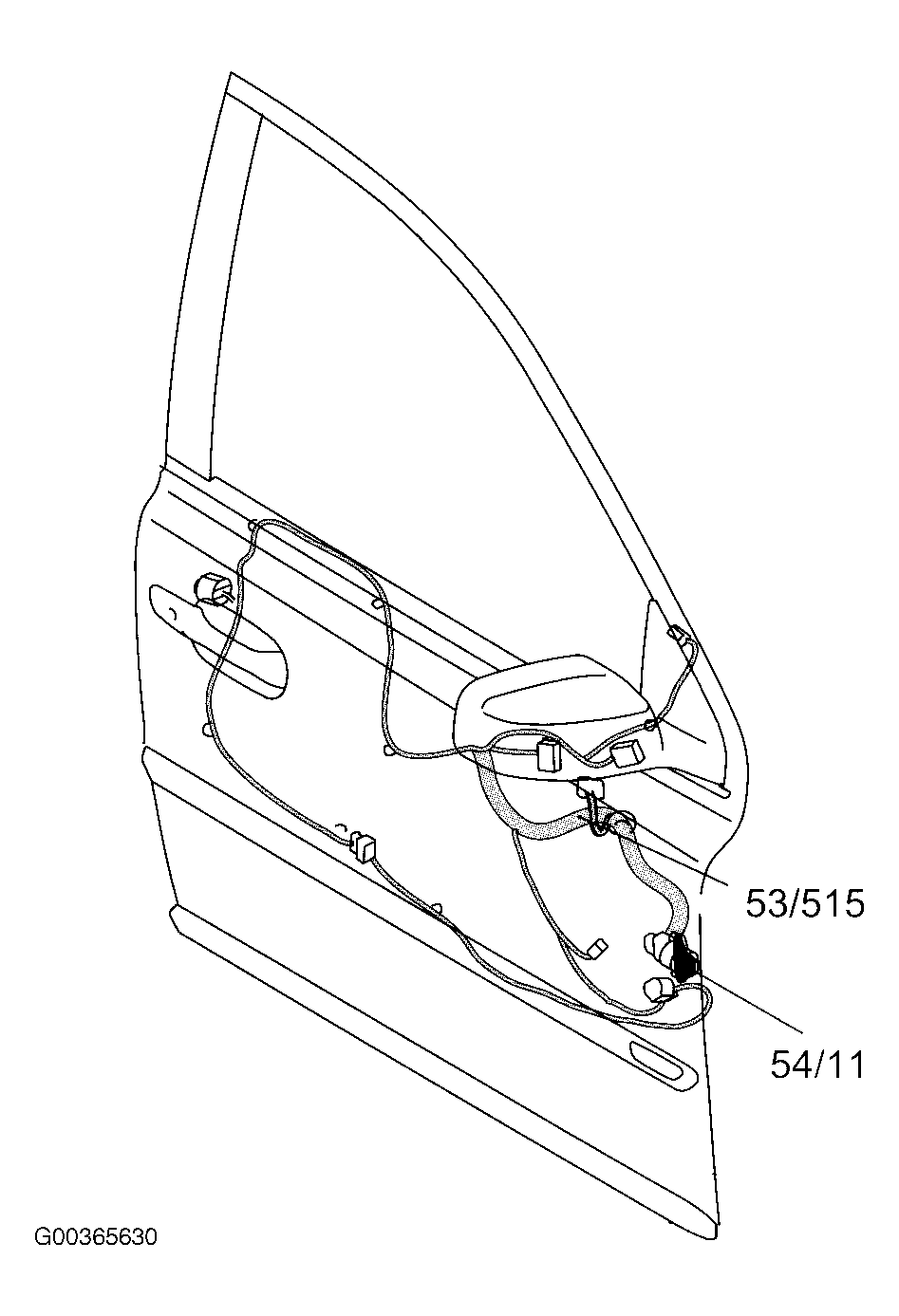

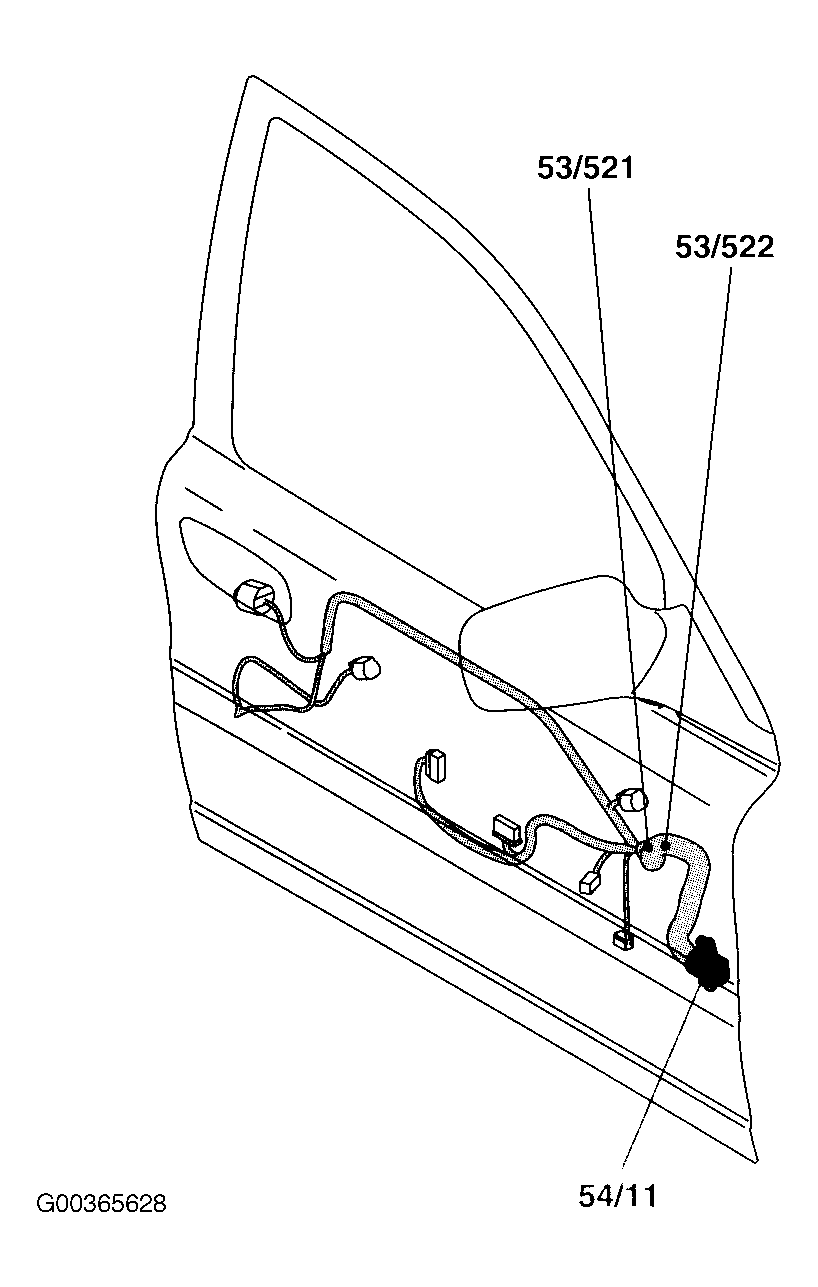

Fig 16: Right Front Door (XC90)
G00365630Courtesy of VOLVO CARS OF NORTH AMERICA.

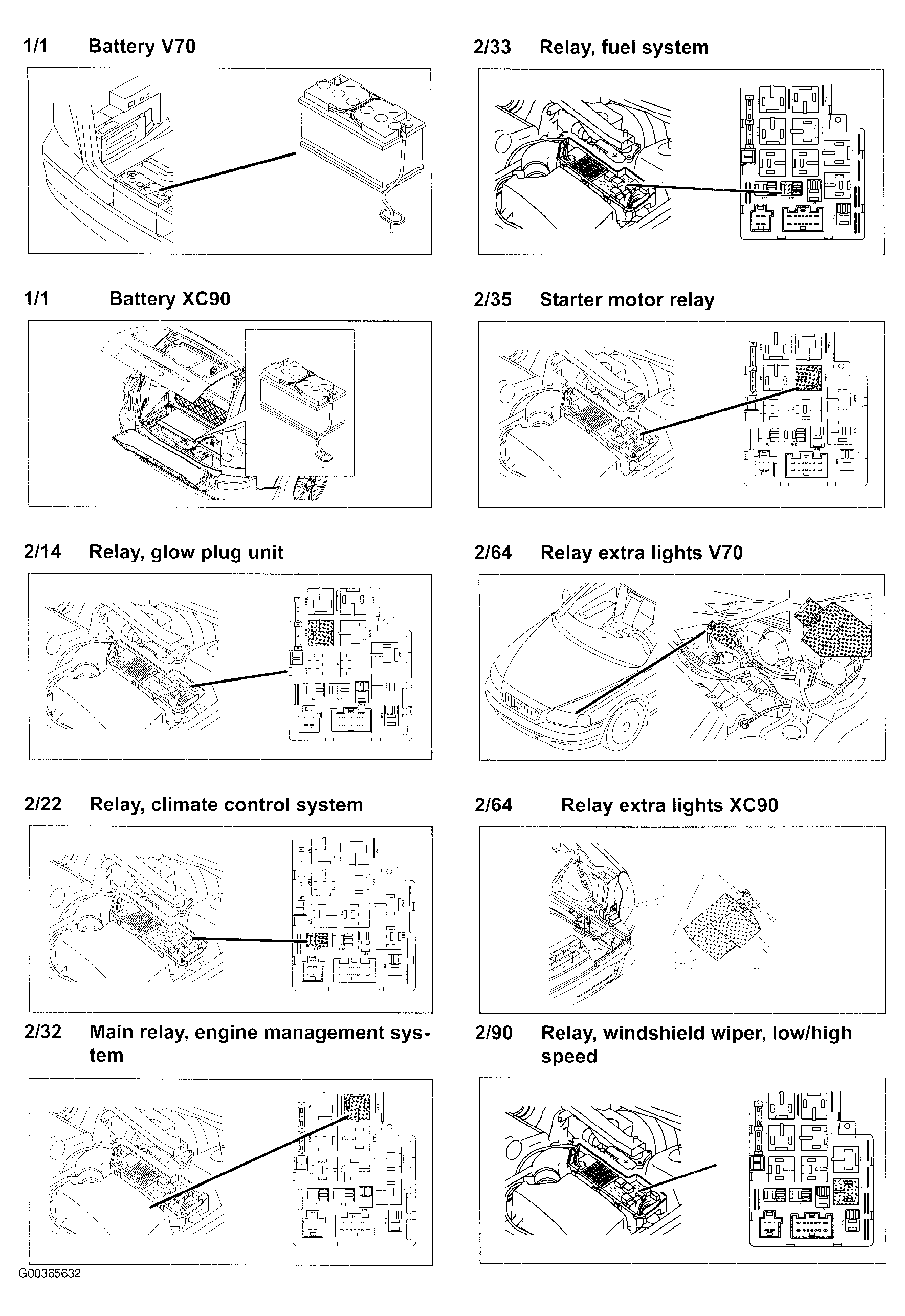

Fig 17: Components 1/1 To 2/90
G00365632Courtesy of VOLVO CARS OF NORTH AMERICA.

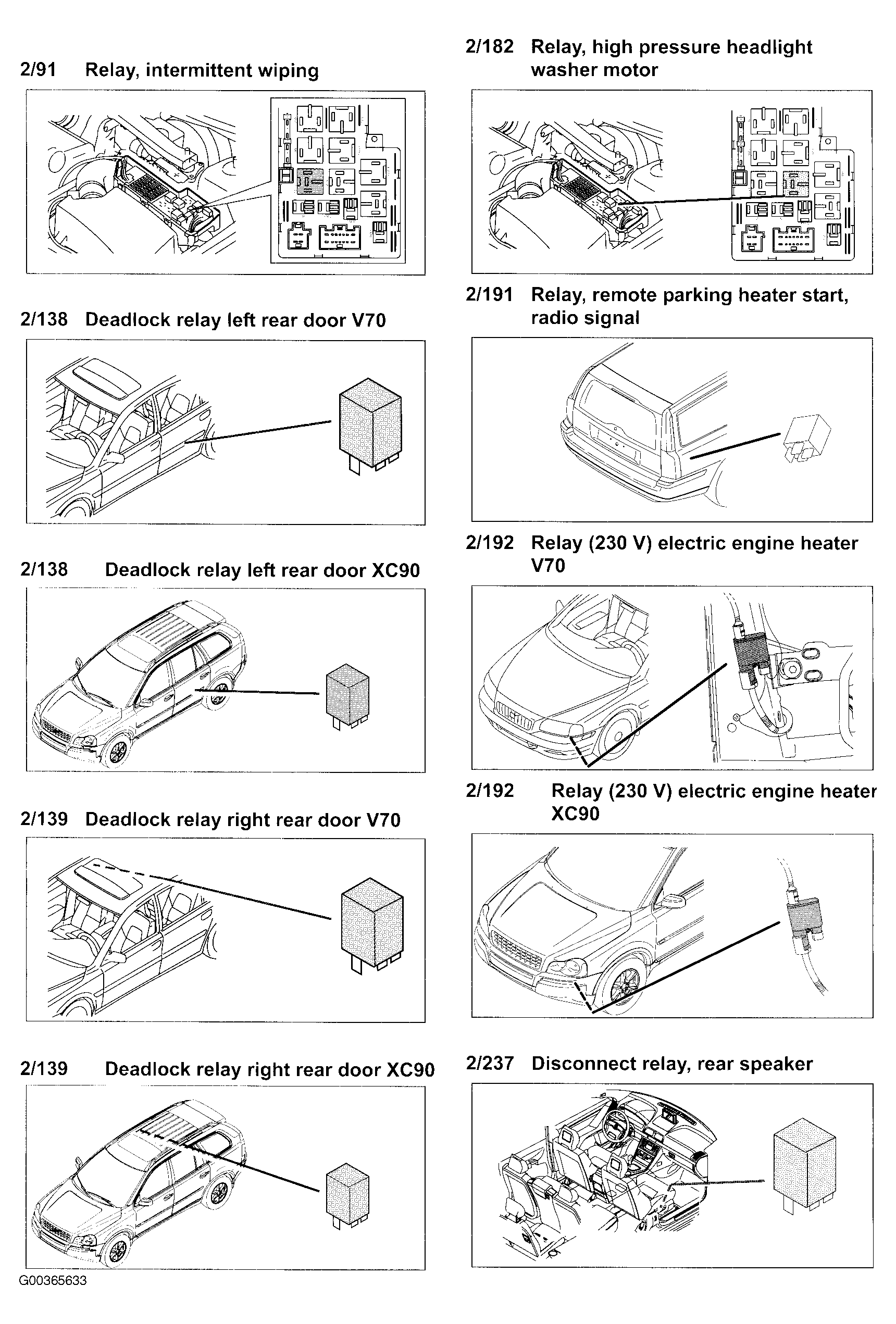

Fig 18: Components 2/91 To 2/237
G00365633Courtesy of VOLVO CARS OF NORTH AMERICA.

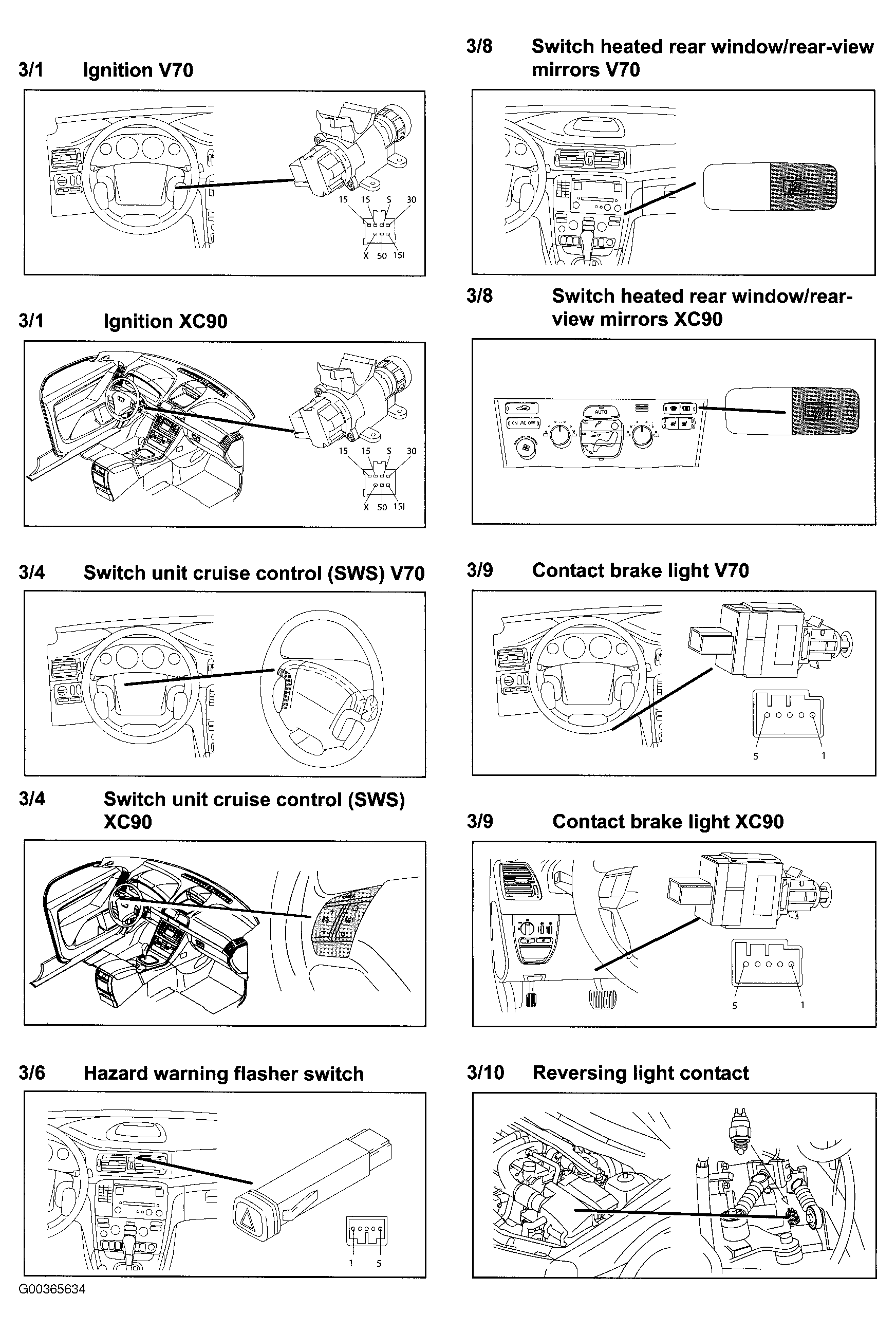

Fig 19: Components 3/1 To 3/10
G00365634Courtesy of VOLVO CARS OF NORTH AMERICA.

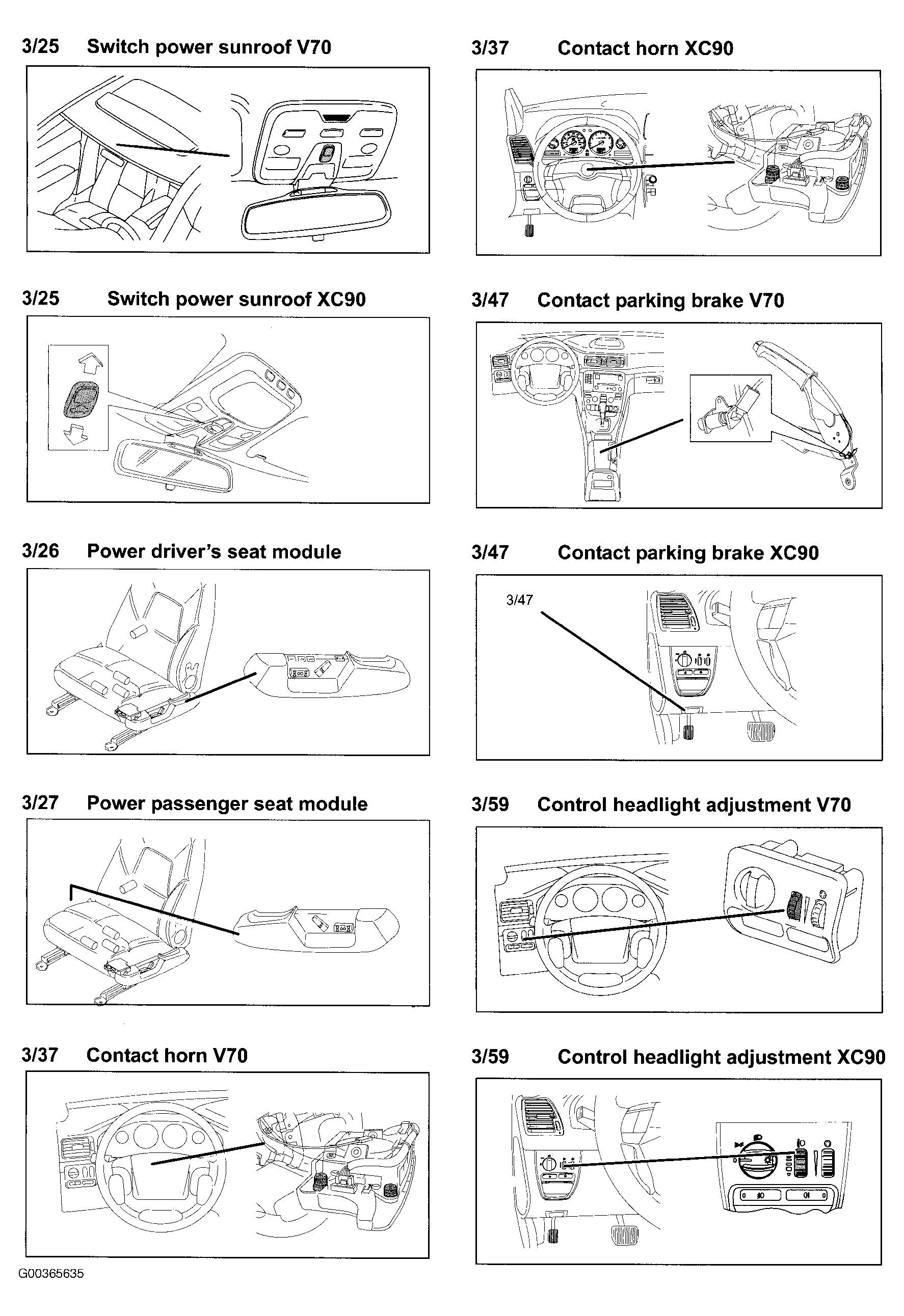

Fig 20: Components 3/25 To 3/59
G00365635Courtesy of VOLVO CARS OF NORTH AMERICA.

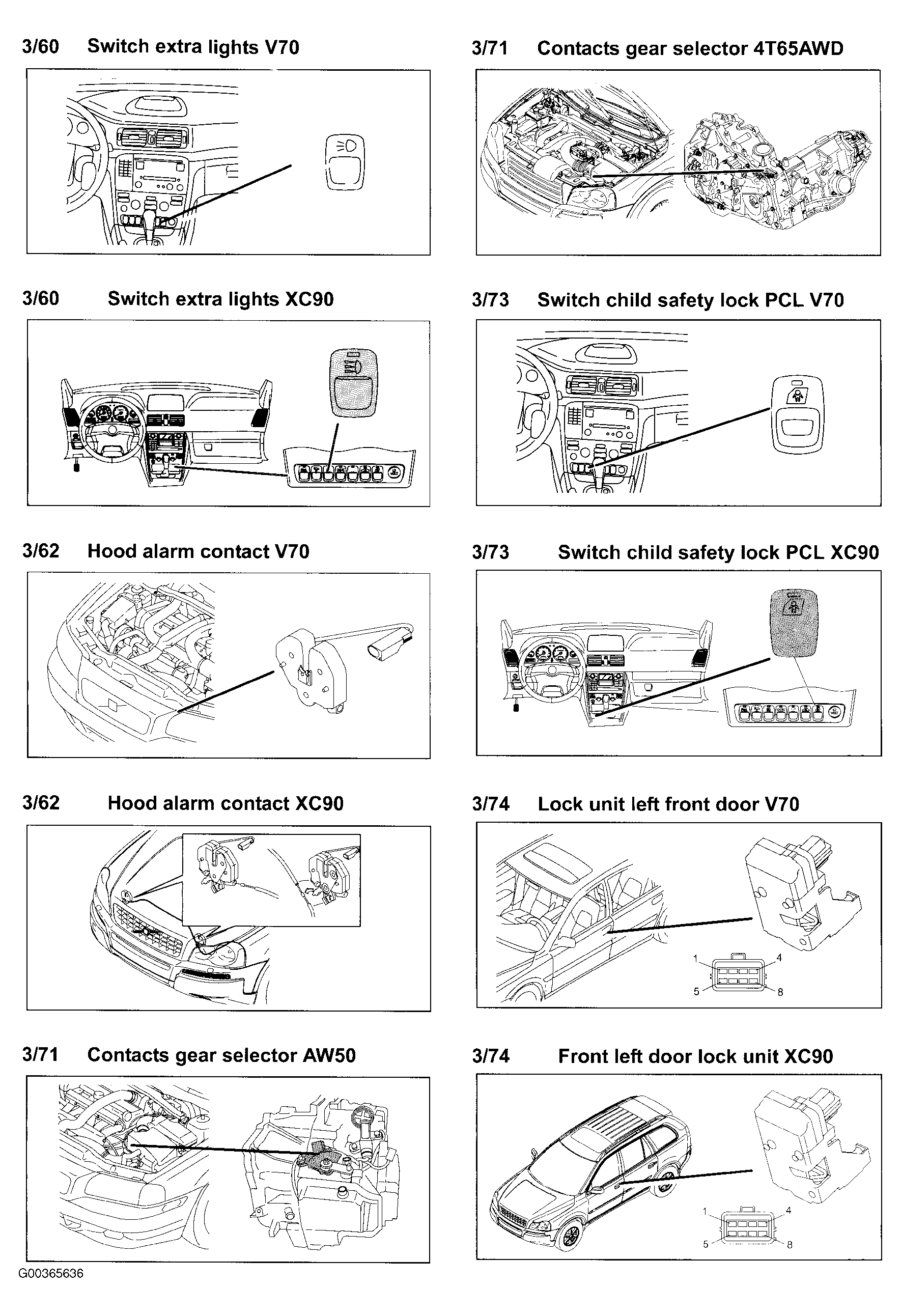

Fig 21: Components 3/60 To 3/74
G00365636Courtesy of VOLVO CARS OF NORTH AMERICA.

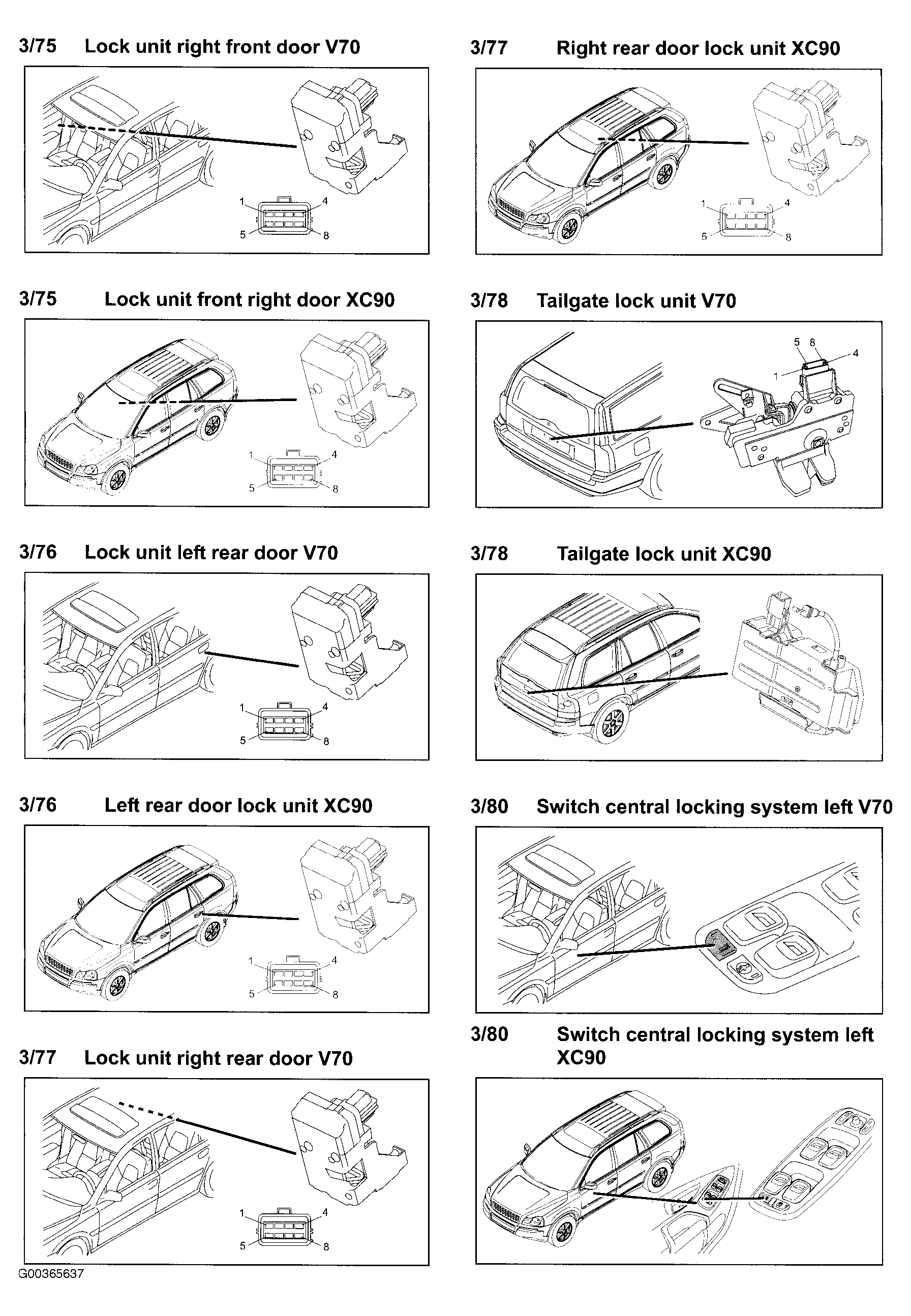

Fig 22: Components 3/75 To 3/80
G00365637Courtesy of VOLVO CARS OF NORTH AMERICA.

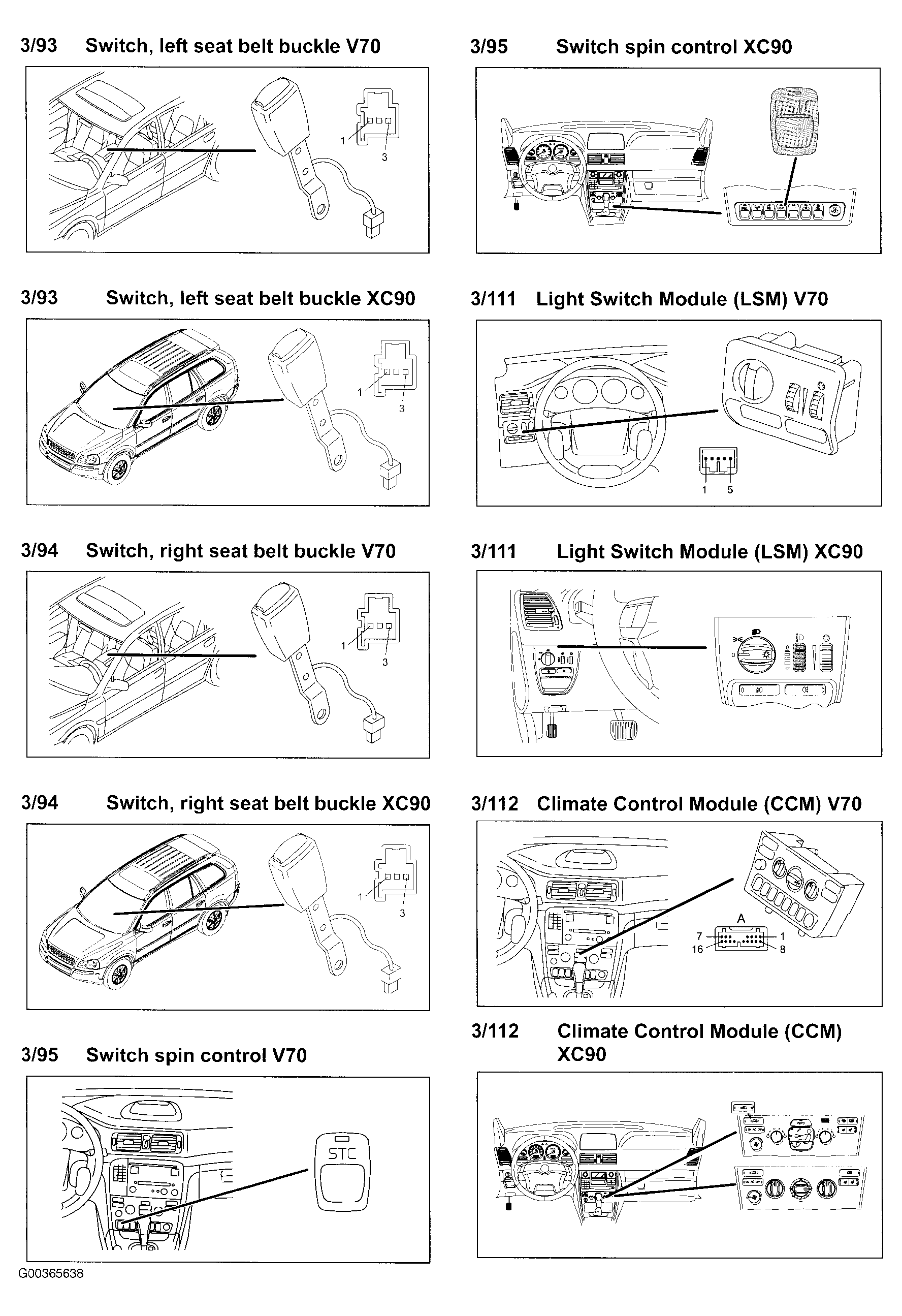

Fig 23: Components 3/93 To 3/112
G00365638Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 24: Components 3/174 To 4/16
G00365639Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 25: Components 4/28 To 4/56
G00365640Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 26: Components 4/56 To 4/78
G00365641Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 27: Components 4/78 To 4/107
G00365642Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 28: Components 4/110 To 6/15
G00365643Courtesy of VOLVO CARS OF NORTH AMERICA.

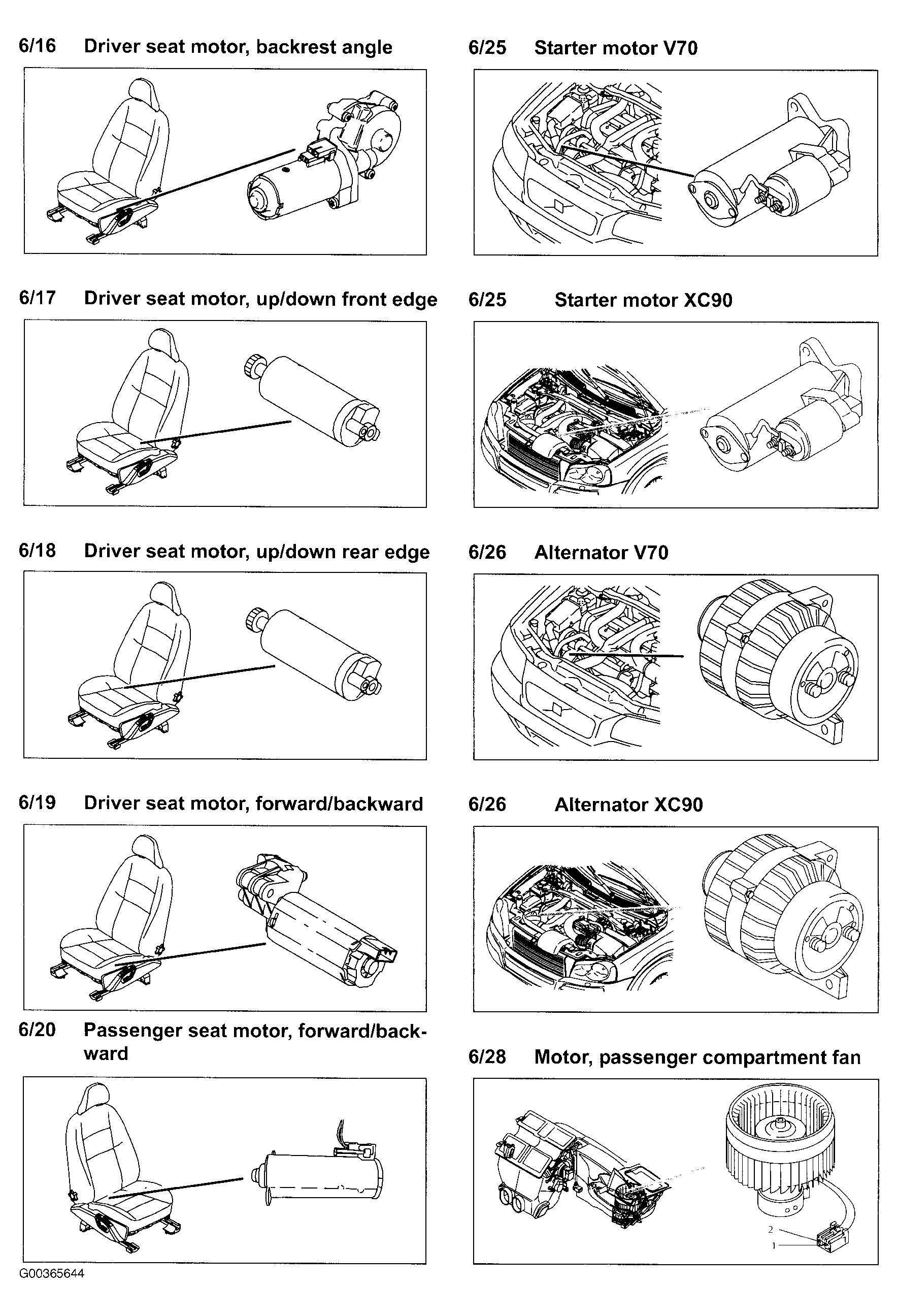

Fig 29: Components 6/16 To 6/28
G00365644Courtesy of VOLVO CARS OF NORTH AMERICA.

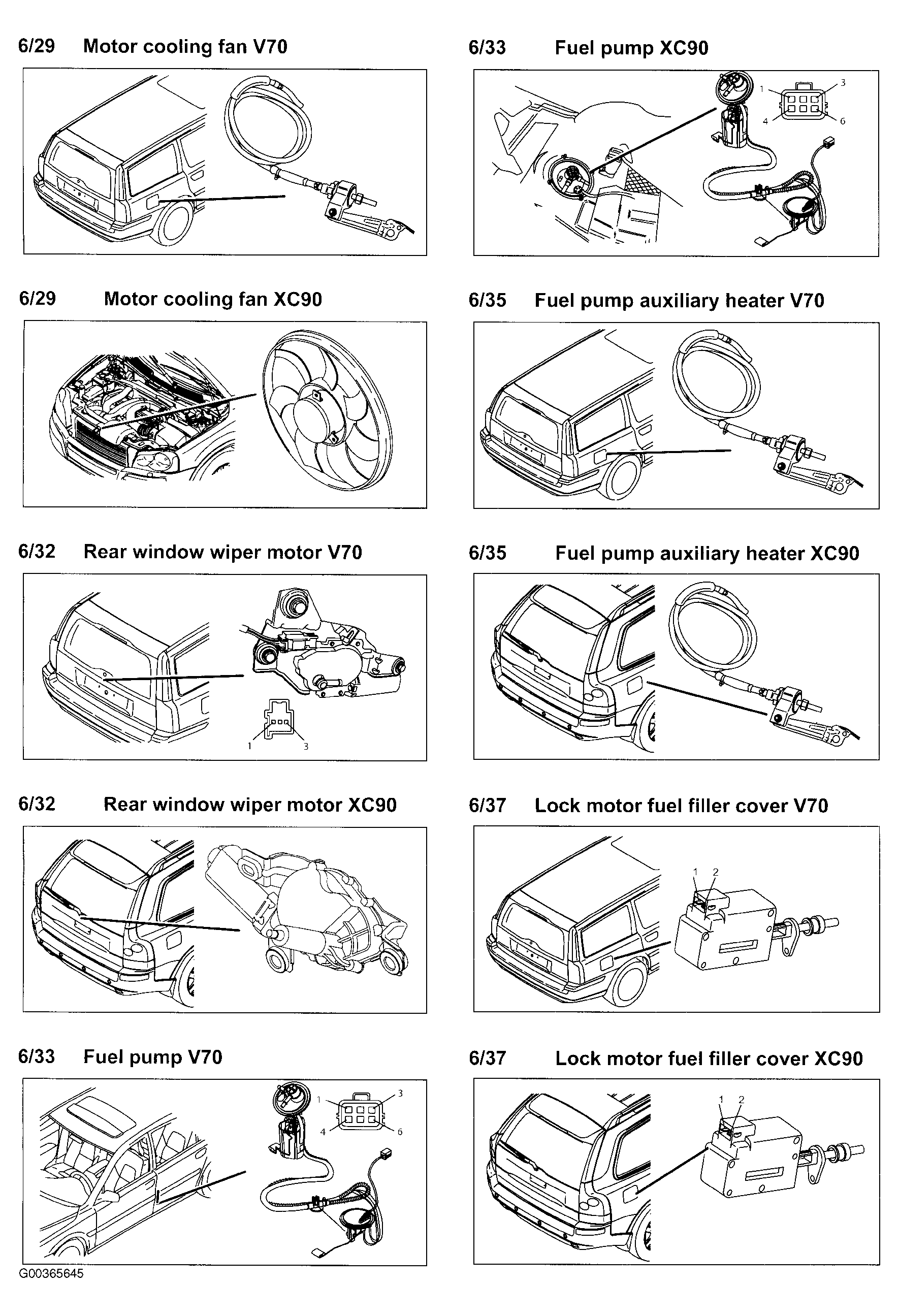

Fig 30: Components 6/29 To 6/37
G00365645Courtesy of VOLVO CARS OF NORTH AMERICA.

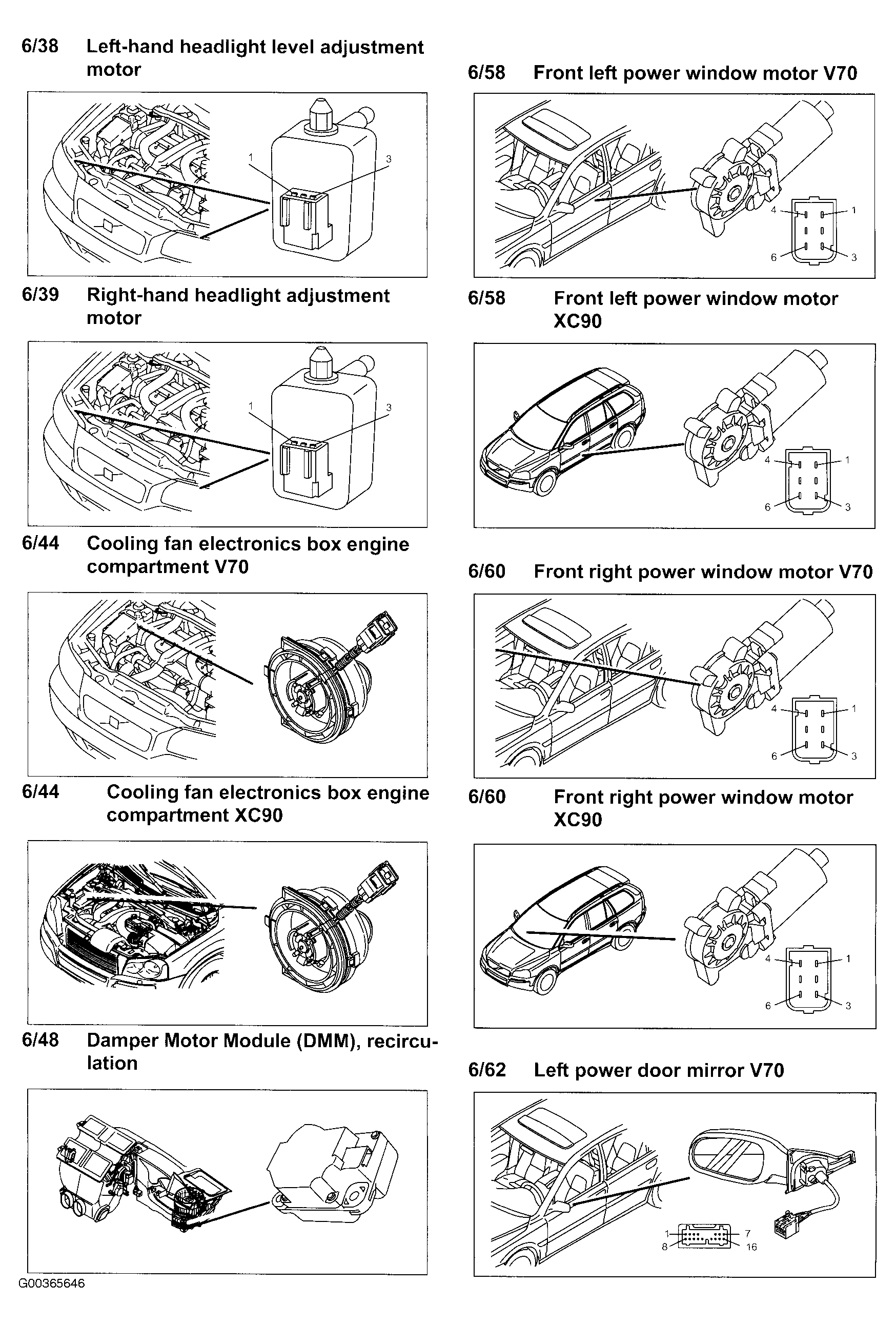

Fig 31: Components 6/38 To 6/62
G00365646Courtesy of VOLVO CARS OF NORTH AMERICA.

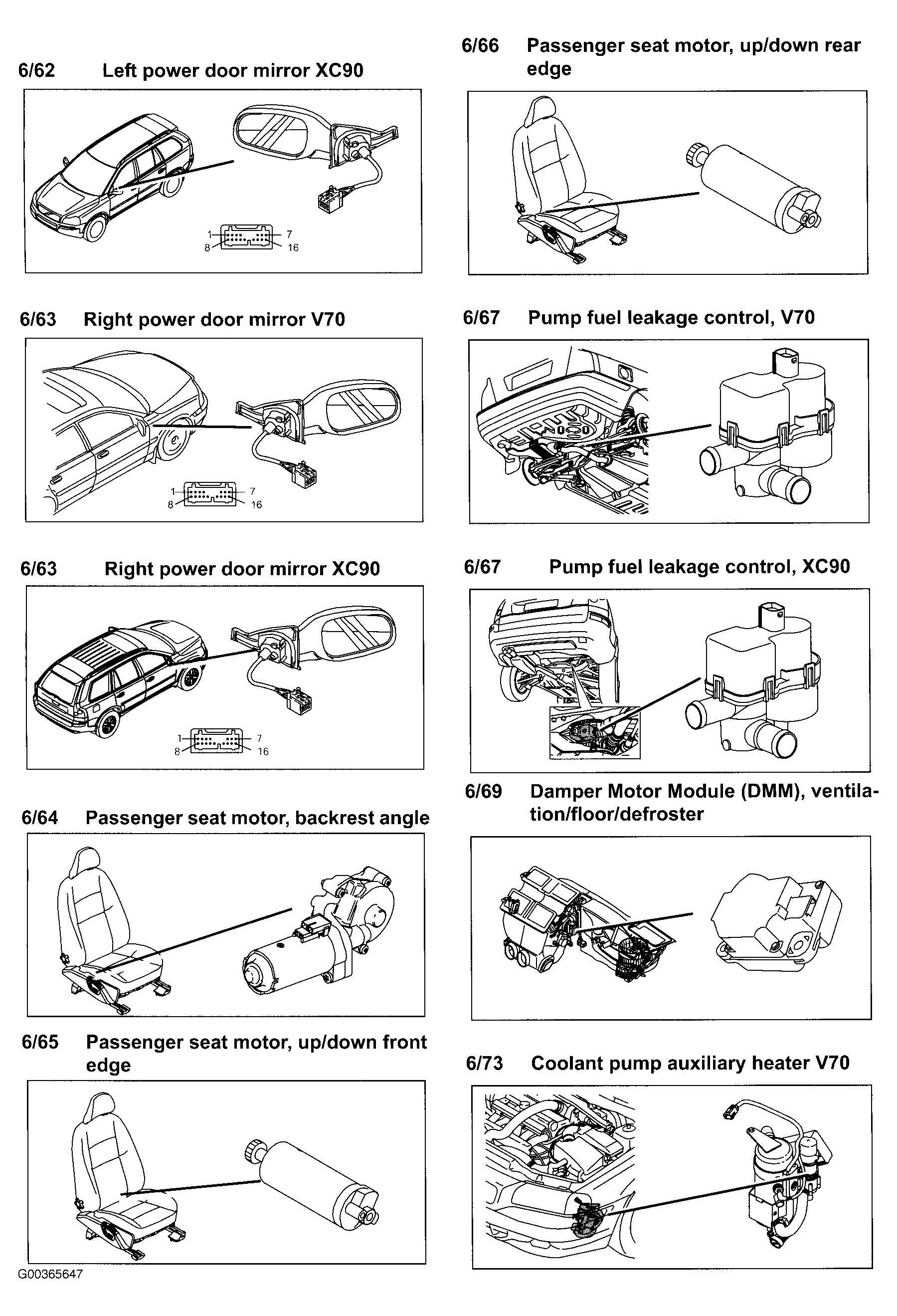

Fig 32: Components 6/62 To 6/73
G00365647Courtesy of VOLVO CARS OF NORTH AMERICA.

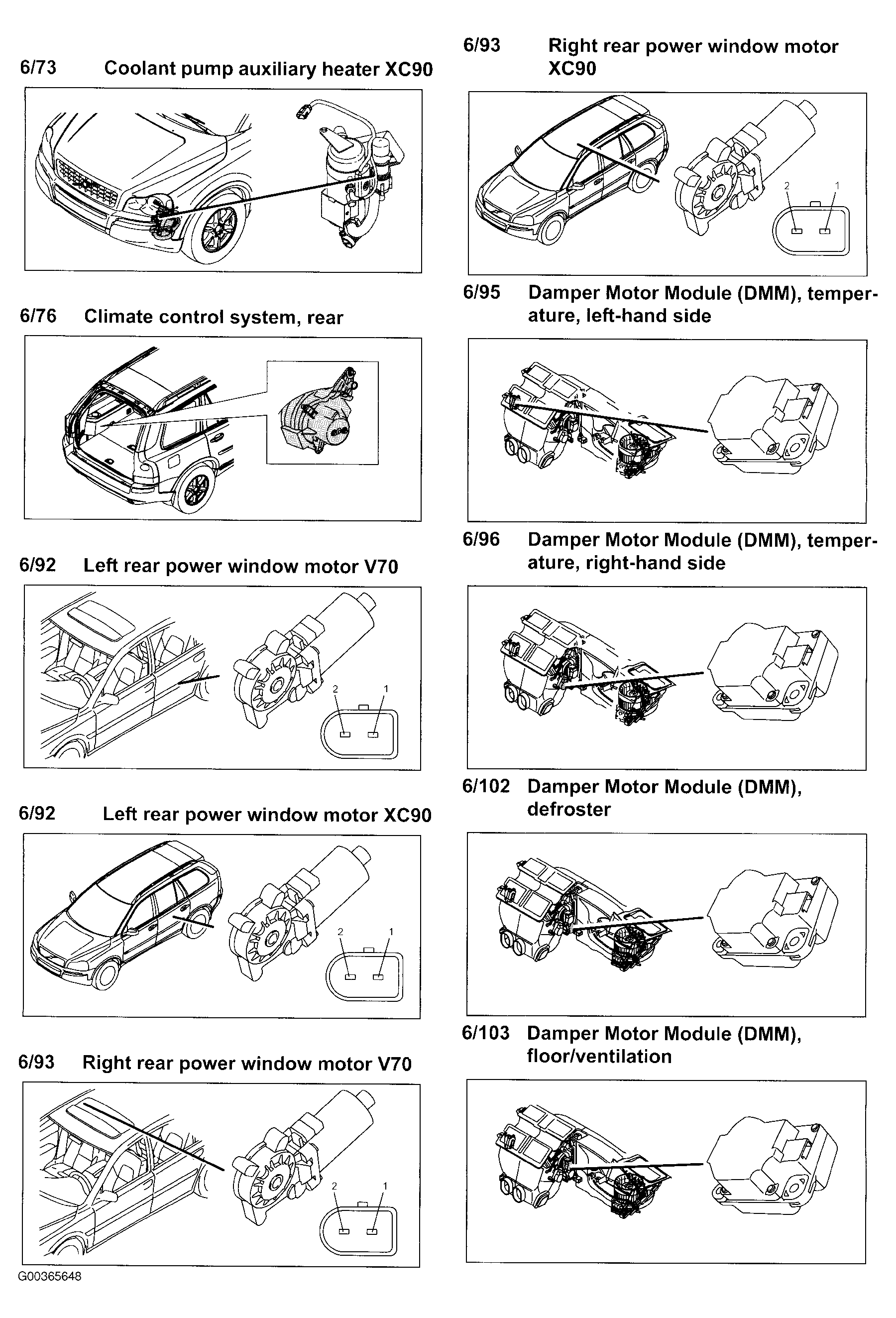

Fig 33: Components 6/73 To 6/103
G00365648Courtesy of VOLVO CARS OF NORTH AMERICA.

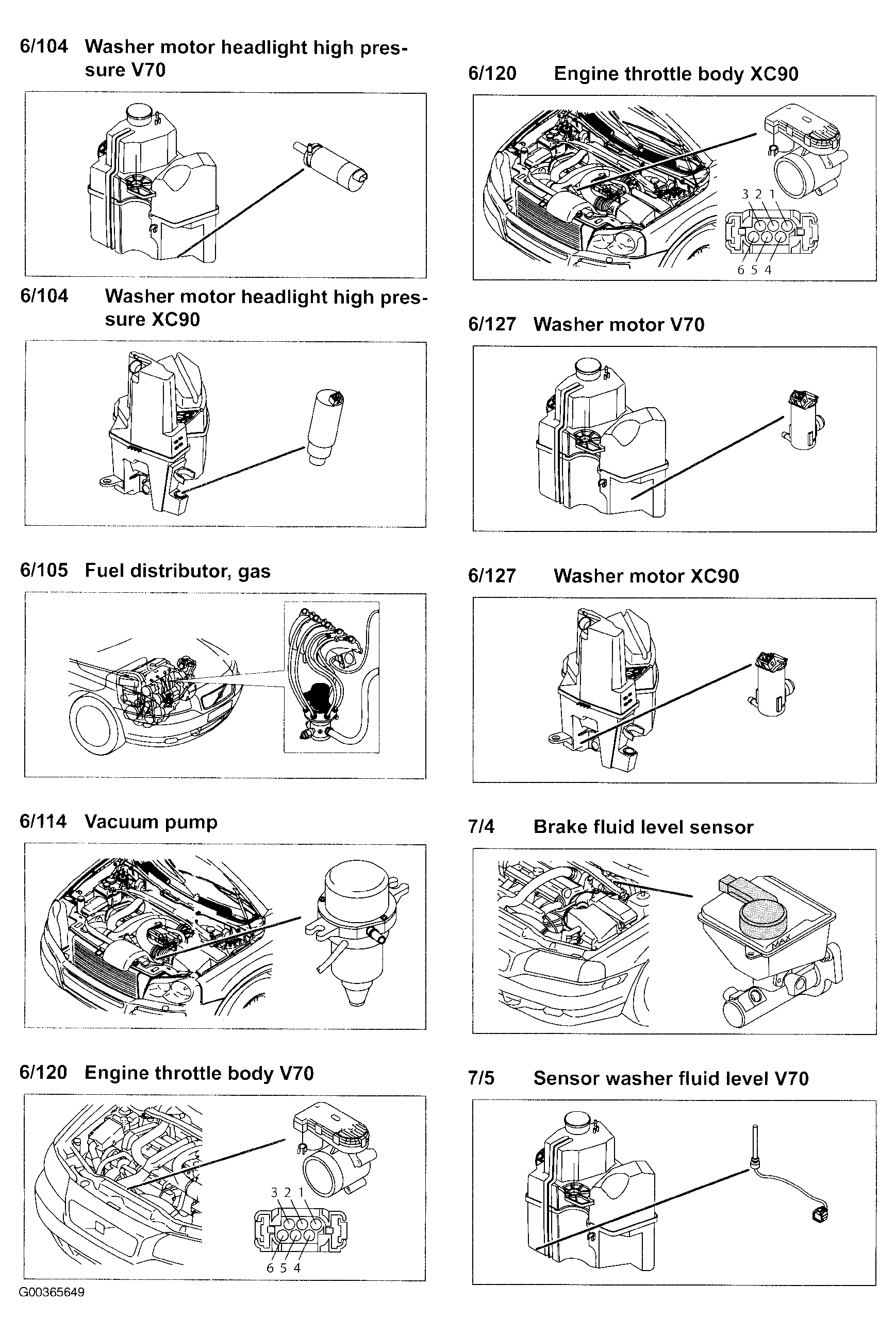

Fig 34: Components 6/104 To 7/5
G00365649Courtesy of VOLVO CARS OF NORTH AMERICA.

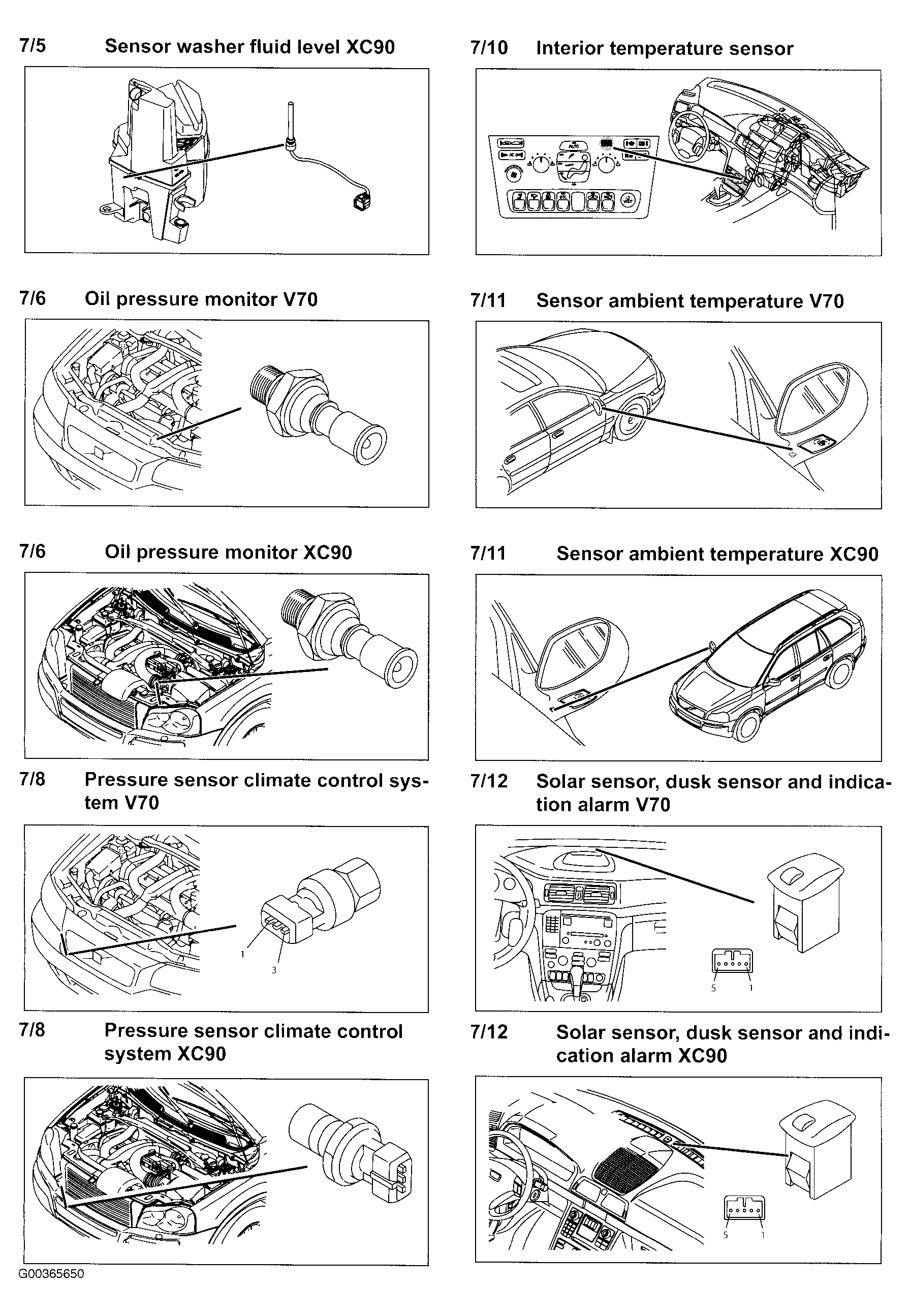

Fig 35: Components 7/5 To 7/12
G00365650Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 36: Components 7/15 To 7/25
G00365651Courtesy of VOLVO CARS OF NORTH AMERICA.

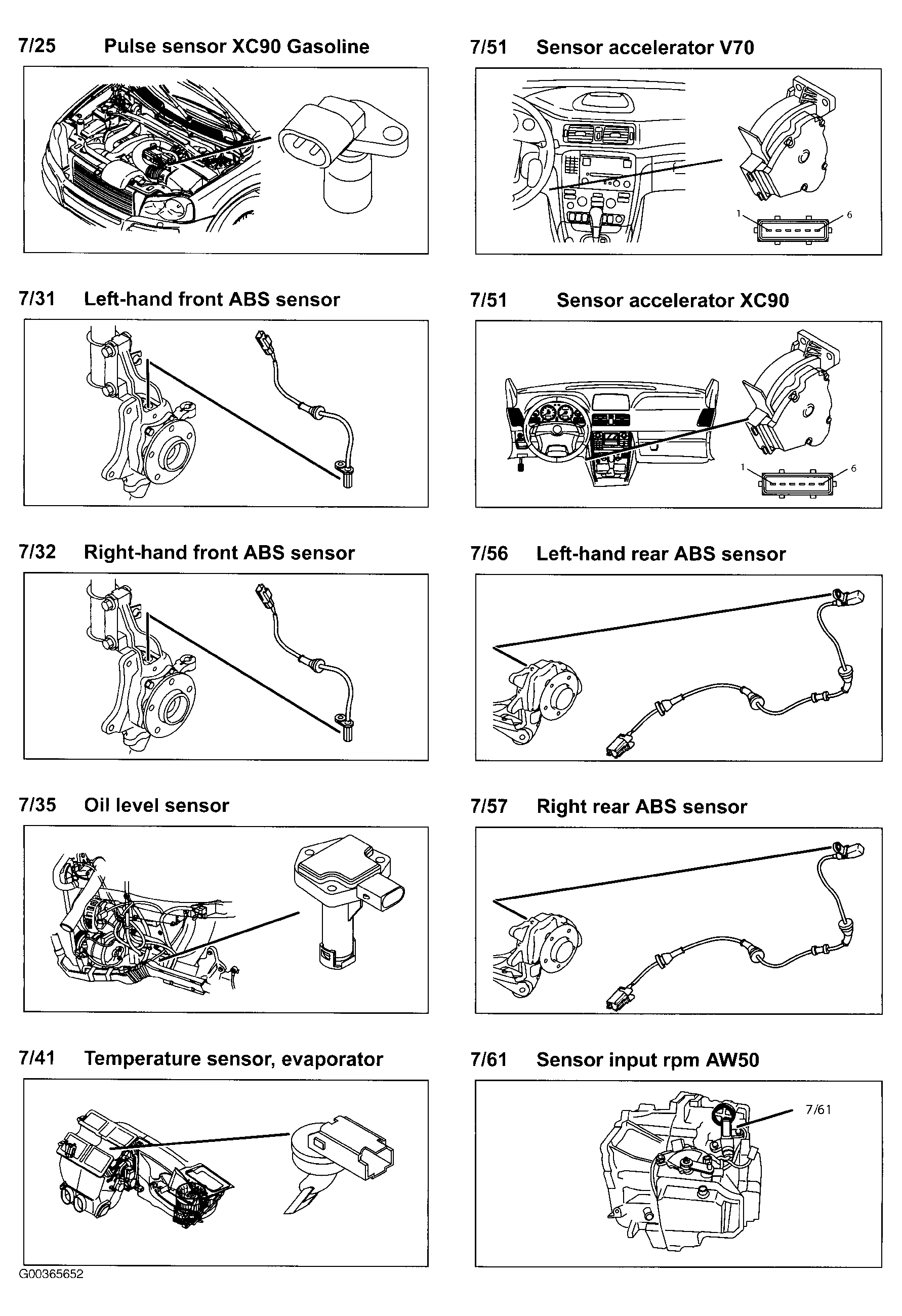

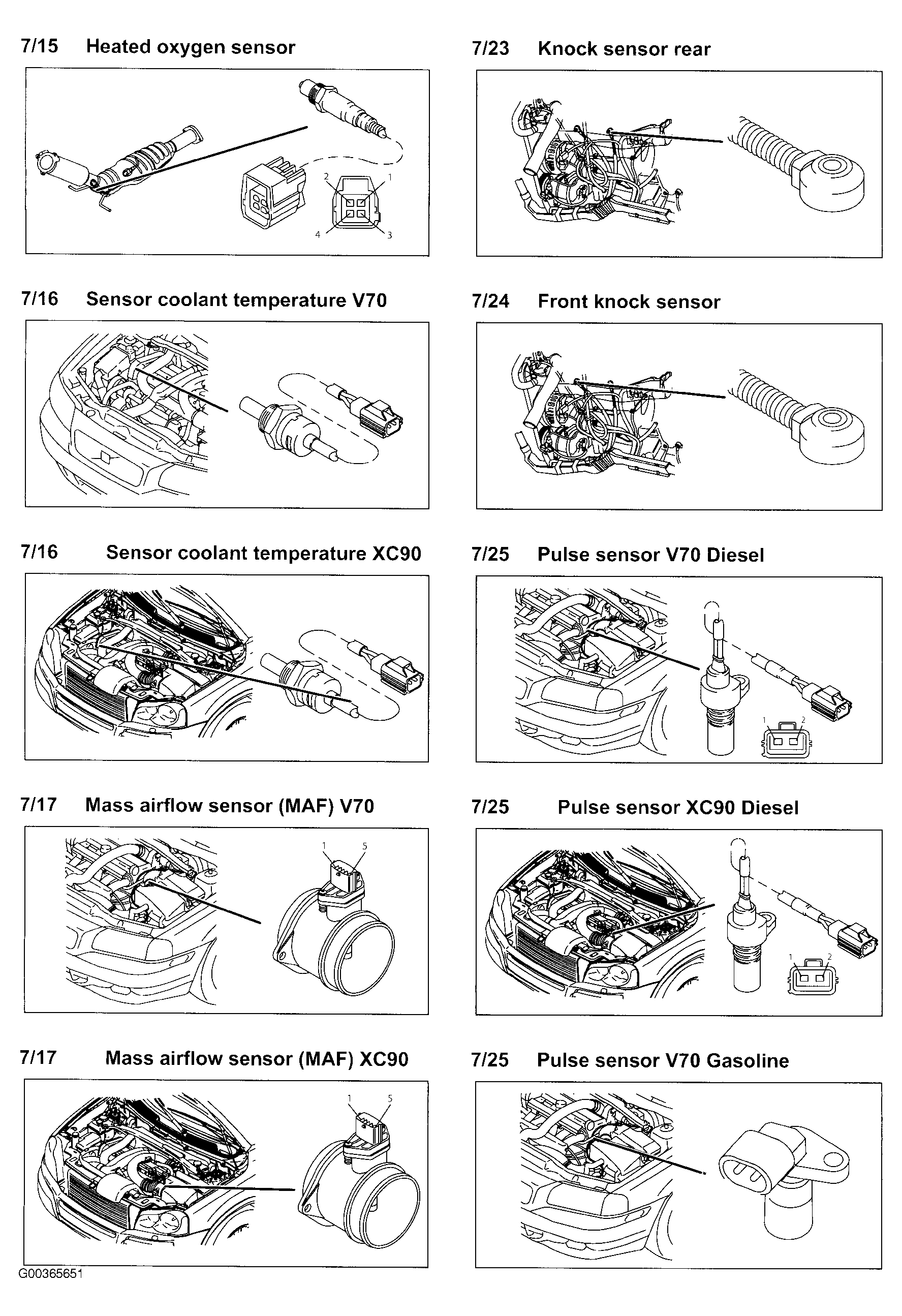

Fig 37: Components 7/25 To 7/61
G00365652Courtesy of VOLVO CARS OF NORTH AMERICA.

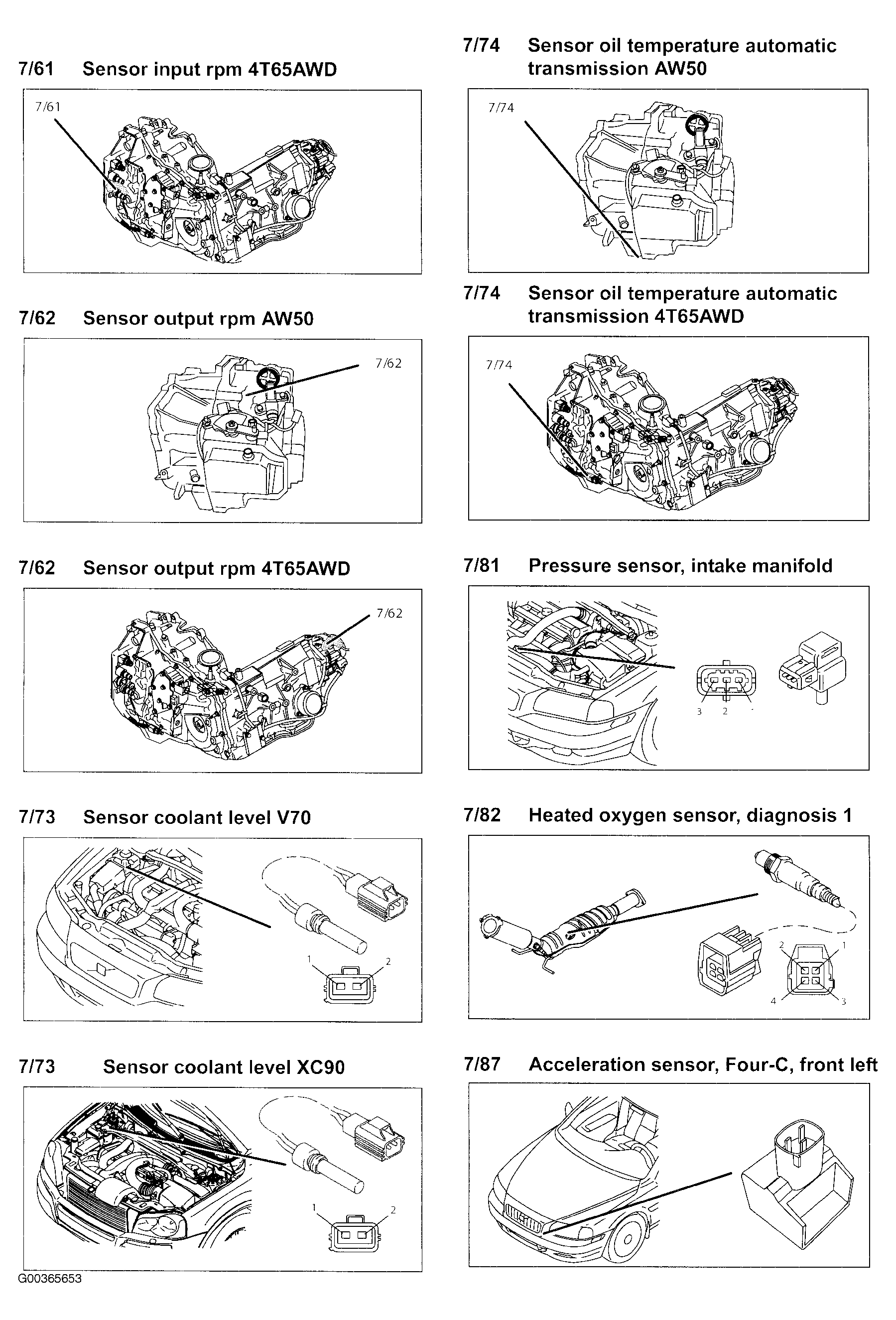

Fig 38: Components 7/61 To 7/87
G00365653Courtesy of VOLVO CARS OF NORTH AMERICA.

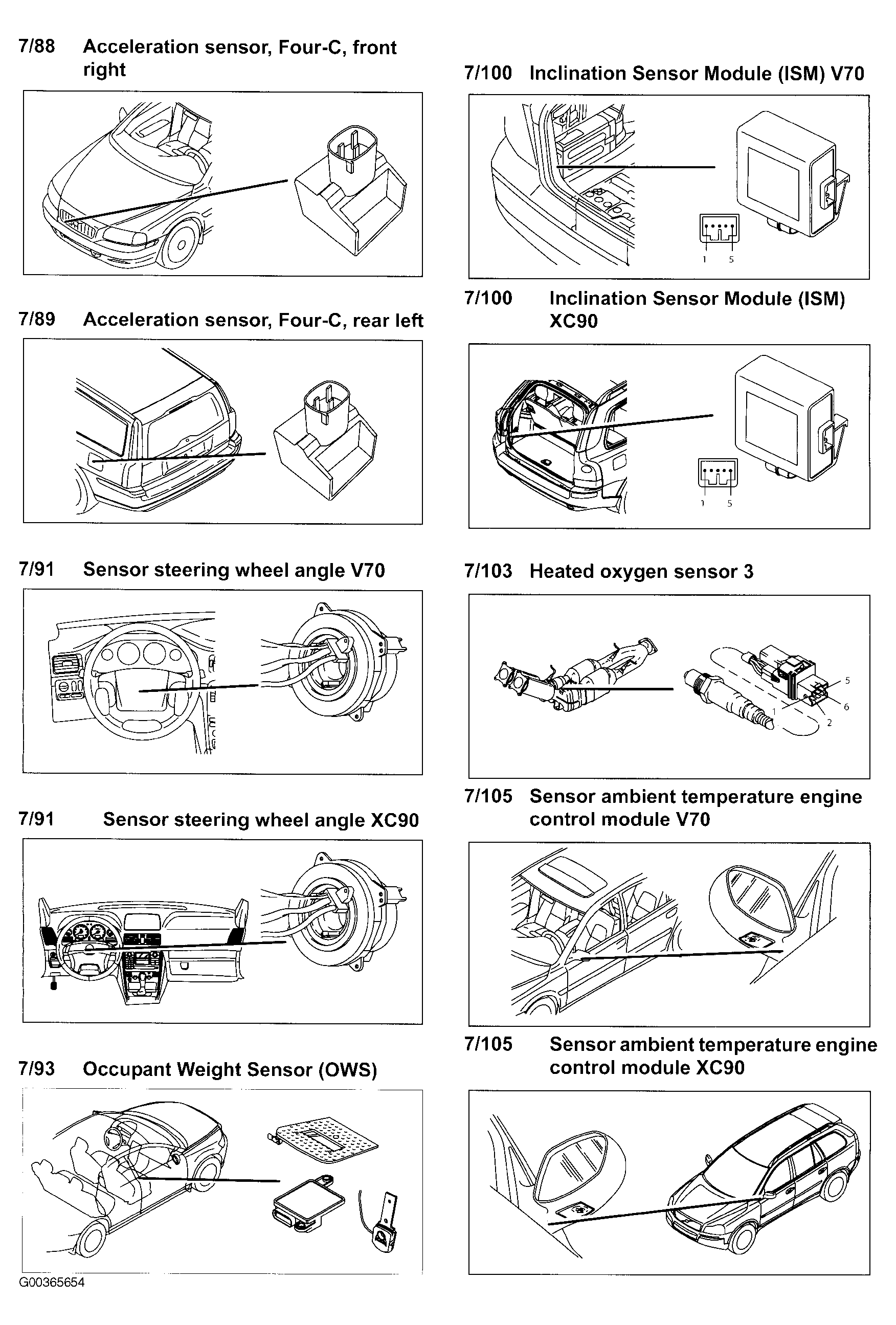

Fig 39: Components 7/88 To 7/105
G00365654Courtesy of VOLVO CARS OF NORTH AMERICA.

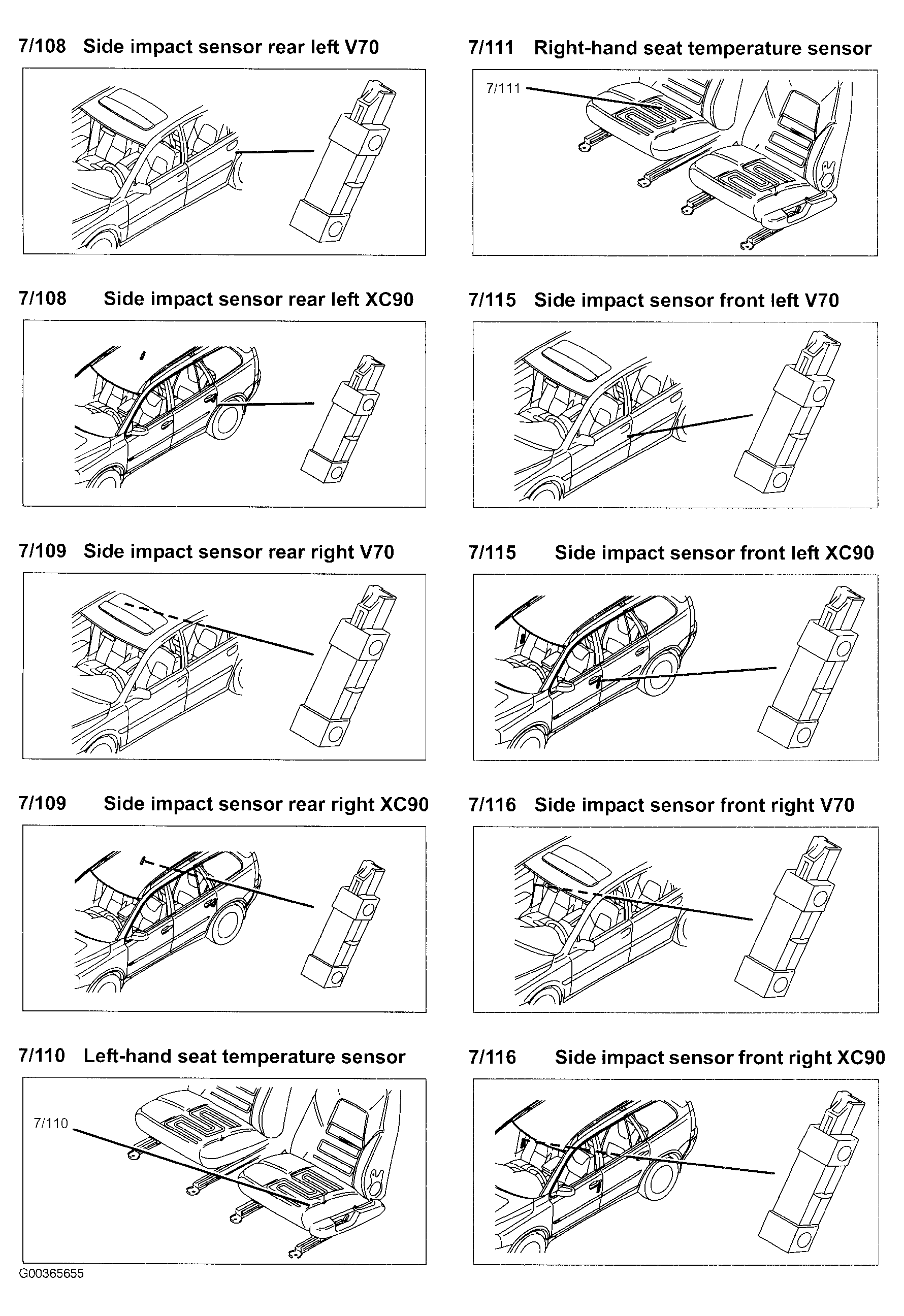

Fig 40: Components 7/108 To 7/116
G00365655Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 41: Components 7/118 To 7/124
G00365656Courtesy of VOLVO CARS OF NORTH AMERICA.

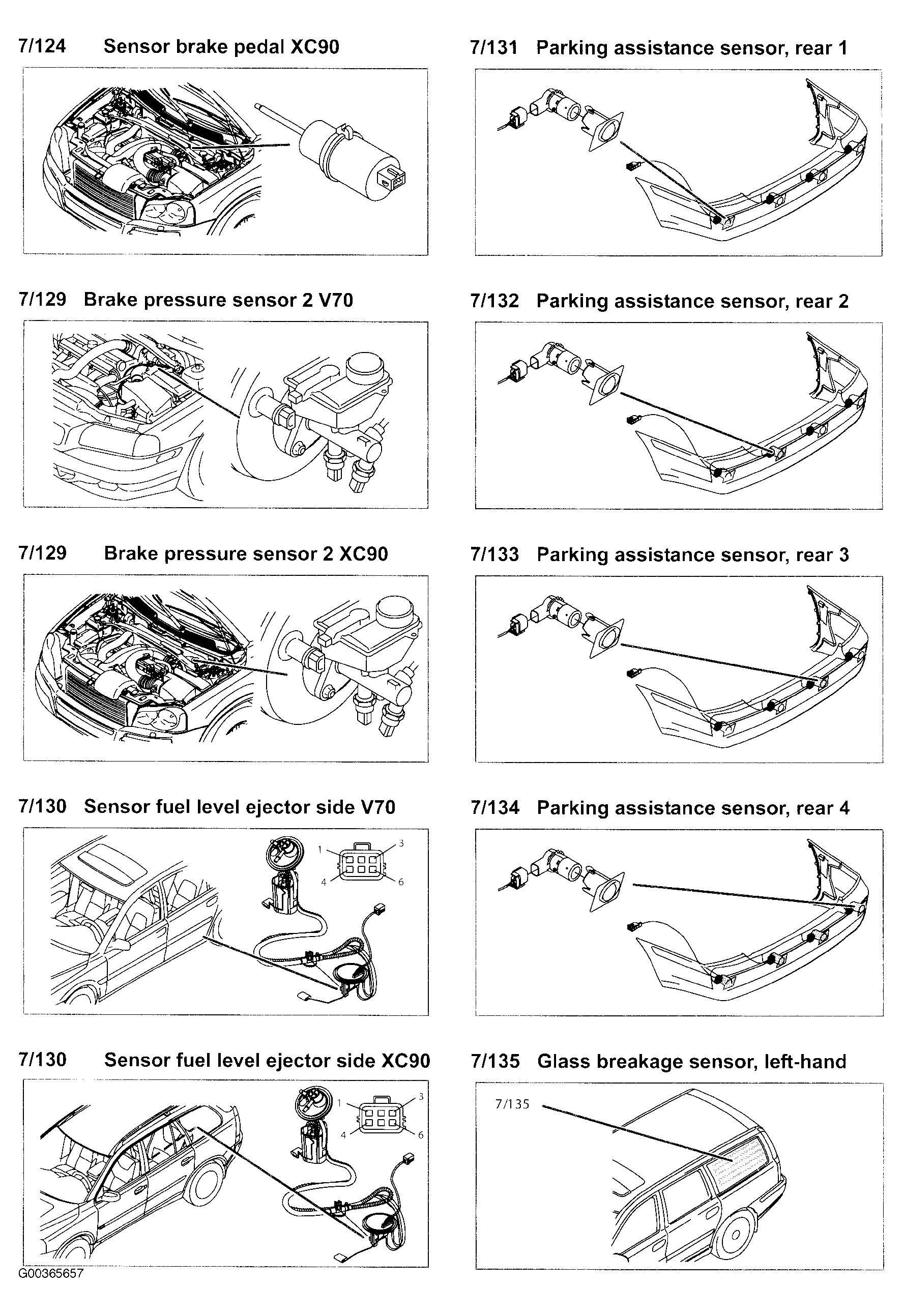

Fig 42: Components 7/124 To 7/135
G00365657Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 43: Components 7/136 To 7/156
G00365658Courtesy of VOLVO CARS OF NORTH AMERICA.

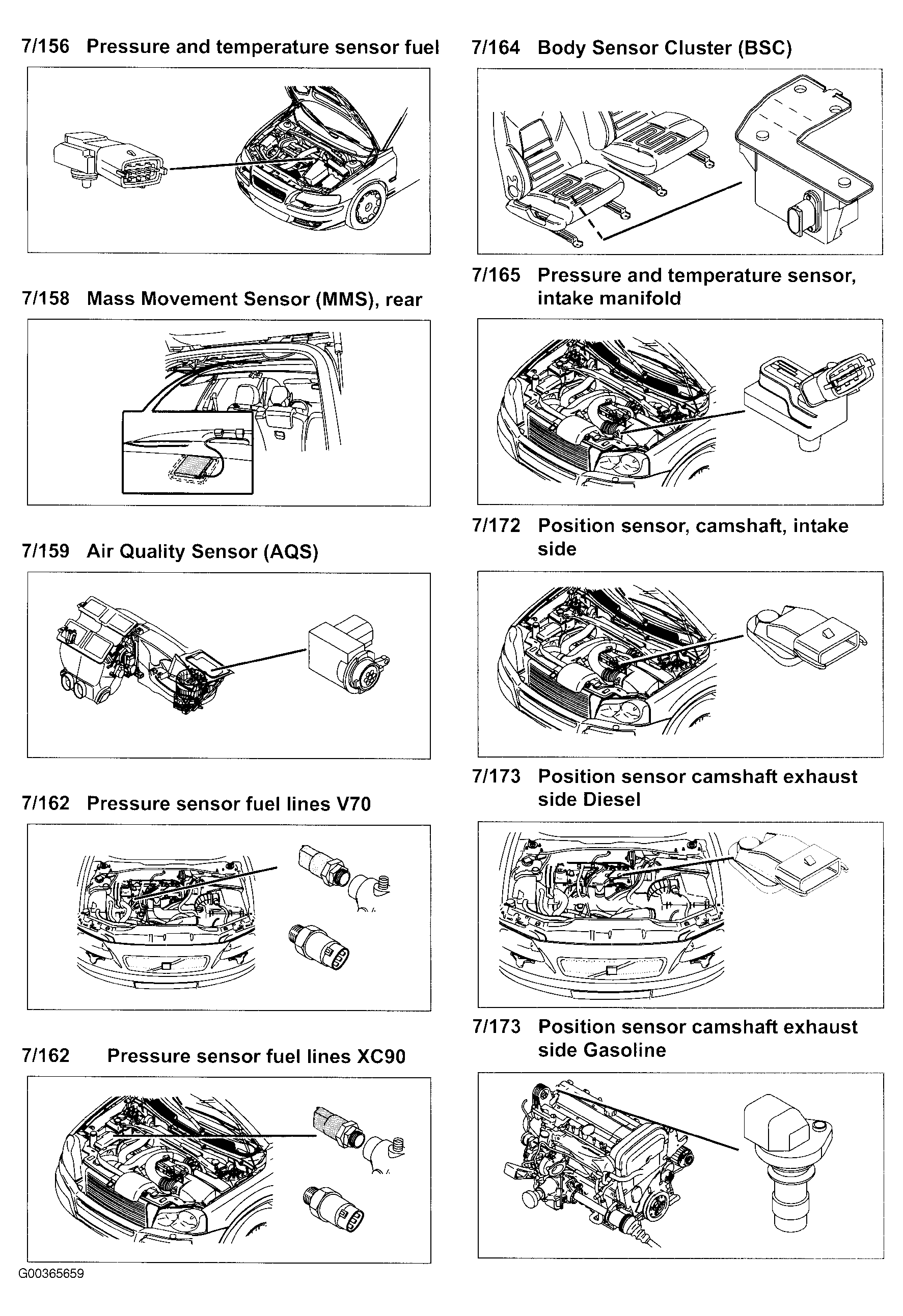

Fig 44: Components 7/156 To 7/173
G00365659Courtesy of VOLVO CARS OF NORTH AMERICA.

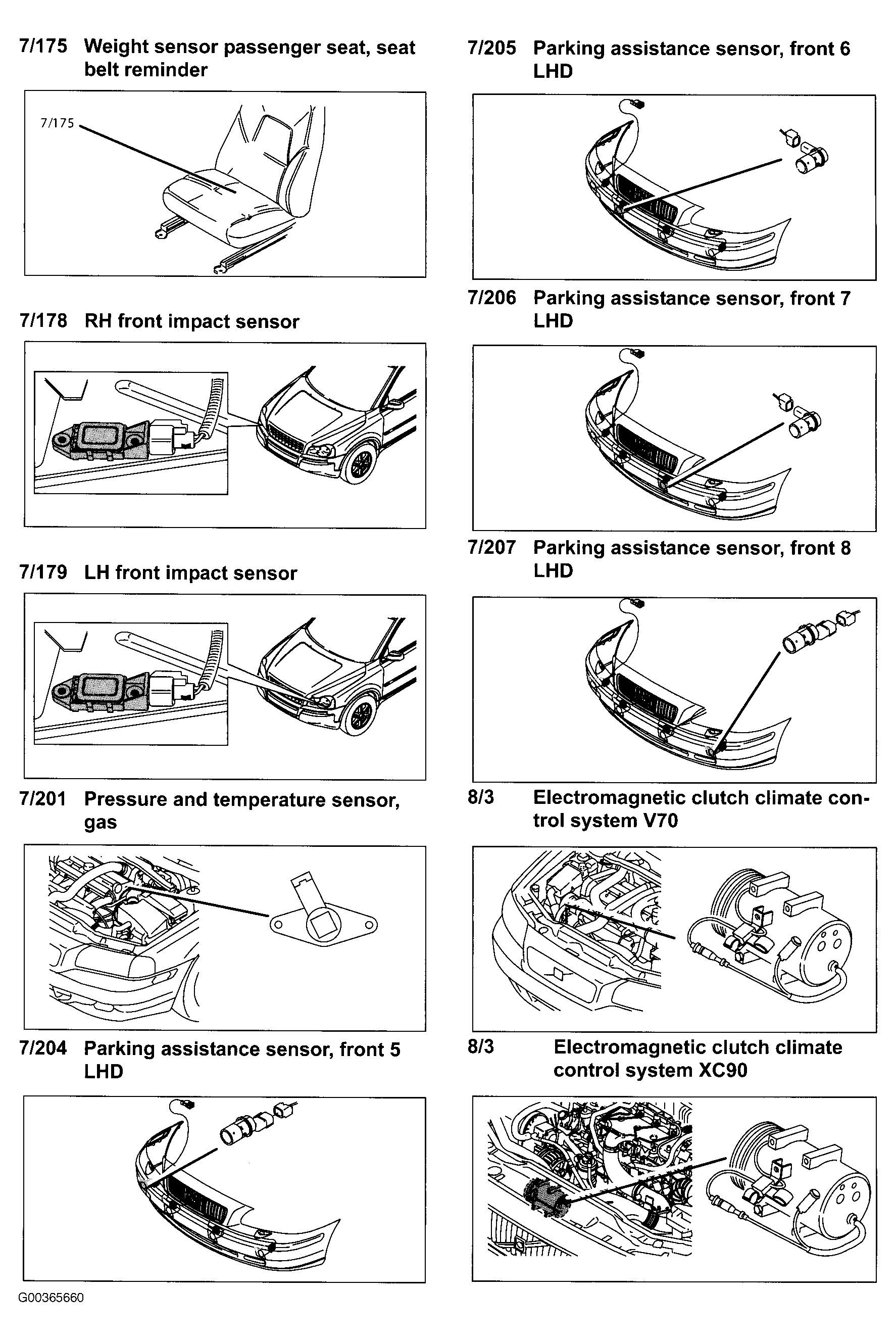

Fig 45: Components 7/175 To 8/3
G00365660Courtesy of VOLVO CARS OF NORTH AMERICA.

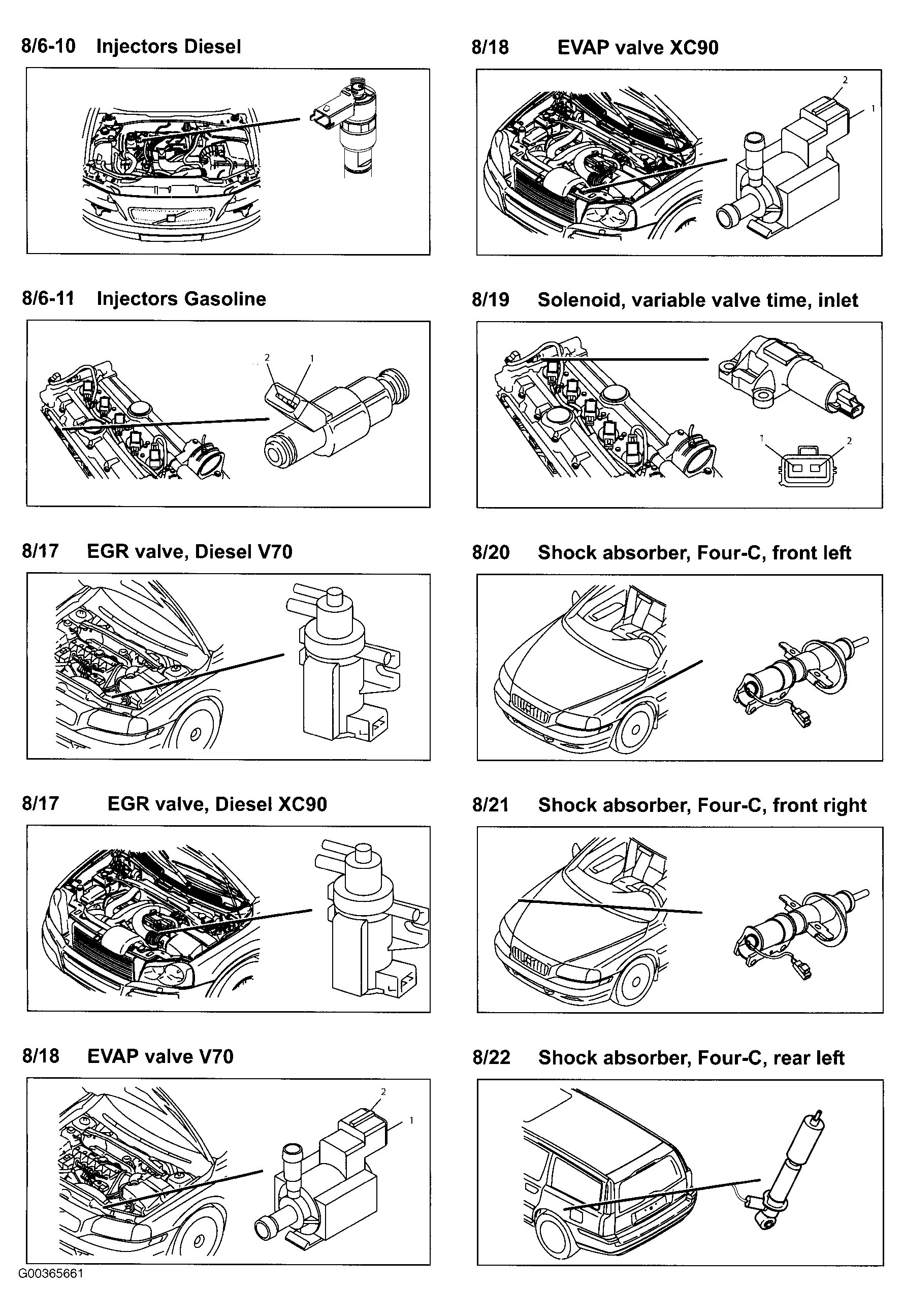

Fig 46: Components 8/6 To 8/22
G00365661Courtesy of VOLVO CARS OF NORTH AMERICA.

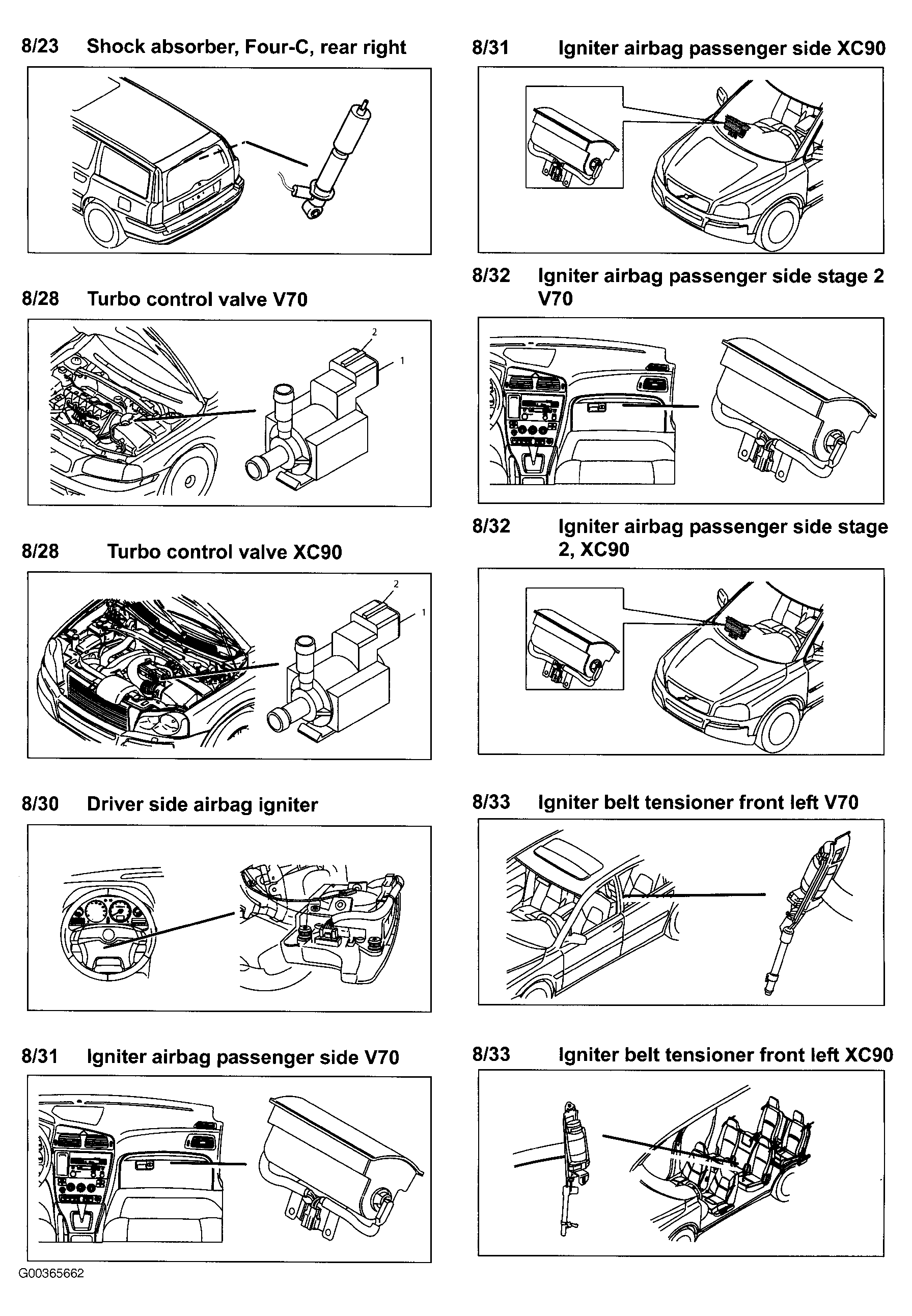

Fig 47: Components 8/23 To 8/33
G00365662Courtesy of VOLVO CARS OF NORTH AMERICA.

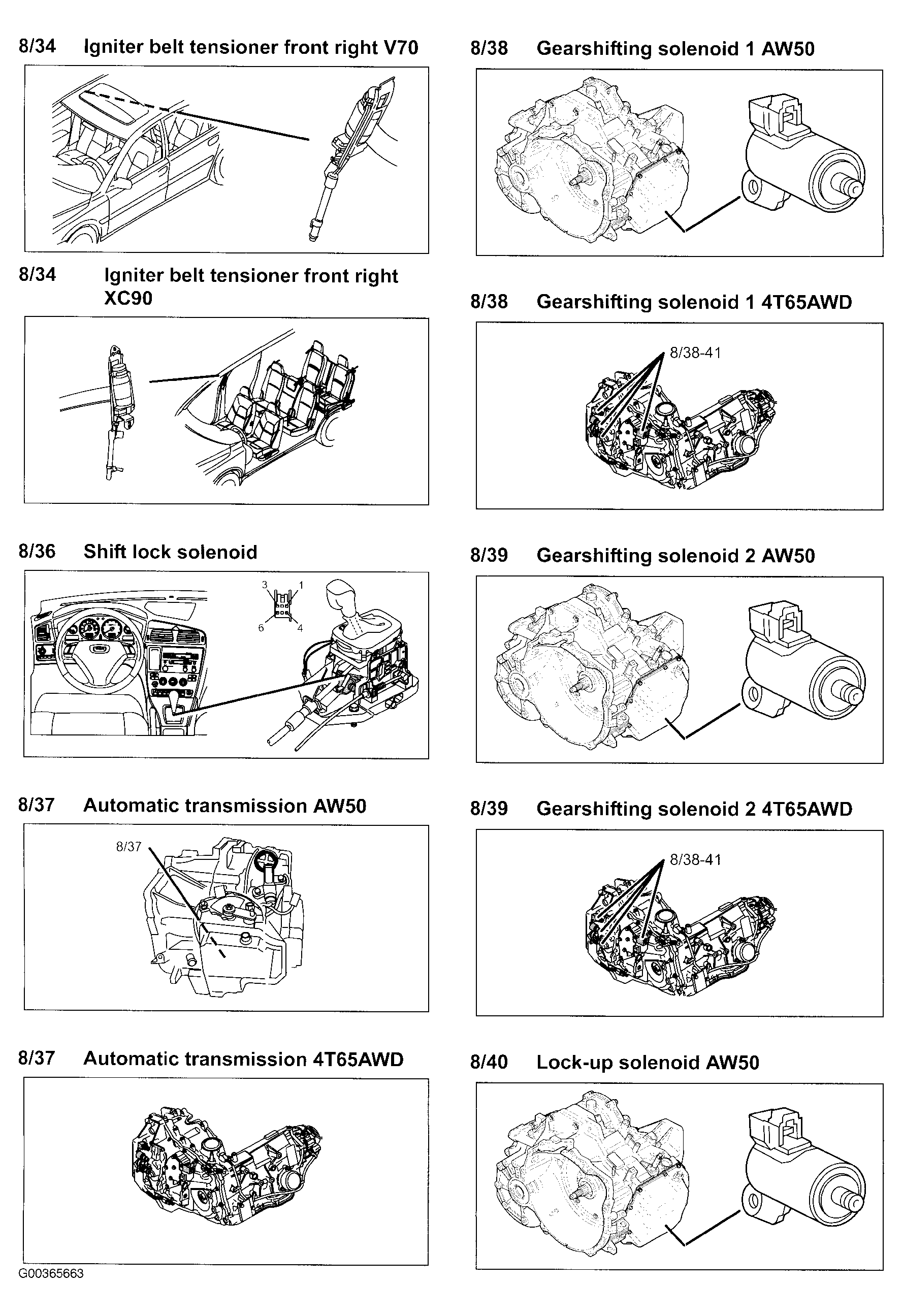

Fig 48: Components 8/34 To 8/40
G00365663Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 49: Components 8/40 To 8/55
G00365664Courtesy of VOLVO CARS OF NORTH AMERICA.

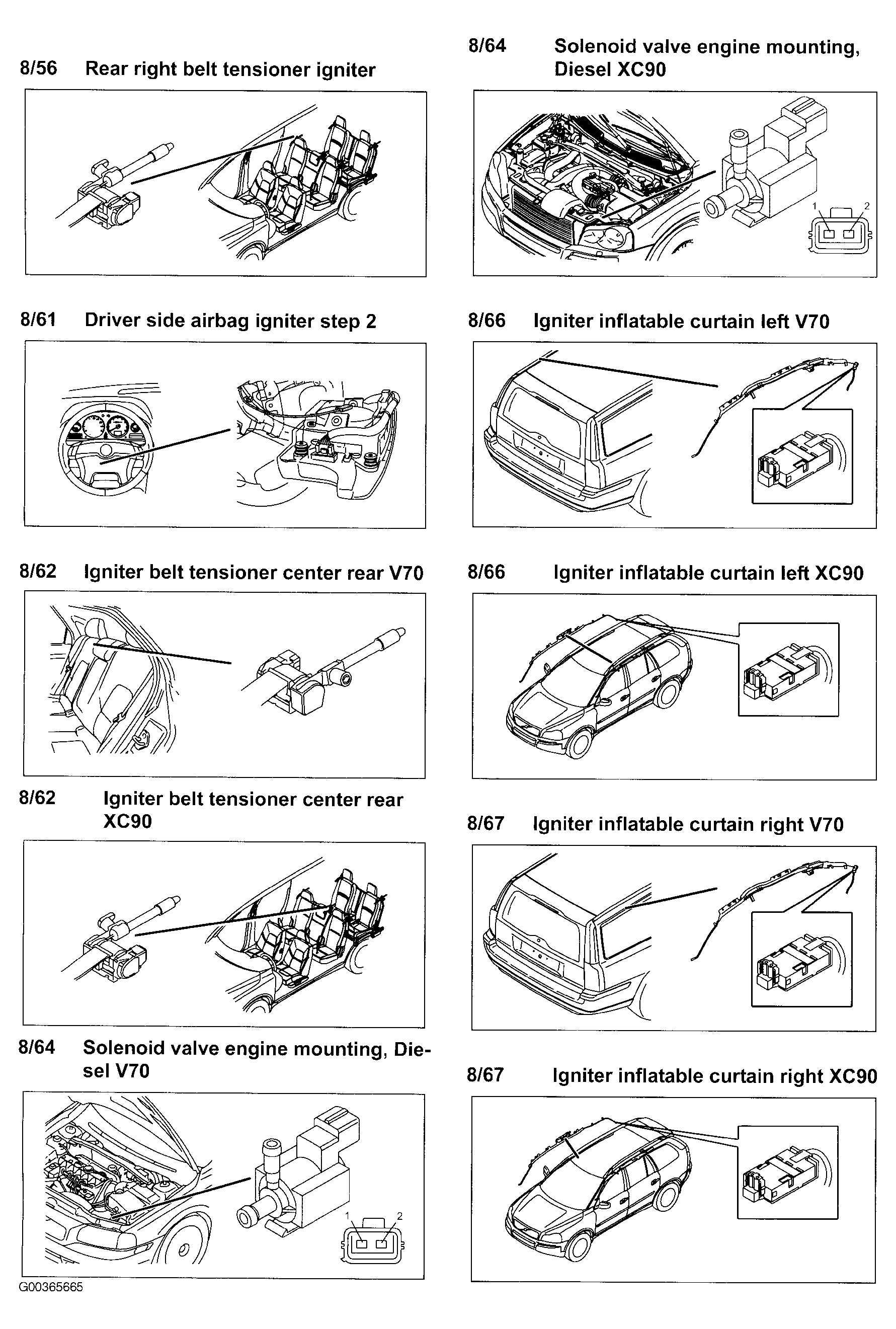

Fig 50: Components 8/56 To 8/67
G00365665Courtesy of VOLVO CARS OF NORTH AMERICA.

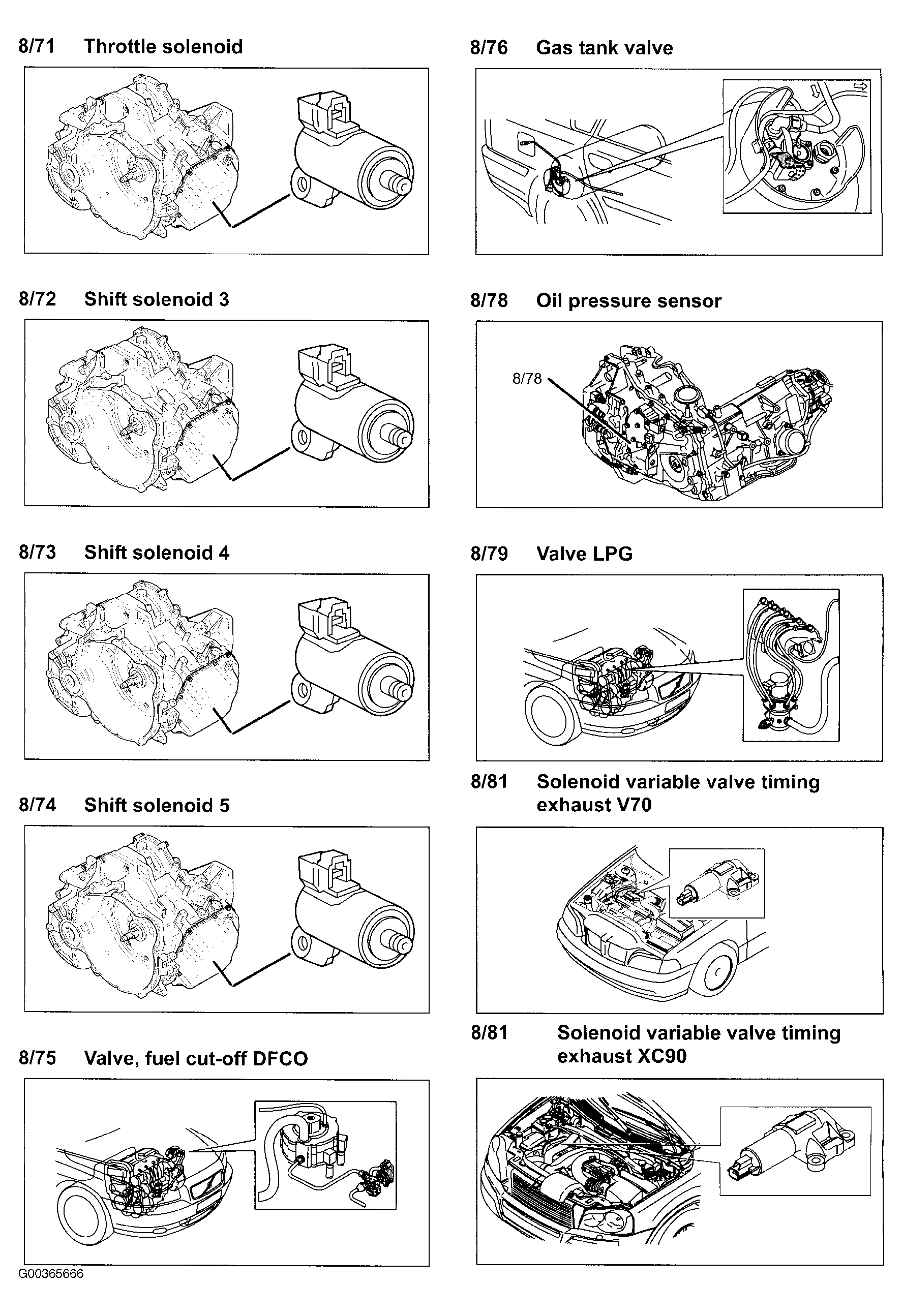

Fig 51: Components 8/71 To 8/81
G00365666Courtesy of VOLVO CARS OF NORTH AMERICA.

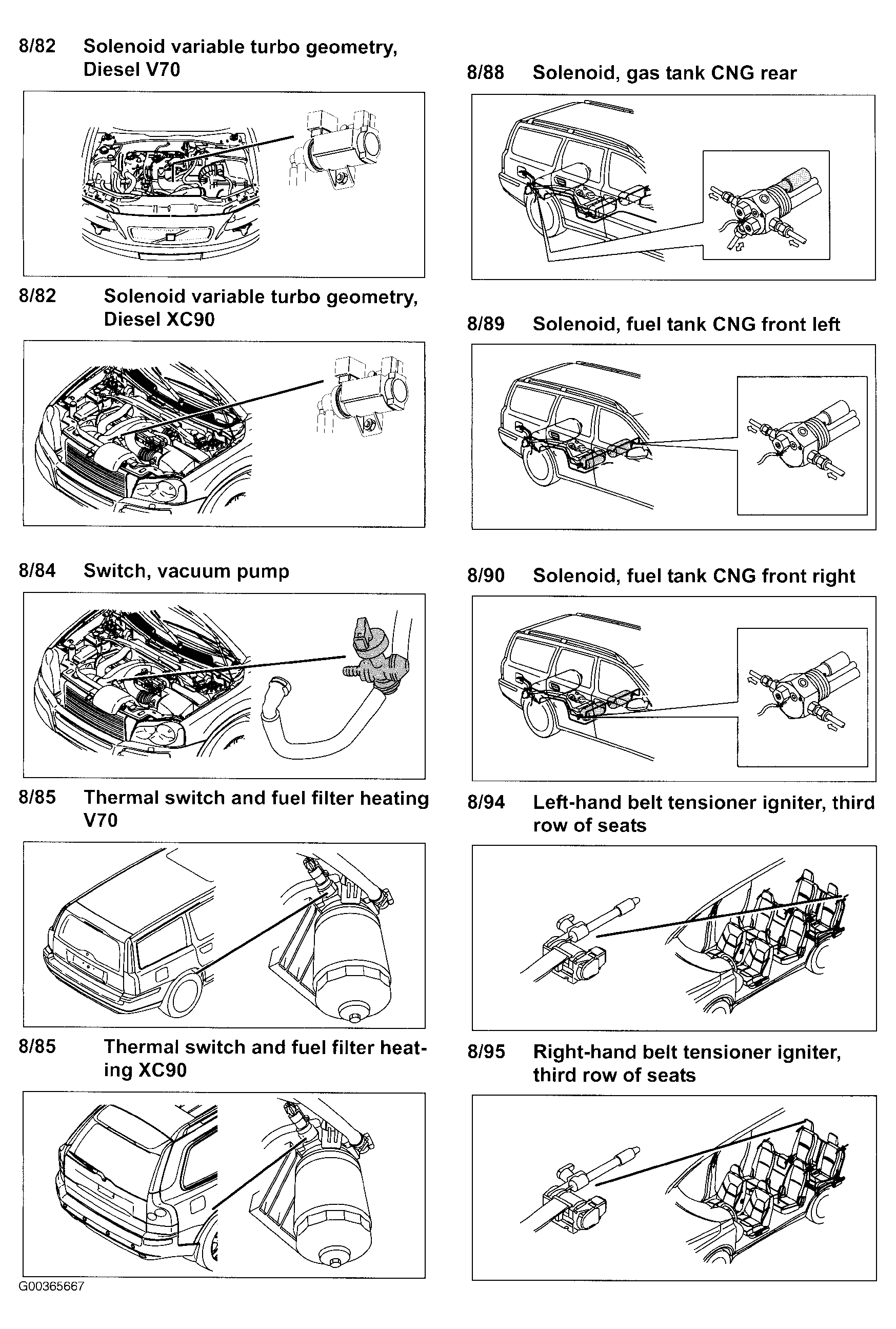

Fig 52: Components 8/82 To 8/95
G00365667Courtesy of VOLVO CARS OF NORTH AMERICA.

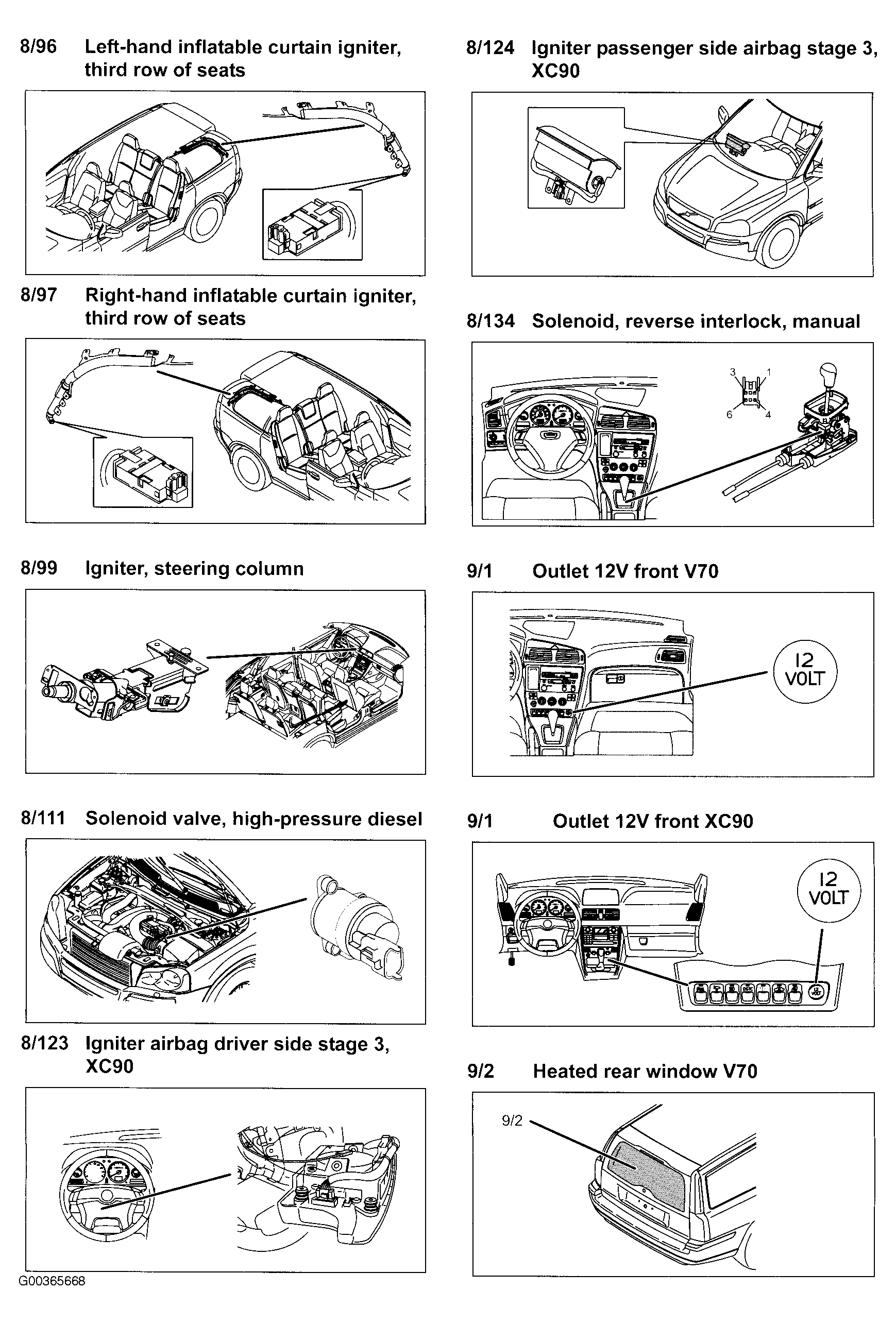

Fig 53: Components 8/96 To 9/2
G00365668Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 54: Components 9/2 To 9/30
G00365669Courtesy of VOLVO CARS OF NORTH AMERICA.

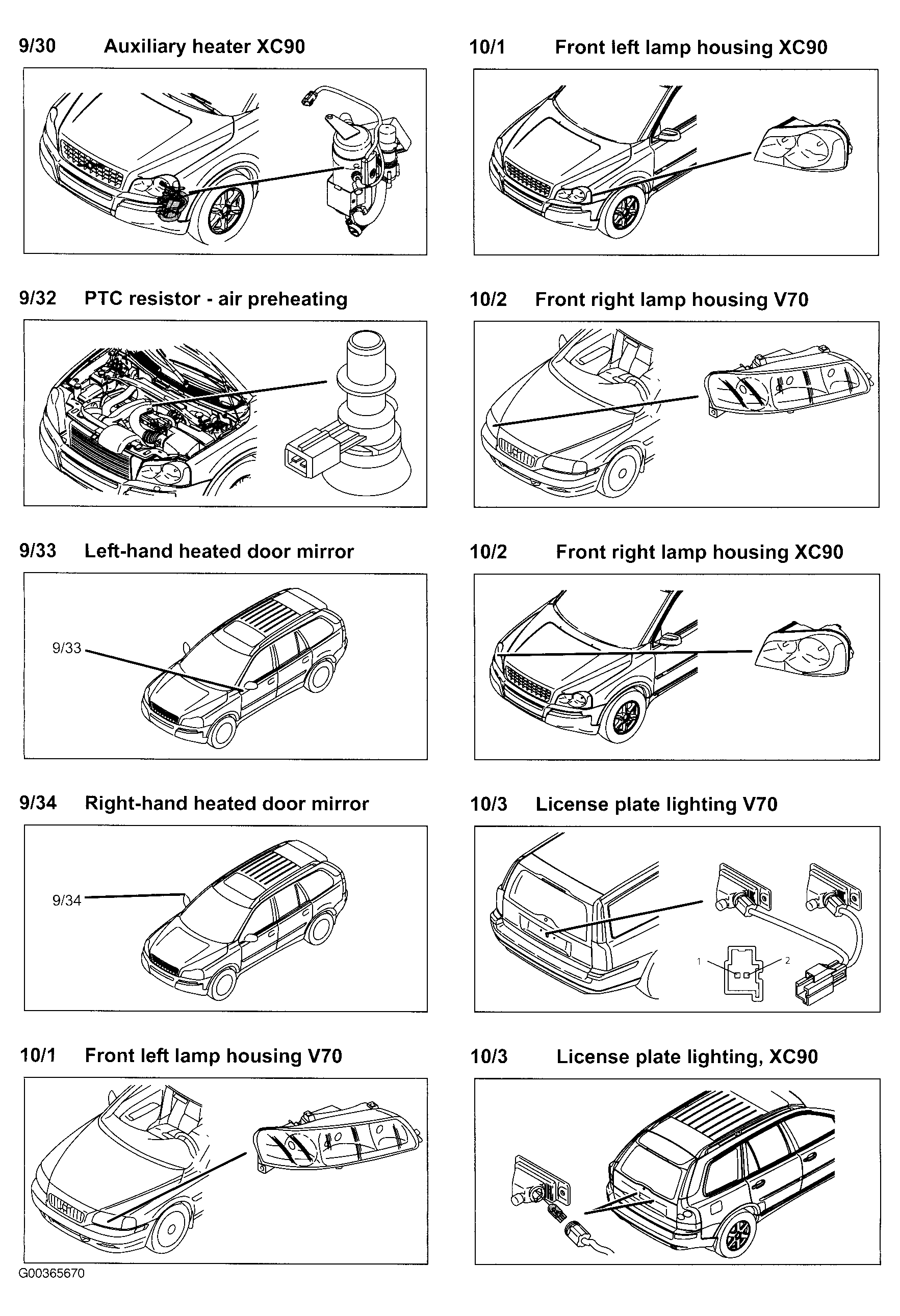

Fig 55: Components 9/30 To 10/3
G00365670Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 56: Components 10/218 To 15/30
G00365671Courtesy of VOLVO CARS OF NORTH AMERICA.

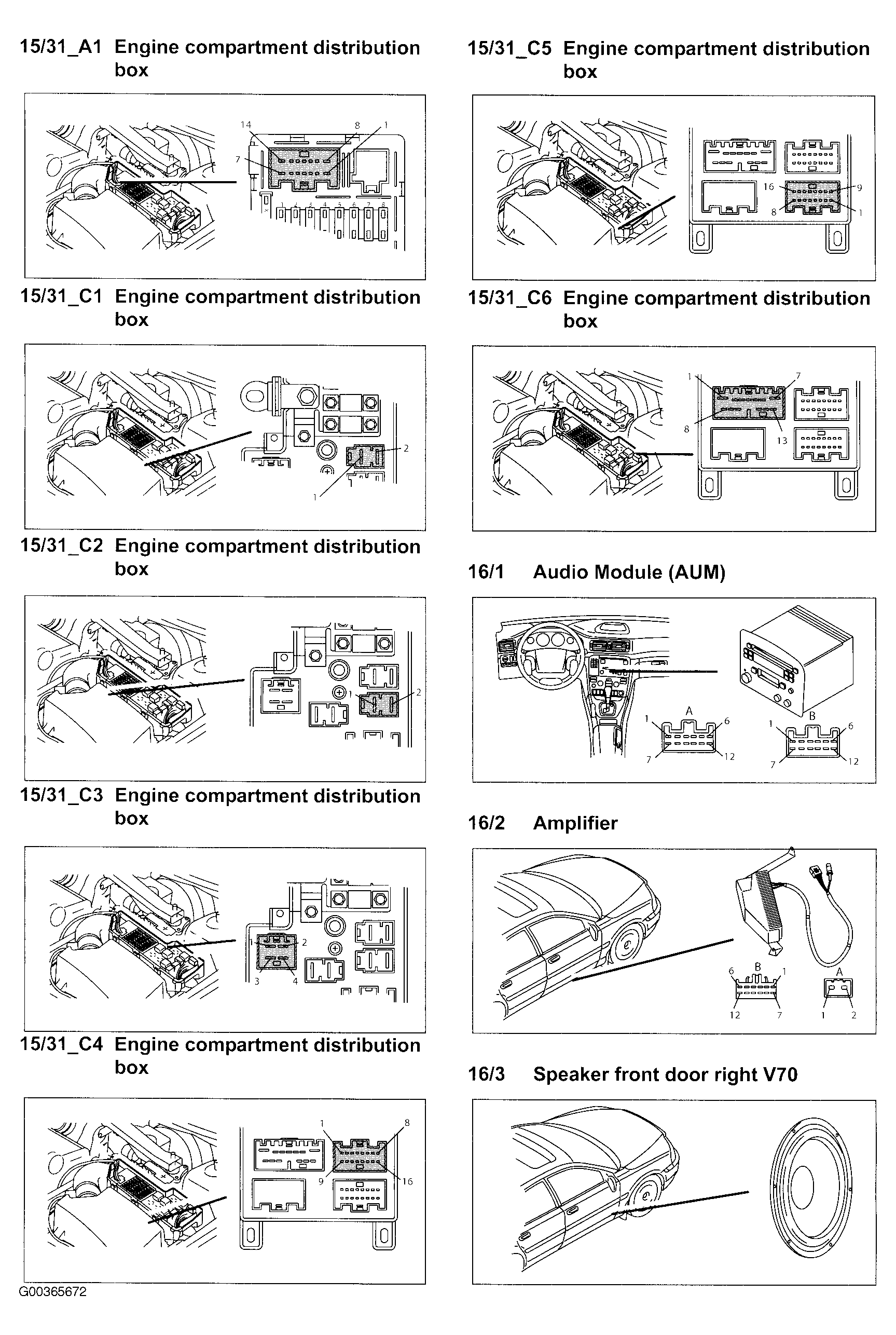

Fig 57: Components 15/31 To 16/3
G00365672Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 58: Components 16/3 To 16/11
G00365673Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 59: Components 16/15 To 16/46
G00365674Courtesy of VOLVO CARS OF NORTH AMERICA.

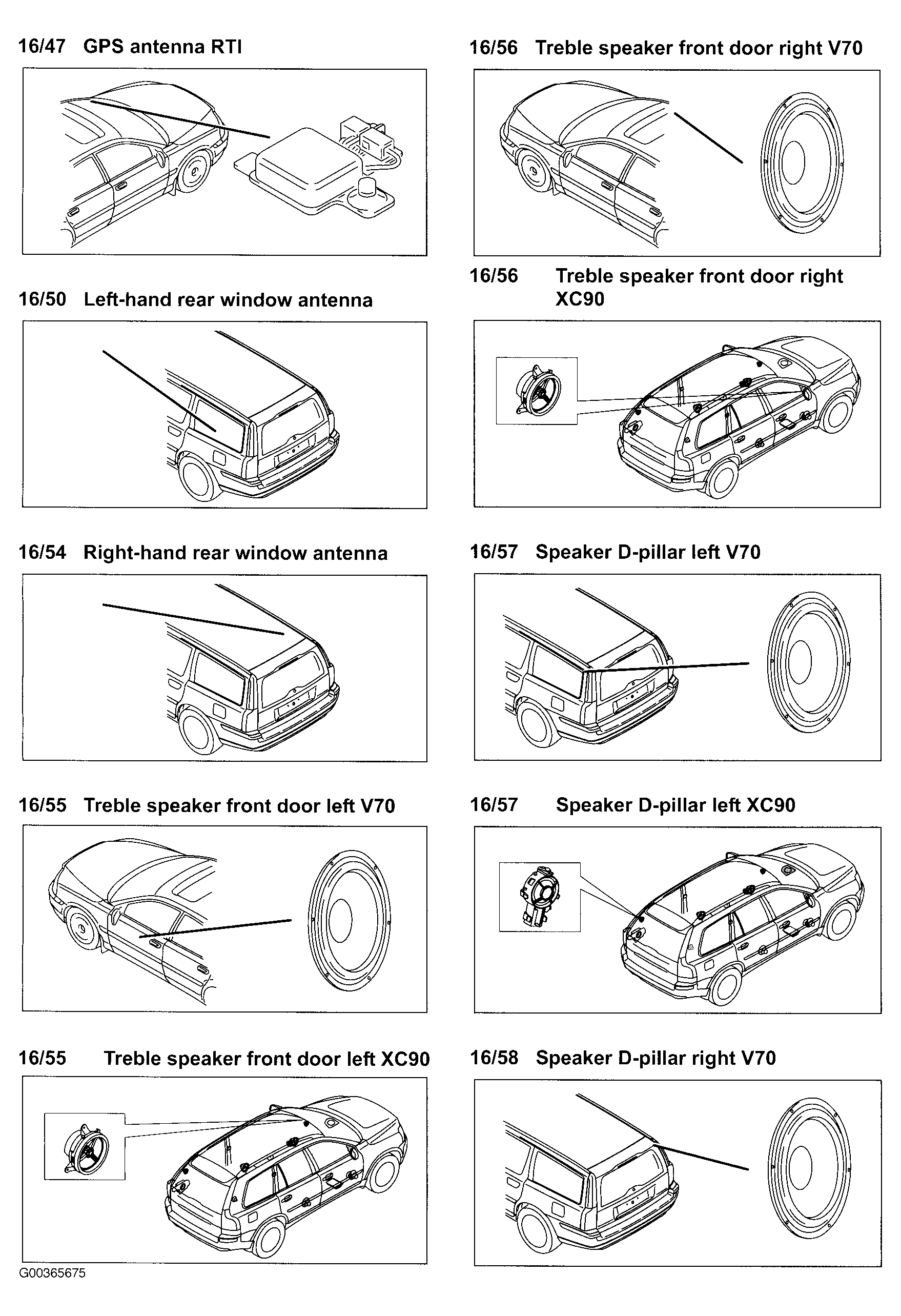

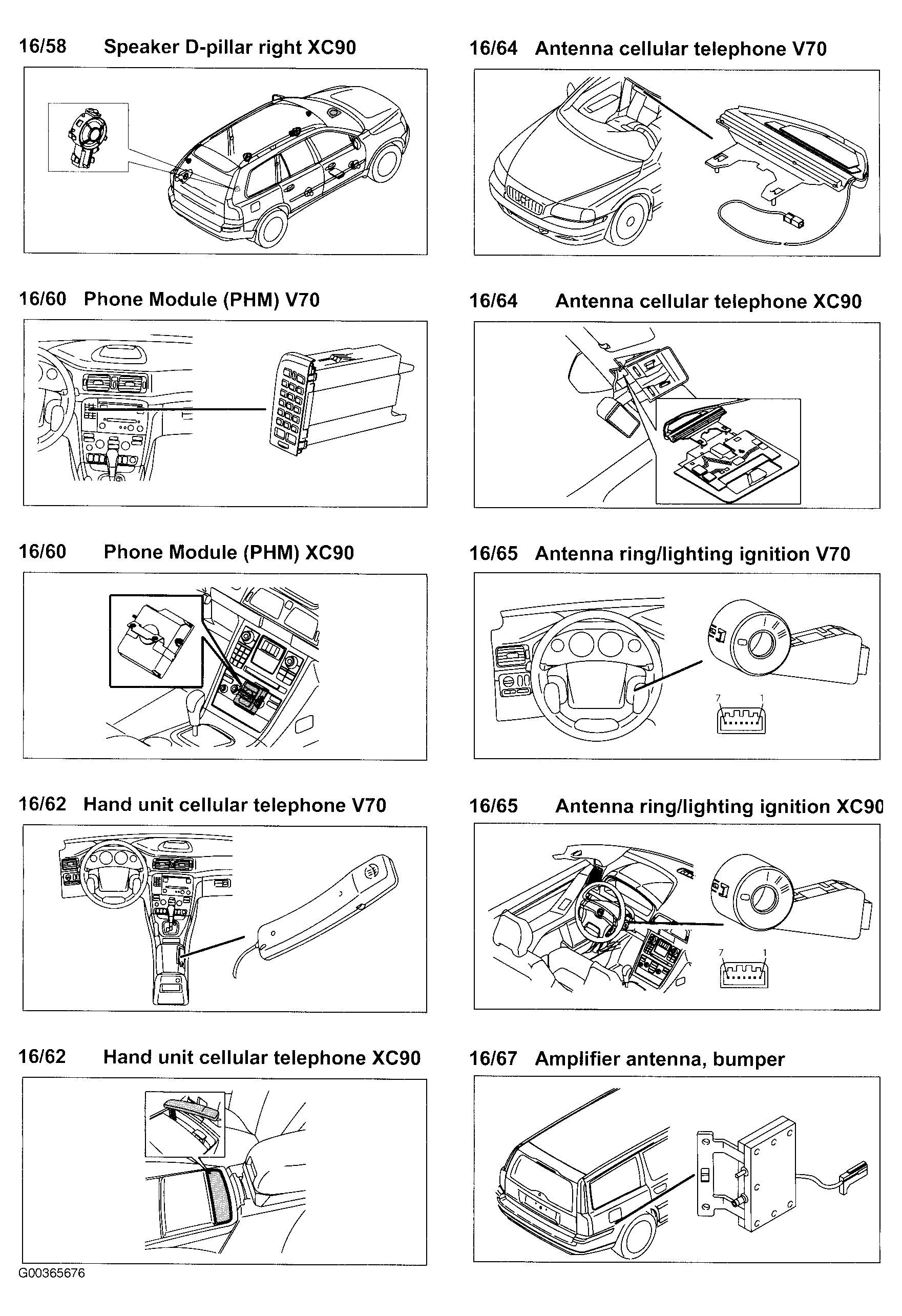

Fig 60: Components 16/47 To 16/58
G00365675Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 61: Components 16/58 To 16/67
G00365676Courtesy of VOLVO CARS OF NORTH AMERICA.

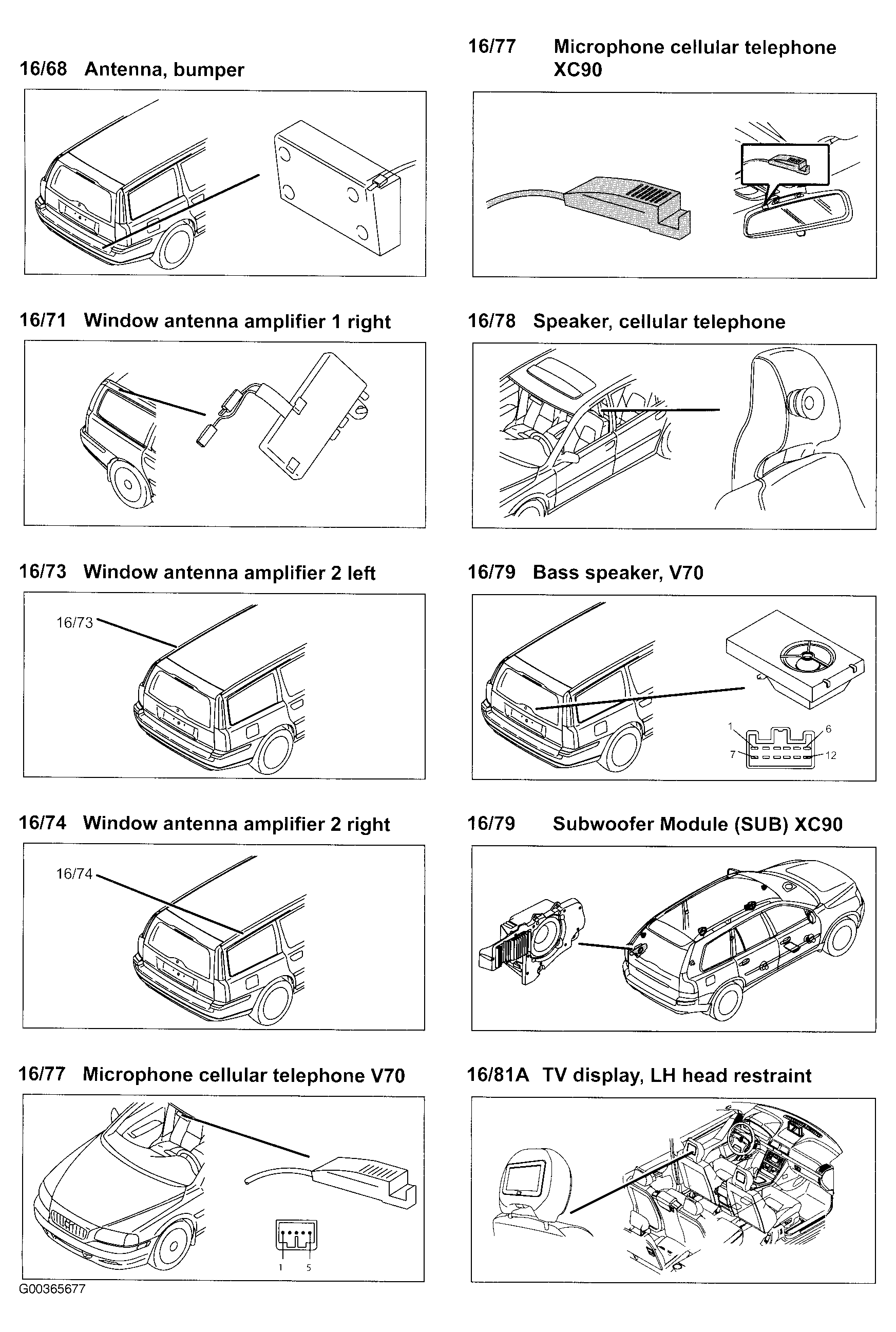

Fig 62: Components 16/68 To 16/81A
G00365677Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 63: Components 16/81B To 16/107
G00365678Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 64: Components 16/108 To 16/126
G00365679Courtesy of VOLVO CARS OF NORTH AMERICA.

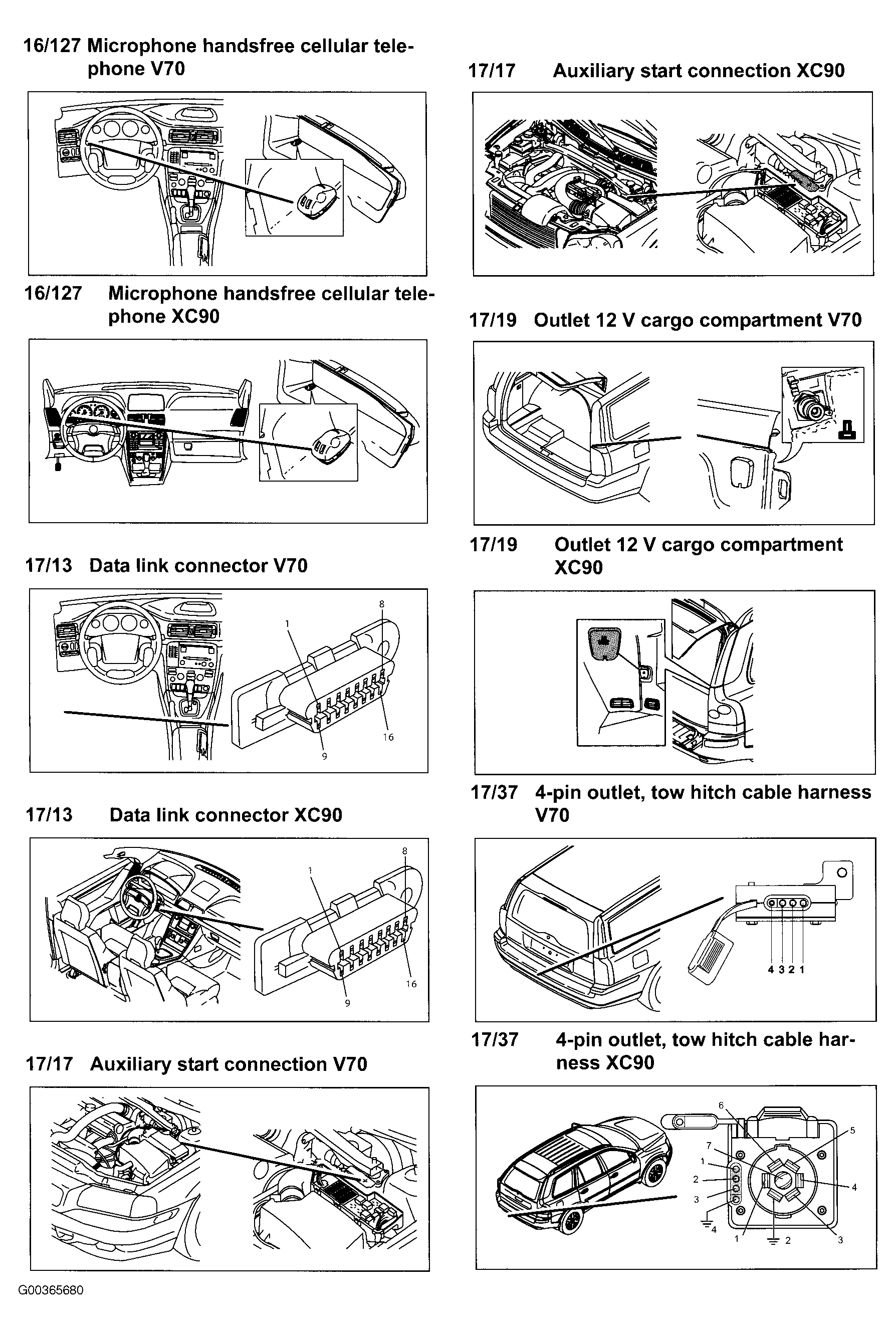

Fig 65: Components 16/127 To 17/37
G00365680Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 66: Components 17/38 To 20/26
G00365681Courtesy of VOLVO CARS OF NORTH AMERICA.

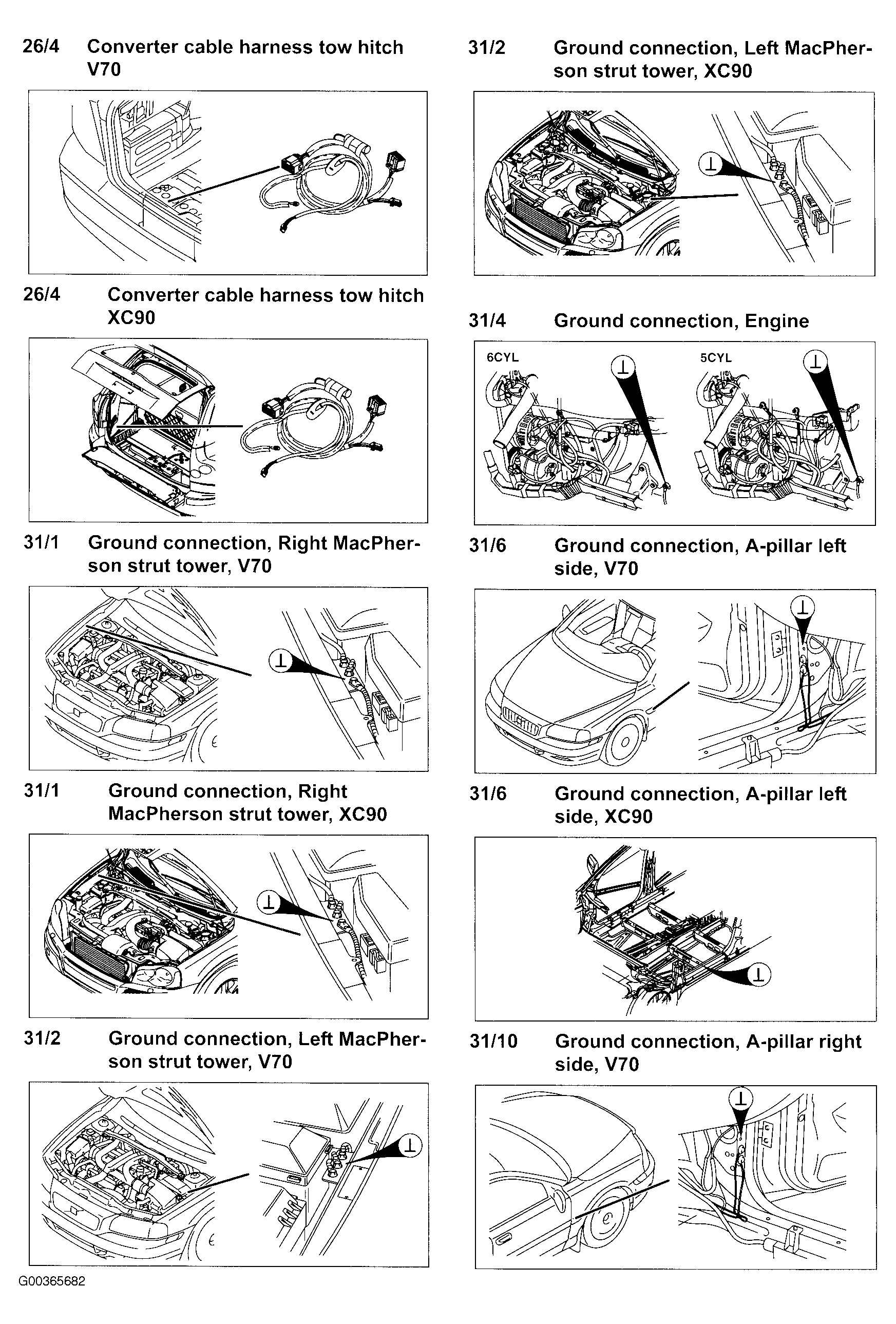

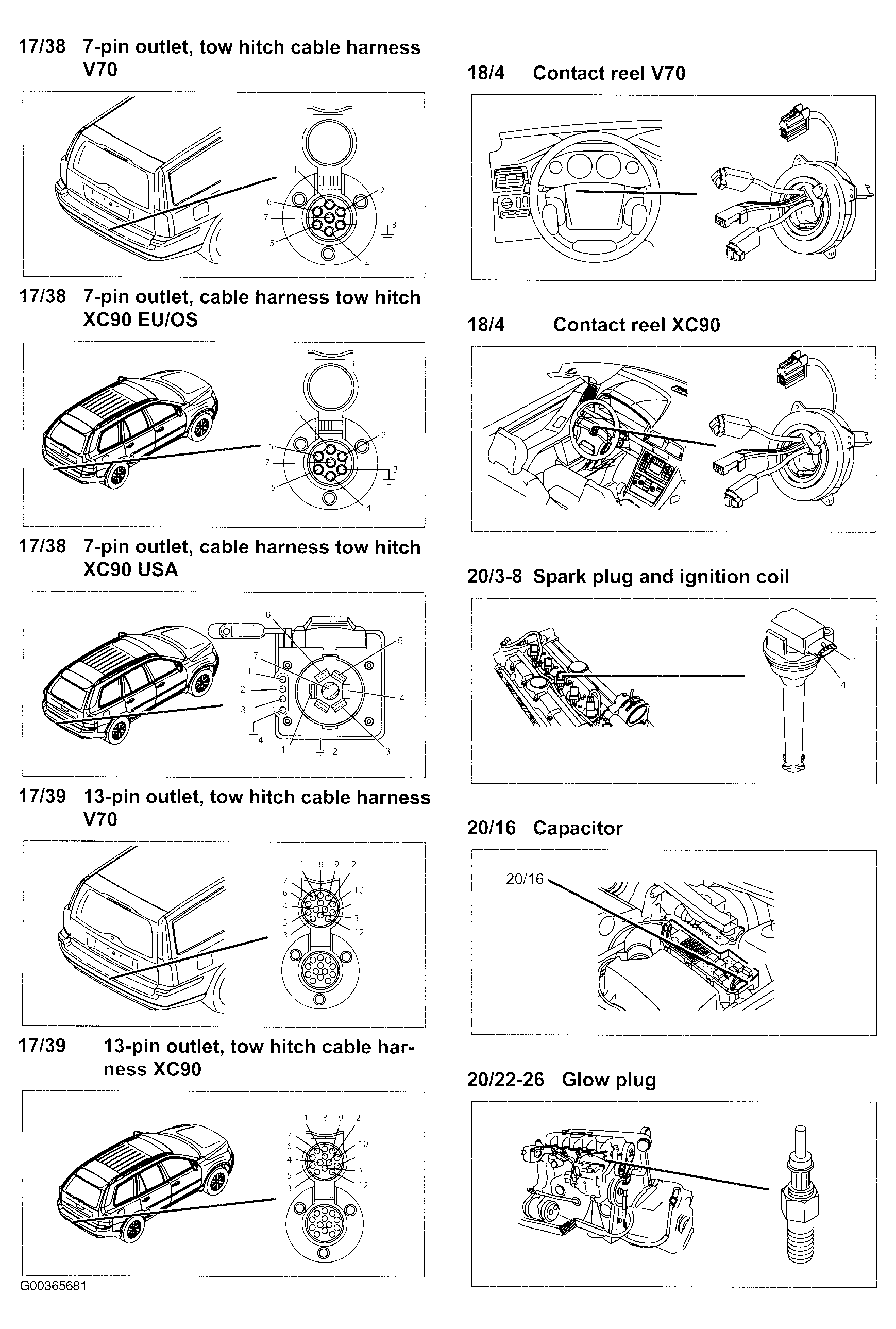

Fig 67: Components 26/4 To 31/10
G00365682Courtesy of VOLVO CARS OF NORTH AMERICA.

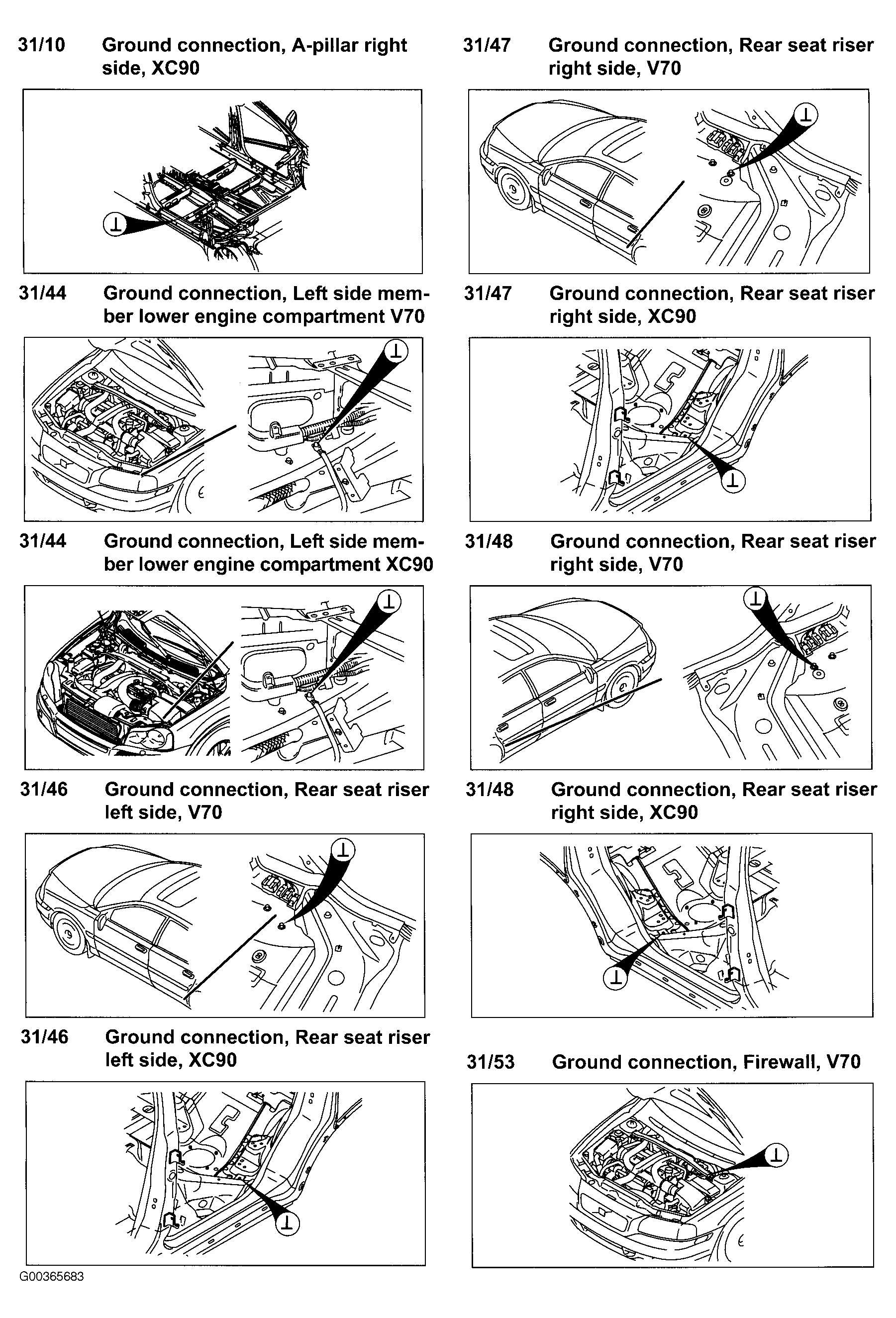

Fig 68: Components 31/10 To 31/53
G00365683Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 69: Components 31/53 To 31/73
G00365684Courtesy of VOLVO CARS OF NORTH AMERICA.

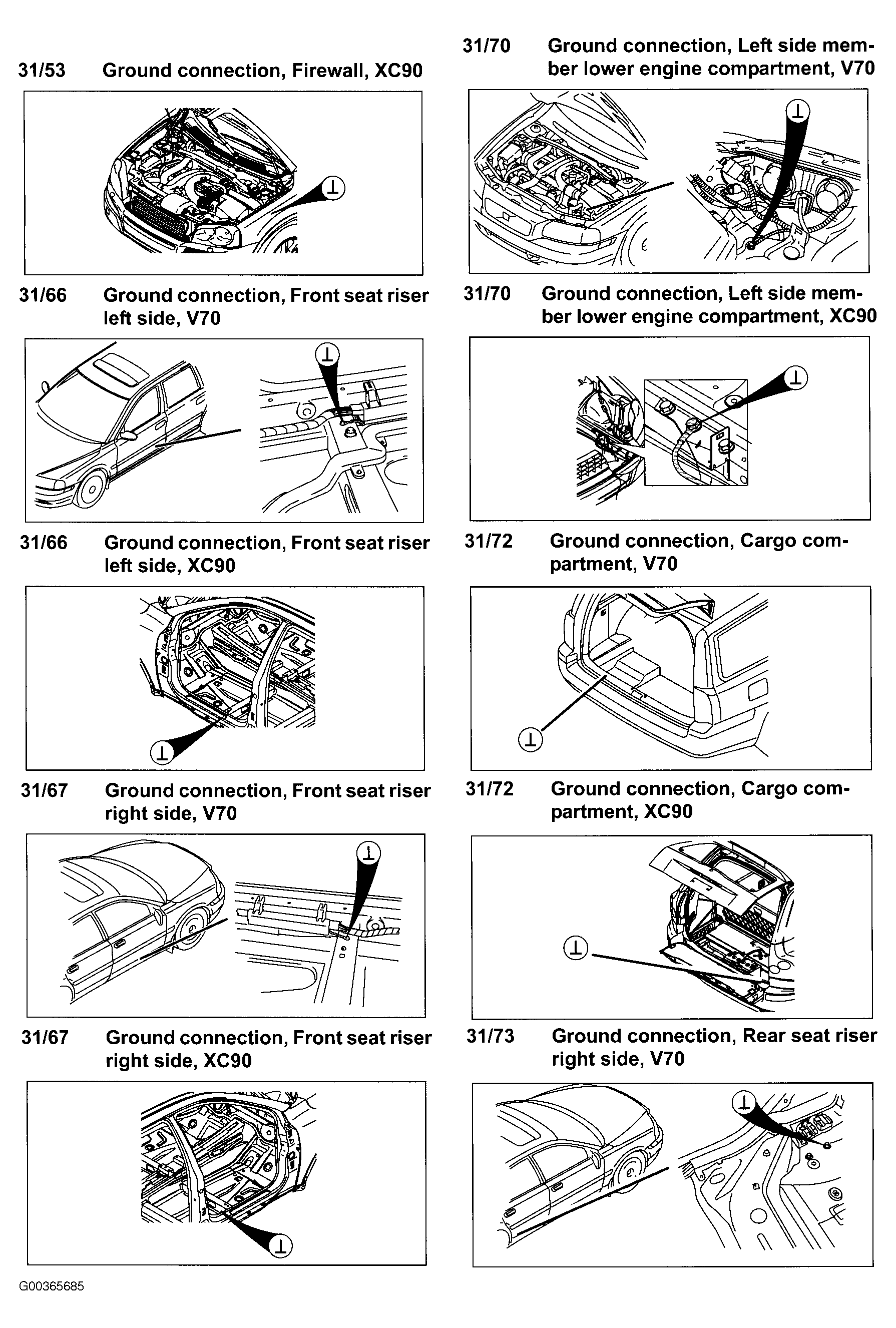

Fig 70: Components 31/73 To 31/93
G00365685Courtesy of VOLVO CARS OF NORTH AMERICA.

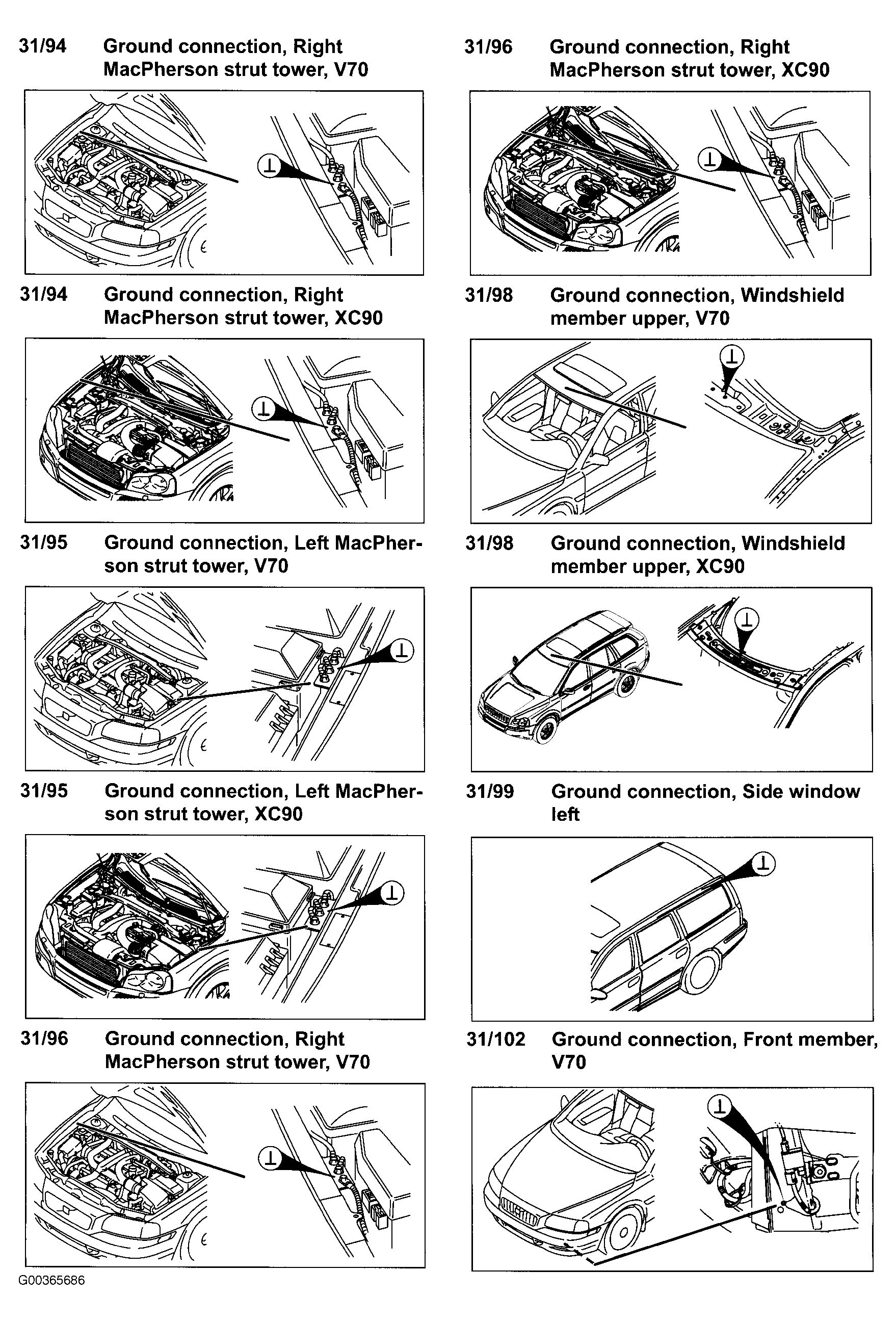

Fig 71: Components 31/94 To 31/102
G00365686Courtesy of VOLVO CARS OF NORTH AMERICA.

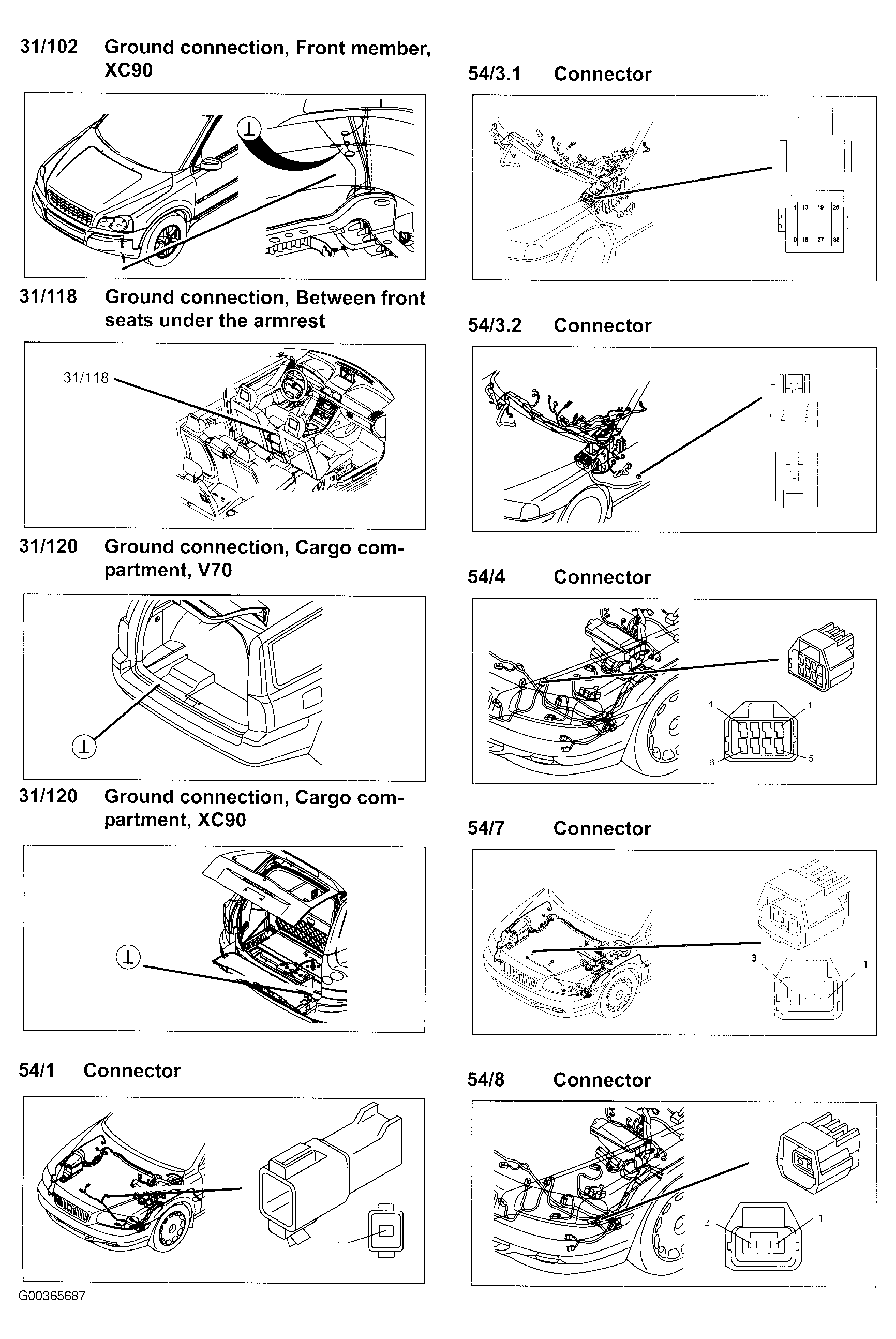

Fig 72: Components 31/102 To 54/8
G00365687Courtesy of VOLVO CARS OF NORTH AMERICA.

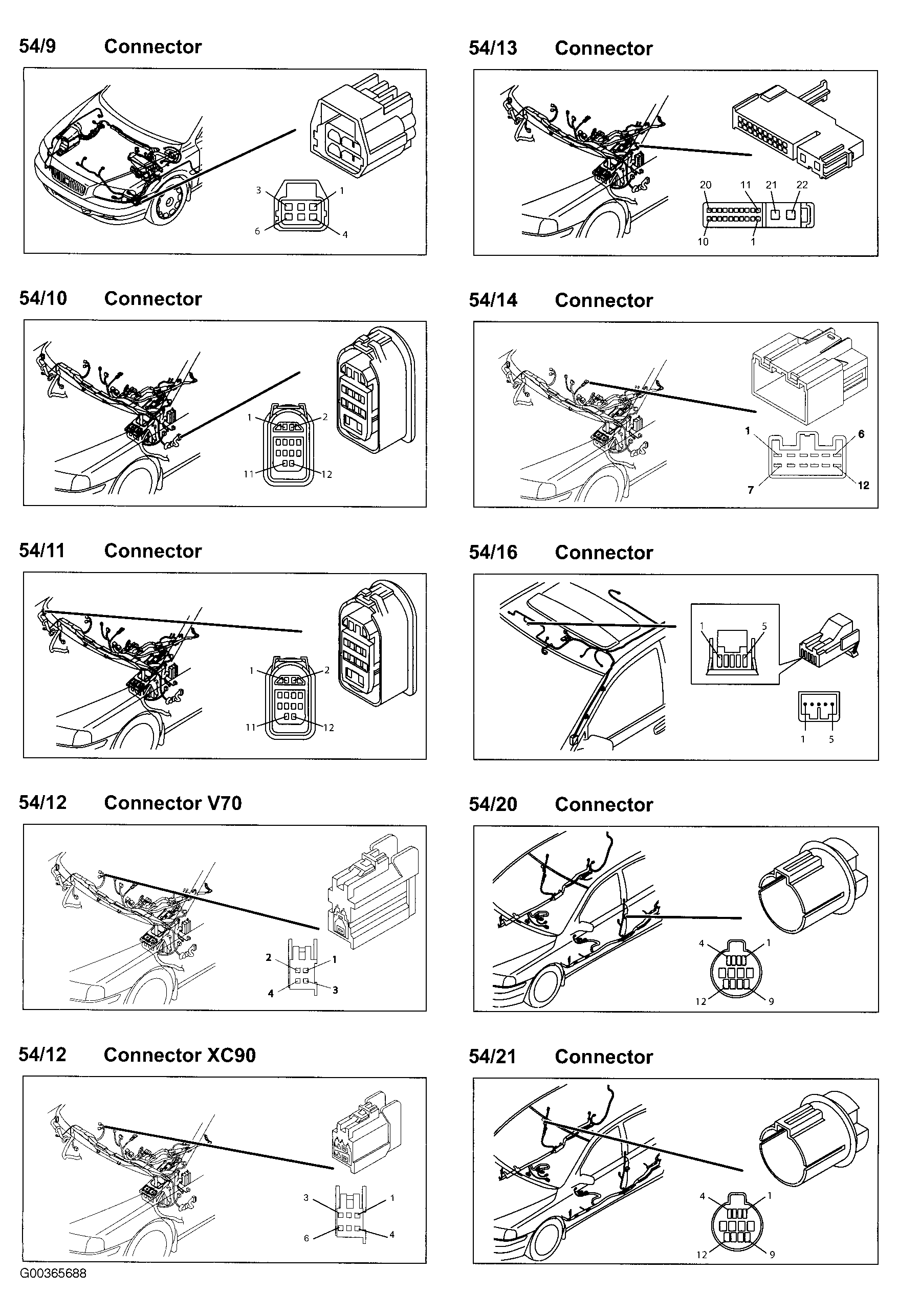

Fig 73: Components 54/9 To 54/21
G00365688Courtesy of VOLVO CARS OF NORTH AMERICA.

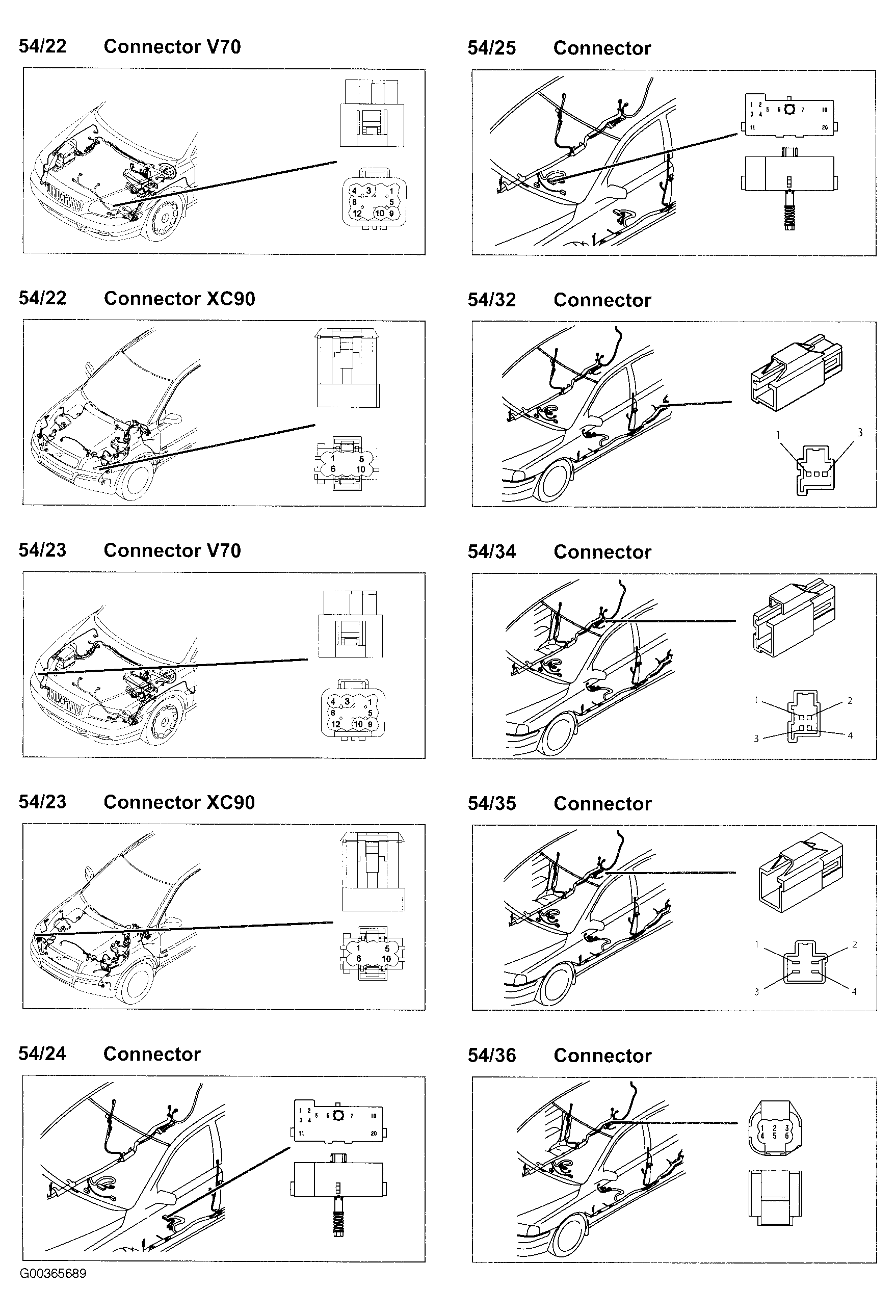

Fig 74: Components 54/22 To 54/36
G00365689Courtesy of VOLVO CARS OF NORTH AMERICA.

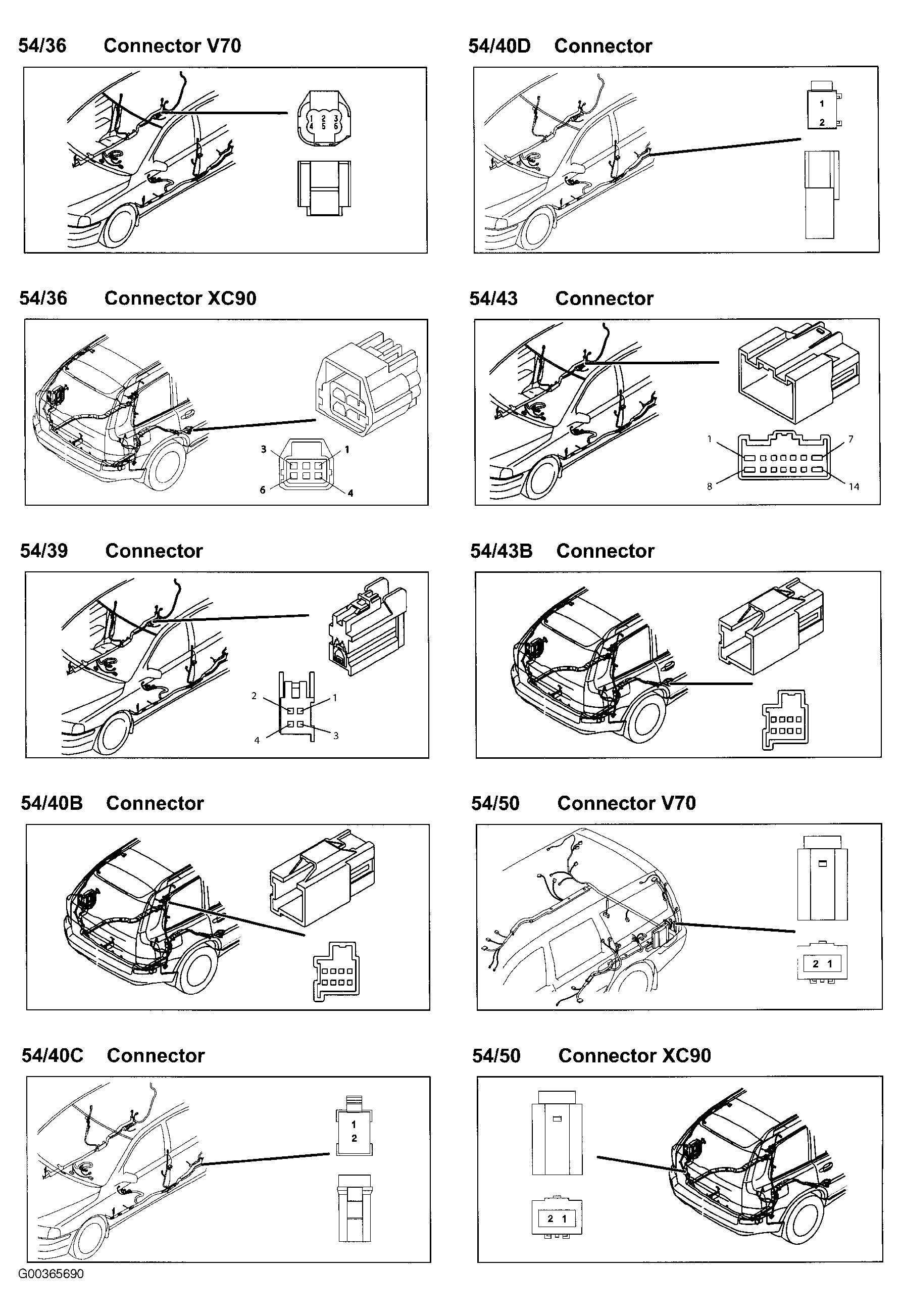

Fig 75: Components 54/36 To 54/50
G00365690Courtesy of VOLVO CARS OF NORTH AMERICA.

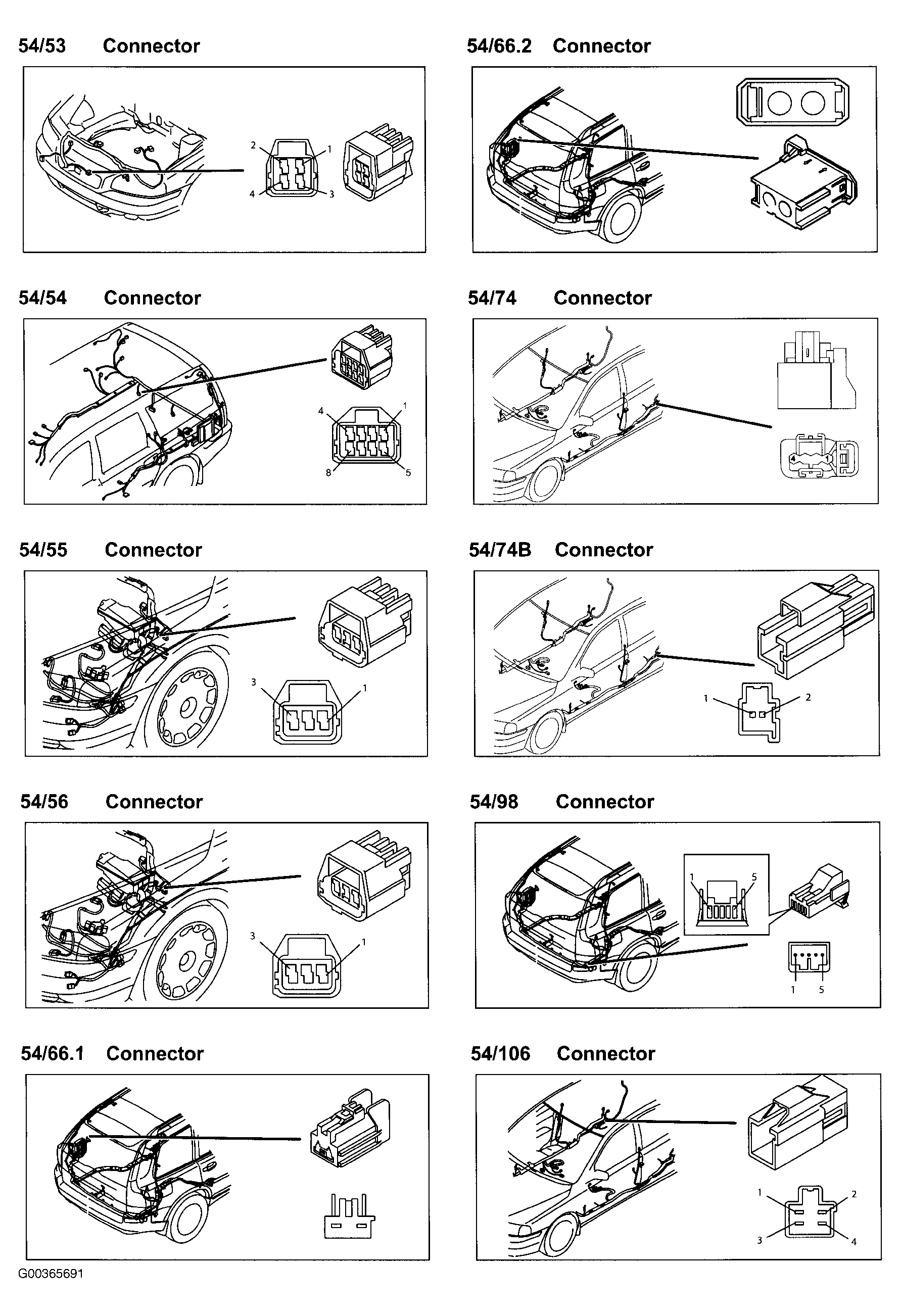

Fig 76: Components 54/53 To 54/106
G00365691Courtesy of VOLVO CARS OF NORTH AMERICA.

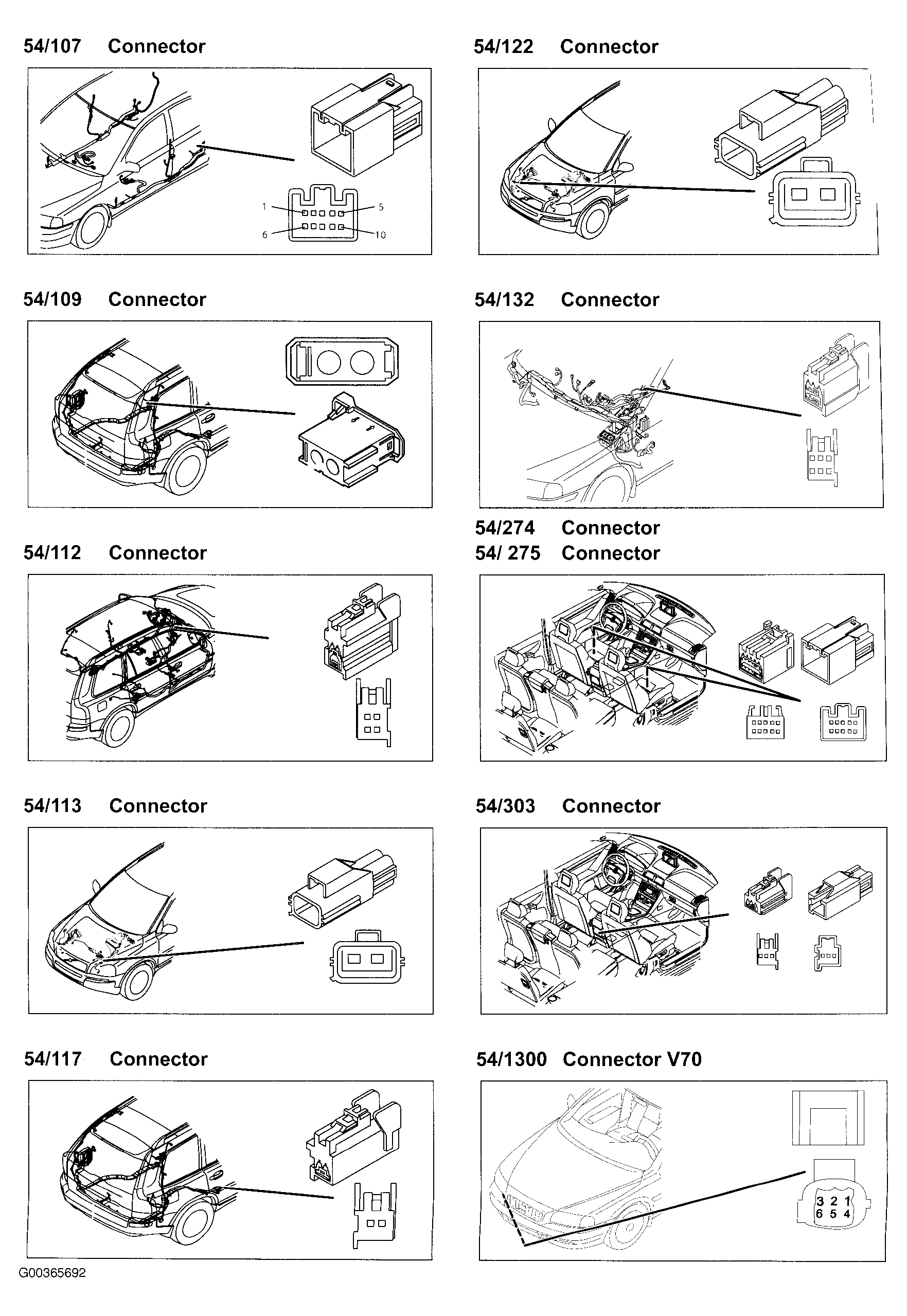

Fig 77: Components 54/107 To 54/1300
G00365692Courtesy of VOLVO CARS OF NORTH AMERICA.

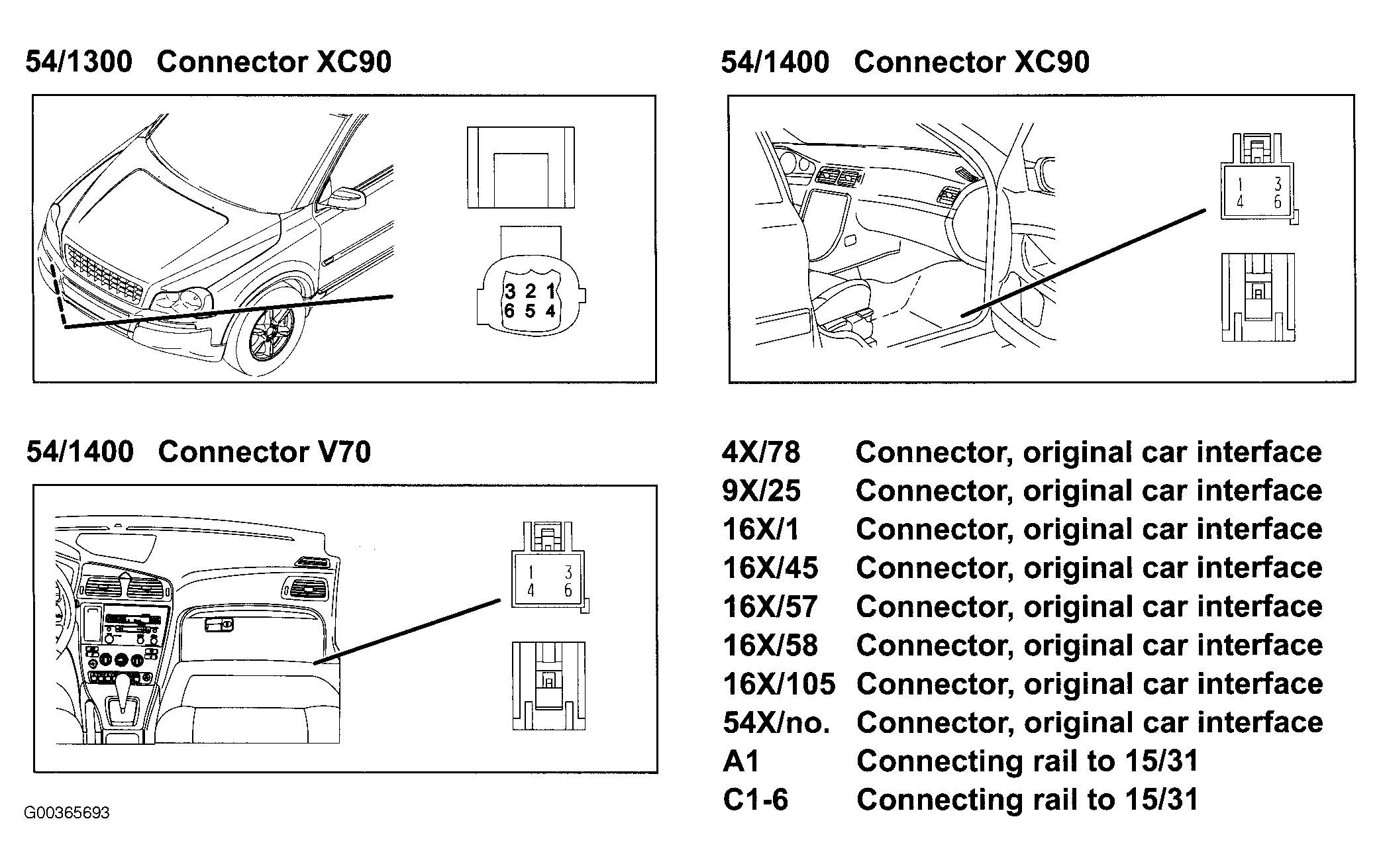

Fig 78: Components 54/1300 To 54/1400
G00365693Courtesy of VOLVO CARS OF NORTH AMERICA.
