Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

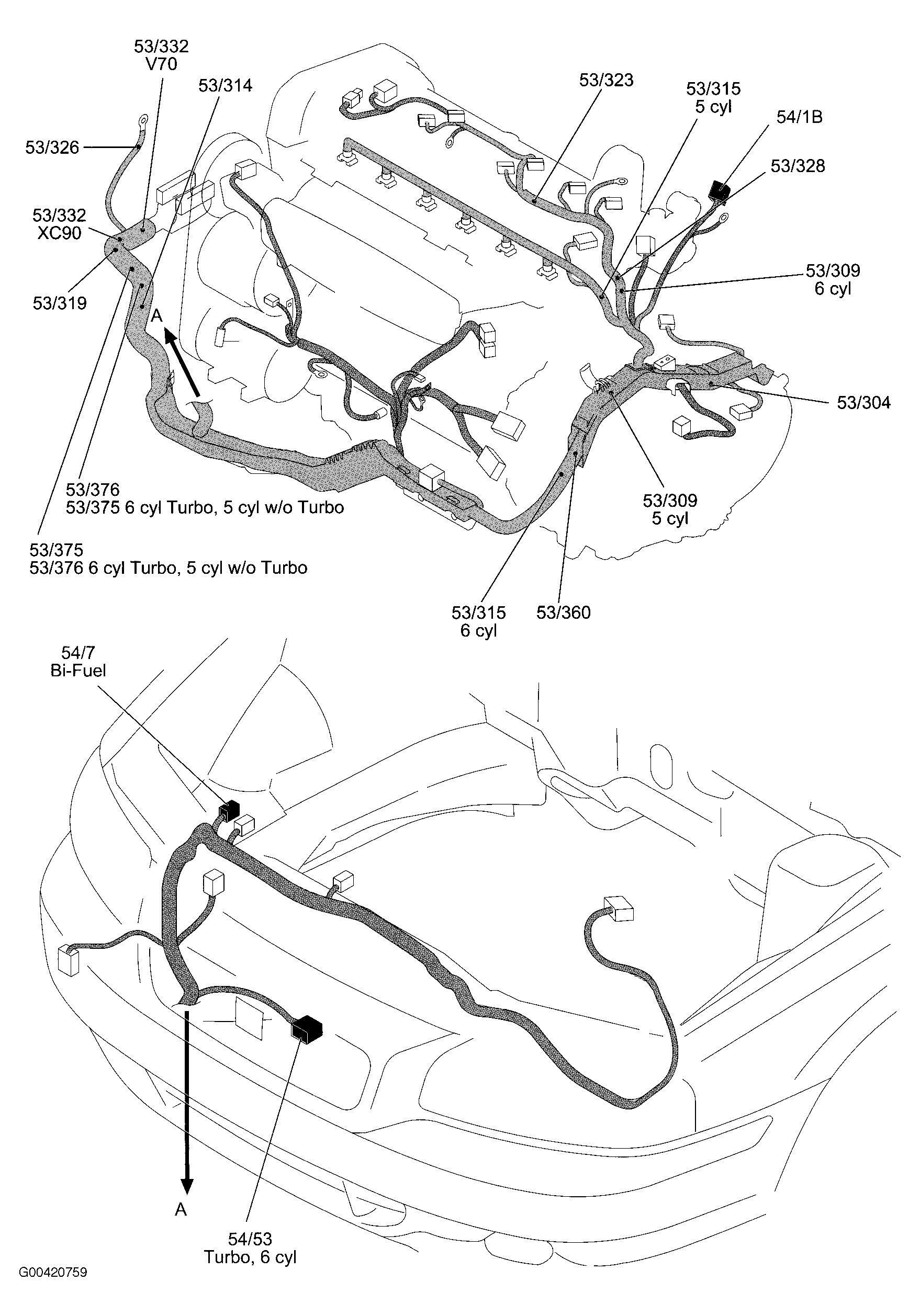

Fig 1: Engine
G00420759Courtesy of VOLVO CARS OF NORTH AMERICA.

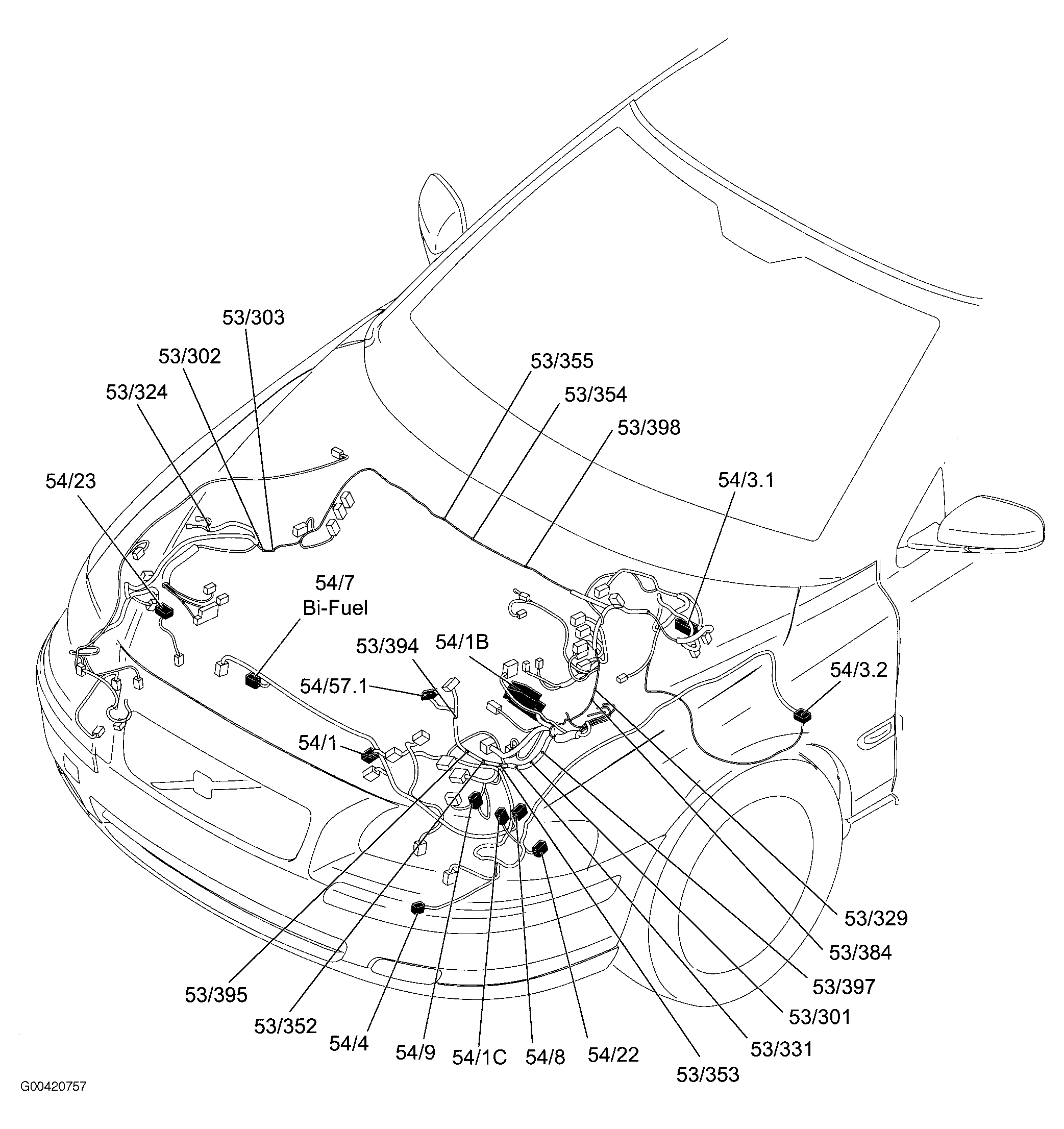

Fig 2: Engine Compartment (V70)
G00420757Courtesy of VOLVO CARS OF NORTH AMERICA.

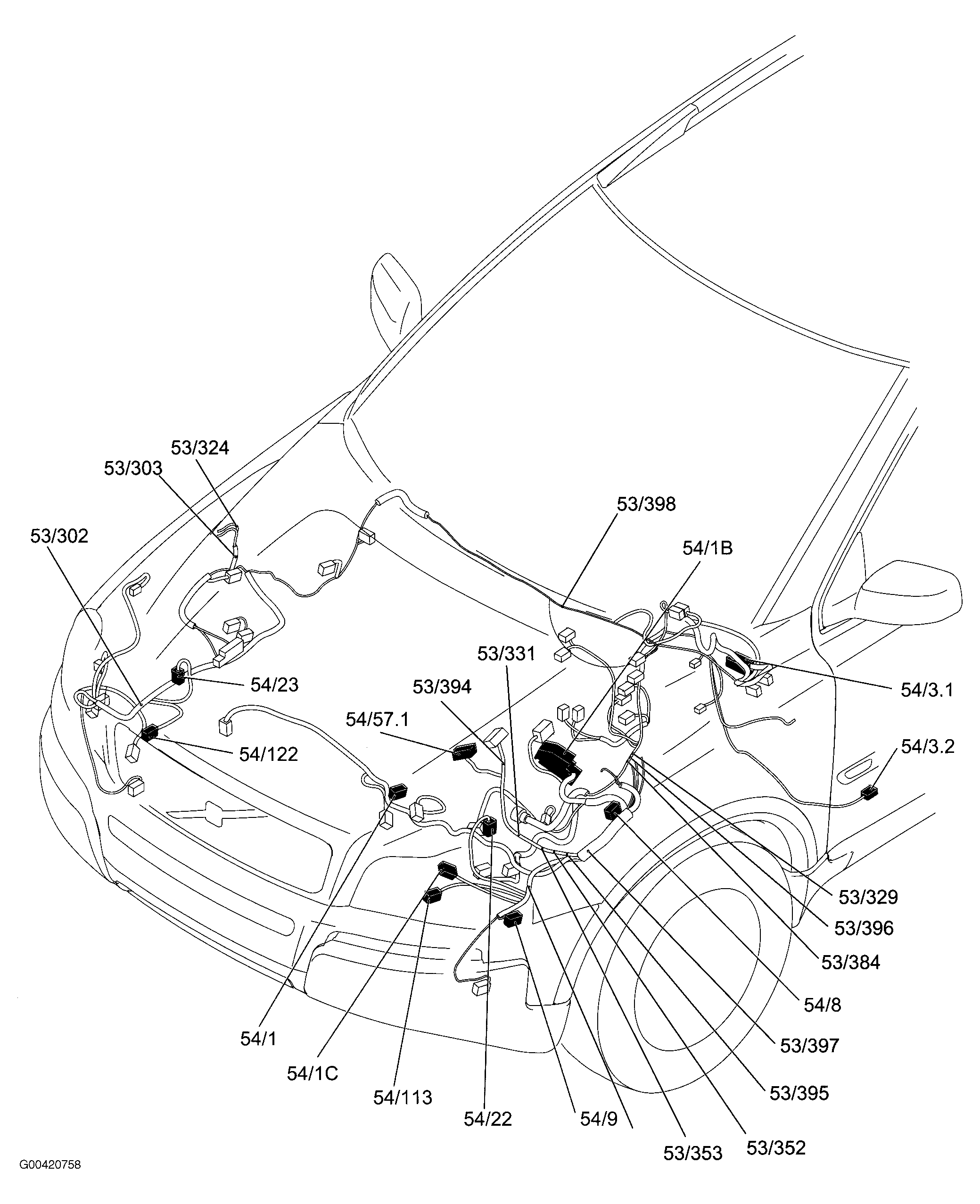

Fig 3: Engine Compartment (XC90)
G00420758Courtesy of VOLVO CARS OF NORTH AMERICA.

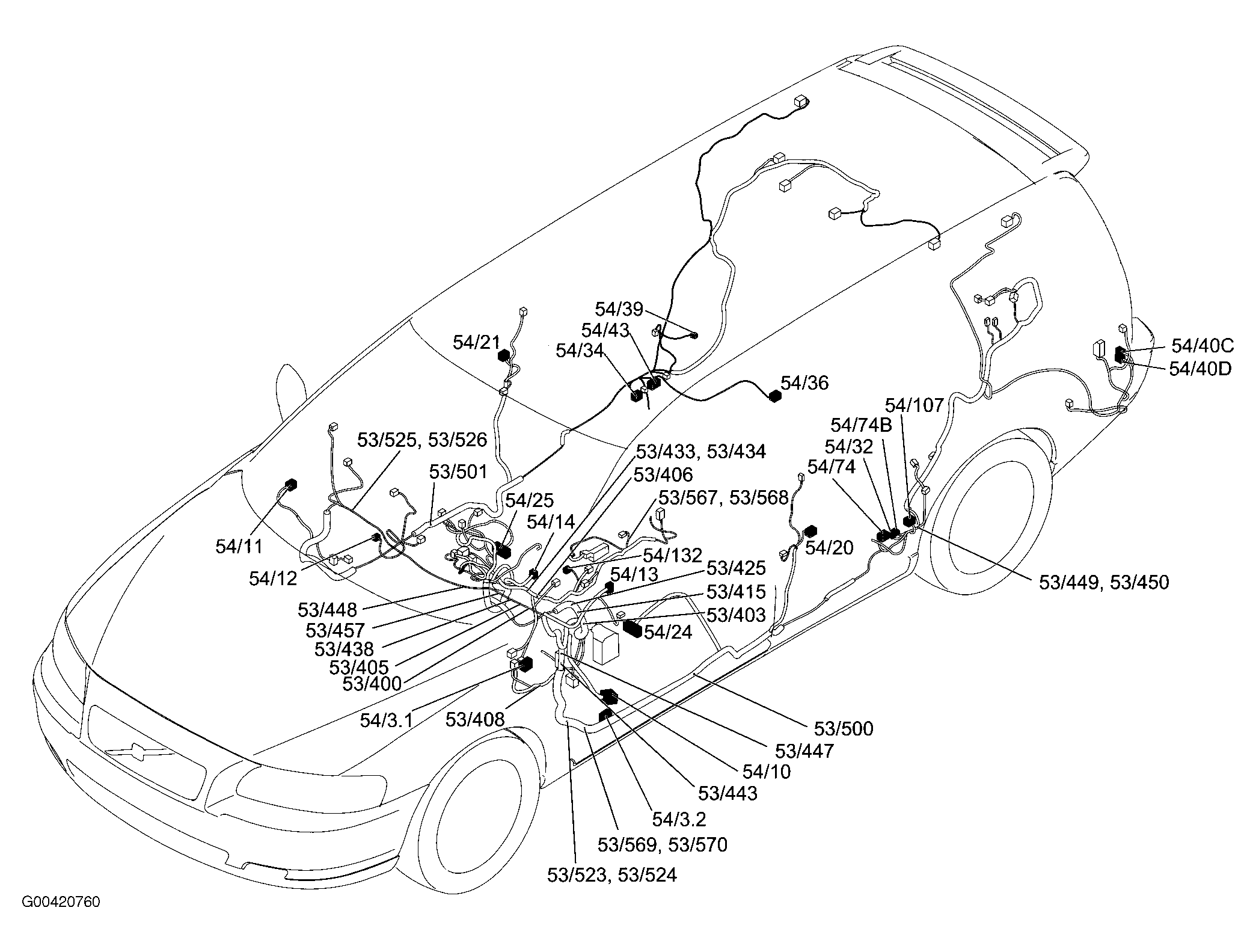

Fig 4: Vehicle Overview (V70)
G00420760Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 5: Vehicle Overview (XC90)
G00365619Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 6: Rear Of Vehicle (V70)
G00365620Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 7: Rear Of Vehicle (XC90)
G00365621Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 8: Roof (V70)
G00365622Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 9: Roof (XC90)
G00365623Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 10: Tailgate (XC90)
G00365624Courtesy of VOLVO CARS OF NORTH AMERICA.

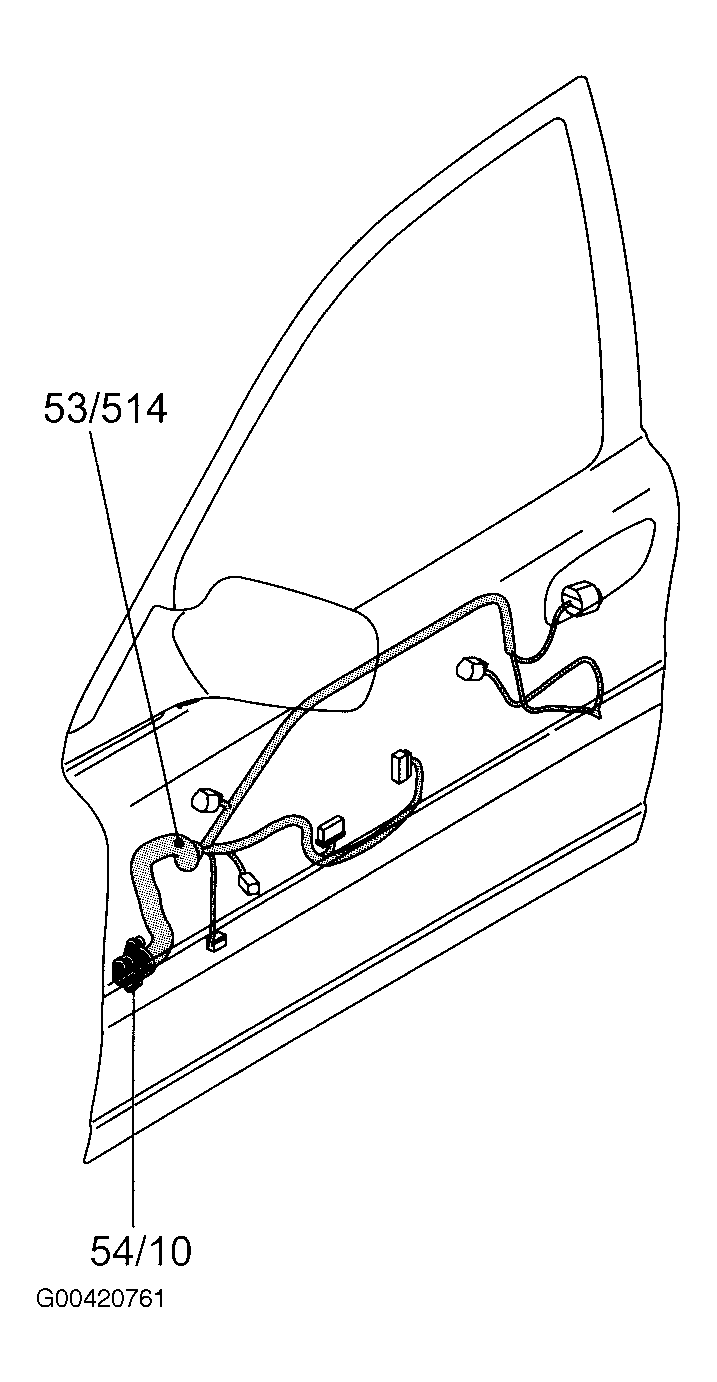

Fig 11: Left Front Door (V70)
G00420761Courtesy of VOLVO CARS OF NORTH AMERICA.

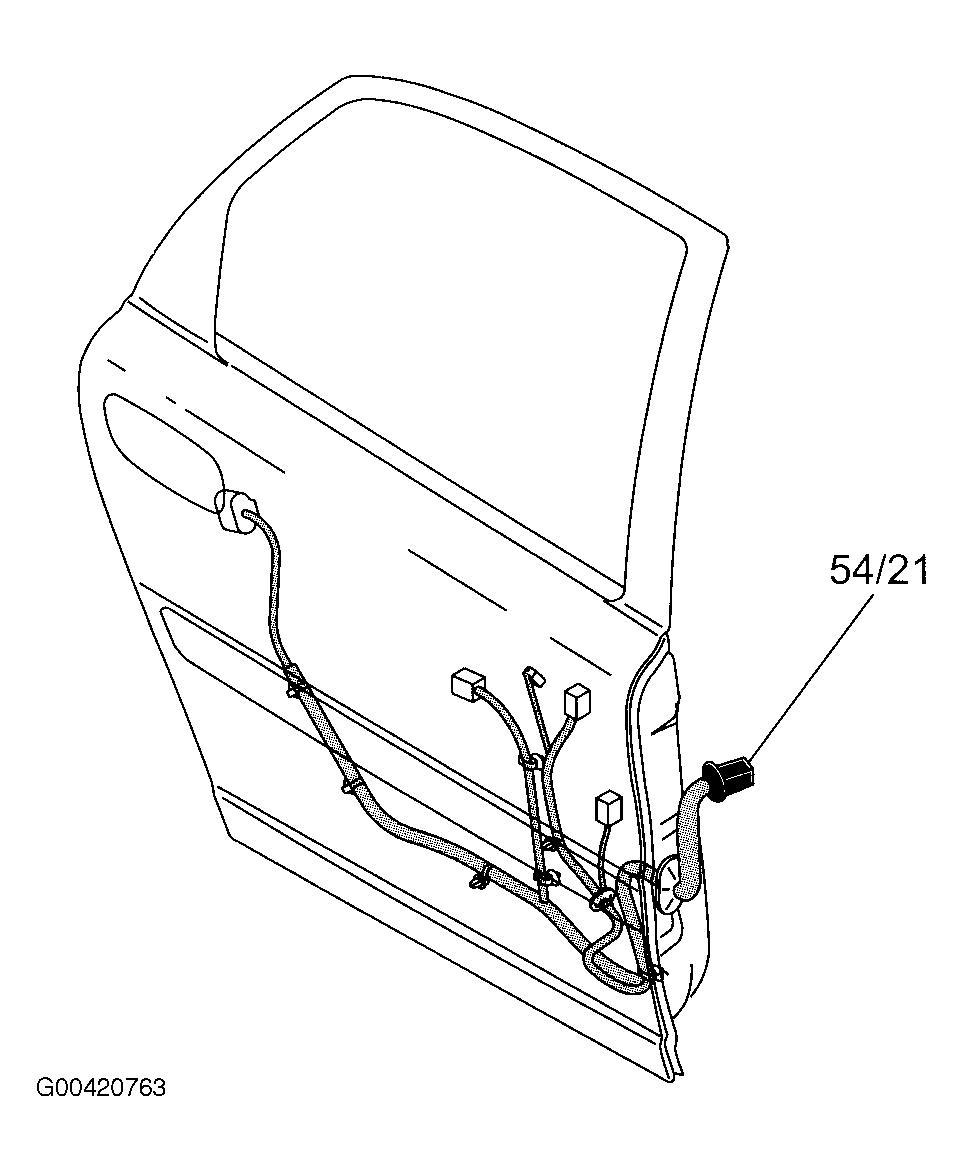

Fig 12: Right Rear Door (V70)
G00420763Courtesy of VOLVO CARS OF NORTH AMERICA.

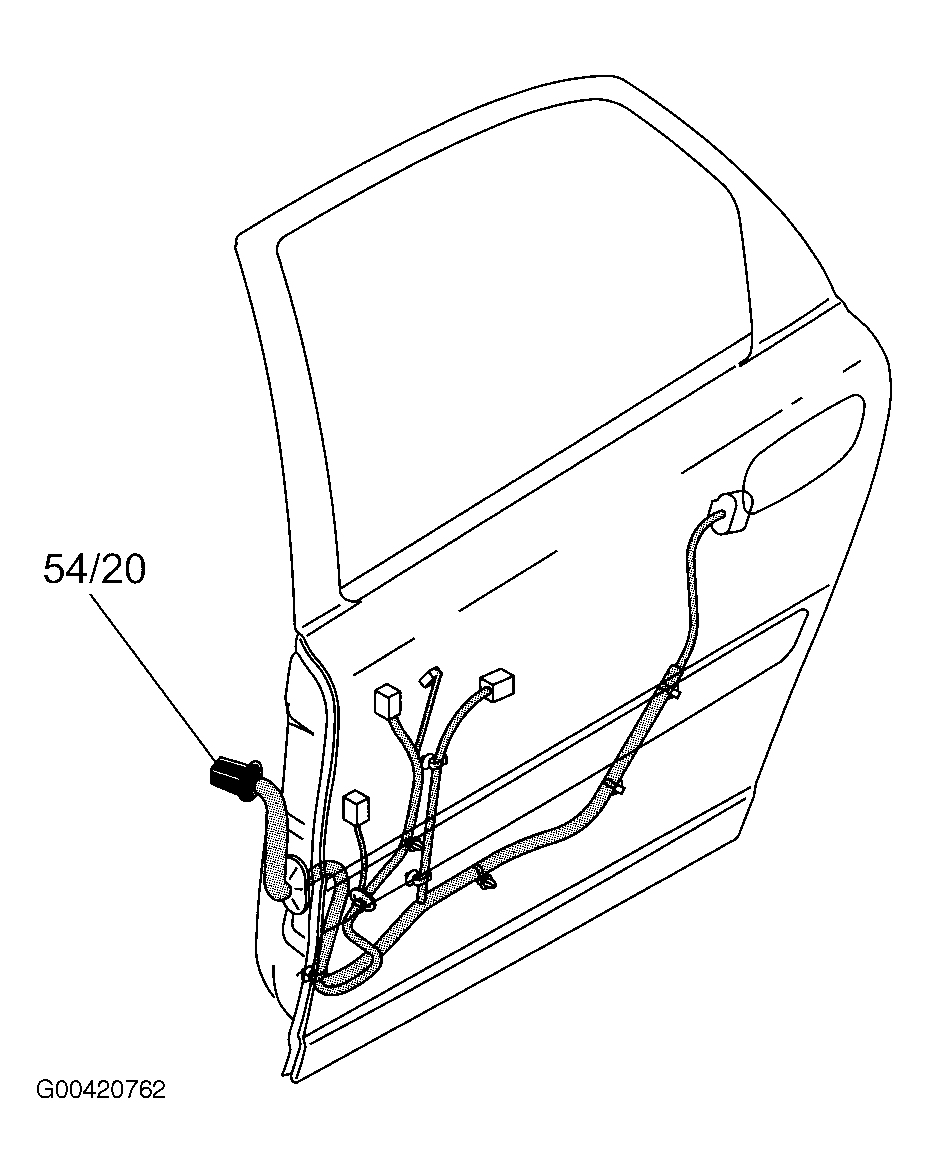

Fig 13: Left Rear Door (V70)
G00420762Courtesy of VOLVO CARS OF NORTH AMERICA.

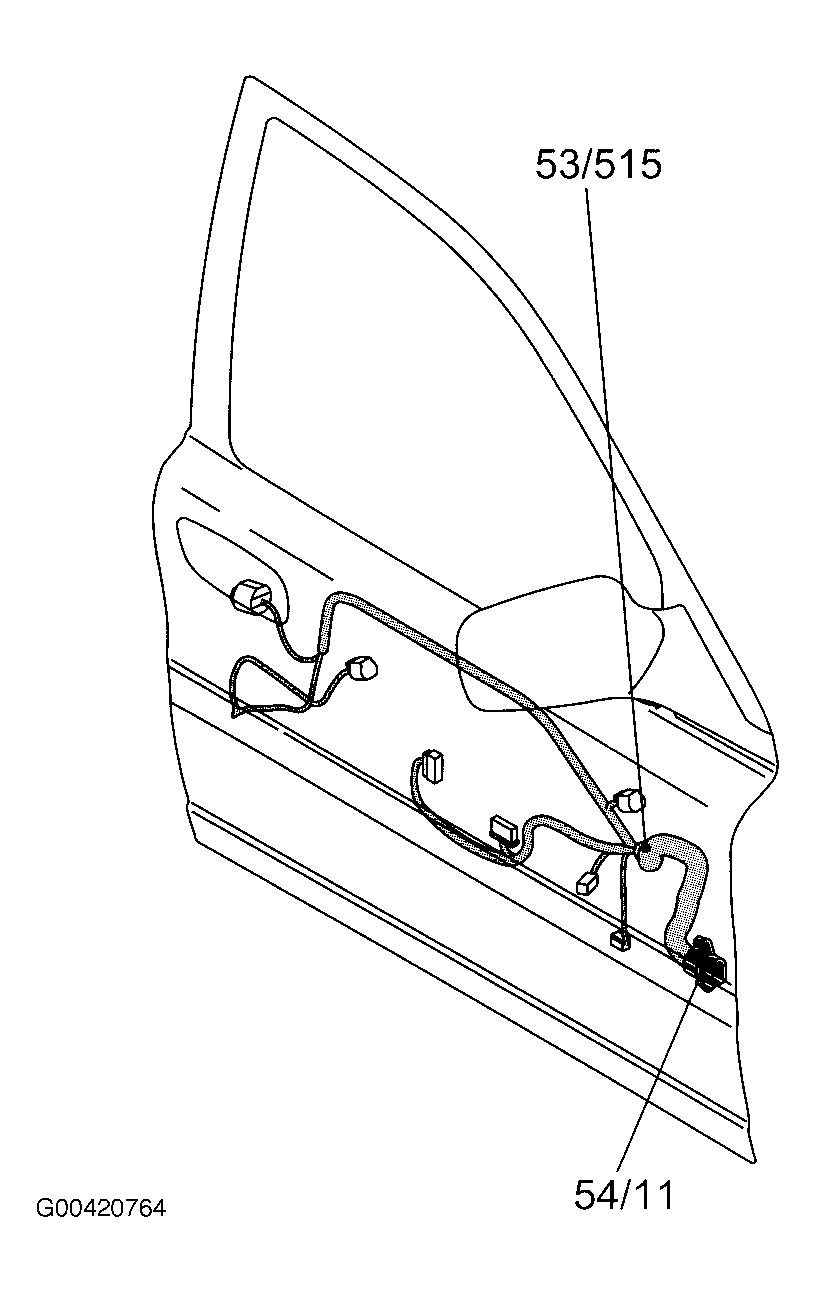

Fig 14: Right Front Door (V70)
G00420764Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 15: Left Front Door (XC90)
G00365629Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 16: Right Front Door (XC90)
G00365630Courtesy of VOLVO CARS OF NORTH AMERICA.

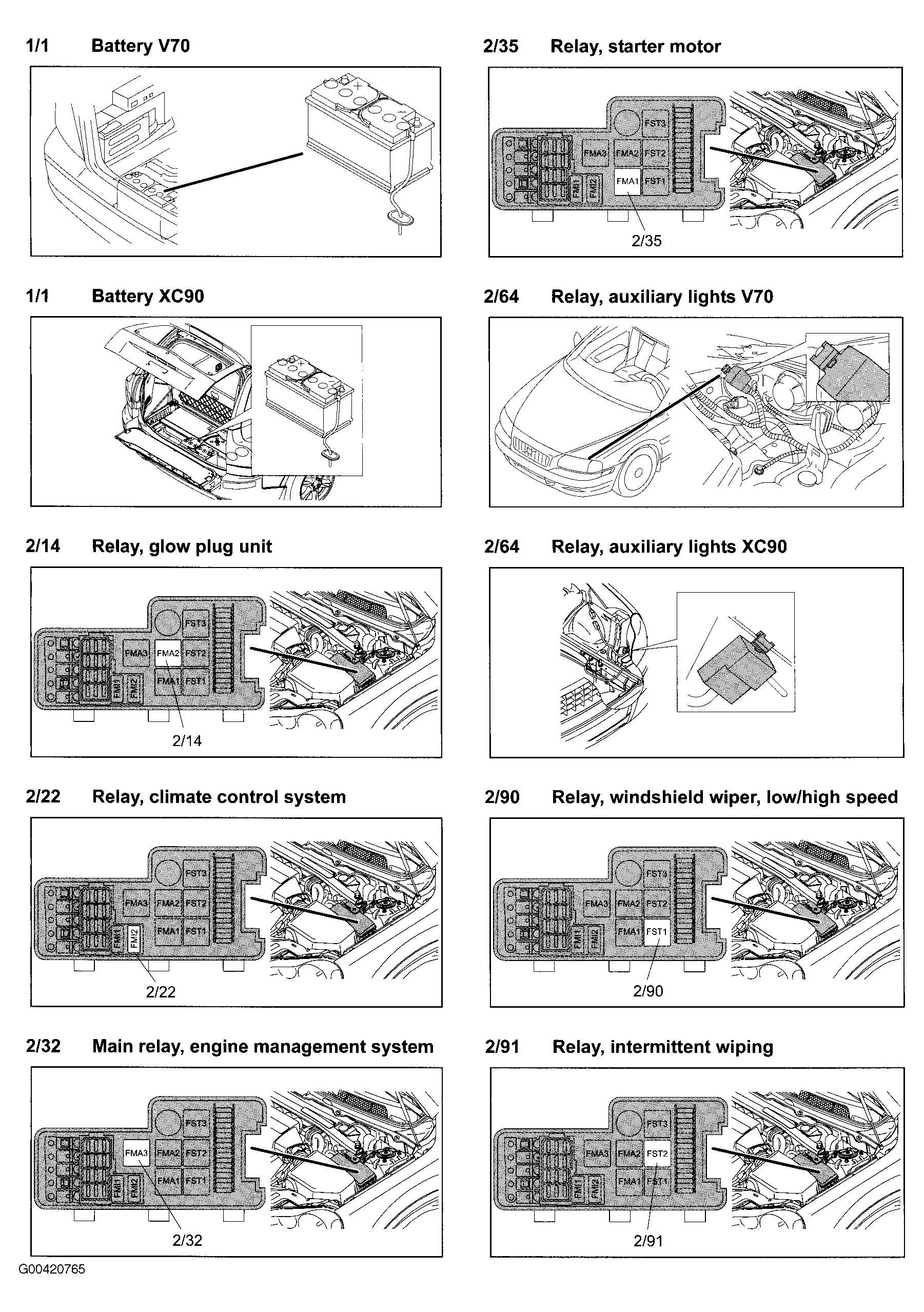

Fig 17: Components 1/1 To 2/91
G00420765Courtesy of VOLVO CARS OF NORTH AMERICA.

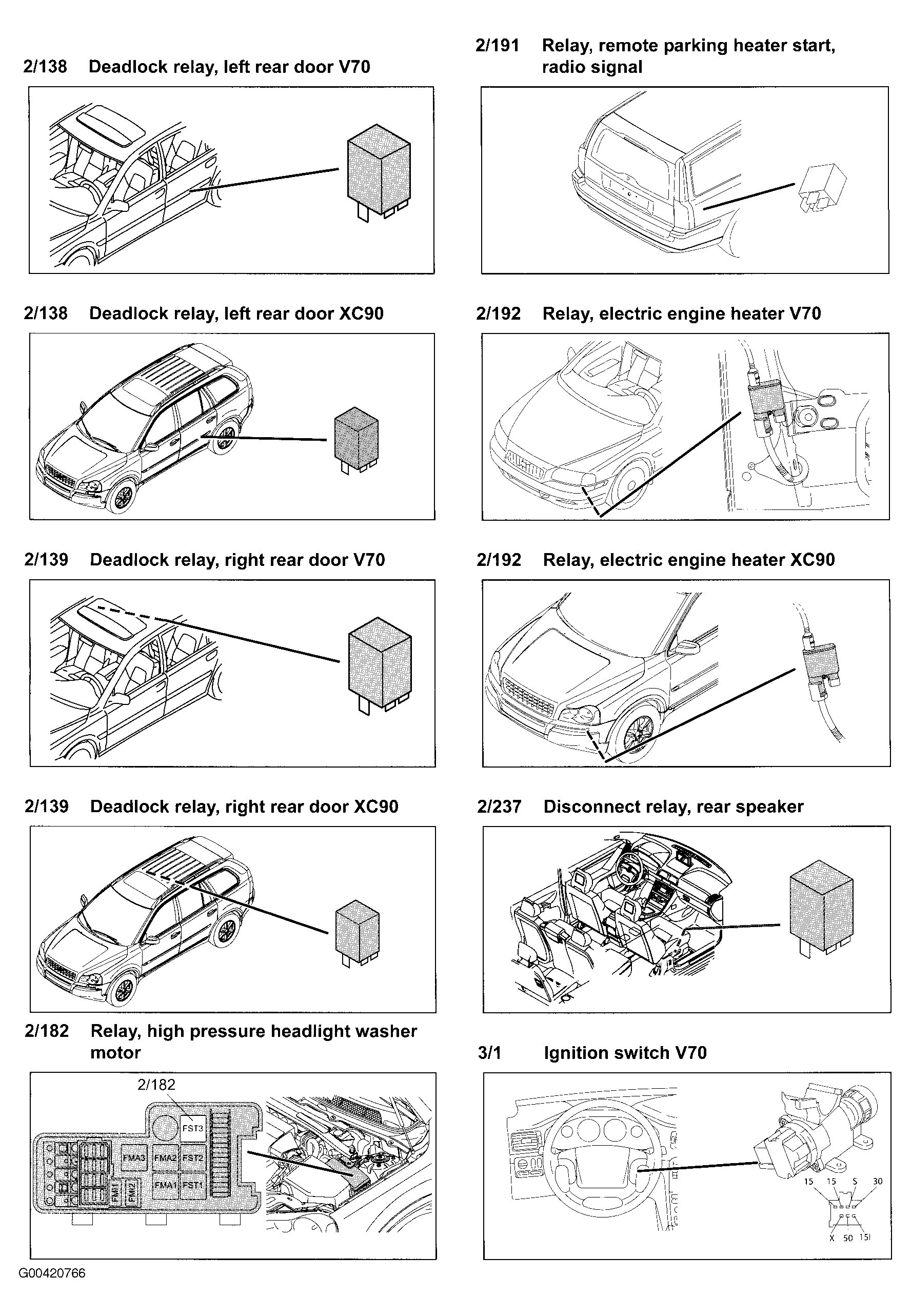

Fig 18: Components 2/138 To 3/1
G00420766Courtesy of VOLVO CARS OF NORTH AMERICA.

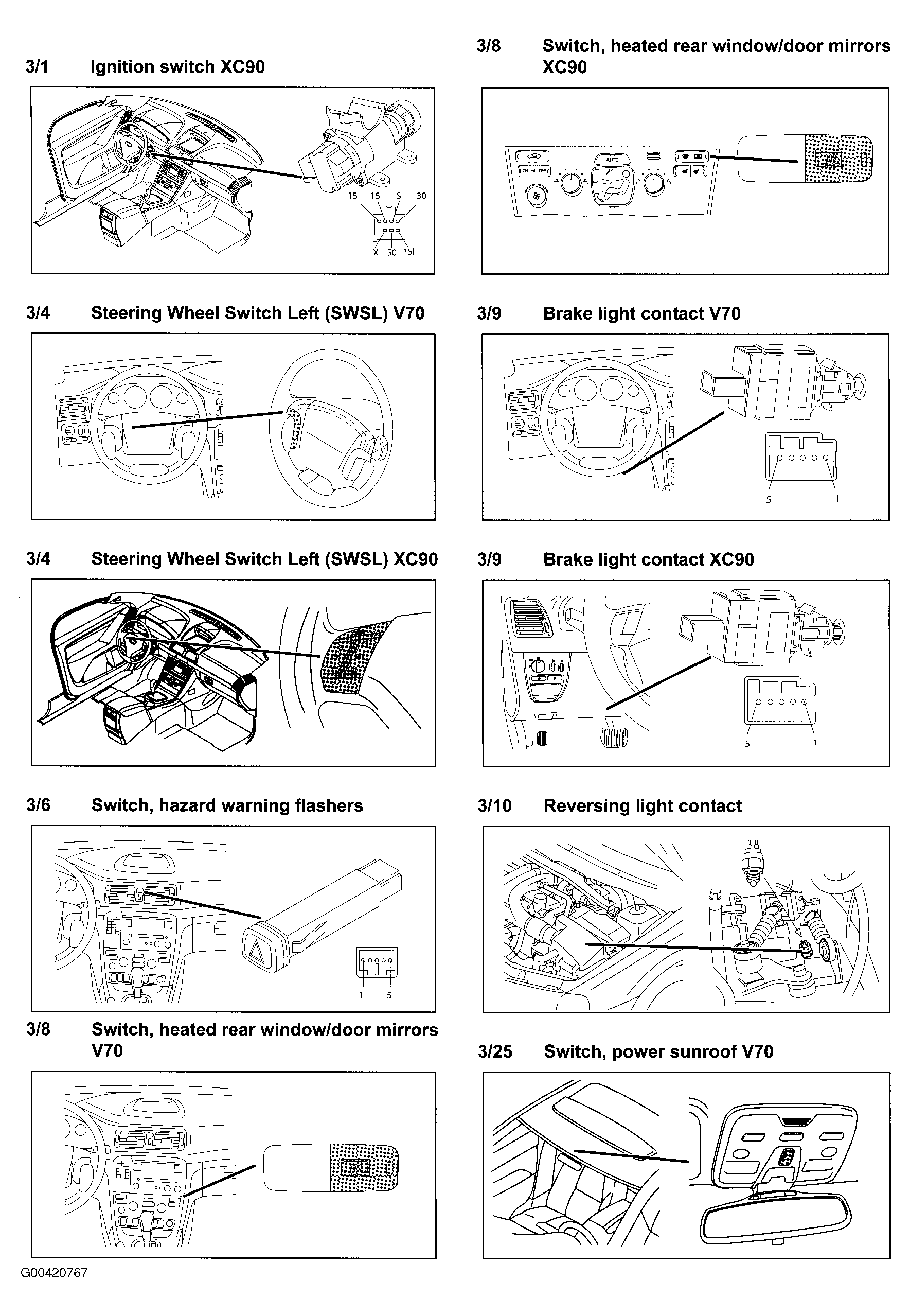

Fig 19: Components 3/1 To 3/25
G00420767Courtesy of VOLVO CARS OF NORTH AMERICA.

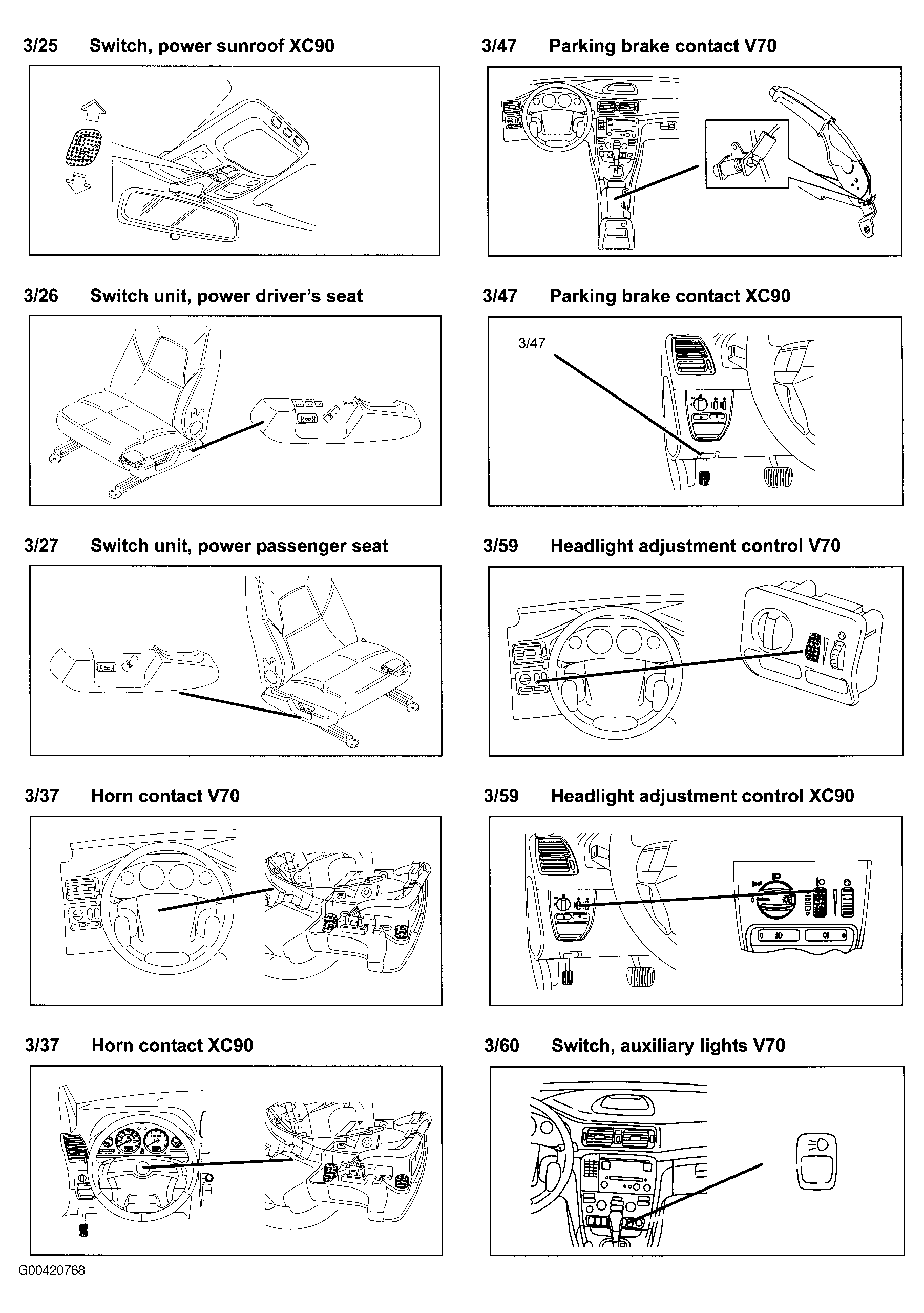

Fig 20: Components 3/25 To 3/60
G00420768Courtesy of VOLVO CARS OF NORTH AMERICA.

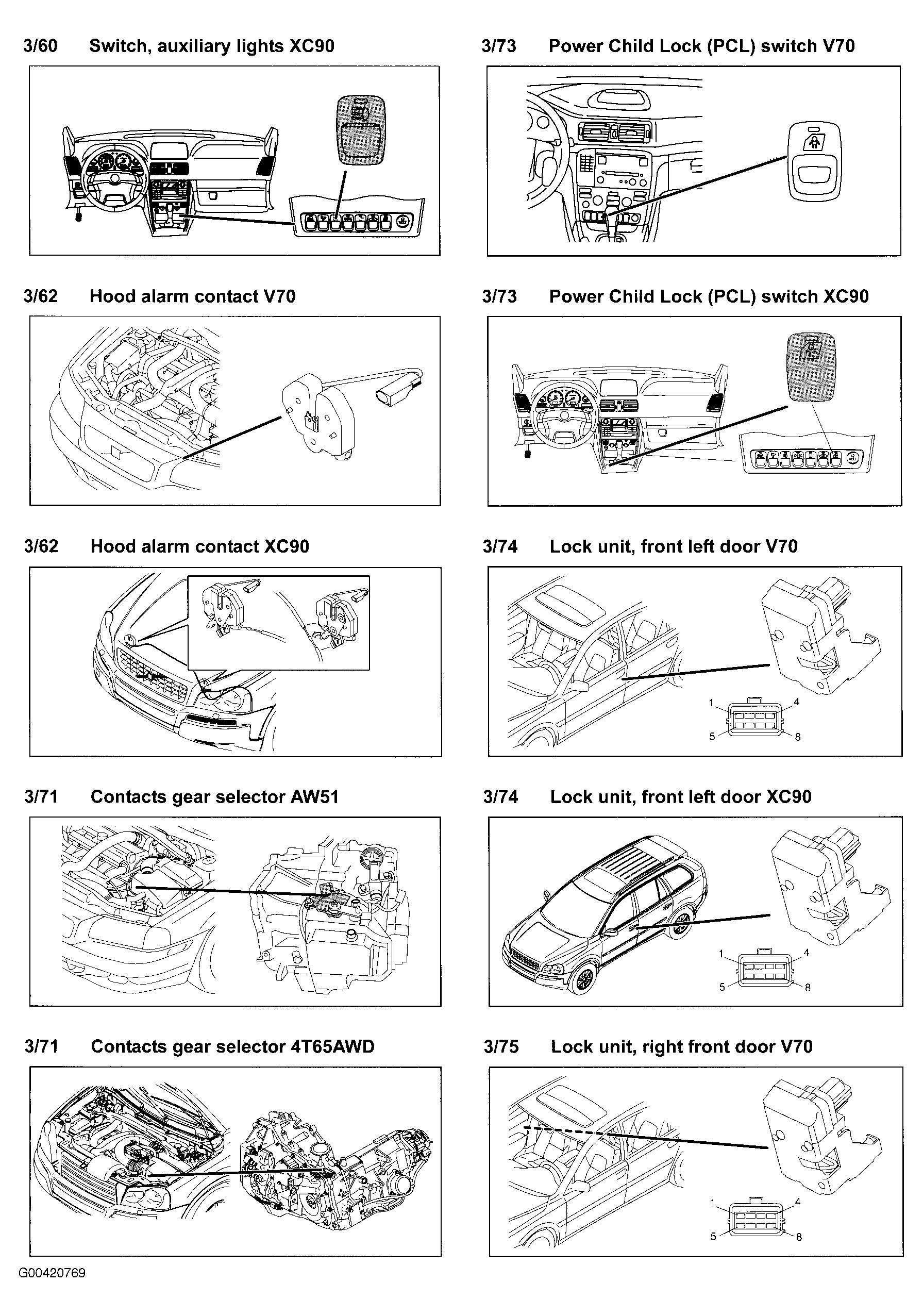

Fig 21: Components 3/60 To 3/75
G00420769Courtesy of VOLVO CARS OF NORTH AMERICA.

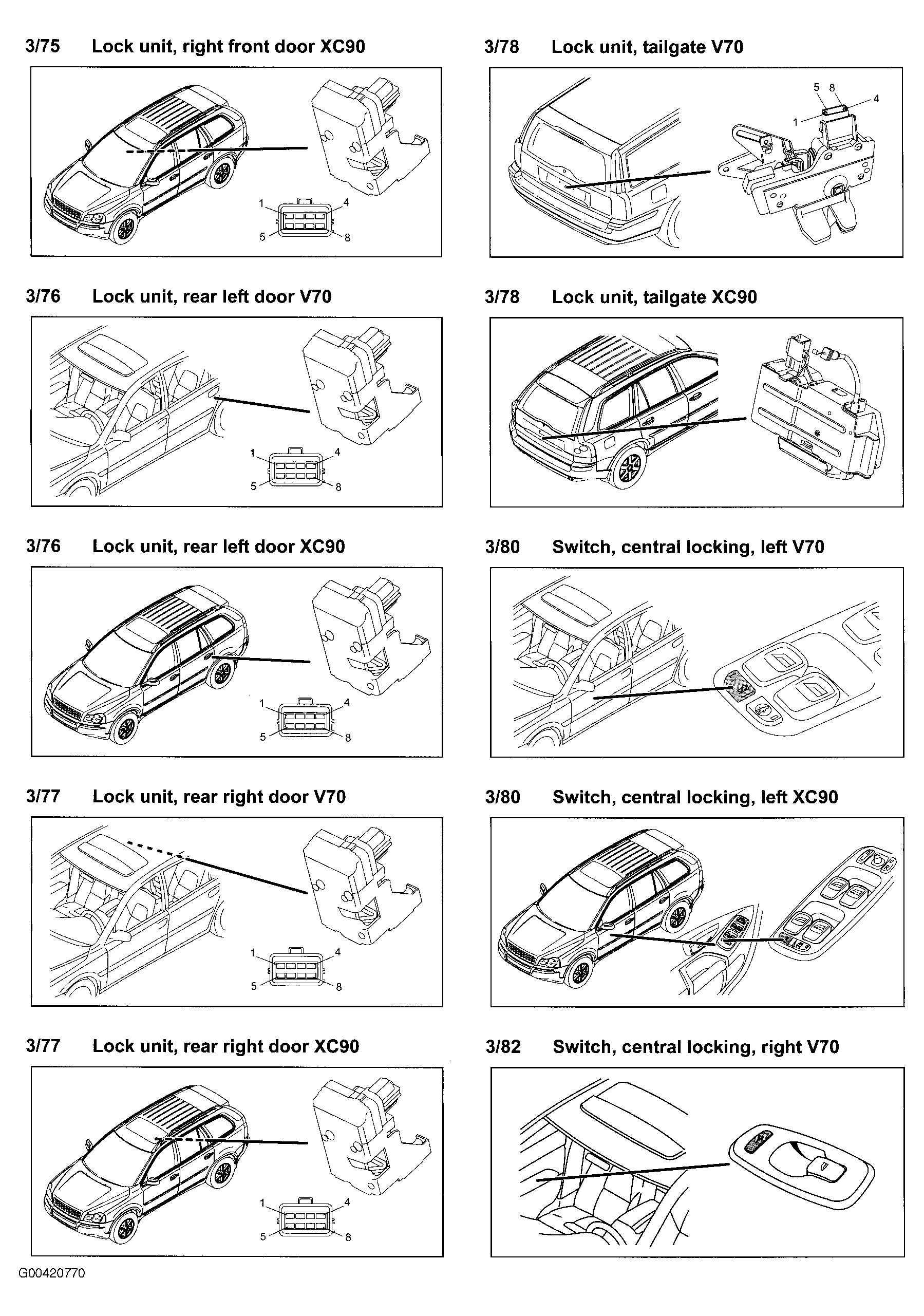

Fig 22: Components 3/75 To 3/82
G00420770Courtesy of VOLVO CARS OF NORTH AMERICA.

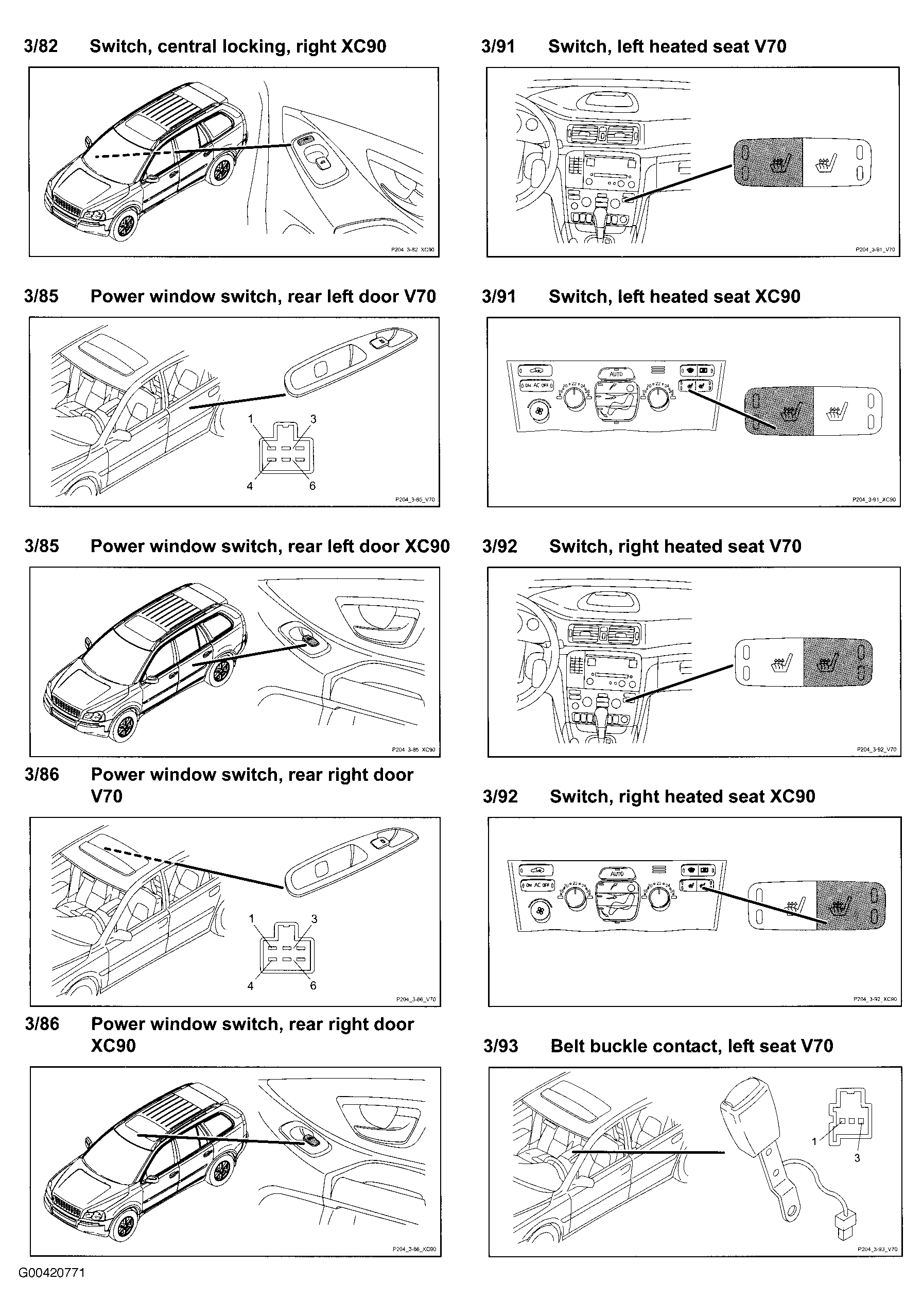

Fig 23: Components 3/82 To 3/93
G00420771Courtesy of VOLVO CARS OF NORTH AMERICA.

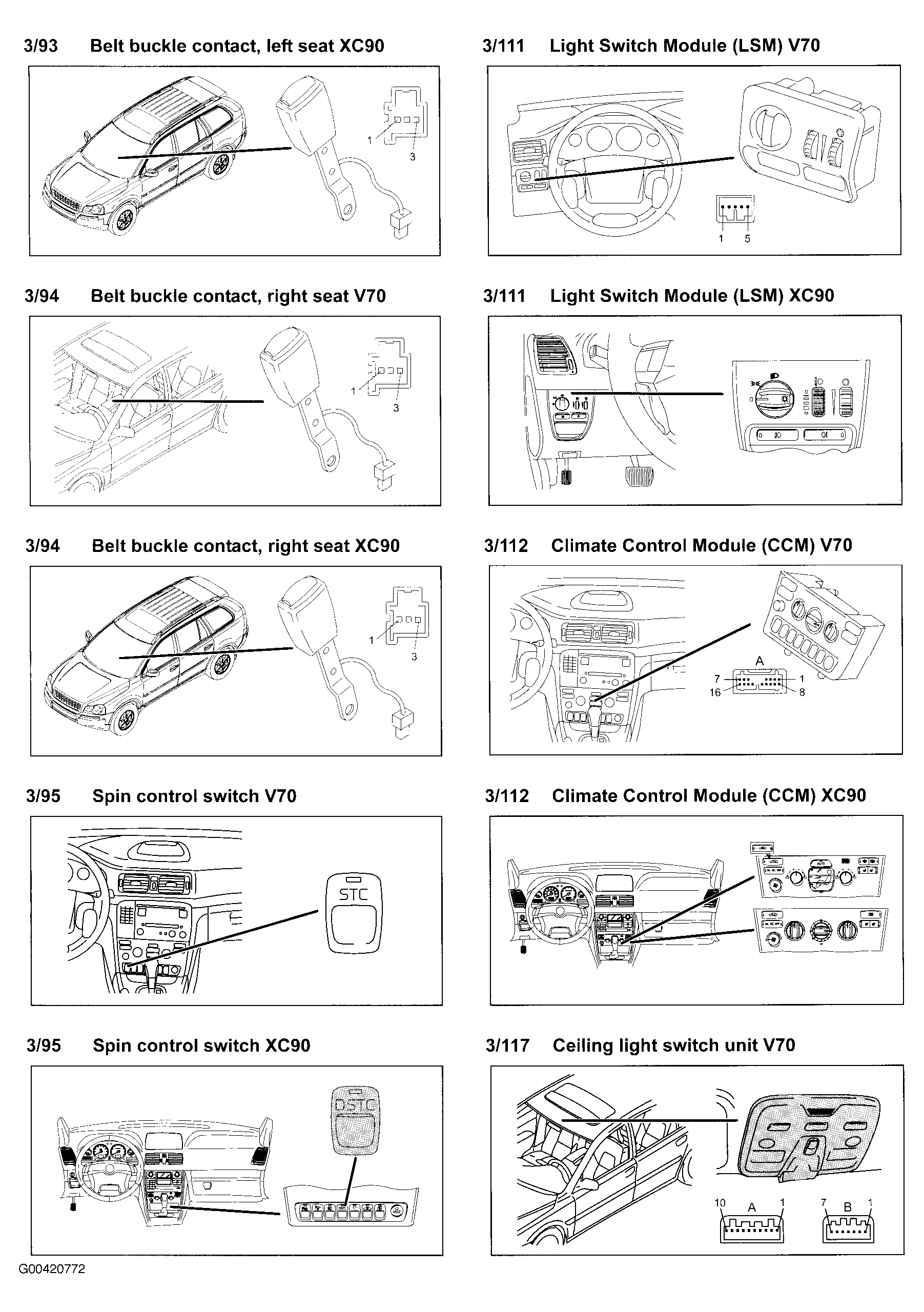

Fig 24: Components 3/93 To 3/117
G00420772Courtesy of VOLVO CARS OF NORTH AMERICA.

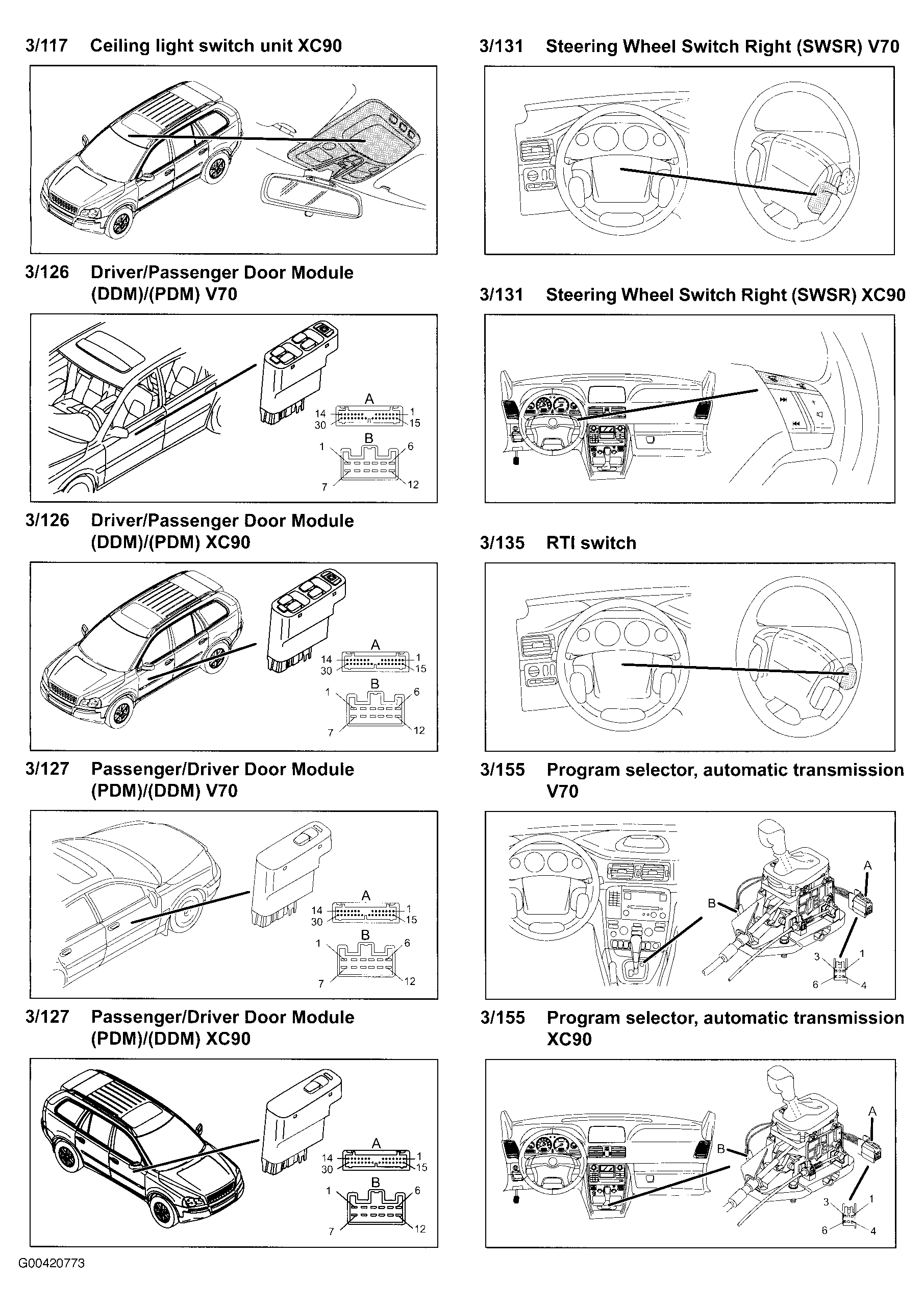

Fig 25: Components 3/117 To 3/155
G00420773Courtesy of VOLVO CARS OF NORTH AMERICA.

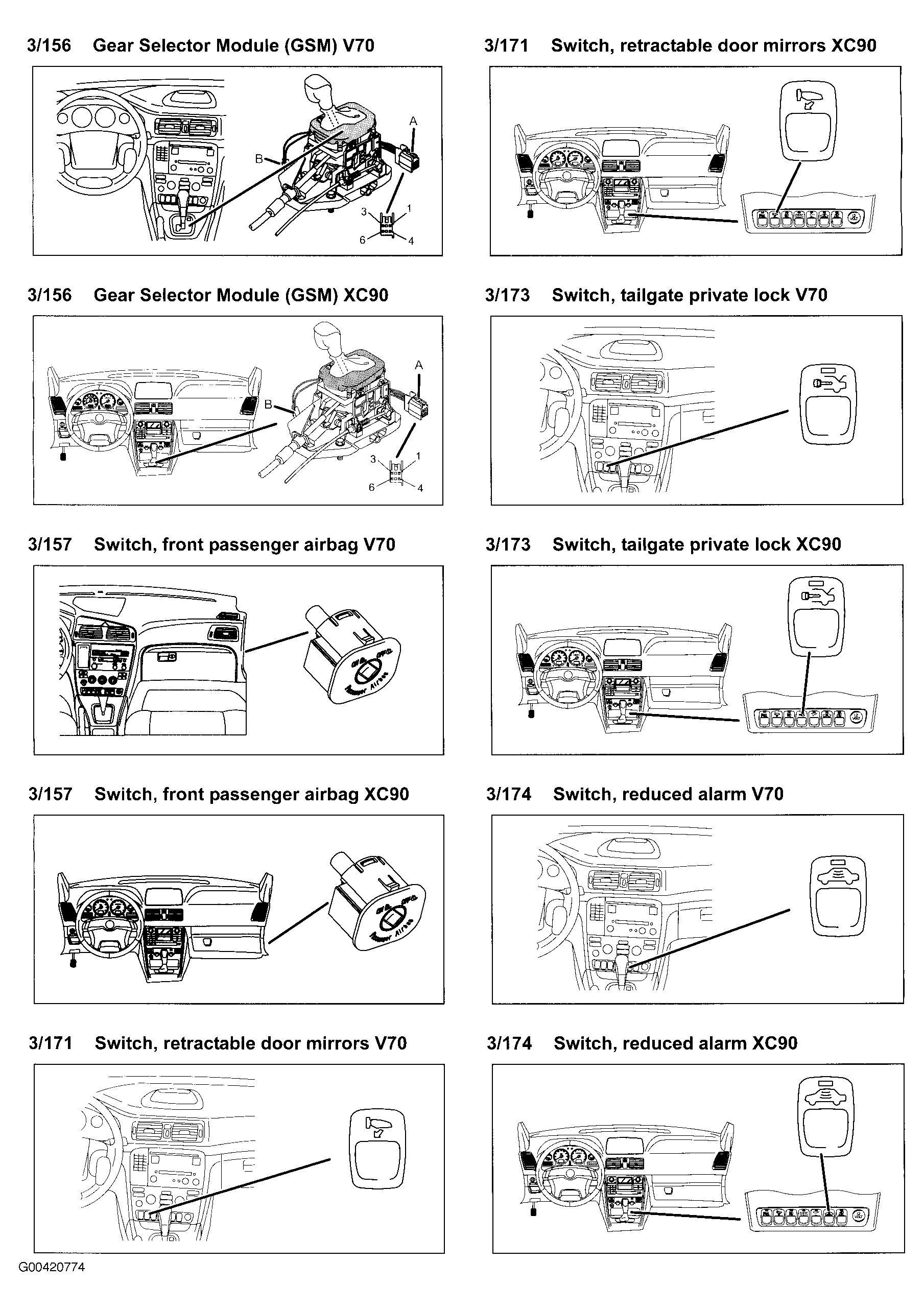

Fig 26: Components 3/156 To 3/174
G00420774Courtesy of VOLVO CARS OF NORTH AMERICA.

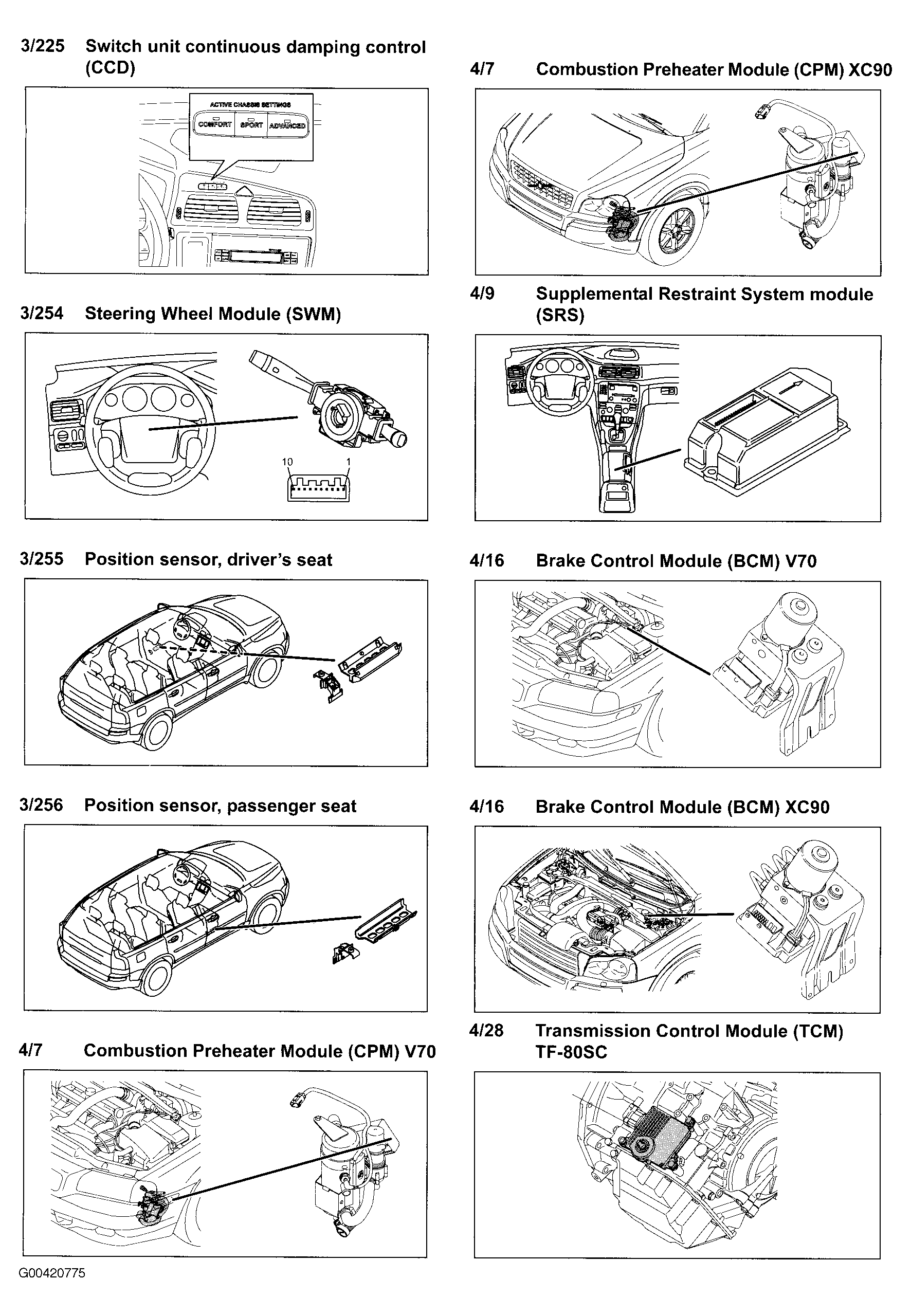

Fig 27: Components 3/225 To 4/28
G00420775Courtesy of VOLVO CARS OF NORTH AMERICA.

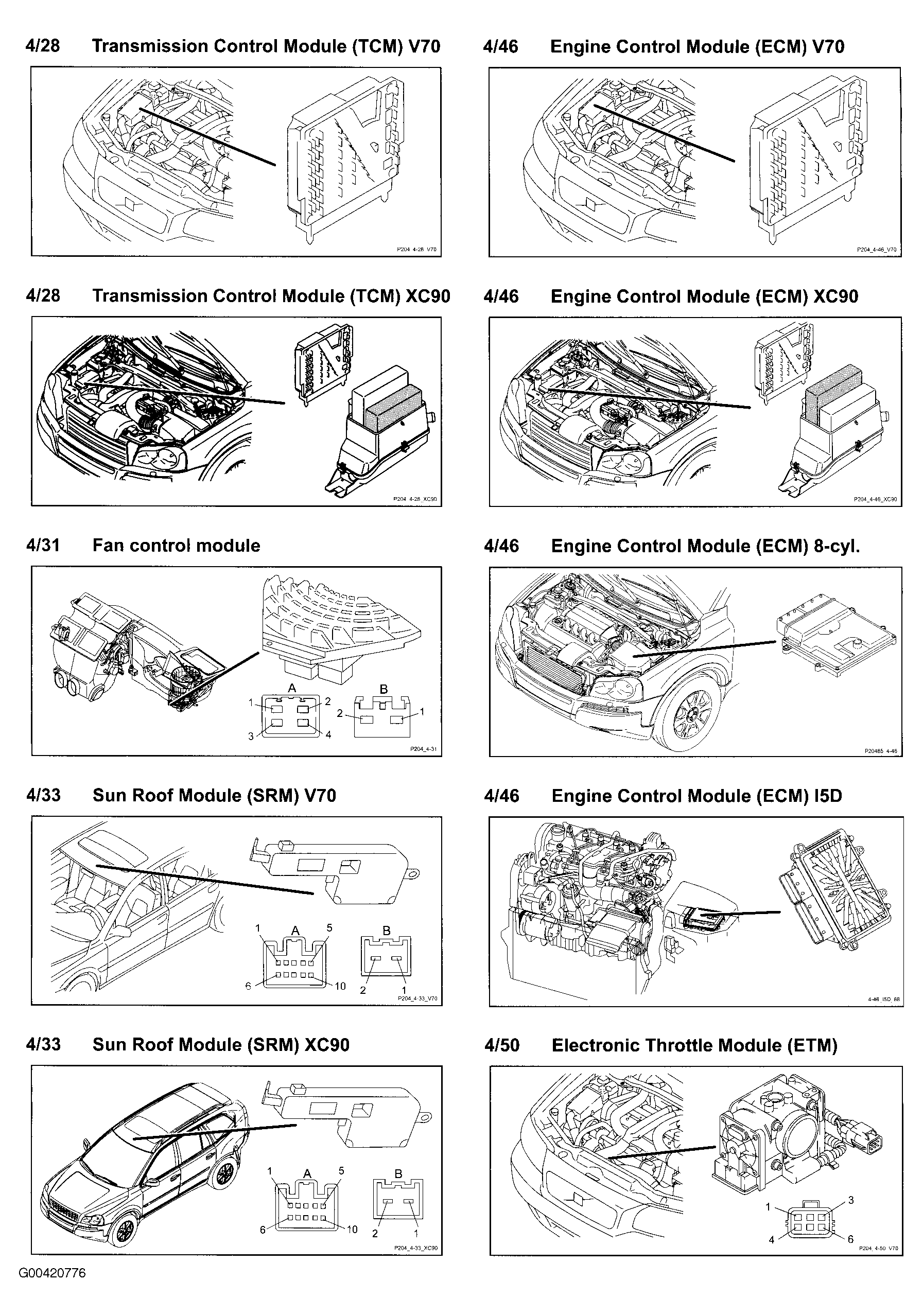

Fig 28: Components 4/28 To 4/50
G00420776Courtesy of VOLVO CARS OF NORTH AMERICA.

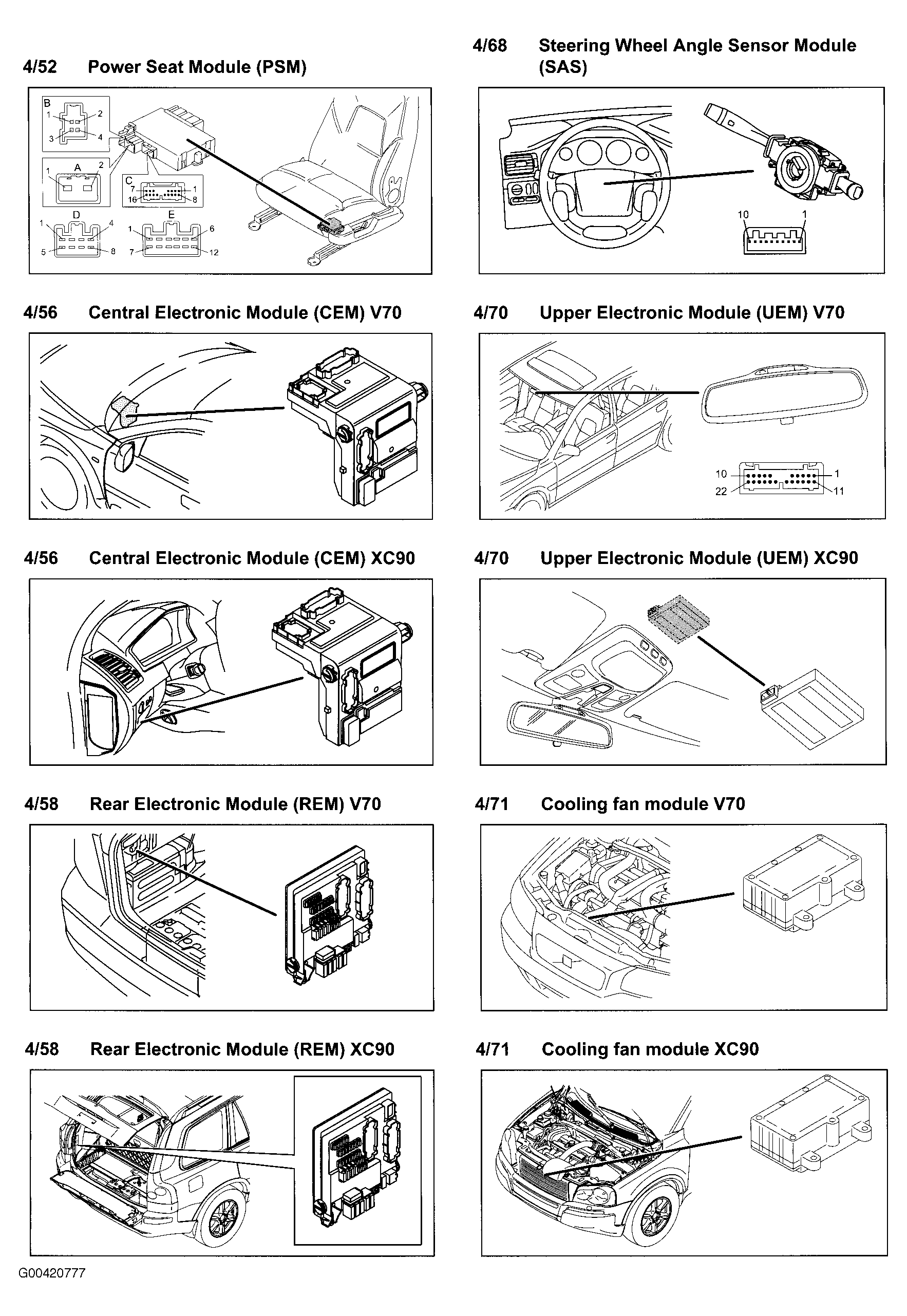

Fig 29: Components 4/52 To 4/71
G00420777Courtesy of VOLVO CARS OF NORTH AMERICA.

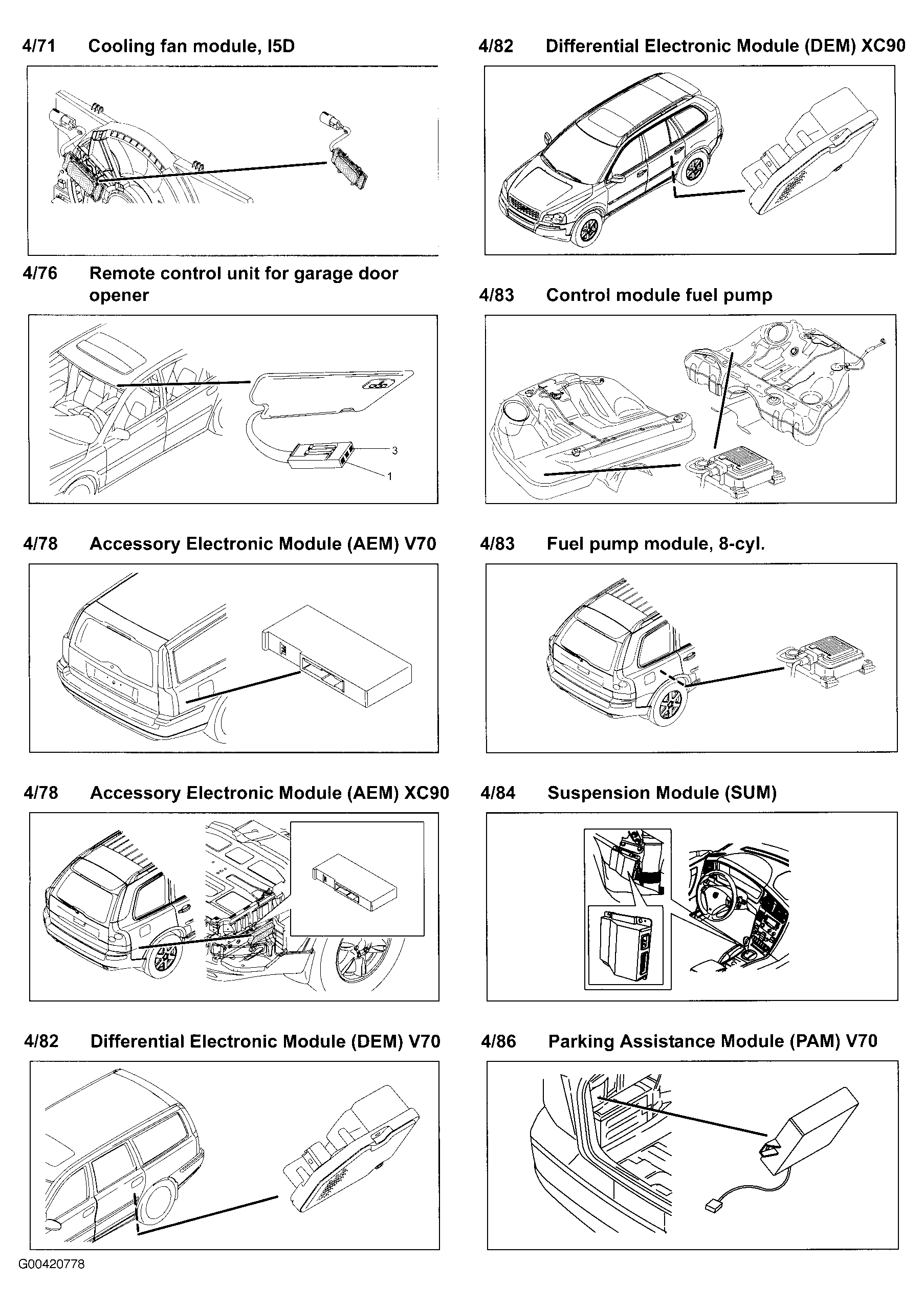

Fig 30: Components 4/71 To 4/86
G00420778Courtesy of VOLVO CARS OF NORTH AMERICA.

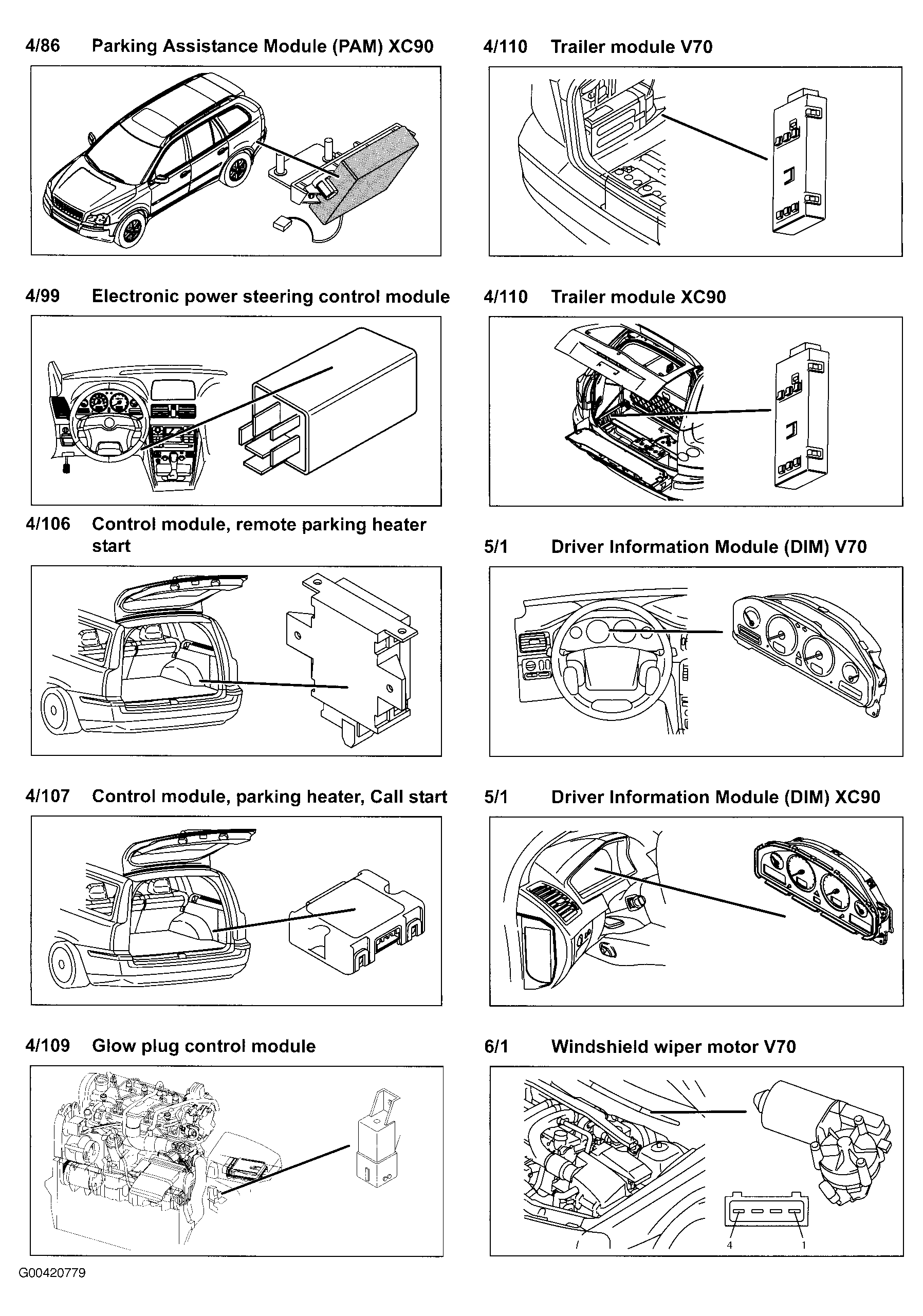

Fig 31: Components 4/86 To 6/1
G00420779Courtesy of VOLVO CARS OF NORTH AMERICA.

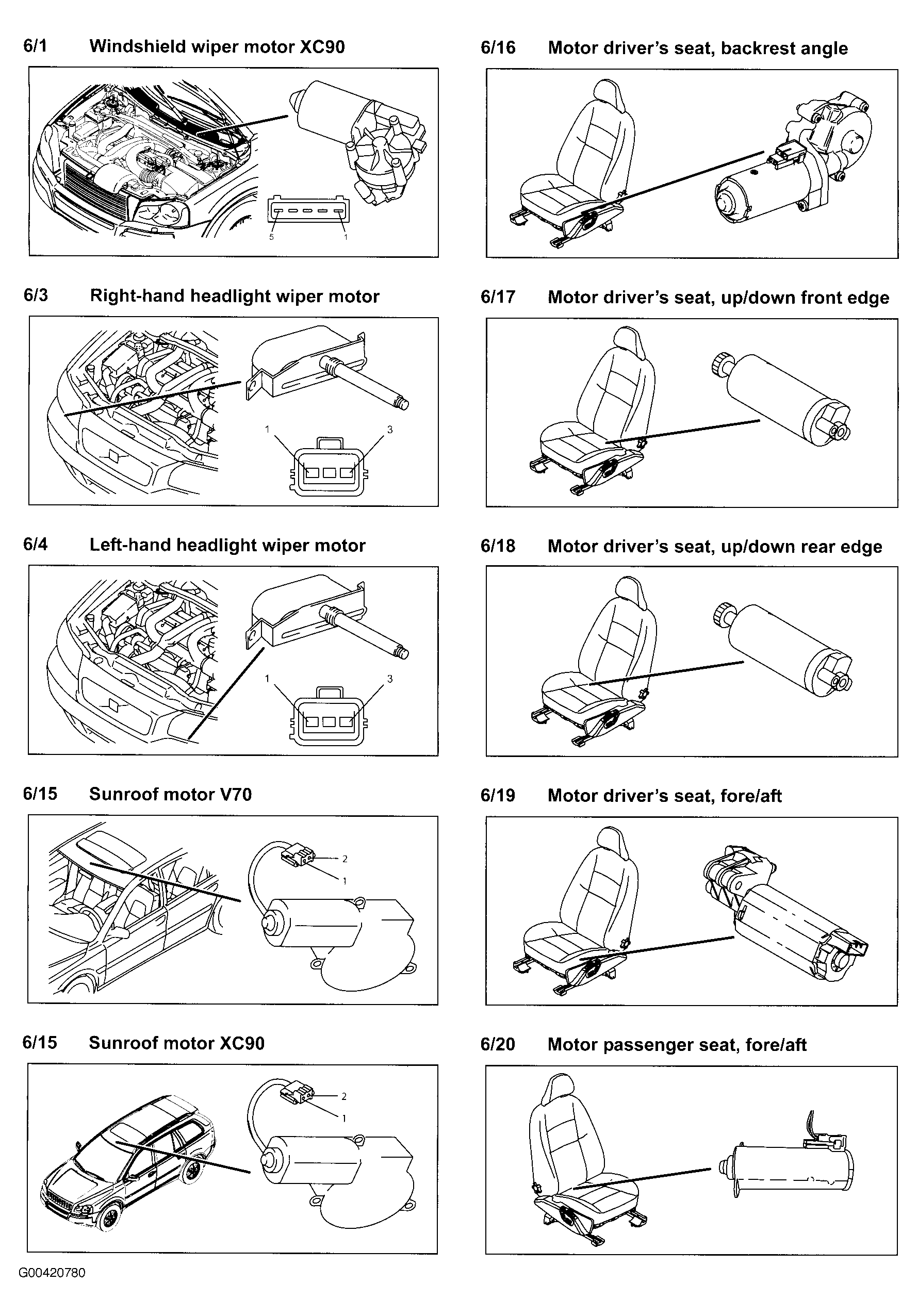

Fig 32: Components 6/1 To 6/20
G00420780Courtesy of VOLVO CARS OF NORTH AMERICA.

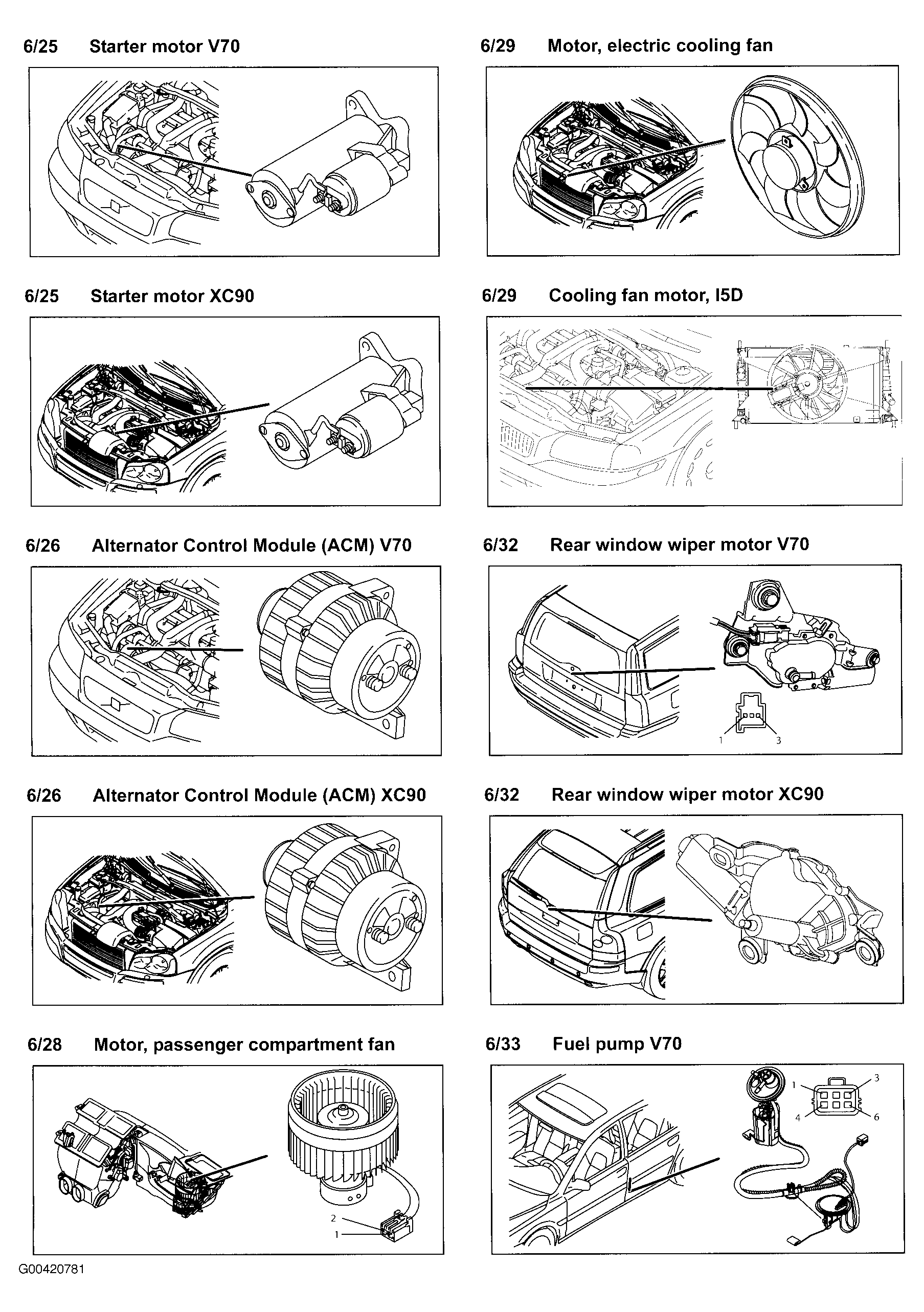

Fig 33: Components 6/25 To 6/33
G00420781Courtesy of VOLVO CARS OF NORTH AMERICA.

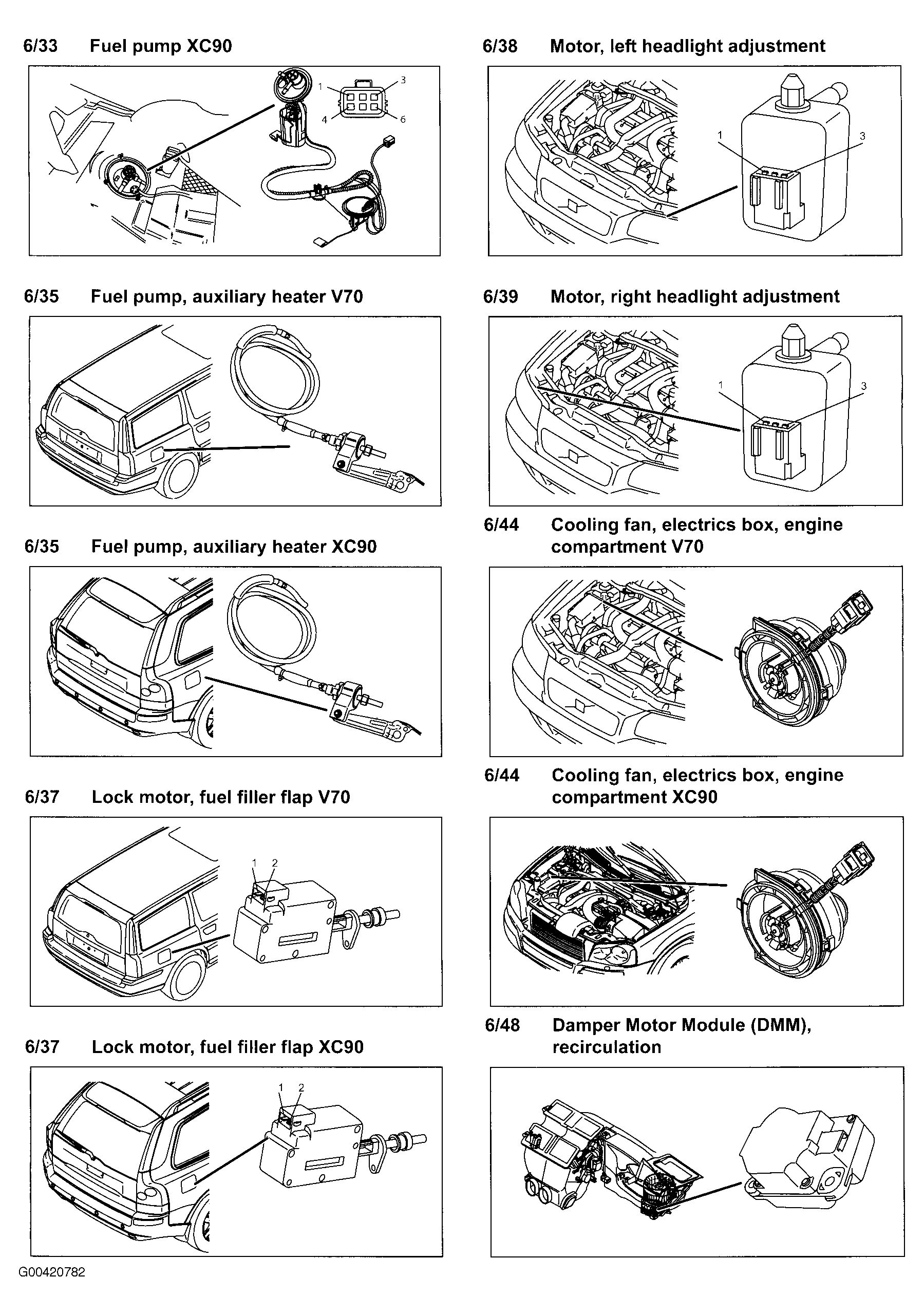

Fig 34: Components 6/33 To 6/48
G00420782Courtesy of VOLVO CARS OF NORTH AMERICA.

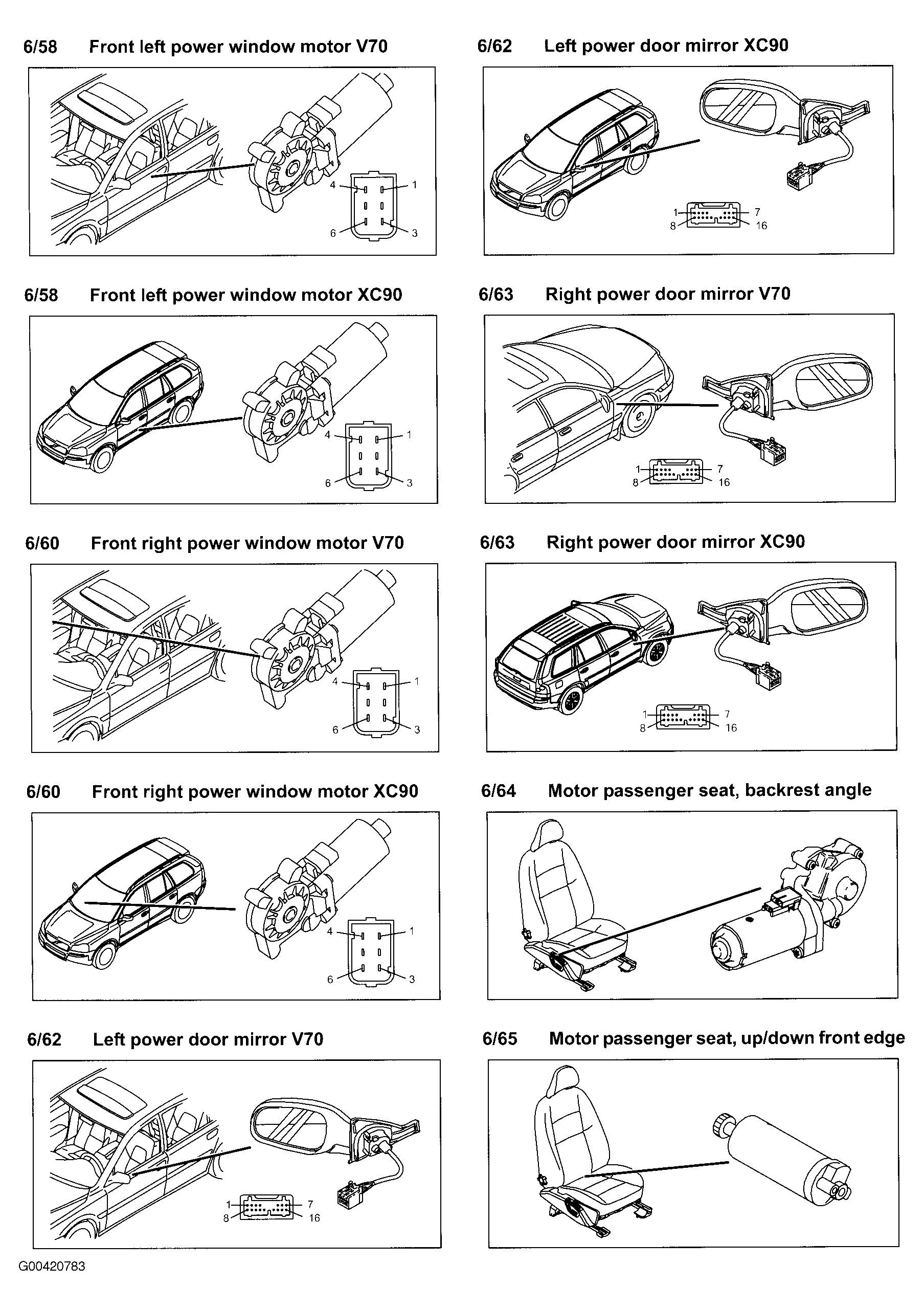

Fig 35: Components 6/58 To 6/65
G00420783Courtesy of VOLVO CARS OF NORTH AMERICA.

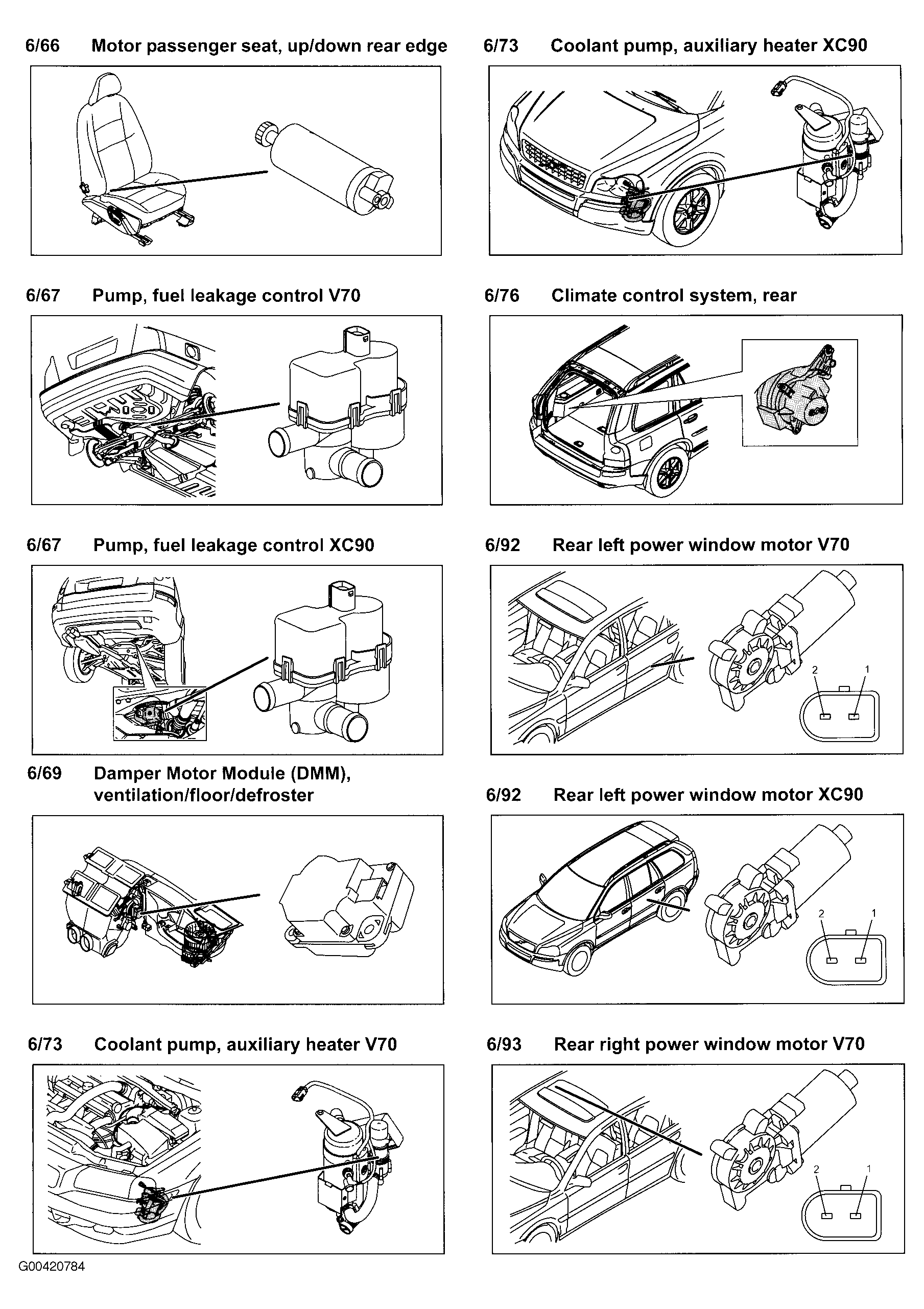

Fig 36: Components 6/66 To 6/93
G00420784Courtesy of VOLVO CARS OF NORTH AMERICA.

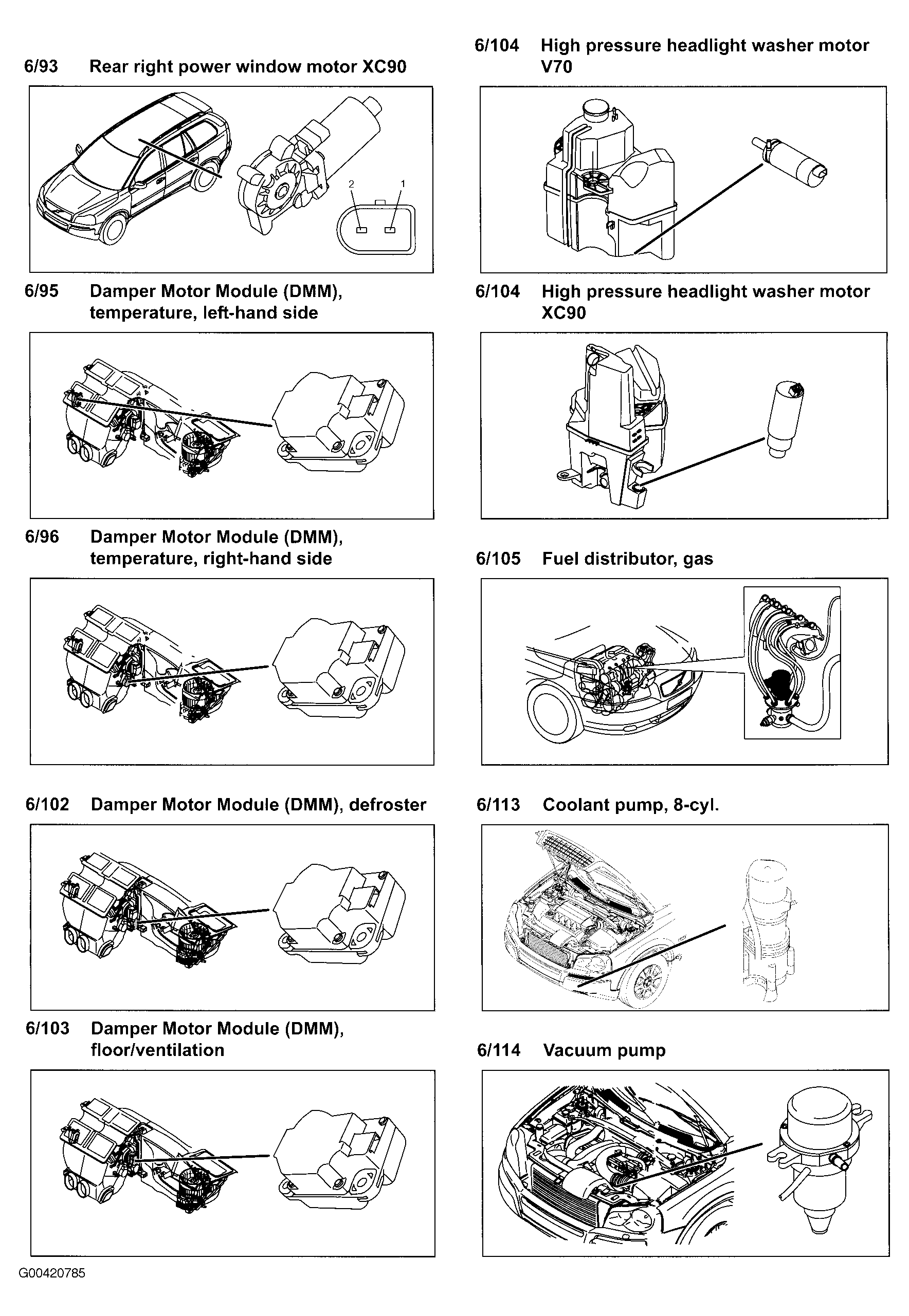

Fig 37: Components 6/93 To 6/114
G00420785Courtesy of VOLVO CARS OF NORTH AMERICA.

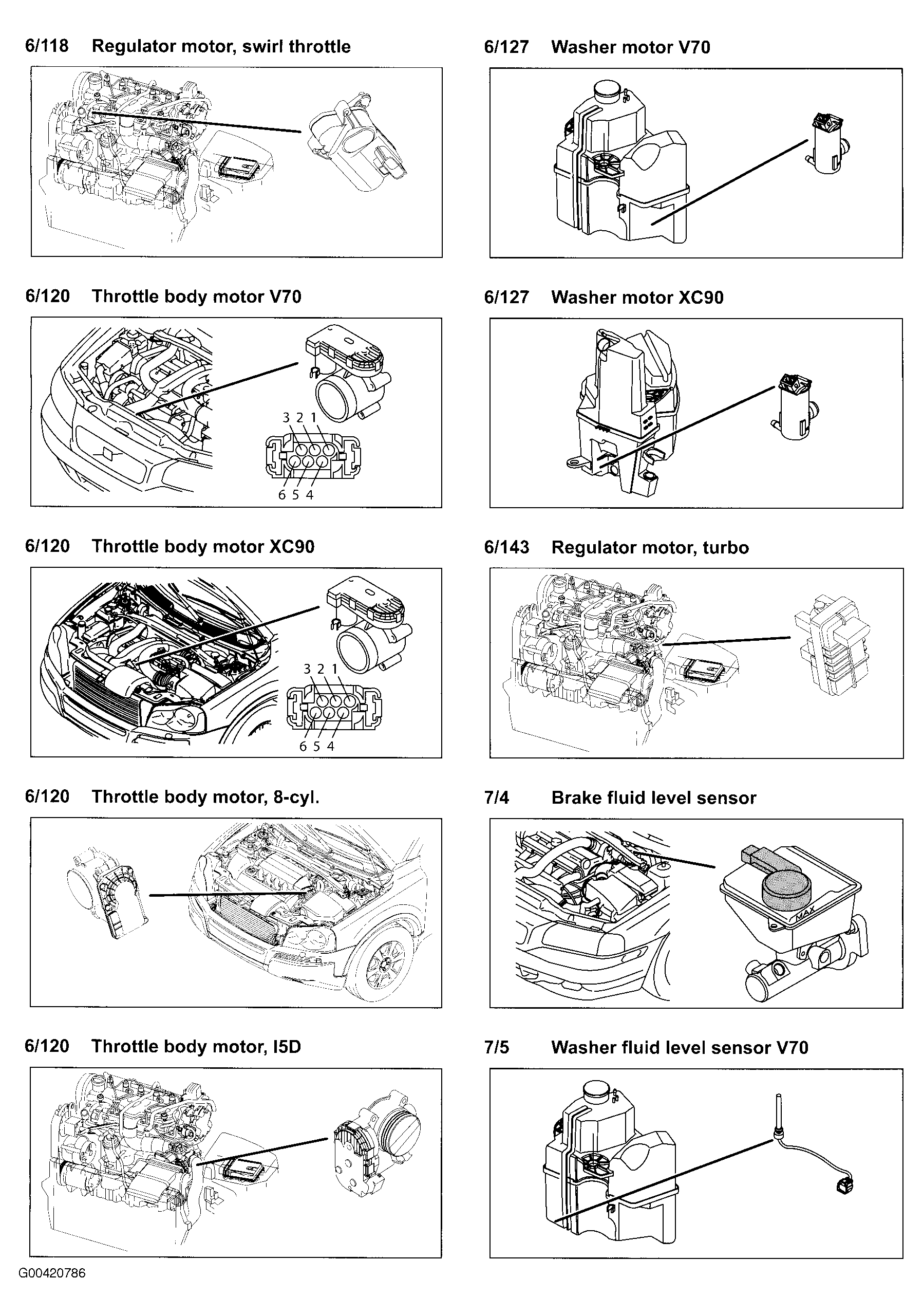

Fig 38: Components 6/118 To 7/5
G00420786Courtesy of VOLVO CARS OF NORTH AMERICA.

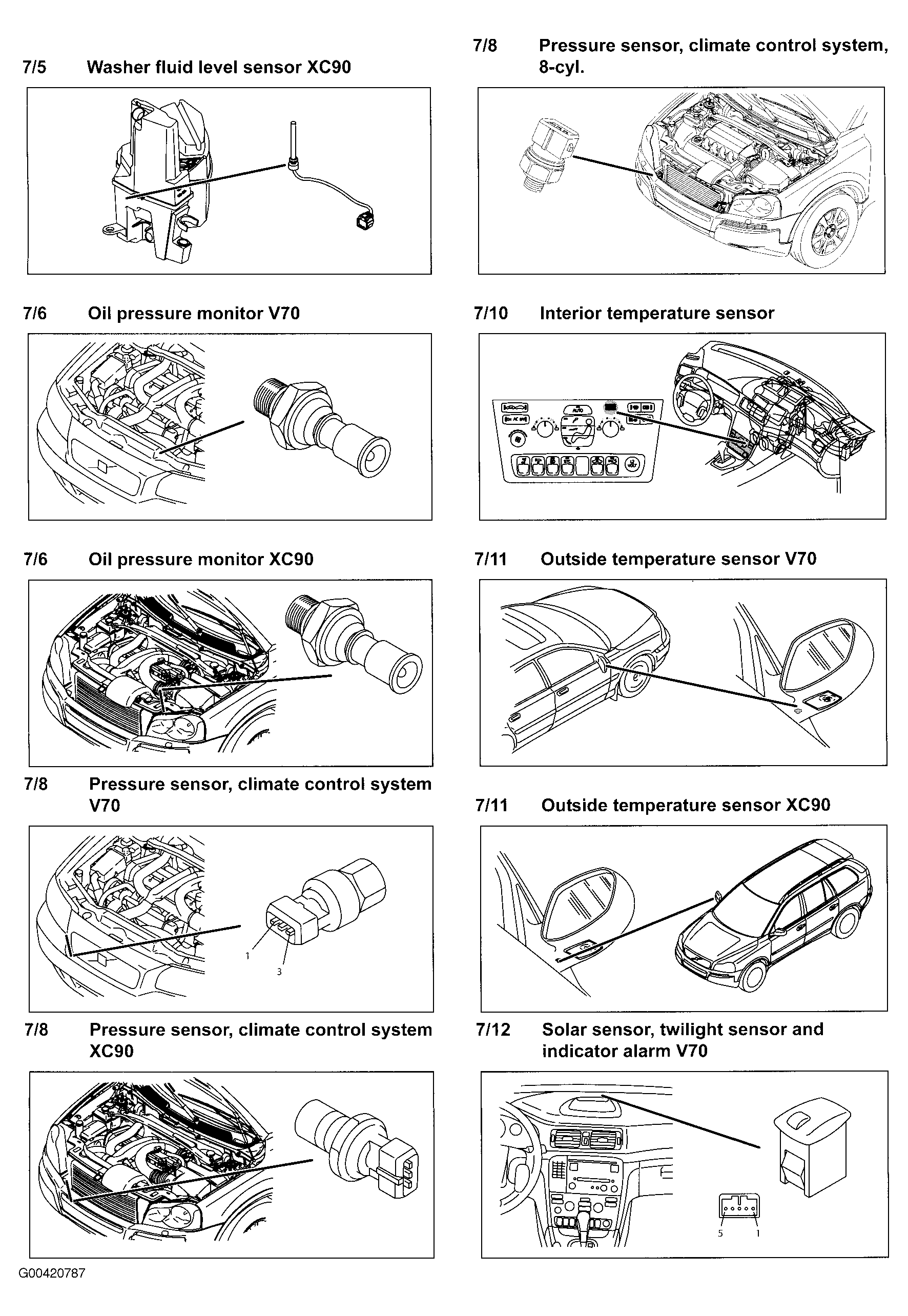

Fig 39: Components 7/5 To 7/12
G00420787Courtesy of VOLVO CARS OF NORTH AMERICA.

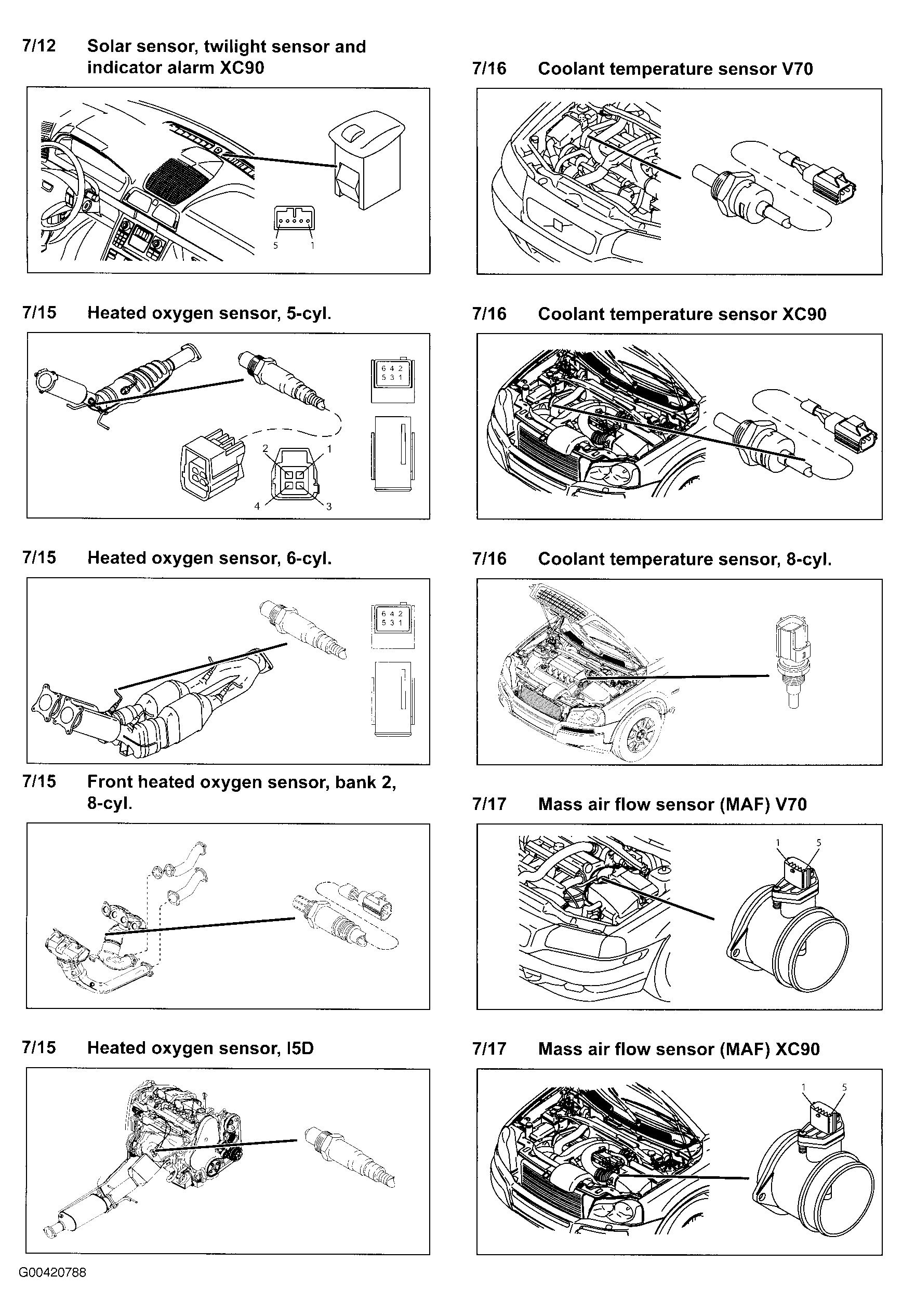

Fig 40: Components 7/12 To 7/17
G00420788Courtesy of VOLVO CARS OF NORTH AMERICA.

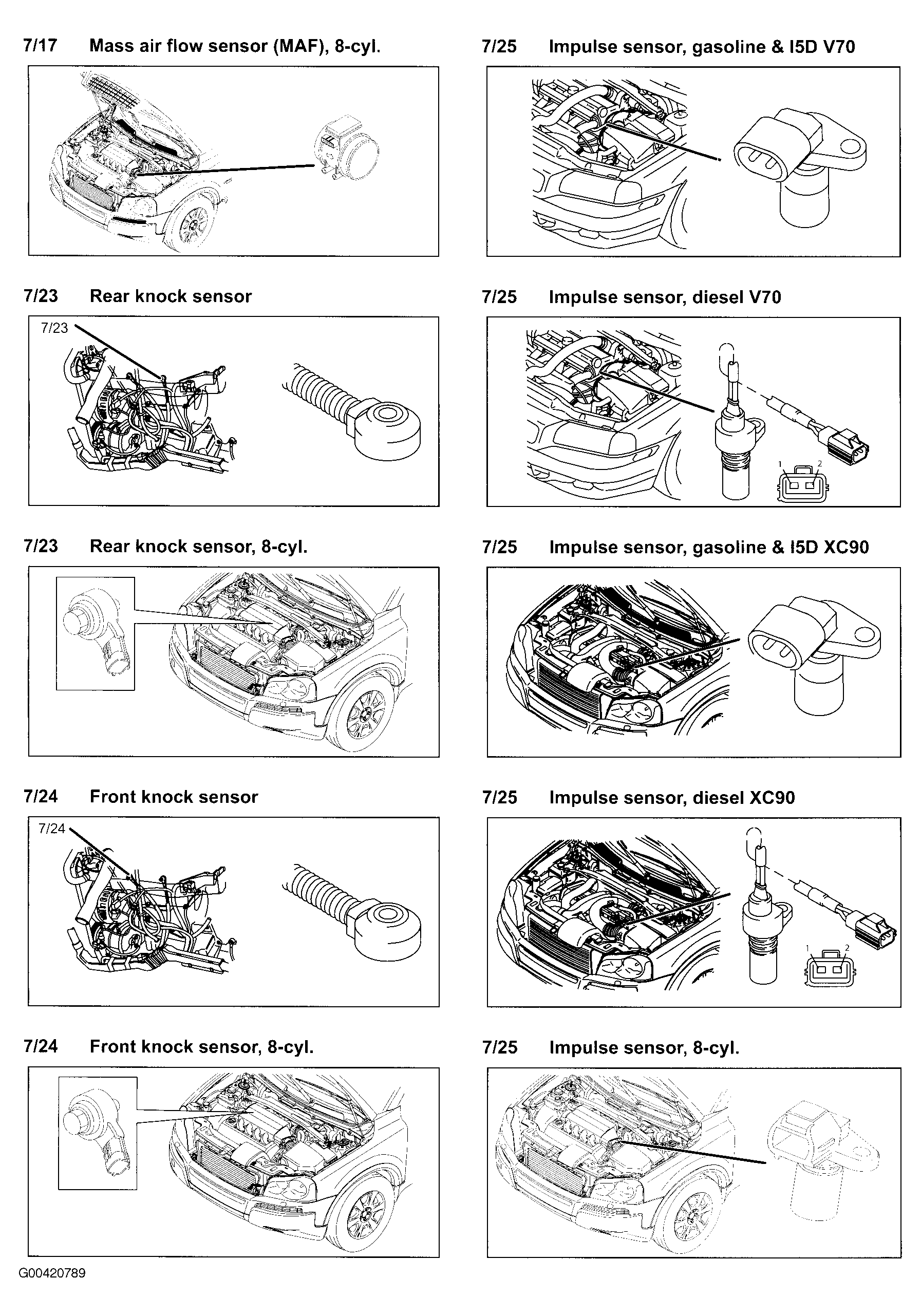

Fig 41: Components 7/17 To 7/25
G00420789Courtesy of VOLVO CARS OF NORTH AMERICA.

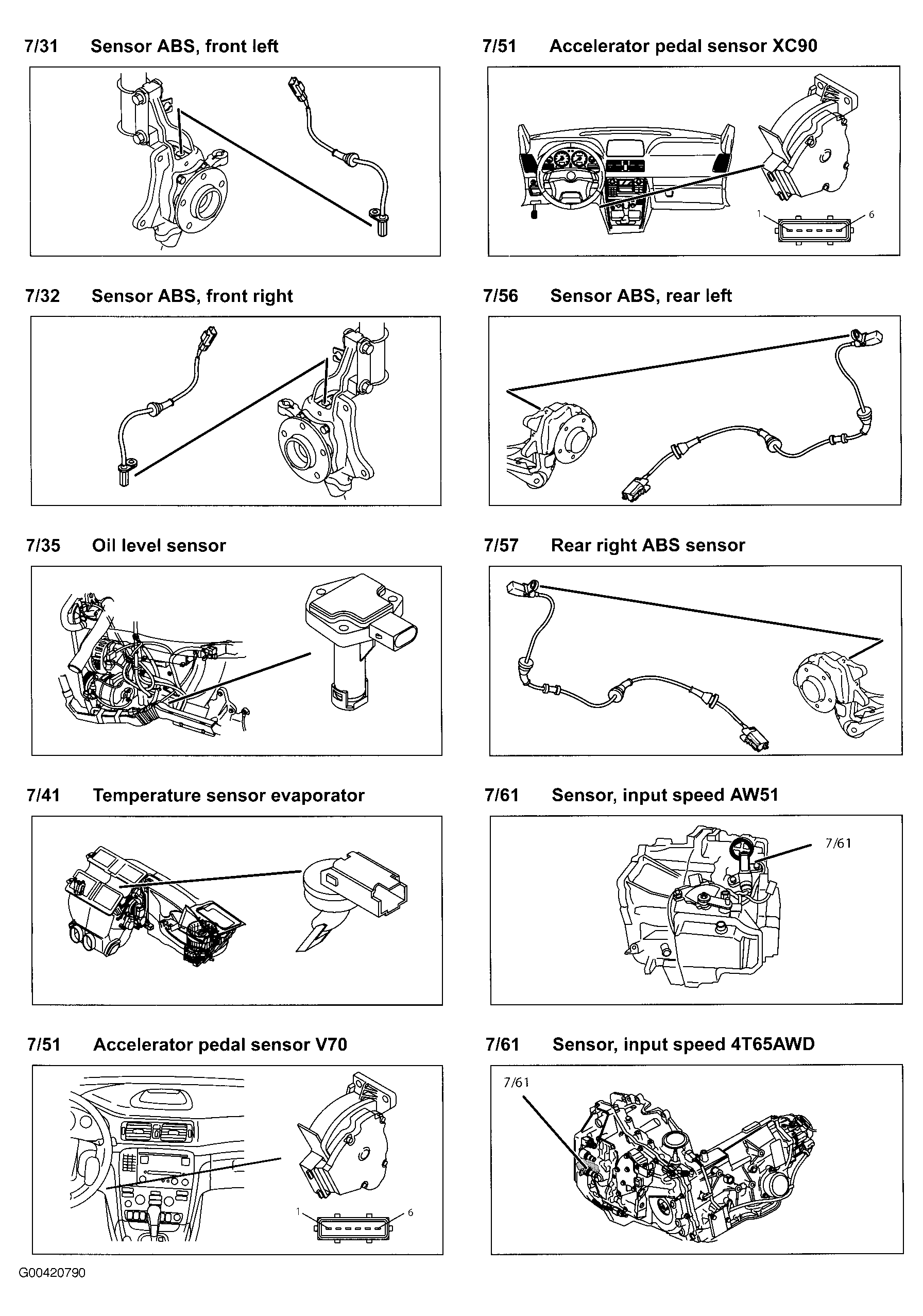

Fig 42: Components 7/31 To 7/61
G00420790Courtesy of VOLVO CARS OF NORTH AMERICA.

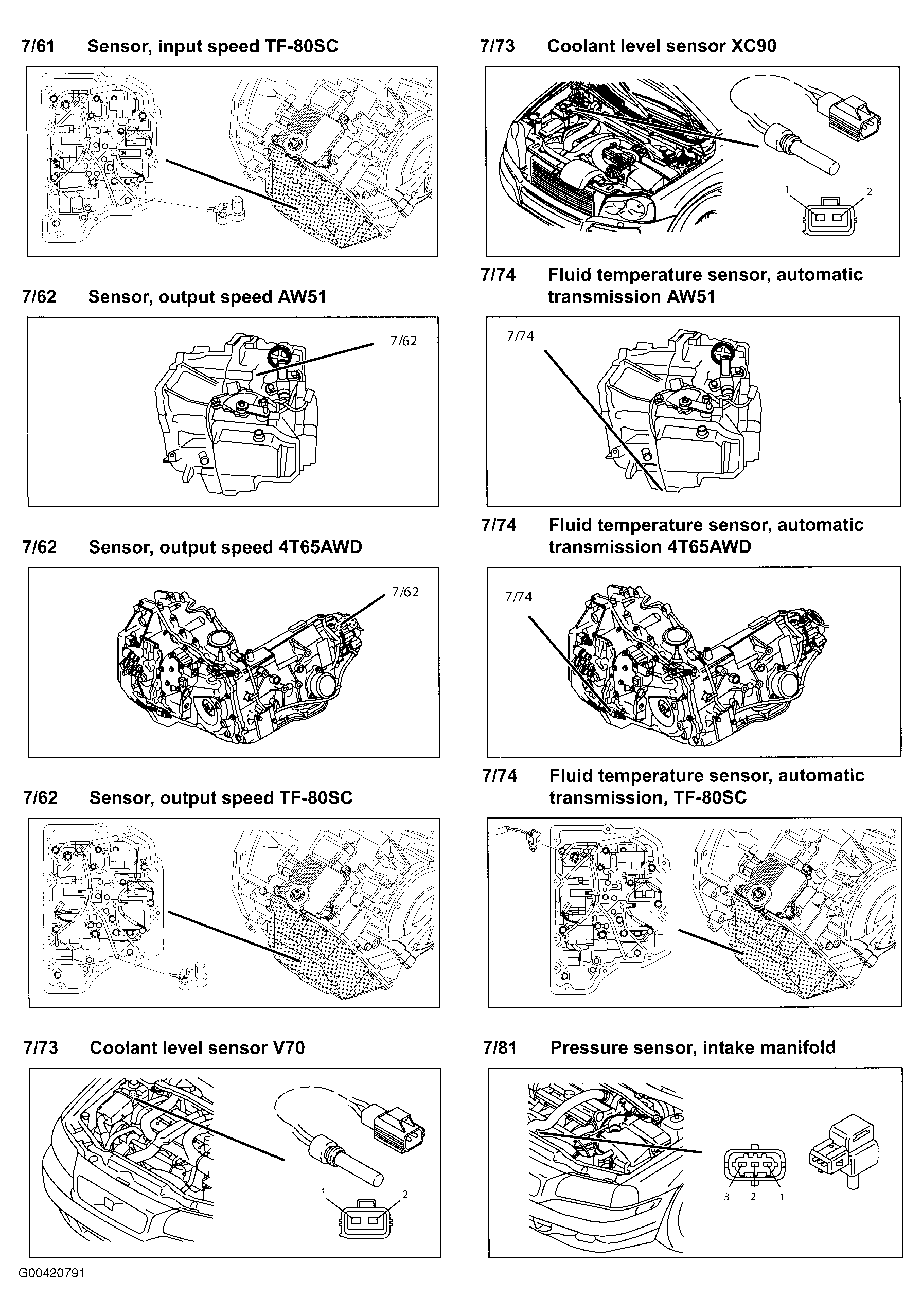

Fig 43: Components 7/61 To 7/81
G00420791Courtesy of VOLVO CARS OF NORTH AMERICA.

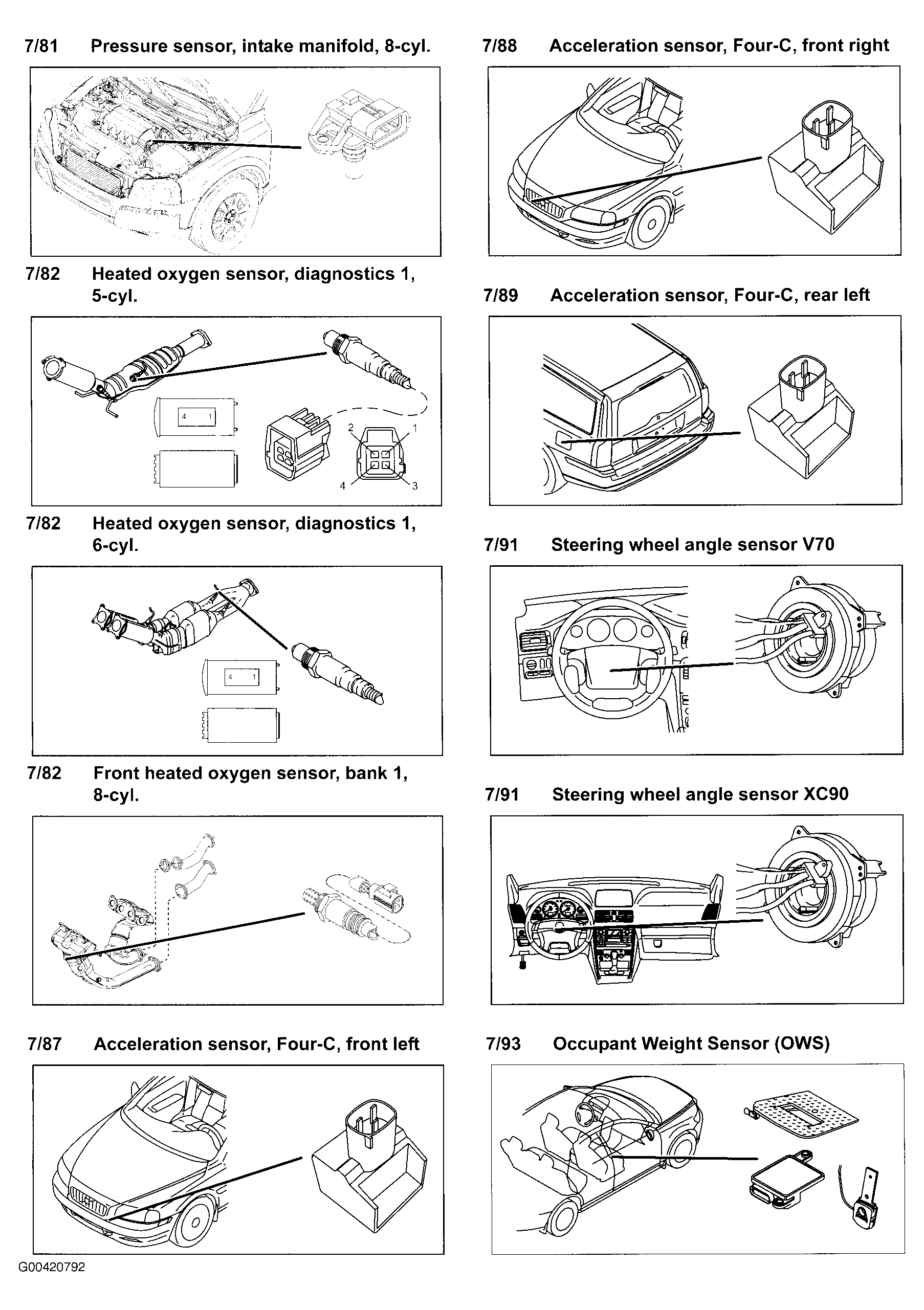

Fig 44: Components 7/81 To 7/93
G00420792Courtesy of VOLVO CARS OF NORTH AMERICA.

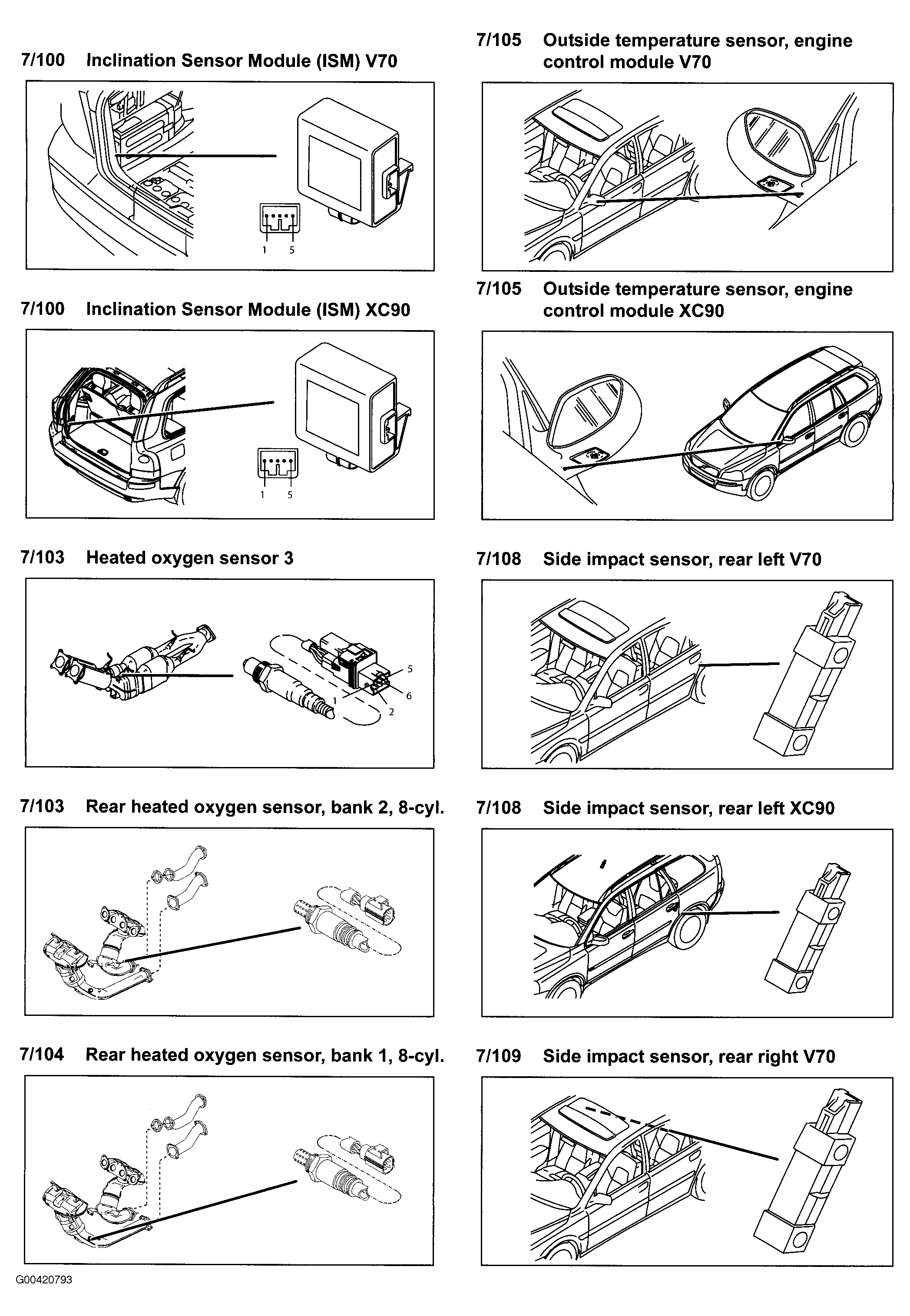

Fig 45: Components 7/100 To 7/109
G00420793Courtesy of VOLVO CARS OF NORTH AMERICA.

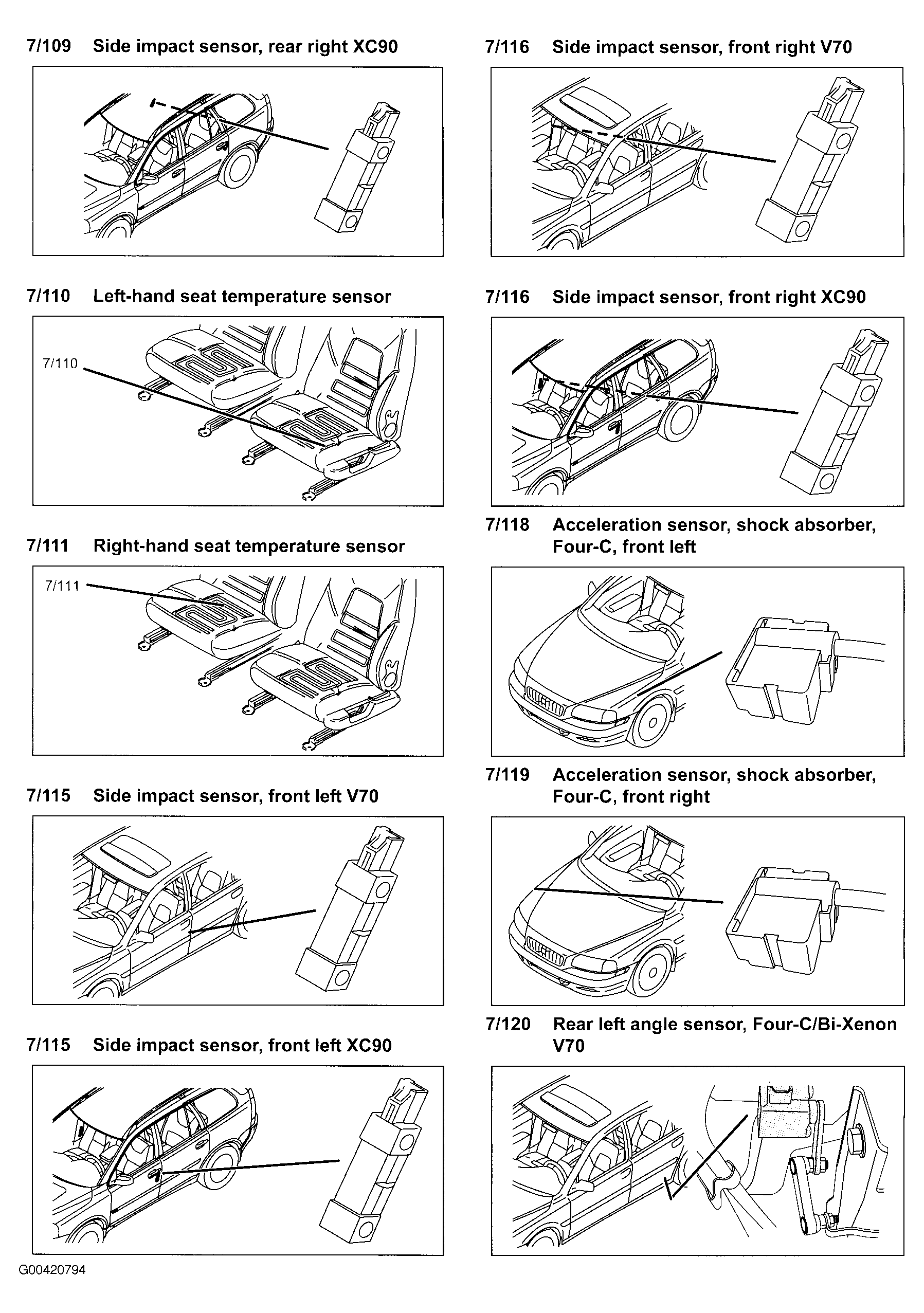

Fig 46: Components 7/109 To 7/109
G00420794Courtesy of VOLVO CARS OF NORTH AMERICA.

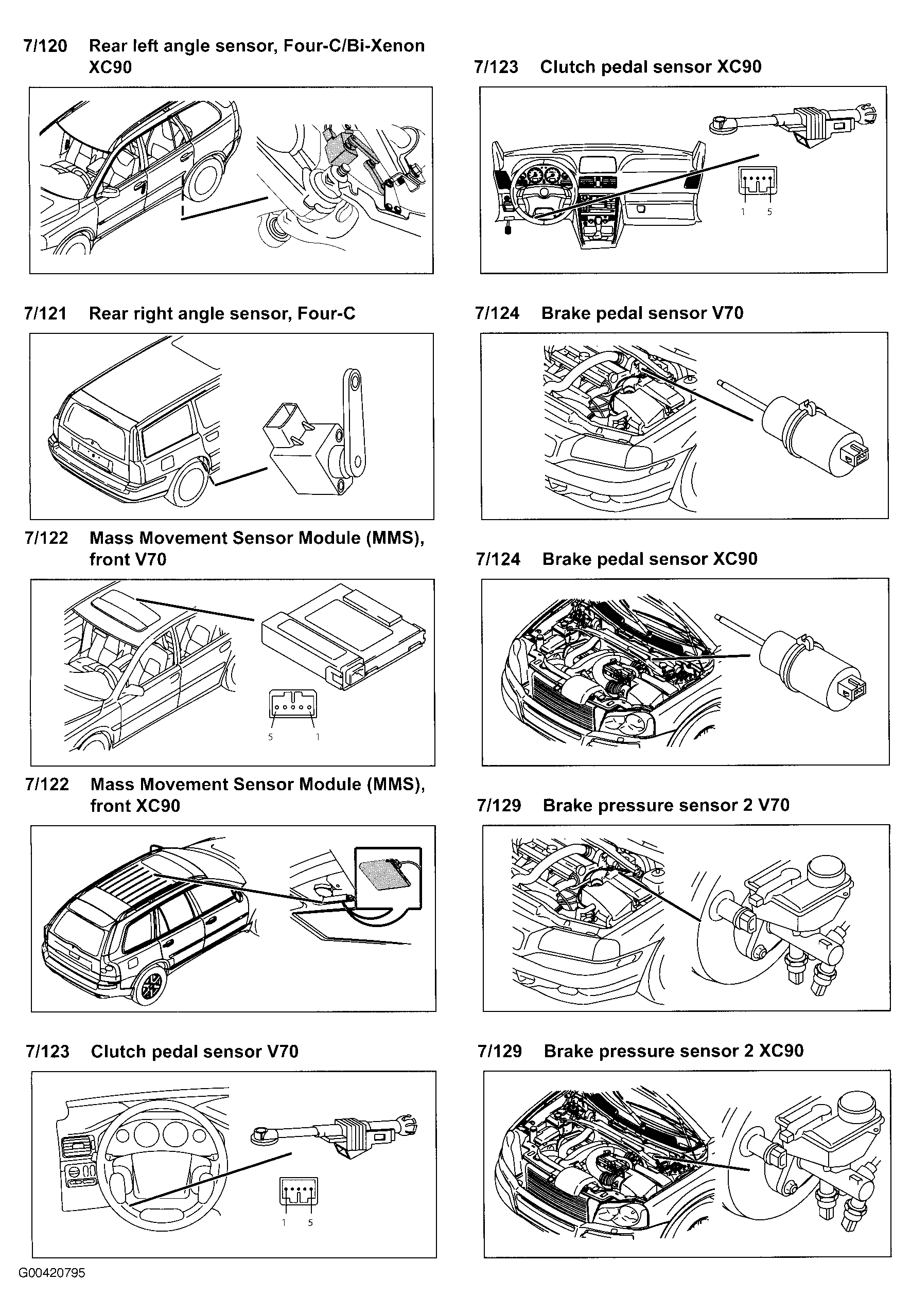

Fig 47: Components 7/120 To 7/129
G00420795Courtesy of VOLVO CARS OF NORTH AMERICA.

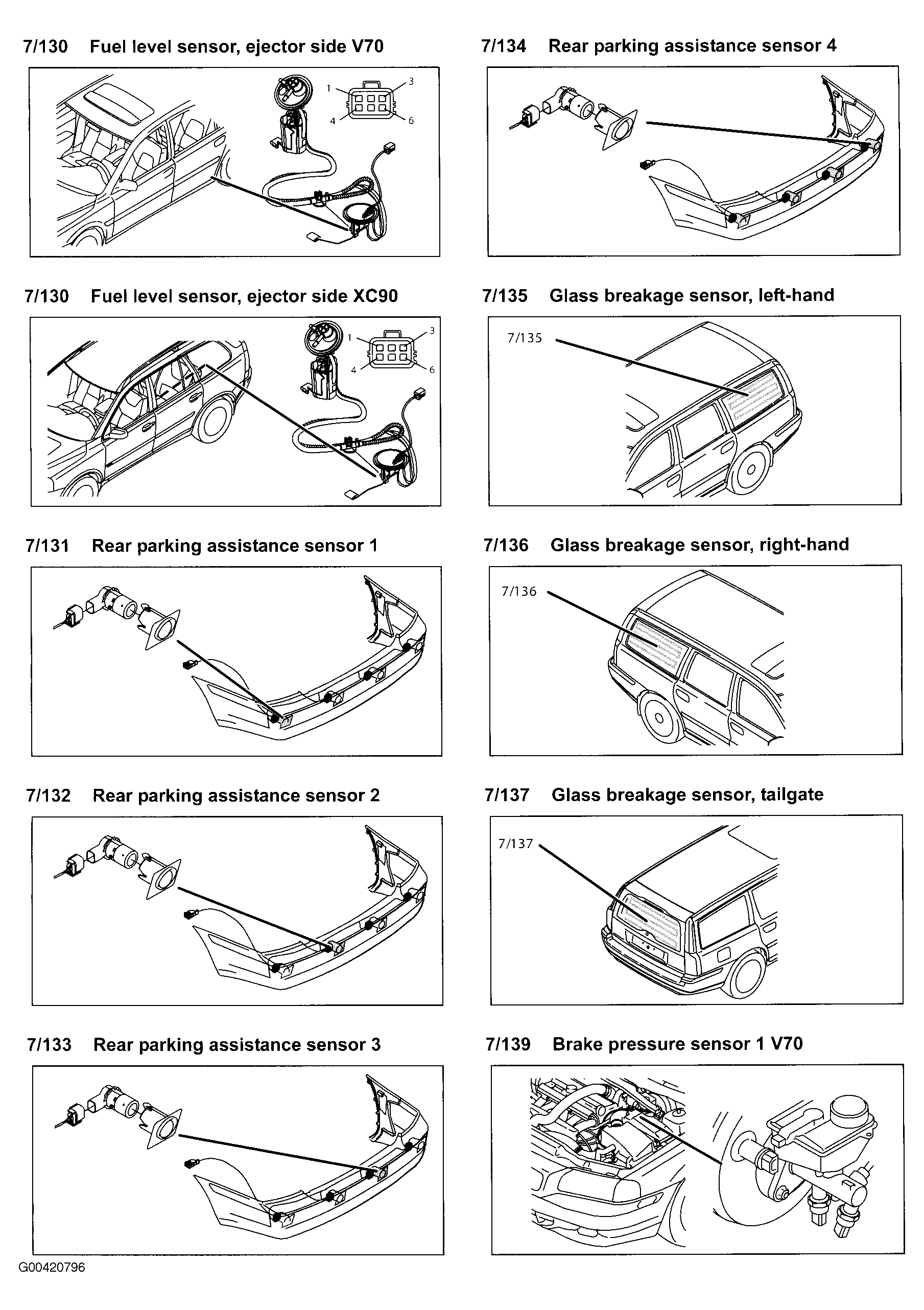

Fig 48: Components 7/130 To 7/139
G00420796Courtesy of VOLVO CARS OF NORTH AMERICA.

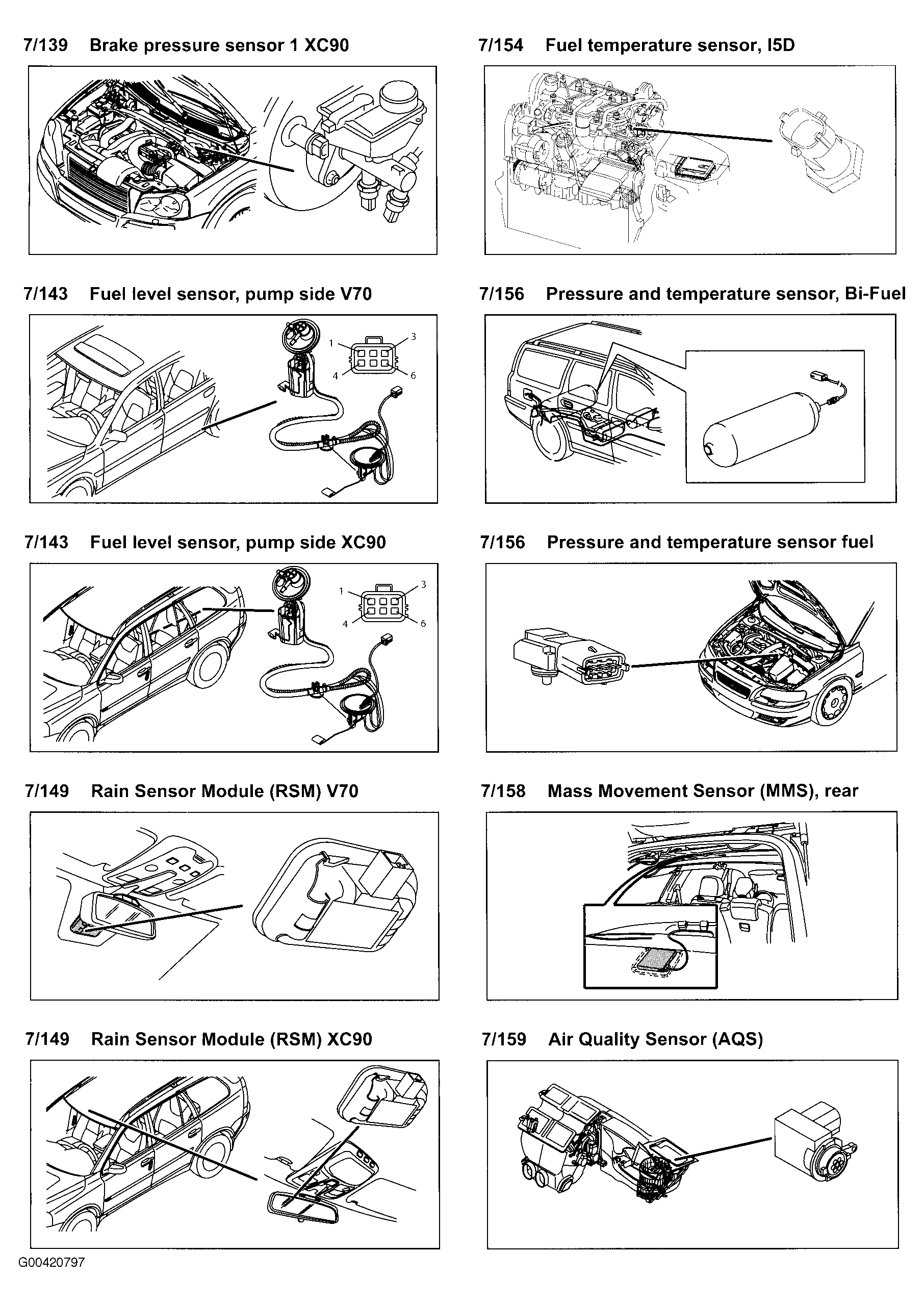

Fig 49: Components 7/139 To 7/159
G00420797Courtesy of VOLVO CARS OF NORTH AMERICA.

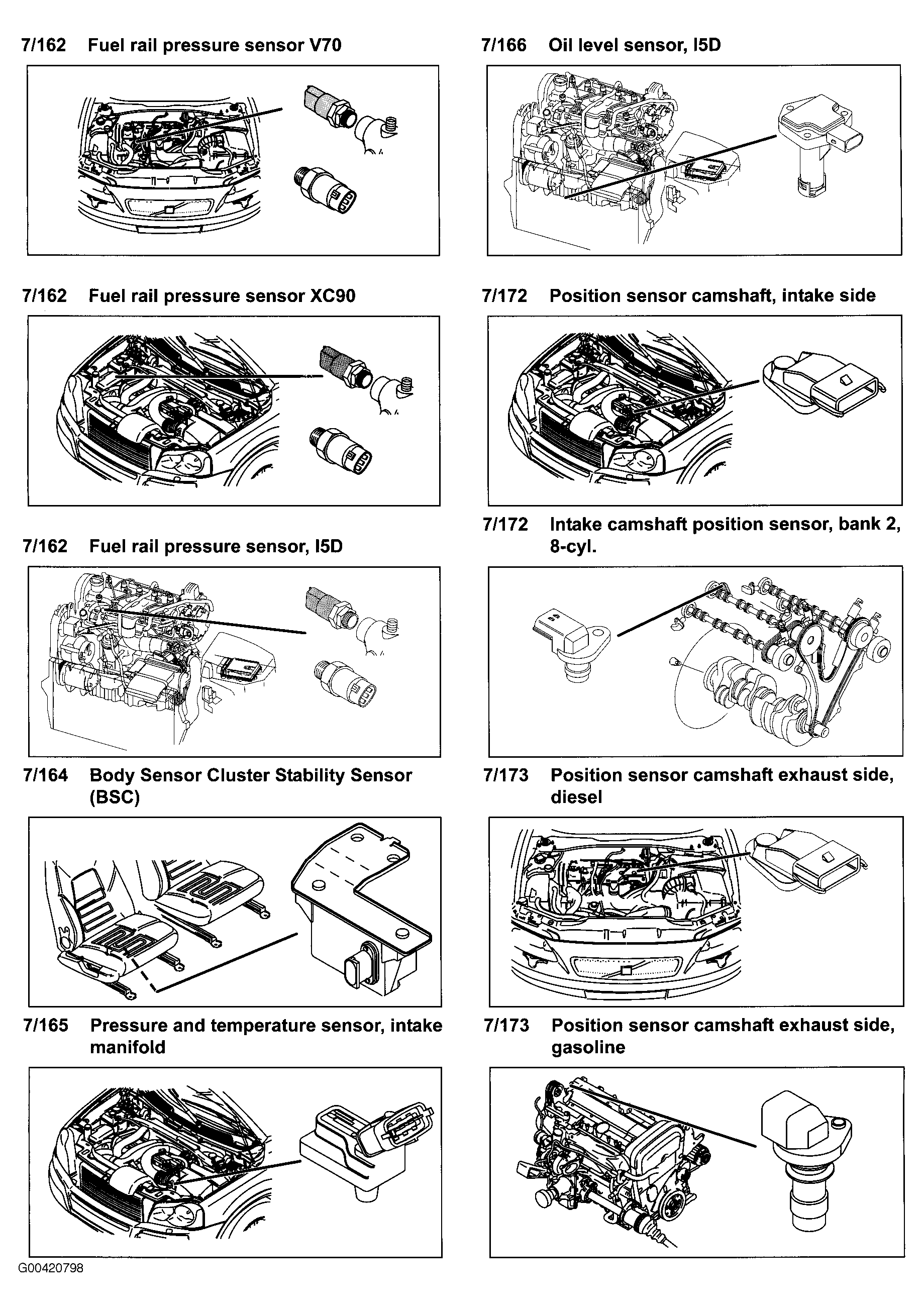

Fig 50: Components 7/162 To 7/173
G00420798Courtesy of VOLVO CARS OF NORTH AMERICA.

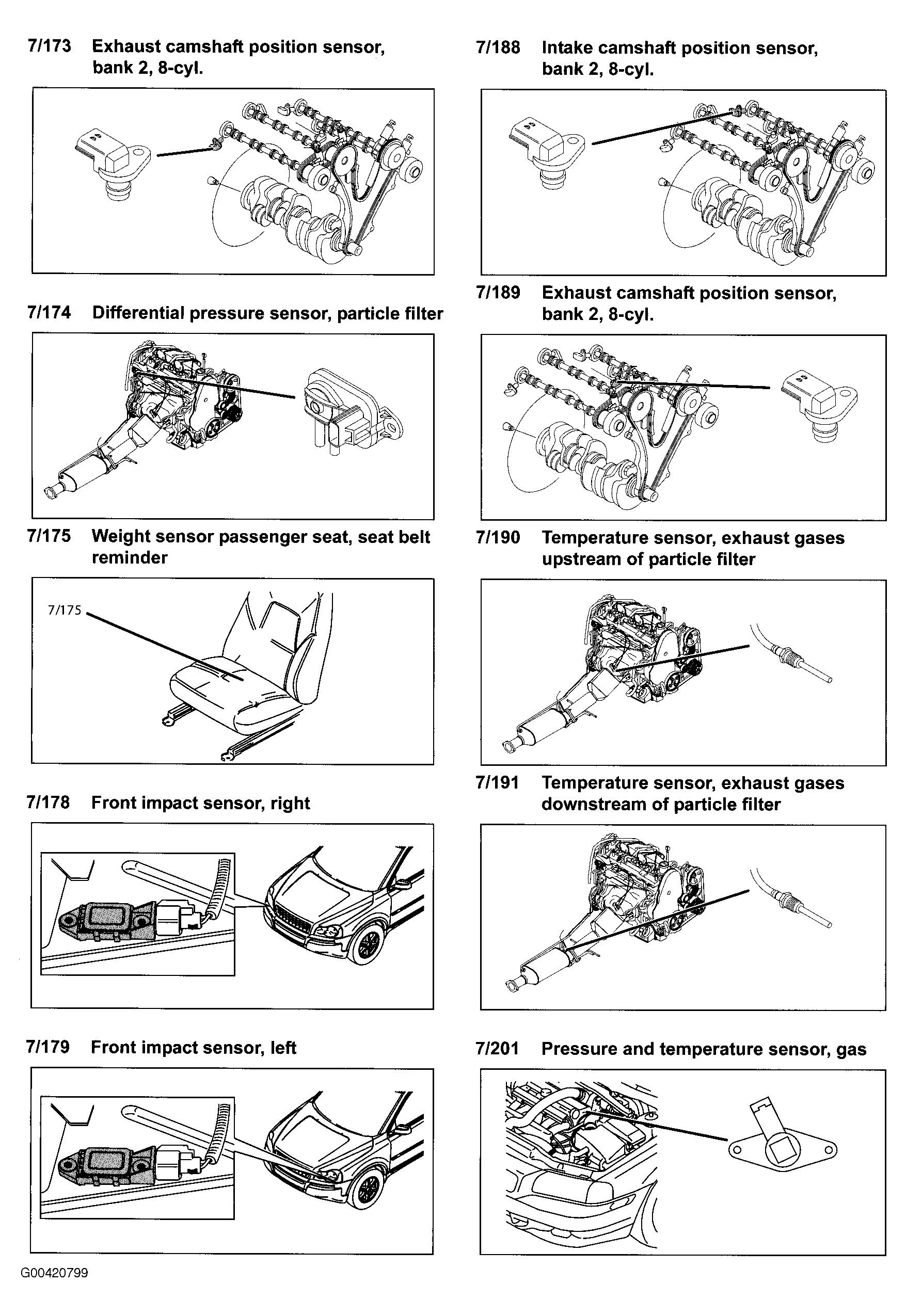

Fig 51: Components 7/173 To 7/201
G00420799Courtesy of VOLVO CARS OF NORTH AMERICA.

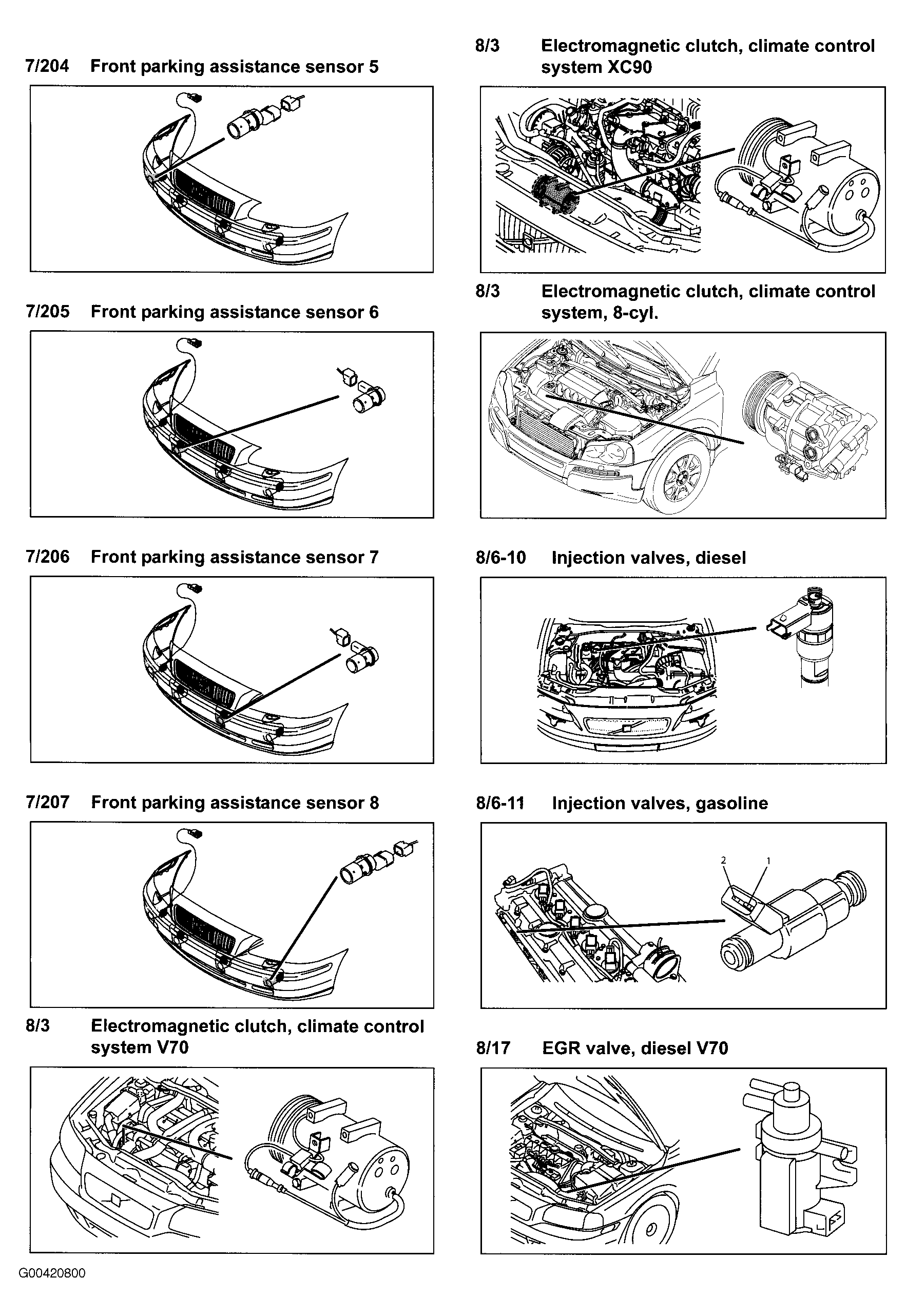

Fig 52: Components 7/204 To 8/17
G00420800Courtesy of VOLVO CARS OF NORTH AMERICA.

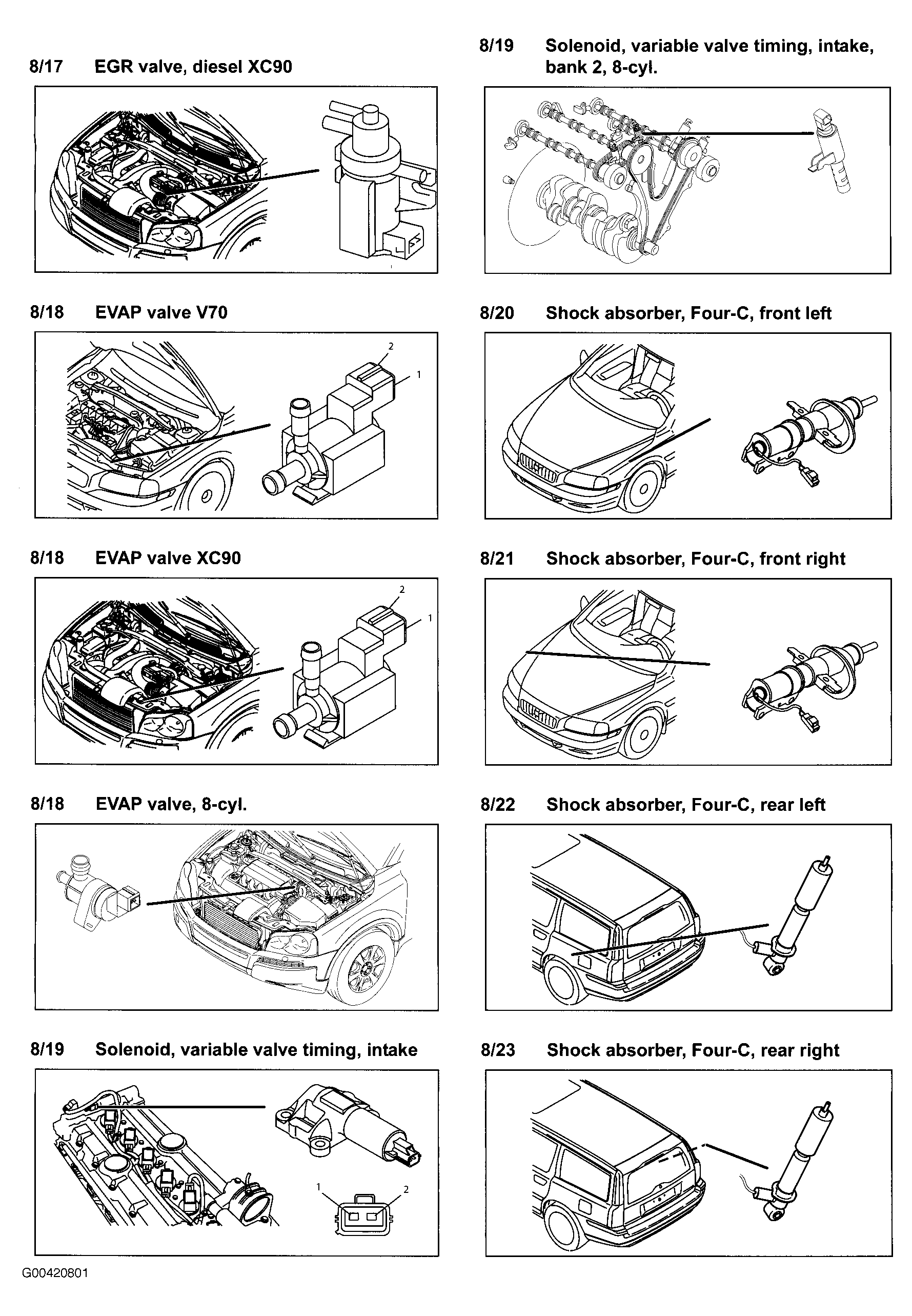

Fig 53: Components 8/17 To 8/23
G00420801Courtesy of VOLVO CARS OF NORTH AMERICA.

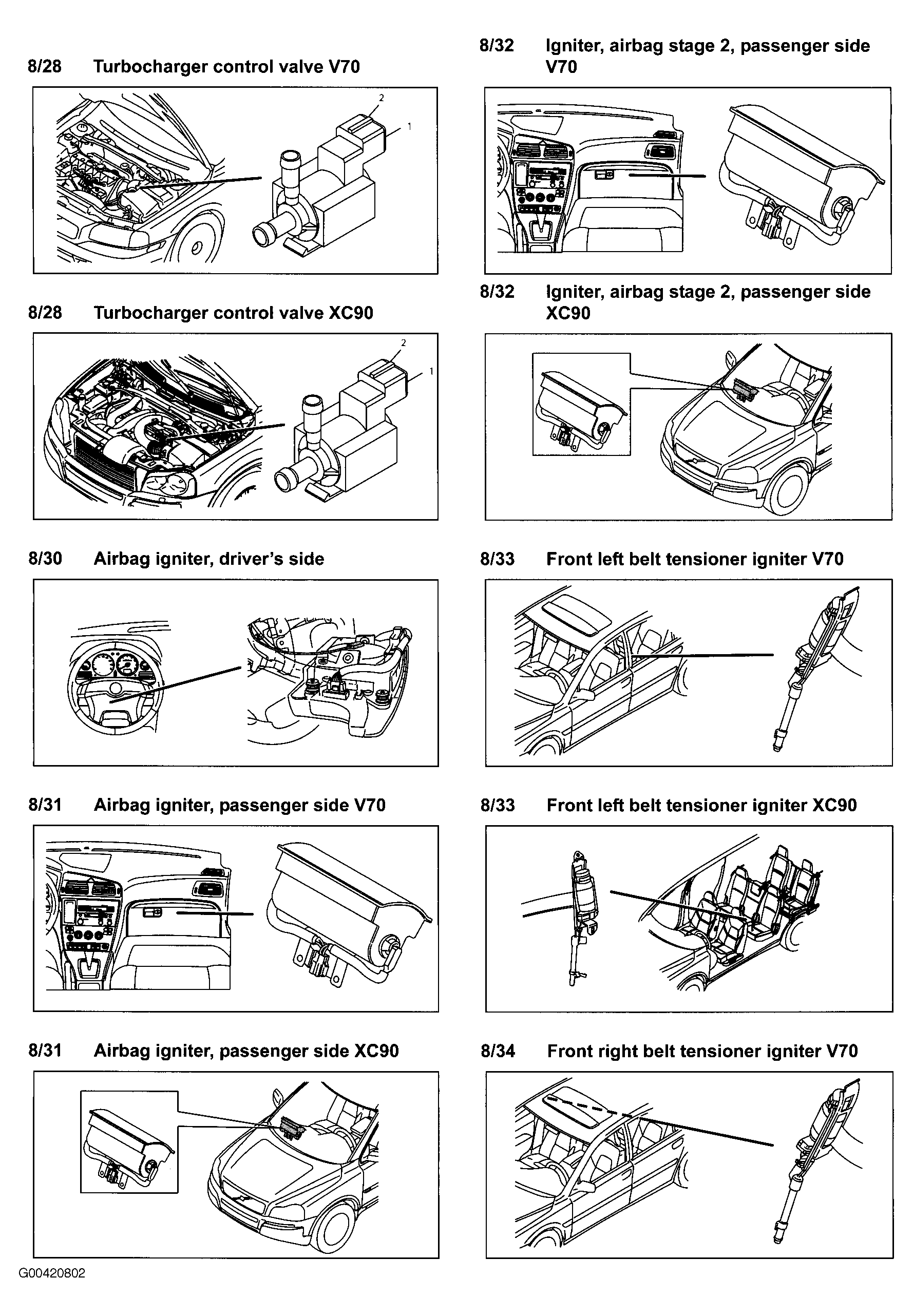

Fig 54: Components 8/28 To 8/34
G00420802Courtesy of VOLVO CARS OF NORTH AMERICA.

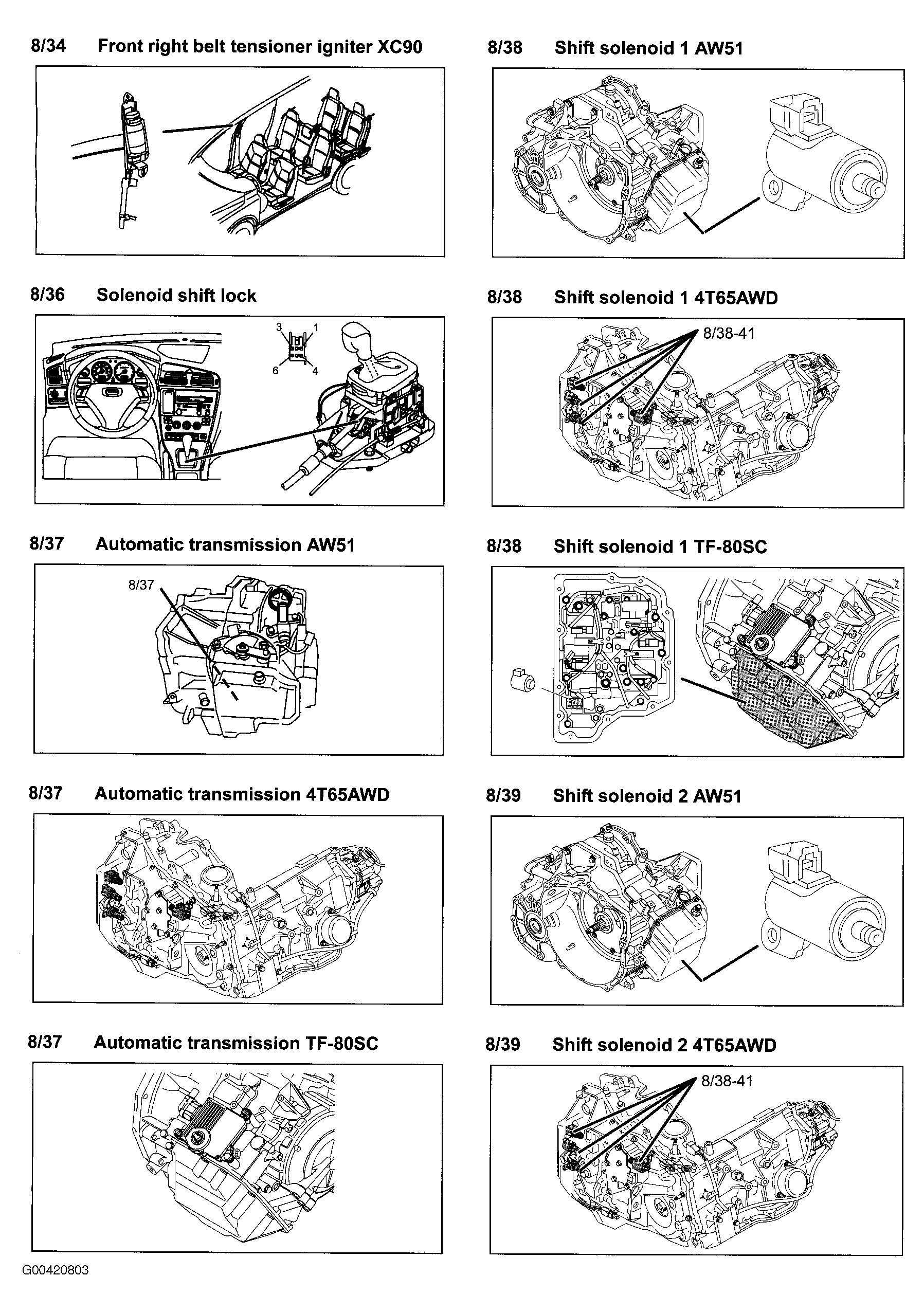

Fig 55: Components 8/34 To 8/39
G00420803Courtesy of VOLVO CARS OF NORTH AMERICA.

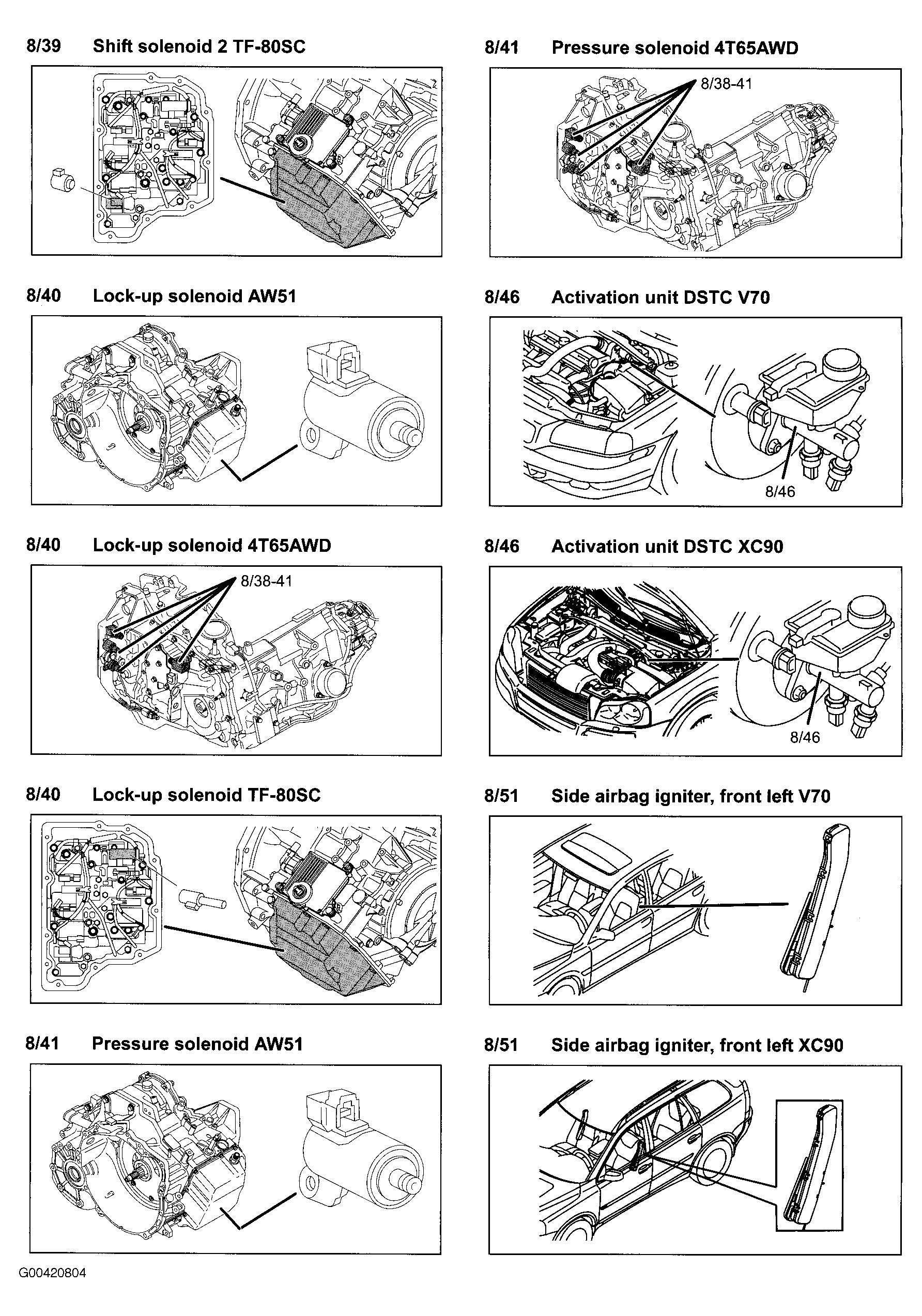

Fig 56: Components 8/39 To 8/51
G00420804Courtesy of VOLVO CARS OF NORTH AMERICA.

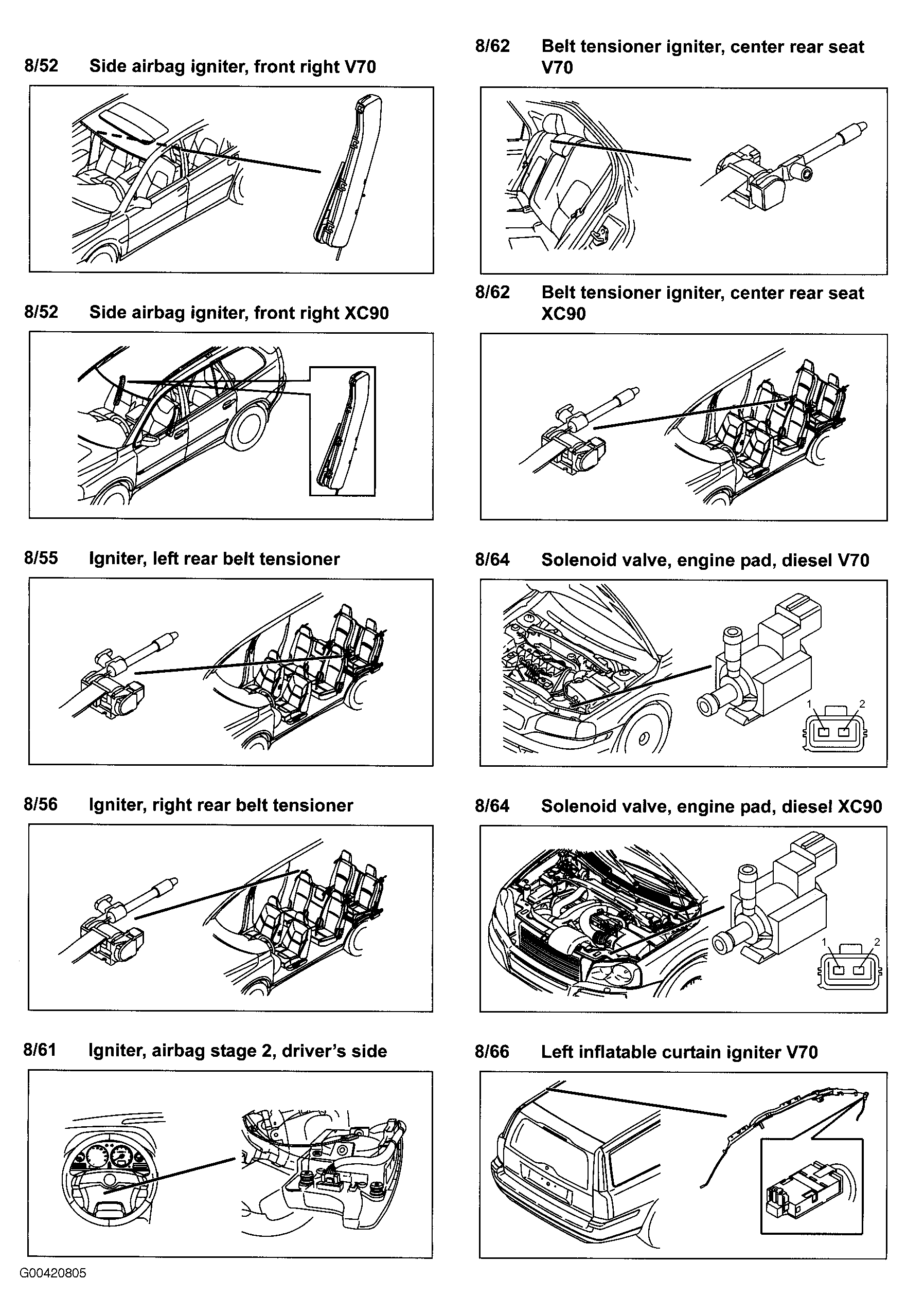

Fig 57: Components 8/52 To 8/66
G00420805Courtesy of VOLVO CARS OF NORTH AMERICA.

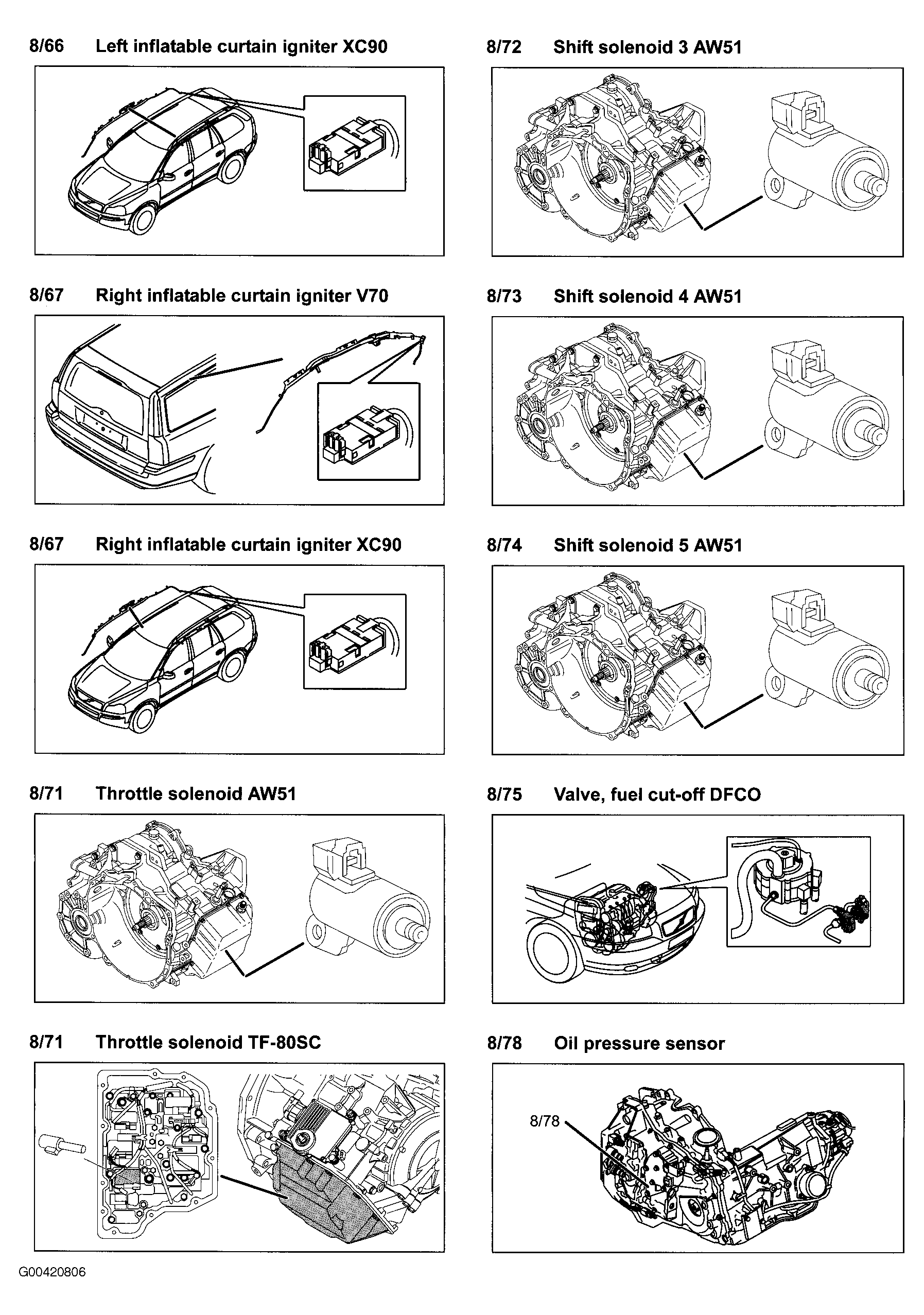

Fig 58: Components 8/66 To 8/78
G00420806Courtesy of VOLVO CARS OF NORTH AMERICA.

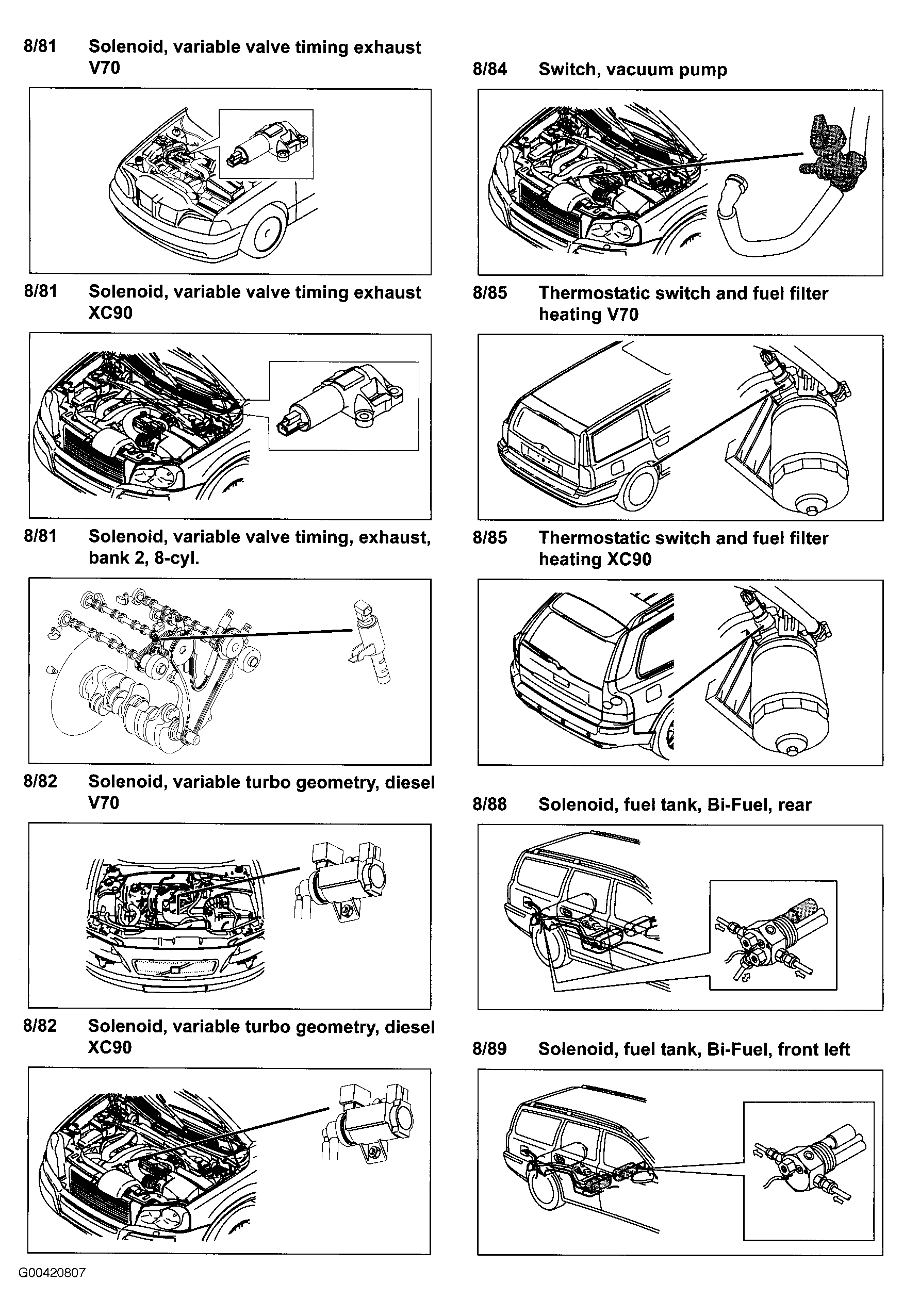

Fig 59: Components 8/81 To 8/89
G00420807Courtesy of VOLVO CARS OF NORTH AMERICA.

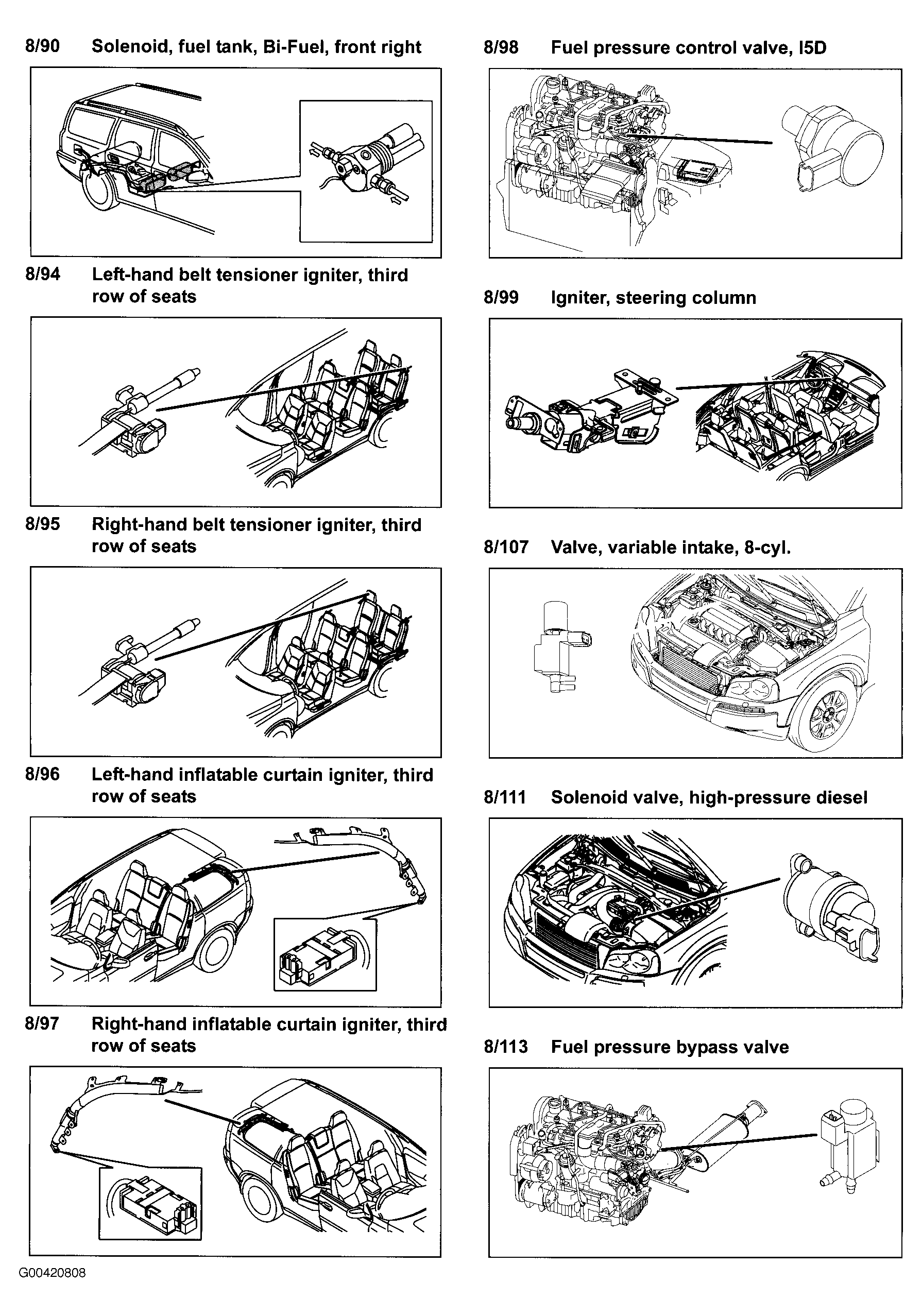

Fig 60: Components 8/90 To 8/113
G00420808Courtesy of VOLVO CARS OF NORTH AMERICA.

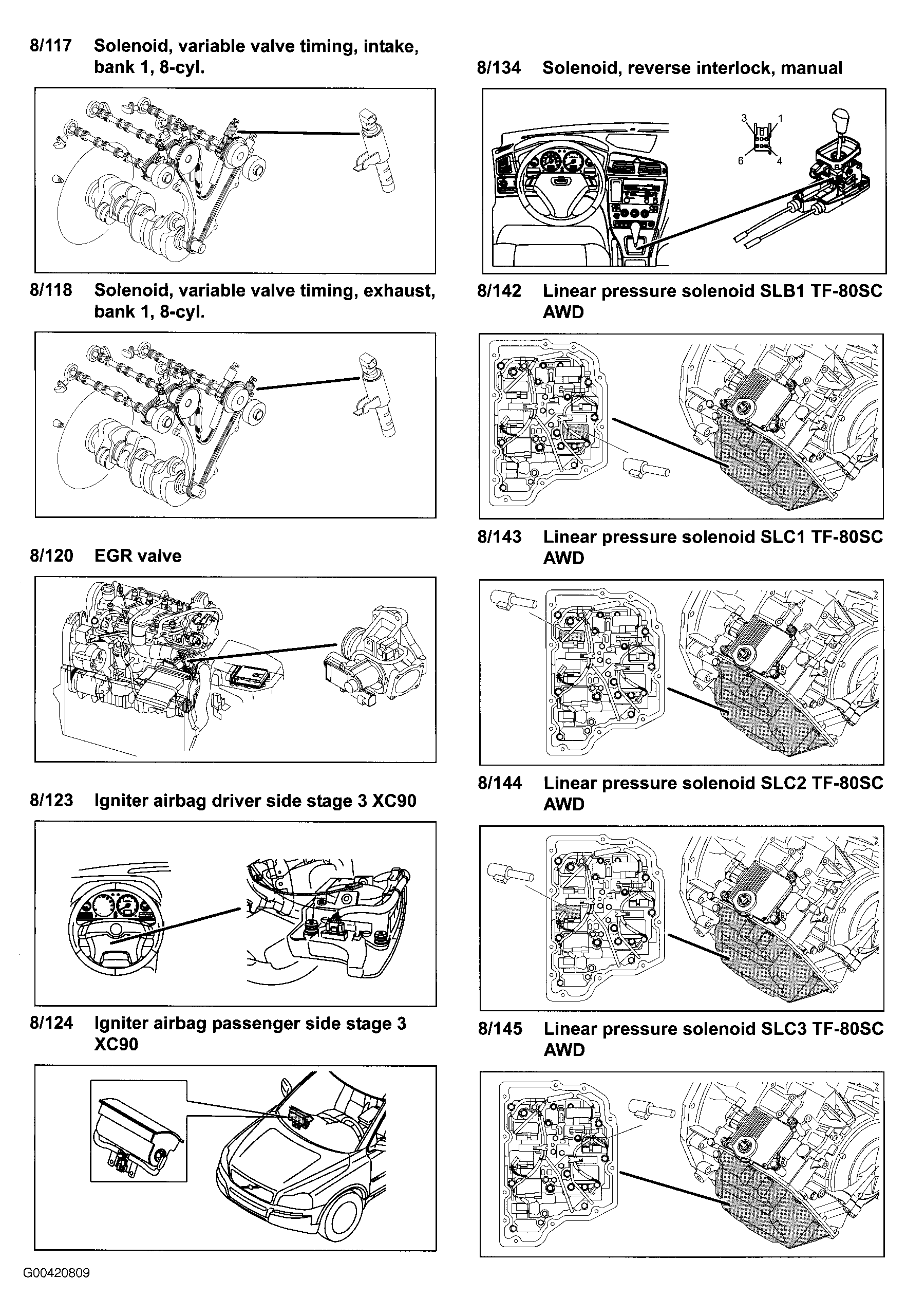

Fig 61: Components 8/117 To 8/145
G00420809Courtesy of VOLVO CARS OF NORTH AMERICA.

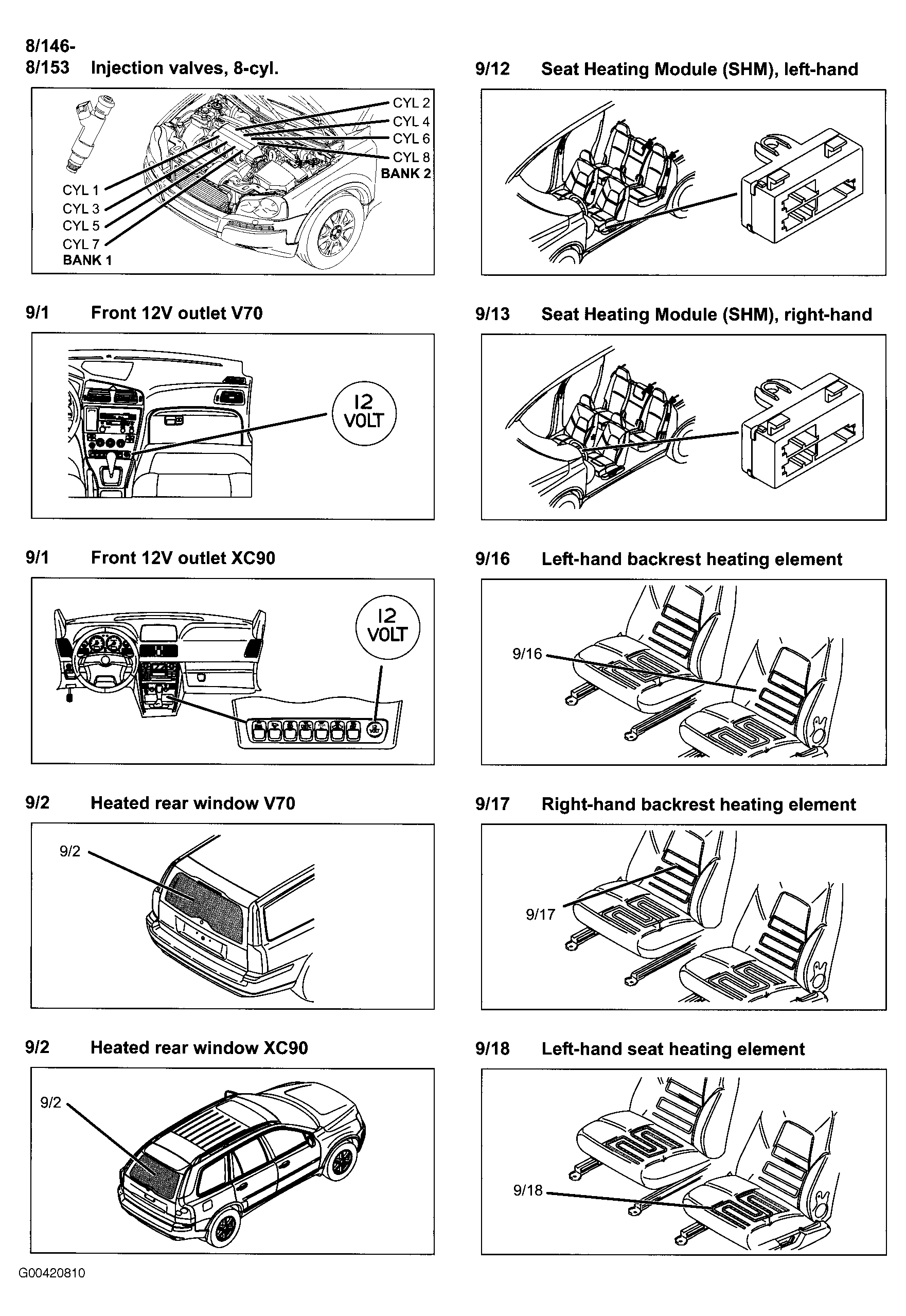

Fig 62: Components 8/146 To 9/18
G00420810Courtesy of VOLVO CARS OF NORTH AMERICA.

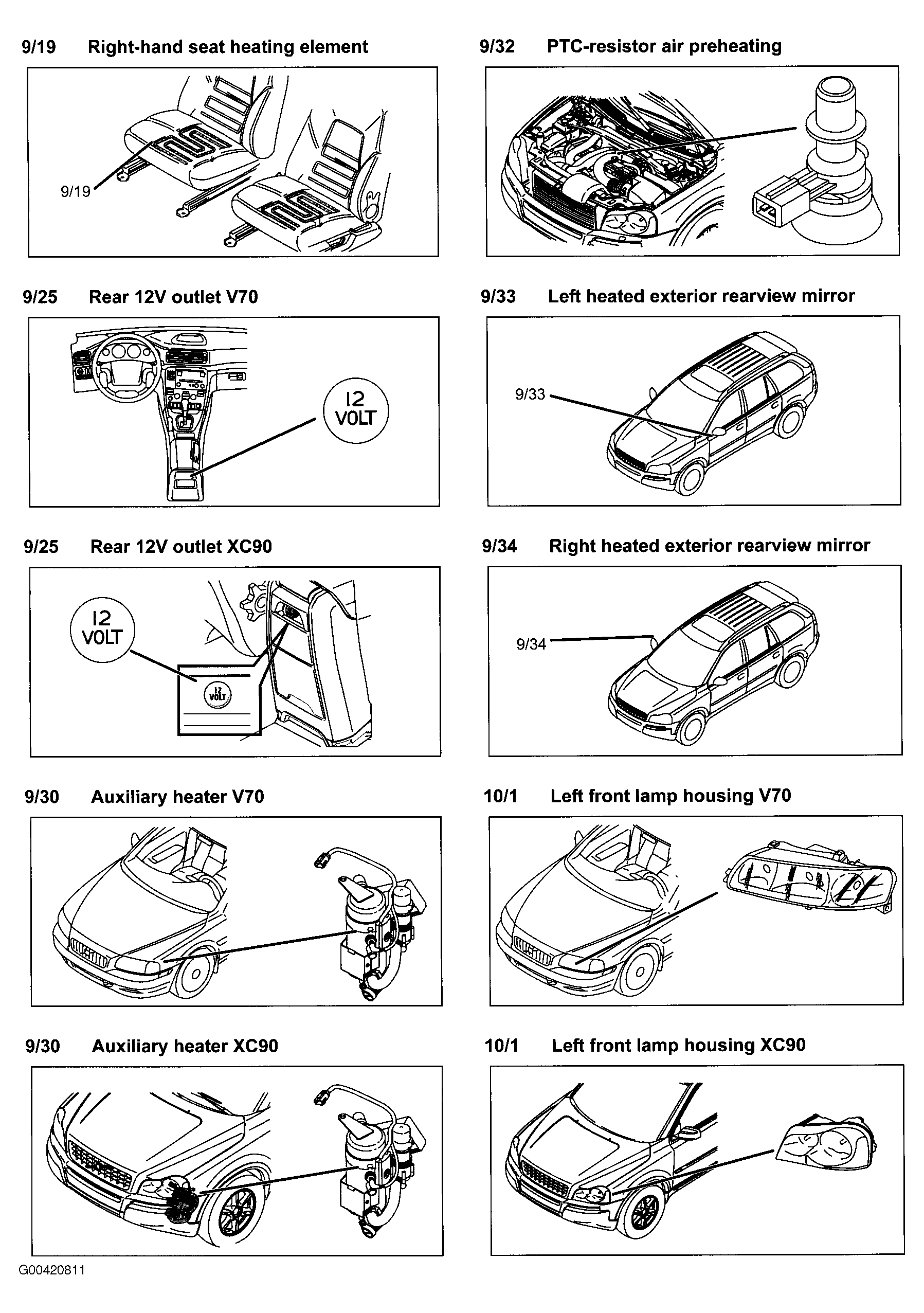

Fig 63: Components 9/19 To 10/1
G00420811Courtesy of VOLVO CARS OF NORTH AMERICA.

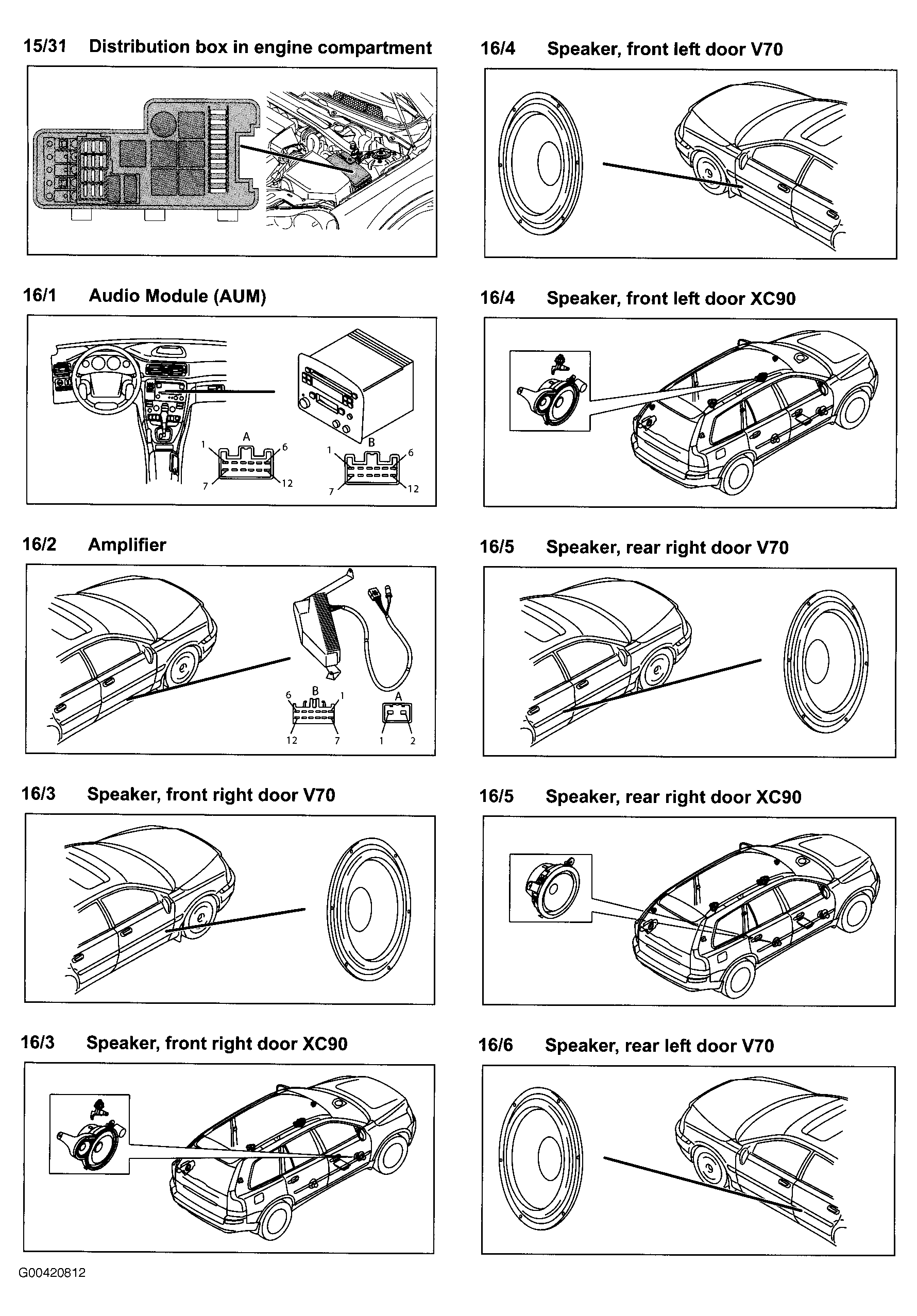

Fig 64: Components 15/31 To 16/6
G00420812Courtesy of VOLVO CARS OF NORTH AMERICA.

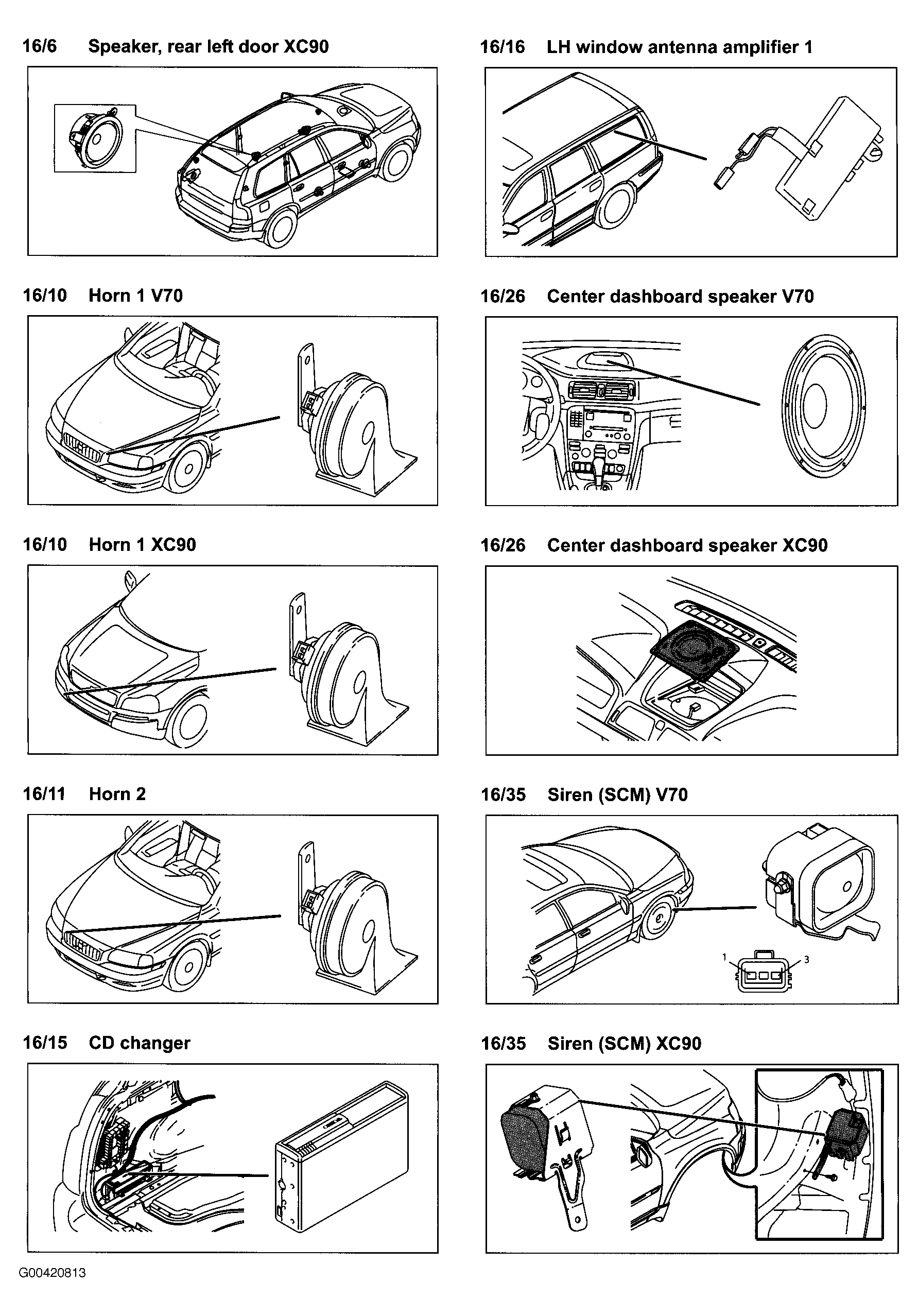

Fig 65: Components 16/6 To 16/35
G00420813Courtesy of VOLVO CARS OF NORTH AMERICA.

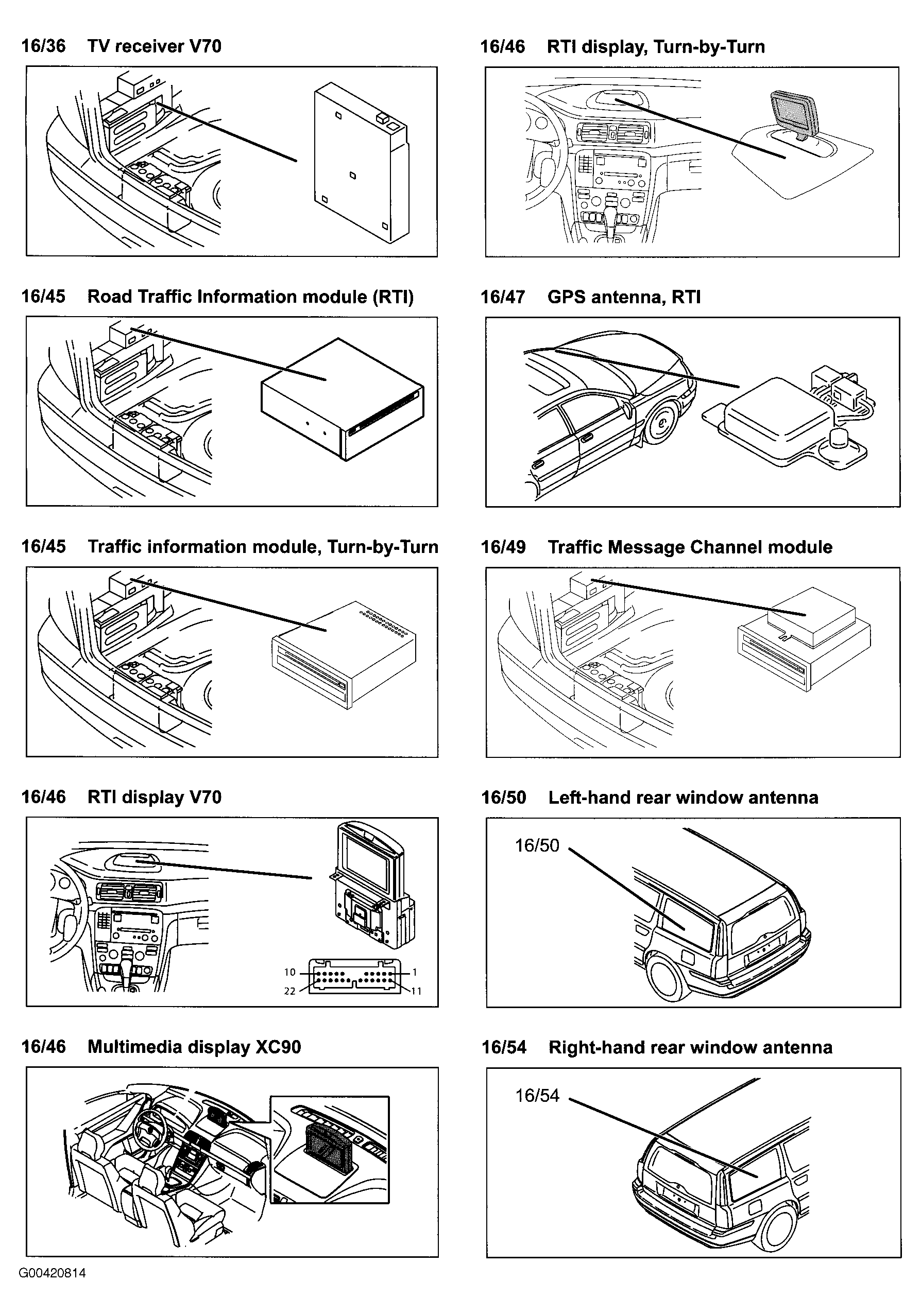

Fig 66: Components 16/36 To 16/54
G00420814Courtesy of VOLVO CARS OF NORTH AMERICA.

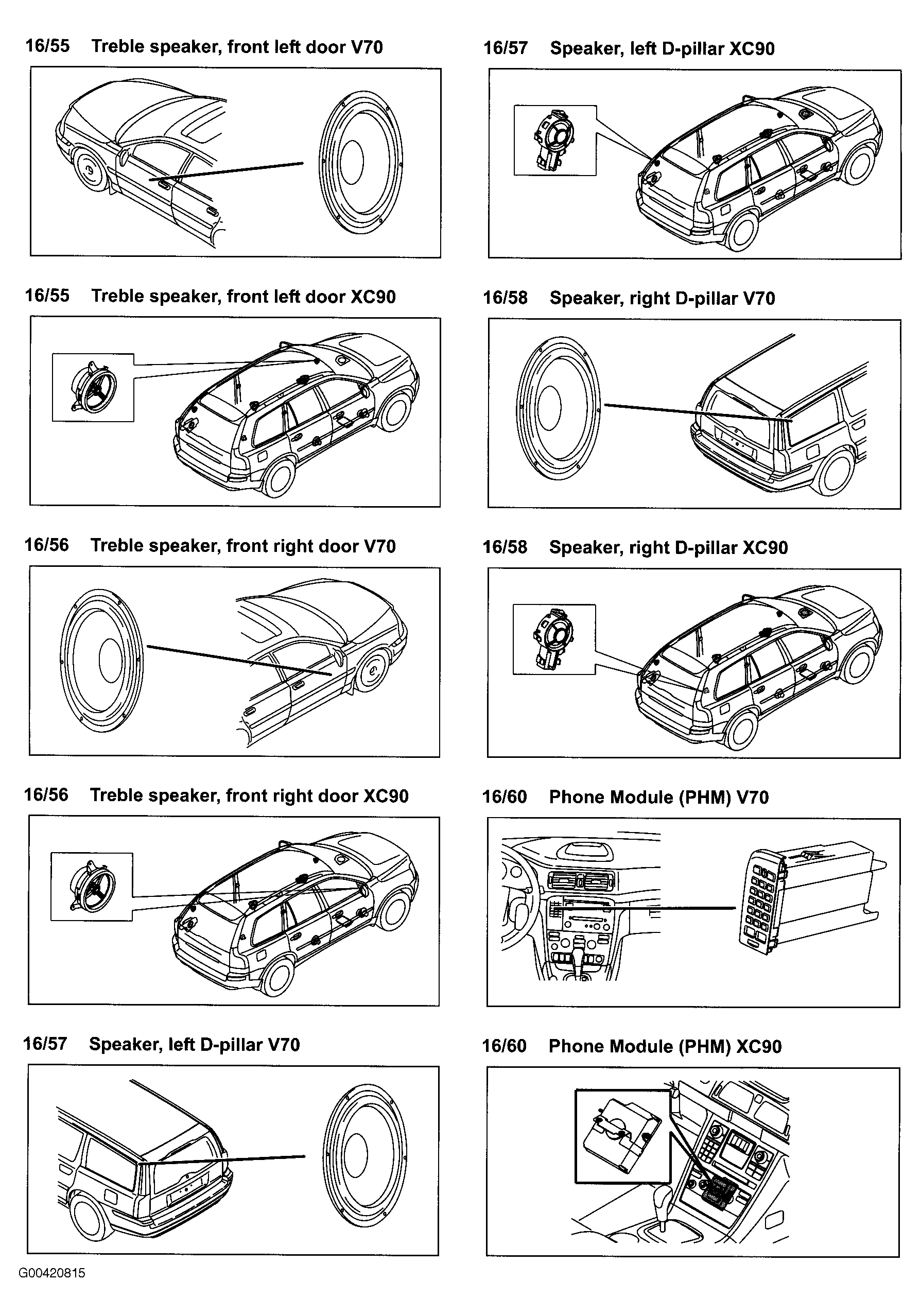

Fig 67: Components 16/55 To 16/60
G00420815Courtesy of VOLVO CARS OF NORTH AMERICA.

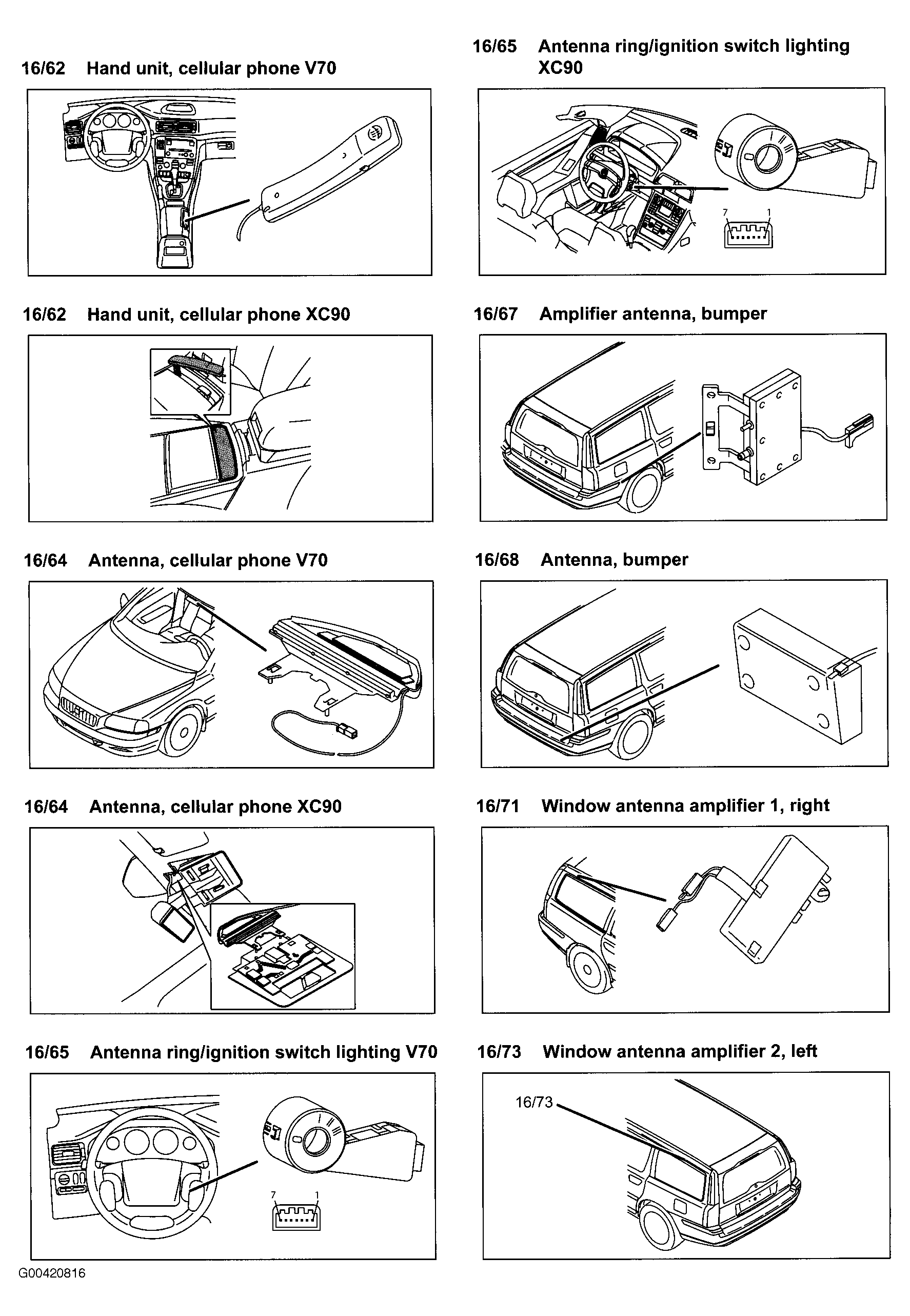

Fig 68: Components 16/62 To 16/73
G00420816Courtesy of VOLVO CARS OF NORTH AMERICA.

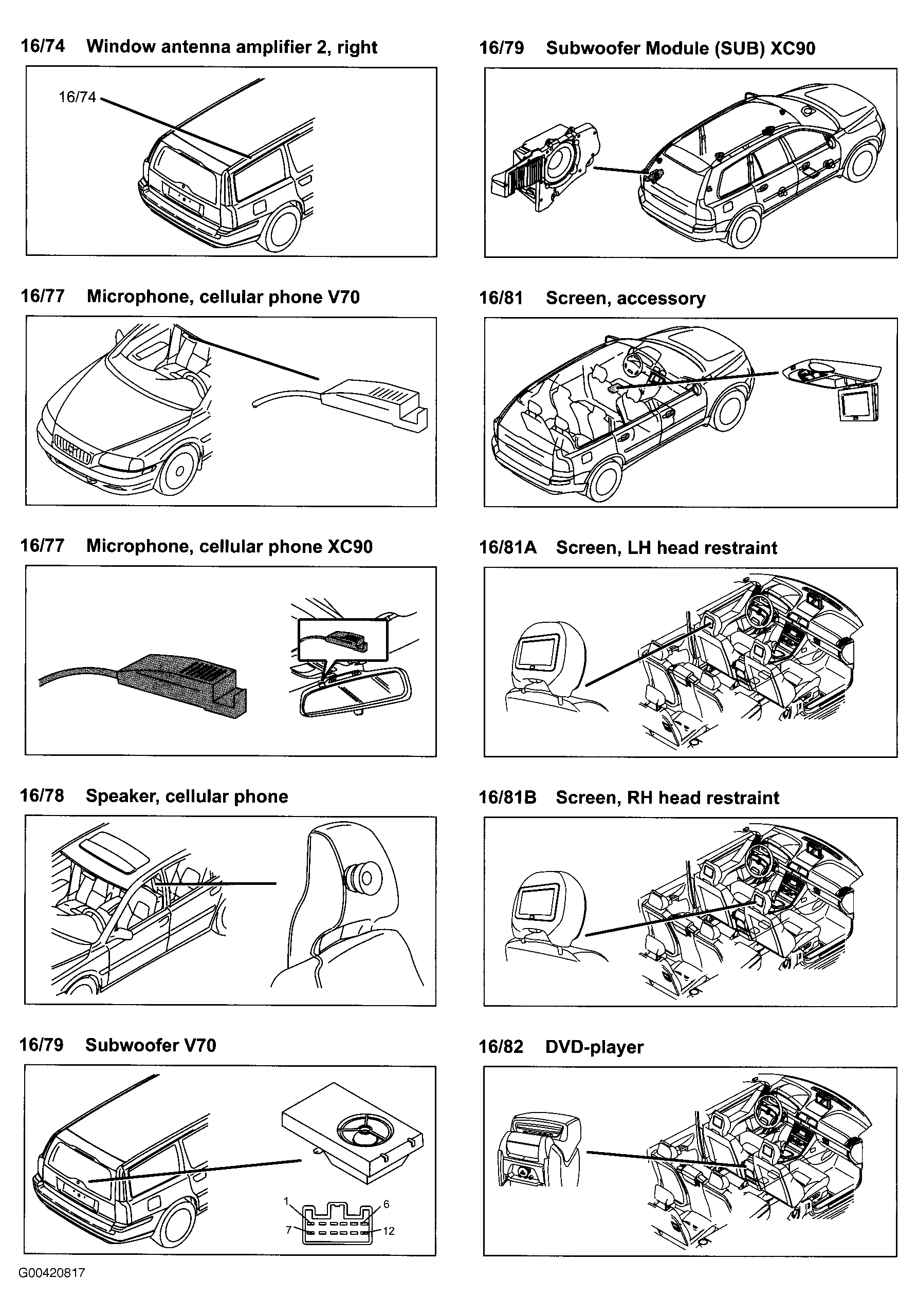

Fig 69: Components 16/74 To 16/82
G00420817Courtesy of VOLVO CARS OF NORTH AMERICA.

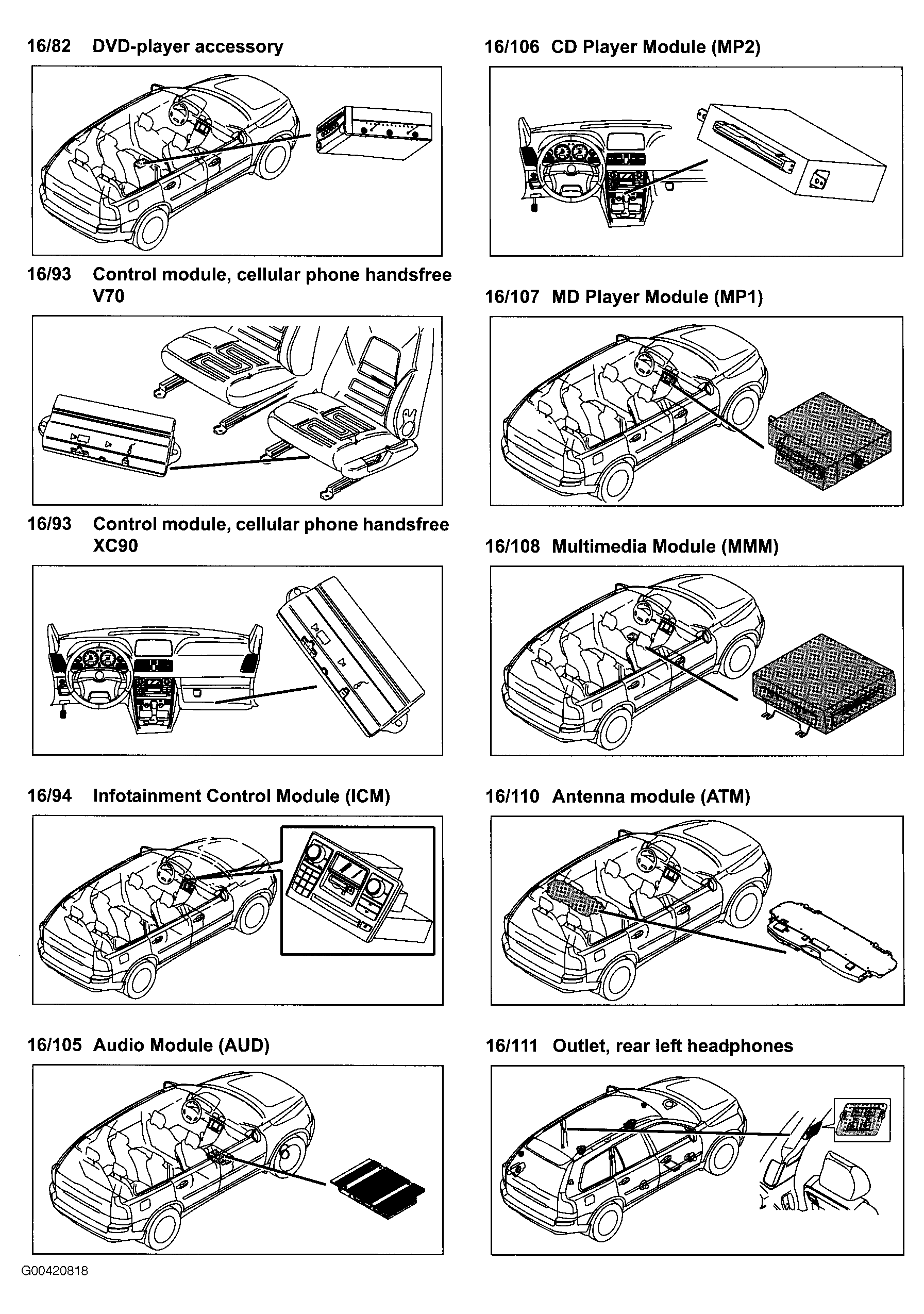

Fig 70: Components 16/82 To 16/111
G00420818Courtesy of VOLVO CARS OF NORTH AMERICA.

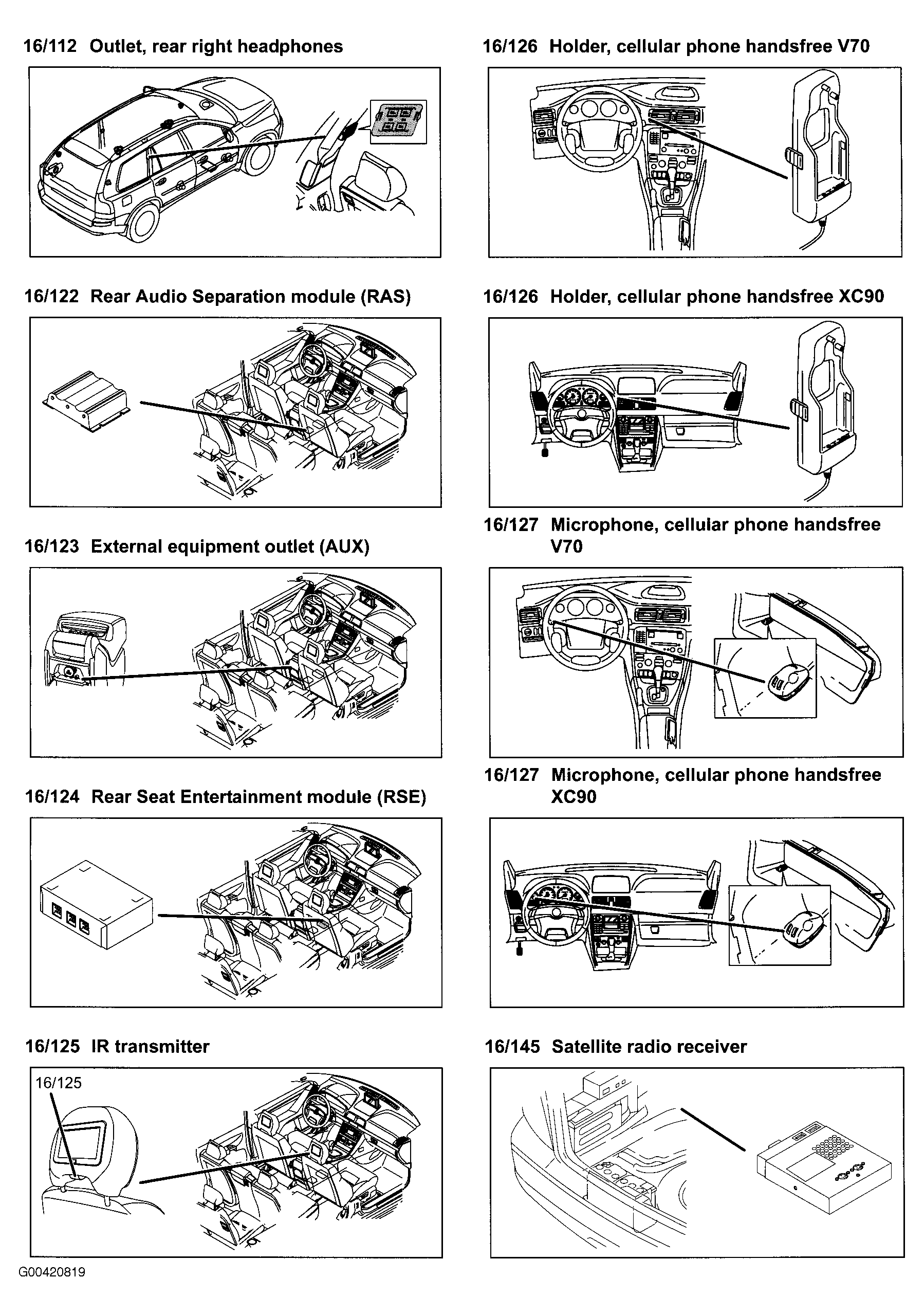

Fig 71: Components 16/112 To 16/145
G00420819Courtesy of VOLVO CARS OF NORTH AMERICA.

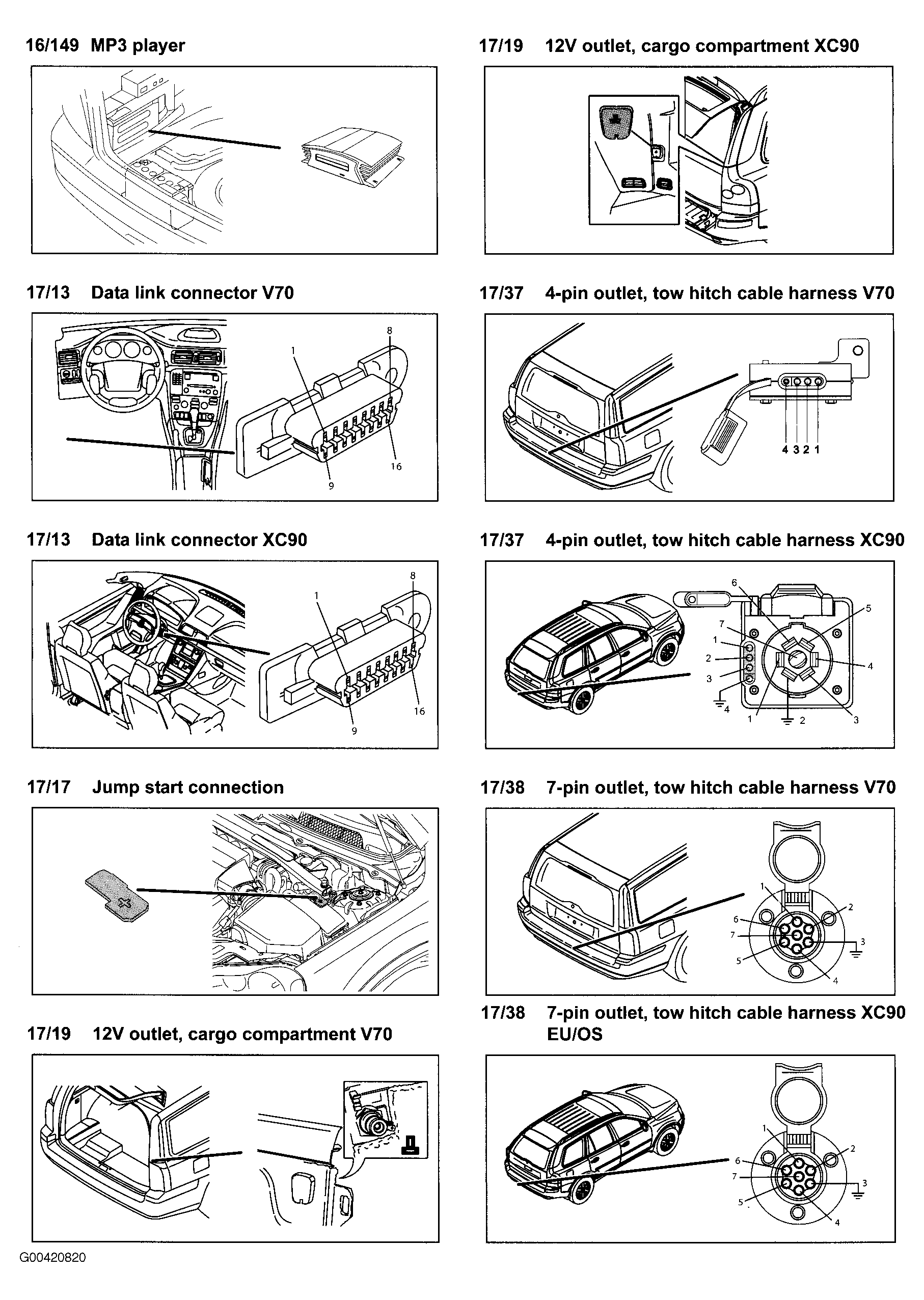

Fig 72: Components 16/149 To 17/38
G00420820Courtesy of VOLVO CARS OF NORTH AMERICA.

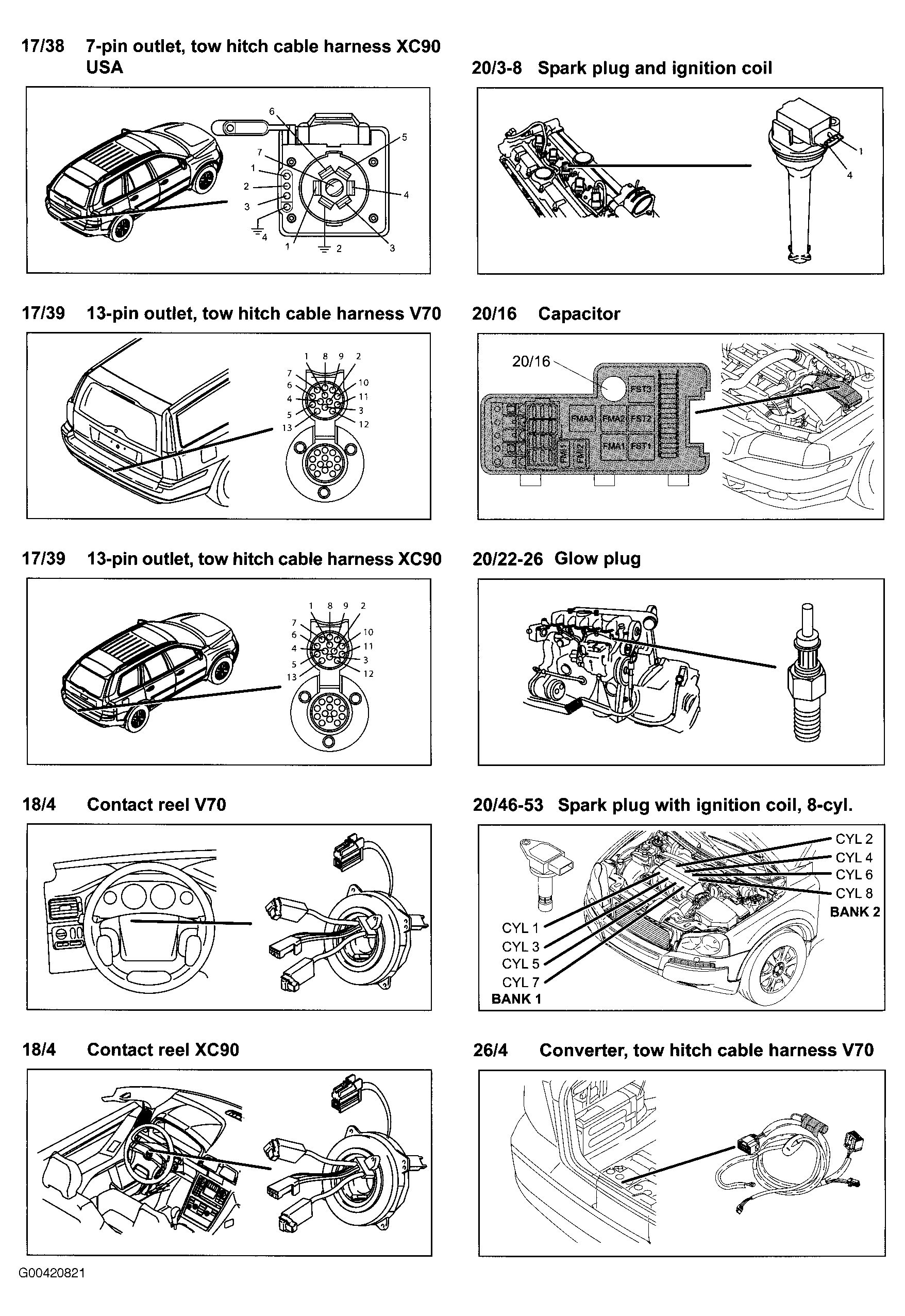

Fig 73: Components 17/38 To 26/4
G00420821Courtesy of VOLVO CARS OF NORTH AMERICA.

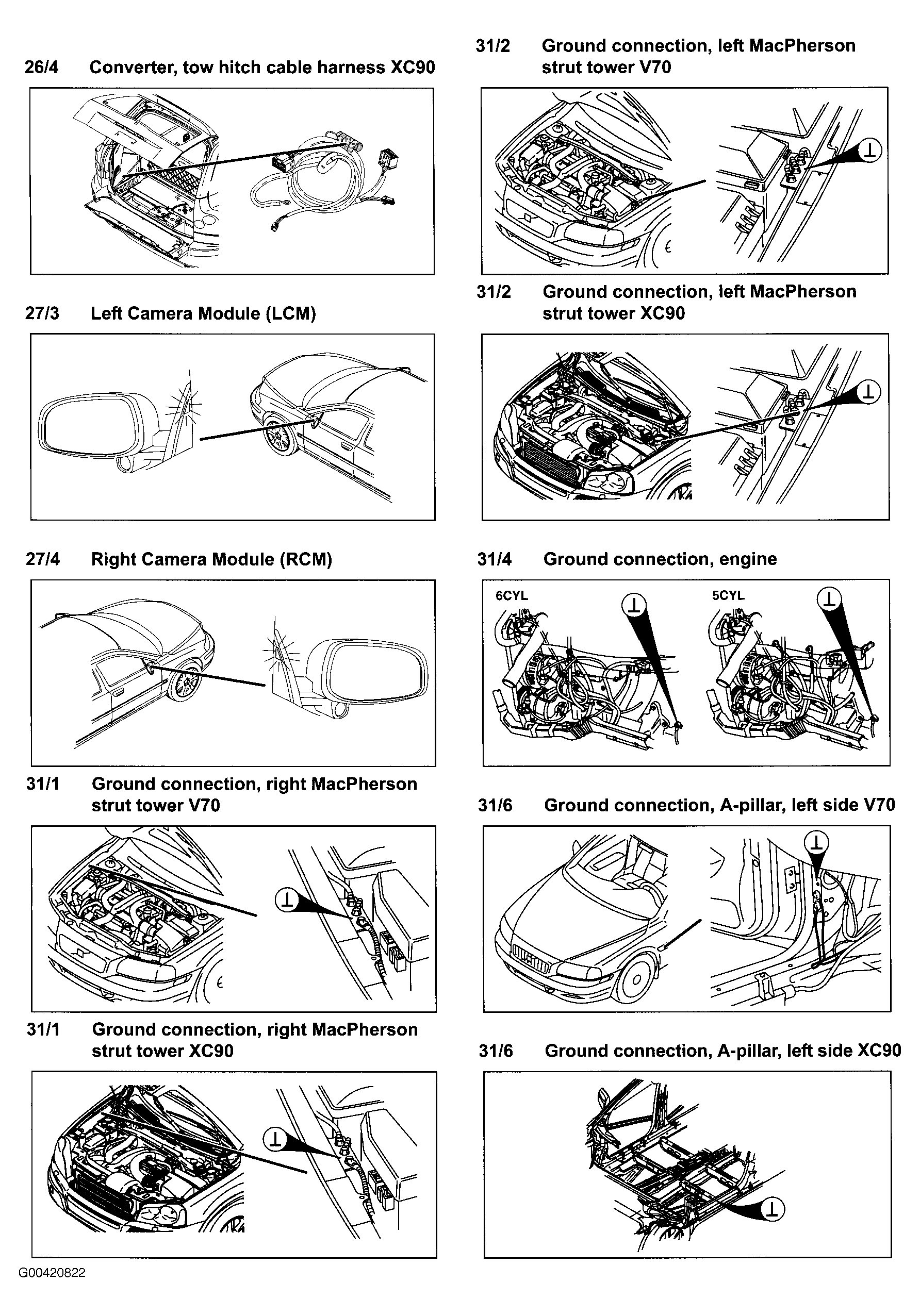

Fig 74: Components 26/4 To 31/6
G00420822Courtesy of VOLVO CARS OF NORTH AMERICA.

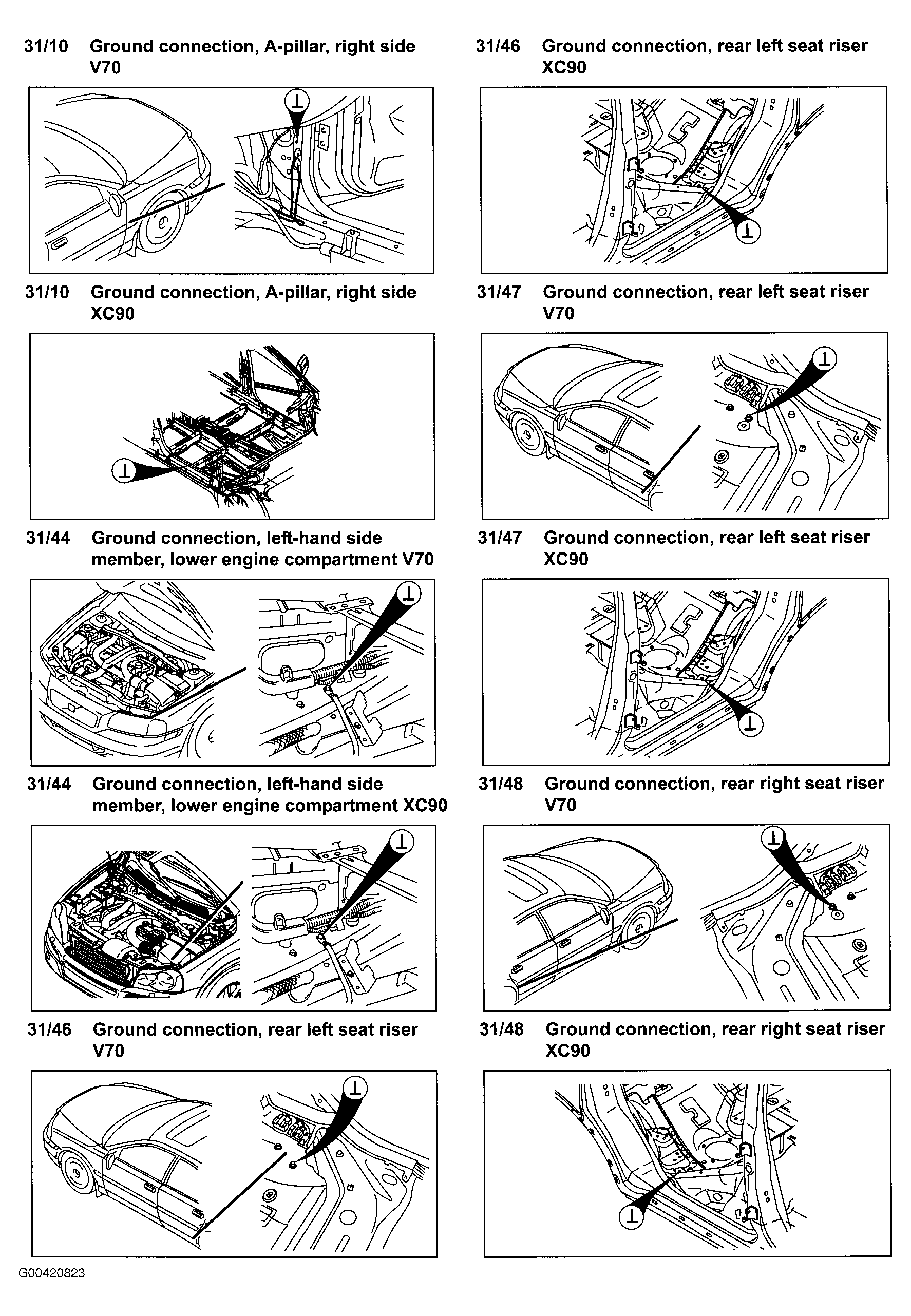

Fig 75: Components 31/10 To 31/48
G00420823Courtesy of VOLVO CARS OF NORTH AMERICA.

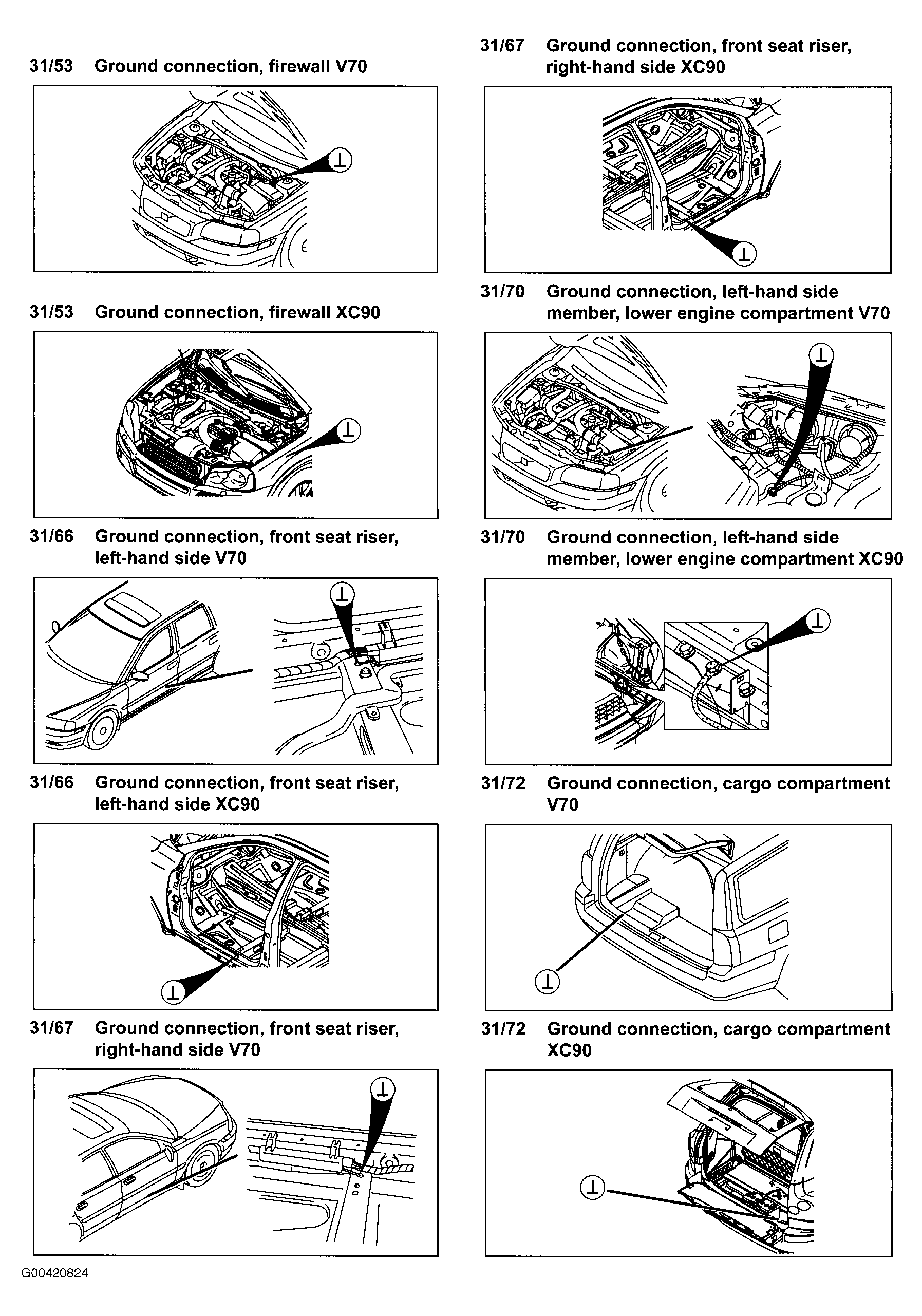

Fig 76: Components 31/53 To 31/72
G00420824Courtesy of VOLVO CARS OF NORTH AMERICA.

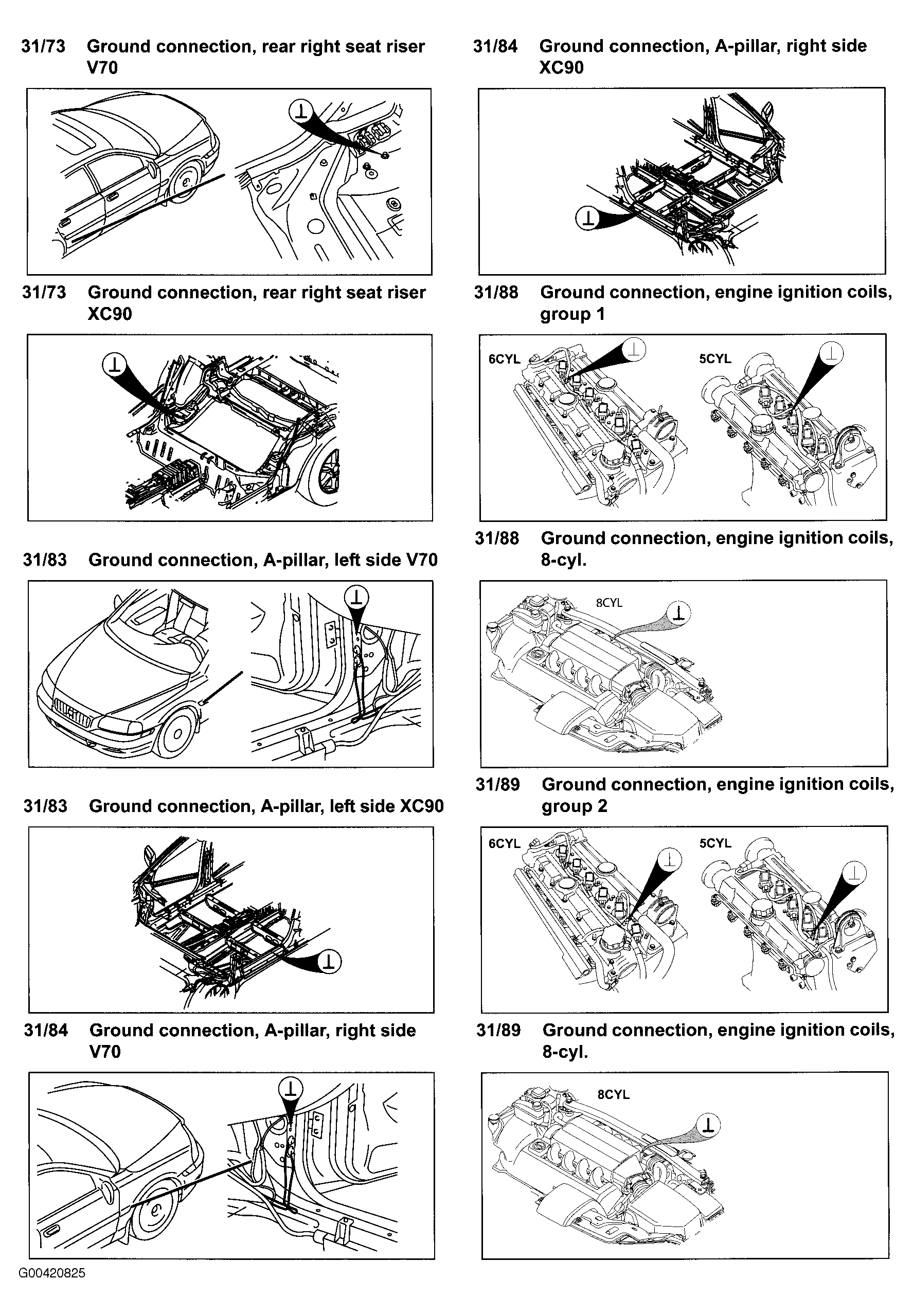

Fig 77: Components 31/73 To 31/89
G00420825Courtesy of VOLVO CARS OF NORTH AMERICA.

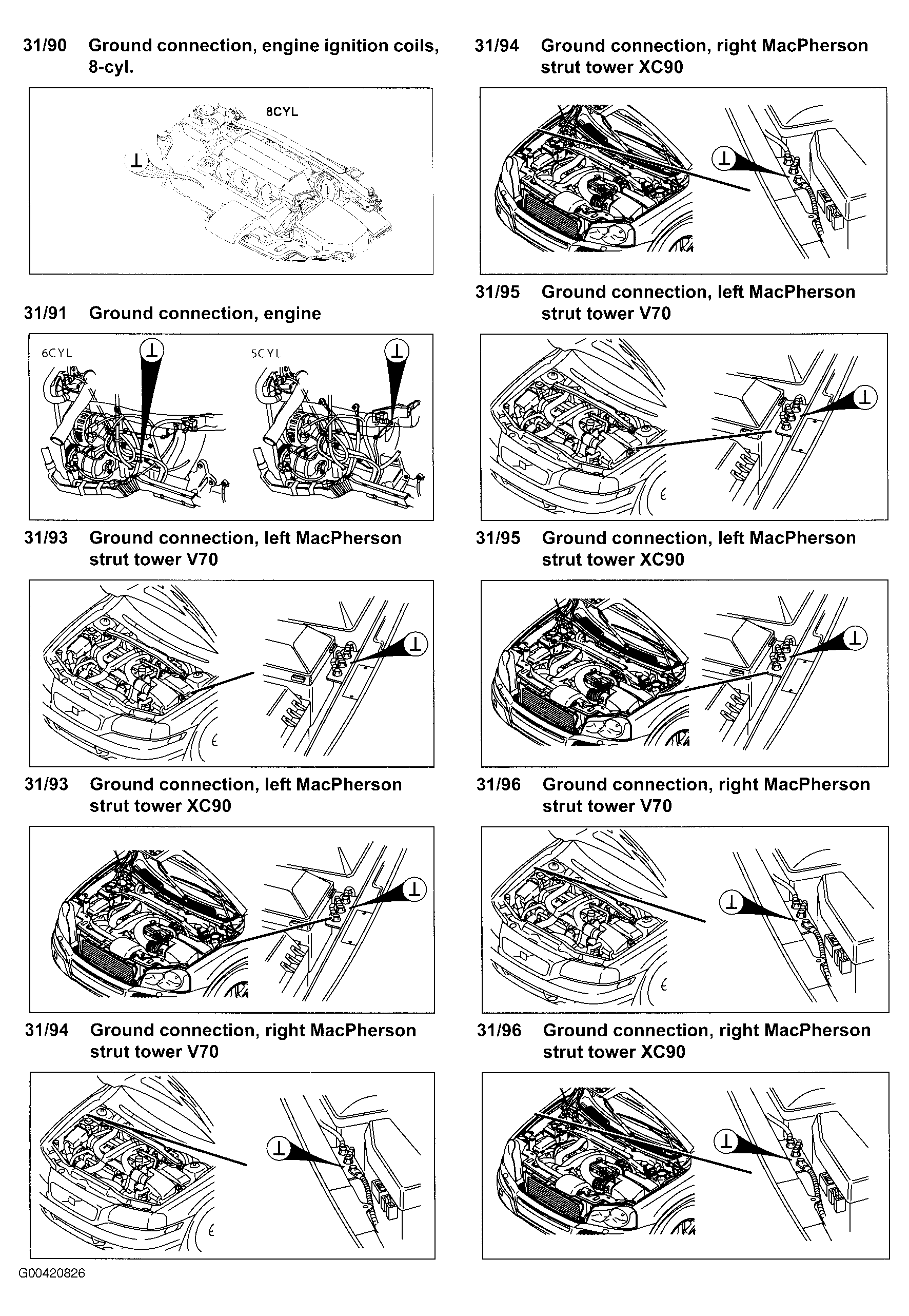

Fig 78: Components 31/90 To 31/96
G00420826Courtesy of VOLVO CARS OF NORTH AMERICA.

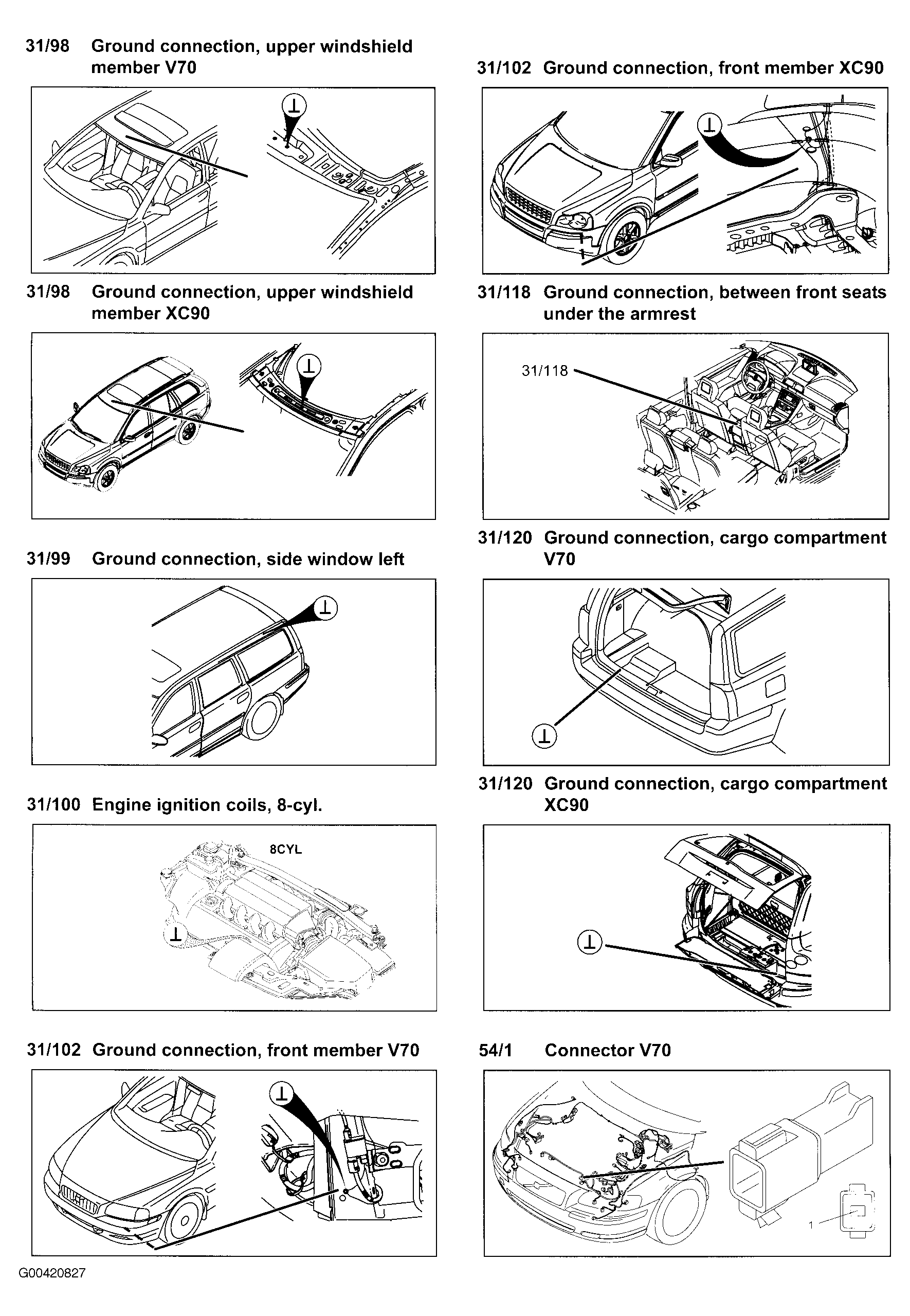

Fig 79: Components 31/98 To 54/1
G00420827Courtesy of VOLVO CARS OF NORTH AMERICA.

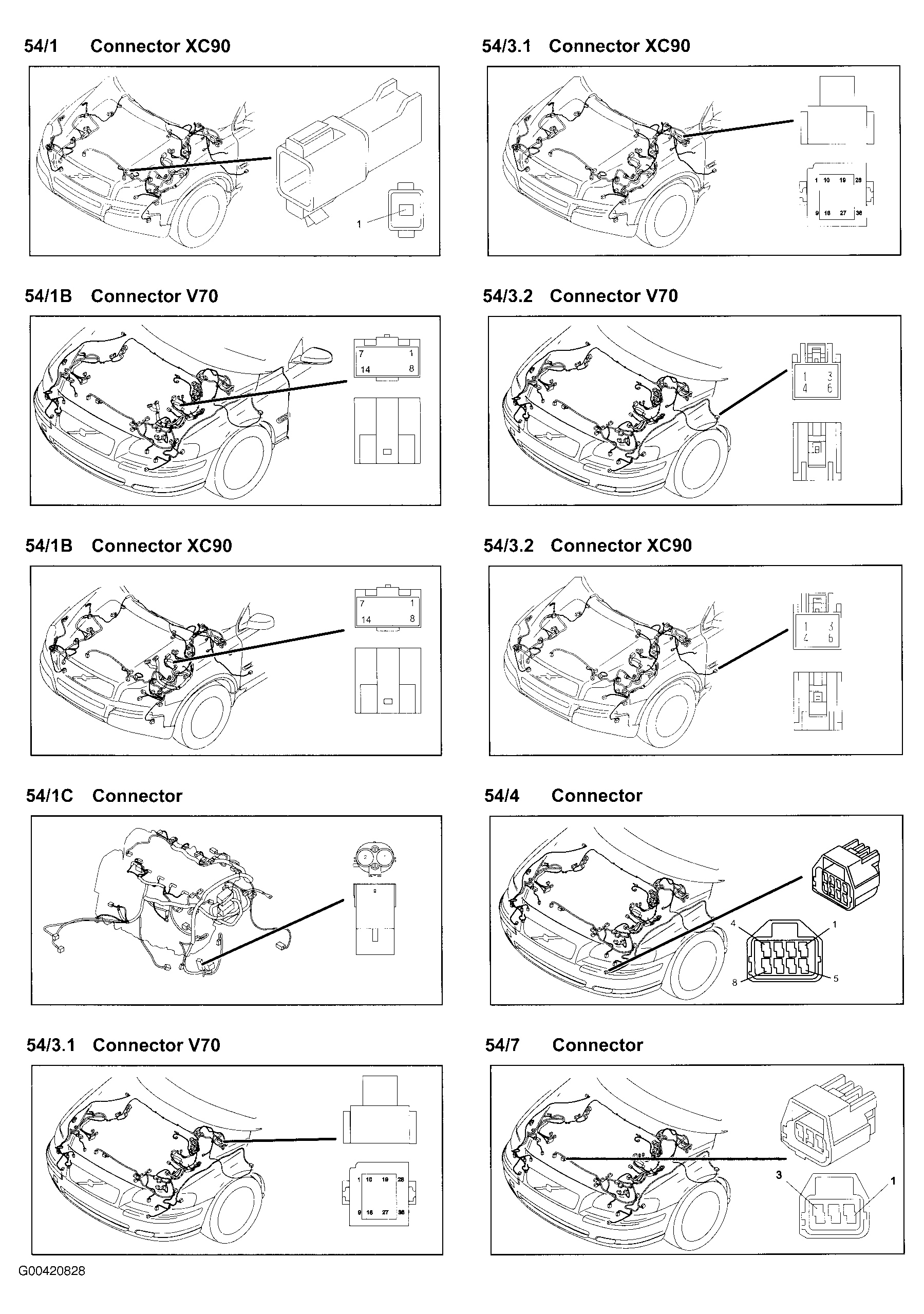

Fig 80: Components 54/1 To 54/7
G00420828Courtesy of VOLVO CARS OF NORTH AMERICA.

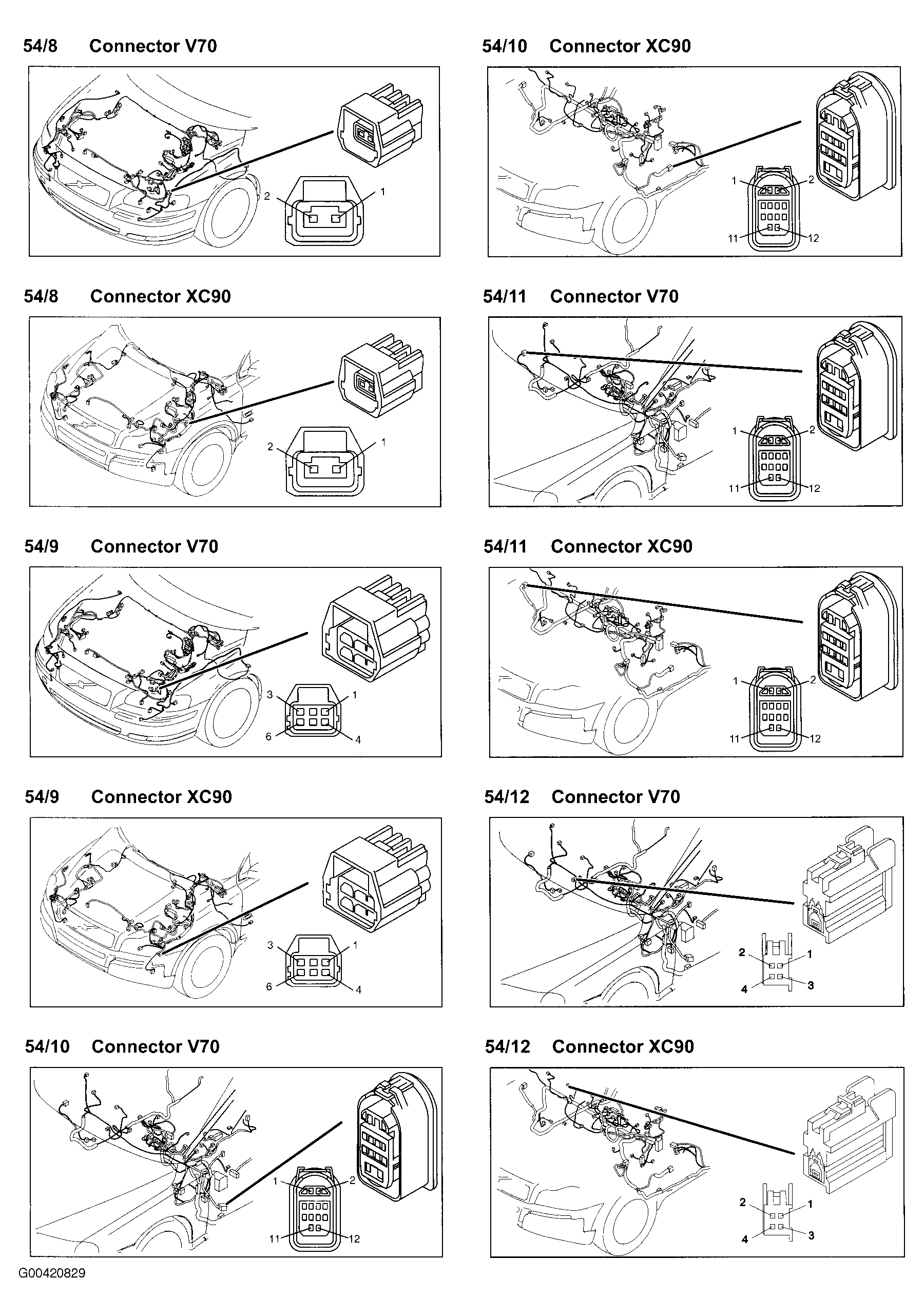

Fig 81: Components 54/8 To 54/12
G00420829Courtesy of VOLVO CARS OF NORTH AMERICA.

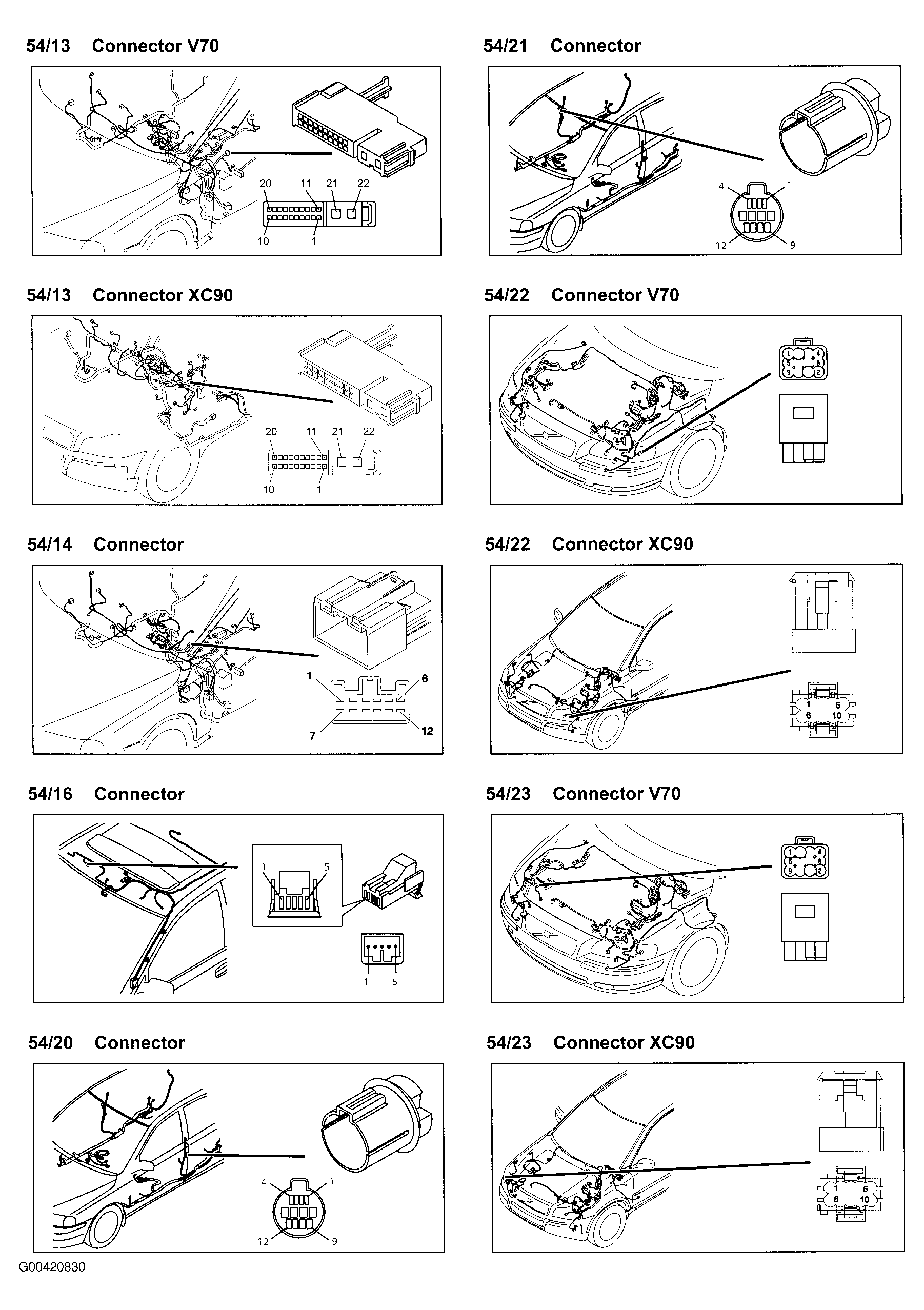

Fig 82: Components 54/13 To 54/23
G00420830Courtesy of VOLVO CARS OF NORTH AMERICA.

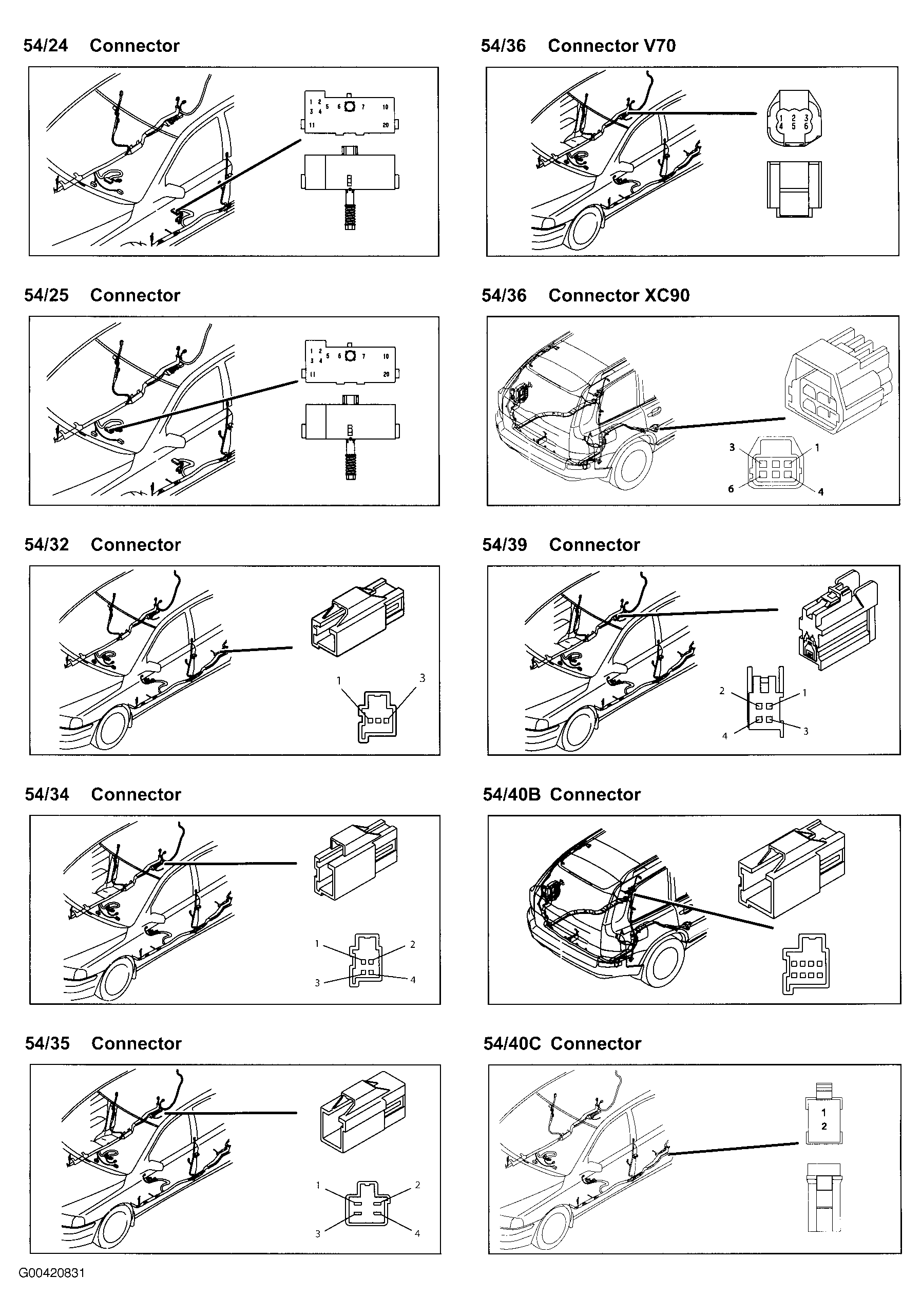

Fig 83: Components 54/24 To 54/40
G00420831Courtesy of VOLVO CARS OF NORTH AMERICA.

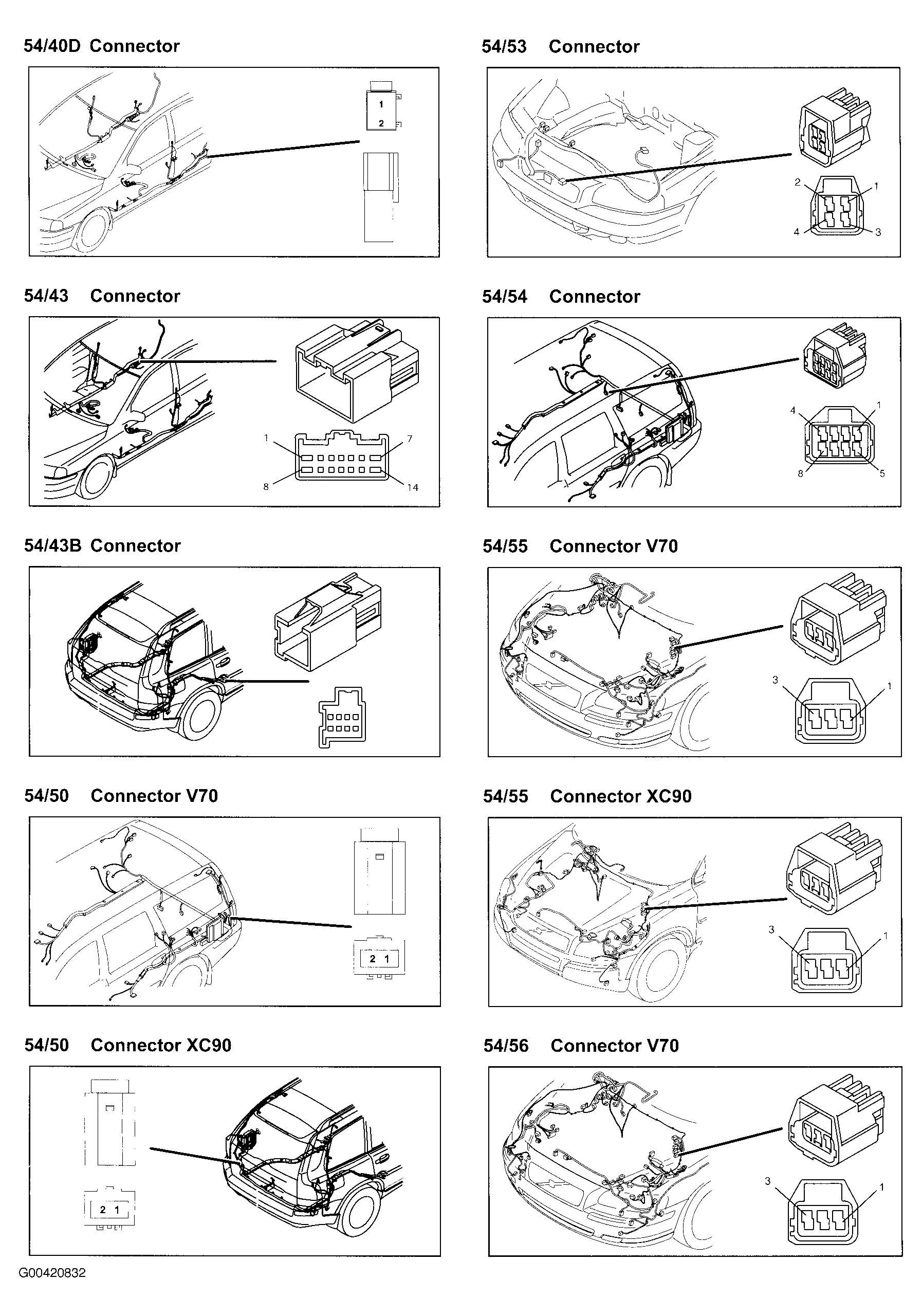

Fig 84: Components 54/40D To 54/56
G00420832Courtesy of VOLVO CARS OF NORTH AMERICA.

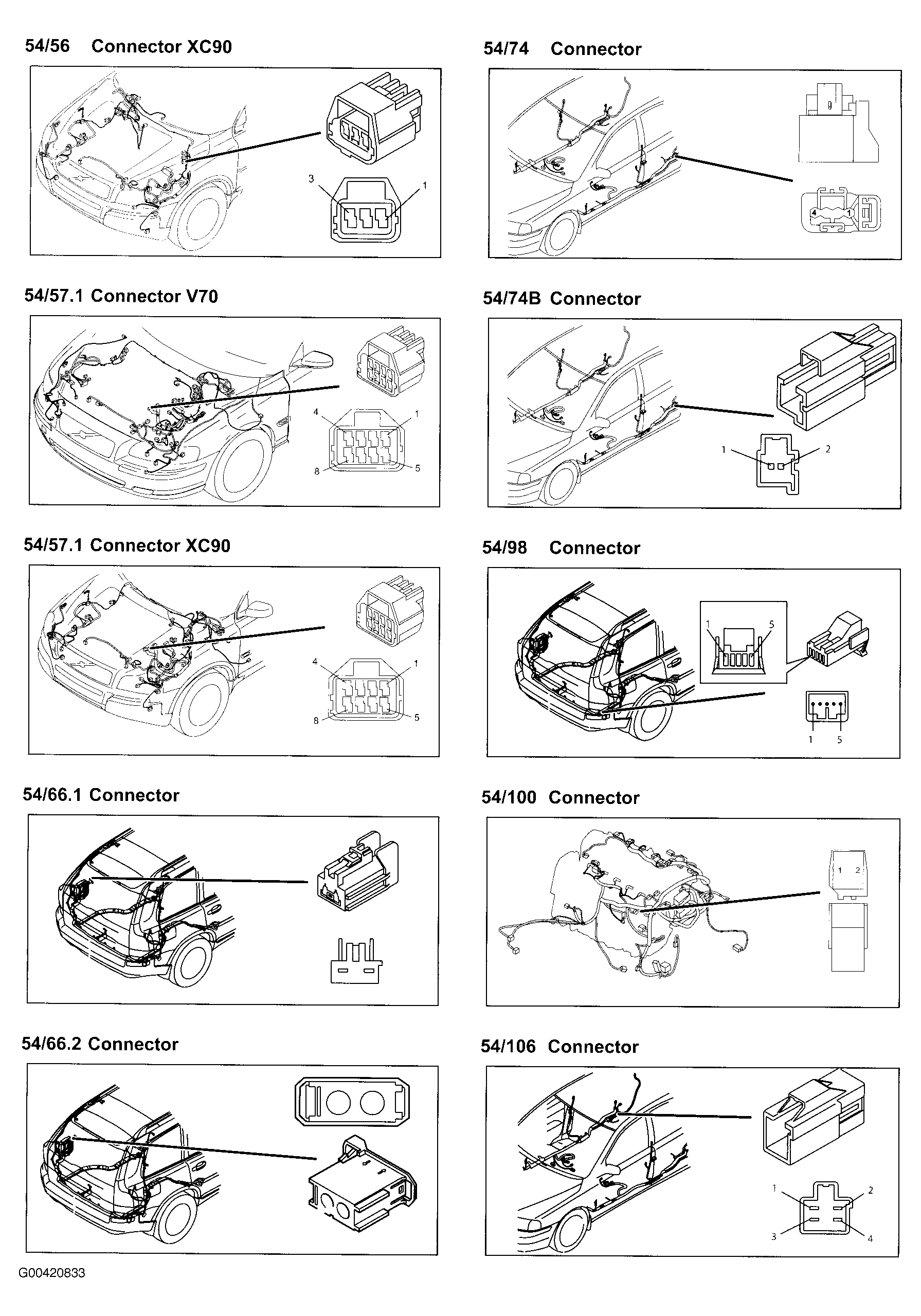

Fig 85: Components 54/56 To 54/106
G00420833Courtesy of VOLVO CARS OF NORTH AMERICA.

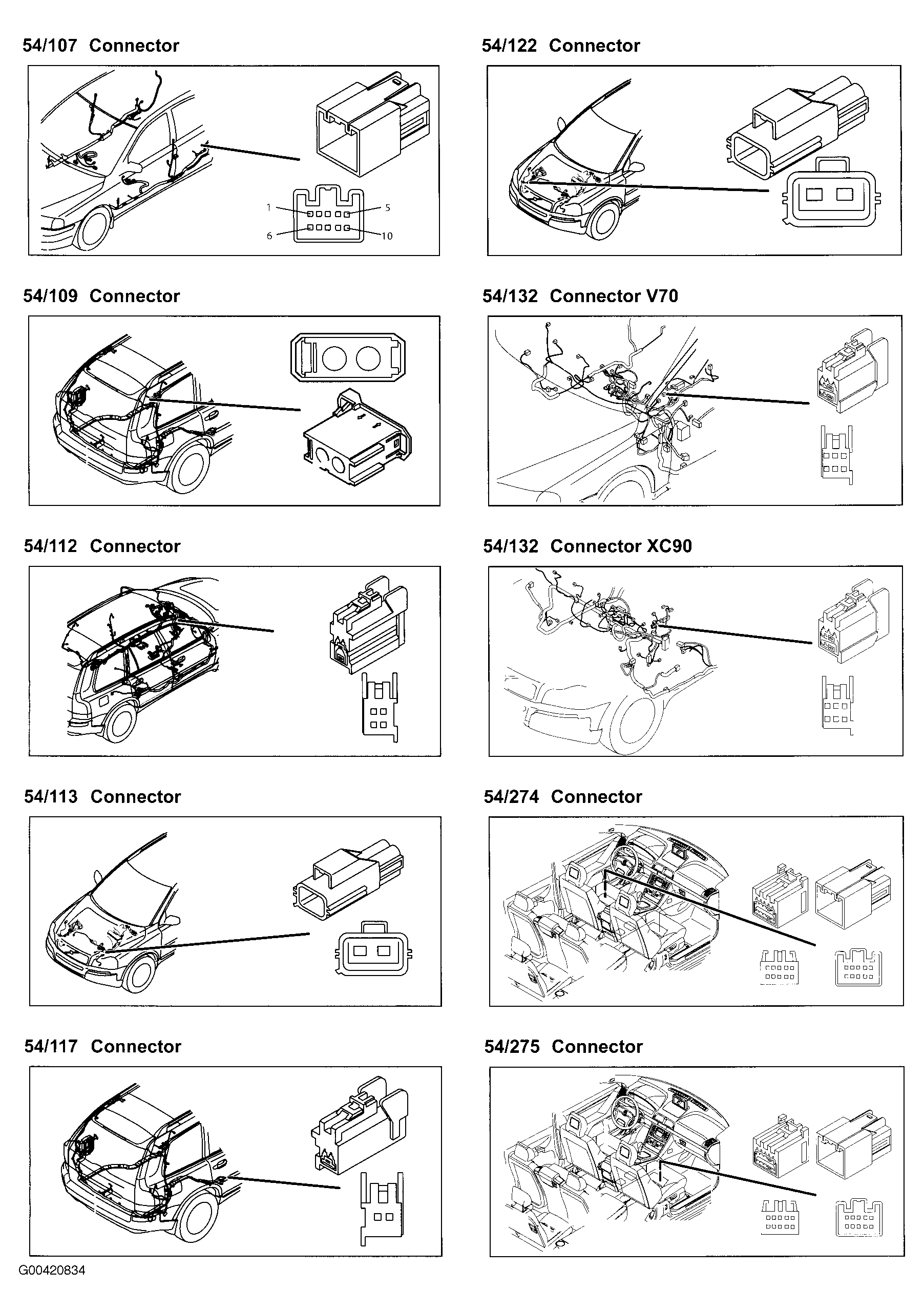

Fig 86: Components 54/107 To 54/275
G00420834Courtesy of VOLVO CARS OF NORTH AMERICA.

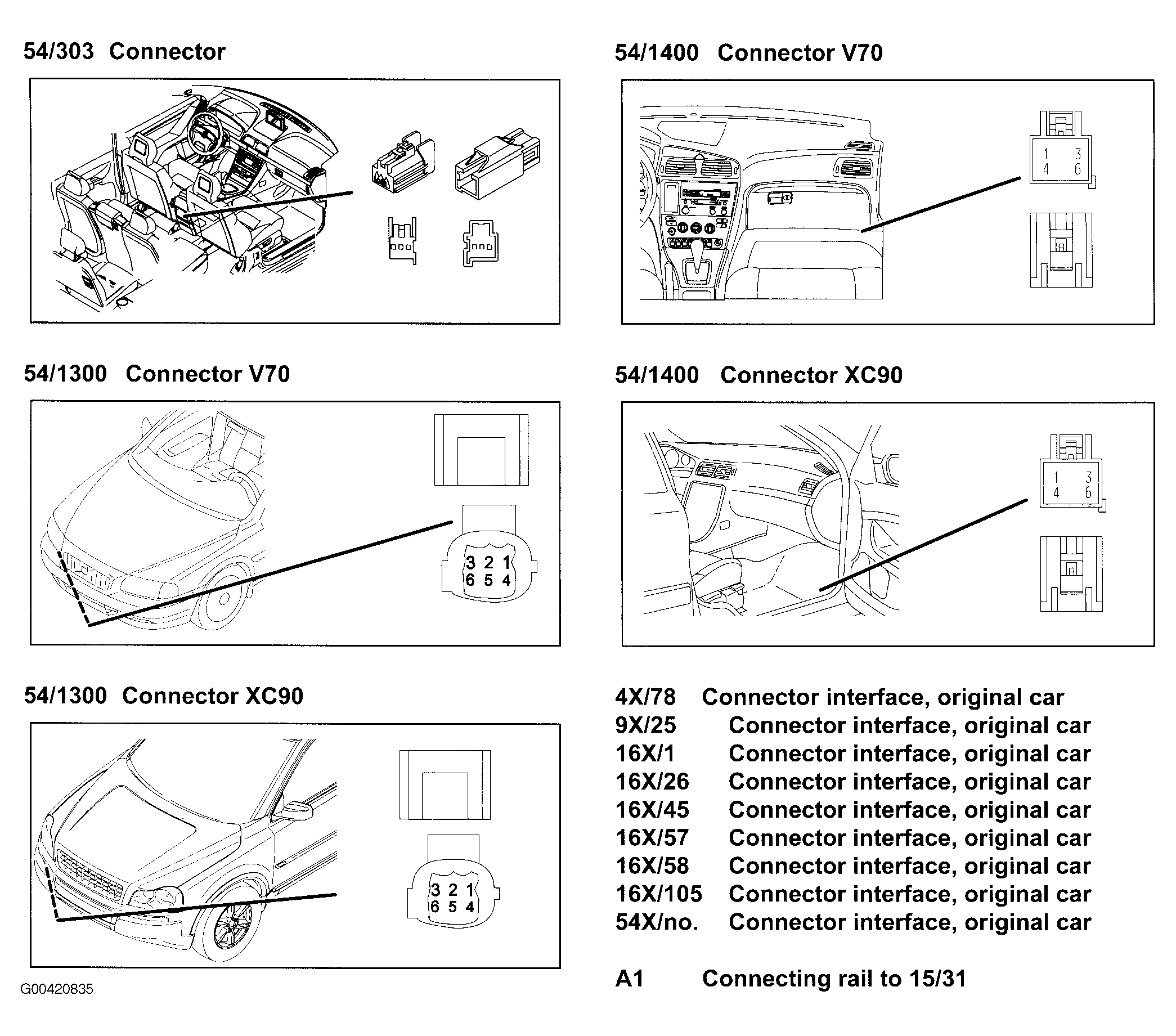

Fig 87: Components 54/303 To 54/1400
G00420835Courtesy of VOLVO CARS OF NORTH AMERICA.

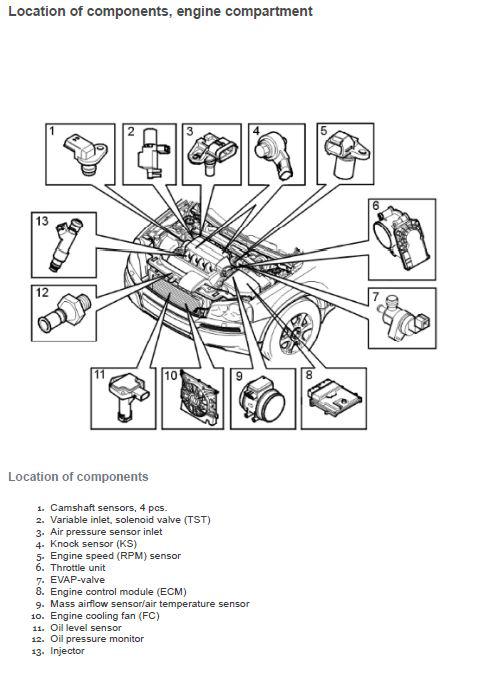

Fig 88: Oil Pressure monitor 12
G00590348Courtesy of VOLVO CARS OF NORTH AMERICA.
