Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

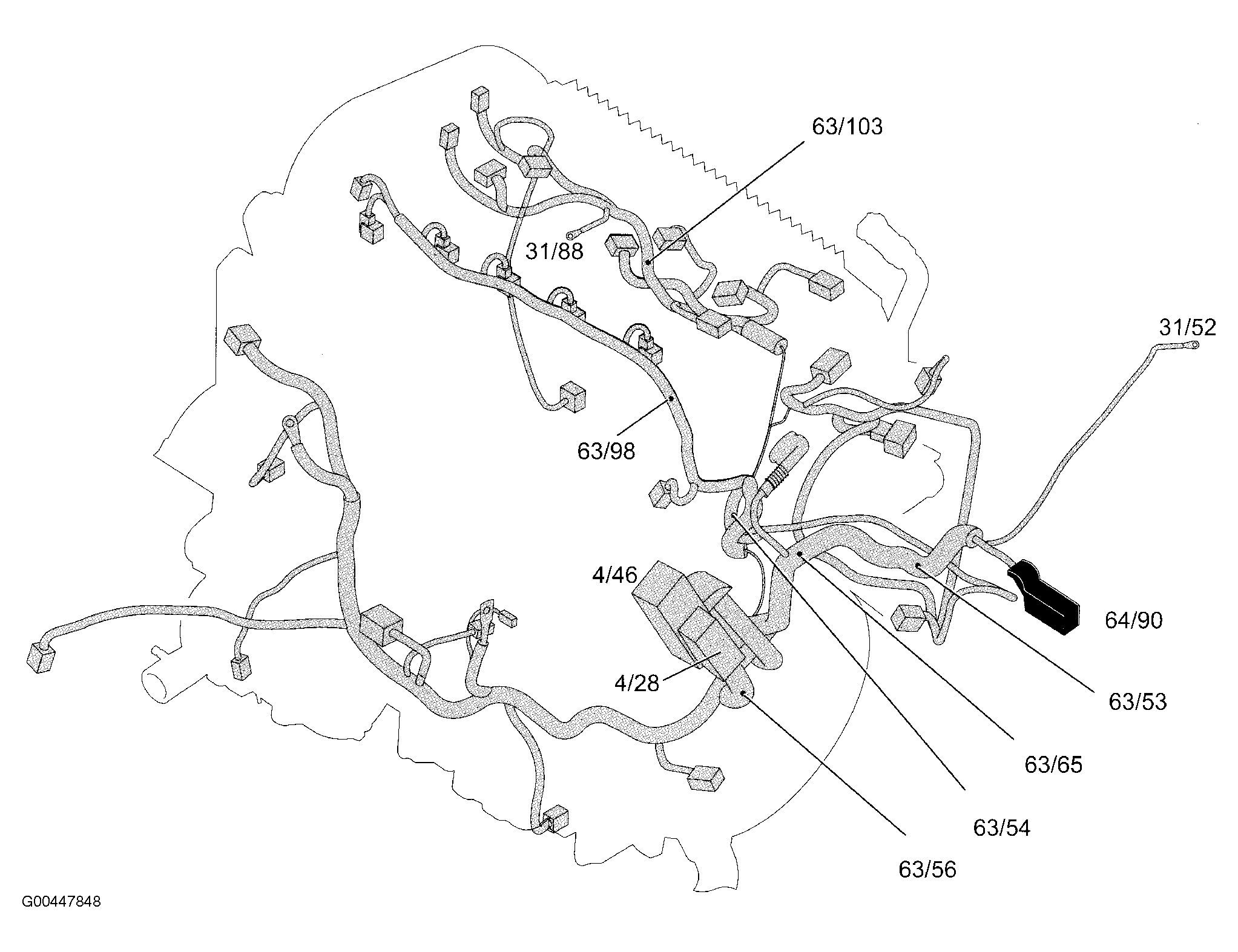

Fig 1: Engine
Courtesy of VOLVO CARS OF NORTH AMERICA.

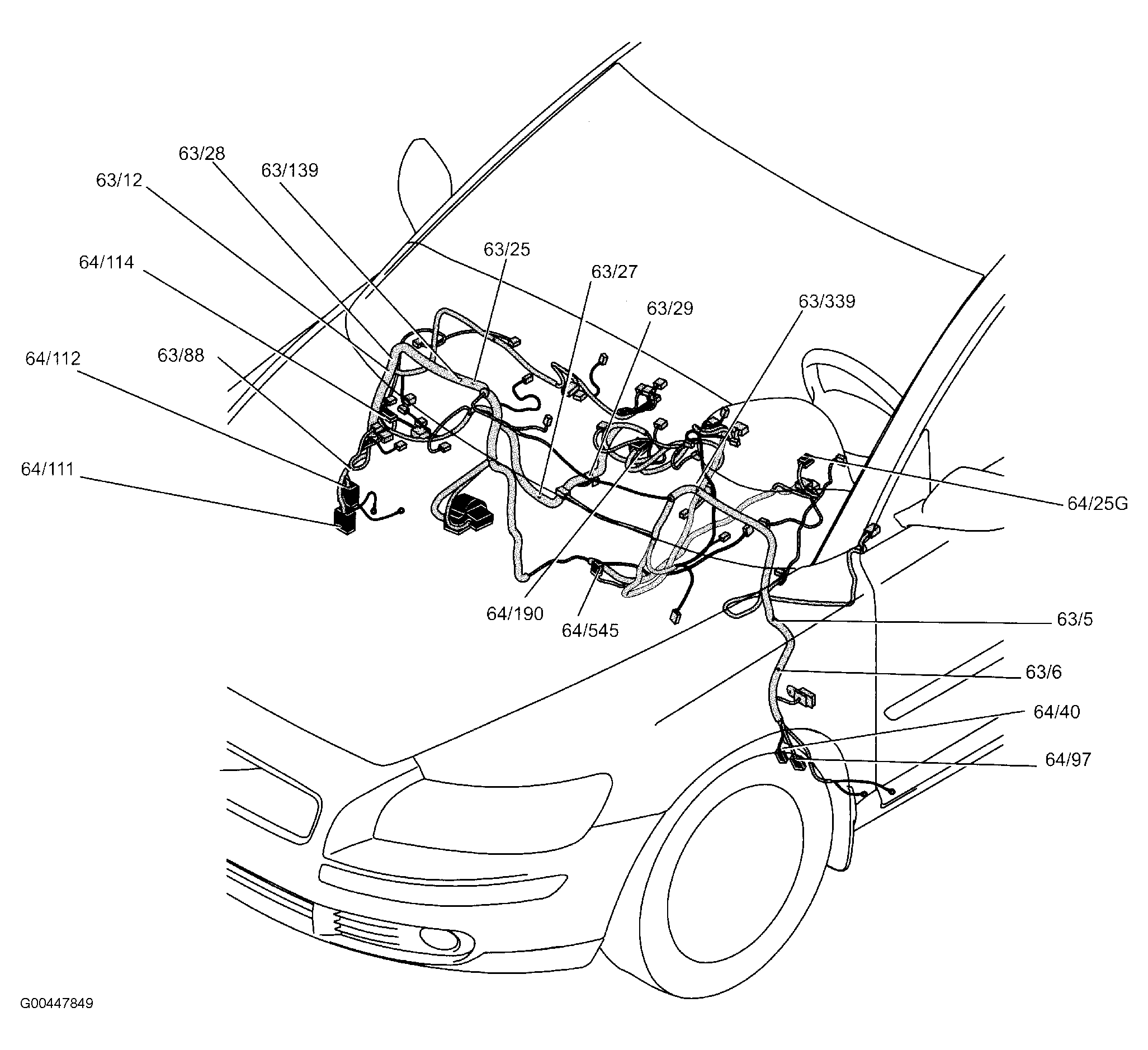

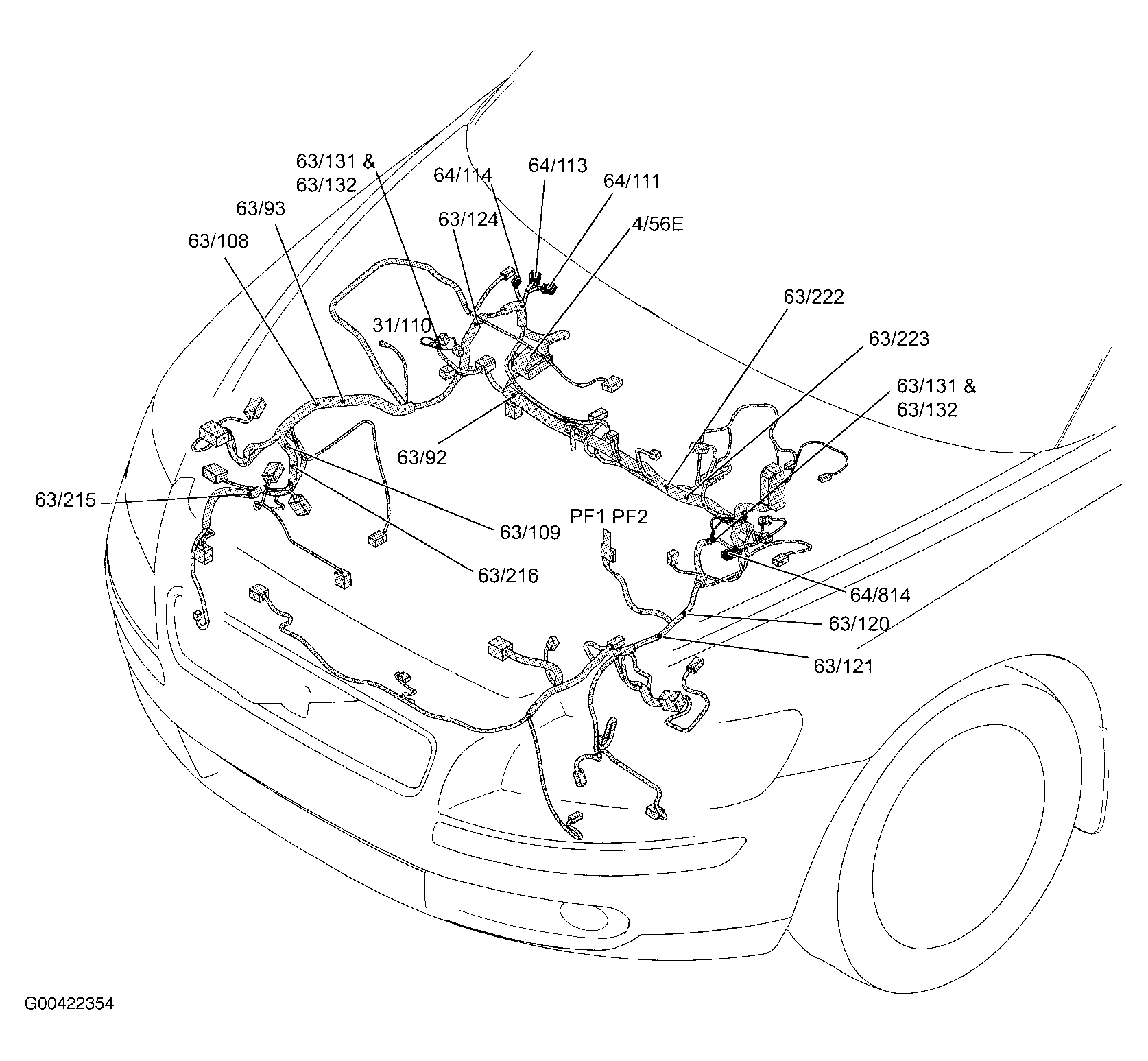

Fig 2: Engine Compartment
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 3: Dash
Courtesy of VOLVO CARS OF NORTH AMERICA.

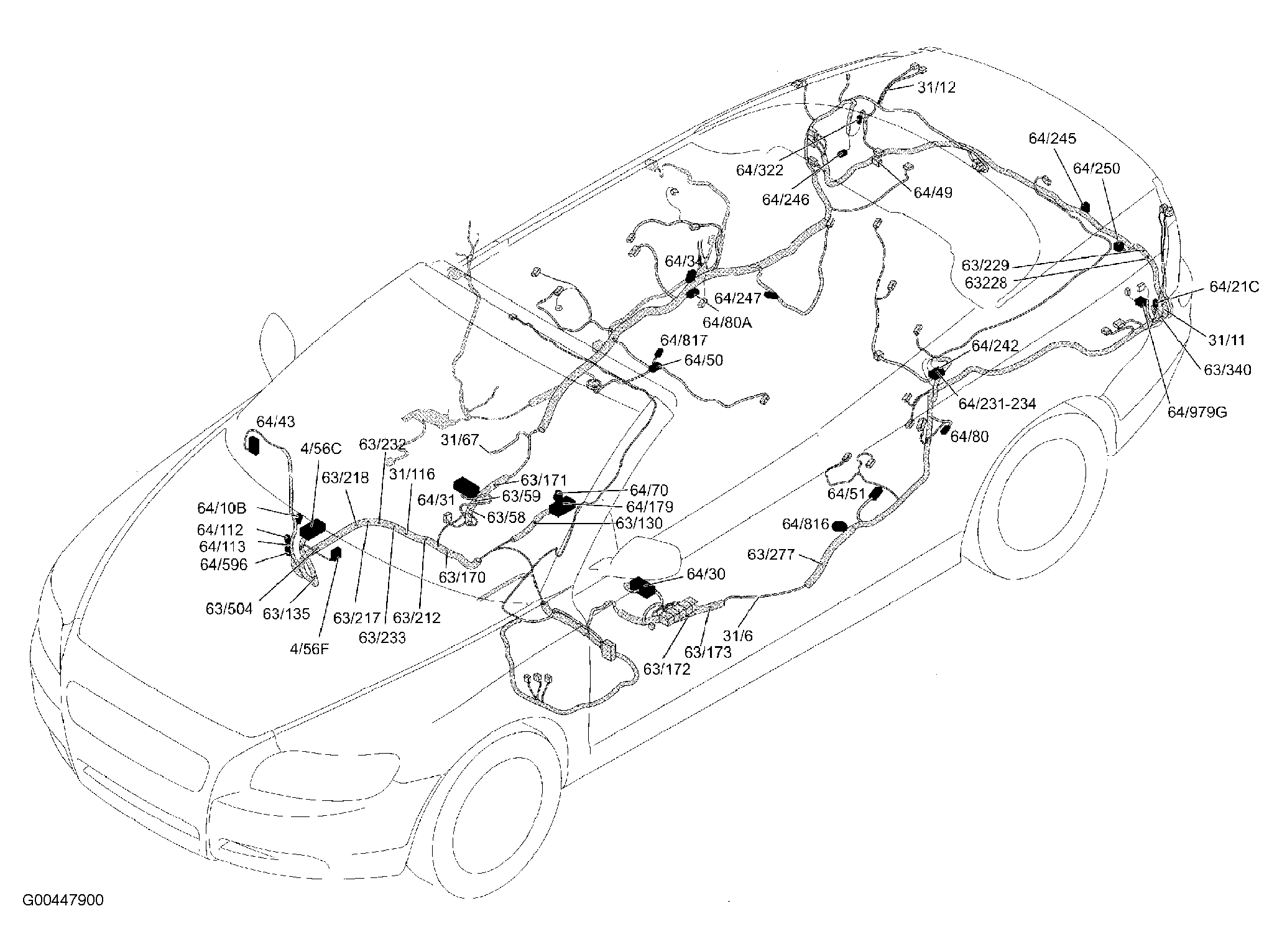

Fig 4: Vehicle Overview
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 5: Under Center Of Vehicle
Courtesy of VOLVO CARS OF NORTH AMERICA.

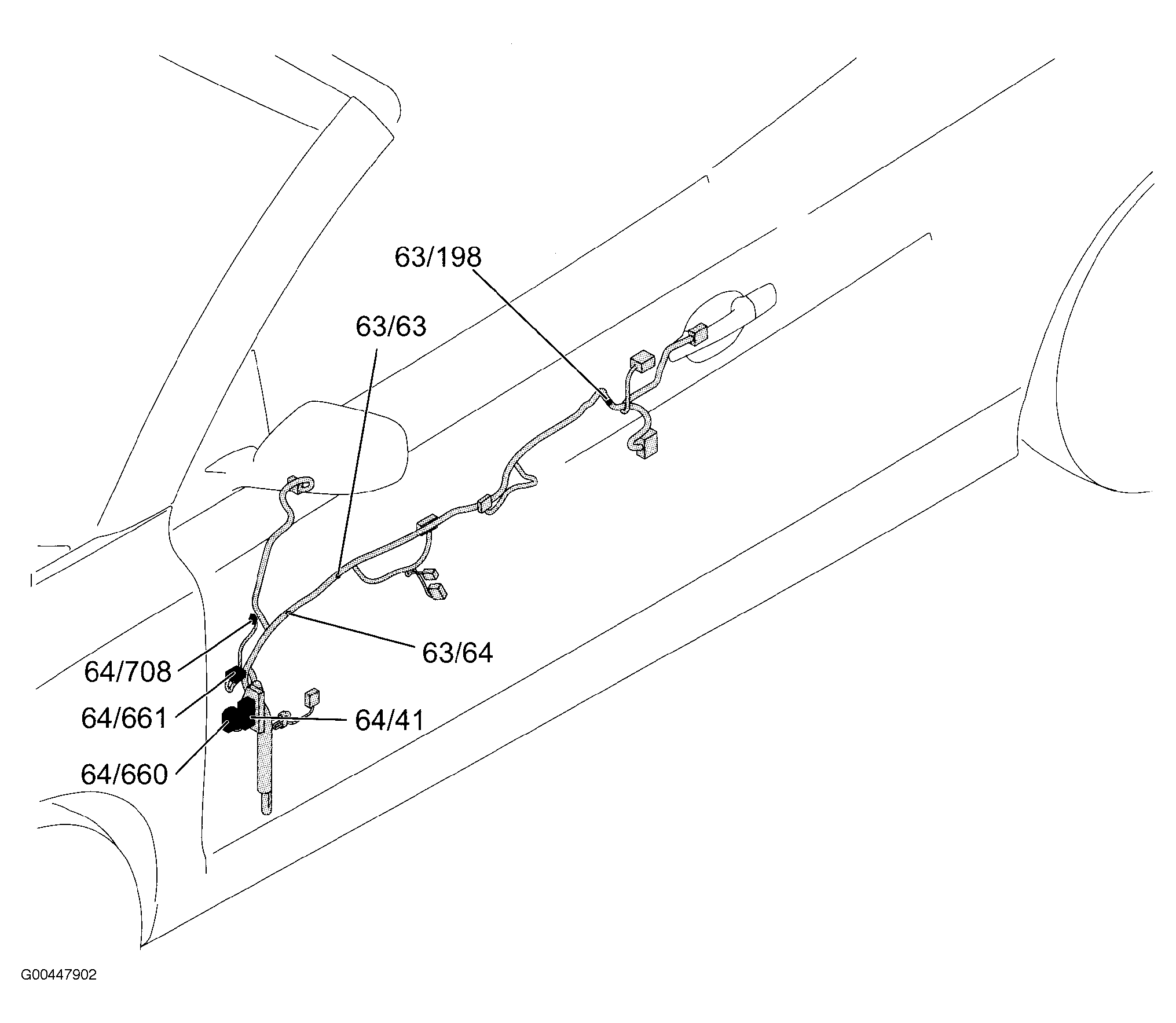

Fig 6: Driver's Door
Courtesy of VOLVO CARS OF NORTH AMERICA.

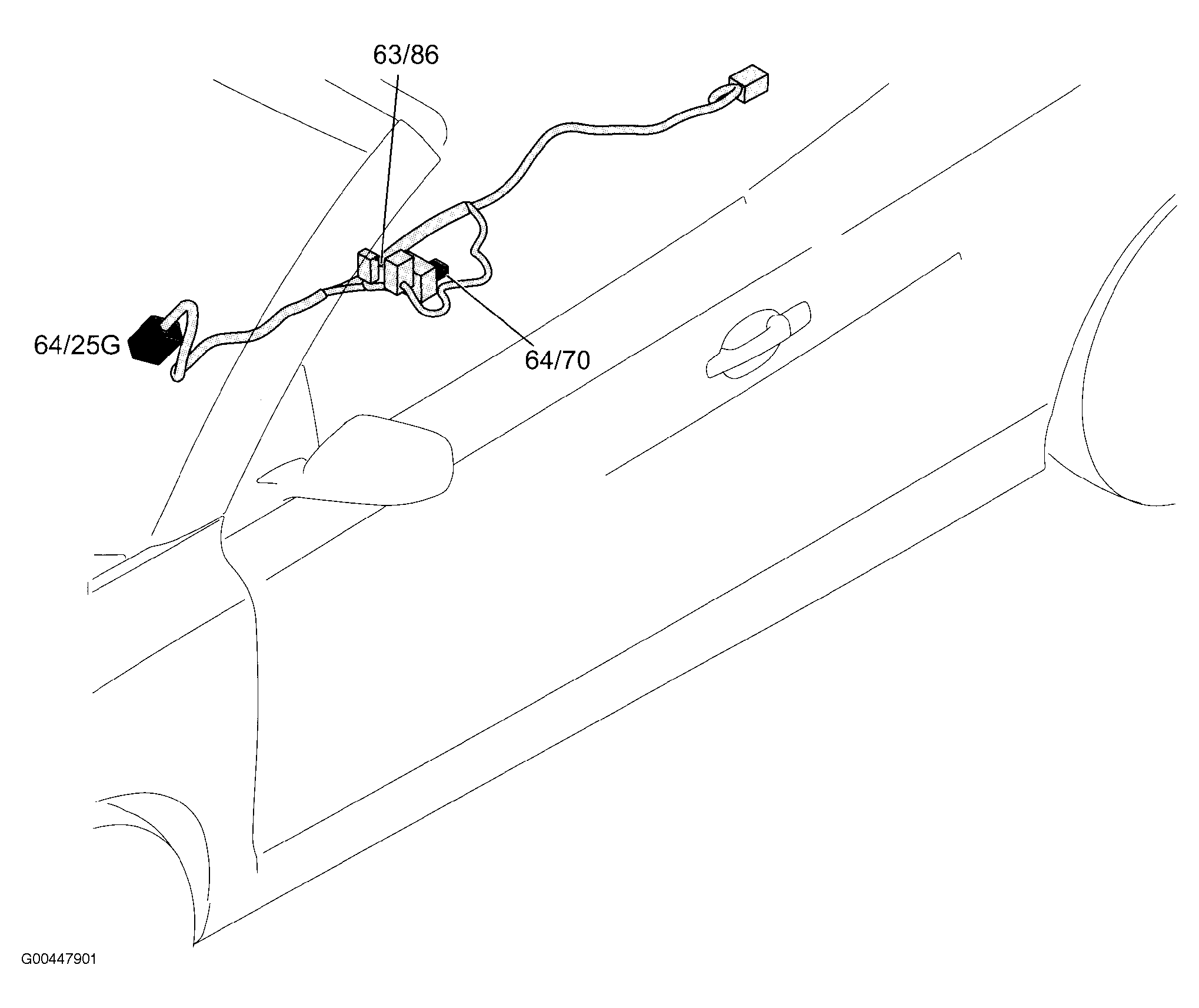

Fig 7: Passenger's Door
Courtesy of VOLVO CARS OF NORTH AMERICA.

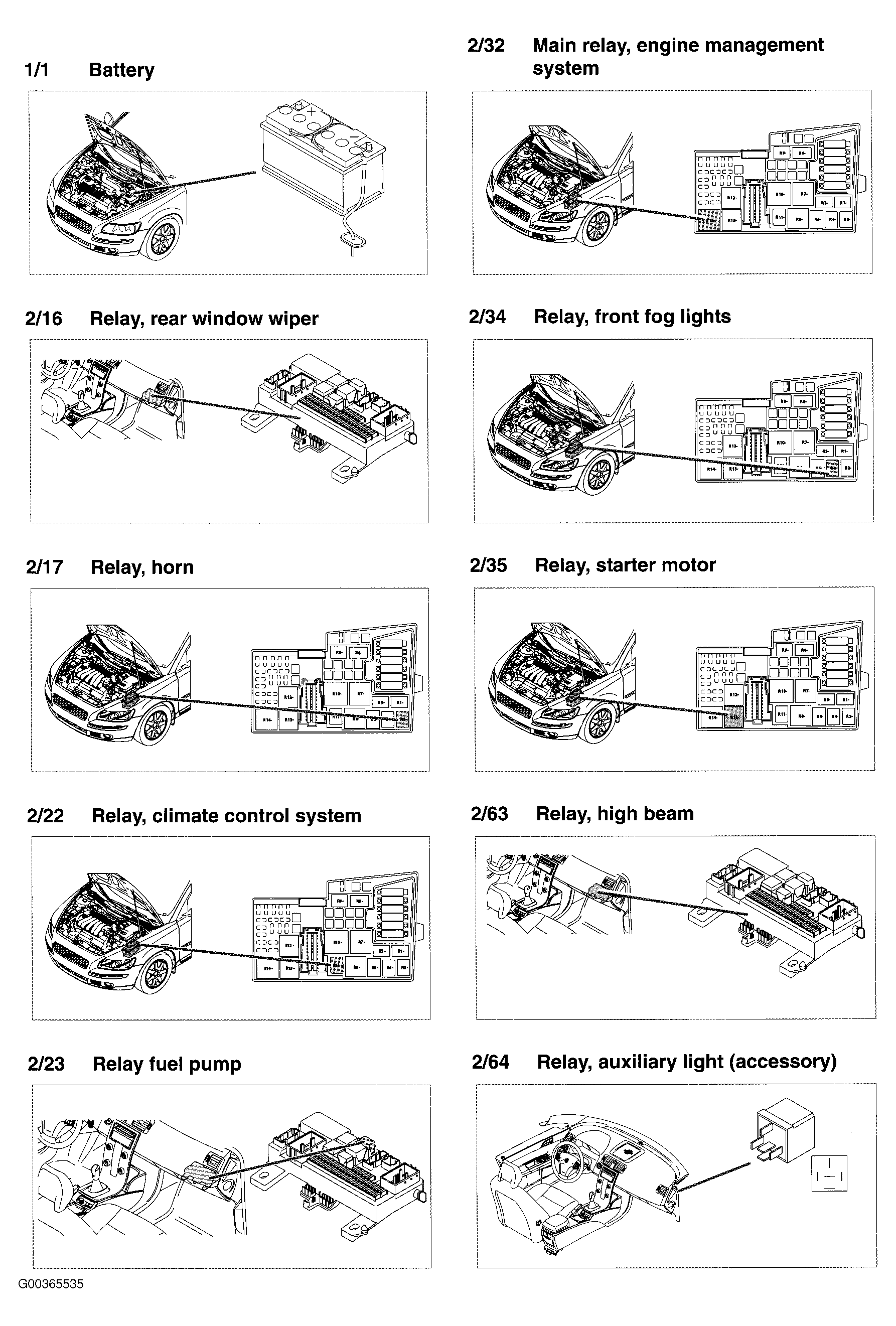

Fig 8: Components 1/1 To 2/64
Courtesy of VOLVO CARS OF NORTH AMERICA.

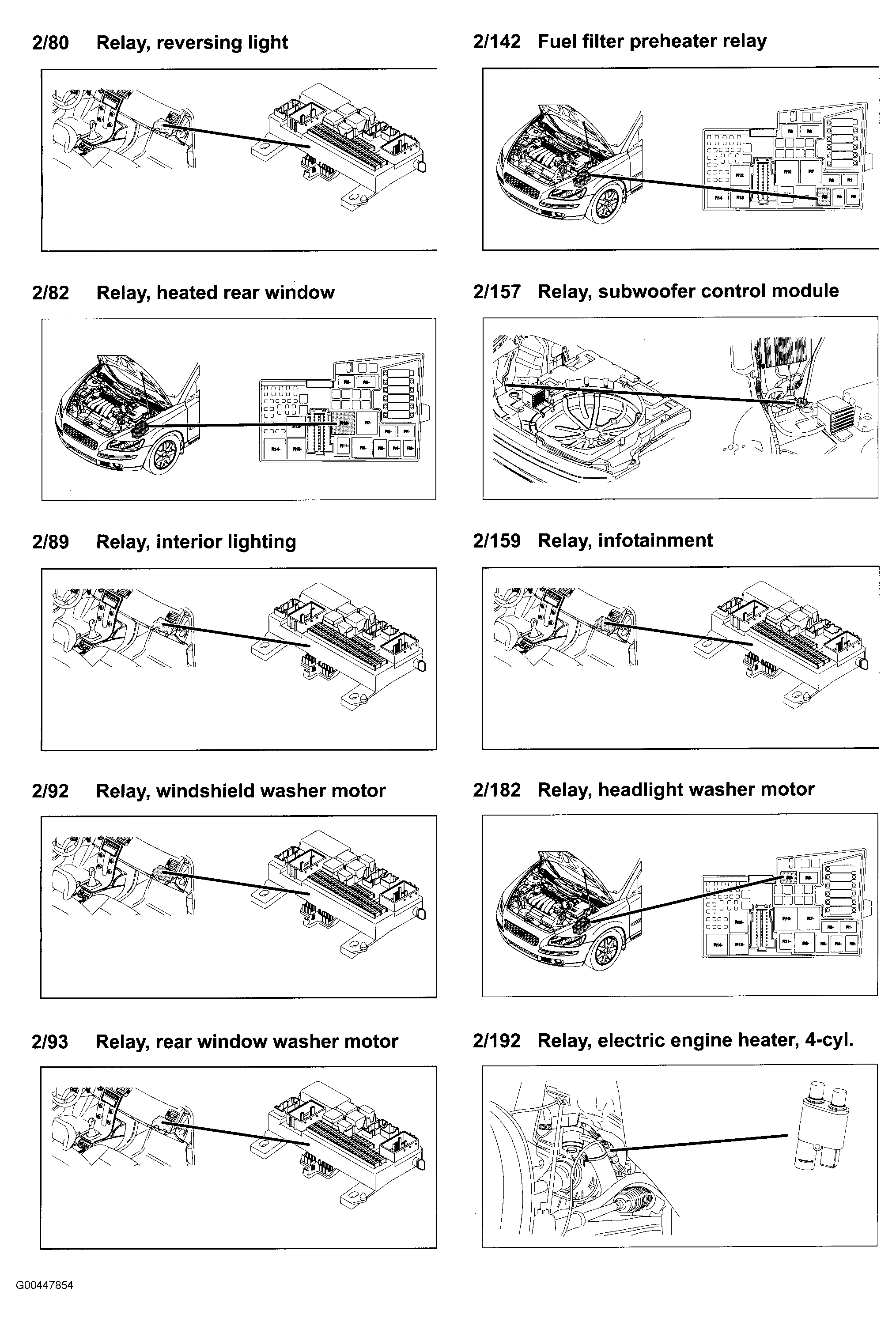

Fig 9: Components 2/80 To 2/192
Courtesy of VOLVO CARS OF NORTH AMERICA.

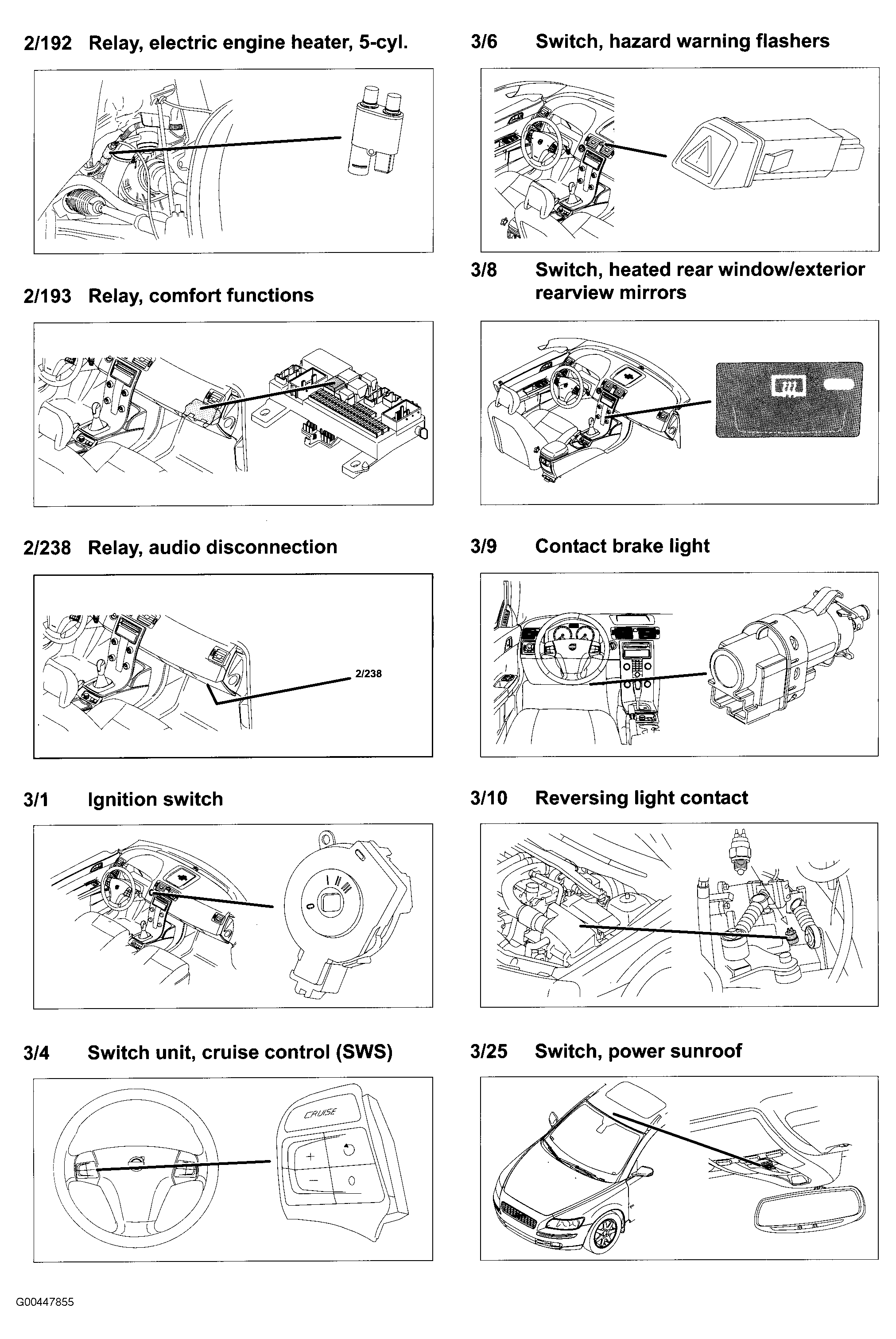

Fig 10: Components 2/192 To 3/25
Courtesy of VOLVO CARS OF NORTH AMERICA.

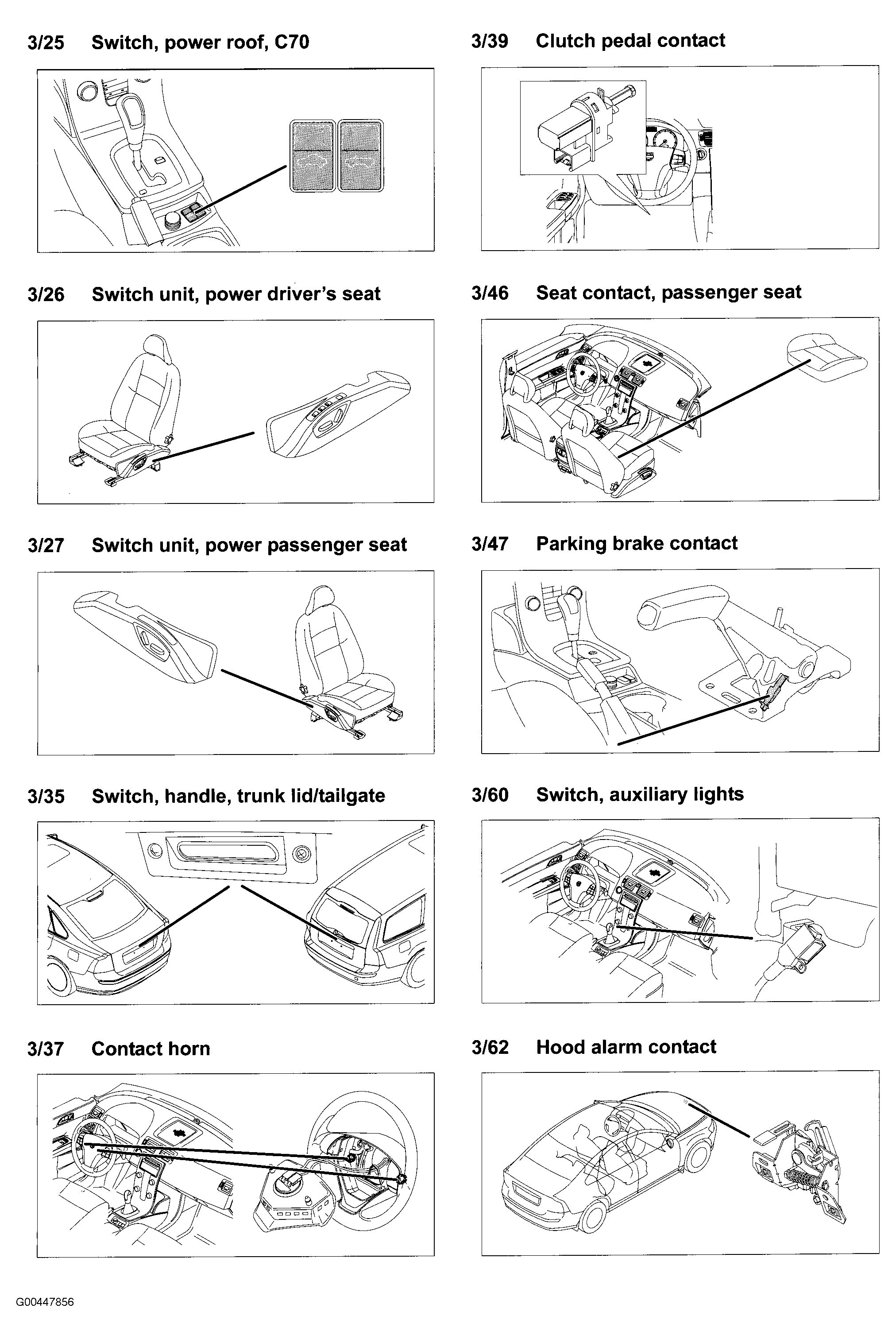

Fig 11: Components 3/25 To 3/62
Courtesy of VOLVO CARS OF NORTH AMERICA.

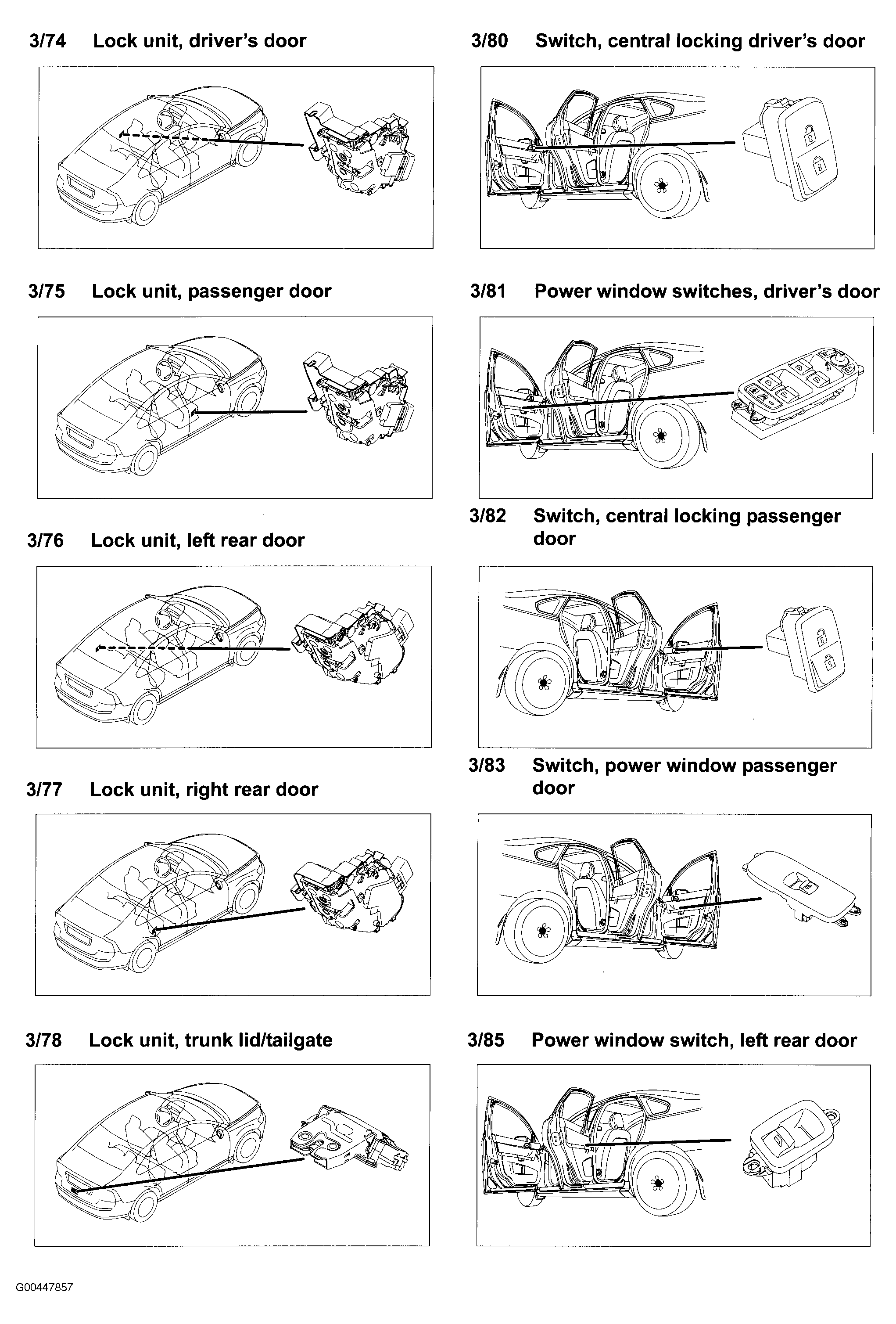

Fig 12: Components 3/74 To 3/85
Courtesy of VOLVO CARS OF NORTH AMERICA.

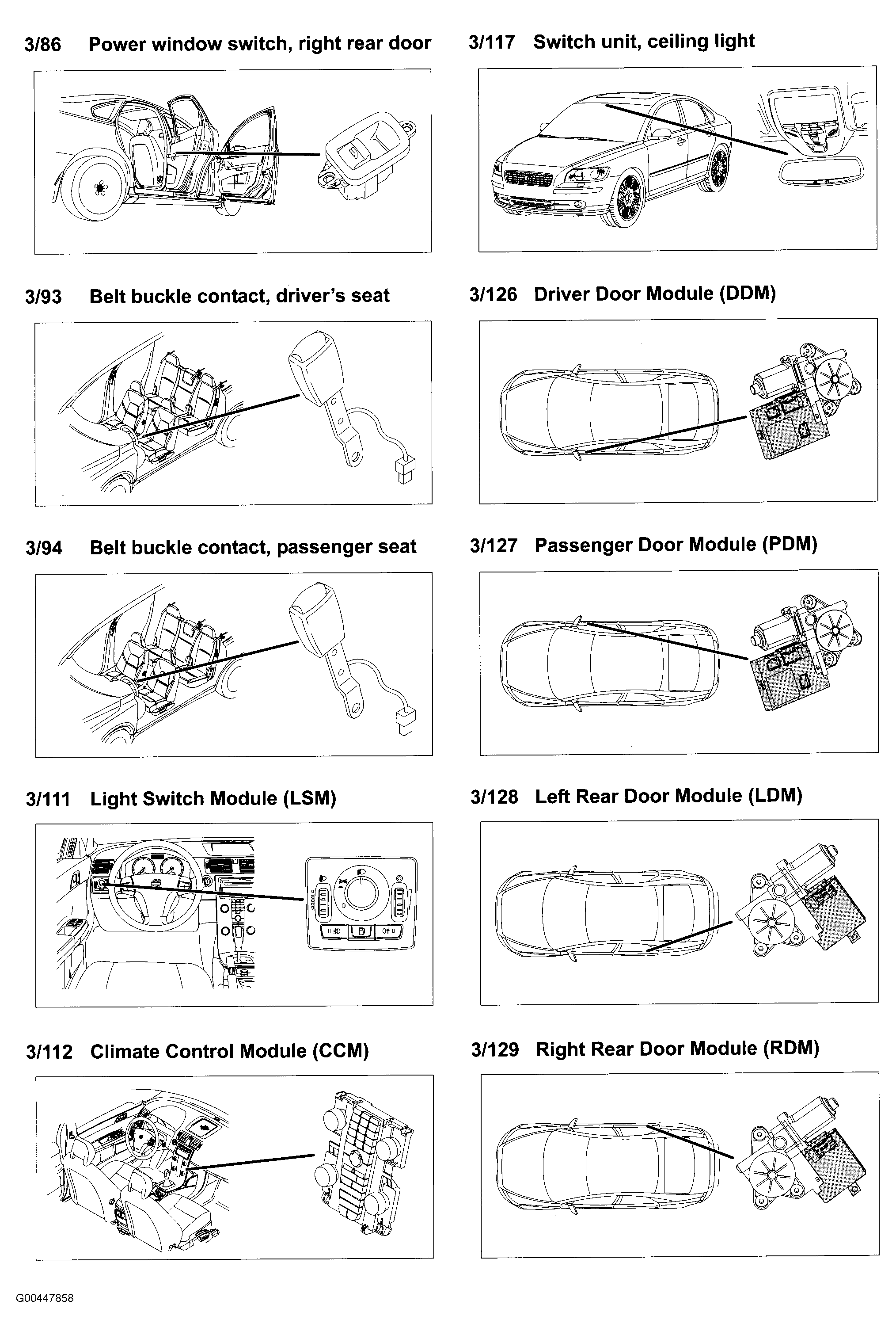

Fig 13: Components 3/86 To 3/129
Courtesy of VOLVO CARS OF NORTH AMERICA.

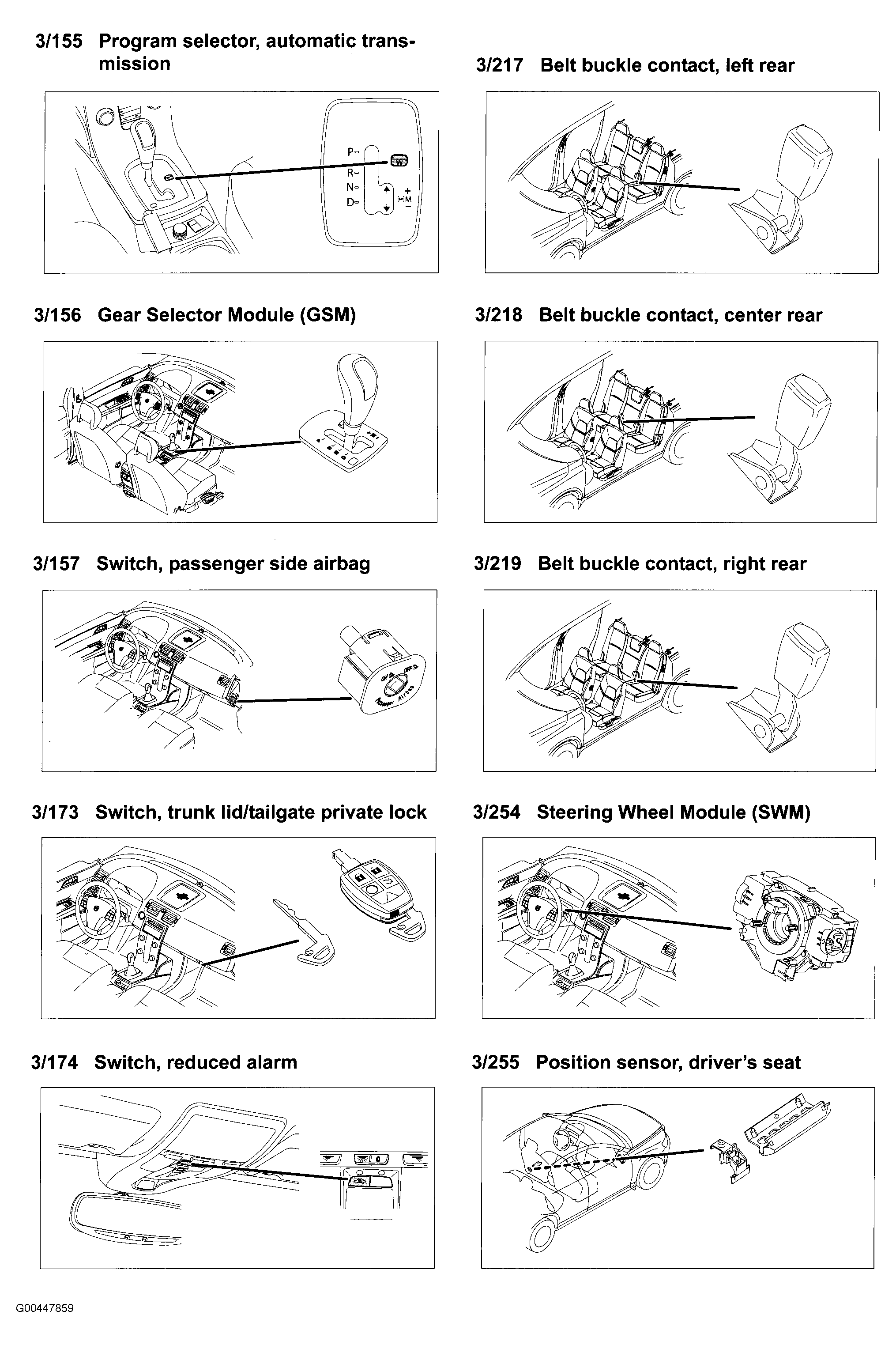

Fig 14: Components 3/155 To 3/255
Courtesy of VOLVO CARS OF NORTH AMERICA.

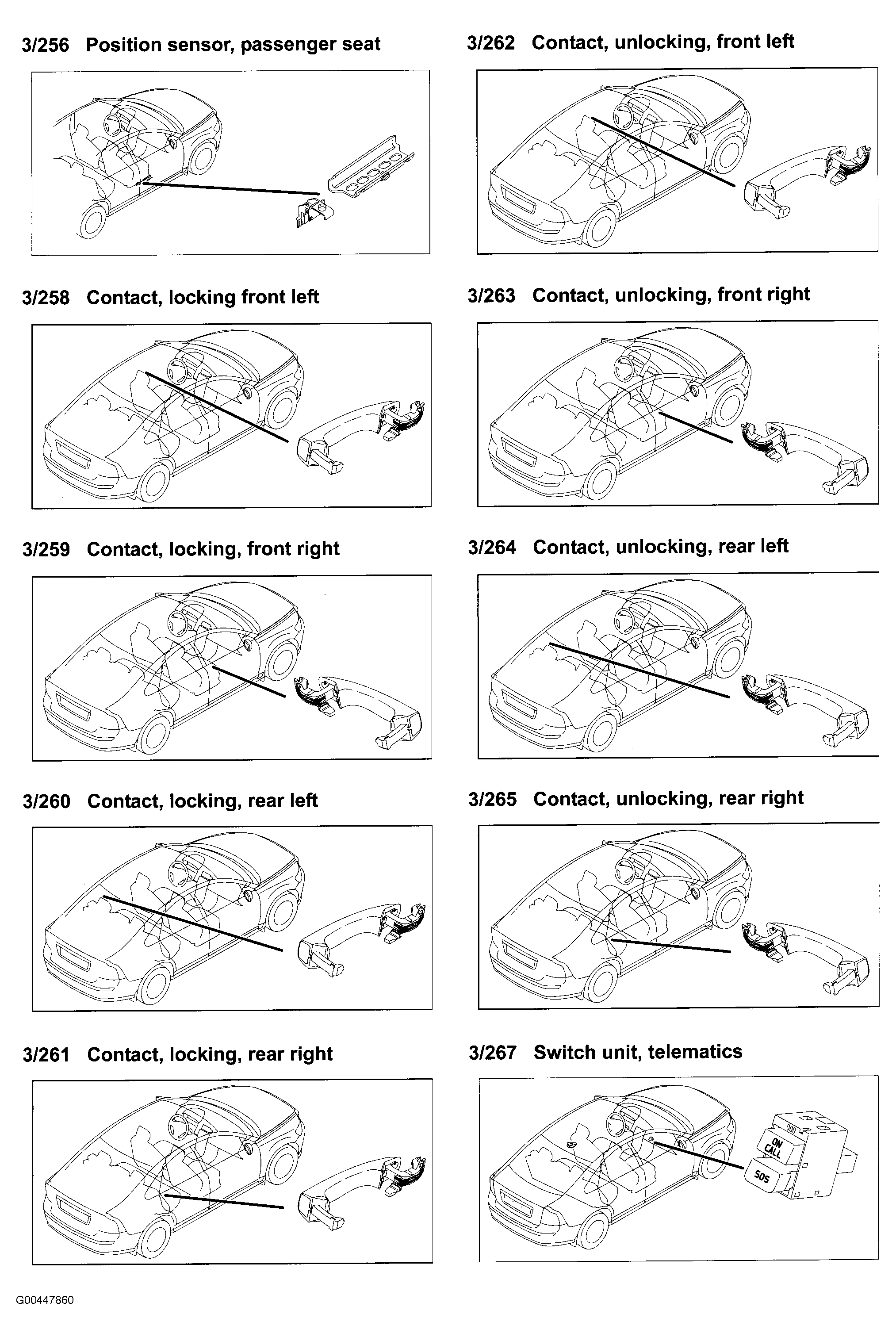

Fig 15: Components 3/256 To 3/267
Courtesy of VOLVO CARS OF NORTH AMERICA.

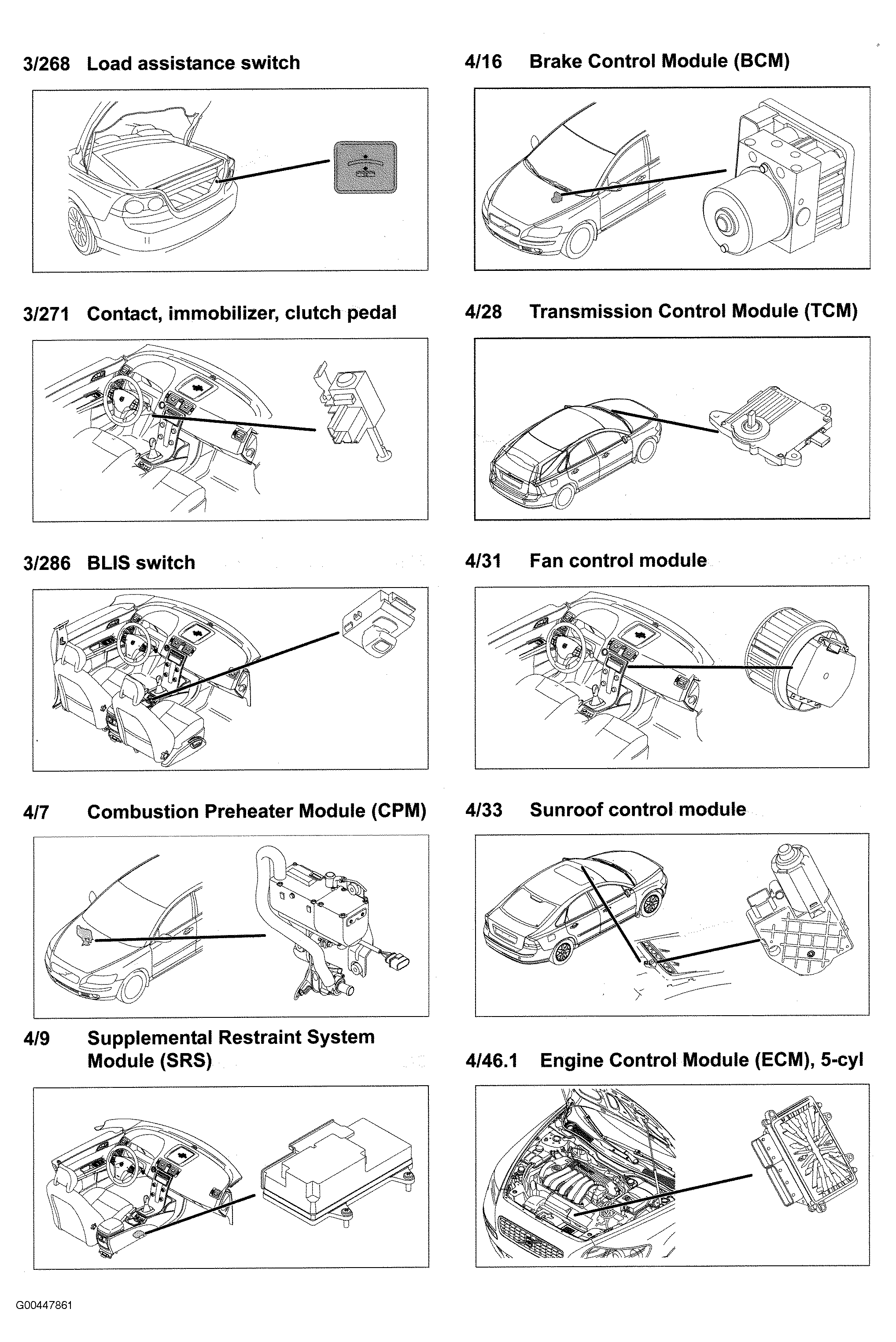

Fig 16: Components 3/268 To 4/46.1
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 17: Components 4/46.2 To 4/59
Courtesy of VOLVO CARS OF NORTH AMERICA.

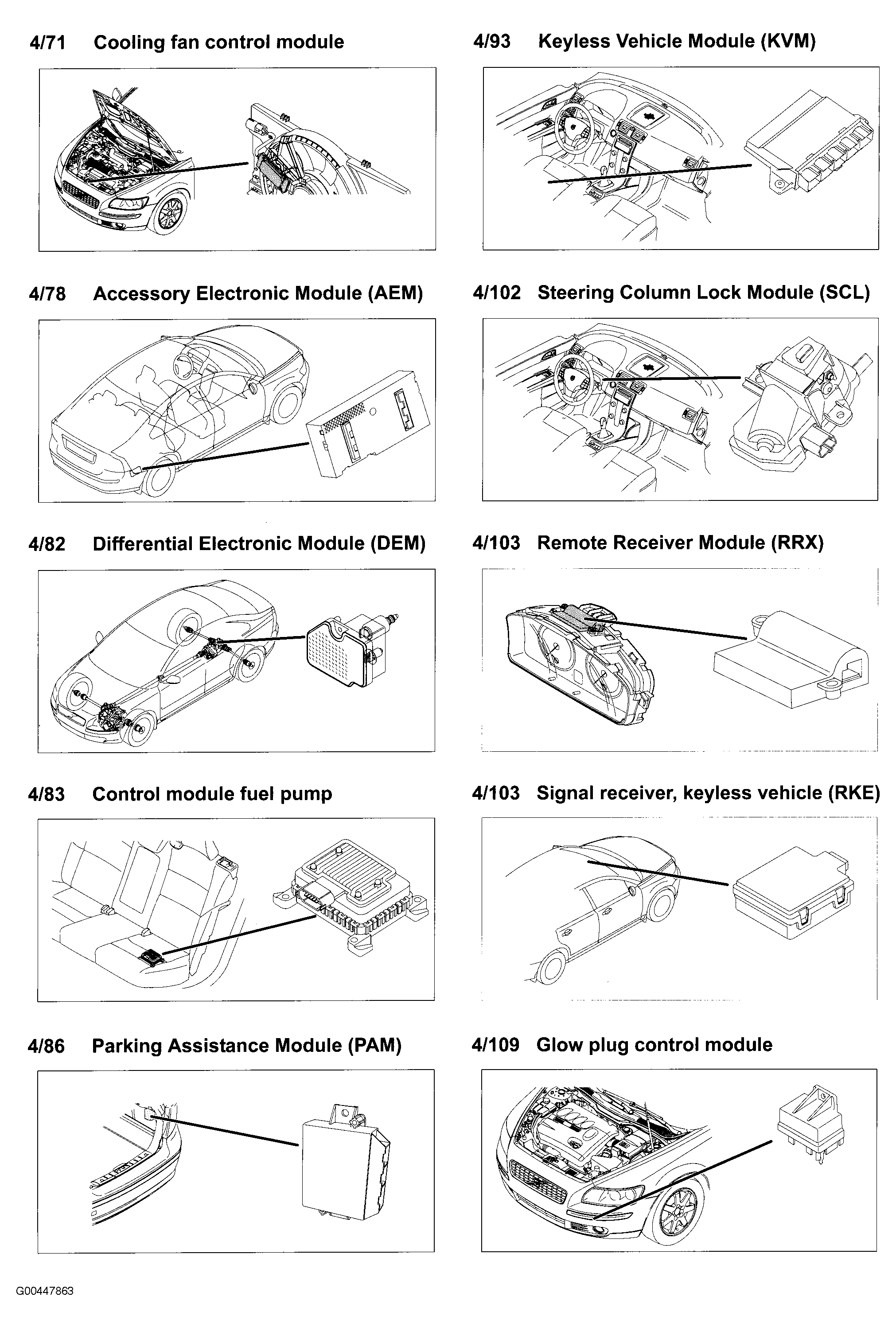

Fig 18: Components 4/71 To 4/109
Courtesy of VOLVO CARS OF NORTH AMERICA.

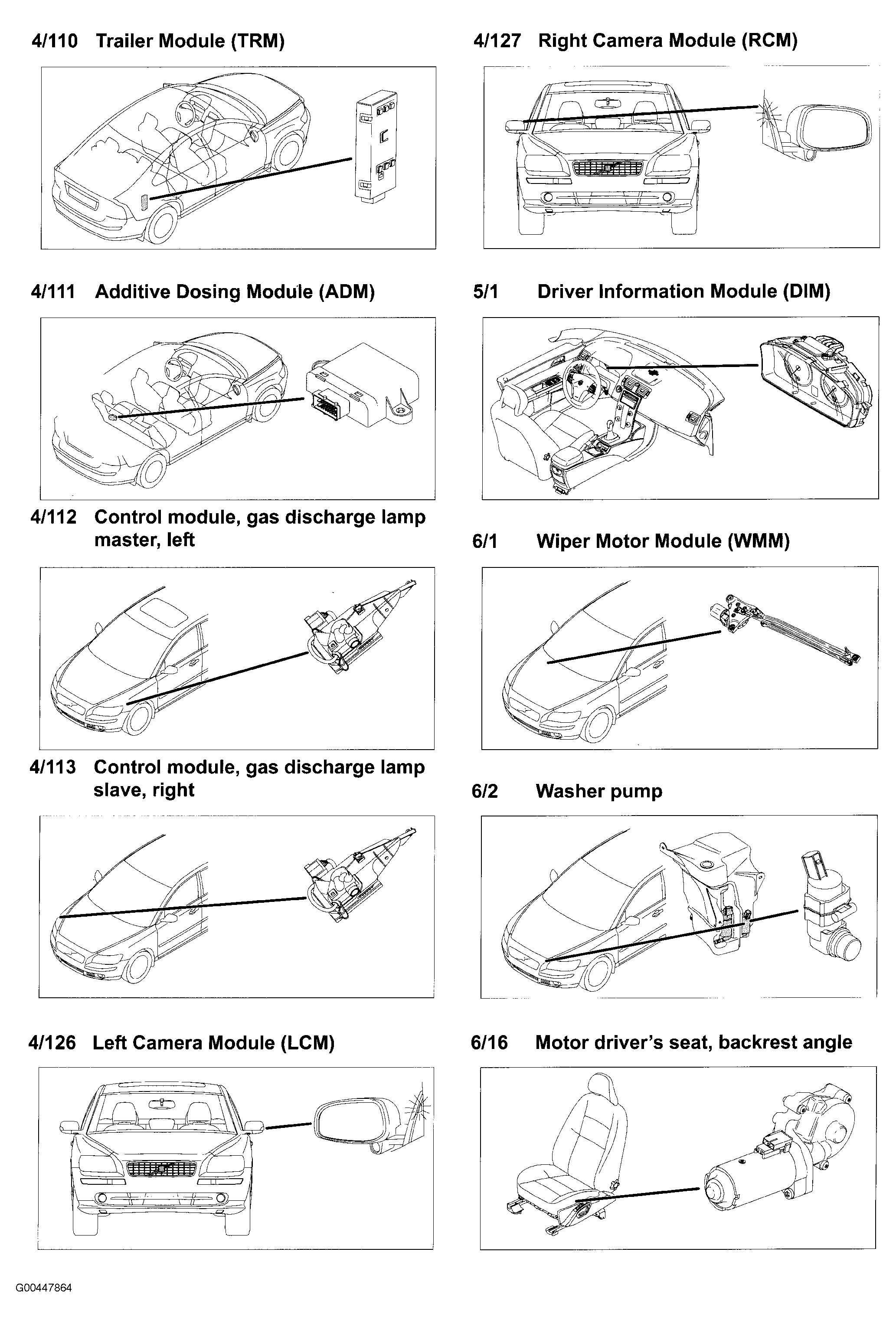

Fig 19: Components 4/110 To 6/16
Courtesy of VOLVO CARS OF NORTH AMERICA.

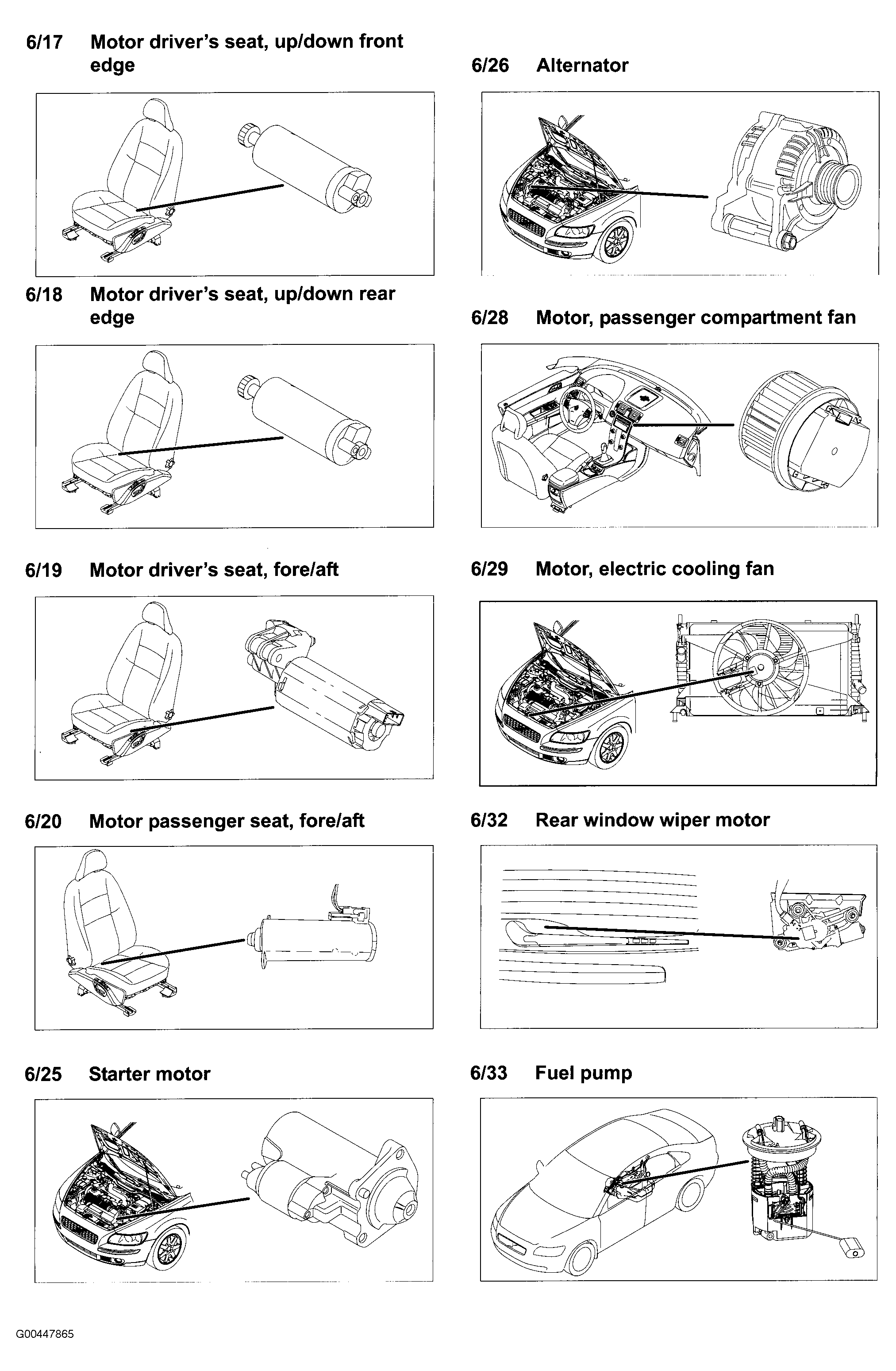

Fig 20: Components 6/17 To 6/33
Courtesy of VOLVO CARS OF NORTH AMERICA.

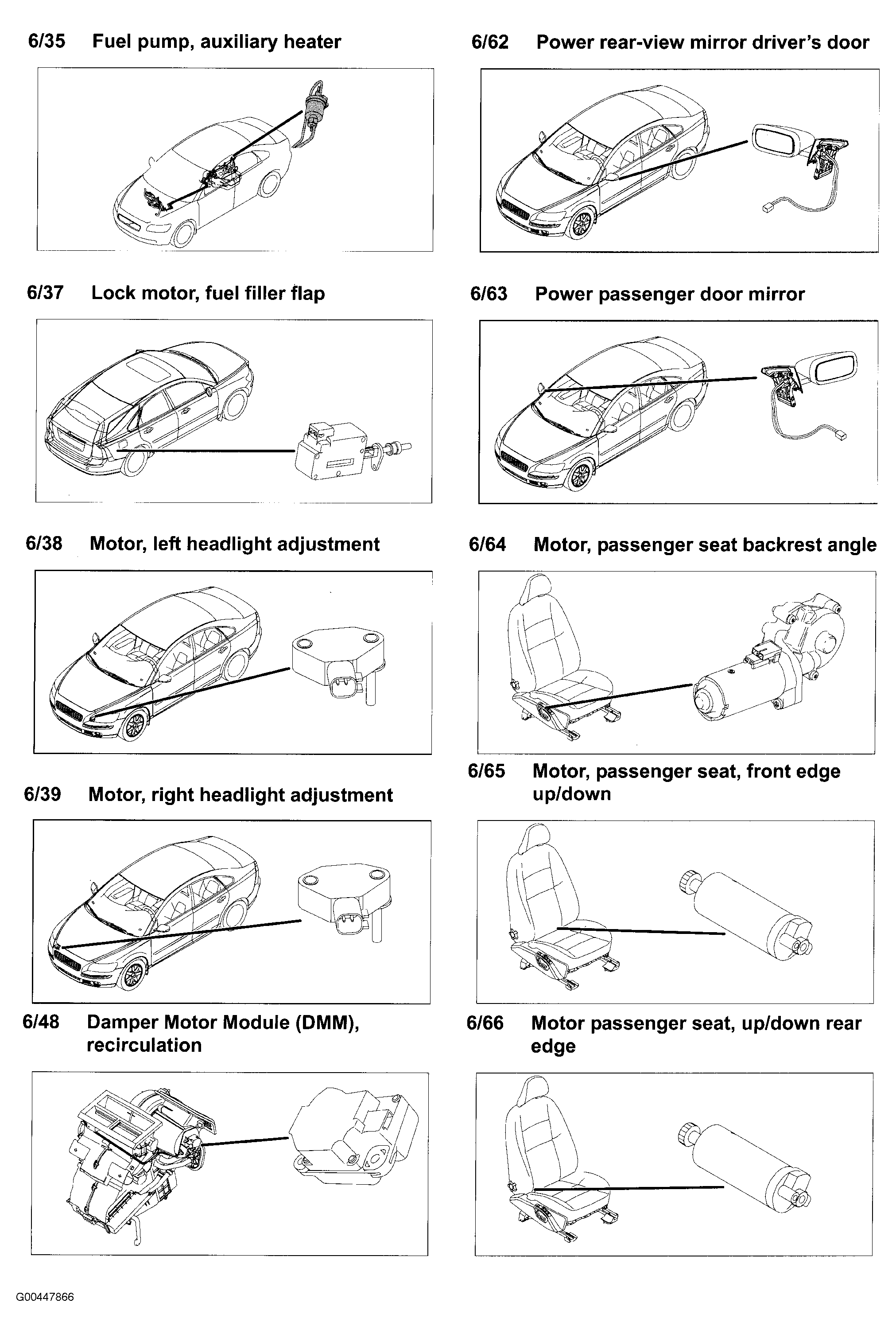

Fig 21: Components 6/35 To 6/66
Courtesy of VOLVO CARS OF NORTH AMERICA.

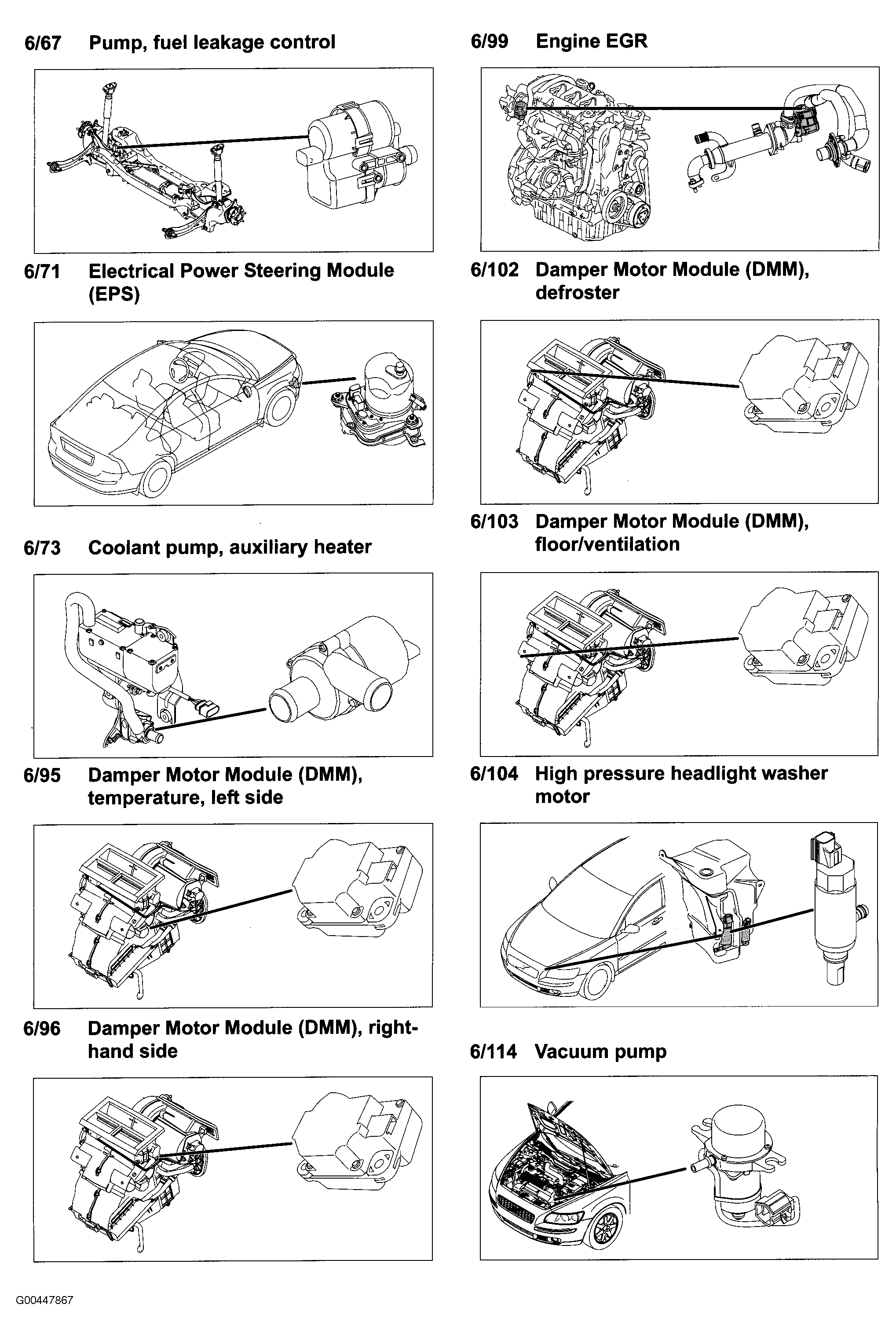

Fig 22: Components 6/67 To 6/114
Courtesy of VOLVO CARS OF NORTH AMERICA.

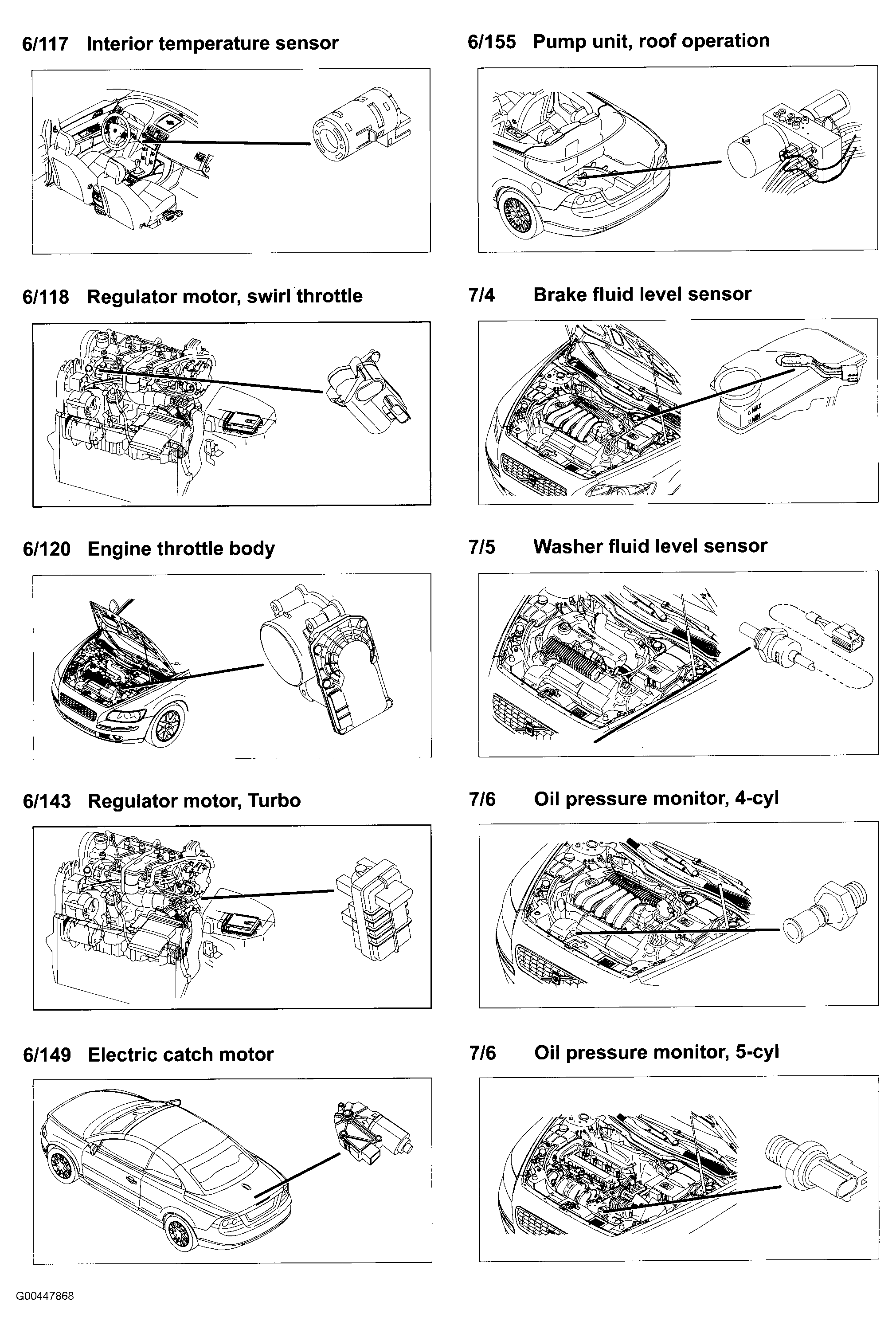

Fig 23: Components 6/117 To 7/6
Courtesy of VOLVO CARS OF NORTH AMERICA.

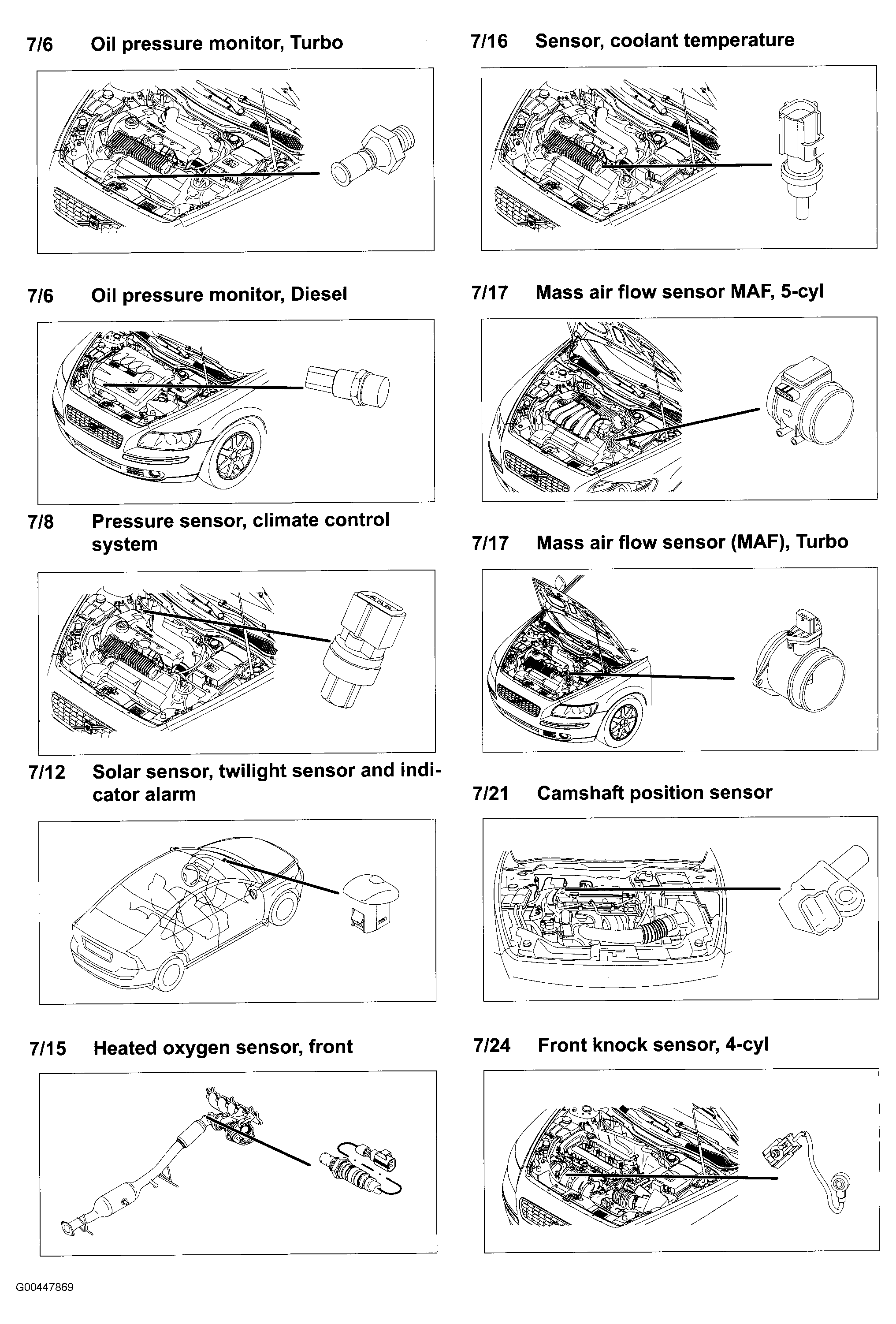

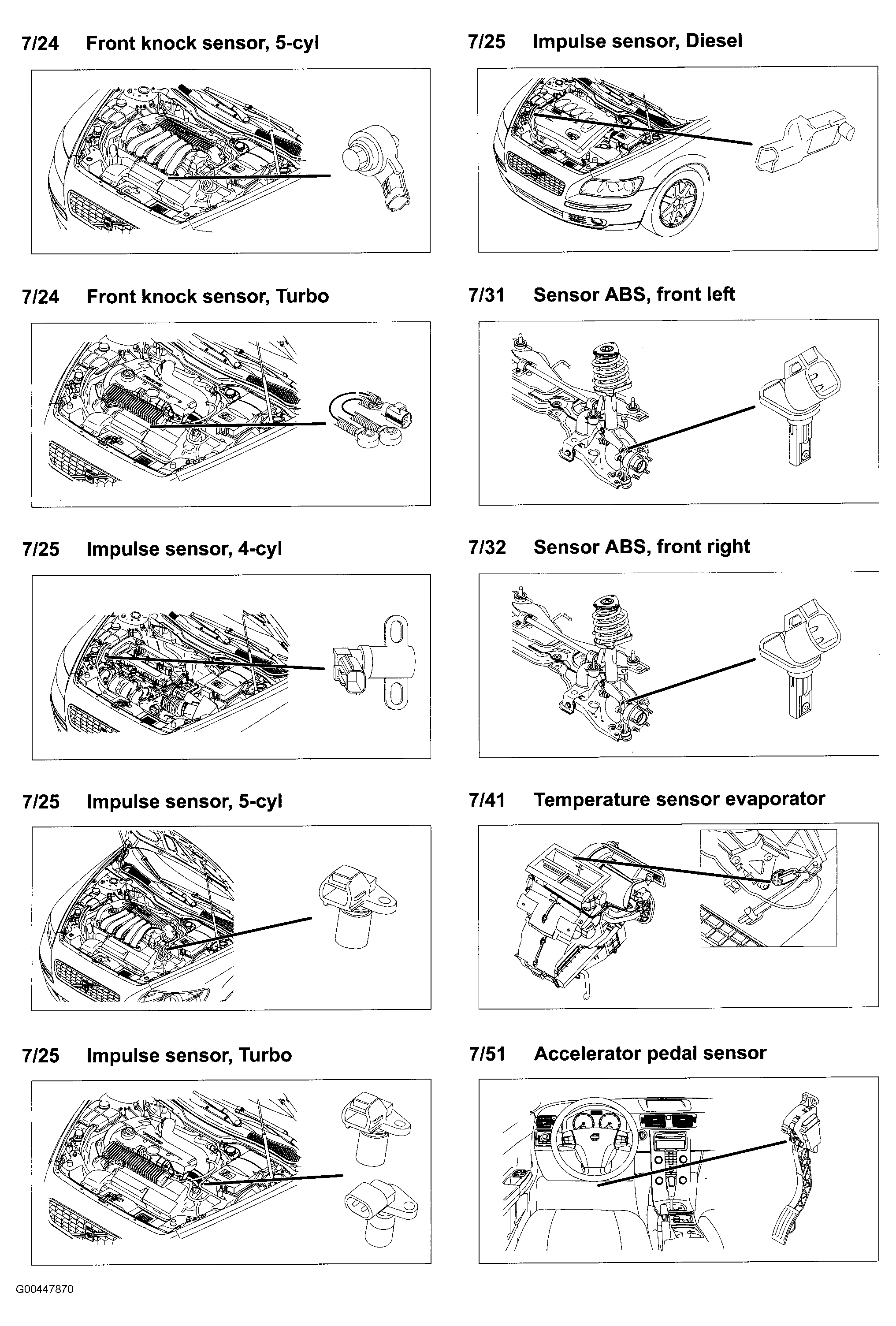

Fig 24: Components 7/6 To 7/24
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 25: Components 7/24 To 7/51
Courtesy of VOLVO CARS OF NORTH AMERICA.

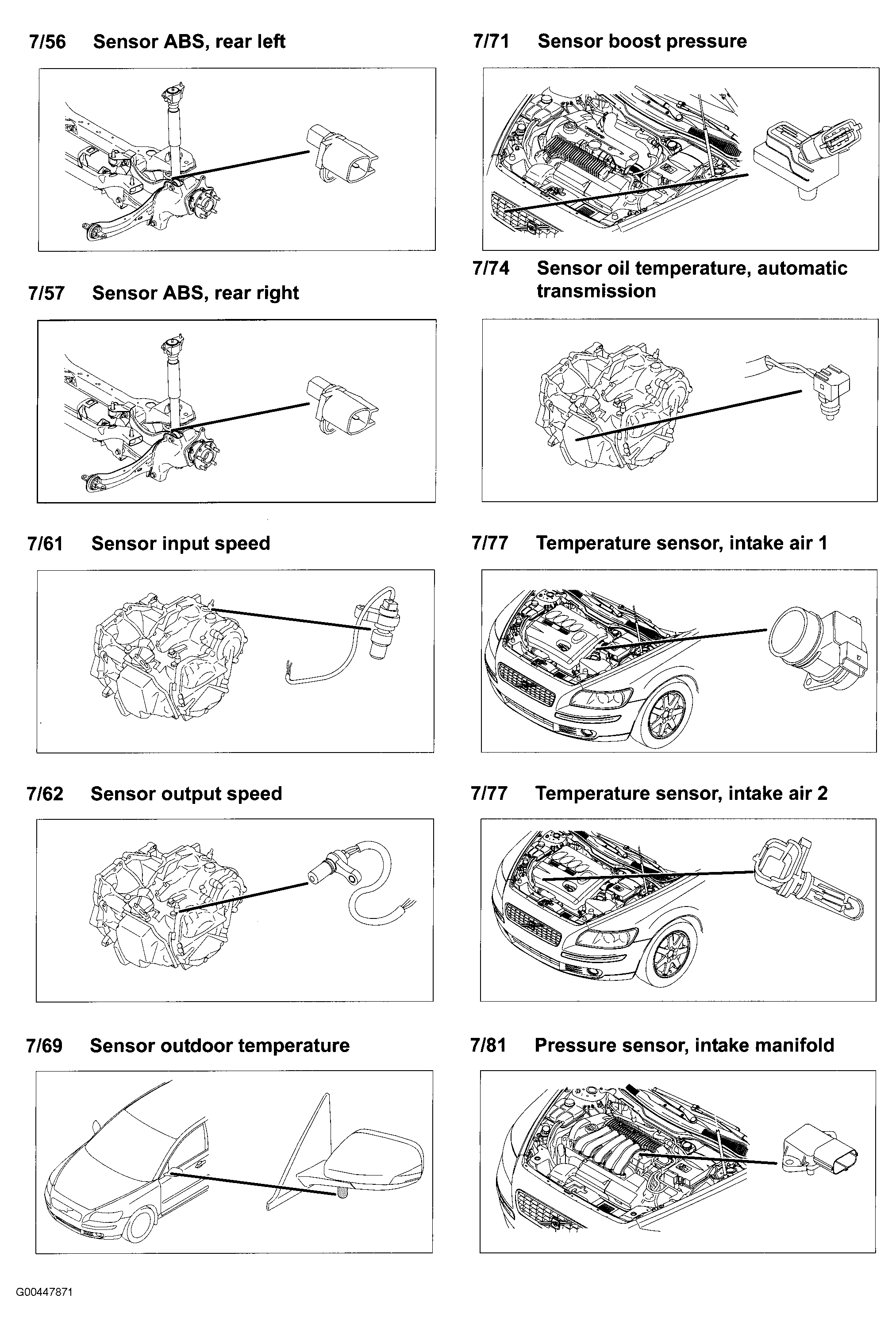

Fig 26: Components 7/56 To 7/81
Courtesy of VOLVO CARS OF NORTH AMERICA.

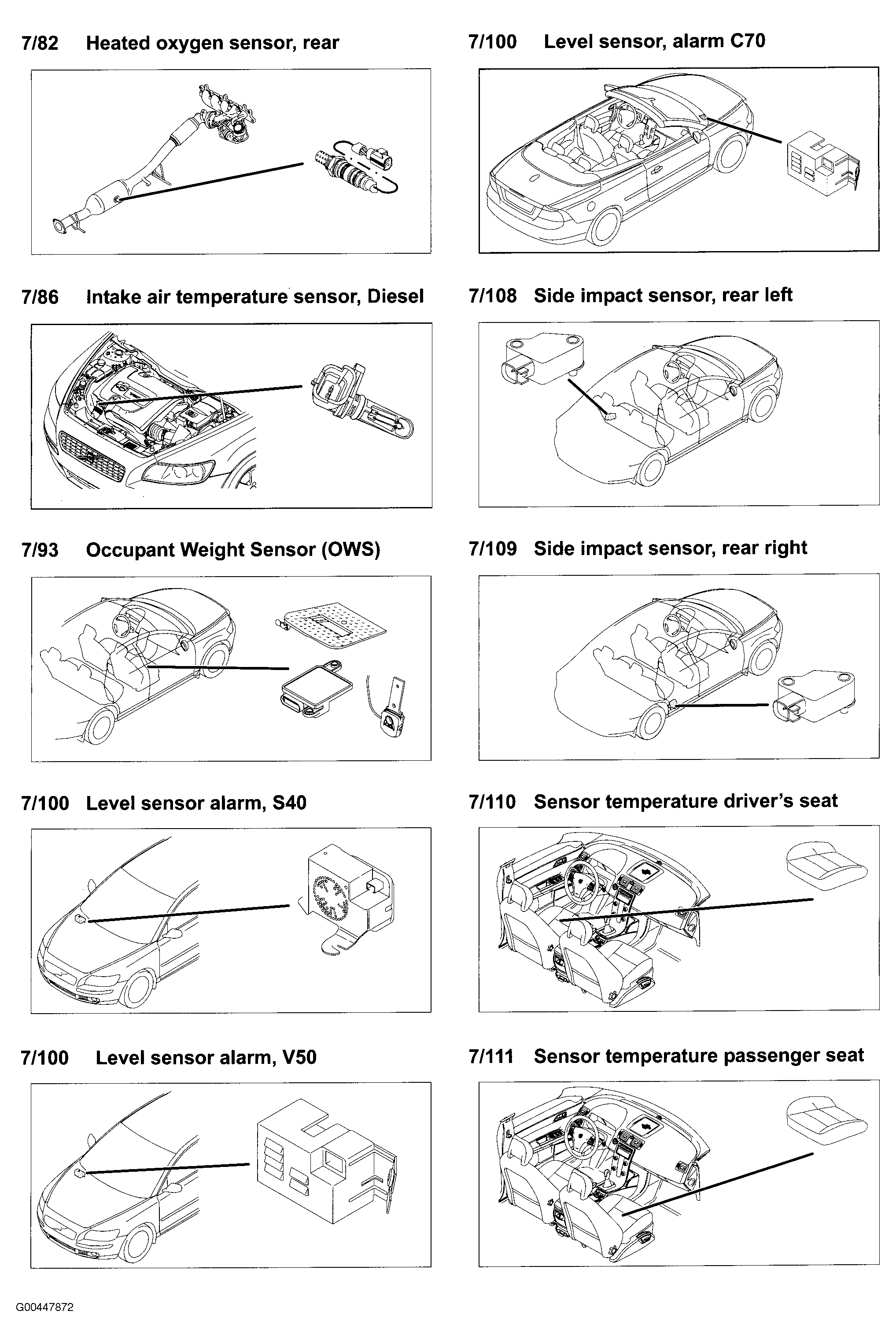

Fig 27: Components 7/82 To 7/111
Courtesy of VOLVO CARS OF NORTH AMERICA.

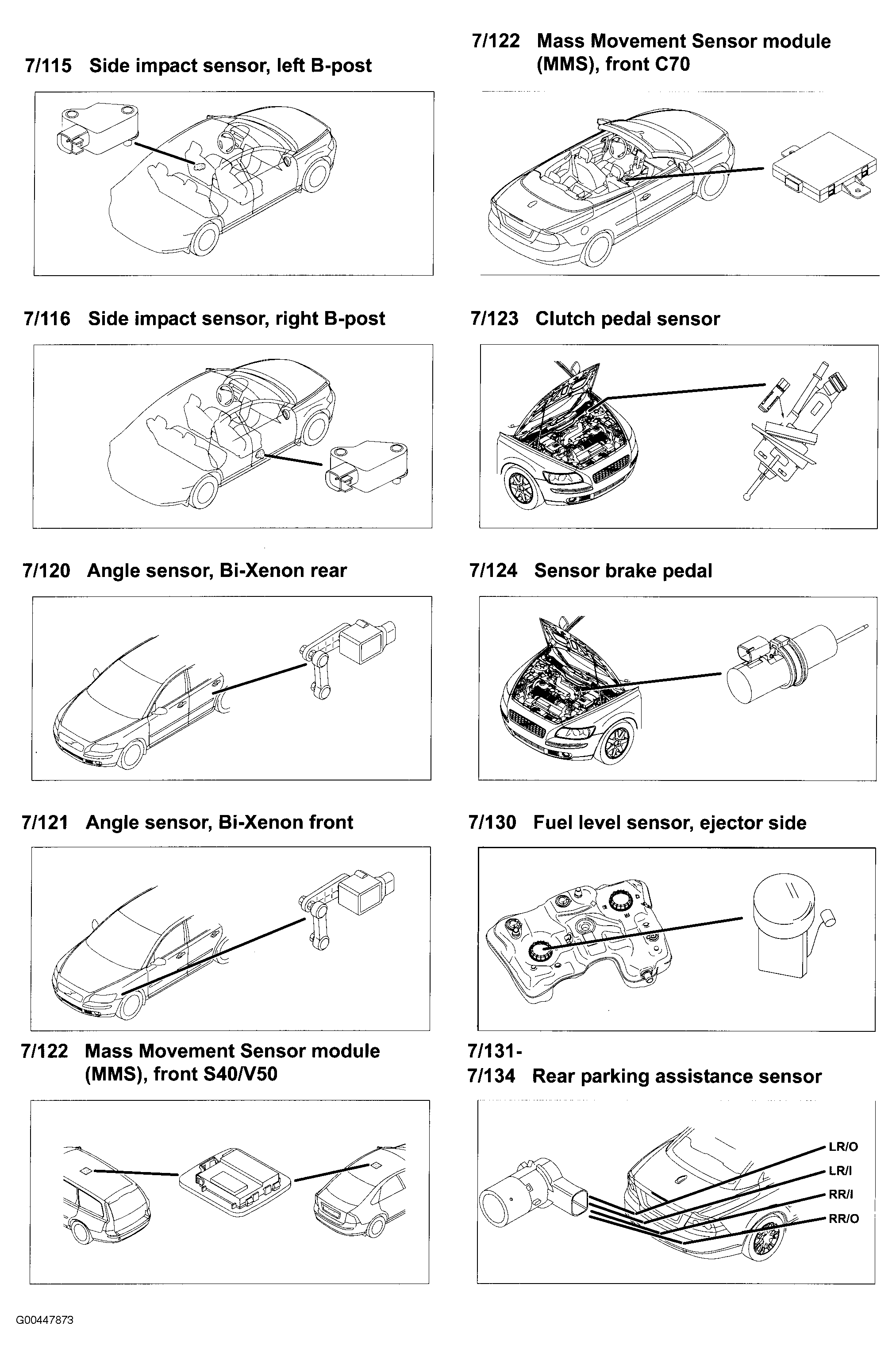

Fig 28: Components 7/115 To 7/134
Courtesy of VOLVO CARS OF NORTH AMERICA.

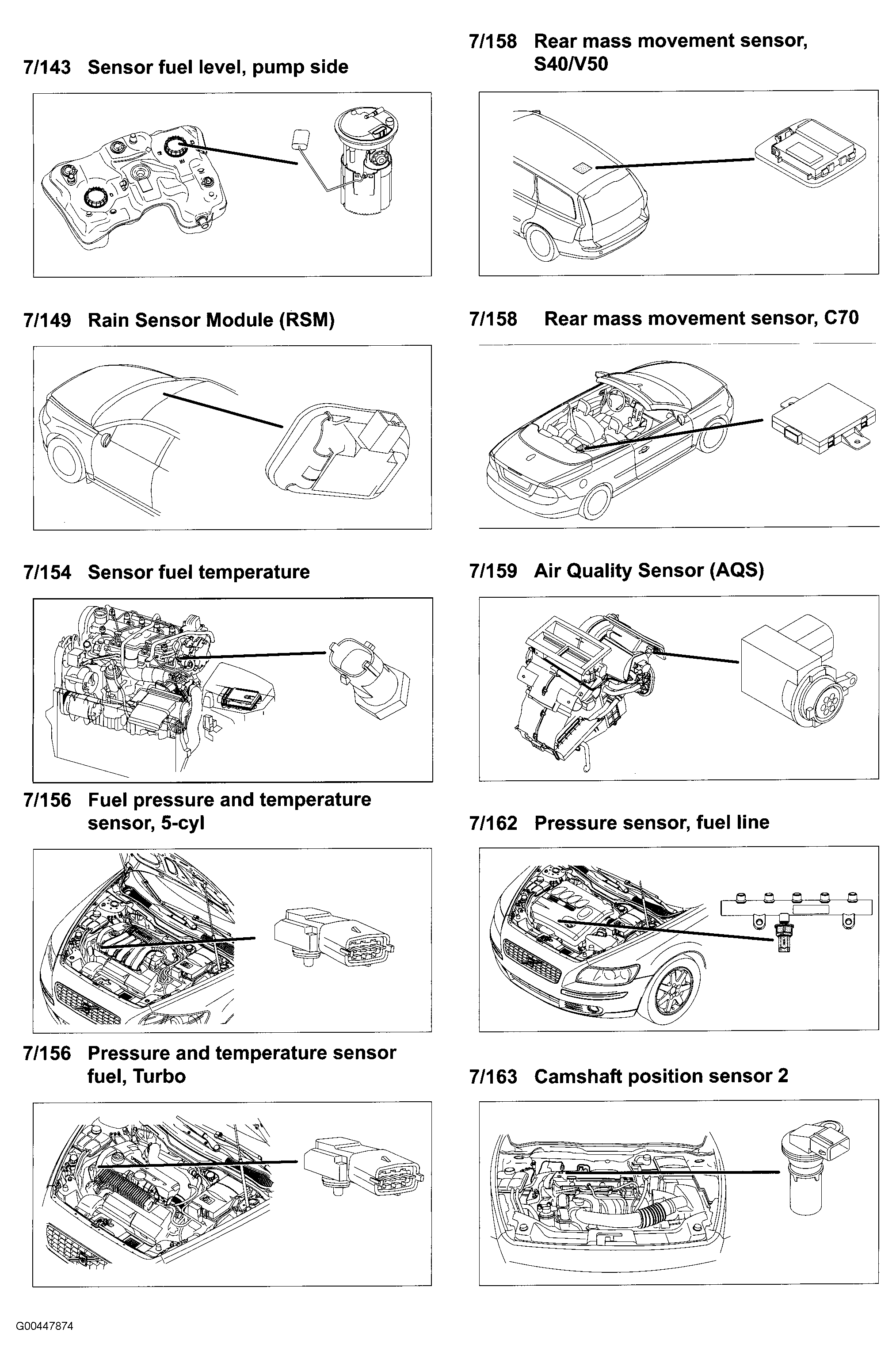

Fig 29: Components 7/143 To 7/163
Courtesy of VOLVO CARS OF NORTH AMERICA.

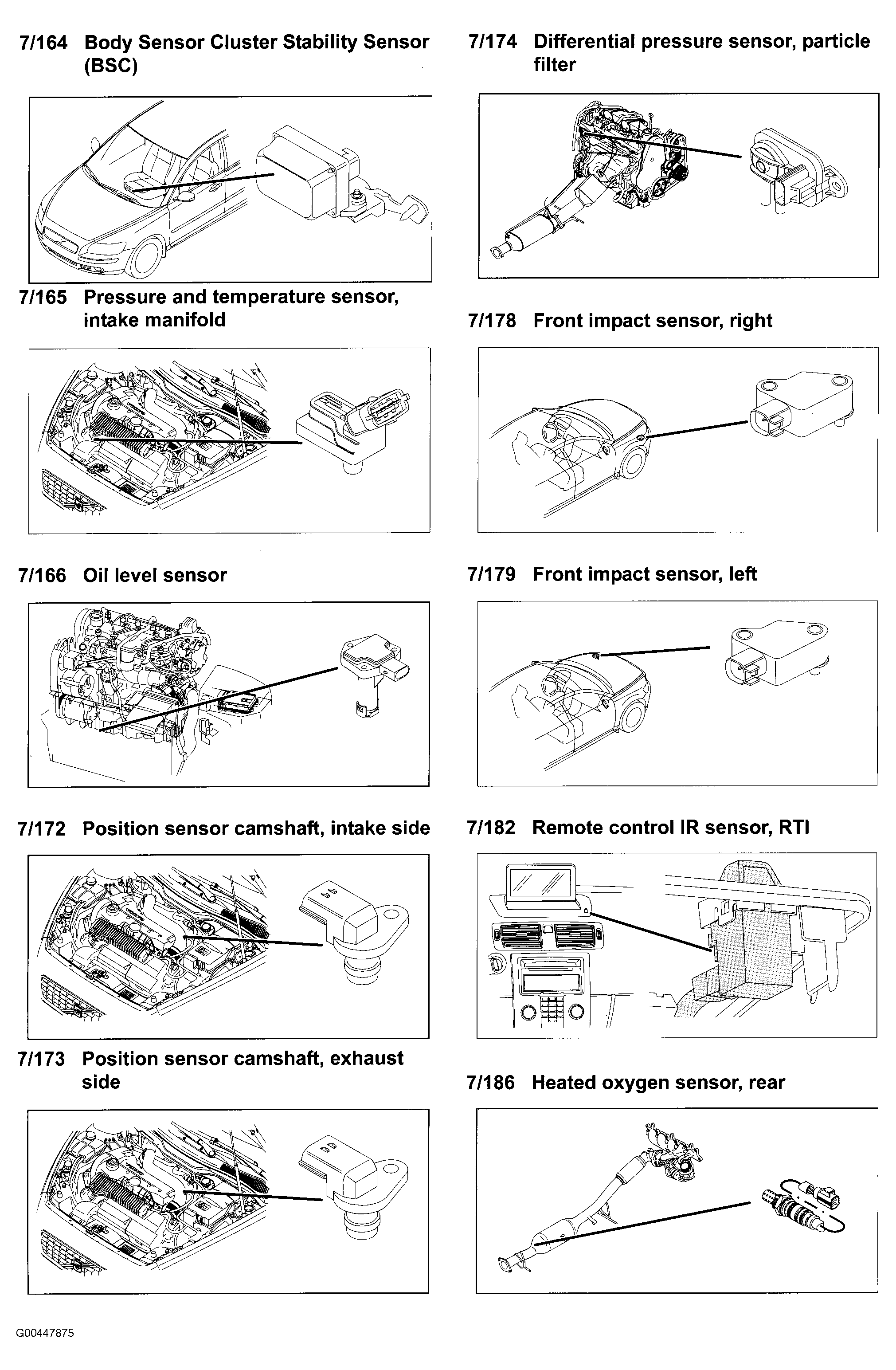

Fig 30: Components 7/164 To 7/186
Courtesy of VOLVO CARS OF NORTH AMERICA.

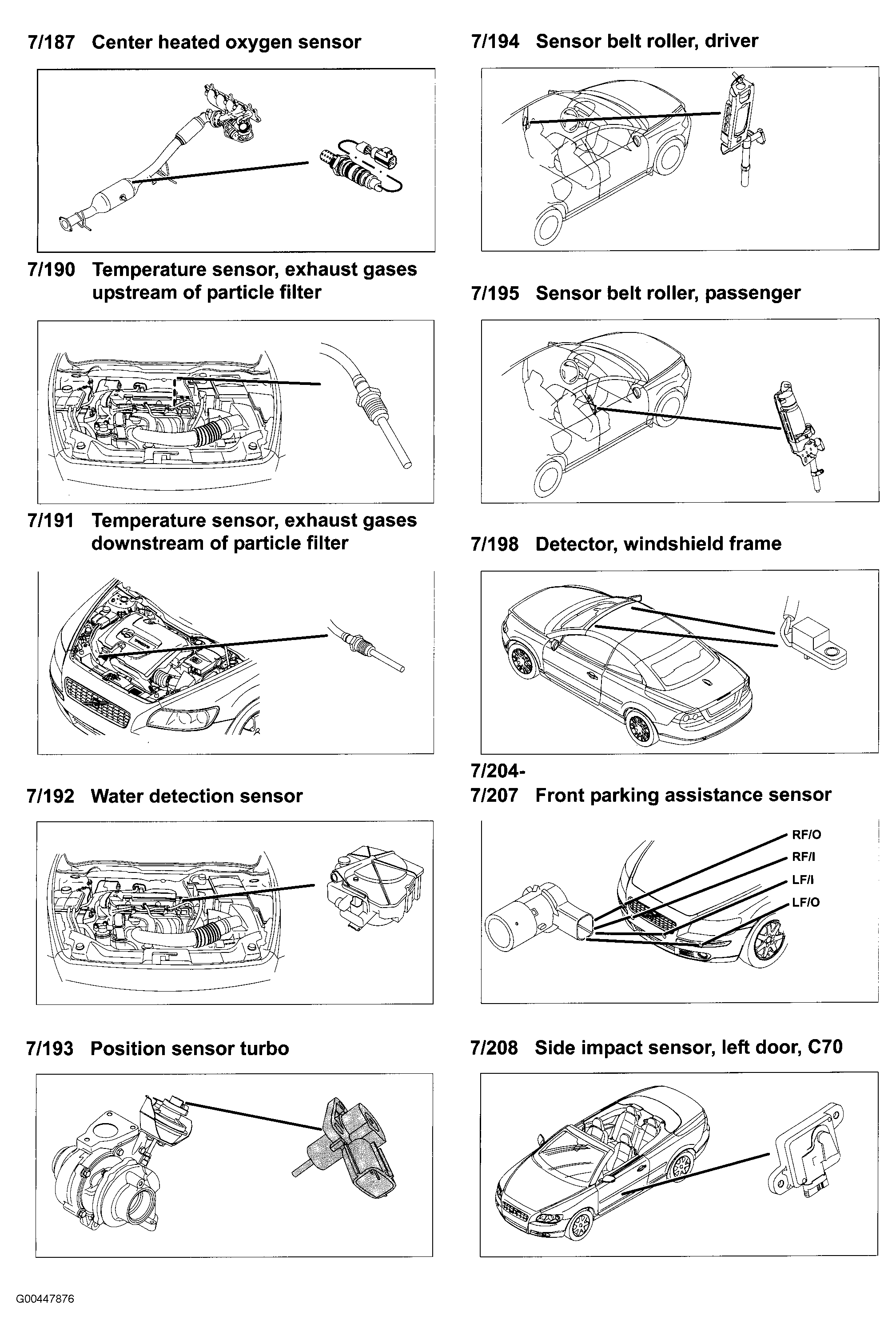

Fig 31: Components 7/187 To 7/208
Courtesy of VOLVO CARS OF NORTH AMERICA.

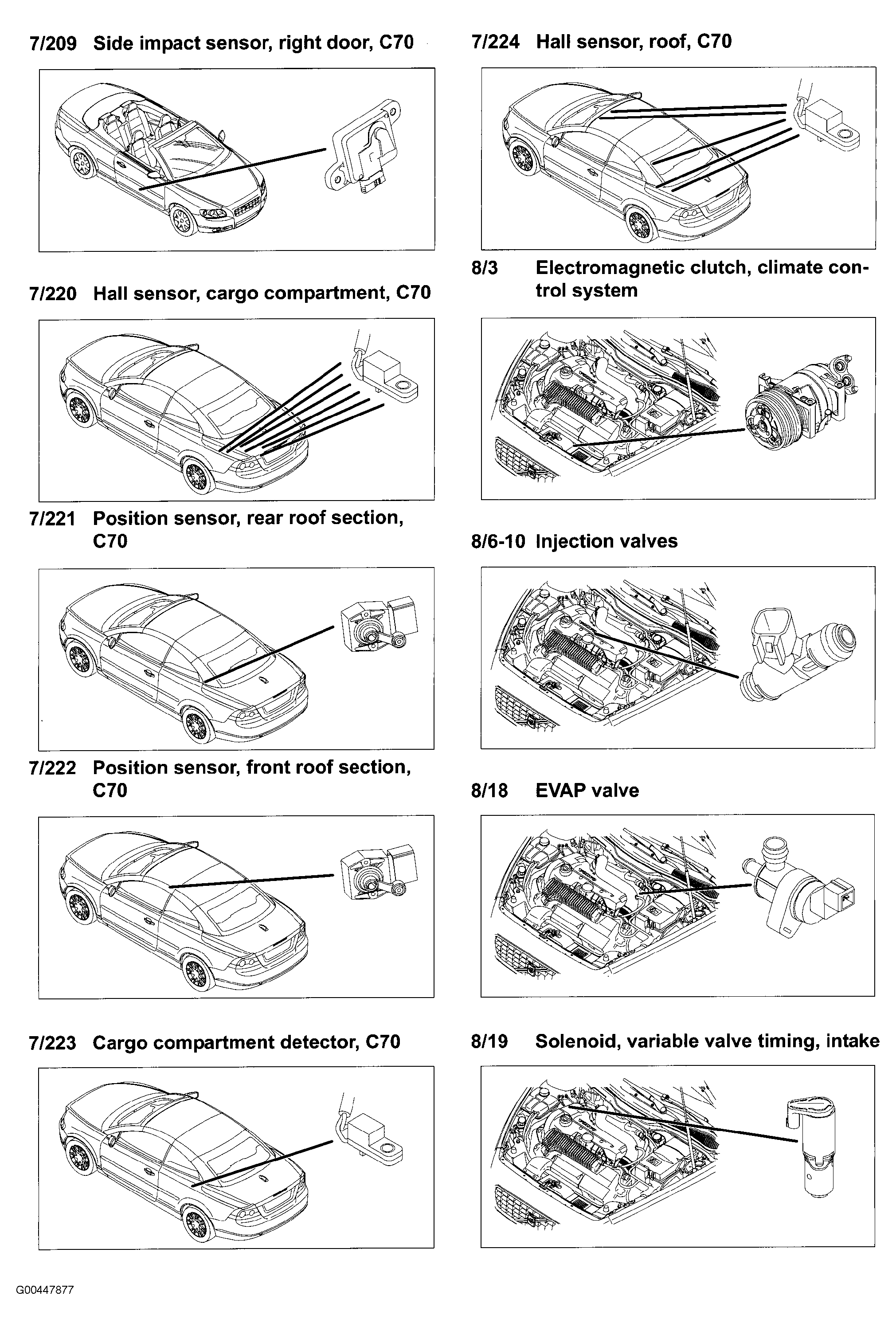

Fig 32: Components 7/209 To 8/19
Courtesy of VOLVO CARS OF NORTH AMERICA.

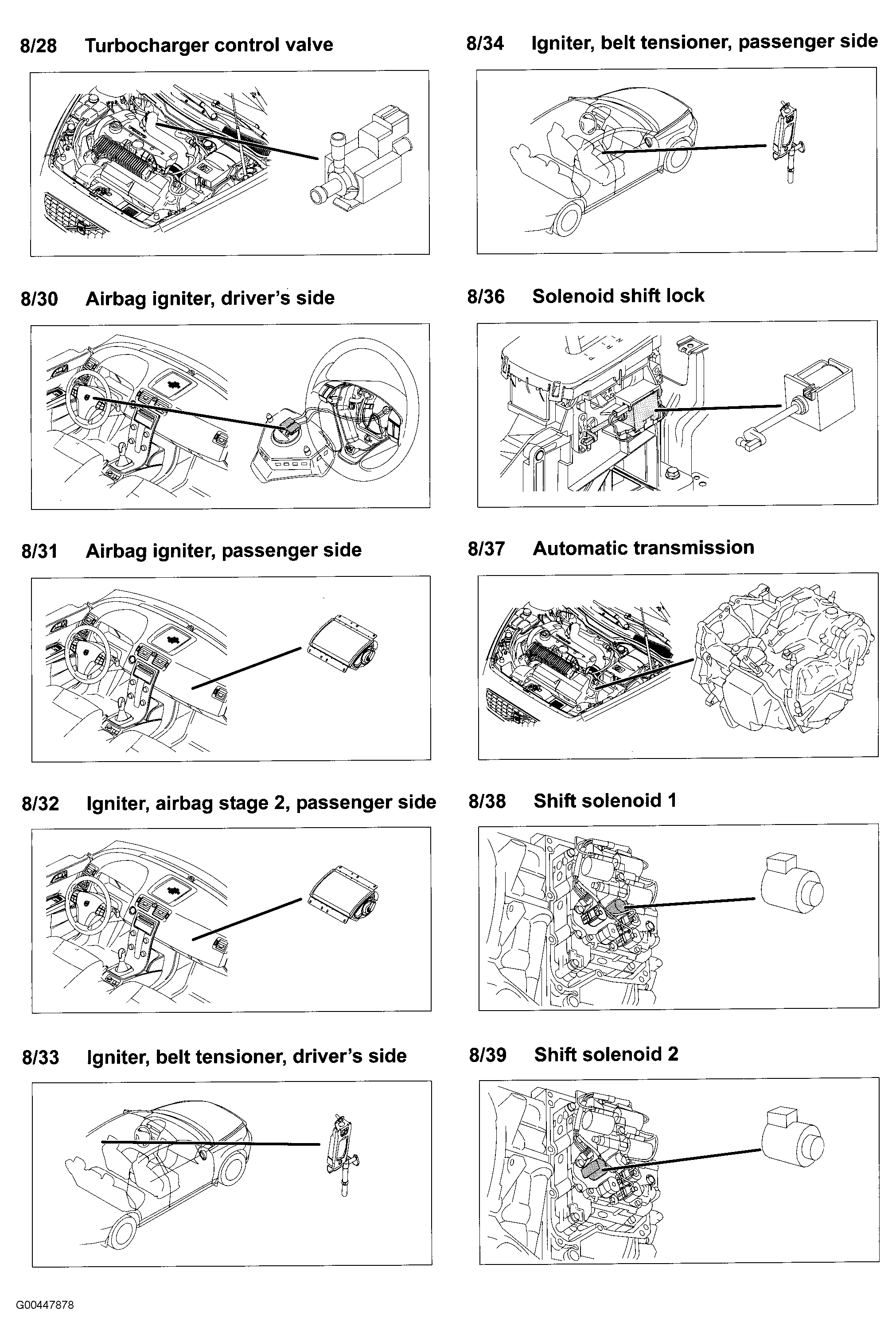

Fig 33: Components 8/28 To 8/39
Courtesy of VOLVO CARS OF NORTH AMERICA.

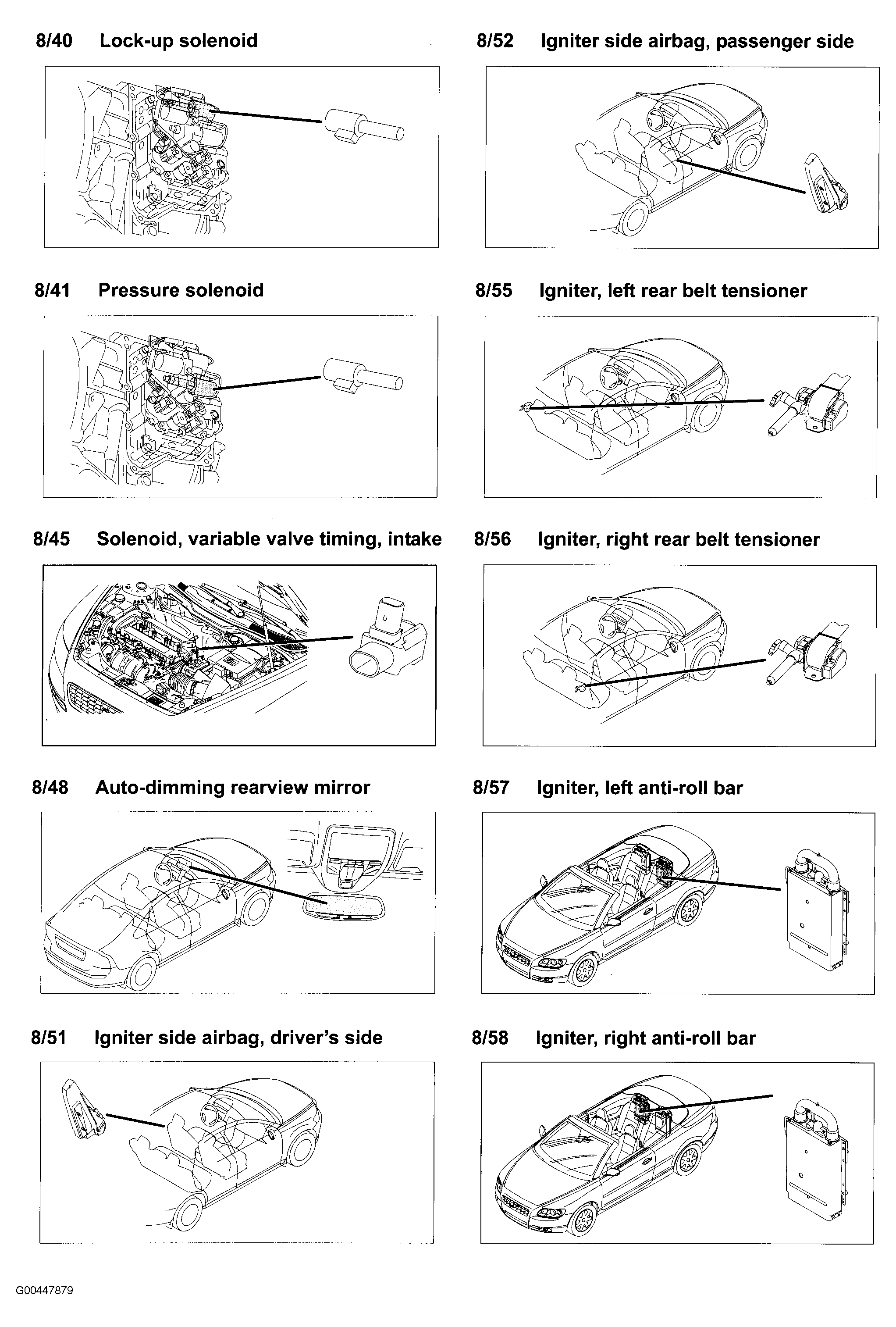

Fig 34: Components 8/40 To 8/58
Courtesy of VOLVO CARS OF NORTH AMERICA.

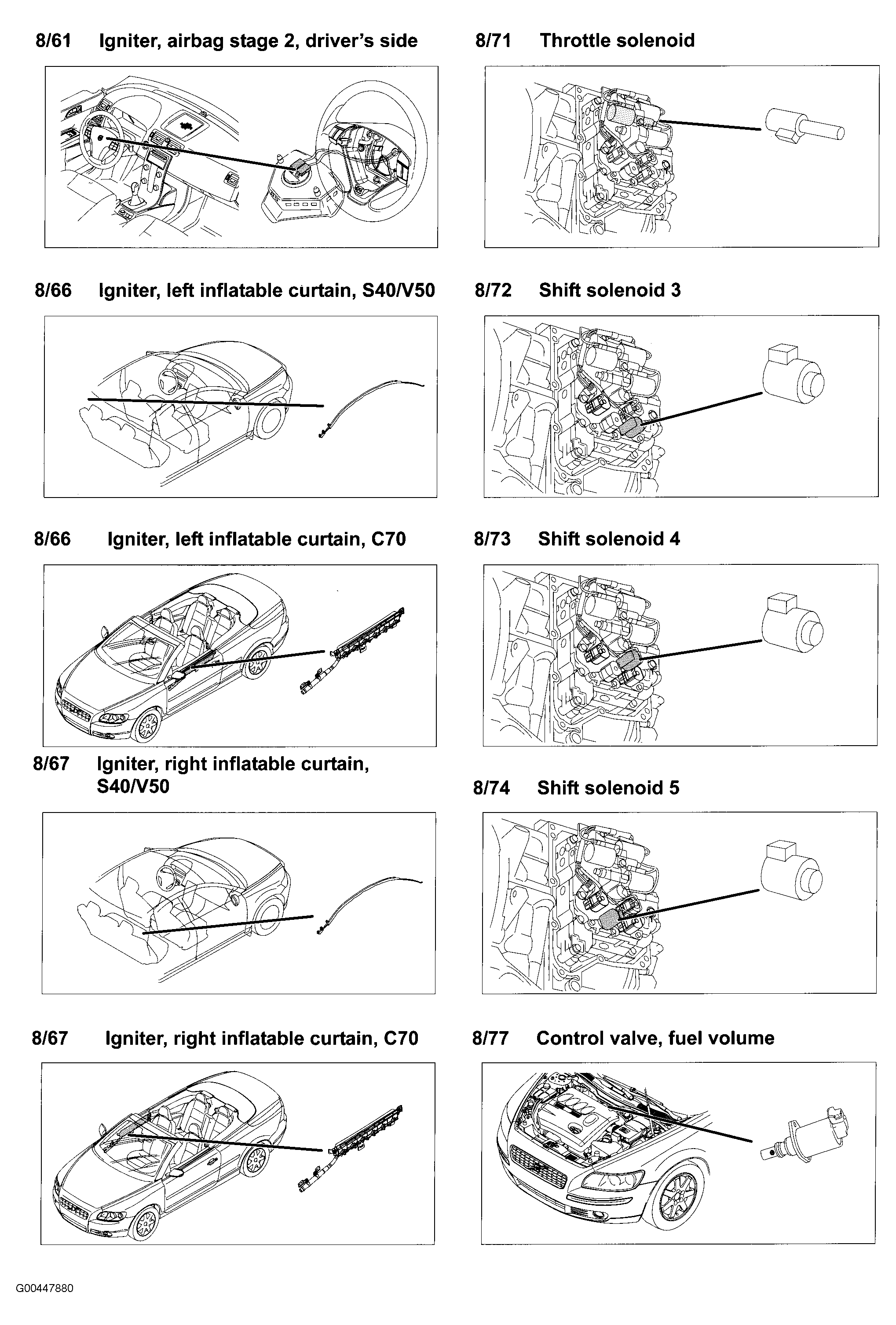

Fig 35: Components 8/61 To 8/77
Courtesy of VOLVO CARS OF NORTH AMERICA.

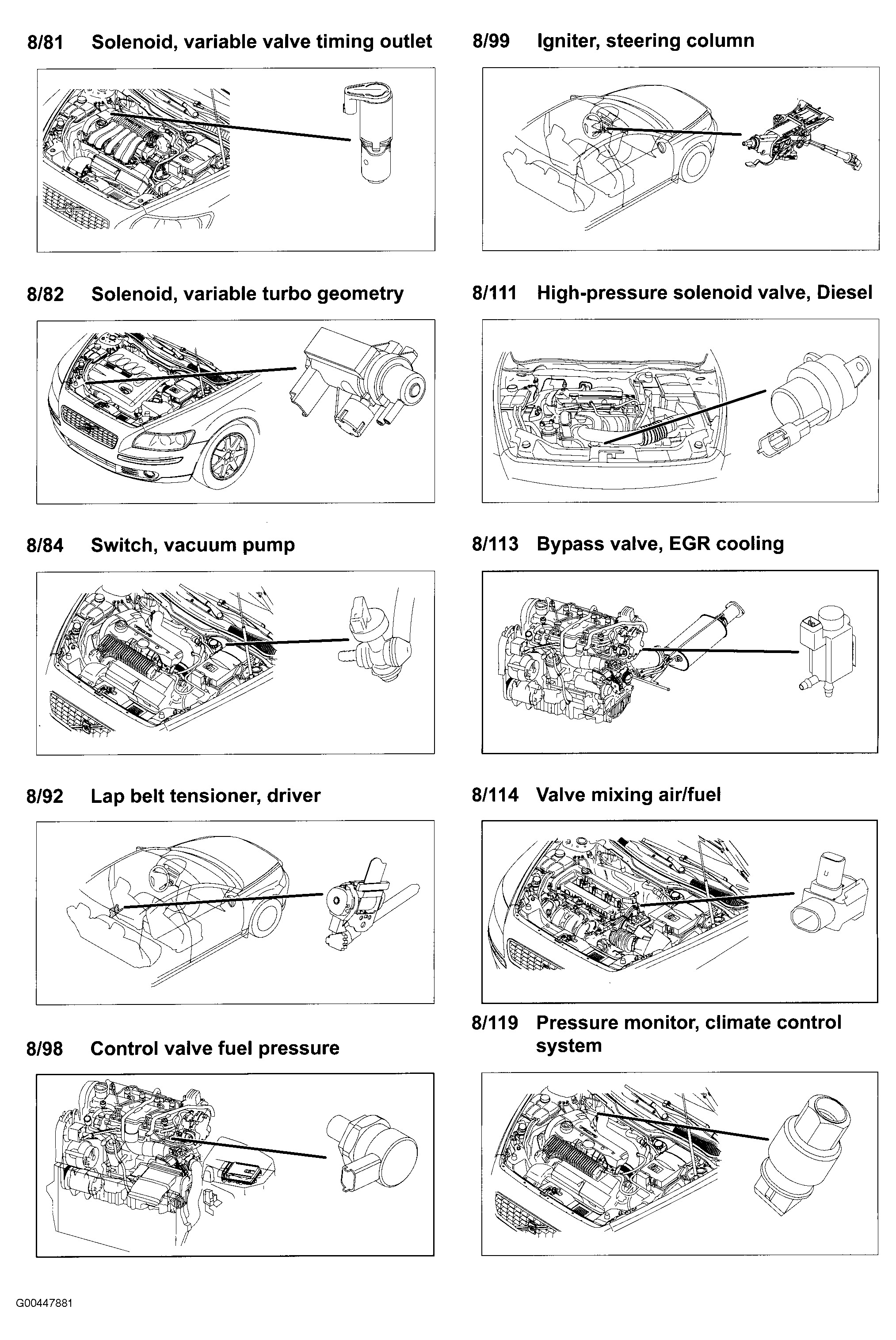

Fig 36: Components 8/81 To 8/119
Courtesy of VOLVO CARS OF NORTH AMERICA.

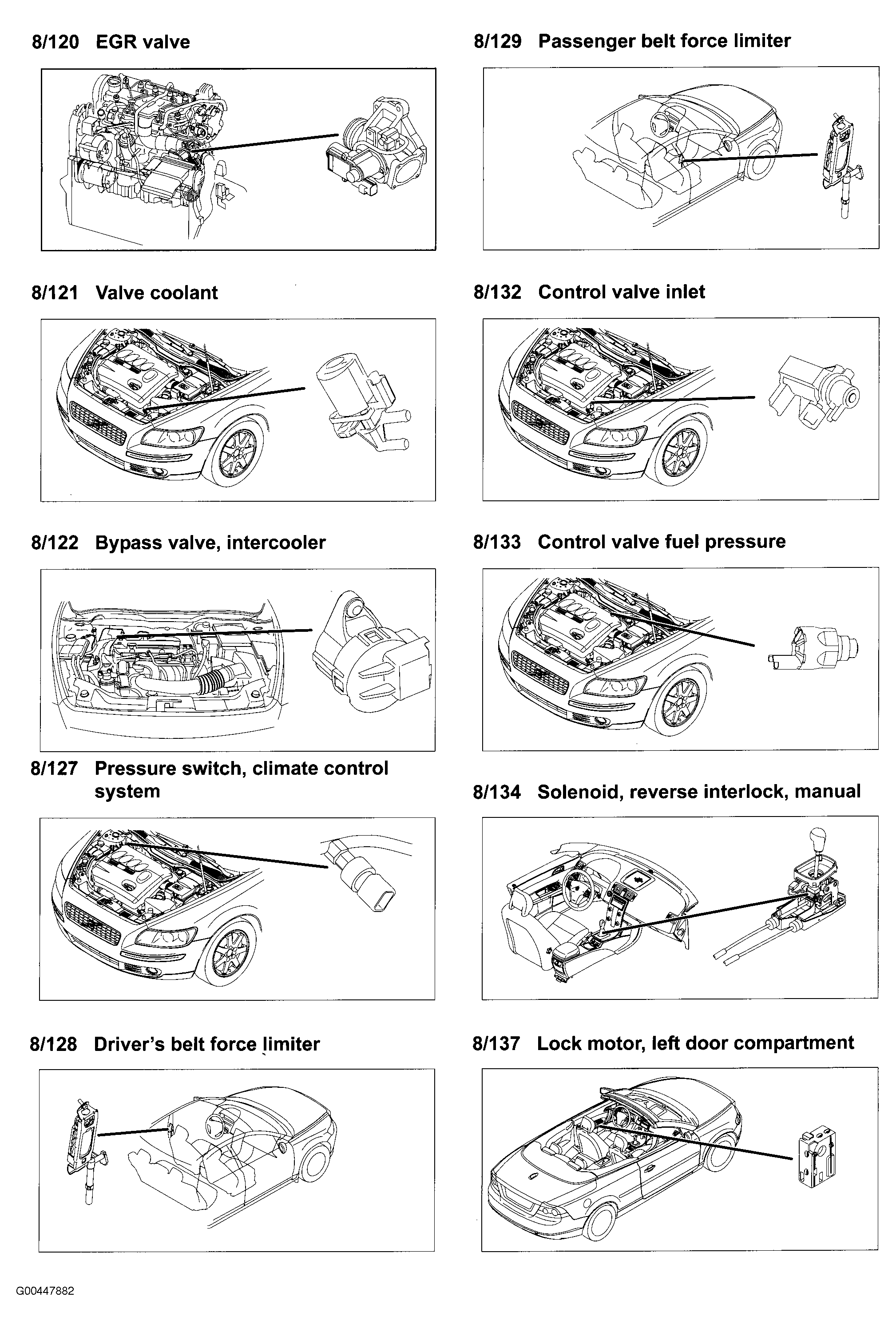

Fig 37: Components 8/120 To 8/137
Courtesy of VOLVO CARS OF NORTH AMERICA.

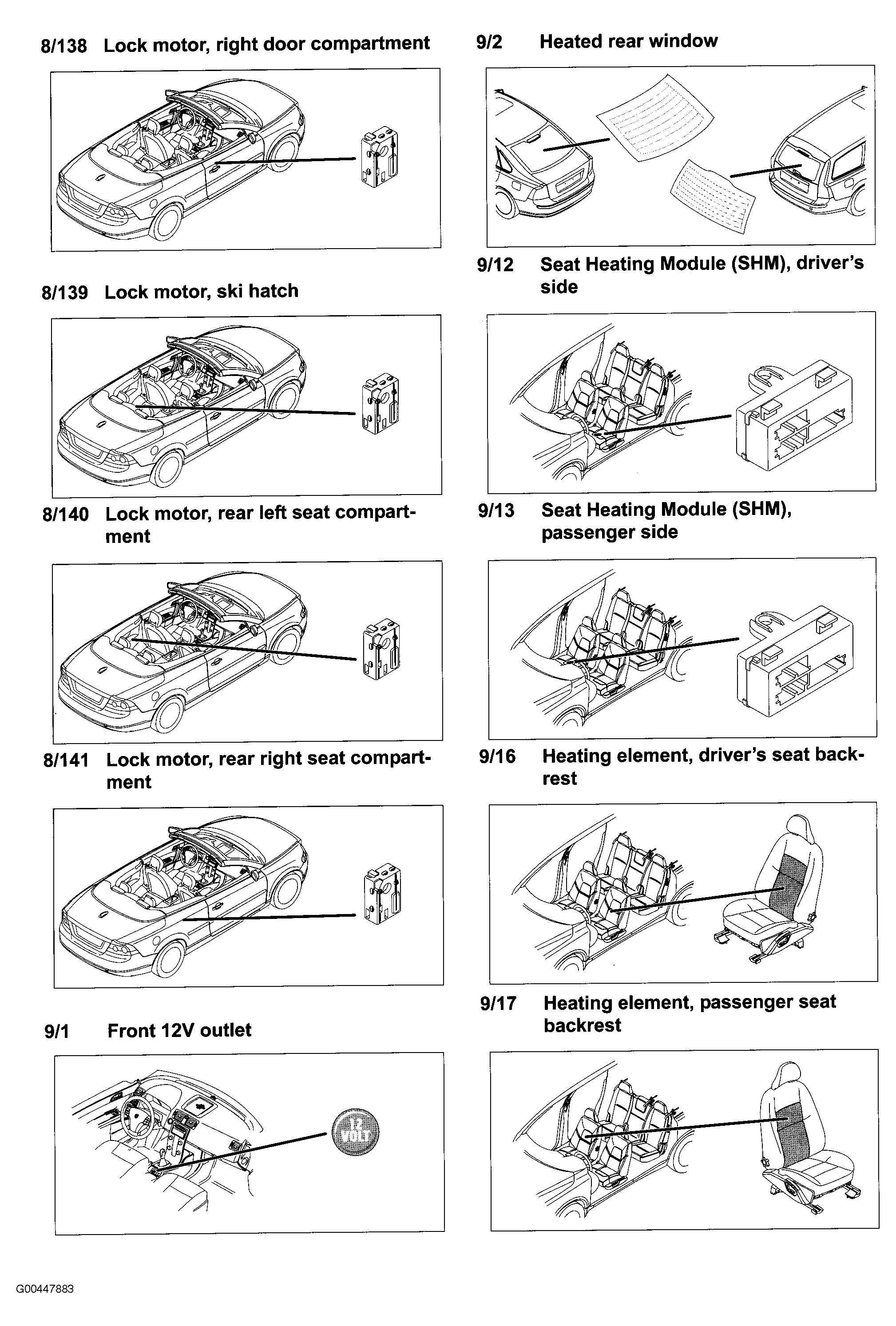

Fig 38: Components 8/138 To 9/17
Courtesy of VOLVO CARS OF NORTH AMERICA.

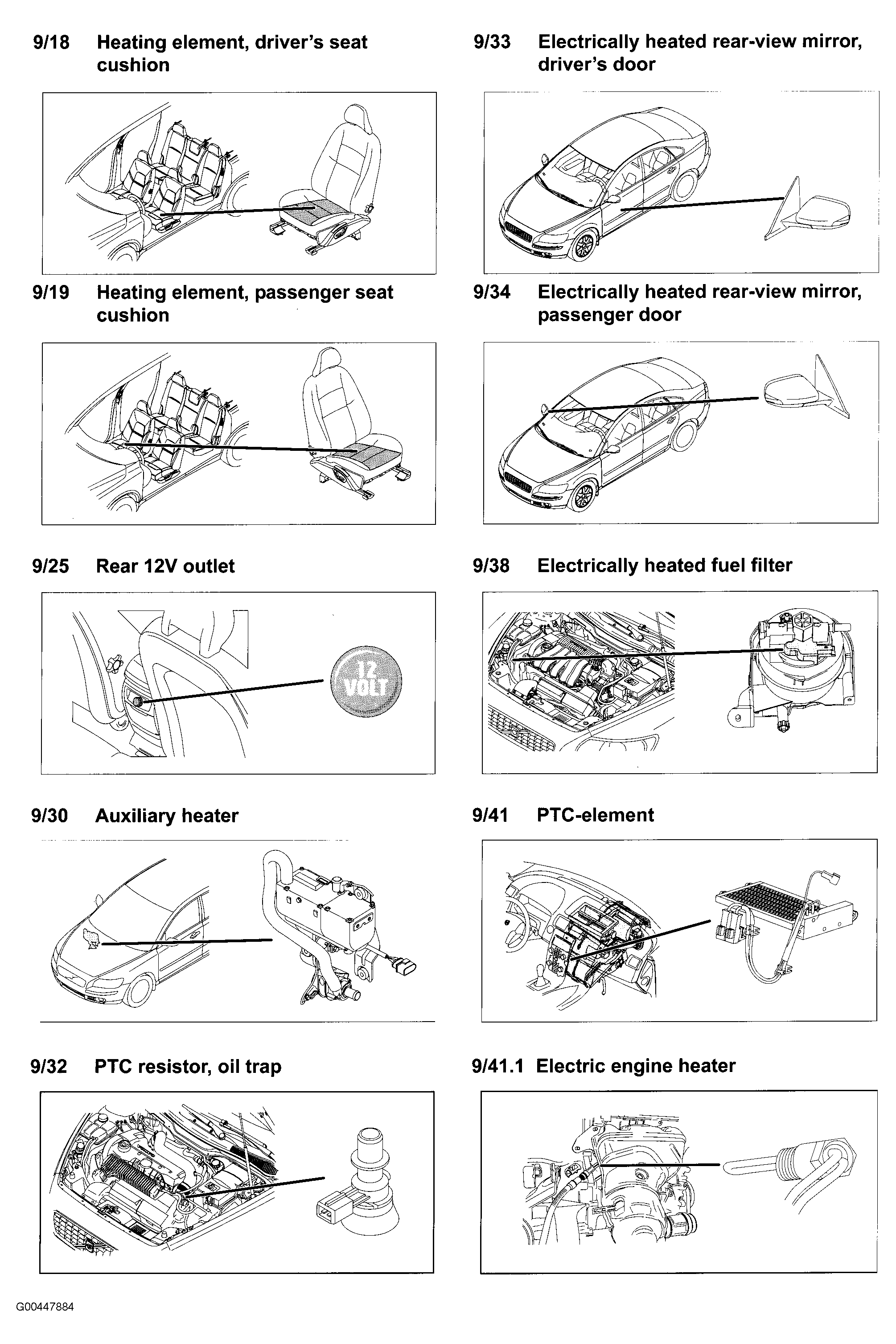

Fig 39: Components 9/18 To 9/41.1
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 40: Components 10/149 To 16/5
Courtesy of VOLVO CARS OF NORTH AMERICA.

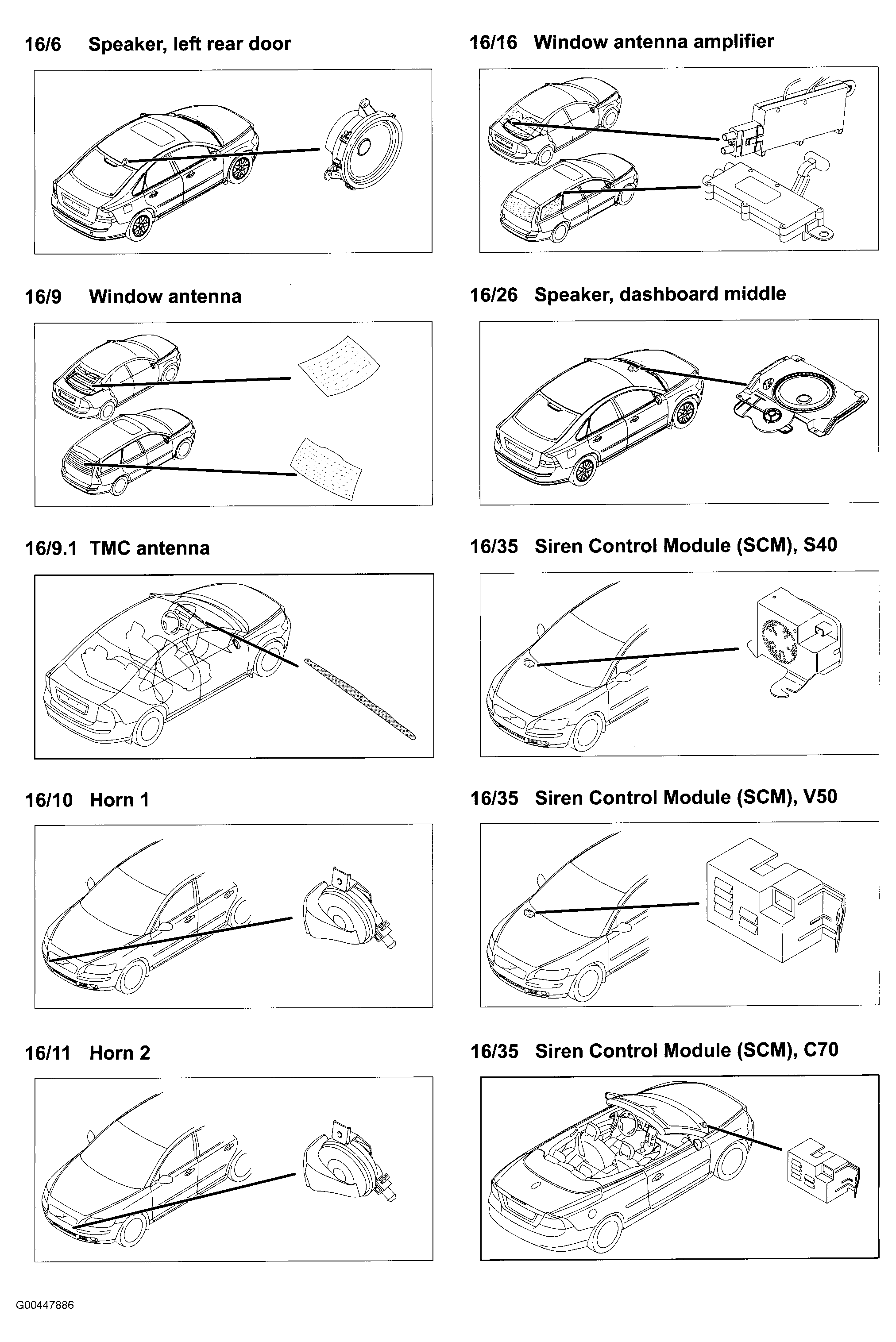

Fig 41: Components 16/6 To 16/35
Courtesy of VOLVO CARS OF NORTH AMERICA.

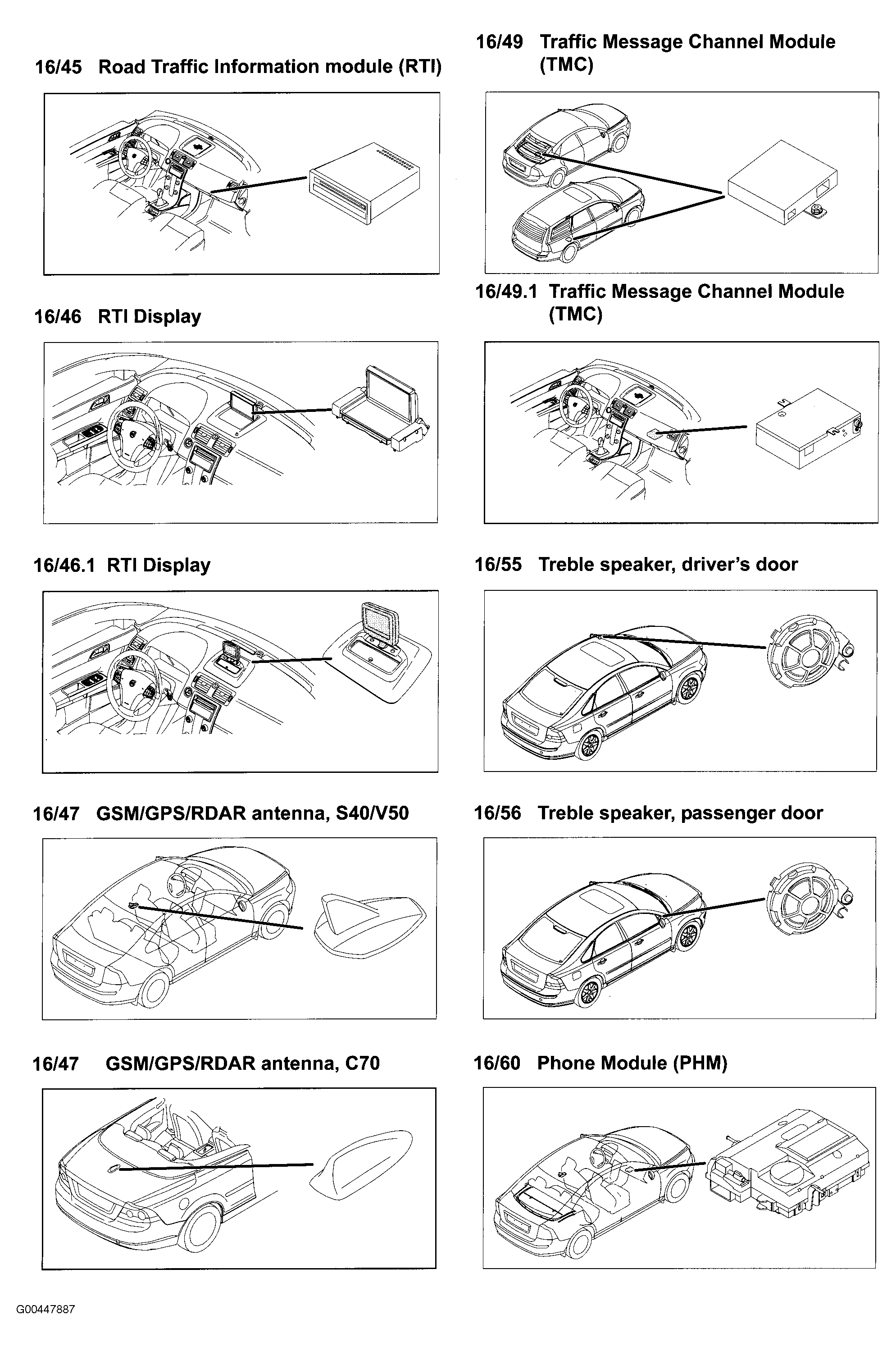

Fig 42: Components 16/45 To 16/60
Courtesy of VOLVO CARS OF NORTH AMERICA.

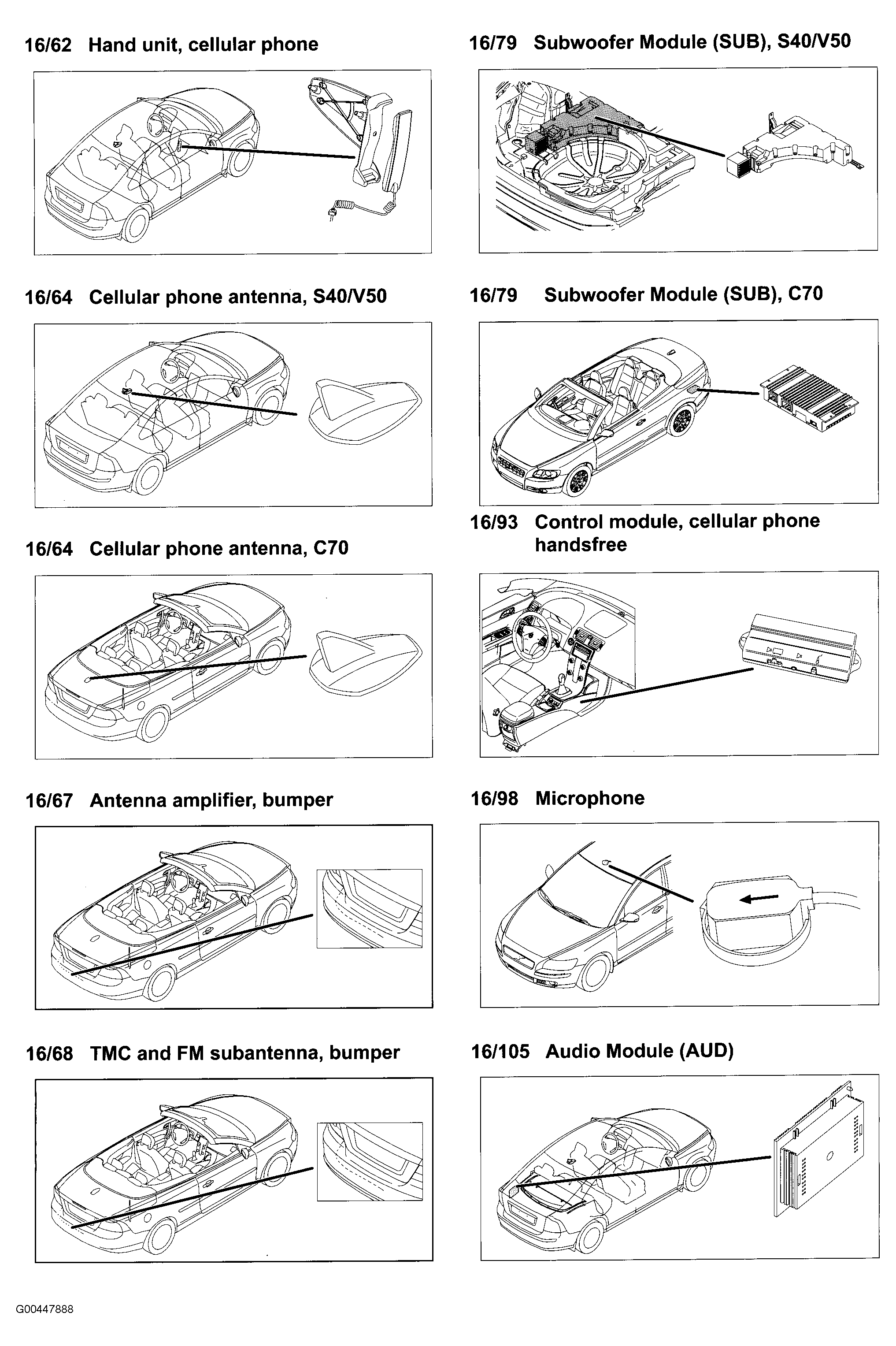

Fig 43: Components 16/62 To 16/105
Courtesy of VOLVO CARS OF NORTH AMERICA.

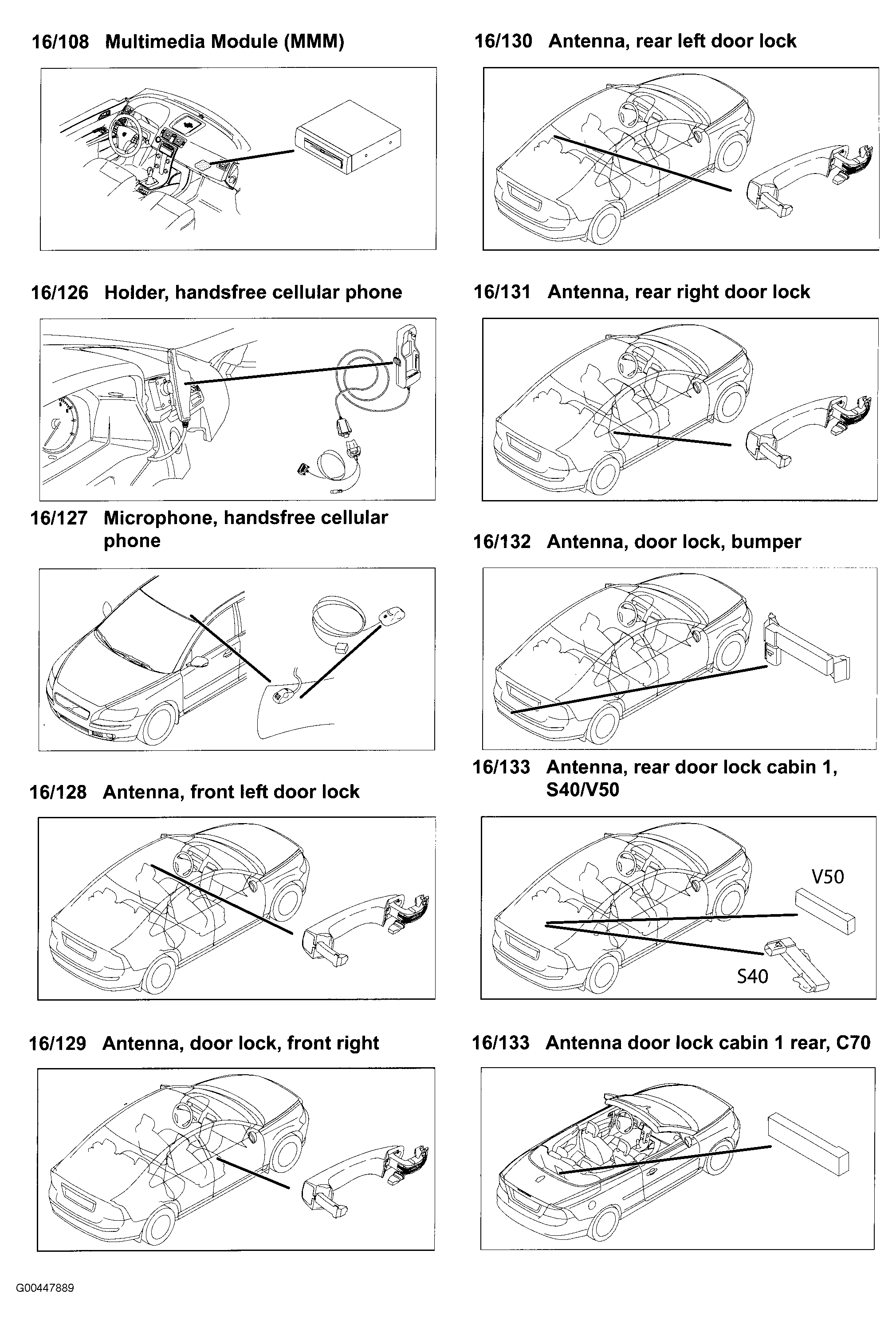

Fig 44: Components 16/108 To 16/133
Courtesy of VOLVO CARS OF NORTH AMERICA.

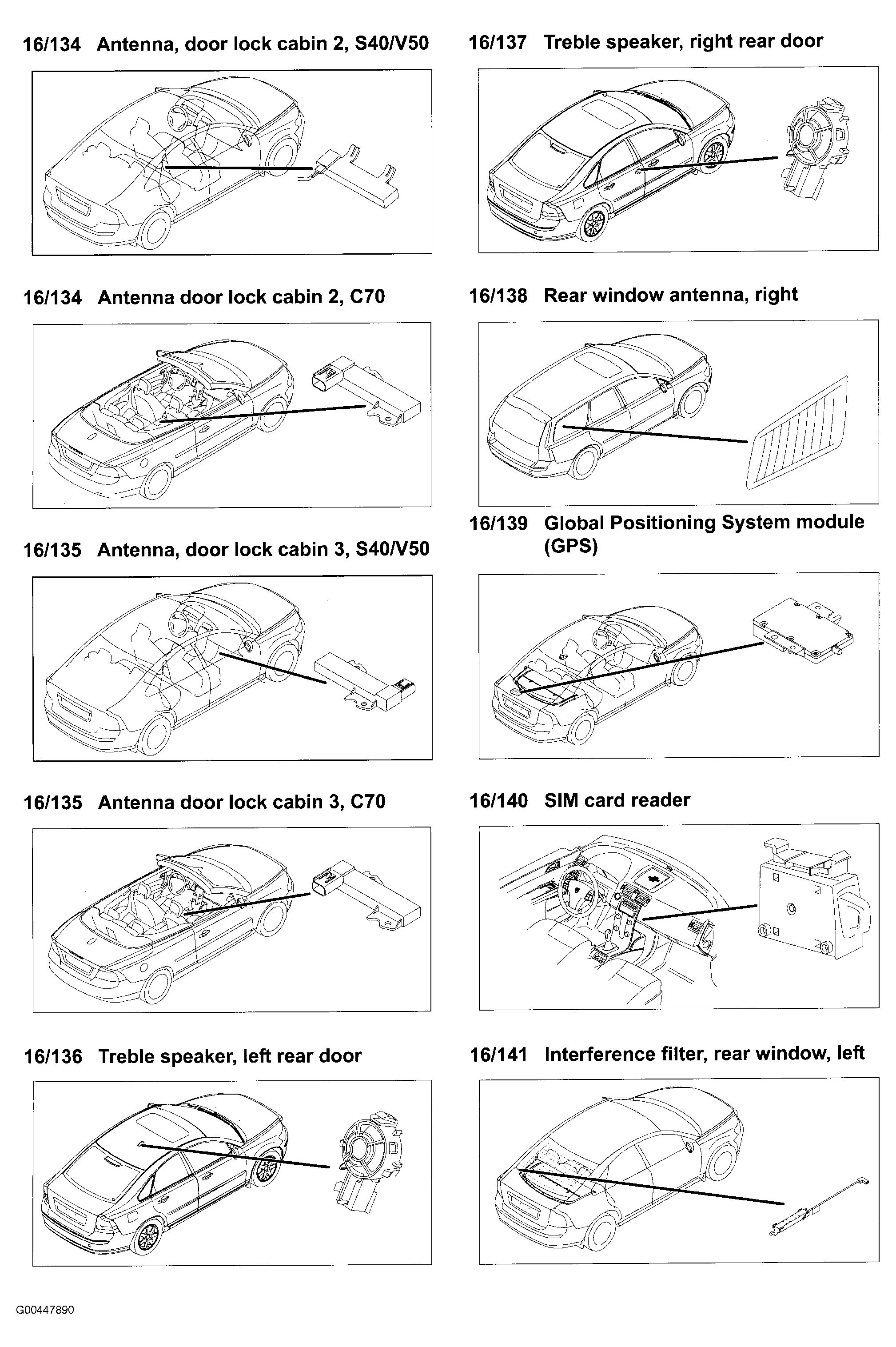

Fig 45: Components 16/134 To 16/141
Courtesy of VOLVO CARS OF NORTH AMERICA.

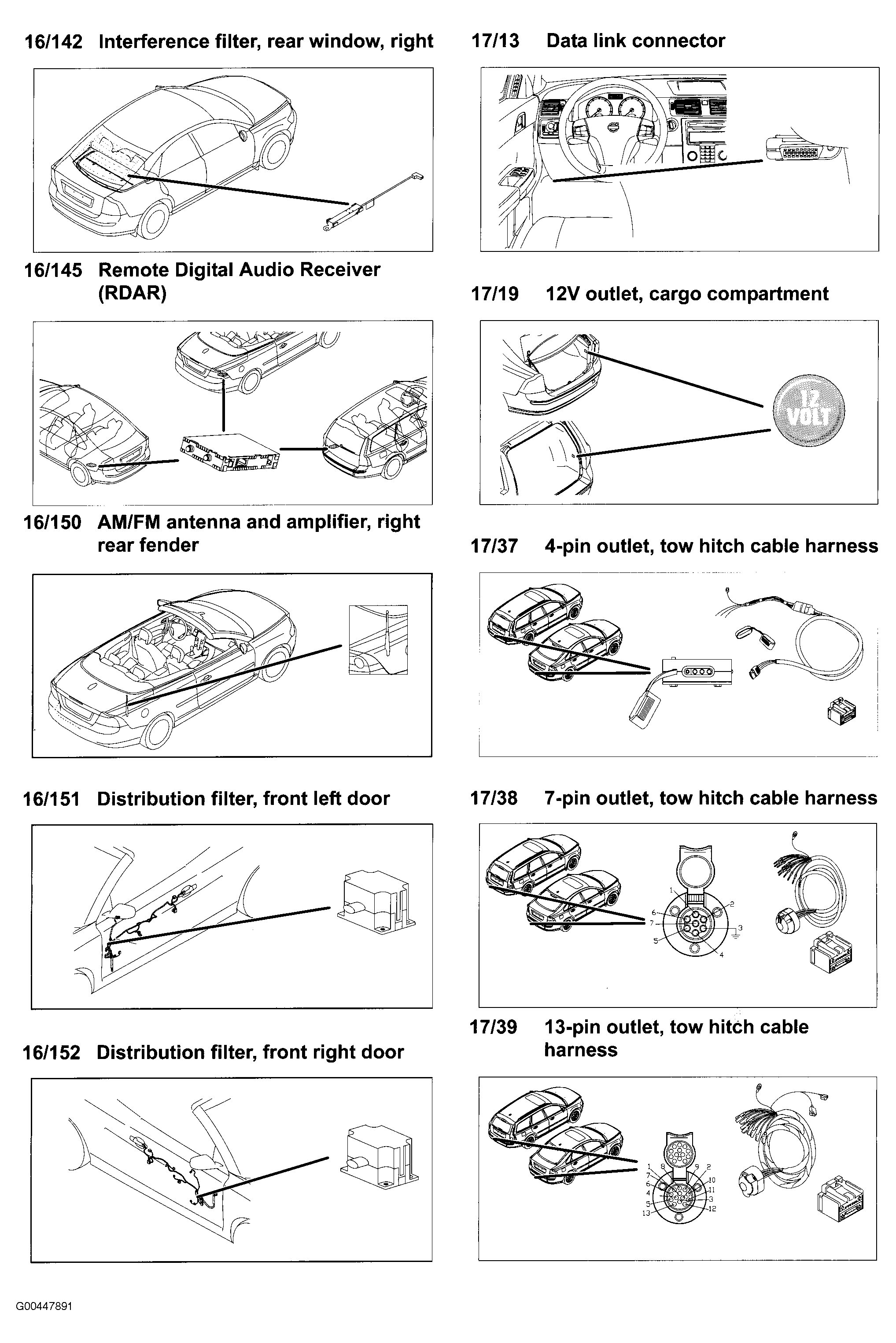

Fig 46: Components 16/142 To 17/39
Courtesy of VOLVO CARS OF NORTH AMERICA.

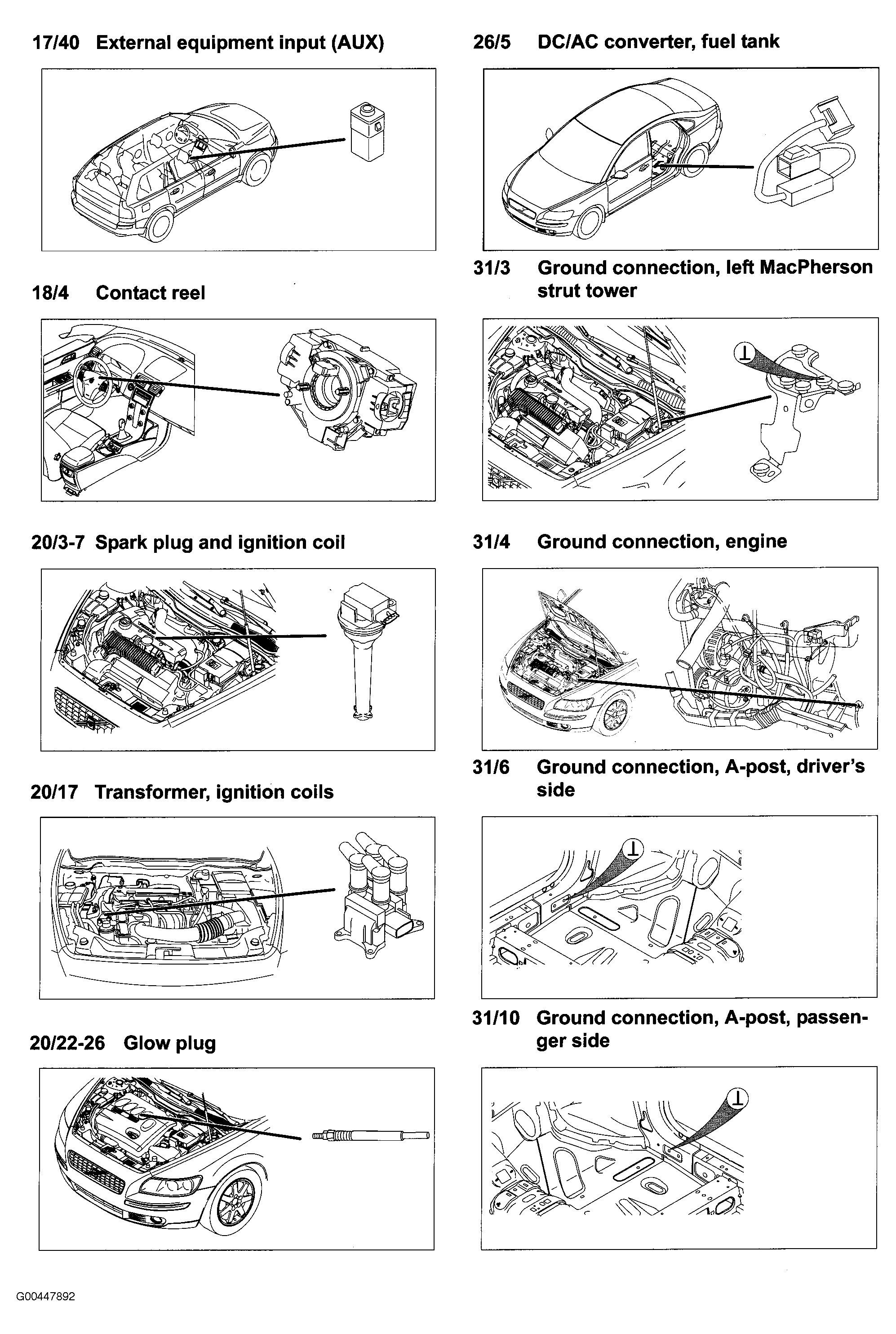

Fig 47: Components 17/40 To 31/10
Courtesy of VOLVO CARS OF NORTH AMERICA.

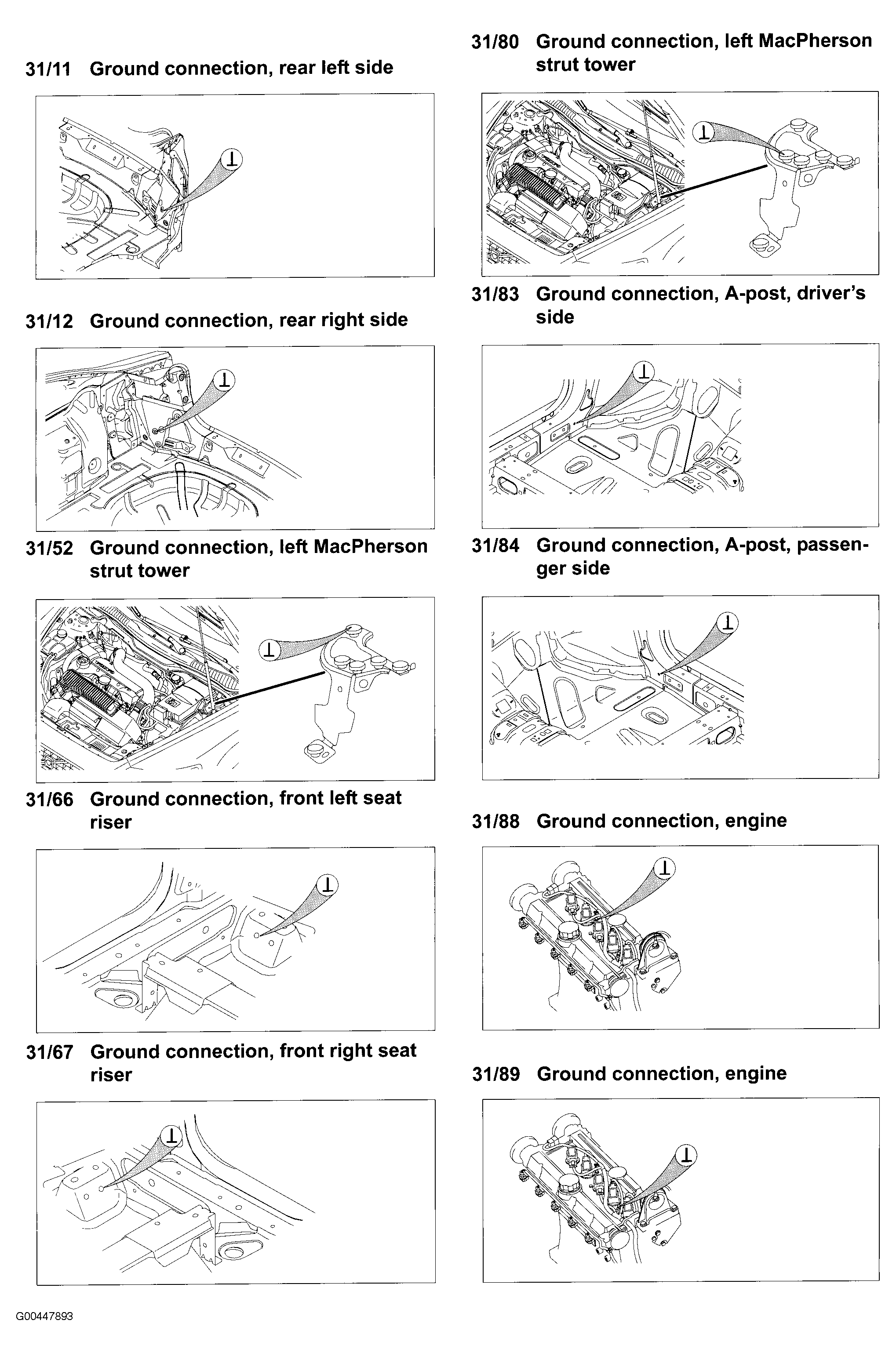

Fig 48: Components 31/11 To 31/89
Courtesy of VOLVO CARS OF NORTH AMERICA.

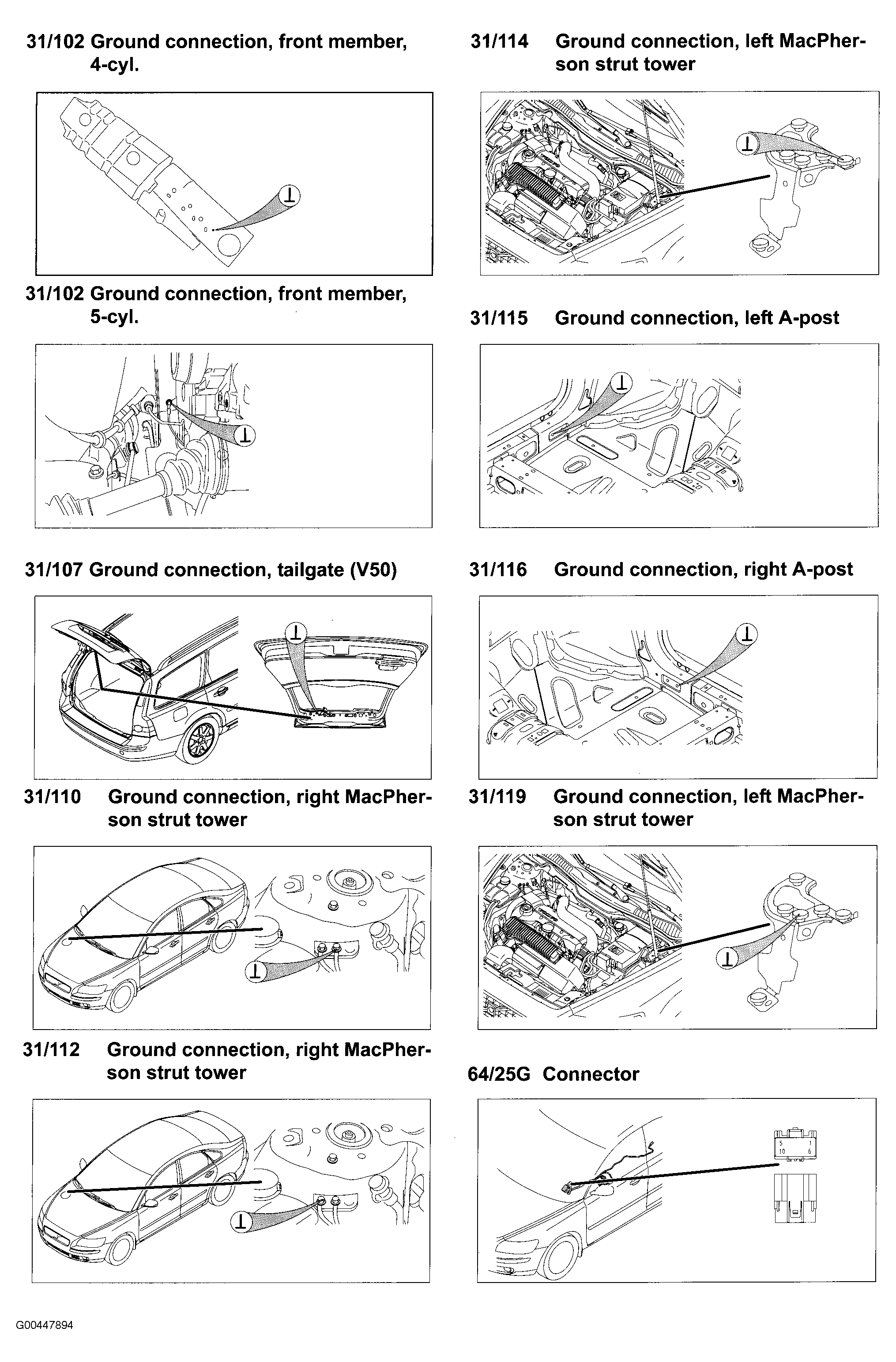

Fig 49: Components 31/102 To 64/25G
Courtesy of VOLVO CARS OF NORTH AMERICA.

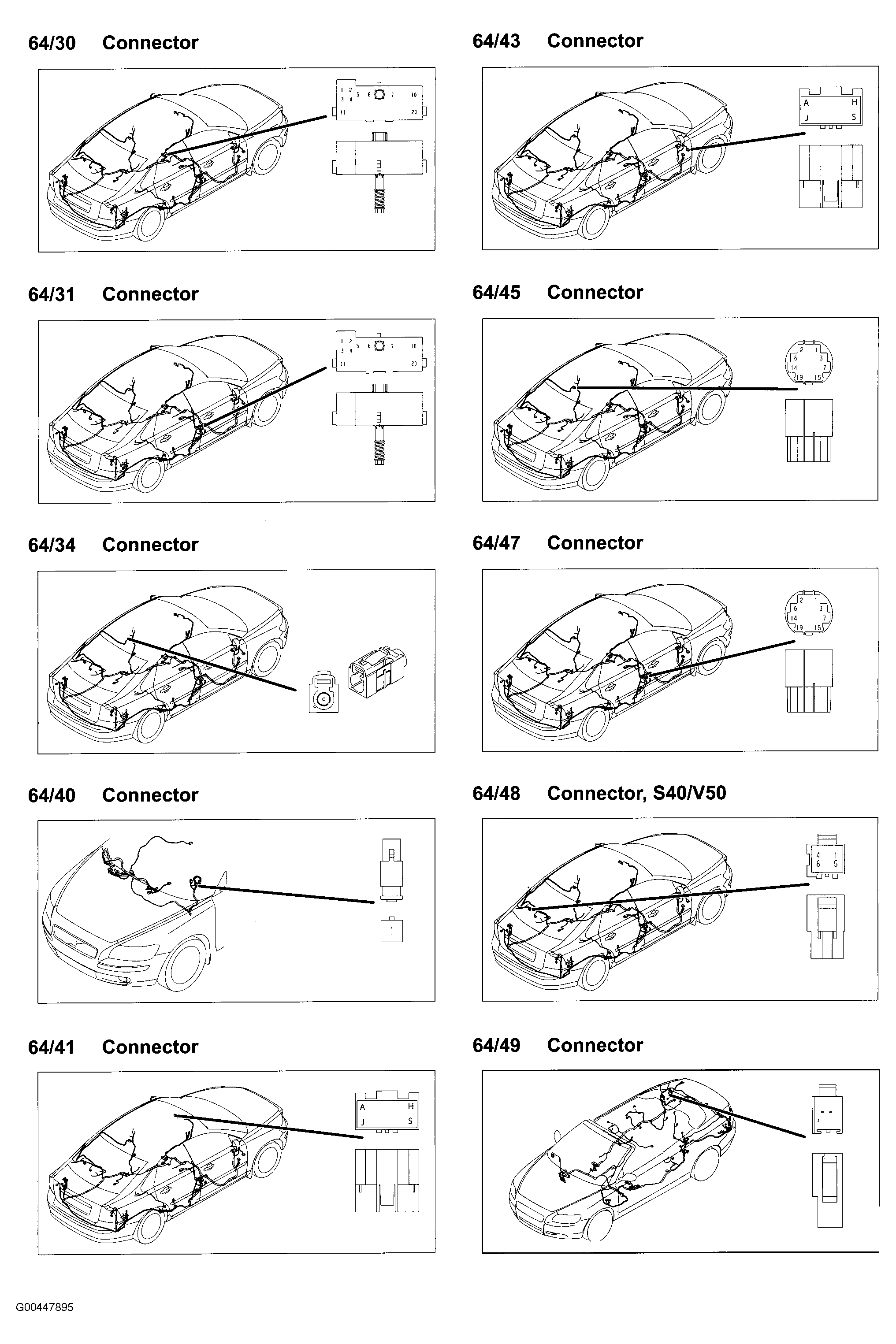

Fig 50: Components 64/30 To 64/49
Courtesy of VOLVO CARS OF NORTH AMERICA.

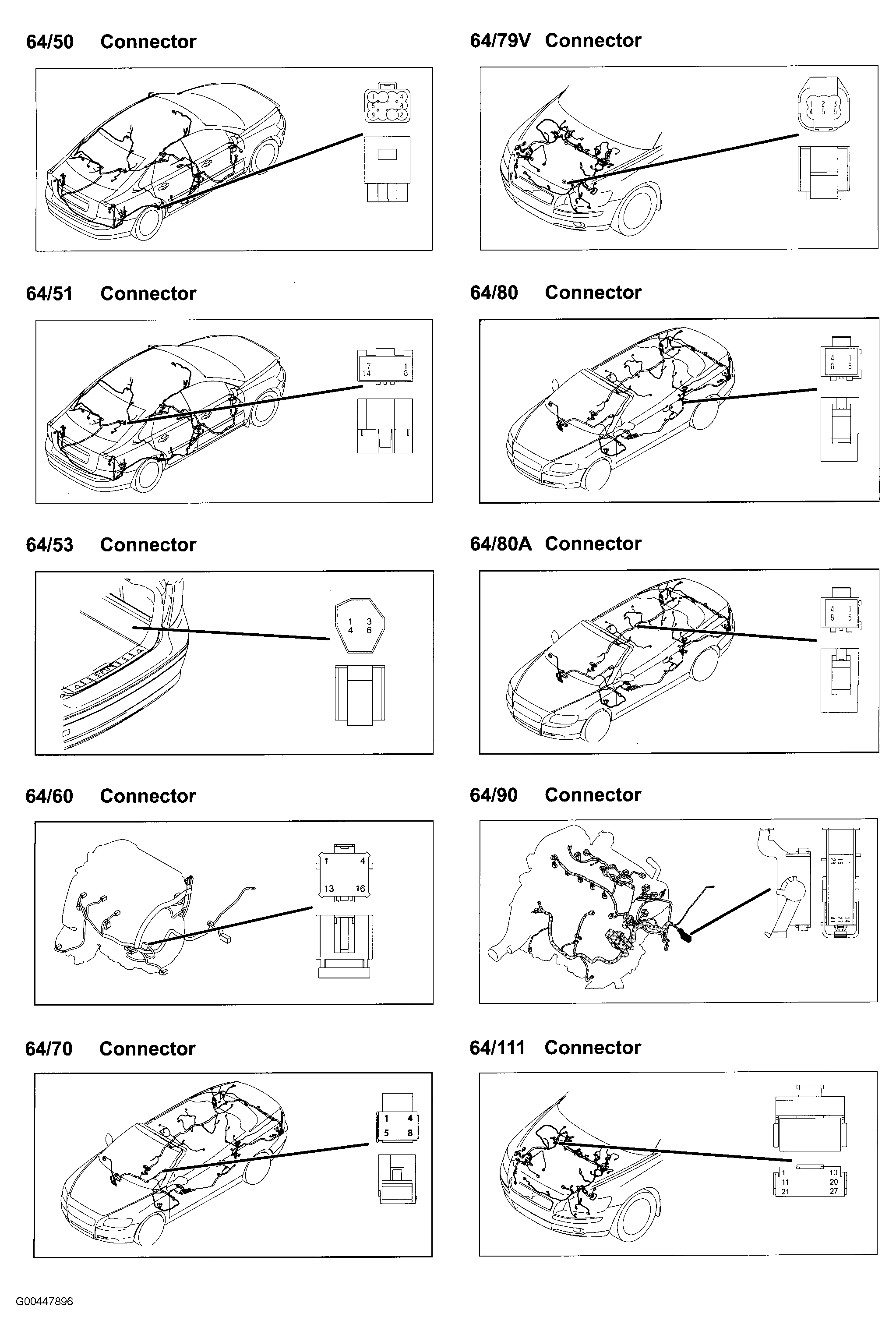

Fig 51: Components 64/50 To 64/111
Courtesy of VOLVO CARS OF NORTH AMERICA.

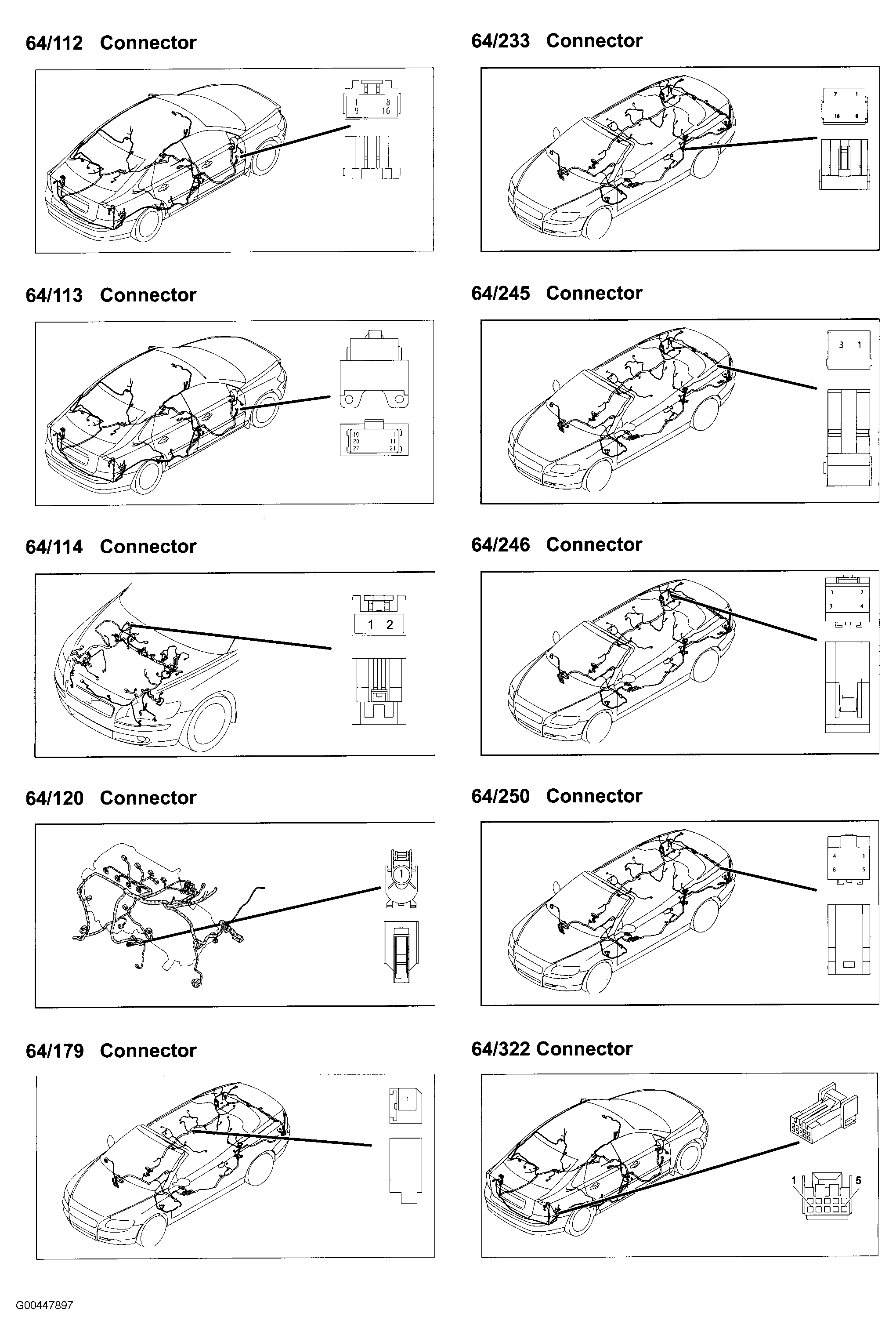

Fig 52: Components 64/112 To 64/322
Courtesy of VOLVO CARS OF NORTH AMERICA.

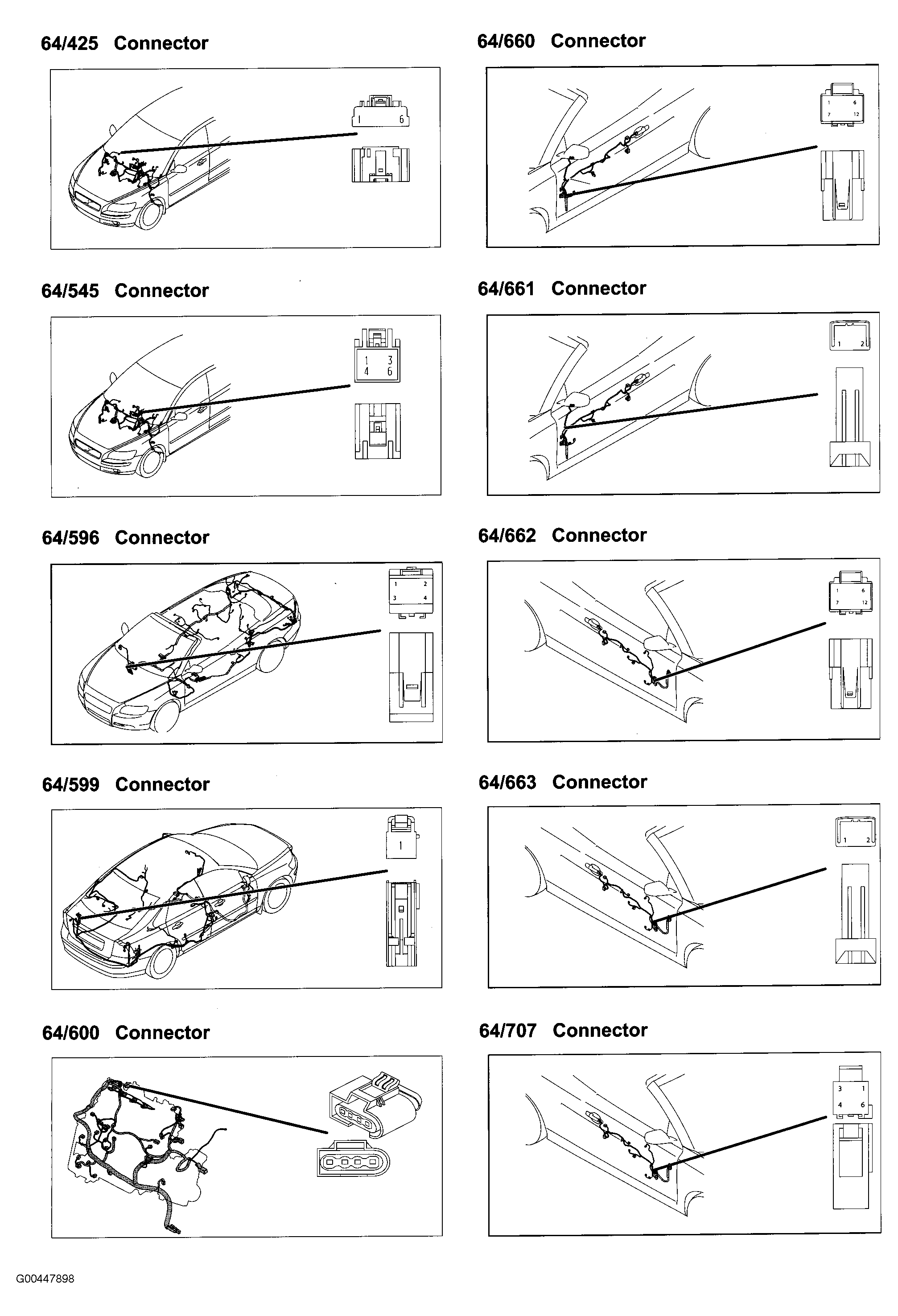

Fig 53: Components 64/425 To 64/707
Courtesy of VOLVO CARS OF NORTH AMERICA.

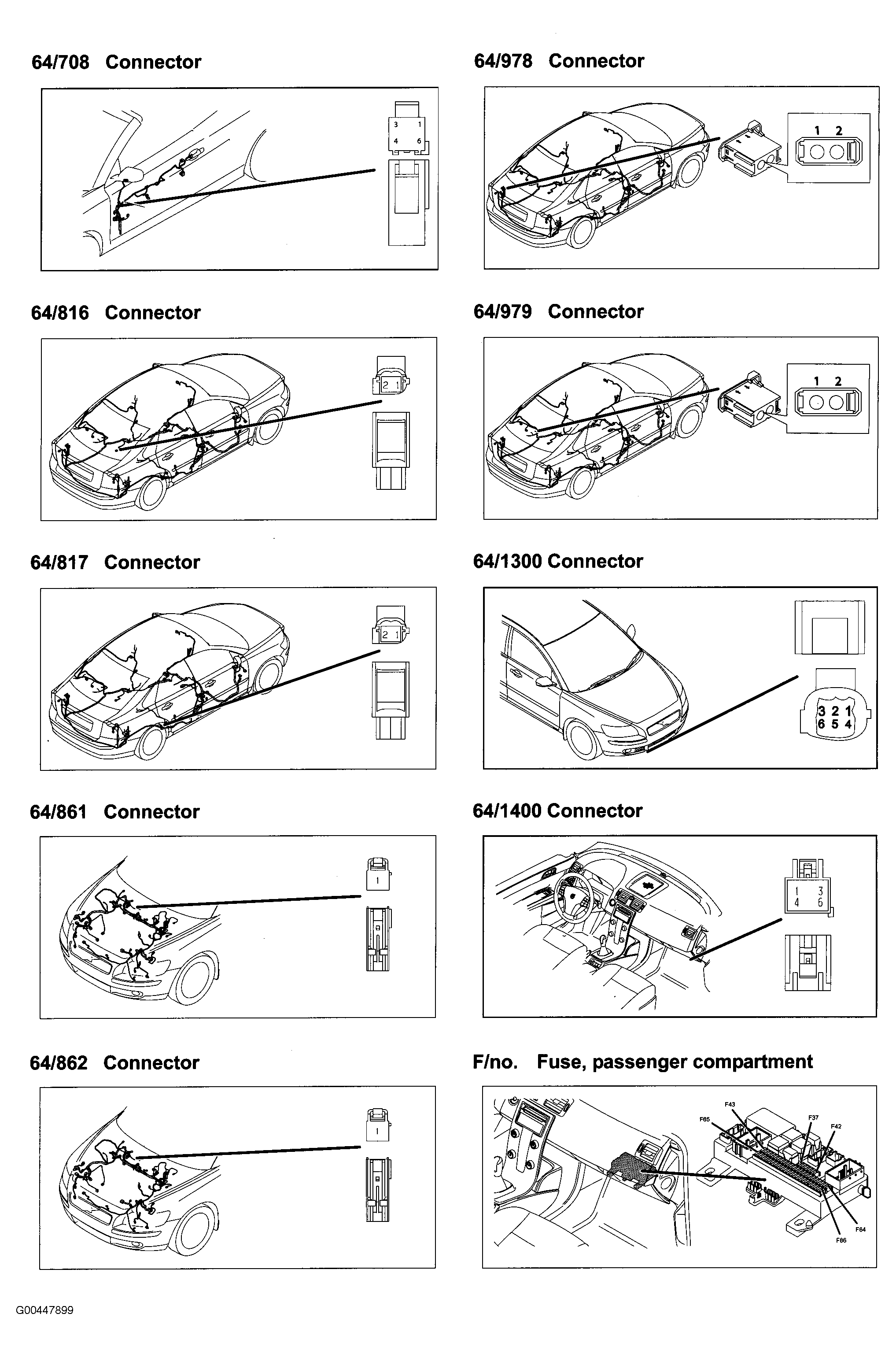

Fig 54: Components 64/708 To 64/1400
Courtesy of VOLVO CARS OF NORTH AMERICA.
