Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Accessory Electronic Module (AEM) (4/78) | At right rear corner of cargo compartment. See Figure. |
| Additive Dosing Module (ADM) (4/111) | Behind left rear seat. See Figure. |
| Audio Module (AUD) (16/105) | Left side of trunk. See Figure. |

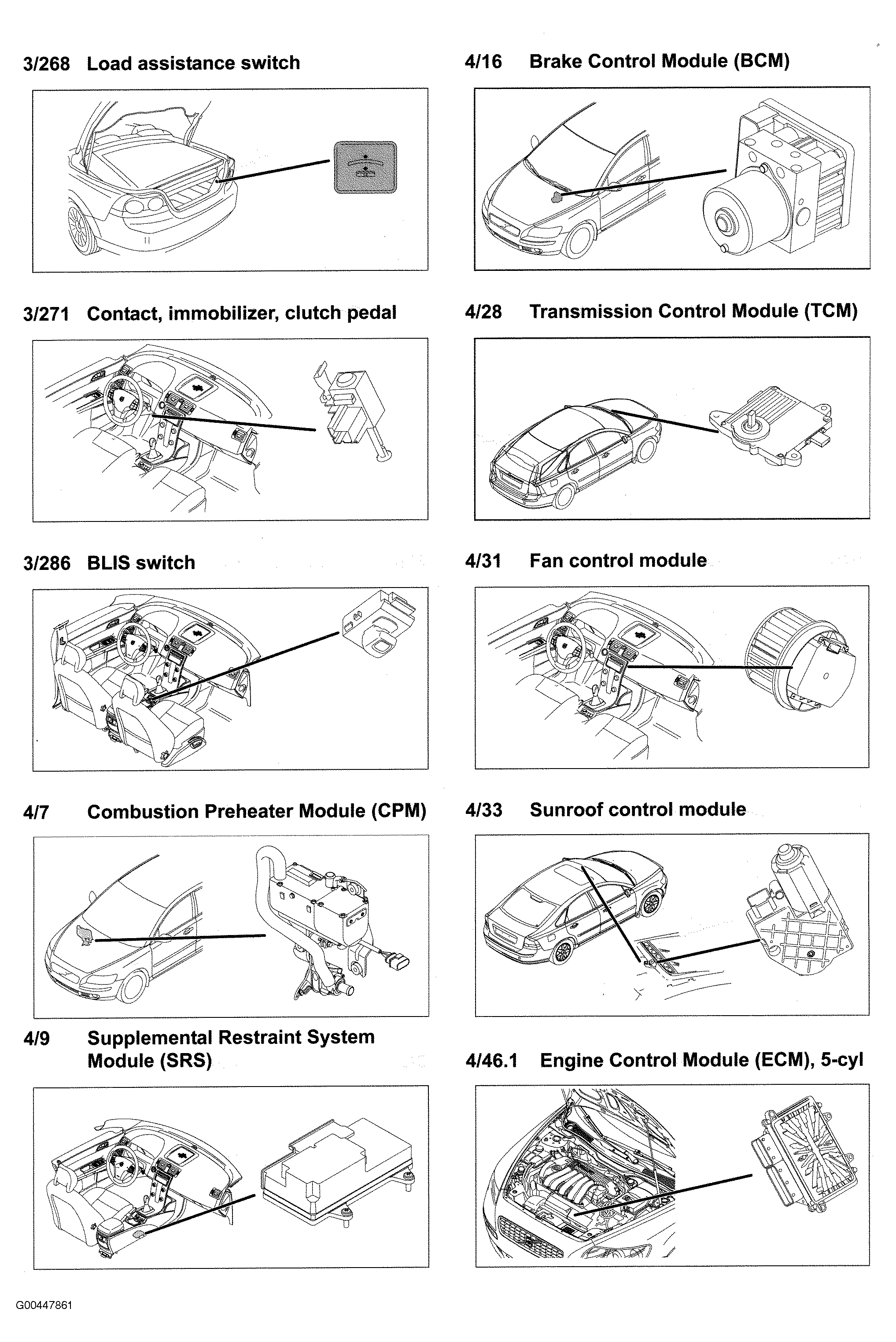

| Brake Control Module (BCM) (4/16) | At left rear corner of engine compartment. See Figure. |
| Combustion Preheater Module (CPM) (4/7) | Right front of engine compartment. See Figure. |
| Convertible Roof Module (CRM) (4/59) | Right side of luggage compartment. See Figure. |
| Cooling Fan Control Module (4/71) | At front center of engine compartment. See Figure. |
| Differential Electronic Module (DEM) (4/82) | At rear differential. See Figure. |

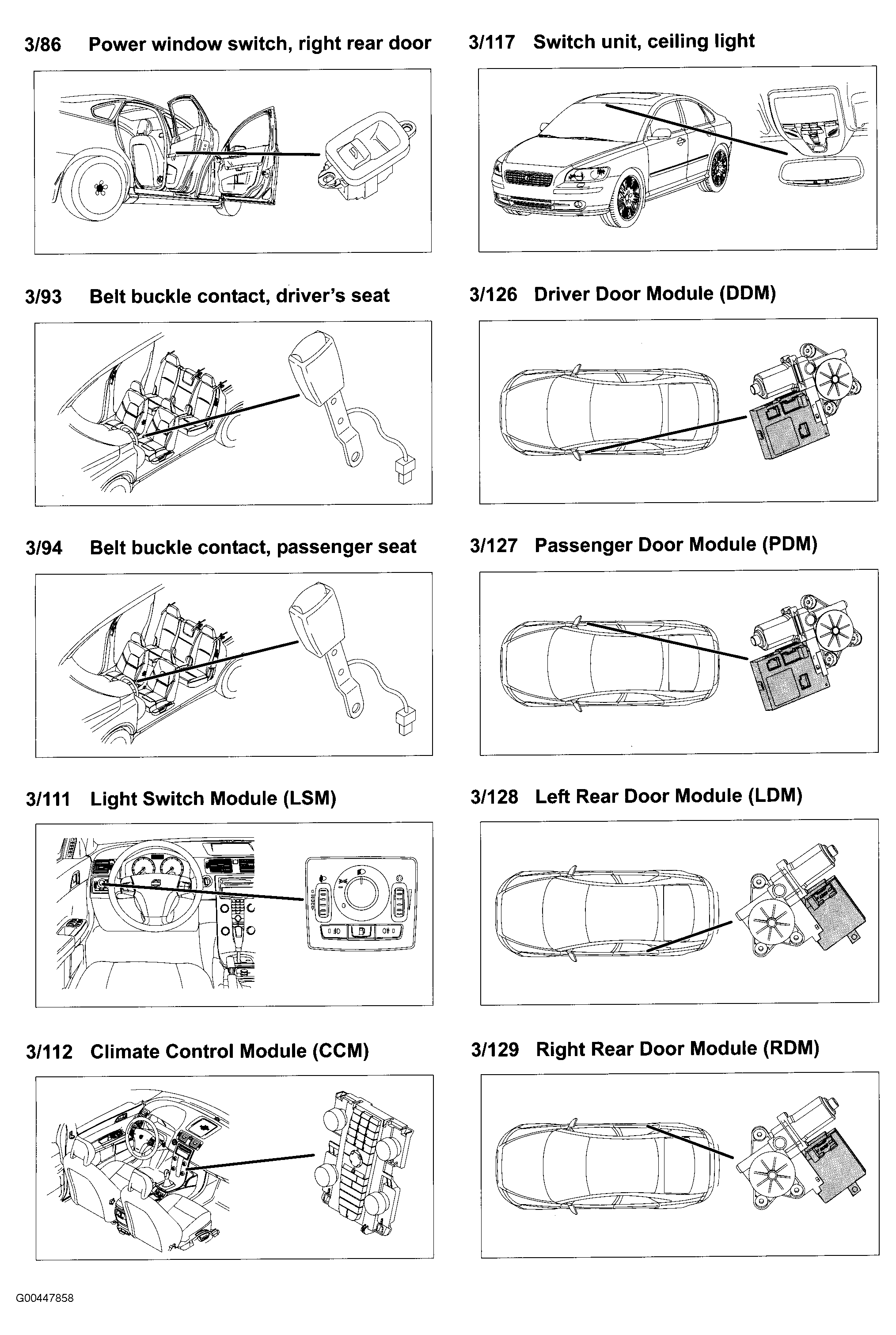

| Driver's Door Module (DDM) (3/126) | In driver's door. See Figure. |

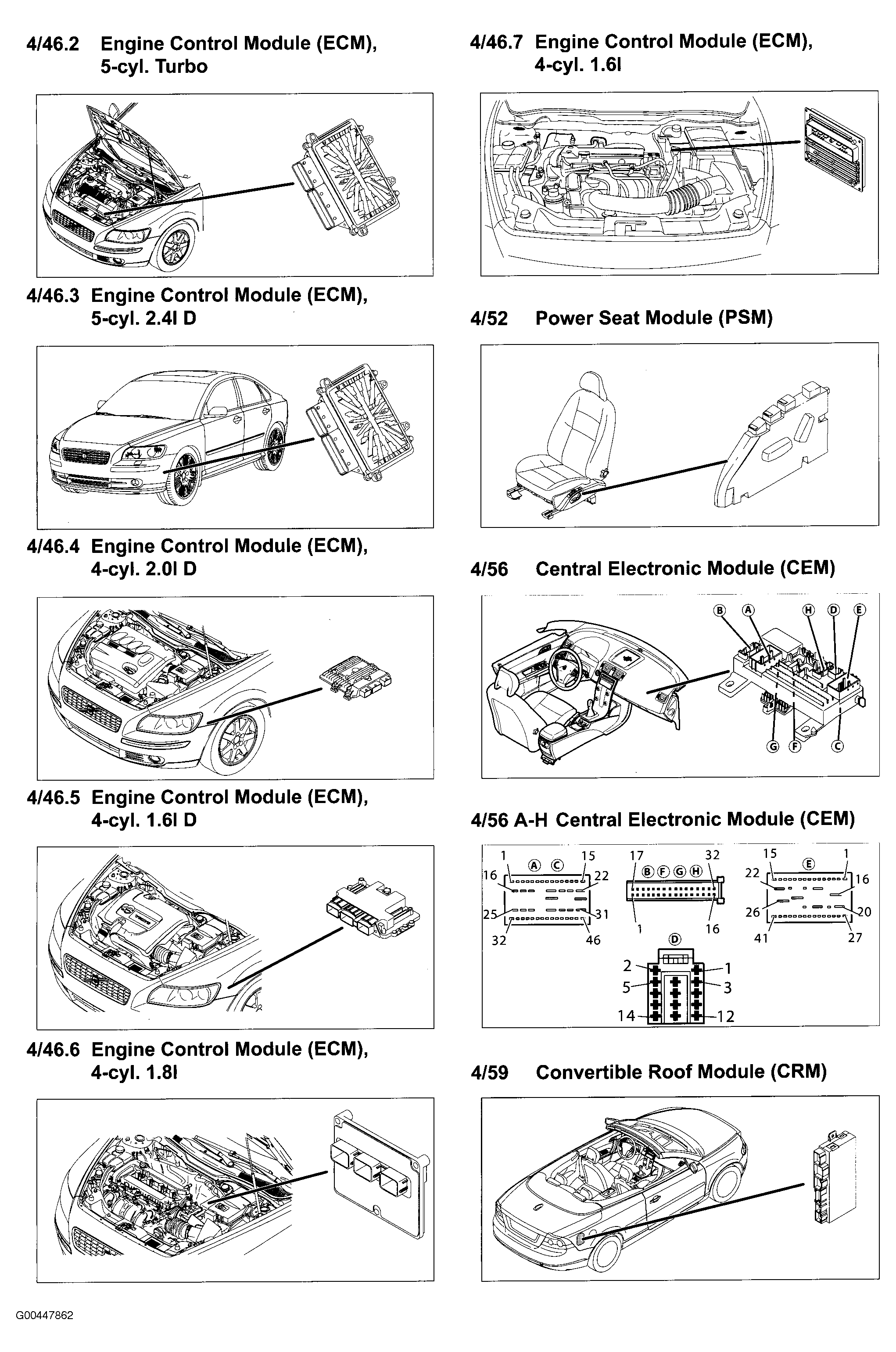

| Engine Control Module (ECM) (4/46.2) | Left front of engine compartment. See Figure. |
| Fan Control Module (4/31) | Behind center of dash. See Figure. |
| Fuel Pump Control Module (4/83) | At fuel tank. See Figure. |

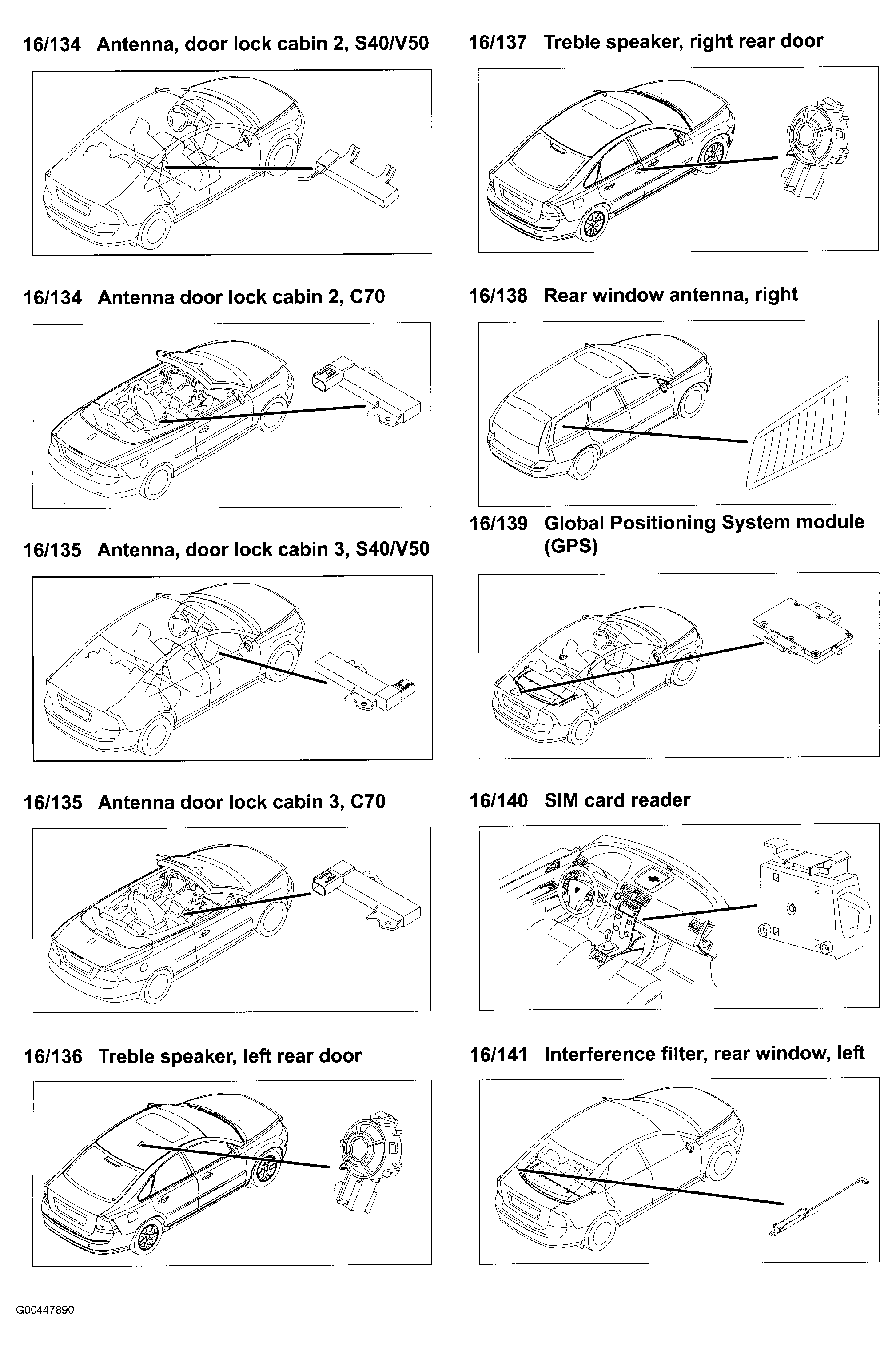

| Global Positioning System Module (GPS) (16/139) | Left side of trunk. See Figure. |
| Keyless Vehicle Module (KVM) (4/93) | Under driver's seat. See Figure. |
| Master Gas Discharge Lamp Control Module (Left/Right) (4/112, 4/113) | Behind respective headlight. See Figure. |
| Parking Assistance Module (PAM) (4/86) | At right rear corner of cargo compartment. See Figure. |
| Passenger's Door Module (PDM) (3/127) | In front passenger's door. See Figure. |

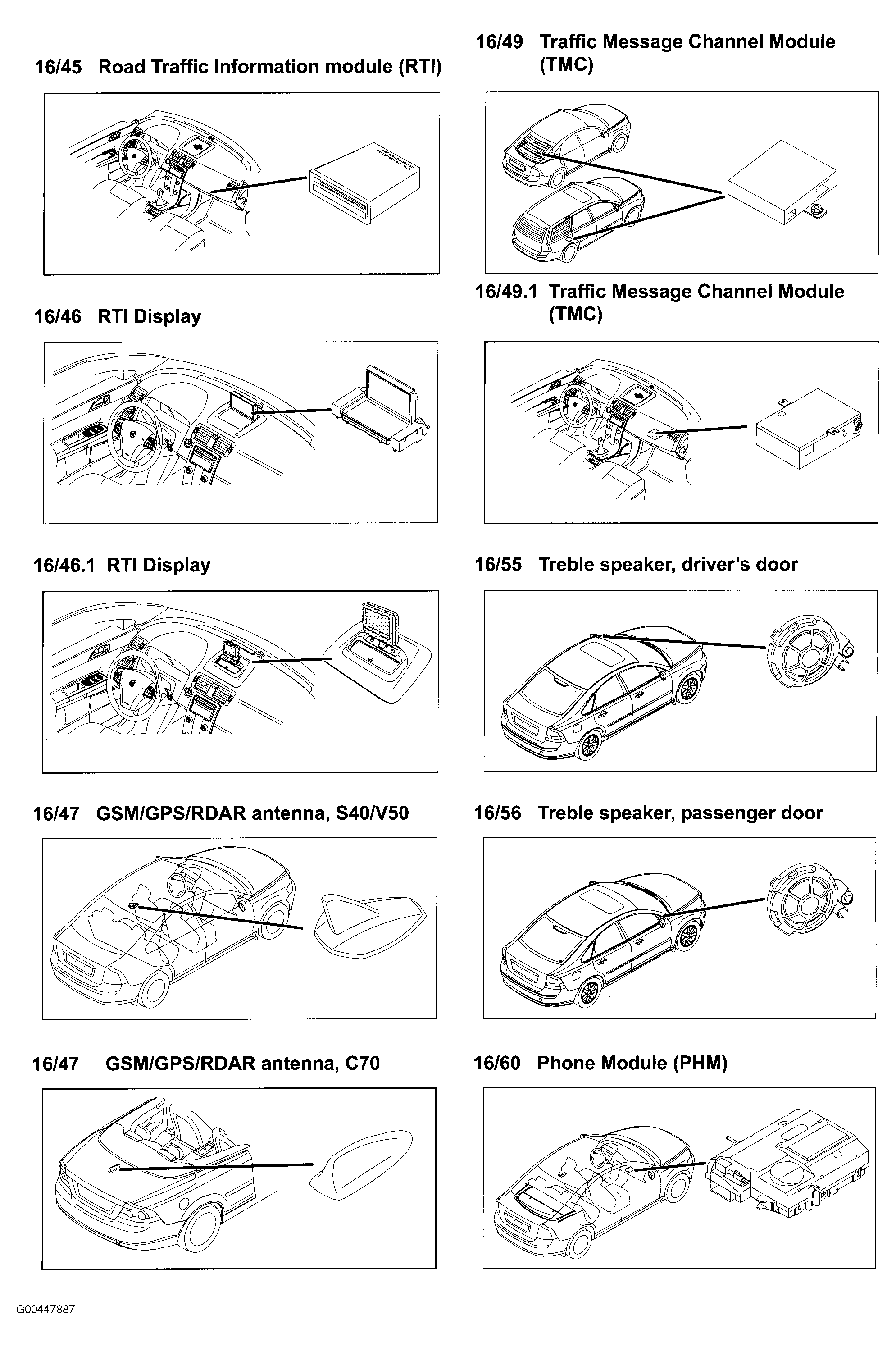

| Phone Module (PHM) (16/60) | Under right side of dash. See Figure. |
| Remote Receiver Module (RRX) (4/103) | Top of instrument cluster. See Figure. |

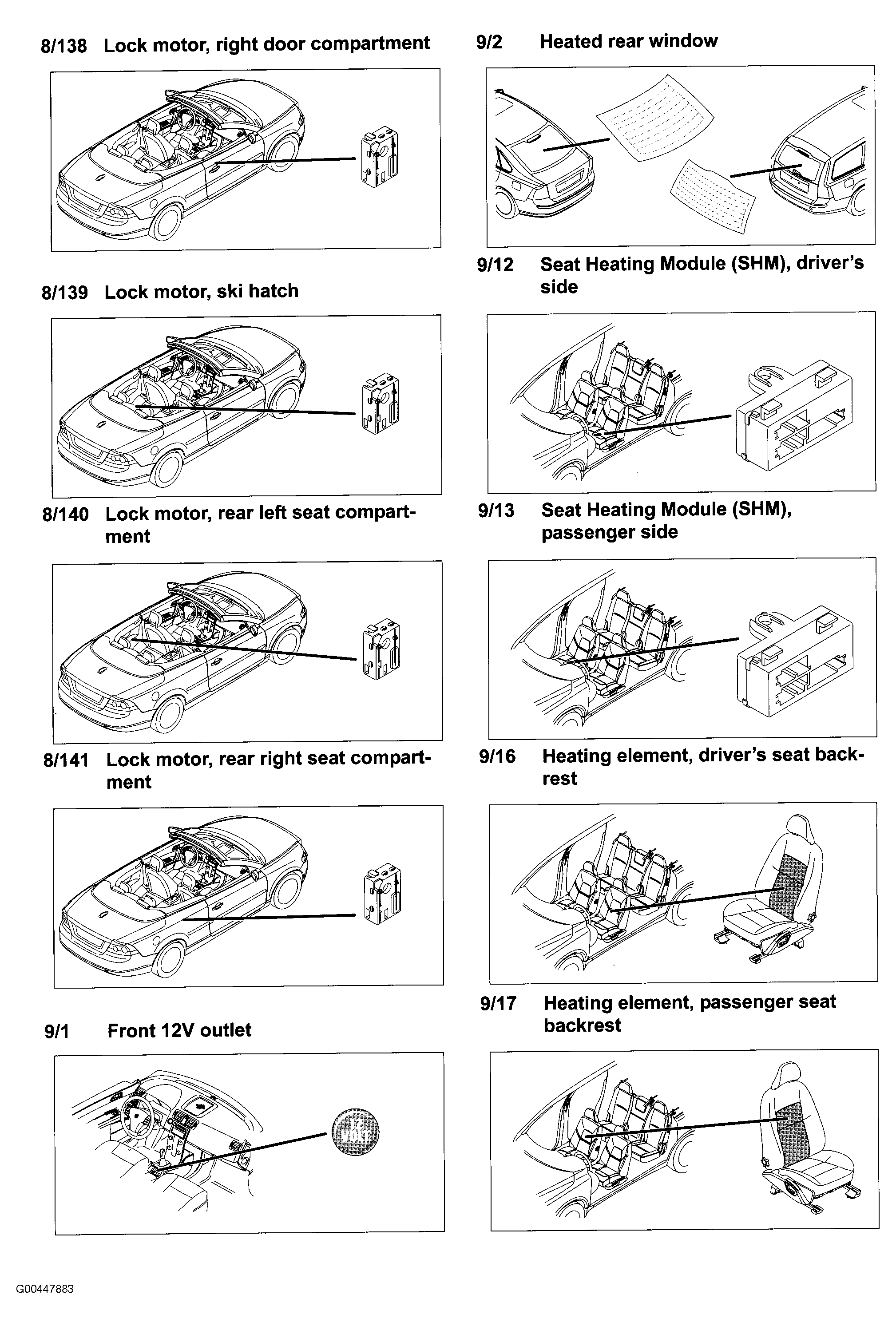

| Seat Heating Module (SHM) (Driver's Side) (9/12) | Under driver's seat. See Figure. |
| Seat Heating Module (SHM) (Passenger's Side) (9/13) | Under front passenger's seat. See Figure. |

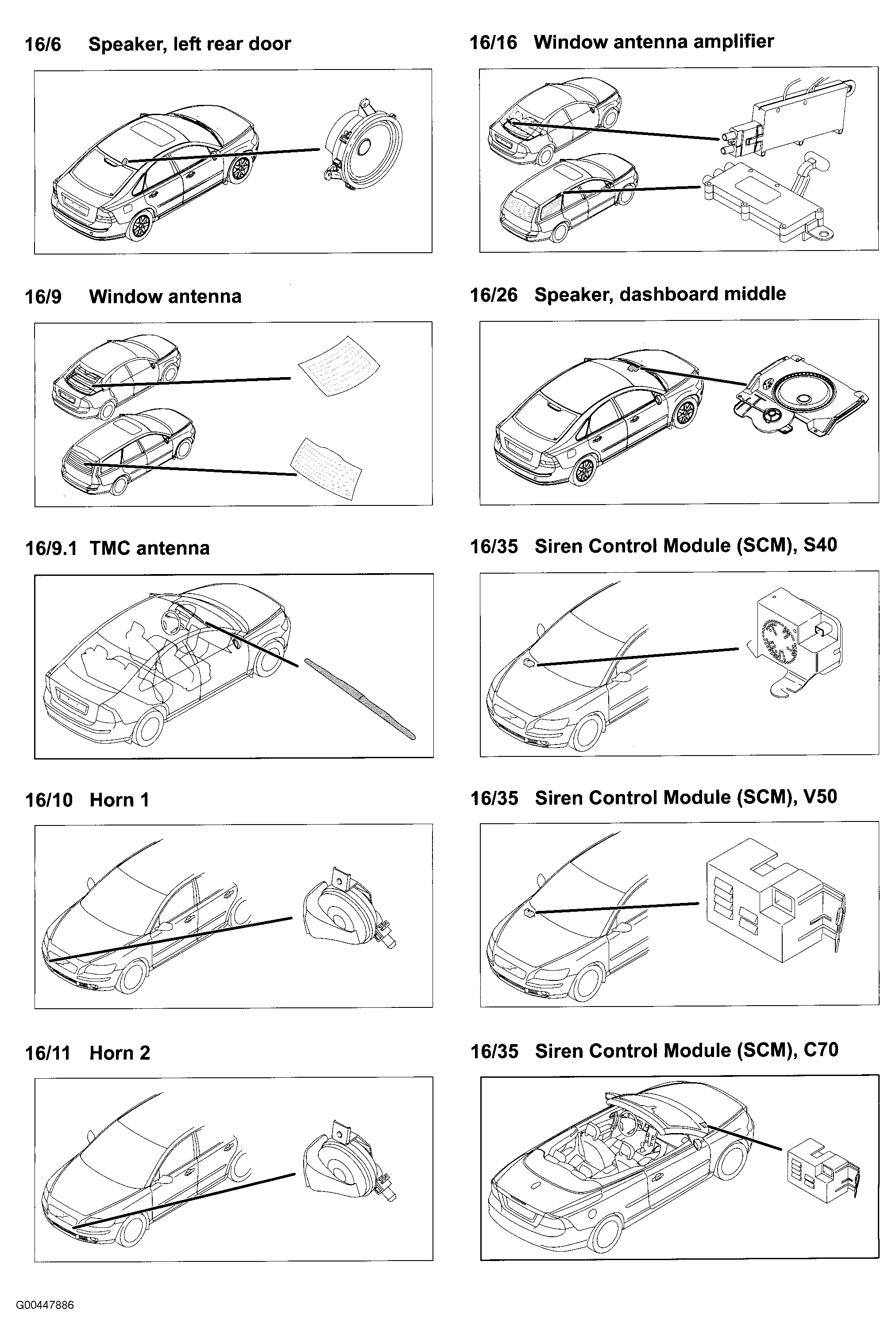

| Siren Control Module (SCM) (16/35) | Right rear of engine compartment. See Figure. |

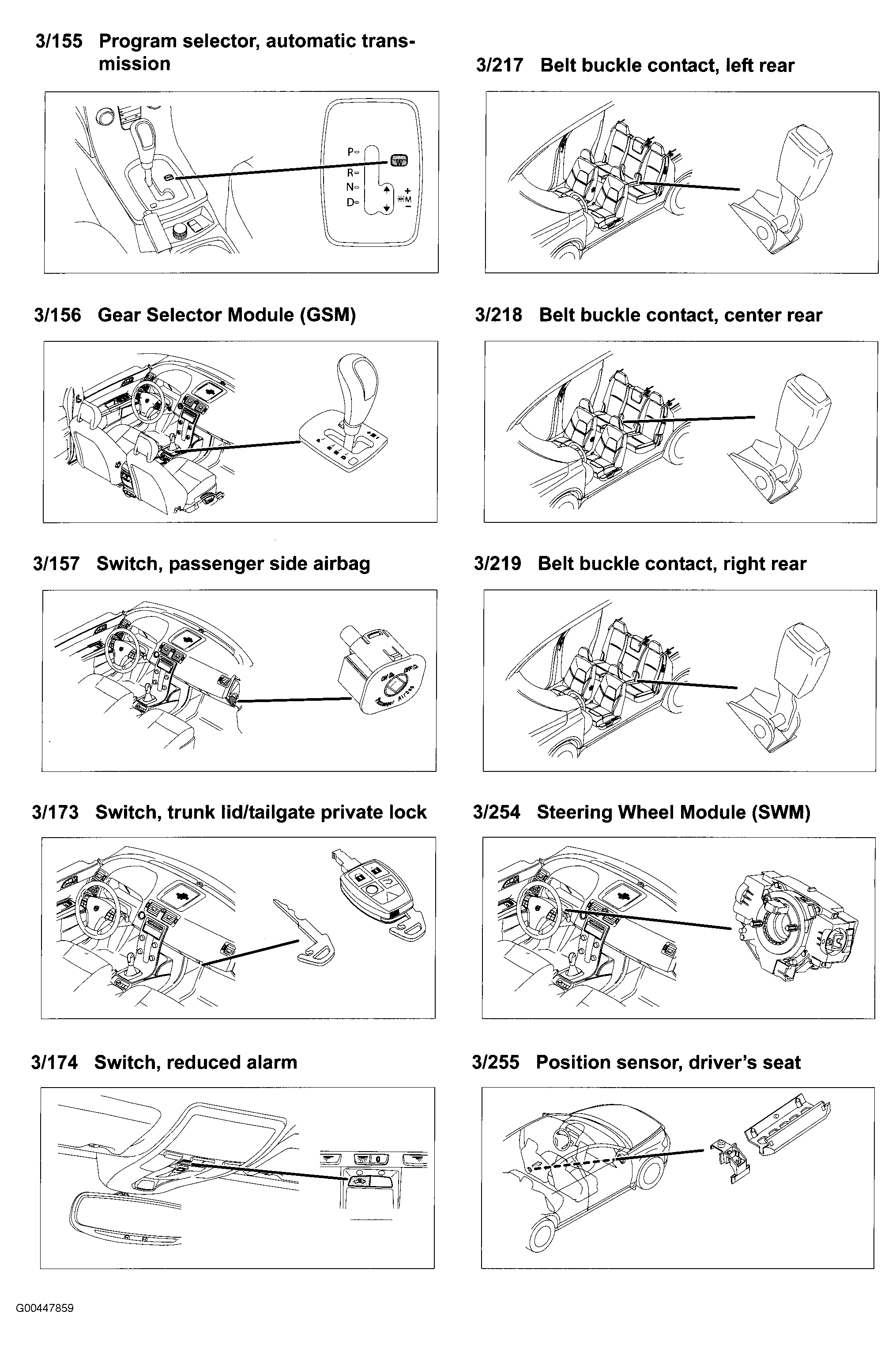

| Steering Wheel Module (SWM) (3/254) | Top of steering column. See Figure. |

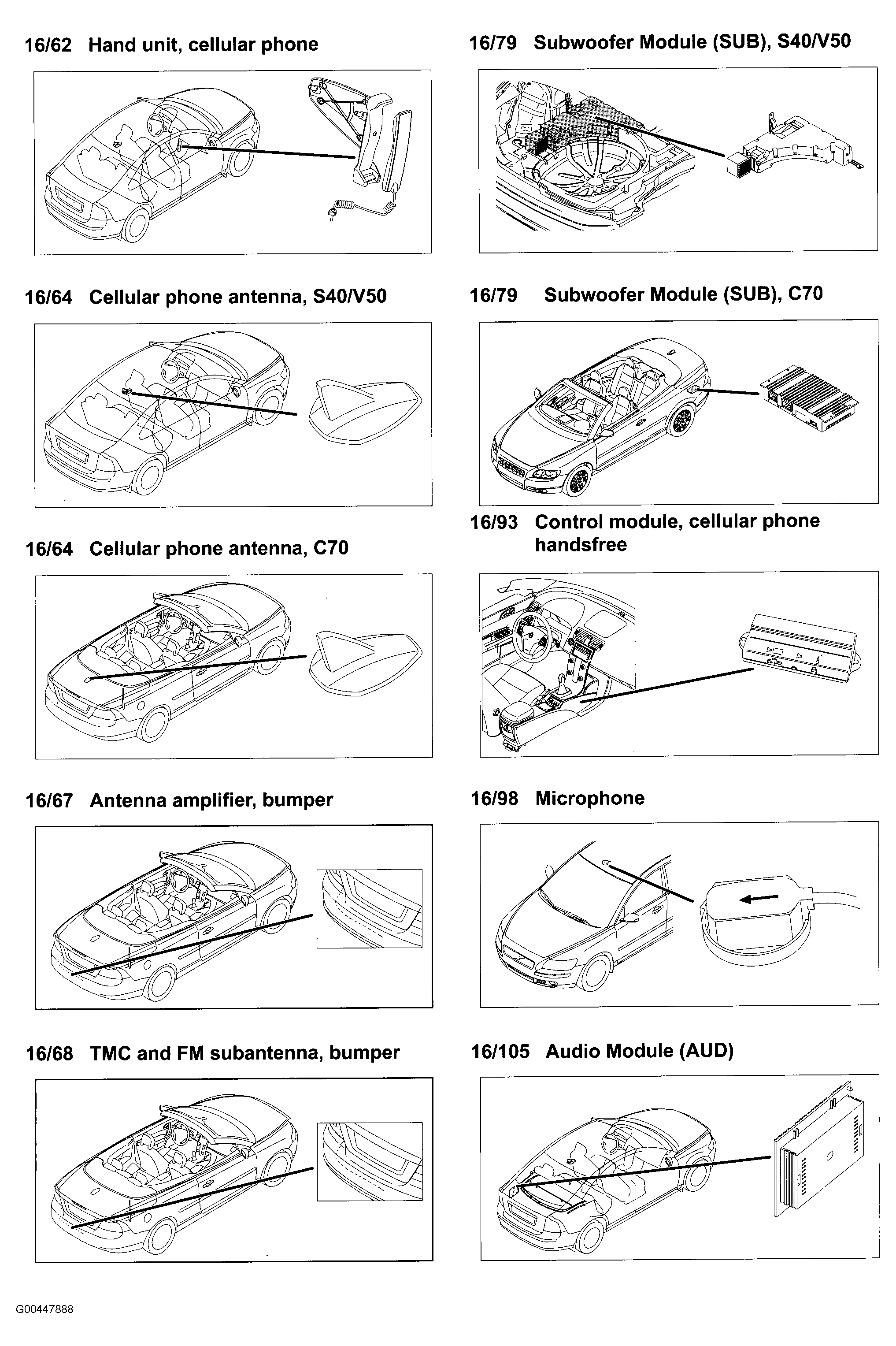

| Subwoofer Module (SUB) (16/79) | Left side of luggage compartment. See Figure. |
| Supplemental Restraint System Module (SRS) (4/9) | Below floor console, behind gear selector lever. See Figure. |
| Trailer Module (TRM) (4/110) | Left rear of trunk. See Figure. |
| Transmission Control Module (TCM) (4/28) | At rear of engine compartment. See Figure. |
