Control Module

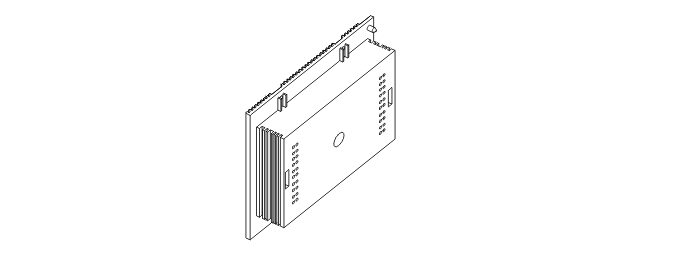

Fig 1: Identifying Audio Module (AUD

Courtesy of VOLVO CARS CORPORATION

The Audio module (AUD) is an amplifier that transports the audible signal, transmitted on the MOST network, out to the directly connected loudspeakers.

If there is a subwoofer module (SUB) installed on the MOST network, the audio module (AUD) can process the incoming signal and transmit it to the subwoofer module (SUB).

The following versions of Audio module (AUD) are available:

• High Performance
• Premium Sound

Audio module (AUD) High Performance has 4x40 W output and Premium Sound has 5x130 W.

Each version of the audio module (AUD) has a different number of loudspeakers and different loudspeaker models.
