Link System, Roof Panel: Dimensions

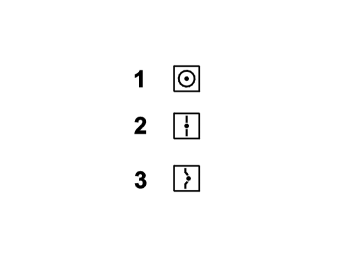

Fig 1: Body Dimension Measuring Point Symbols

Courtesy of VOLVO CARS CORPORATION

The dimensions in the table are listed as follows:

Symbol number 1 means that the measurement is indicated from the center.

Symbol number 2 means that the measurement is indicated from an edge.

Courtesy of VOLVO CARS CORPORATION

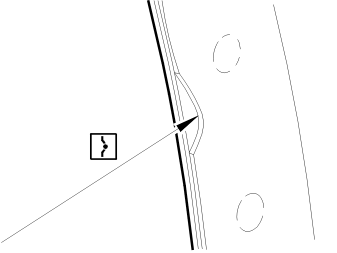

Symbol number 3 means that the measurement is indicated from a cut marking.

Measurements are taken from the bottom of the recess.

If only one measuring point symbol is displayed, the symbol applies to both measuring points. Otherwise the symbols are shown on each side of the dimension in the illustration.

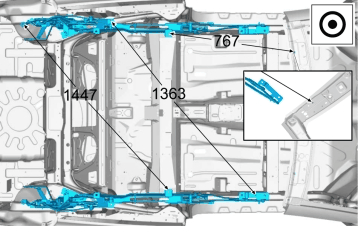

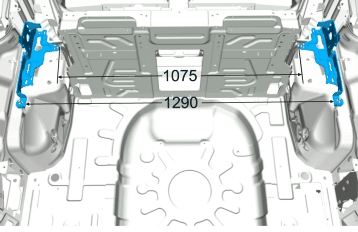

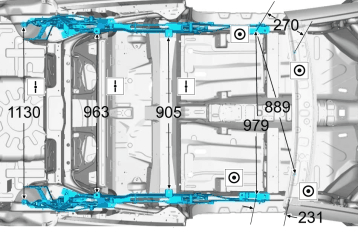

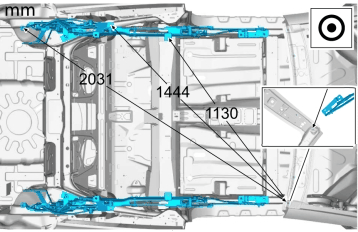

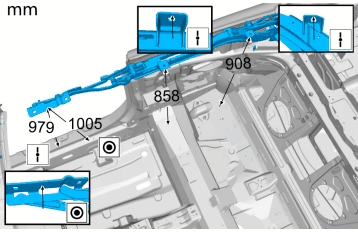

Fig 2: Convertible Top Link System Position Dimensions And Measurement Points (1 Of 5)

Courtesy of VOLVO CARS CORPORATION

Fig 3: Convertible Top Link System Position Dimensions And Measurement Points (2 Of 5)

Courtesy of VOLVO CARS CORPORATION

Fig 4: Convertible Top Link System Position Dimensions And Measurement Points (3 Of 5)

Courtesy of VOLVO CARS CORPORATION

Fig 5: Convertible Top Link System Position Dimensions And Measurement Points (4 Of 5)

Courtesy of VOLVO CARS CORPORATION

Fig 6: Convertible Top Link System Position Dimensions And Measurement Points (5 Of 5)

Courtesy of VOLVO CARS CORPORATION
