Foot Brake And Parking Brake: Overview

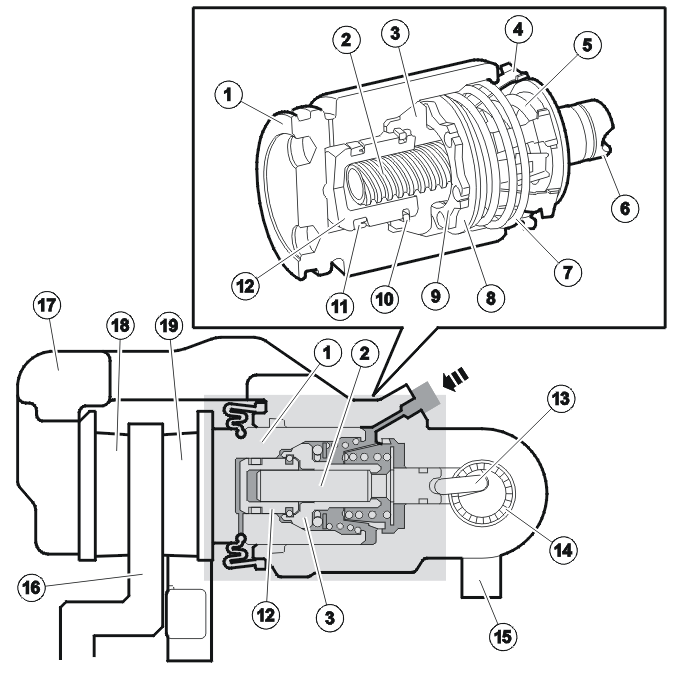

The illustrations above show the rear brake with combined foot brake and parking brake function. The principle for the foot brake function is the same at both front and rear, however.
- Piston
- Adjuster screw
- Adjuster nut
- Spring holder
- Return spring
- Axle
- Control spring
- Gasket
- Throw-out bearing
- Snap-ring
- Sealing ring
- Adjuster piston
- Arm
- Eccentric
- Arm
- Brake disc
- Brake caliper
- Brake pads, outer
- Brake pads, inner.
