Rear Section, Alignment Chart

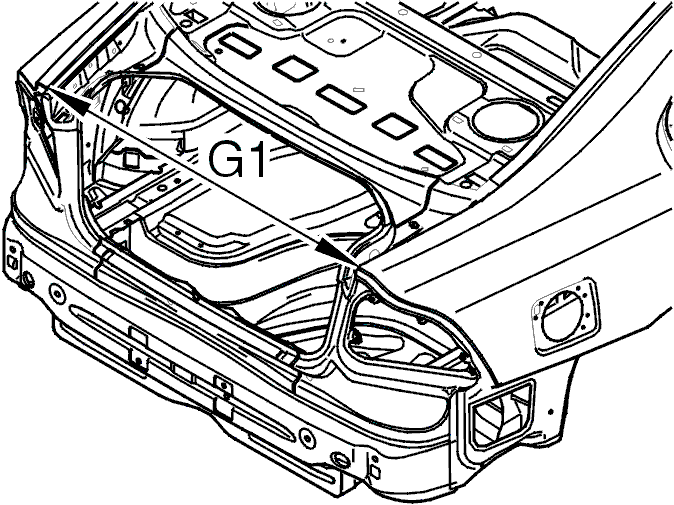

Fig 1: Trunk Opening Position Dimensions And Measurement Locations (1 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

G1 = 1098 mm

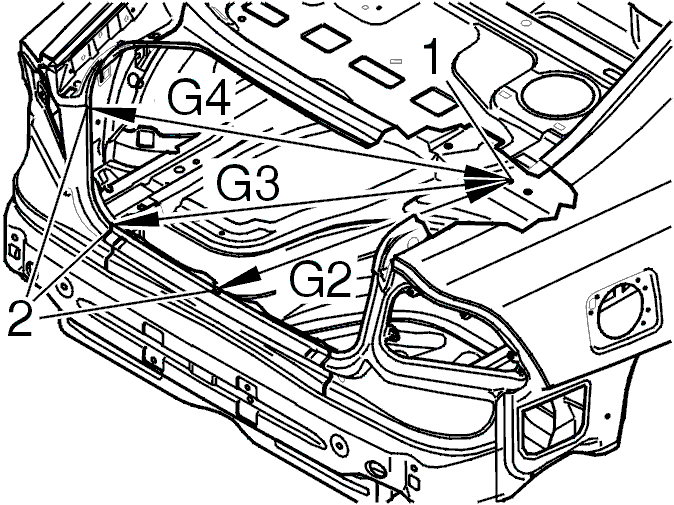

Fig 2: Trunk Opening Position Dimensions And Measurement Locations (2 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

1 = Front edge hole

2 = Outside flange

G2 = 912 mm

G3 = 970 mm

G4 = 1047 mm

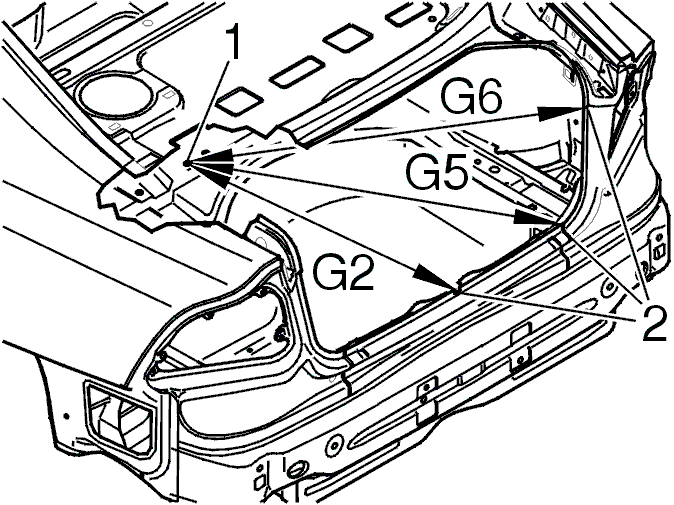

Fig 3: Trunk Opening Position Dimensions And Measurement Locations (3 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

1 = Front edge hole

2 = Outside flange

G2 = 908 mm

G5 = 955 mm

G6 = 1027 mm

Center the holes on the bracket

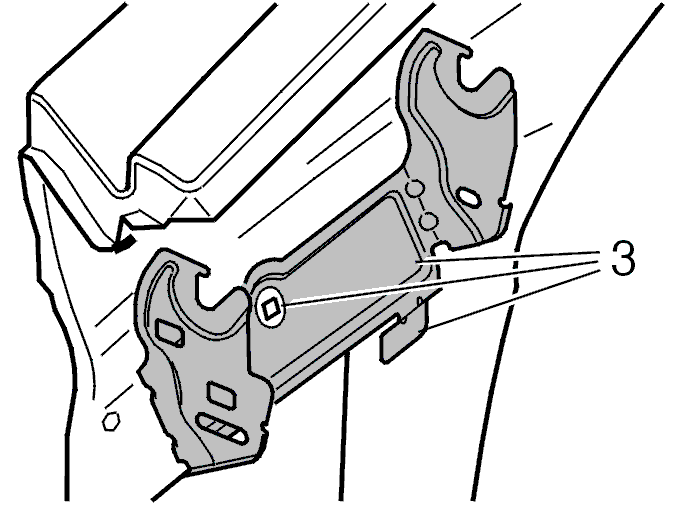

Fig 4: Central Electrical Unit Bracket Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

3 = Center the holes on the bracket with the holes in the rear fender, the mating surfaces must lie wedged together.

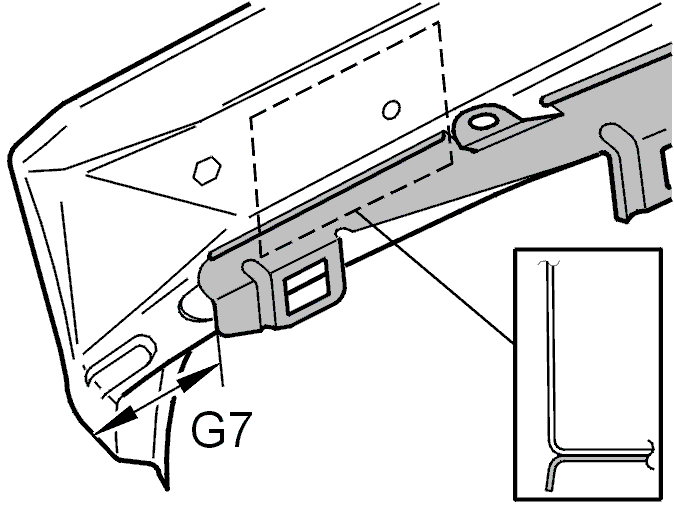

Fig 5: Central Electrical Unit Bracket Position Dimensions And Measurement Locations (1 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Left-hand side

4= Must be wedged against the gutter.

G7 = 80 mm

G10 = 15 mm

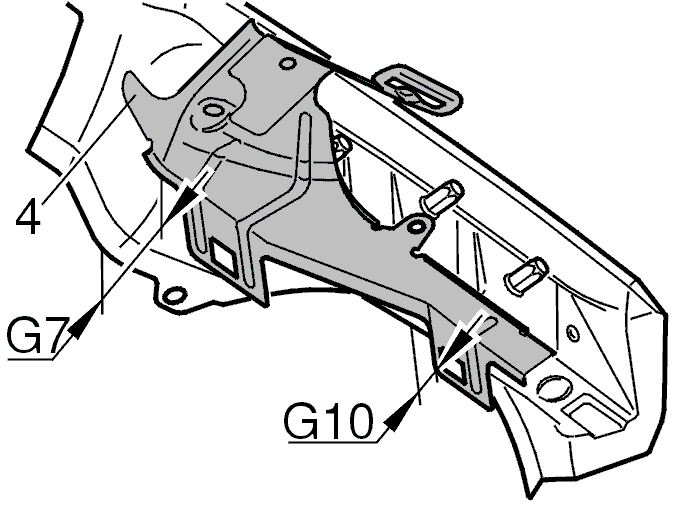

Fig 6: Central Electrical Unit Bracket Position Dimensions And Measurement Locations (2 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

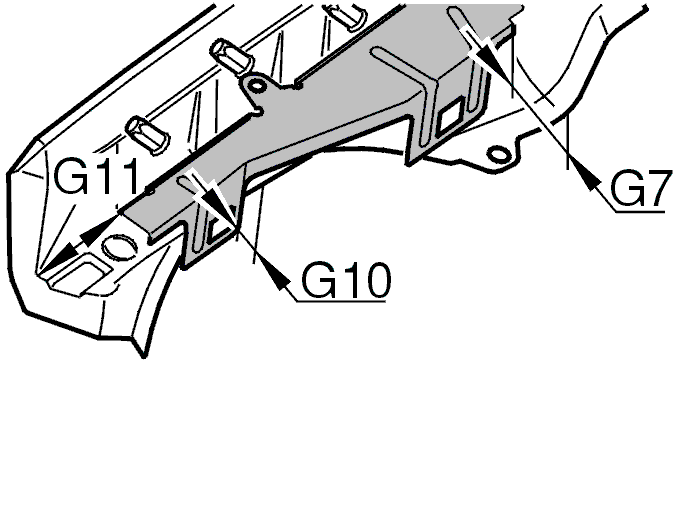

Fig 7: Central Electrical Unit Bracket Position Dimensions And Measurement Locations (3 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Right-hand side

G7 = 80 mm

G10 = 15 mm

G11 = 70 mm
