Roof, Alignment Chart

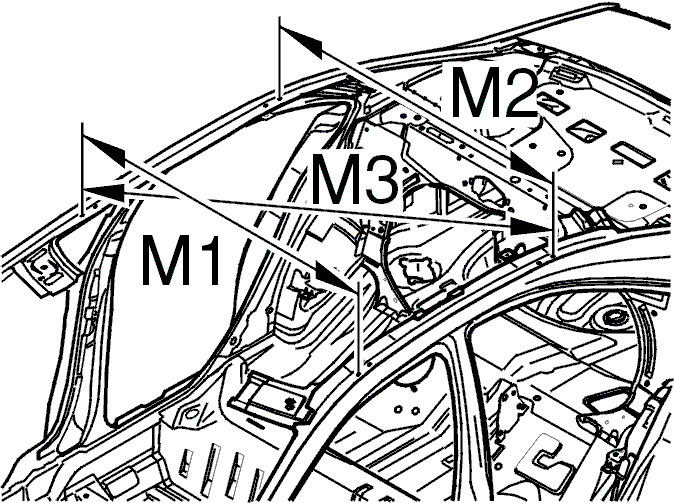

Fig 1: Roof Panel Position Dimensions And Measurement Locations
GLL106918Courtesy of VOLVO CARS OF NORTH AMERICA.

M1 = 1157 mm

M2 = 1132 mm

M3 = 1416 mm
