Removing the Cable Harness

Remove the cable harness from the control system. See Cable Harness, Control System, Gearbox, Replacing .

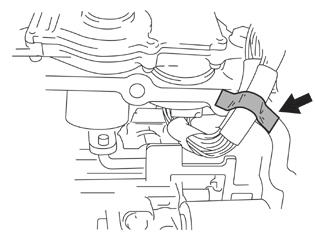

Fig 1: Identifying Cable Harness Secured To One Side

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Protect the cable harness by taping it to the outside of the transmission.

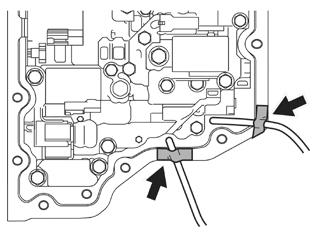

Fig 2: Identifying Cable Harness Ends Secured To Transmission Case

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Identifying Gasket & Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 4: Identifying Screw Removal Sequence

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 5: Identifying Control System Rod

Courtesy of VOLVO CARS OF NORTH AMERICA.
