Body Side, Alignment Chart

Fig 1: Body Side Opening Position Dimensions And Measurement Locations (1 Of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.

D1 = 978 mm

Fig 2: Body Side Opening Position Dimensions And Measurement Locations (2 Of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.

D2 = 1381 mm

D3 = 811 mm

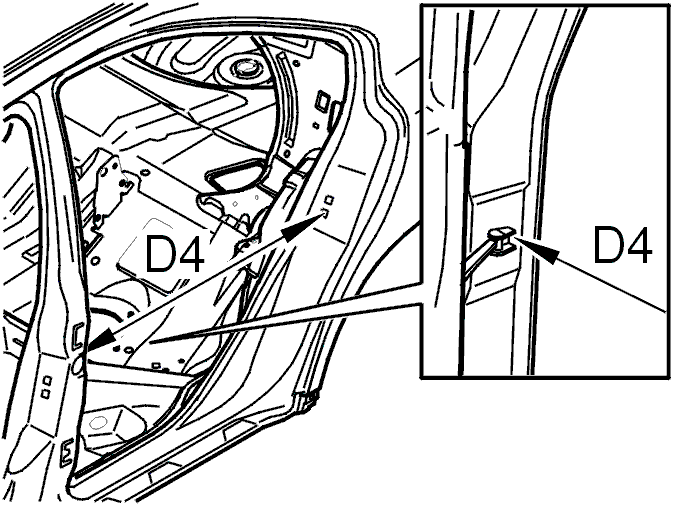

Fig 3: Body Side Opening Position Dimensions And Measurement Locations (3 Of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.

D4 = 797 mm

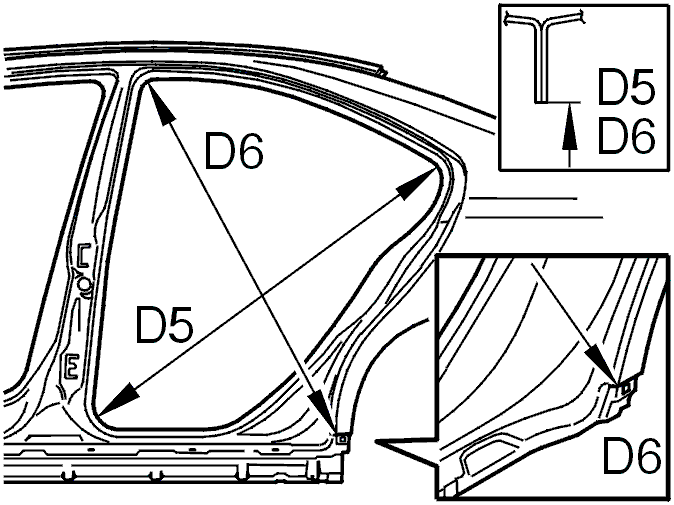

Fig 4: Body Side Opening Position Dimensions And Measurement Locations (4 Of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.

D5 = 1154 mm

D6 = 1125 mm

Fig 5: Front Body Position Dimensions And Measurement Locations

Courtesy of VOLVO CARS OF NORTH AMERICA.

E1 = 1492 mm

E2 = 1484 mm

E8 = 1421 mm

Fig 6: Body Interior Position Dimensions And Measurement Locations (1 Of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 7: Body Interior Position Dimensions And Measurement Locations (2 Of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.

E3 = 1480 mm

E4 = 1428 mm

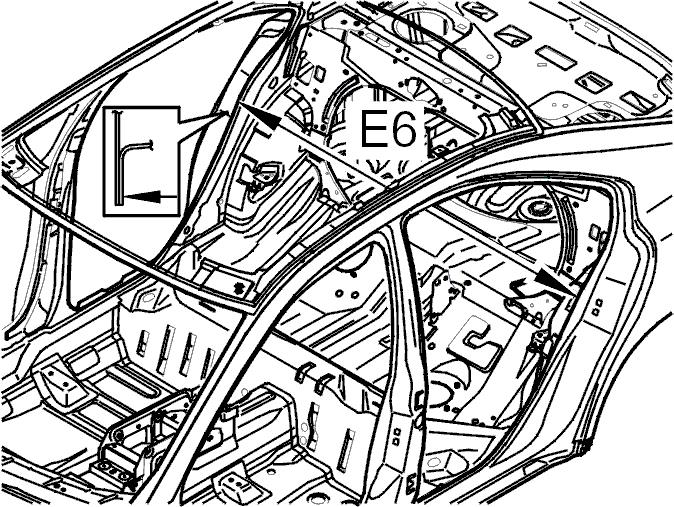

Fig 8: Body Interior Position Dimensions And Measurement Locations (3 Of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.

E6 = 1488 mm

Fig 9: Body Interior Position Dimensions And Measurement Locations (4 Of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.

E7 = 581 mm

Fig 10: Door Hinge Position Dimensions And Measurement Locations

Courtesy of VOLVO CARS OF NORTH AMERICA.

A11 = 210 mm

A12 = 27 mm

A13 = 20 mm
