Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

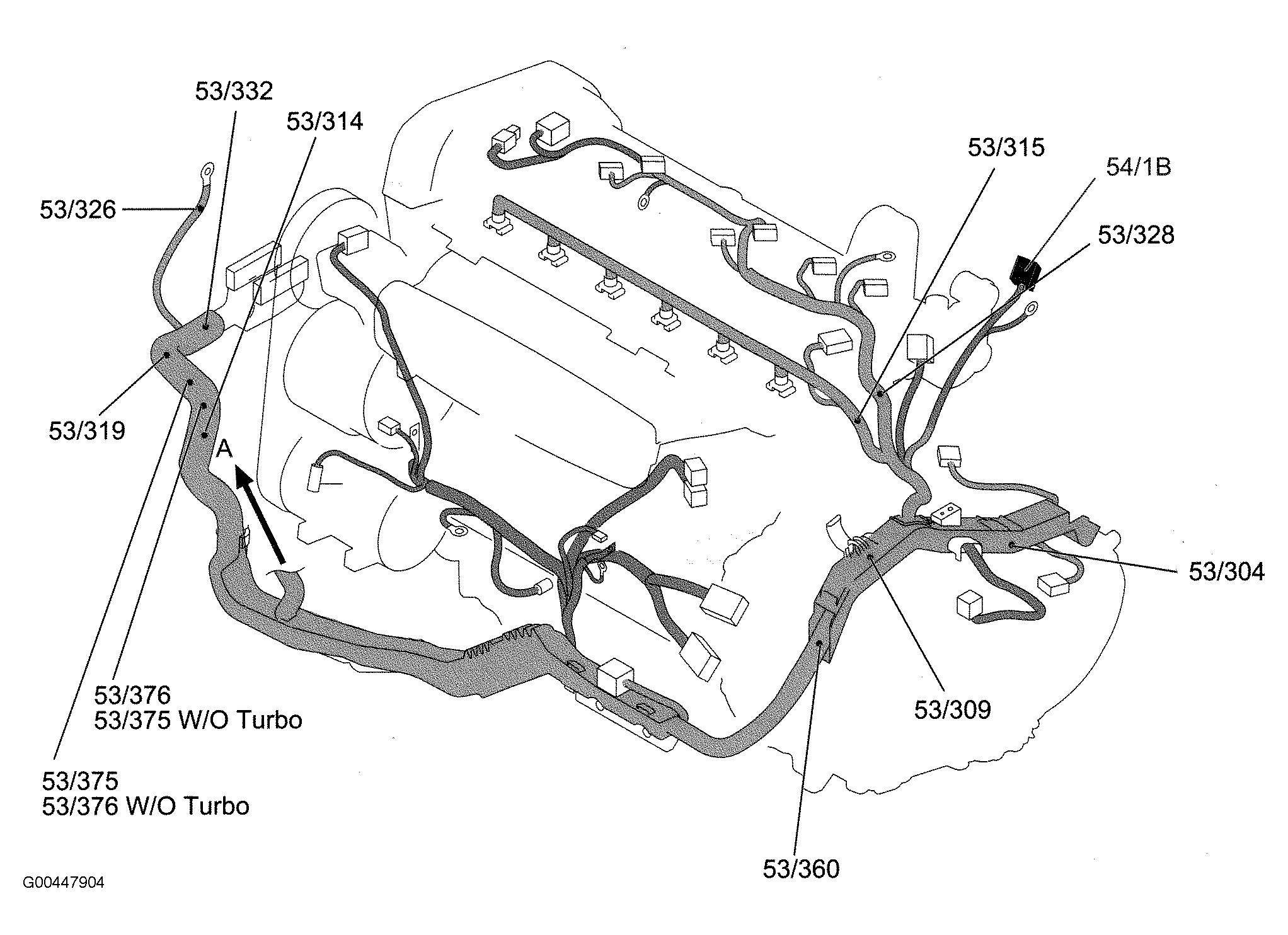

Fig 1: Engine
Courtesy of VOLVO CARS OF NORTH AMERICA.

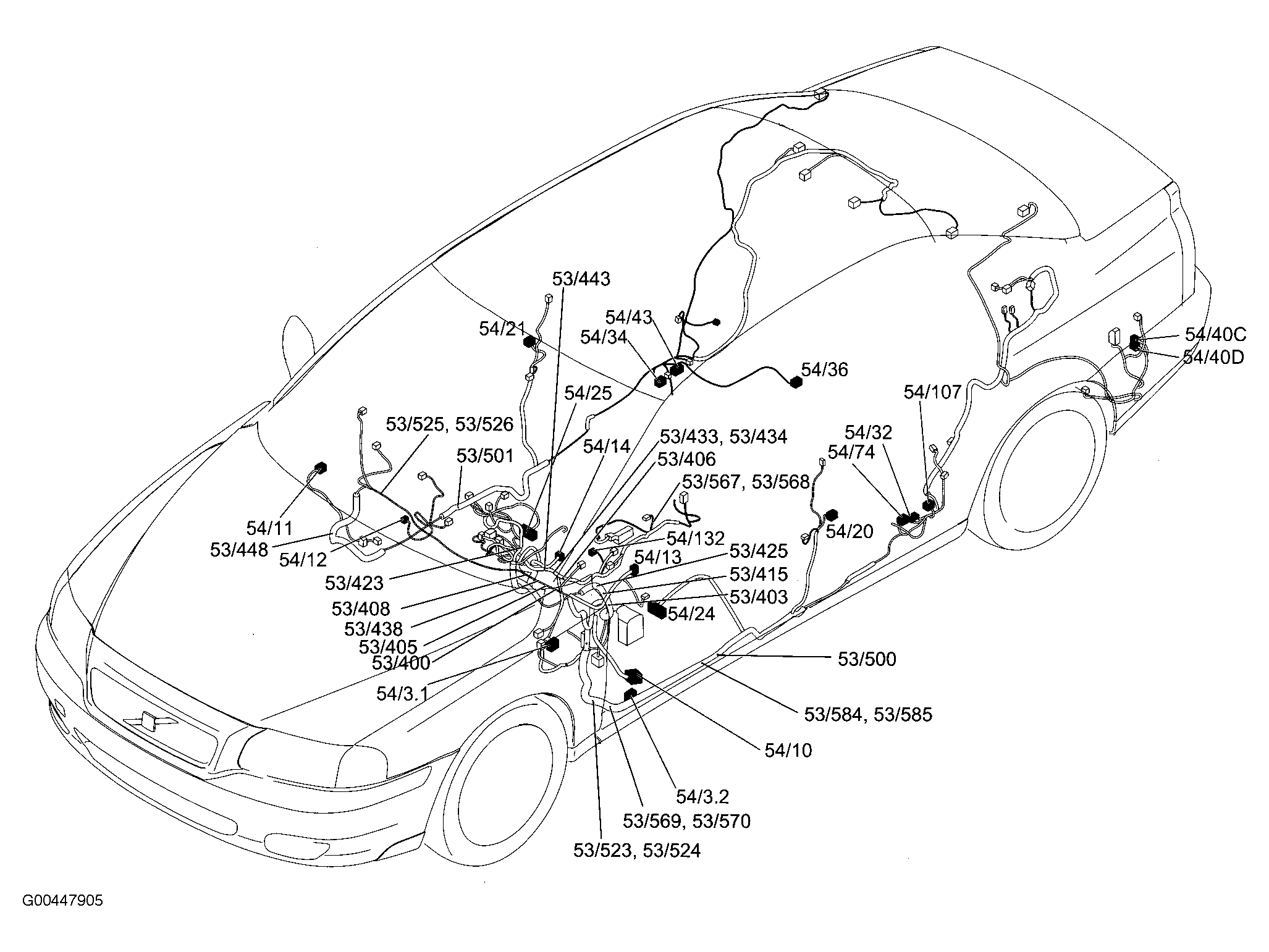

Fig 2: Vehicle Overview
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 3: Cargo Compartment
Courtesy of VOLVO CARS OF NORTH AMERICA.

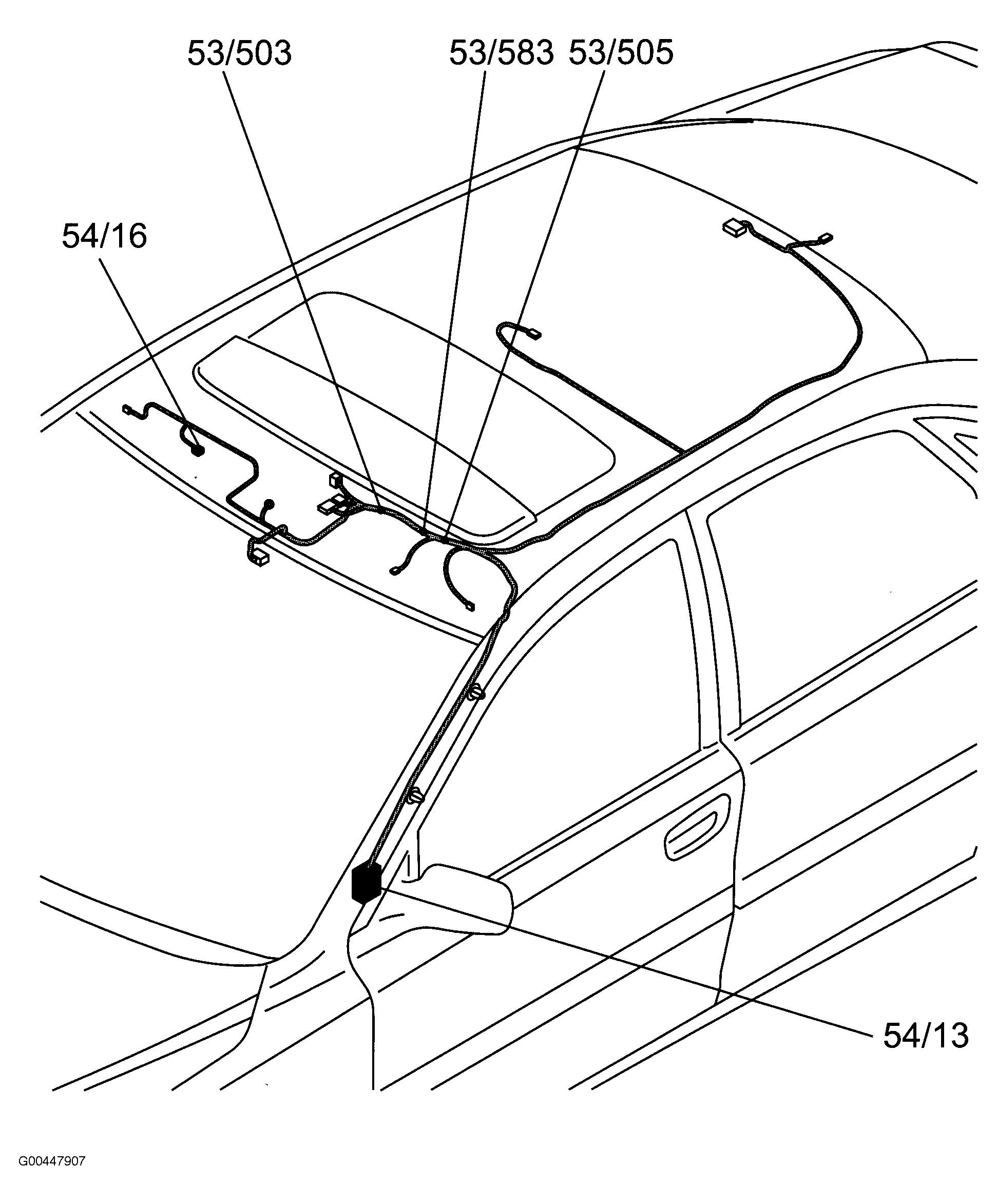

Fig 4: Roof
Courtesy of VOLVO CARS OF NORTH AMERICA.

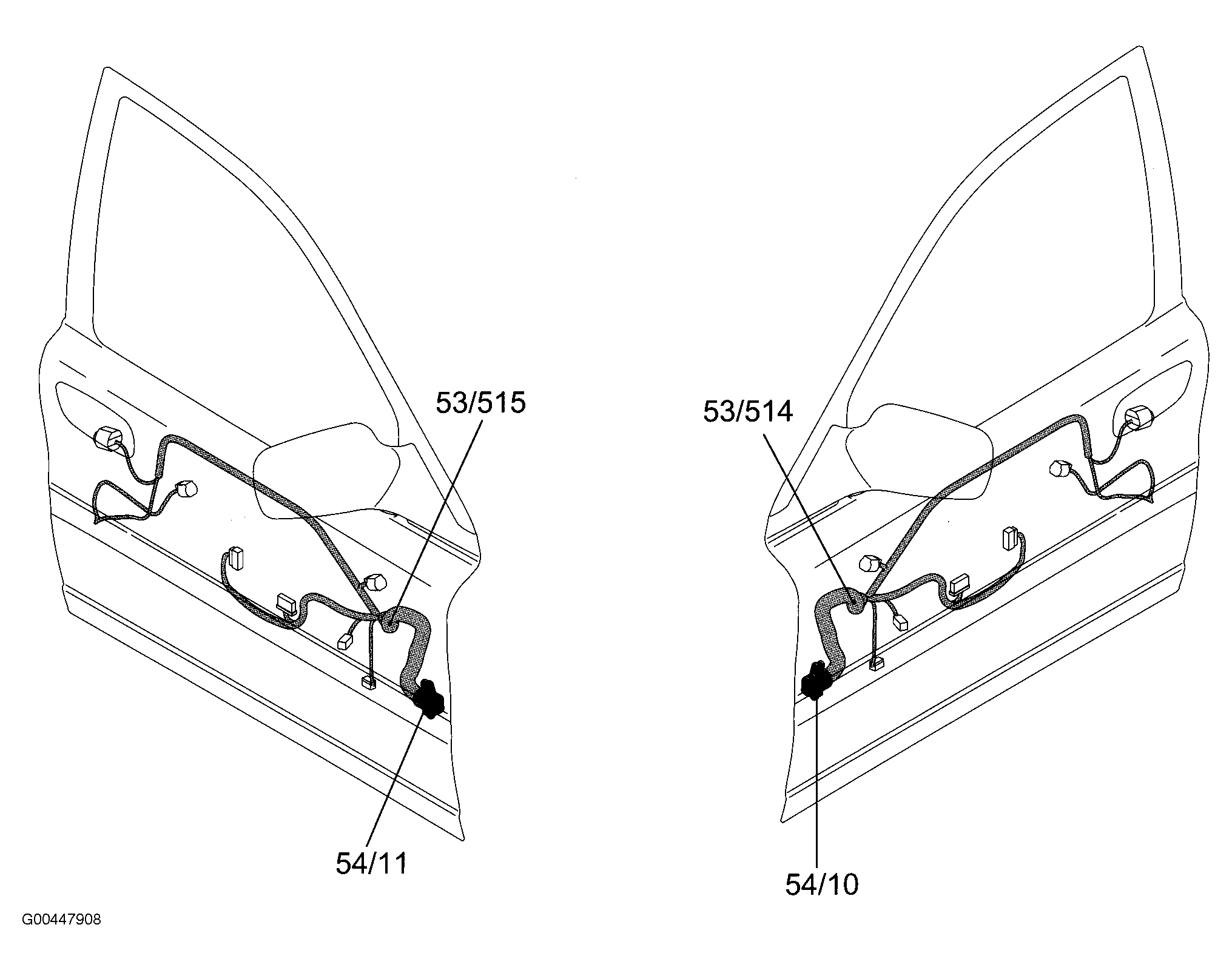

Fig 5: Front Doors
Courtesy of VOLVO CARS OF NORTH AMERICA.

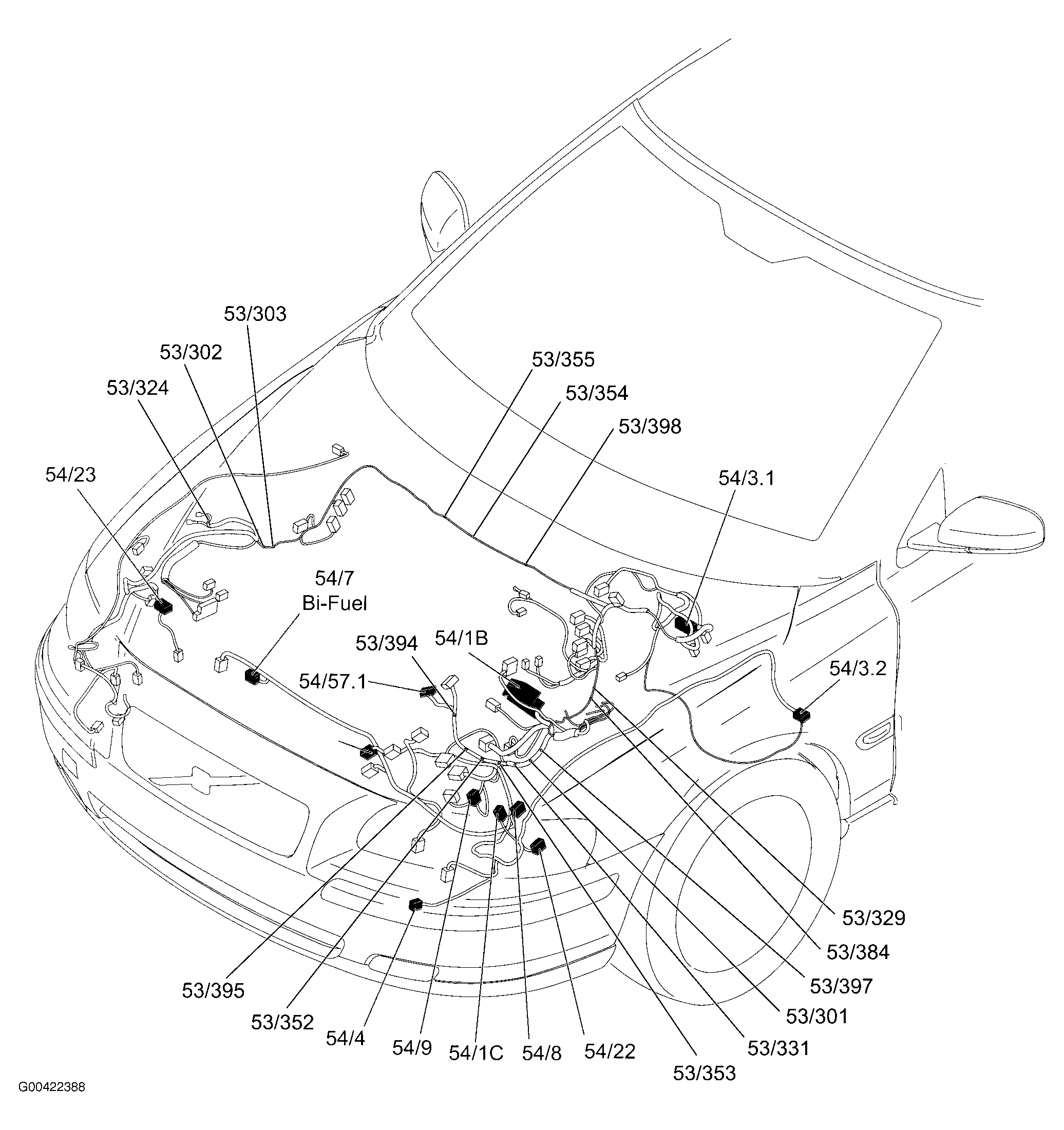

Fig 6: Engine Compartment
Courtesy of VOLVO CARS OF NORTH AMERICA.

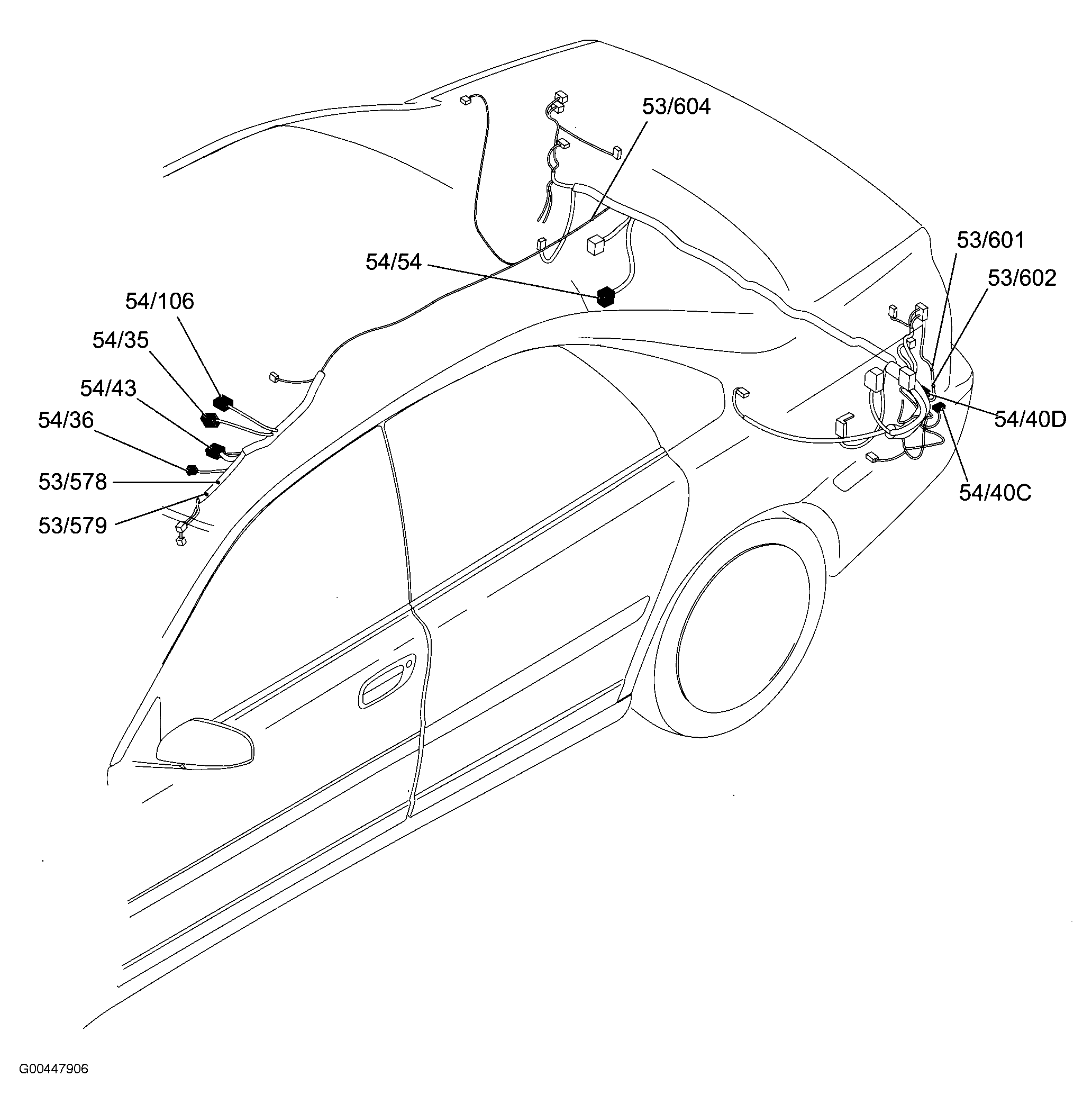

Fig 7: Roof
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 8: Engine Compartment
Courtesy of VOLVO CARS OF NORTH AMERICA.

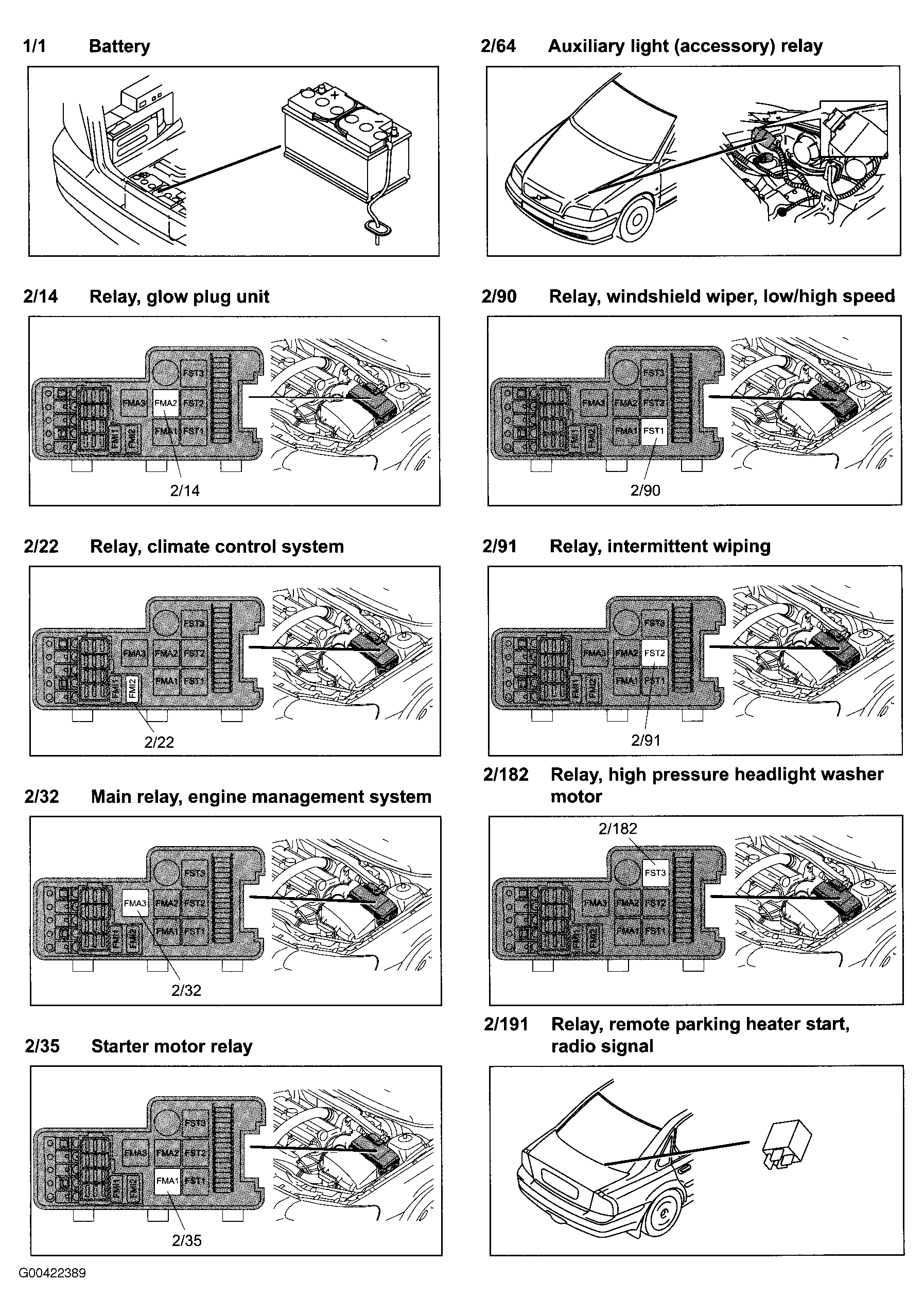

Fig 9: Components (1/1 To 2/191)
Courtesy of VOLVO CARS OF NORTH AMERICA.

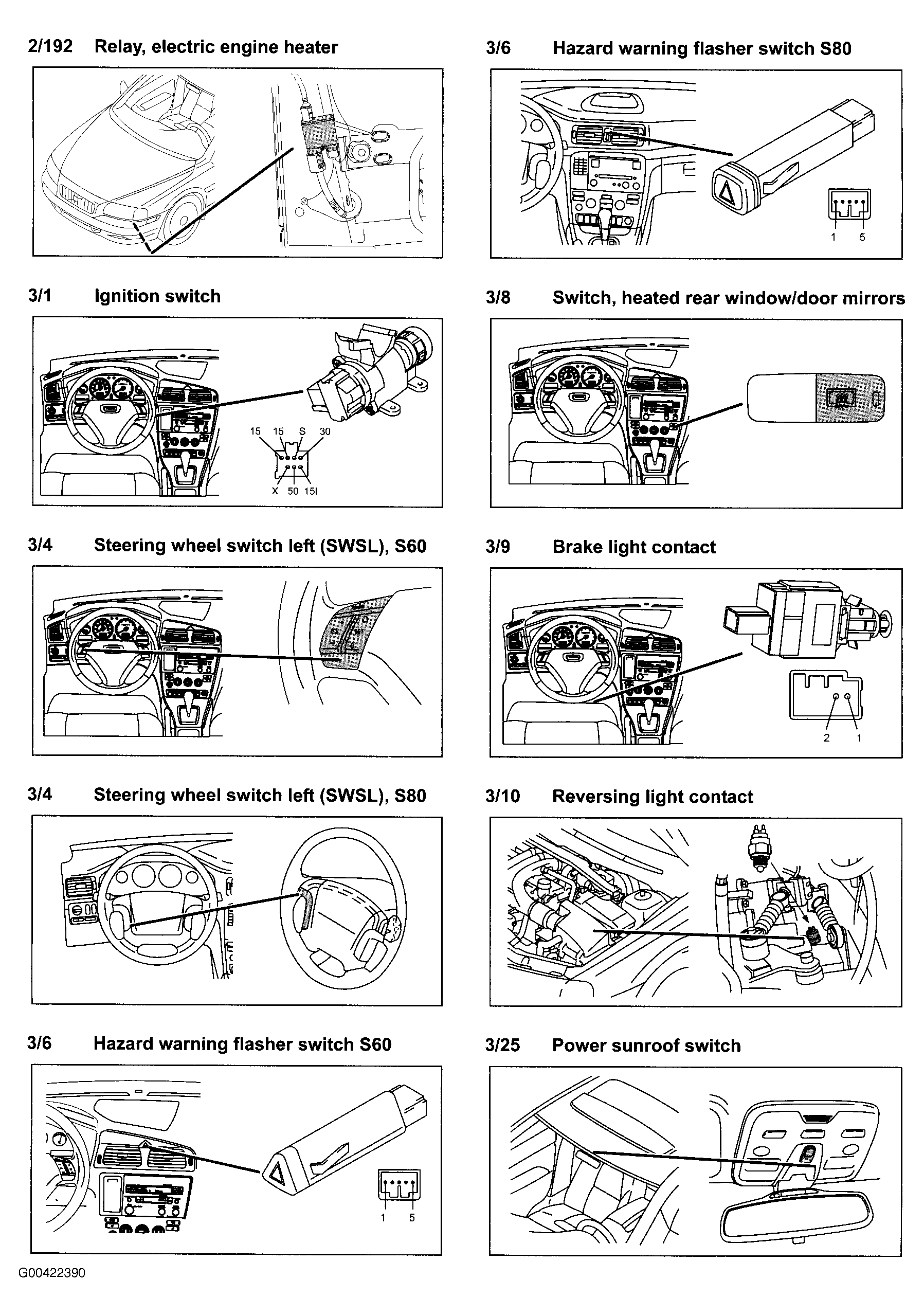

Fig 10: Components (2/192 To 3/25)
Courtesy of VOLVO CARS OF NORTH AMERICA.

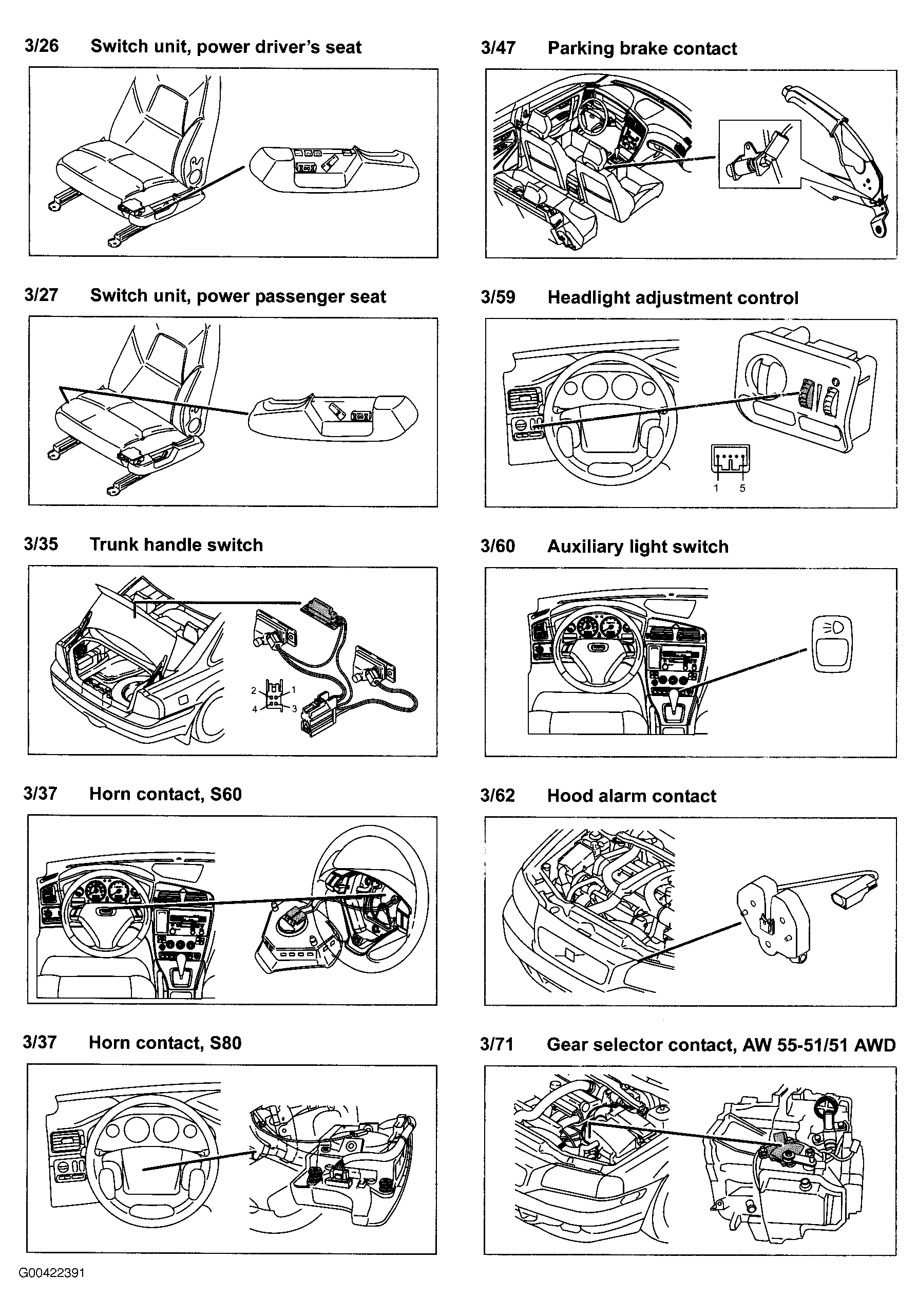

Fig 11: Components (3/26 To 3/71)
Courtesy of VOLVO CARS OF NORTH AMERICA.

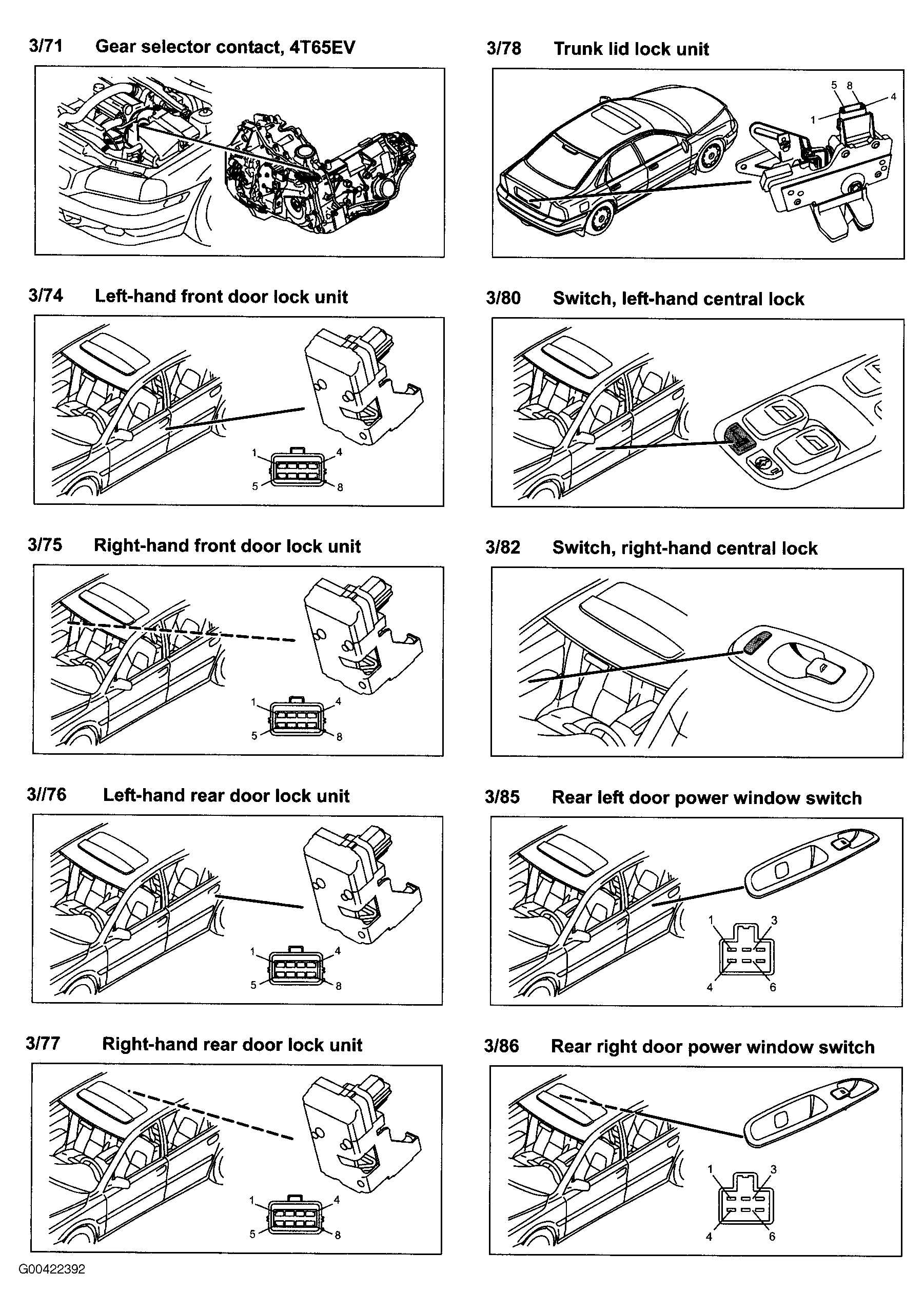

Fig 12: Components (3/71 To 3/86)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 13: Components (3/91 To 3/126)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 14: Components (3/127 To 3/173)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 15: Components (3/174 To 4/31)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 16: Components (4/33 To 4/71)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 17: Components (4/71 To 4/107)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 18: Components (4/109 To 6/18)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 19: Components (6/19 To 6/37)
Courtesy of VOLVO CARS OF NORTH AMERICA.

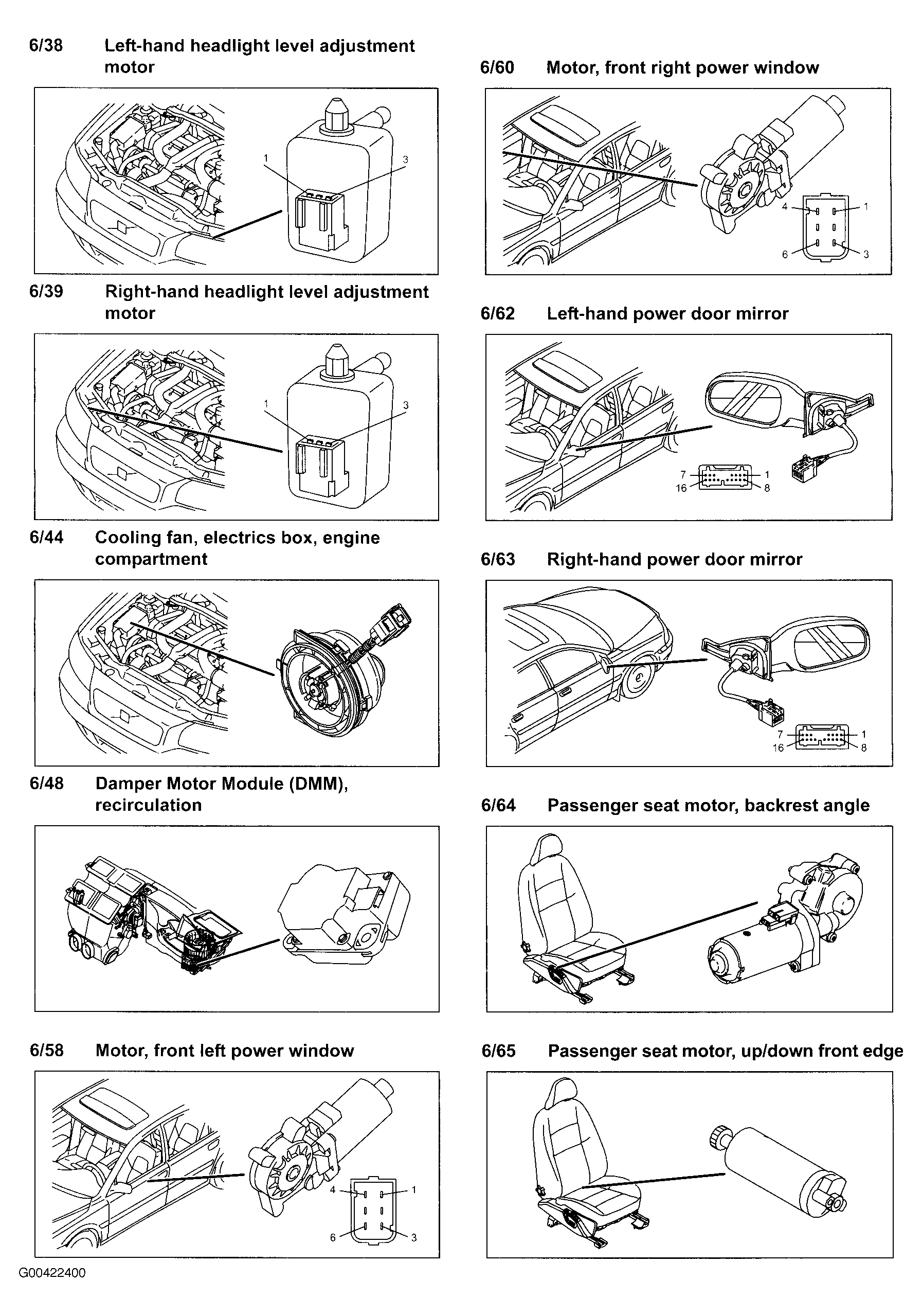

Fig 20: Components (6/38 To 6/65)
Courtesy of VOLVO CARS OF NORTH AMERICA.

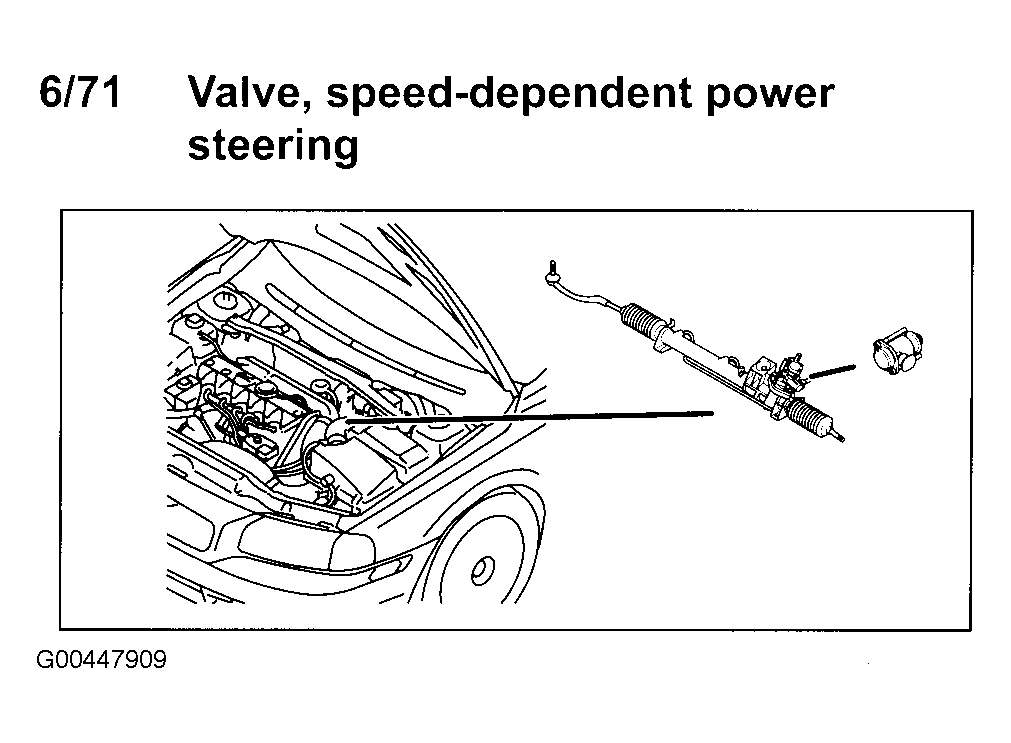

Fig 21: Components (6/66 To 6/103)
Courtesy of VOLVO CARS OF NORTH AMERICA.

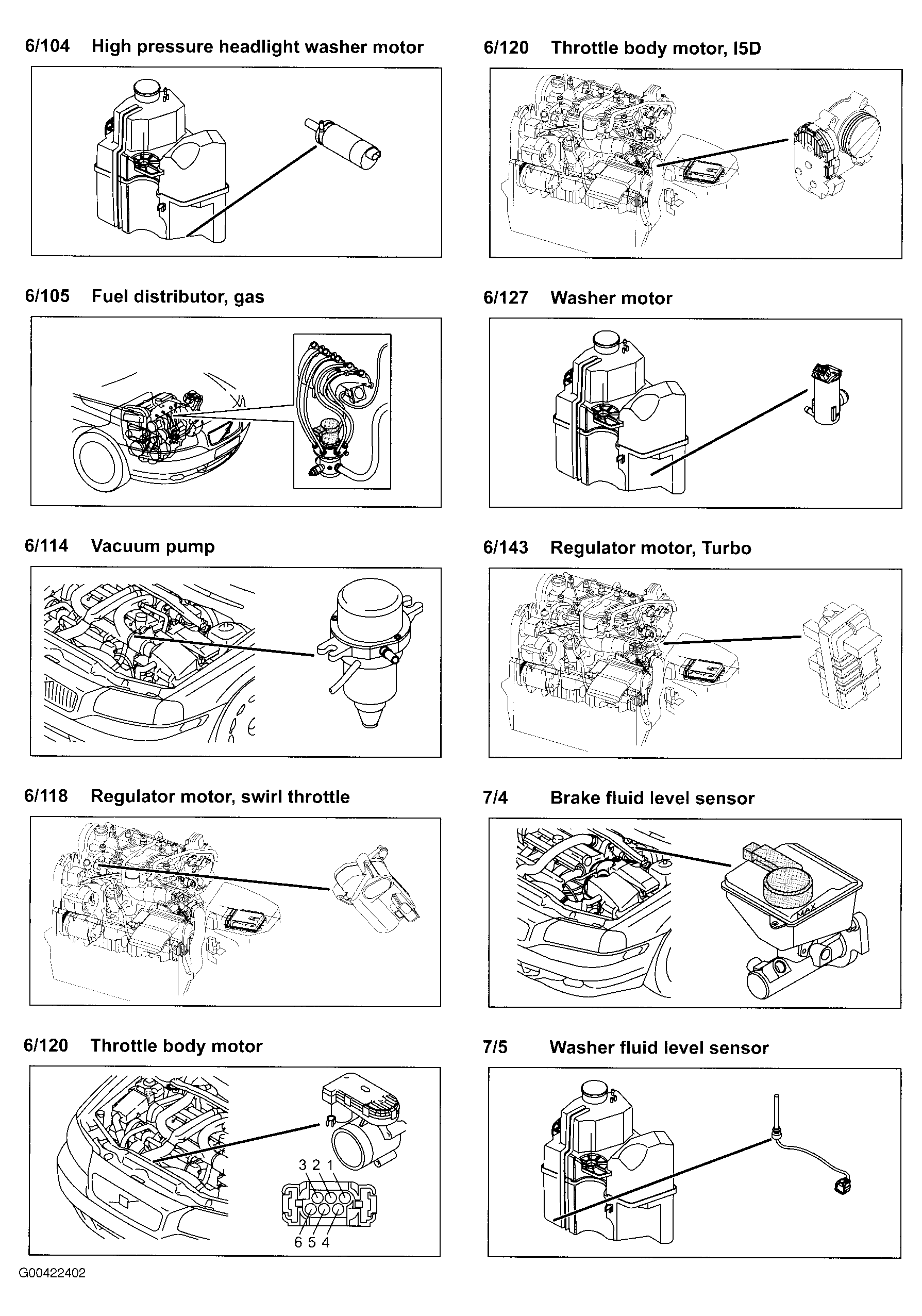

Fig 22: Components (6/104 To 7/5)
Courtesy of VOLVO CARS OF NORTH AMERICA.

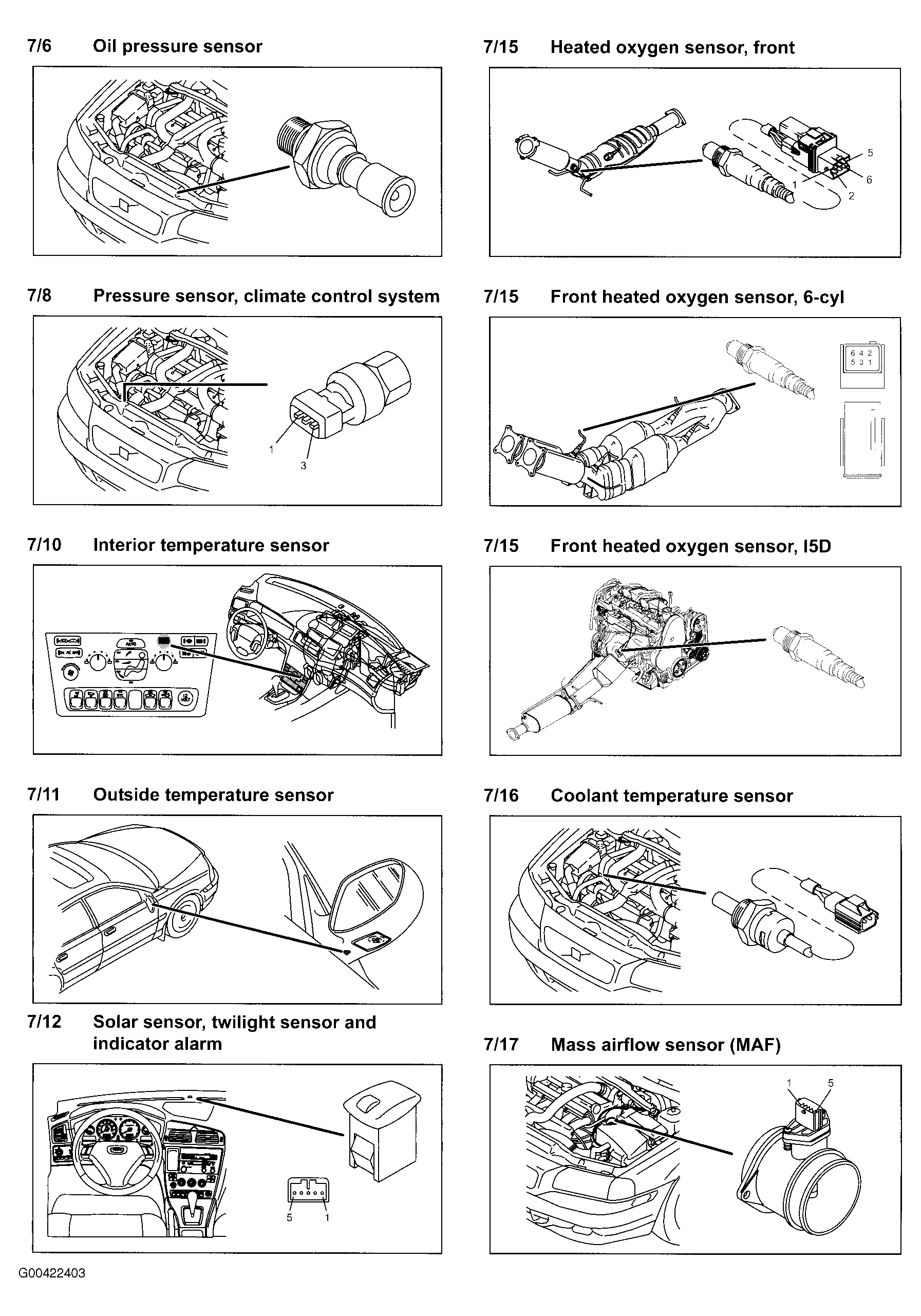

Fig 23: Components (7/6 To 7/17)
Courtesy of VOLVO CARS OF NORTH AMERICA.

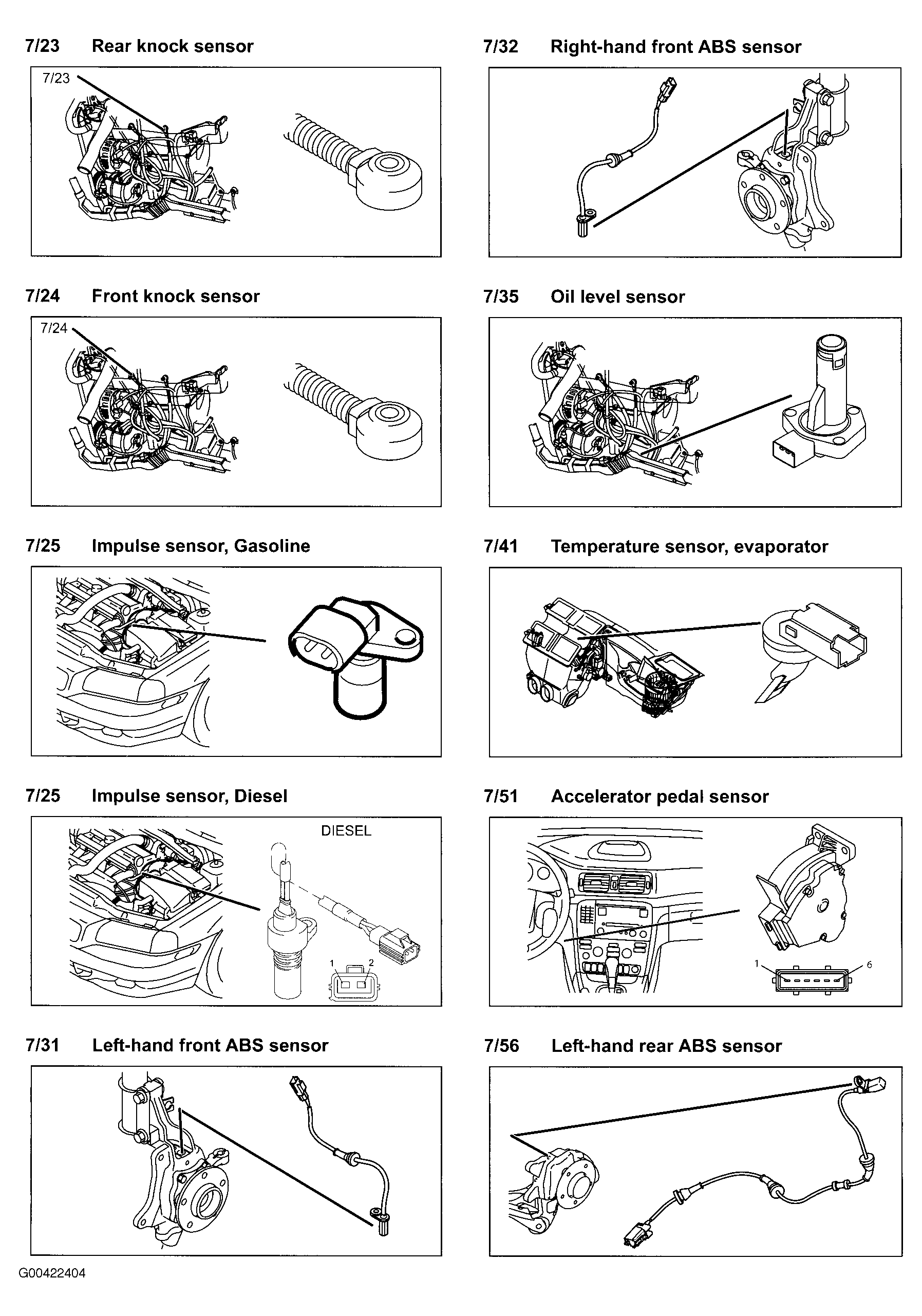

Fig 24: Components (7/23 To 7/56)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 25: Components (7/57 To 7/82)
Courtesy of VOLVO CARS OF NORTH AMERICA.

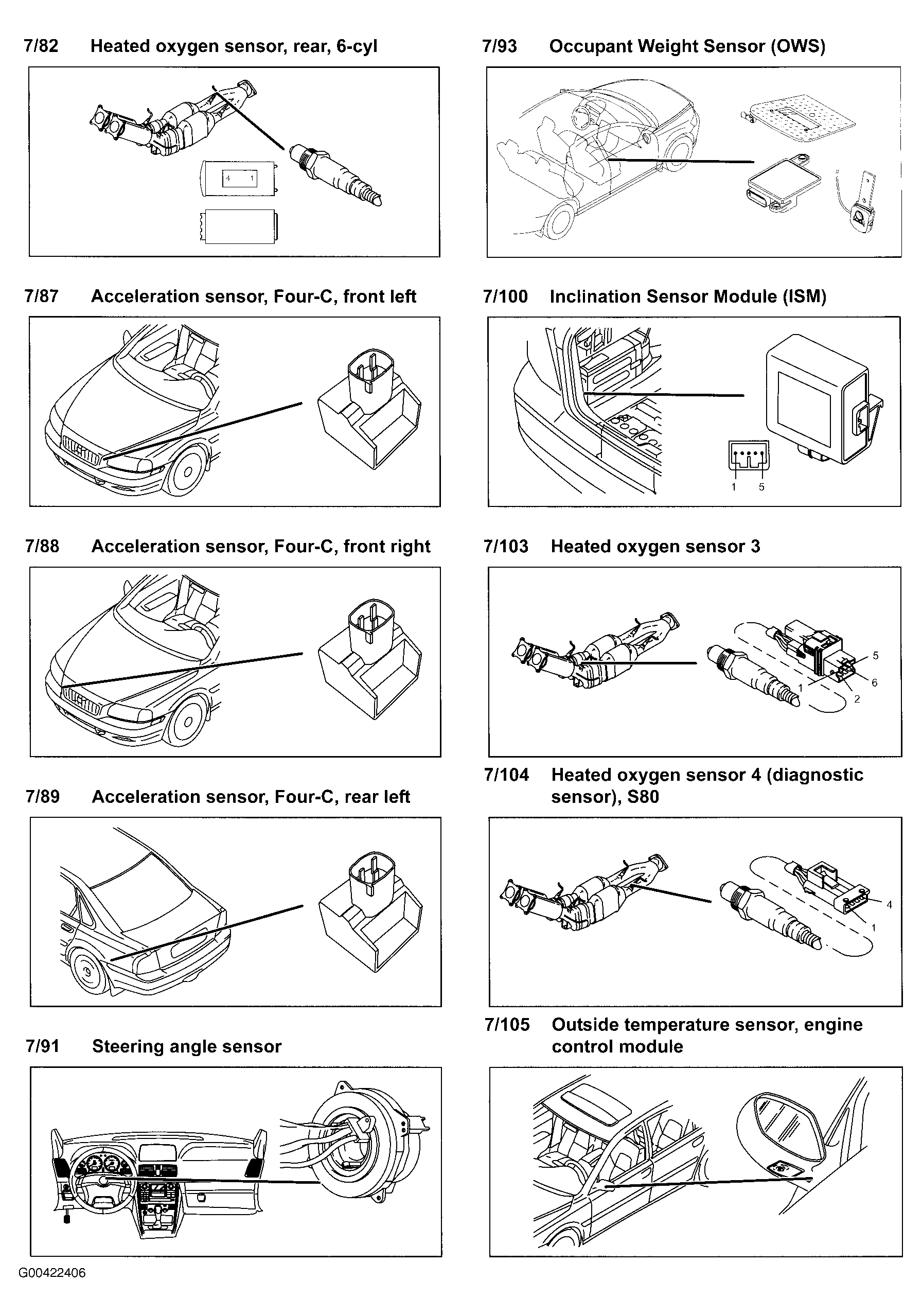

Fig 26: Components (7/82 To 7/105)
Courtesy of VOLVO CARS OF NORTH AMERICA.

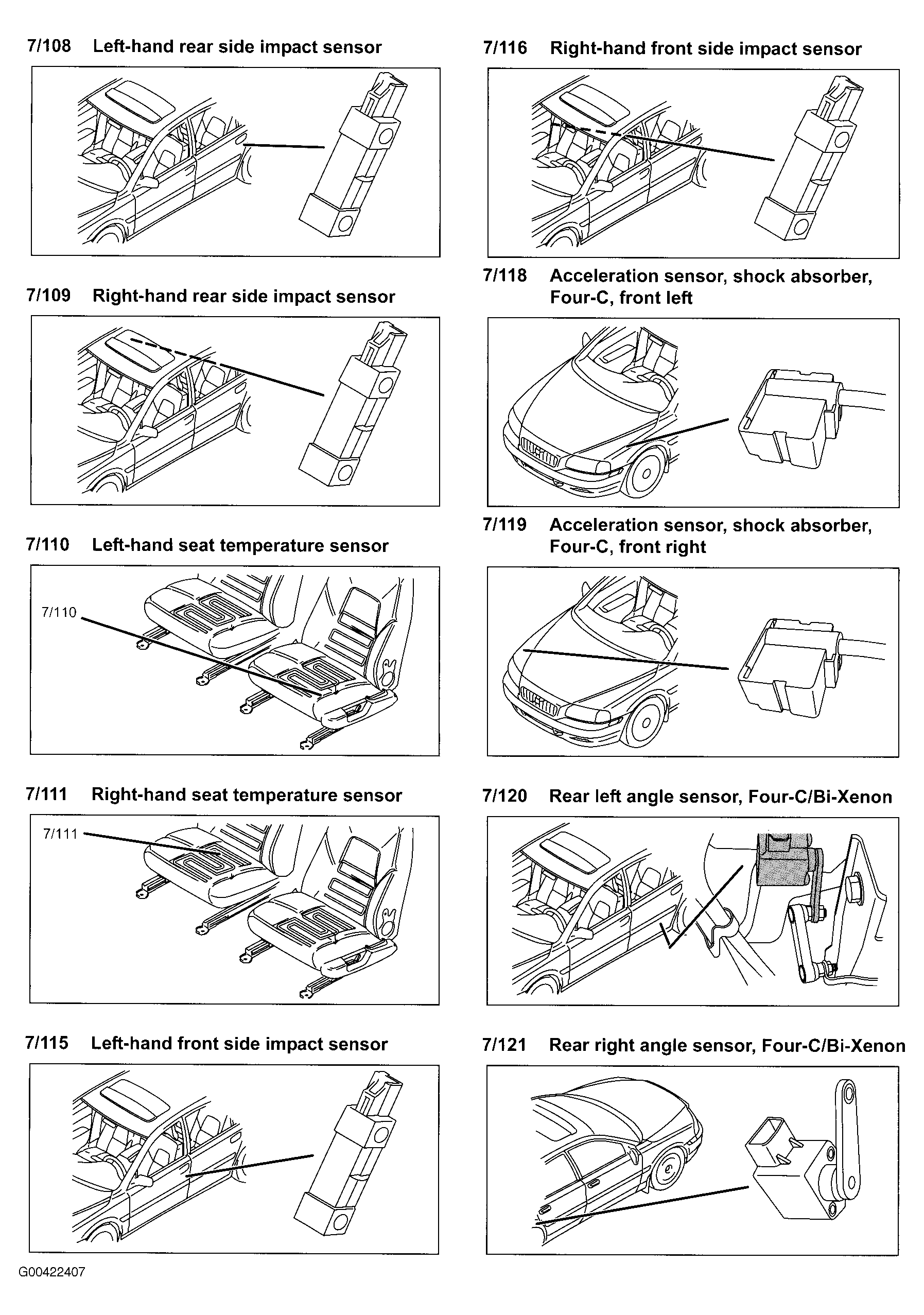

Fig 27: Components (7/108 To 7/121)
Courtesy of VOLVO CARS OF NORTH AMERICA.

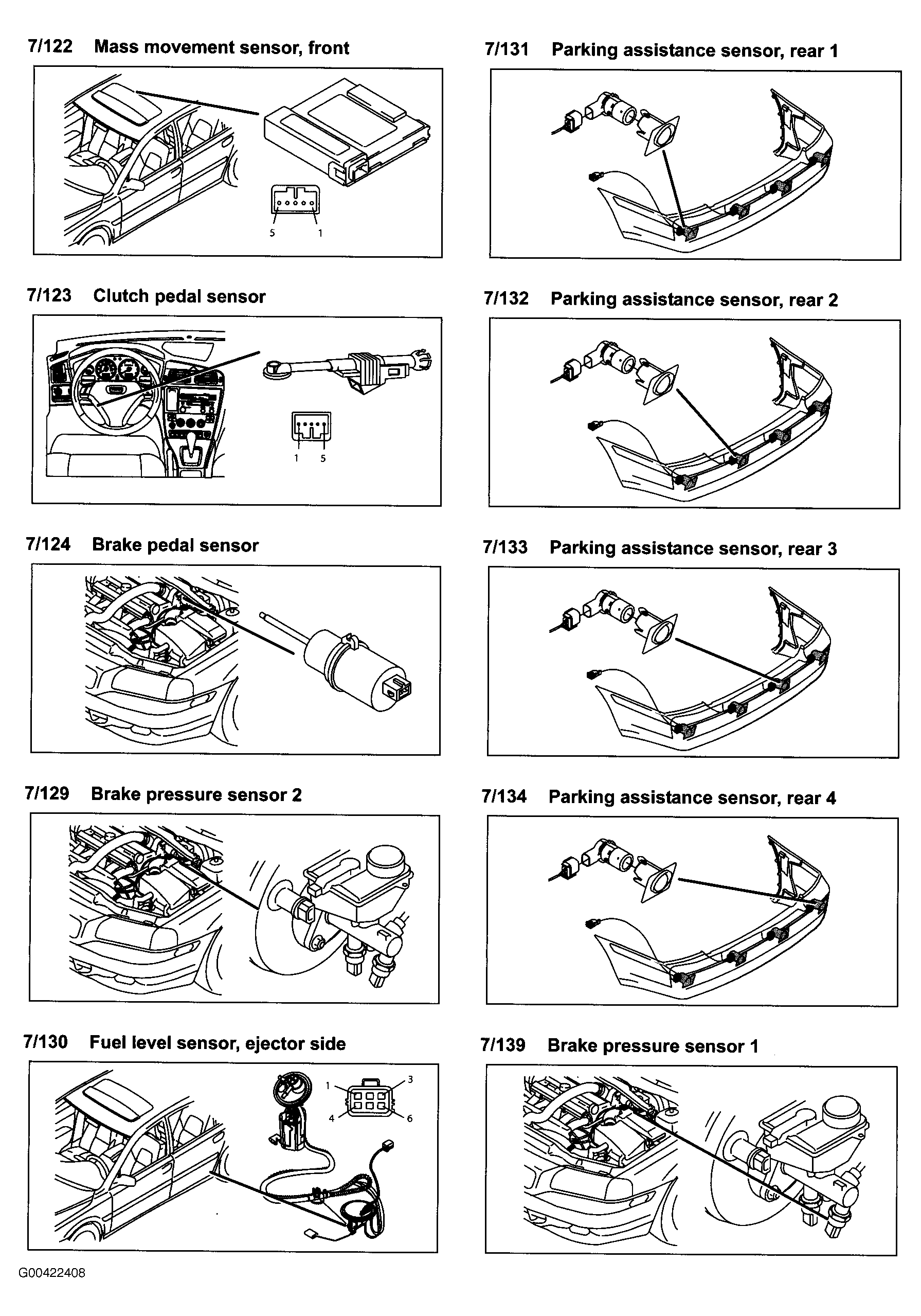

Fig 28: Components (7/122 To 7/139)
Courtesy of VOLVO CARS OF NORTH AMERICA.

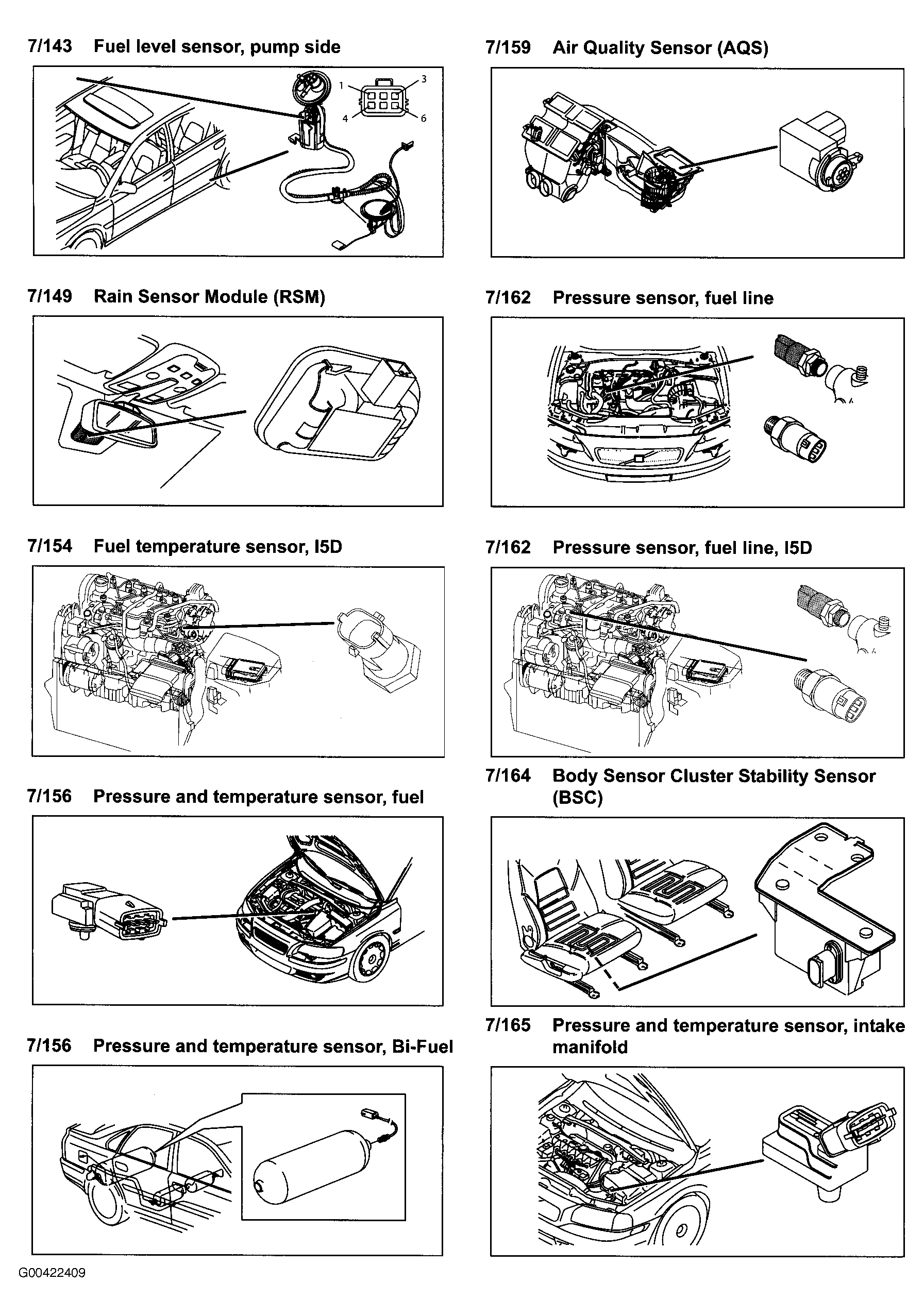

Fig 29: Components (7/143 To 7/165)
Courtesy of VOLVO CARS OF NORTH AMERICA.

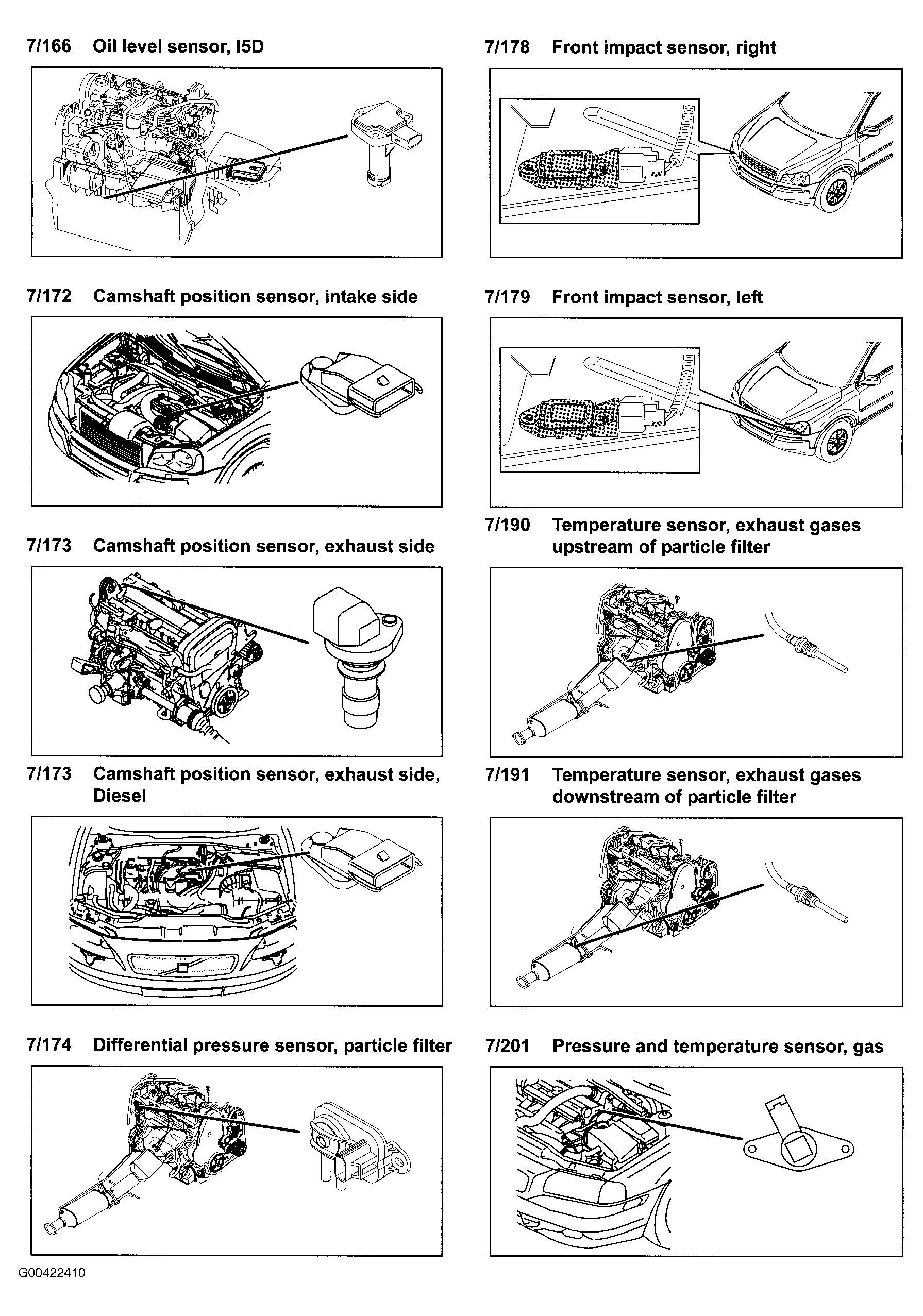

Fig 30: Components (7/166 To 7/201)
Courtesy of VOLVO CARS OF NORTH AMERICA.

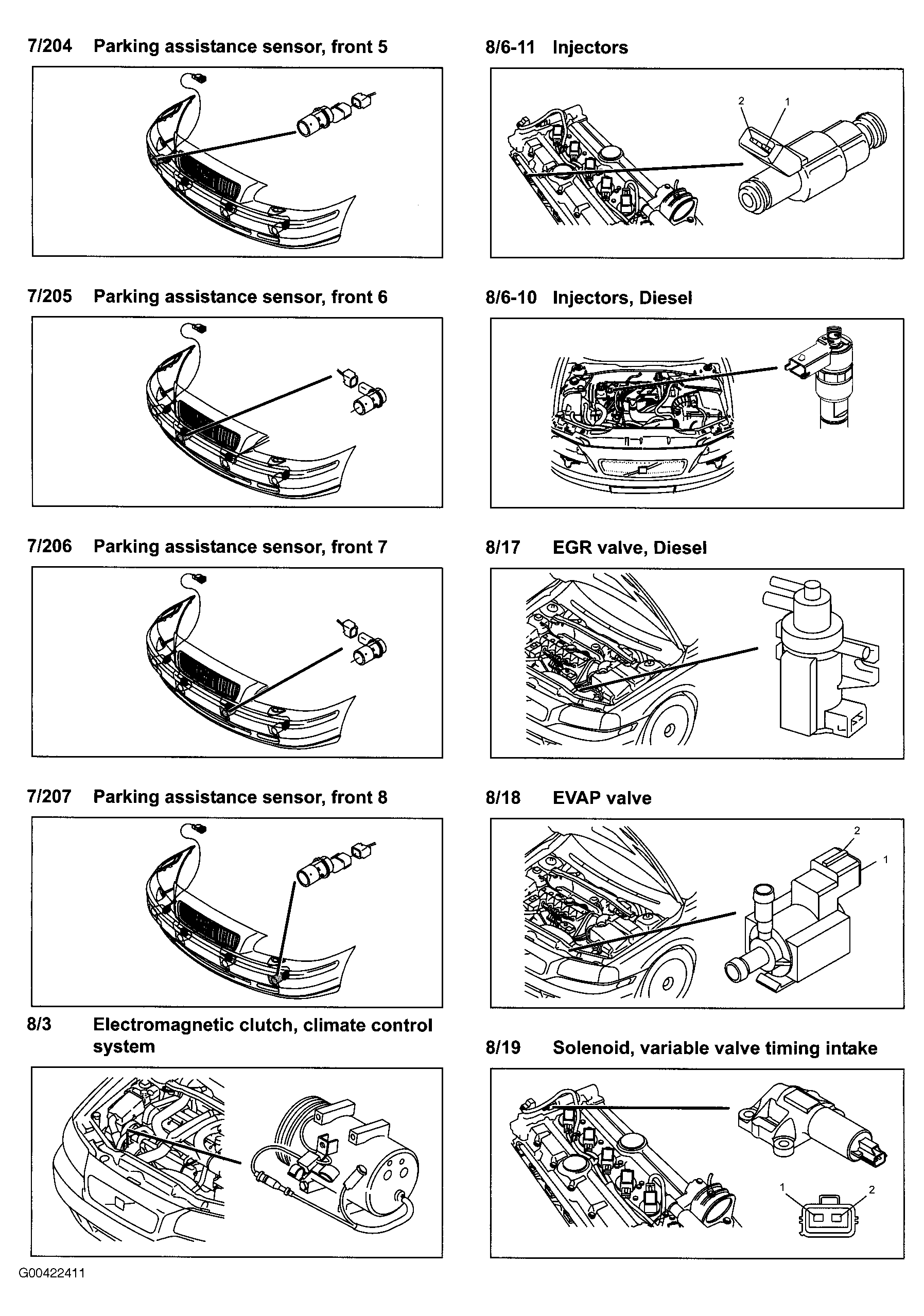

Fig 31: Components (7/204 To 8/19)
Courtesy of VOLVO CARS OF NORTH AMERICA.

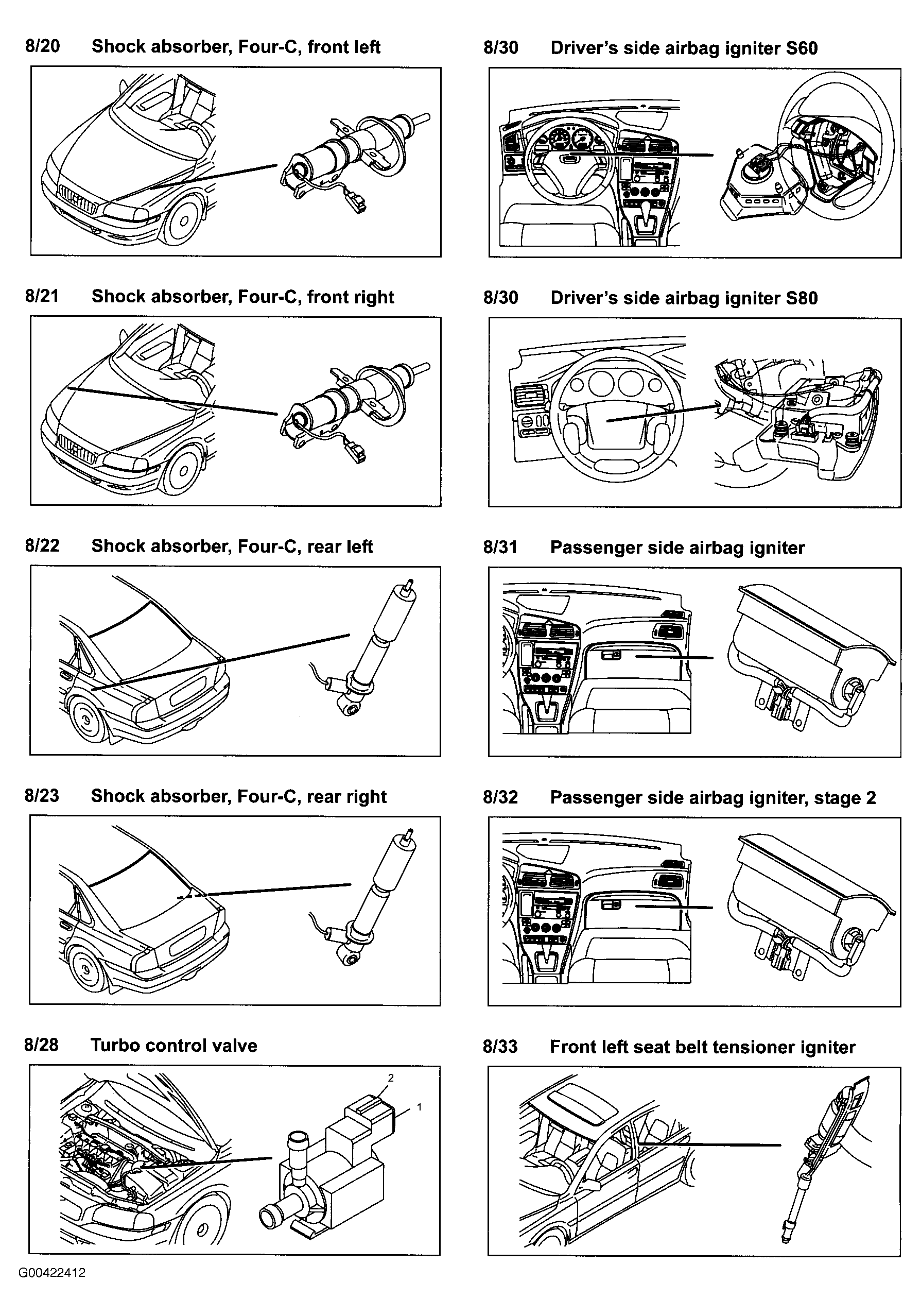

Fig 32: Components (8/20 To 8/33)
Courtesy of VOLVO CARS OF NORTH AMERICA.

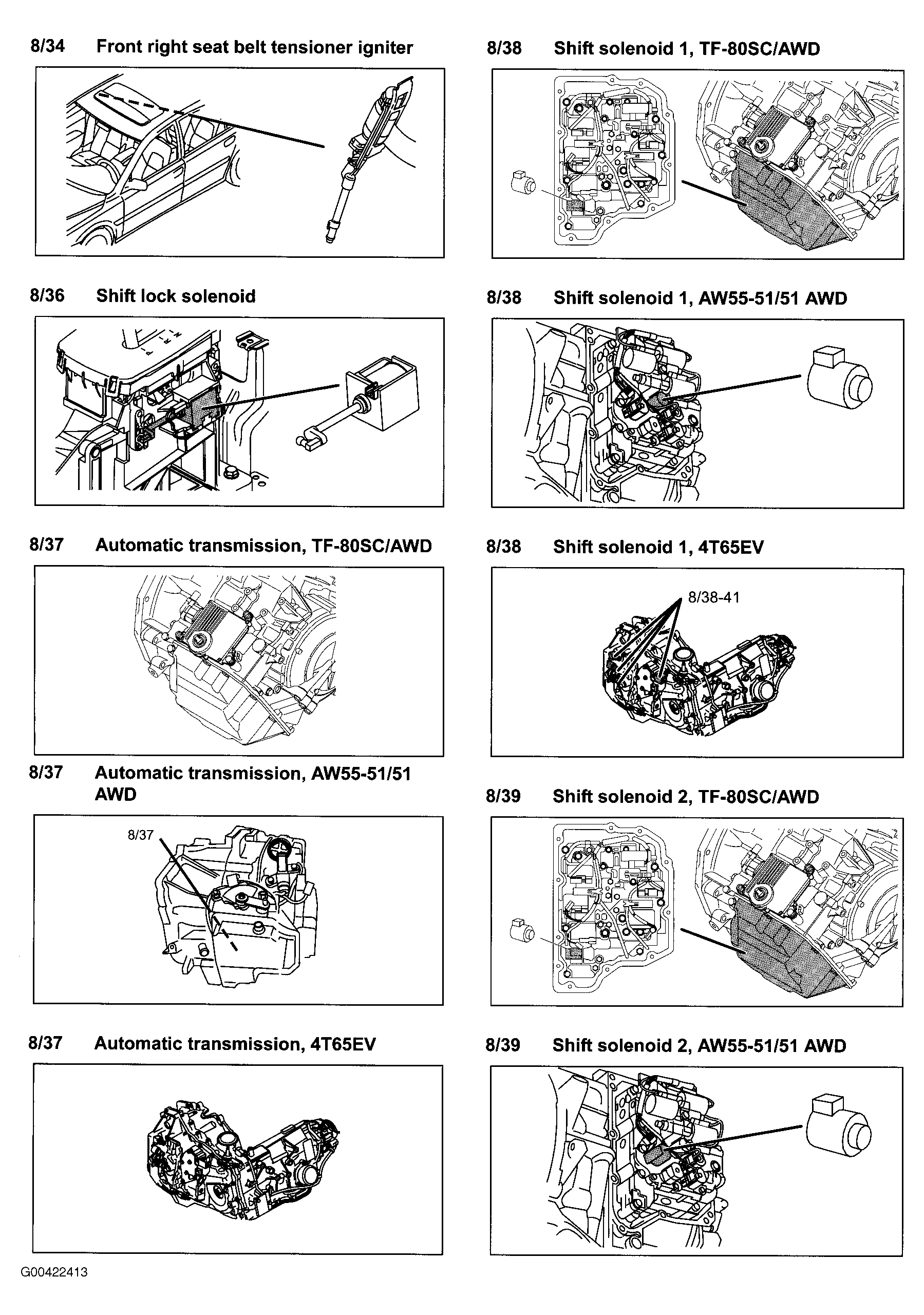

Fig 33: Components (8/34 To 8/39)
Courtesy of VOLVO CARS OF NORTH AMERICA.

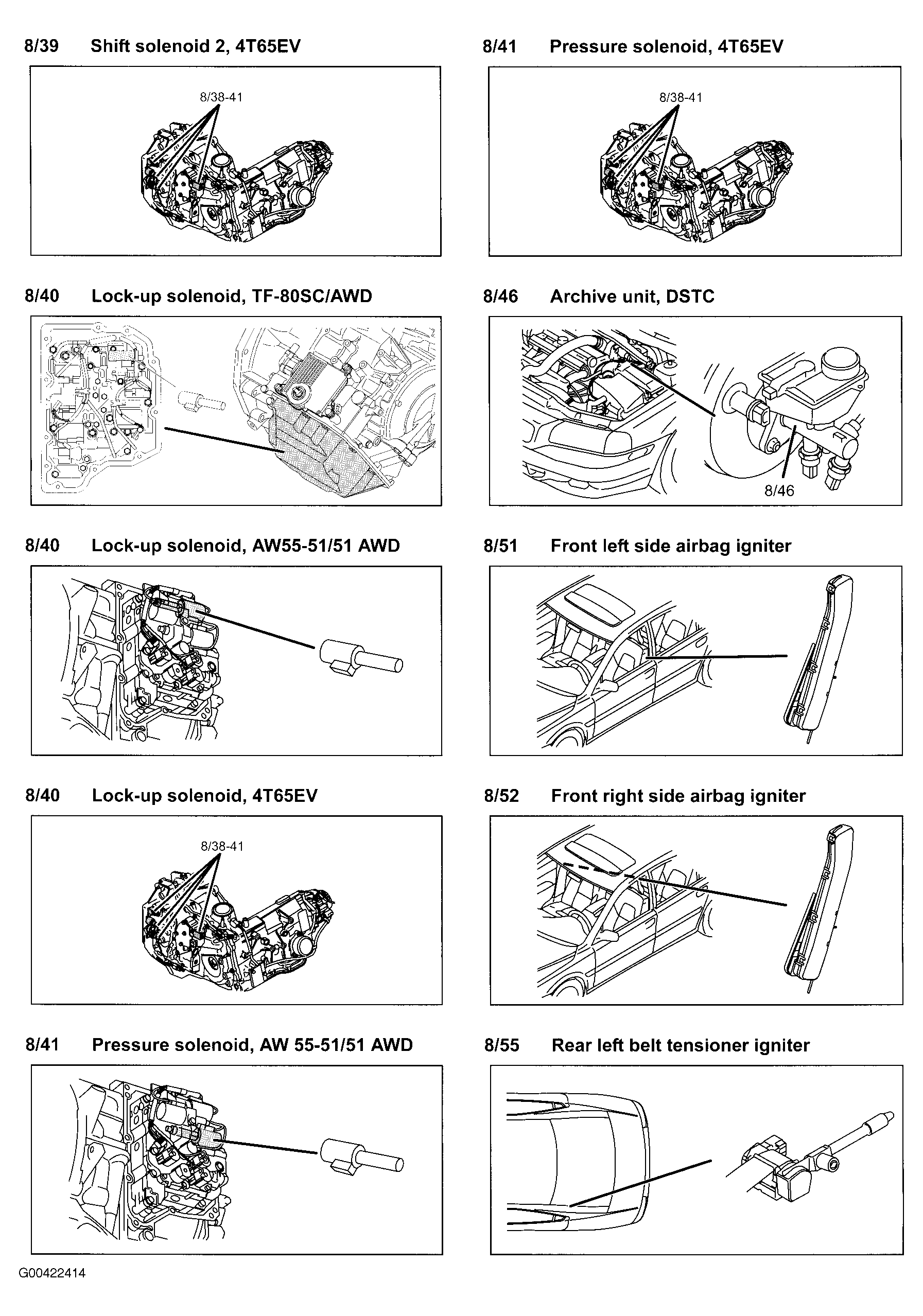

Fig 34: Components (8/39 To 8/55)
Courtesy of VOLVO CARS OF NORTH AMERICA.

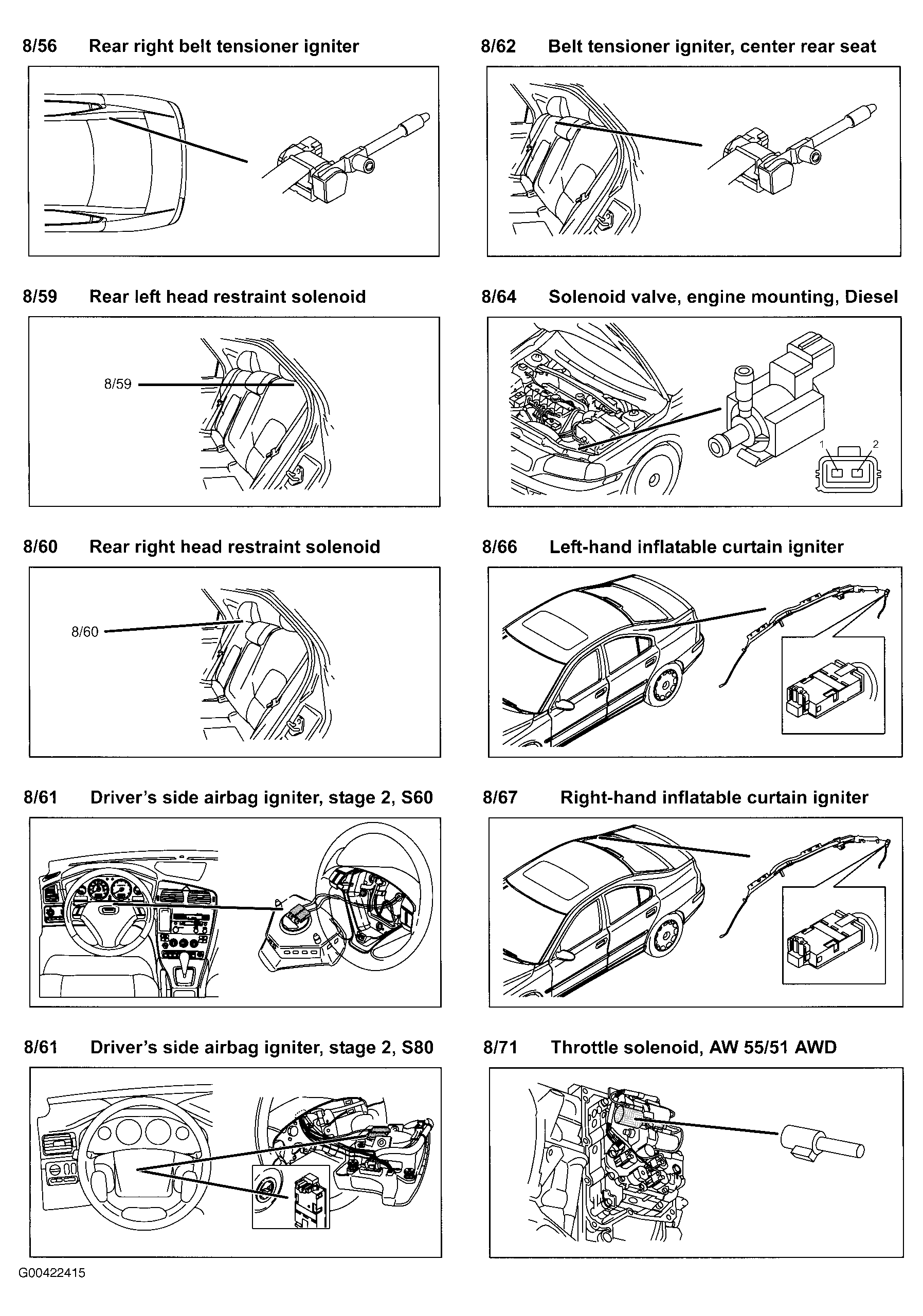

Fig 35: Components (8/56 To 8/71)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 36: Components (8/71 To 8/85)
Courtesy of VOLVO CARS OF NORTH AMERICA.

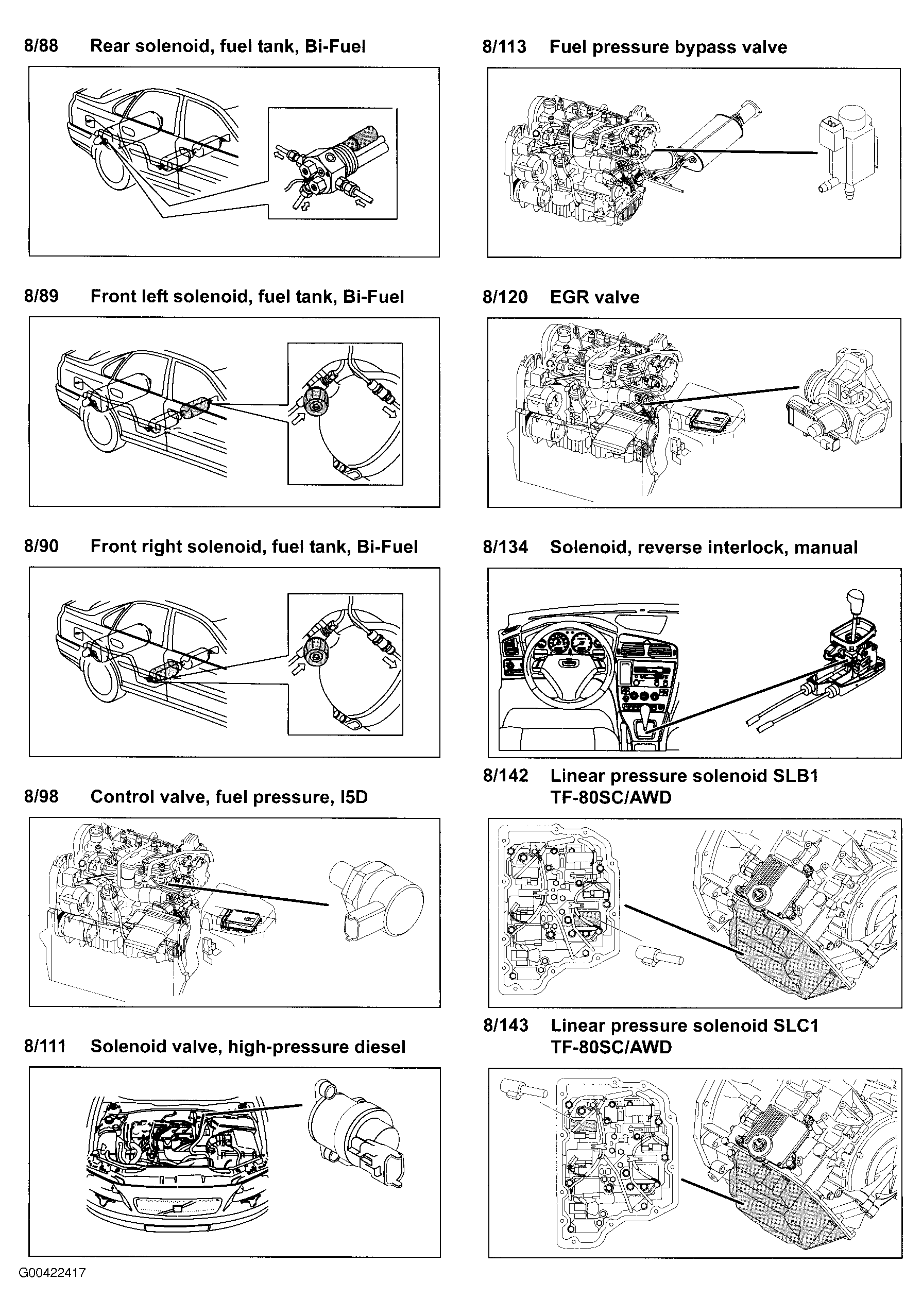

Fig 37: Components (8/88 To 8/143)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 38: Components (8/144 To 9/19)
Courtesy of VOLVO CARS OF NORTH AMERICA.

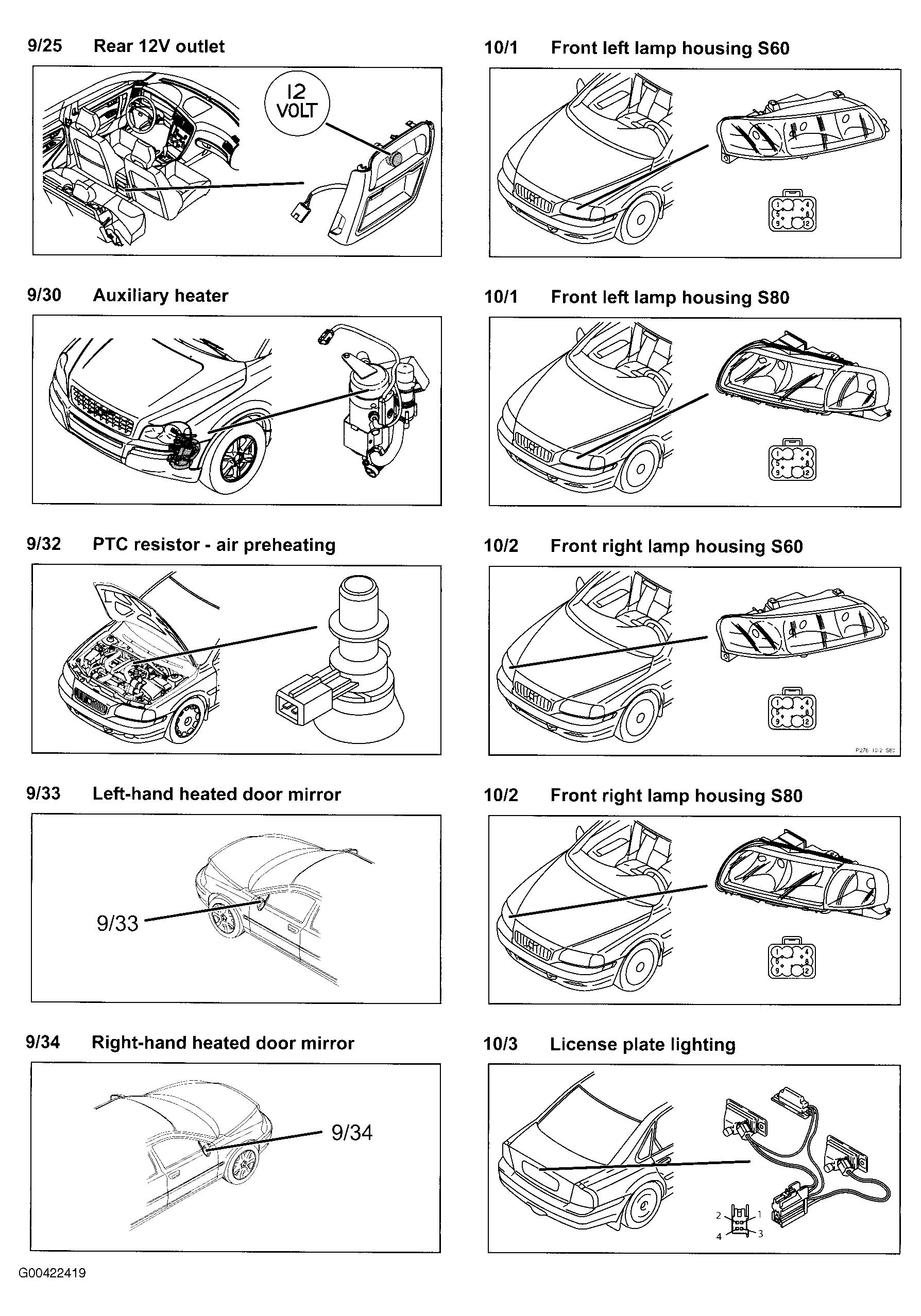

Fig 39: Components (9/25 To 10/3)
Courtesy of VOLVO CARS OF NORTH AMERICA.

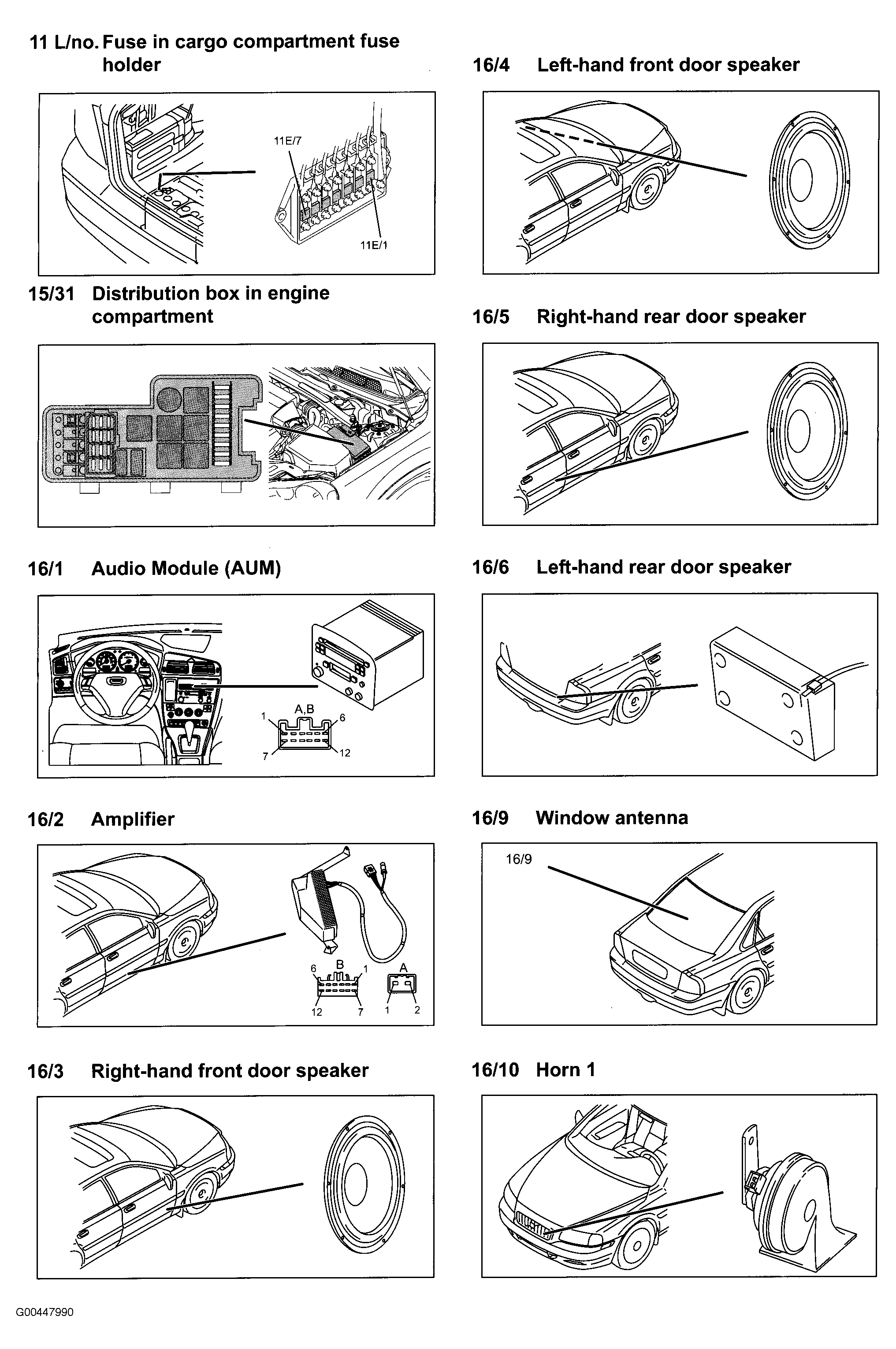

Fig 40: Components (11 L/No. To 16/10)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 41: Components (16/9 To 16/36)
Courtesy of VOLVO CARS OF NORTH AMERICA.

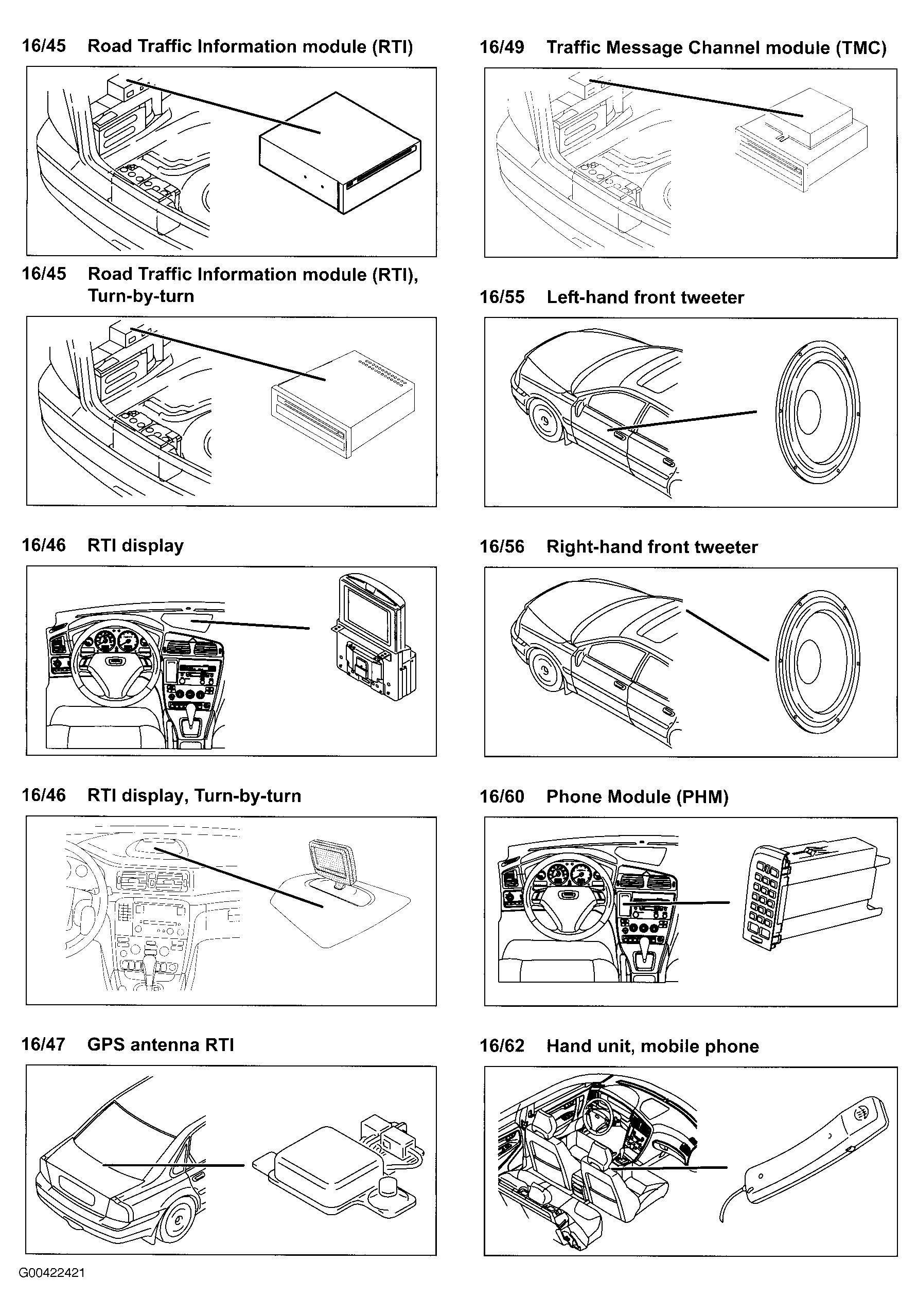

Fig 42: Components (16/45 To 16/62)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 43: Components (16/64 To 16/127)
Courtesy of VOLVO CARS OF NORTH AMERICA.

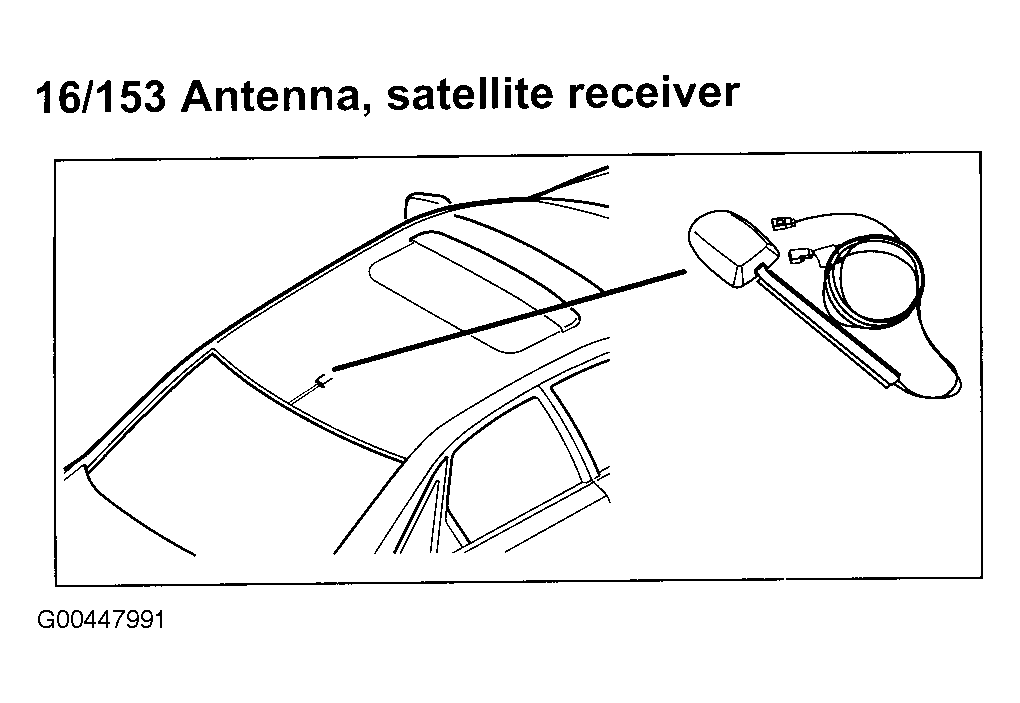

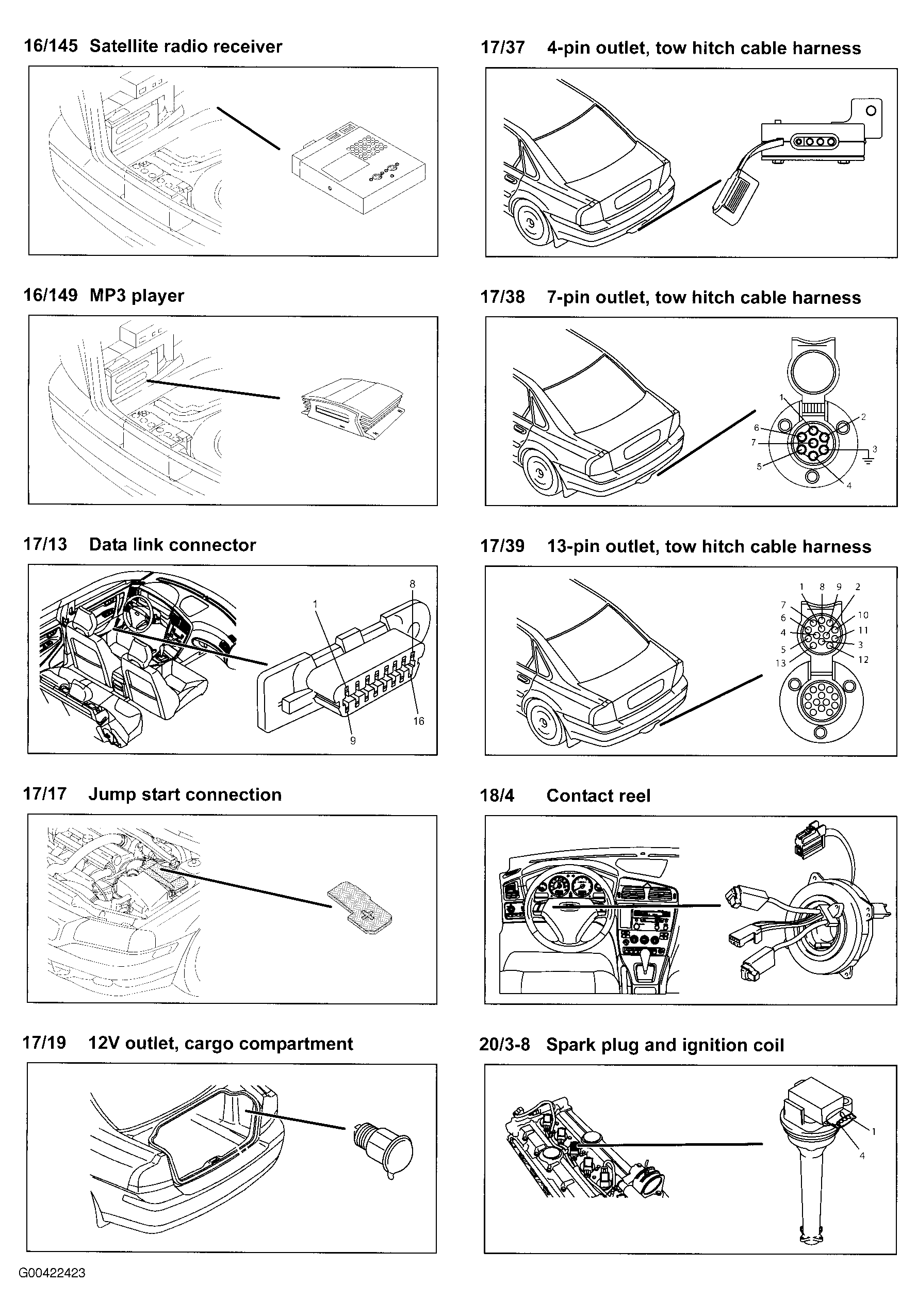

Fig 44: Components (16/145 To 20/3-8)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 45: Components (20/16 To 31/6)
Courtesy of VOLVO CARS OF NORTH AMERICA.

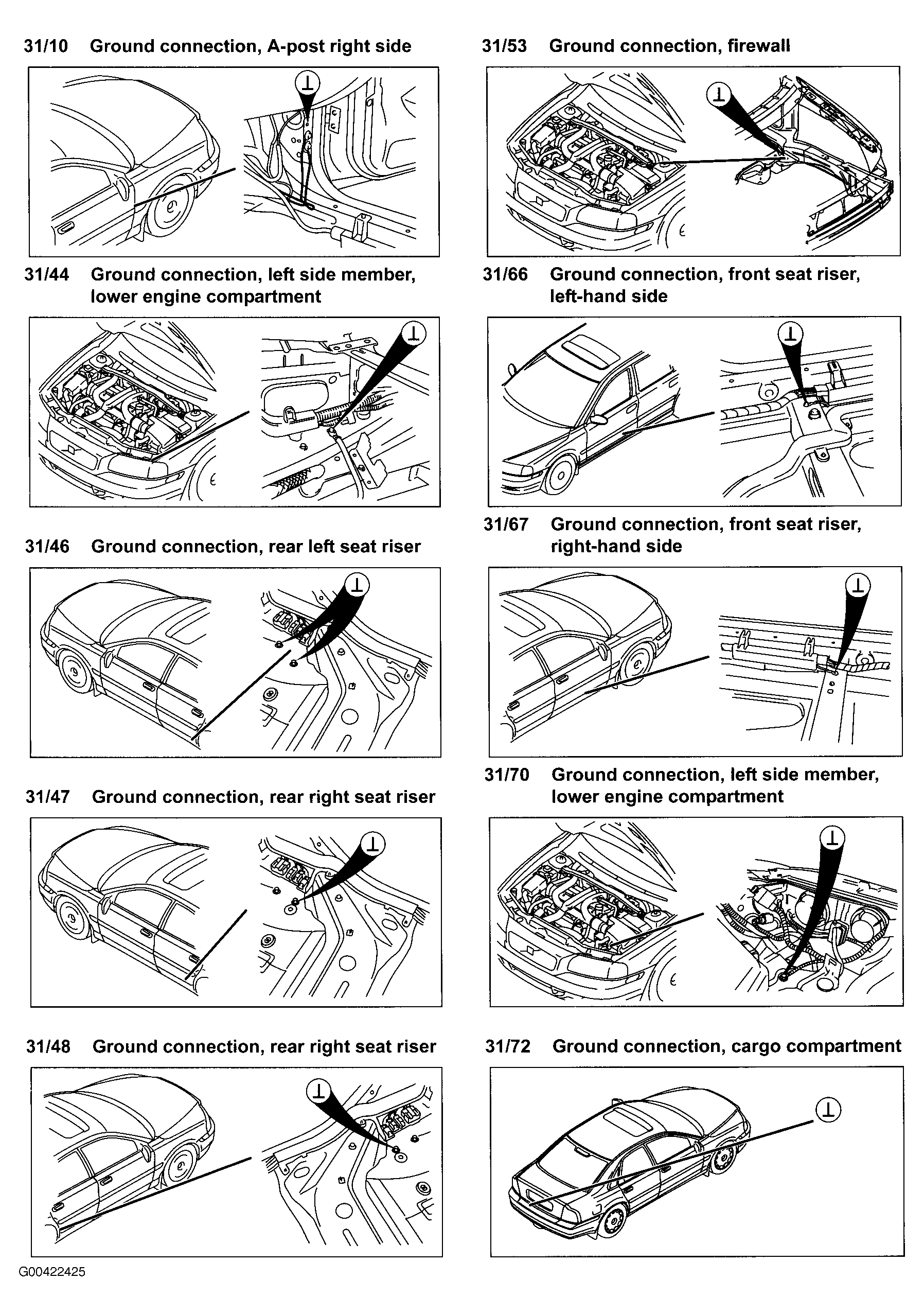

Fig 46: Components (31/10 To 31/72)
Courtesy of VOLVO CARS OF NORTH AMERICA.

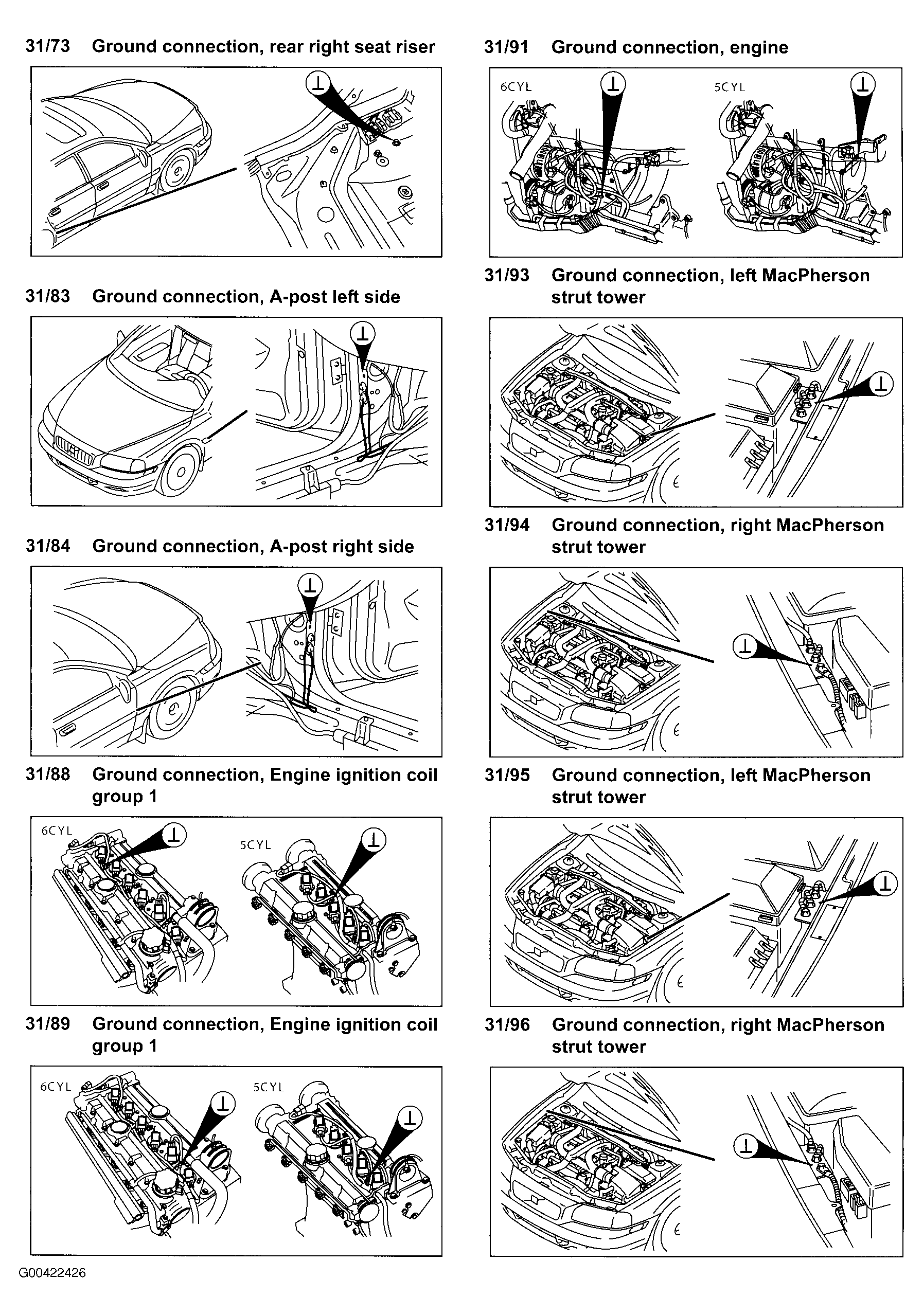

Fig 47: Components (31/73 To 31/96)
Courtesy of VOLVO CARS OF NORTH AMERICA.

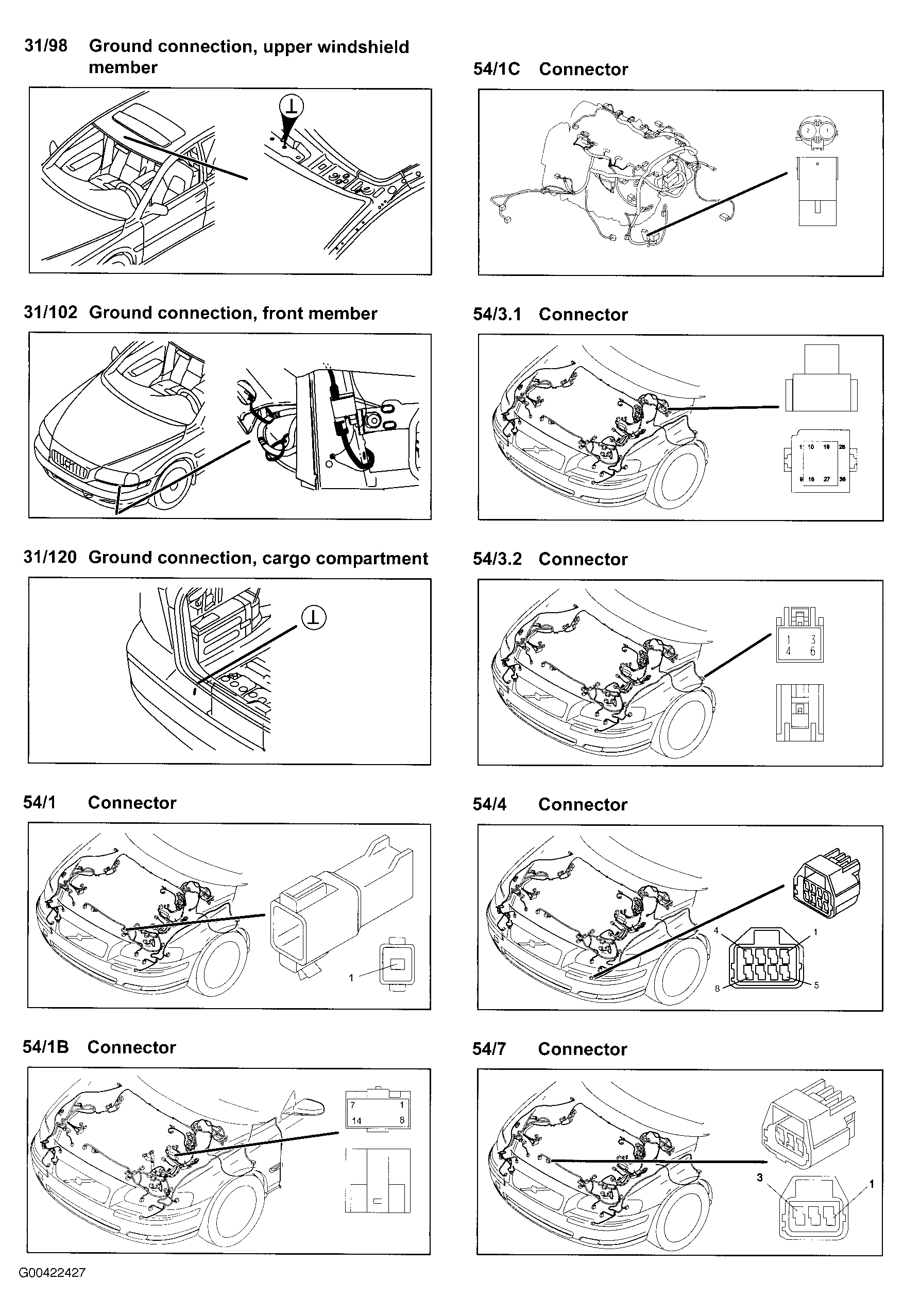

Fig 48: Components (31/98 To 54/7)
Courtesy of VOLVO CARS OF NORTH AMERICA.

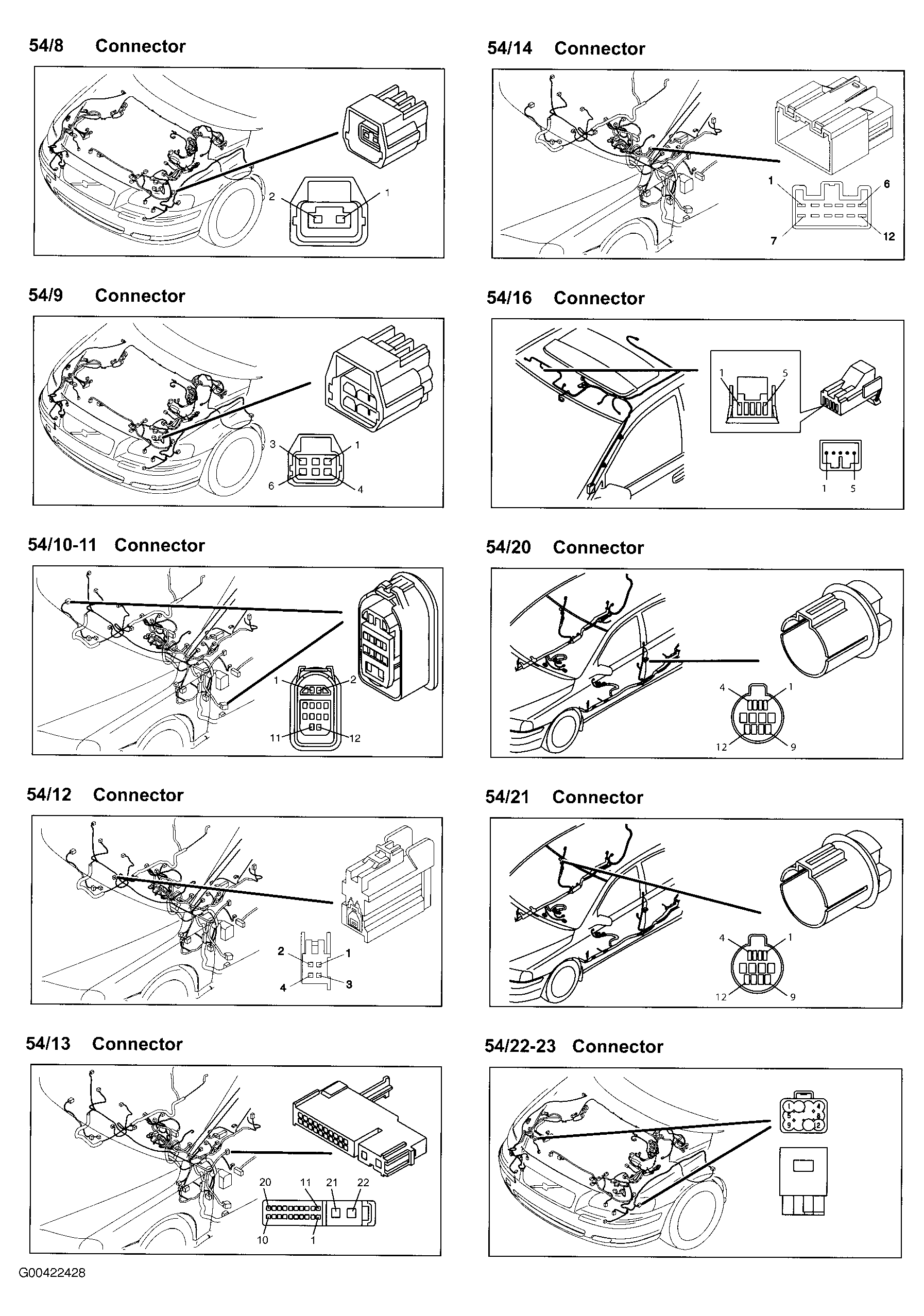

Fig 49: Components (54/8 To 54/22-23)
Courtesy of VOLVO CARS OF NORTH AMERICA.

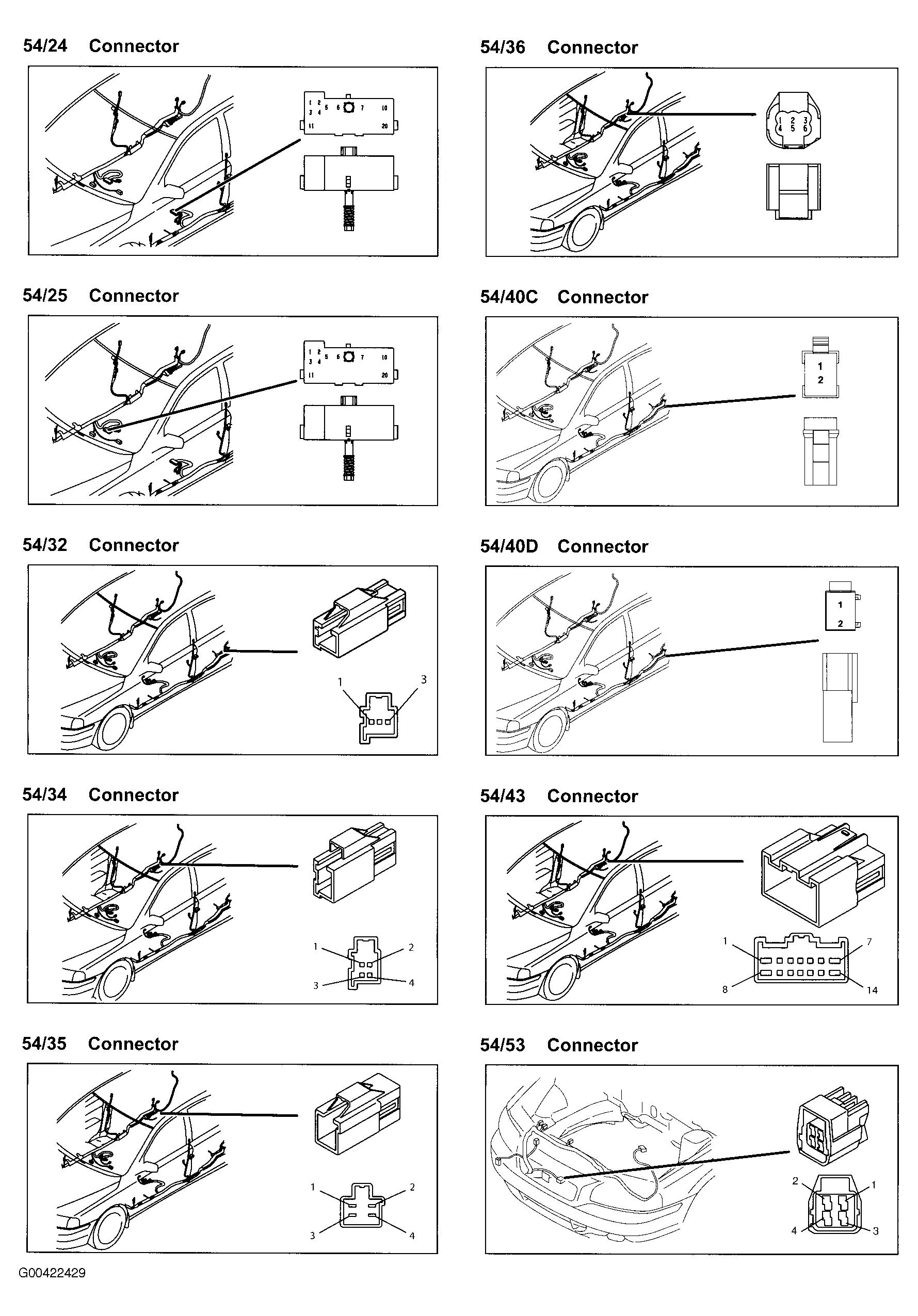

Fig 50: Components (54/24 To 54/53)
Courtesy of VOLVO CARS OF NORTH AMERICA.

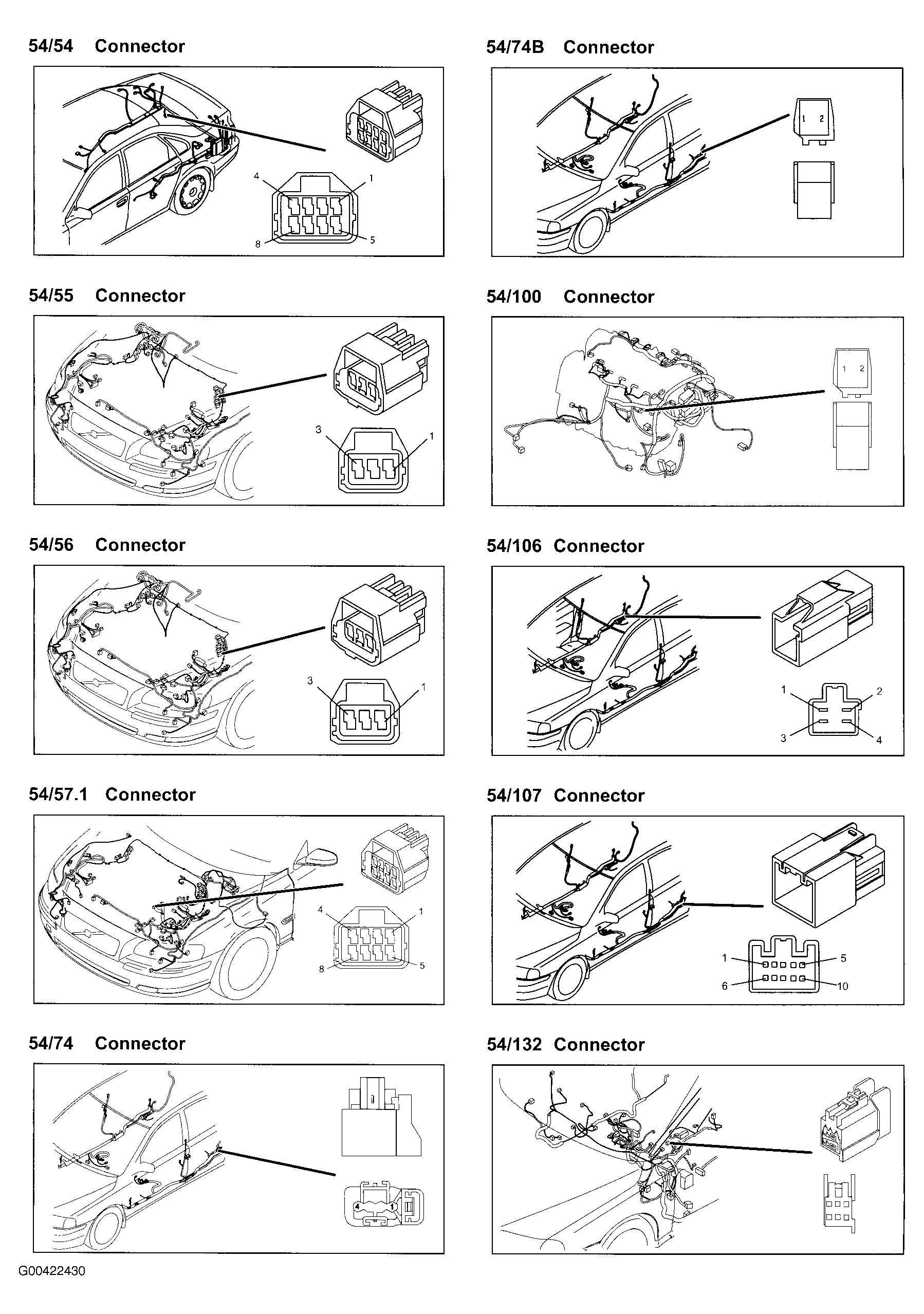

Fig 51: Components (54/54 To 54/132)
Courtesy of VOLVO CARS OF NORTH AMERICA.

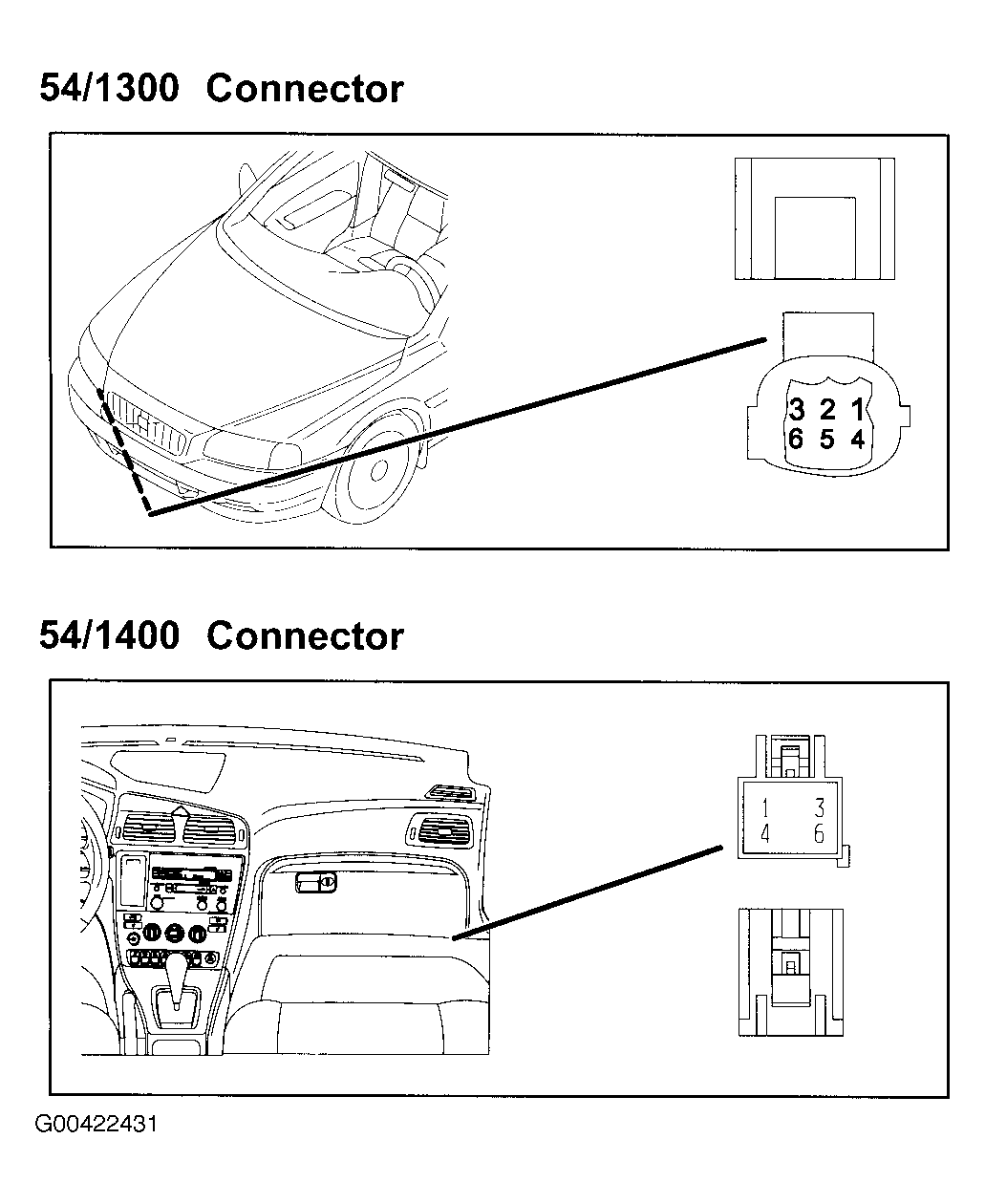

Fig 52: Components (54/1300 To 54/1400)
Courtesy of VOLVO CARS OF NORTH AMERICA.
