Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

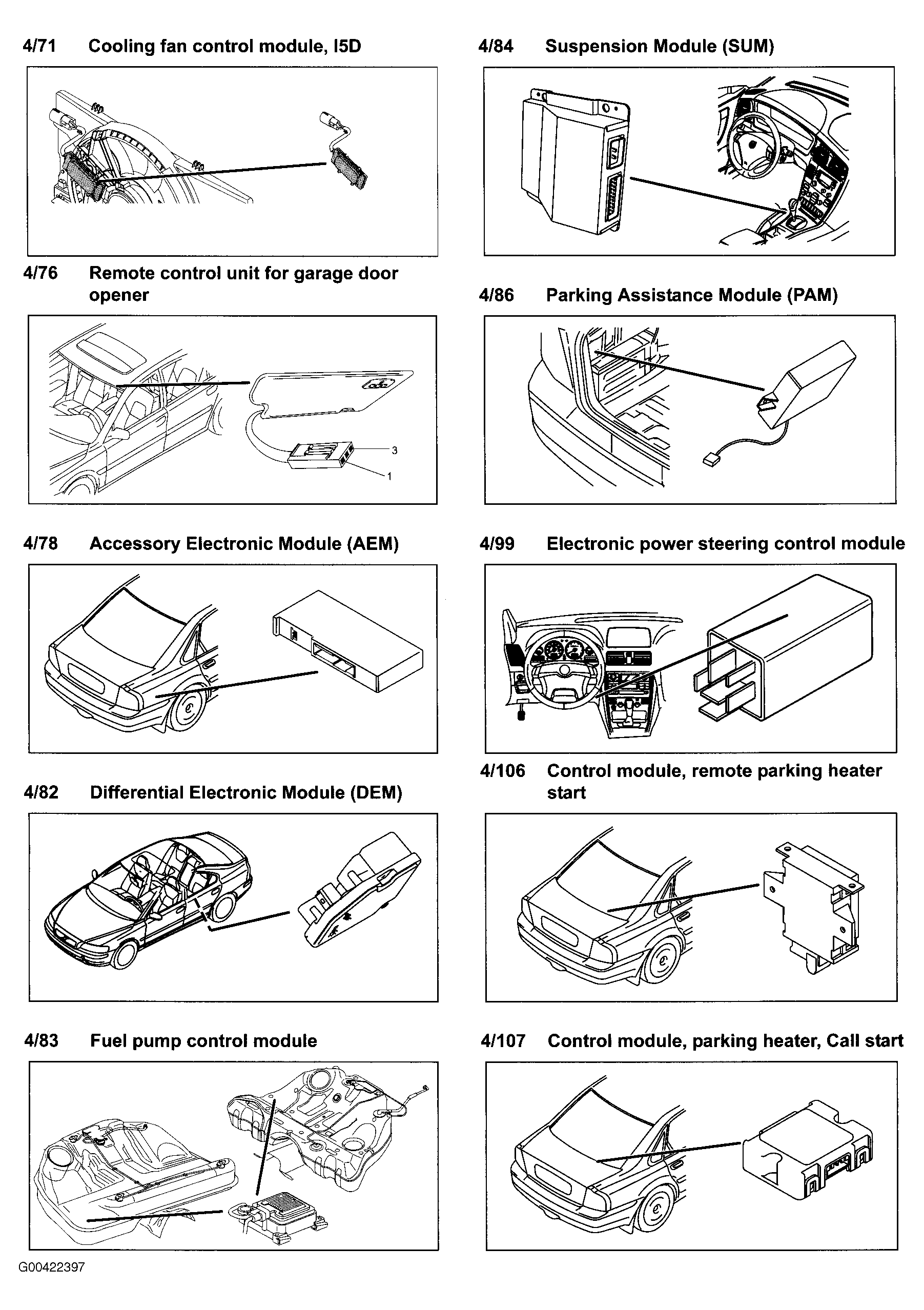

| Accessory Electronic Module (AEM) (4/78) | At right rear corner of trunk. See Figure. |

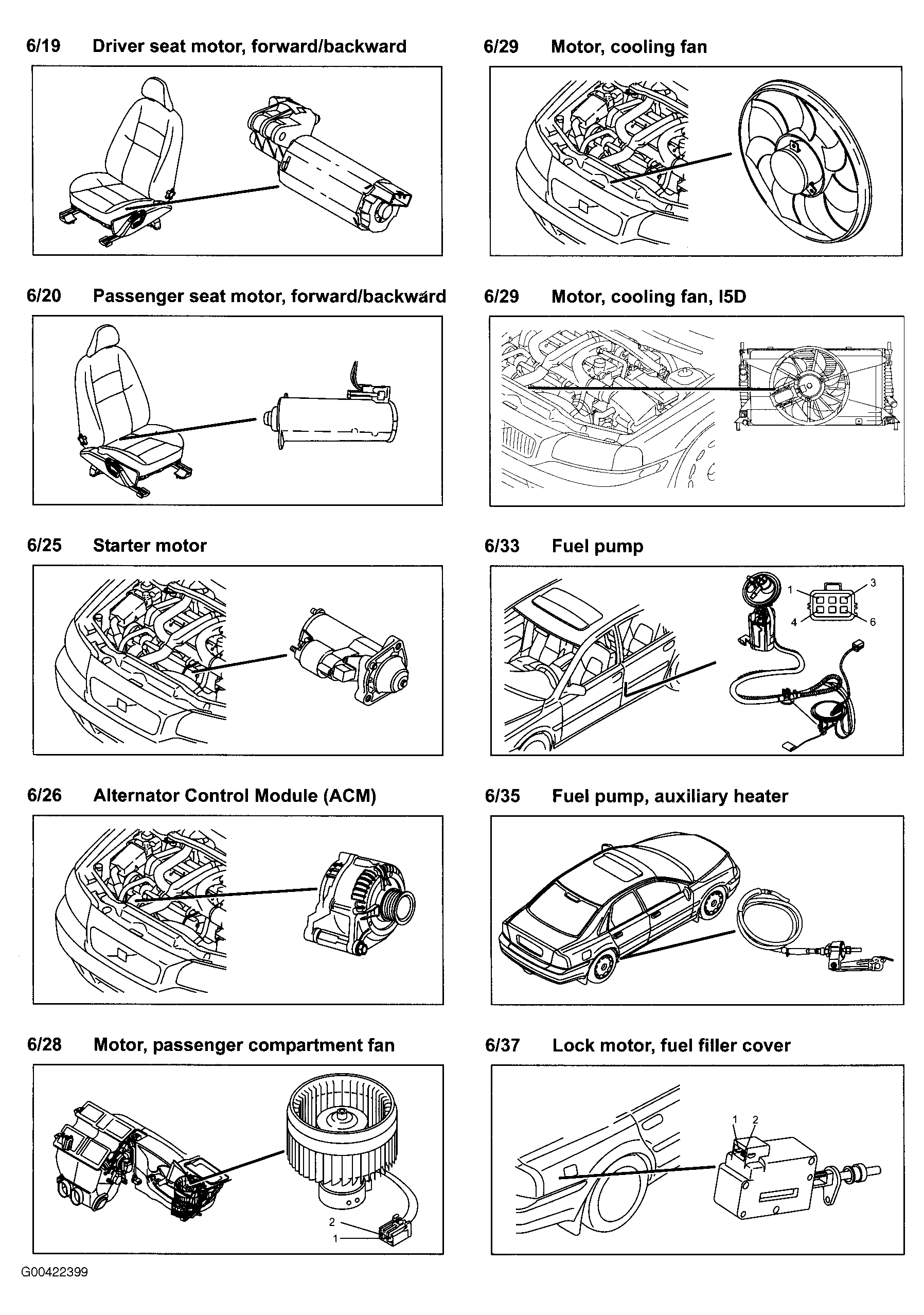

| Alternator Control Module (ACM) (6/26) | In alternator. See Figure. |
| Brake Control Module (BCM) (4/16) | At left rear of engine compartment. See Figure. |

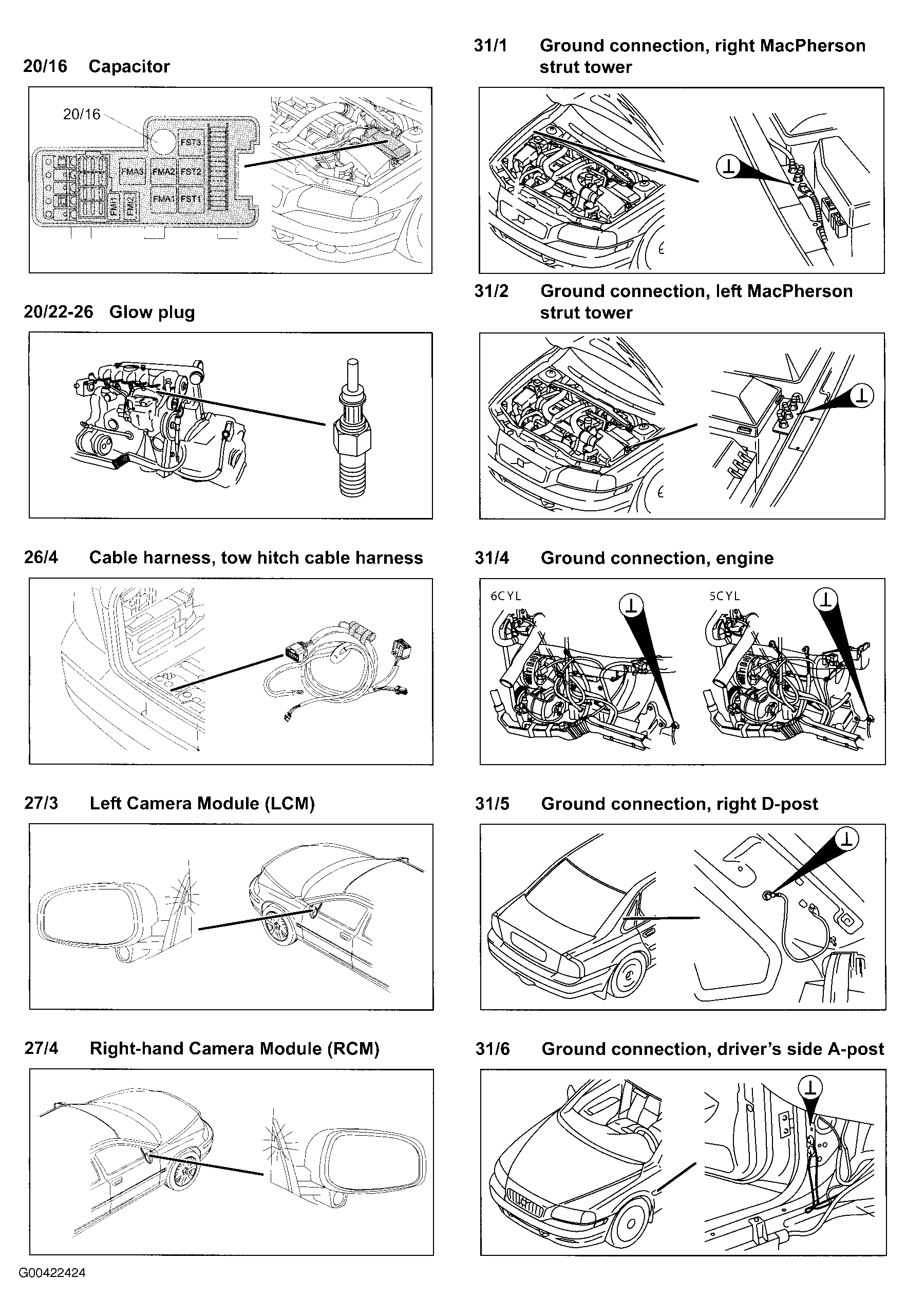

| Camera Module (Left/Right) (27/3, 27/4) | Integral to respective outside rear view mirror. See Figure. |

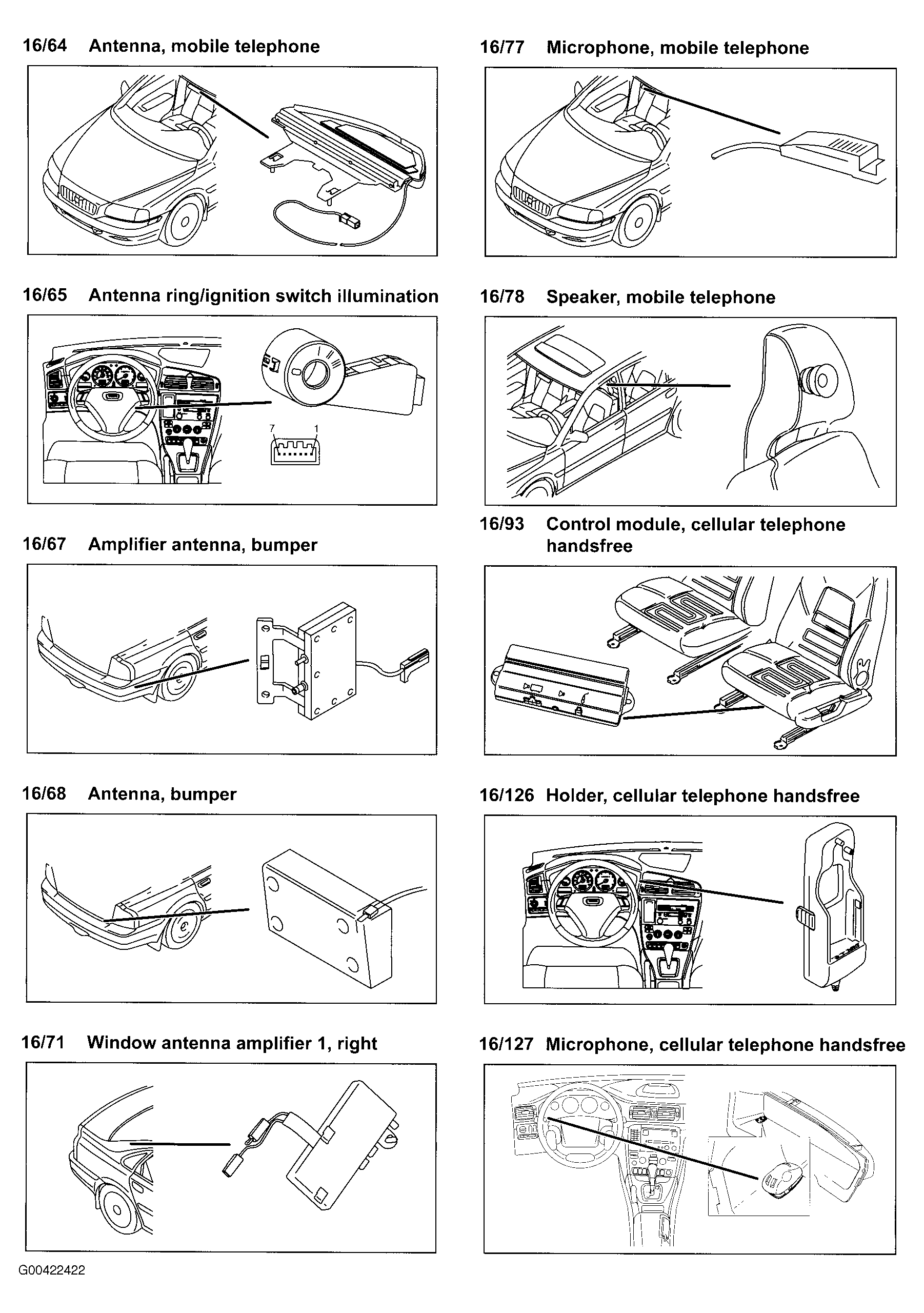

| Cellular Telephone Handsfree Control Module (16/93) | Under left rear seat. See Figure. |
| Central Electronic Module (CEM) (4/56) | Behind left side of dash. See Figure. |
| Cooling Fan Control Module (4/71) | At right front of engine compartment. See Figure. |

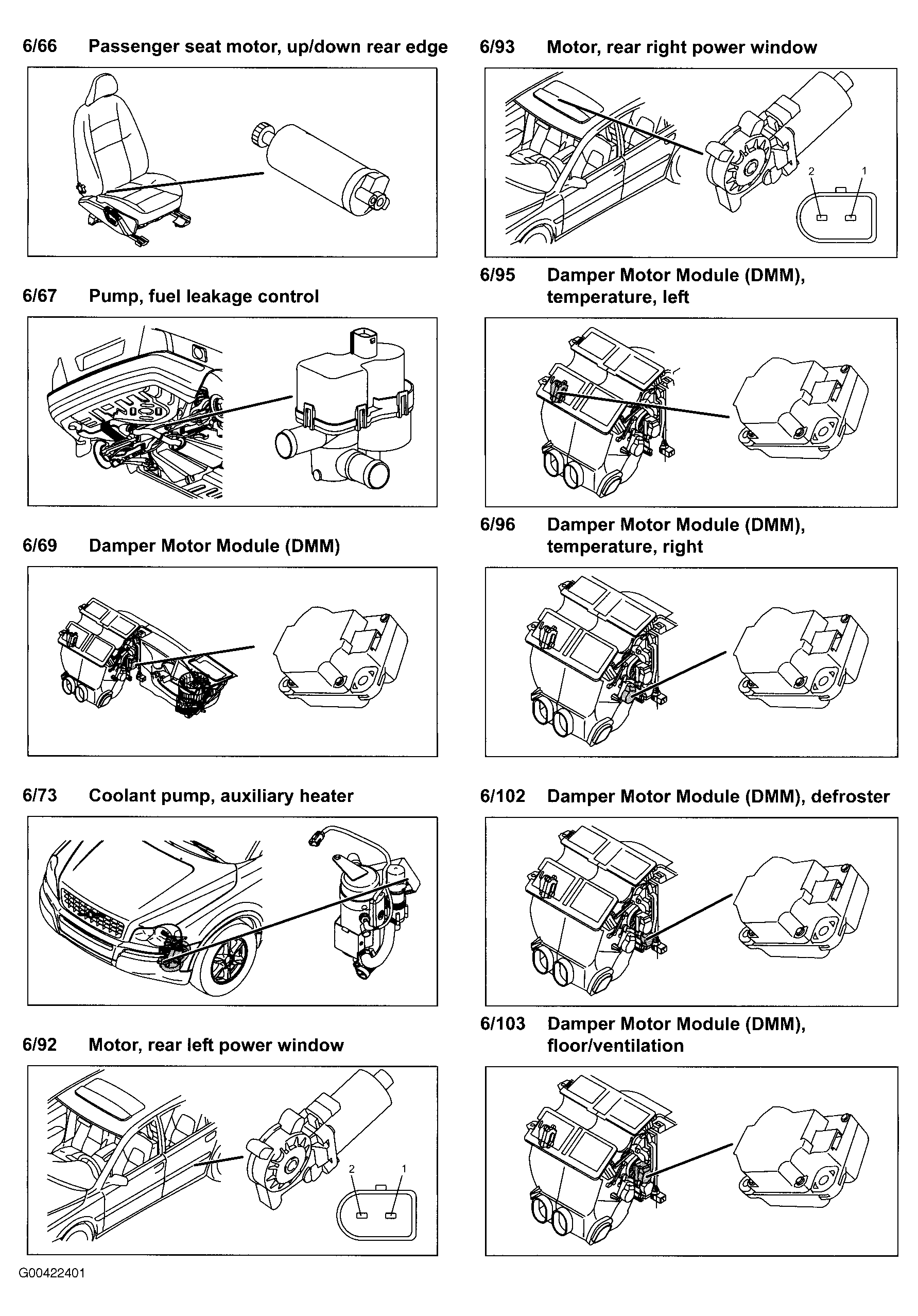

| Damper Motor Module (DMM) (6/69) | Behind center of dash. See Figure. |
| Differential Electronic Module (DEM) (4/82) | Under left rear seat. See Figure. |
| Driver Information Module (DIM) (5/1) | In instrument cluster. See Figure. |

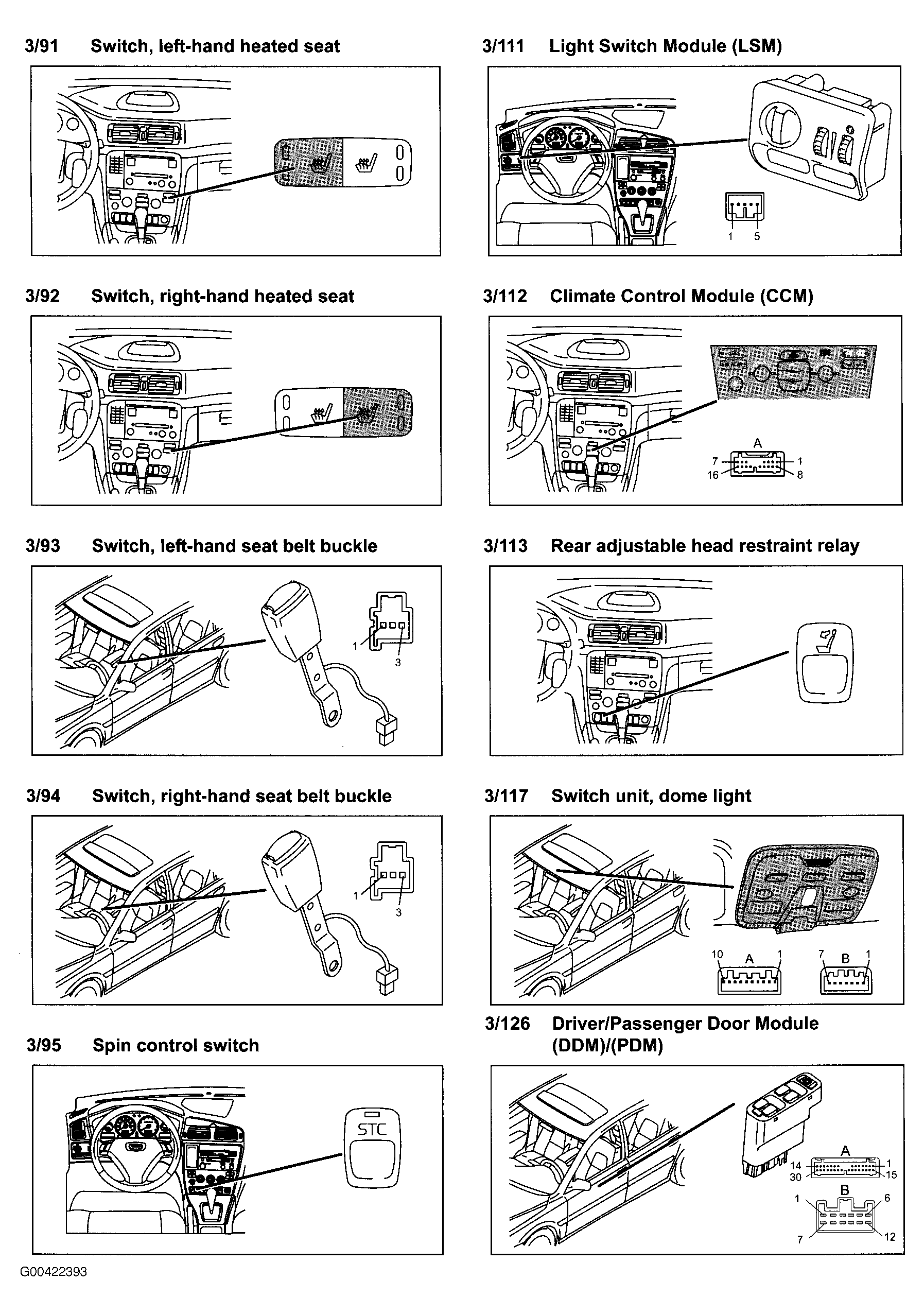

| Driver/Passenger Door Module (DDM)/(PDM) (3/126) | In driver's door. See Figure. |
| Electronic Power Steering Control Module (4/99) | Under left side of dash. See Figure. |
| Electronic Throttle Module (ETM) (4/50) | On left side of engine. See Figure. |
| Engine Control Module (ECM) (4/46) | At right side of engine compartment, forward of strut tower. See Figure. |
| Fan Control Module (4/31) | Behind right side of dash, near blower fan. See Figure. |
| Fuel Pump Control Module (4/83) | On fuel tank assembly. See Figure. |
| Parking Assistance Module (PAM) (4/86) | Left rear of luggage compartment. See Figure. |
| Parking Heater, Call Start Control Module (4/107) | At luggage compartment. See Figure. |

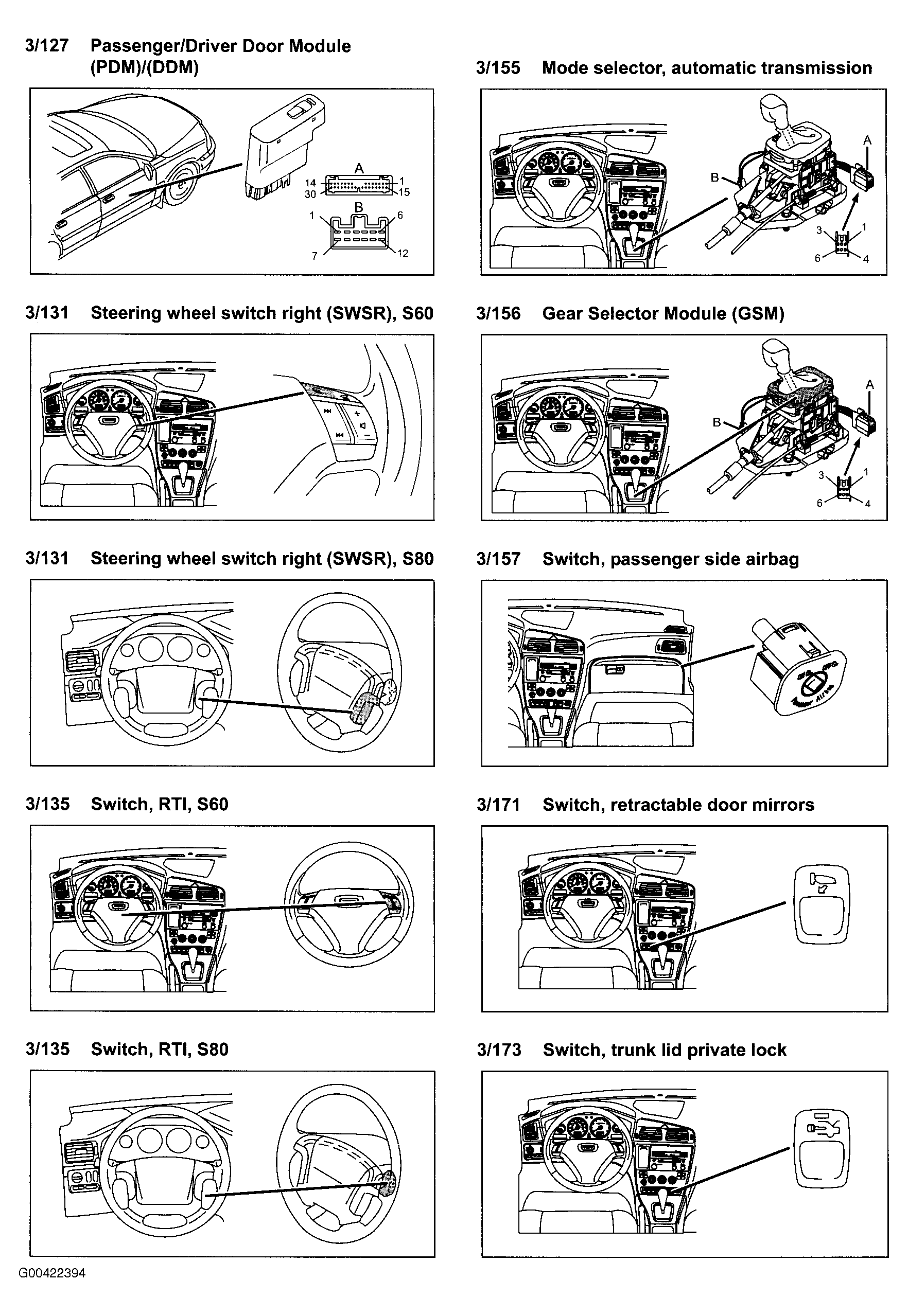

| Passenger/Driver Door Module (PDM)/(DDM) (3/127) | In passenger's door module. See Figure. |
| Power Seat Module (PSM) (4/52) | Under seat. See Figure. |
| Rear Electronic Module (REM) (4/58) | At left rear corner of trunk. See Figure. |
| Remote Control Unit For Garage Door Opener (4/76) | Front center of headliner, above rear view mirror. See Figure. |
| Remote Parking Heater Start Control Module (4/106) | At luggage compartment. See Figure. |

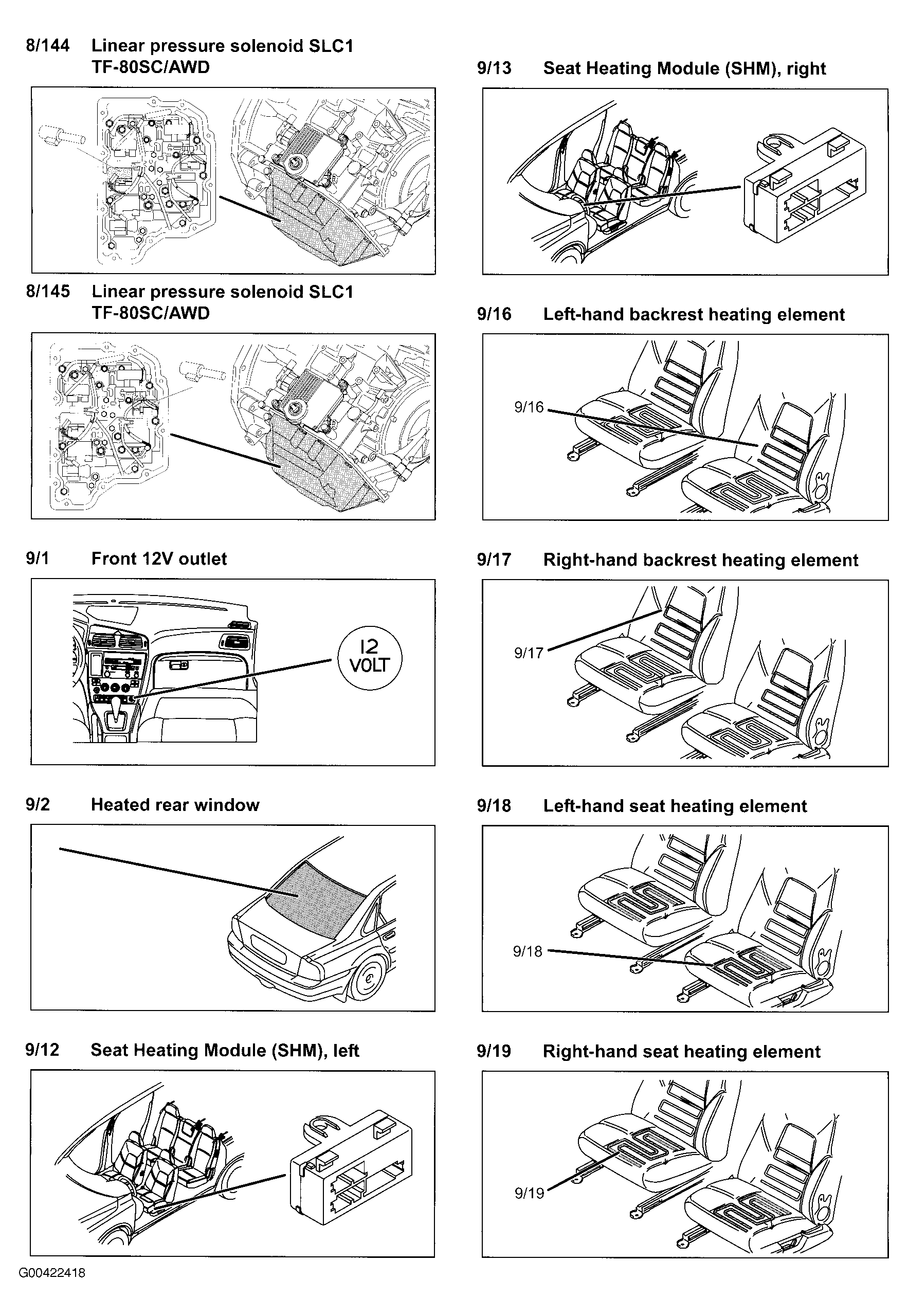

| Seat Heating Module (SHM) (Left) (9/12) | In left seat bottom. See Figure. |
| Seat Heating Module (SHM) (Right) (9/13) | In right front seat bottom. See Figure. |

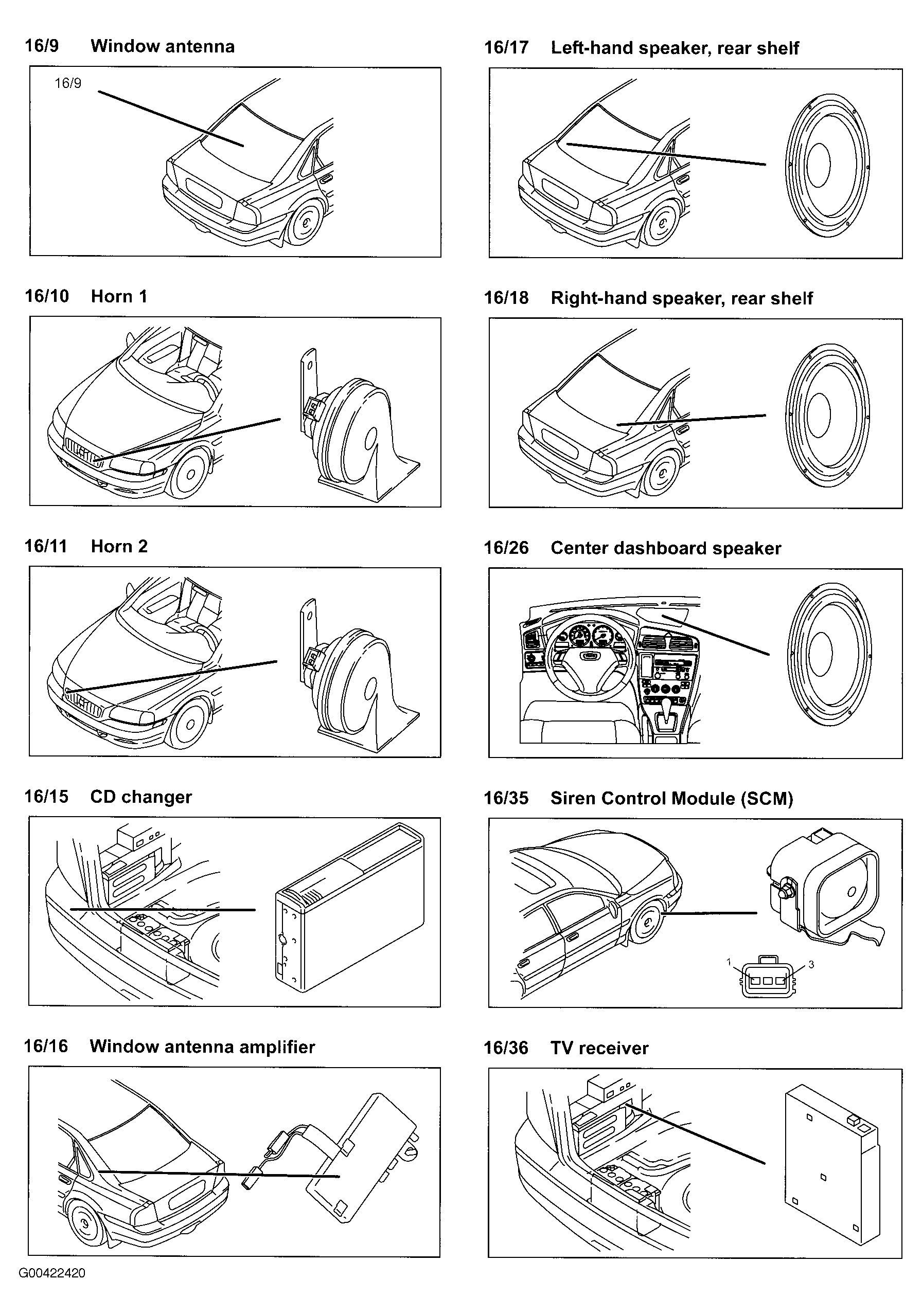

| Siren Control Module (SCM) (16/35) | In right front wheelwell. See Figure. |
| Steering Wheel Angle Sensor Module (SAS) (4/68) | On steering column. See Figure. |
| Steering Wheel Module (SWM) (3/254) | In steering column. See Figure. |

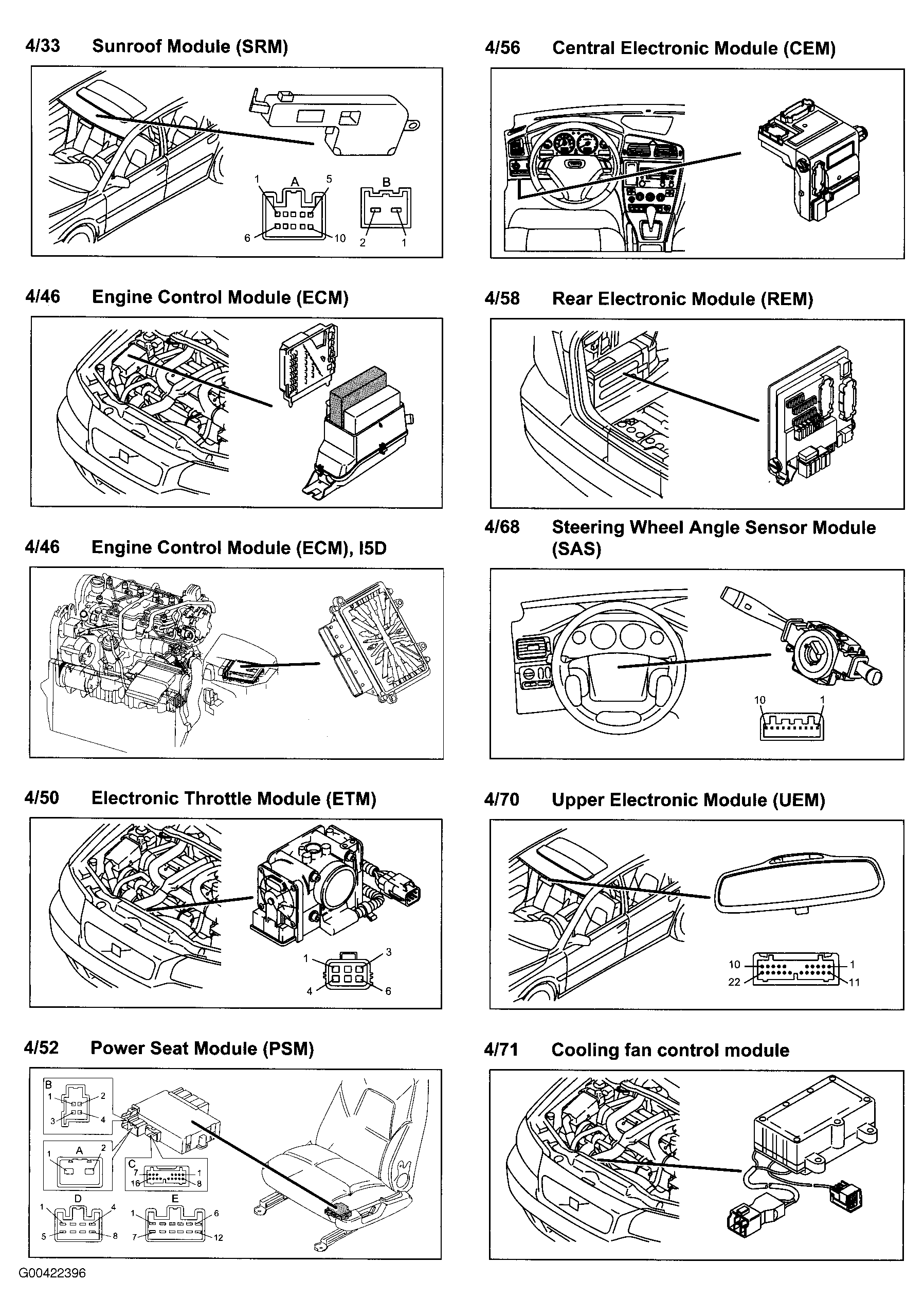

| Sunroof Module (SRM) (4/33) | Forward of sun roof opening. See Figure. |

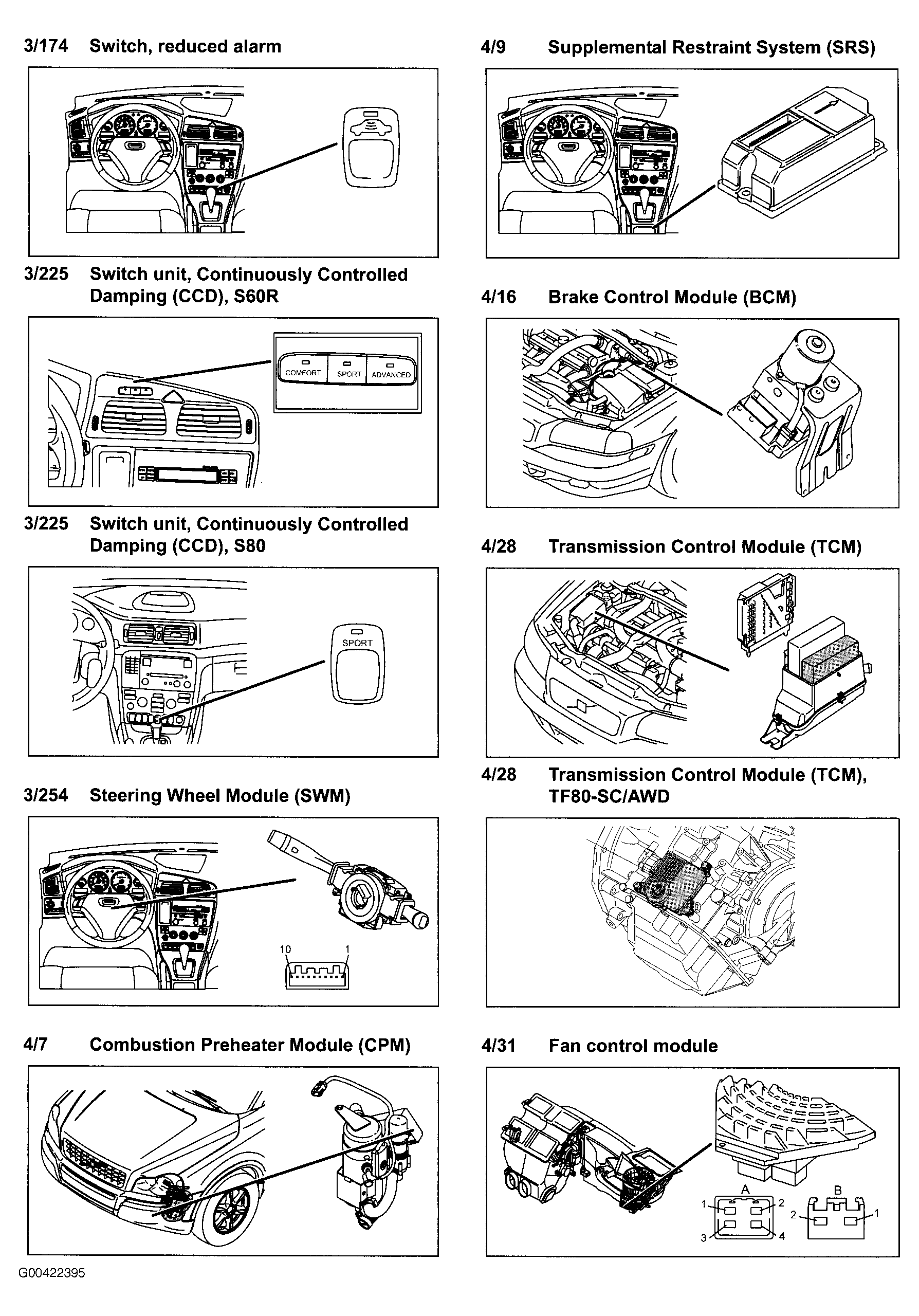

| Supplemental Restraint System (SRS) (4/9) | Below rear of center console. See Figure. |
| Suspension Module (SUM) (4/84) | Under left side of center console. See Figure. |

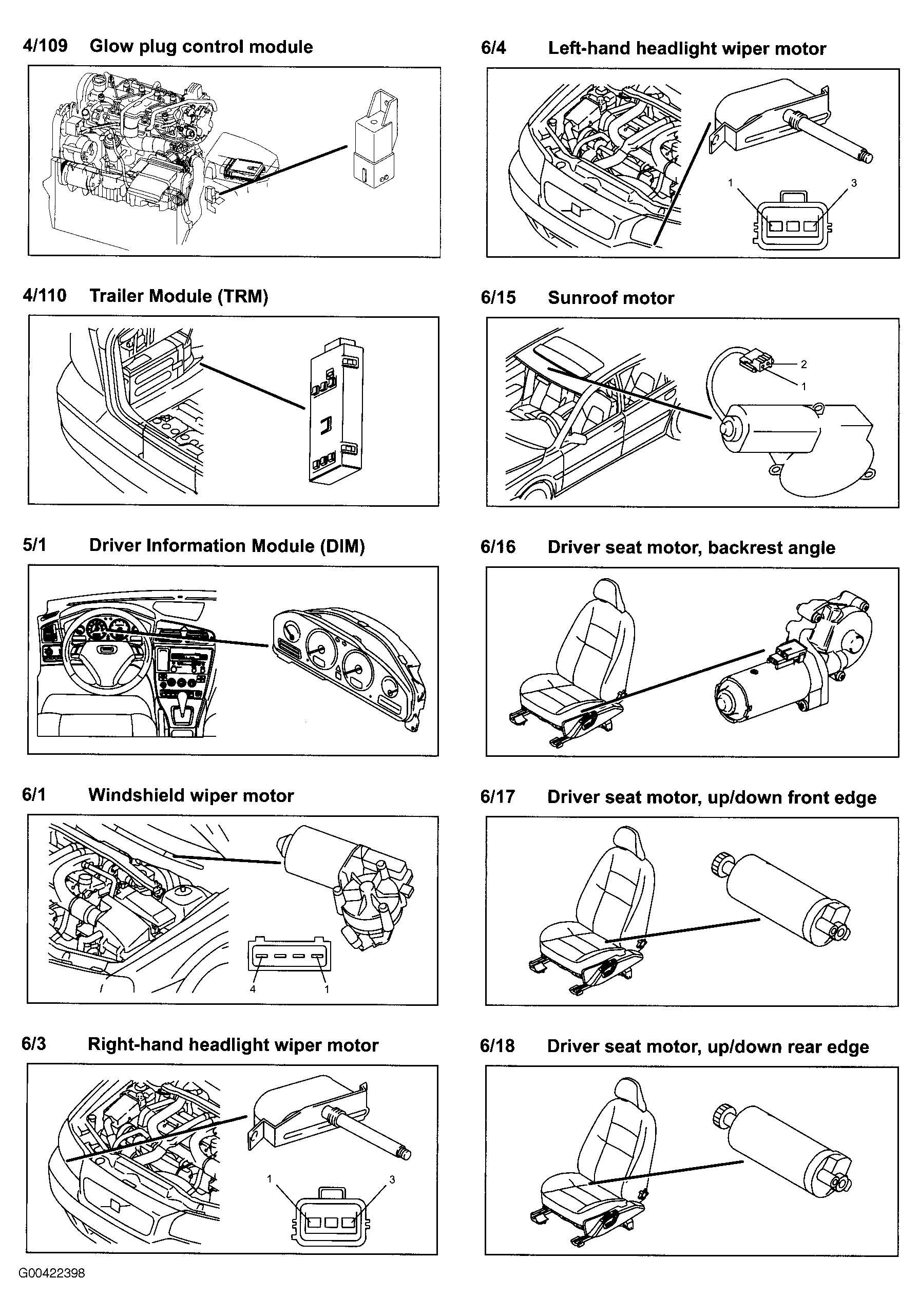

| Trailer Module (TRM) (4/110) | Left rear of trunk. See Figure. |
| Transmission Control Module (TCM) (TF80-SC/AWD) (4/28) | On transmission. See Figure. |
| Transmission Control Module (TCM) (4/28) | At right side of engine compartment, forward of strut tower. See Figure. |
| Upper Electronic Module (UEM) (4/70) | Above center of windshield, on rearview mirror. See Figure. |
