Installing the adapter cable

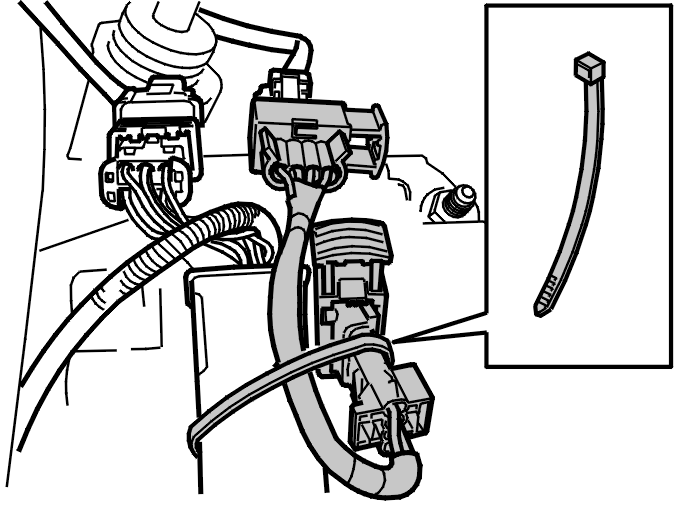

Fig 1: Identifying Adapter Cable & Tie Strap

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Ensure that the ends of the protective sheath on the adapter cable point downwards so that water does not gather in the protective sheath.

Install:

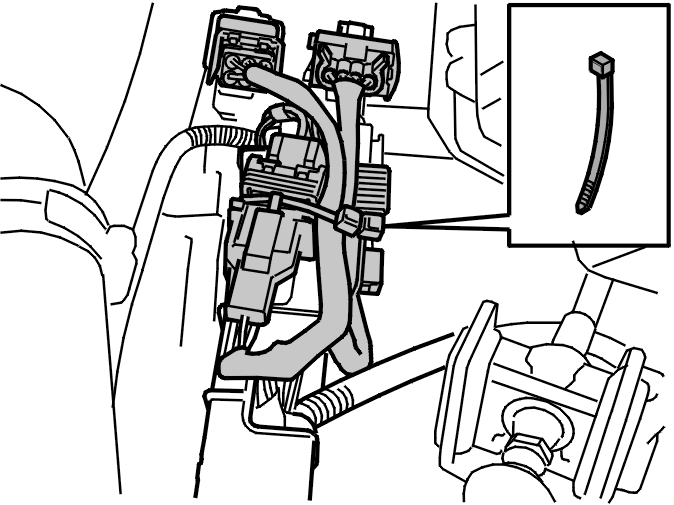

Fig 2: Identifying Adapter Wiring For 6-Pin Connectors & Tie Strap

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the adapter wiring between the existing 6-pin connectors.

NOTE:

Ensure that the ends of the protective sheath on the adapter cable point downwards so that water does not gather in the protective sheath.

Install:

the inlet hose between the air cleaner (ACL) and turbocharger (TC) on the turbocharger (TC)
the air cleaner (ACL) housing.
