Body Side Alignment

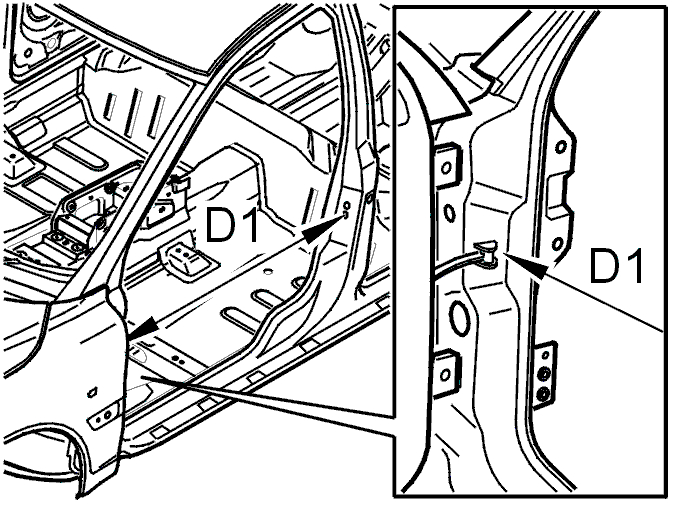

Fig 1: Front Door Opening Measurement Points (1 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

D1 = 978 mm

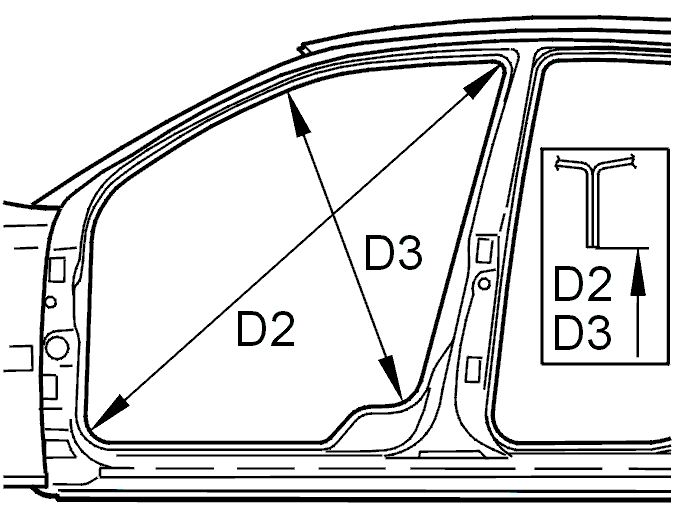

Fig 2: Front Door Opening Measurement Points (2 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

D2 = 1381 mm

D3 = 809 mm

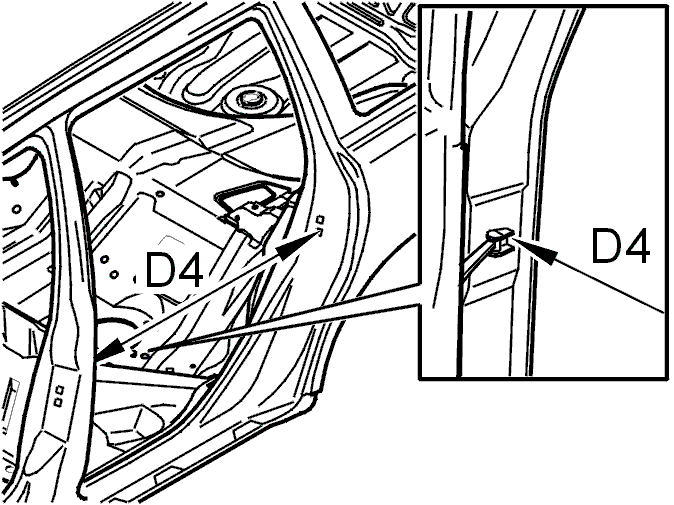

Fig 3: Rear Door Opening Measurement Points (1 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

D4 = 813 mm

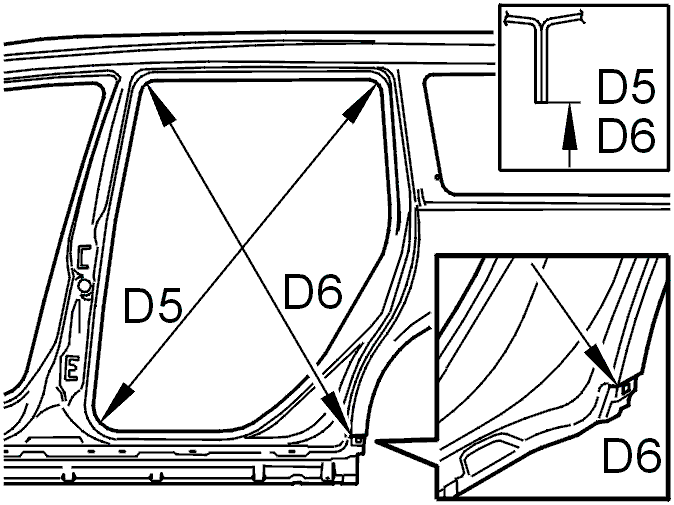

Fig 4: Rear Door Opening Measurement Points (2 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

D5 = 1202 mm

D6 = 1136 mm
