Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION

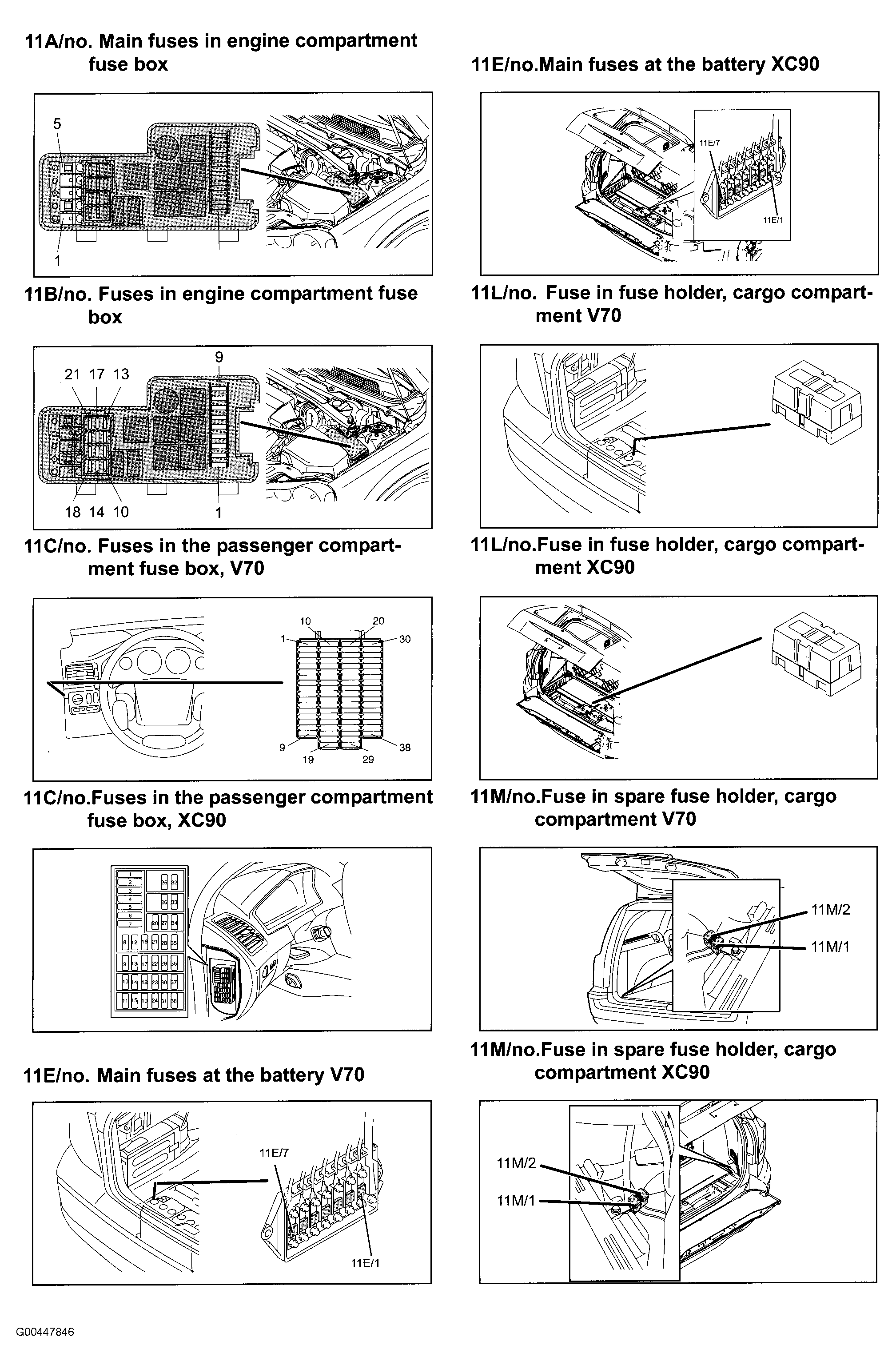

| Component | Location |
|---|---|
| Cargo Compartment Auxiliary Fuse Holder (11L) | At rear of cargo compartment. See Figure. |

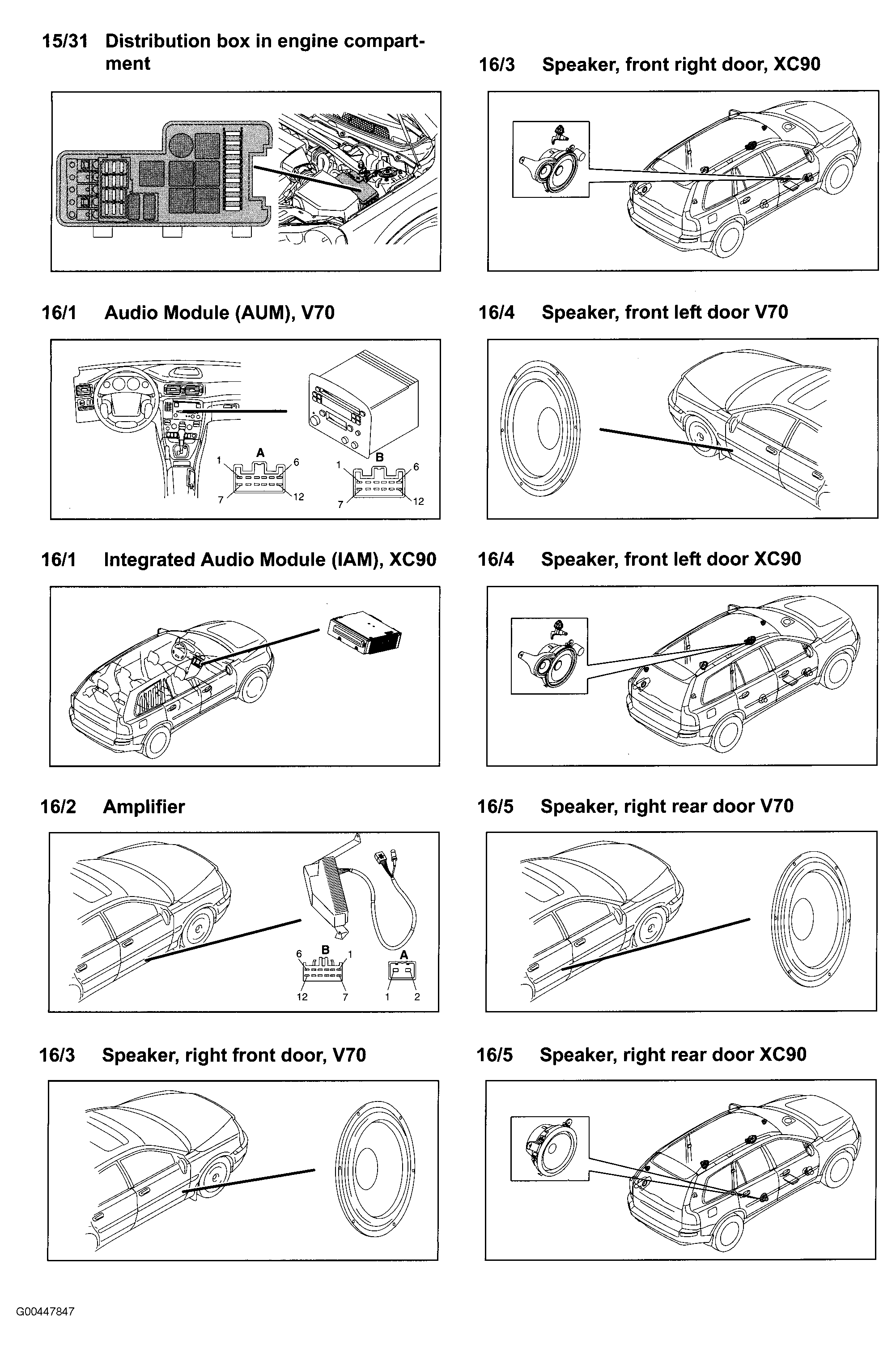

| Engine Compartment Distribution Box (15/31) | Left side of engine compartment. See Figure. |
| Engine Compartment Fuse Box (11A) | At left side of engine compartment, forward of strut tower. See Figure. |
| Main Fuses (11E) | Next to battery, in cargo compartment. See Figure. |
| Passenger Compartment Fuse Box (11C) | At left end of dash. See Figure. |
