Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

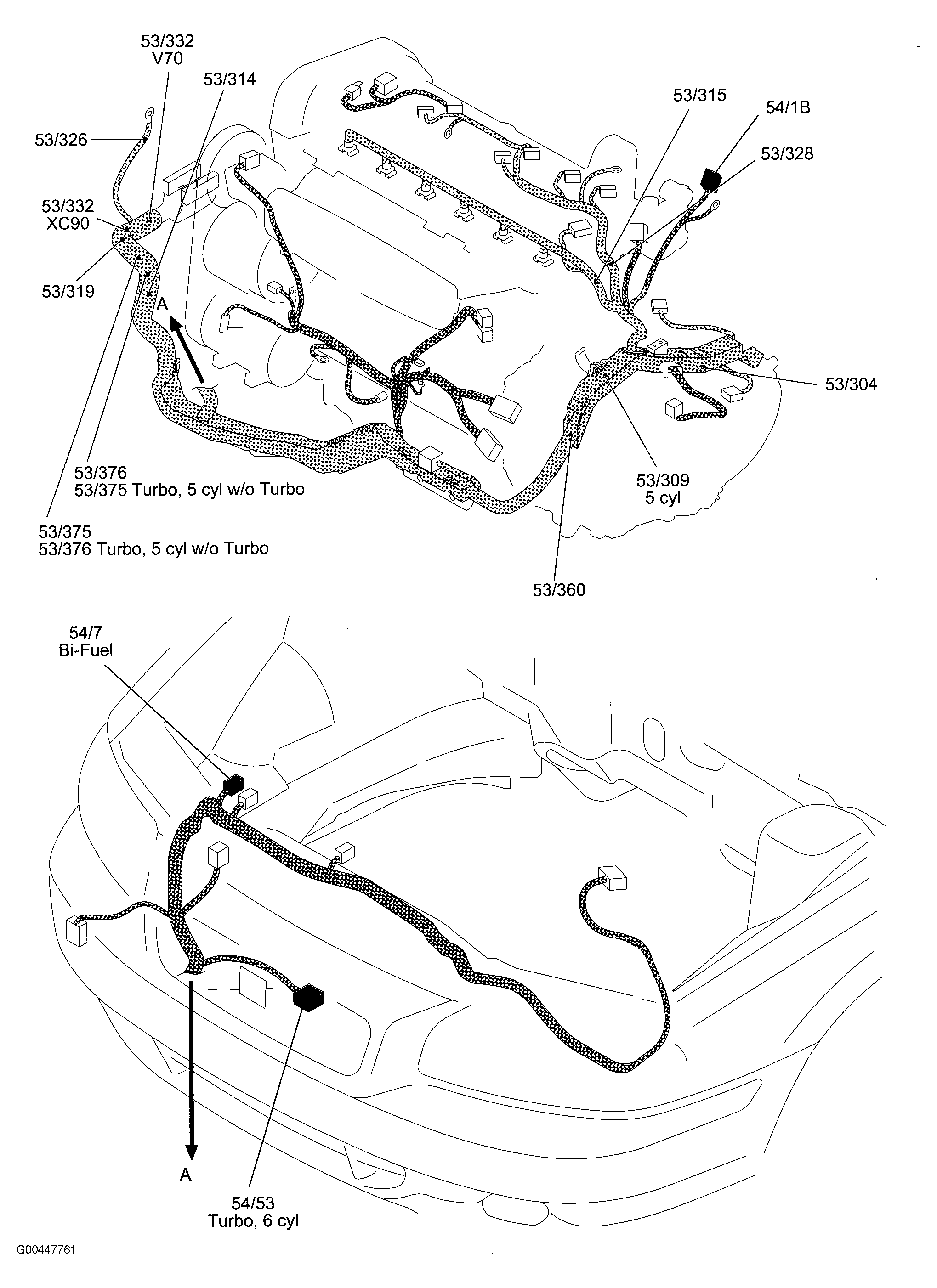

Fig 1: Engine (Except 6-Cyl.)
G00447761Courtesy of VOLVO CARS OF NORTH AMERICA.

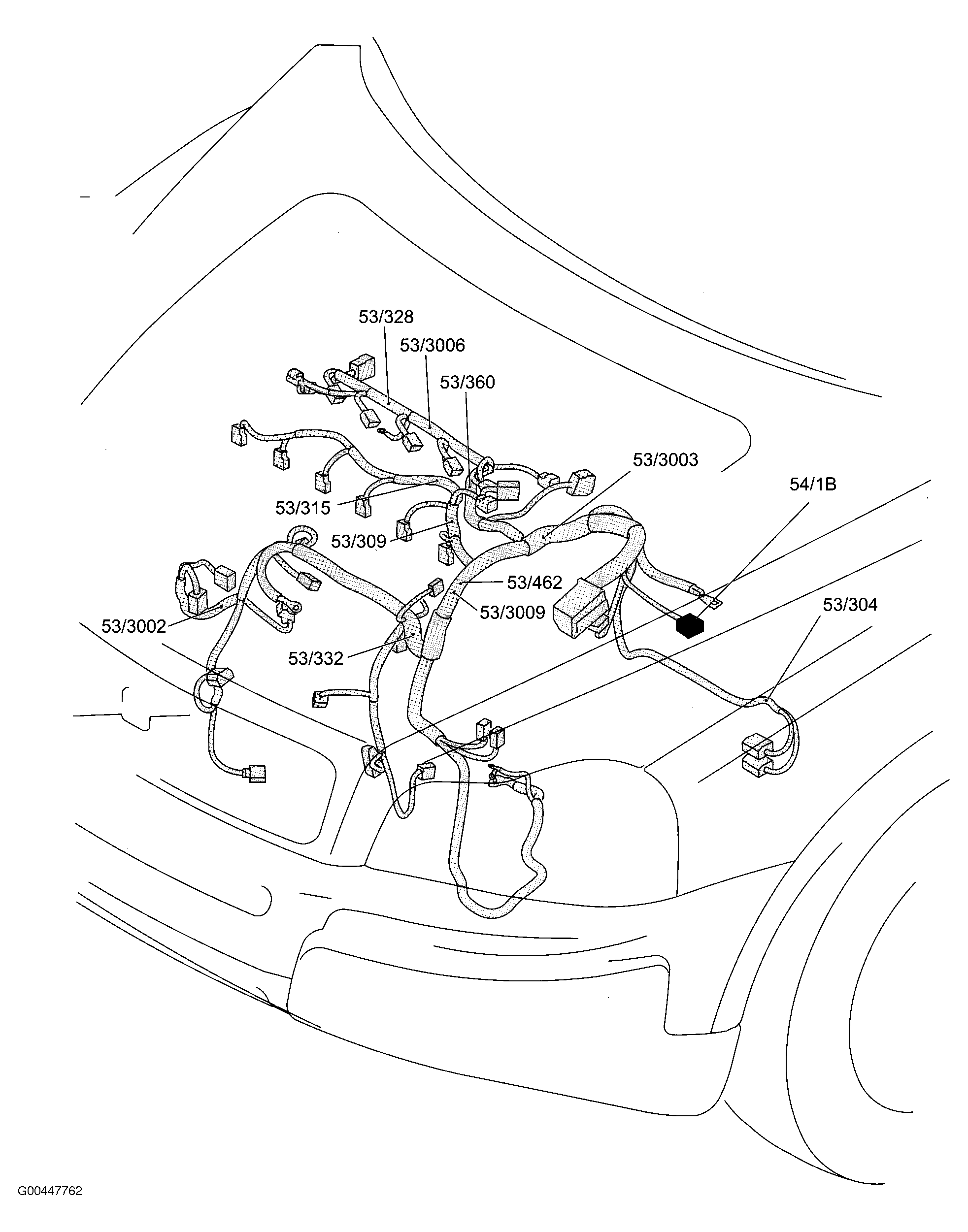

Fig 2: Engine (6-Cyl.)
G00447762Courtesy of VOLVO CARS OF NORTH AMERICA.

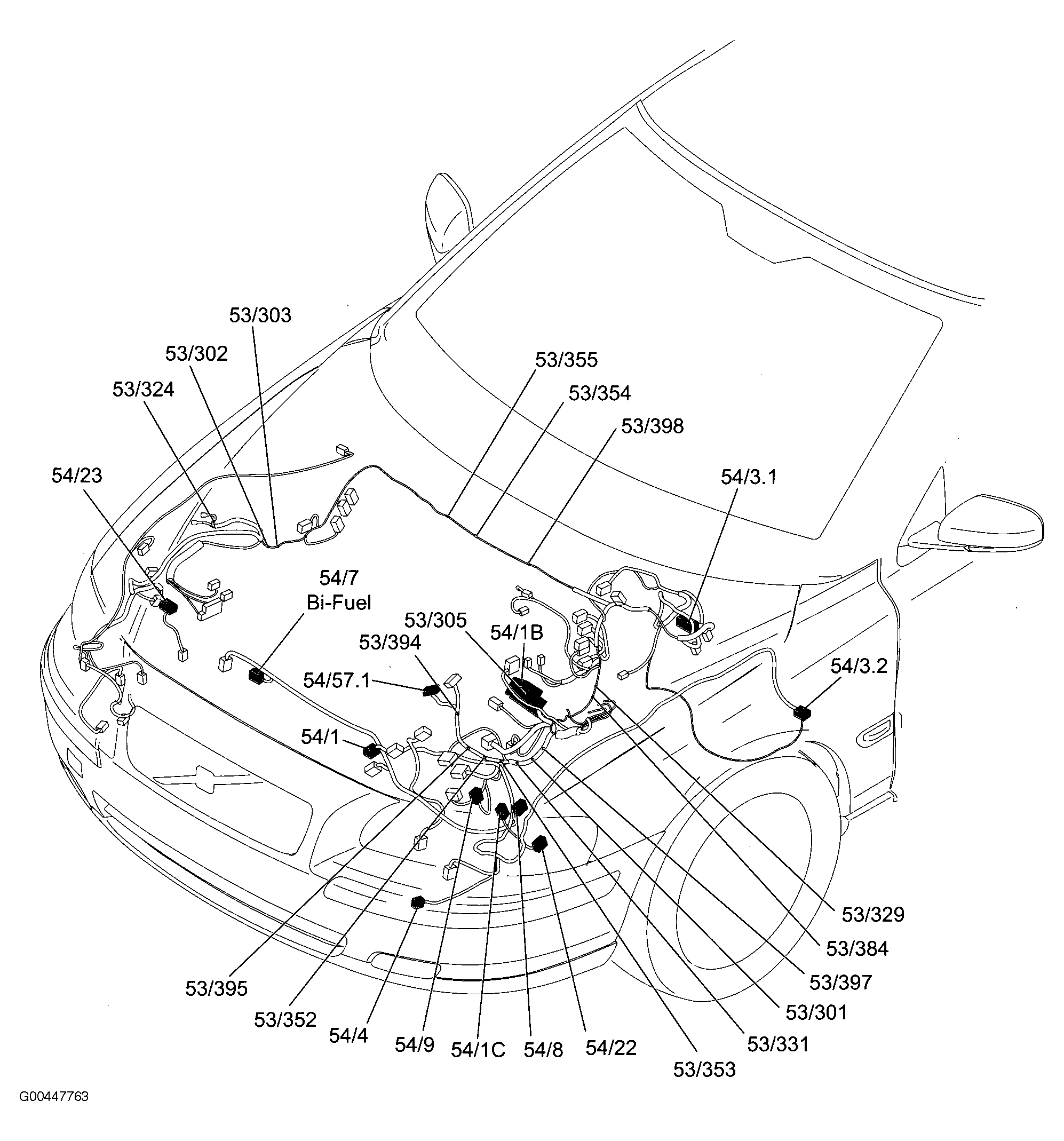

Fig 3: Engine Compartment (V70)
G00447763Courtesy of VOLVO CARS OF NORTH AMERICA.

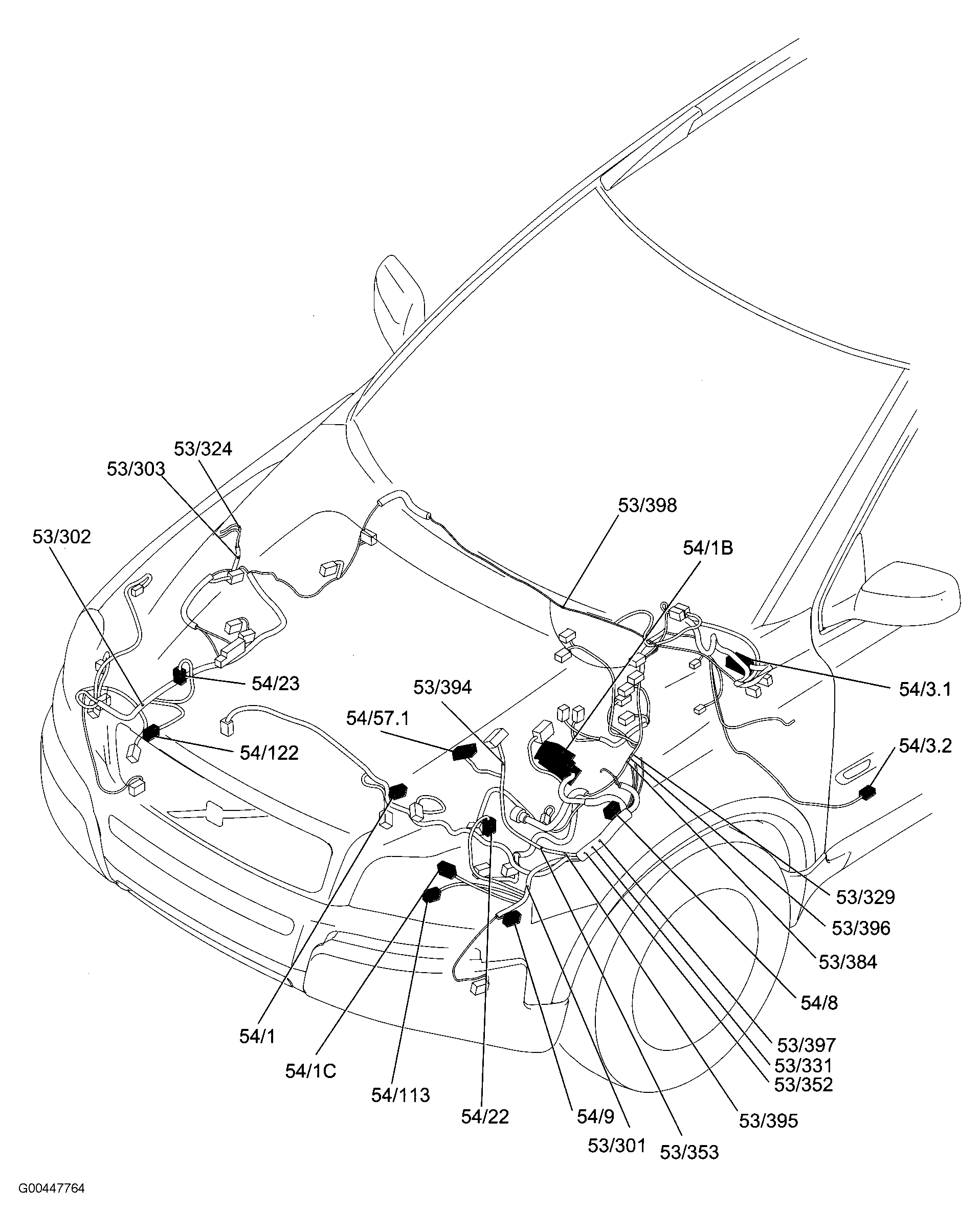

Fig 4: Engine Compartment (XC90)
G00447764Courtesy of VOLVO CARS OF NORTH AMERICA.

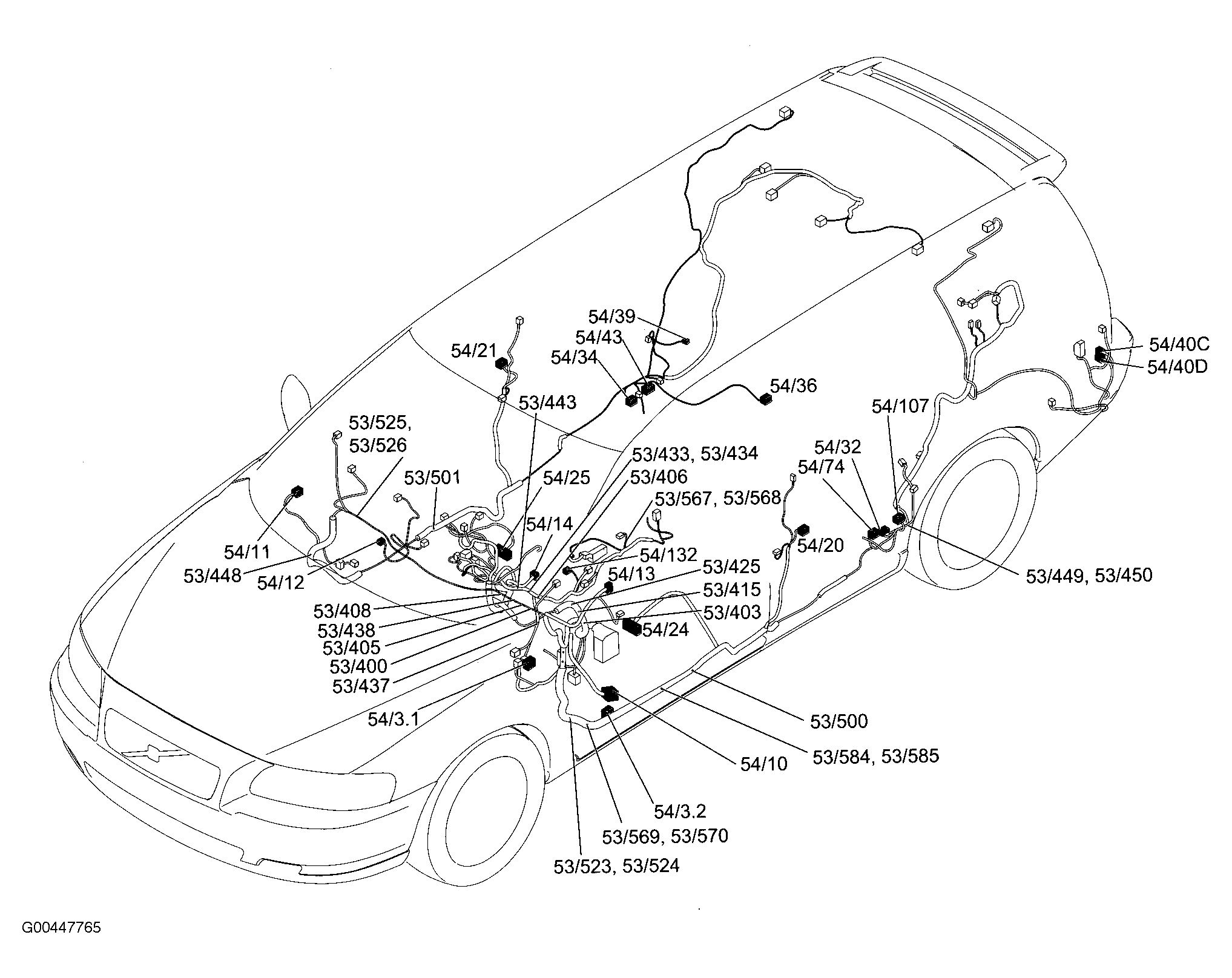

Fig 5: Vehicle Overview (V70)
G00447765Courtesy of VOLVO CARS OF NORTH AMERICA.

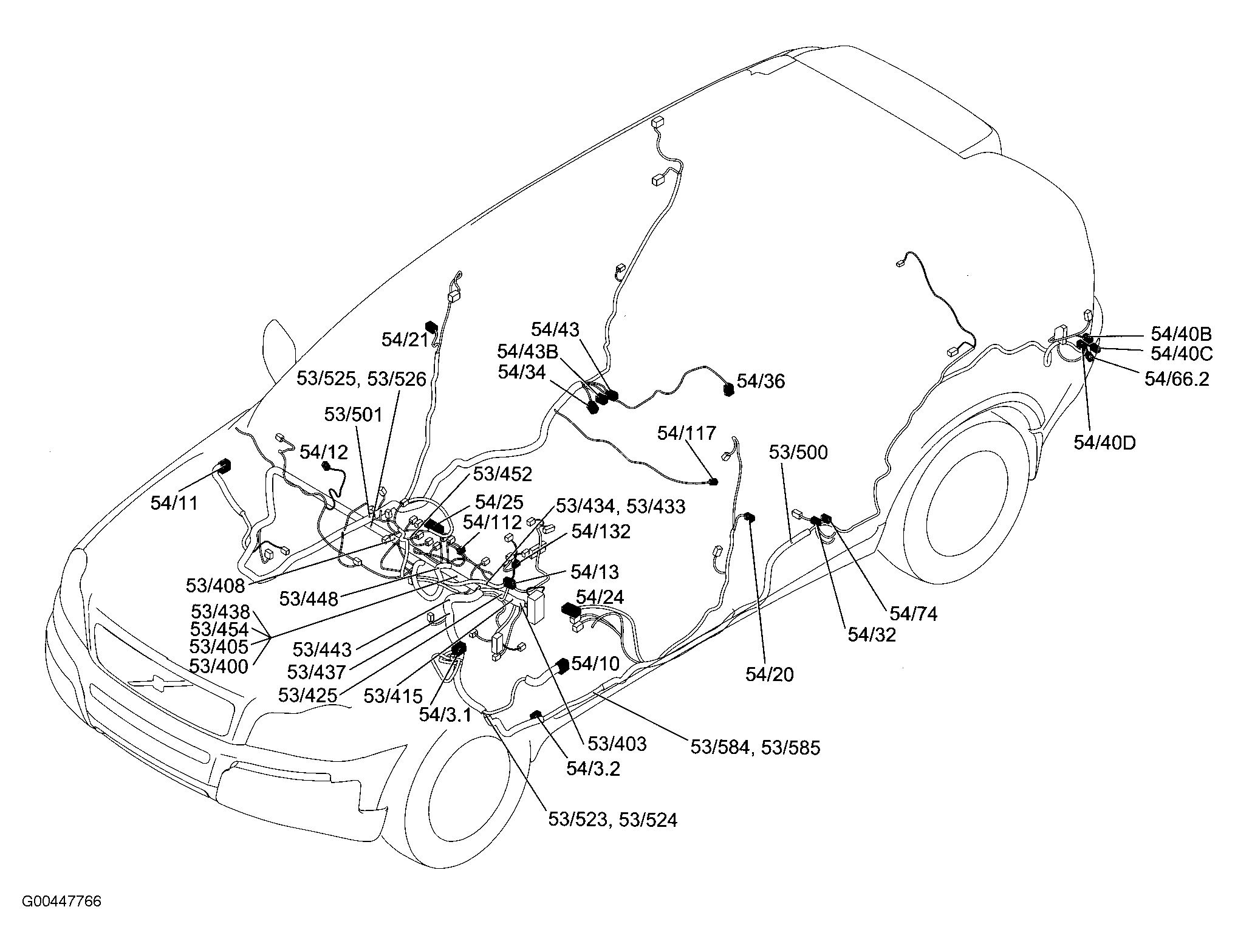

Fig 6: Vehicle Overview (XC90)
G00447766Courtesy of VOLVO CARS OF NORTH AMERICA.

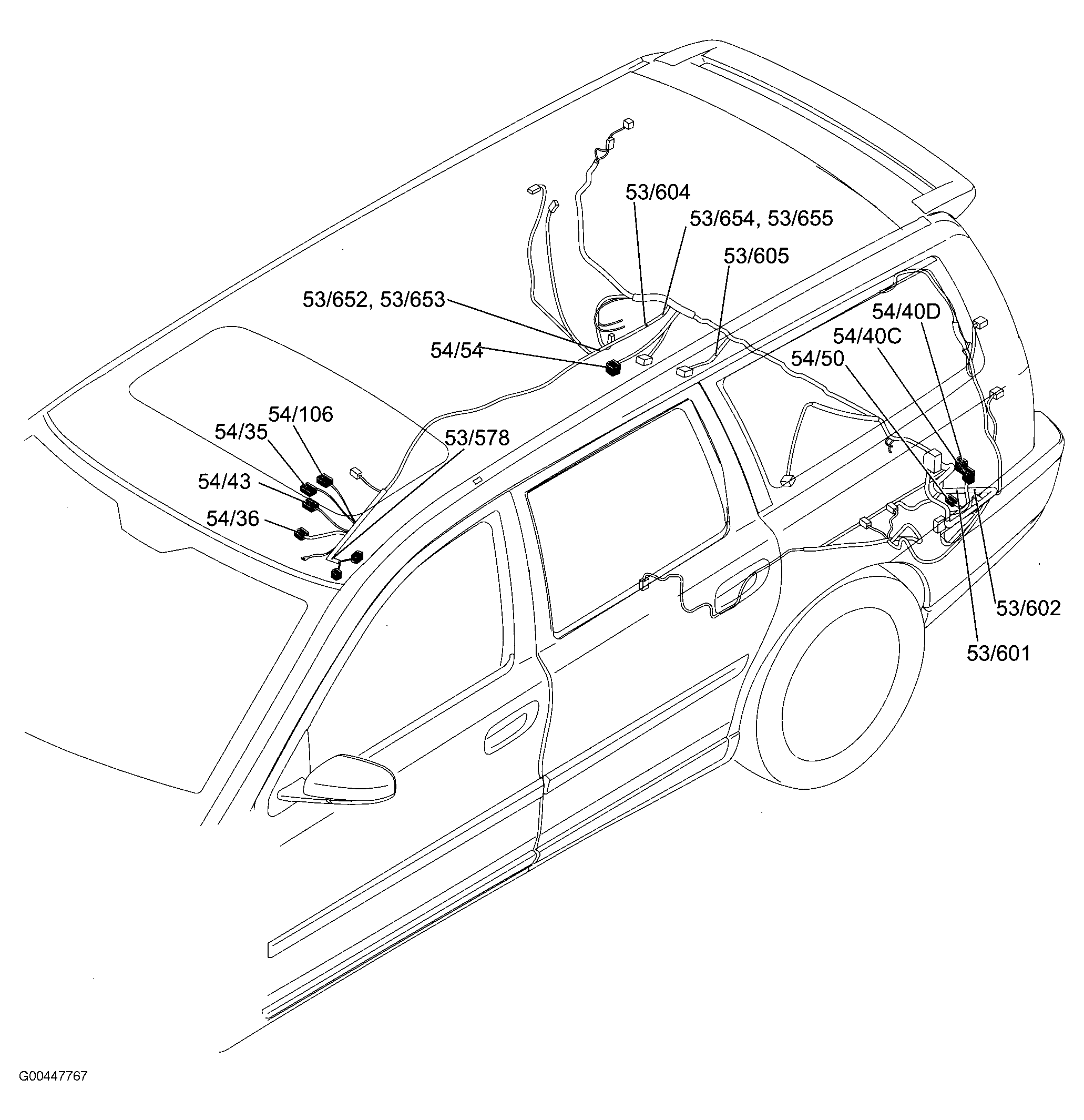

Fig 7: Rear Of Vehicle (V70)
G00447767Courtesy of VOLVO CARS OF NORTH AMERICA.

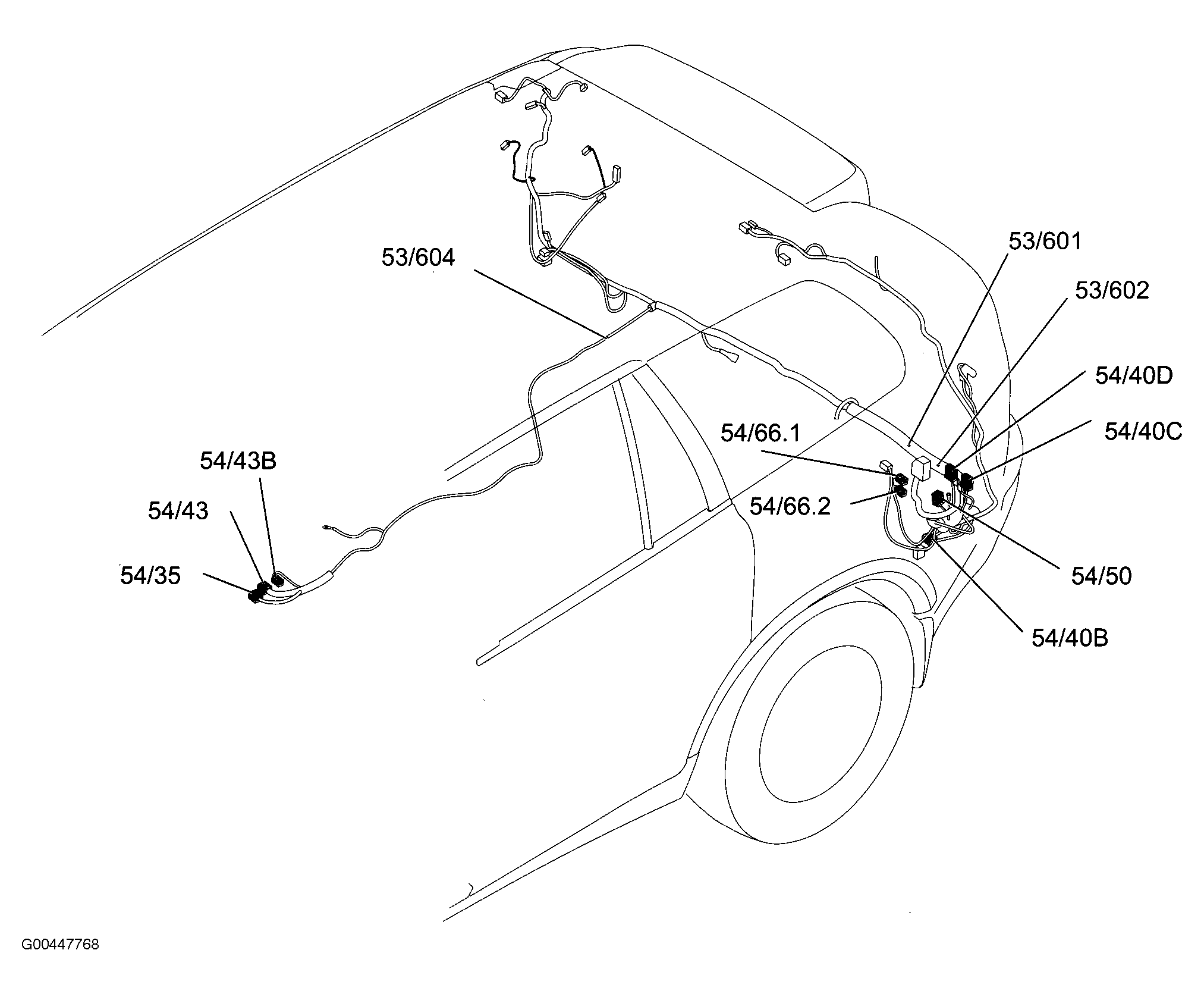

Fig 8: Rear Of Vehicle (XC90)
G00447768Courtesy of VOLVO CARS OF NORTH AMERICA.

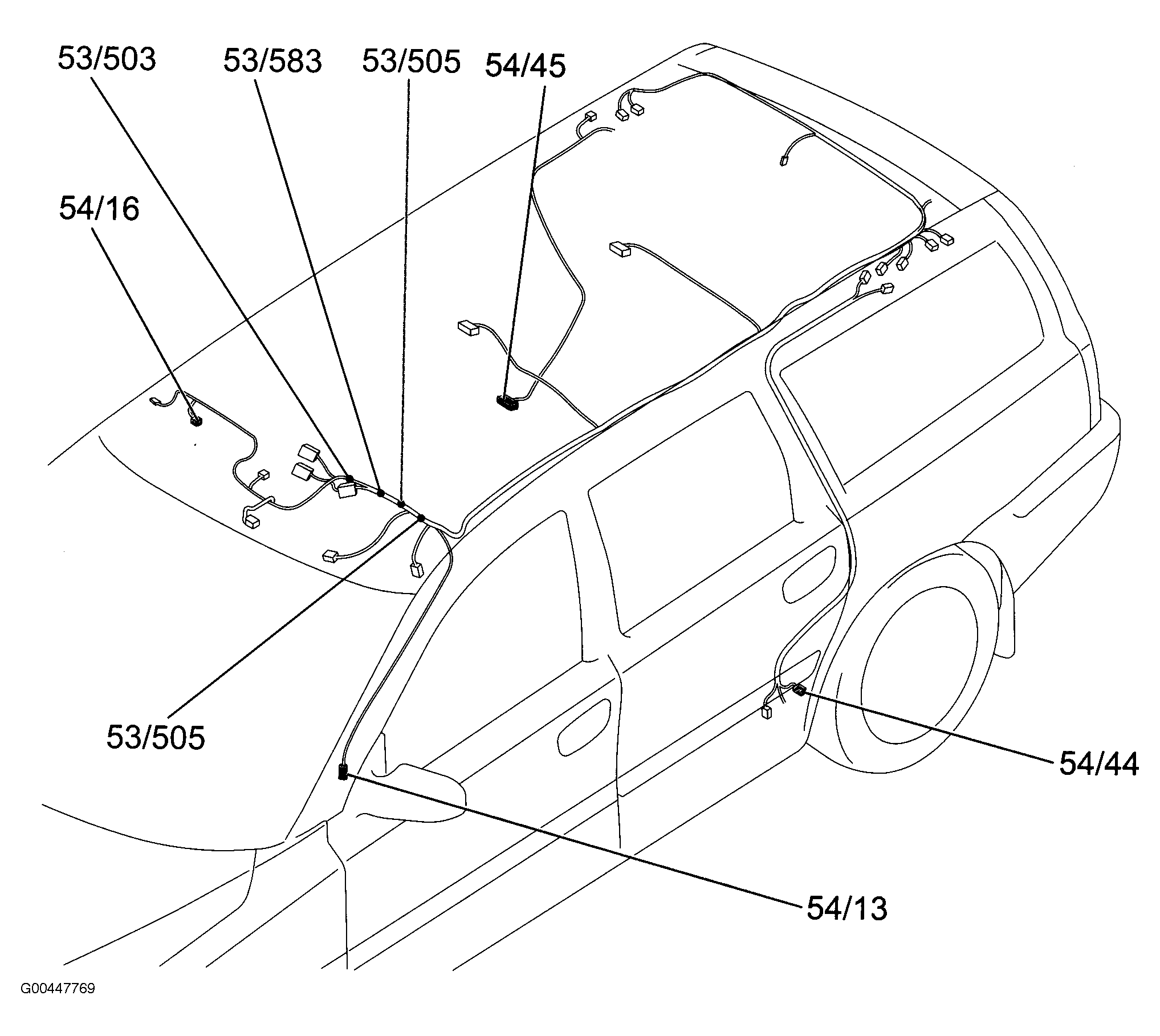

Fig 9: Roof (V70)
G00447769Courtesy of VOLVO CARS OF NORTH AMERICA.

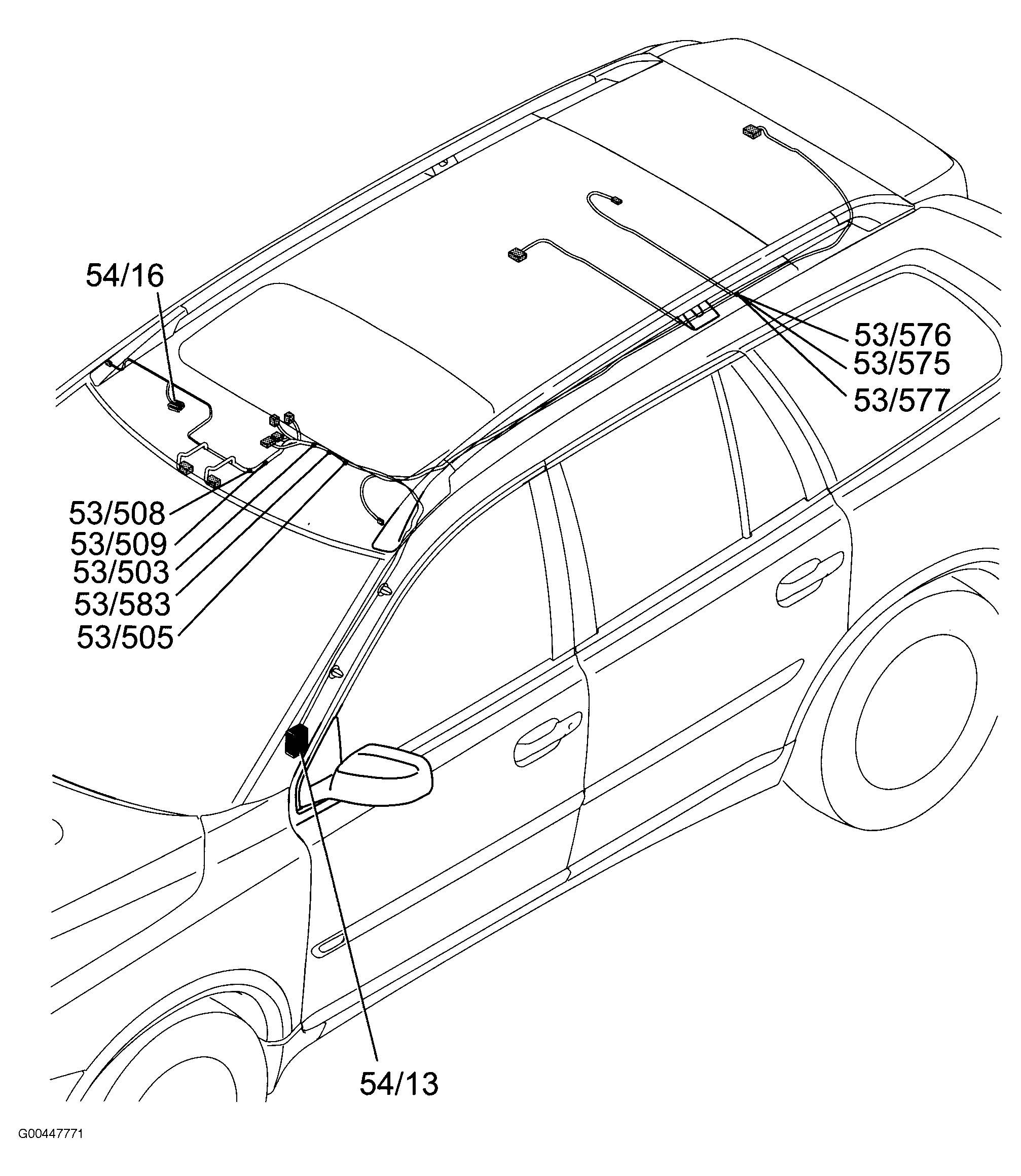

Fig 10: Roof (XC90)
G00447771Courtesy of VOLVO CARS OF NORTH AMERICA.

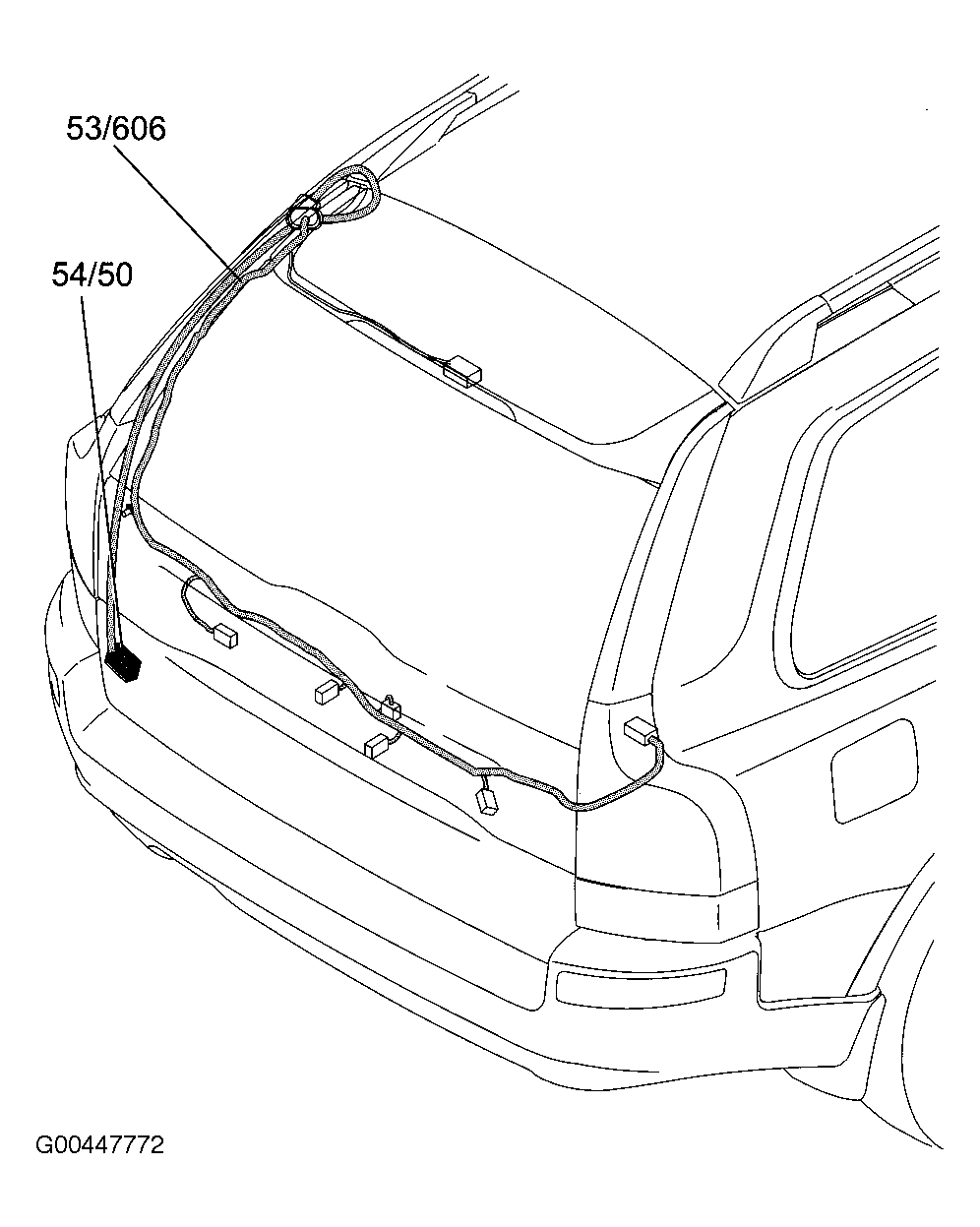

Fig 11: Tailgate (XC90)
G00447772Courtesy of VOLVO CARS OF NORTH AMERICA.

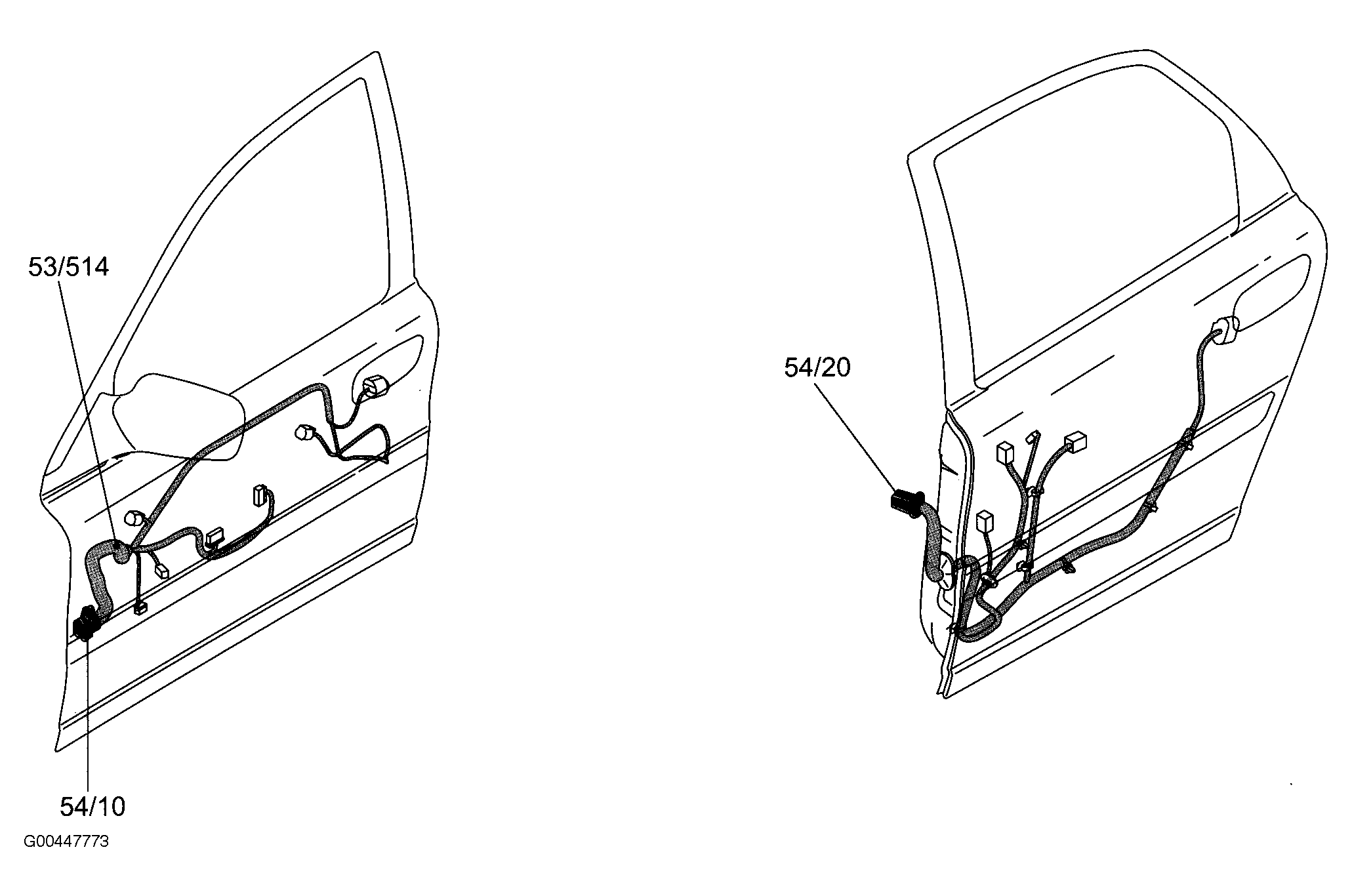

Fig 12: Left Front Door (V70)
G00447773Courtesy of VOLVO CARS OF NORTH AMERICA.

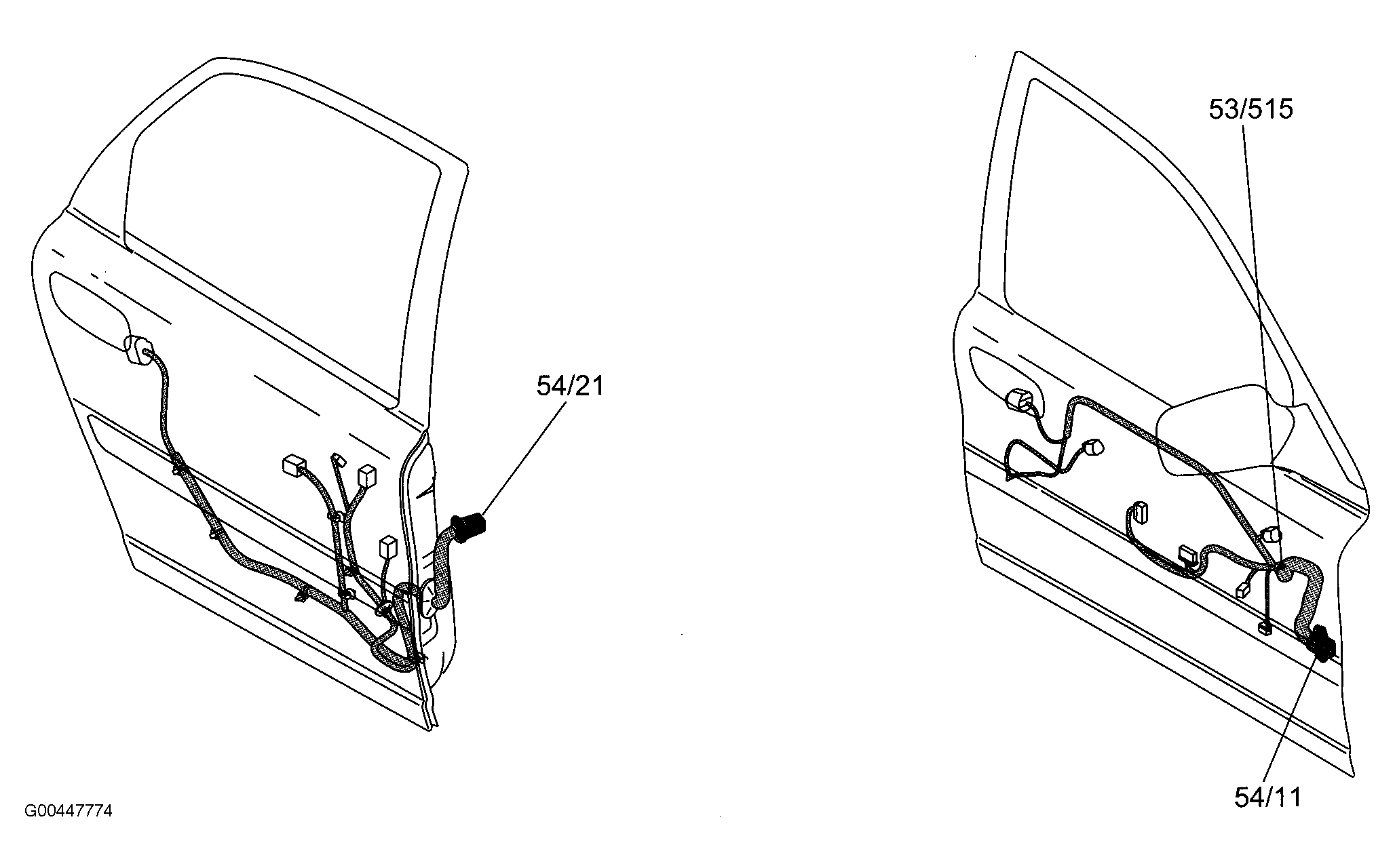

Fig 13: Right Front Door (V70)
G00447774Courtesy of VOLVO CARS OF NORTH AMERICA.

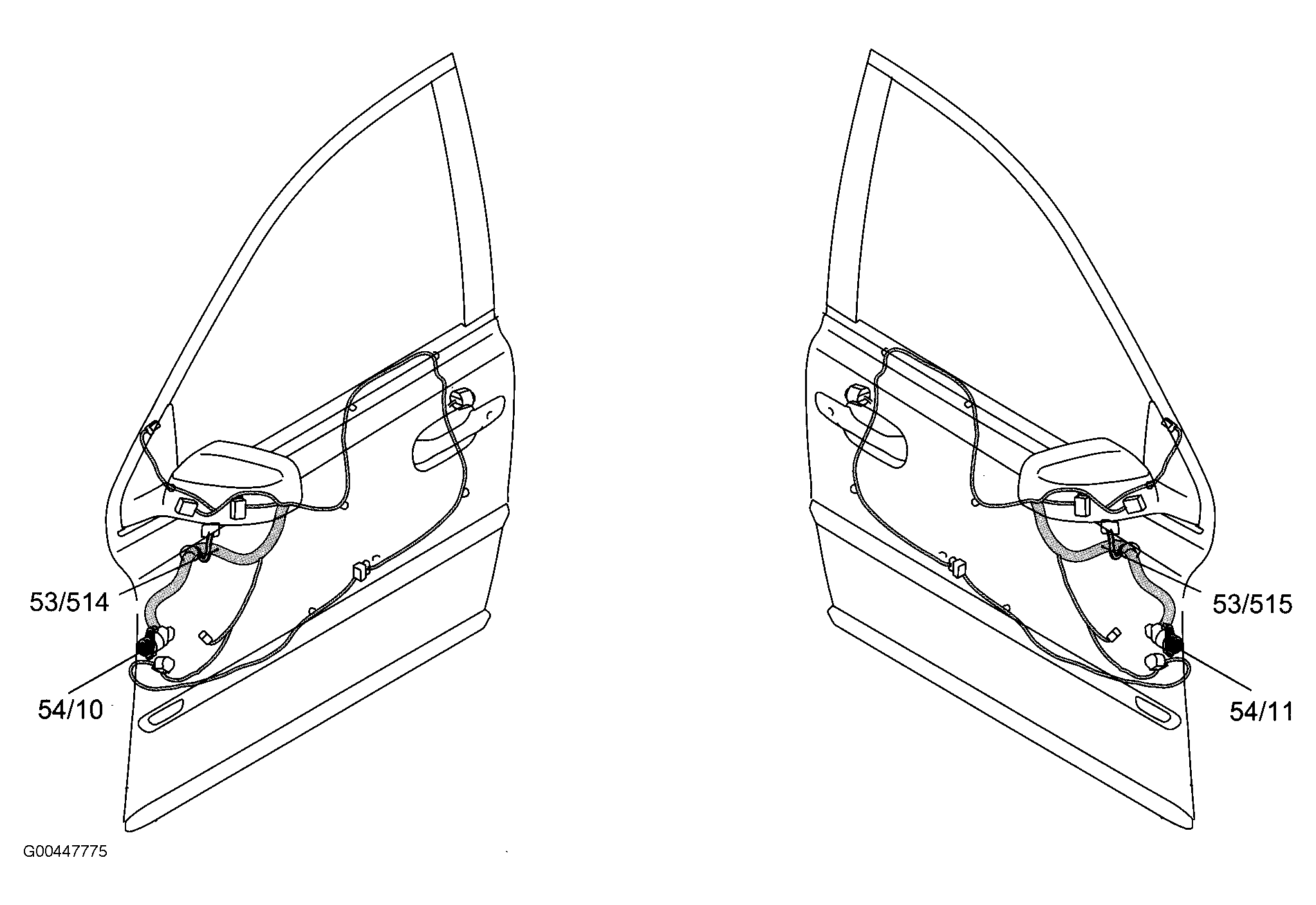

Fig 14: Front Doors (XC90)
G00447775Courtesy of VOLVO CARS OF NORTH AMERICA.

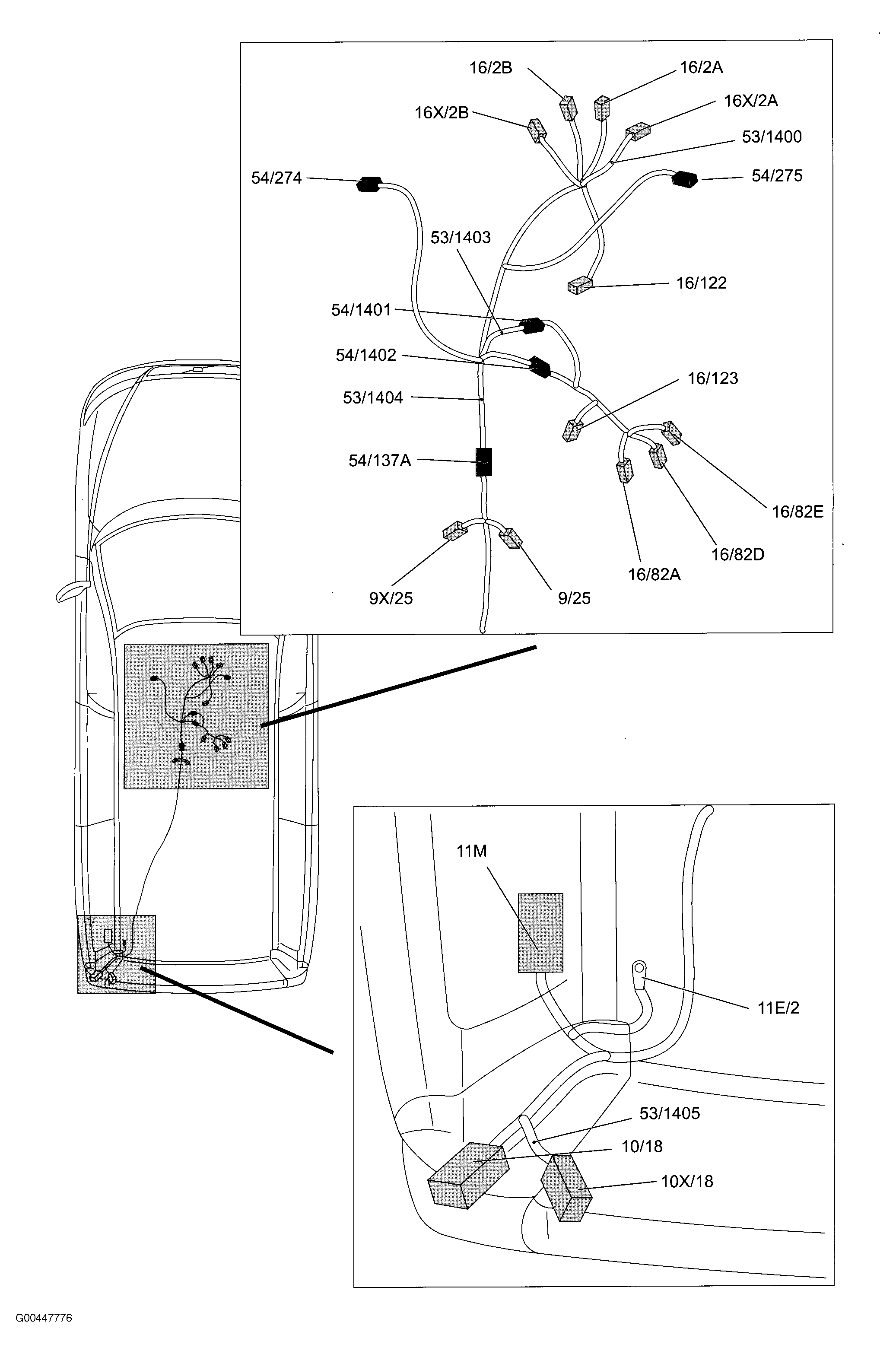

Fig 15: Vehicle Overview (V70)
G00447776Courtesy of VOLVO CARS OF NORTH AMERICA.

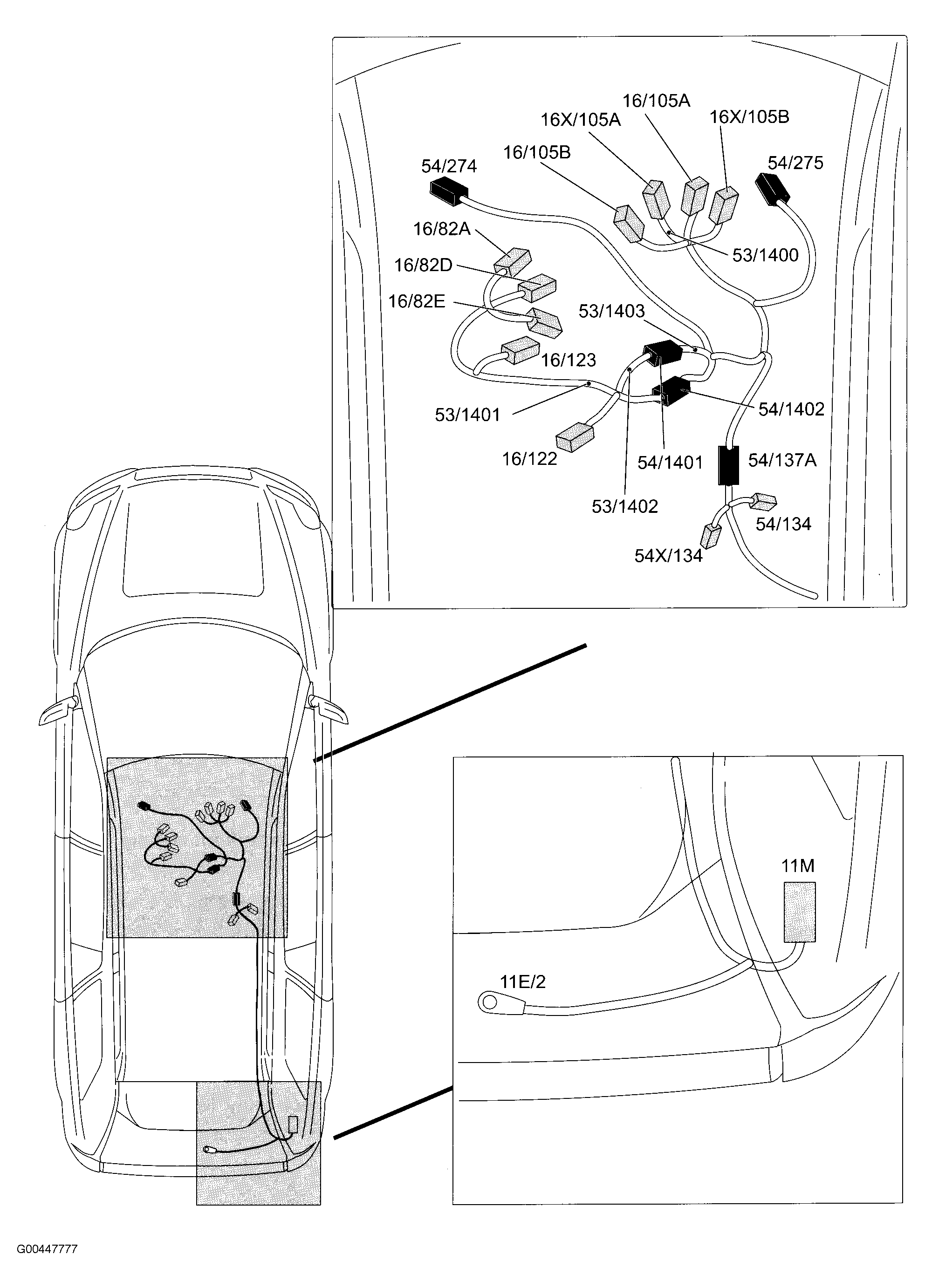

Fig 16: Vehicle Overview (XC90)
G00447777Courtesy of VOLVO CARS OF NORTH AMERICA.

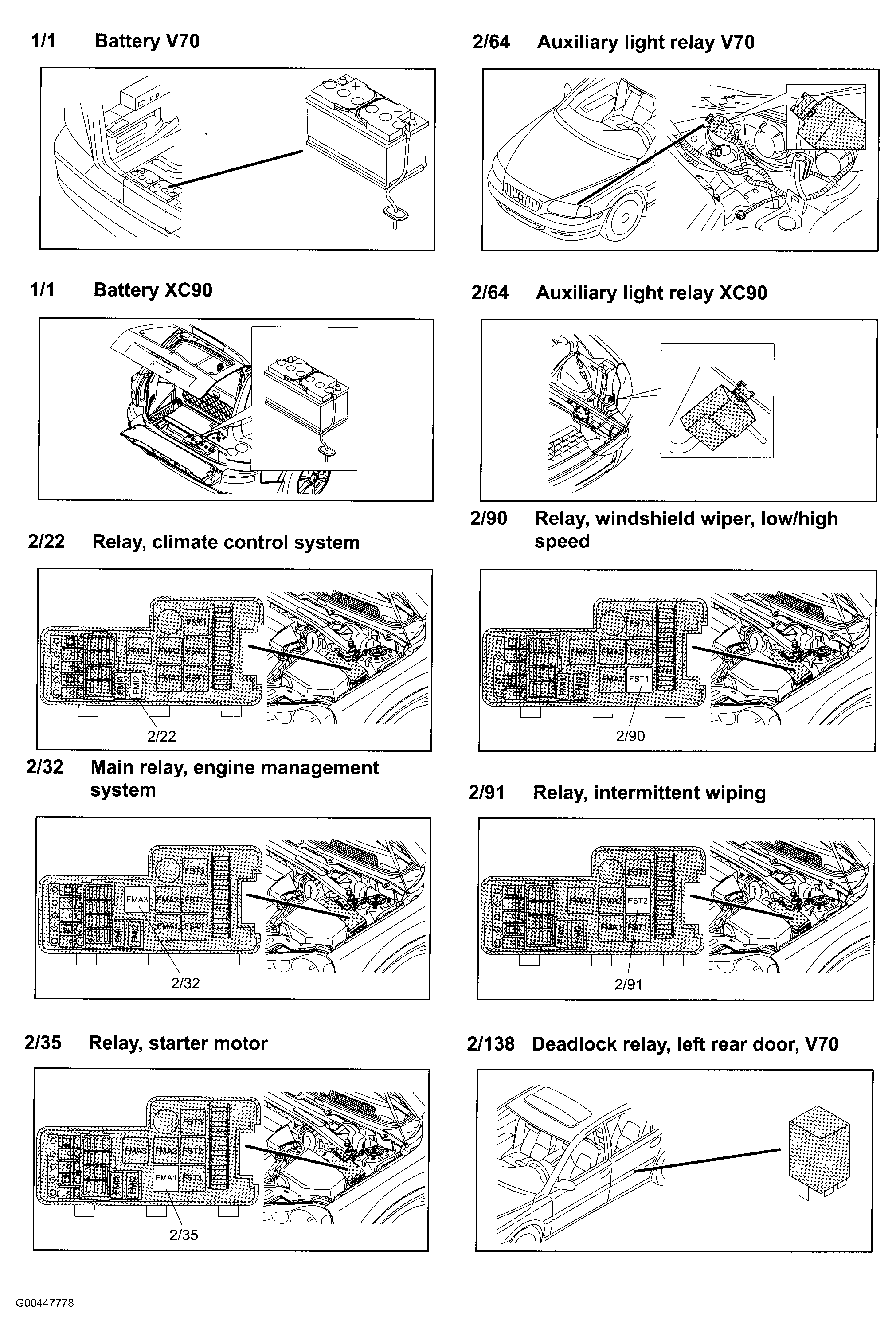

Fig 17: Components (1/1 To 2/138)
G00447778Courtesy of VOLVO CARS OF NORTH AMERICA.

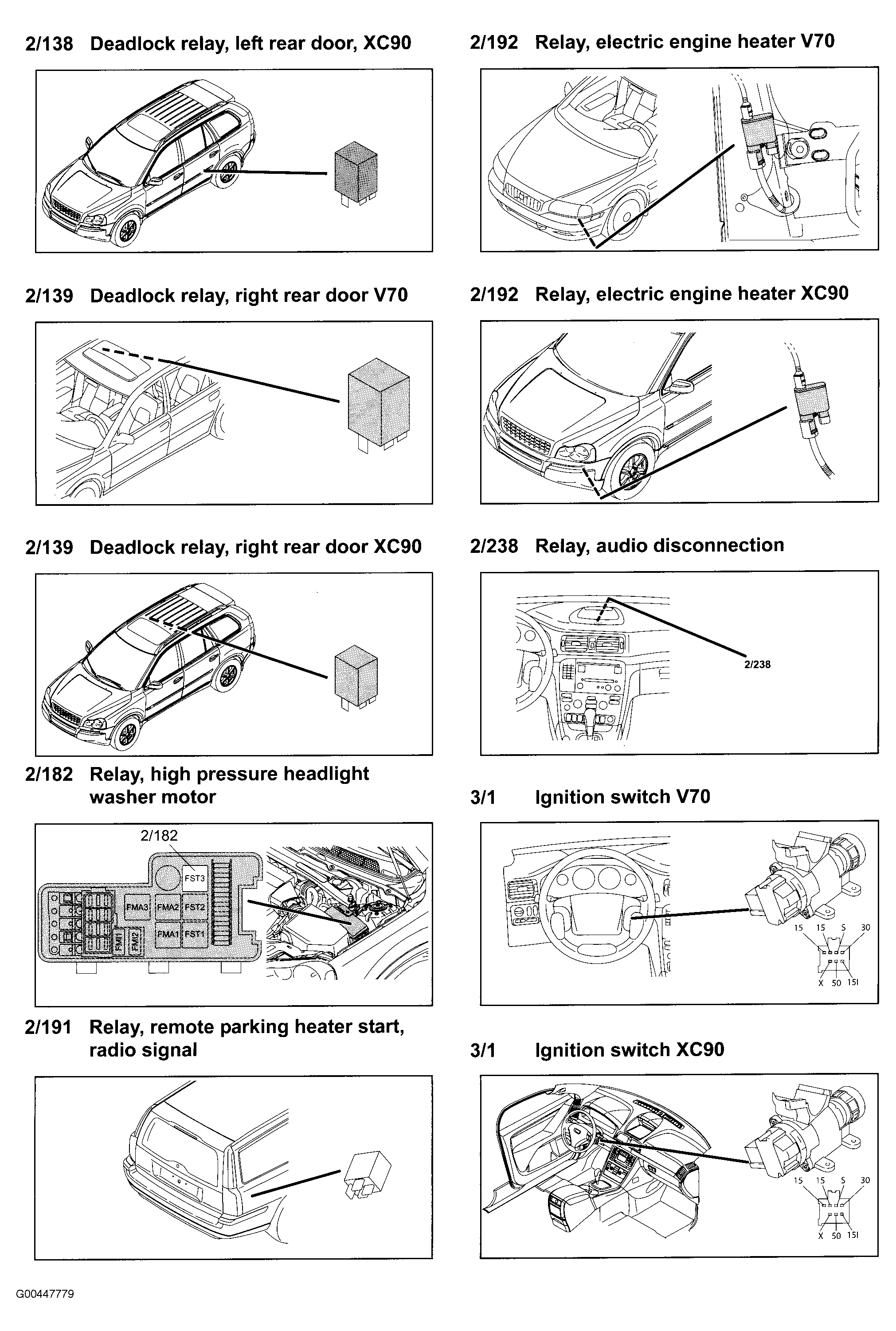

Fig 18: Components (2/138 To 3/1)
G00447779Courtesy of VOLVO CARS OF NORTH AMERICA.

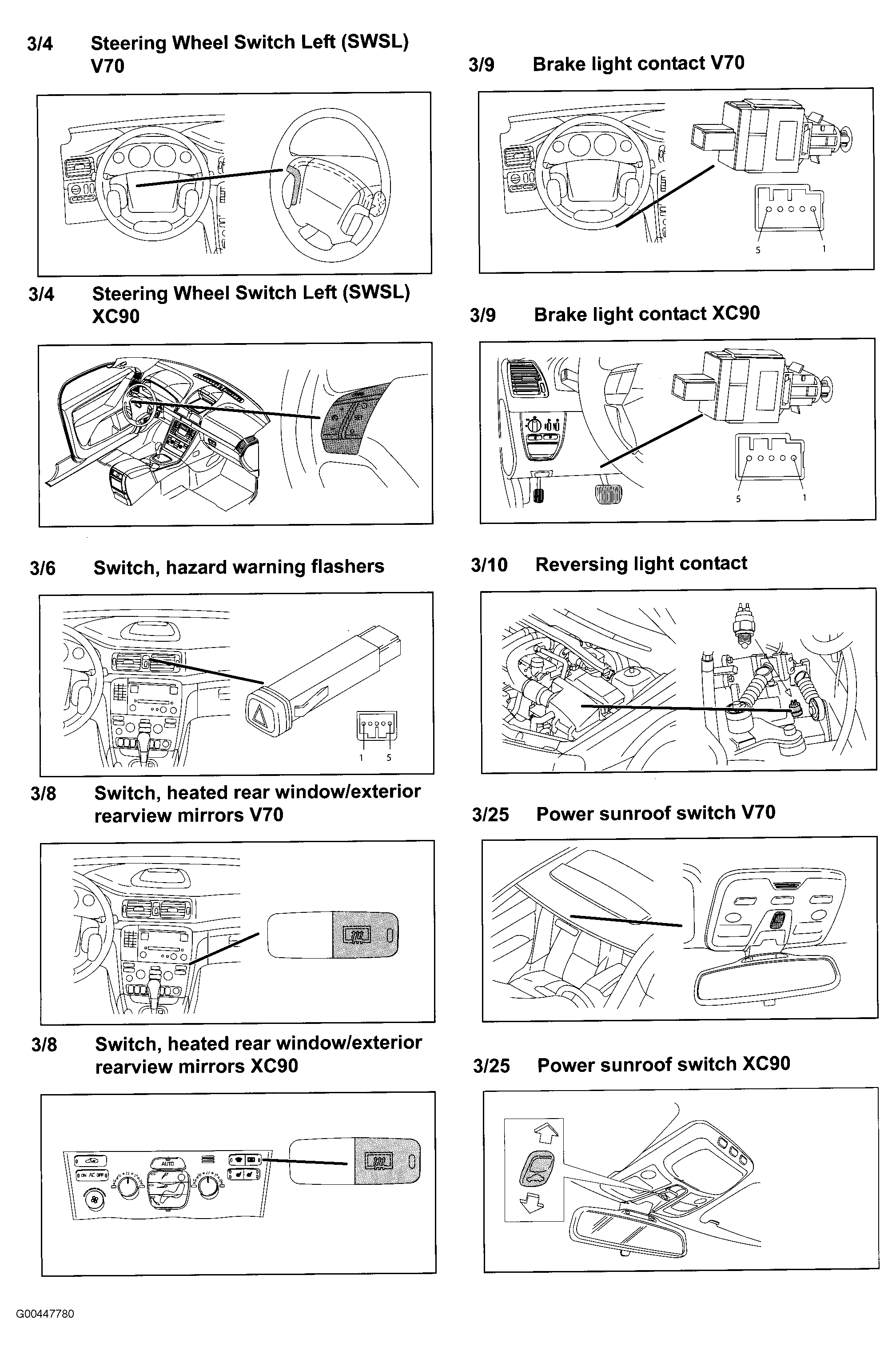

Fig 19: Components (3/4 To 3/25)
G00447780Courtesy of VOLVO CARS OF NORTH AMERICA.

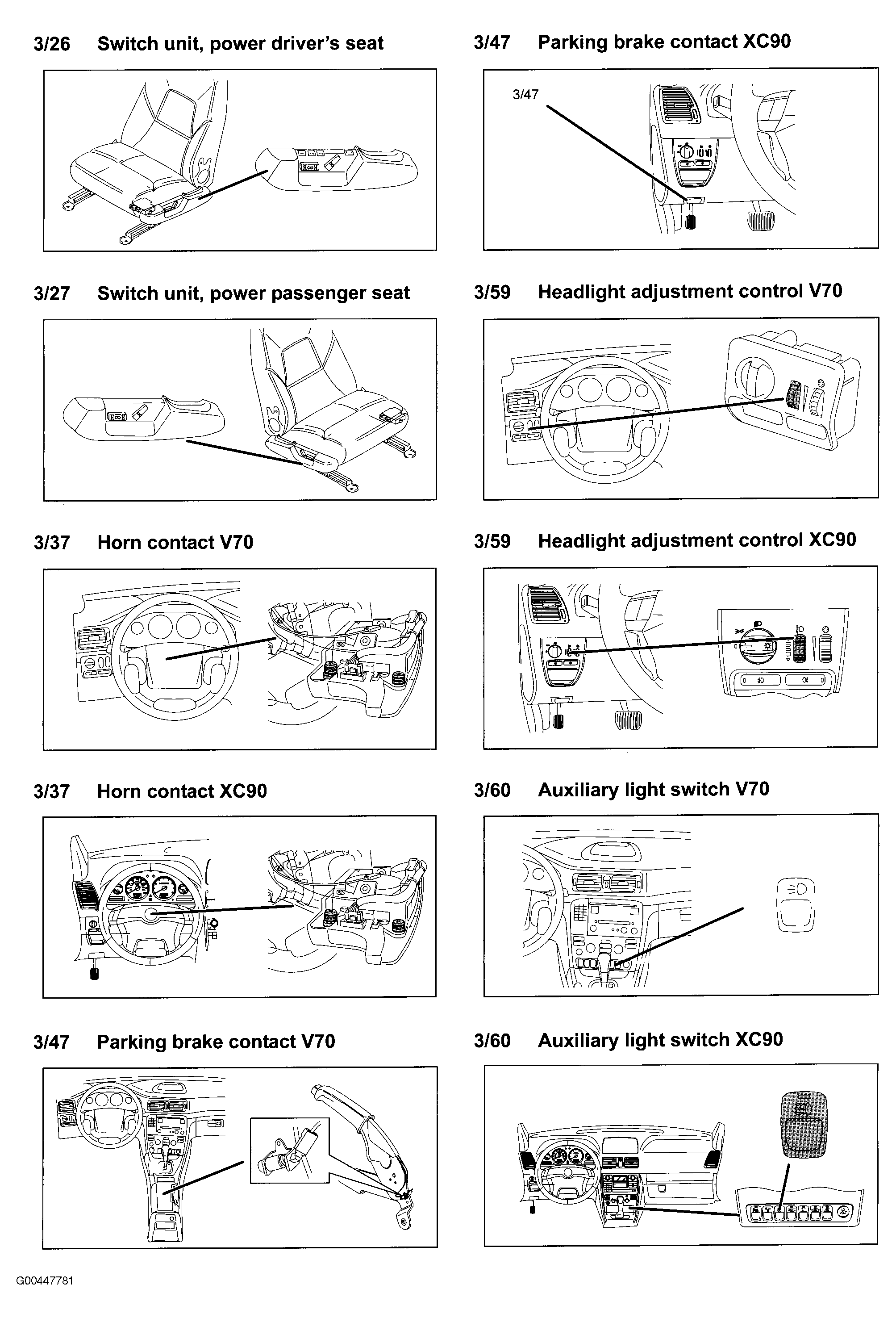

Fig 20: Components (3/26 To 3/60)
G00447781Courtesy of VOLVO CARS OF NORTH AMERICA.

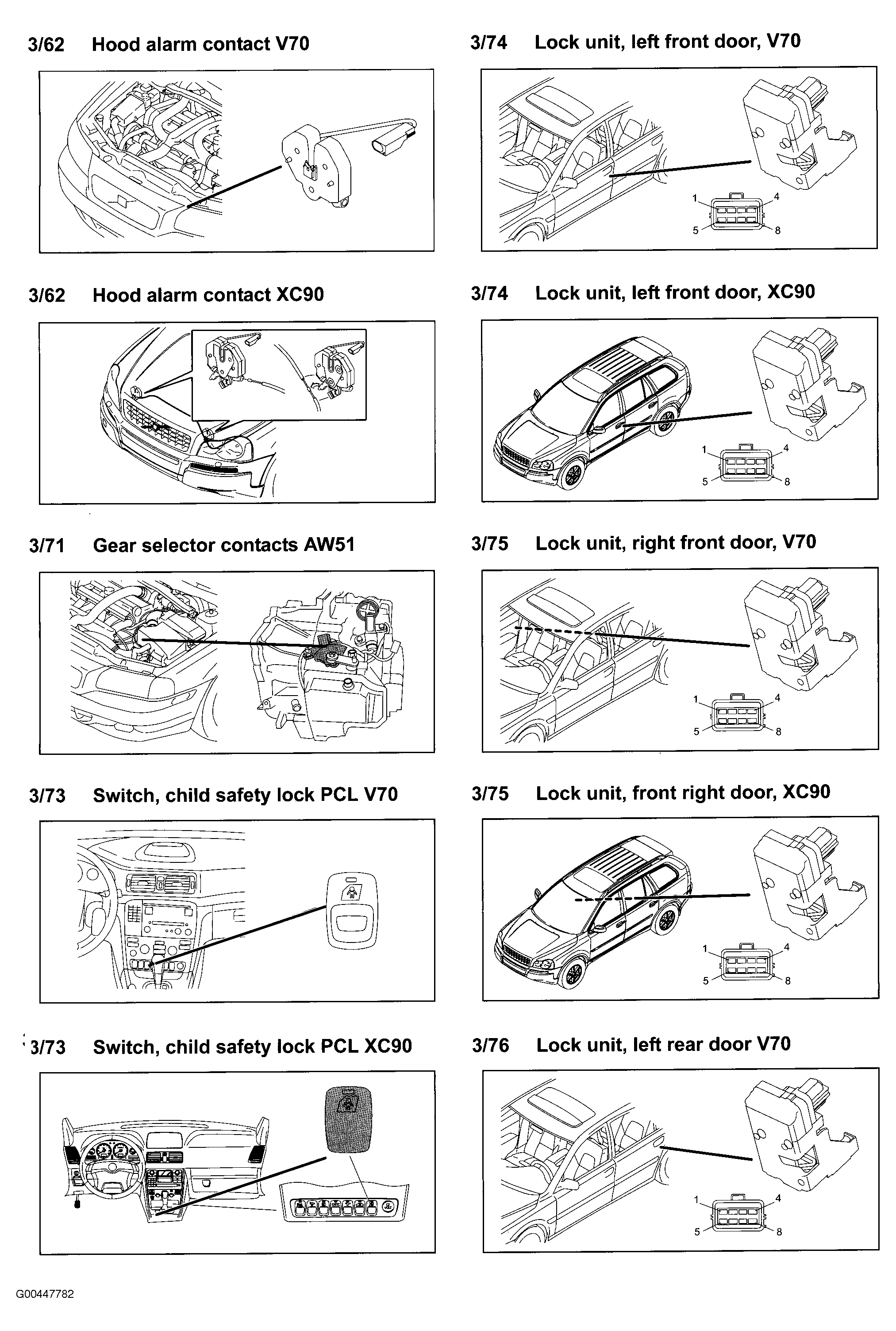

Fig 21: Components (3/62 To 3/76)
G00447782Courtesy of VOLVO CARS OF NORTH AMERICA.

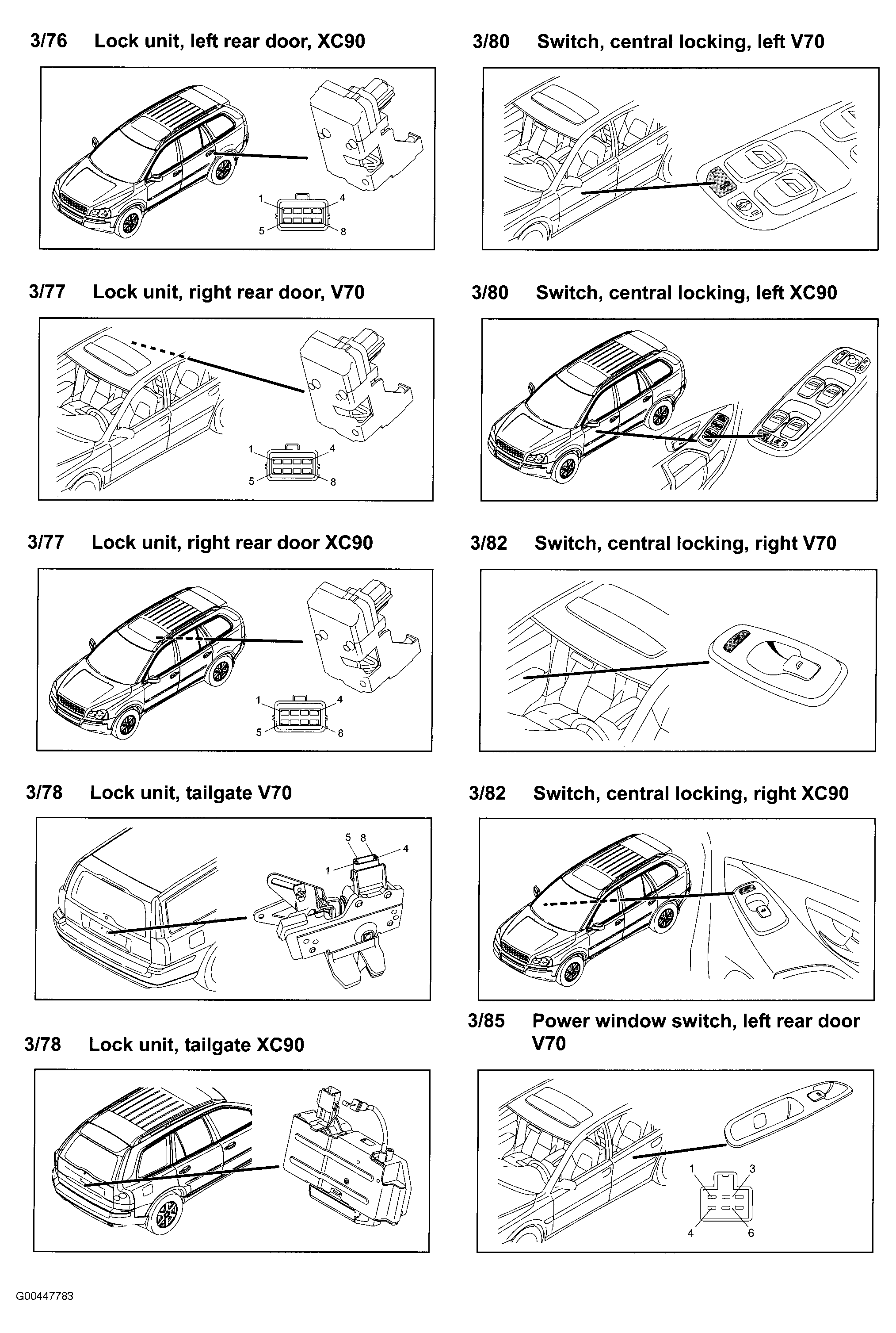

Fig 22: Components (3/76 To 3/85)
G00447783Courtesy of VOLVO CARS OF NORTH AMERICA.

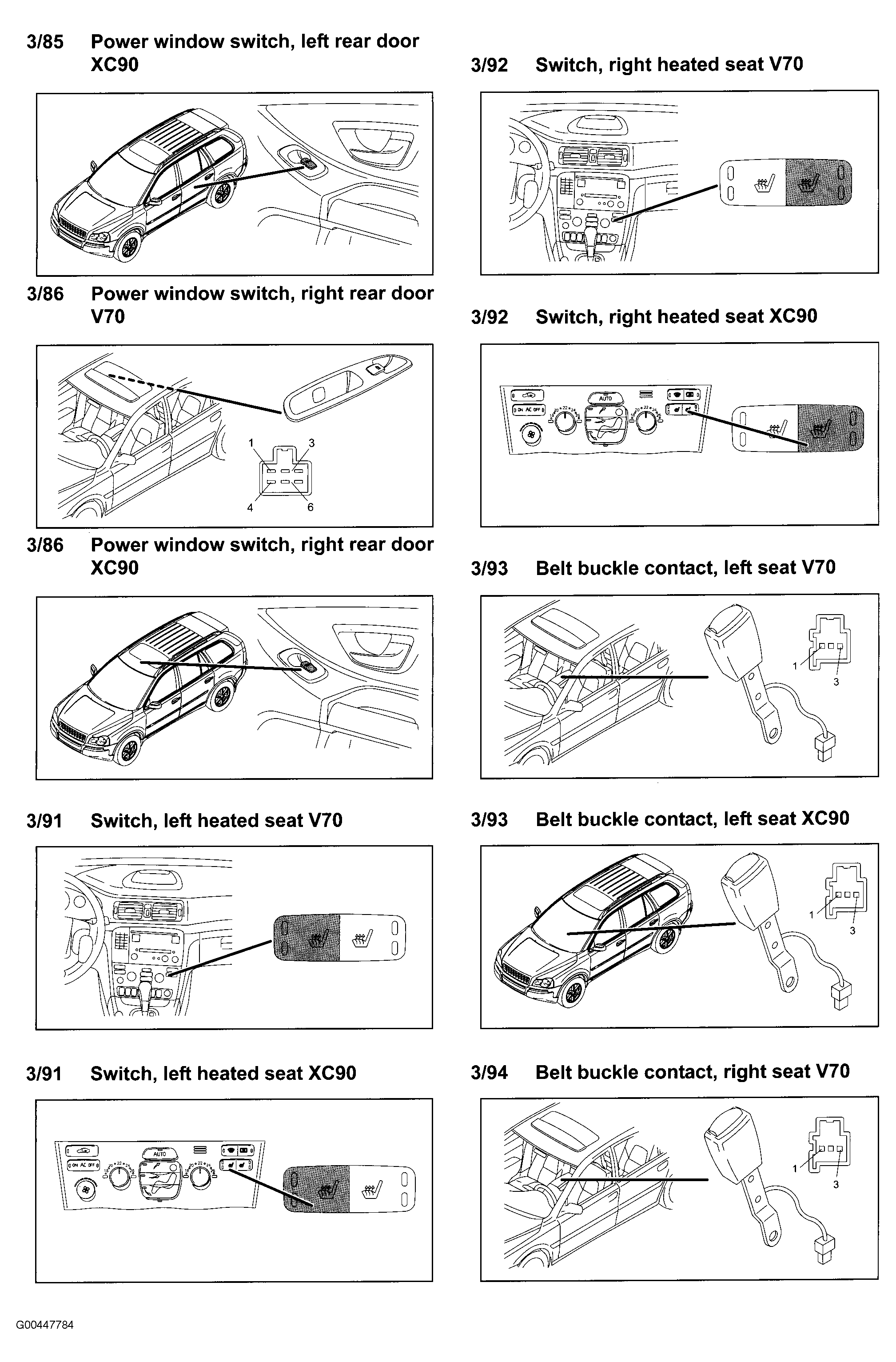

Fig 23: Components (3/85 To 3/94)
G00447784Courtesy of VOLVO CARS OF NORTH AMERICA.

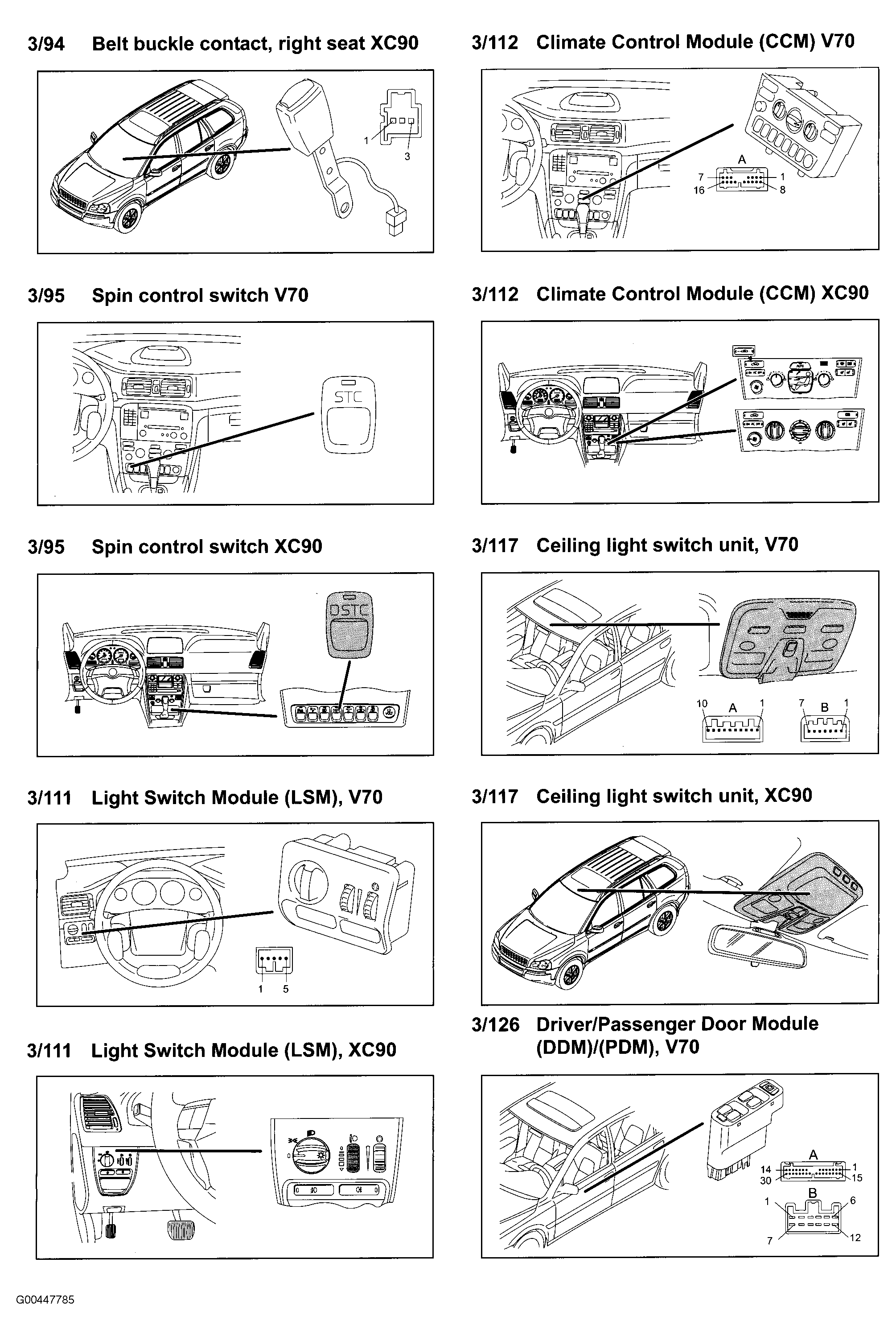

Fig 24: Components (3/94 To 3/126)
G00447785Courtesy of VOLVO CARS OF NORTH AMERICA.

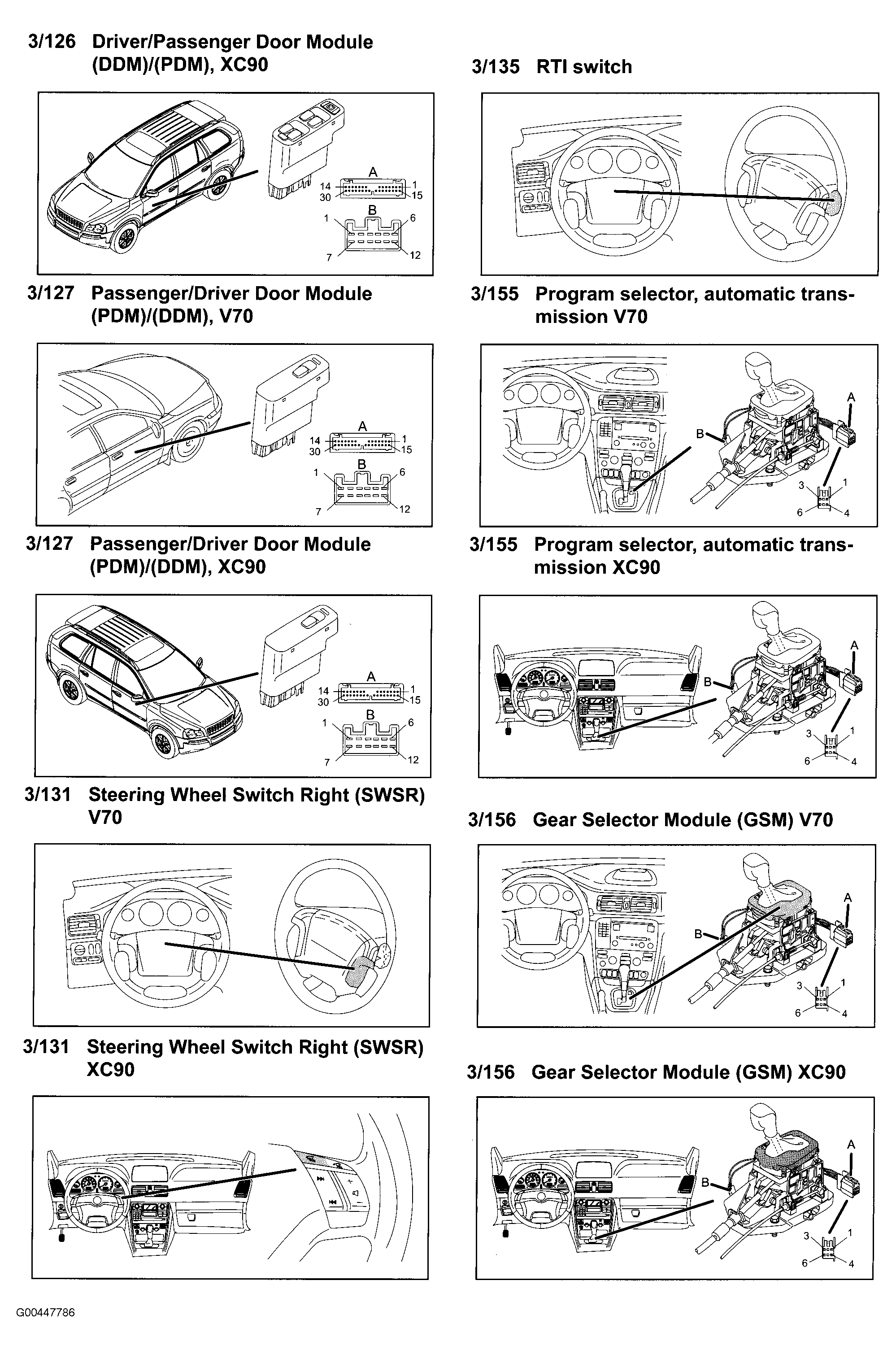

Fig 25: Components (3/126 To 3/156)
G00447786Courtesy of VOLVO CARS OF NORTH AMERICA.

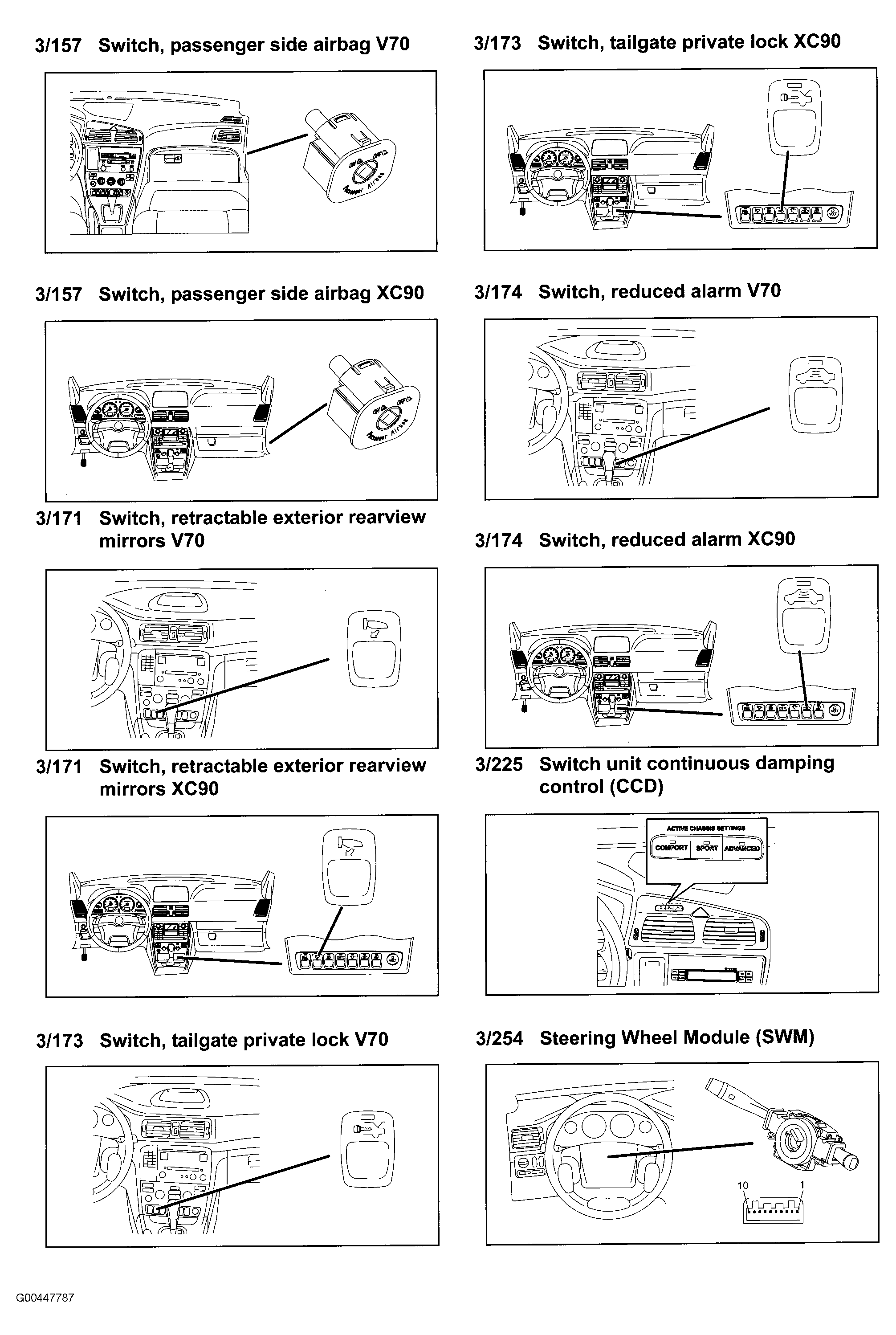

Fig 26: Components (3/157 To 3/254)
G00447787Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 27: Components (3/255 To 4/28)
G00447788Courtesy of VOLVO CARS OF NORTH AMERICA.

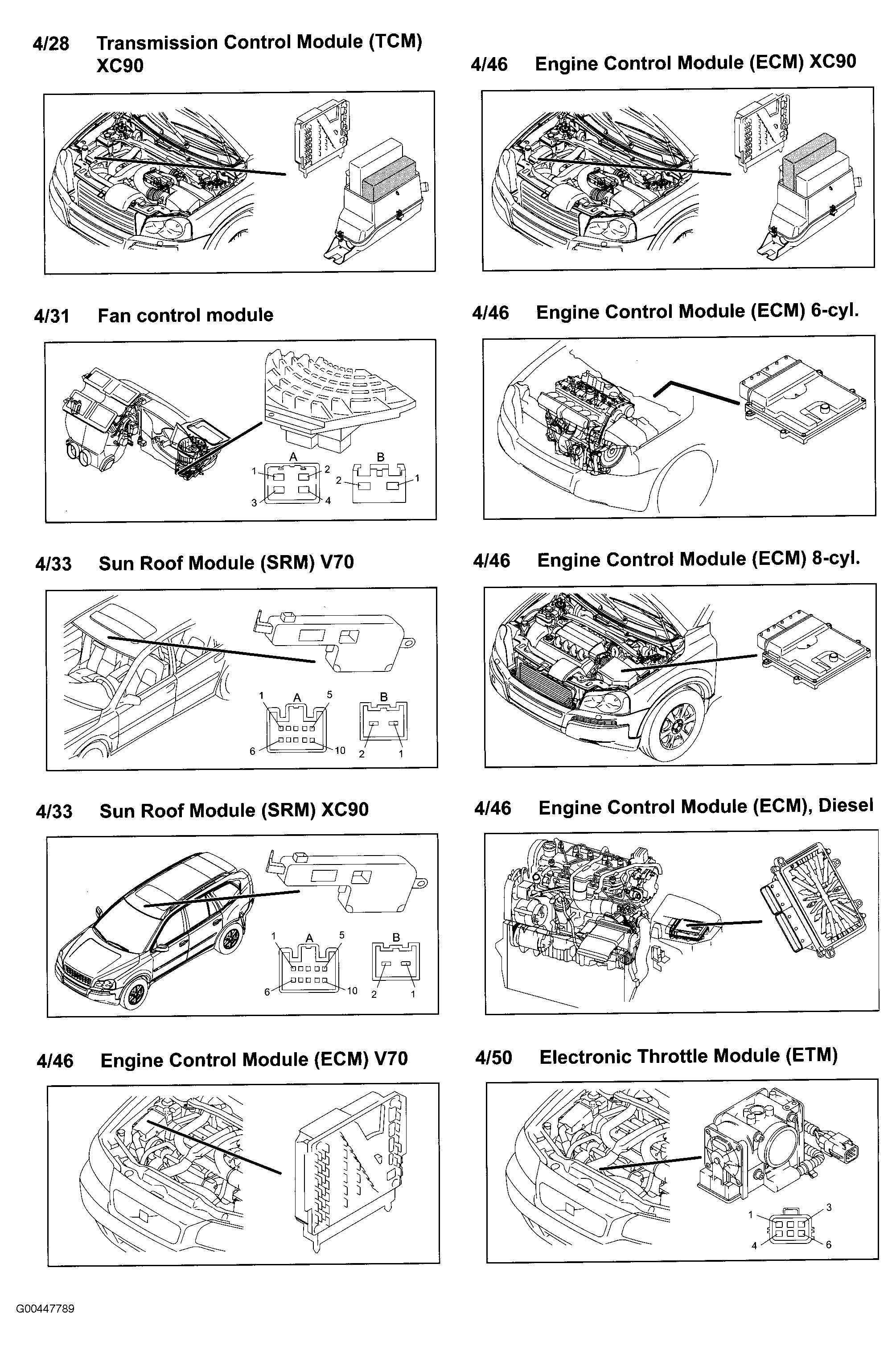

Fig 28: Components (4/28 To 4/50)
G00447789Courtesy of VOLVO CARS OF NORTH AMERICA.

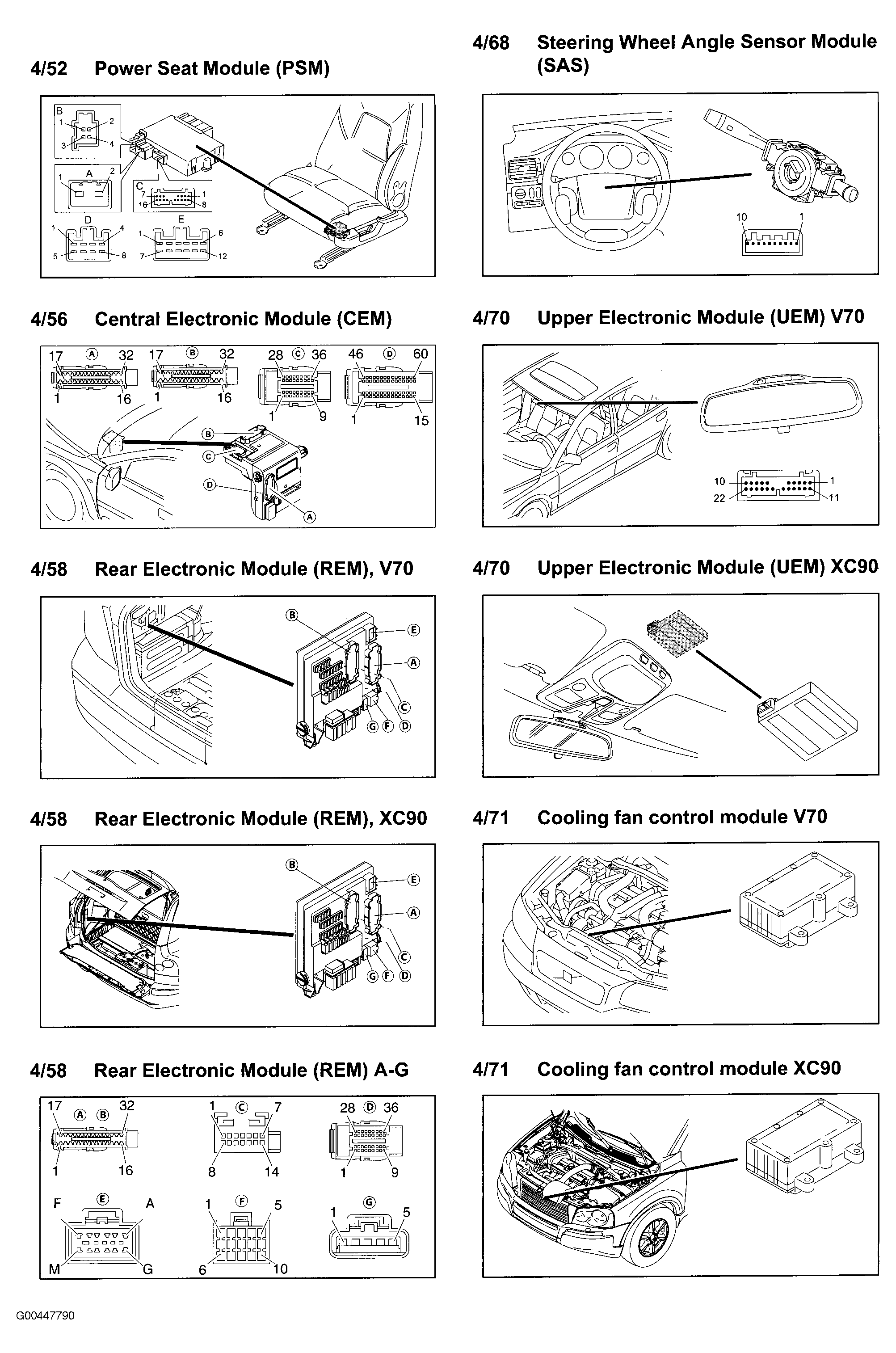

Fig 29: Components (4/52 To 4/71)
G00447790Courtesy of VOLVO CARS OF NORTH AMERICA.

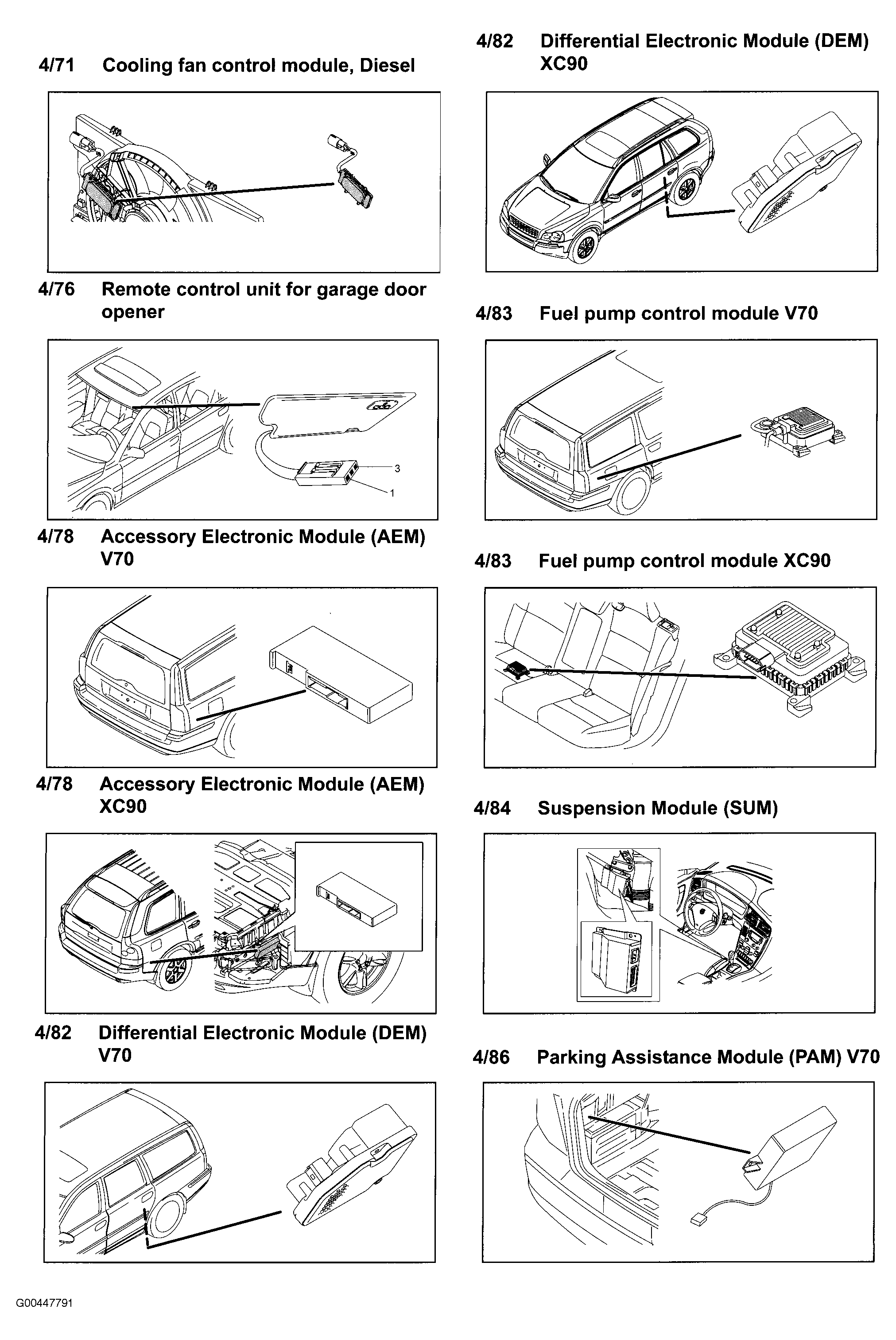

Fig 30: Components (4/71 To 4/86)
G00447791Courtesy of VOLVO CARS OF NORTH AMERICA.

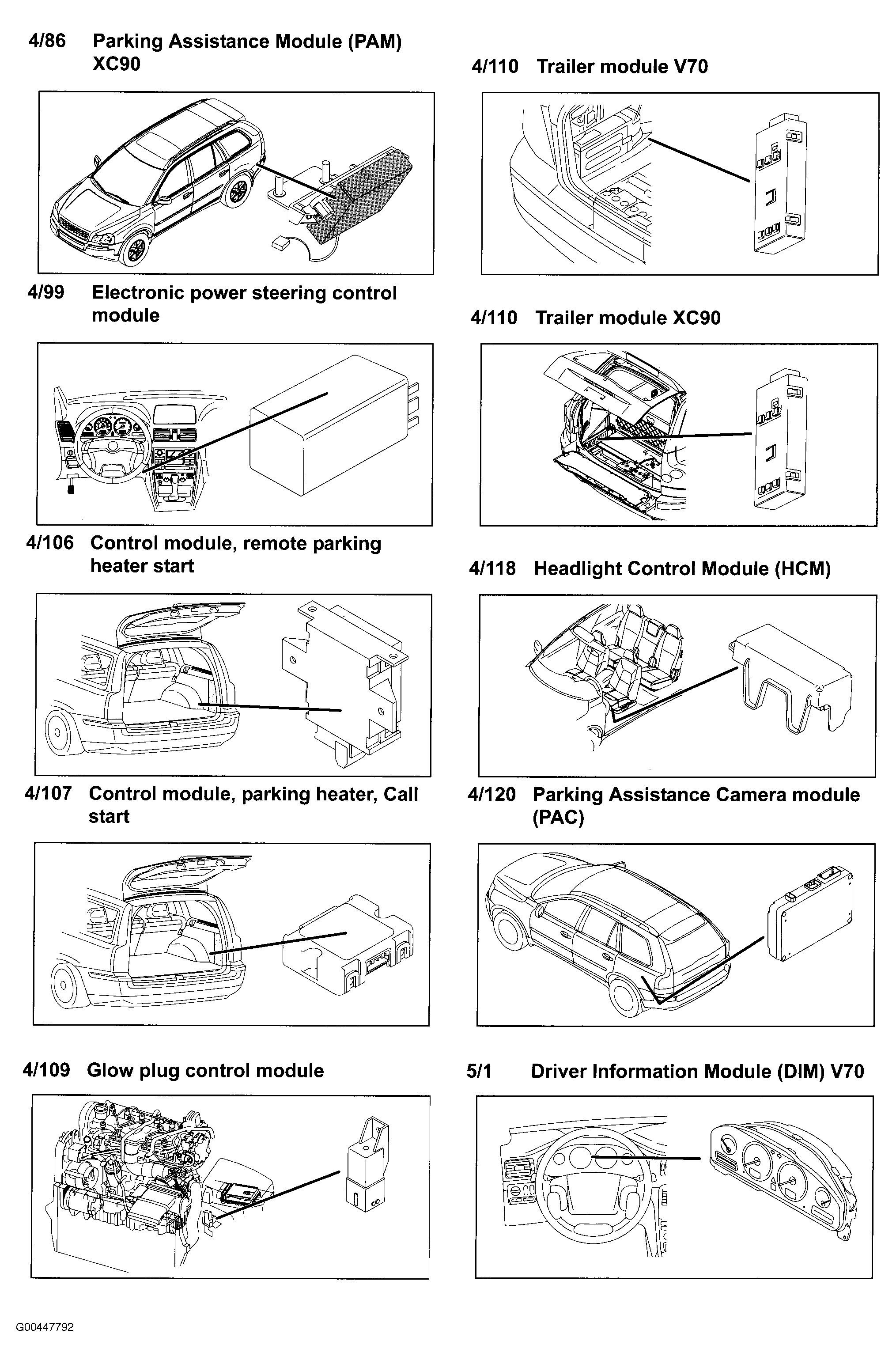

Fig 31: Components (4/86 To 5/1)
G00447792Courtesy of VOLVO CARS OF NORTH AMERICA.

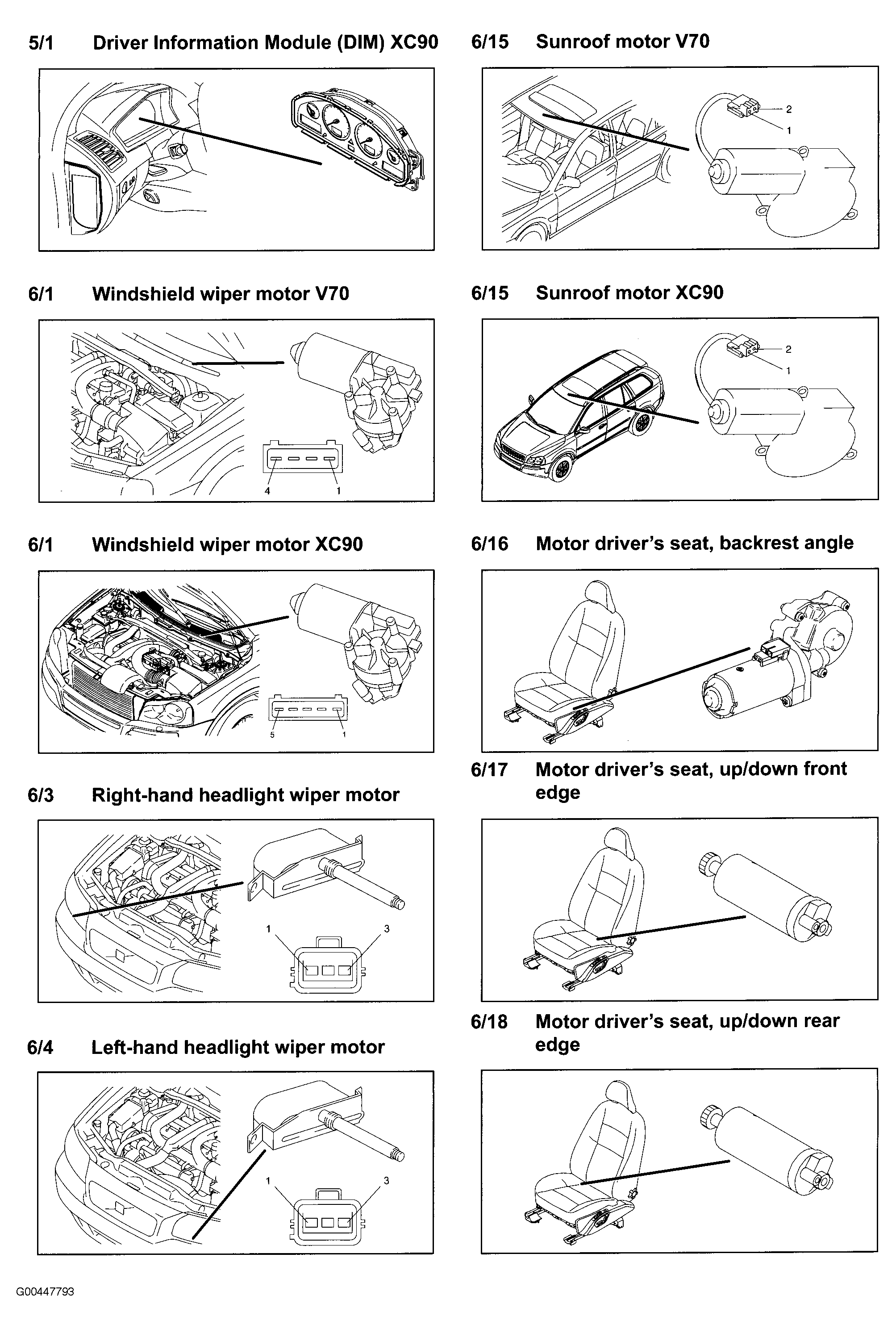

Fig 32: Components (5/1 To 6/18)
G00447793Courtesy of VOLVO CARS OF NORTH AMERICA.

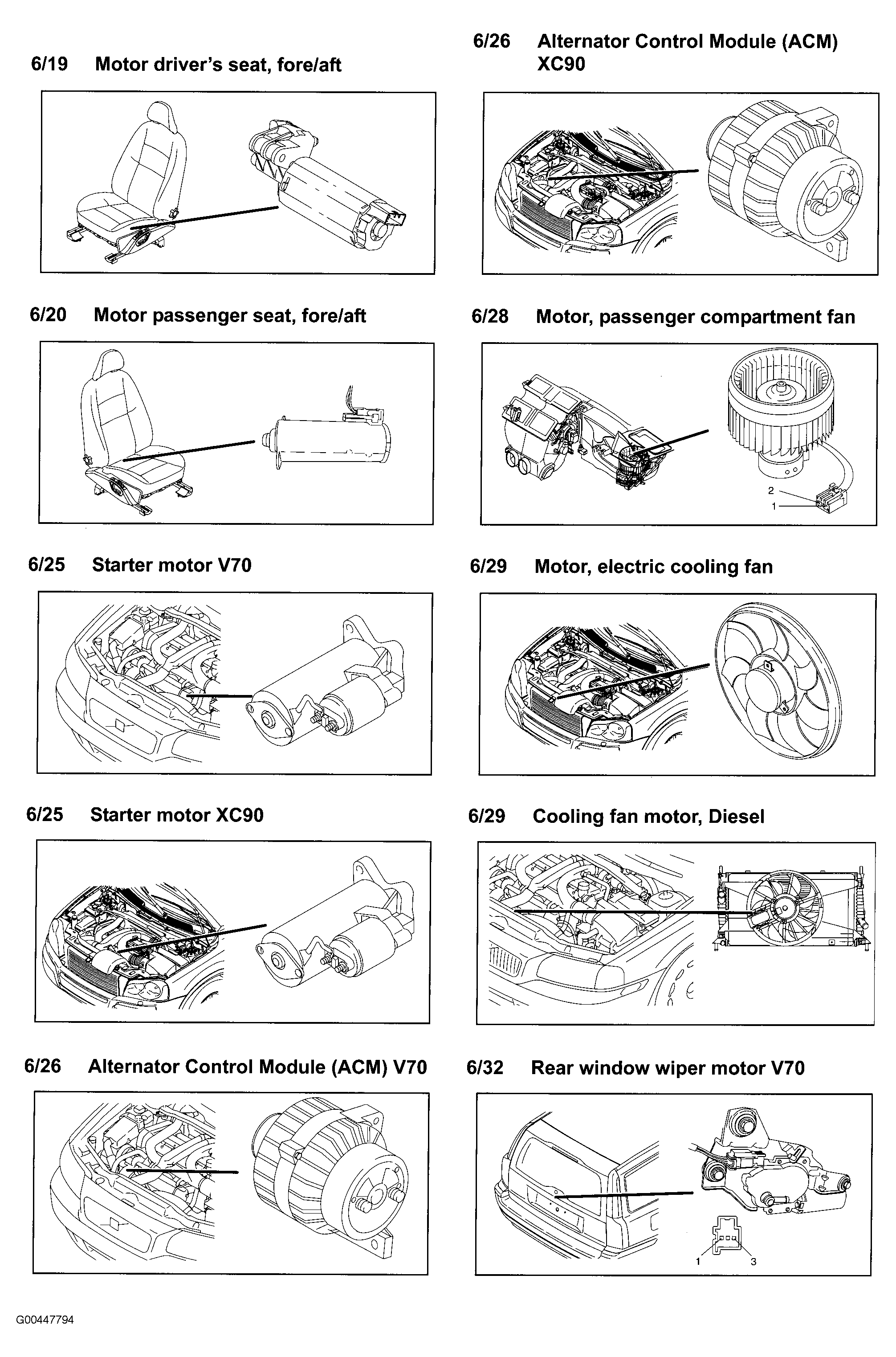

Fig 33: Components (6/19 To 6/32)
G00447794Courtesy of VOLVO CARS OF NORTH AMERICA.

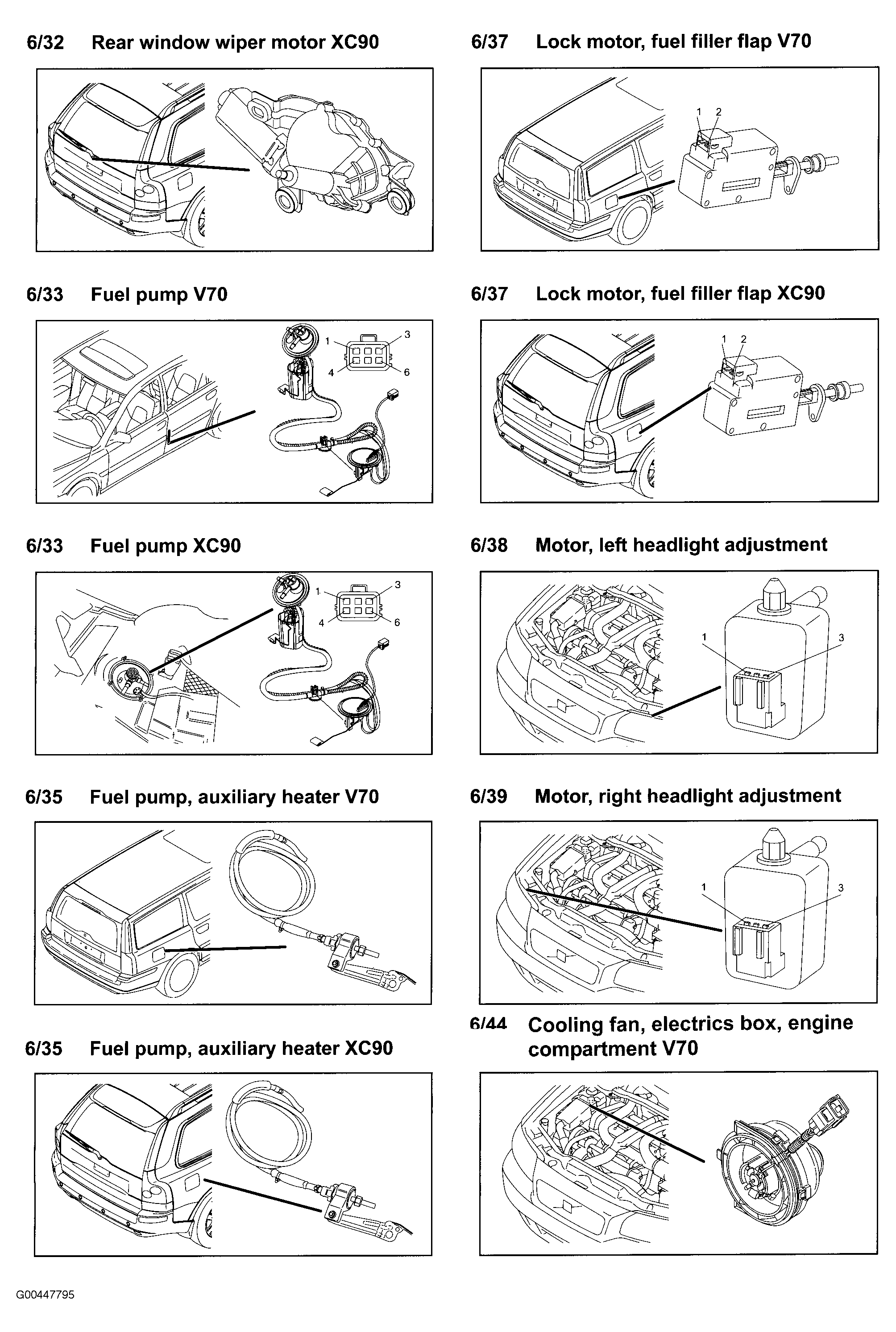

Fig 34: Components (6/32 To 6/44)
G00447795Courtesy of VOLVO CARS OF NORTH AMERICA.

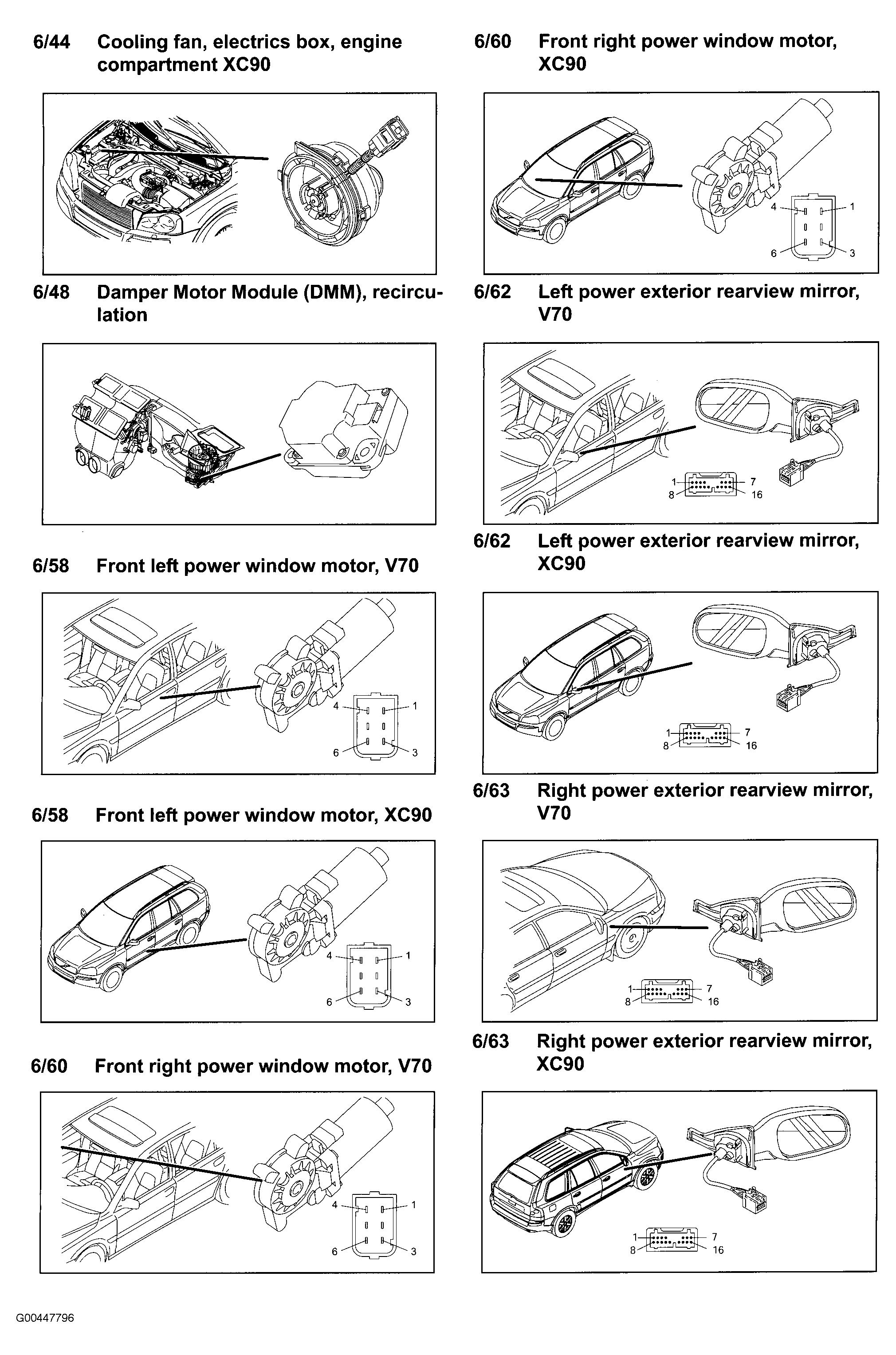

Fig 35: Components (6/44 To 6/63)
G00447796Courtesy of VOLVO CARS OF NORTH AMERICA.

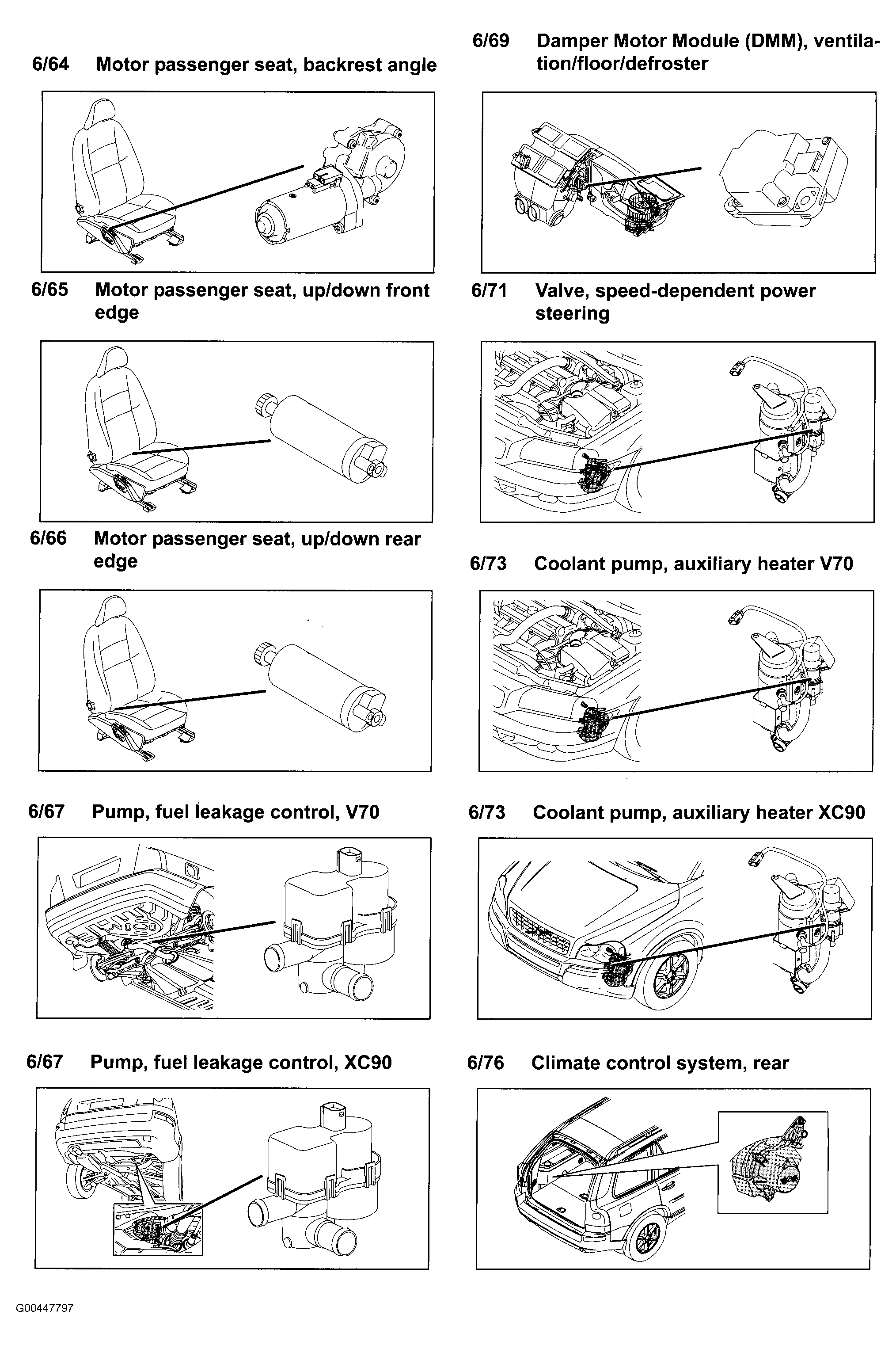

Fig 36: Components (6/64 To 6/76)
G00447797Courtesy of VOLVO CARS OF NORTH AMERICA.

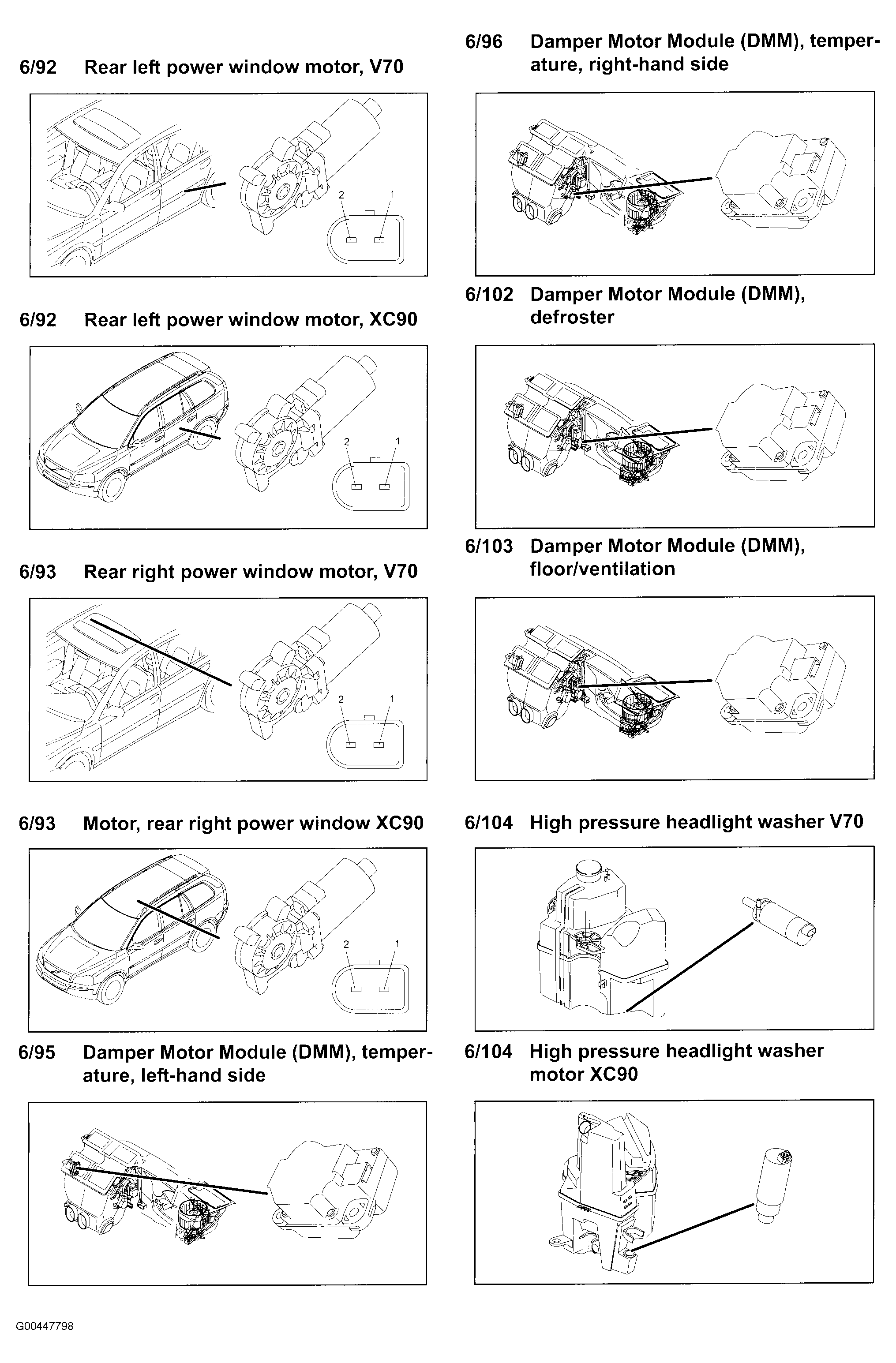

Fig 37: Components (6/92 To 6/104)
G00447798Courtesy of VOLVO CARS OF NORTH AMERICA.

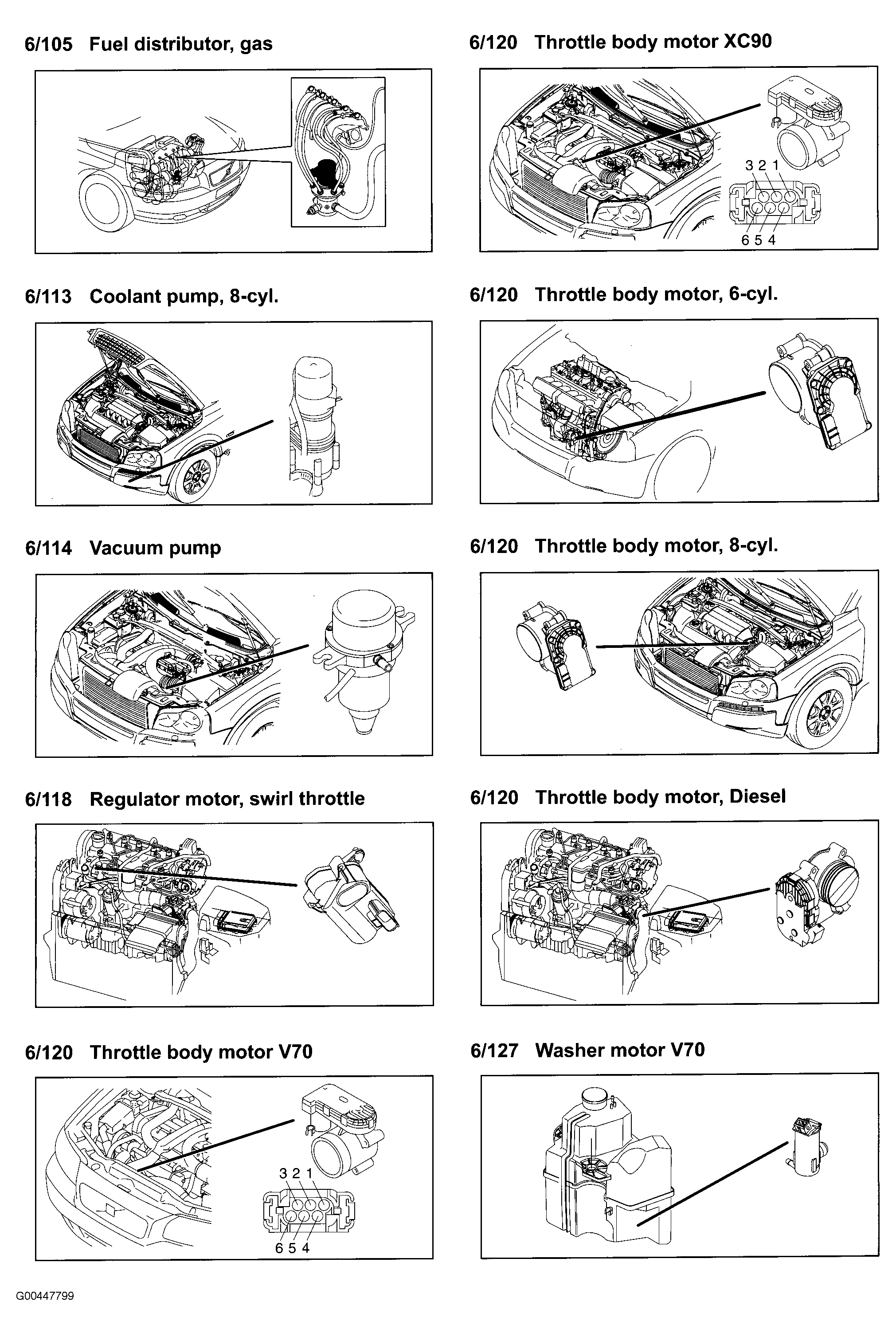

Fig 38: Components (6/105 To 6/127)
G00447799Courtesy of VOLVO CARS OF NORTH AMERICA.

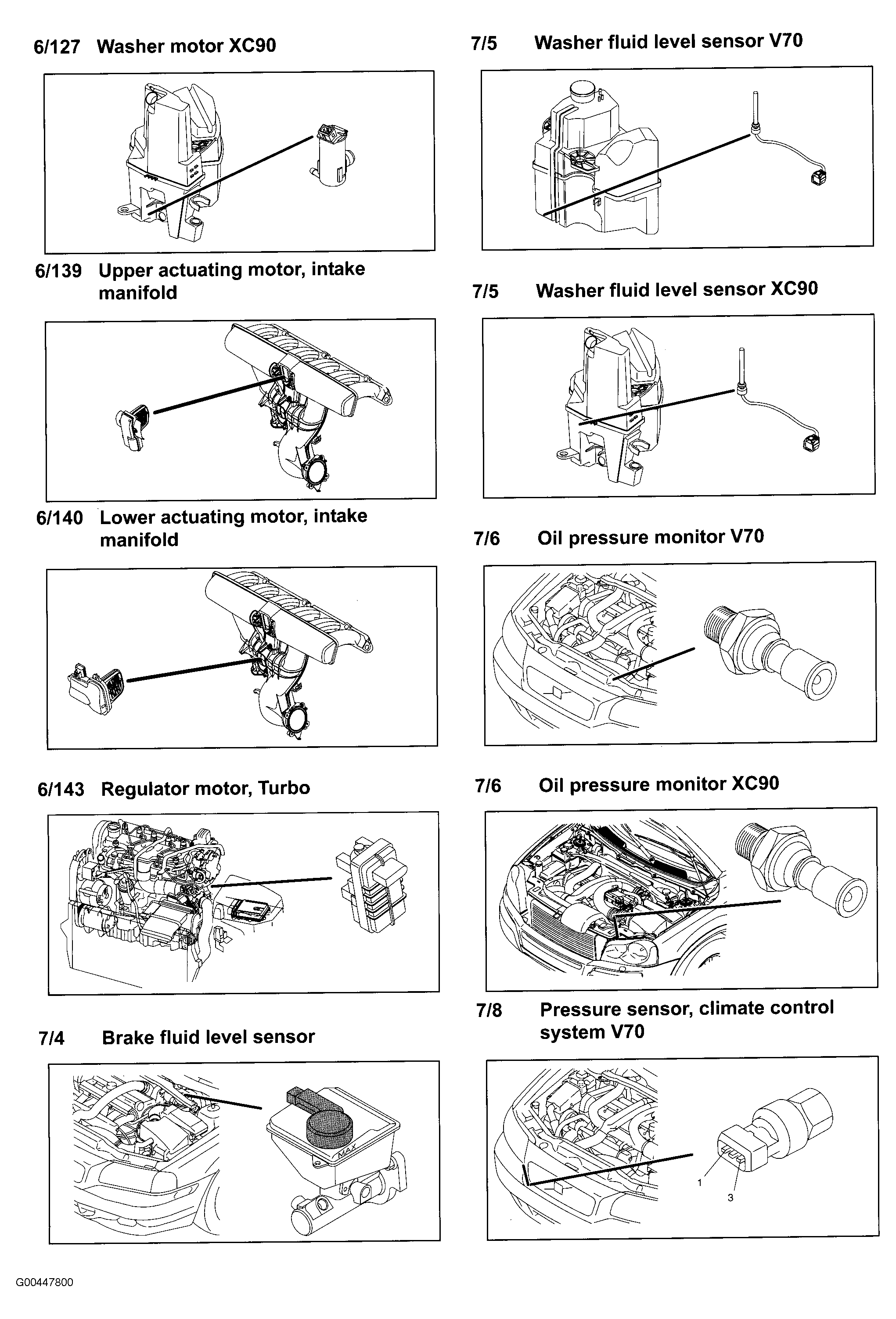

Fig 39: Components (6/127 To 7/8)
G00447800Courtesy of VOLVO CARS OF NORTH AMERICA.

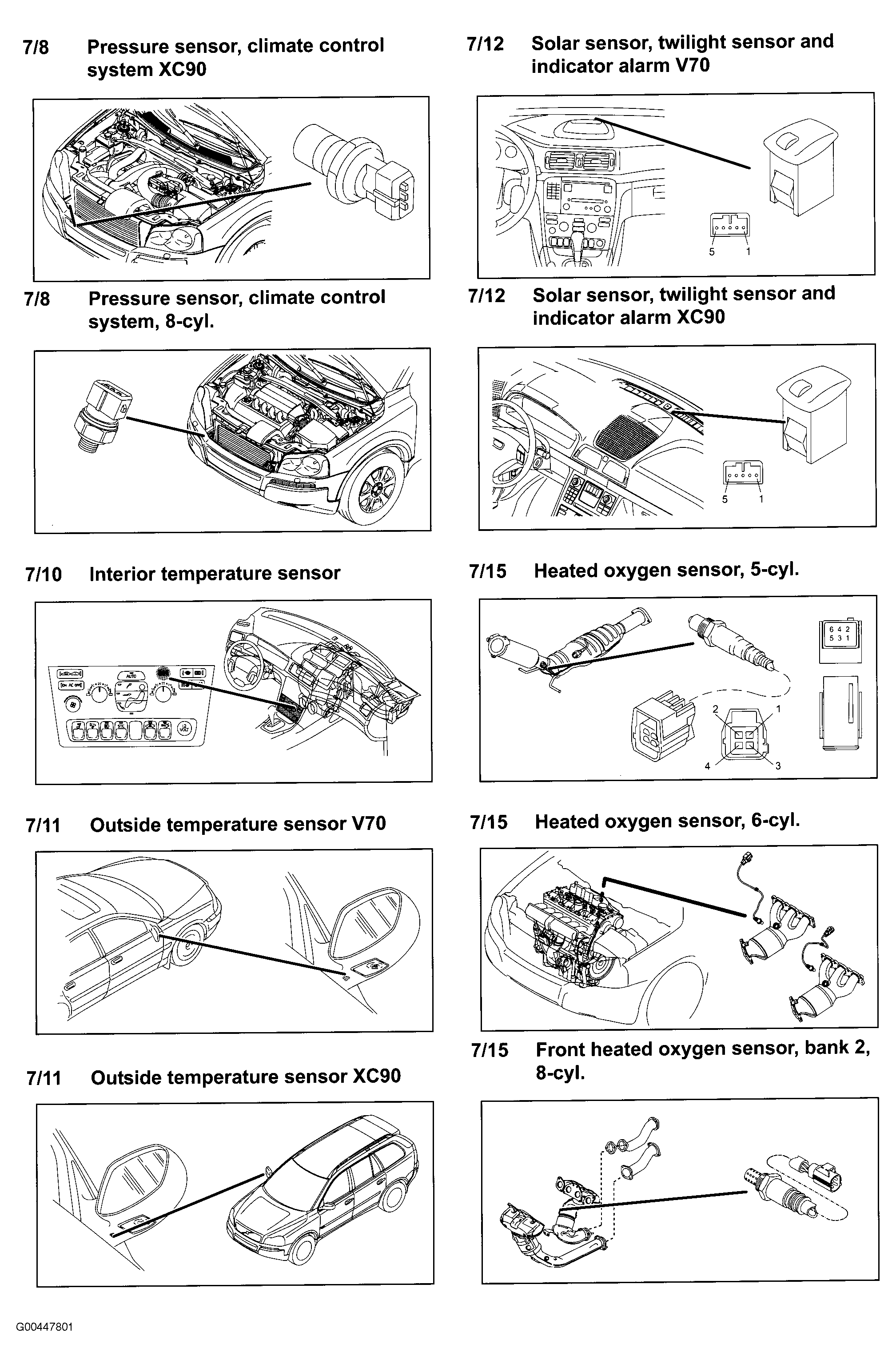

Fig 40: Components (7/8 To 7/15)
G00447801Courtesy of VOLVO CARS OF NORTH AMERICA.

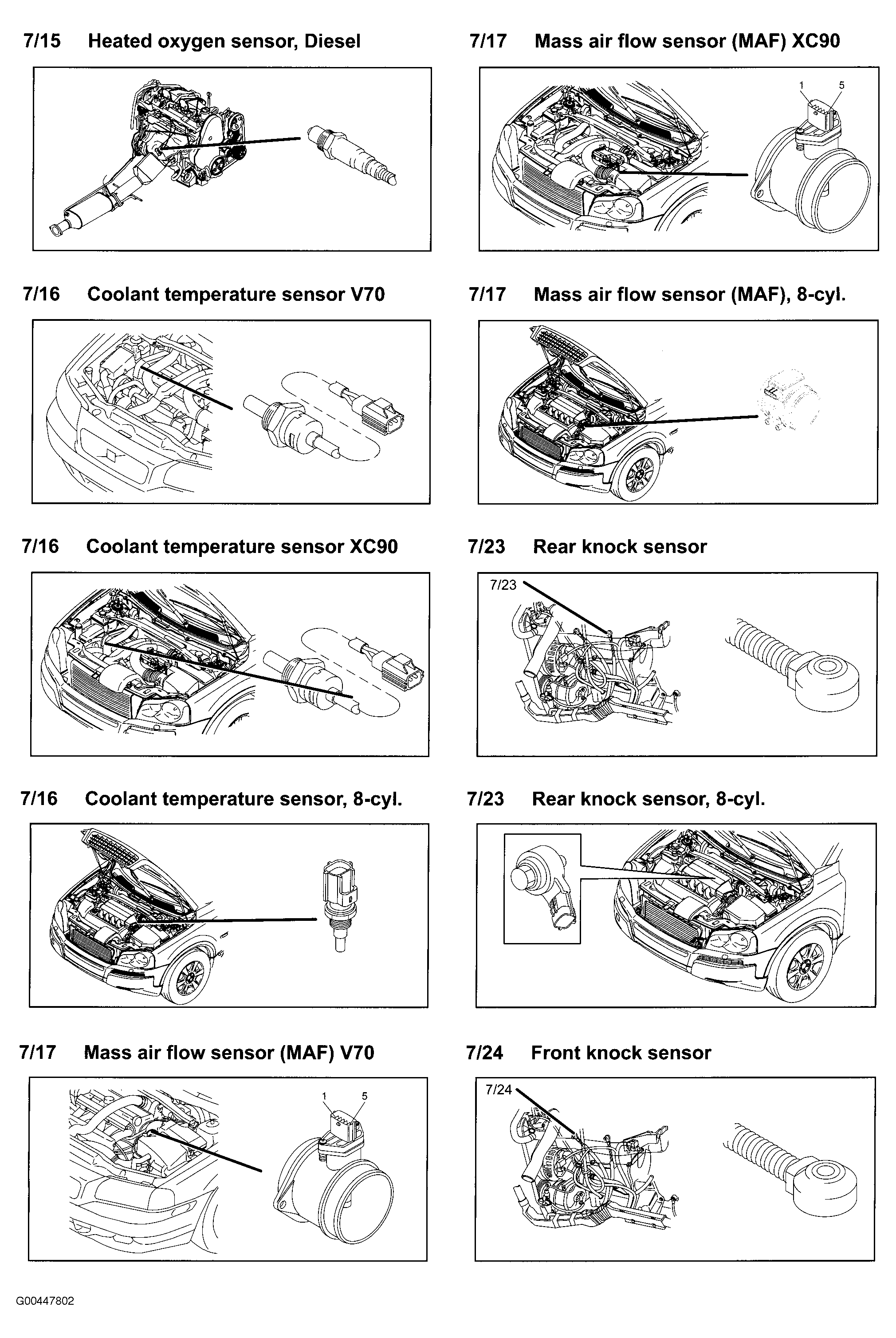

Fig 41: Components (7/15 To 7/24)
G00447802Courtesy of VOLVO CARS OF NORTH AMERICA.

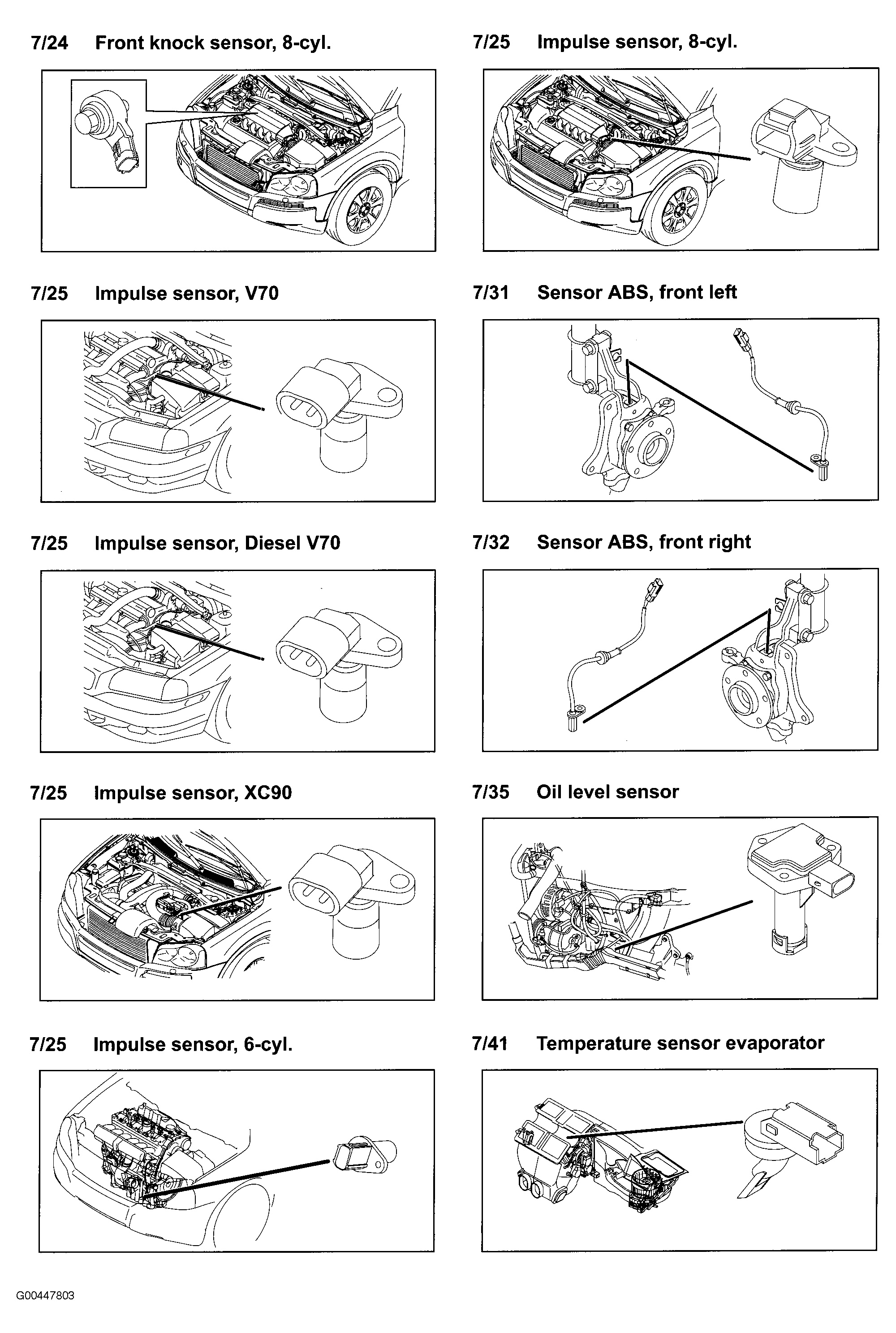

Fig 42: Components (7/24 To 7/41)
G00447803Courtesy of VOLVO CARS OF NORTH AMERICA.

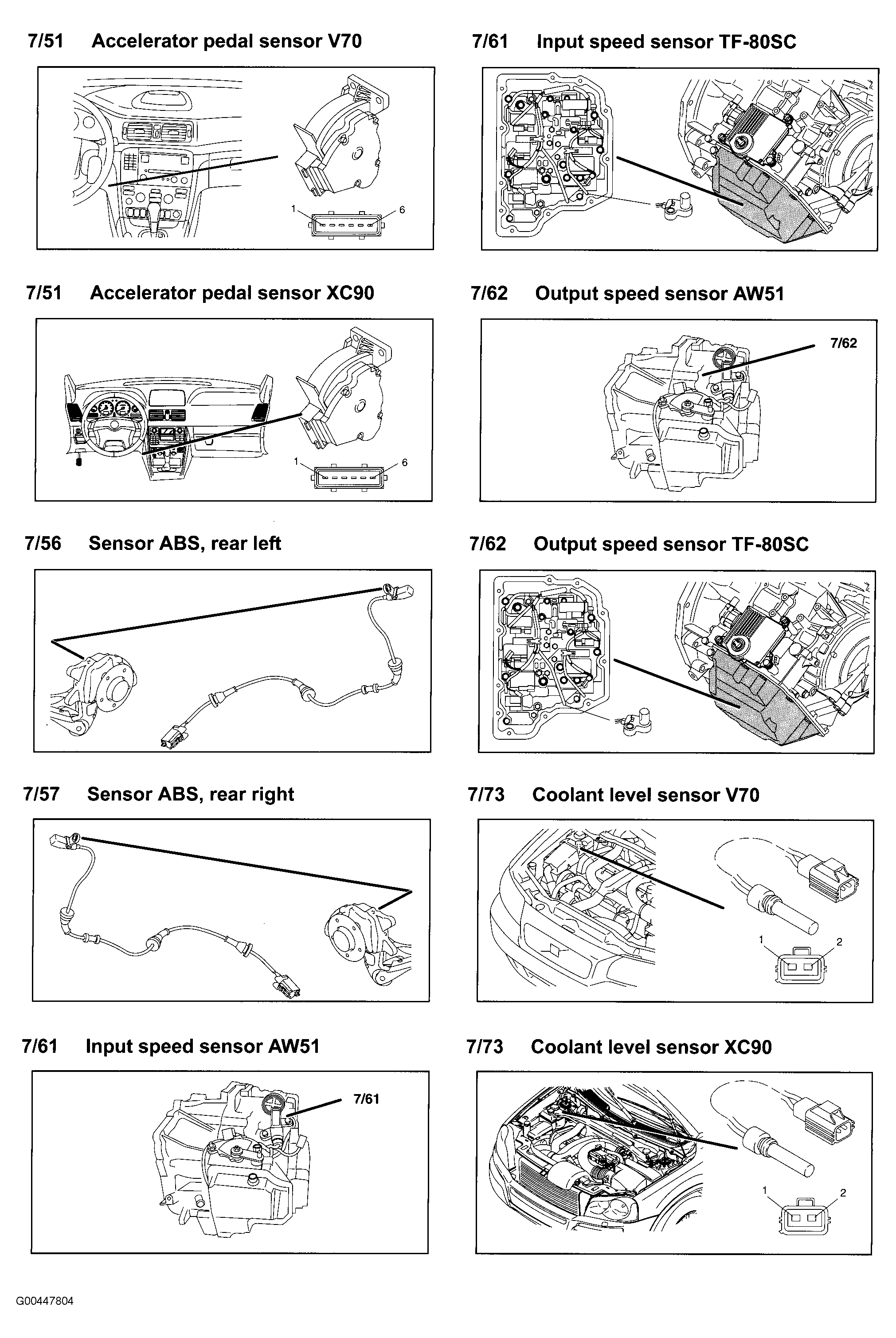

Fig 43: Components (7/51 To 7/73)
G00447804Courtesy of VOLVO CARS OF NORTH AMERICA.

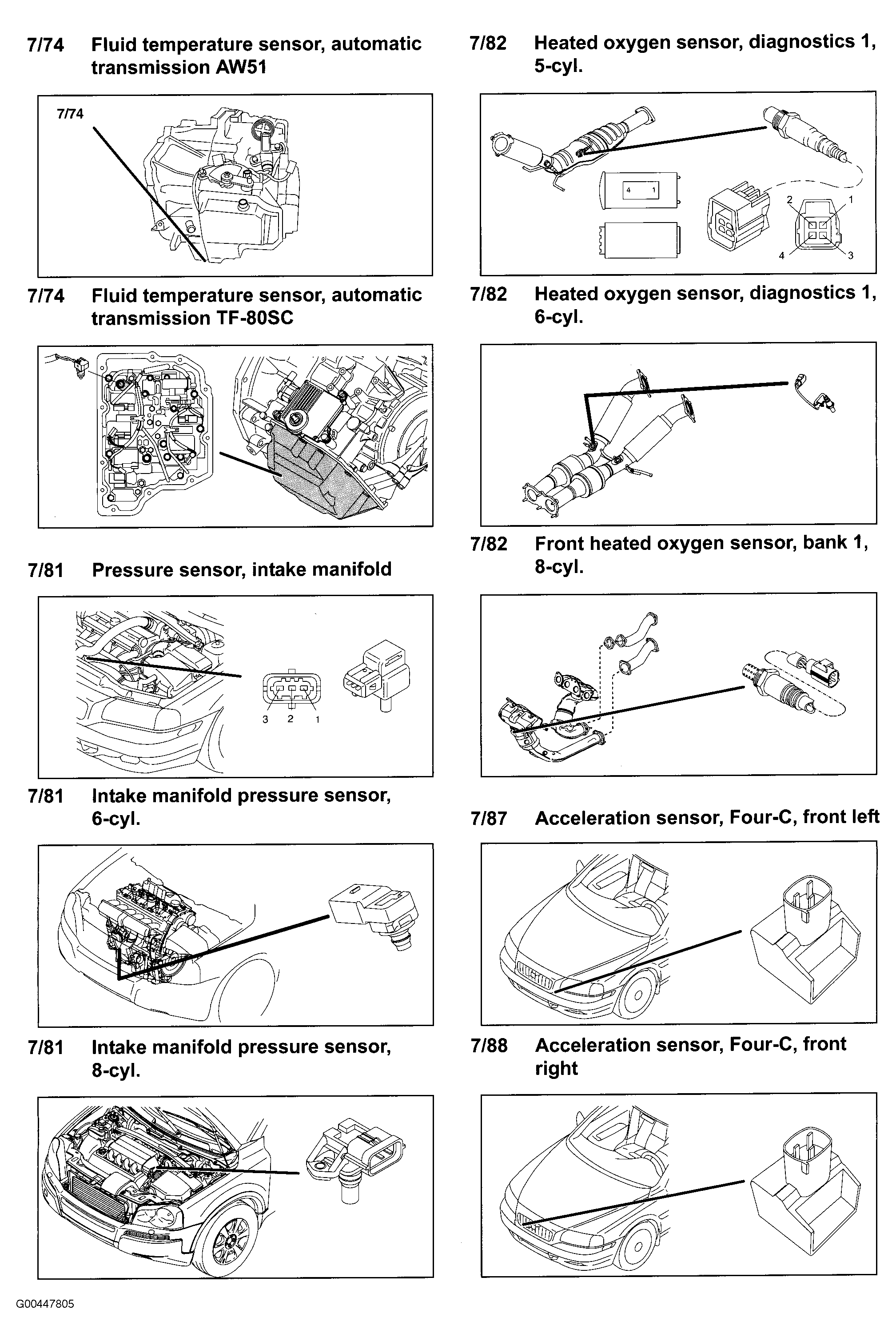

Fig 44: Components (7/74 To 7/88)
G00447805Courtesy of VOLVO CARS OF NORTH AMERICA.

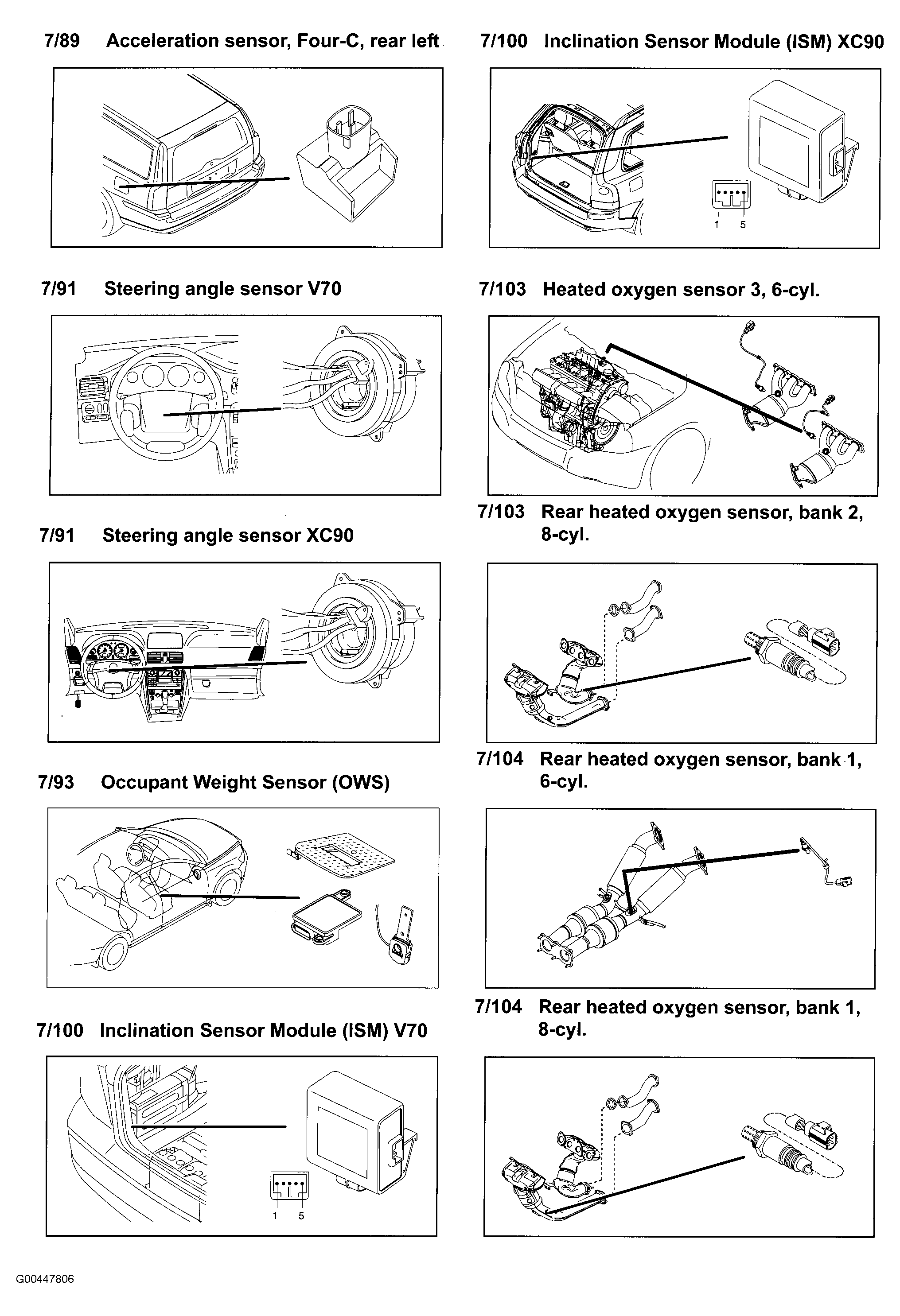

Fig 45: Components (7/89 To 7/104)
G00447806Courtesy of VOLVO CARS OF NORTH AMERICA.

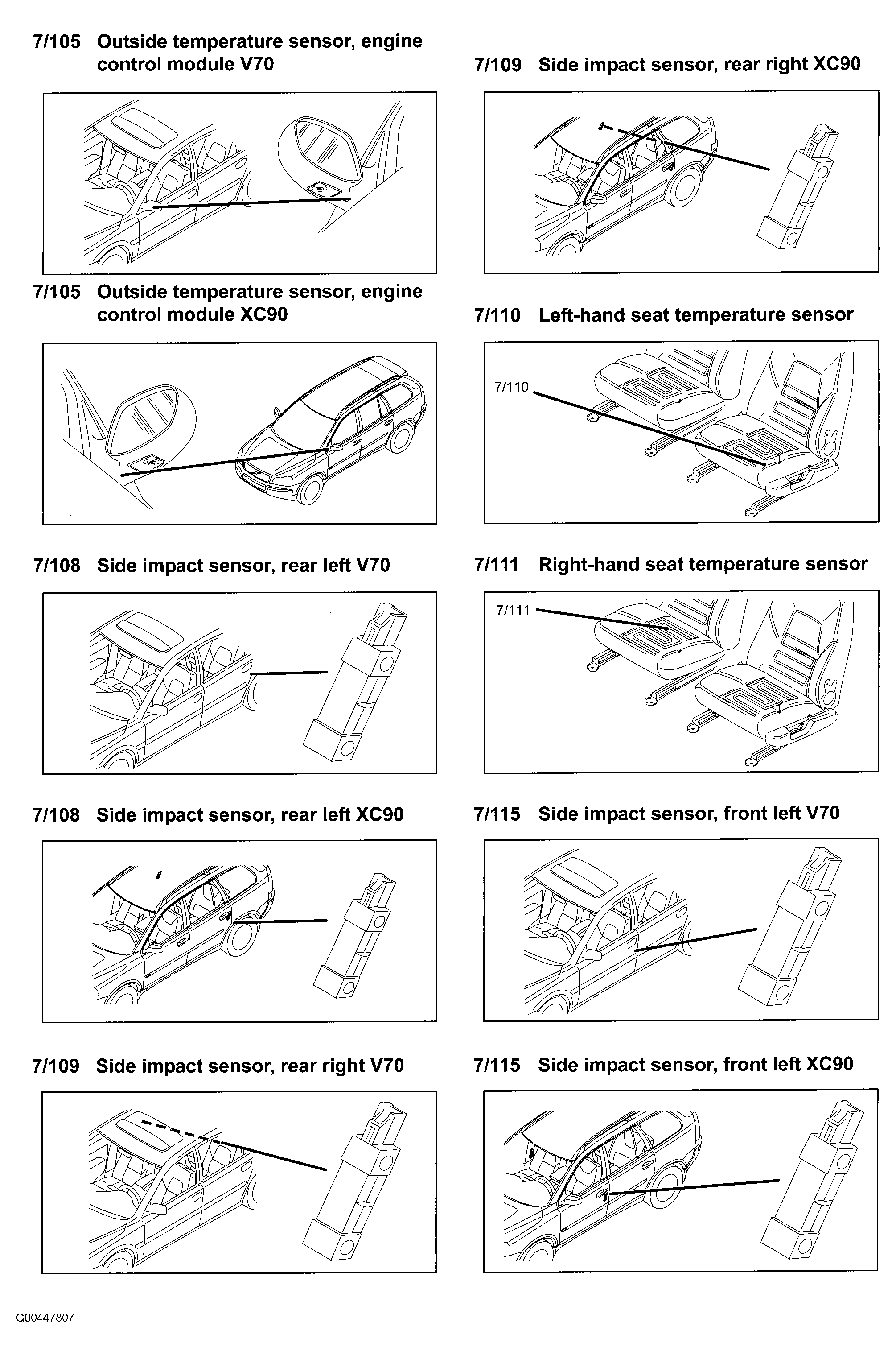

Fig 46: Components (7/105 To 7/115)
G00447807Courtesy of VOLVO CARS OF NORTH AMERICA.

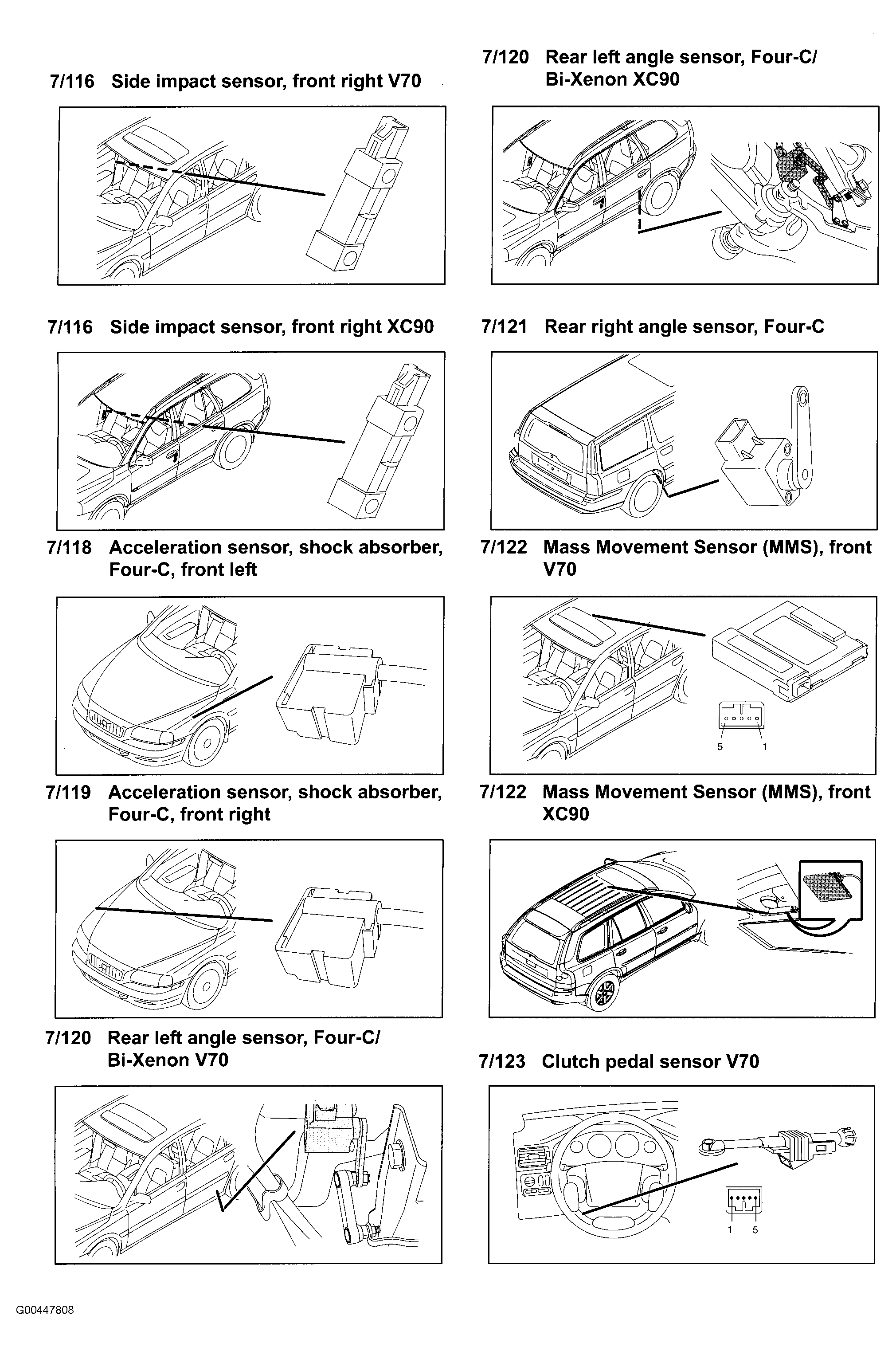

Fig 47: Components (7/116 To 7/123)
G00447808Courtesy of VOLVO CARS OF NORTH AMERICA.

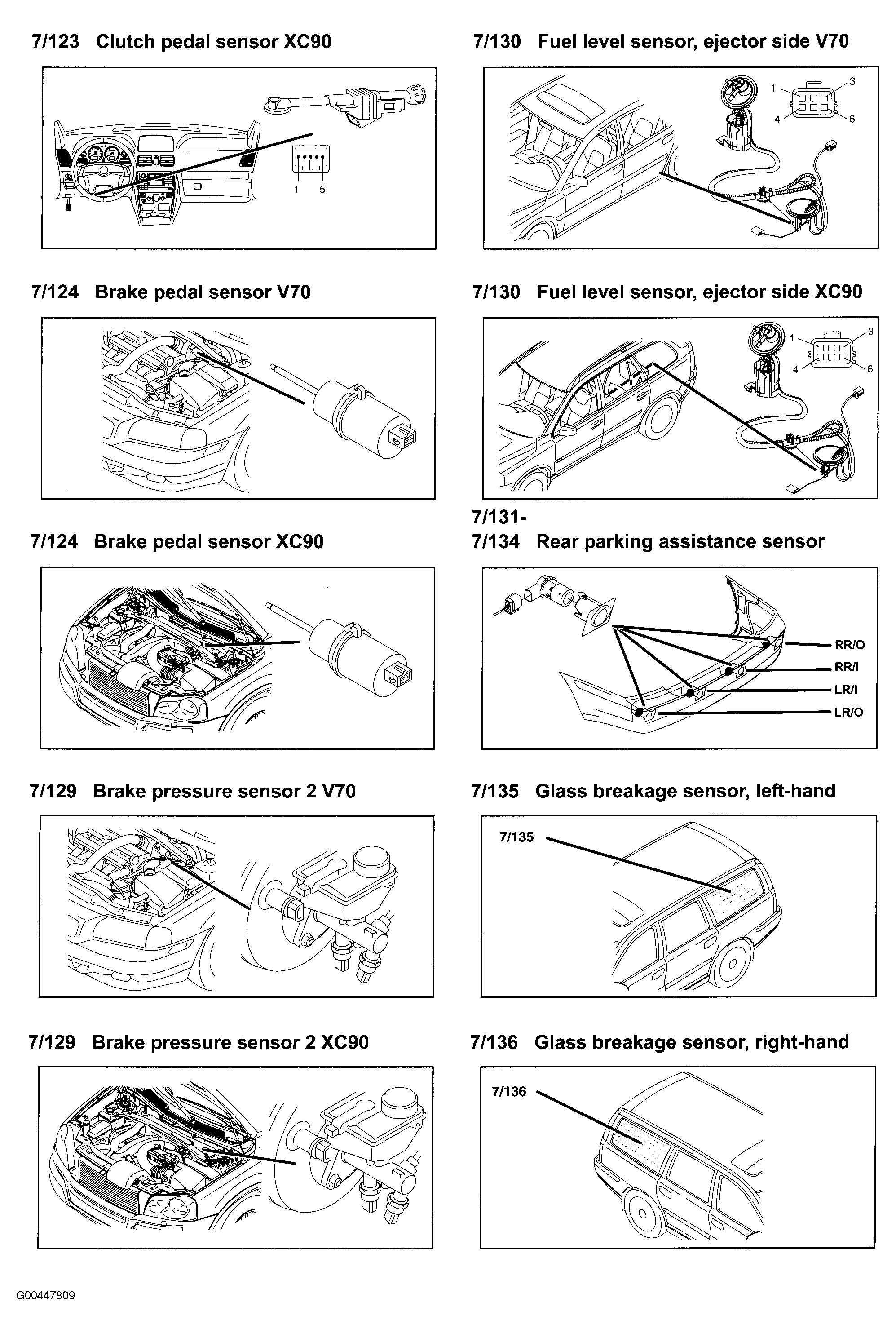

Fig 48: Components (7/123 To 7/136)
G00447809Courtesy of VOLVO CARS OF NORTH AMERICA.

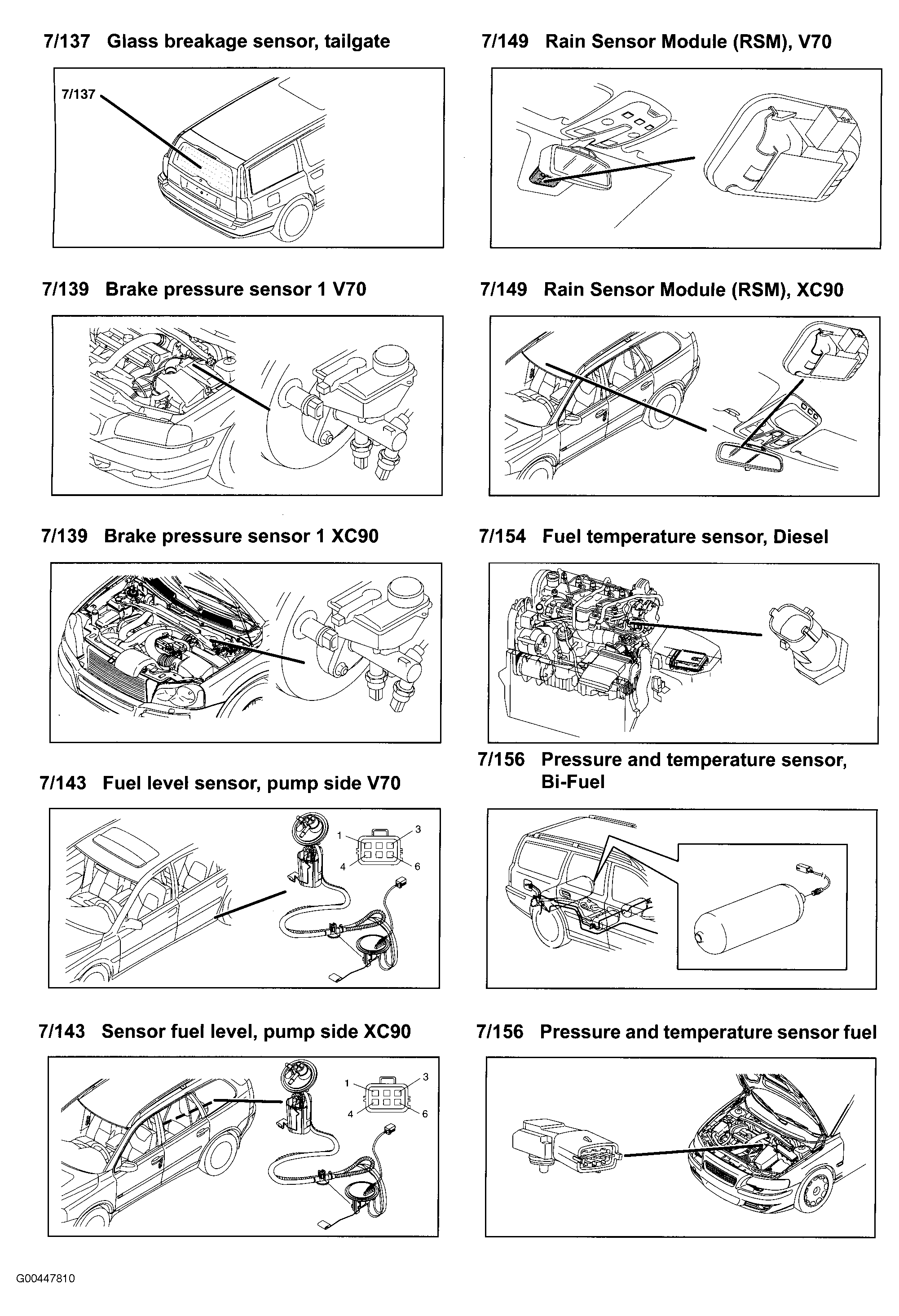

Fig 49: Components (7/137 To 7/156)
G00447810Courtesy of VOLVO CARS OF NORTH AMERICA.

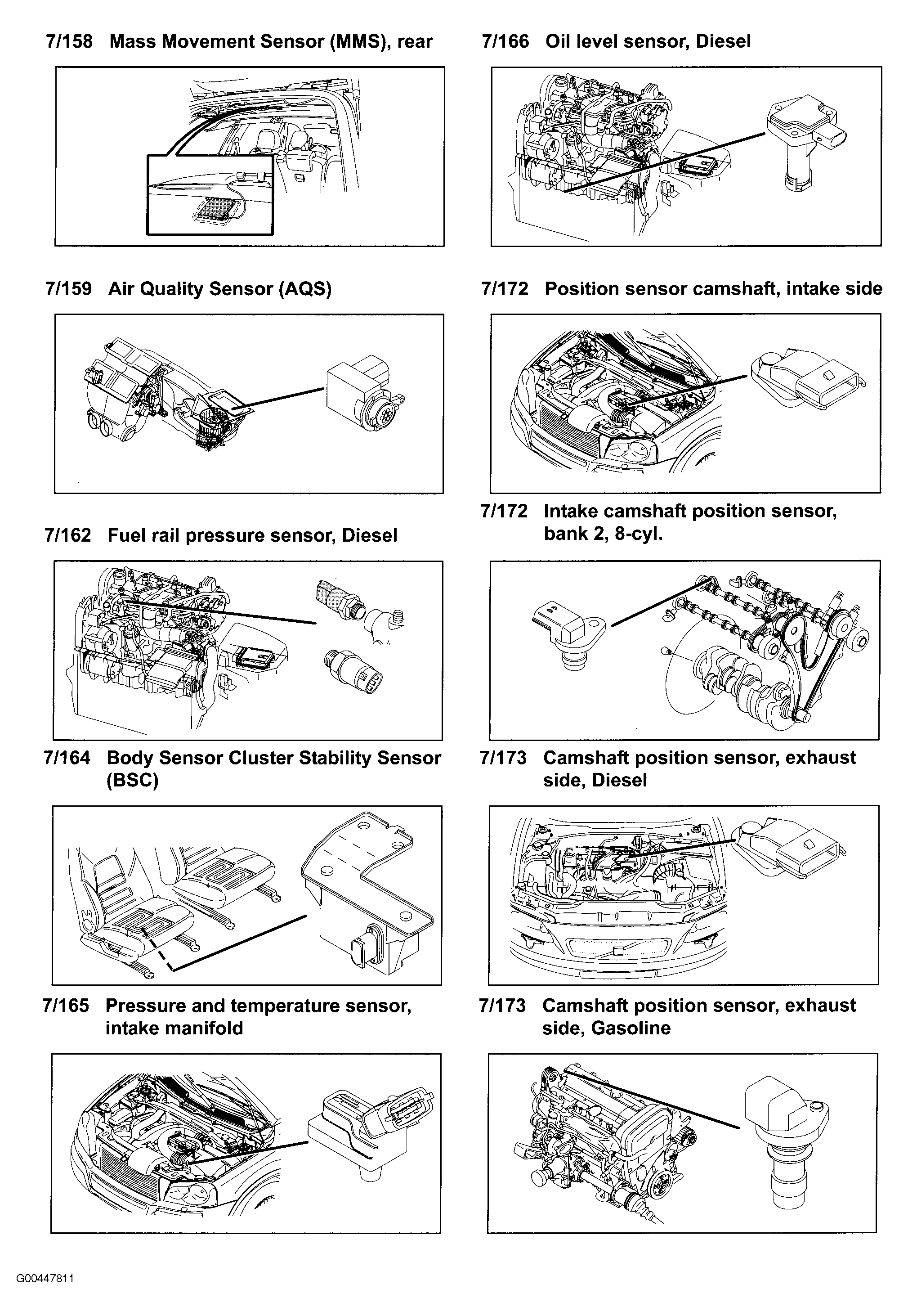

Fig 50: Components (7/158 To 7/173)
G00447811Courtesy of VOLVO CARS OF NORTH AMERICA.

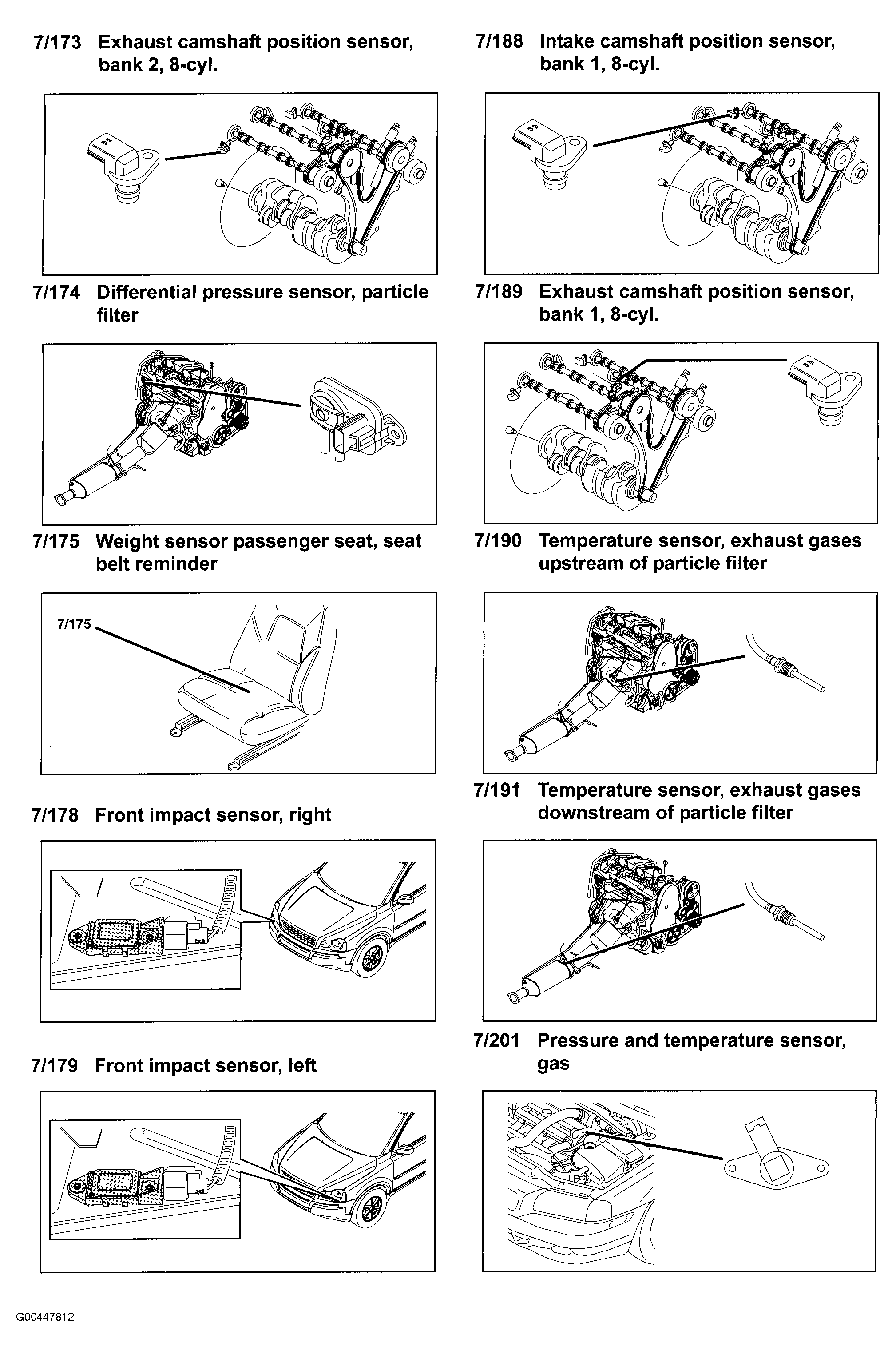

Fig 51: Components (7/173 To 7/201)
G00447812Courtesy of VOLVO CARS OF NORTH AMERICA.

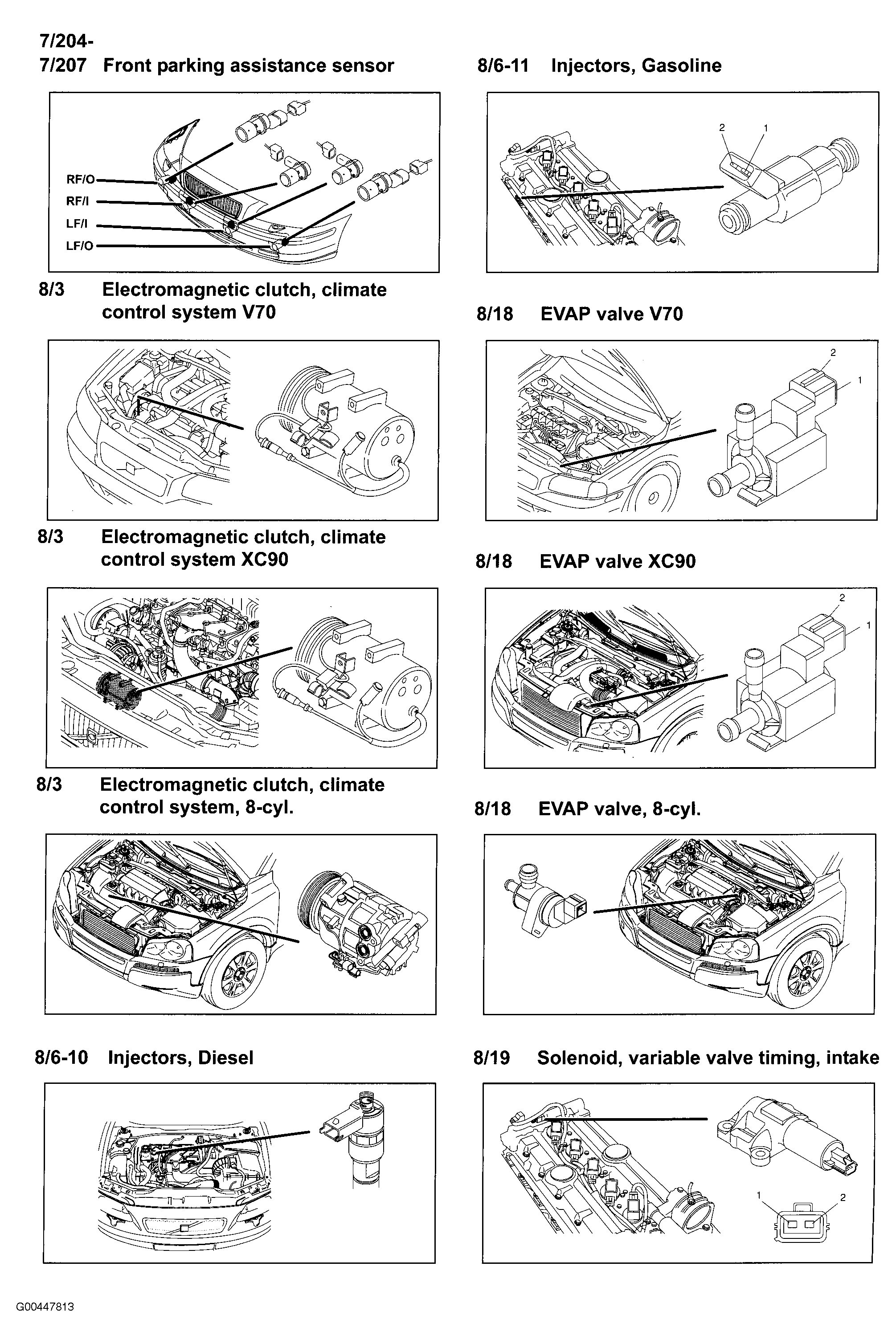

Fig 52: Components (7/204 To 8/19)
G00447813Courtesy of VOLVO CARS OF NORTH AMERICA.

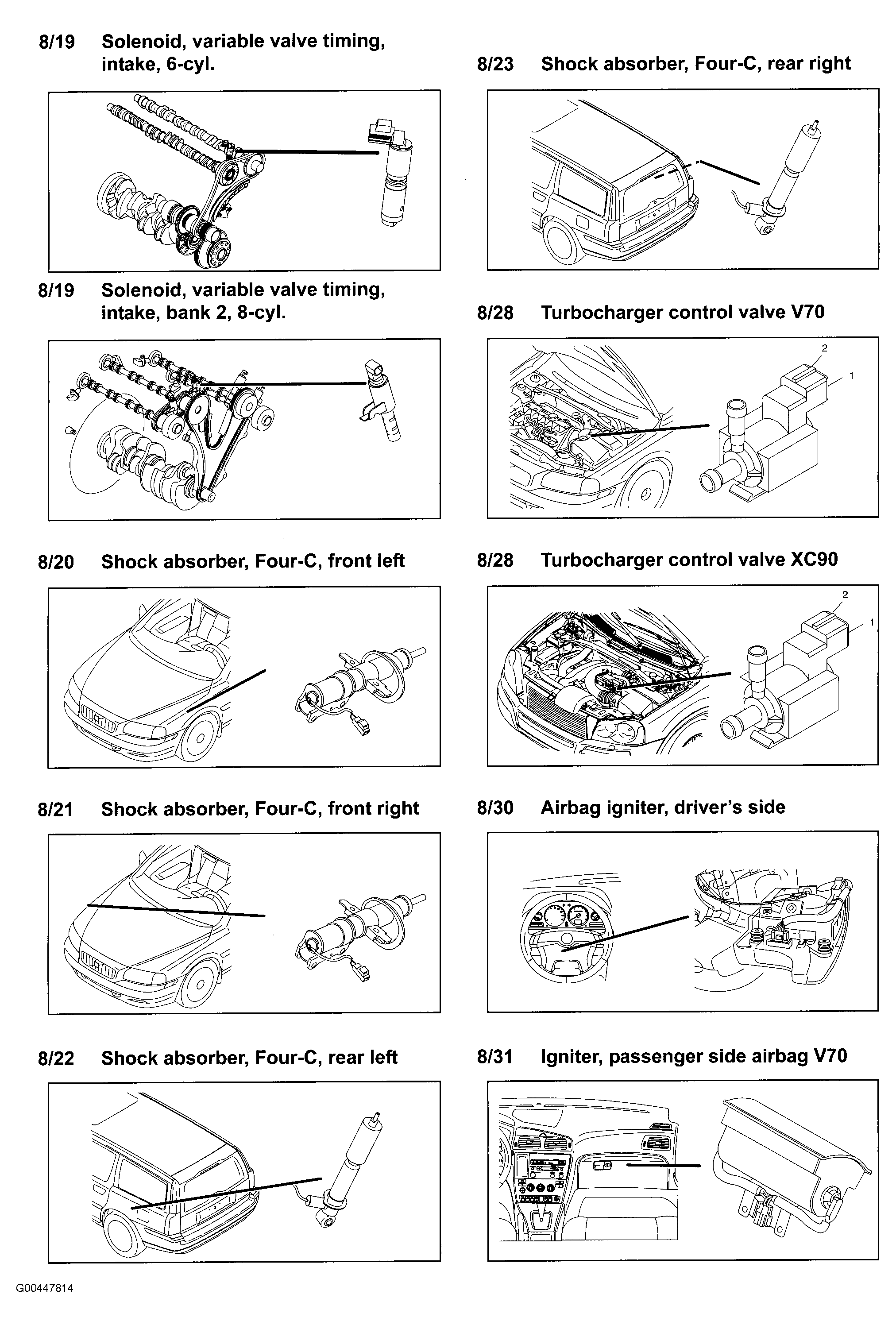

Fig 53: Components (8/19 To 8/31)
G00447814Courtesy of VOLVO CARS OF NORTH AMERICA.

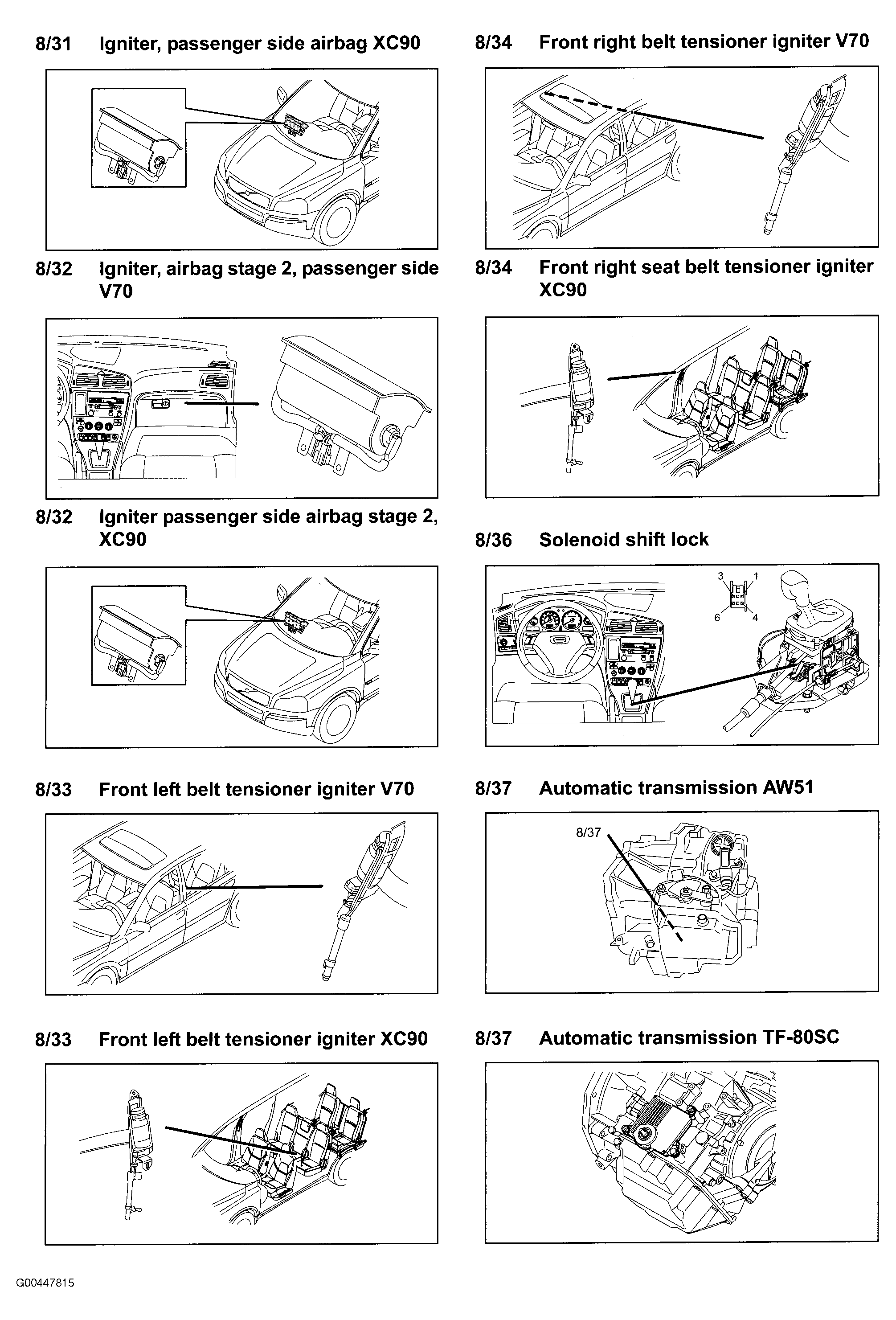

Fig 54: Components (8/31 To 8/37)
G00447815Courtesy of VOLVO CARS OF NORTH AMERICA.

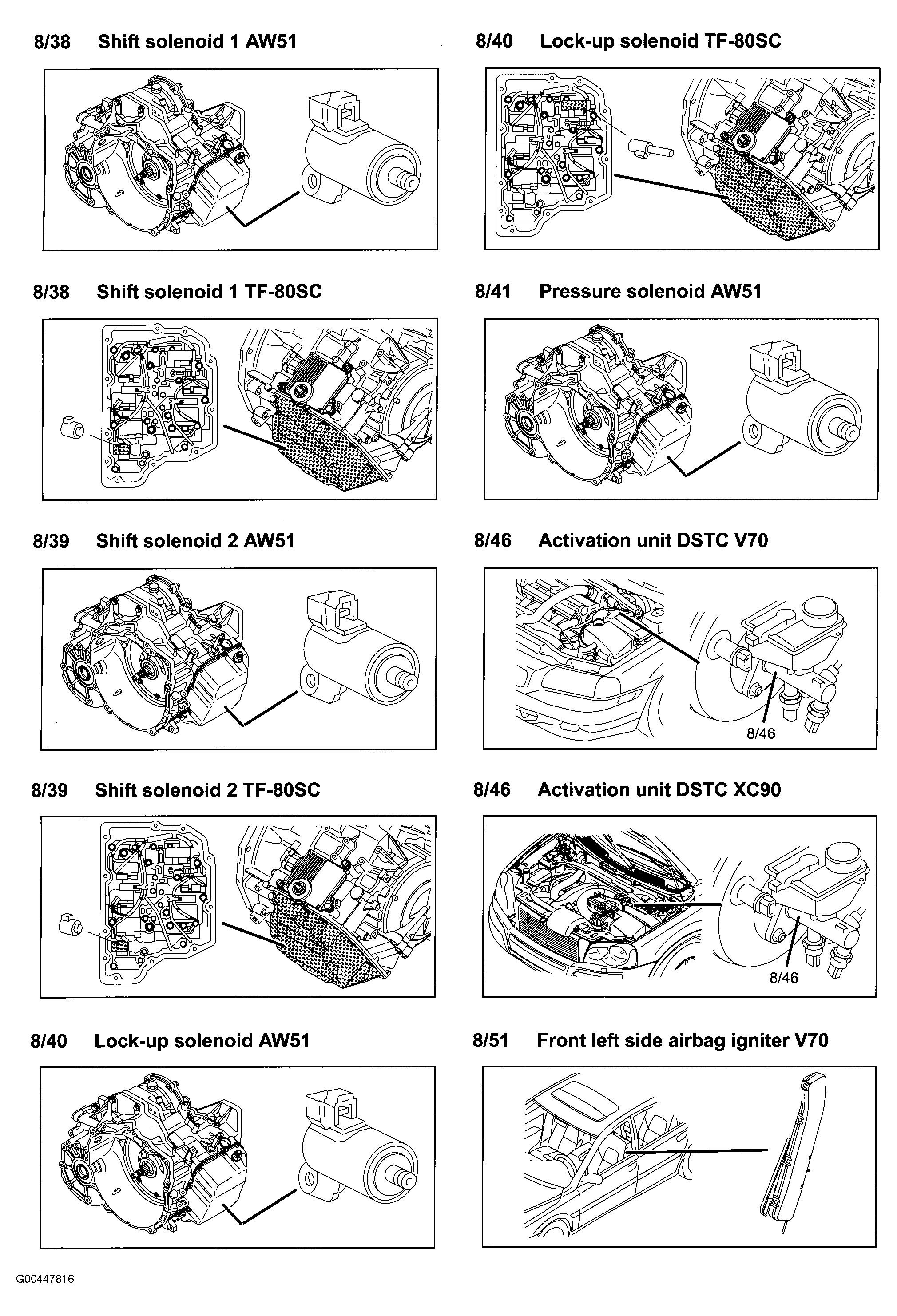

Fig 55: Components (8/38 To 8/51)
G00447816Courtesy of VOLVO CARS OF NORTH AMERICA.

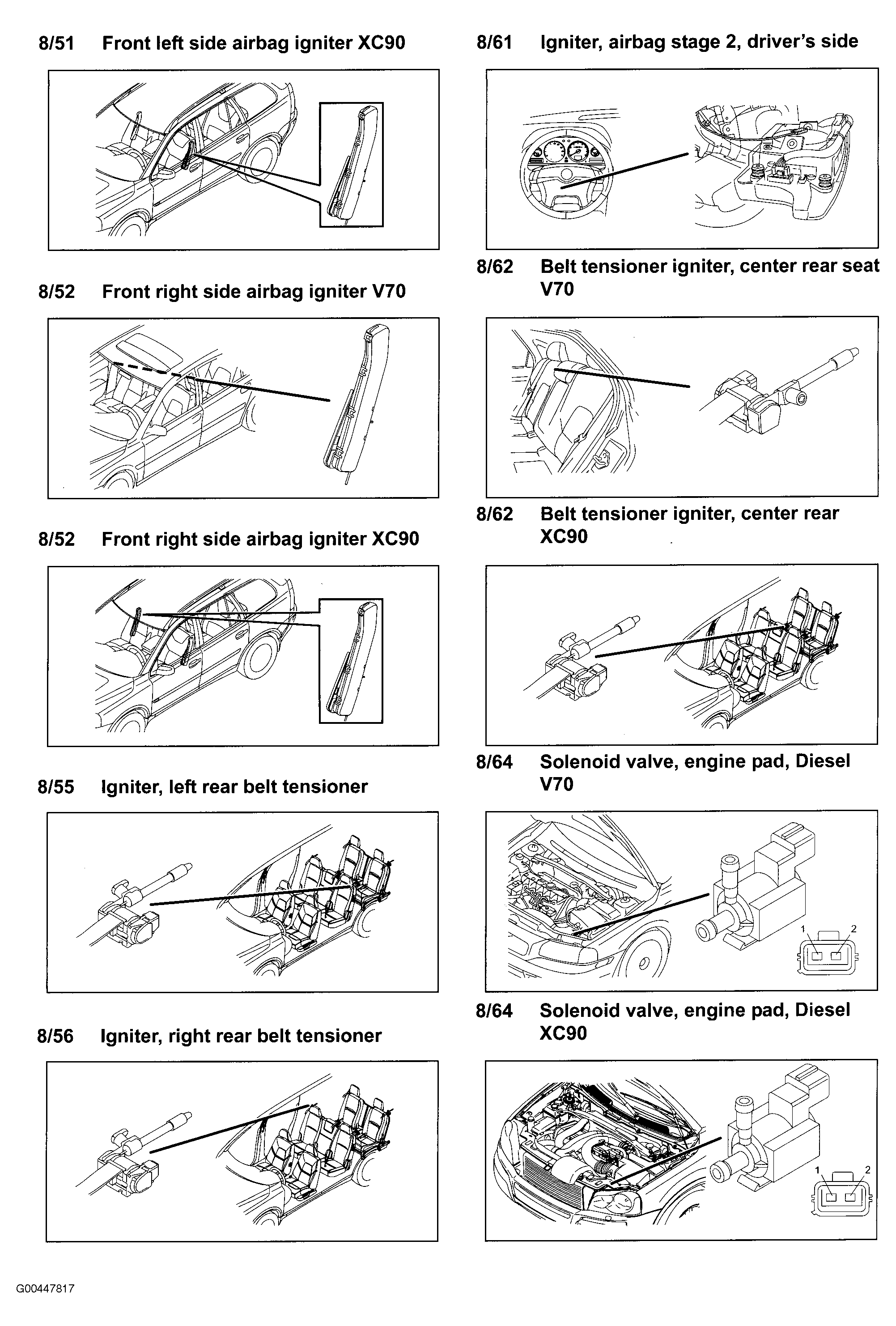

Fig 56: Components (8/51 To 8/64)
G00447817Courtesy of VOLVO CARS OF NORTH AMERICA.

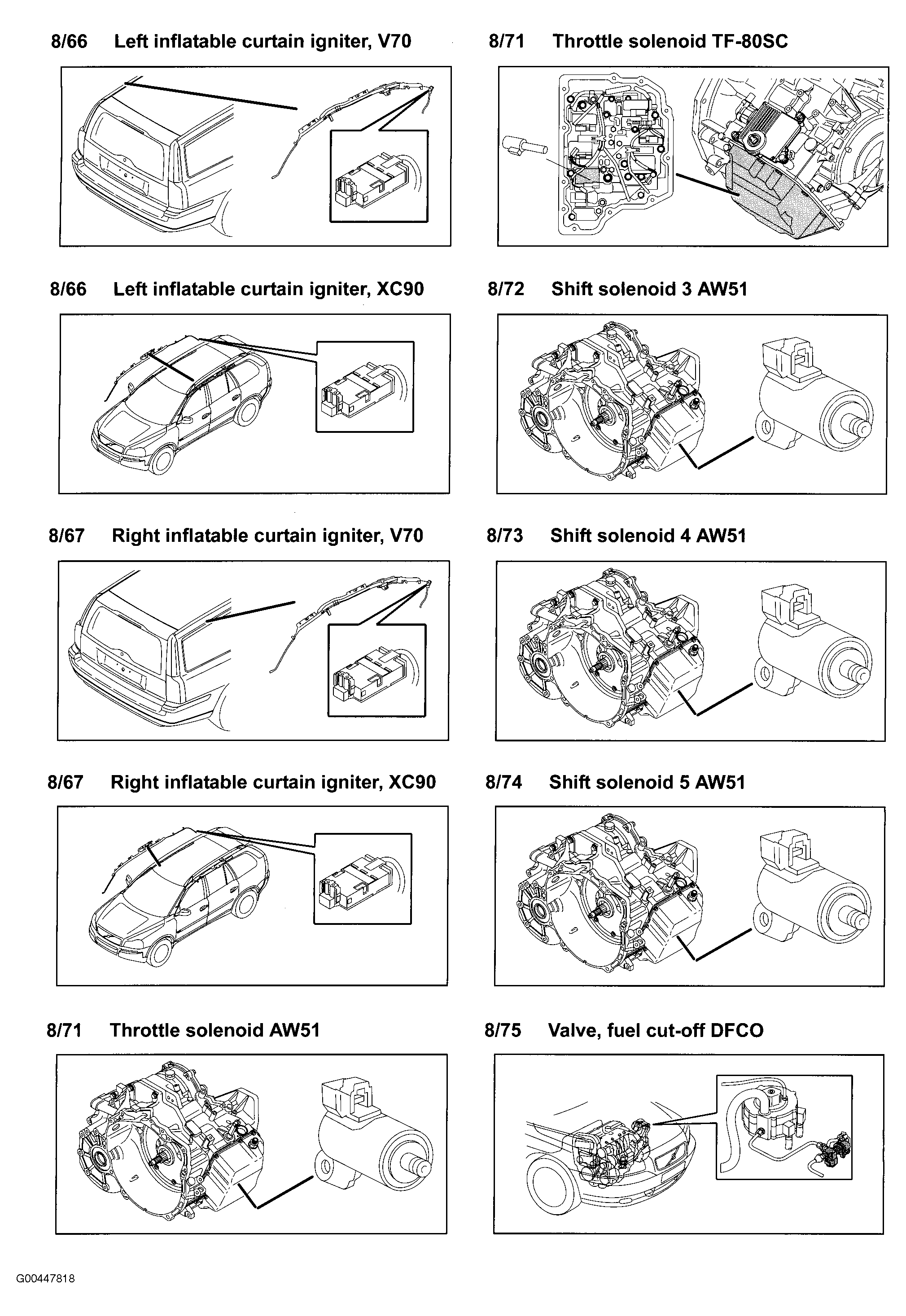

Fig 57: Components (8/66 To 8/75)
G00447818Courtesy of VOLVO CARS OF NORTH AMERICA.

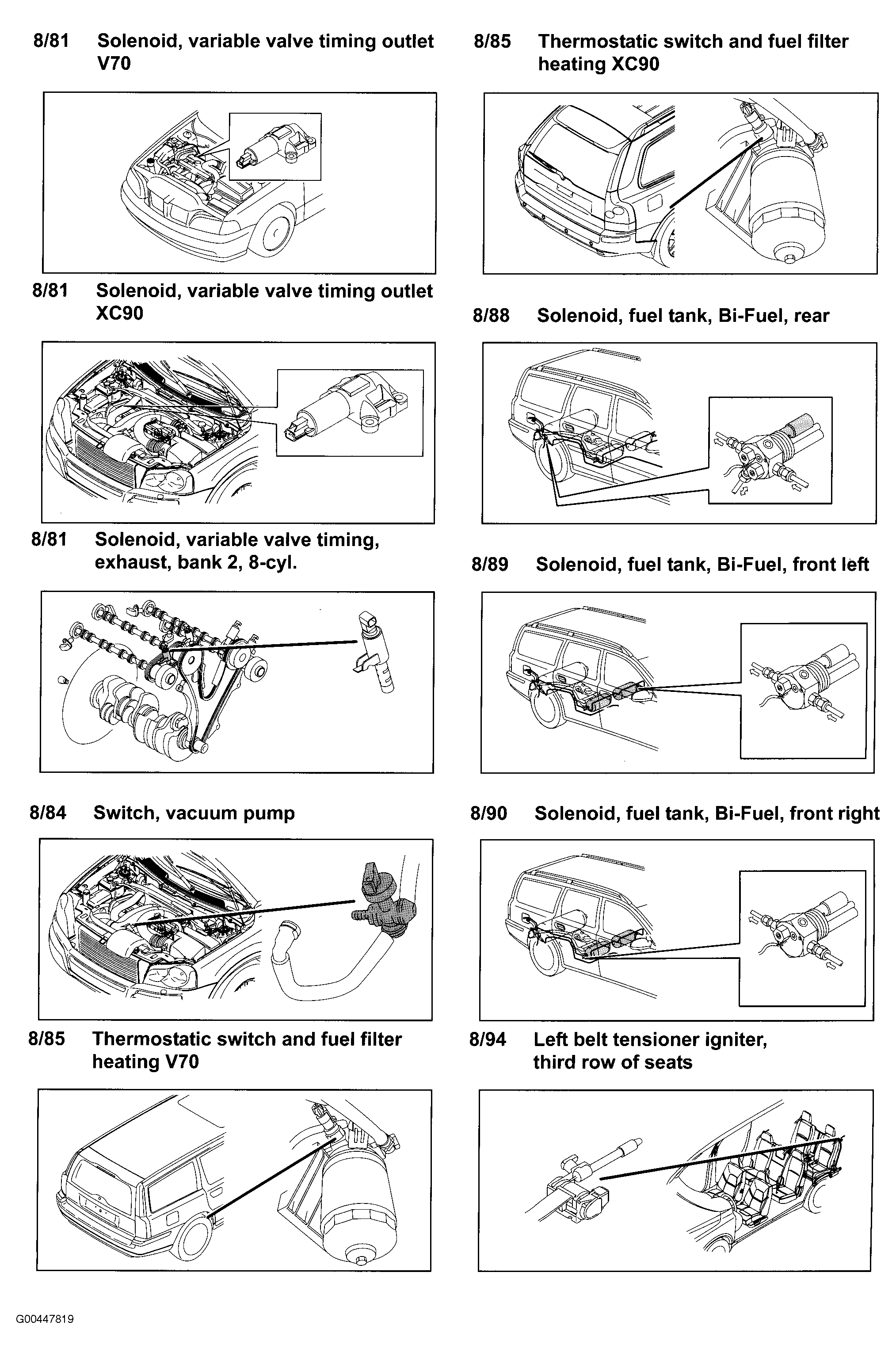

Fig 58: Components (8/81 To 8/94)
G00447819Courtesy of VOLVO CARS OF NORTH AMERICA.

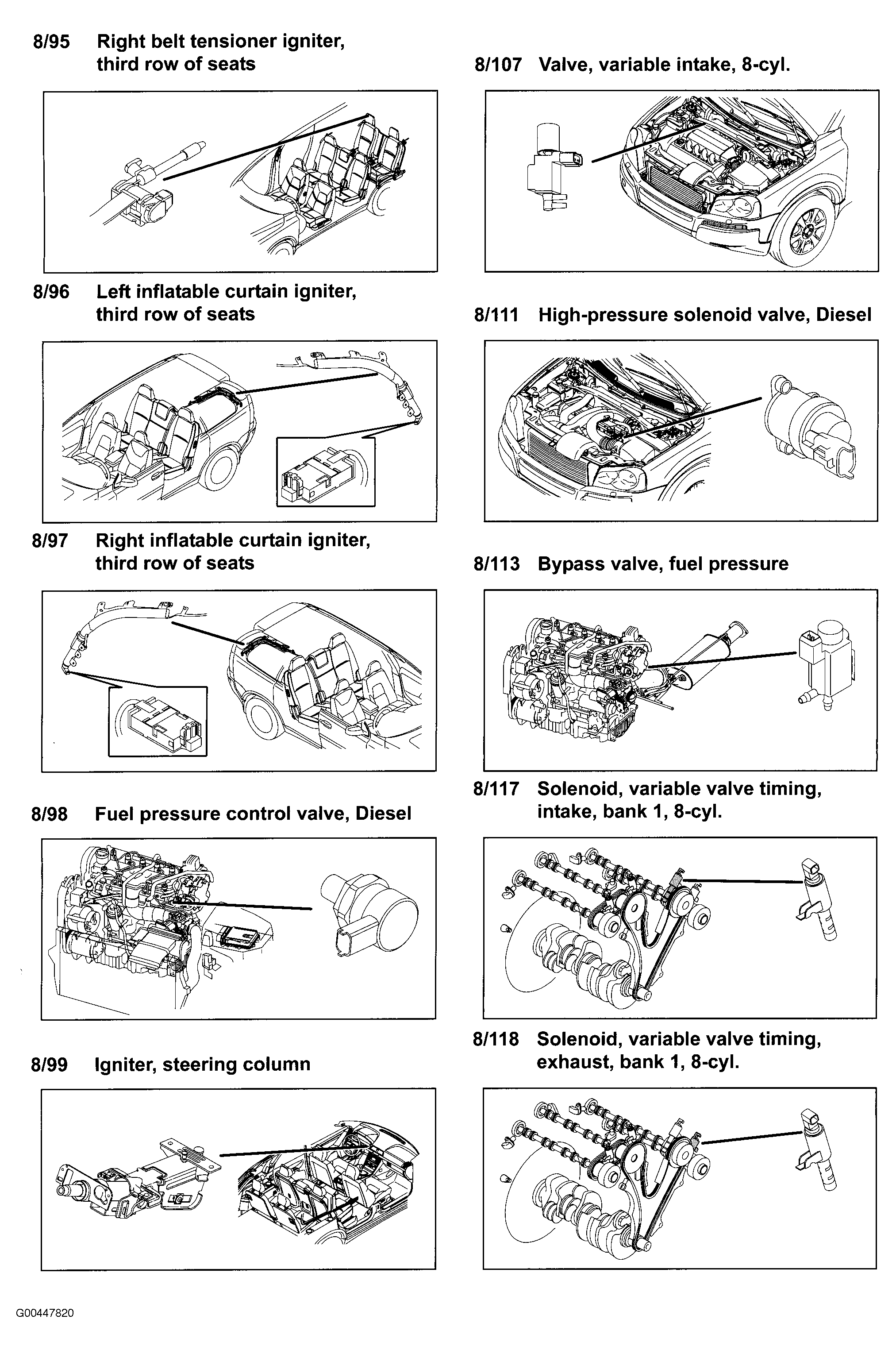

Fig 59: Components (8/95 To 8/118)
G00447820Courtesy of VOLVO CARS OF NORTH AMERICA.

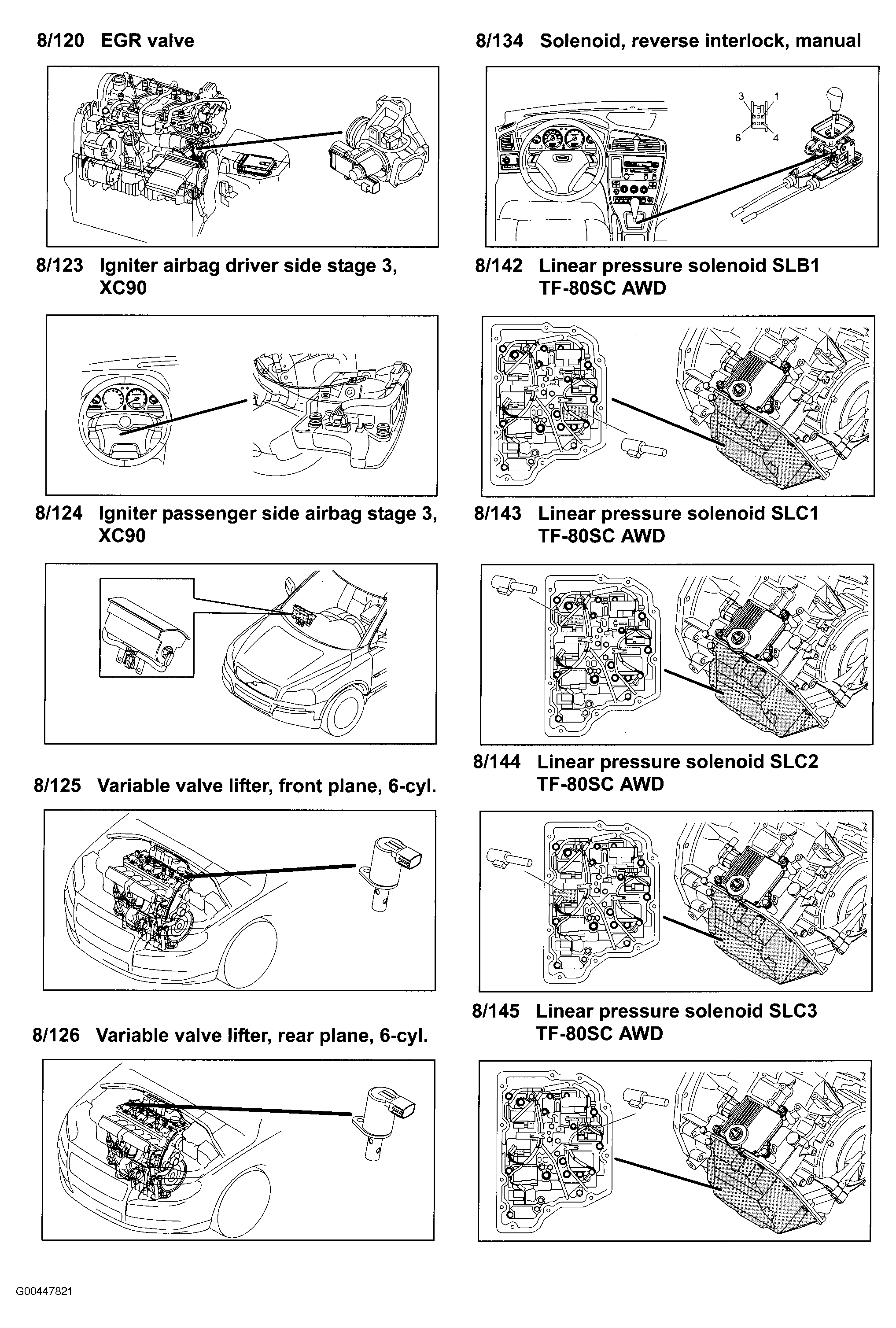

Fig 60: Components (8/120 To 8/145)
G00447821Courtesy of VOLVO CARS OF NORTH AMERICA.

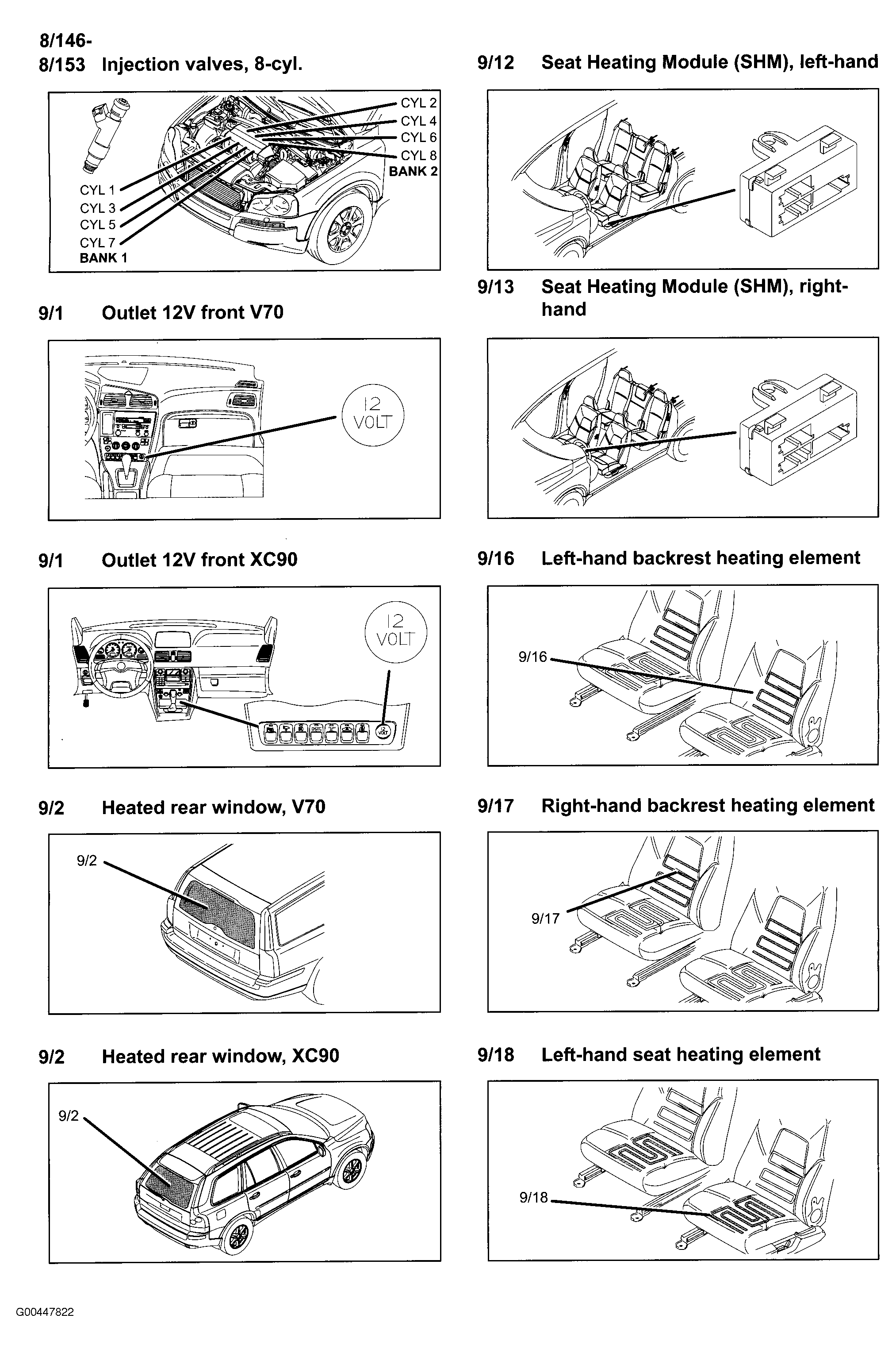

Fig 61: Components (8/146 To 9/18)
G00447822Courtesy of VOLVO CARS OF NORTH AMERICA.

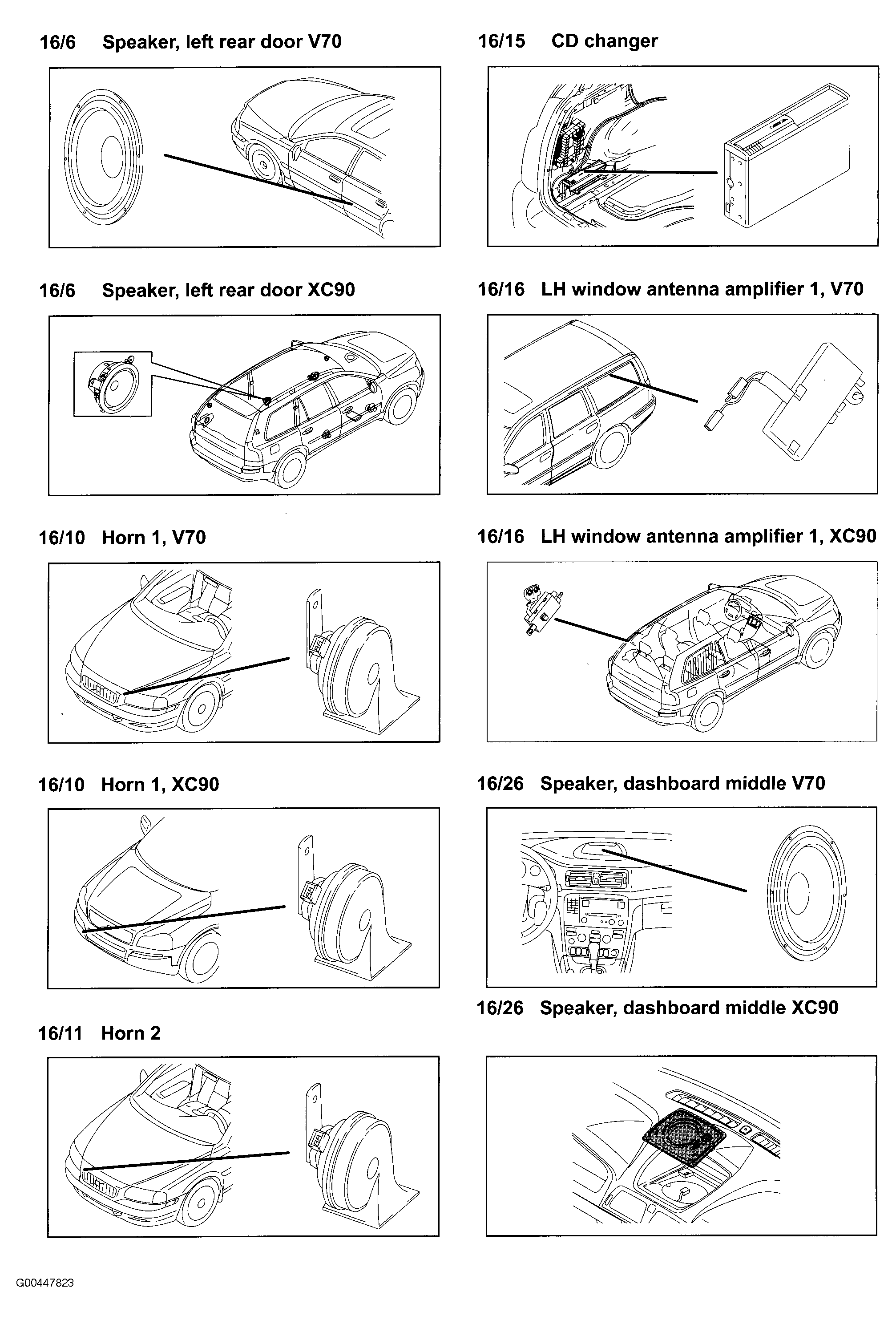

Fig 62: Components (16/6 To 16/26)
G00447823Courtesy of VOLVO CARS OF NORTH AMERICA.

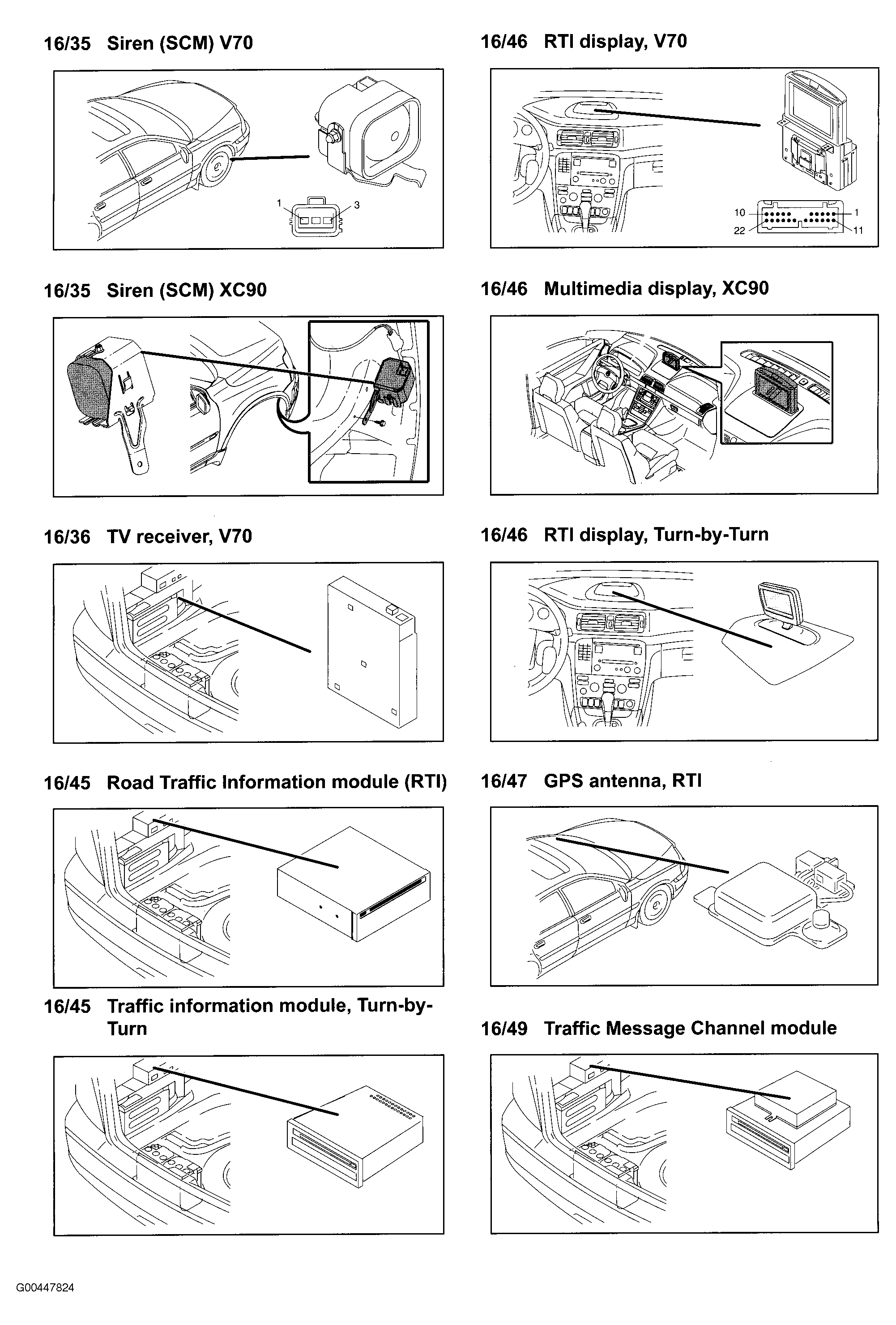

Fig 63: Components (16/35 To 16/49)
G00447824Courtesy of VOLVO CARS OF NORTH AMERICA.

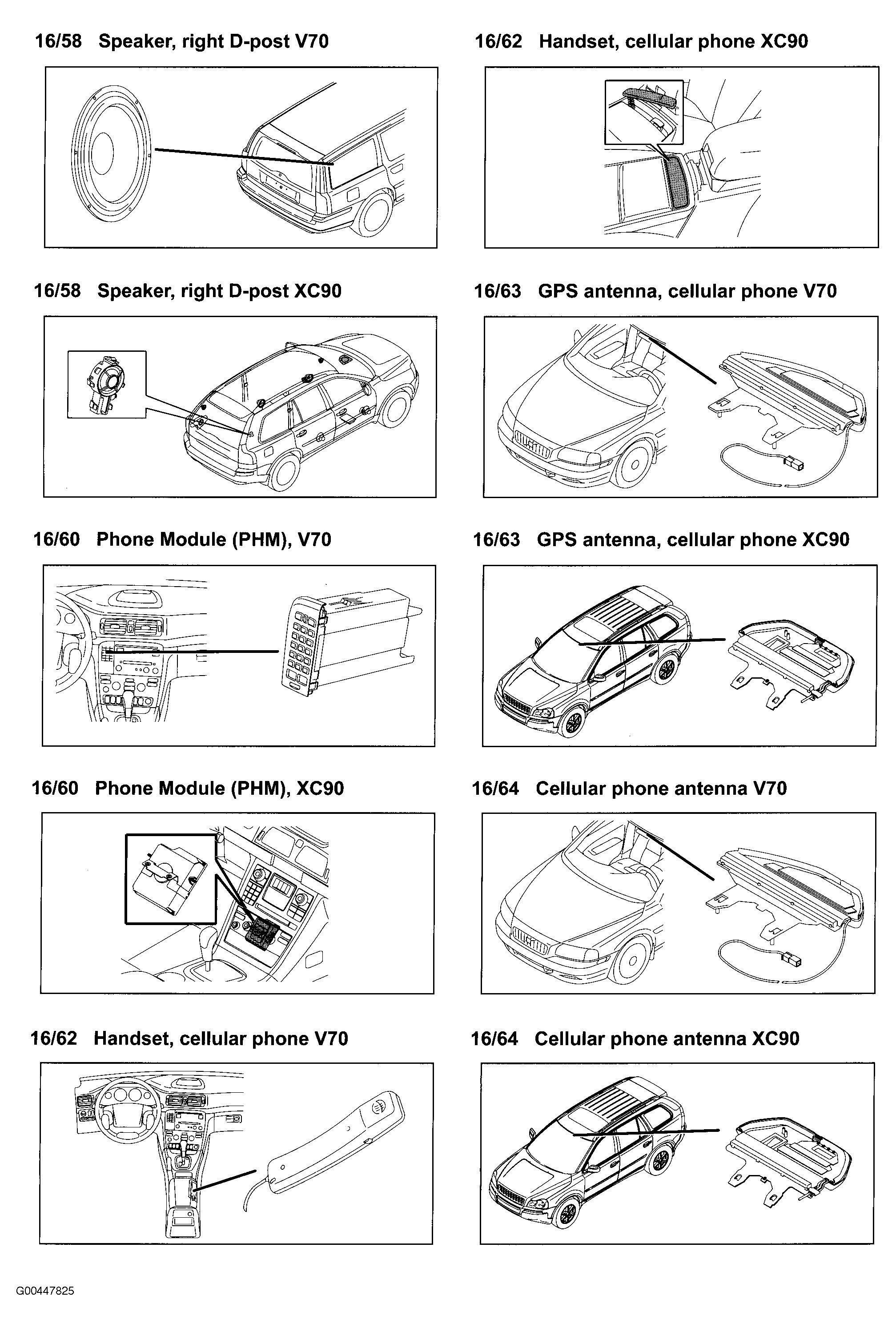

Fig 64: Components (16/58 To 16/64)
G00447825Courtesy of VOLVO CARS OF NORTH AMERICA.

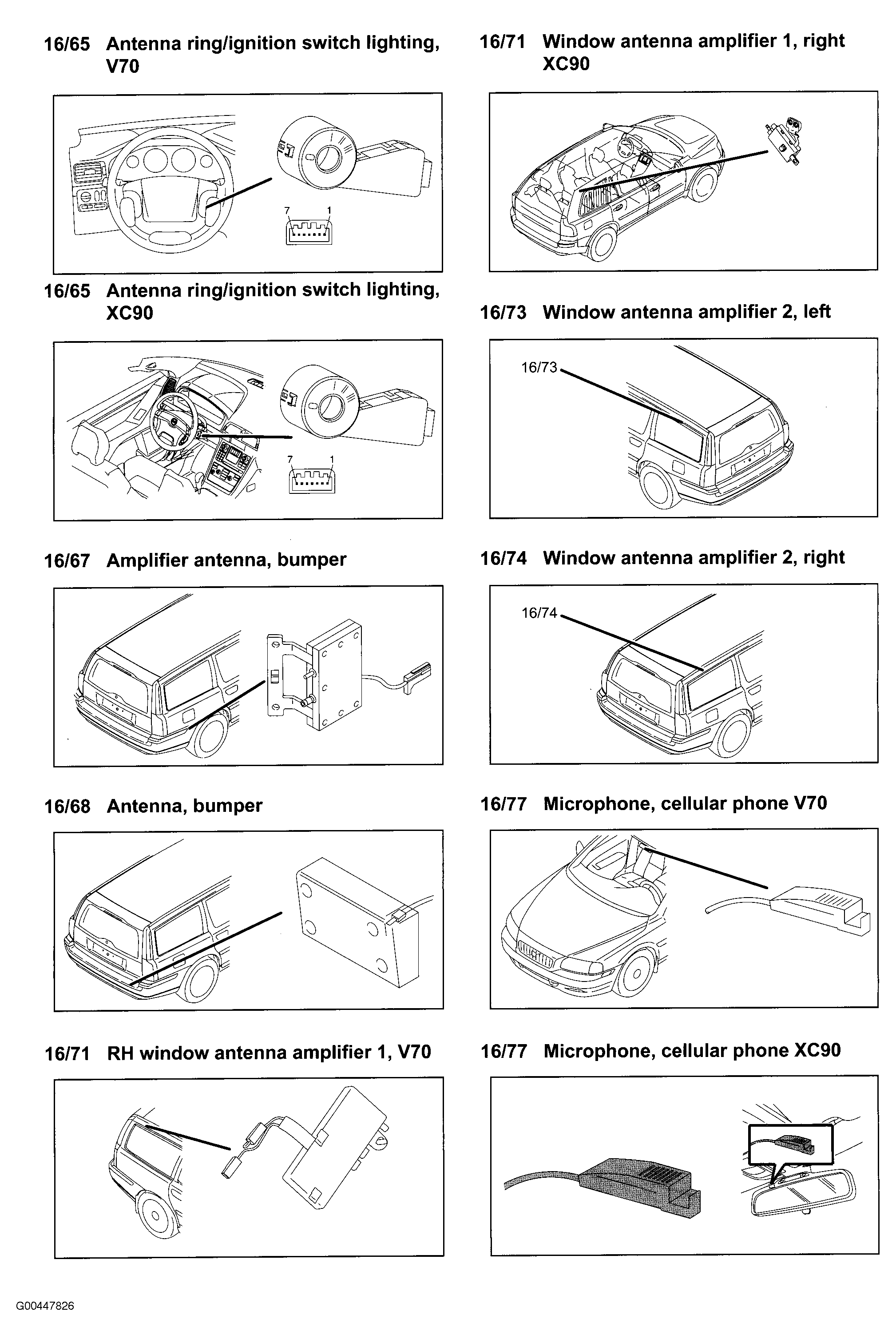

Fig 65: Components (16/65 To 16/77)
G00447826Courtesy of VOLVO CARS OF NORTH AMERICA.

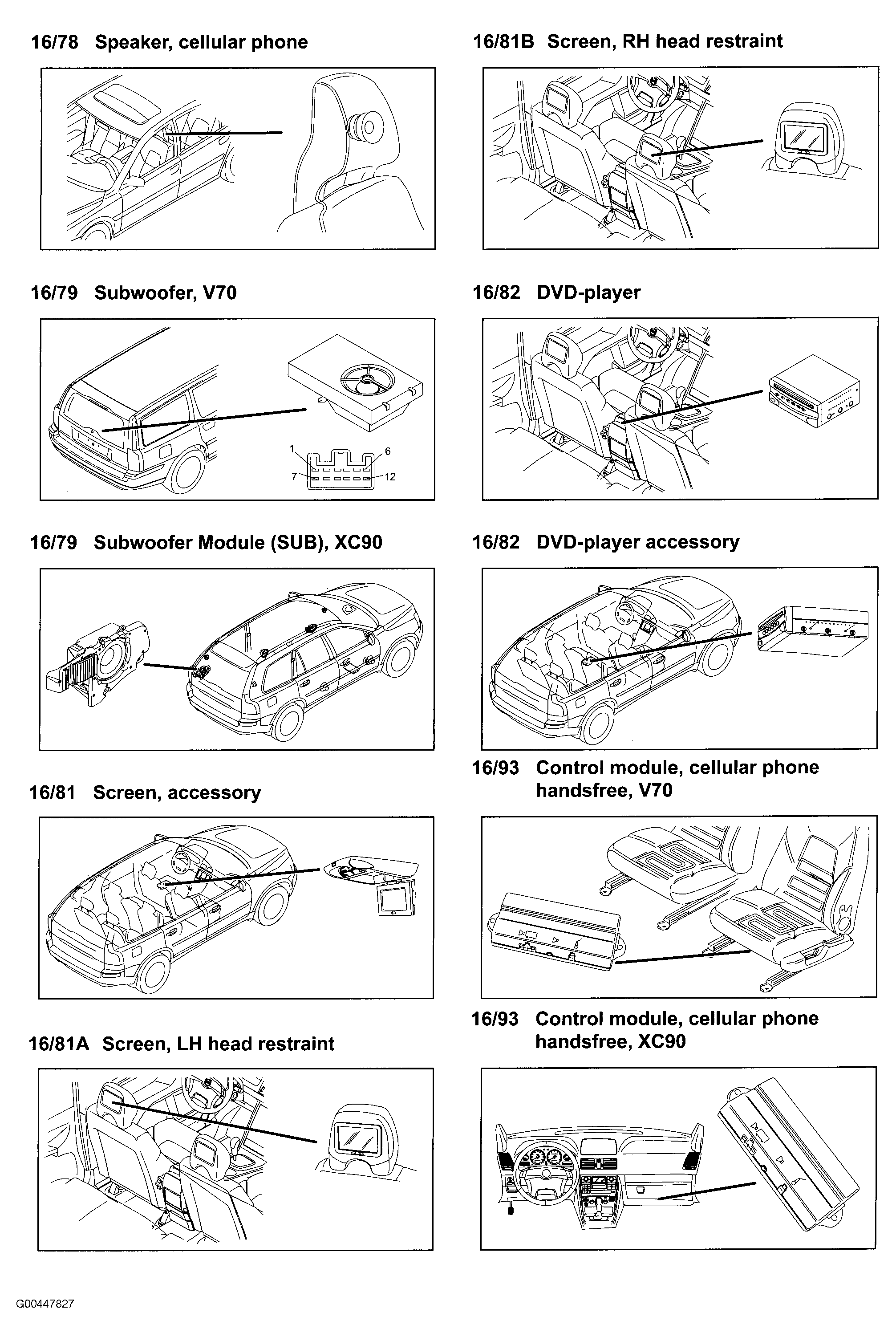

Fig 66: Components (16/78 To 16/93)
G00447827Courtesy of VOLVO CARS OF NORTH AMERICA.

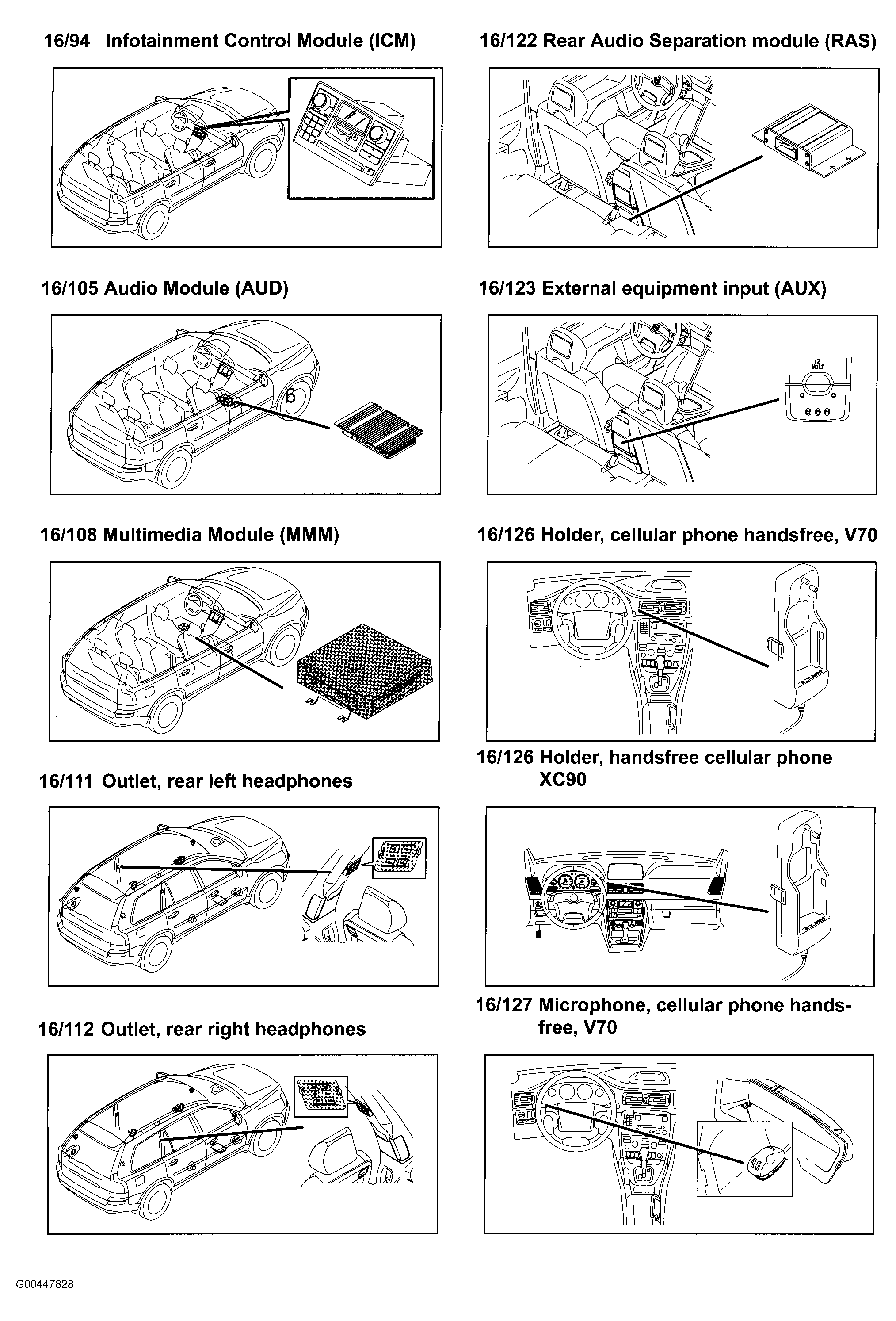

Fig 67: Components (16/94 To 16/127)
G00447828Courtesy of VOLVO CARS OF NORTH AMERICA.

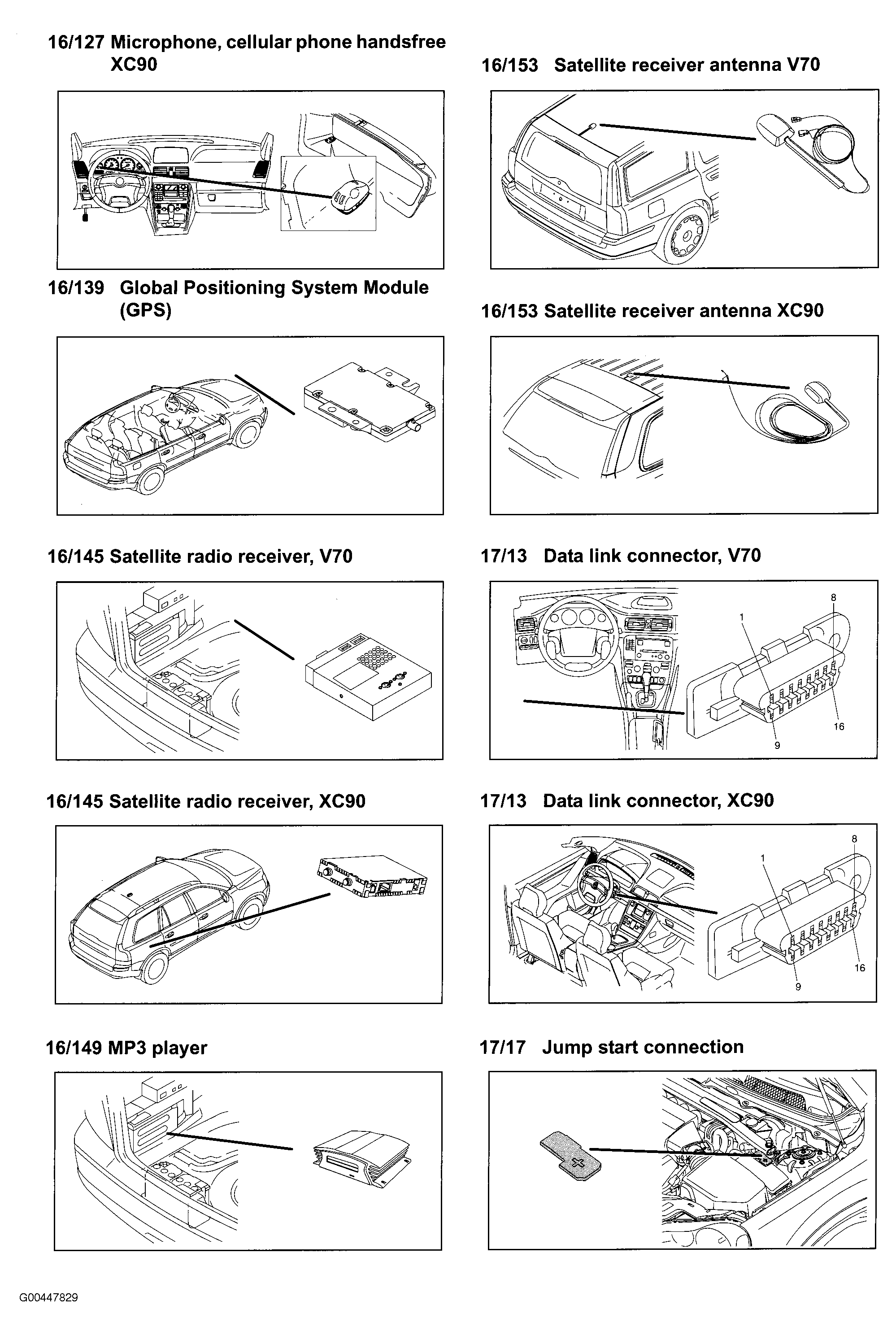

Fig 68: Components (16/127 To 17/17)
G00447829Courtesy of VOLVO CARS OF NORTH AMERICA.

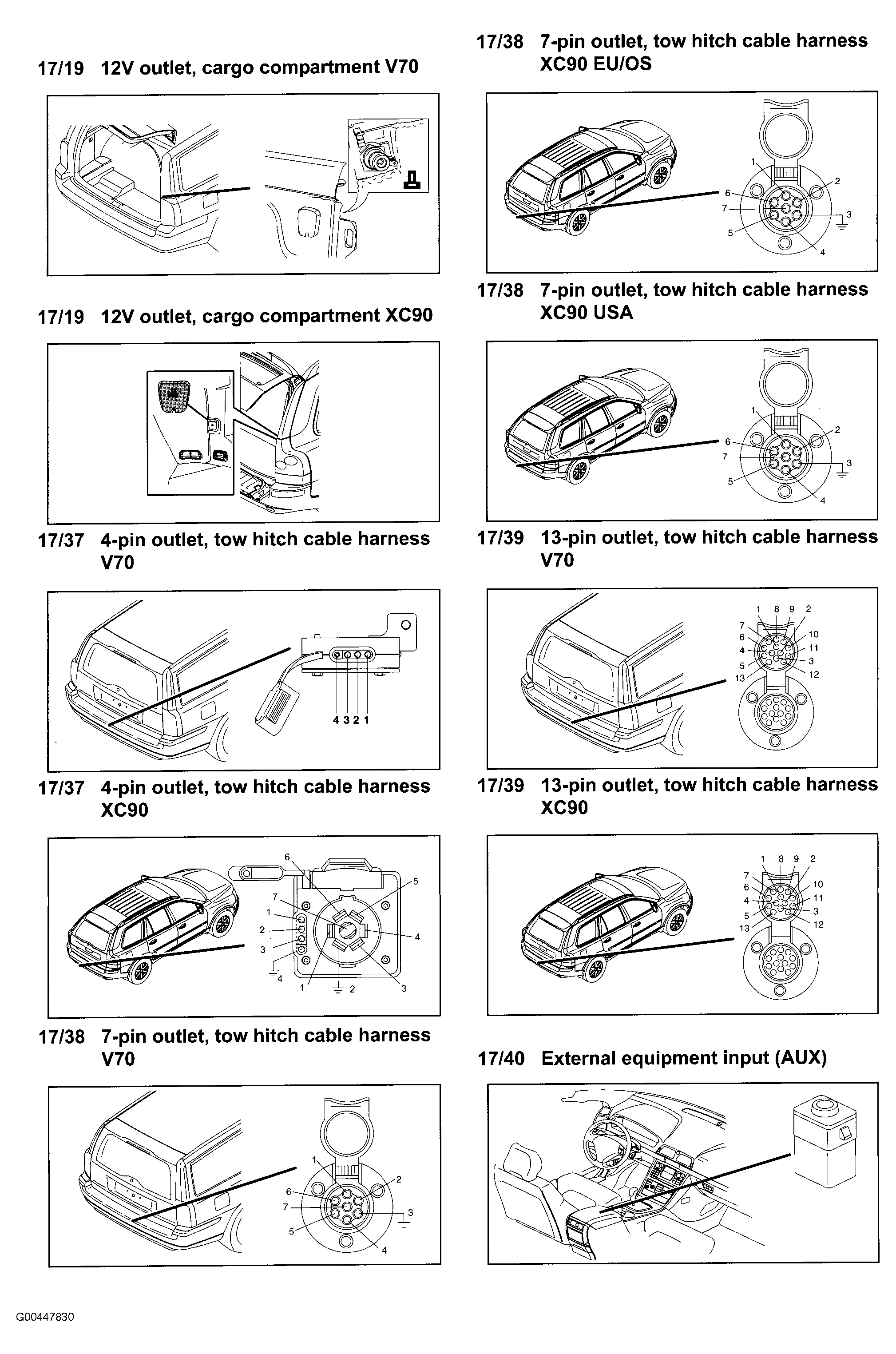

Fig 69: Components (17/19 To 17/40)
G00447830Courtesy of VOLVO CARS OF NORTH AMERICA.

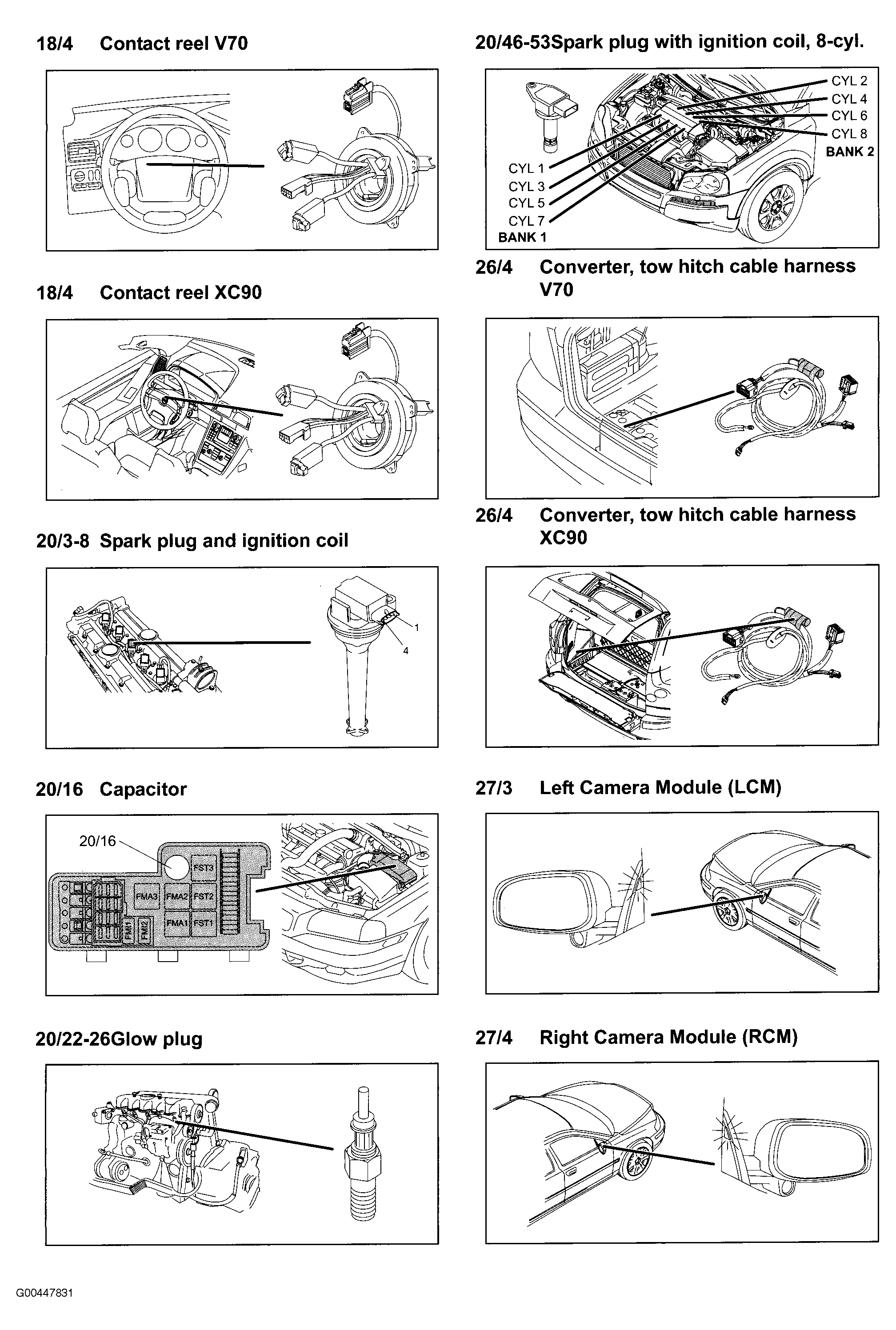

Fig 70: Components (18/4 To 27/4)
G00447831Courtesy of VOLVO CARS OF NORTH AMERICA.

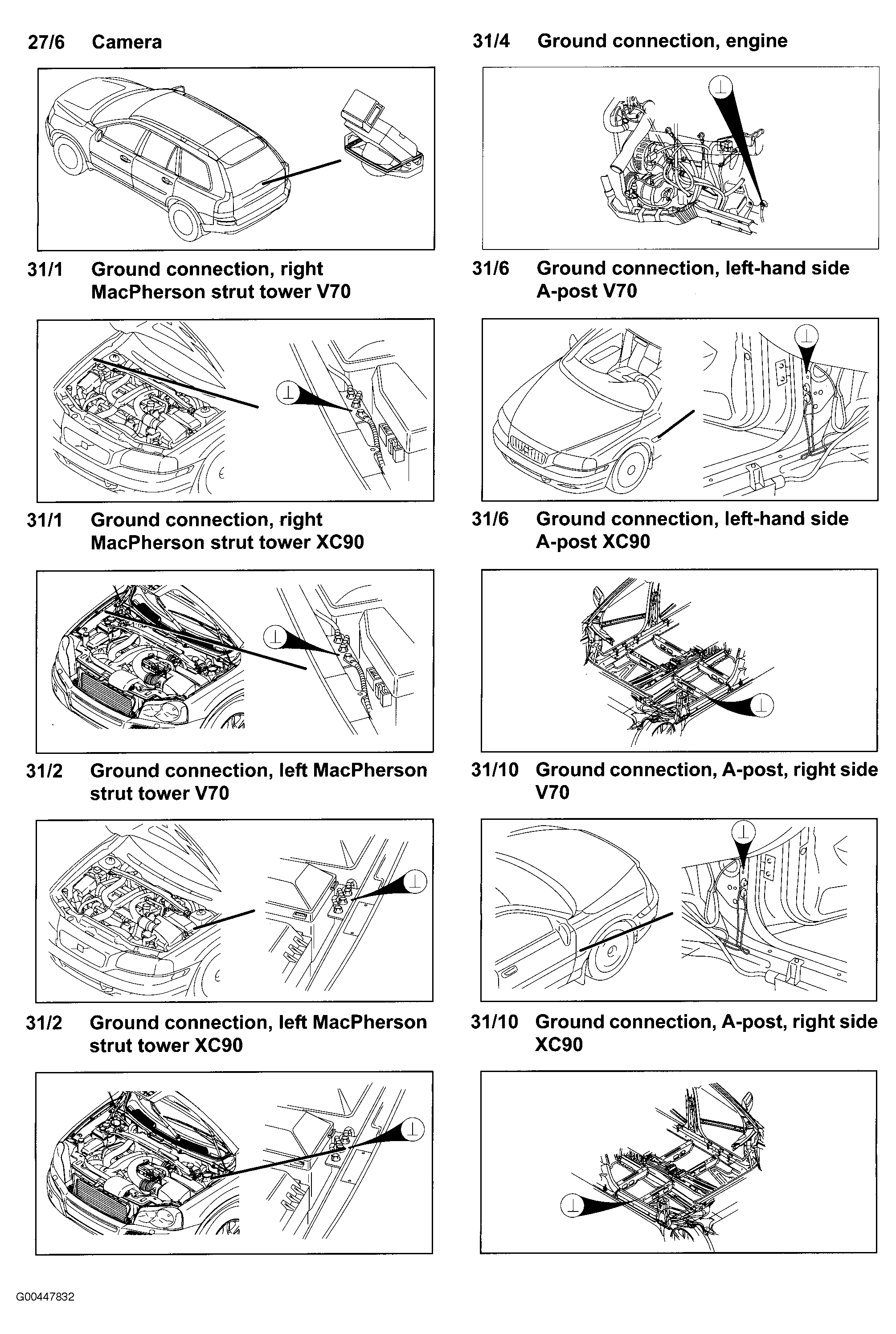

Fig 71: Components (27/6 To 31/10)
G00447832Courtesy of VOLVO CARS OF NORTH AMERICA.

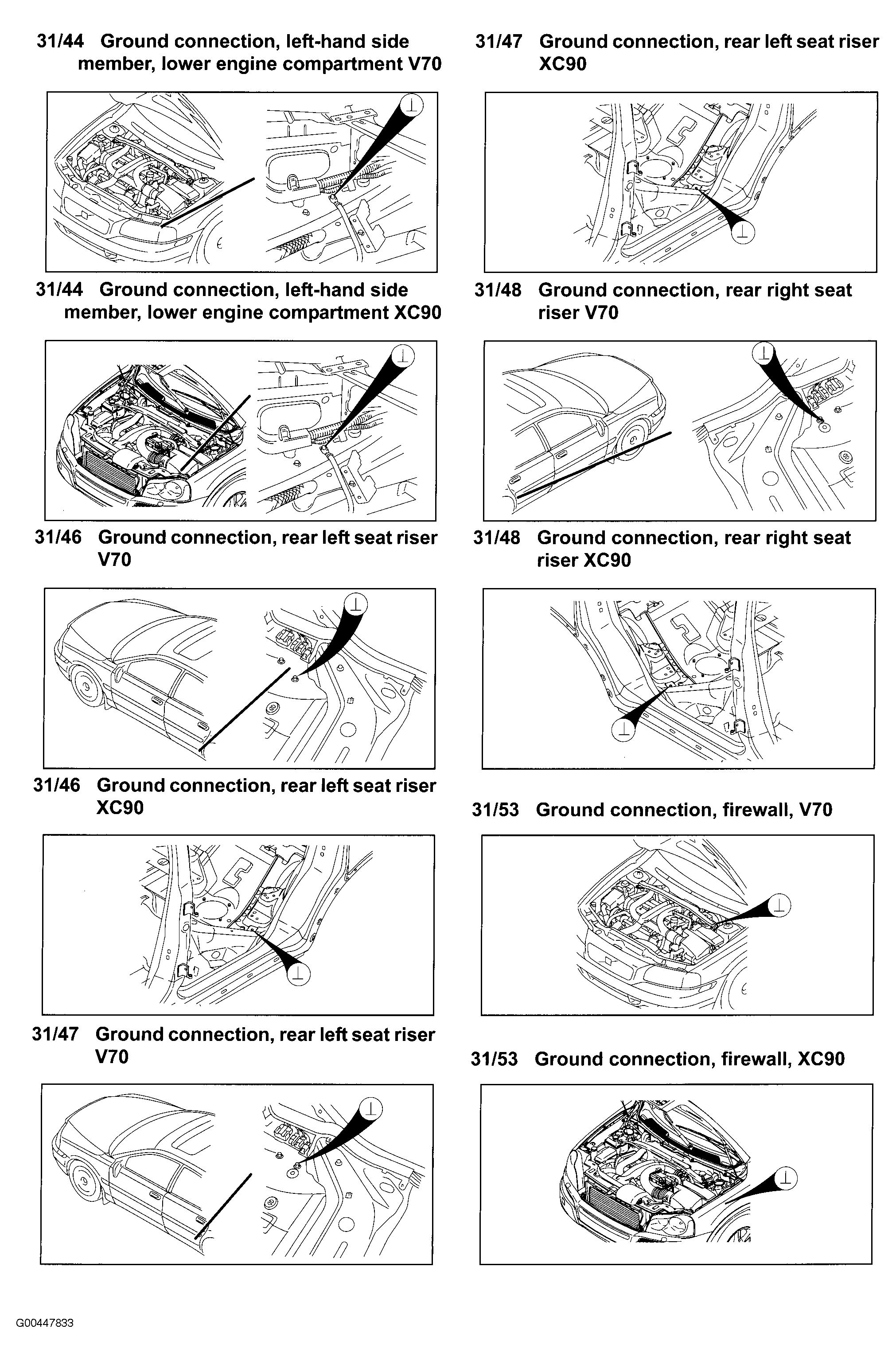

Fig 72: Components (31/44 To 31/53)
G00447833Courtesy of VOLVO CARS OF NORTH AMERICA.

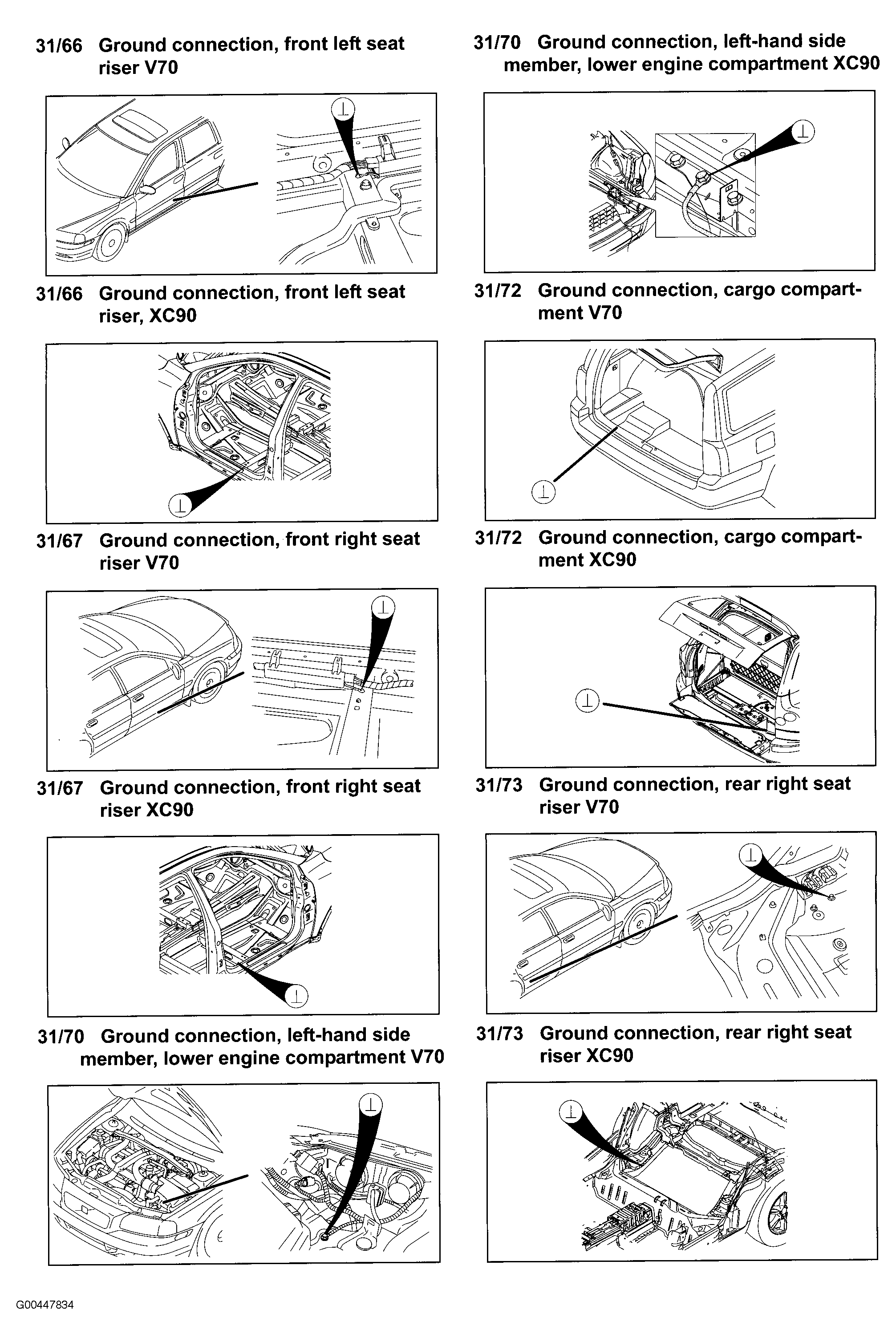

Fig 73: Components (31/66 To 31/73)
G00447834Courtesy of VOLVO CARS OF NORTH AMERICA.

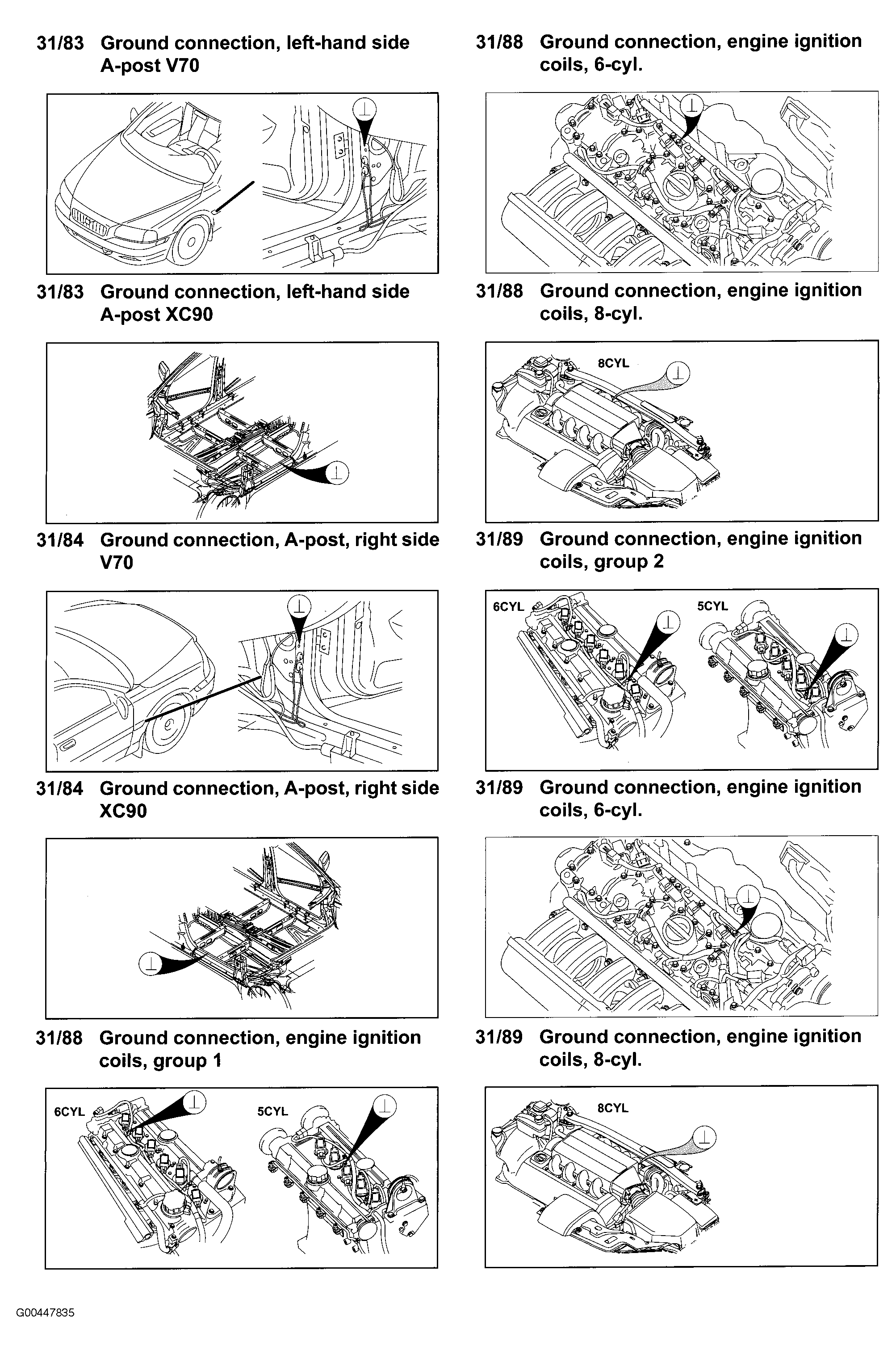

Fig 74: Components (31/83 To 31/89)
G00447835Courtesy of VOLVO CARS OF NORTH AMERICA.

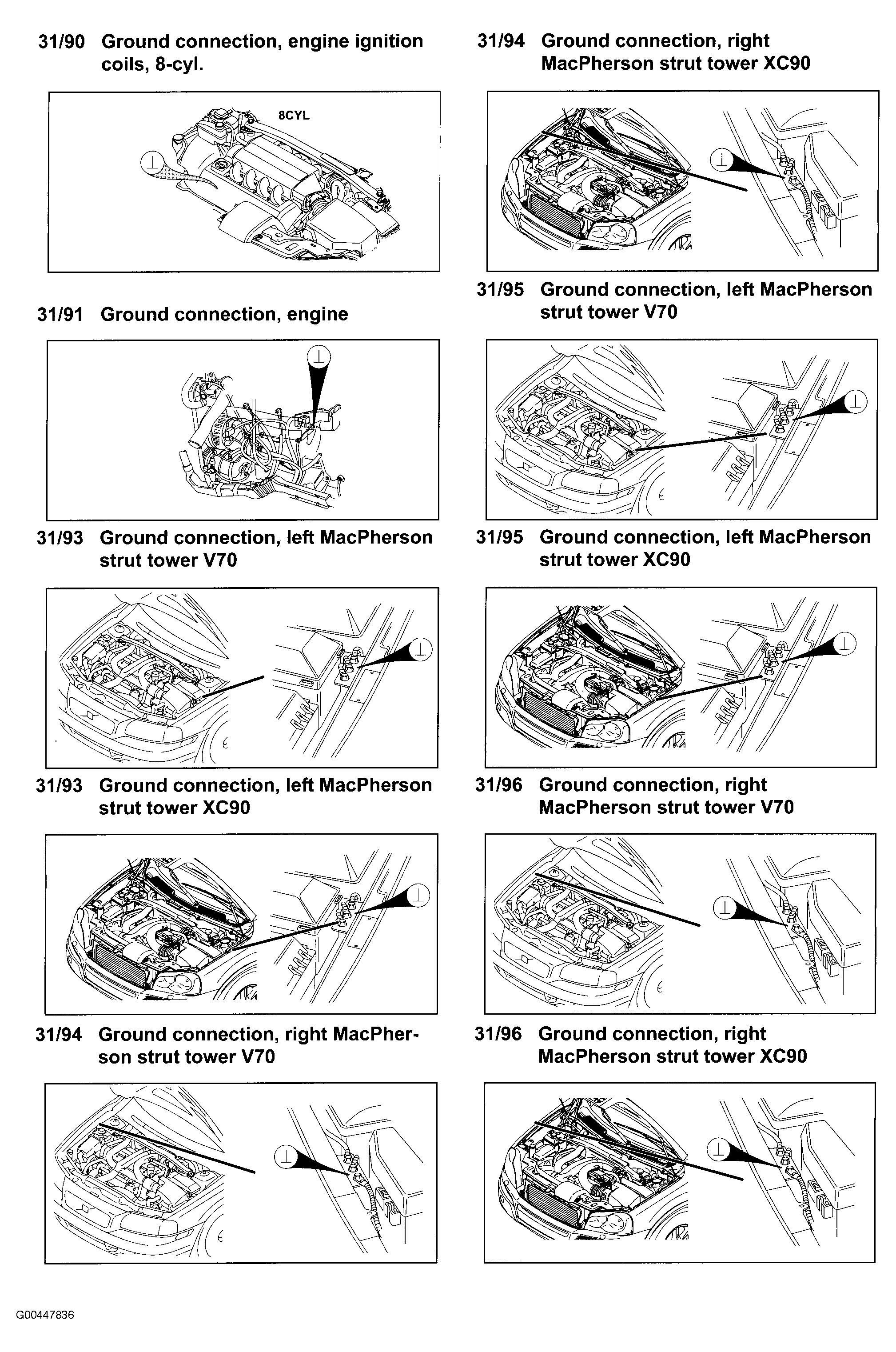

Fig 75: Components (31/90 To 31/96)
G00447836Courtesy of VOLVO CARS OF NORTH AMERICA.

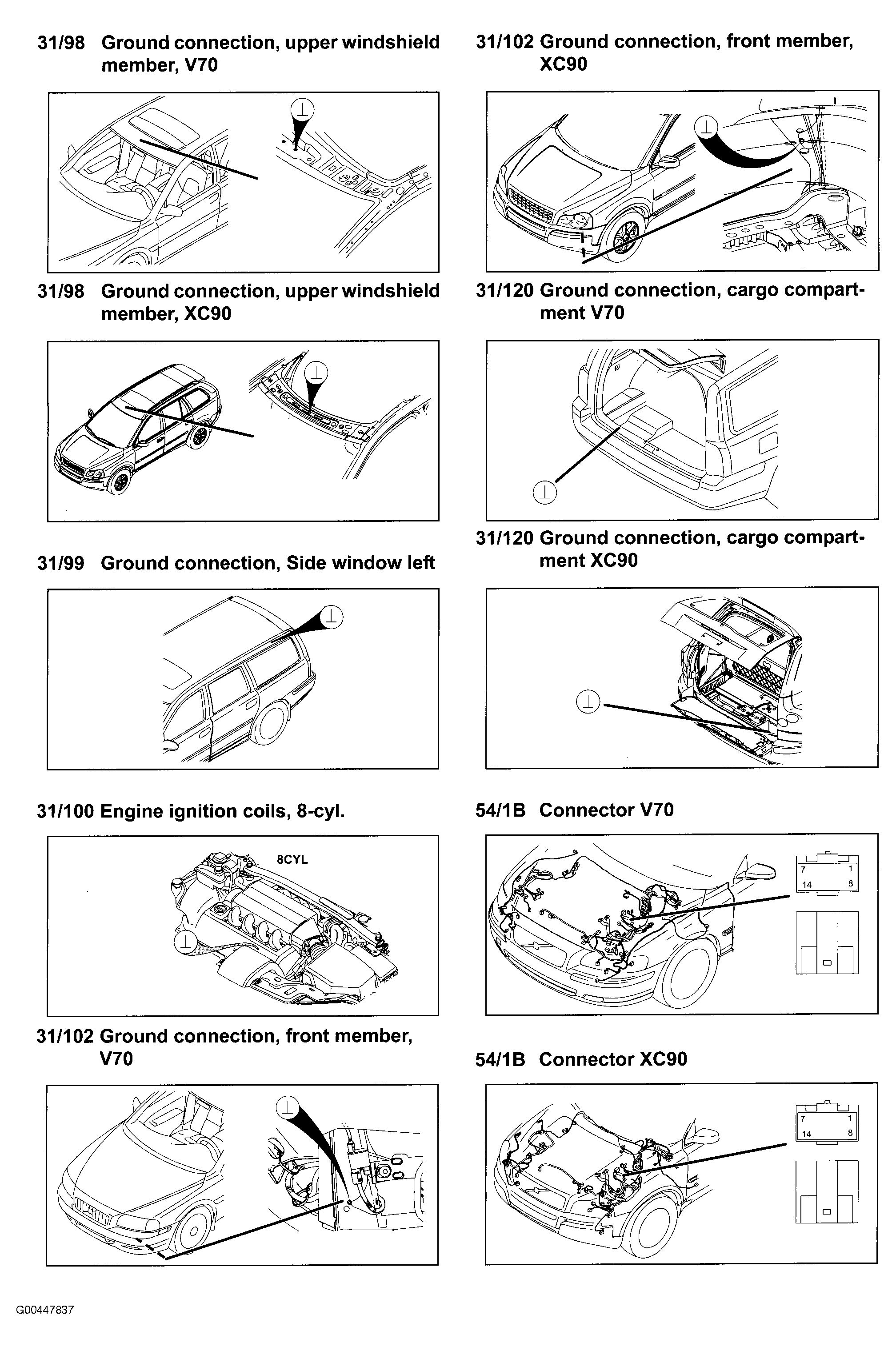

Fig 76: Components (31/98 To C54/1B)
G00447837Courtesy of VOLVO CARS OF NORTH AMERICA.

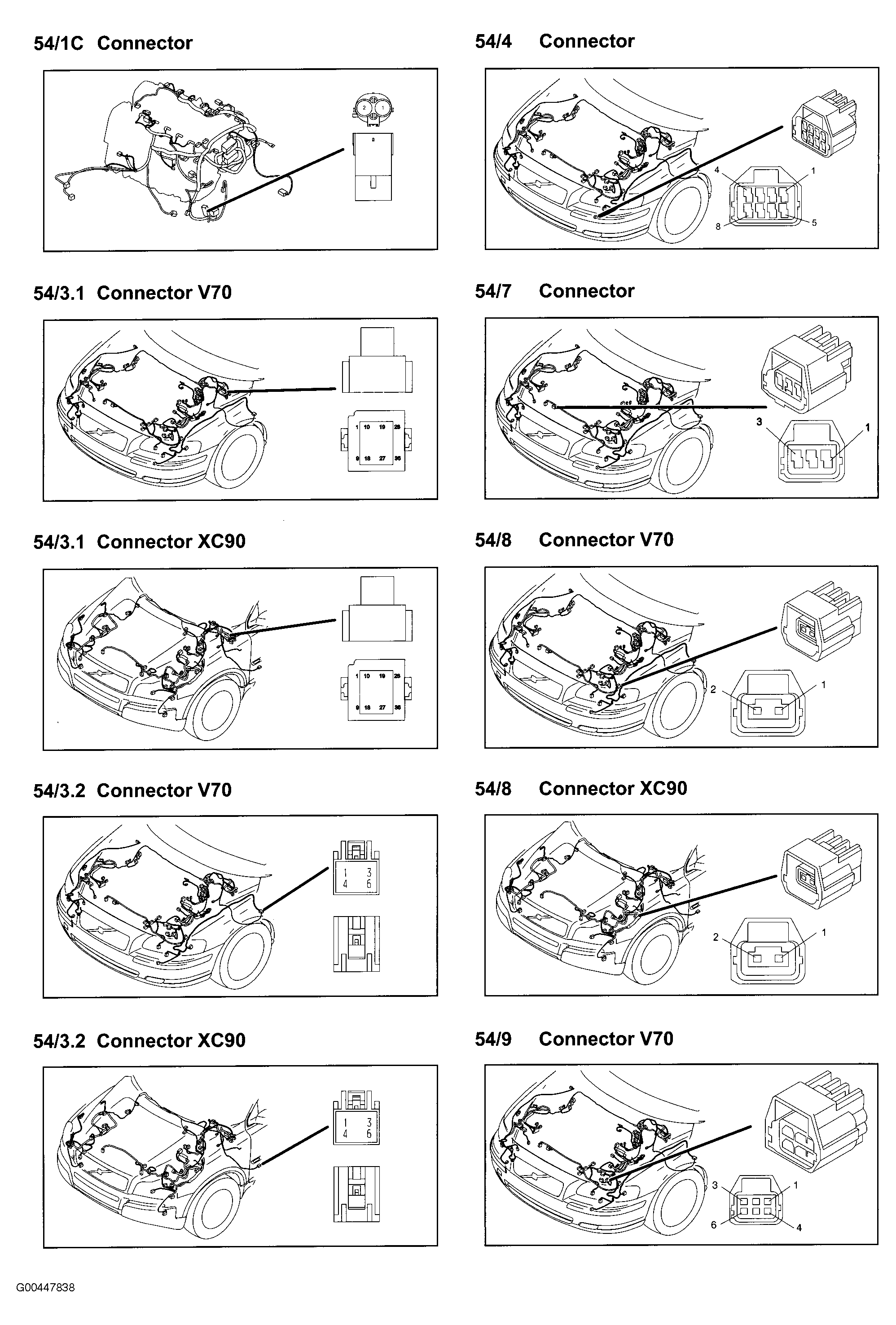

Fig 77: Components (54/1C To 54/9)
G00447838Courtesy of VOLVO CARS OF NORTH AMERICA.

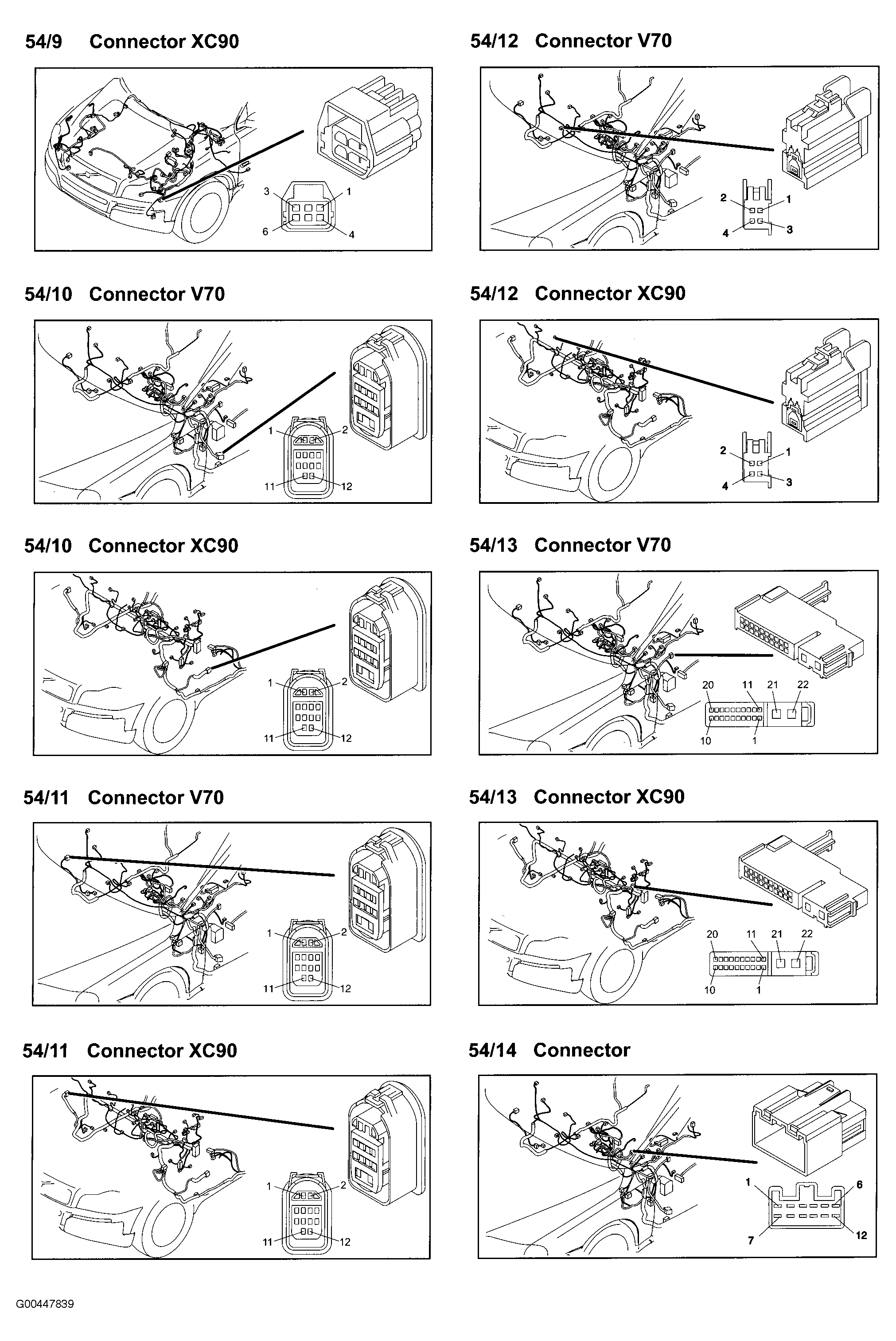

Fig 78: Components (54/9 To 54/14)
G00447839Courtesy of VOLVO CARS OF NORTH AMERICA.

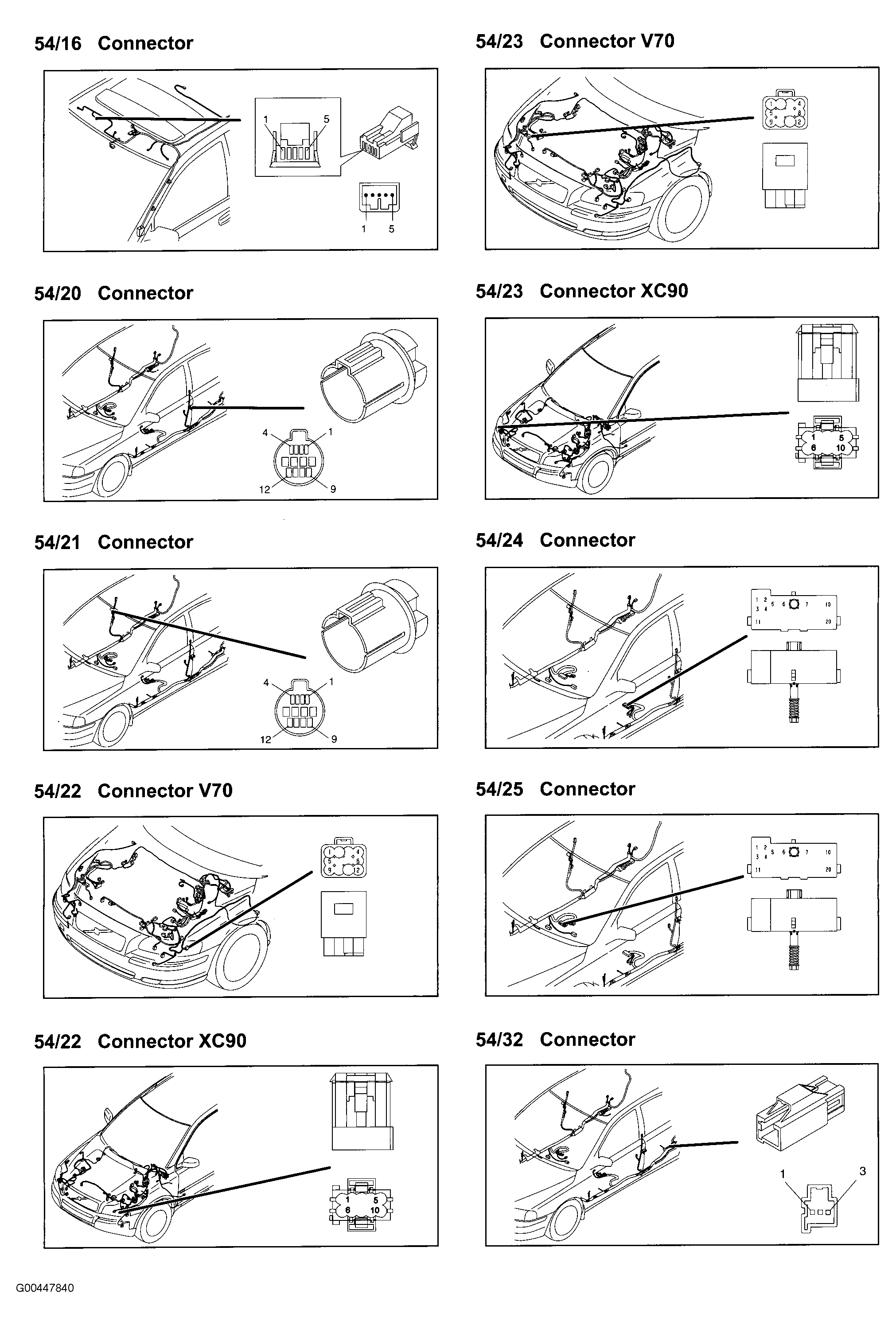

Fig 79: Components (54/16 To 54/32)
G00447840Courtesy of VOLVO CARS OF NORTH AMERICA.

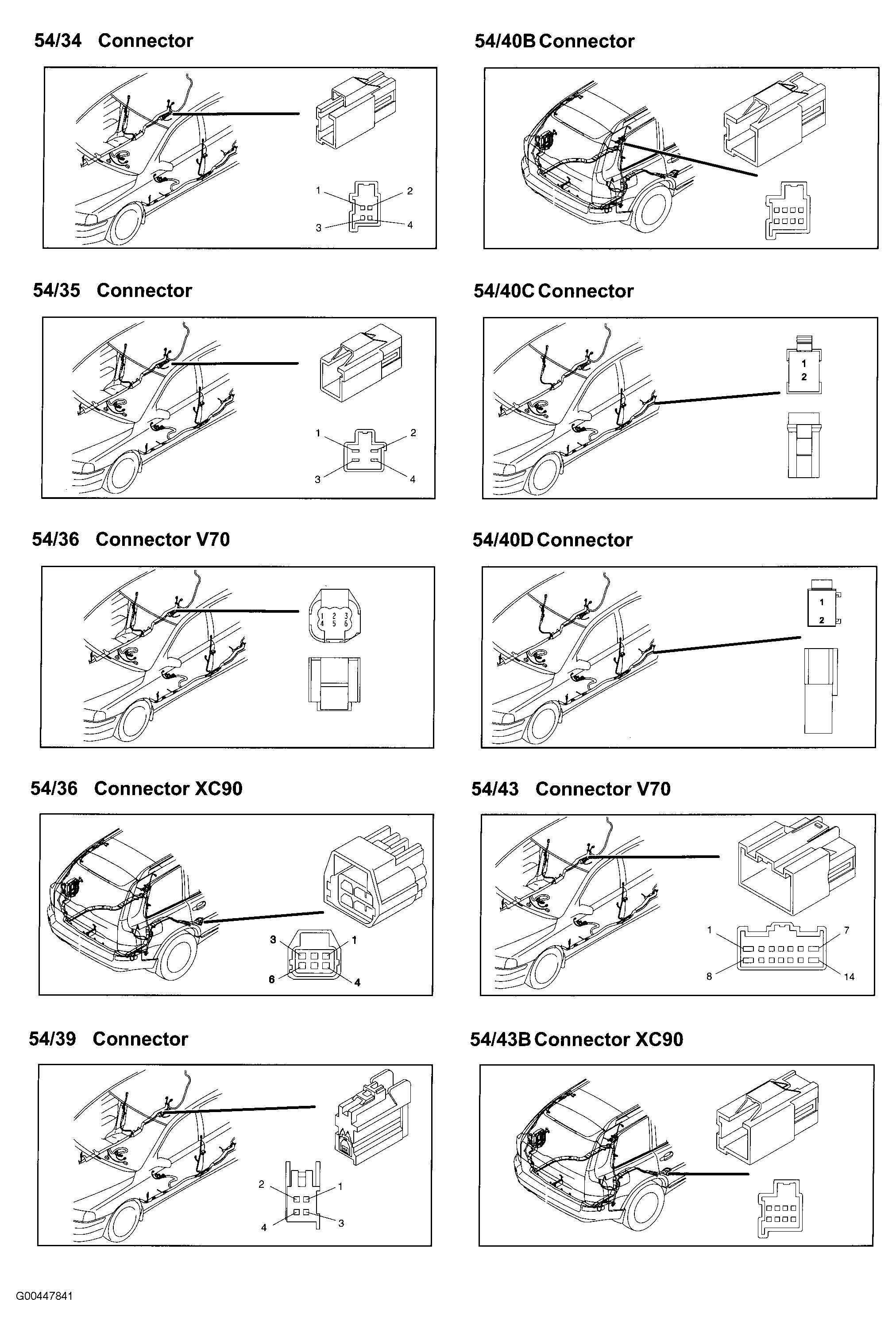

Fig 80: Components (54/34 To 54/43B)
G00447841Courtesy of VOLVO CARS OF NORTH AMERICA.

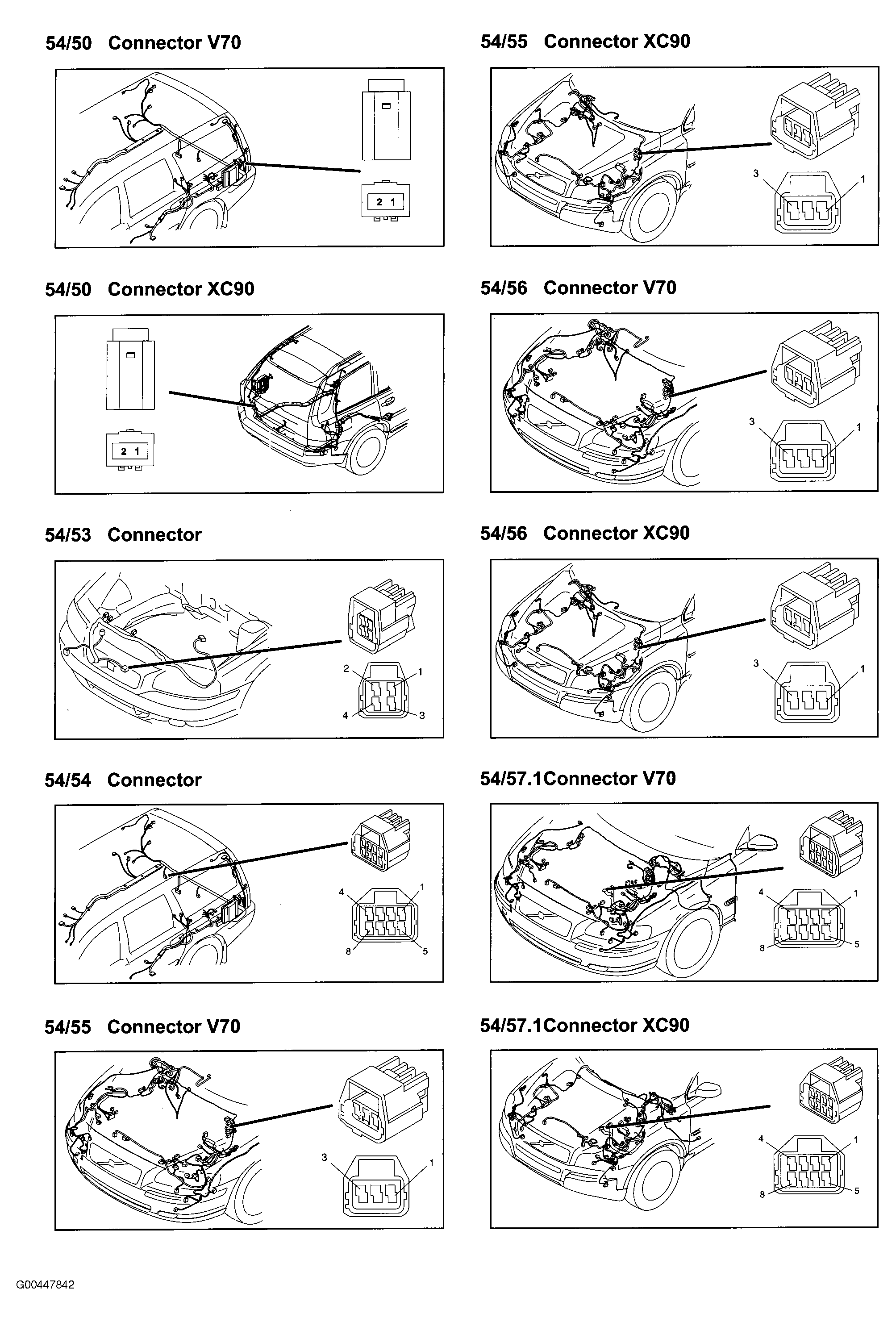

Fig 81: Components (54/50 To 54/57.1)
G00447842Courtesy of VOLVO CARS OF NORTH AMERICA.

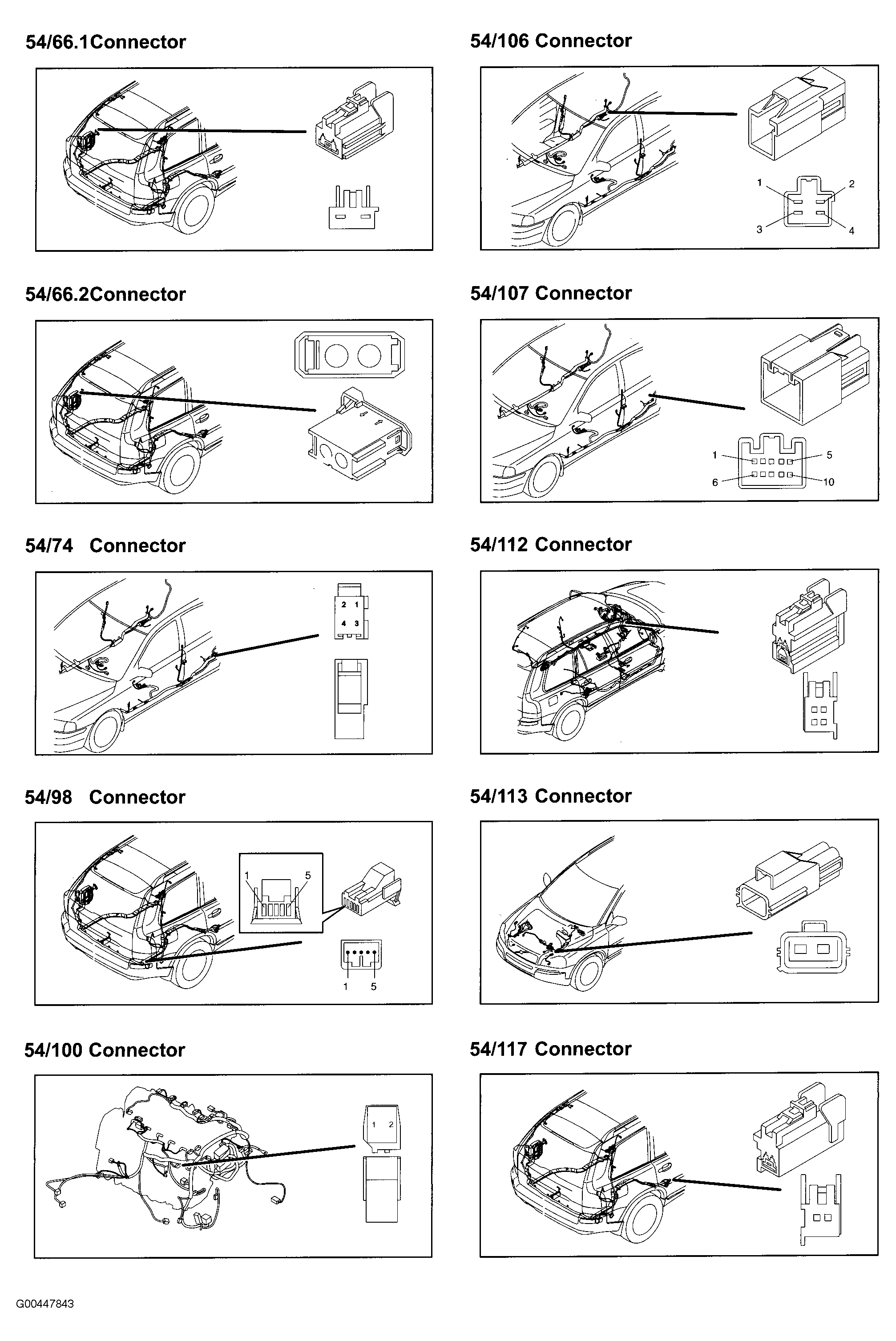

Fig 82: Components (54/66.1 To 54/117)
G00447843Courtesy of VOLVO CARS OF NORTH AMERICA.

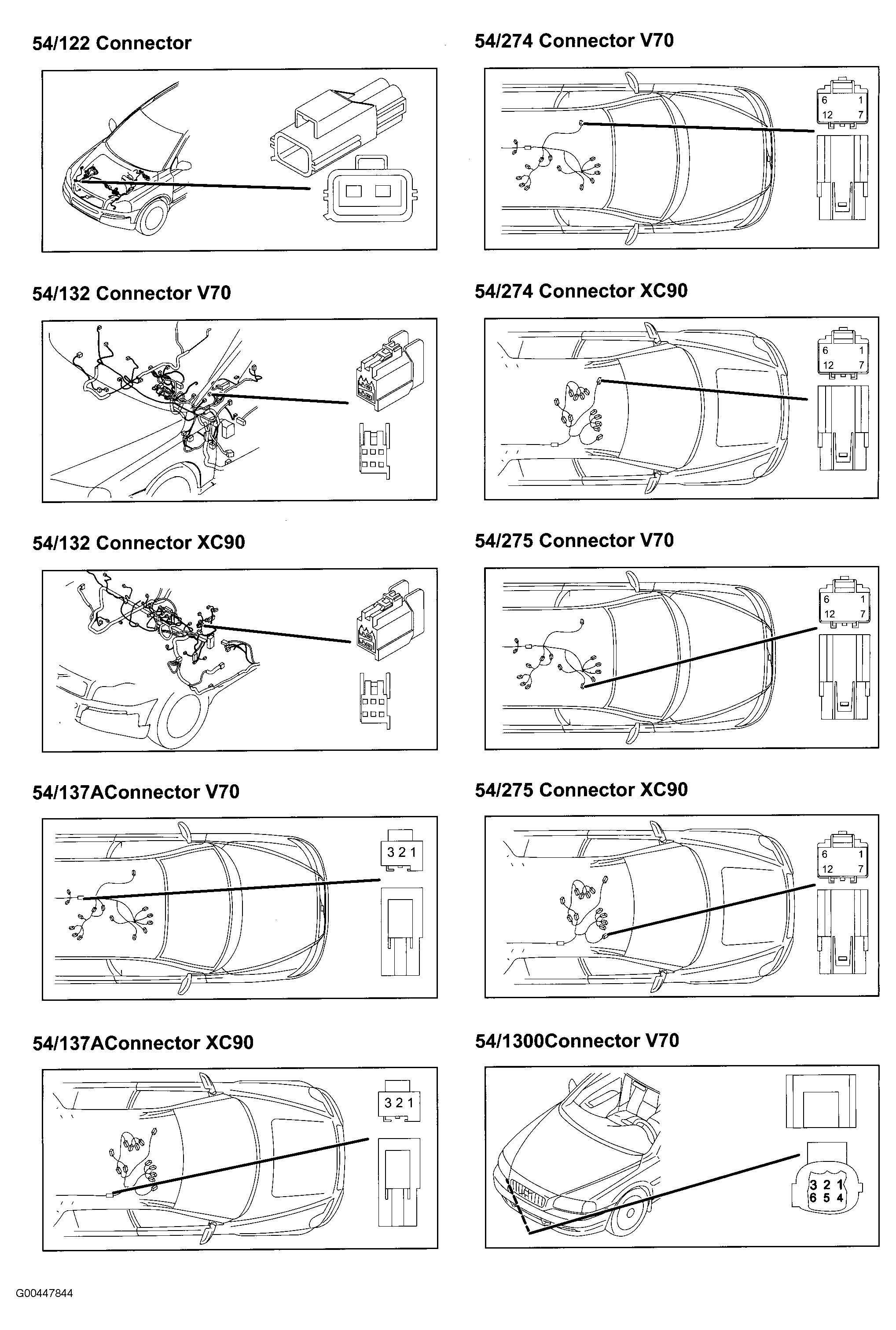

Fig 83: Components (54/117 To 54/1300)
G00447844Courtesy of VOLVO CARS OF NORTH AMERICA.

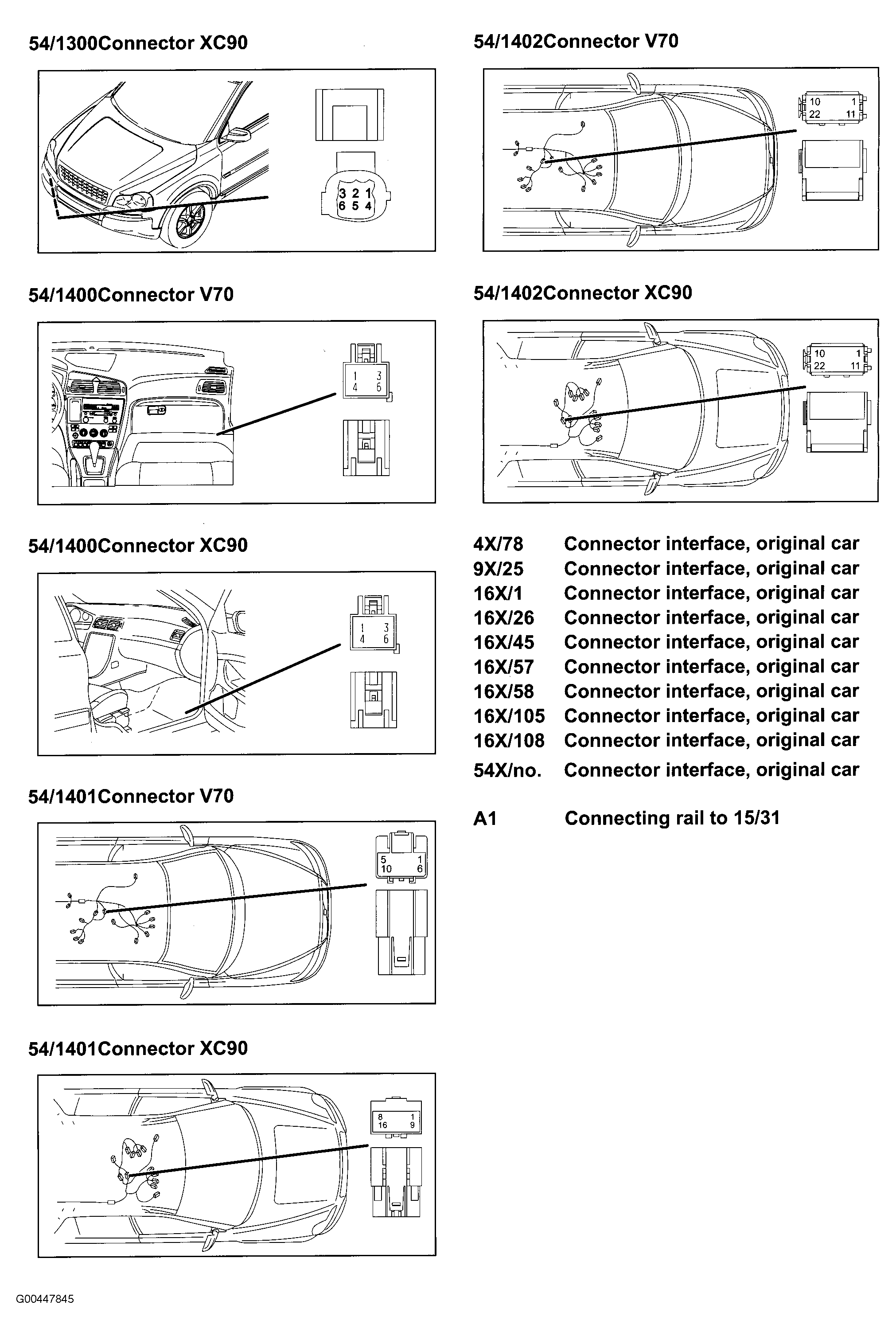

Fig 84: Components (54/1300 To 54/1402)
G00447845Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 85: Components (11A To 11M)
G00447846Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 86: Components (15/31 To 16/5)
G00447847Courtesy of VOLVO CARS OF NORTH AMERICA.
