Faulty Software: Verification: Verification

HINT: After carrying out the repair, check that the fault has been remedied.

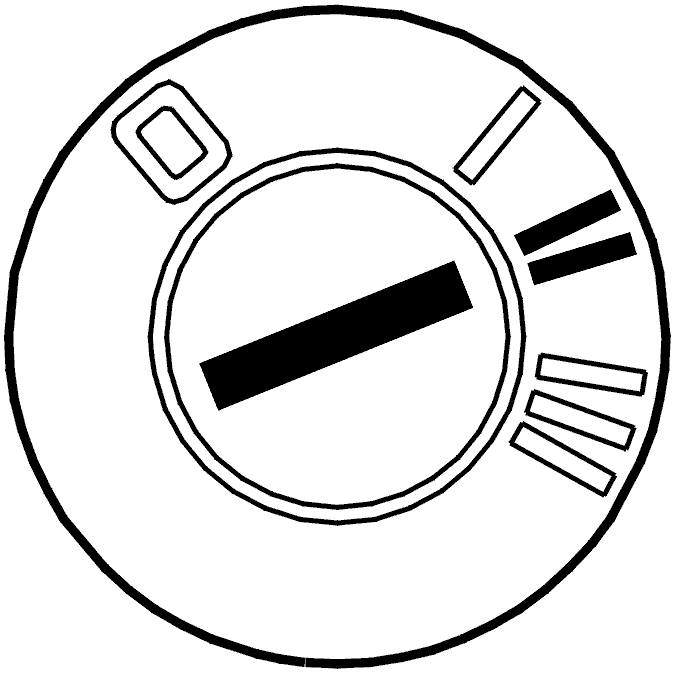

Fig 1: Identifying Ignition ON

Courtesy of VOLVO CARS CORPORATION

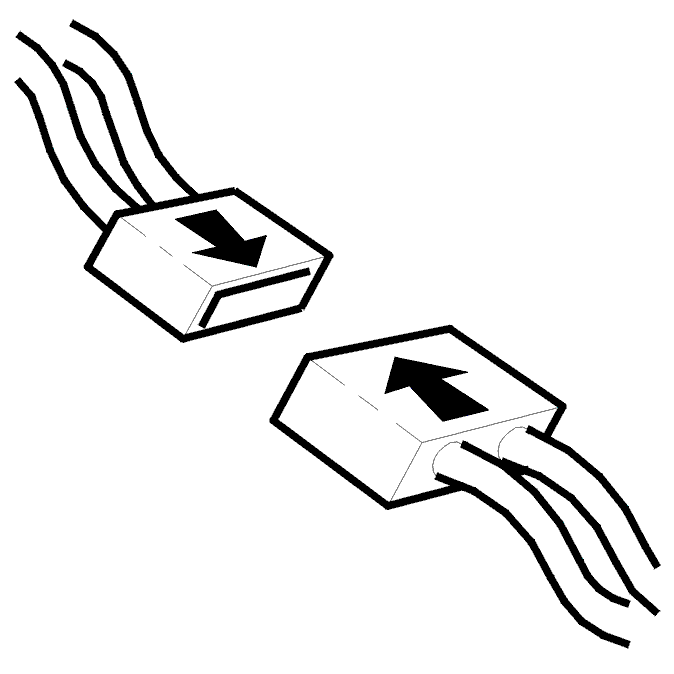

Fig 2: Identifying Connector(s) Reinstallation

Courtesy of VOLVO CARS CORPORATION

• Ignition off
• Reinstall the connectors, components etc.
• Ignition on
• Activate the carphone.

  Make a call so that both the handset and the hands-free system are used. See the manufacturer's instruction manual.

  Ignition off.

  Ignition on.

  Read off the diagnostic trouble codes (DTCs).

  Check that the relevant diagnostic trouble code (DTC) has switched status from permanent to intermittent fault.

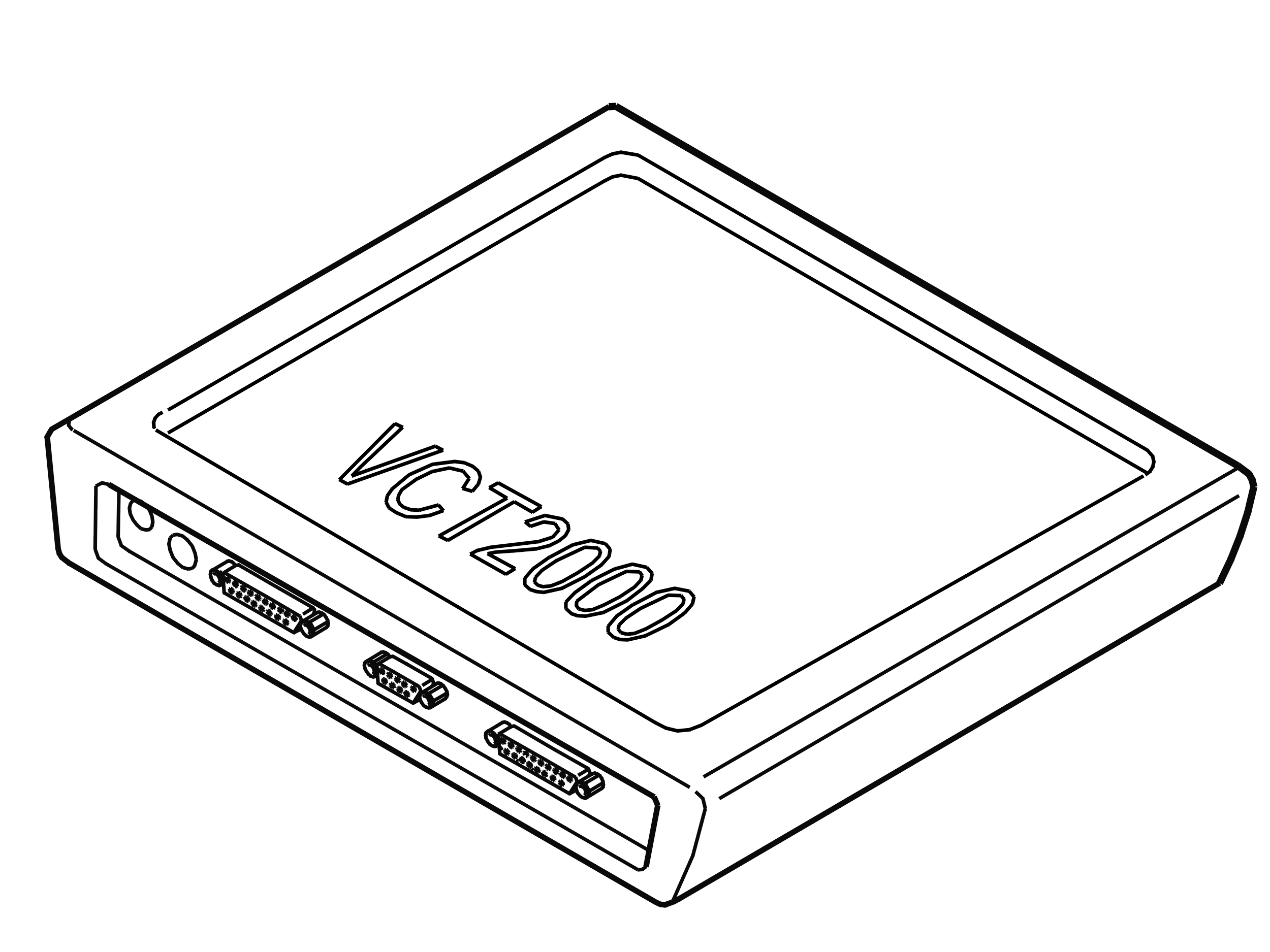

  Fig 3: Identifying VCT2000

  Courtesy of VOLVO CARS CORPORATION
