Body Side: B-Post: Installation

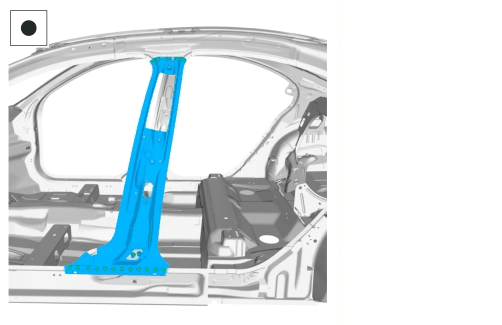

Fig 1: B-Post Reinforcement Weld Locations (1 Of 3)

Courtesy of VOLVO CARS CORPORATION

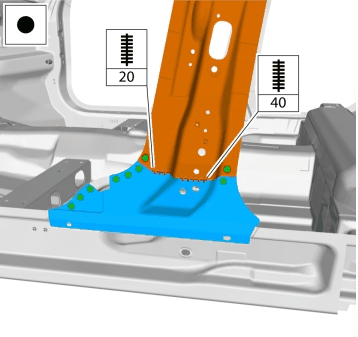

Fig 2: B-Post Reinforcement Weld Locations (2 Of 3)

Courtesy of VOLVO CARS CORPORATION

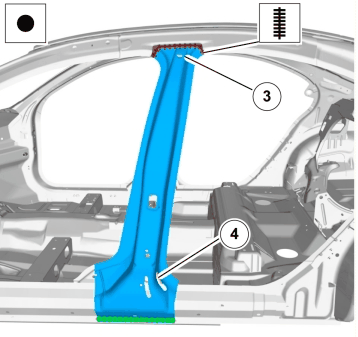

Fig 3: B-Post Reinforcement Weld Locations (3 Of 3)

Courtesy of VOLVO CARS CORPORATION

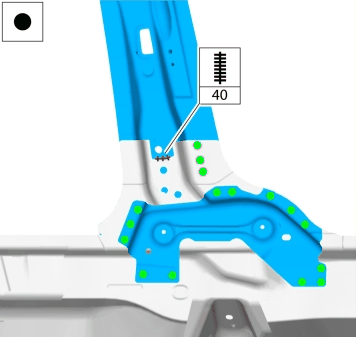

Fig 4: Outer B-Post Installation Weld Locations (1 Of 2)

Courtesy of VOLVO CARS CORPORATION

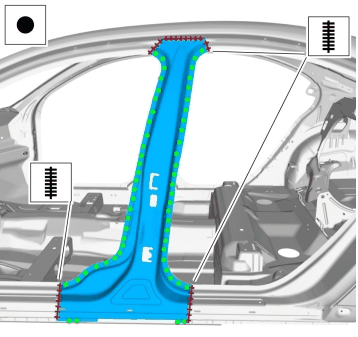

Fig 5: Outer B-Post Installation Weld Locations (2 Of 2)

Courtesy of VOLVO CARS CORPORATION

Install Door Half Hinge; see DOOR HALF HINGE

Follow the instructions for body sealing; see BODY SEAL, SEALING DIAGRAM .

Assemble side section; see SIDE SECTION, EXPOSING .

Follow the instructions regarding corrosion protection; see RUSTPROOFING .
