Location Of The Components In The Climate Unit
Courtesy of VOLVO CARS CORPORATION

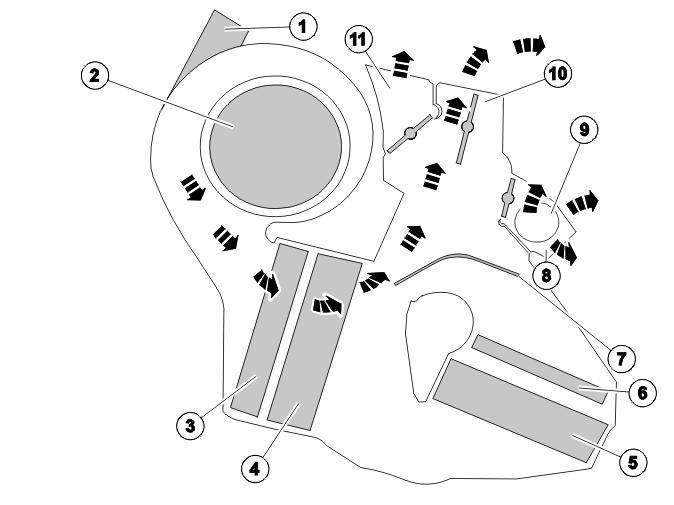

HINT: Side view of the climate unit.
| Number |
Designation |
Number |
Designation |
| 1 |
Air intake |
7 |
Temperature throttle valve |
| 2 |
Blower fan |
8 |
Air duct to floor rear |
| 3 |
Filter |
9 |
Air duct to floor front |
| 4 |
Evaporator |
10 |
Air duct to ventilation outlets |
| 5 |
Heat exchanger |
11 |
Defroster |
| 6 |
PTC element |
- |
- |
