Remote Control

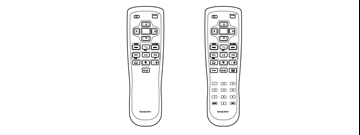

Fig 1: Remote Control Available In 2 Designs
GLL165268Courtesy of VOLVO CARS CORPORATION

The remote control is used to control the Rear seat entertainment module (RSE)/DVD player, screens, TV receiver (if the accessory is installed).

The remote control is available in 2 designs. If the system is equipped with TV the remote control has 17 buttons.

If the system is equipped with TV (DVB-T) the remote control has 29 buttons.

The remote control uses infrared signals (IR) to transfer commands to the system. The signals are received by the screens' infrared receivers.

The remote control is equipped with two batteries, fitted under a cover at the rear.
