Control Module Relay Box Passenger Compartment: Removal

Check according to "Checking communication and control module" using VIDA (Volvo scan tool)

Perform battery disconnecting and connecting, see BATTERY DISCONNECTING AND CONNECTING

Remove glove compartment, see GLOVE COMPARTMENT

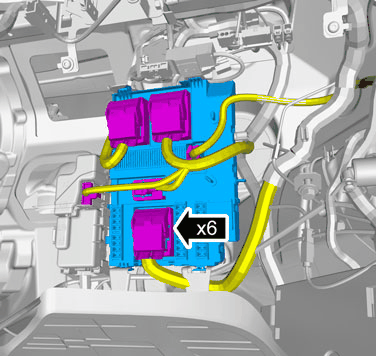

Fig 1: Identifying Control Module Relay Box Passenger Compartment Removal (1 Of 4)

Courtesy of VOLVO CARS CORPORATION

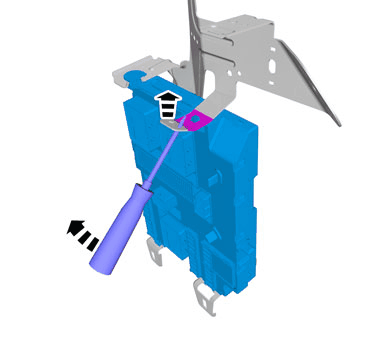

Fig 2: Identifying Control Module Relay Box Passenger Compartment Removal (2 Of 4)

Courtesy of VOLVO CARS CORPORATION

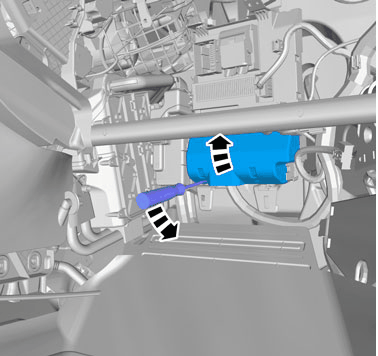

Fig 3: Identifying Control Module Relay Box Passenger Compartment Removal (3 Of 4)

Courtesy of VOLVO CARS CORPORATION

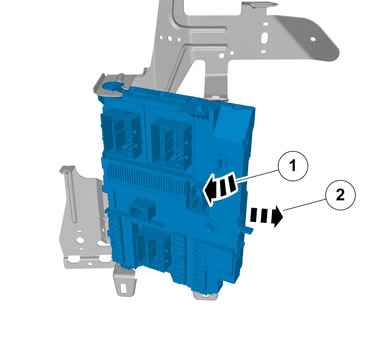

Fig 4: Identifying Control Module Relay Box Passenger Compartment Removal (4 Of 4)

Courtesy of VOLVO CARS CORPORATION
