Adaptive Steering Column, Design
The adaptive steering column is a complete unit.

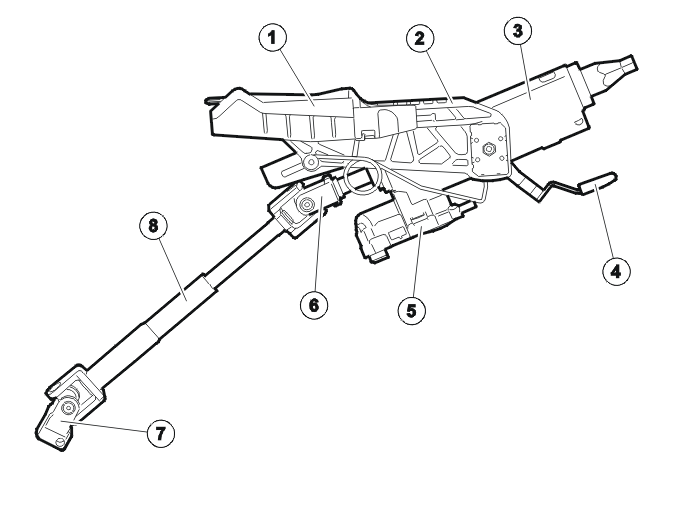

The steering column contains the following components:
| Number | Designation | Number | Designation |
| 1 | Fixed bracket | 5 | Lock mechanism |
| 2 | Running bracket | 6 | Upper joint |
| 3 | Upper steering section | 7 | Lower joint |
| 4 | Adjuster lever | 8 | Steering shaft |
The fixed bracket (1) is mounted against the cowl panel. The steering column is adjustable for both height and reach. It has an electrical steering lock with a mechanical locking function.
The steering shaft is divided into two parts and has two joints. A joint between the upper and lower steering shaft sections and a joint as the connection to the steering gear.
