Fuel Pump Driver Module: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove fuel tank, see FUEL TANK

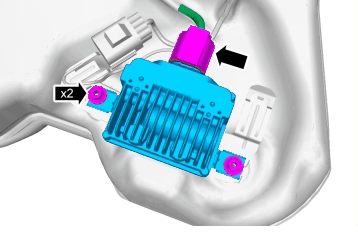

Fig 1: Identifying Fuel Pump Driver Module
GLL155278Courtesy of VOLVO CARS CORPORATION

Torque:  M6

10 Nm
