Roof, Windshield And Rear Windshield Frame: Roof

Fig 1: Body Dimension Measuring Point Symbols

Courtesy of VOLVO CARS CORPORATION

Symbol legend

Measurement is given from center

Measurement is given from an edge

Measurement is given from a cut marking

Courtesy of VOLVO CARS CORPORATION

Measurement takes place from the bottom of the recess. If only a measuring point symbol is shown this applies to both points. Otherwise the symbols are shown on one side each of the measurement designation shown.

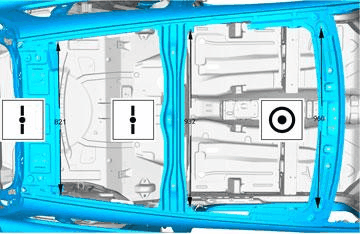

Fig 2: Roof Arch Position Dimensions And Measurement Locations

Courtesy of VOLVO CARS CORPORATION

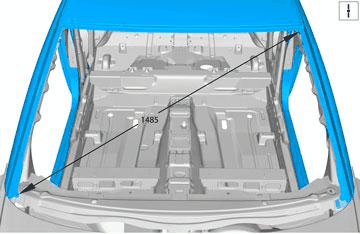

Fig 3: Windshield Frame Opening Dimension And Measurement Locations

Courtesy of VOLVO CARS CORPORATION
