Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Central Electronic Module (4/56) Behind right side of dash. See Figure.

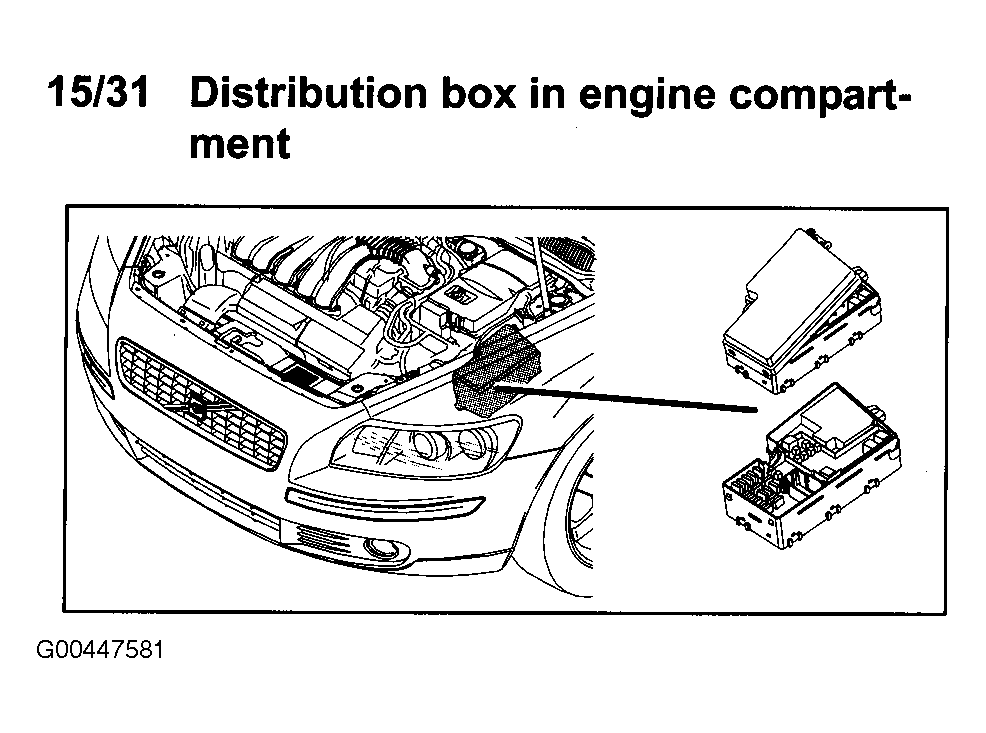

Engine Compartment Distribution Box Left side of engine compartment. See Figure.
