Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

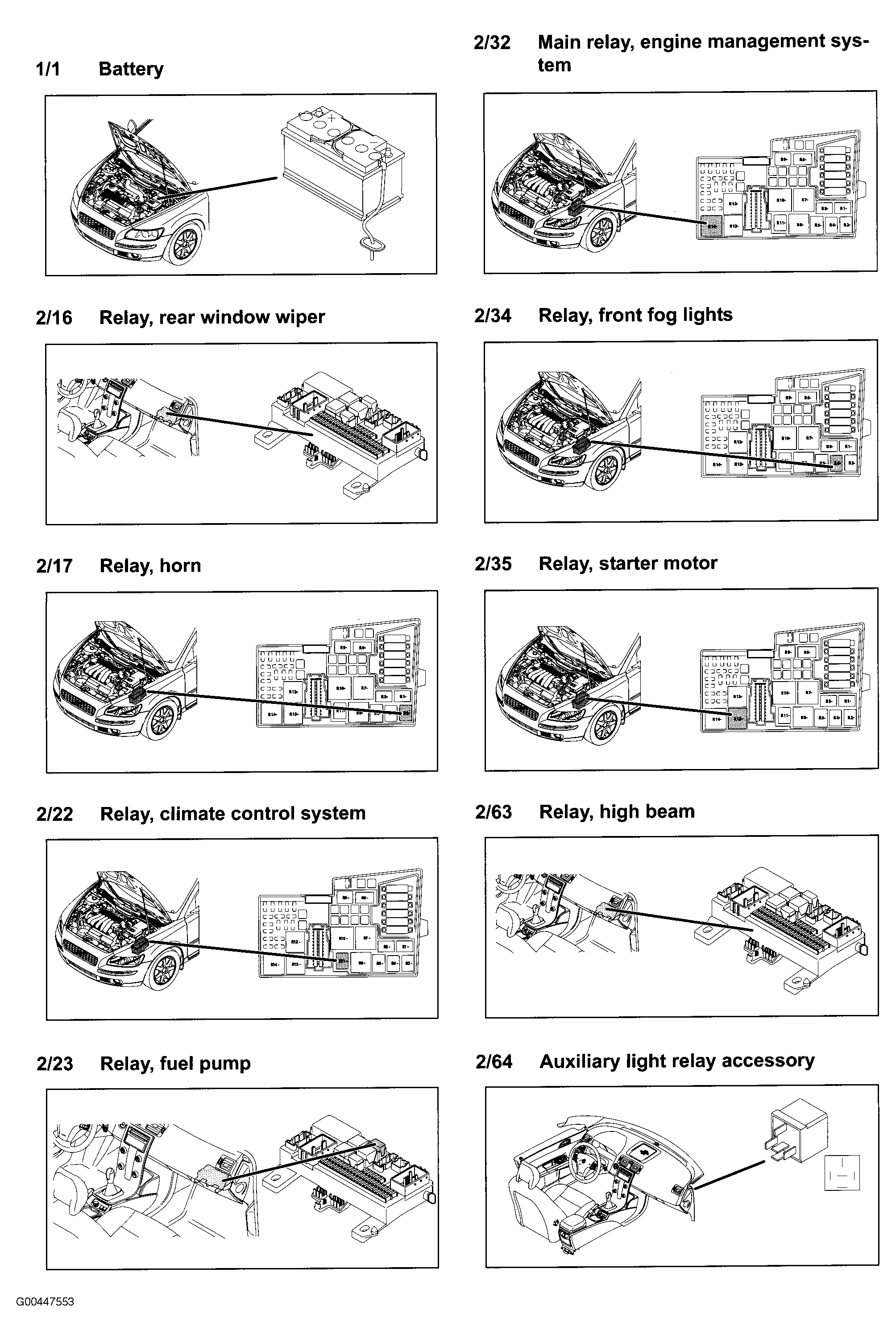

Fig 1: Components 1/1 To 2/64
G00447553Courtesy of VOLVO CARS OF NORTH AMERICA.

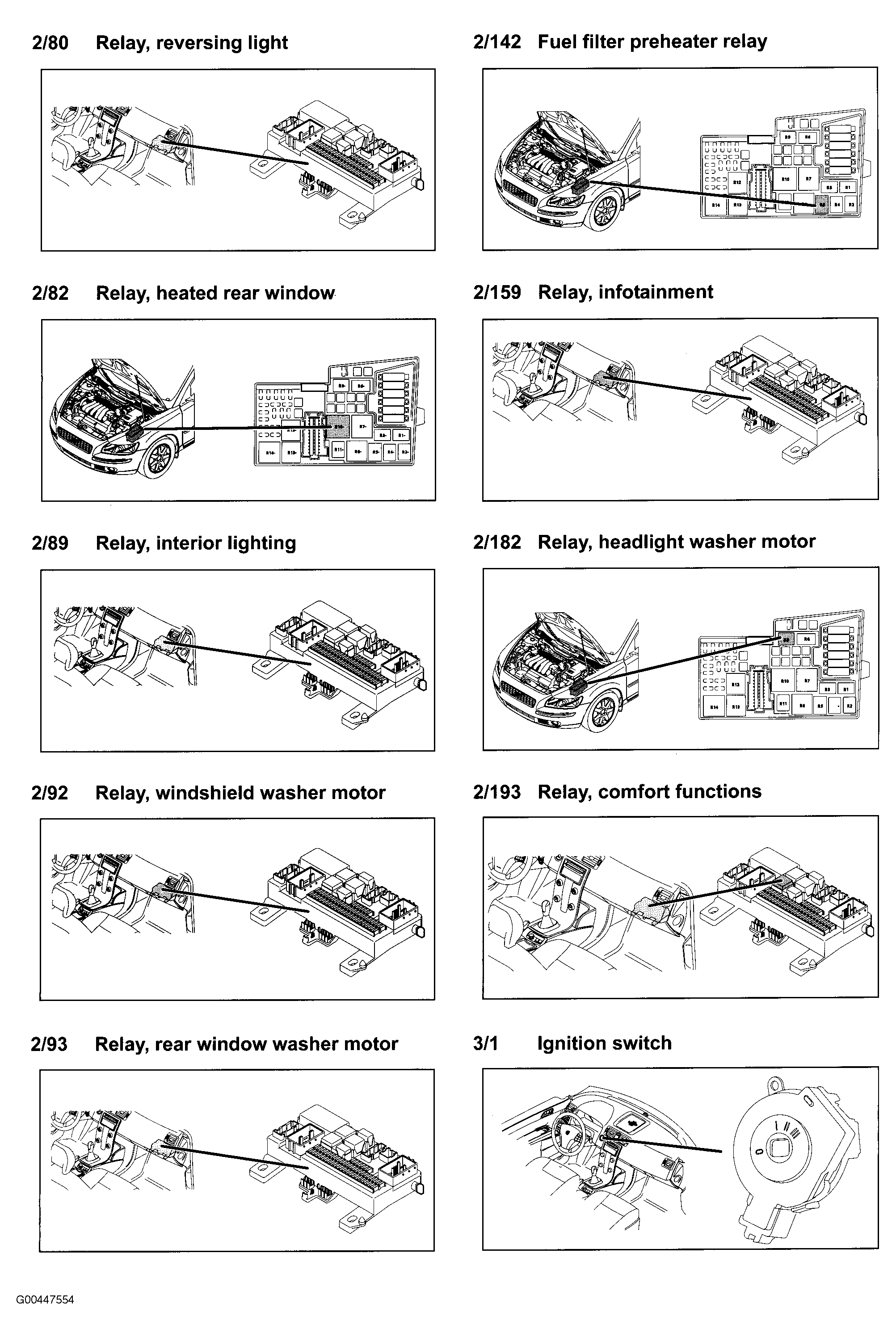

Fig 2: Components 2/80 To 3/1
G00447554Courtesy of VOLVO CARS OF NORTH AMERICA.

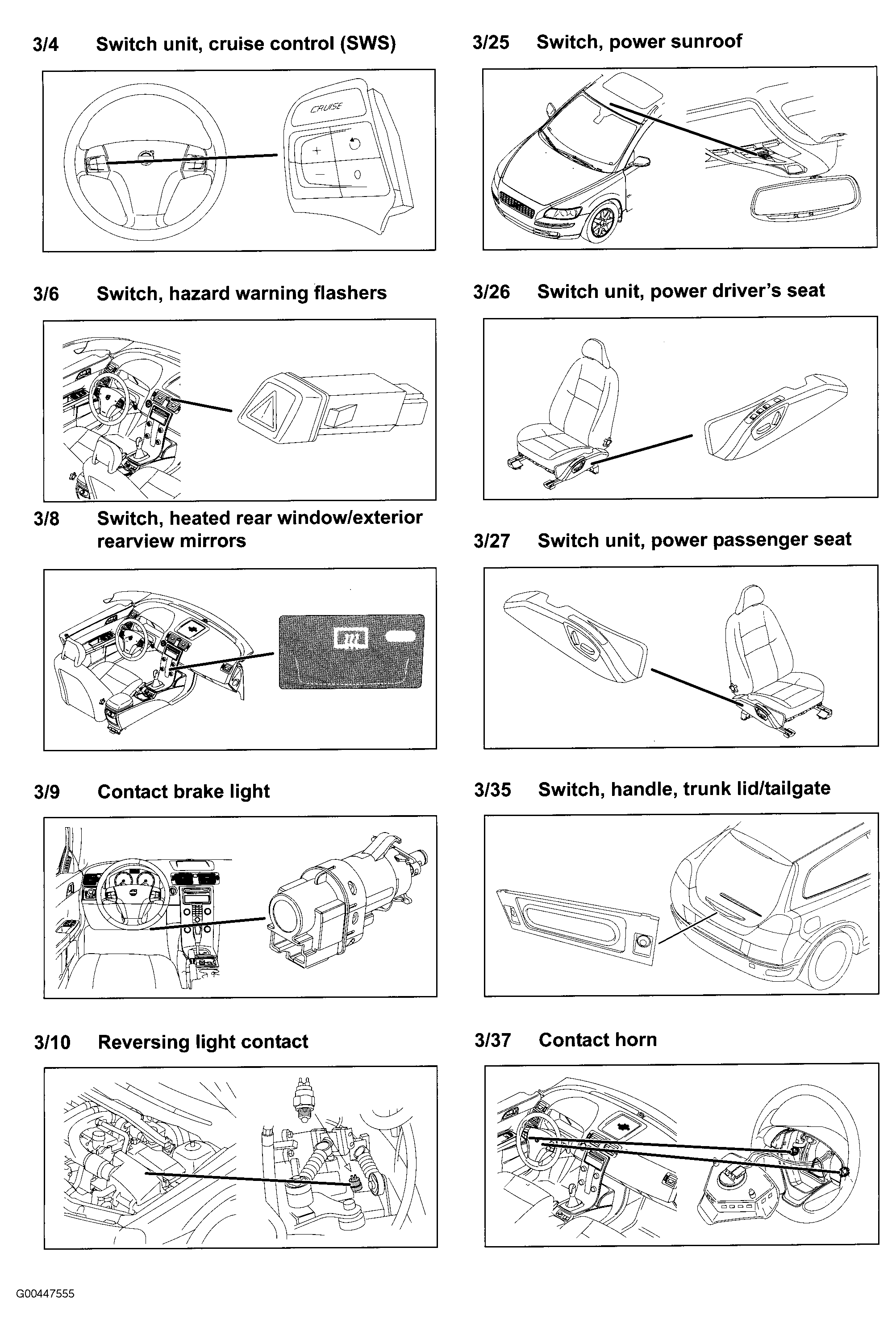

Fig 3: Components 3/4 To 3/37
G00447555Courtesy of VOLVO CARS OF NORTH AMERICA.

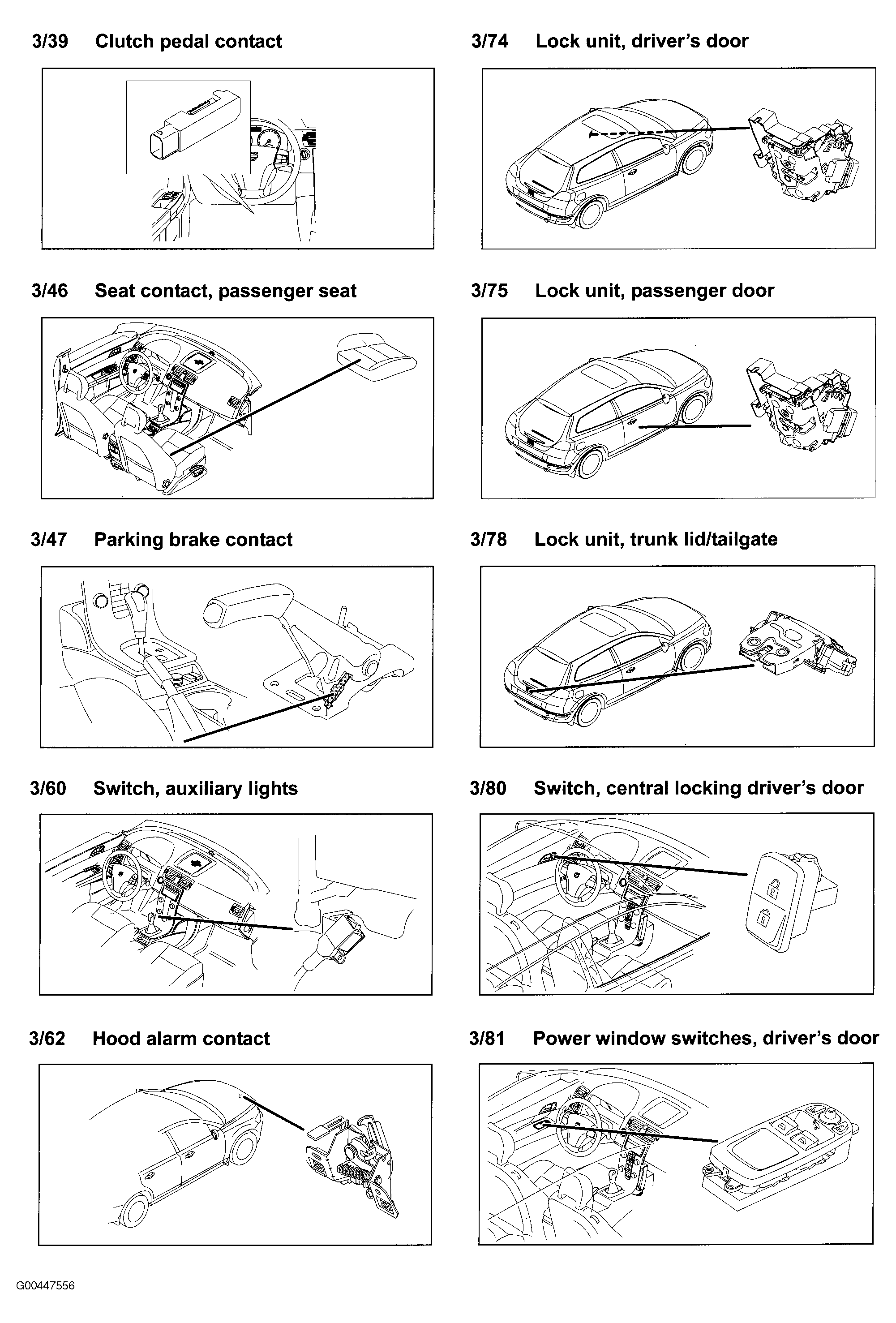

Fig 4: Components 3/39 To 3/81
G00447556Courtesy of VOLVO CARS OF NORTH AMERICA.

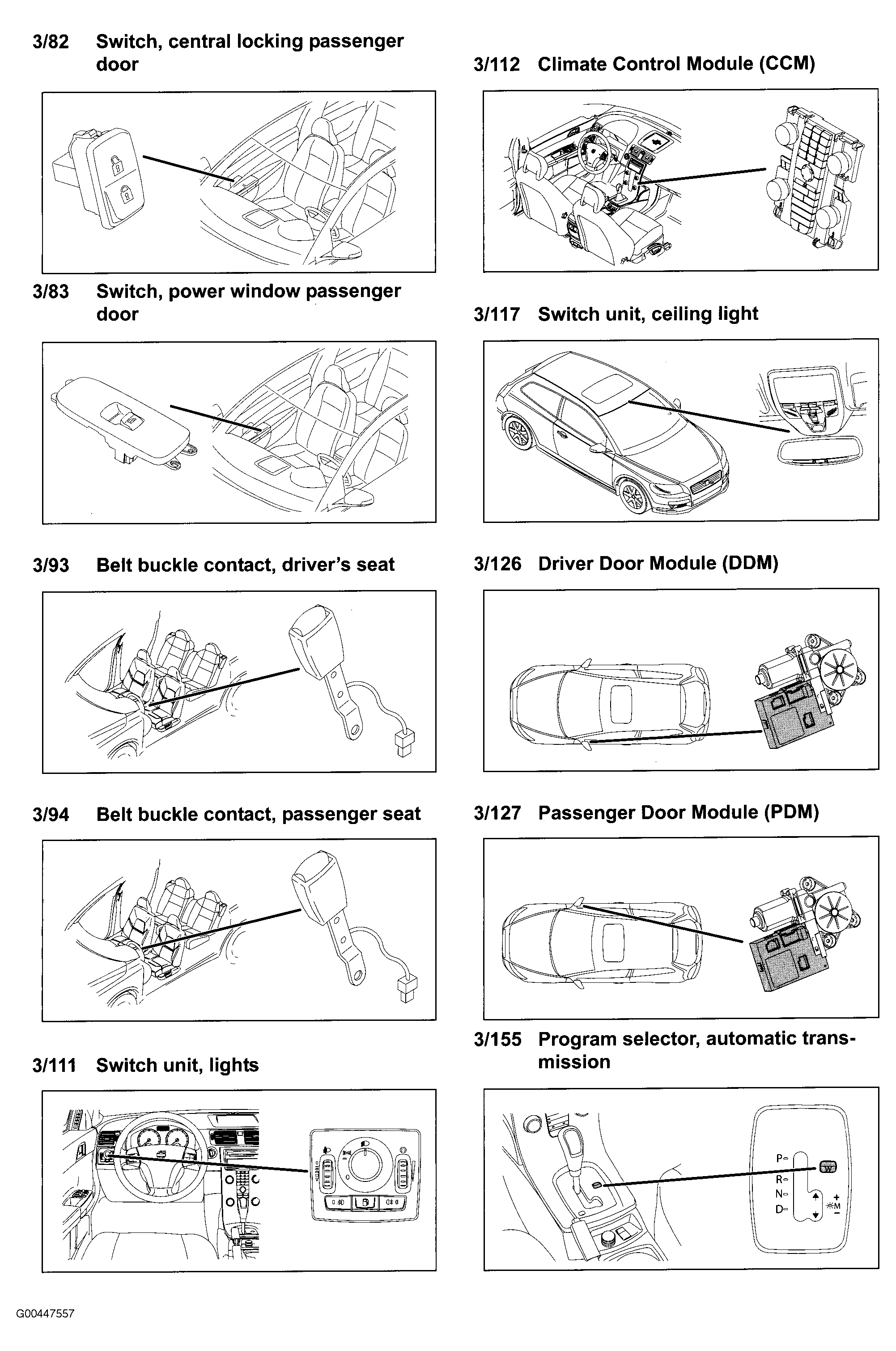

Fig 5: Components 3/82 To 3/155
G00447557Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 6: Components 3/156 To 3/259
G00447558Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 7: Components 3/262 To 4/16
G00447559Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 8: Components 4/28 To 4/46.7
G00447560Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 9: Components 4/52 To 4/103
G00447561Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 10: Components 4/103 To 6/1
G00447562Courtesy of VOLVO CARS OF NORTH AMERICA.

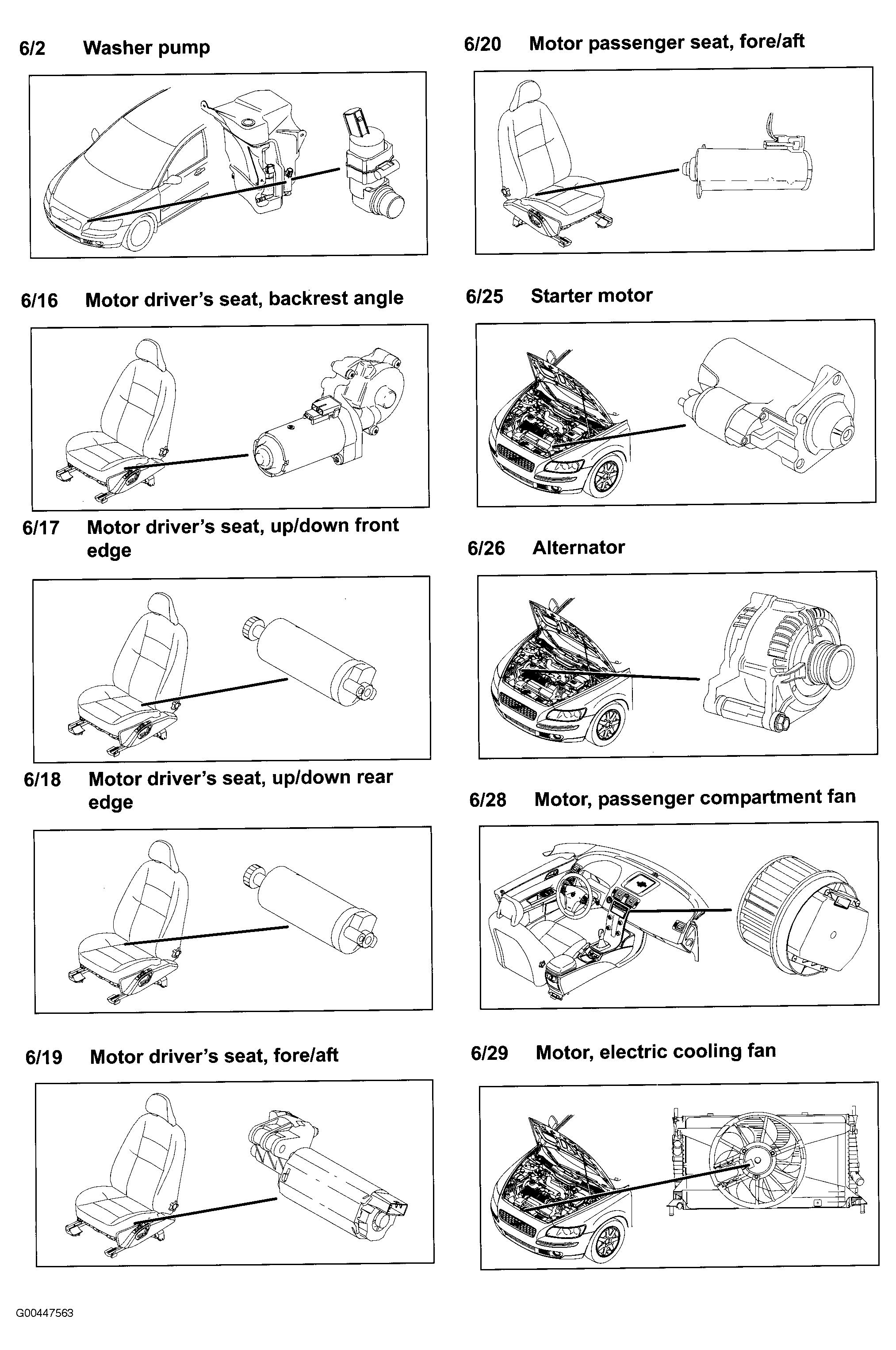

Fig 11: Components 6/2 To 6/29
G00447563Courtesy of VOLVO CARS OF NORTH AMERICA.

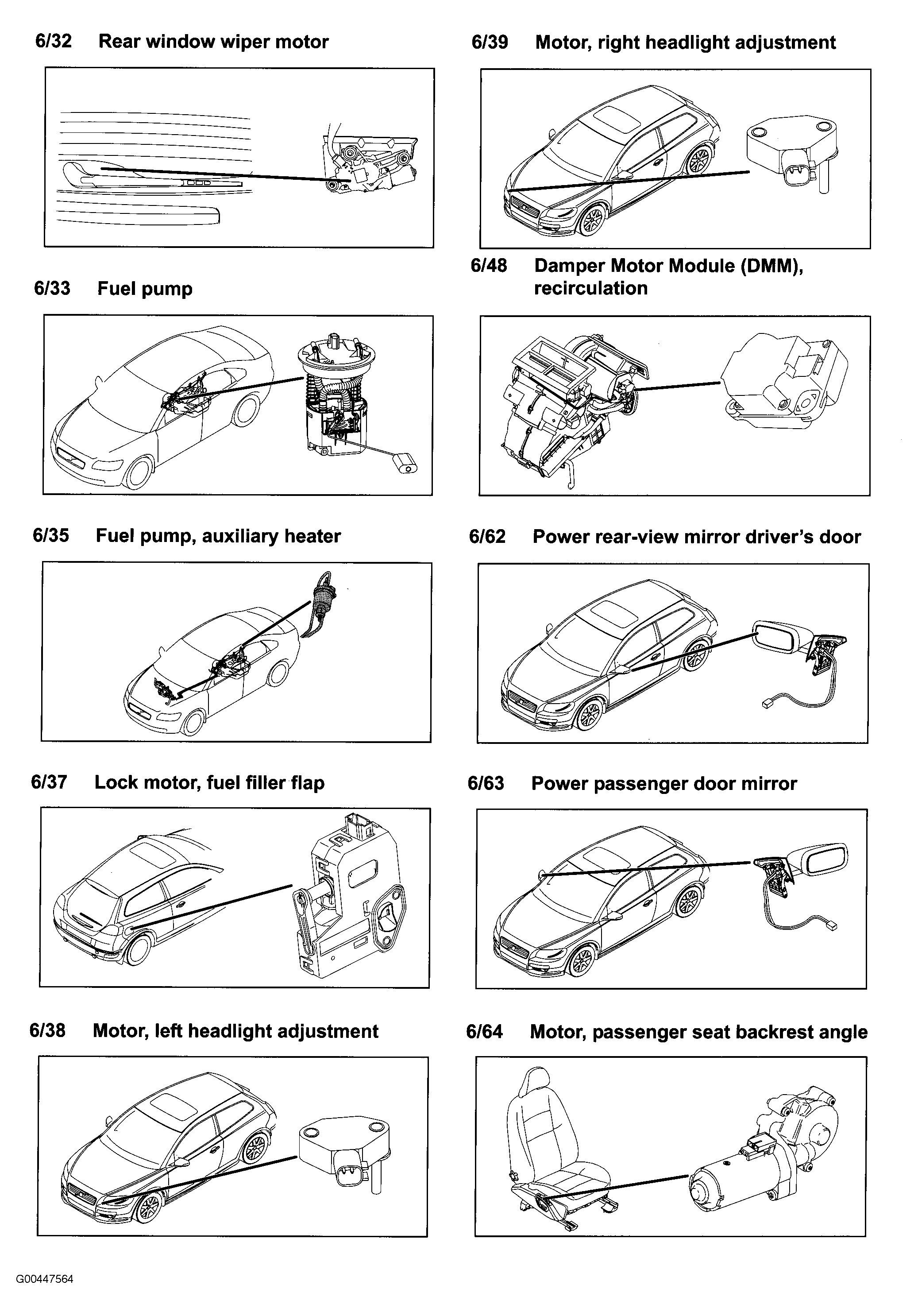

Fig 12: Components 6/32 To 6/64
G00447564Courtesy of VOLVO CARS OF NORTH AMERICA.

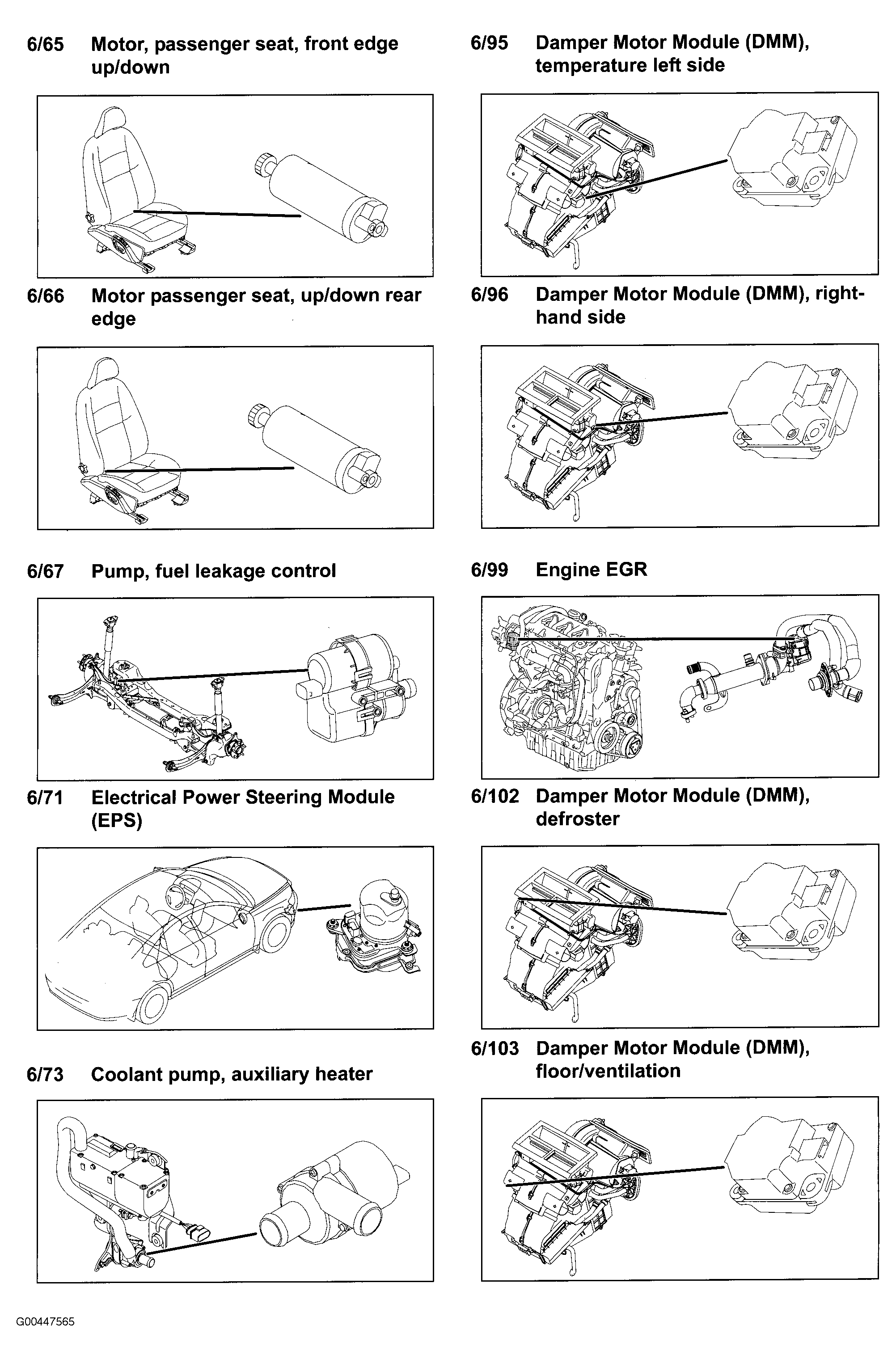

Fig 13: Components 6/65 To 6/103
G00447565Courtesy of VOLVO CARS OF NORTH AMERICA.

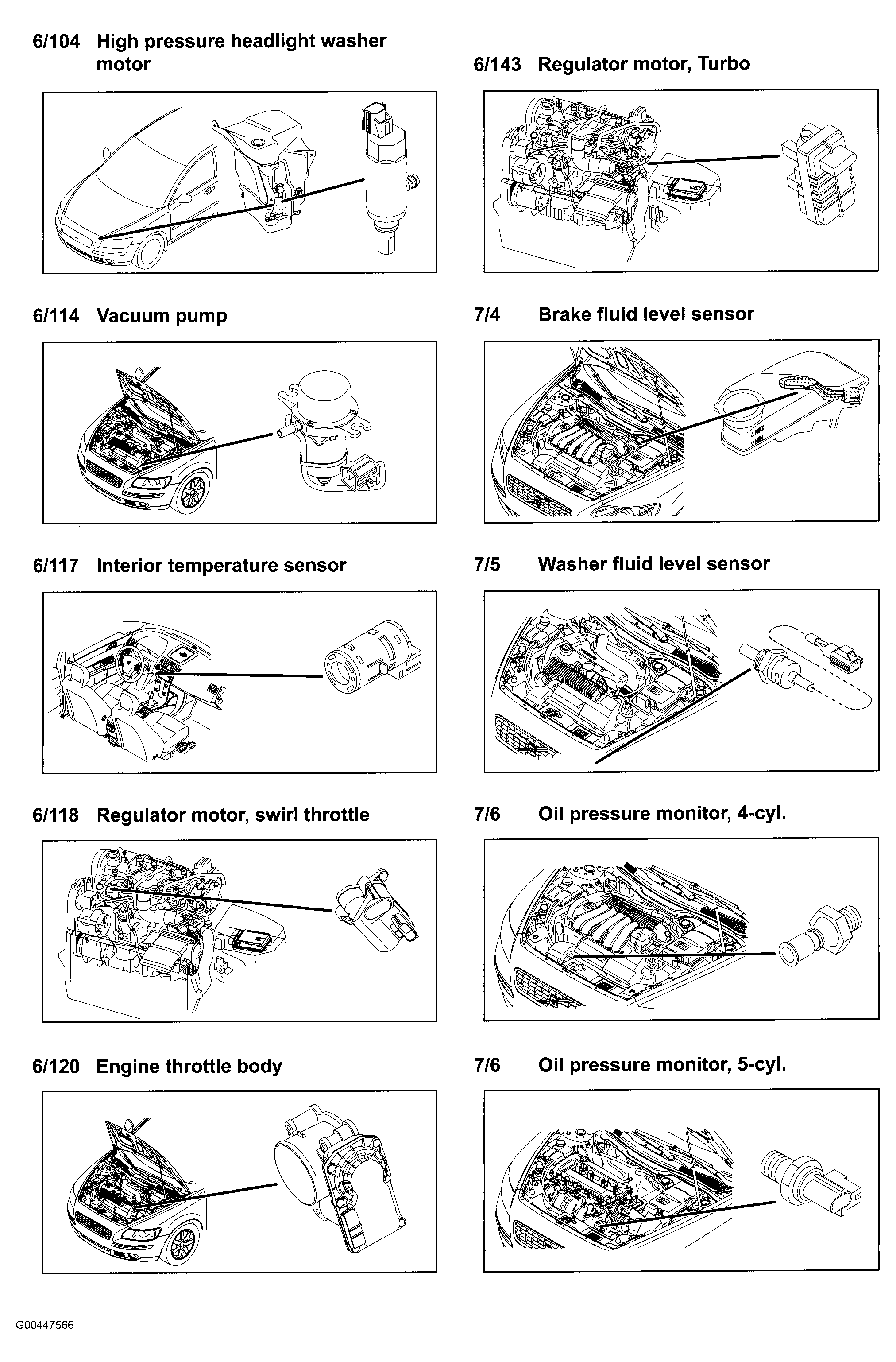

Fig 14: Components 6/104 To 7/6
G00447566Courtesy of VOLVO CARS OF NORTH AMERICA.

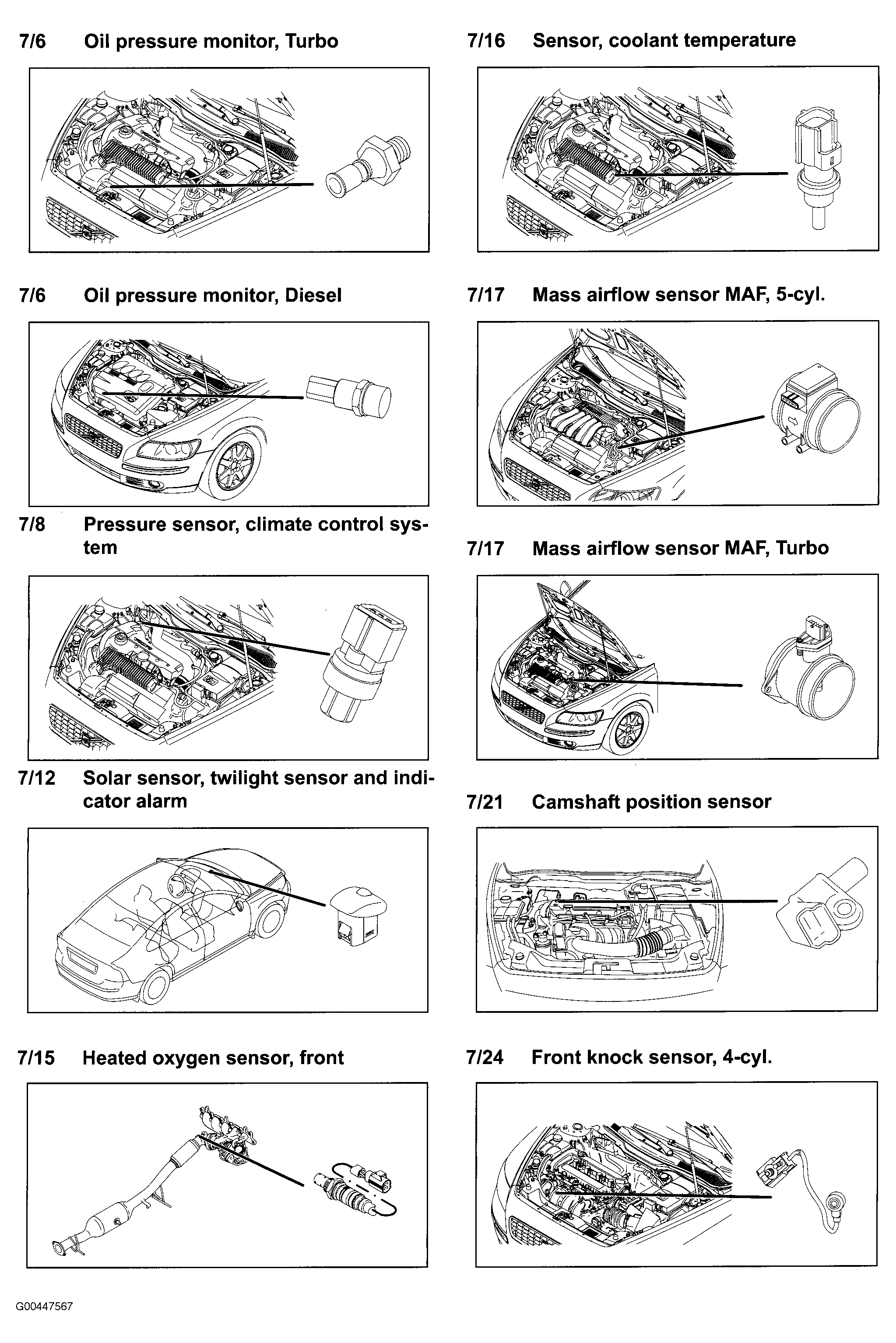

Fig 15: Components 7/6 To 7/24
G00447567Courtesy of VOLVO CARS OF NORTH AMERICA.

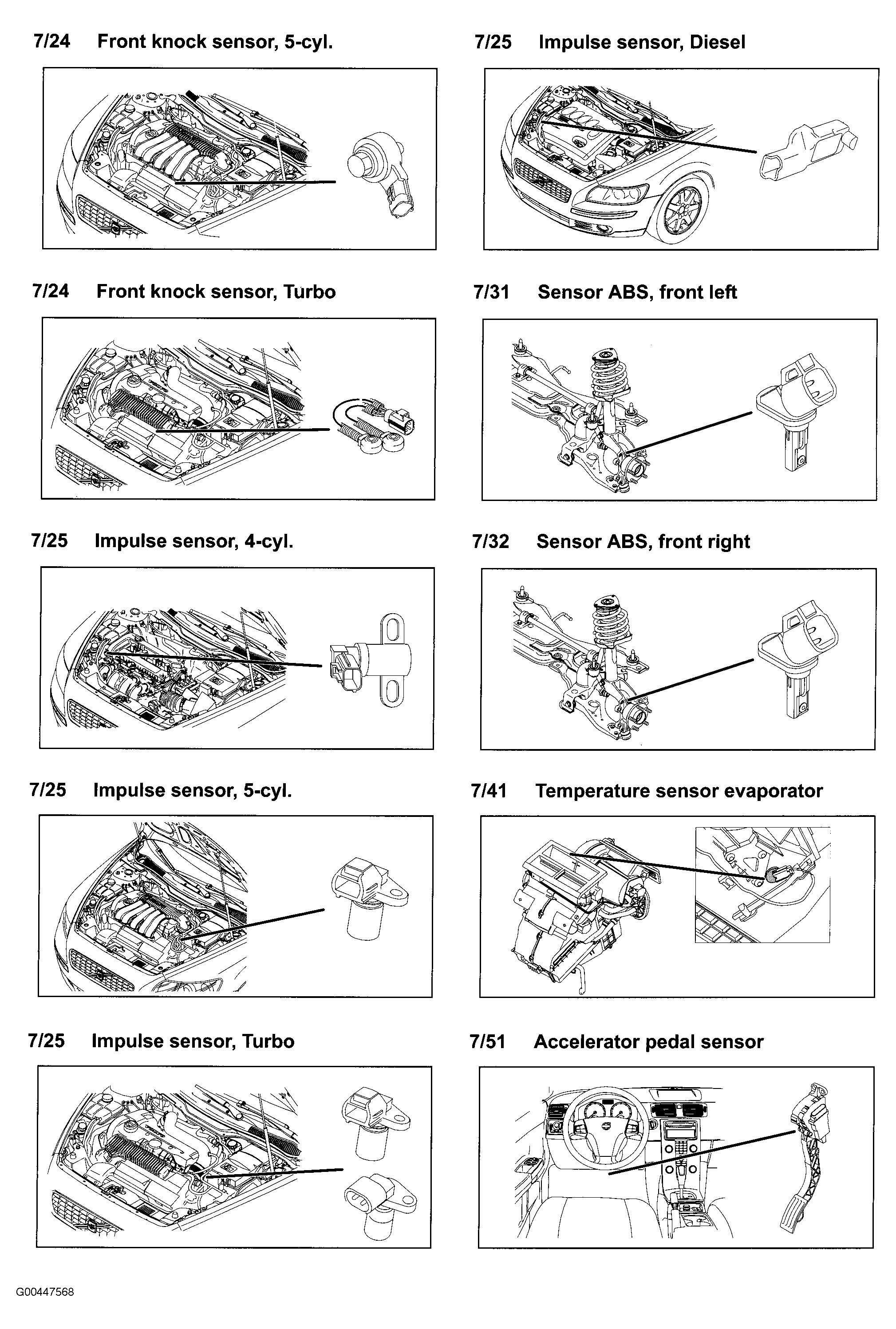

Fig 16: Components 7/24 To 7/51
G00447568Courtesy of VOLVO CARS OF NORTH AMERICA.

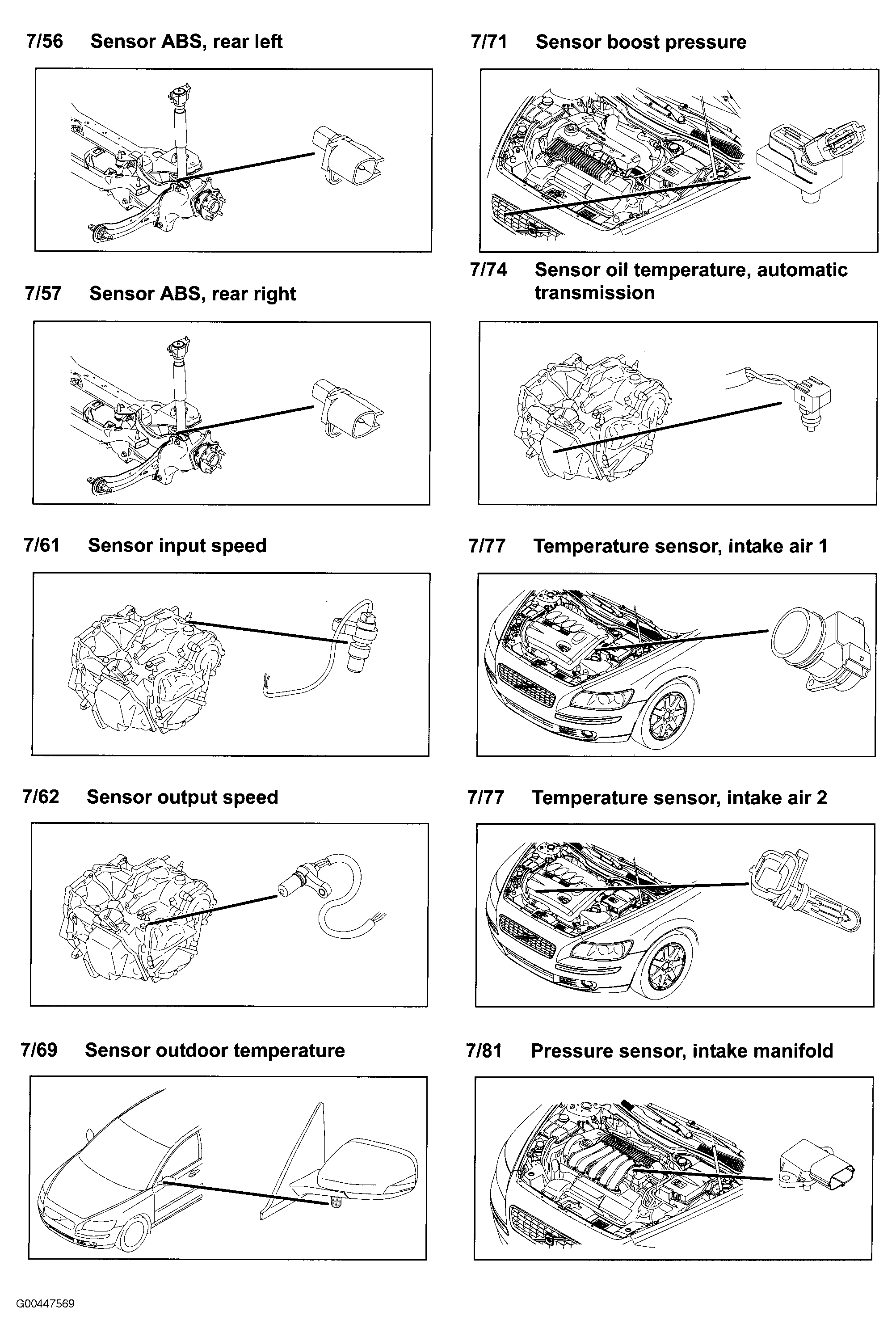

Fig 17: Components 7/56 To 7/81
G00447569Courtesy of VOLVO CARS OF NORTH AMERICA.

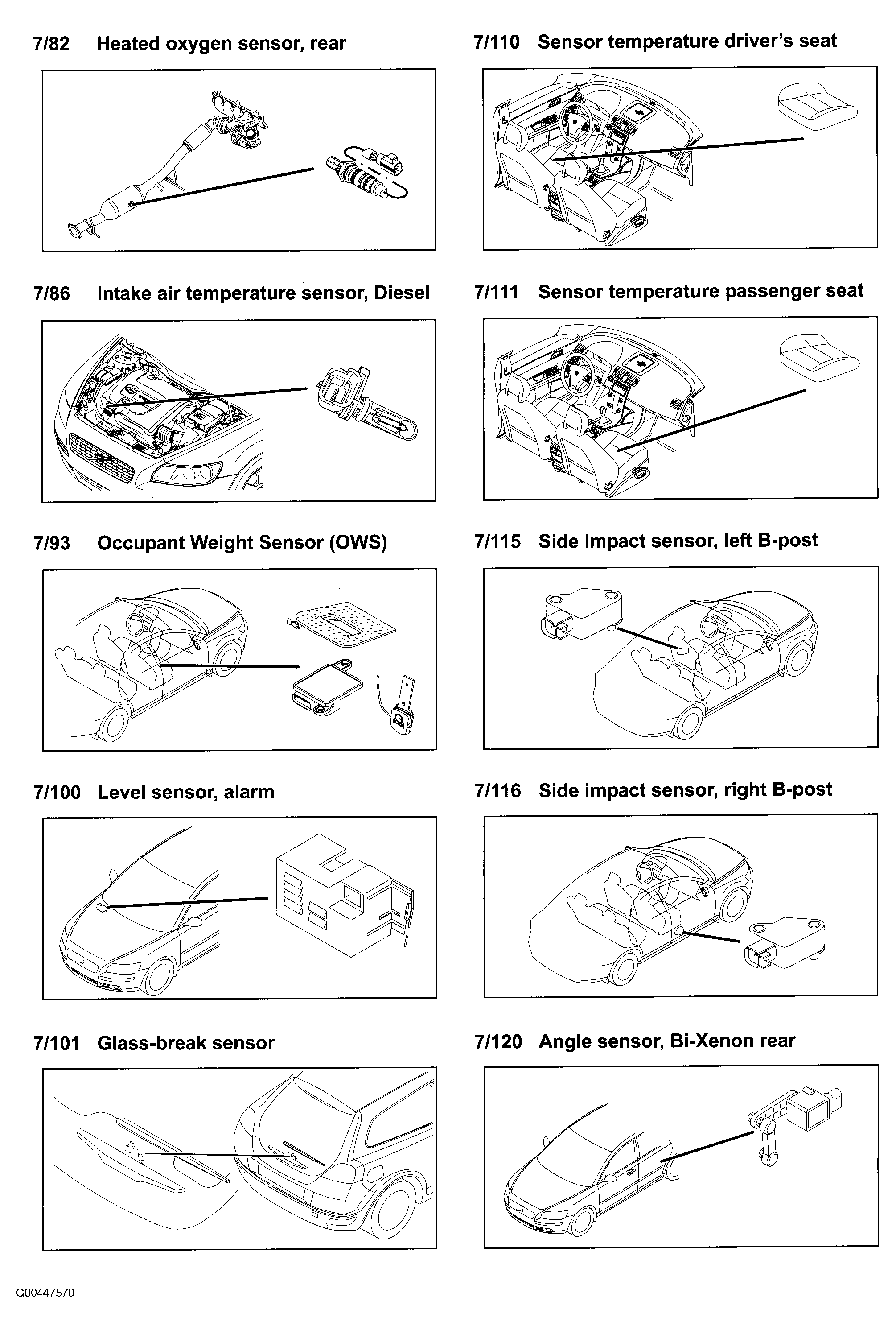

Fig 18: Components 7/82 To 7/120
G00447570Courtesy of VOLVO CARS OF NORTH AMERICA.

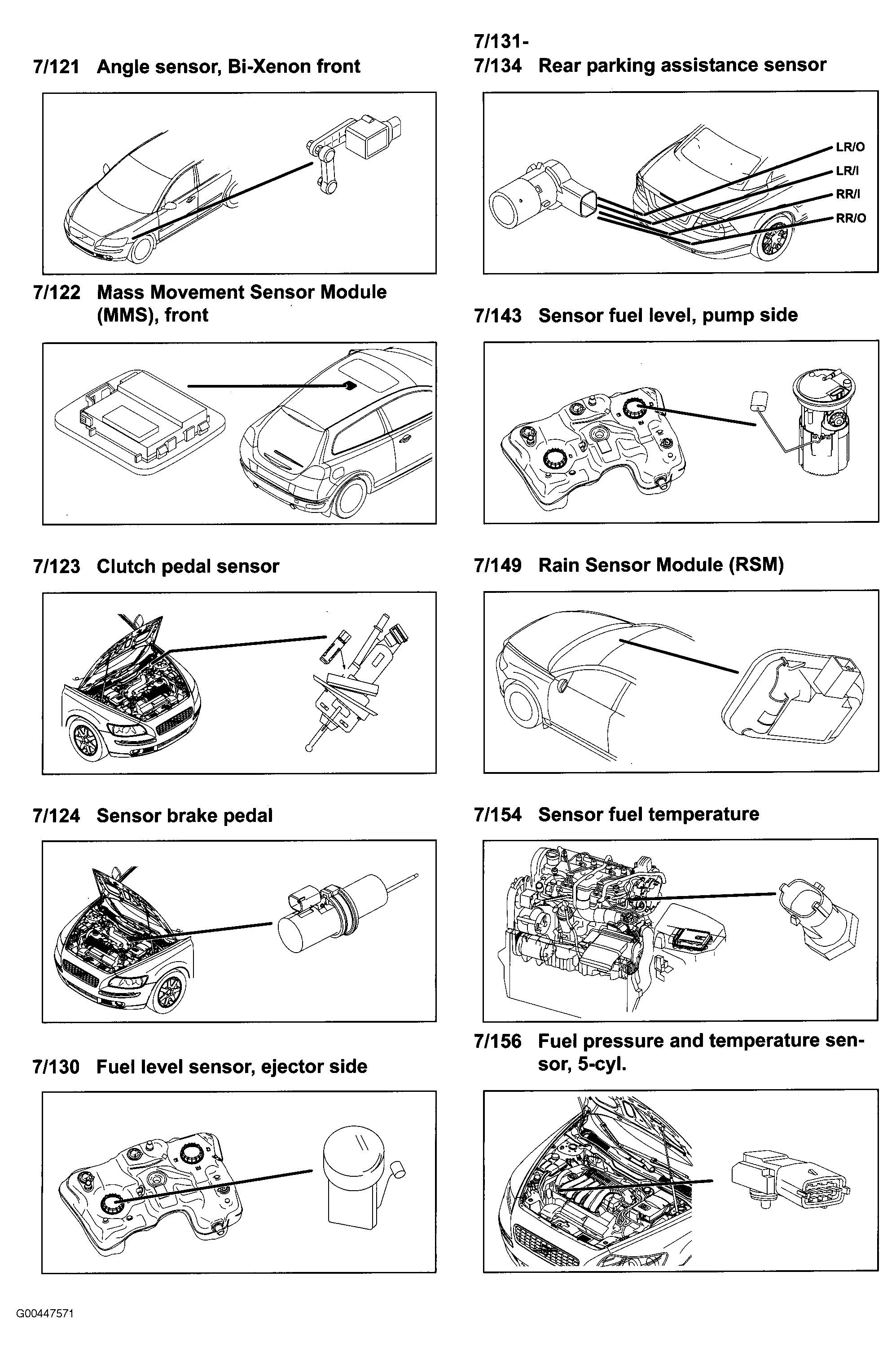

Fig 19: Components 7/121 To 7/156
G00447571Courtesy of VOLVO CARS OF NORTH AMERICA.

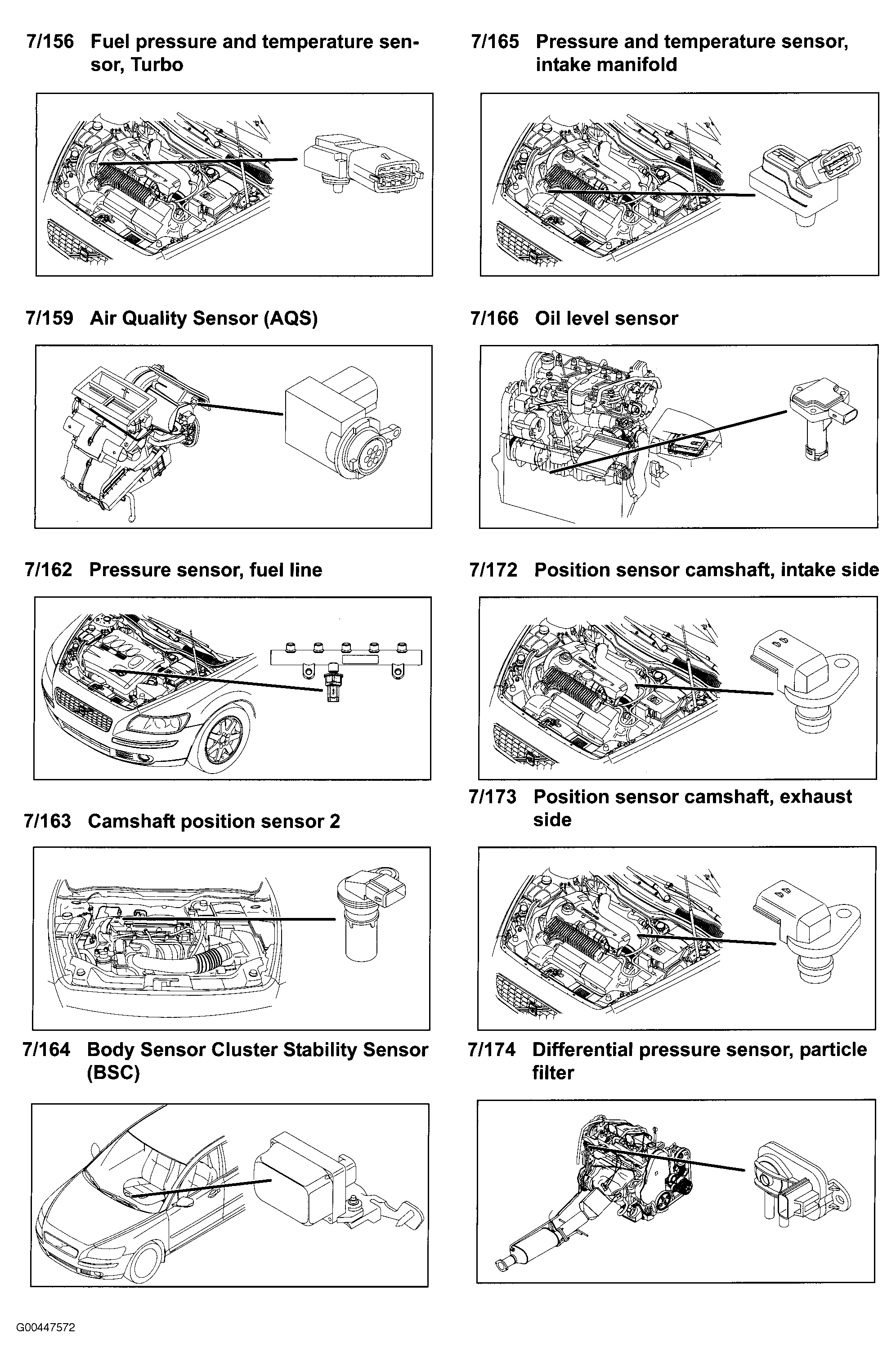

Fig 20: Components 7/156 To 7/174
G00447572Courtesy of VOLVO CARS OF NORTH AMERICA.

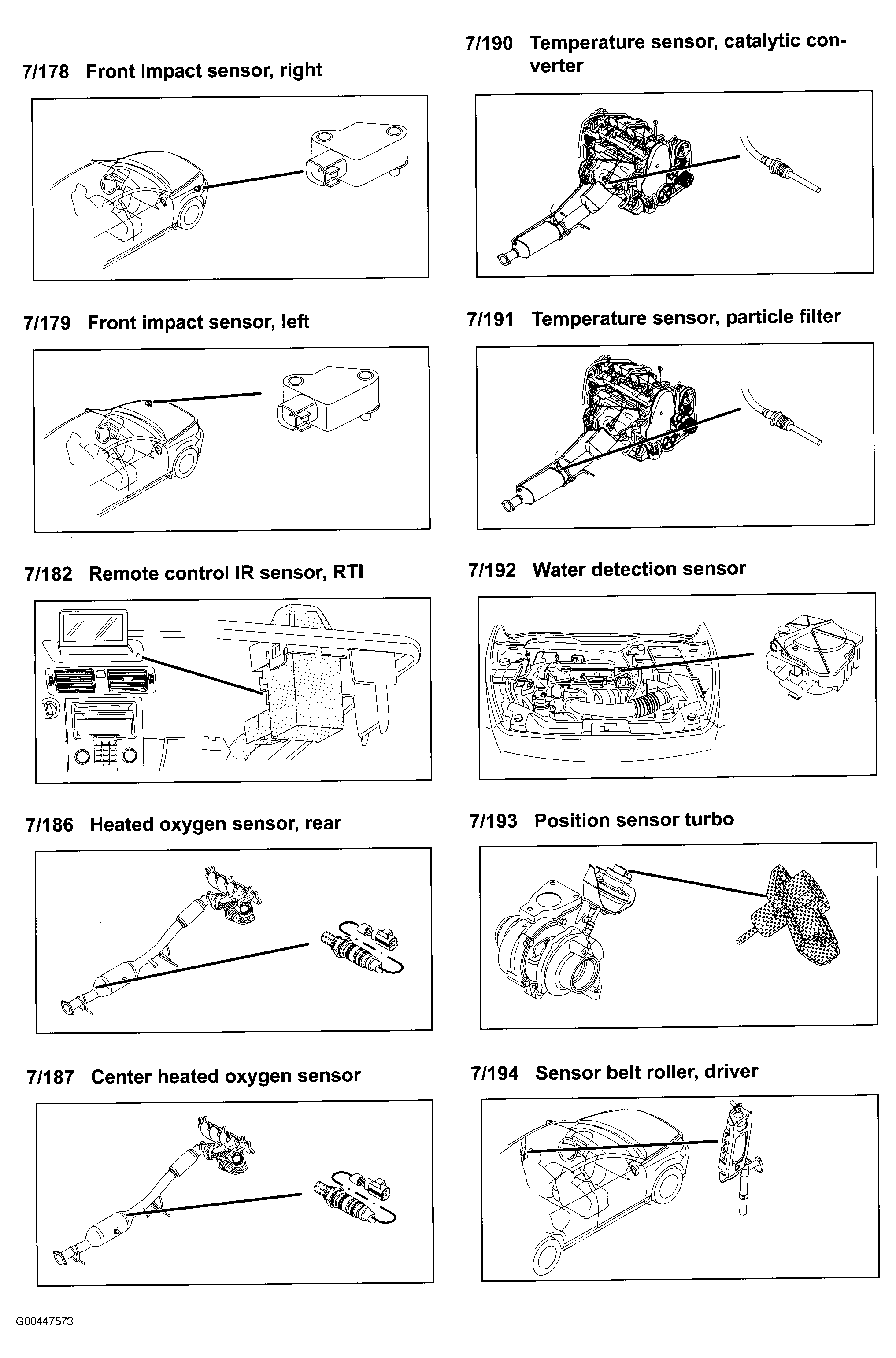

Fig 21: Components 7/178 To 7/194
G00447573Courtesy of VOLVO CARS OF NORTH AMERICA.

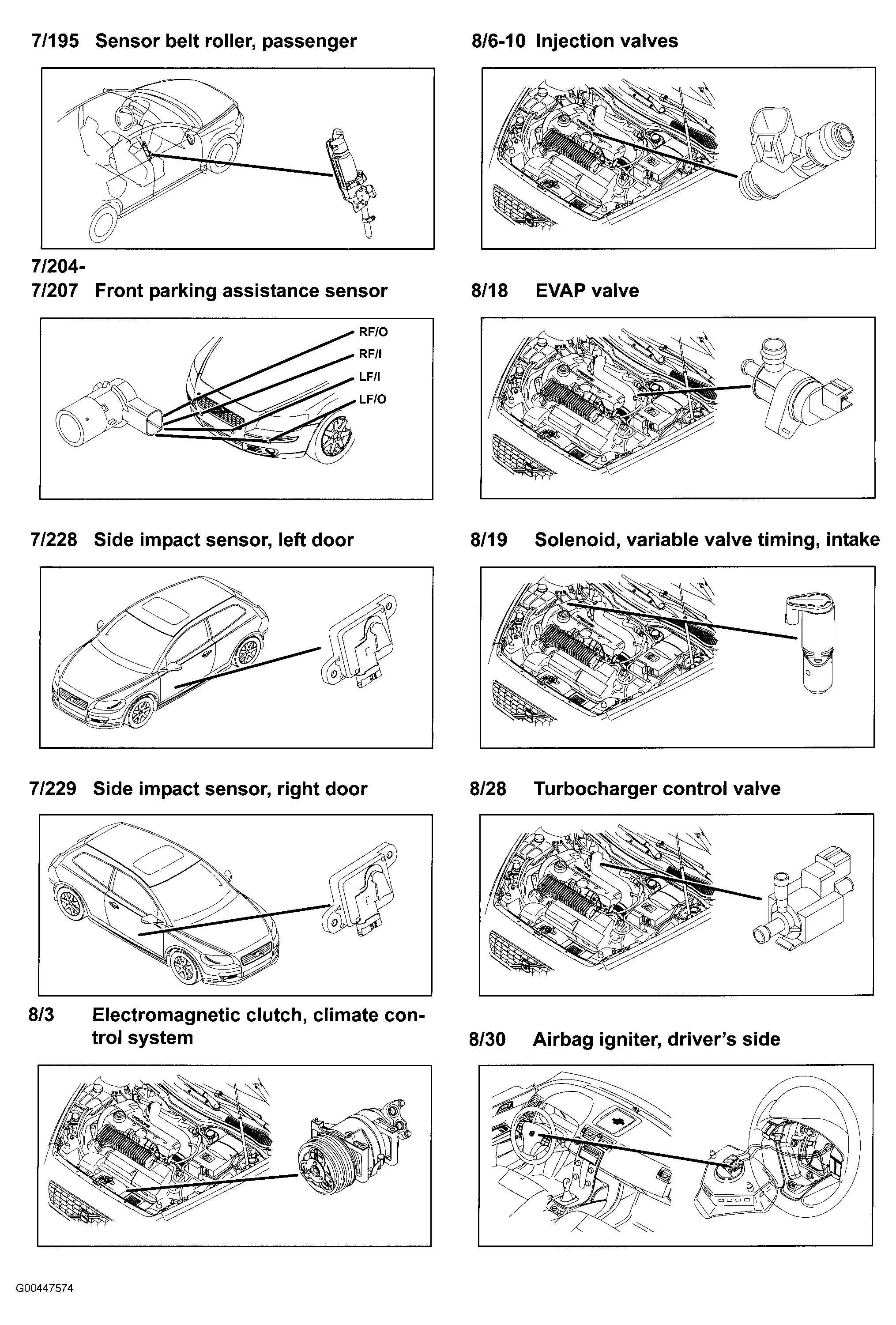

Fig 22: Components 7/195 To 8/30
G00447574Courtesy of VOLVO CARS OF NORTH AMERICA.

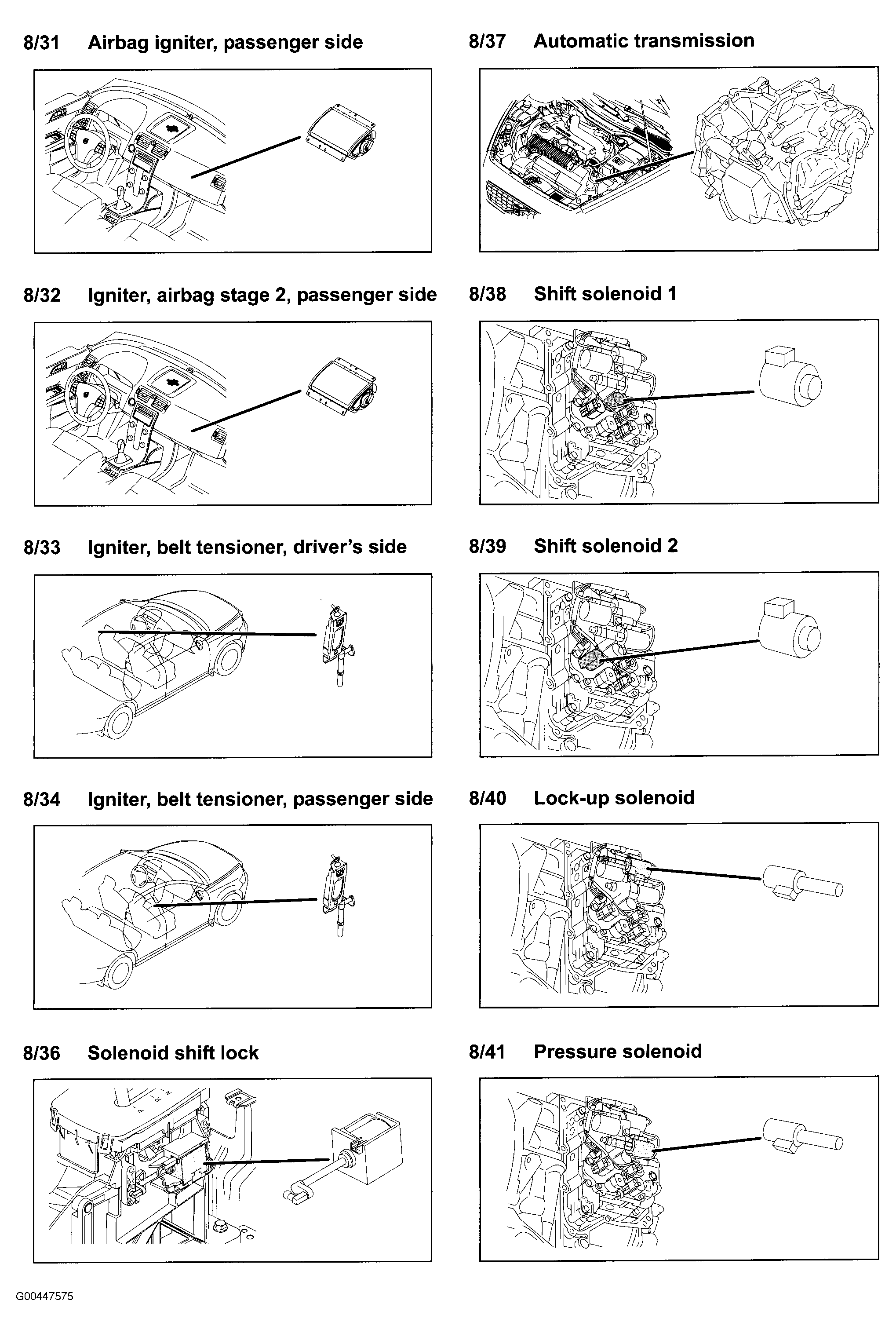

Fig 23: Components 8/31 To 8/41
G00447575Courtesy of VOLVO CARS OF NORTH AMERICA.

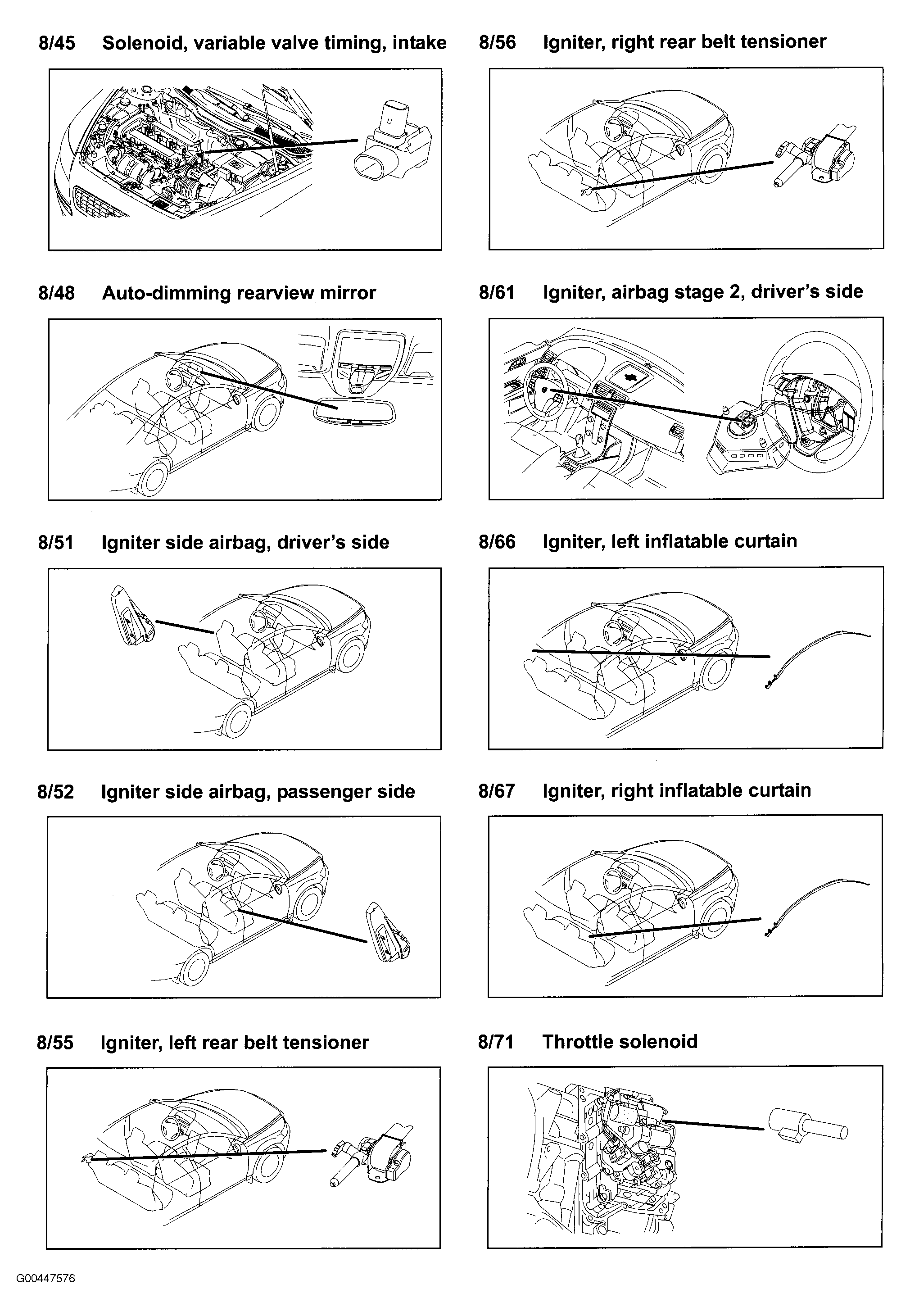

Fig 24: Components 8/45 To 8/71
G00447576Courtesy of VOLVO CARS OF NORTH AMERICA.

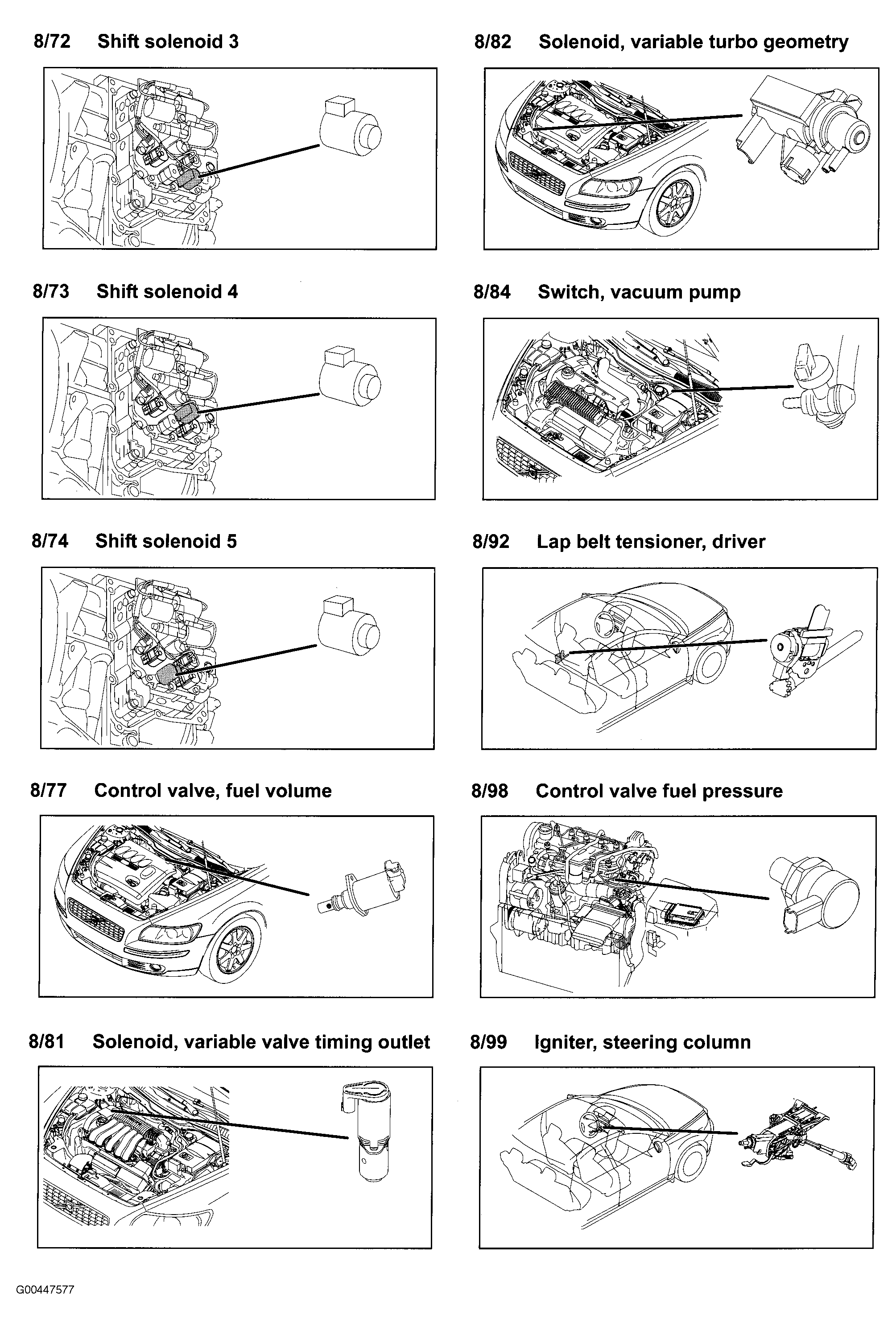

Fig 25: Components 8/72 To 8/99
G00447577Courtesy of VOLVO CARS OF NORTH AMERICA.

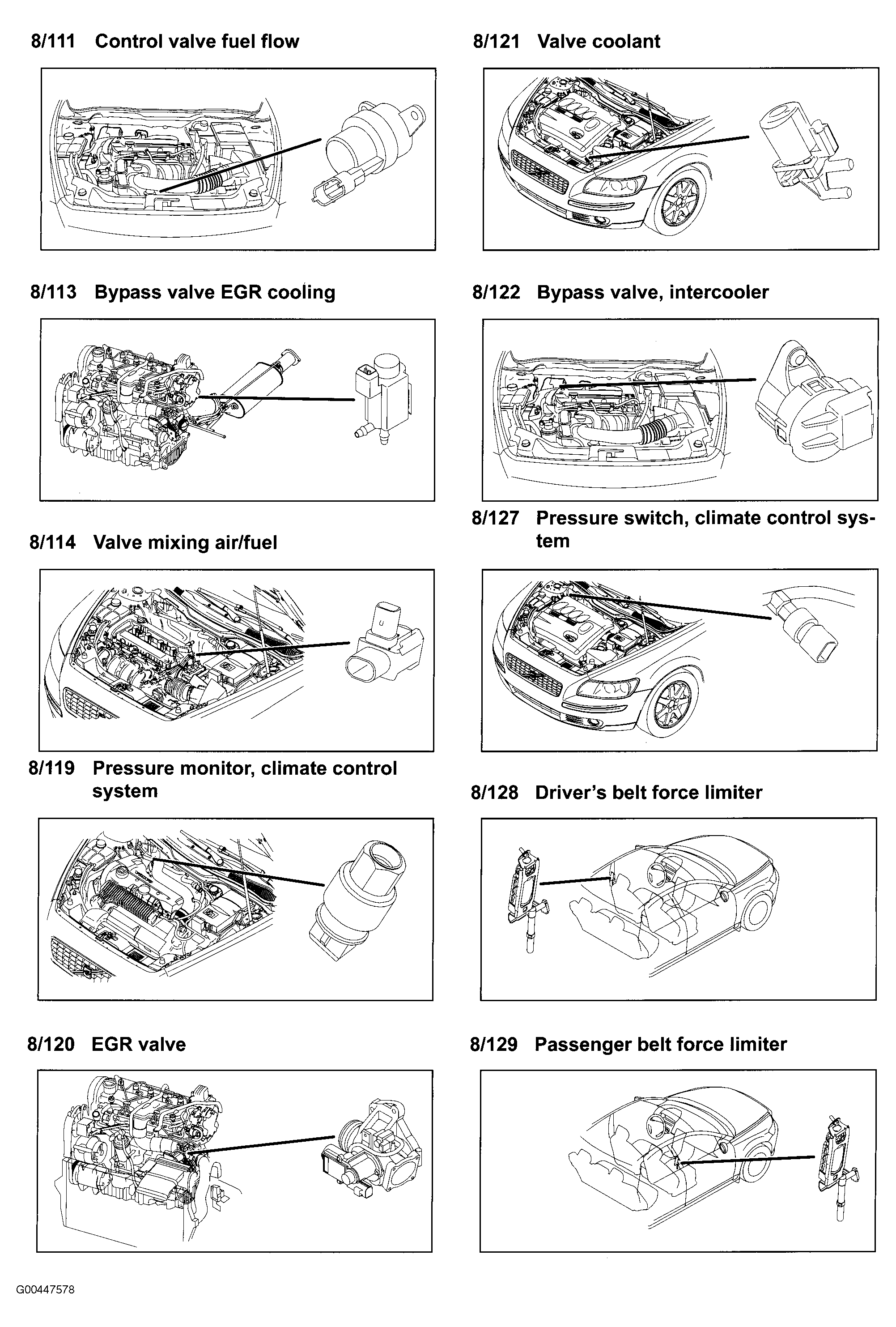

Fig 26: Components 8/111 To 8/129
G00447578Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 27: Components 8/132 To 9/18
G00447579Courtesy of VOLVO CARS OF NORTH AMERICA.

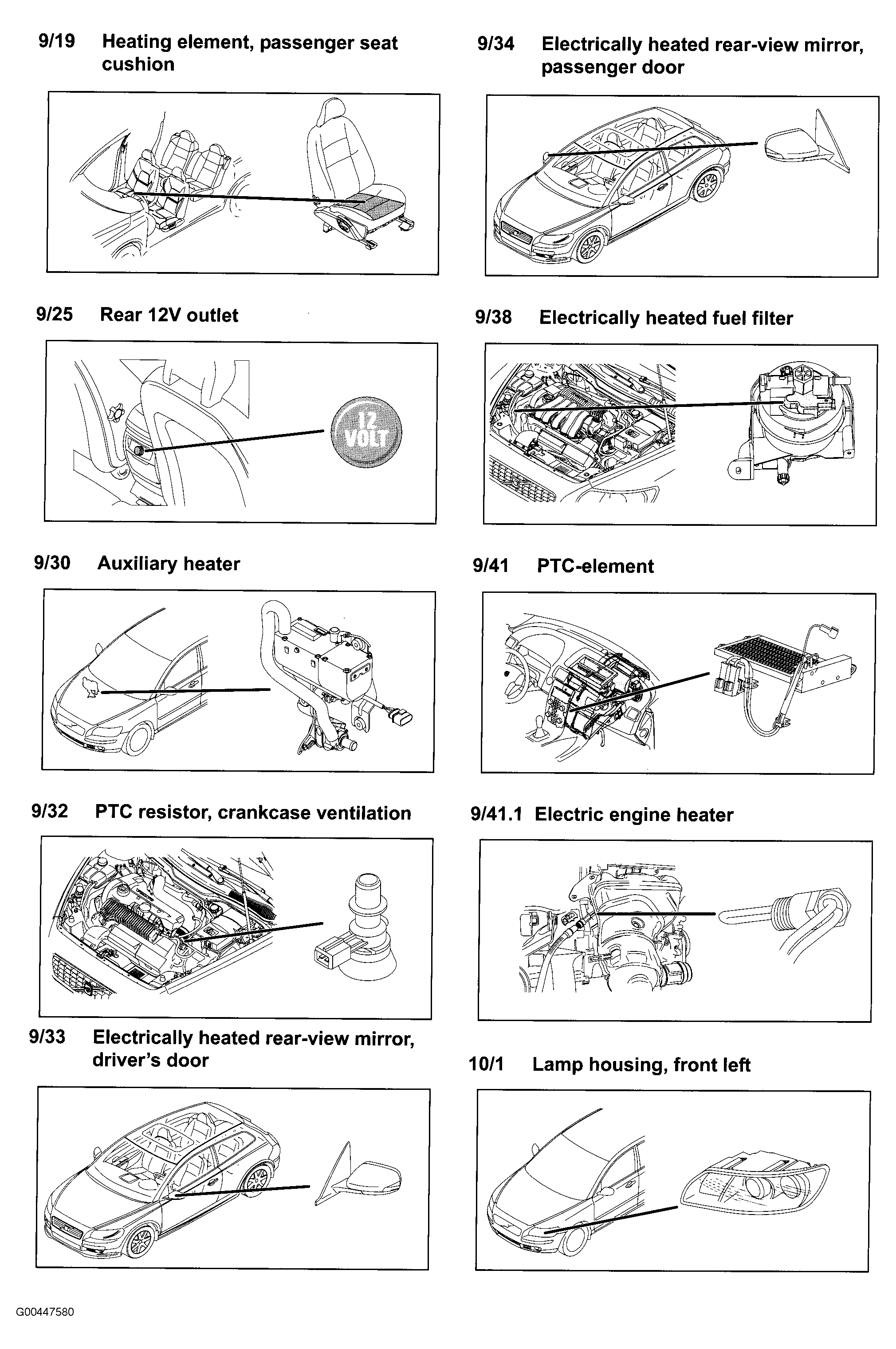

Fig 28: Components 9/19 To 10/1
G00447580Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 29: Left Side Of Engine Compartment
G00447581Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 30: Components 16/9.1 To 16/49
G00447582Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 31: Components 16/50 To 16/128
G00447583Courtesy of VOLVO CARS OF NORTH AMERICA.

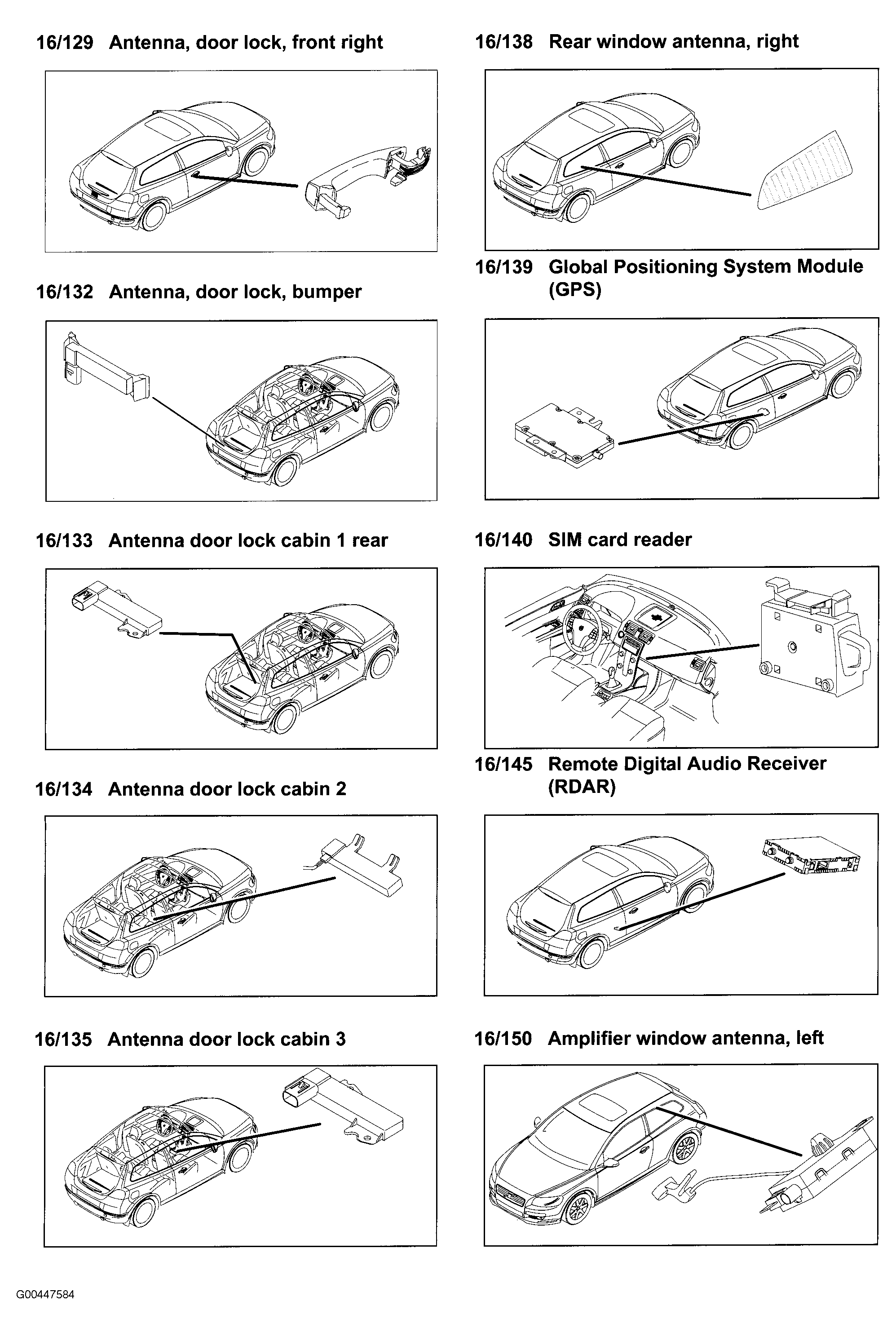

Fig 32: Components 16/129 To 16/150
G00447584Courtesy of VOLVO CARS OF NORTH AMERICA.

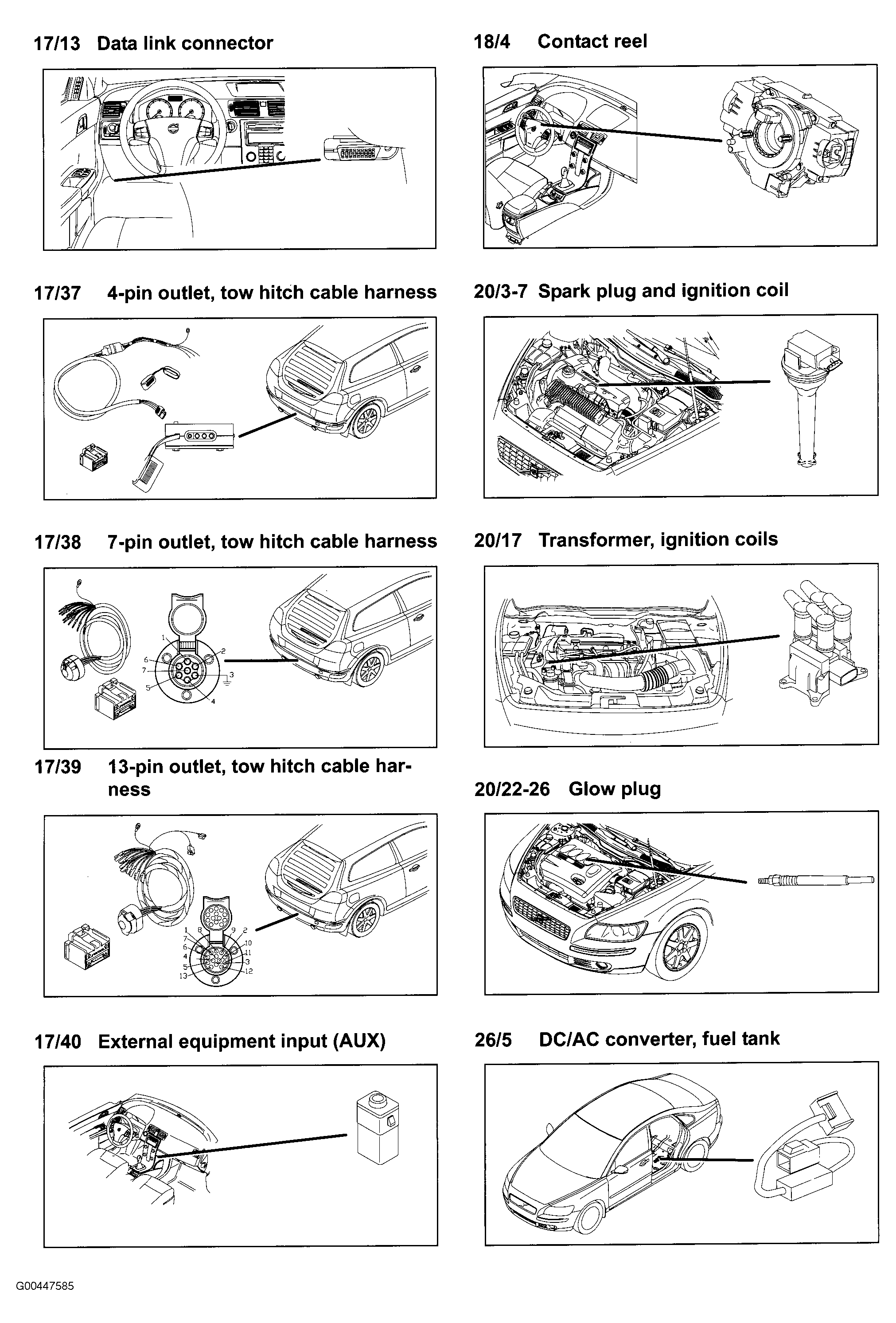

Fig 33: Components 17/13 To 26/5
G00447585Courtesy of VOLVO CARS OF NORTH AMERICA.

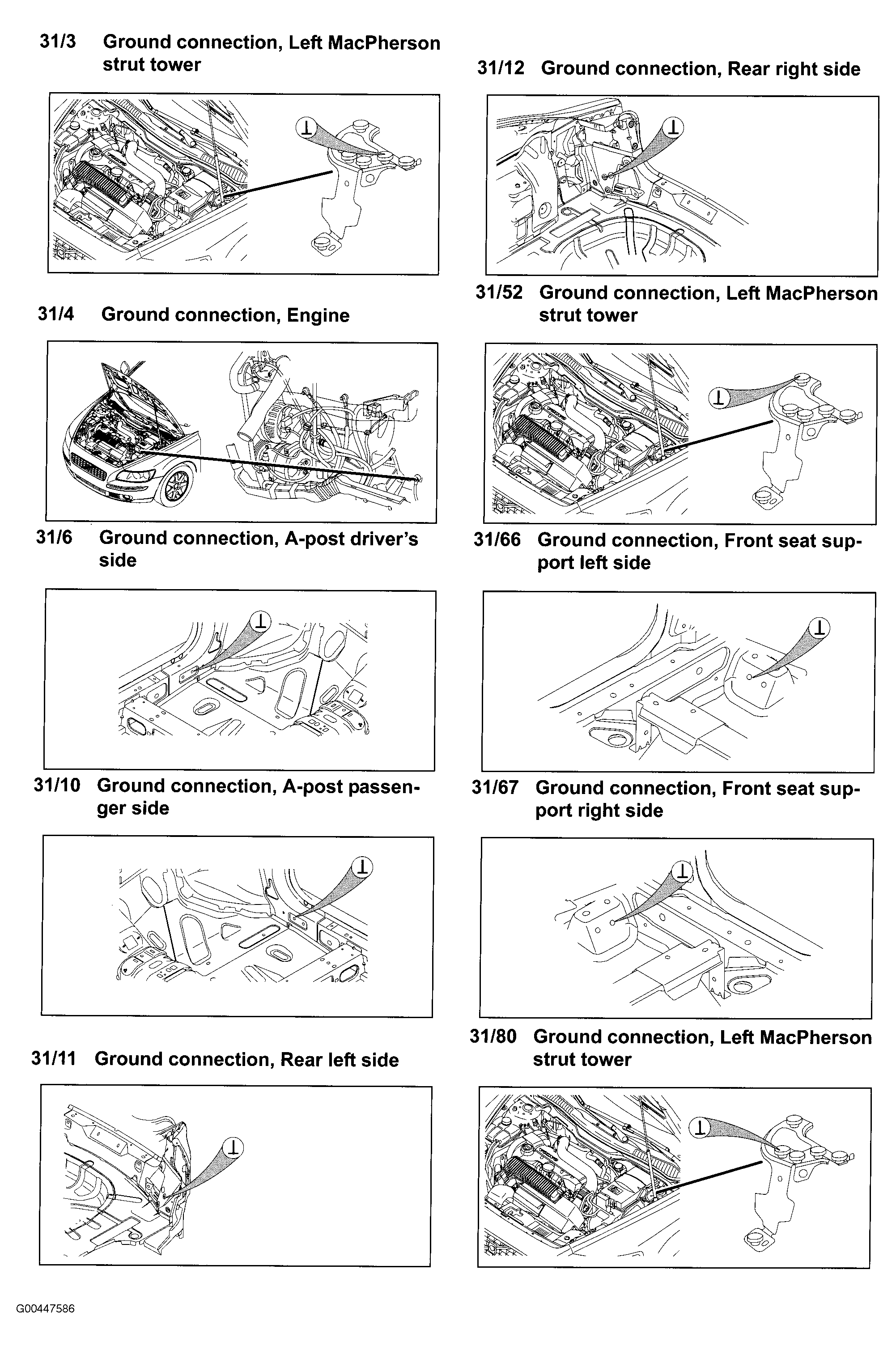

Fig 34: Components 31/3 To 31/80
G00447586Courtesy of VOLVO CARS OF NORTH AMERICA.

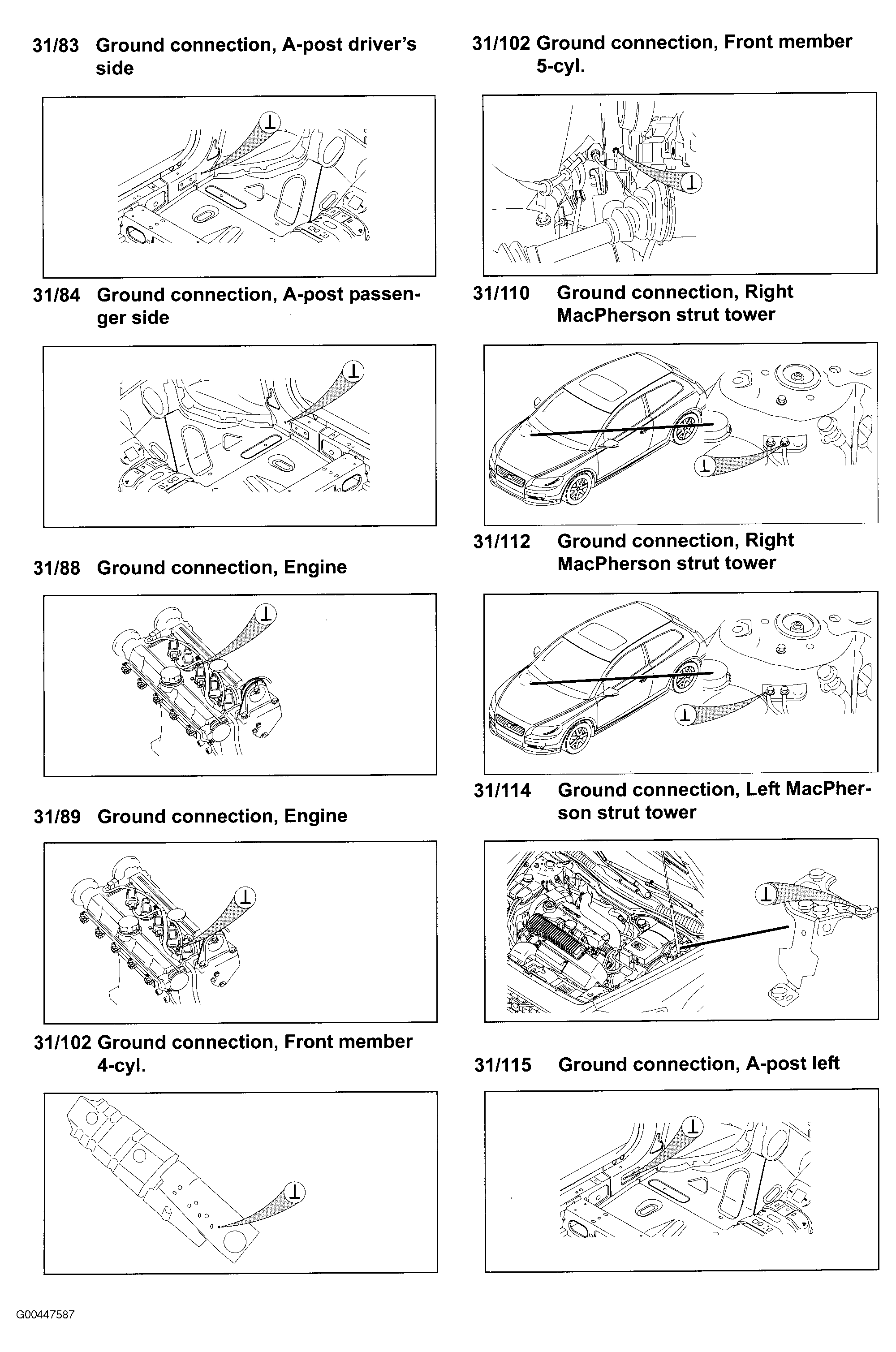

Fig 35: Components 31/83 To 31/115
G00447587Courtesy of VOLVO CARS OF NORTH AMERICA.

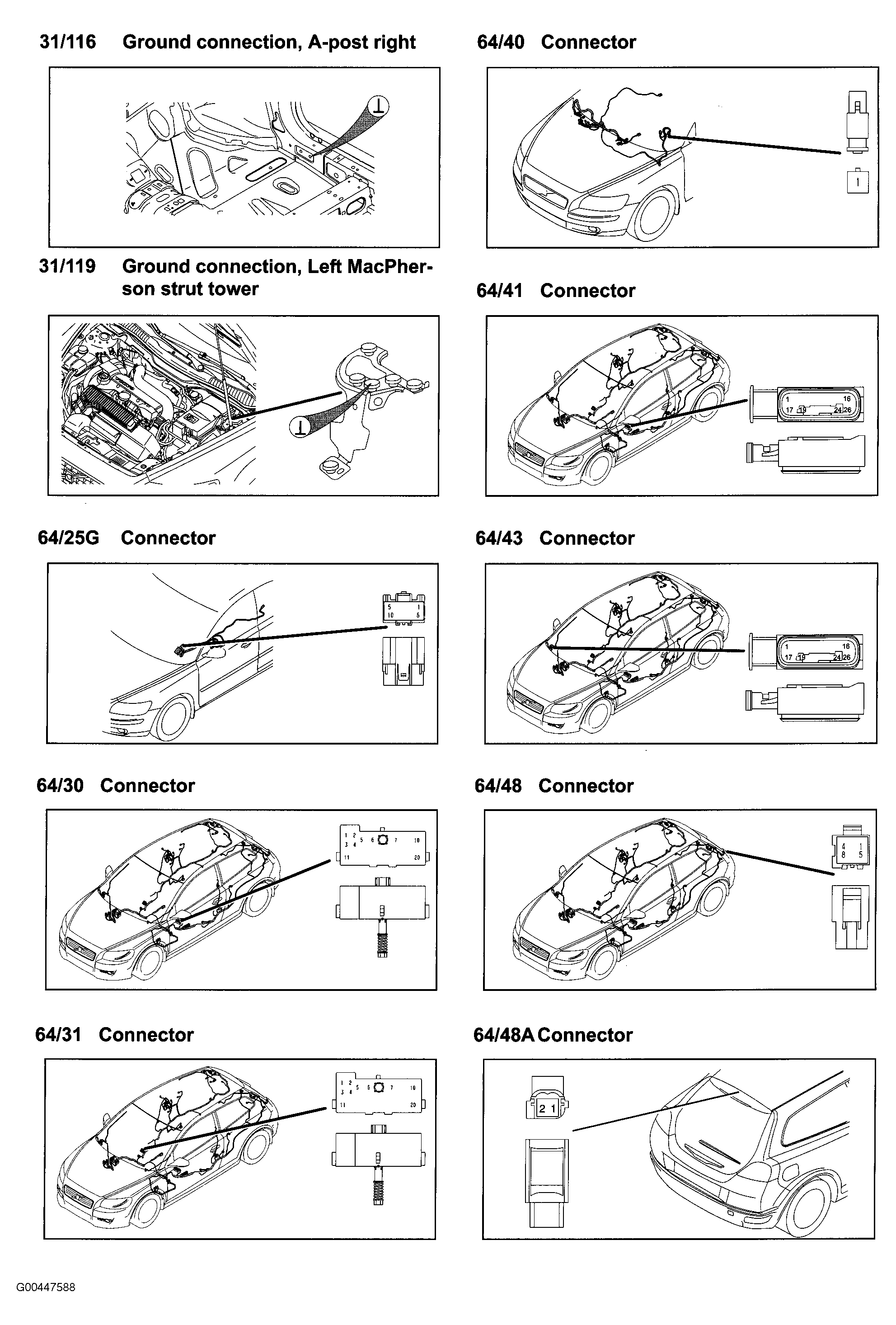

Fig 36: Components 31/116 To 64/48A
G00447588Courtesy of VOLVO CARS OF NORTH AMERICA.

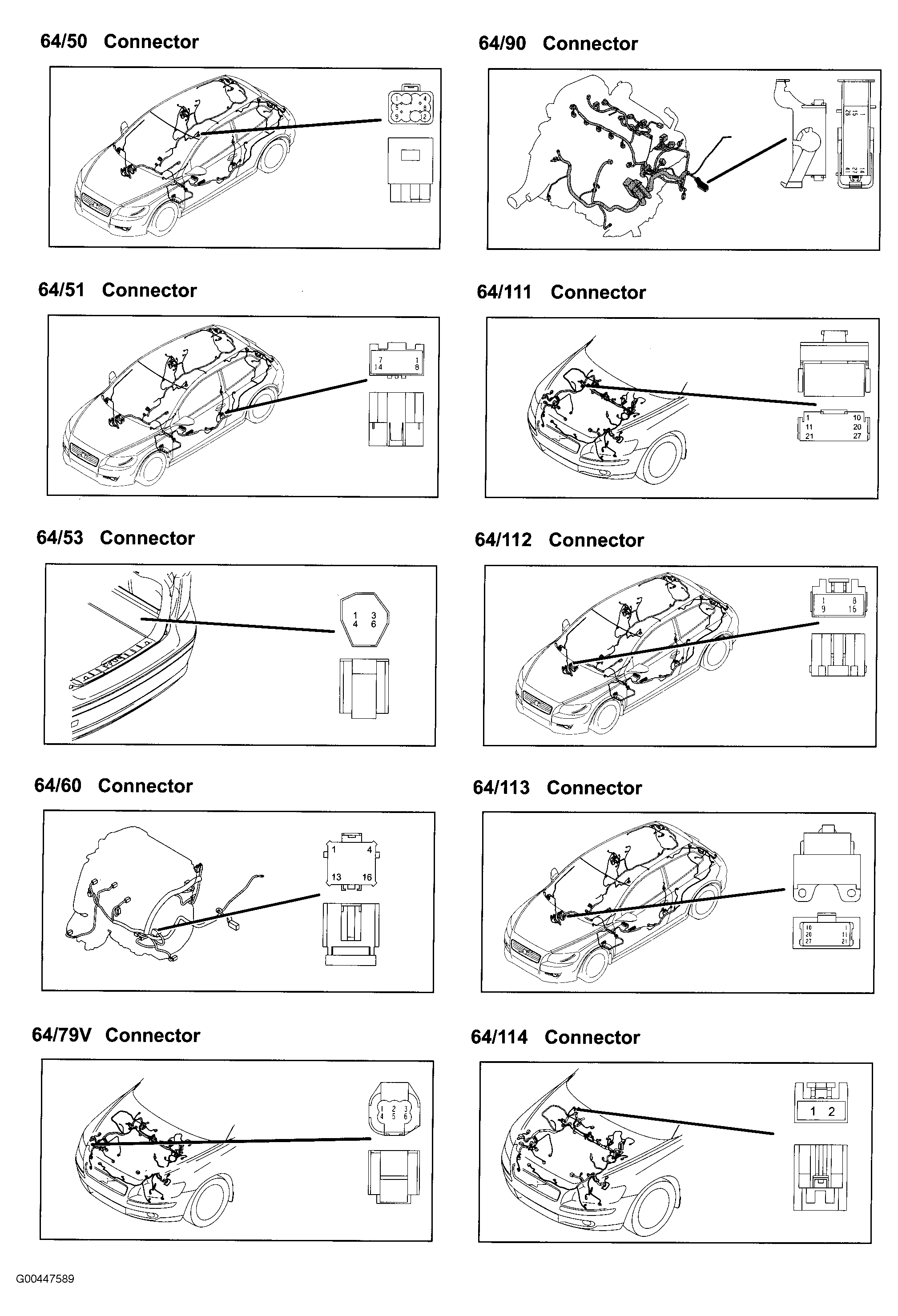

Fig 37: Components 64/50 To 64/114
G00447589Courtesy of VOLVO CARS OF NORTH AMERICA.

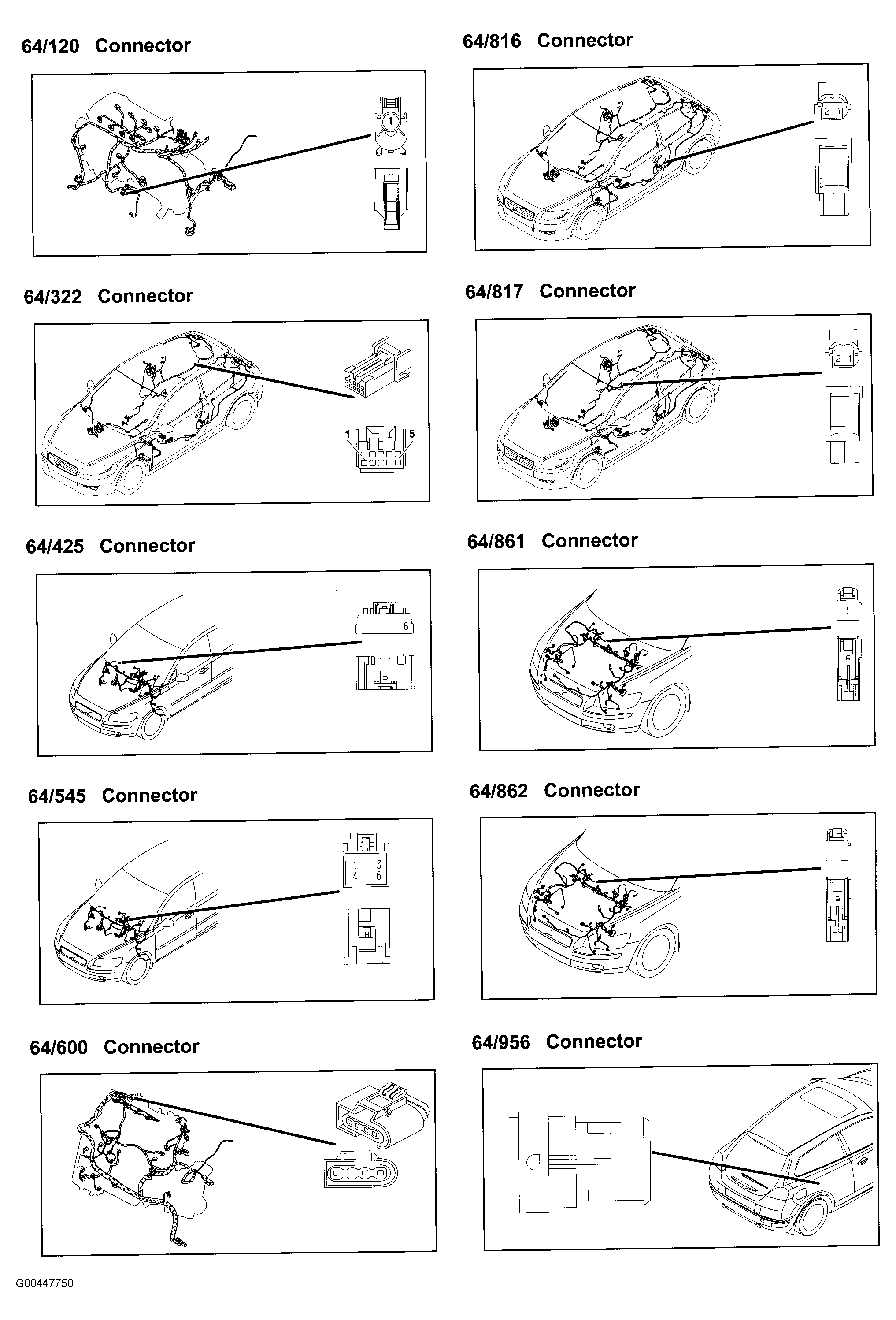

Fig 38: Components 64/120 To 64/956
G00447750Courtesy of VOLVO CARS OF NORTH AMERICA.

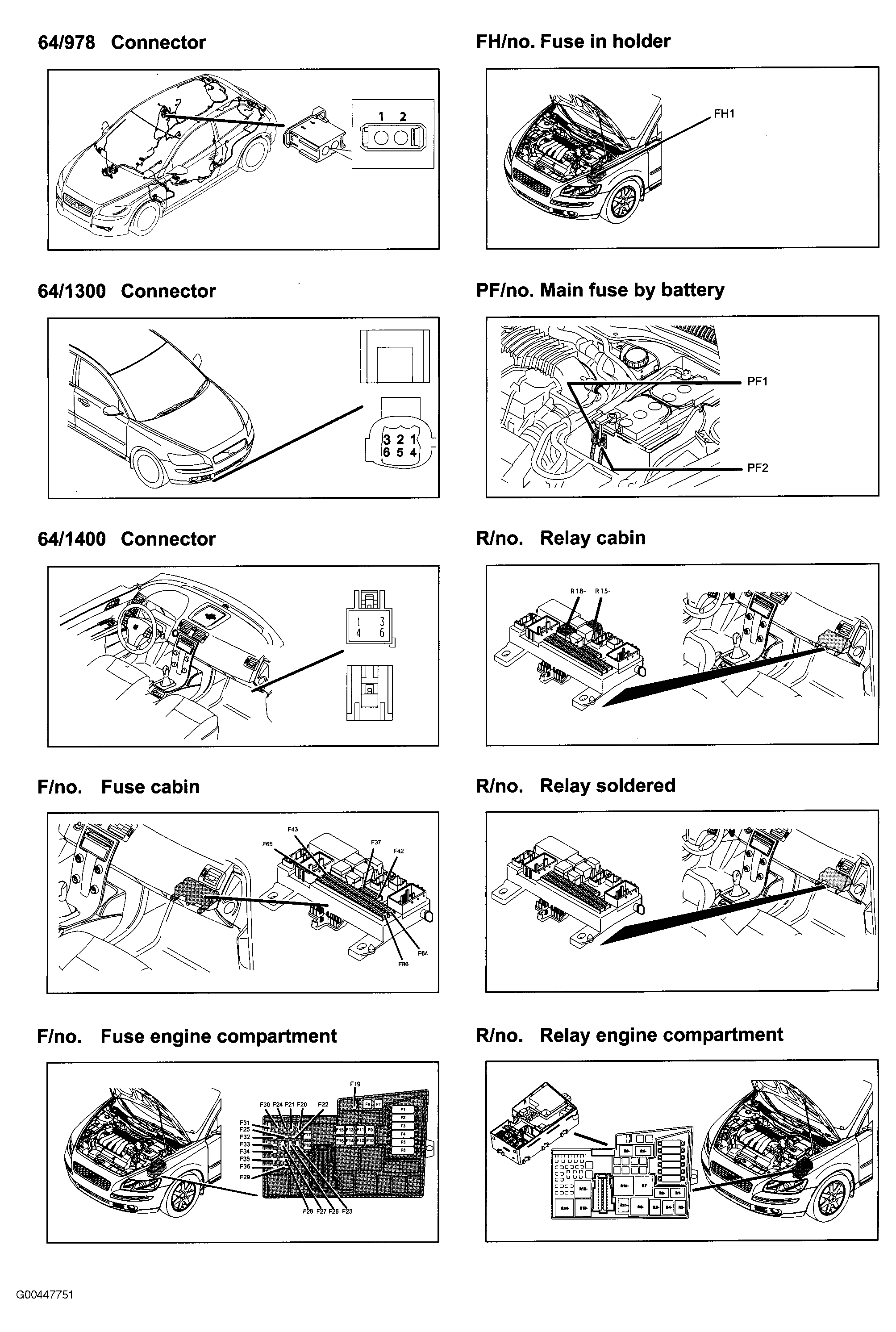

Fig 39: Components 64/978 To 64/1300
G00447751Courtesy of VOLVO CARS OF NORTH AMERICA.

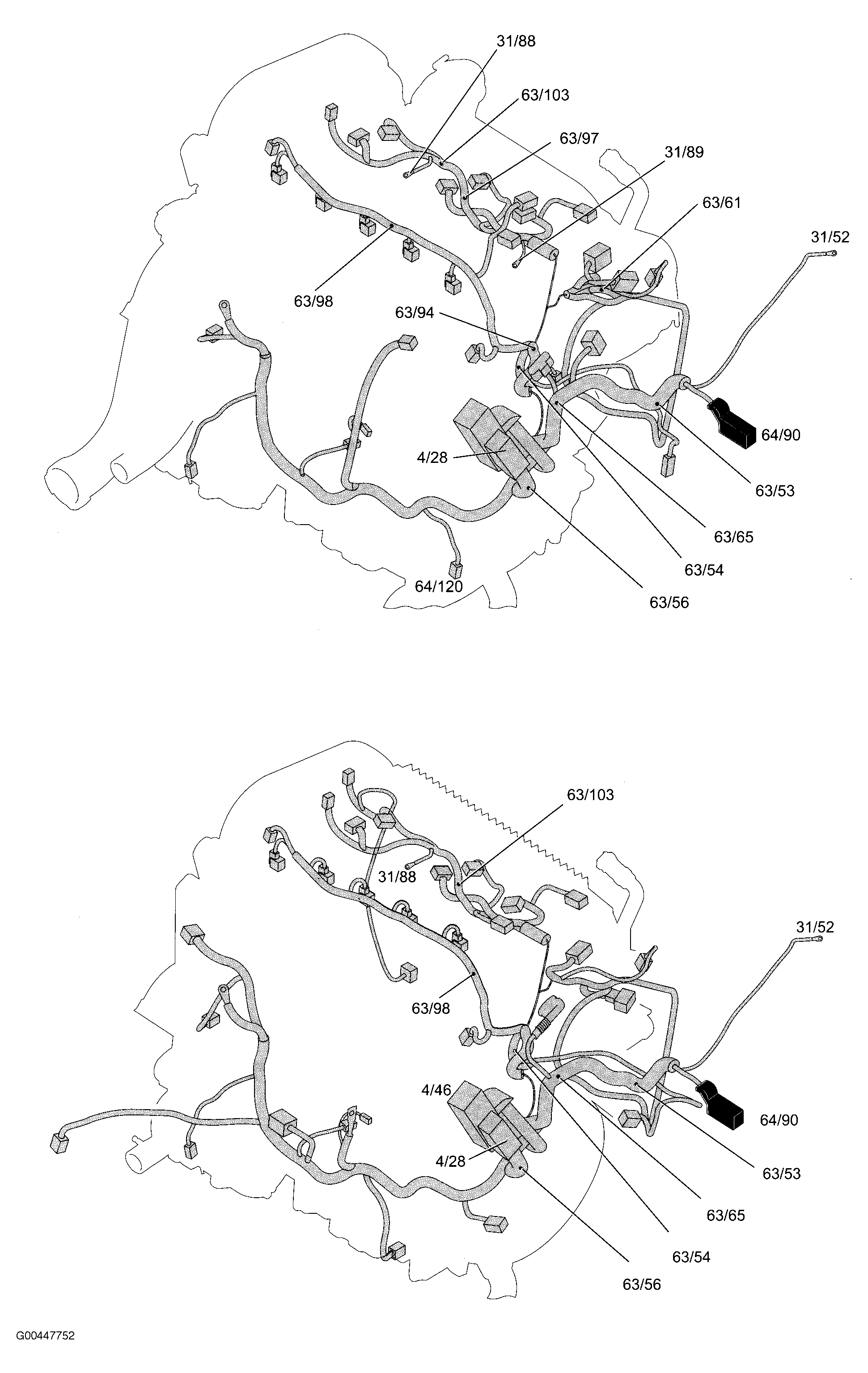

Fig 40: Engine
G00447752Courtesy of VOLVO CARS OF NORTH AMERICA.

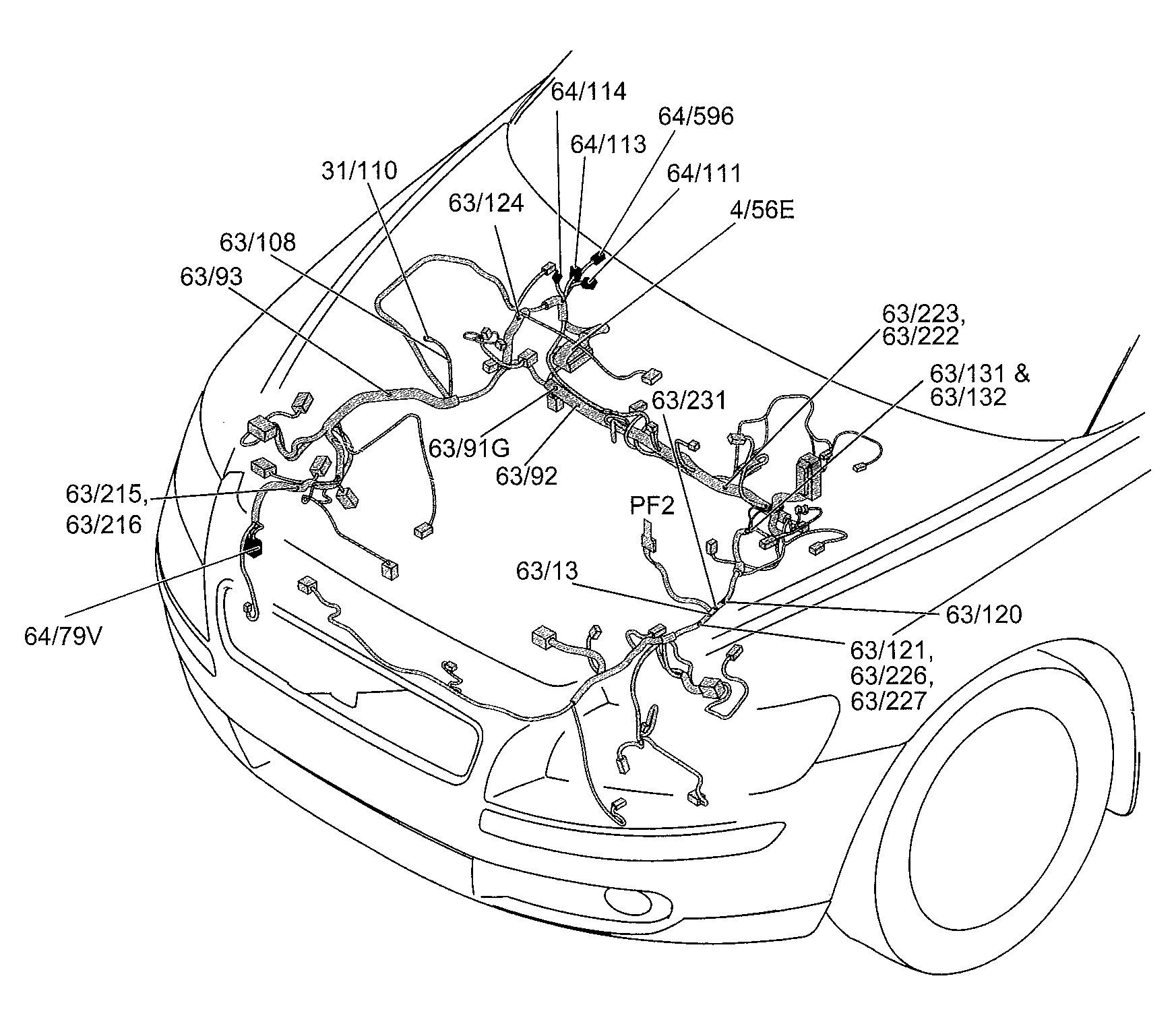

Fig 41: Engine Compartment
G00463674Courtesy of VOLVO CARS OF NORTH AMERICA.

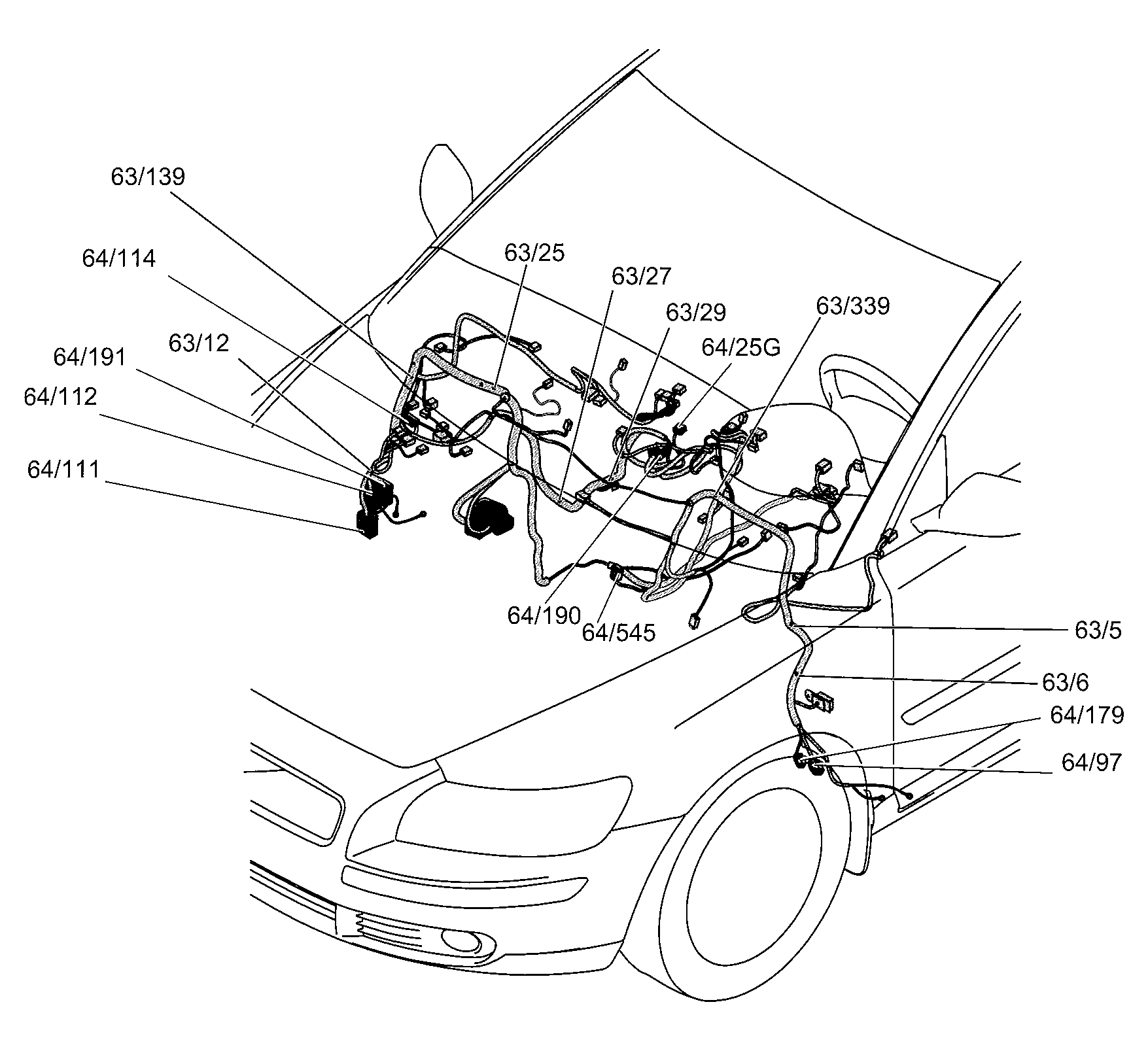

Fig 42: Behind Dash
G00463675Courtesy of VOLVO CARS OF NORTH AMERICA.

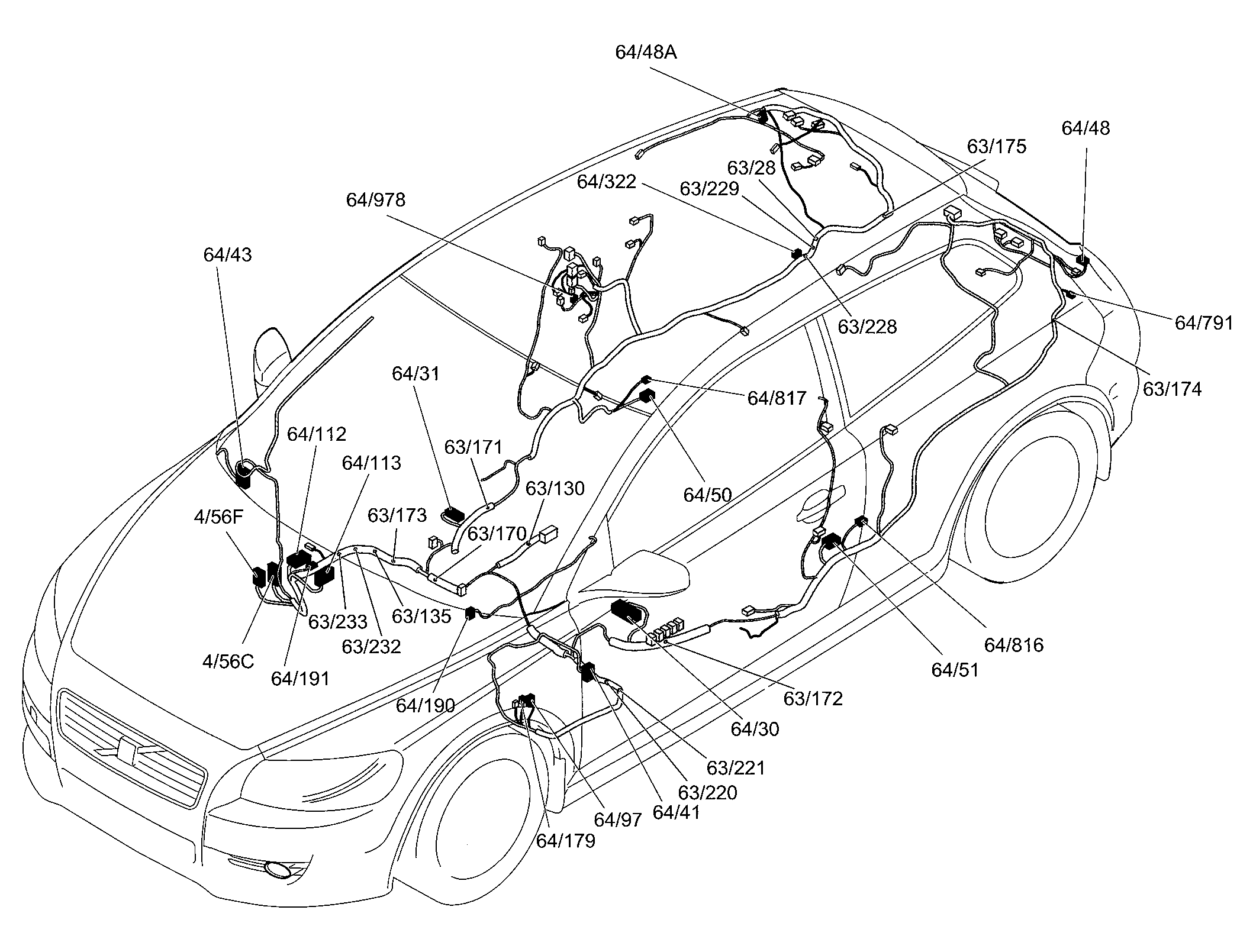

Fig 43: Vehicle Overview
G00463676Courtesy of VOLVO CARS OF NORTH AMERICA.

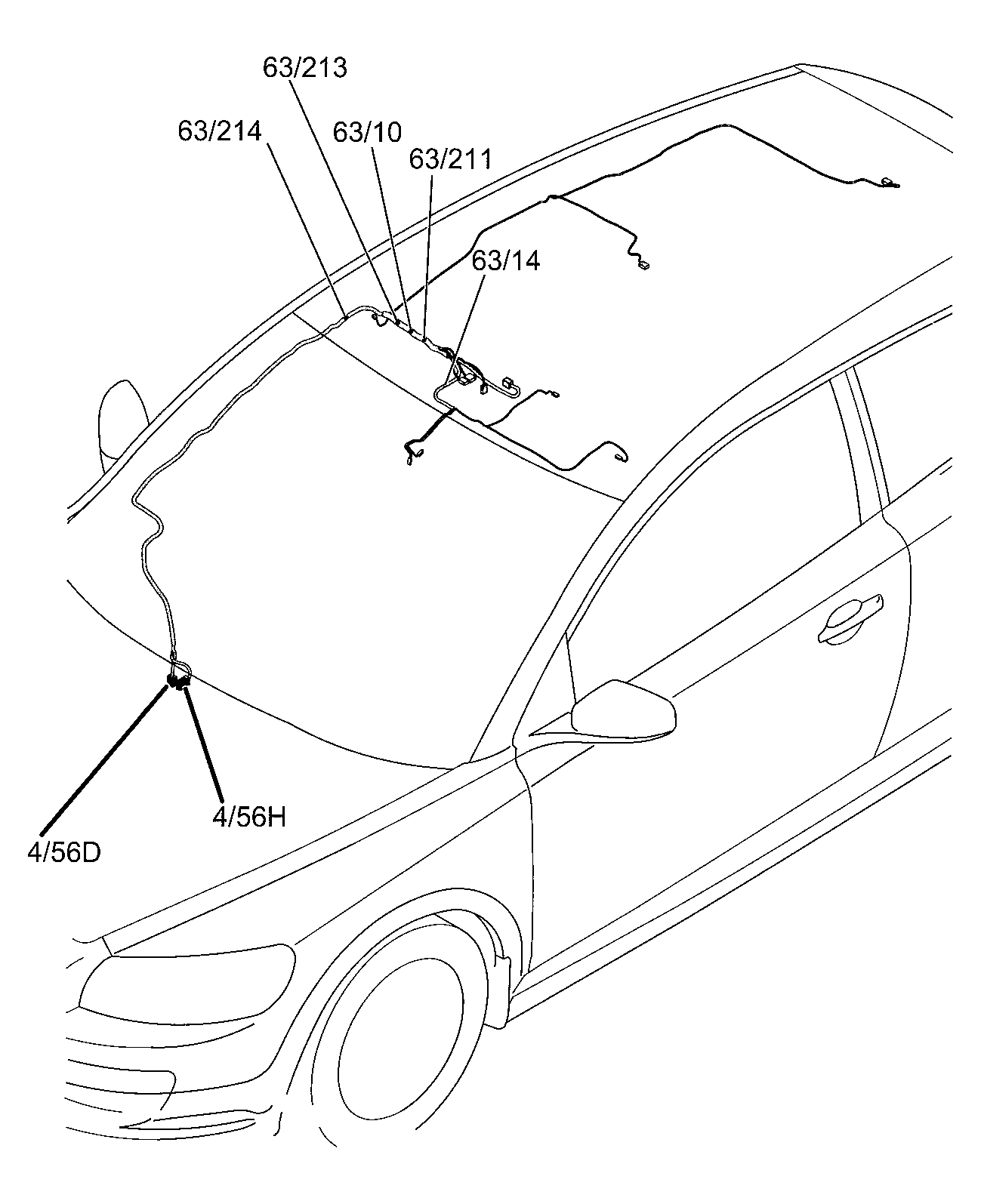

Fig 44: Roof
G00463677Courtesy of VOLVO CARS OF NORTH AMERICA.

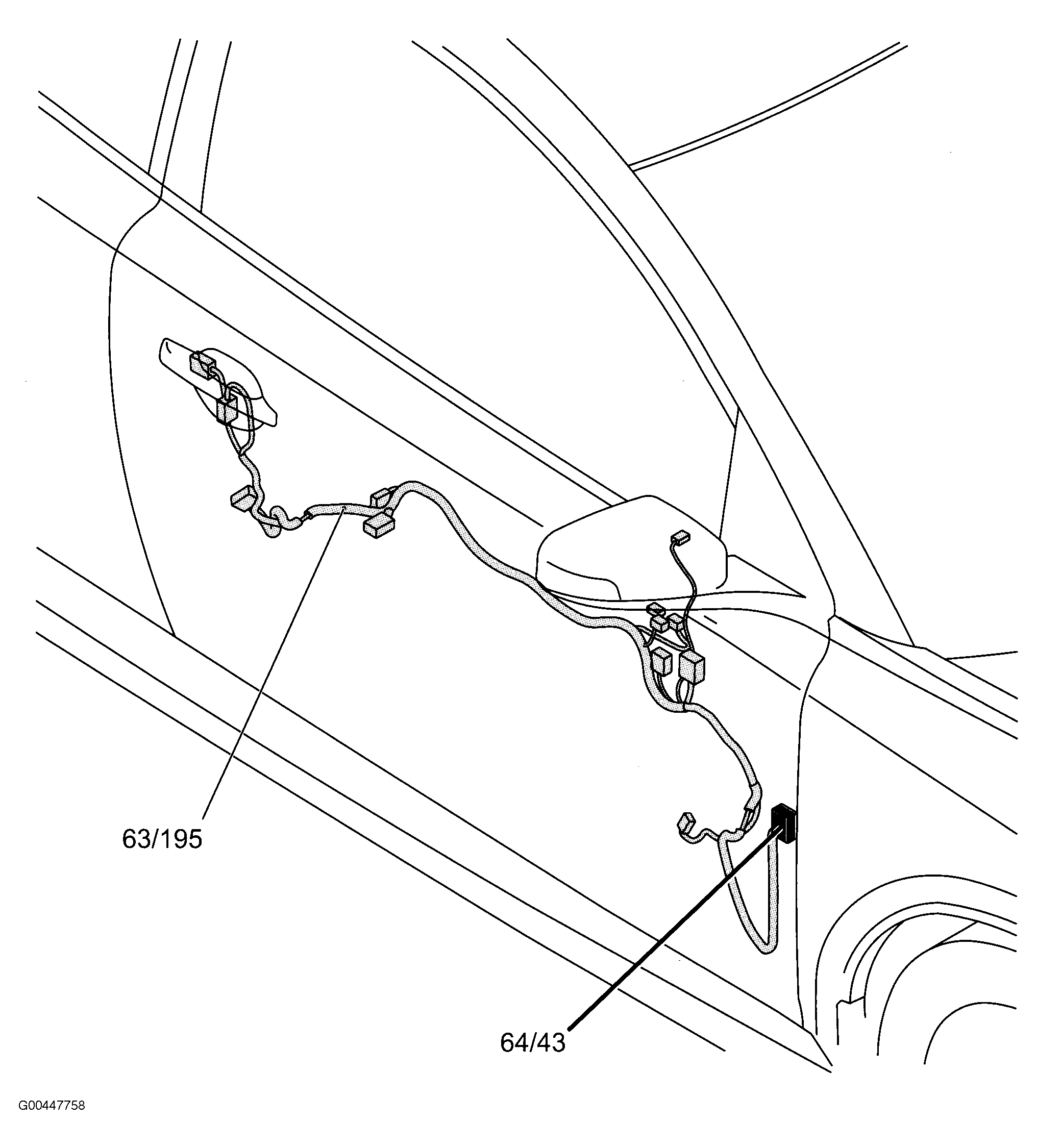

Fig 45: Passenger's Door
G00447758Courtesy of VOLVO CARS OF NORTH AMERICA.

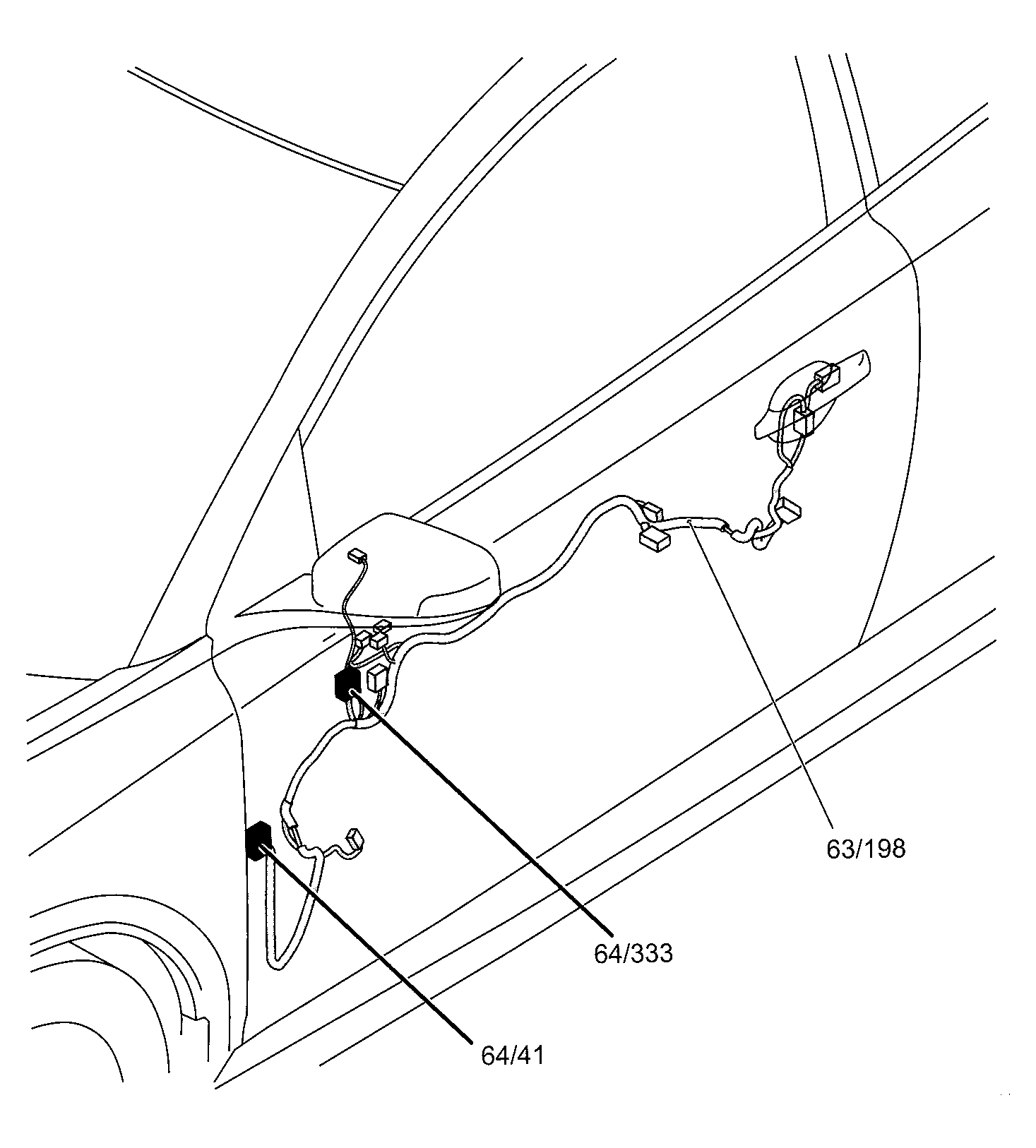

Fig 46: Driver's Door
G00463678Courtesy of VOLVO CARS OF NORTH AMERICA.

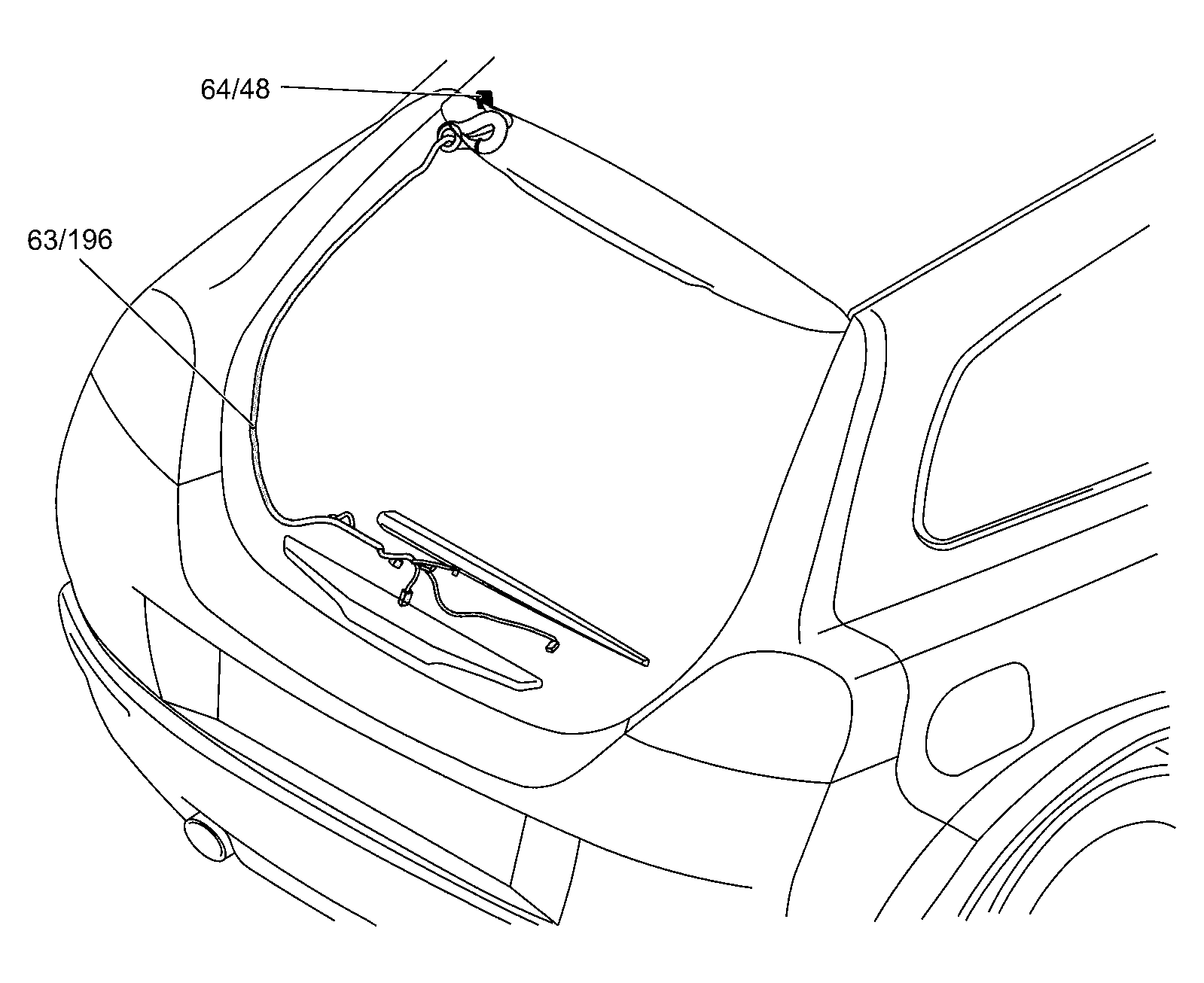

Fig 47: Tailgate
G00463679Courtesy of VOLVO CARS OF NORTH AMERICA.

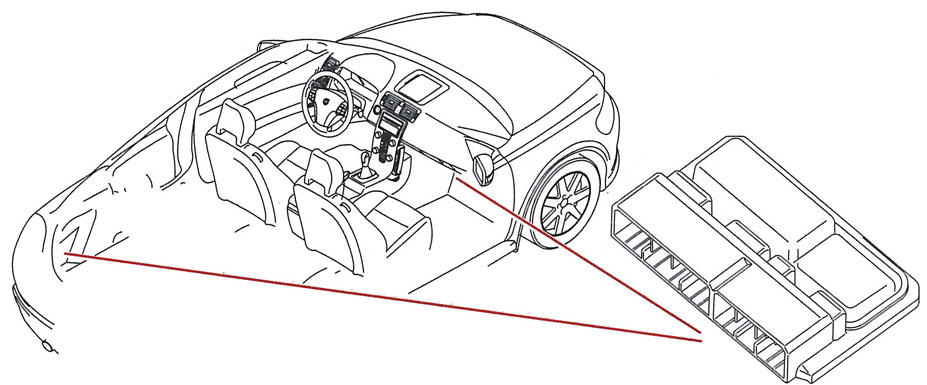

Fig 48: Left Side Of Trunk & Front Passenger's Footwell
G00471252Courtesy of VOLVO CARS OF NORTH AMERICA.

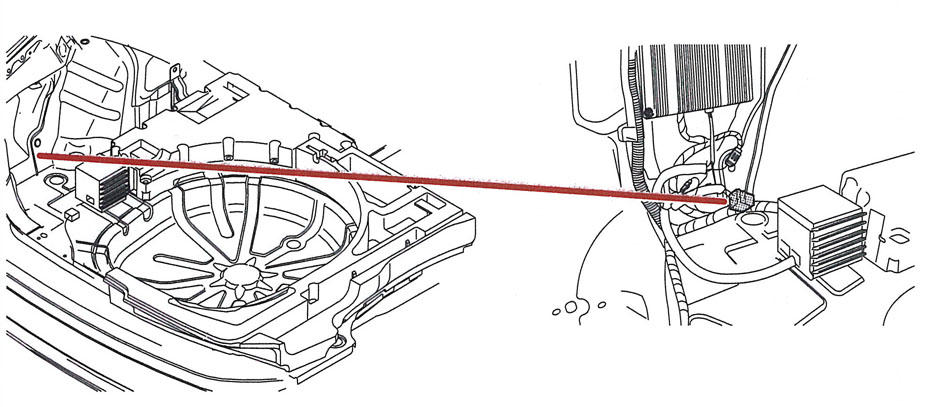

Fig 49: Left Side Of Trunk
G00471253Courtesy of VOLVO CARS OF NORTH AMERICA.

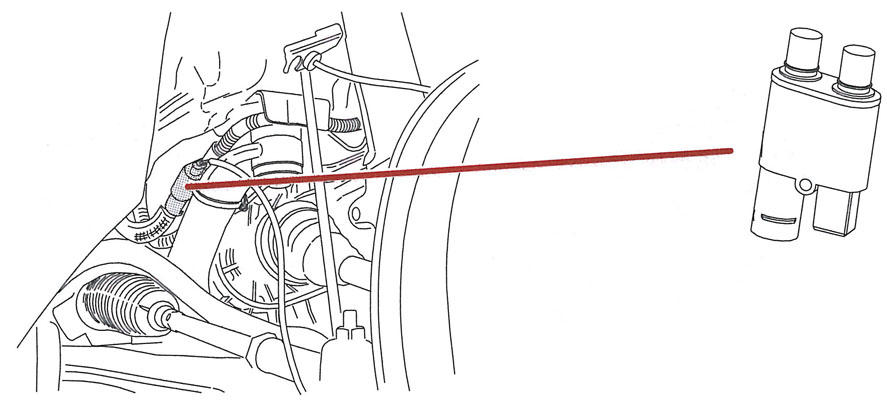

Fig 50: Right Front Wheelwell
G00471254Courtesy of VOLVO CARS OF NORTH AMERICA.

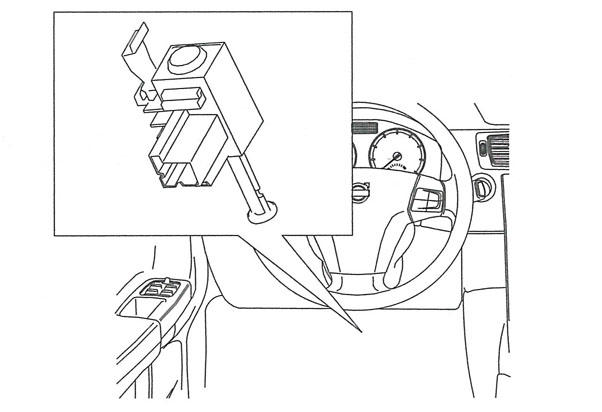

Fig 51: Under Left Side Of Dash
G00471255Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 52: Rear Of Engine Compartment
G00471256Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 53: Right Rear Of Luggage Compartment
G00471257Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 54: Center Of Rear Axle
G00471258Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 55: Under Right Side Of Dash
G00471259Courtesy of VOLVO CARS OF NORTH AMERICA.

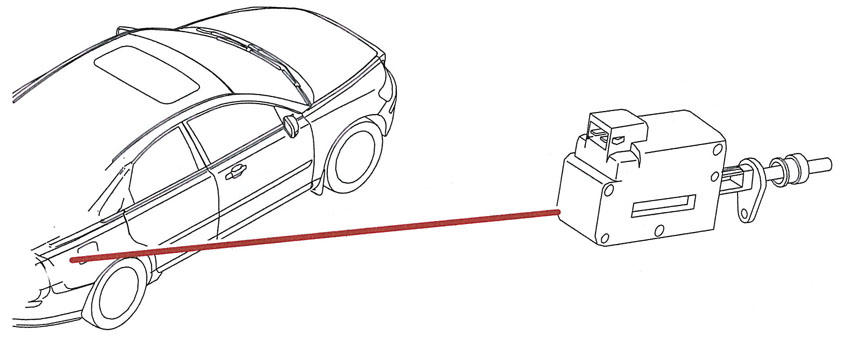

Fig 56: Right Side Of Luggage Compartment
G00471260Courtesy of VOLVO CARS OF NORTH AMERICA.

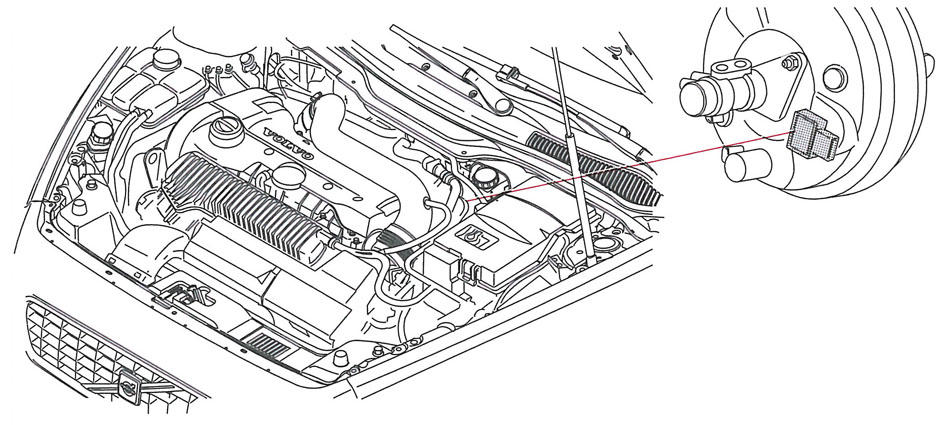

Fig 57: Left Rear Of Engine Compartment
G00471263Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 58: Left Side Of Luggage Compartment
G00471264Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 59: Front Passenger's Footwell
G00471265Courtesy of VOLVO CARS OF NORTH AMERICA.
