Control Units
CONTROL UNITS LOCATION

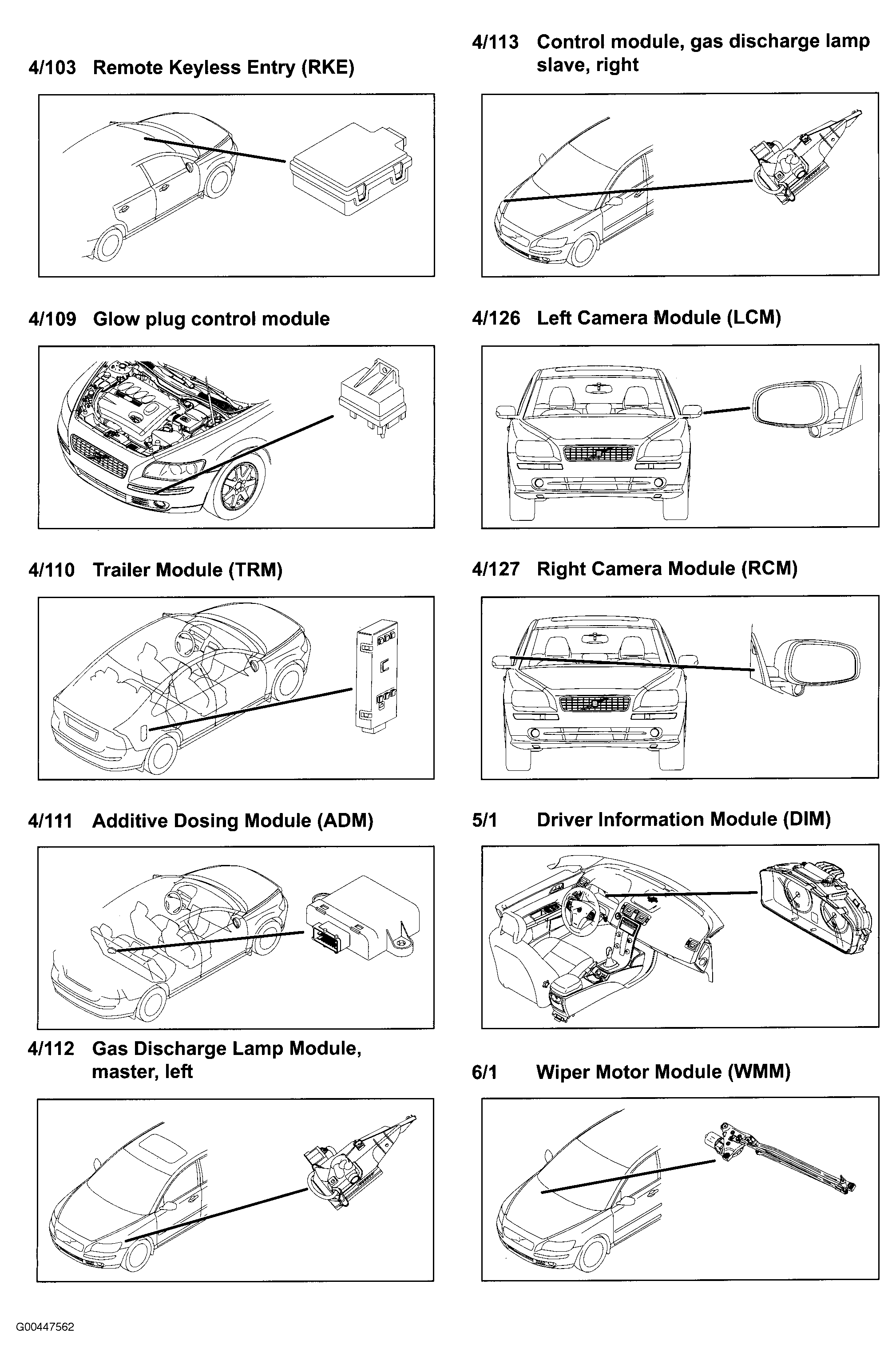

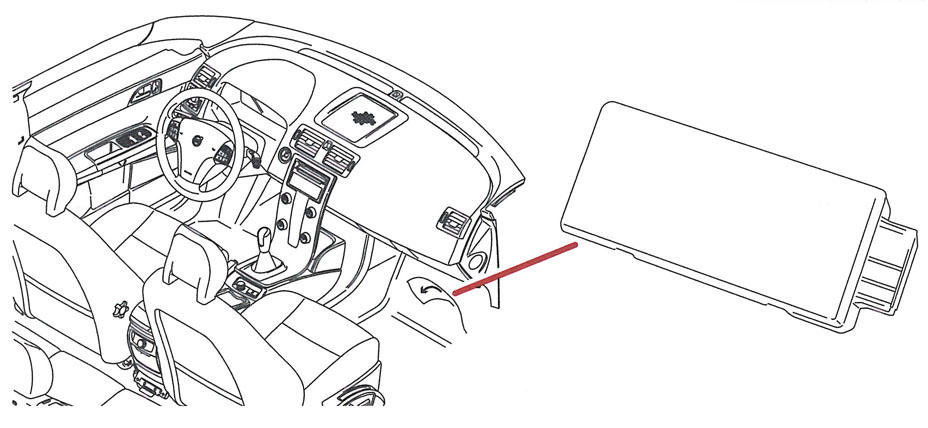

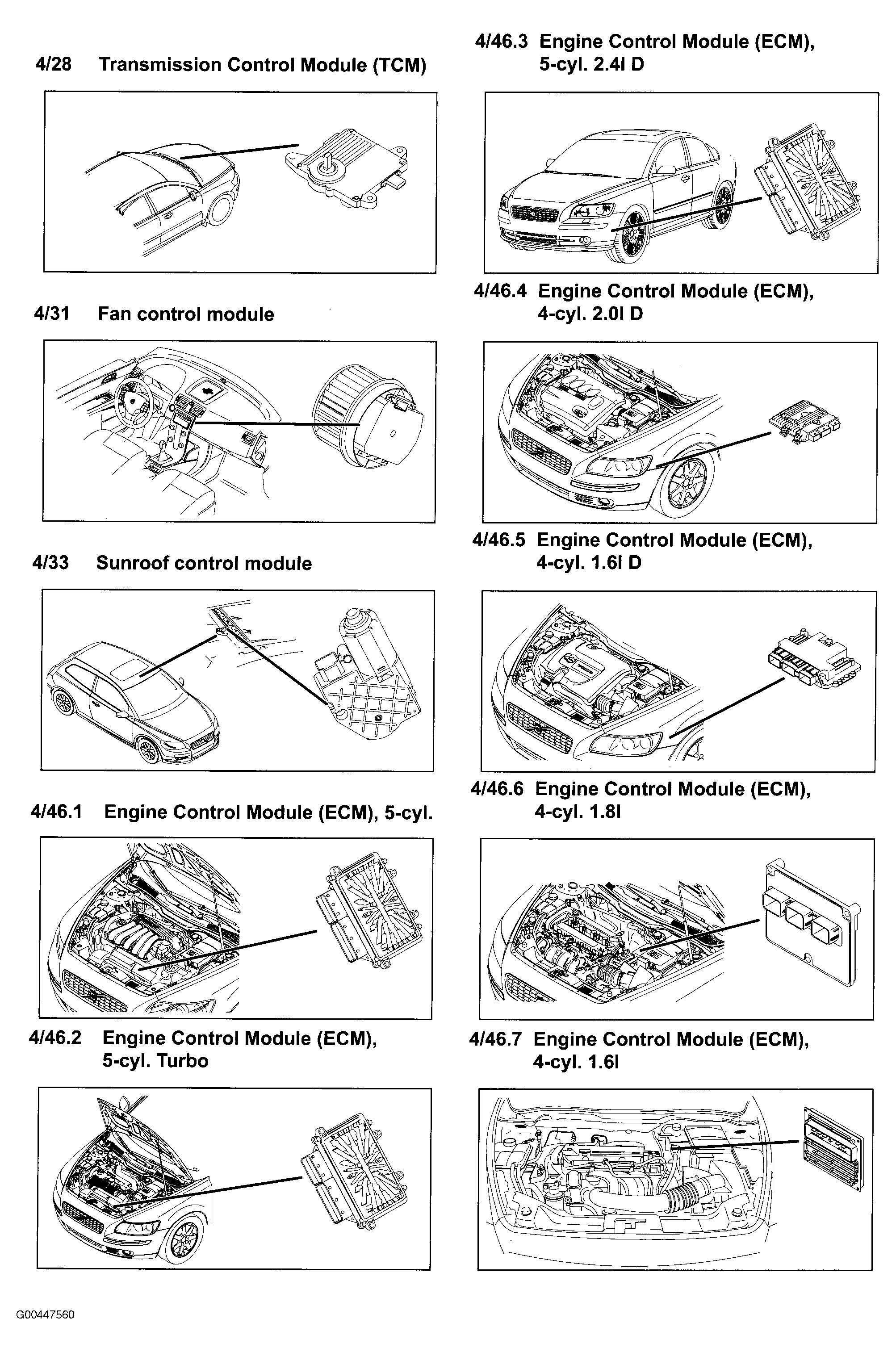

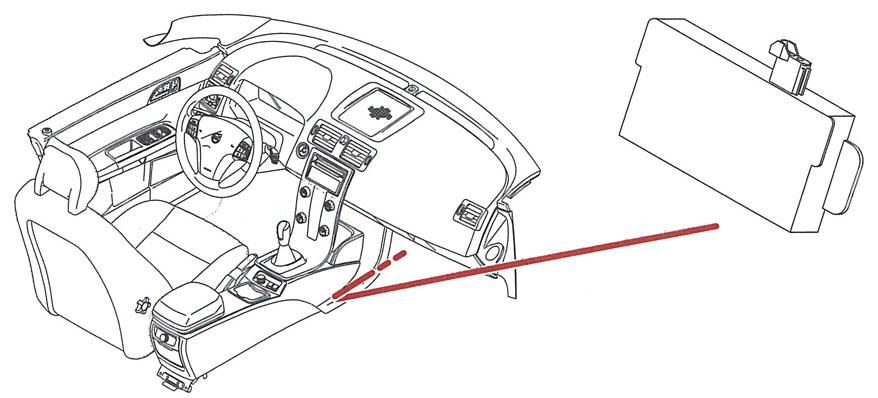

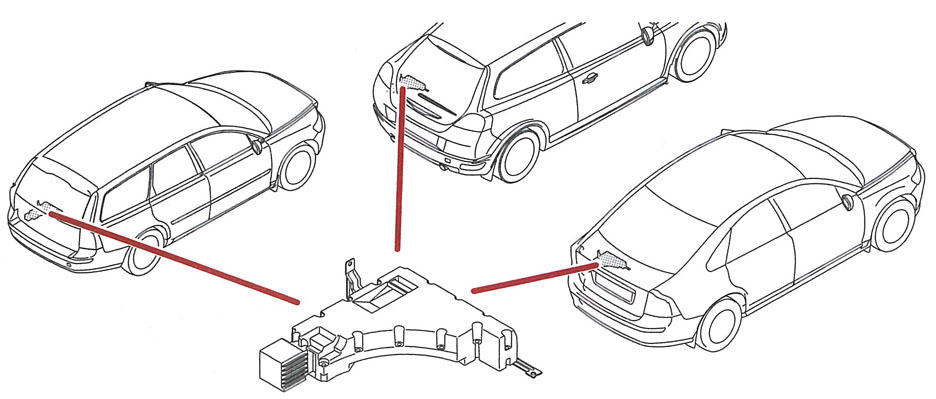

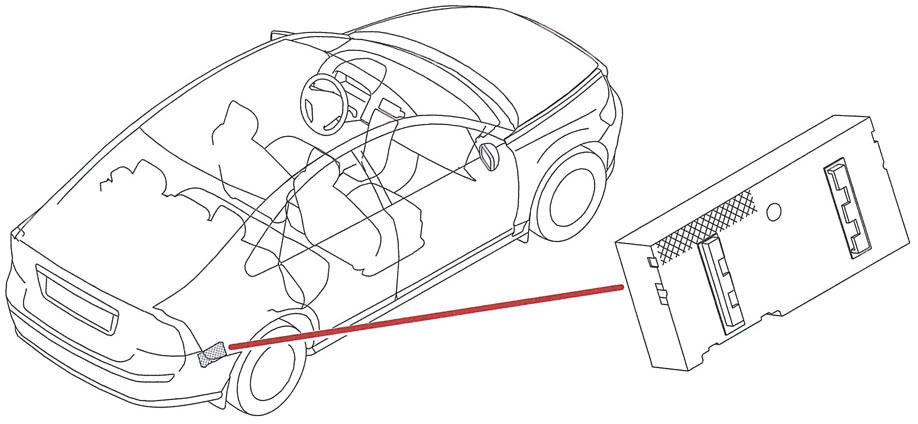

| Component | Location |
|---|---|
| Accessory Electronic Module | Right rear of luggage compartment. See Figure. |
| Accessory USB Unit (AUU) | Under right side of dash. See Figure. |
| Additive Dosing Module (ADM) (4/111) | Behind left rear seat. See Figure. |

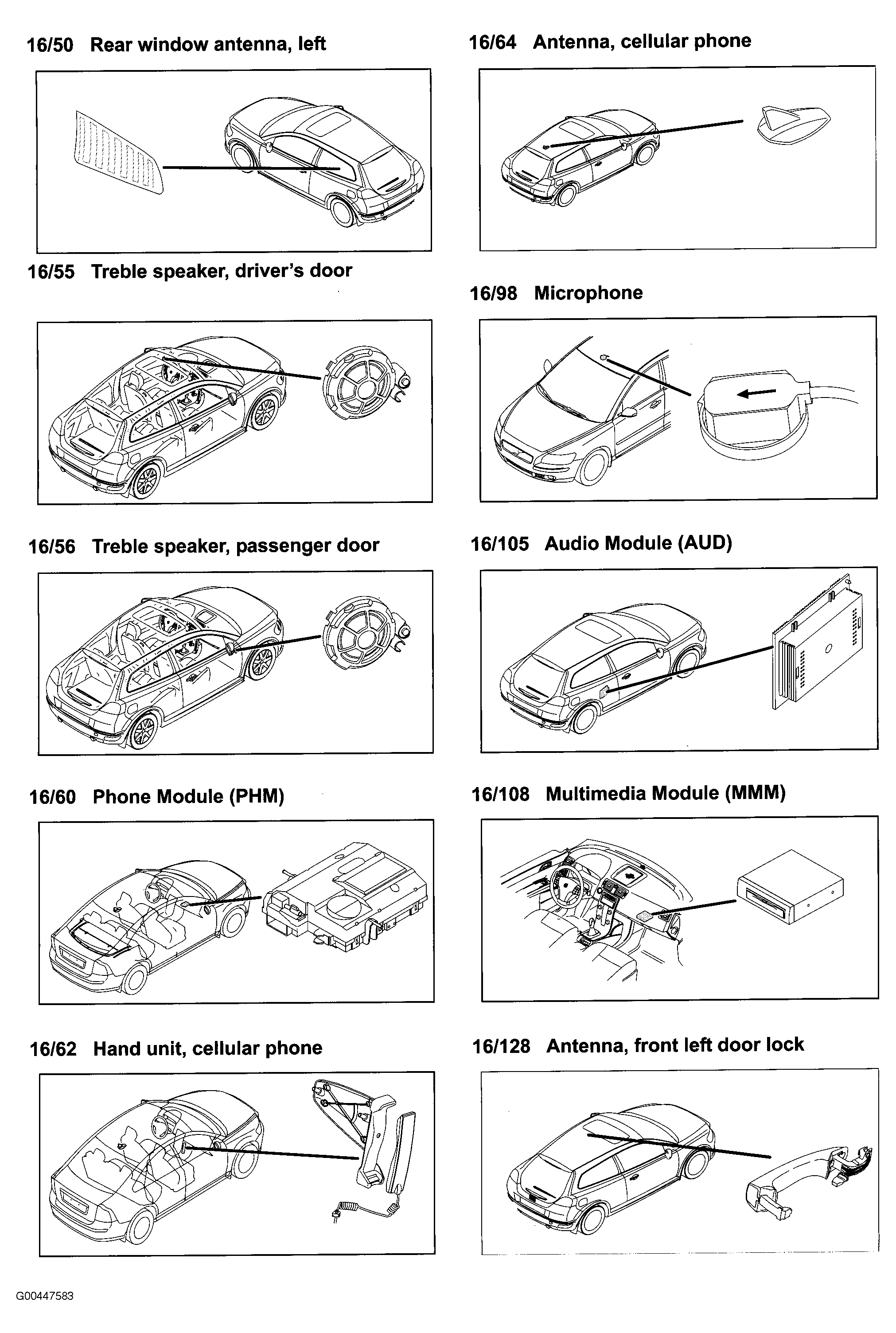

| Audio Module (AUD) (16/105) | Right side of trunk. See Figure. |

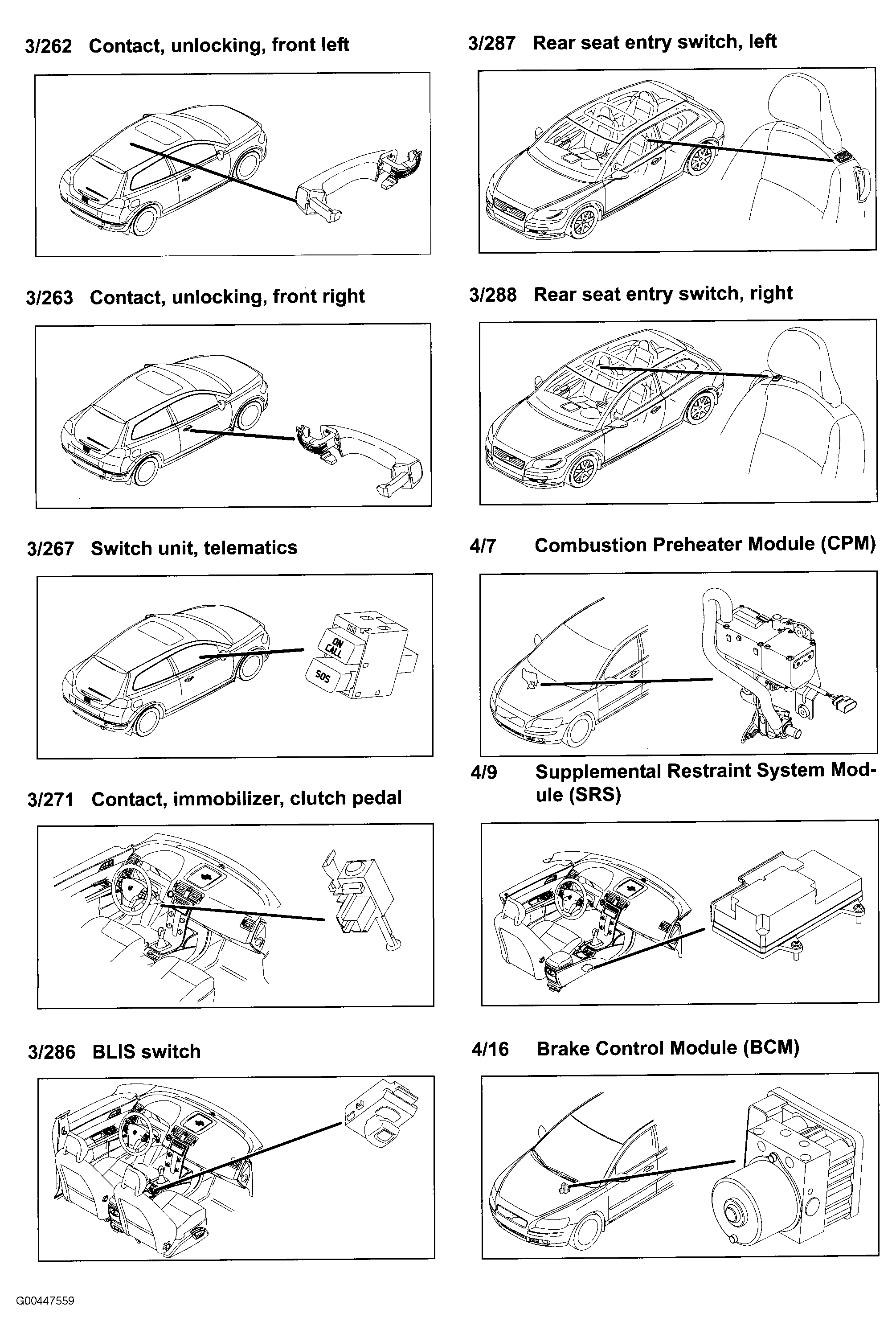

| Brake Control Module (BCM) (4/16) | Left rear corner of engine compartment. See Figure. |
| Cooling Fan Control Module (4/71) | Attached to rear of cooling fan assembly. See Figure. |

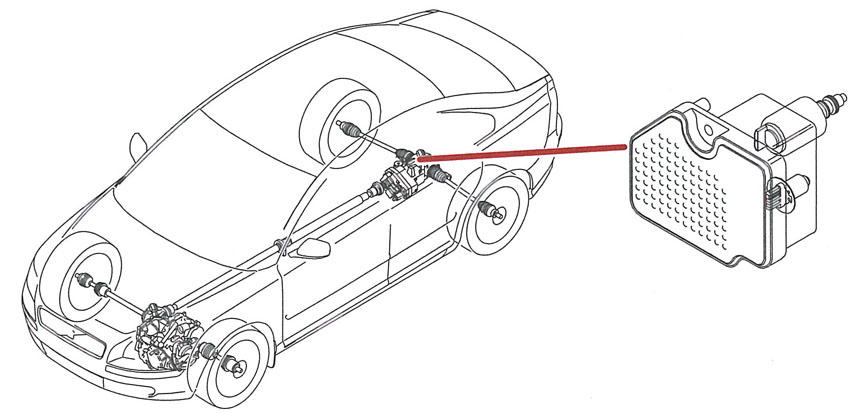

| Differential Electronic Module (DEM) | At differential. See Figure. |
| Engine Control Module (ECM) (4/46.2) | Left front of engine compartment. See Figure. |
| Fan Control Module (4/31) | Behind center of dash. See Figure. |

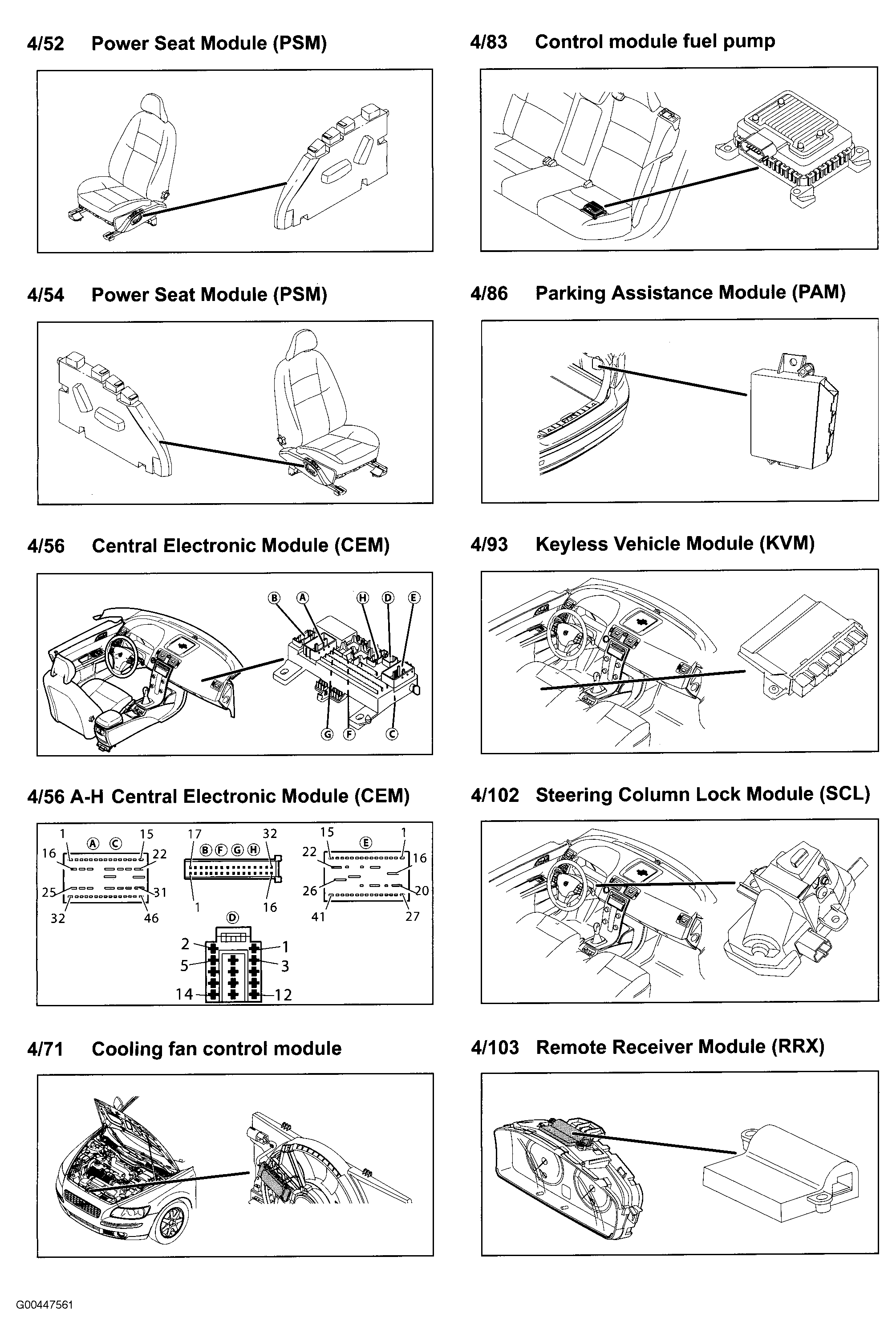

| Fuel Pump Control Module (4/83) | At fuel tank. See Figure. |
| Gas Discharge Lamp Module (Master Left) (4/112) | Behind left headlight assembly. See Figure. |
| Gas Discharge Lamp Module (Master Right) (4/113) | Behind right headlight assembly. See Figure. |
| Handsfree Mobile Phone Control Module | In front passenger's footwell. See Figure. |
| Keyless Vehicle Module (KVM) (4/93) | Under driver's seat. See Figure. |
| Parking Assistance Module (PAM) (4/86) | Right rear corner of cargo compartment. See Figure. |

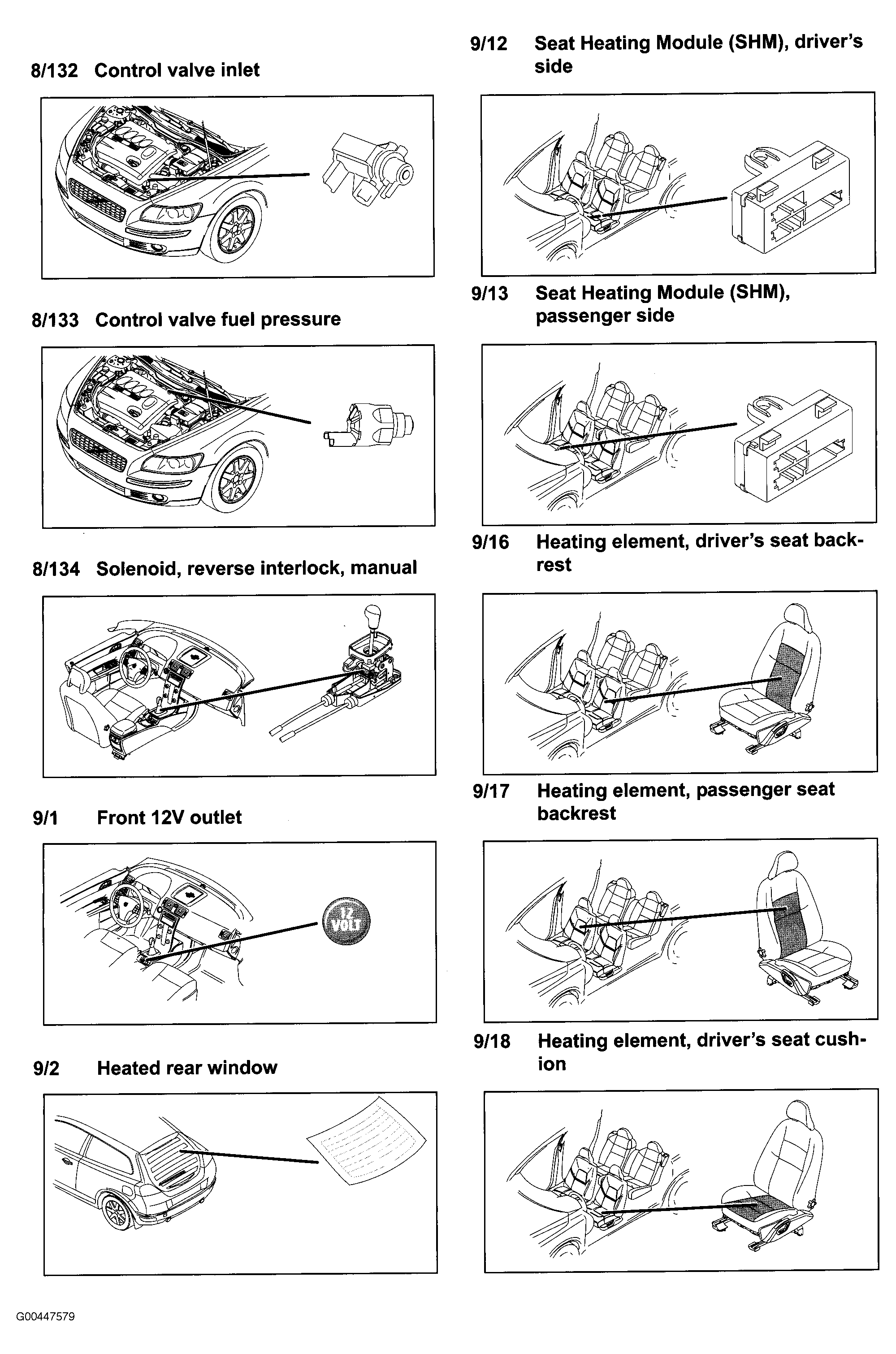

| Seat Heating Module (SHM) (Driver/Passenger) (9/12 & 9/13) | Under respective front seat. See Figure. |

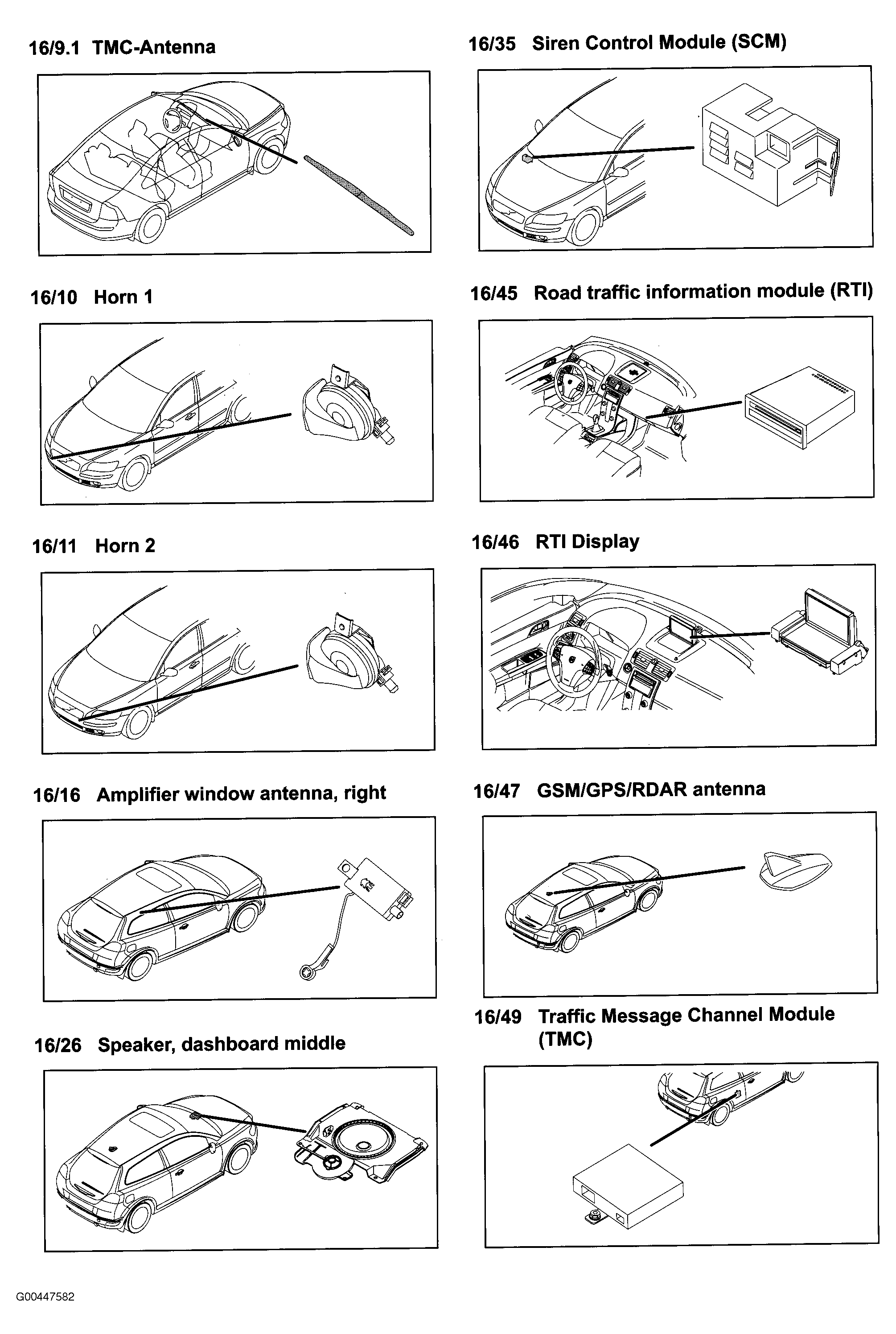

| Siren Control Module (SCM) (16/35) | Right front wheelwell. See Figure. |

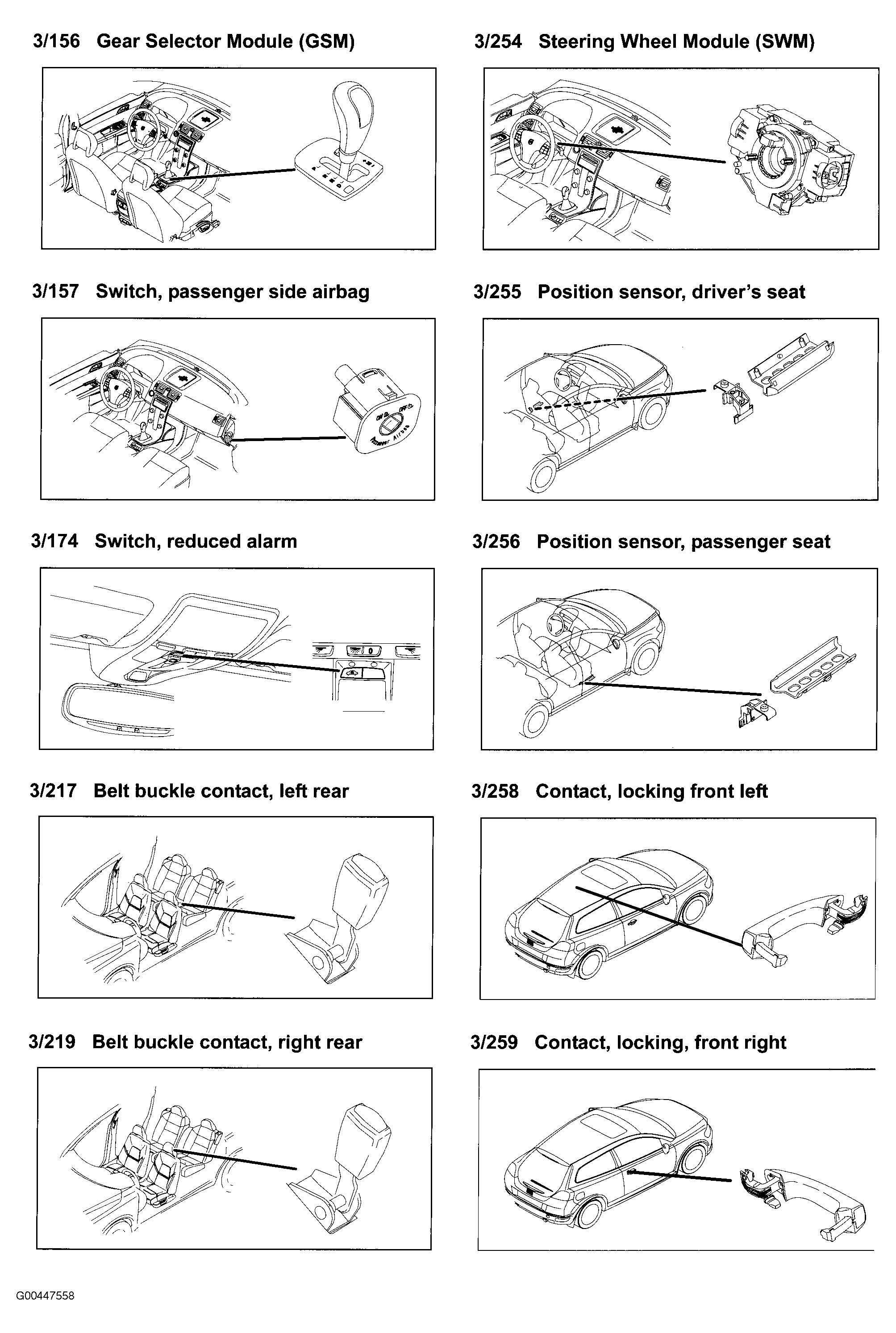

| Steering Wheel Module (SWM) (3/254) | Top of steering column. See Figure. |
| Subwoofer Module (SUB) | Left rear of luggage compartment. See Figure. |
| Supplemental Restraint System Module (SRS) (4/9) | Below floor console, behind gear selector lever. See Figure. |
| Trailer Module (TRM) (4/110) | Right rear of trunk. See Figure. |

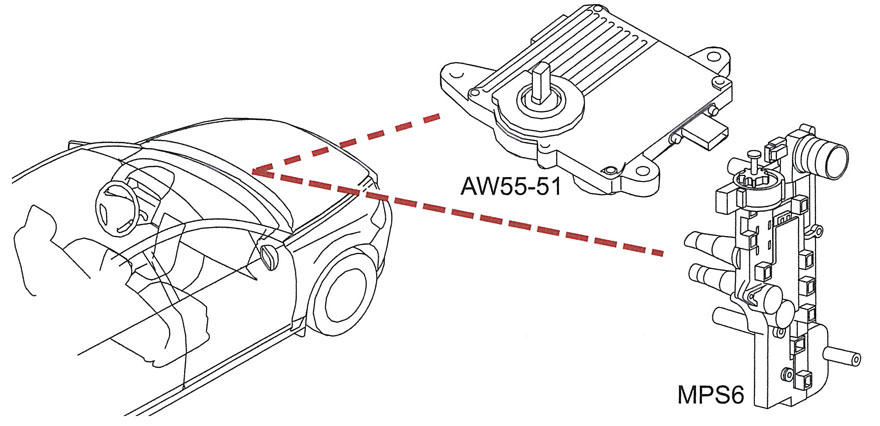

| Transmission Control Module (TCM) | Rear of engine compartment. See Figure. |
