Gear Shift Solenoids

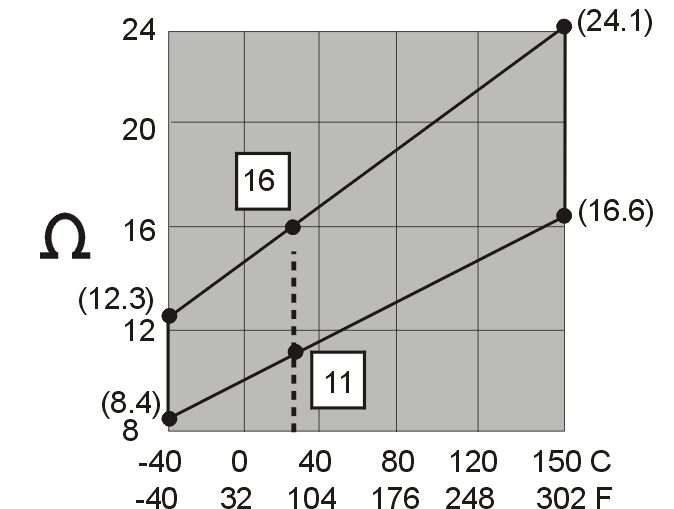

Fig 1: Identifying Ohms Resistance Temperature Graph

Courtesy of VOLVO CARS CORPORATION

Component	Remarks	Resistance (Ω)
Shift solenoids S1, S2, S3, S4 and S5	Resistance between the solenoid pin and the solenoid sleeve or transmission housing	+20°C = 11-16 Ω

For other values, see diagram. When taking readings at temperatures other than +20°C, a control reading must be taken at +20°C. This is done to check whether the resistance is correct or not.
