Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|

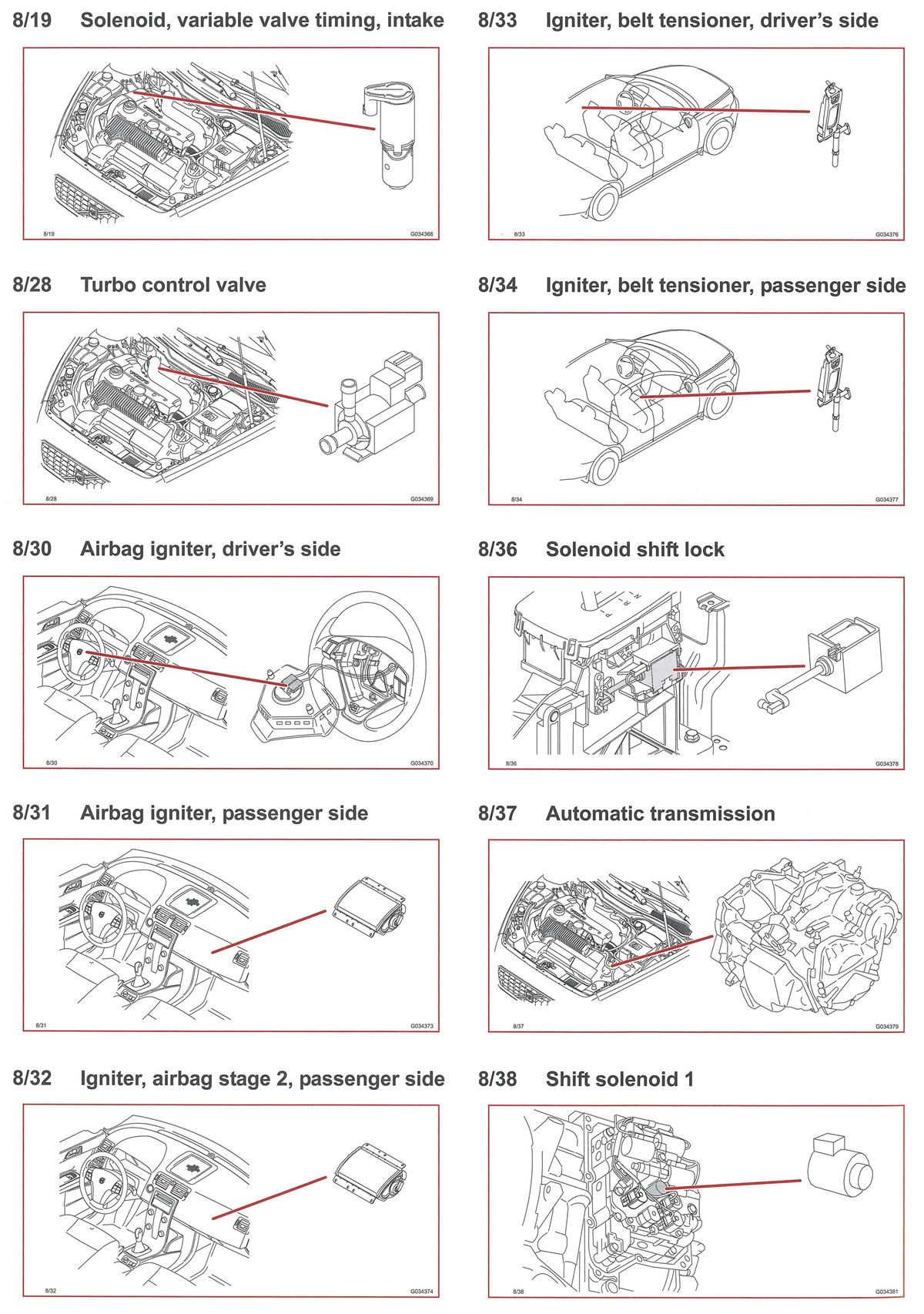

| Airbag Igniter (Driver's Side) (8/30) | In steering wheel. See Figure. |
| Airbag Igniter (Passenger Side) (8/31) | Behind right side of dash. See Figure. |
| Airbag Igniter Stage 2 (Driver's Side) (8/61) | In steering wheel. See Figure. |
| Airbag Igniter Stage 2 (Passenger Side) (8/32) | Behind right side of dash. See Figure. |

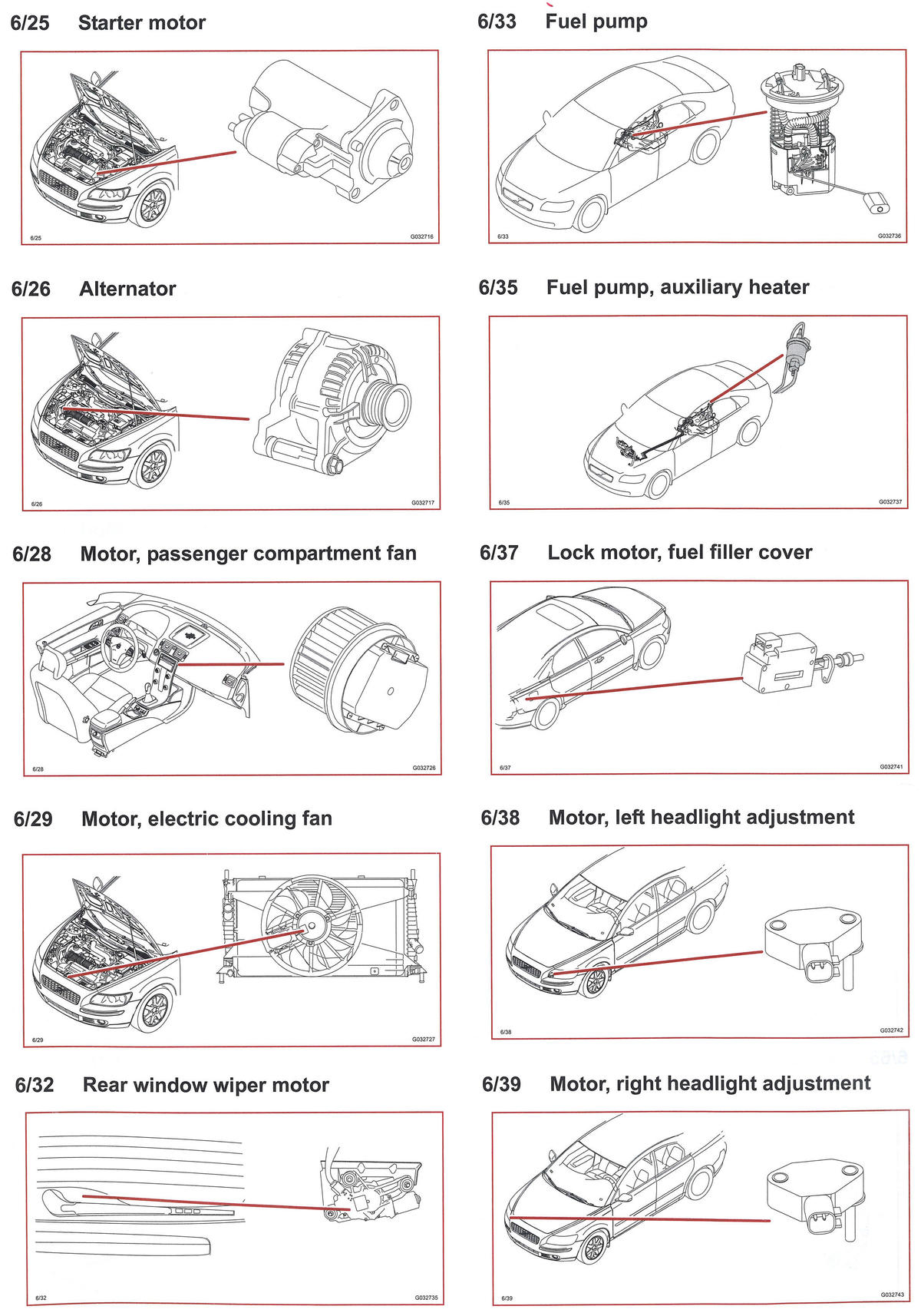

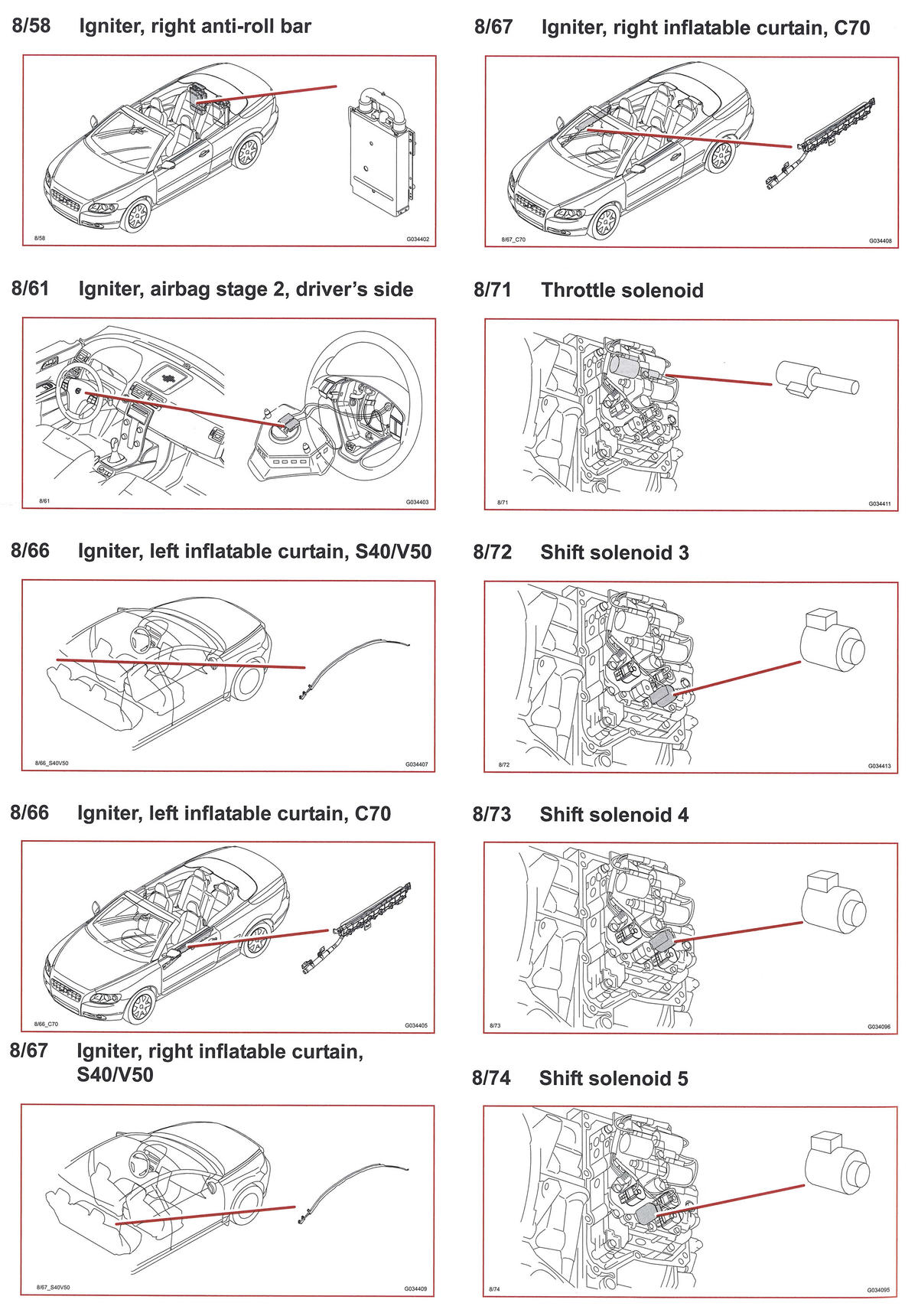

| Alternator (6/26) | Left front of engine. See Figure. |
| AM/FM Antenna & Amplifier (Right Rear Fender) (16/150) | At right rear fender. See Figure. |
| Antenna Amplifier (Bumper) (16/67) | Behind center of rear bumper. See Figure. |
| Anti-Roll Bar Igniter (Left) (8/57) | Behind left rear seat back. See Figure. |
| Anti-Roll Bar Igniter (Right) (8/58) | Behind right rear seat back. See Figure. |

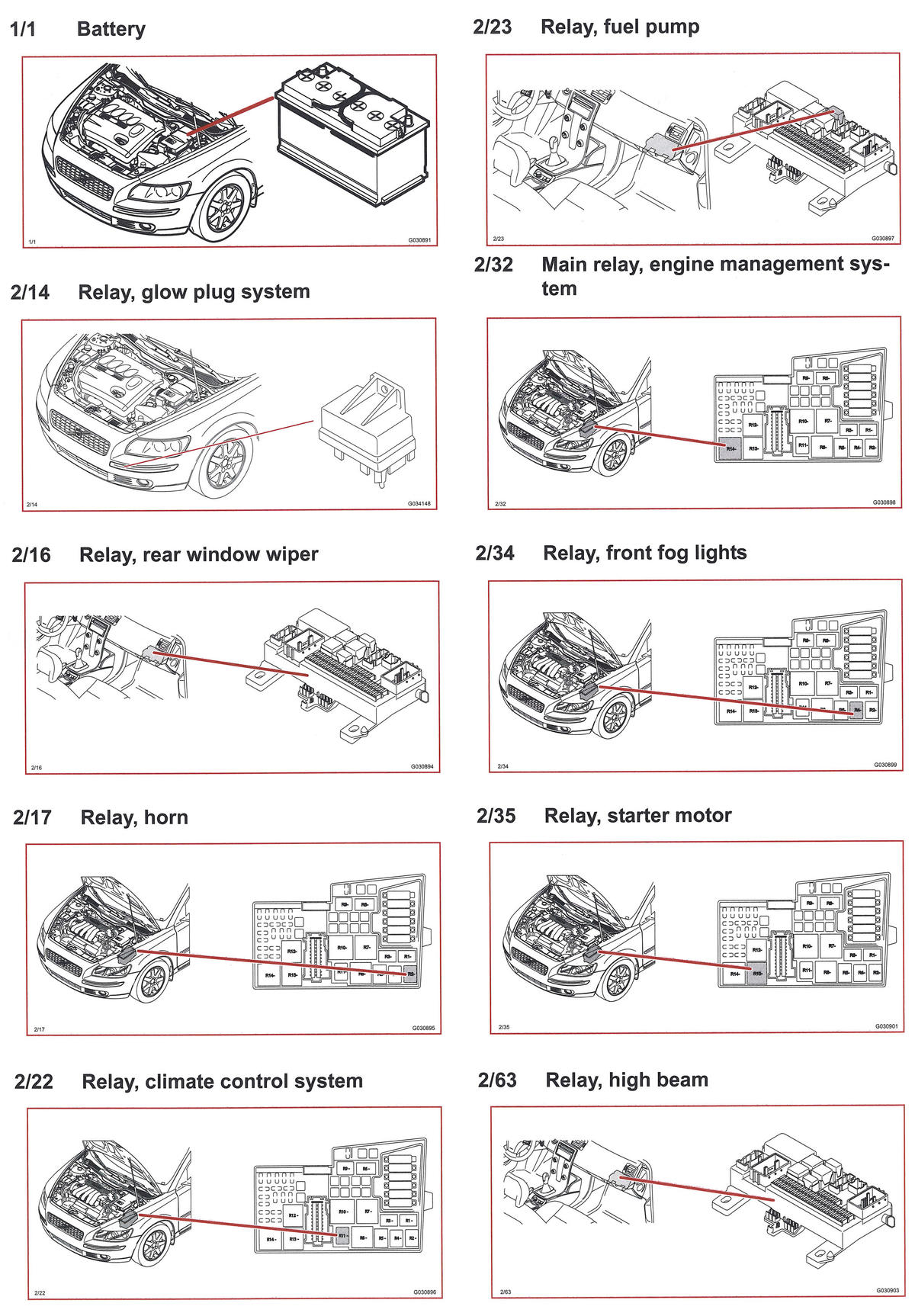

| Battery (1/1) | Left side of engine compartment. See Figure. |

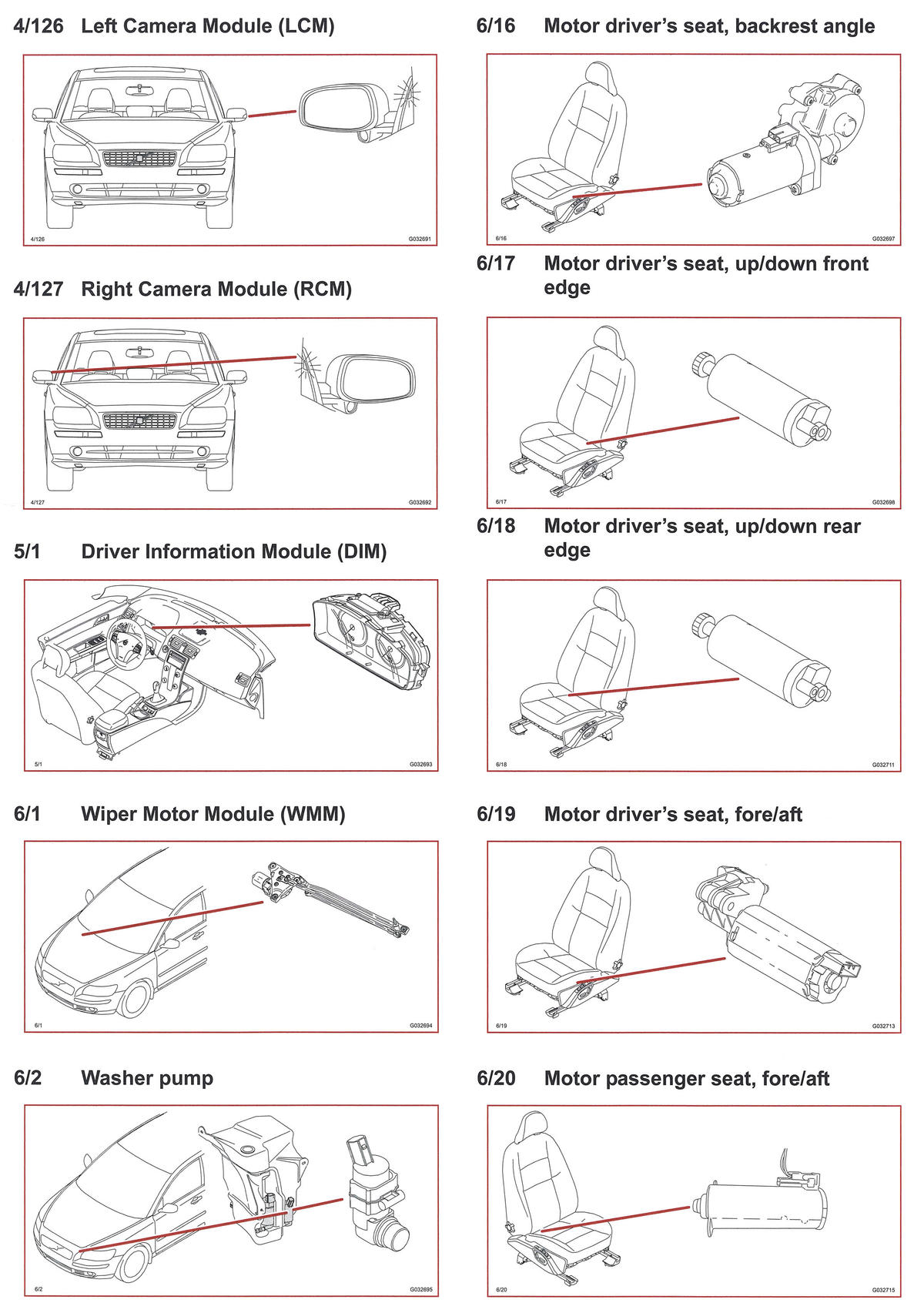

| Camera Module (Left) (4/126) | In driver's door mirror. See Figure. |
| Camera Module (Right) (4/127) | In passenger's door mirror. See Figure. |
| Contact Reel (18/4) | Top of steering column. See Figure. |

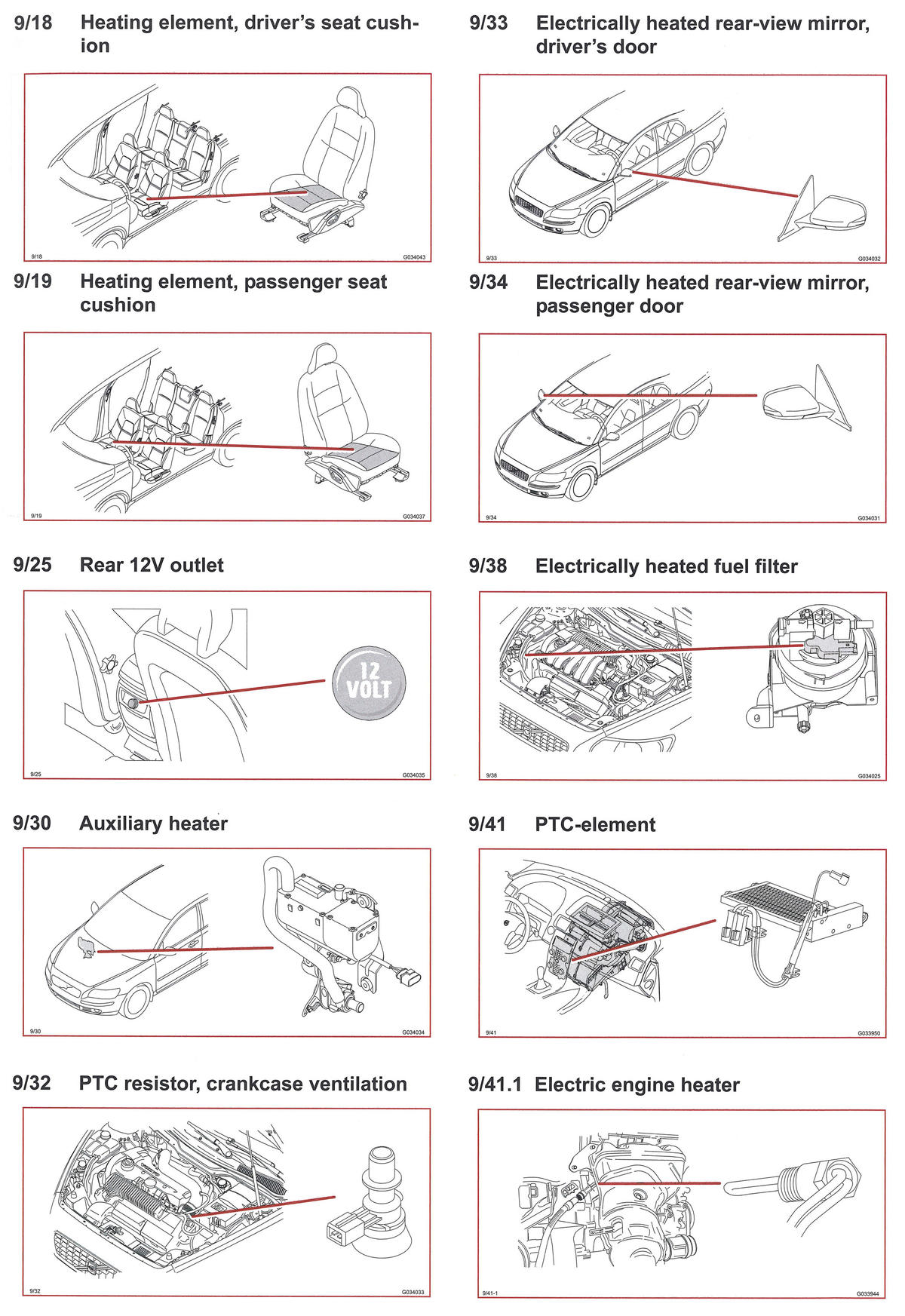

| Crankcase Ventilation PTC Resistor (9/32) | Rear of engine. See Figure. |
| Data Link Connector (17/13) | Below left end of dash. See Figure. |
| DC/AC Converter (Fuel Tank) (26/5) | Under left rear seat. See Figure. |
| Distribution Filter (Left/Right Front Door) (16/151 & 16/152) | In respective door. See Figure. |

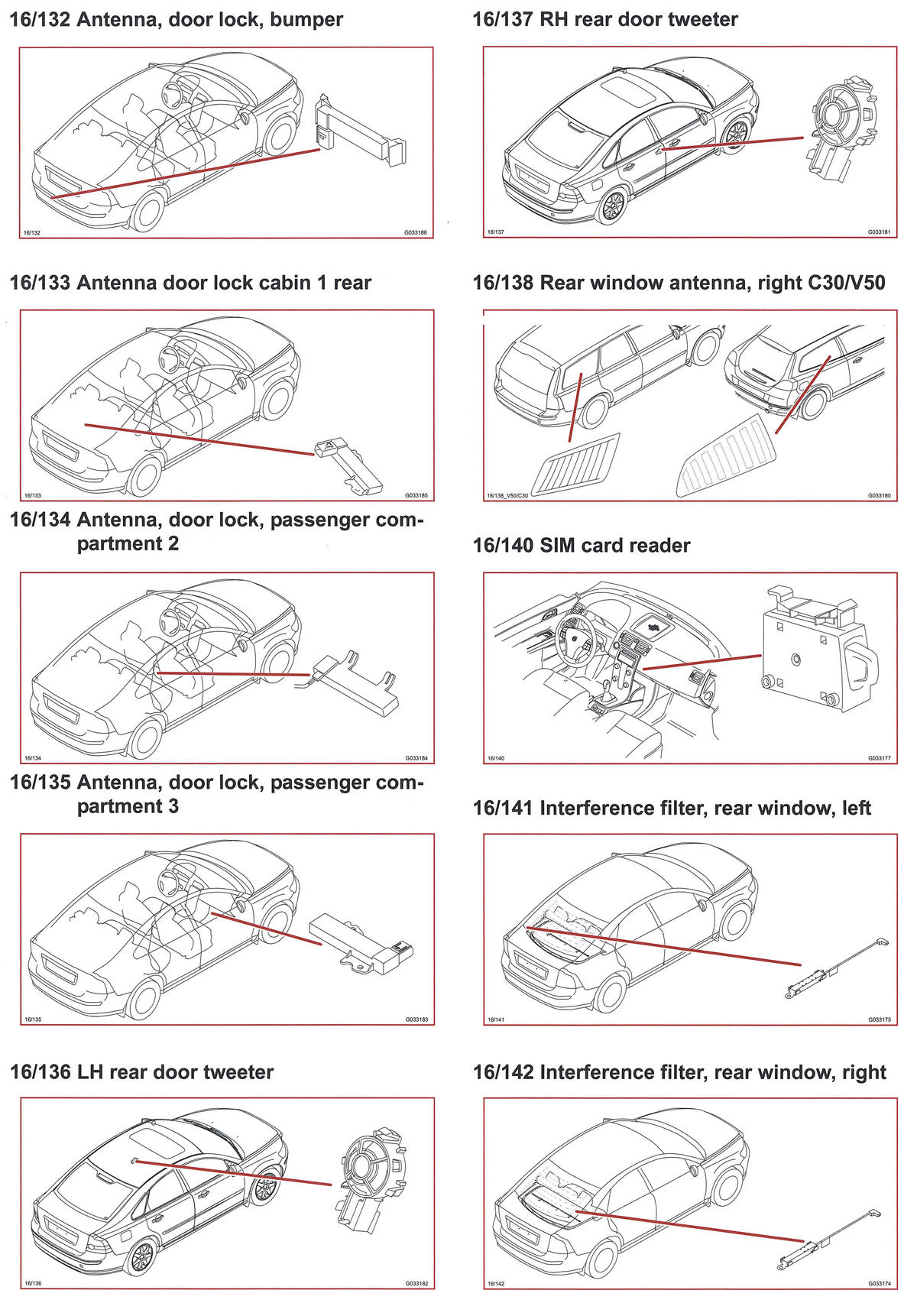

| Door Lock Antenna (Bumper) (16/132) | Behind center of rear bumper. See Figure. |
| Door Lock Antenna (Cabin 1 Rear) (16/133) | Behind rear seat. See Figure. |
| Door Lock Antenna (Passenger Compartment 2 & 3) (16/134 &16/135) | Under center console. See Figure. |
| Electrically Heated Fuel Filter (9/38) | Right front of engine compartment. See Figure. |
| Electric Engine Heater (9/41.1) | In engine block. See Figure. |
| GSM/GPS/RDAR Antenna (16/47) | Center of luggage compartment lid. See Figure. |
| Horn 1& 2 (16/10 & 6/11) | Front of engine compartment. See Figure. |
| Ignition Coils Transformer (20/17) | Right side of engine compartment. See Figure. |
| Inflatable Curtain Igniter (Left/Right) (8/66 & 8/67) | Top of left/right door. See Figure. |
| Lap Belt Tensioner (Driver) (8/92) | Base of left "B" pillar. See Figure. |
| PTC Element (9/41) | Lower front of HVAC. See Figure. |
| Rear Belt Tensioner Igniter (Left) (8/55) | Behind left side of left rear seat back. See Figure. |
| Rear Belt Tensioner Igniter (Right) (8/56) | Behind right side of right rear seat back. See Figure. |
| Remote Digital Audio Receiver (RDAR) (16/145) | Right rear of luggage compartment. See Figure. |

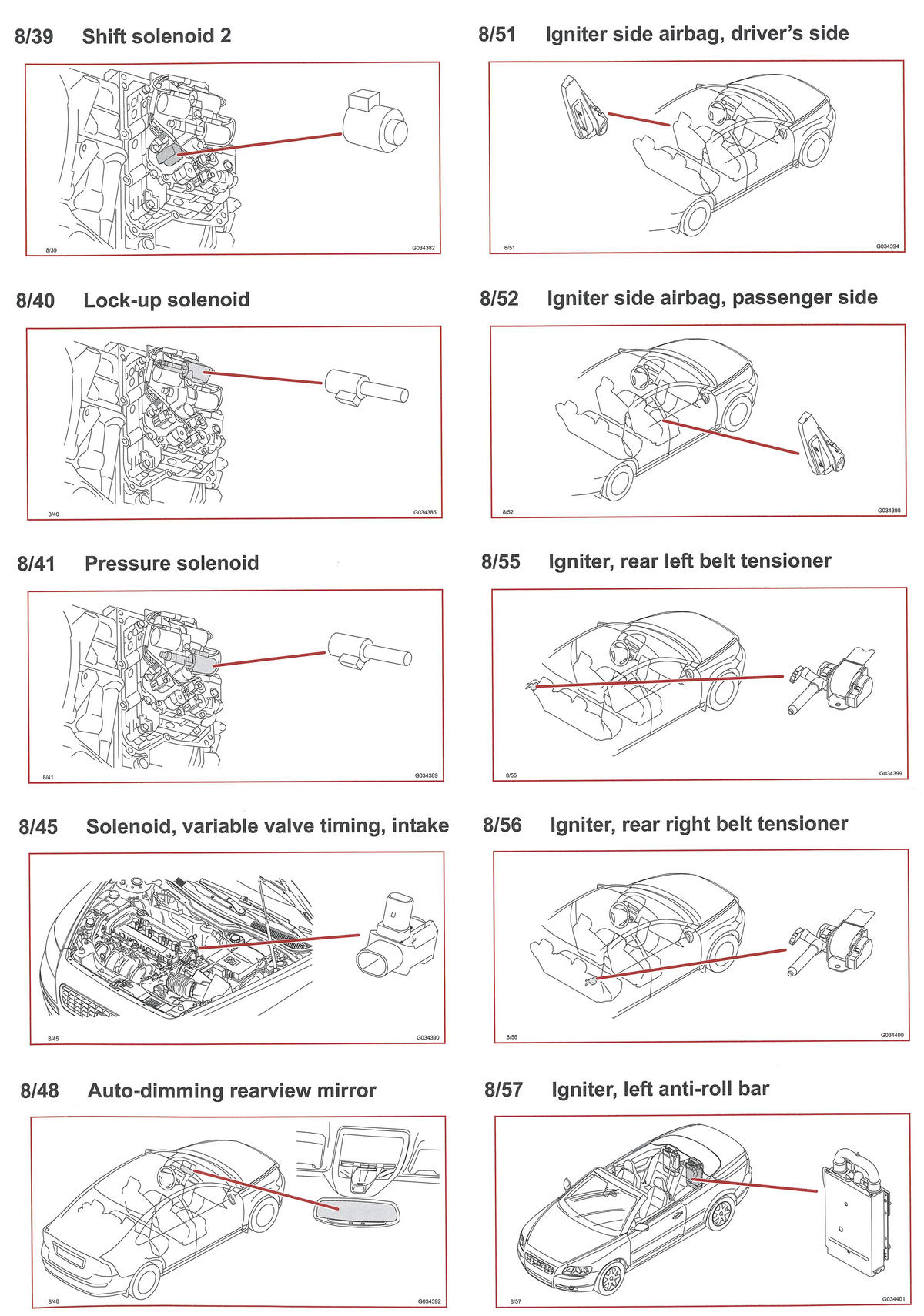

| Side Airbag Igniter (Driver's Side) (8/51) | Left side of driver's seat back. See Figure. |
| Side Airbag Igniter (Passenger Side) (8/52) | Right side of front passenger's seat back. See Figure. |
| SIM Card Reader (16/140) | Behind center of dash. See Figure. |
| Spark Plug & Ignition Coil (20/3, 20/4, 20/5, 20/6 & 20/7) | Top of engine. See Figure. |
| Steering Column Igniter (8/99) | In steering column. See Figure. |
| TMC & FM Sub-Antenna (Bumper) (16/68) | Behind center of rear bumper. See Figure. |
| Tow Hitch Cable Harness Outlet (4, 7 & 13 Pin) (17/37, 17/38 & 17/39) | Under center of rear bumper. See Figure. |
