Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

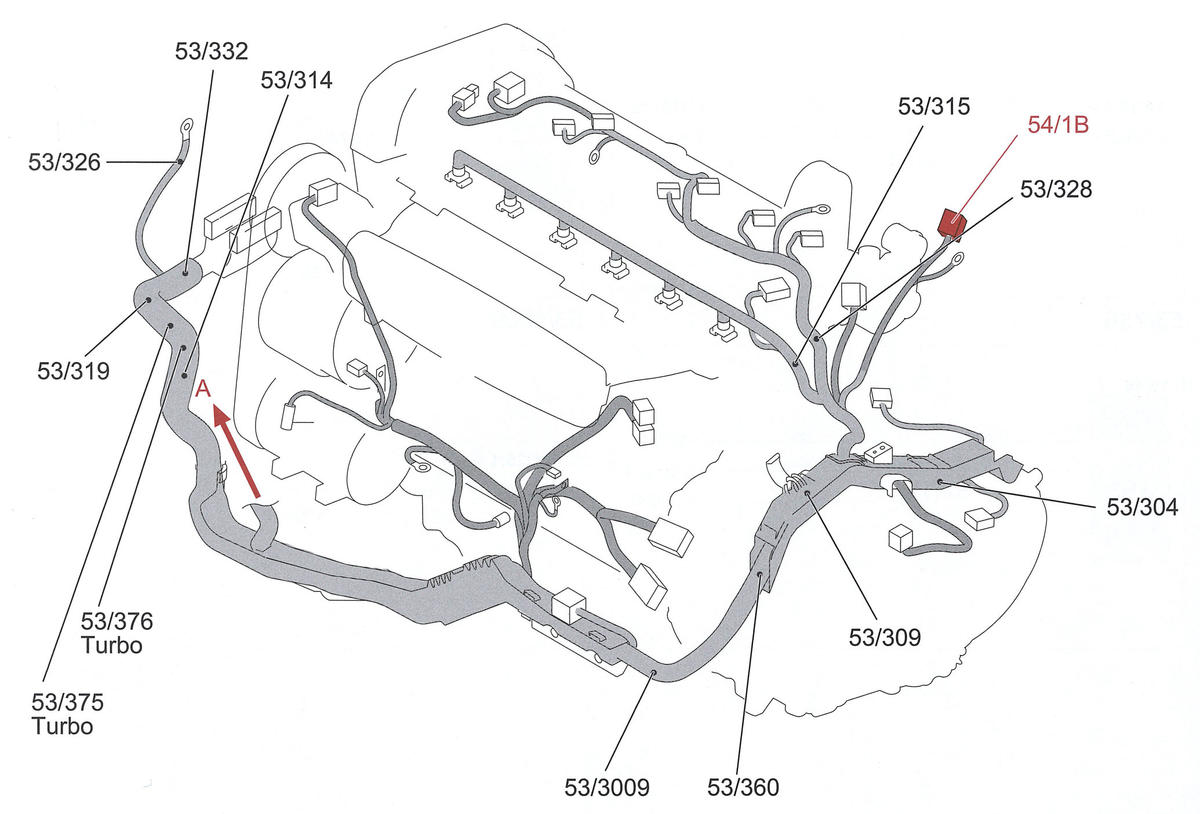

Fig 1: Engine
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 2: Vehicle Overview
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 3: Cargo Compartment
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 4: Roof
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 5: Front Doors
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 6: Engine Compartment
Courtesy of VOLVO CARS OF NORTH AMERICA.

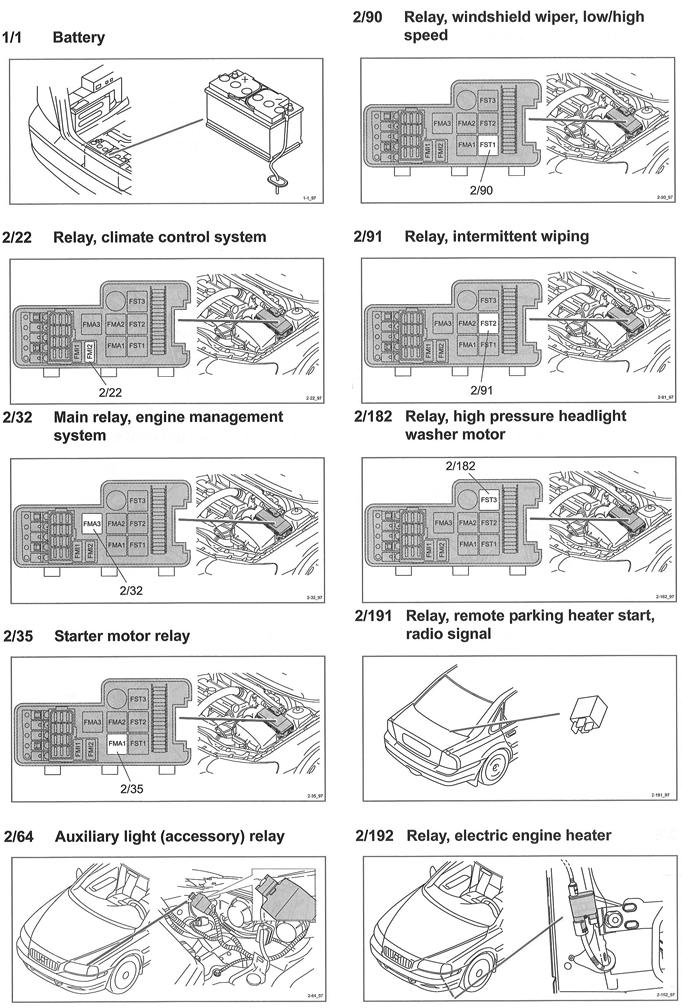

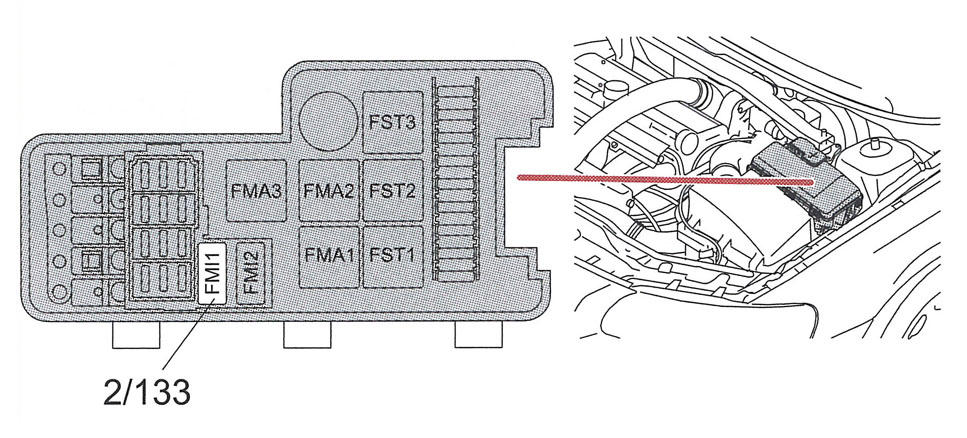

Fig 7: Components (1/1 To 2/192)
Courtesy of VOLVO CARS OF NORTH AMERICA.

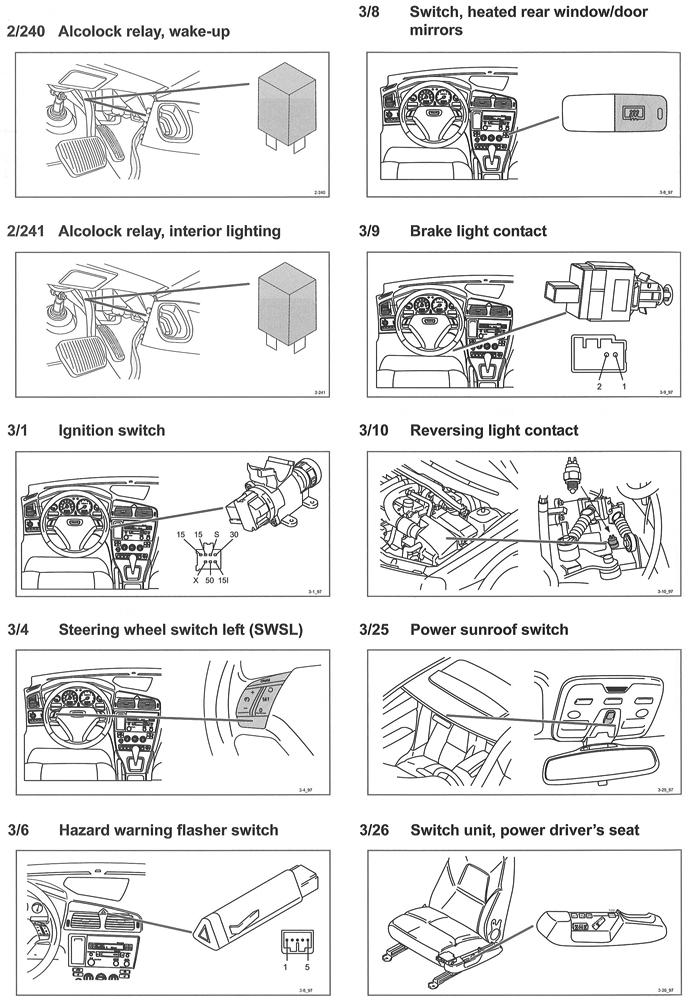

Fig 8: Components (2/240 To 3/26)
Courtesy of VOLVO CARS OF NORTH AMERICA.

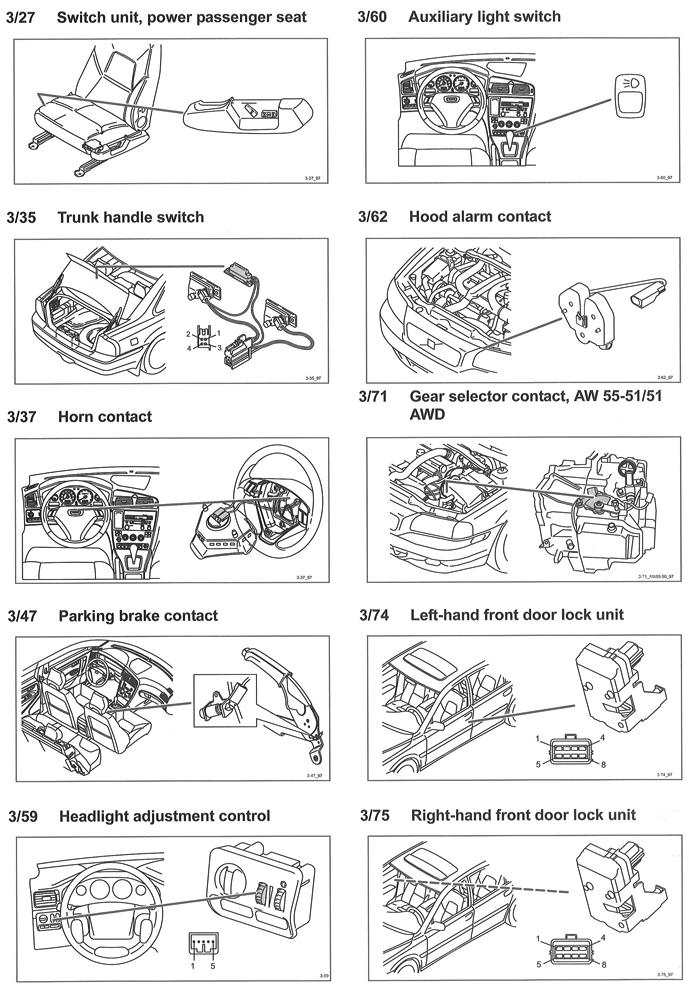

Fig 9: Components (3/27 To 3/75)
Courtesy of VOLVO CARS OF NORTH AMERICA.

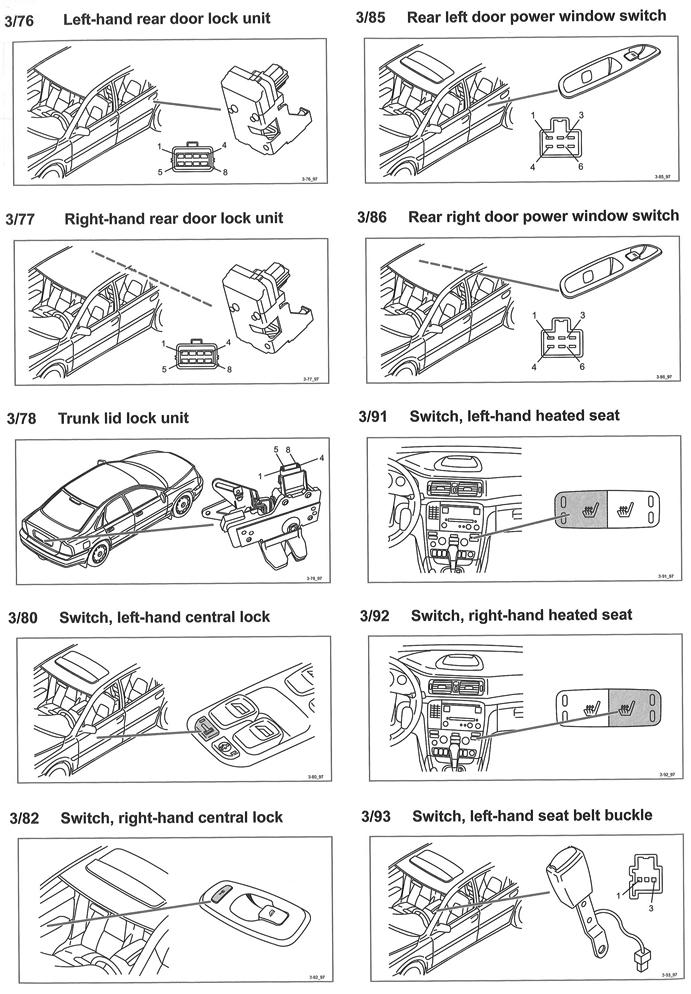

Fig 10: Components (3/76 To 3/93)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 11: Components (3/94 To 3/135)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 12: Components (3/155 To 4/9)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 13: Components (4/16 To 4/56)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 14: Components (4/58 To 4/84)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 15: Components (4/99 To 6/3)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 16: Components (6/4 To 6/28)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 17: Components (6/29 To 6/60)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 18: Components (6/62 To 6/92)
Courtesy of VOLVO CARS OF NORTH AMERICA.

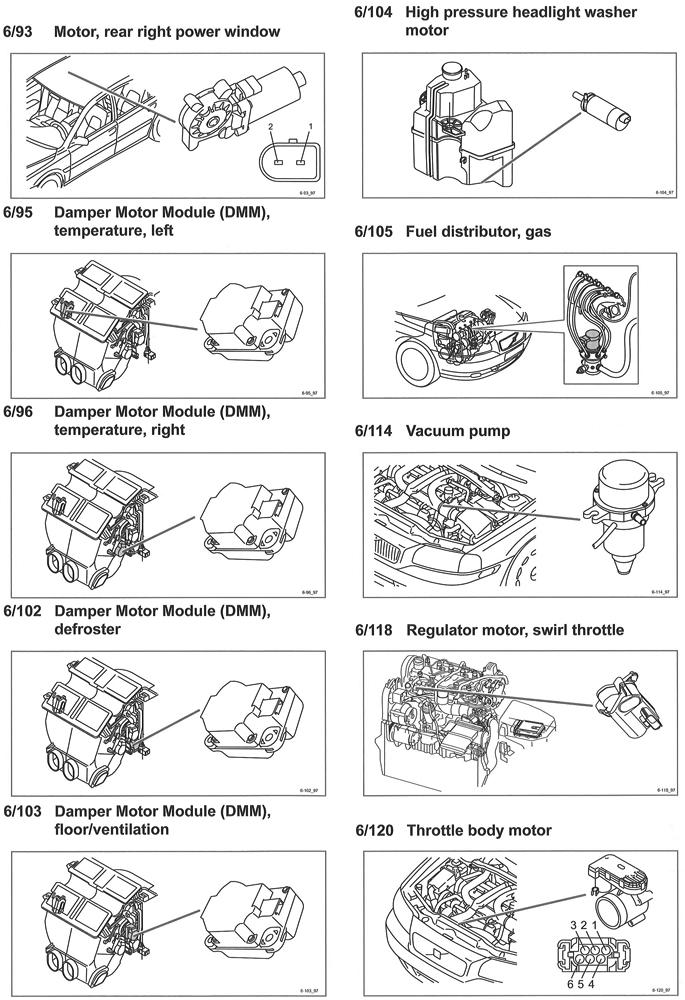

Fig 19: Components (6/93 To 6/120)
Courtesy of VOLVO CARS OF NORTH AMERICA.

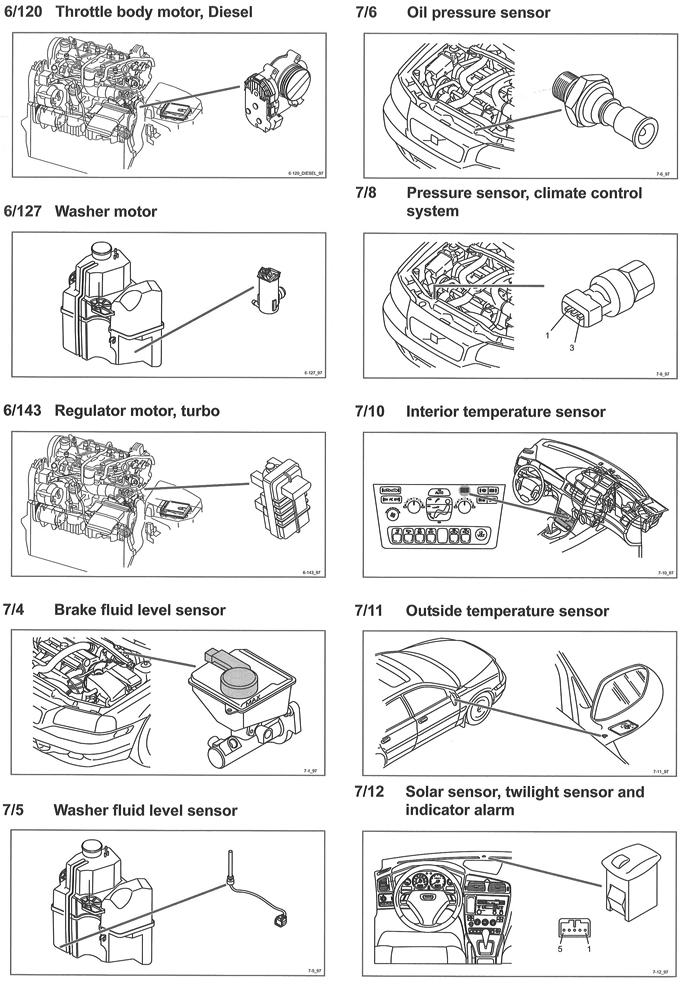

Fig 20: Components (6/120 To 7/12)
Courtesy of VOLVO CARS OF NORTH AMERICA.

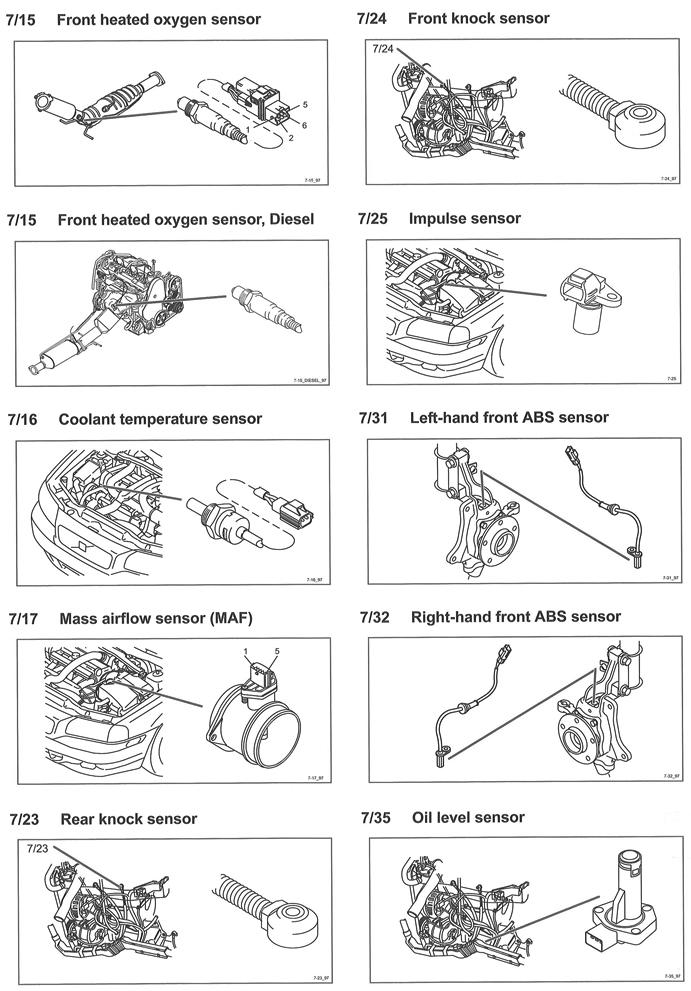

Fig 21: Components (7/15 To 7/35)
Courtesy of VOLVO CARS OF NORTH AMERICA.

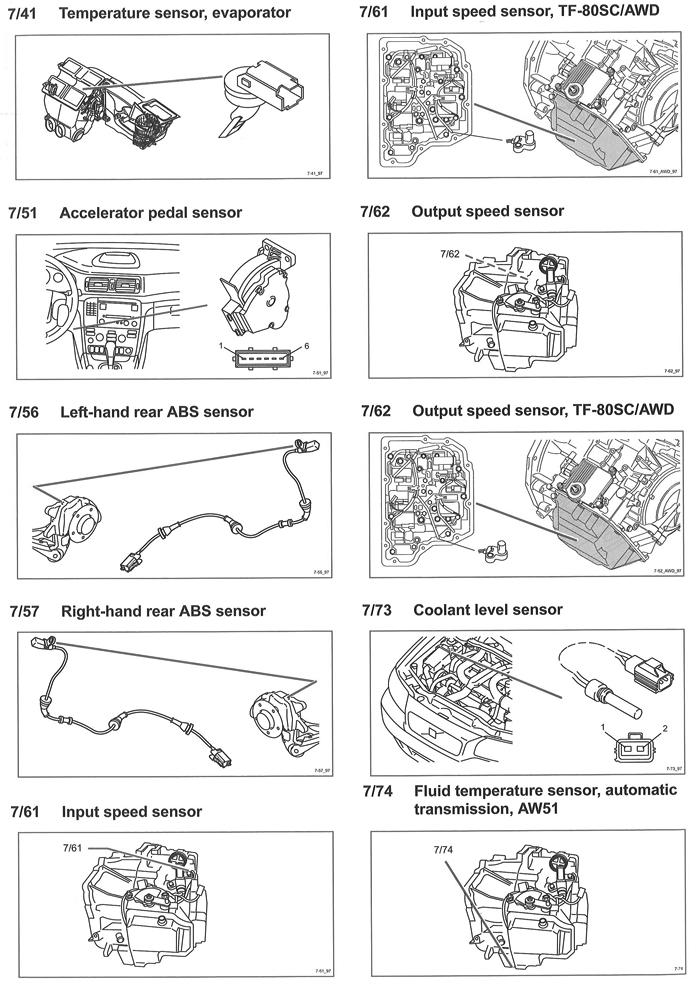

Fig 22: Components (7/41 To 7/74)
Courtesy of VOLVO CARS OF NORTH AMERICA.

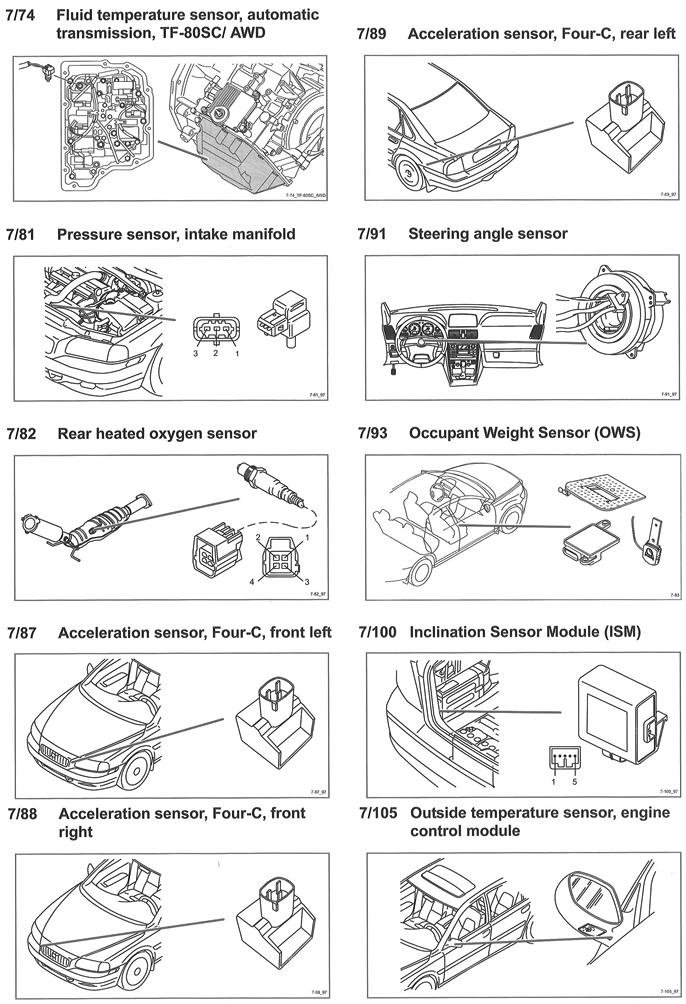

Fig 23: Components (7/74 To 7/105)
Courtesy of VOLVO CARS OF NORTH AMERICA.

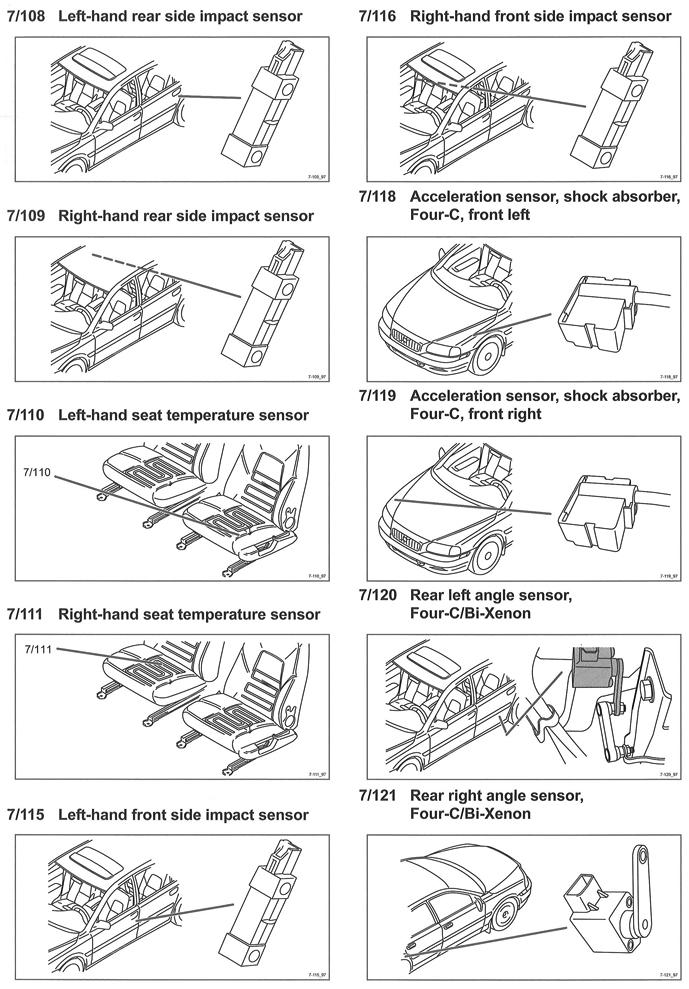

Fig 24: Components (7/108 To 7/121)
Courtesy of VOLVO CARS OF NORTH AMERICA.

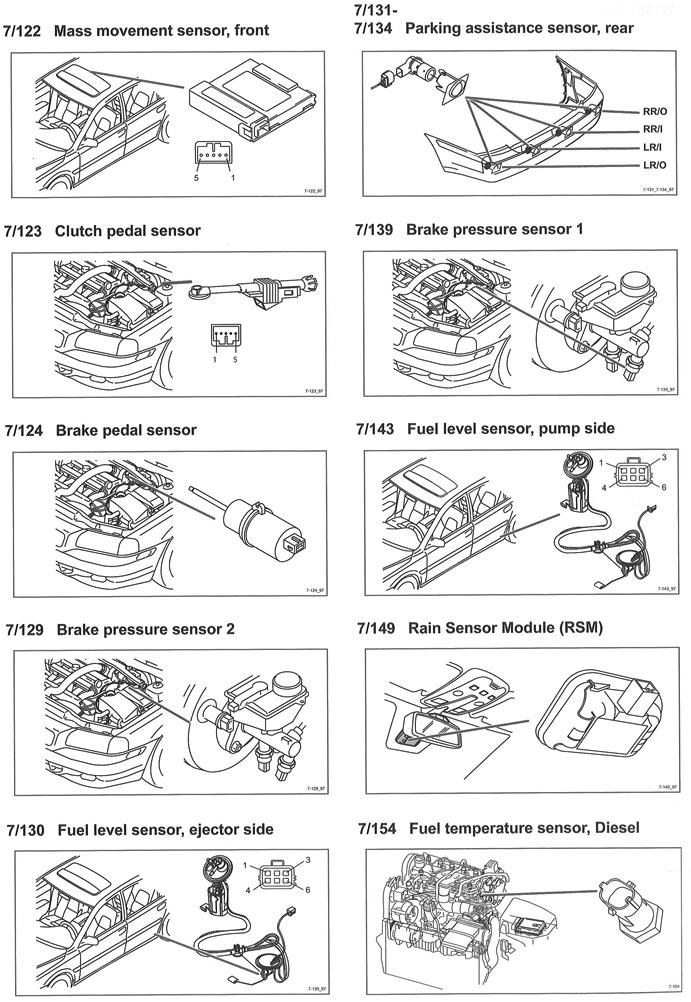

Fig 25: Components (7/122 To 7/154)
Courtesy of VOLVO CARS OF NORTH AMERICA.

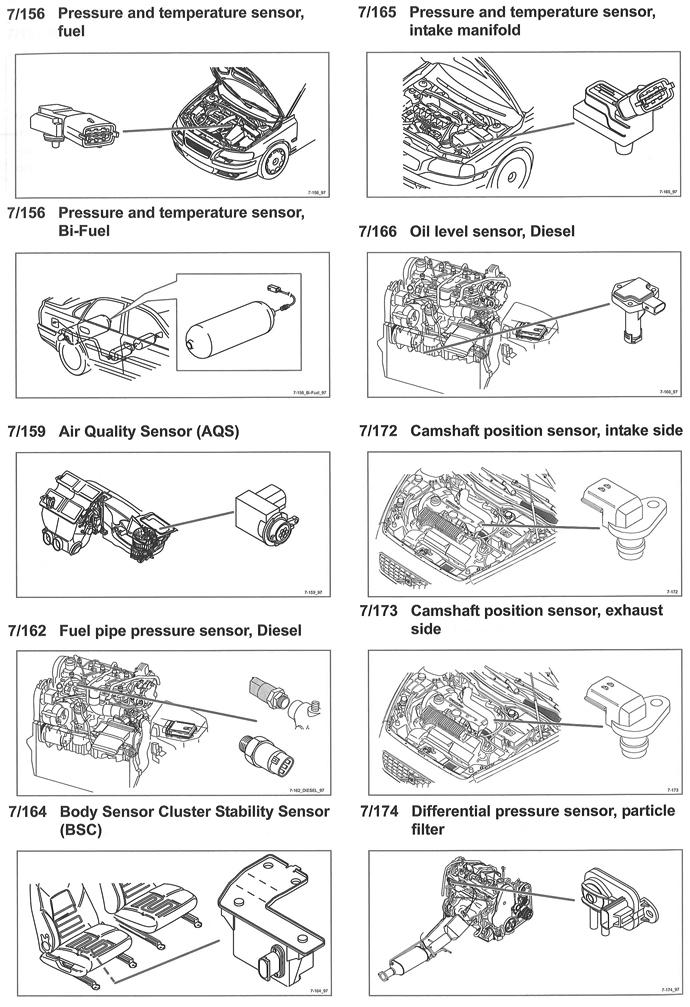

Fig 26: Components (7/156 To 7/174)
Courtesy of VOLVO CARS OF NORTH AMERICA.

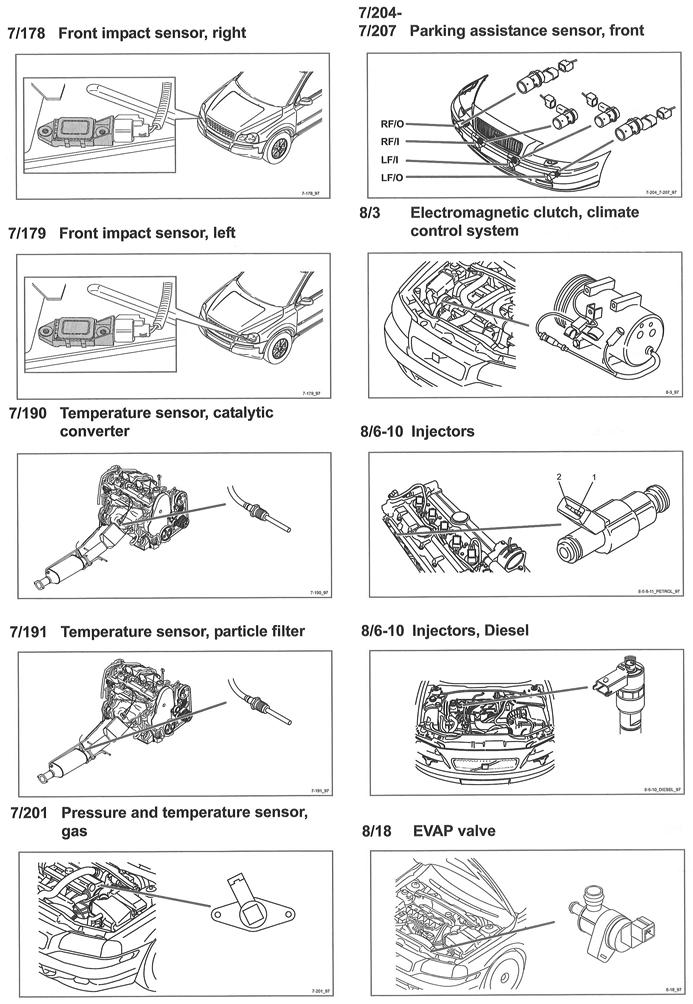

Fig 27: Components (7/178 To 8/18)
Courtesy of VOLVO CARS OF NORTH AMERICA.

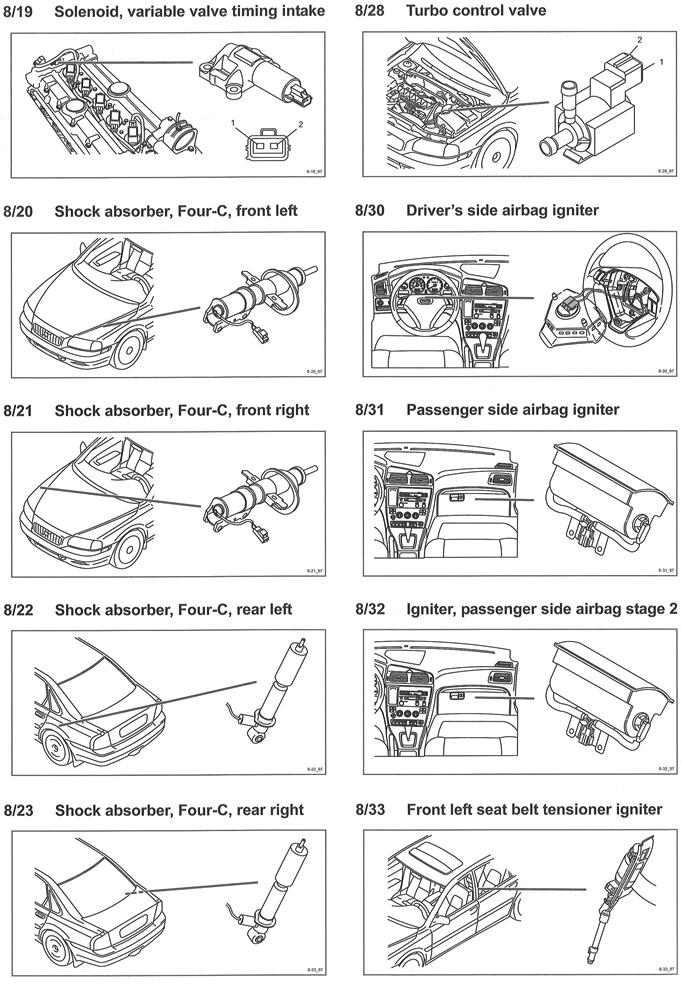

Fig 28: Components (8/19 To 8/33)
Courtesy of VOLVO CARS OF NORTH AMERICA.

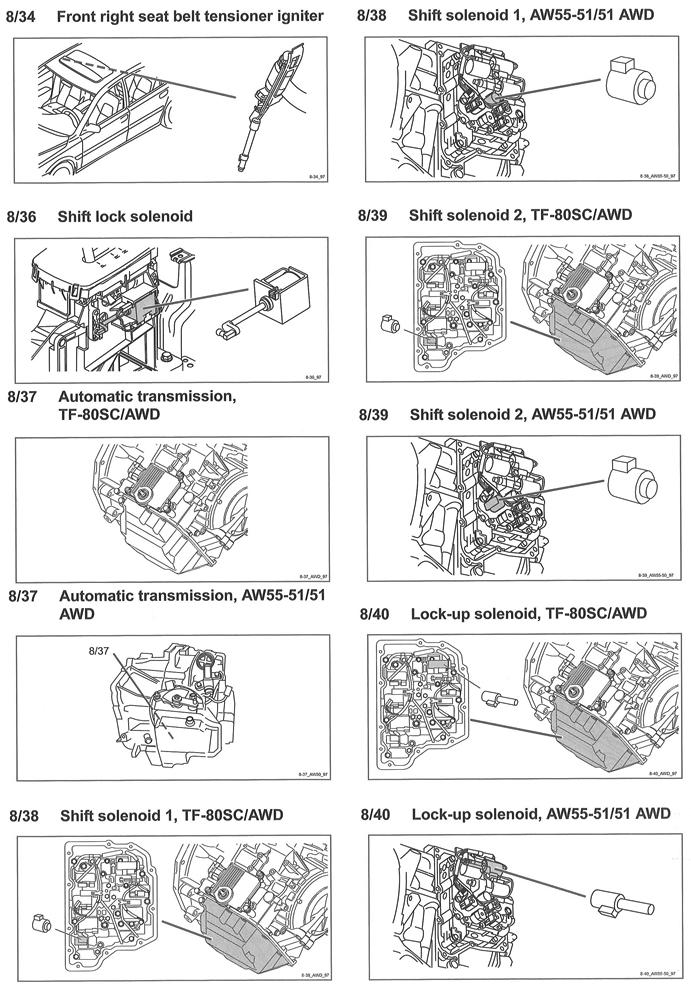

Fig 29: Components (8/34 To 8/40)
Courtesy of VOLVO CARS OF NORTH AMERICA.

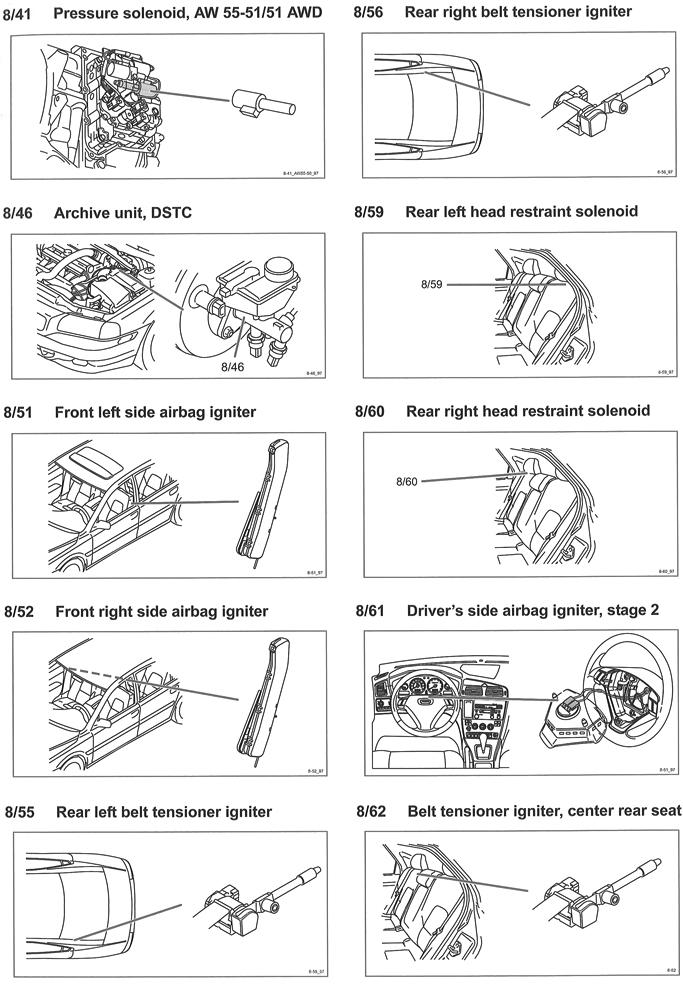

Fig 30: Components (8/41 To 8/62)
Courtesy of VOLVO CARS OF NORTH AMERICA.

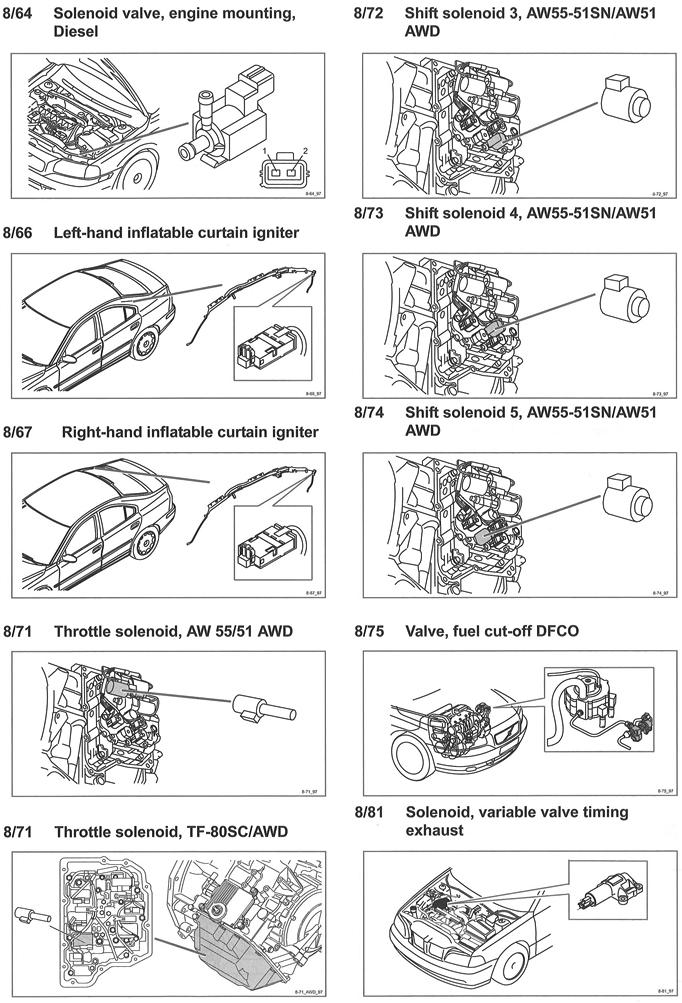

Fig 31: Components (8/64 To 8/81)
Courtesy of VOLVO CARS OF NORTH AMERICA.

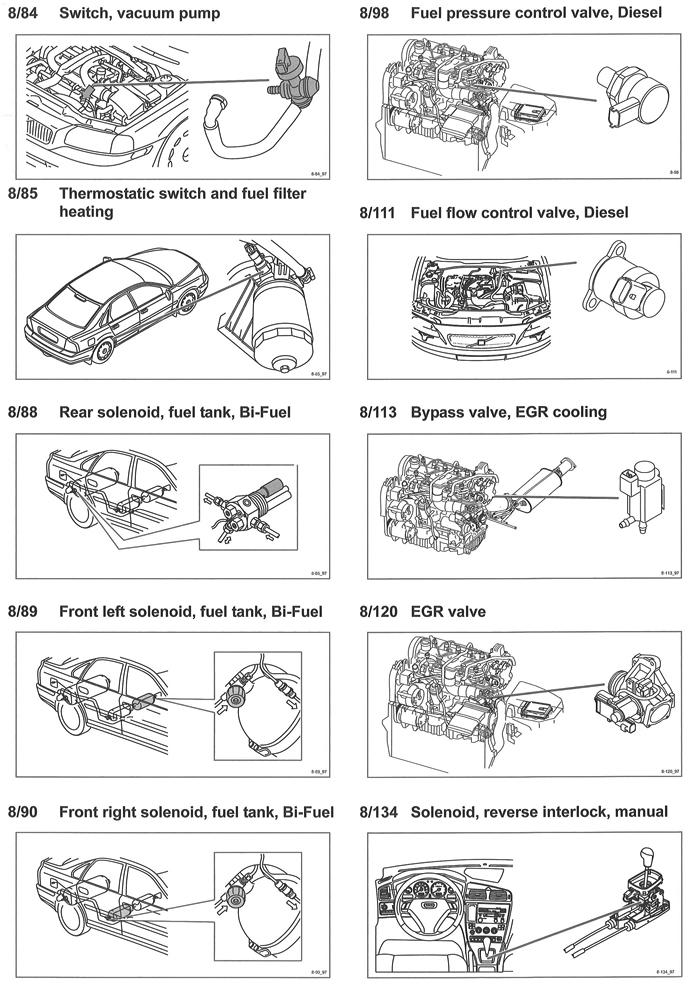

Fig 32: Components (8/84 To 8/134)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 33: Components (8/142 To 9/17)
Courtesy of VOLVO CARS OF NORTH AMERICA.

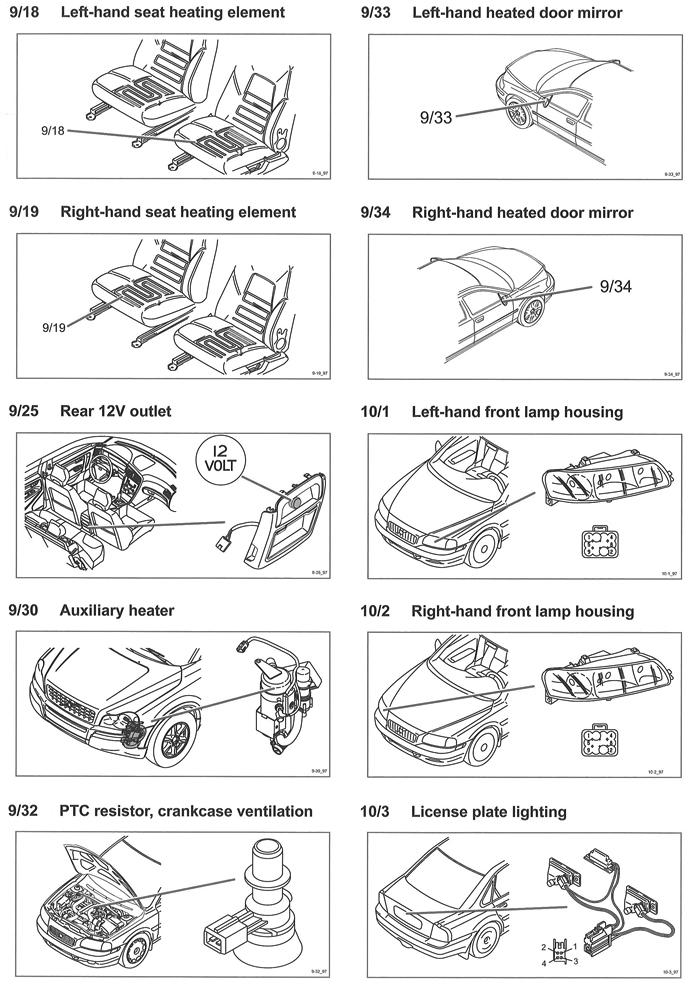

Fig 34: Components (9/18 To 10/3)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 35: Components (10/148 To 11 O)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 36: Components (15/31 To 16/11)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 37: Components (16/15 To 16/46)
Courtesy of VOLVO CARS OF NORTH AMERICA.

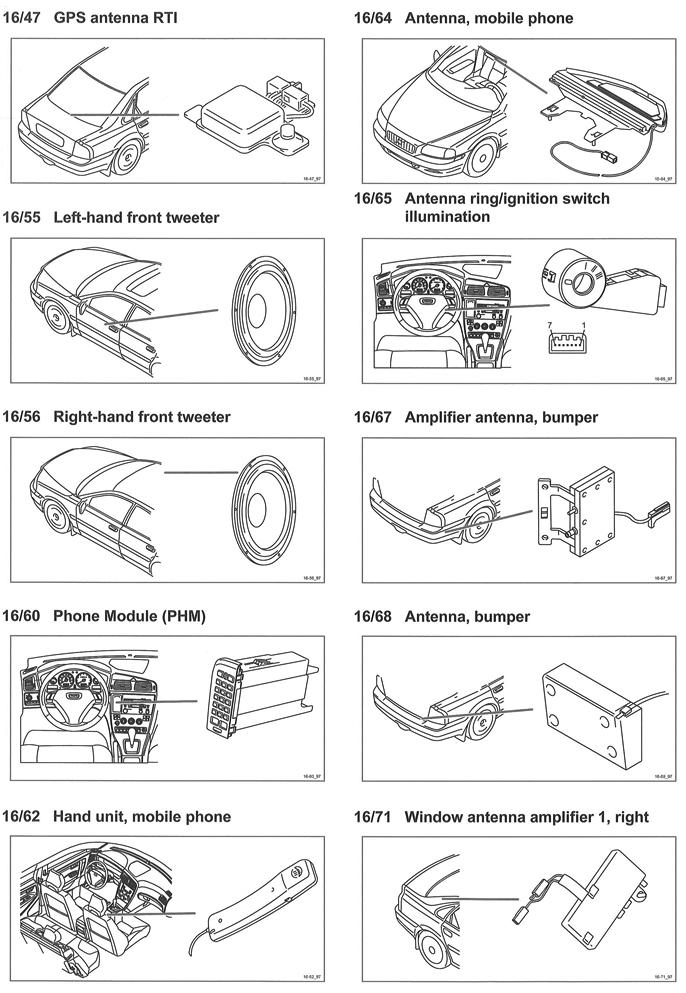

Fig 38: Components (16/47 To 16/71)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 39: Components (16/77 To 17/17)
Courtesy of VOLVO CARS OF NORTH AMERICA.

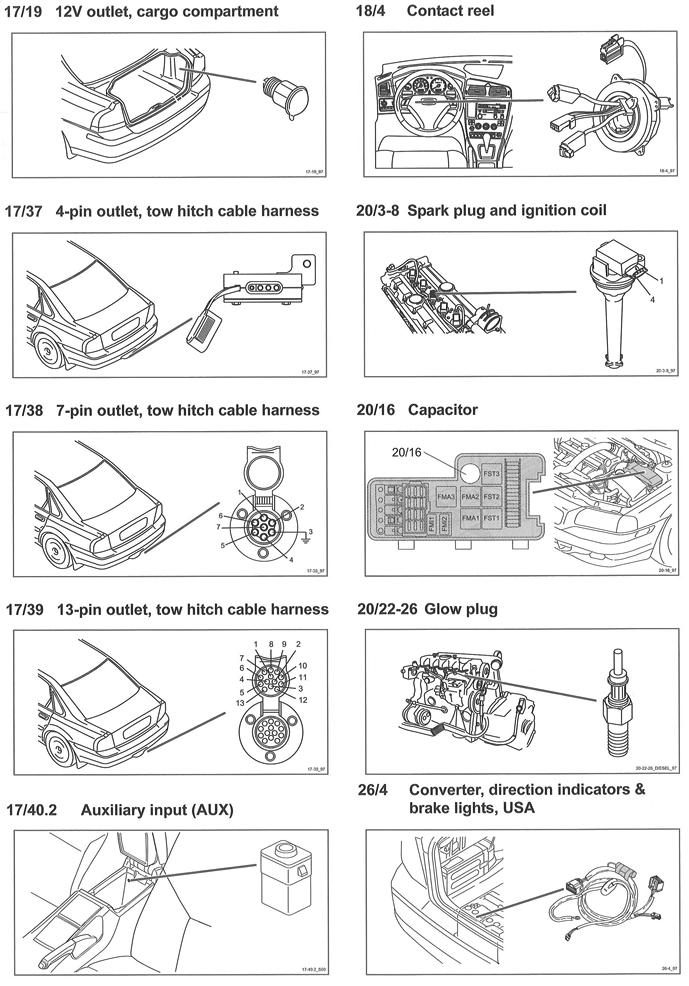

Fig 40: Components (17/19 To 26/4)
Courtesy of VOLVO CARS OF NORTH AMERICA.

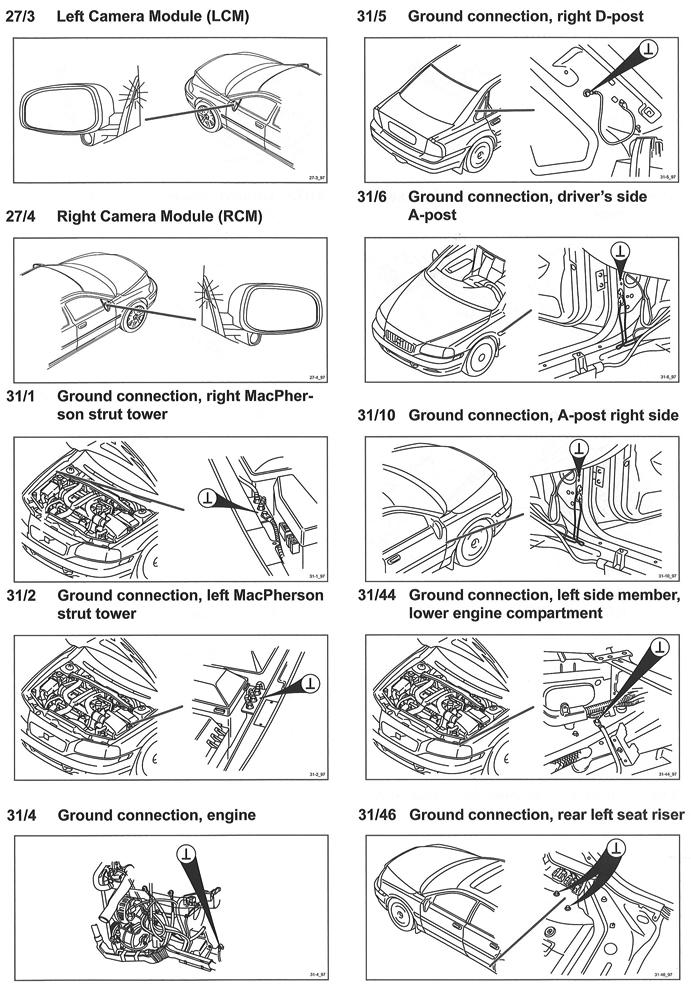

Fig 41: Components (27/4 To 31/46)
Courtesy of VOLVO CARS OF NORTH AMERICA.

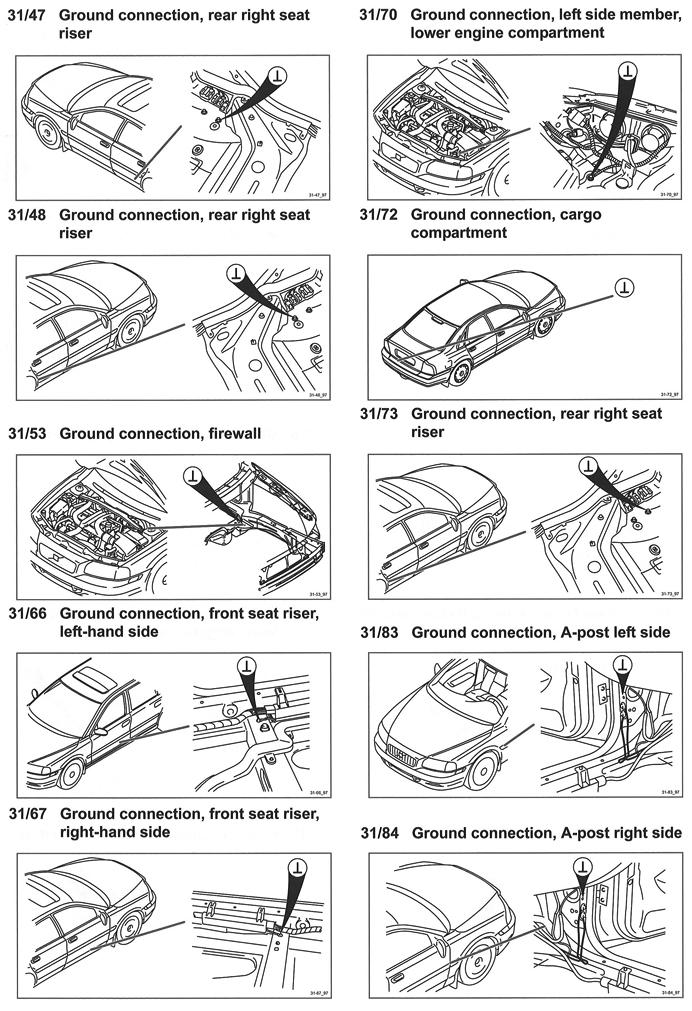

Fig 42: Components (31/47 To 31/84)
Courtesy of VOLVO CARS OF NORTH AMERICA.

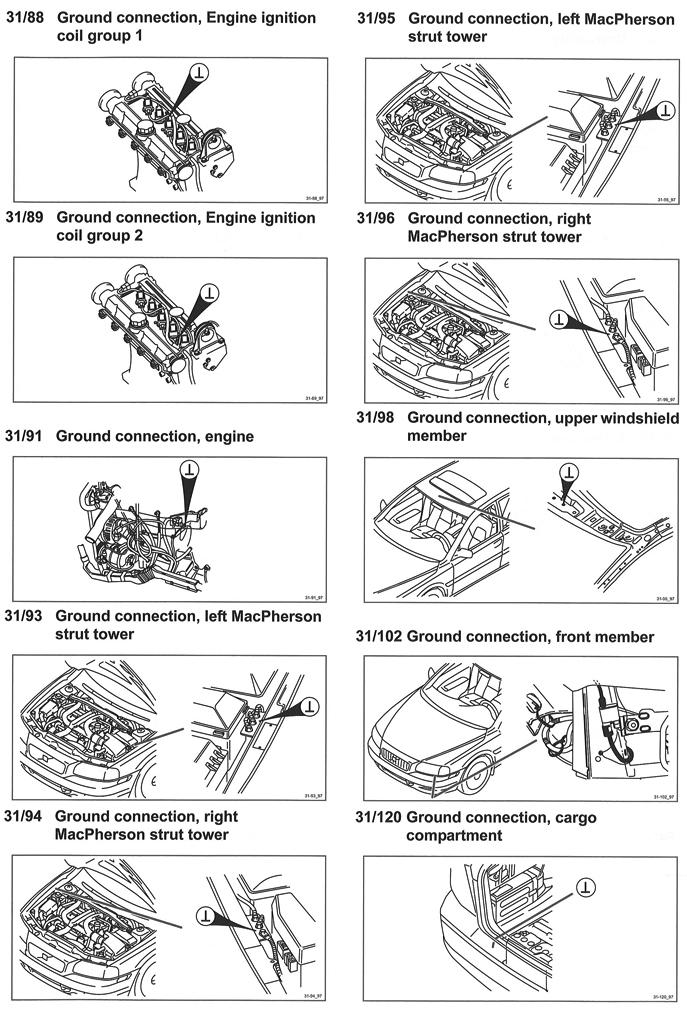

Fig 43: Components (31/88 To 31/120)
Courtesy of VOLVO CARS OF NORTH AMERICA.

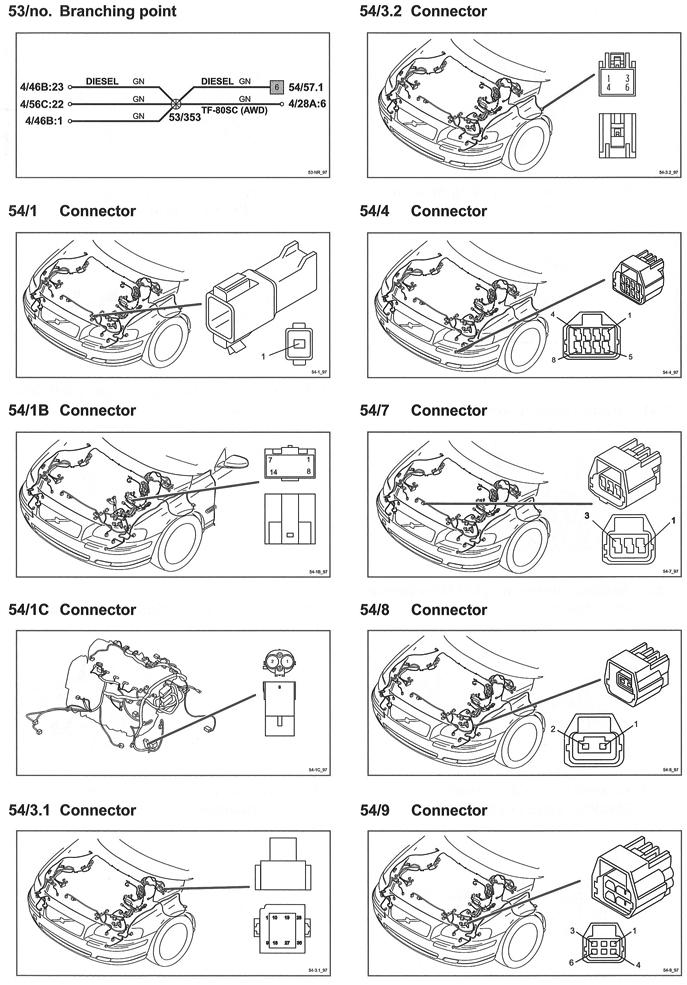

Fig 44: Components (53/No. To 54/9)
Courtesy of VOLVO CARS OF NORTH AMERICA.

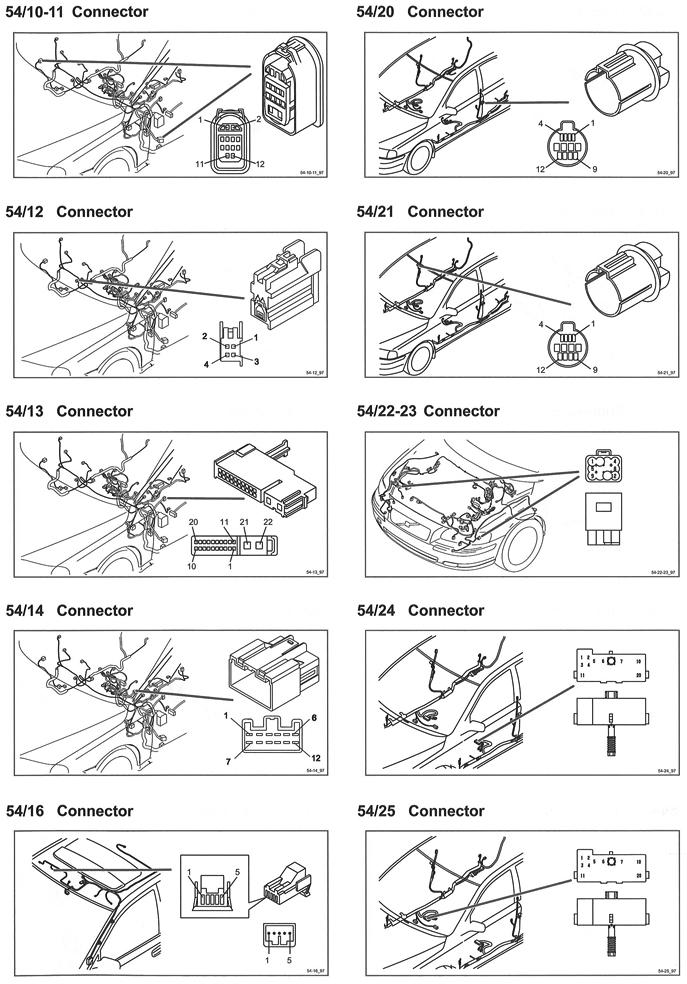

Fig 45: Components (54/10-11 To 54/25)
Courtesy of VOLVO CARS OF NORTH AMERICA.

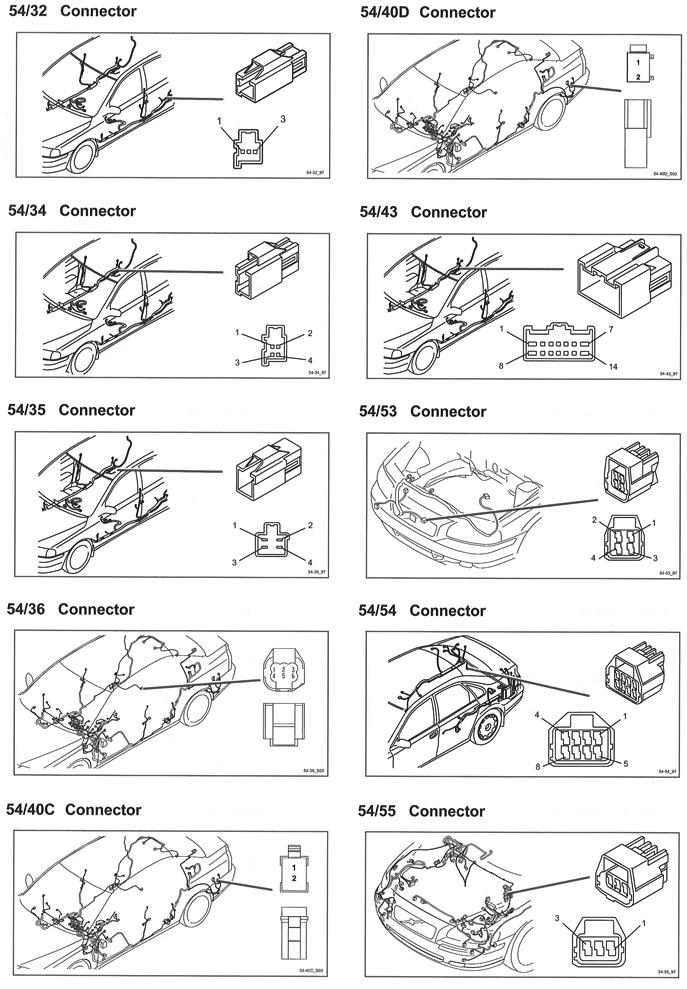

Fig 46: Components (54/32 To 54/55)
Courtesy of VOLVO CARS OF NORTH AMERICA.

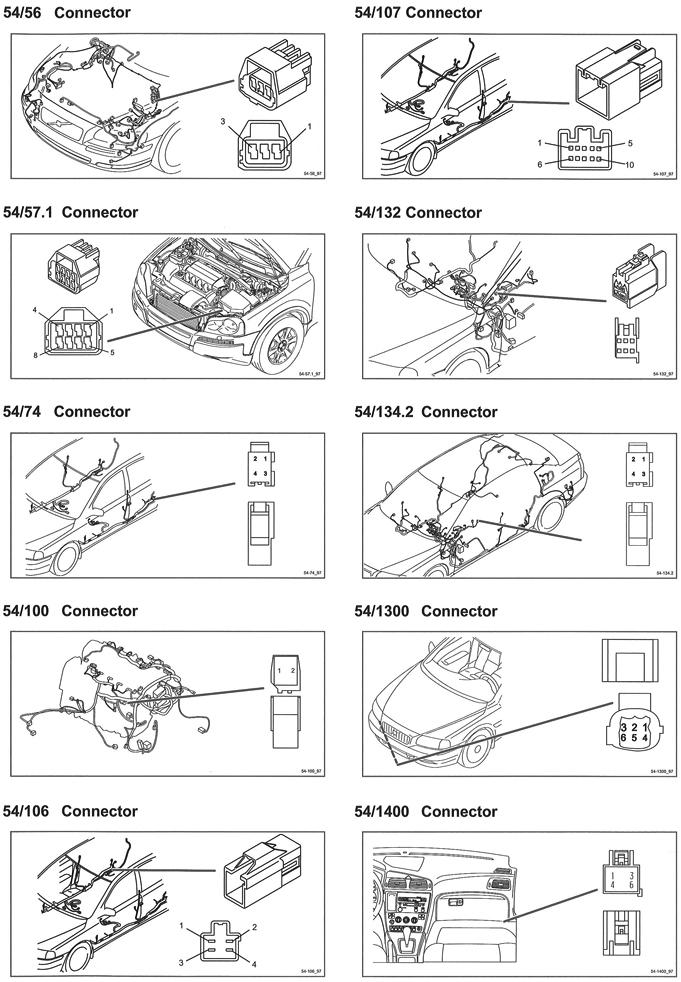

Fig 47: Components (54/56 To 54/1400)
Courtesy of VOLVO CARS OF NORTH AMERICA.

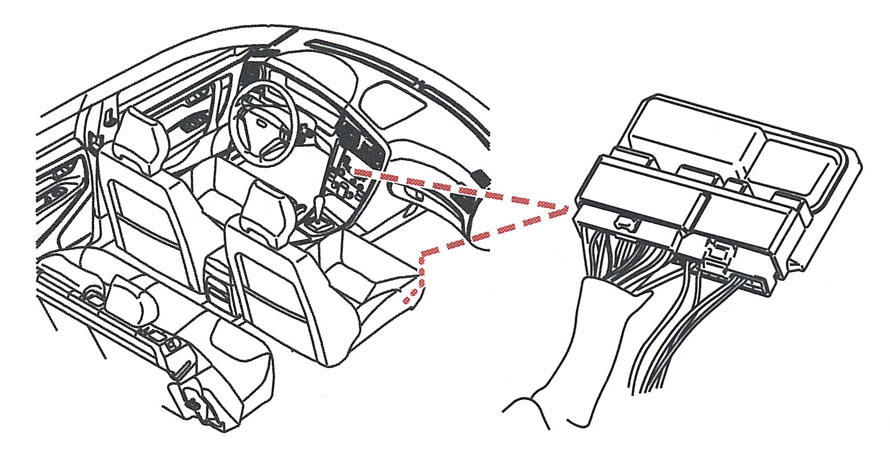

Fig 48: Front Of Passenger Compartment
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 49: Left Side Of Engine Compartment
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 50: Center Of Dash
Courtesy of VOLVO CARS OF NORTH AMERICA.
