Galvanized Components

NOTE: Those components which are available as galvanized replacement parts are displayed darker in the following graphics. Those components not galvanized are displayed lighter.

Volvo uses a large number of body components of single-, double-sided and extra-thickness galvanized steel. This is to achieve the best possible protection against corrosion. Take care not to damage galvanized components when carrying out body repairs, or when grinding or sanding.

On completing work, damaged galvanizing must be replaced with single component filler primer.

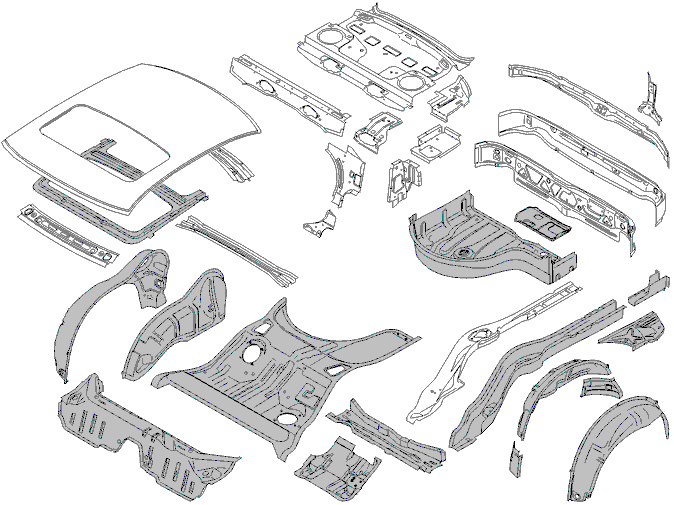

Fig 1: Vehicle Body Galvanized Component Locations (1 Of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.

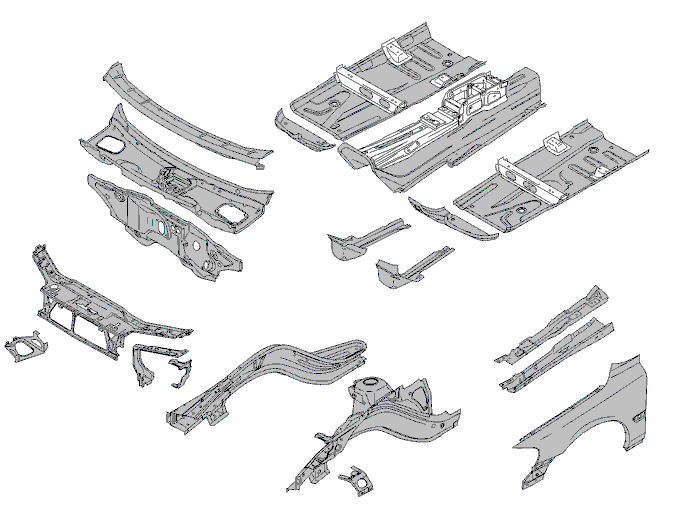

Fig 2: Vehicle Body Galvanized Component Locations (2 Of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.

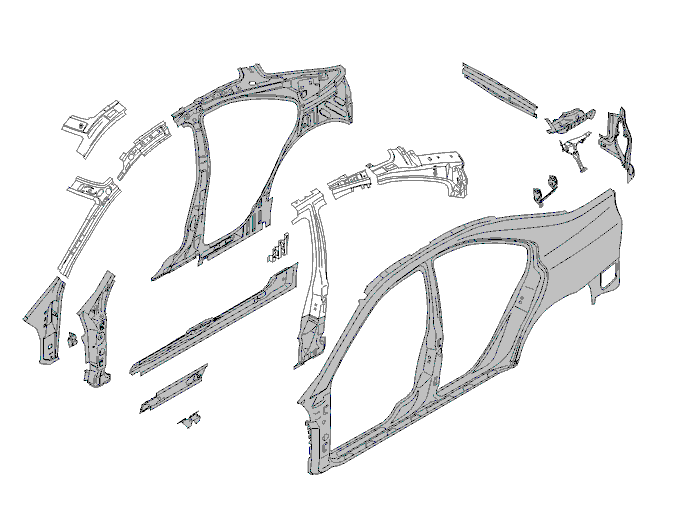

Fig 3: Vehicle Body Galvanized Component Locations (3 Of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 4: Vehicle Body Galvanized Component Locations (4 Of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.
