Rear Fender: Removal

See information about welding; refer to WELDING, GENERAL .

Remove the following items:

• side section; see SIDE SECTION, EXPOSING
• rear section; see REAR SECTION, EXPOSING

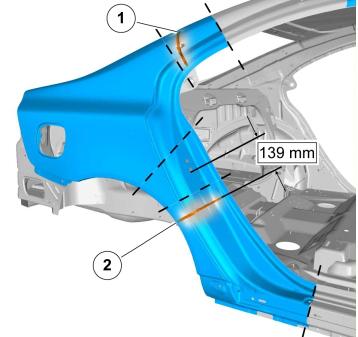

Fig 1: Outer Rear Fender Panel Cut Lines And Seal Locations

Courtesy of VOLVO CARS CORPORATION

1. Use:  Seal, 6817640
2. Use:  Seal, 6817640

Follow the instructions for body sealing; see BODY SEAL, SEALING DIAGRAM .

Follow the instructions for body sealing; see BODY SEAL, SEALING DIAGRAM .
