Roof, Windshield And Rear Windshield Frame: Roof

Fig 1: Body Dimension Measuring Point Symbols

Courtesy of VOLVO CARS CORPORATION

Symbol 1 means that the measurement is taken from the center.

Symbol 2 means that the measurement is taken from the edge.

Courtesy of VOLVO CARS CORPORATION

Symbol 3 means that the measurement is from a cut mark. Measurement is made from the bottom of the recess. Refer to the illustration above.

If only one measuring point symbol is displayed, the symbol applies to both points. Otherwise the symbols are shown on each side of the dimension in the graphic.

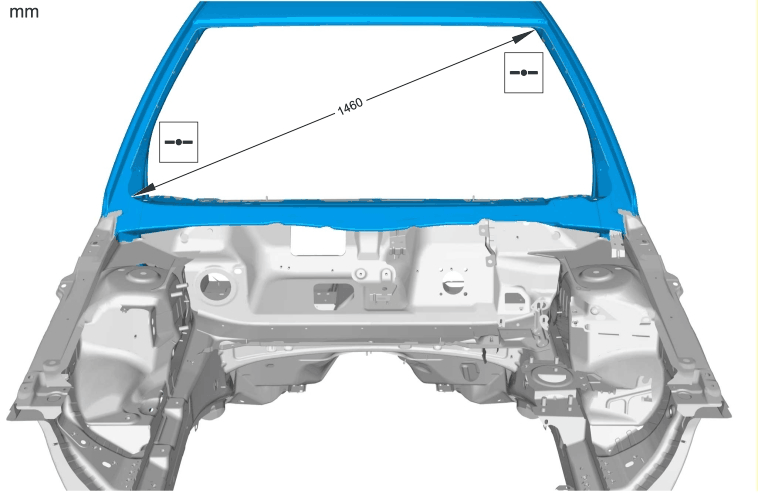

Fig 2: Windshield Opening Dimensions And Measurement Locations

Courtesy of VOLVO CARS CORPORATION

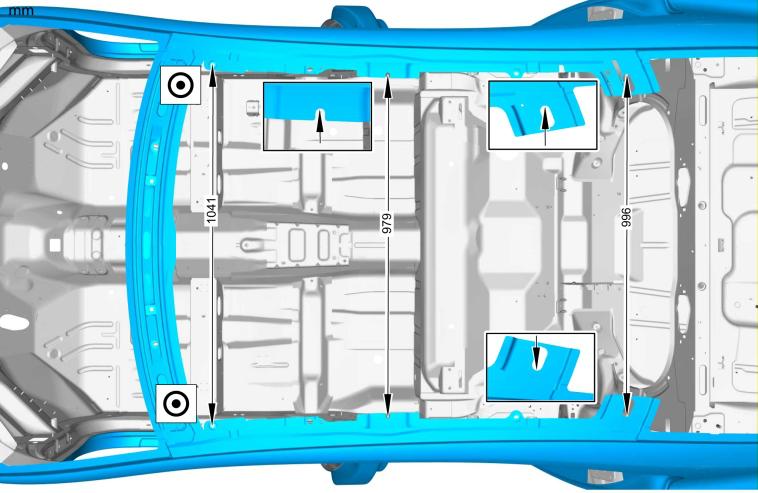

Fig 3: Roof Rail Position Dimensions And Measurement Locations

Courtesy of VOLVO CARS CORPORATION

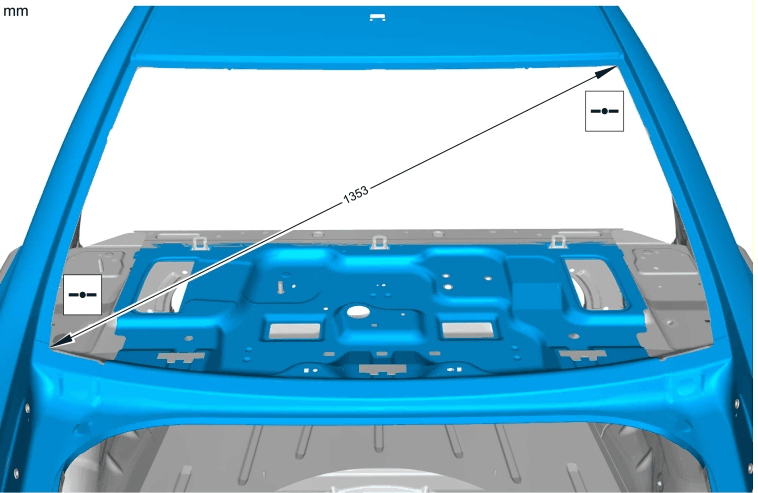

Fig 4: Rear Window Opening Dimensions And Measurement Locations

Courtesy of VOLVO CARS CORPORATION
