Jacking Points Body

Courtesy of VOLVO CARS CORPORATION

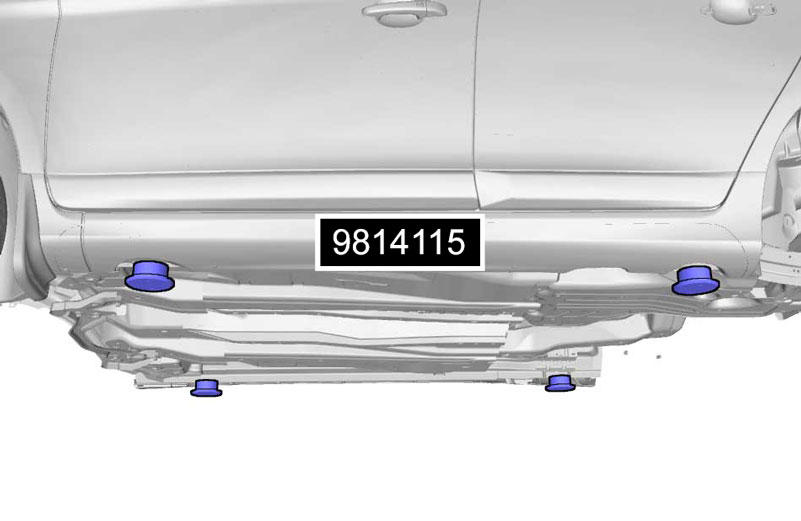

see 9814115

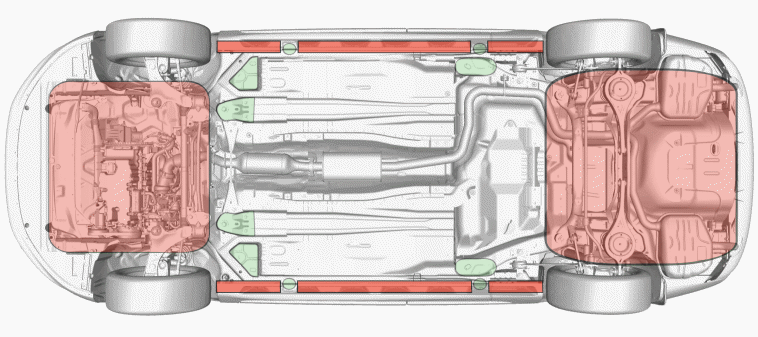

Fig 1: Vehicle Body Lift Points

Courtesy of VOLVO CARS CORPORATION

When lifting the vehicle, use the green-marked lifting points in the illustration above. The lifting plate shall be provided with rubber so that the vehicle is not damaged.
