High Level Stop Lamp

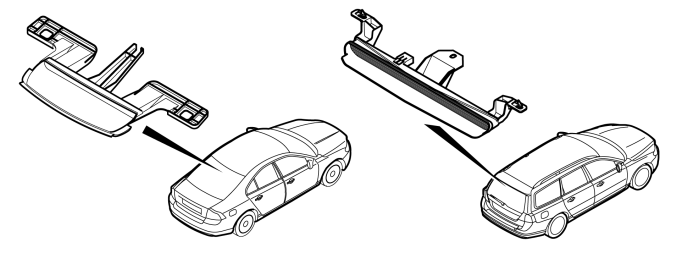

Fig 1: Identifying High Level Stop Lamp

Courtesy of VOLVO CARS CORPORATION

A high-mounted brake light is mounted at the top edge of the rear window. This light comes on together with the standard brake lights during braking. It is activated when the brake light switch on the brake pedal is closed.

The high level stop lamp is powered directly from the central electronic module (CEM). The lamp consists of a number of LEDs.

There are diagnostics for the high level stop lamp.
