Cargo Compartment Lighting

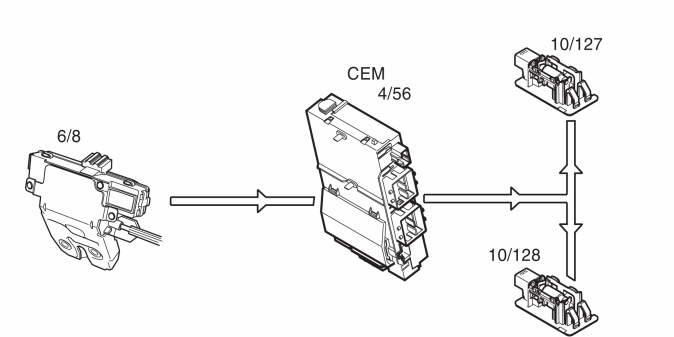

Fig 1: Identifying Cargo Compartment Lighting

Courtesy of VOLVO CARS CORPORATION

Cargo compartment lighting is activated when the trunk lid is opened. When the trunk lid is opened, the switch in the lock unit (6/8) is activated.

The lamps (10/127-128) are supplied power by the central electronic module (CEM) (4/56) via an internal interior lighting relay.
